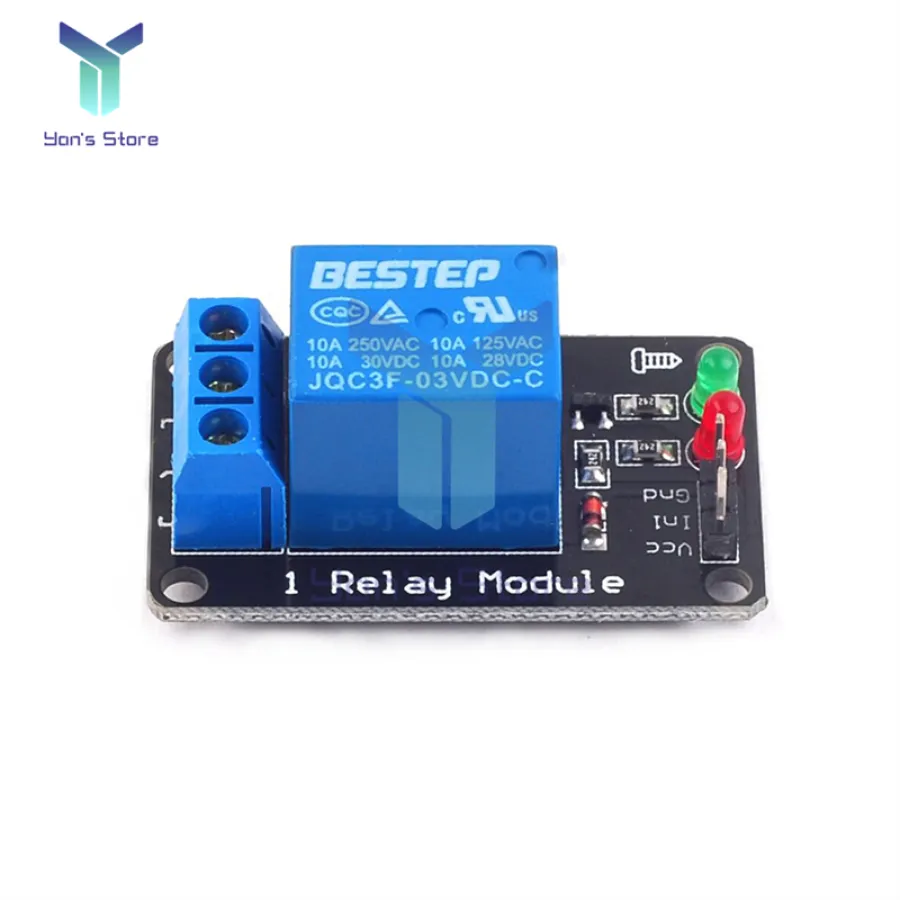

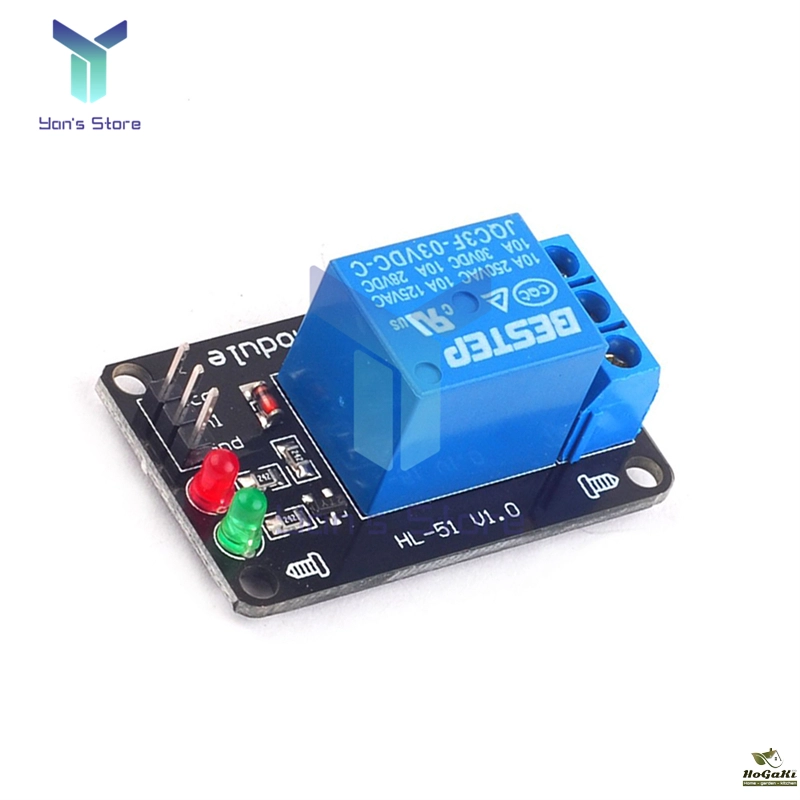

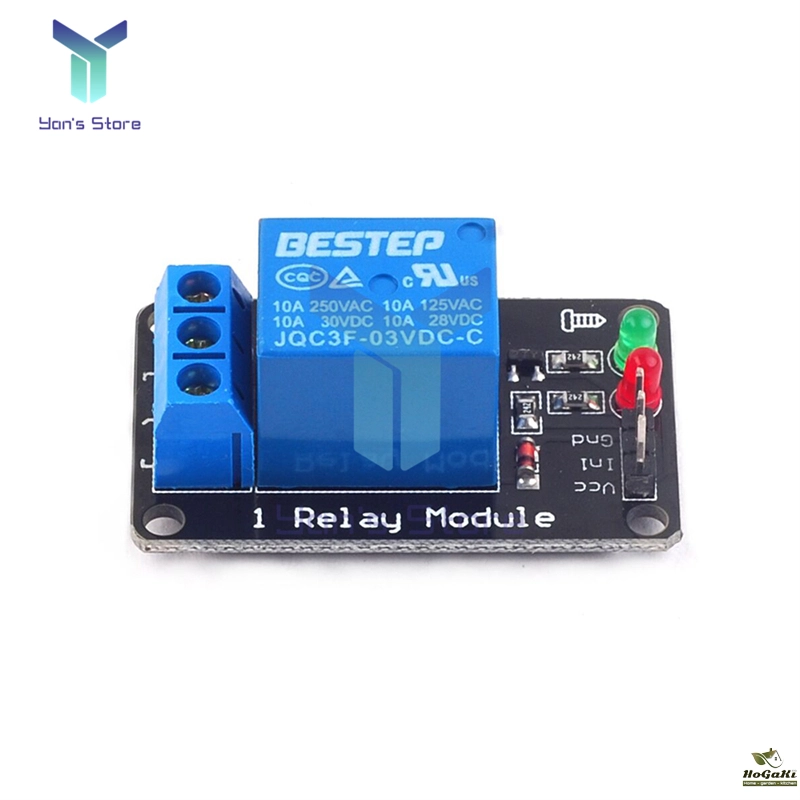

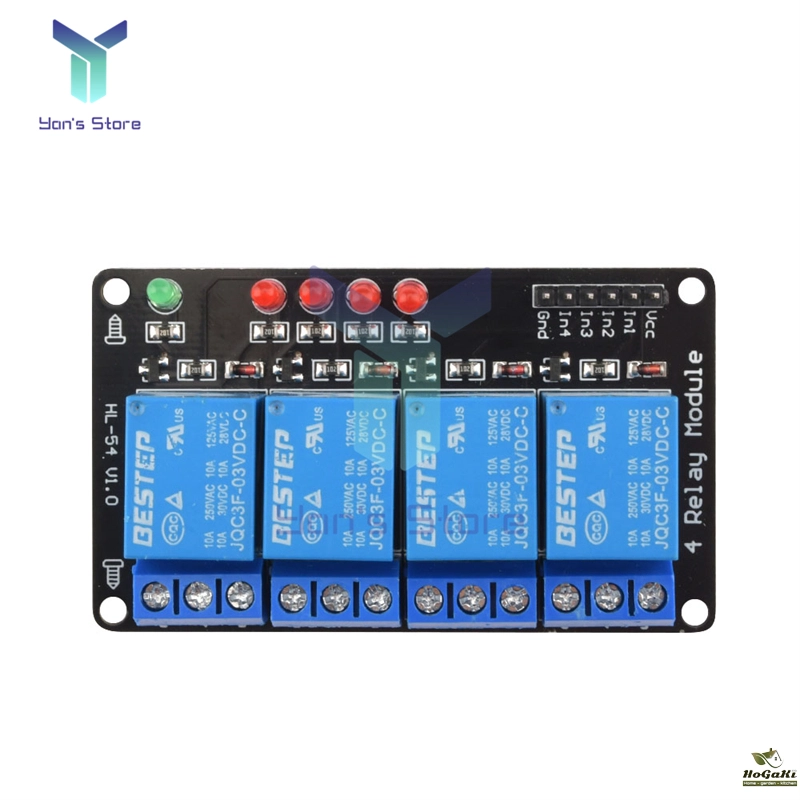

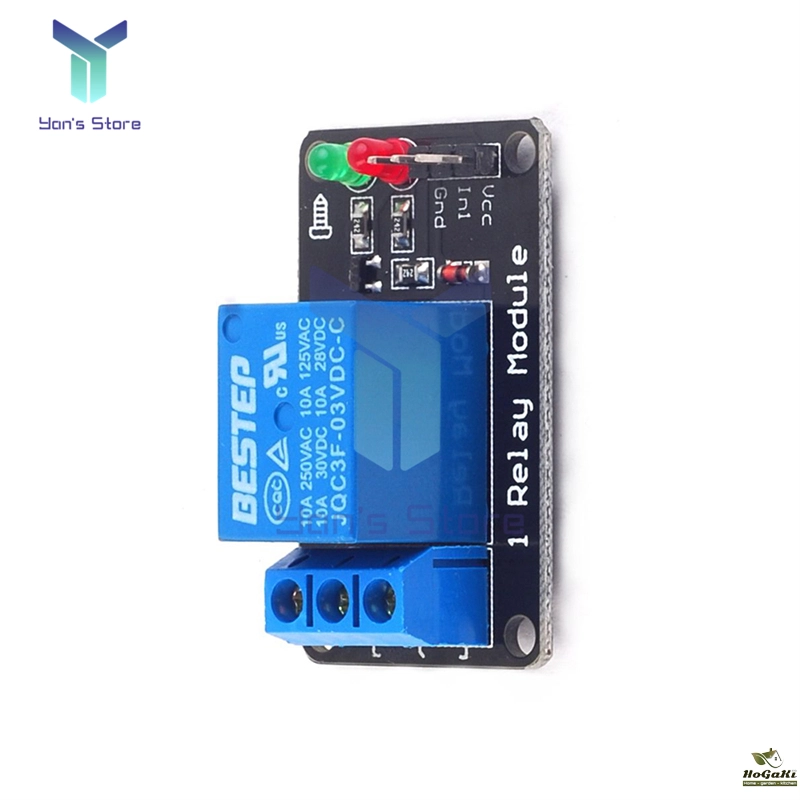

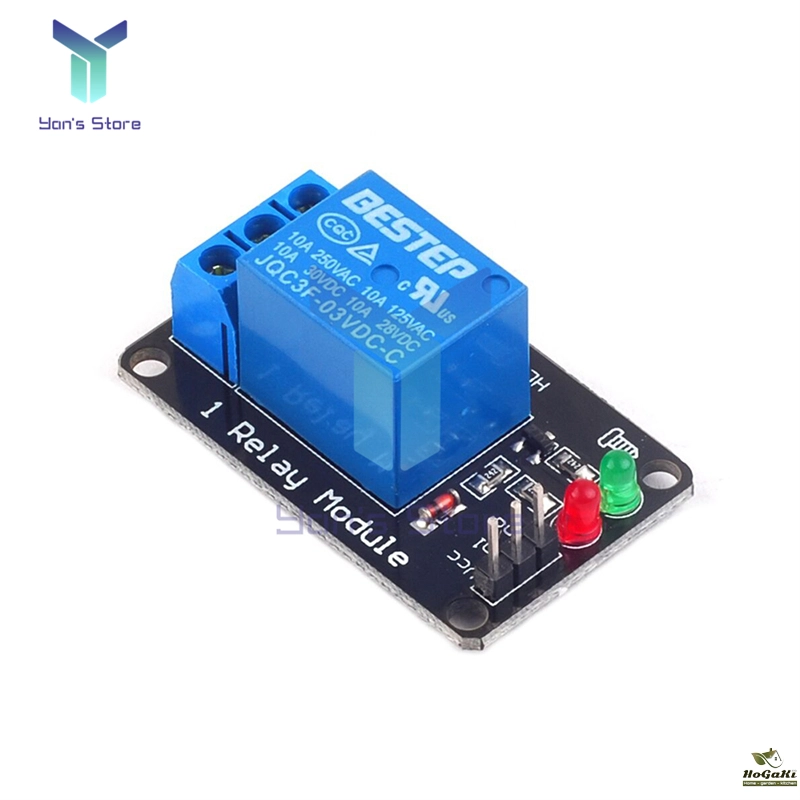

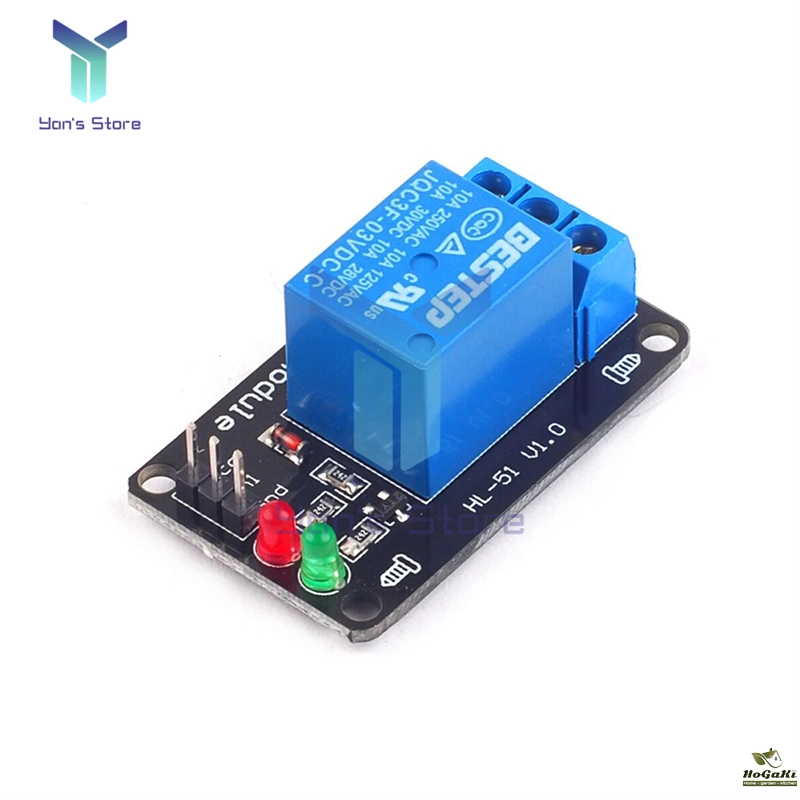

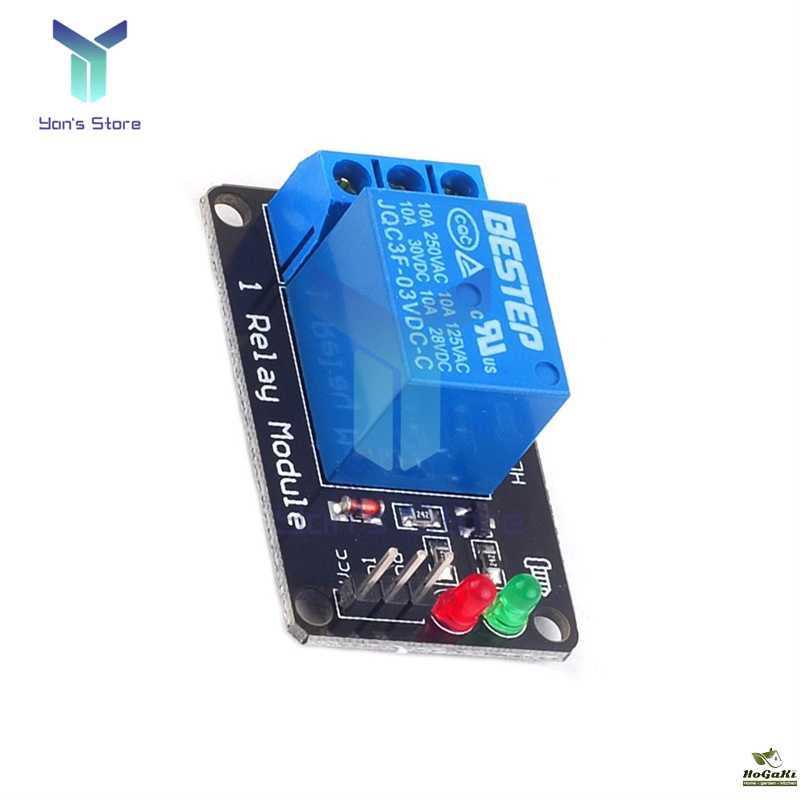

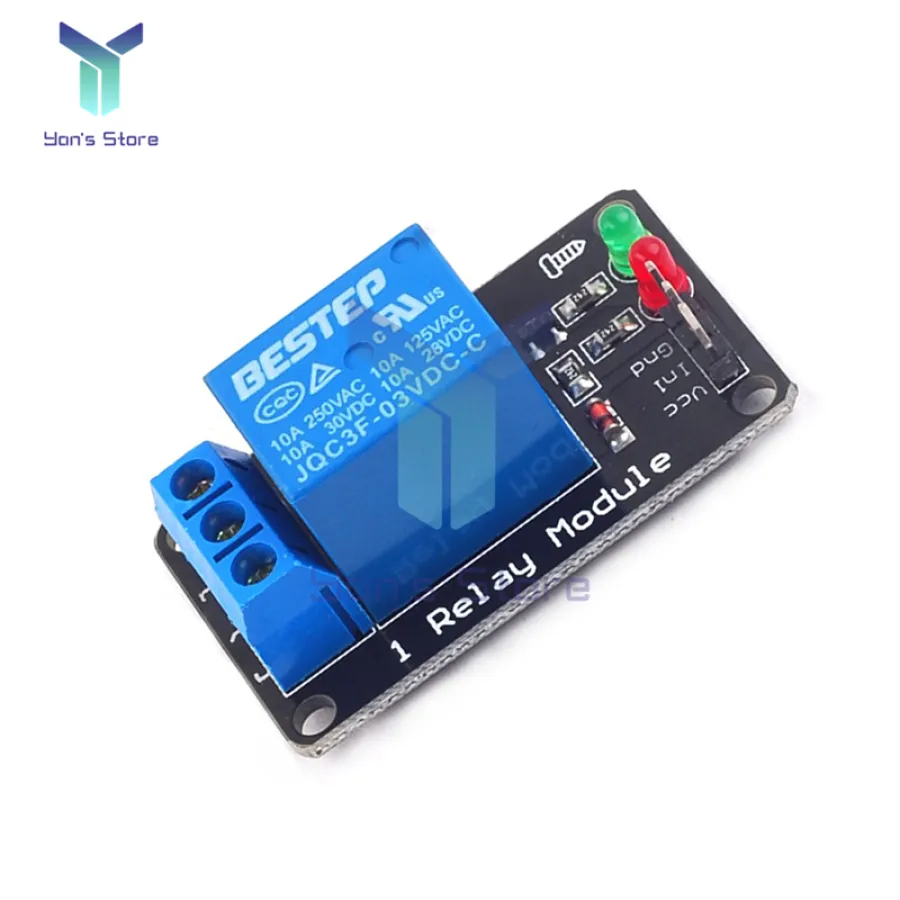

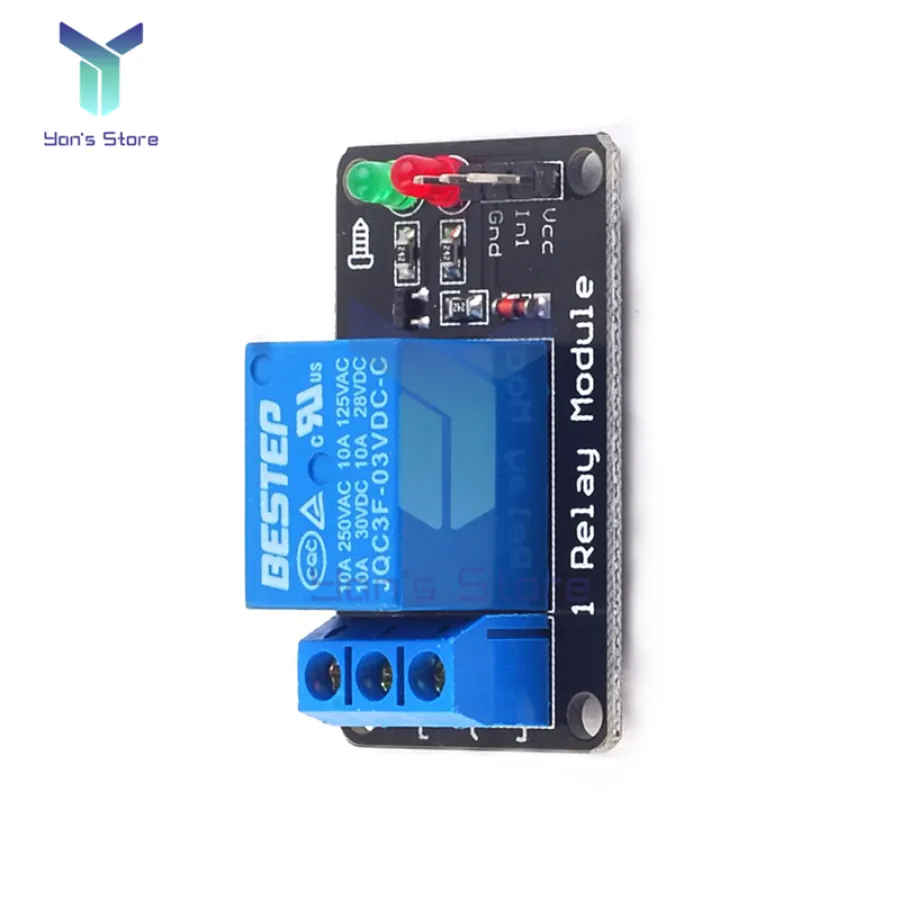

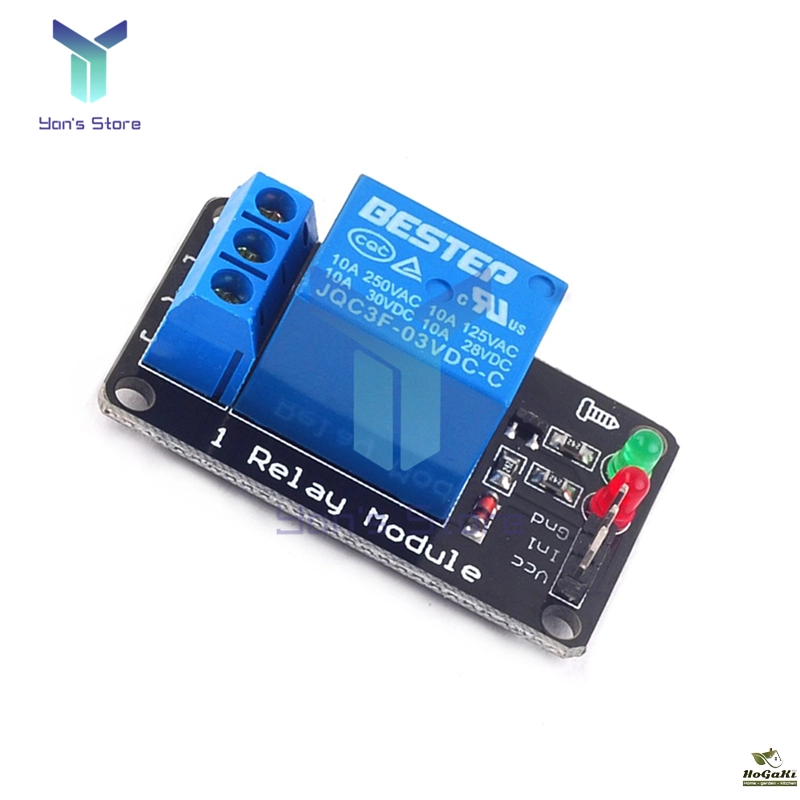

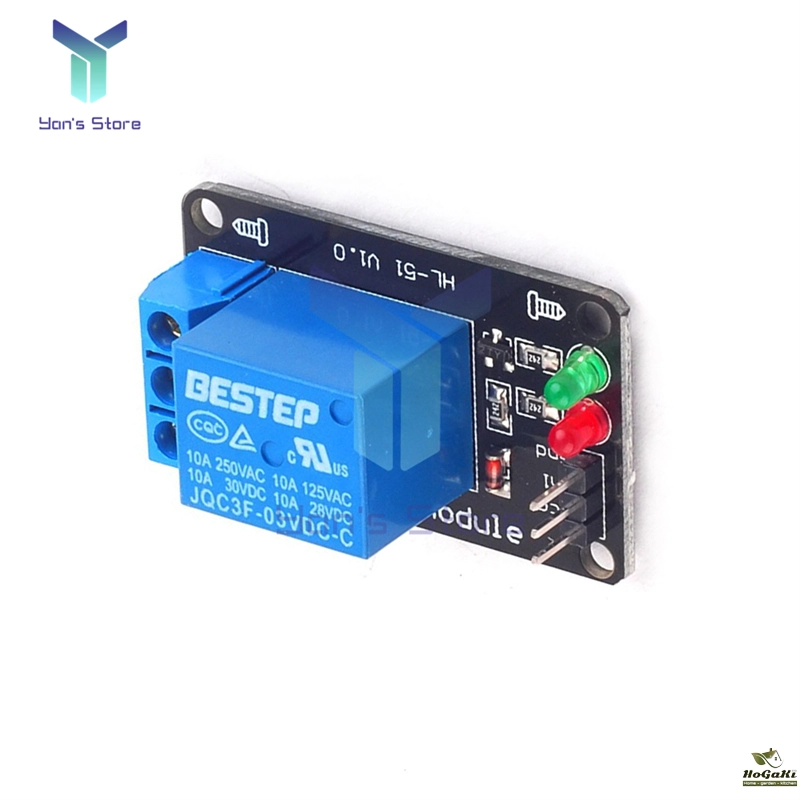

3V 3.3V 1/2/4 Channel Relay Module Low Level Trigger Liluminated Relay with Lamp Relay Output 4 way Relay Module for Arduino
4.9 (88 votes) | 1000 orders
Price:
US $11.44 - 12.50
Discount Price:
US $
9.95 -
12.27
-13%
- Size
-
-
Product selling points:
1. The module is controlled by relay, with maximum AC voltage of 250V, maximum AC current of 10a, maximum DC voltage of 30V and maximum DC current of 10A;
2. It is driven by 8550 triode, with strong driving ability;
3. Fixed bolt holes are provided for easy installation
4. Power indicator (green), relay status indicator (red)
5. The blue kf301 wiring terminal makes it more convenient to connect the control line.
Instructions:
1 VCC external 3V
2 GND external GND
3 1n relay control interface is connected to IO port of single chip microcomputer (low level is effective)
Detailed list:
Relay module x1
Packaging Details
- Unit Type:
- Package Weight: 0.060
- Package Size: 5x5x5

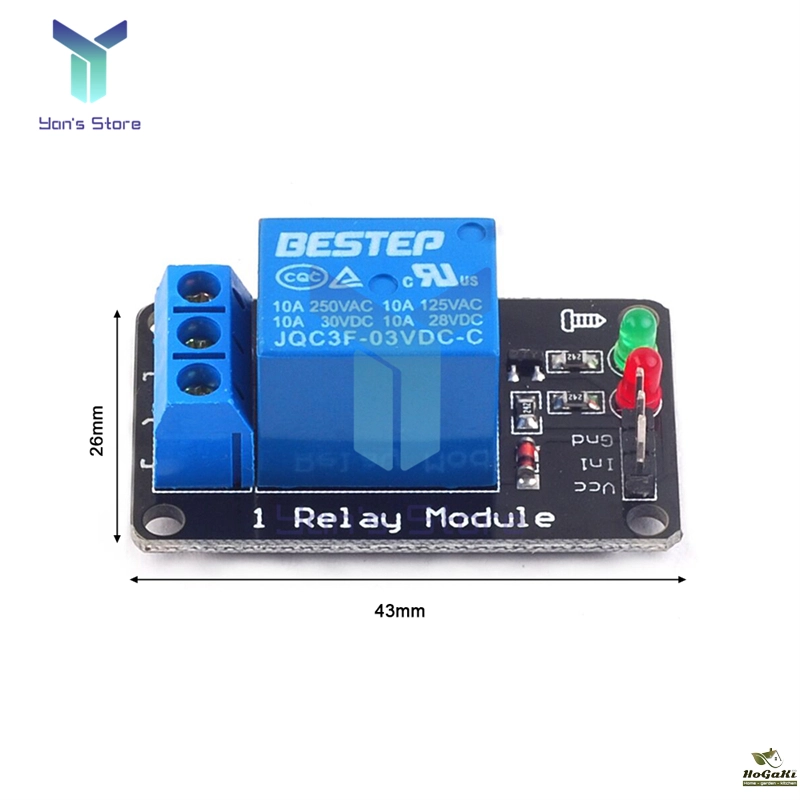

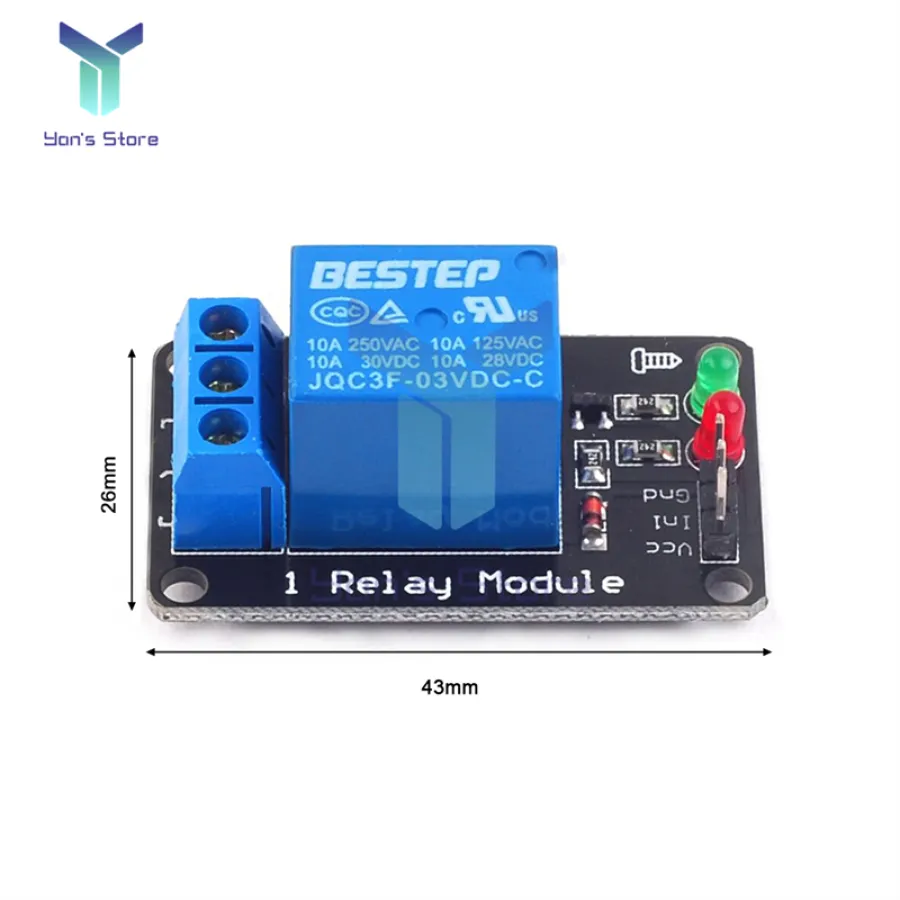

- Size: 7.40 x 4.40 x 2.00/ 4.30 x 2.60 x 2.00/ 4.30 x 4.20 x 2.00CM
- Type1: Low Level Trigger Relay Module
- Type2: 1 Channel Relay Module

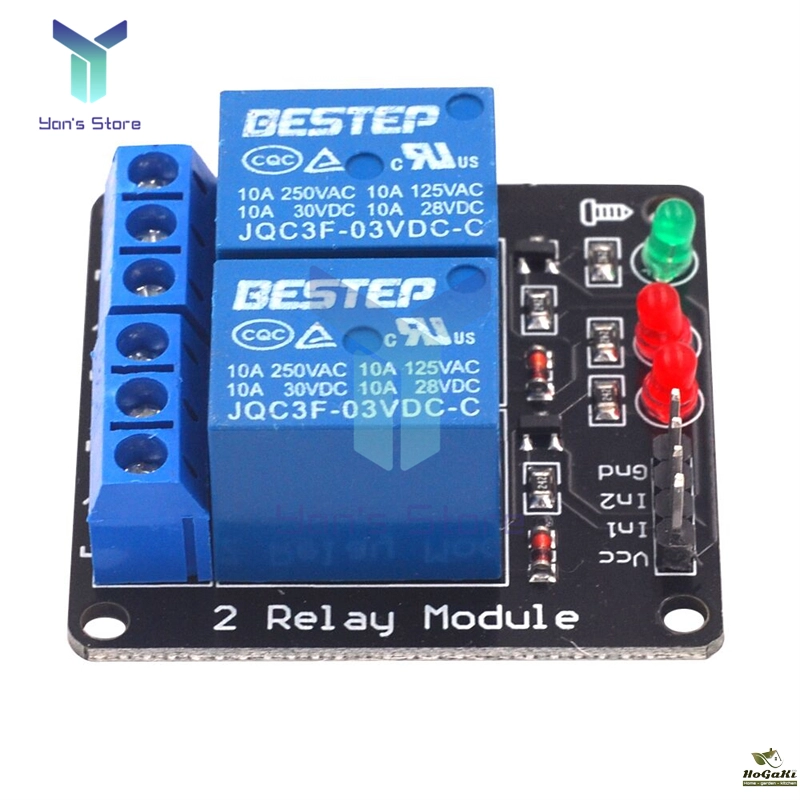

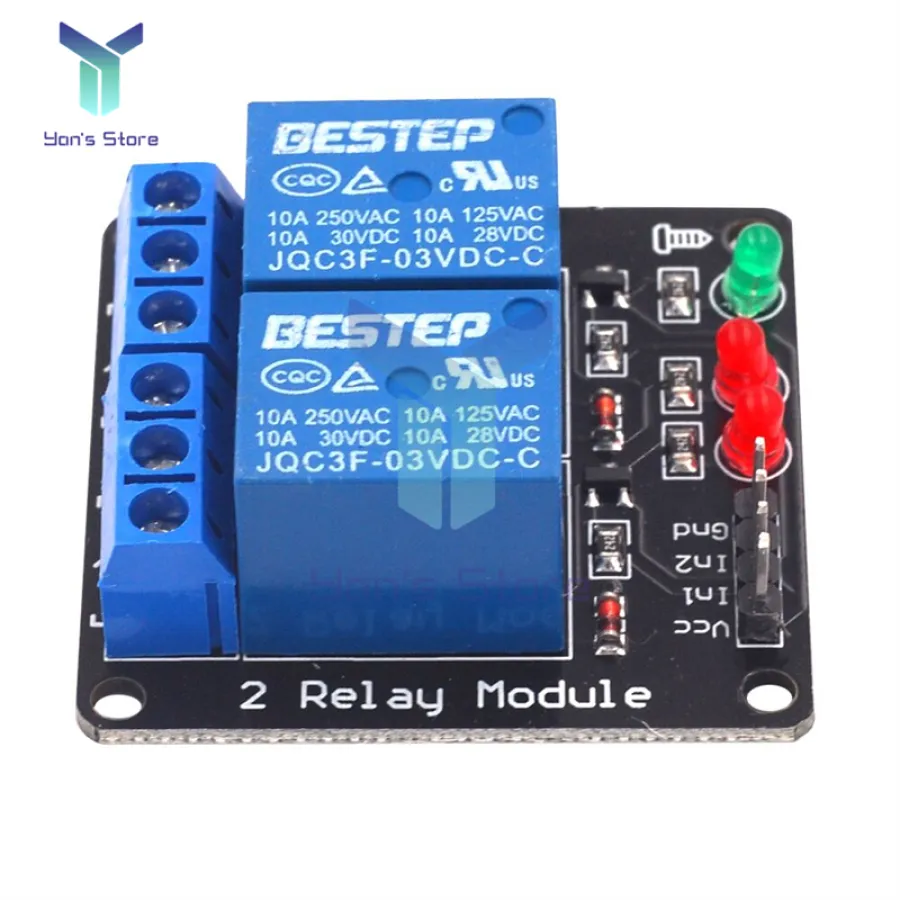

- Type3: 2 Channel Relay Module

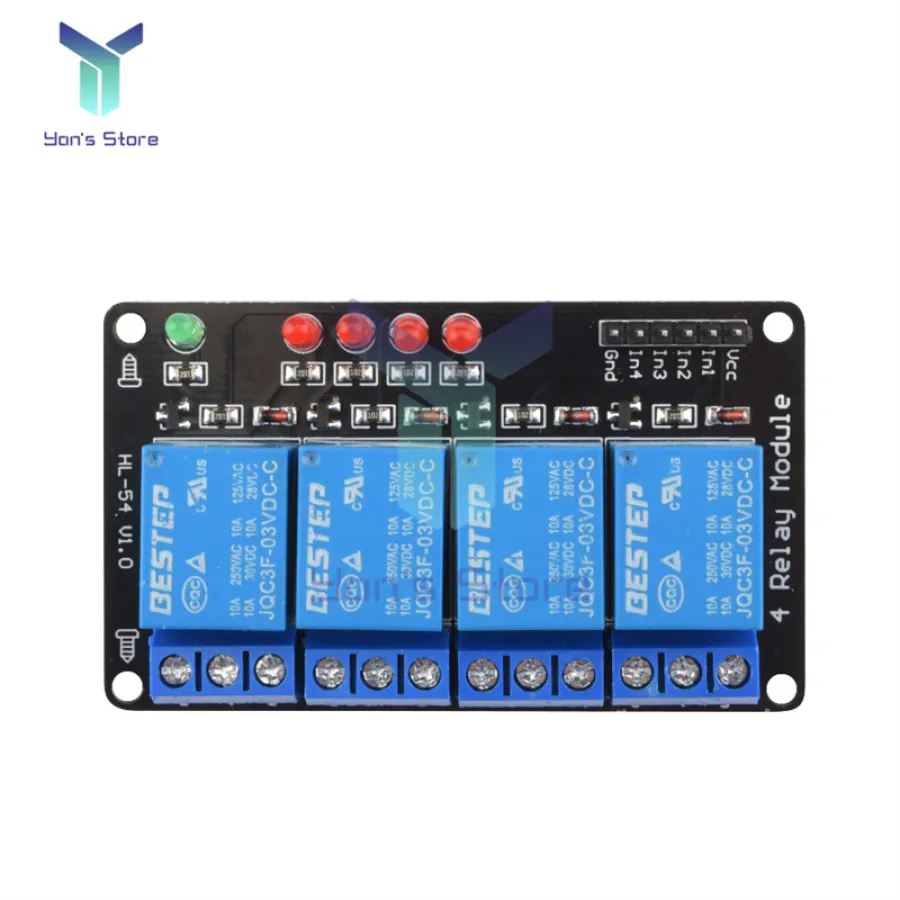

- Type4: 4 Channel Relay Module
- Brand Name: Aideepen
- Voltage: 3V
- Model Number: 3V 1-channel 2-channel 4-channel relay module
- Theory: Solid State Relay
- Protect Feature: Sealed
- Use: General Purpose
- Contact Load: Low Power
- Origin: Mainland China
- is_customized: Yes
- Certification: None
- Choice: yes
- semi_Choice: yes
