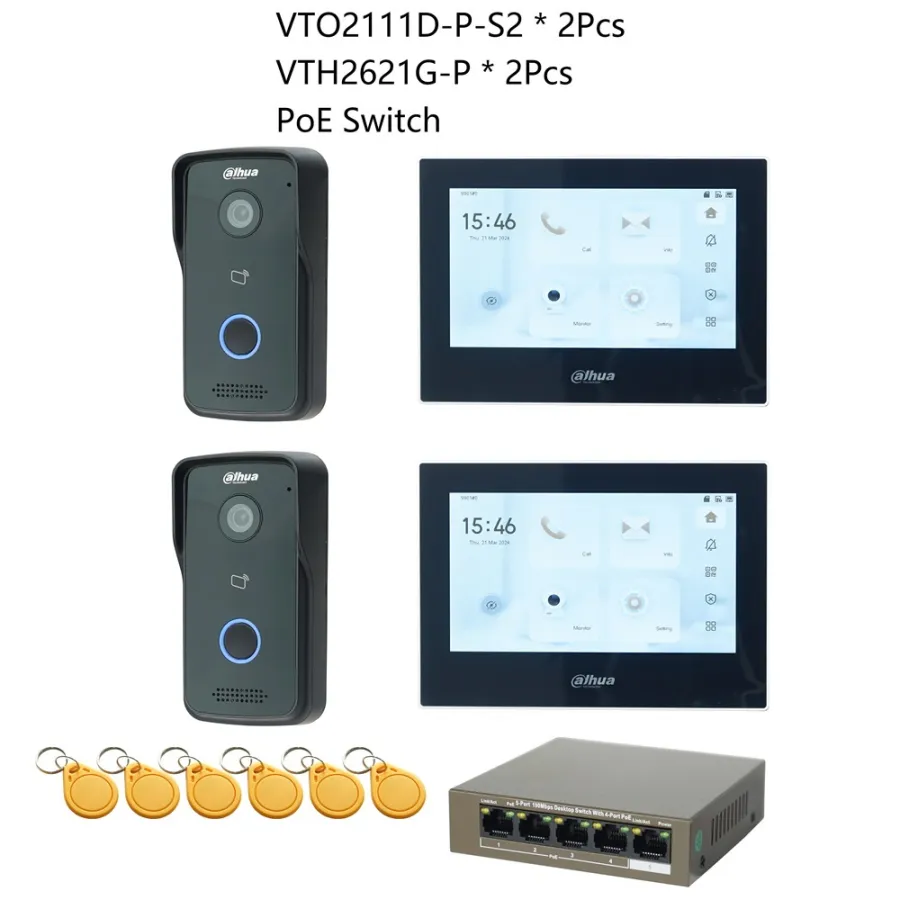

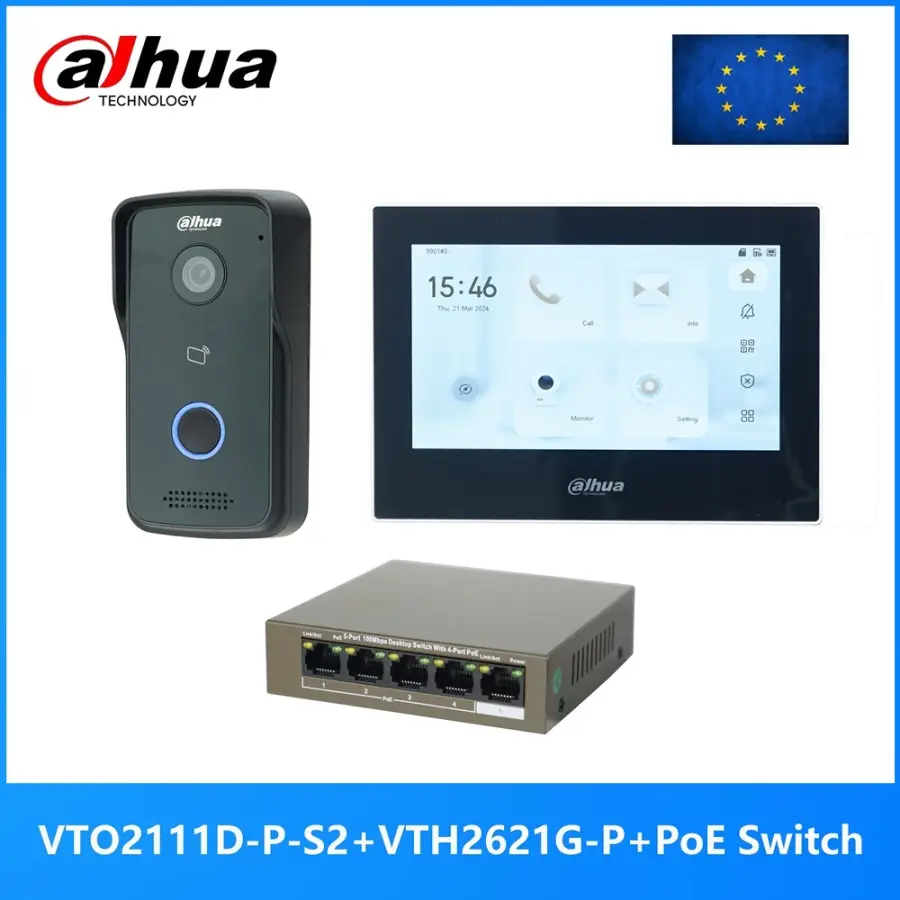

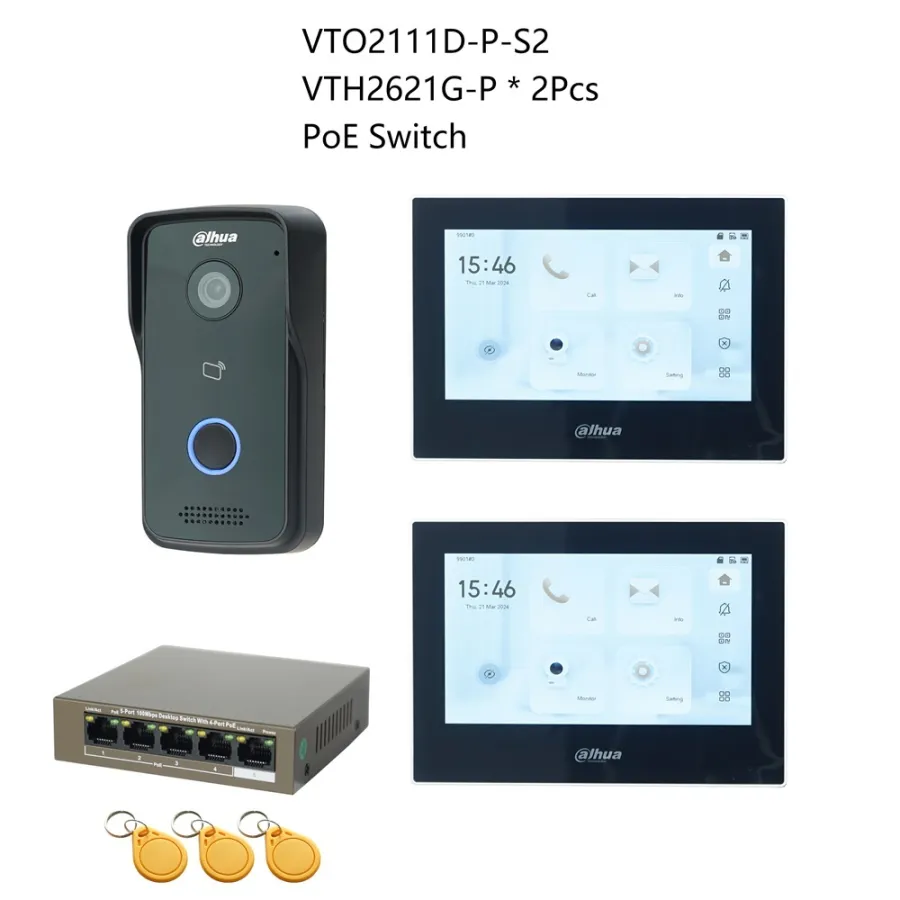

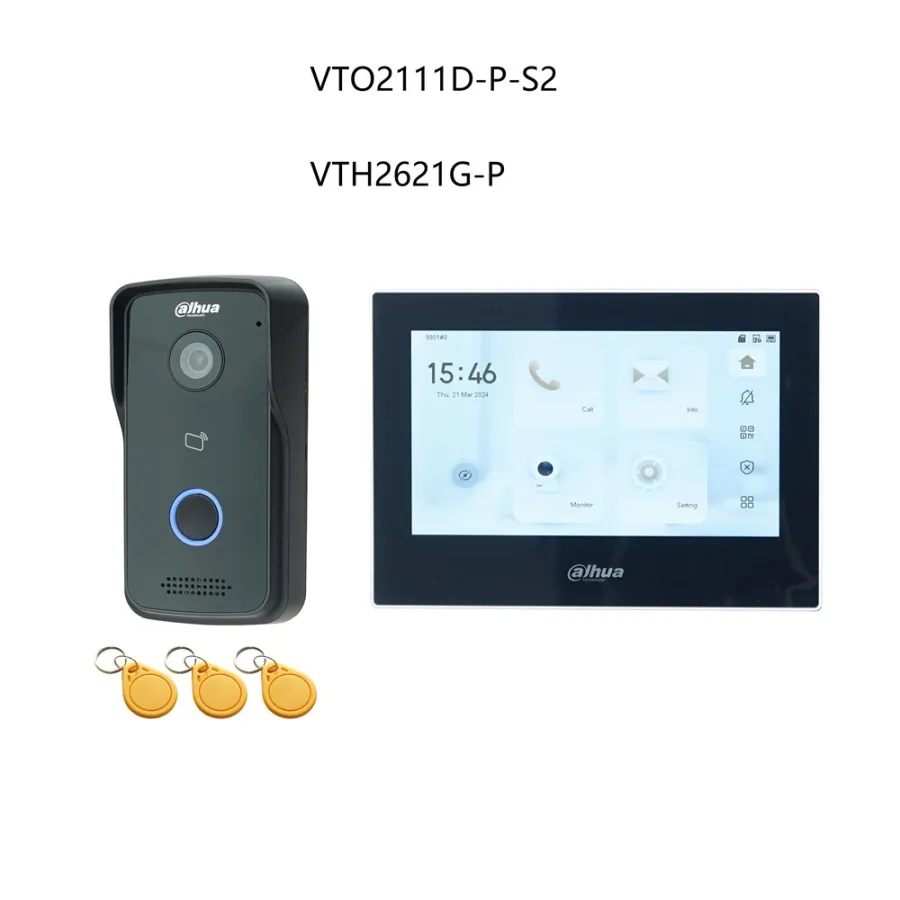

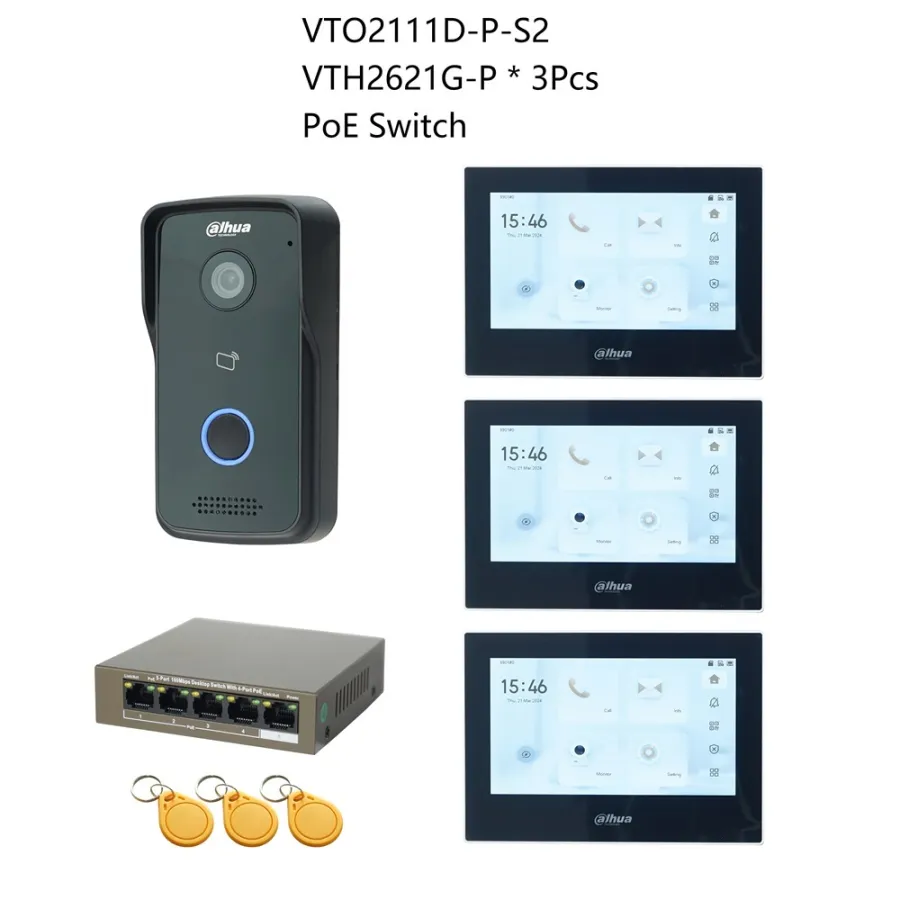

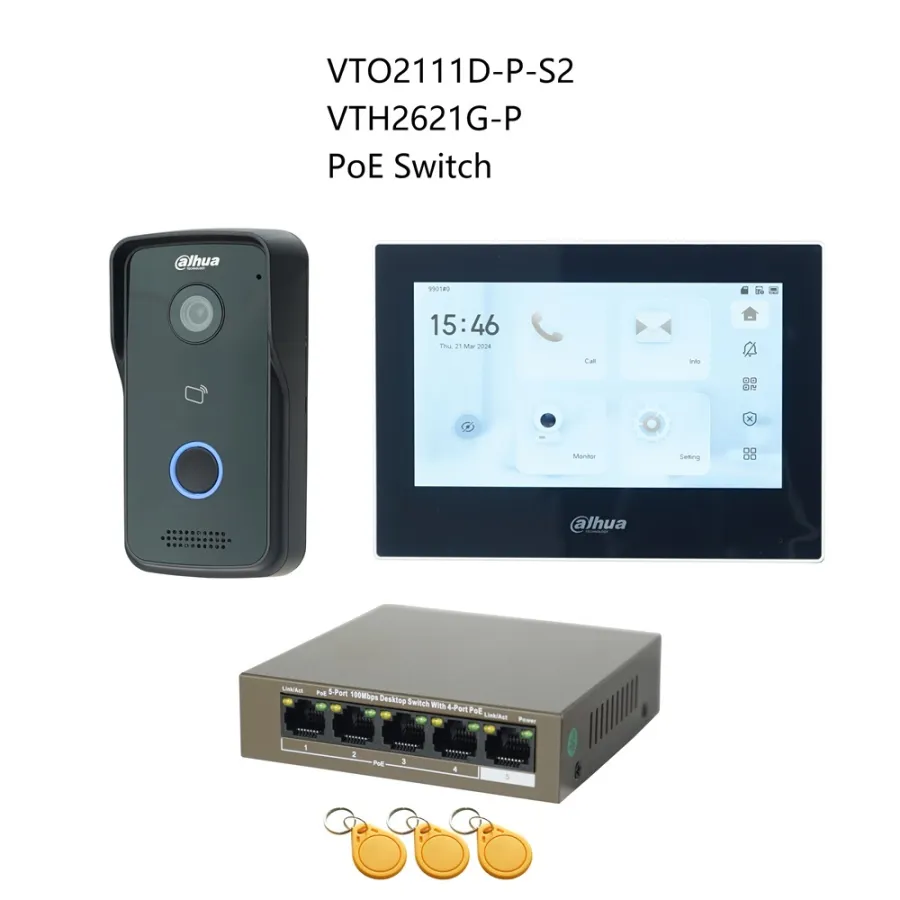

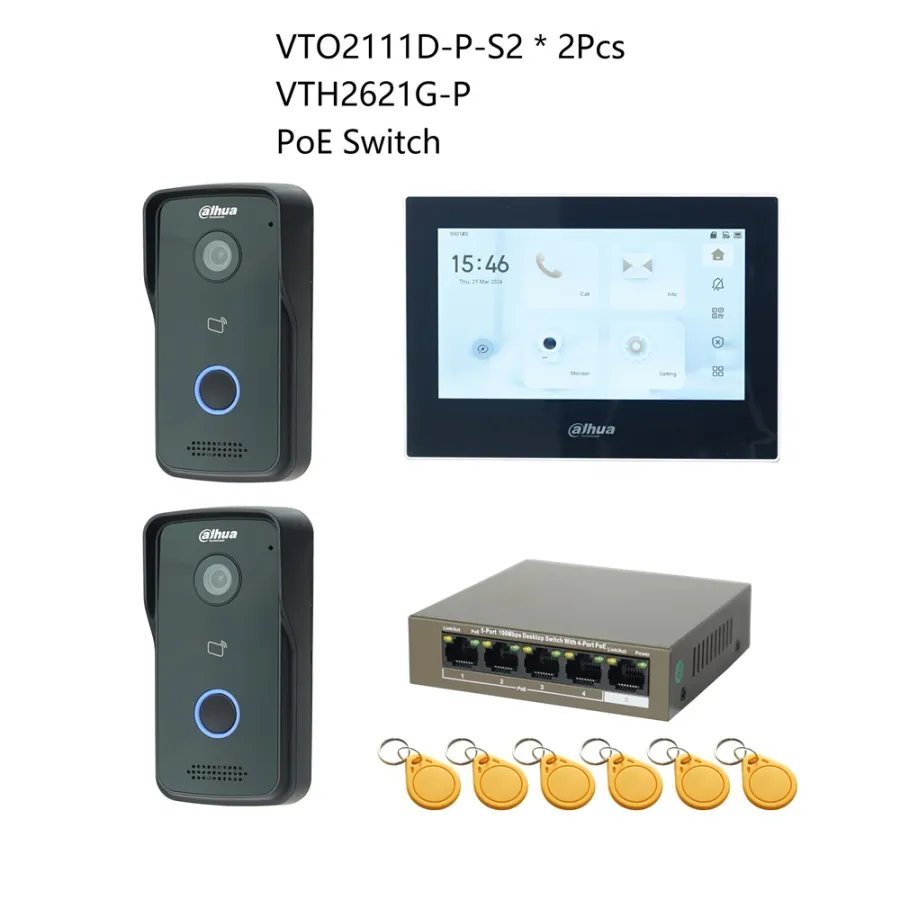

Dahua Multi-Language IP Video Intercom KIT,VTO2111D-P-S2 & VTH2621G-P & PoE switch,support SIP,RFID Card Unlock
5.0 (1 votes) | 3 orders
Price:
US $
507.68 -
1178.50
- Color
-
-
Important:
If you have any questions about EU Tax, Please chat with me
Phone app: DMSS
The Doorbell can work with the Indoor monitor.
One button doorbell supports Max up call to 1 Indoor main monitor and 9 Indoor extended monitors.
The doorbell also can be used alone, can call to the phone app directly.

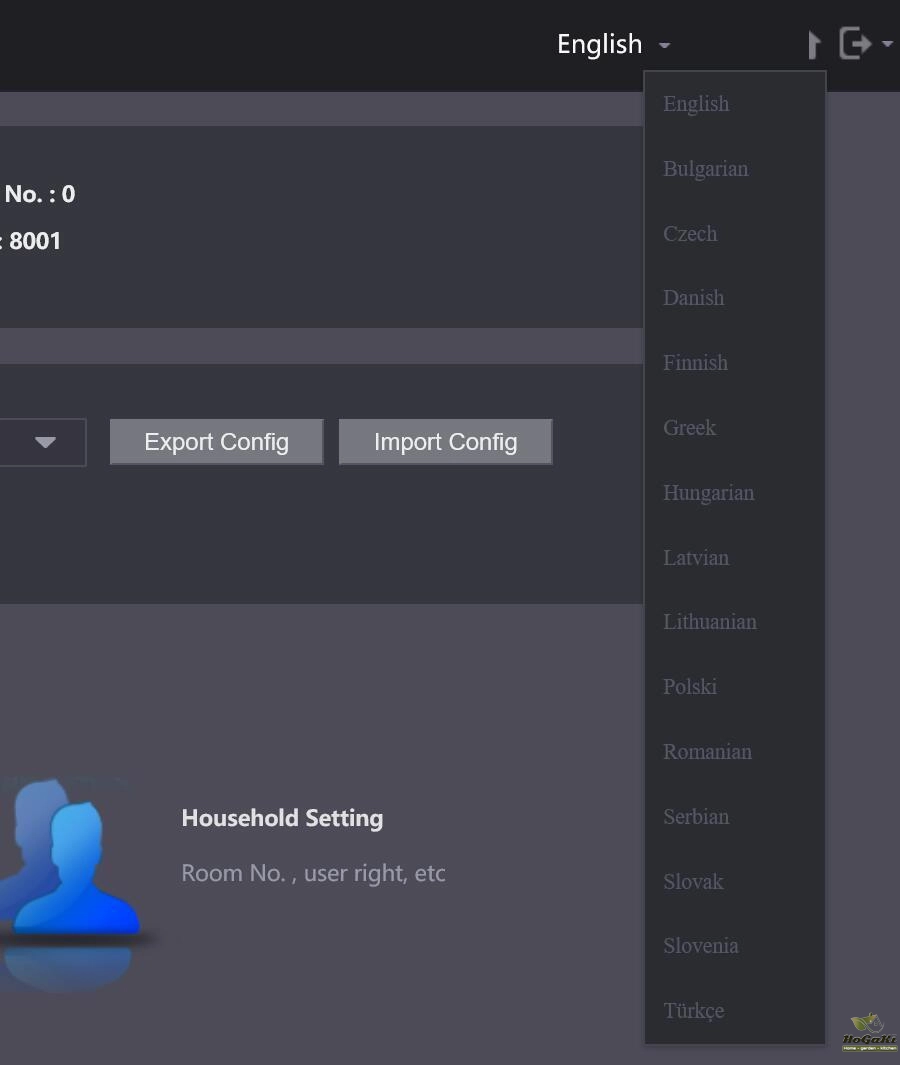

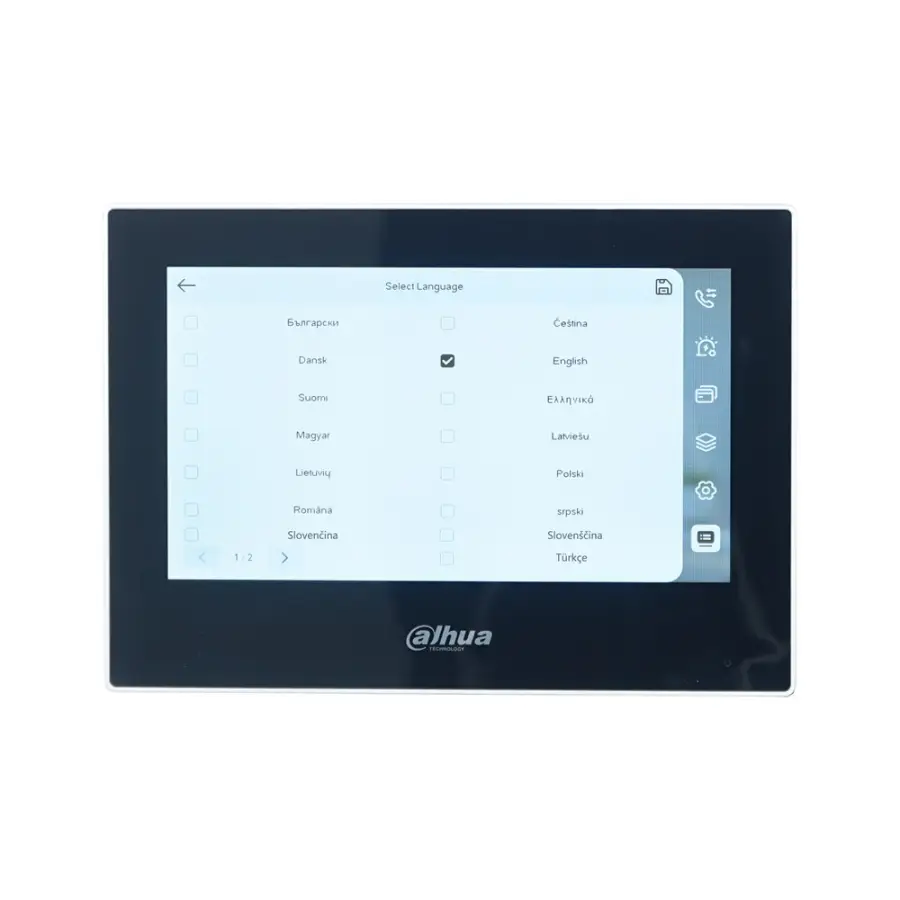

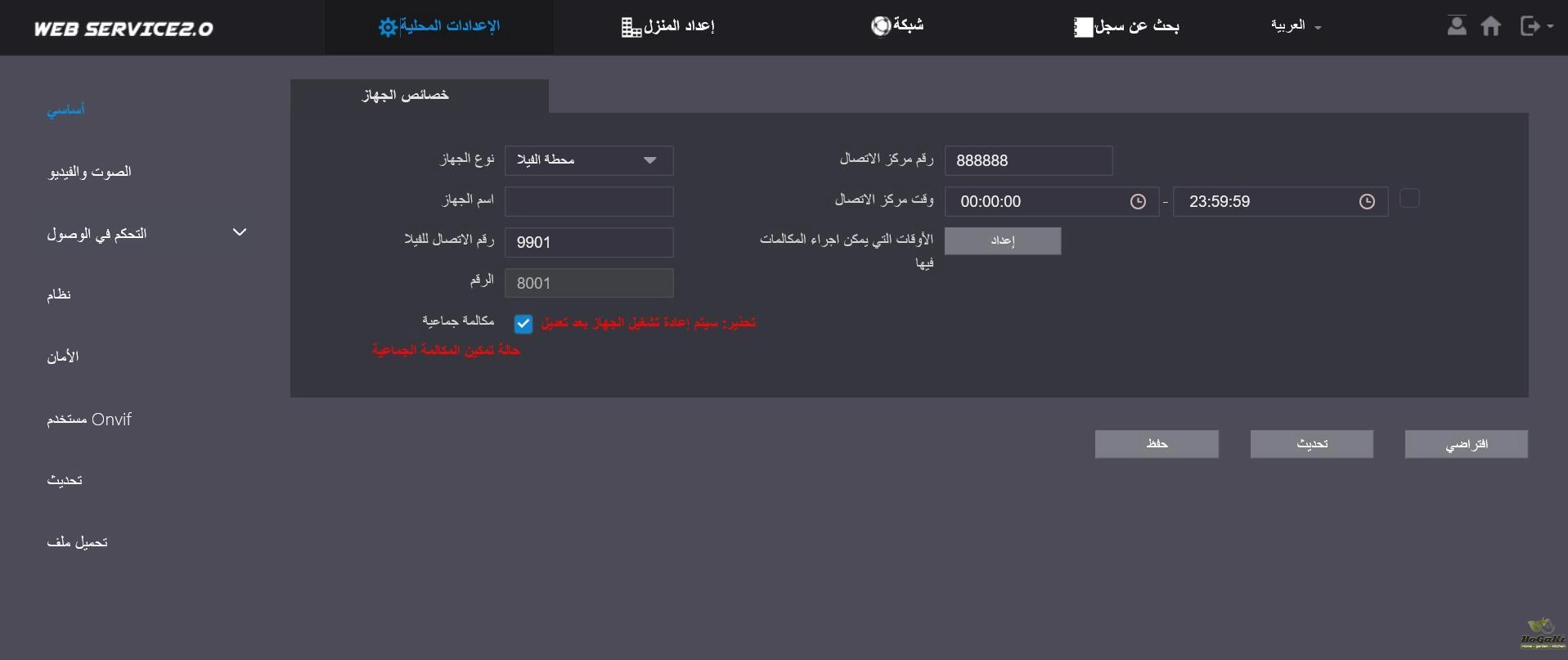

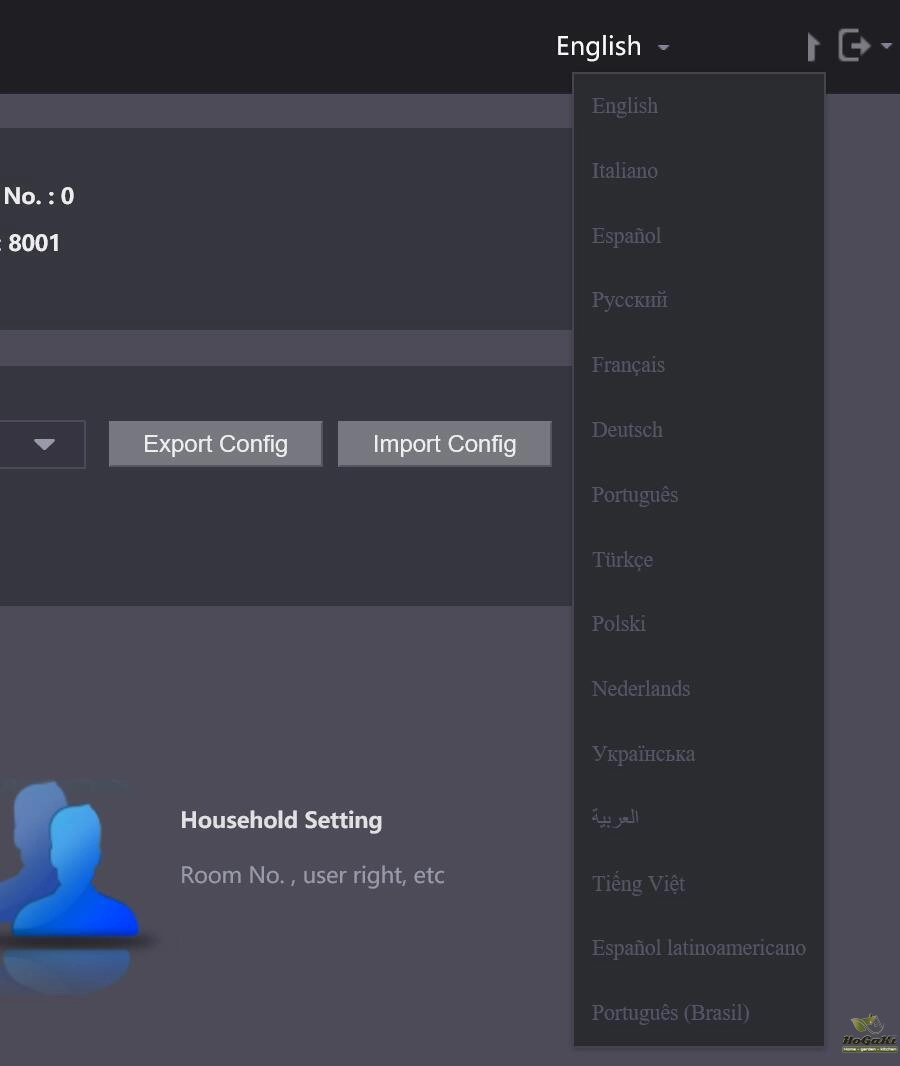

Support Language:
English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);

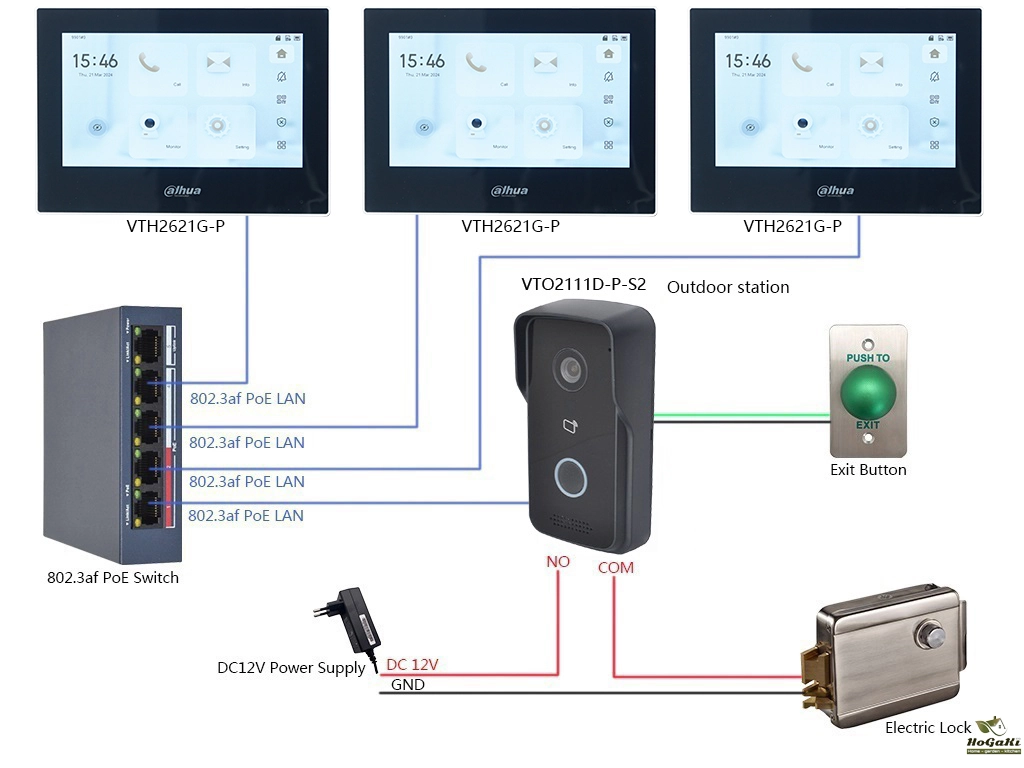

Scenes 1 :Work with 802.3af PoE monitor

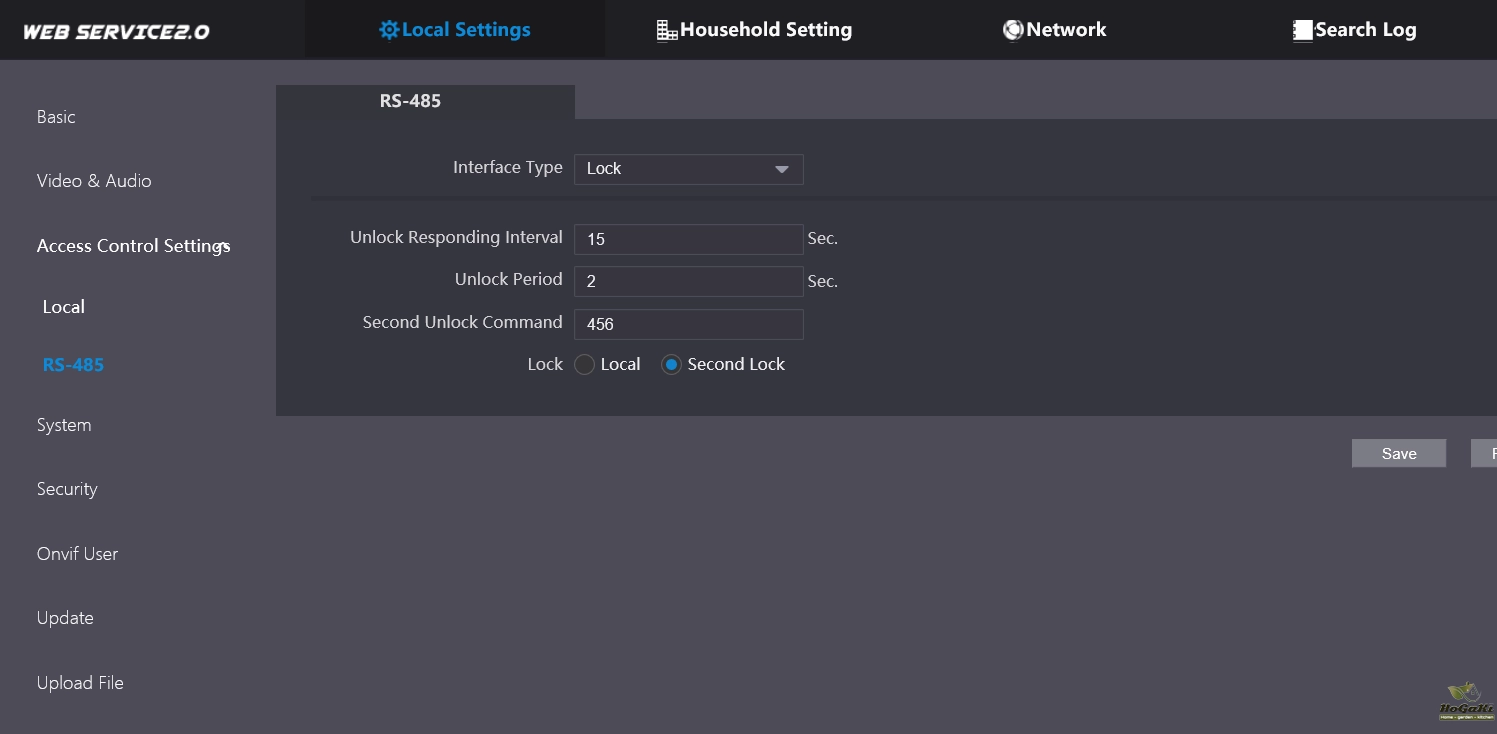

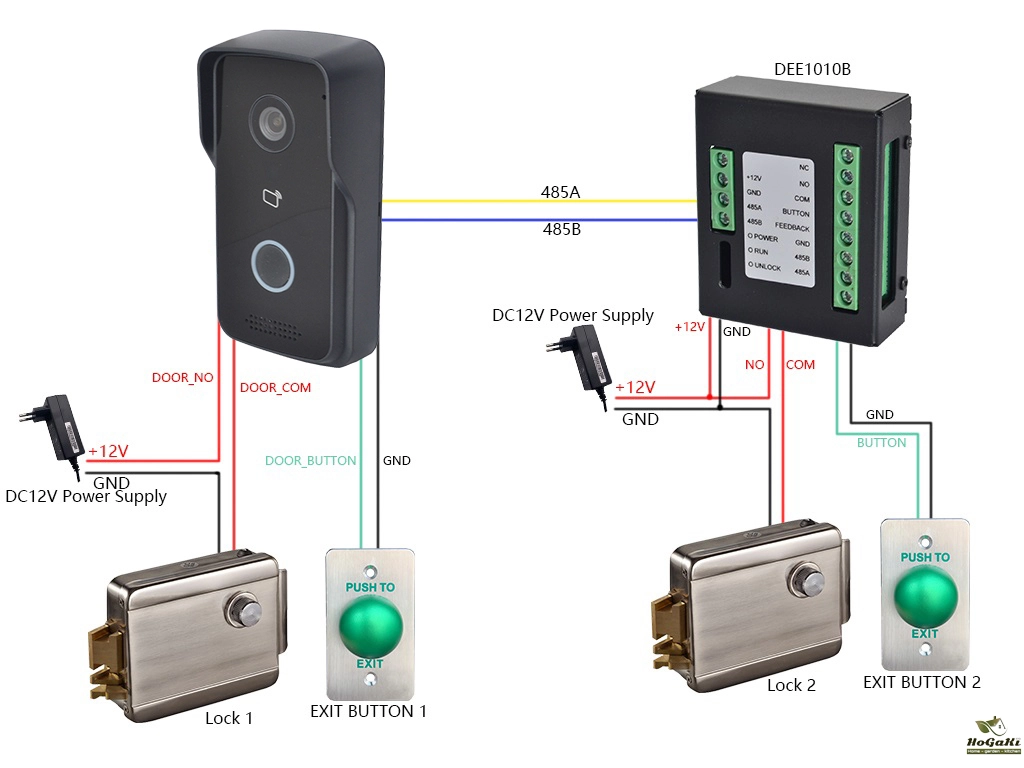

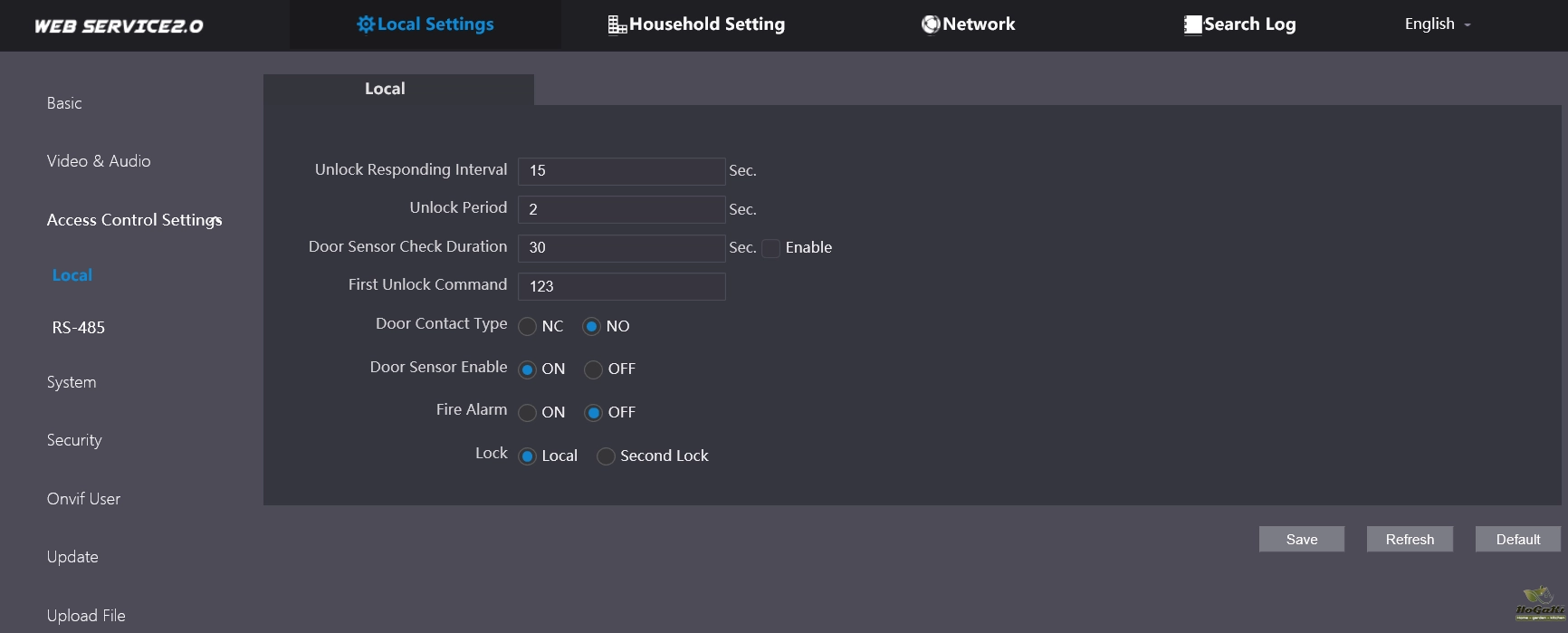

Use Access Control Extension Module(DEE1010B) to control two locks

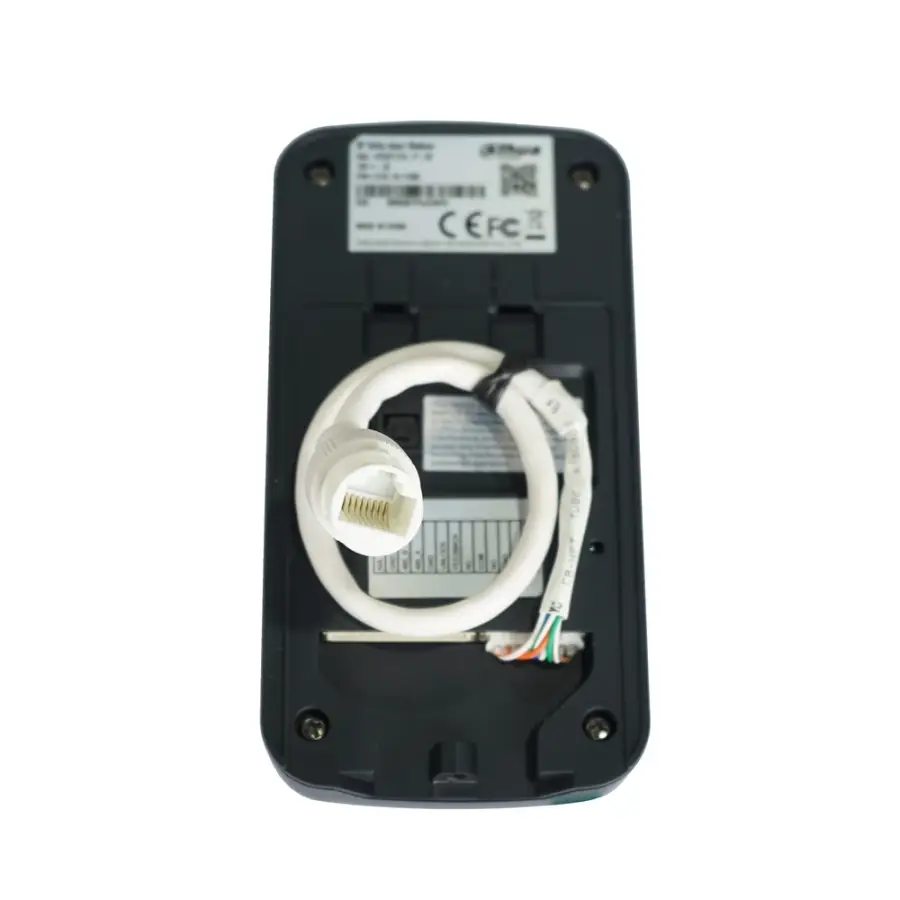

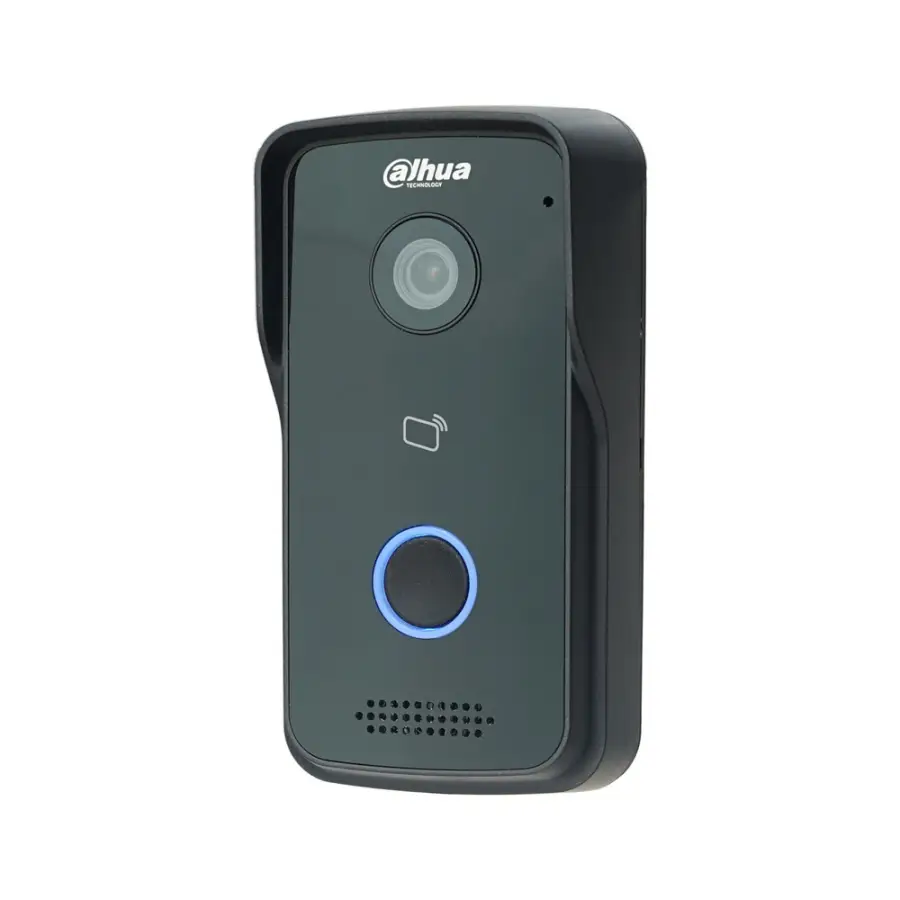

Door Station model:VTO2111D-P-S2
System | |
Main Processor | Embedded processor |
Operating System | Embedded LINUX operating system |
Button Type | Mechanical |

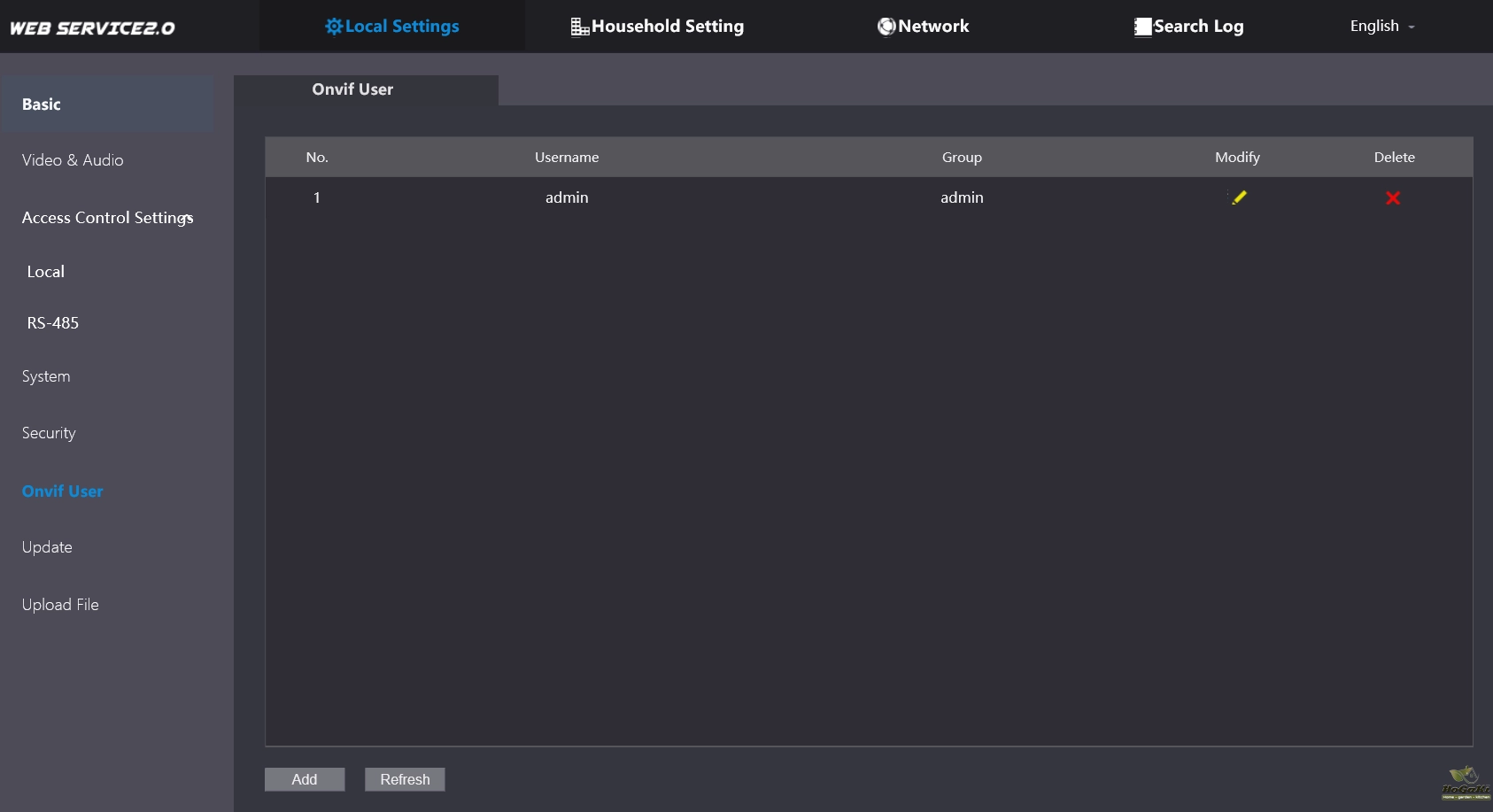

Interoperability | ONVIF |

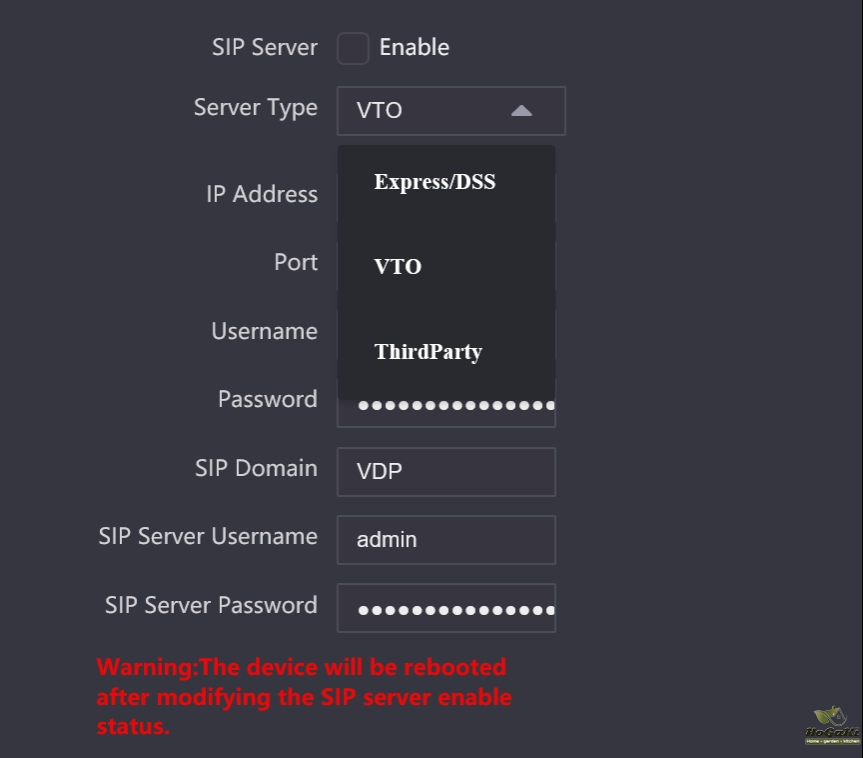

Internet Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
Baisc | |
Camera | 1/4" 1MP CMOS high definition, low illumination/WDR, color/IR |
Angle of View | Horizontal: 107°; vertical: 61°; diagonal: 122° |
WDR | Yes |
Noise Reduction | 3D noise reduction |
Video Compression | H.264 |
Video Resolution | Main stream: WVGA, 720P, D1 |
Sub stream: CIF, WVGA, QVGA, 1080P, D1 | |
Frame Rate | PAL: 25 fps NTSC: 30 fps |
Video Bit Rate | 256K to 4M |
Light Compensation | Auto IR |
D/N | ICR auto switch |
Audio Compression | G.711a; PCM; AAC |
Audio Input | 1 |
Audio Output | Built-in speaker |
Audio Mode | Two-way voice call |
Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
Audio Bit Rate | 16KHz, 16Bit |
Function | |
Communication | Full digital |
Unlock Mode | Card/App remote/indoor monitor unlock |
Card Type | IC card |
Motion Detection | Video motion detection |
Auto Snapshot | Auto snapshot can only be enabled on indoor monitors |
SD card | Not support |
Leave Photos and Messages | Yes (an SD card must be inserted in the VTH) |

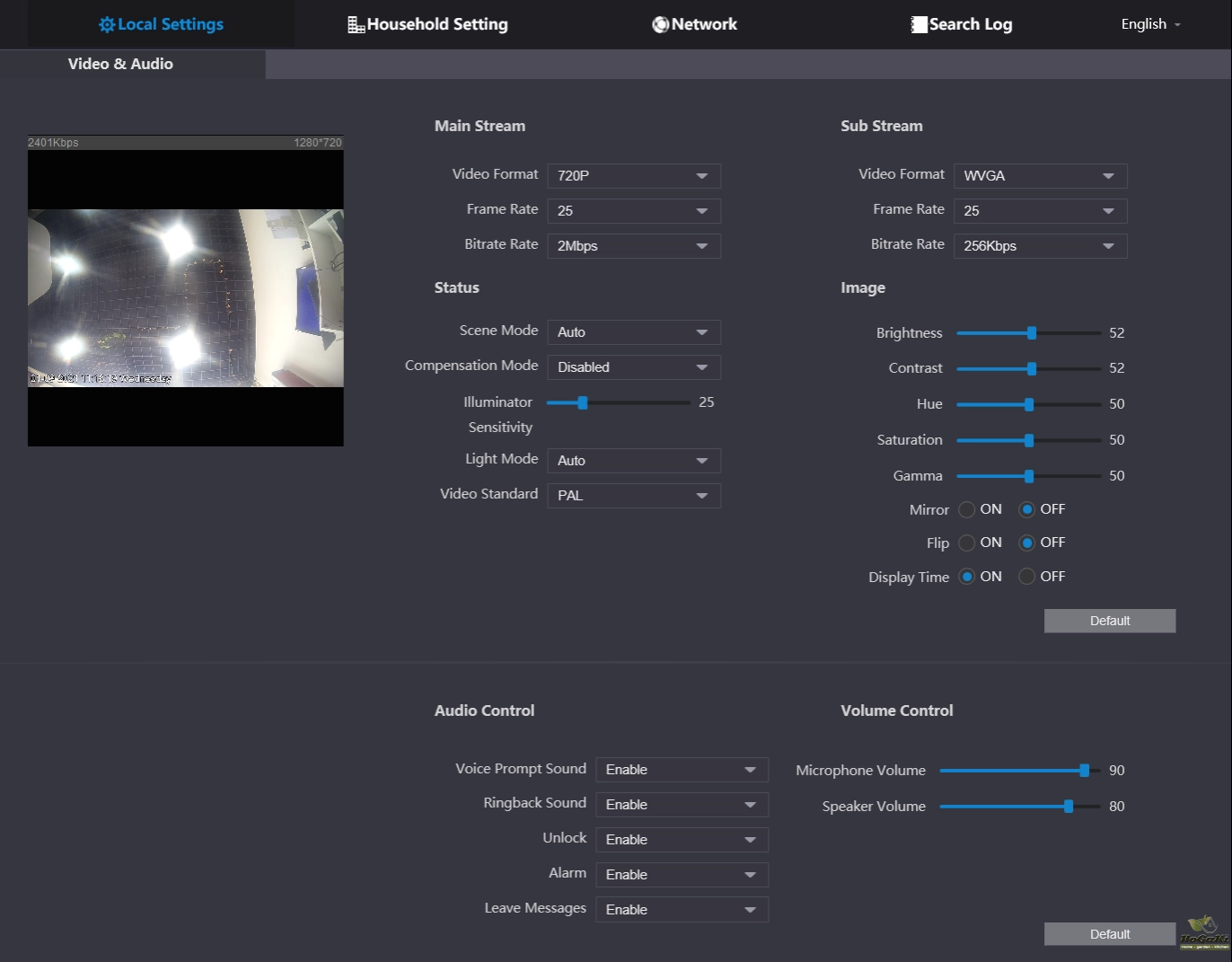

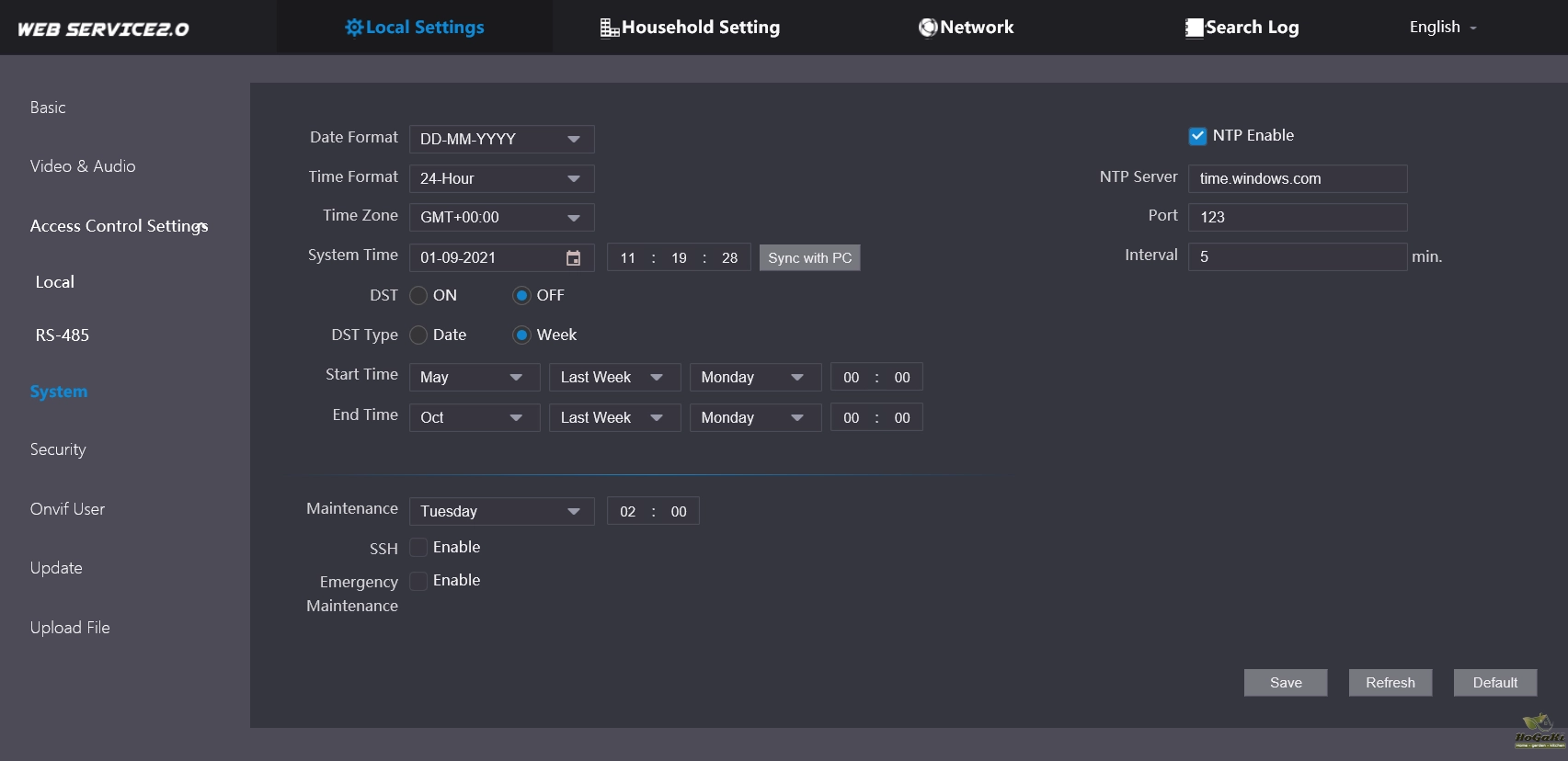

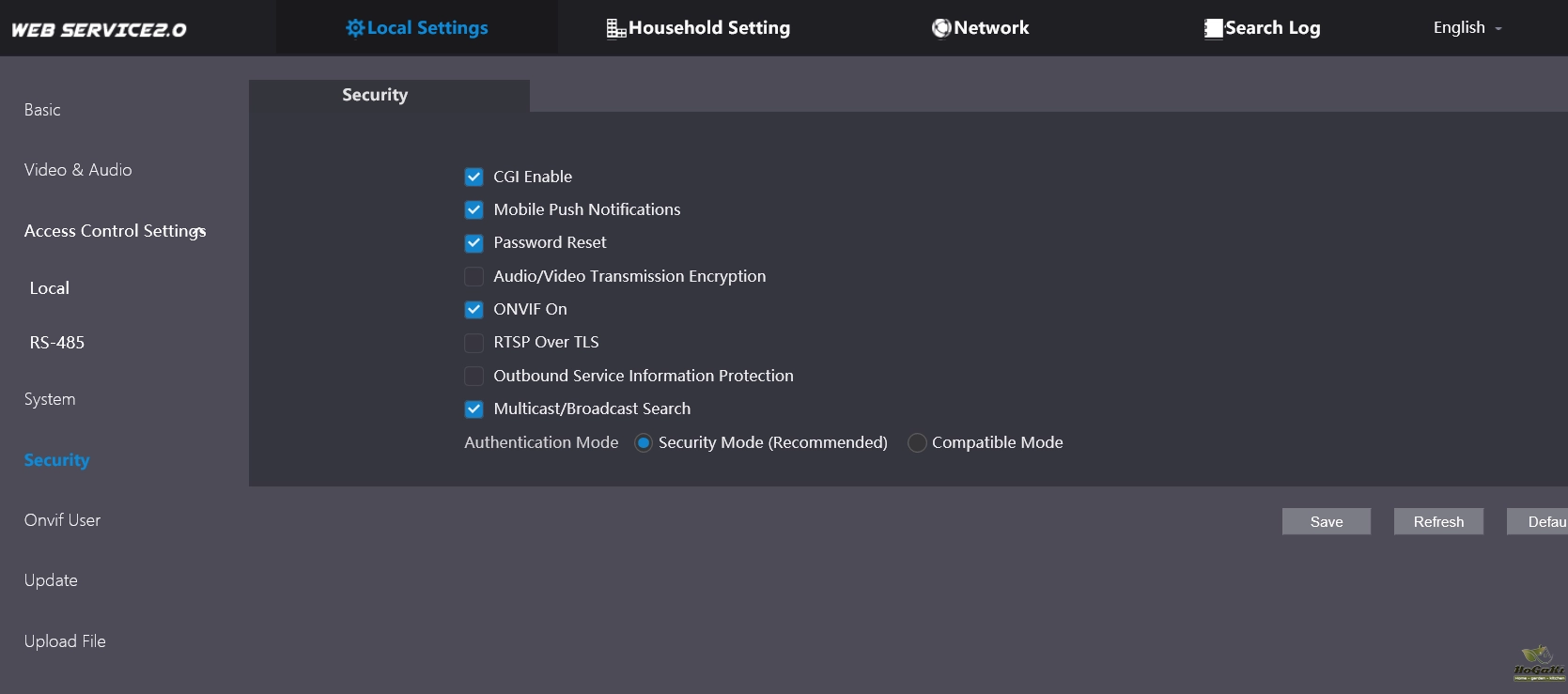

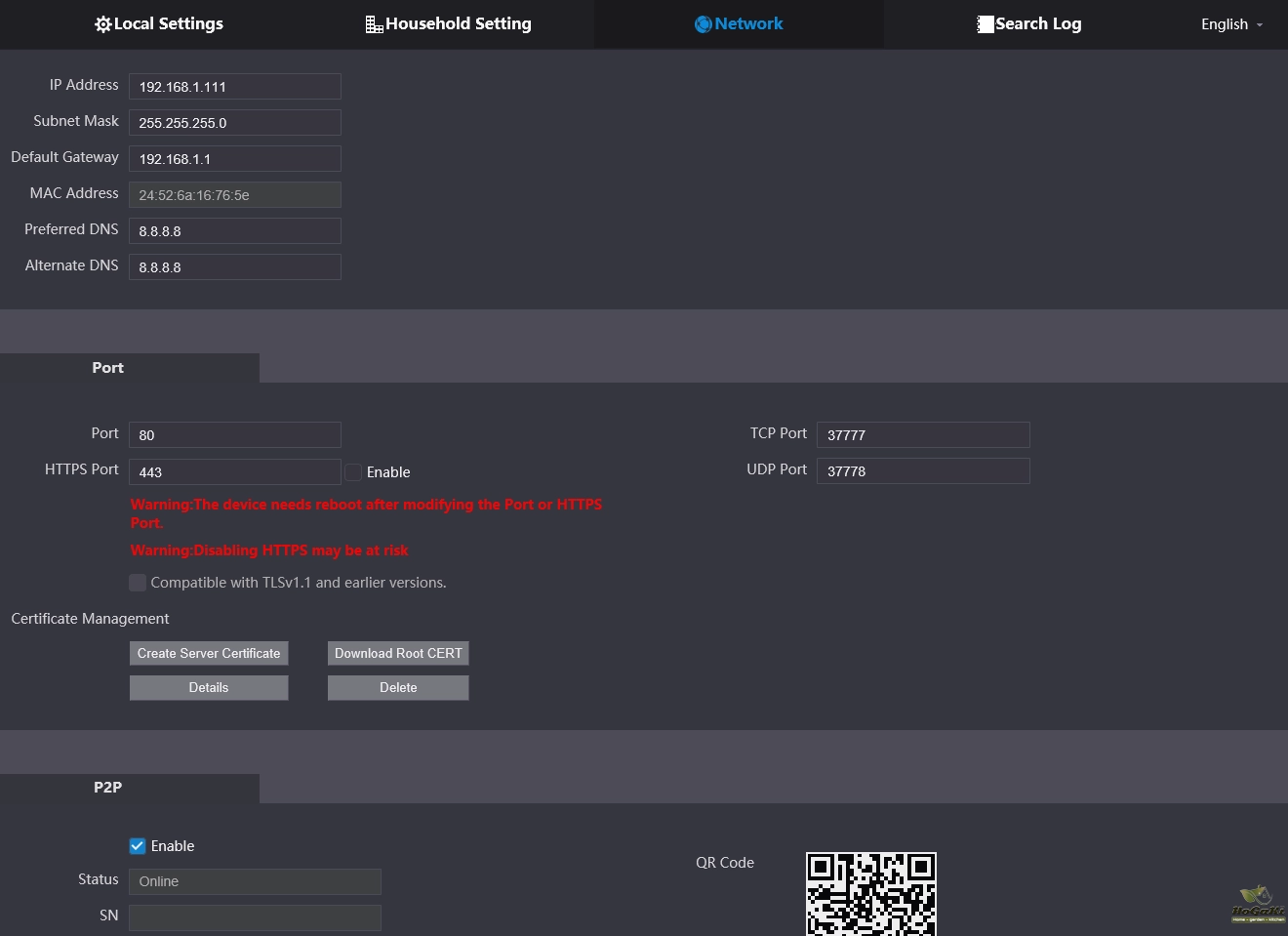

Web Configuration | Yes |
Performance | |
Card Reading Distance | 3cm–5cm |
Casing | PC+Acrylic |
Capacity | |
Card | 10000 |
Port | |
RS-485 | 1 |
Electric Lock | 1 |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1, normally closed by default |
Network | 1 10Mbps/100Mbps network port (8-core white ribbon cable) |
Alarm | |
Tamper | Yes |
General | |
Color | Black |
Power Supply Mode | 12V DC 1A |
Standard PoE | |
Installation | Surface mount |
Certifications | CE |
FCC | |
UL | |
Accessory | Brackets and alarm ribbon cable |
Dimensions | 135mm×70.4mm×34.4mm (5.31"×2.77"×1.35") |
Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) |
Operating Temperature | -30°C to +60°C (-20°F to +60°F ) |
Operating Humidity | 10%RH–90%RH (non-condensing) |
Operating Altitude | Beneath 3000 m (9842.52 ft) |
Power Consumption | Standby≤1W, working≤5W |
Gross Weight | 326 g (0.72 lb) |

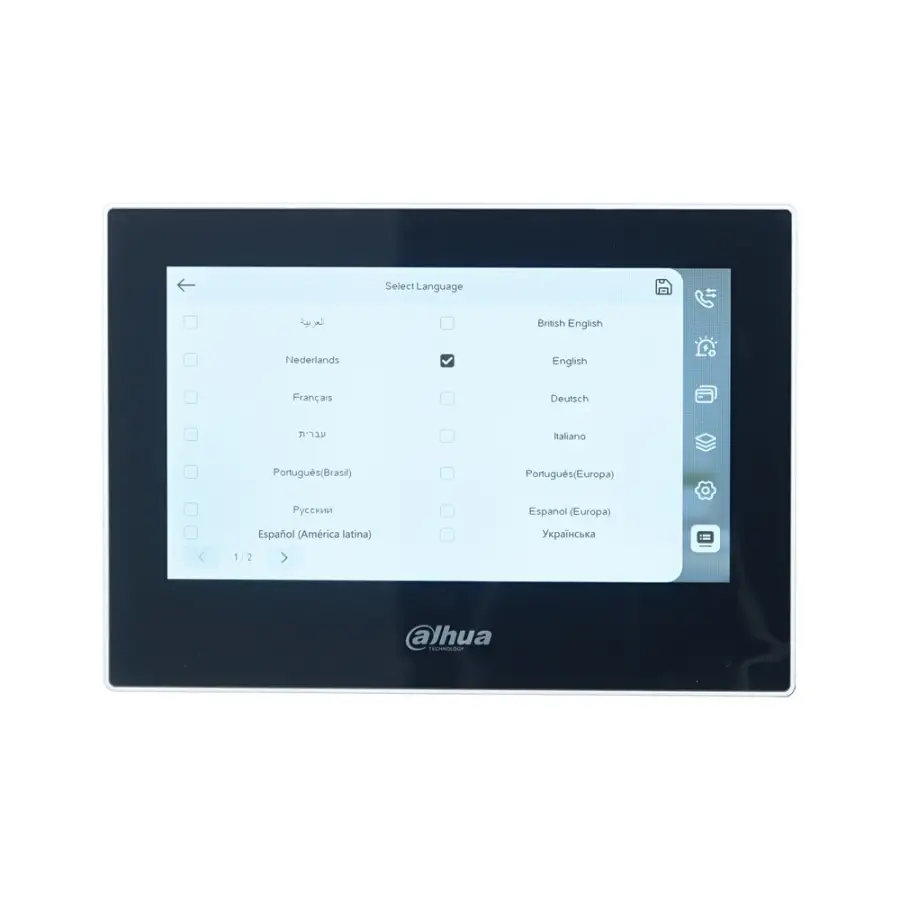

Indoor Monitor model : VTH2621GW-P / VTH2621G-P
System | |||||||||
Main Processor | Embedded processor | ||||||||
Operating System | Embedded Linux operating system | ||||||||
Network Protocol | IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP | ||||||||
Basic | |||||||||
Screen Type | Capacitive touchscreen | ||||||||
Display | 7" TFT | ||||||||
Screen Resolution | 1024 × 600 | ||||||||
Audio Compression | G.711a; G.711u; PCM | ||||||||
Audio Input | 1 | ||||||||
Audio Output | Built-in speaker | ||||||||
Audio Mode | 2-channel | ||||||||
Audio Enhancement | Echo suppression | ||||||||
Audio Bit Rate | 16 kHz; 16 bit | ||||||||
Function | |||||||||
Communication Mode | Full digital | ||||||||
Information Release | Receive and view text information released by the management center | ||||||||
DND Mode | Do not disturb period can be set; Do not disturb mode | ||||||||
Number of Extensions | Villa: 9 | ||||||||
Apartment: 4 | |||||||||
Performance | |||||||||
Casing | PC + ABS | ||||||||
Port | |||||||||
Alarm Input | 6 | ||||||||
Alarm Output | 1 | ||||||||
Power Output | 1 (12 V/200 mA) | ||||||||
Door Bell | Yes (use any alarm input port) | ||||||||
Network | One 10/100 Mbps Ethernet | ||||||||
Alarm | |||||||||
SOS | Yes | ||||||||
General | |||||||||
Color | White | ||||||||
Power Supply | 12 VDC 1A; | ||||||||
Standard PoE (36–57 V, 0.35 A) | |||||||||
Installation | Surface Mount | ||||||||
Certifications | CE; FCC | ||||||||
Accessory | Bracket and alarm ribbon cable (included) | ||||||||

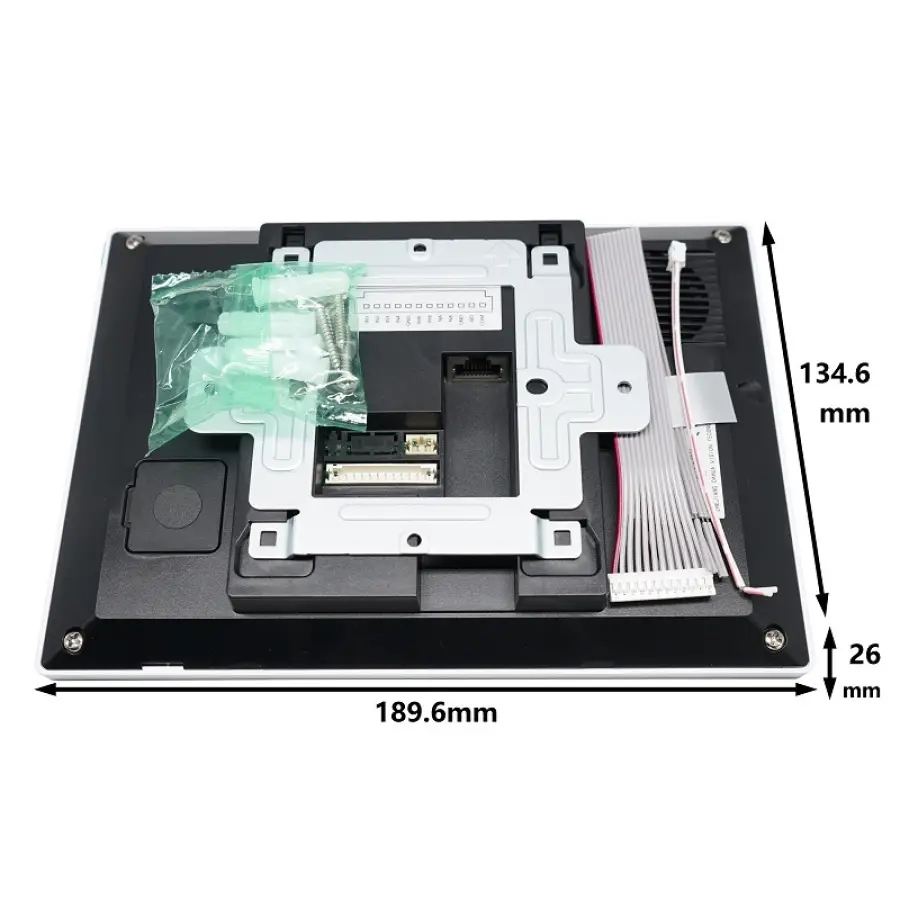

Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") | ||||||||
Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) | ||||||||
Operating Humidity | 10%–95% RH (non-condensing) | ||||||||
Operating Altitude | Beneath 3,000 m (9,842.52 ft) | ||||||||
Power Consumption | Standby ≤ 2 W; working ≤ 6 W | ||||||||
Net Weight | 0.34 kg (0.74 lb) | ||||||||
Gross Weight | 0.58 kg (1.27 lb) | ||||||||

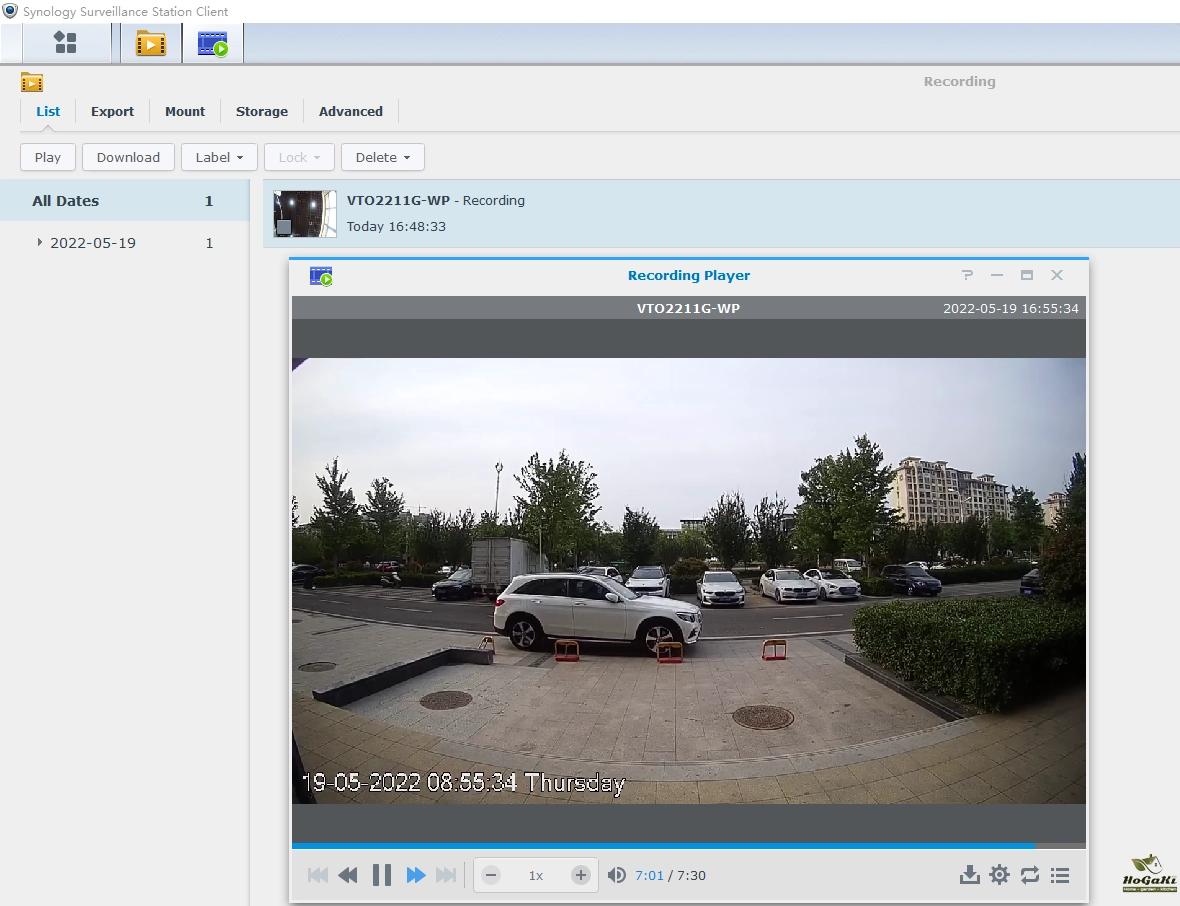

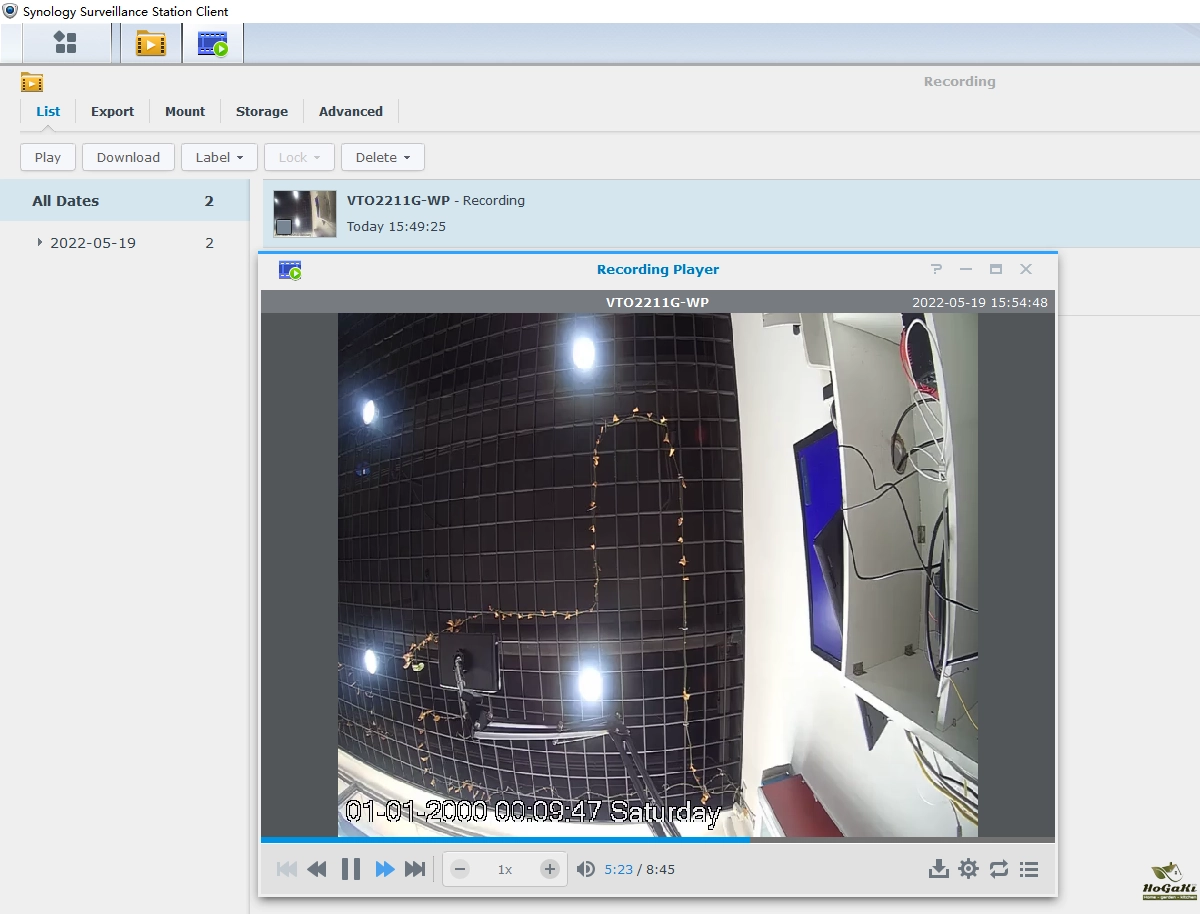

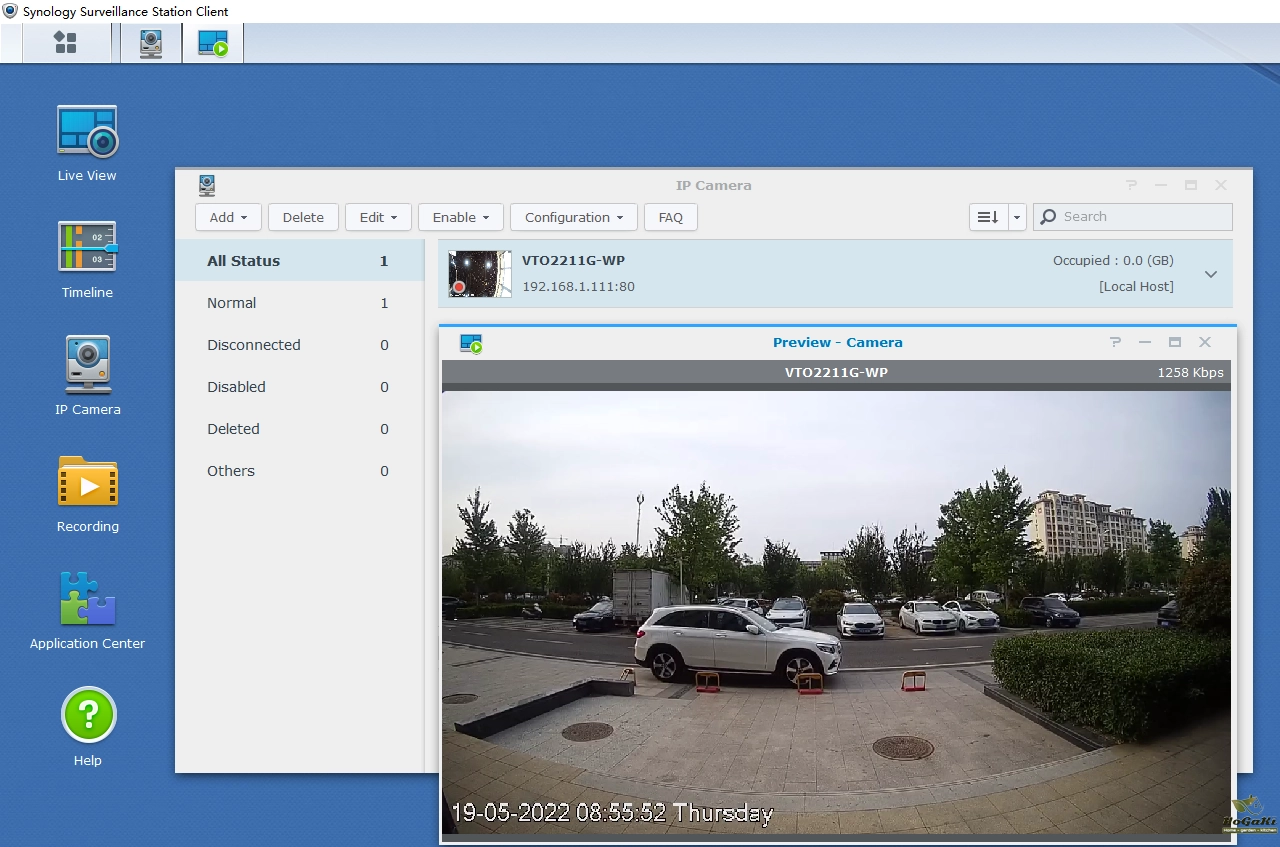

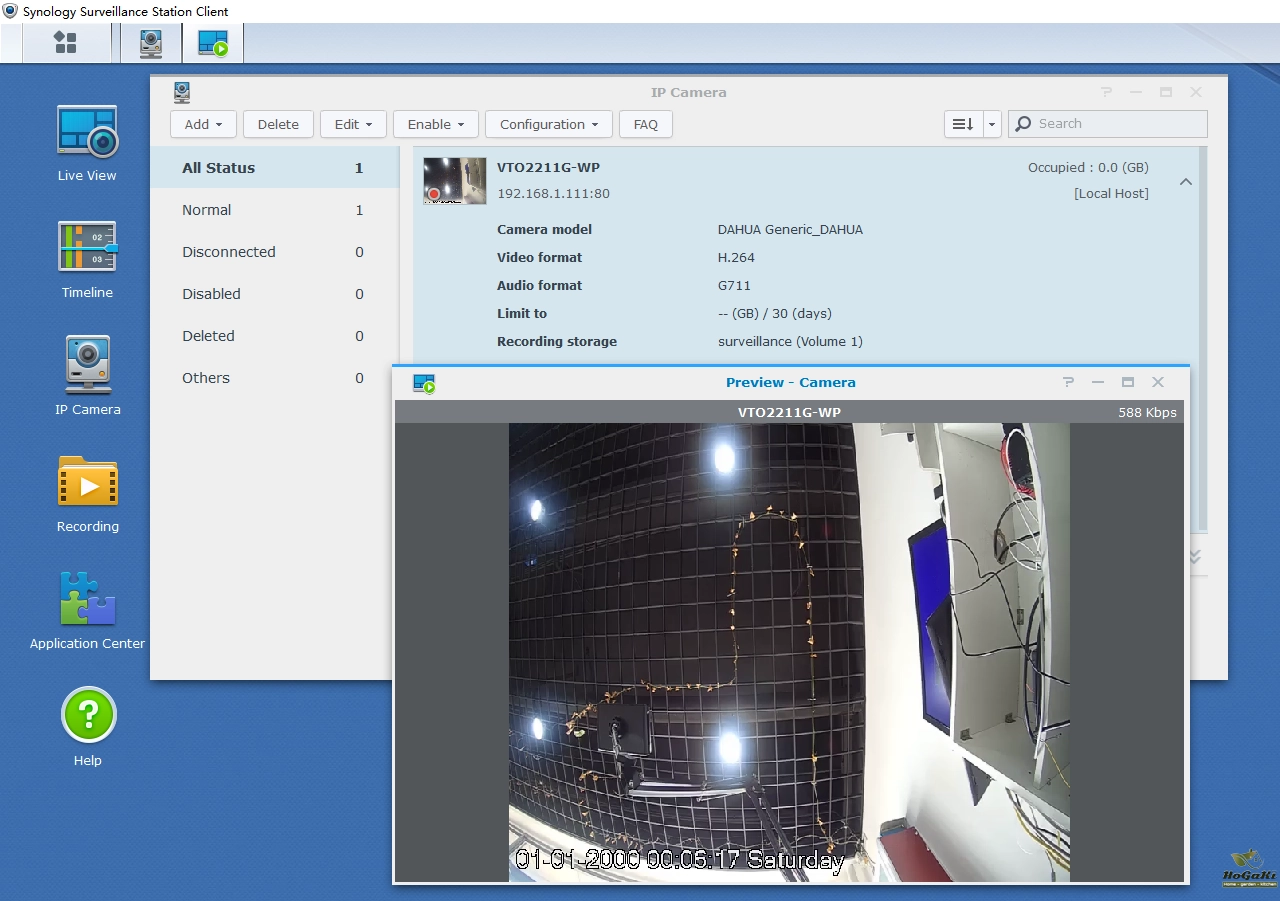

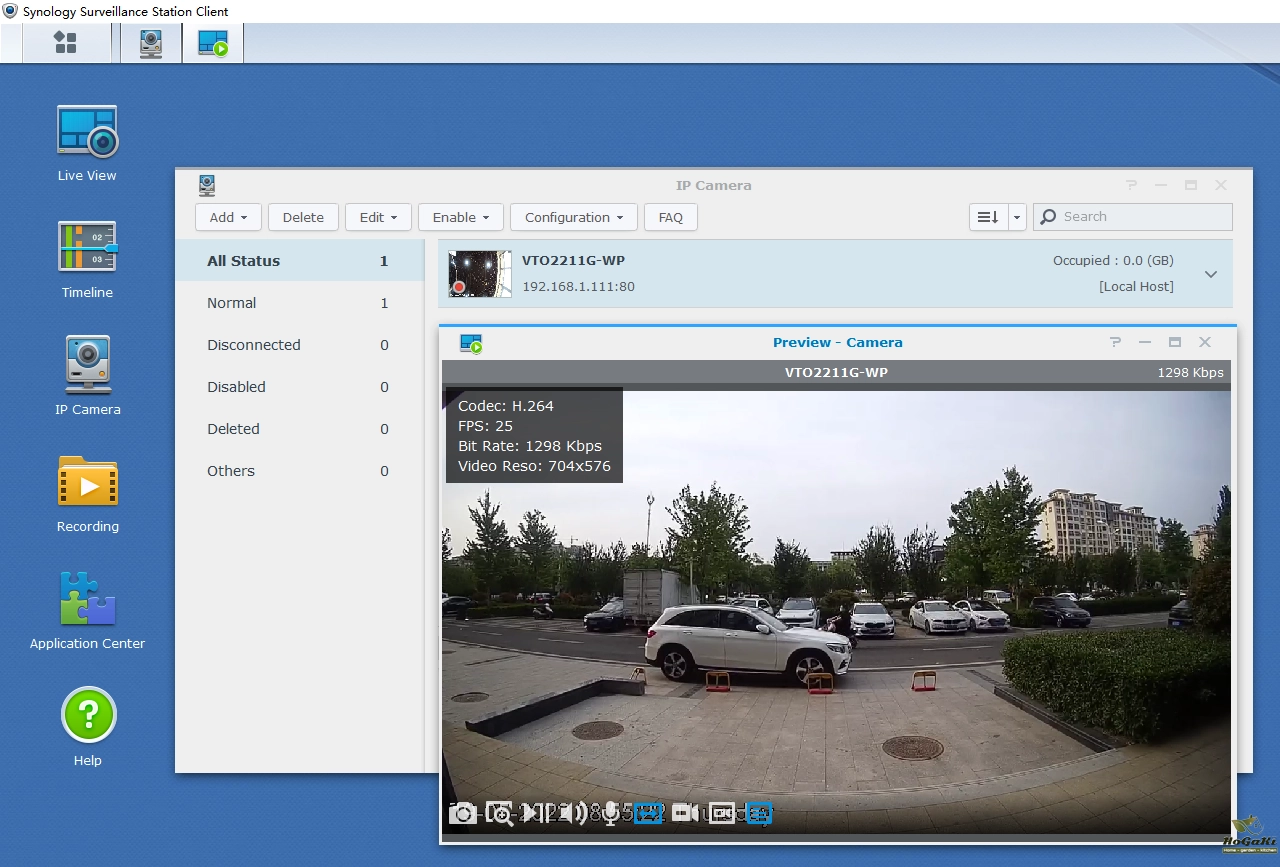

Support for adding outdoor stations to Synology NAS recording and playback
Packaging Details
- Unit Type:
- Package Weight: 1.100
- Package Size: 10x10x16
- Brand Name: Dahua
- Connection Method: Wired
- Camera Sensor type: CMOS
- Hign-concerned Chemical: None
- Origin: Mainland China
- Answering Mode: Hands-free
- Display Screen Size(inch): 7
- Access Control: Inductive Card
- Type: intercom system
- Waterproof: Yes
- Material: Plastic
- Smart home platform: Other
- IP Camera Interface: No
- Samrt Home Interface: No
- Installation: Wall Mounting
- Connection Type: Wired
- Plug Type: EU Plug
- Plug Type: US Plug
- Plug Type: AU Plug
- Plug Type: UK Plug
- Certification: CE
- Certification: FCC
- Power: DC 12V / IEEE802.3af PoE
- Model Number: VTO2111D-P-S2 VTH2621G-P
- Camera: COLOR
- Power (W): 7W
- Viewing Angle (°): Horizontal: 107°; vertical: 61°; diagonal: 122°
- Technology: DIGITAL
- Size: 135mm*70.4mm*34.4mm
- Doorbell: Yes
