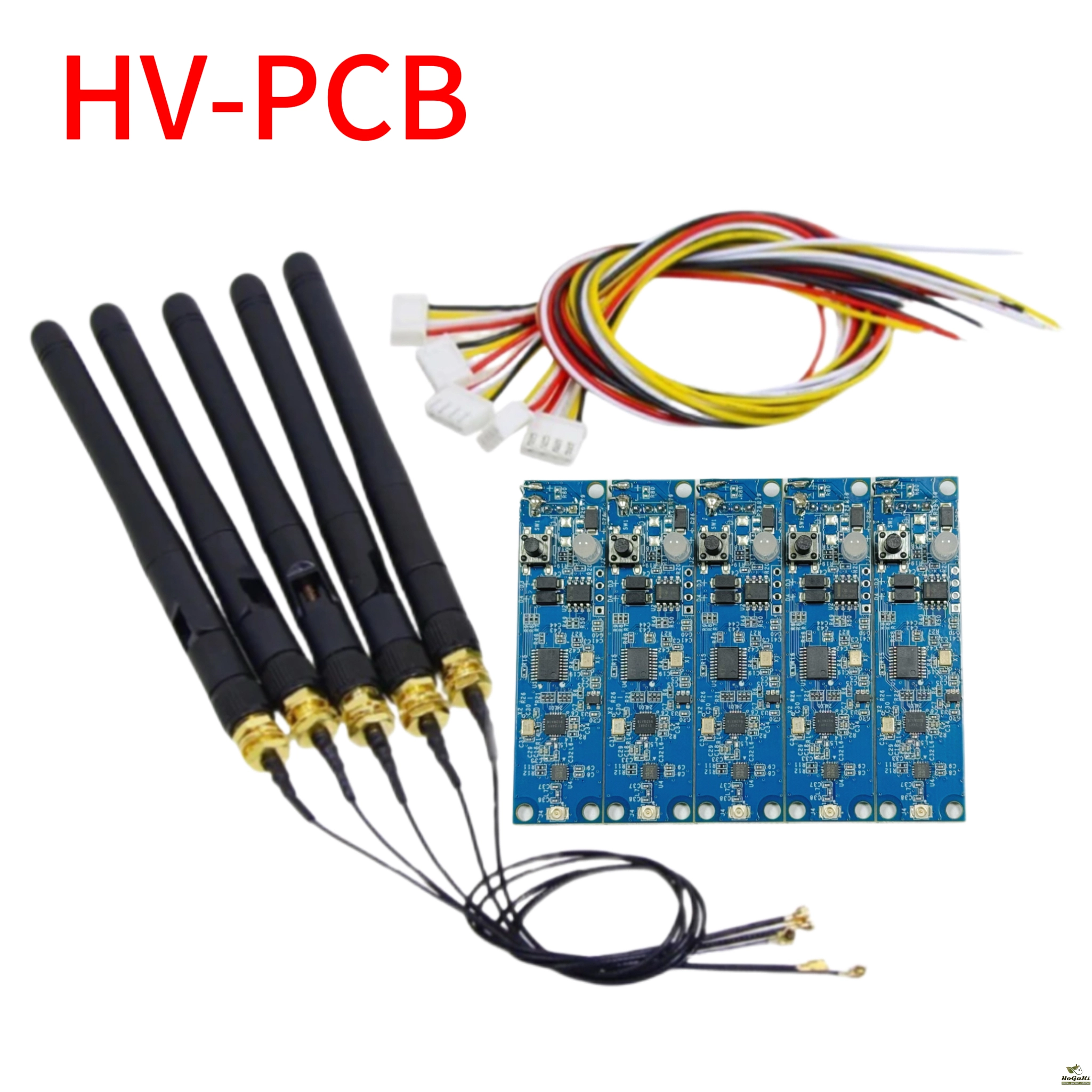

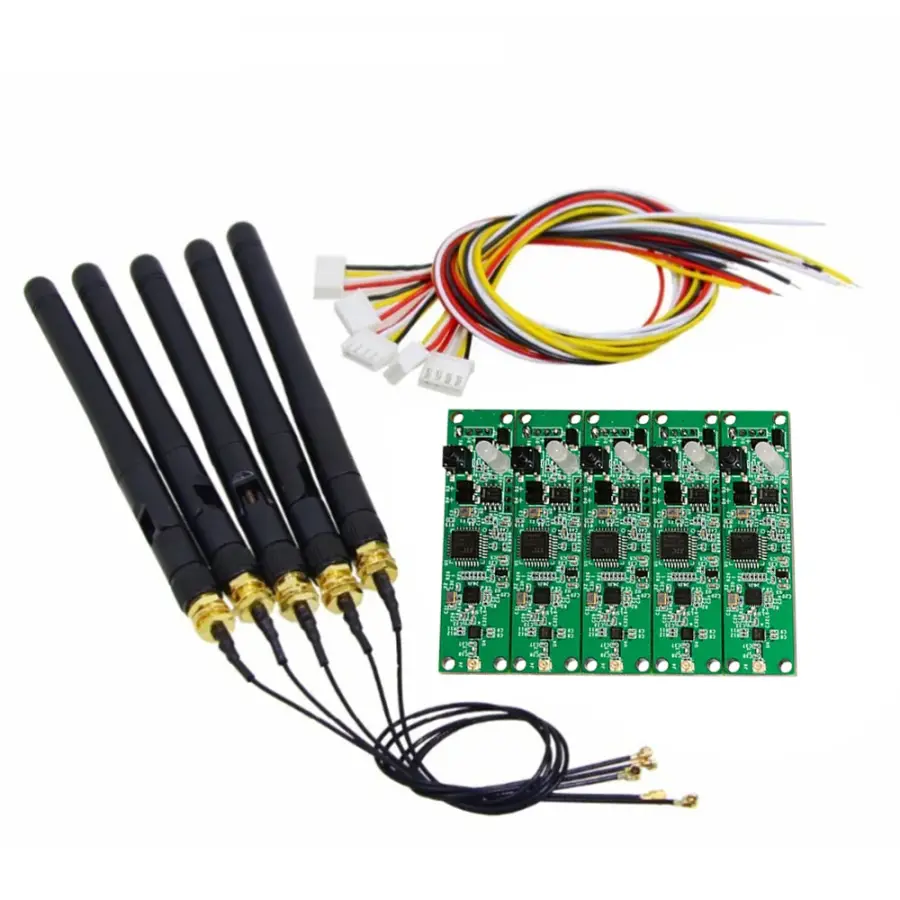

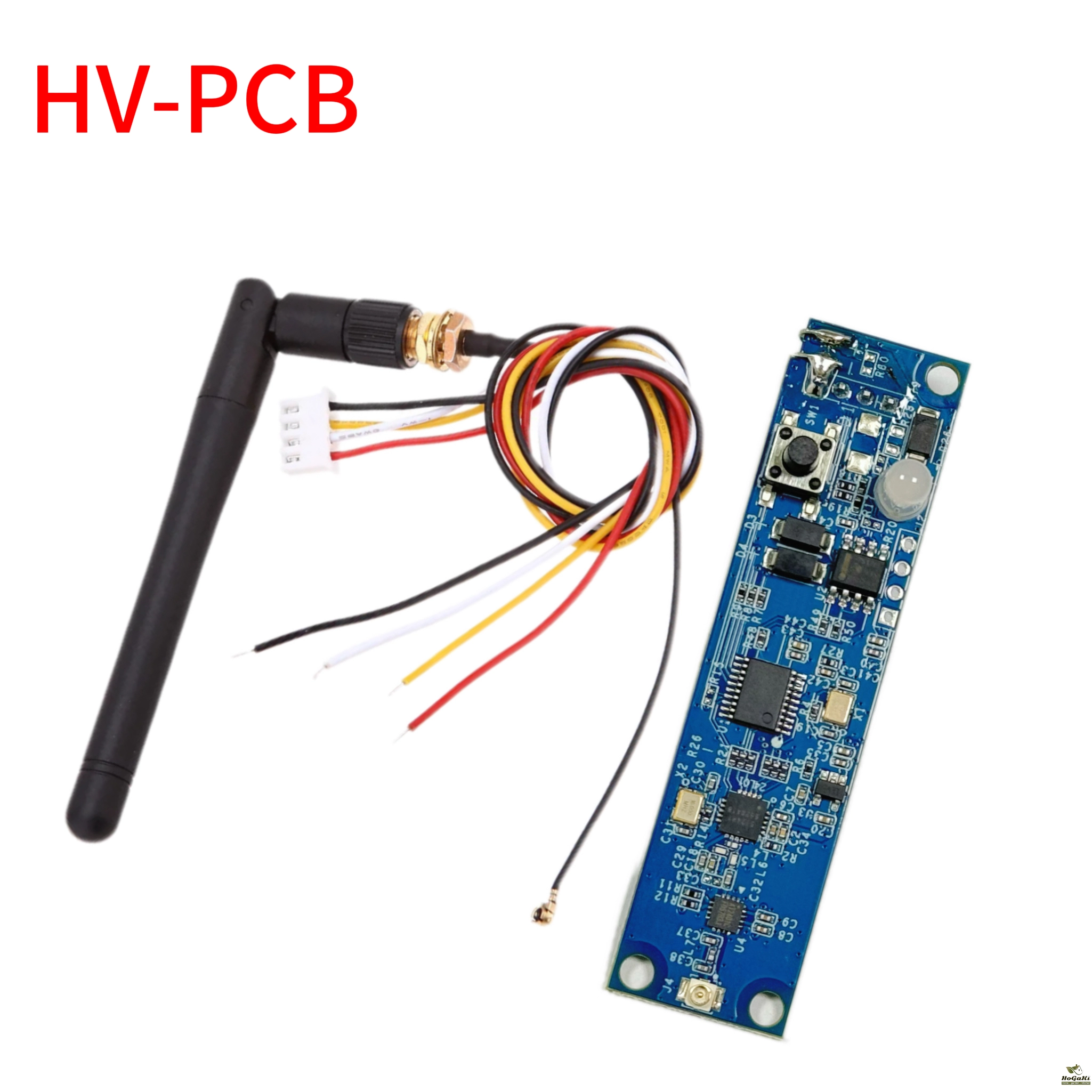

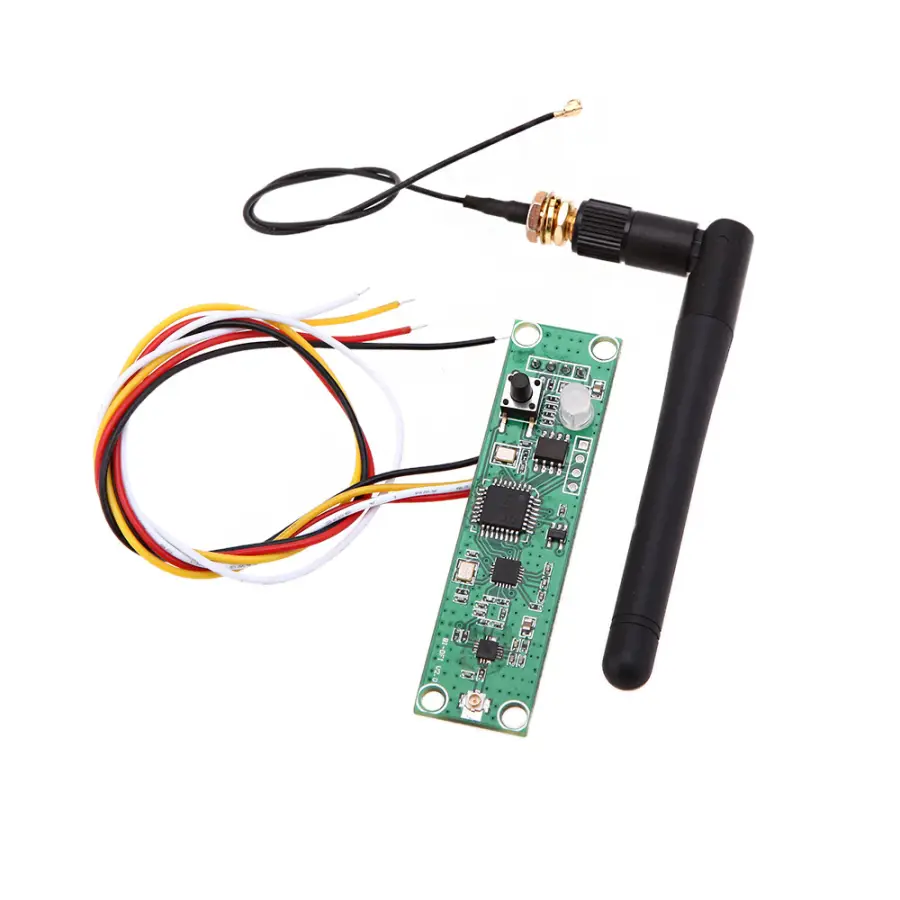

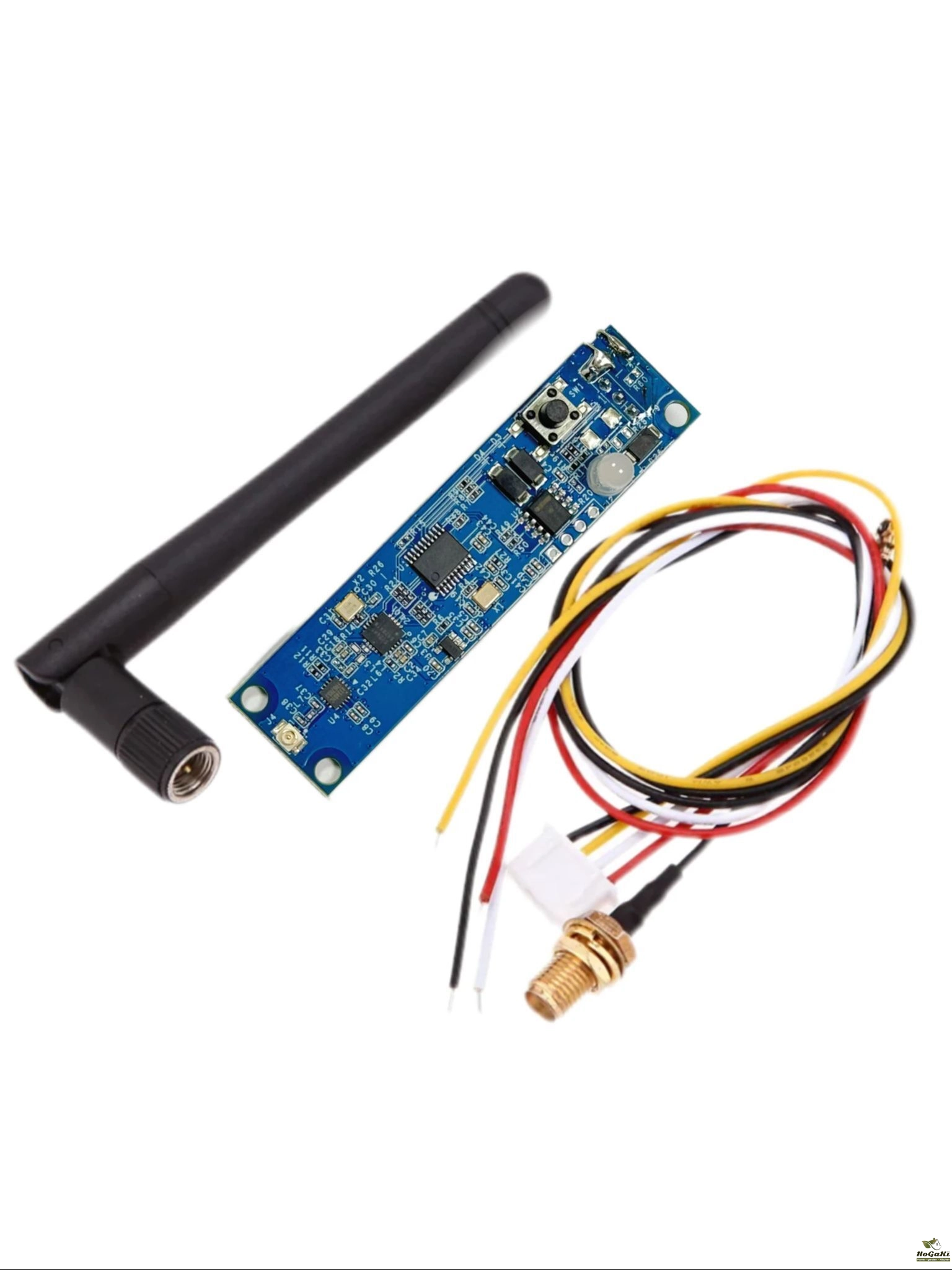

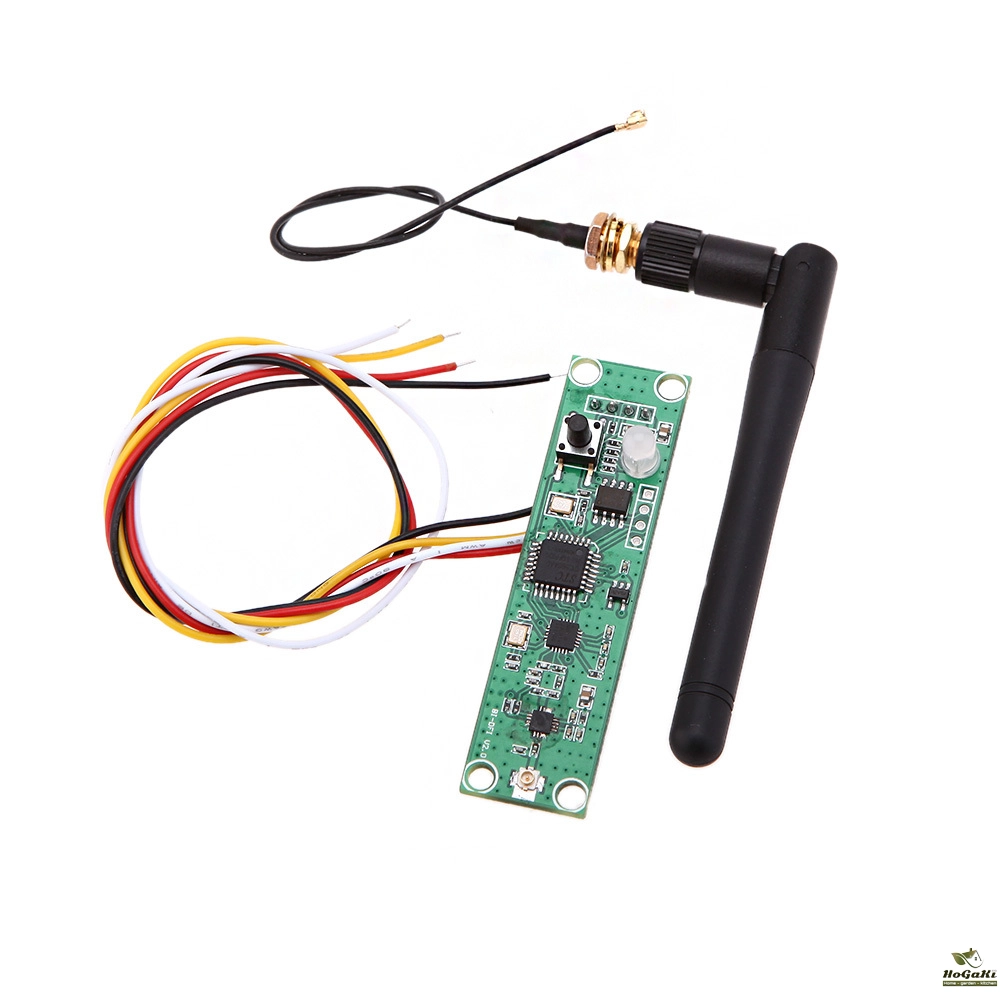

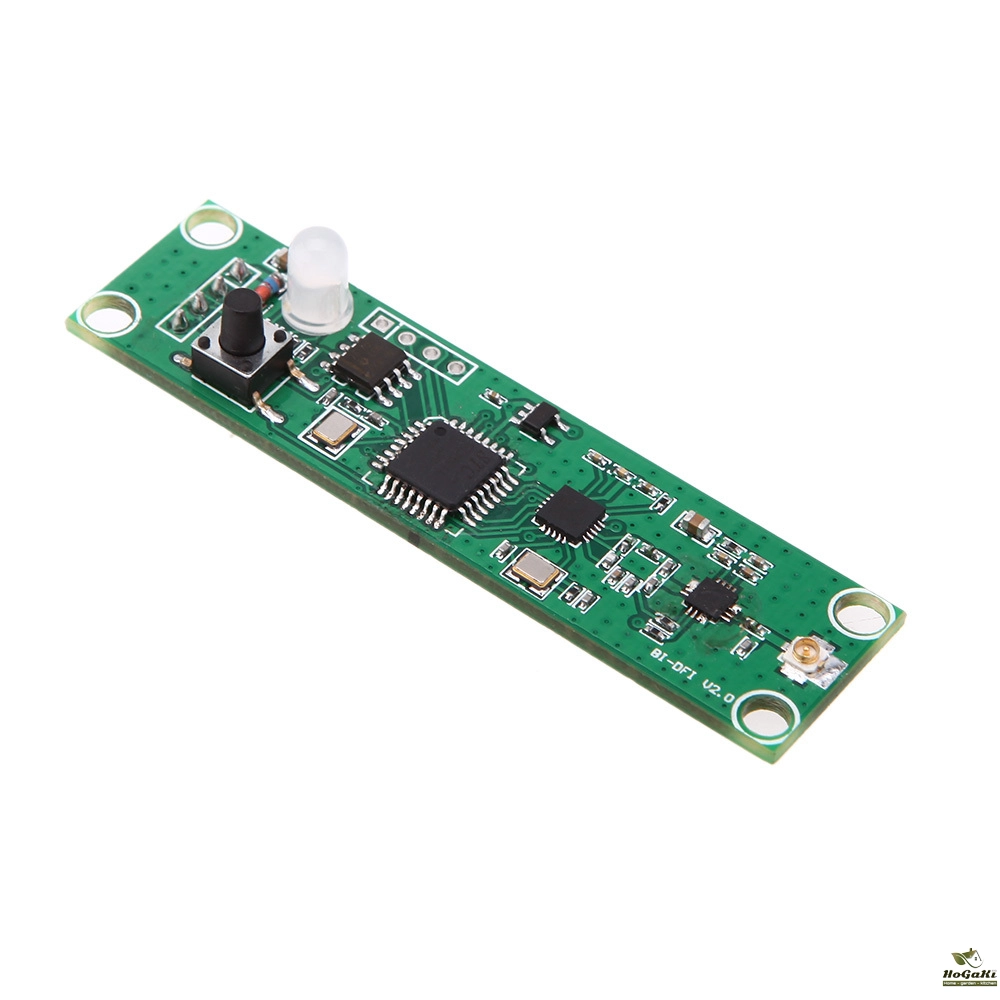

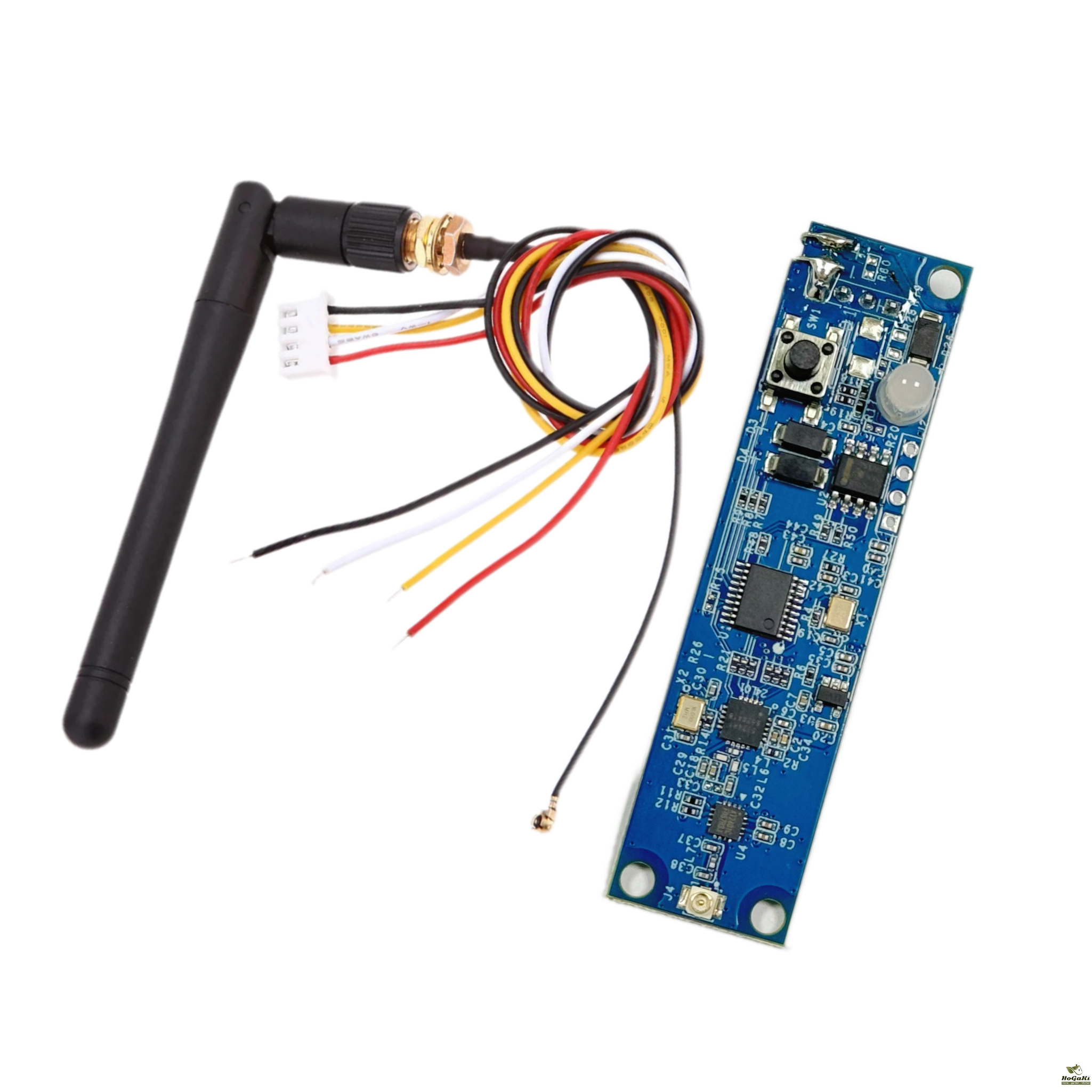

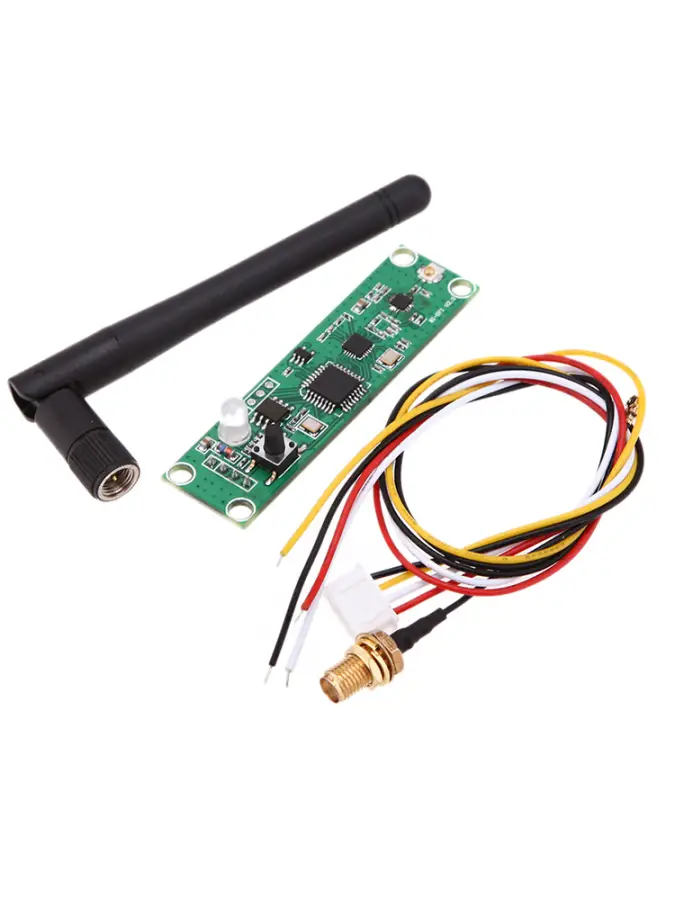

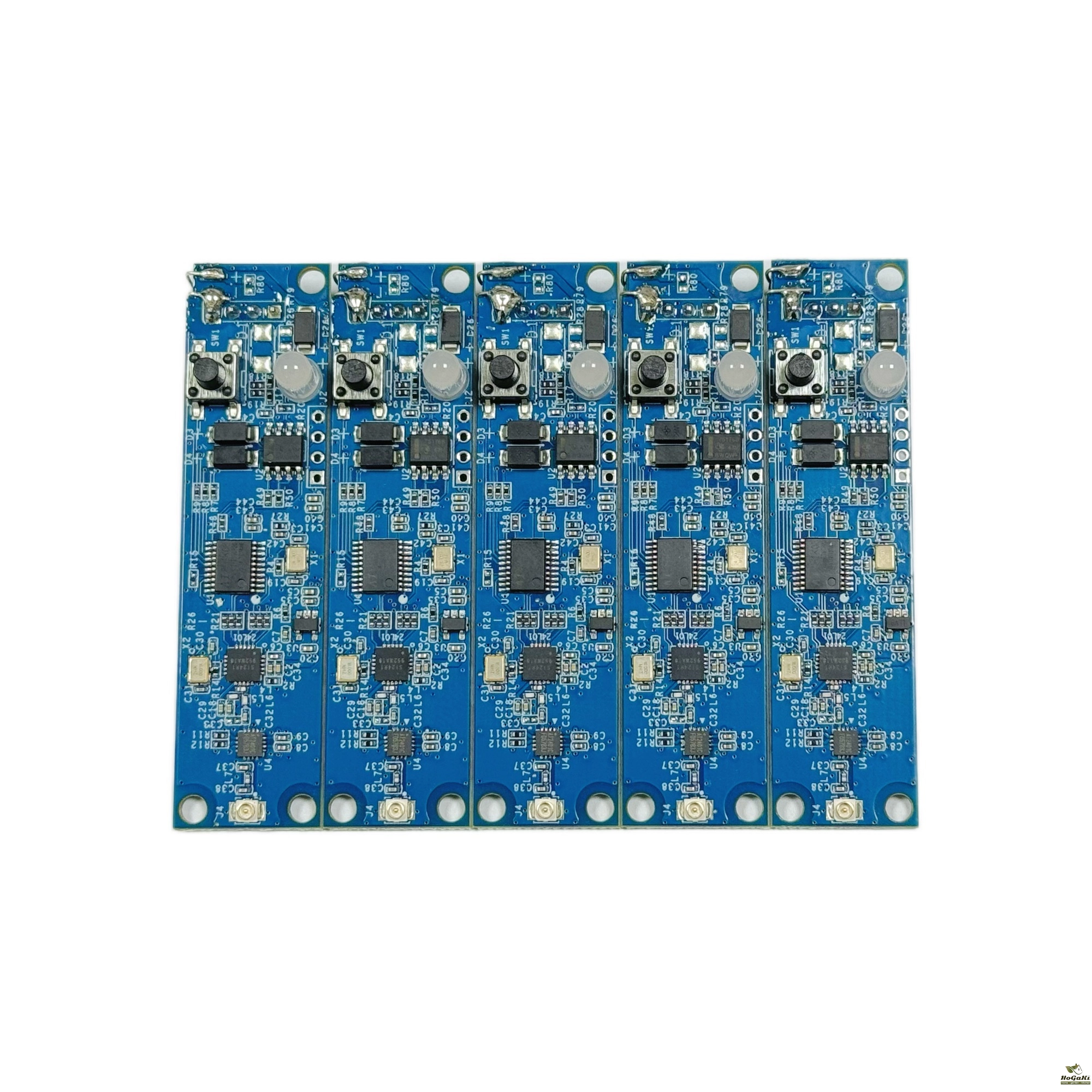

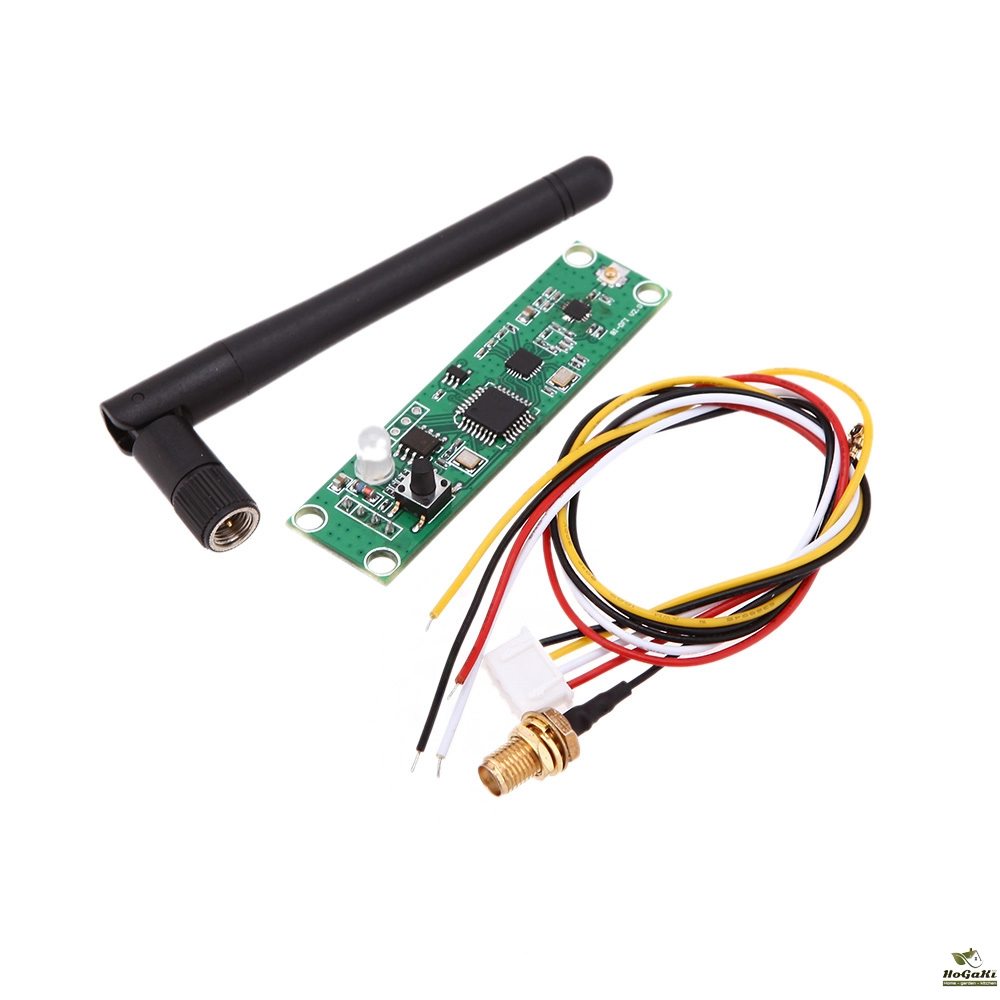

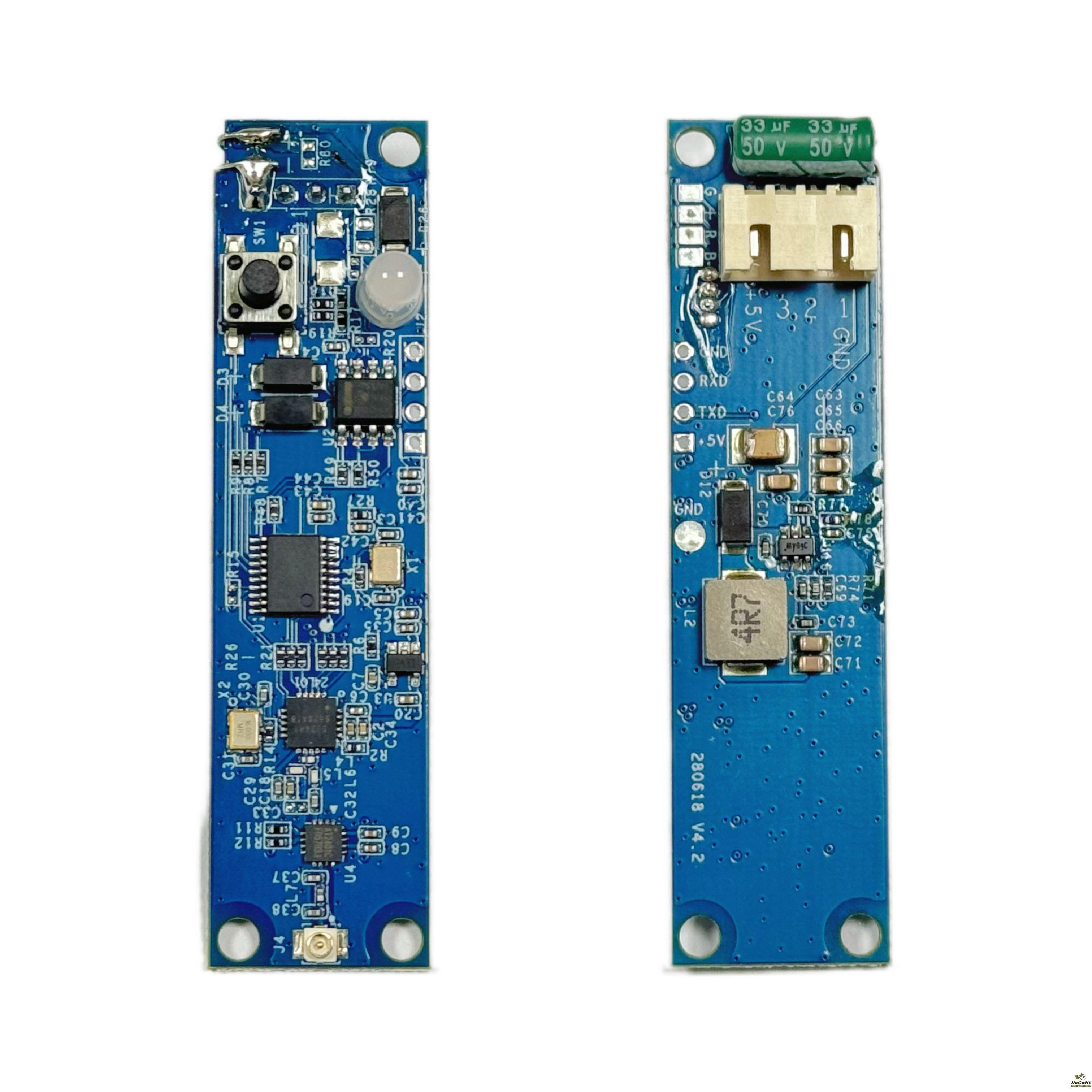

2.4G ISM DMX 512 Wireless Controller PCB Module 2 in 1 Transmitter Receiver For Stage Light Built-in Wireless DIY 485EE
4.5 (116 votes) | 600 orders
Price:
US $45.43 - 502.22
Discount Price:
US $
18.51 -
200.55
-59%
ATTENTON
Work Voltage:5V DC

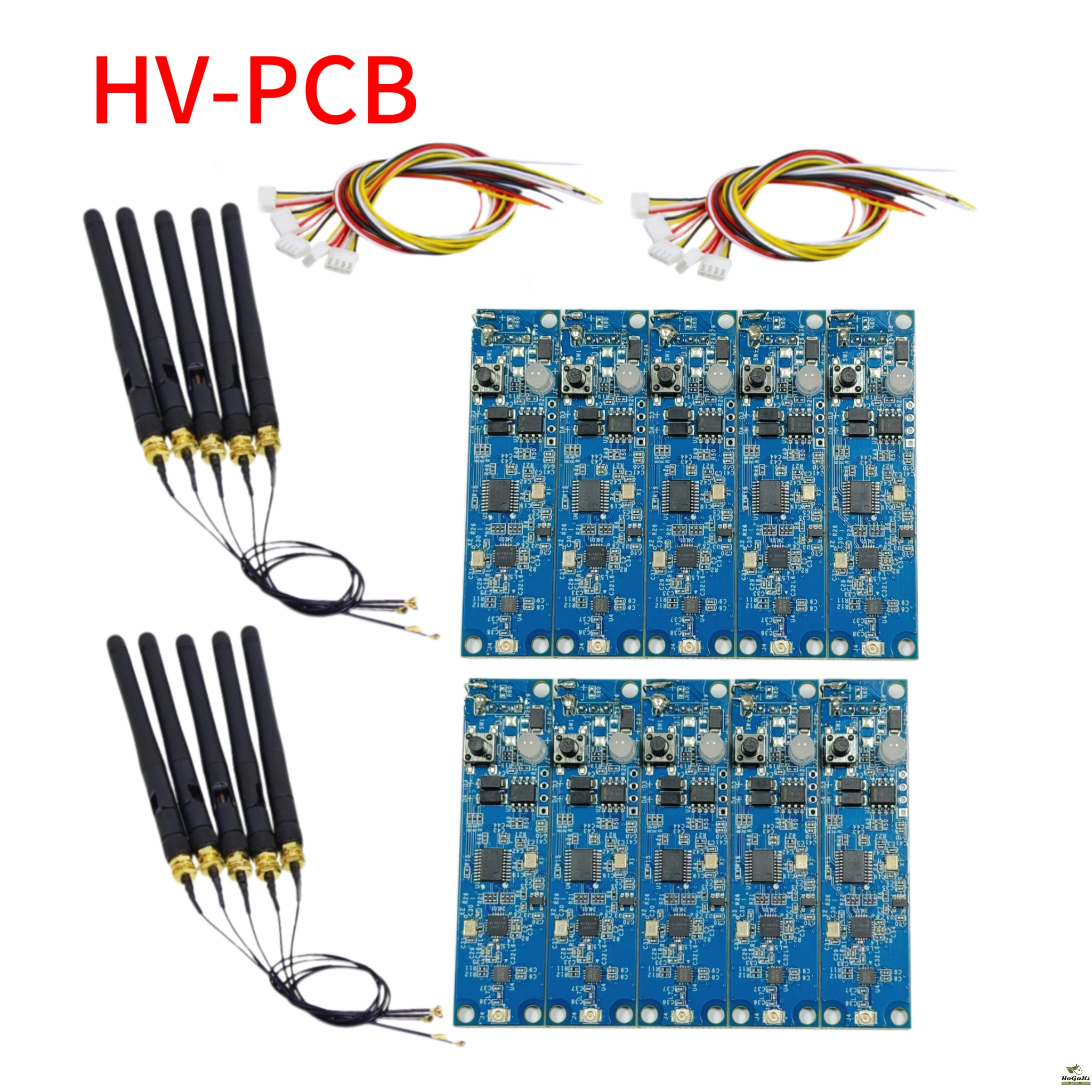

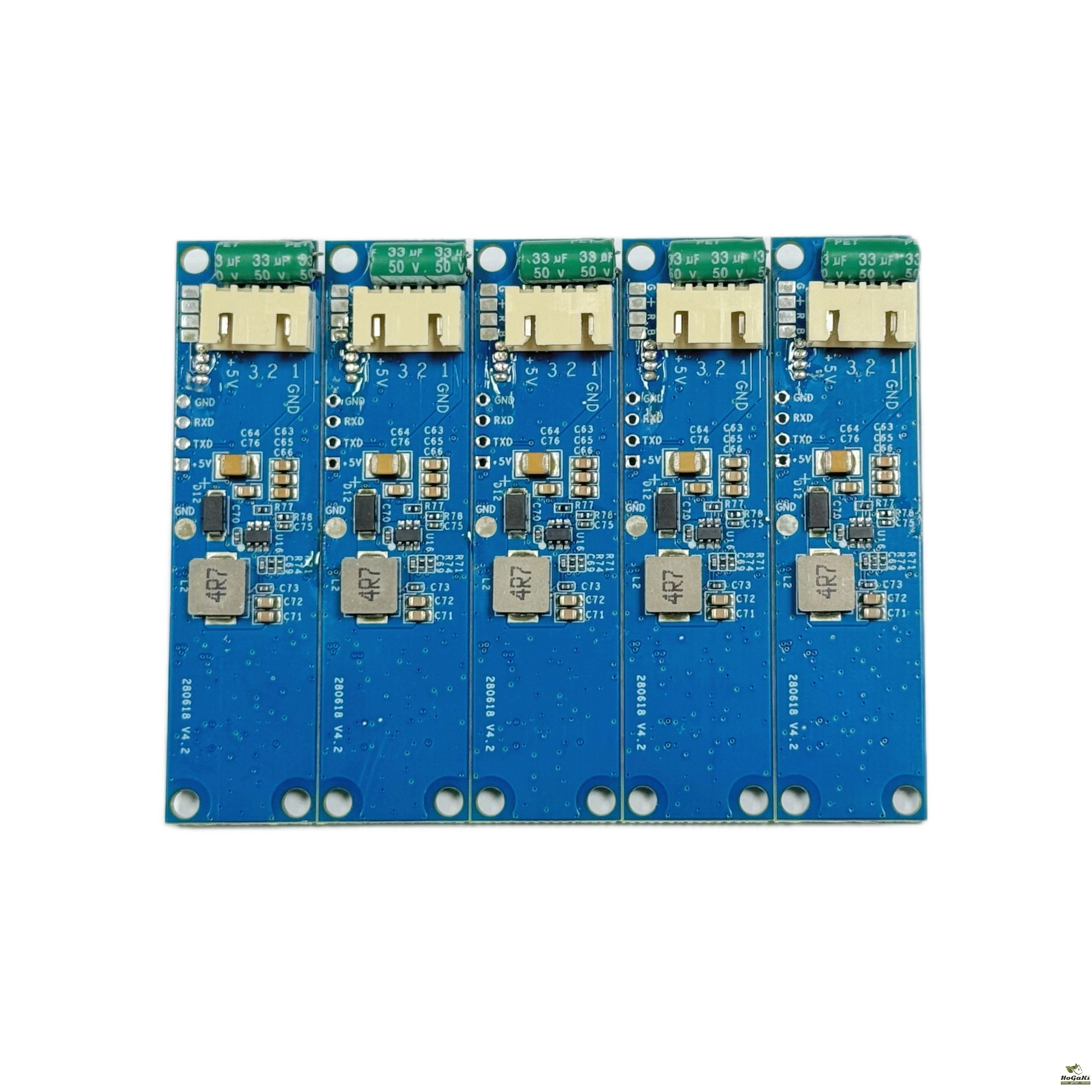

NEW VERSION :Work Voltage:12V-48V DC
OPERATING MANUAL
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
Press key 1 time to indicate ID setting, press again to set IC.
Working condition:
LED constant lit up: no DMX or wireless signal.
Red LED flash: transmitting.
Green LED flash: receiving total 126 channels, it's searching automatically.
ID Code- "1-7" groups ID code, press "KEY" for setting.
Establishing Communication:
Power on.
Communication was established correctly then.
SPECIFICATIONS
Input voltage: 5V /12V-48V DC 500mA MIN
Communication distance: 400M ( visible distance )
Work frequency section: 2.4G ISM
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm

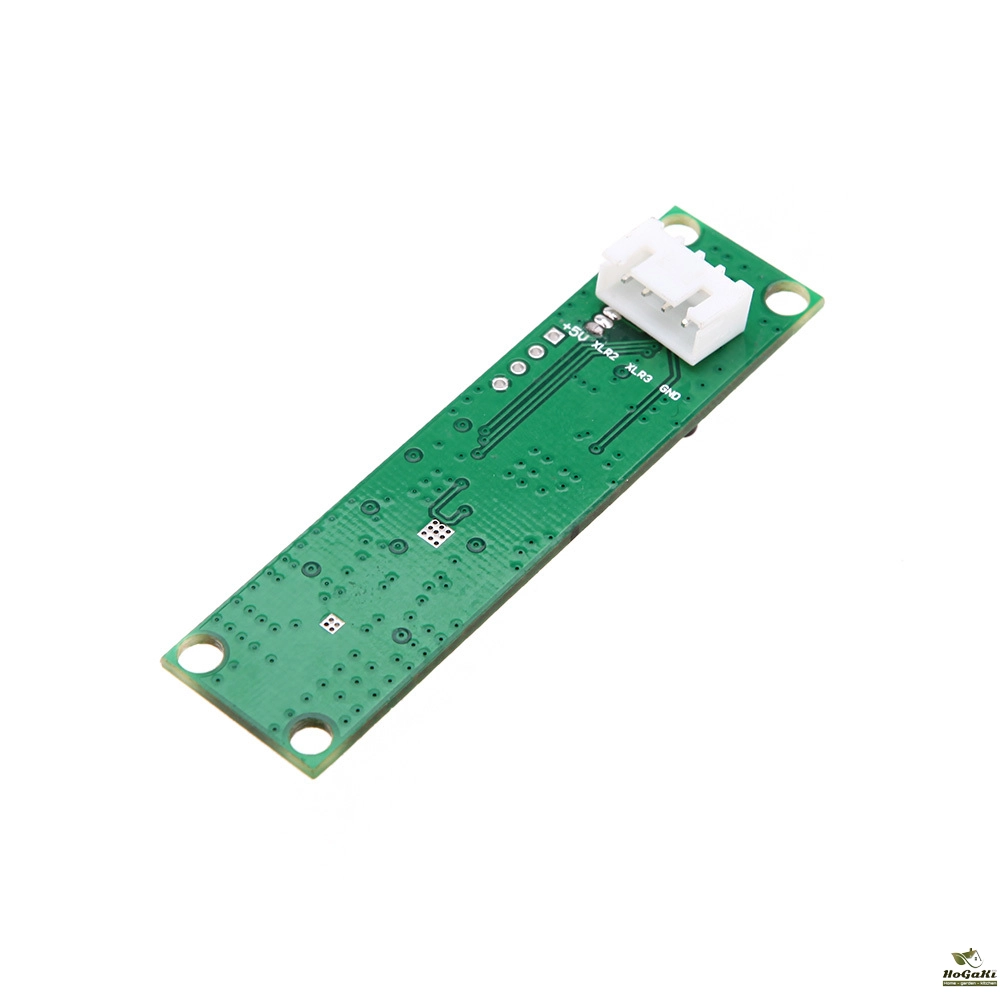

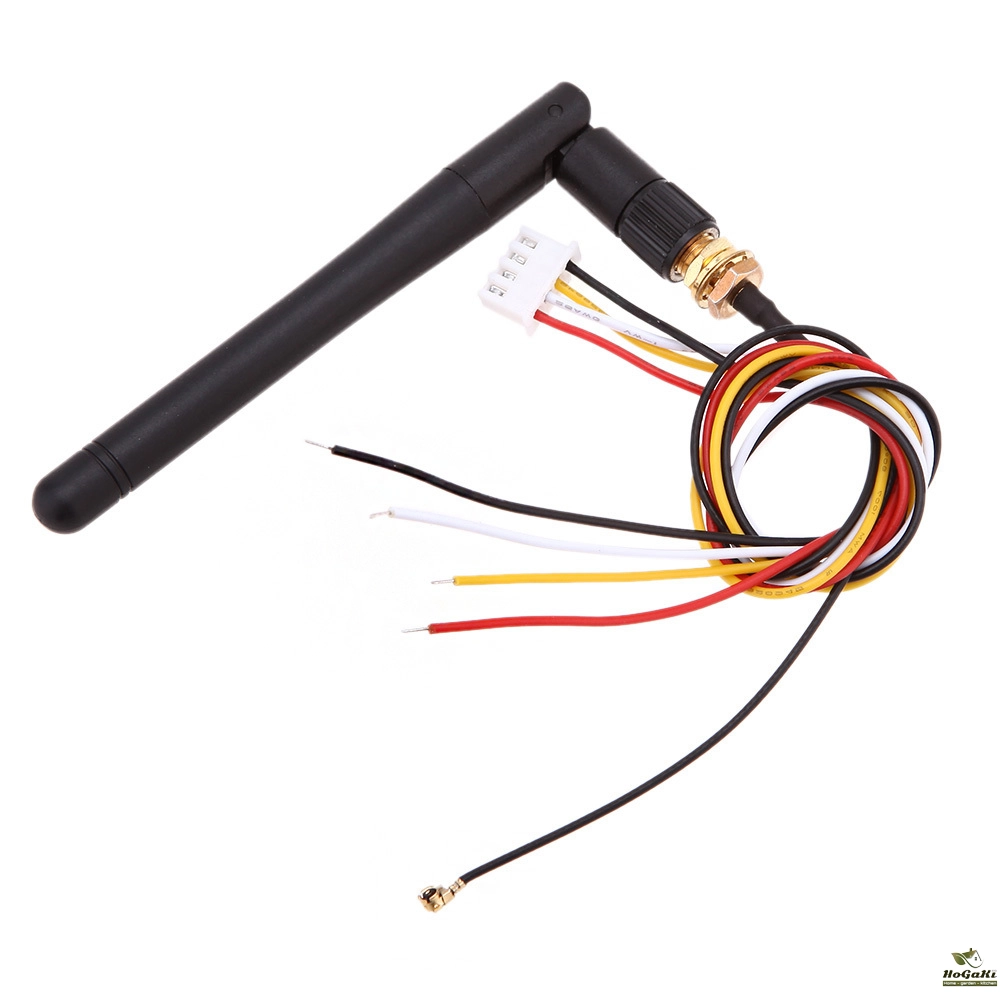

Signal port: 3pin female plug
FEATURES
Tricolor LED displaying.
126 channels jumping frequency automatically
7 groups ID code settable.
Small size, easy to suit for interior of accessed lighting.
NEW VERSION :Work Voltage:12V-48V DC
Packaging Details
- Unit Type:
- Package Weight: 0.059
- Package Size: 6x3x14
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Item Type: RGB controler
- Material: ABS
- Warranty: 2
- Power Source: DC
- Wattage: 0.1W
- Oscillation frequency: 2.4g
- Voltage: 4.5V
- Model Number: dmx512 wireless
- Remote Distance: 300meter
- Controled Method: DMX512
- Features: DMX wireless
- Applicable Lights: RGBW
- Max. Load Power: 0.1W
- Choice: yes
