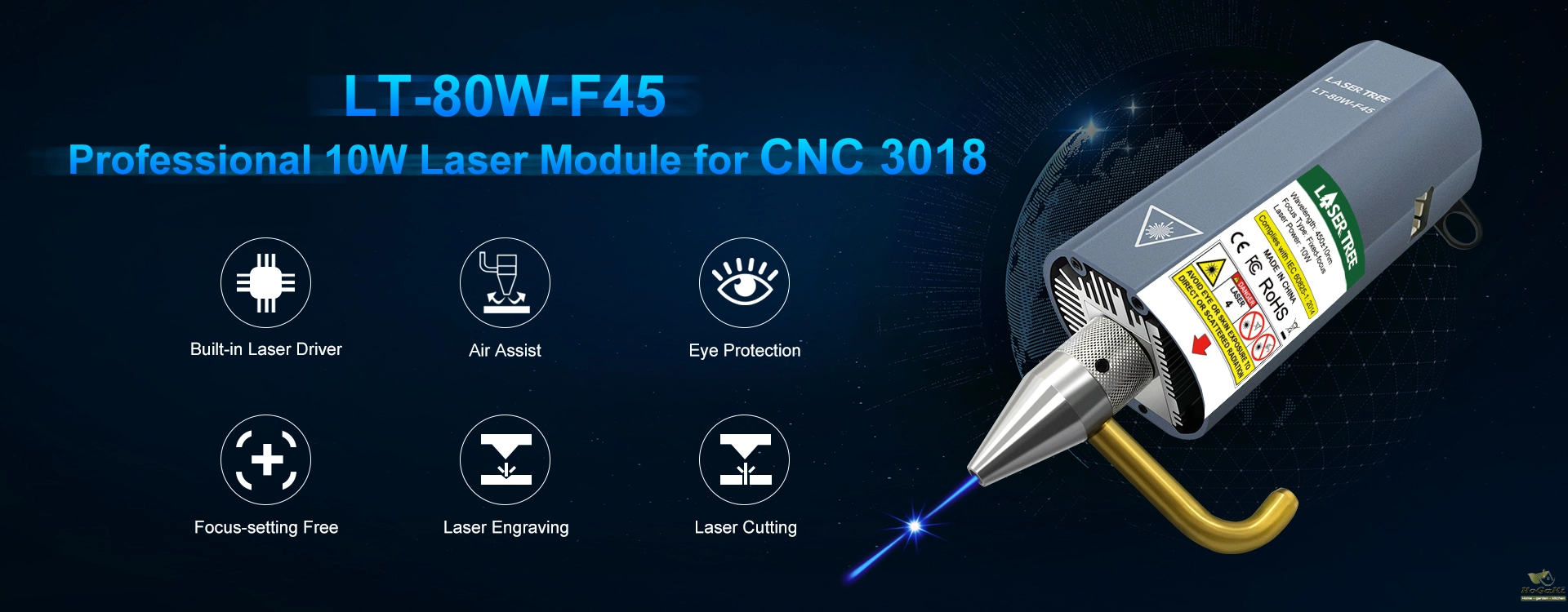

LASER TREE 80W-F45 Professional 10W Laser Module 450nm TTL Blue Light Module for CNC 3018 PRO Engraver Cuting Wood Machine Tools
4.6 (24 votes) | 87 orders
Price:
US $1171.80 - 1543.80
Discount Price:
US $
434.15 -
571.97
-63%
- Color
-
-
Features:
1. LT-80W-F45

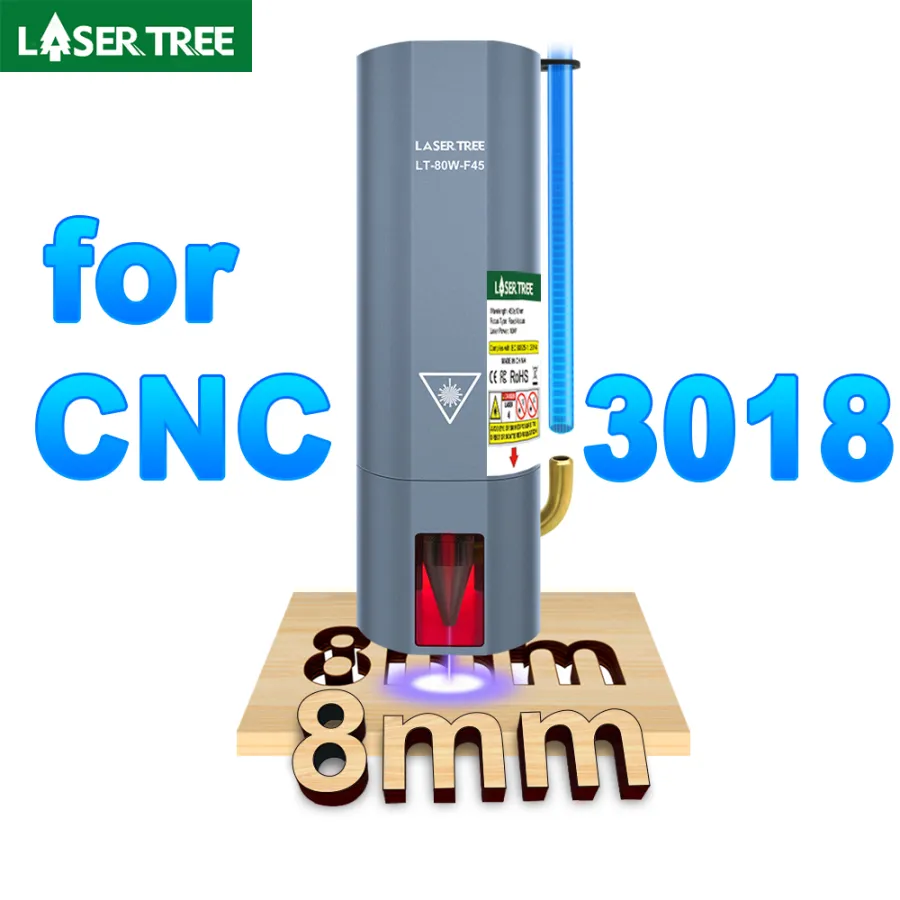

LT-80W-F45 is a laser engraving and cutting module specially designed for CNC 3018 machines. It is compatible with most CNC machines with a round top mounting base. For example, 3-axis CNC engraving machine (1610 pro/3018/3018 pro/3018 Max/4540/3020 Plus engraving machine, etc.)

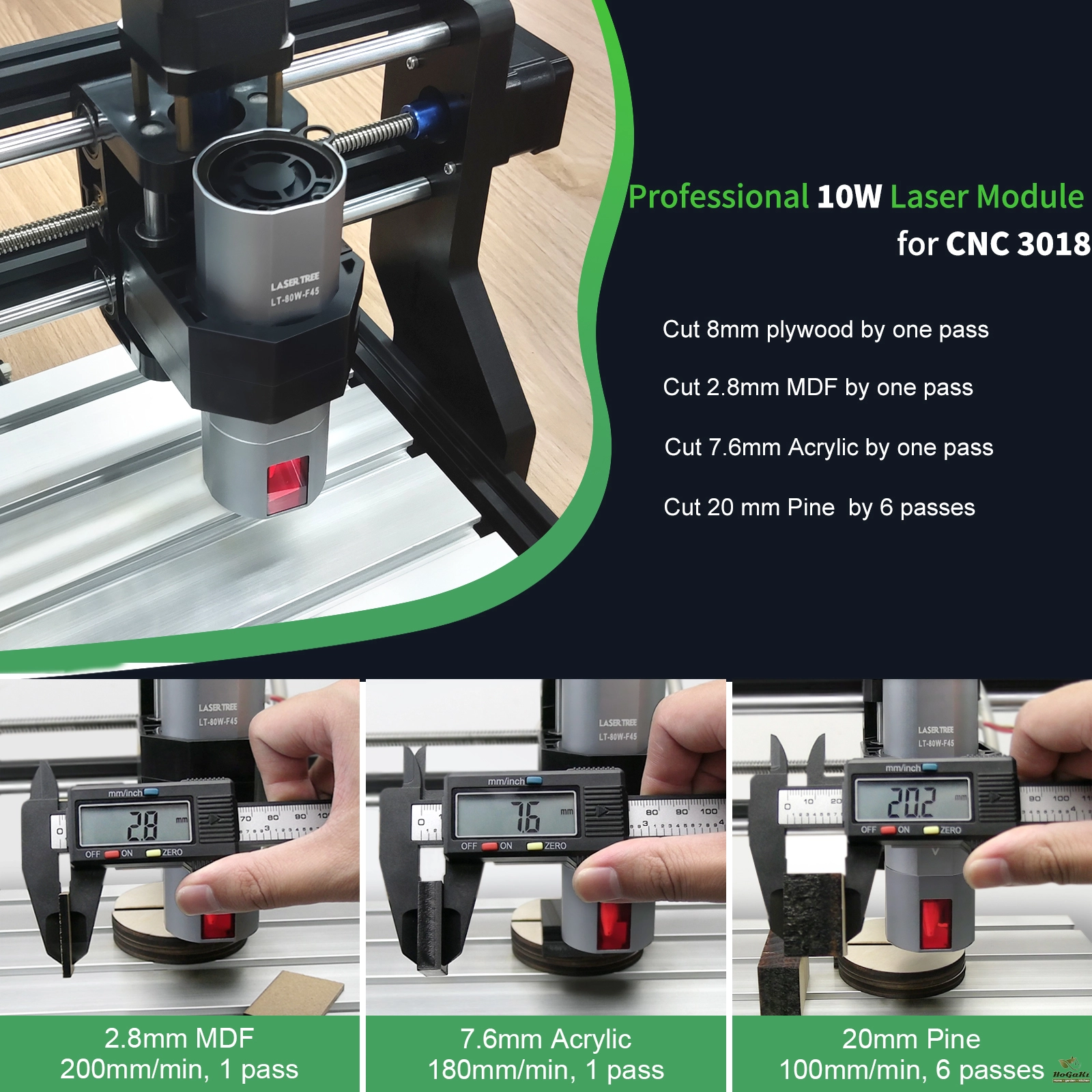

2. Powerful Cutting Ability
Cut 8mm plywood: 120mm/min,100% power. By one pass
Cut 15mm Pinewood: 50mm/min,100% power. By one pass
Cut 5mm black acrylic : 50mm/min,100% power. By one pass
3. Super Fast Egraving Speed
The speed of engraving plywood can be up to 3100mm/min.
4. With the Air Asssit Nozzle
When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks.

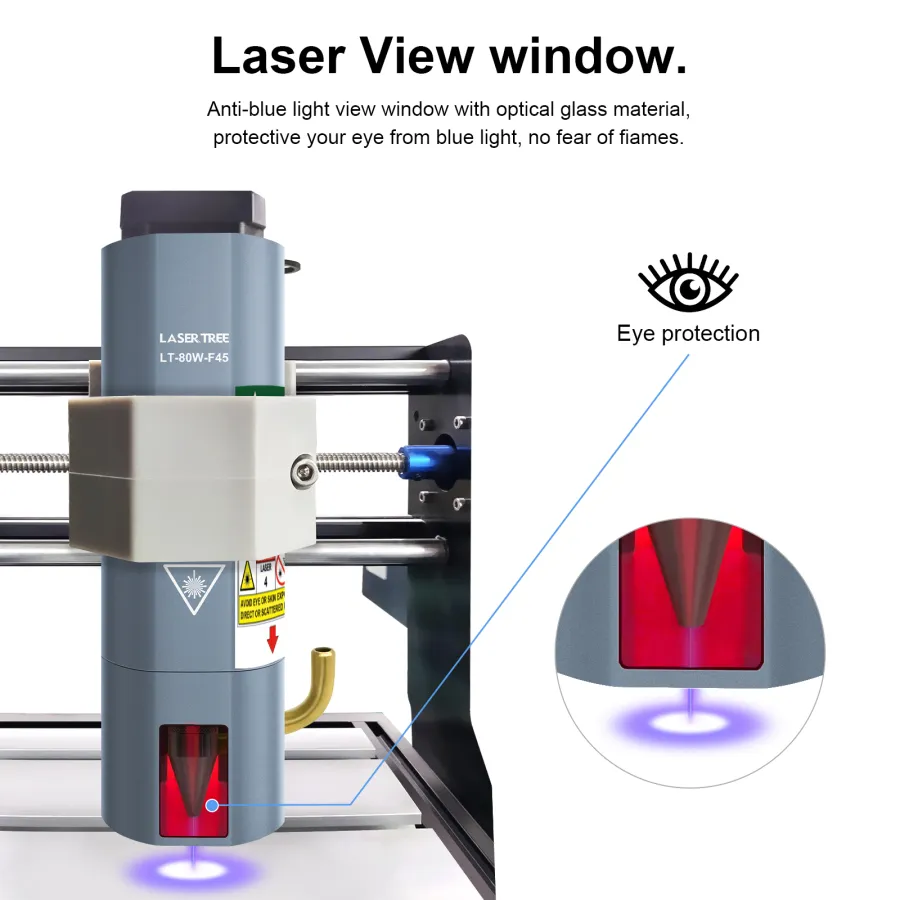

5.Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
6. Excellent Heat Dissipation Design
Equipped with aluminum body and large cooling fan to help dissipate
heat quickly and ensure the module works continuously.
Parameter:
Optical power:10W (±1W)
Input: DC 12V 3A
Wavelength: 450nm (±10nm)
Focus length: 45mm
PWM modulation: 0/3-12V, 0-5kHz
Fan speed: 10000rpm
Operating temperature: 0-60°C
Interface: XH2.54-3P Socket

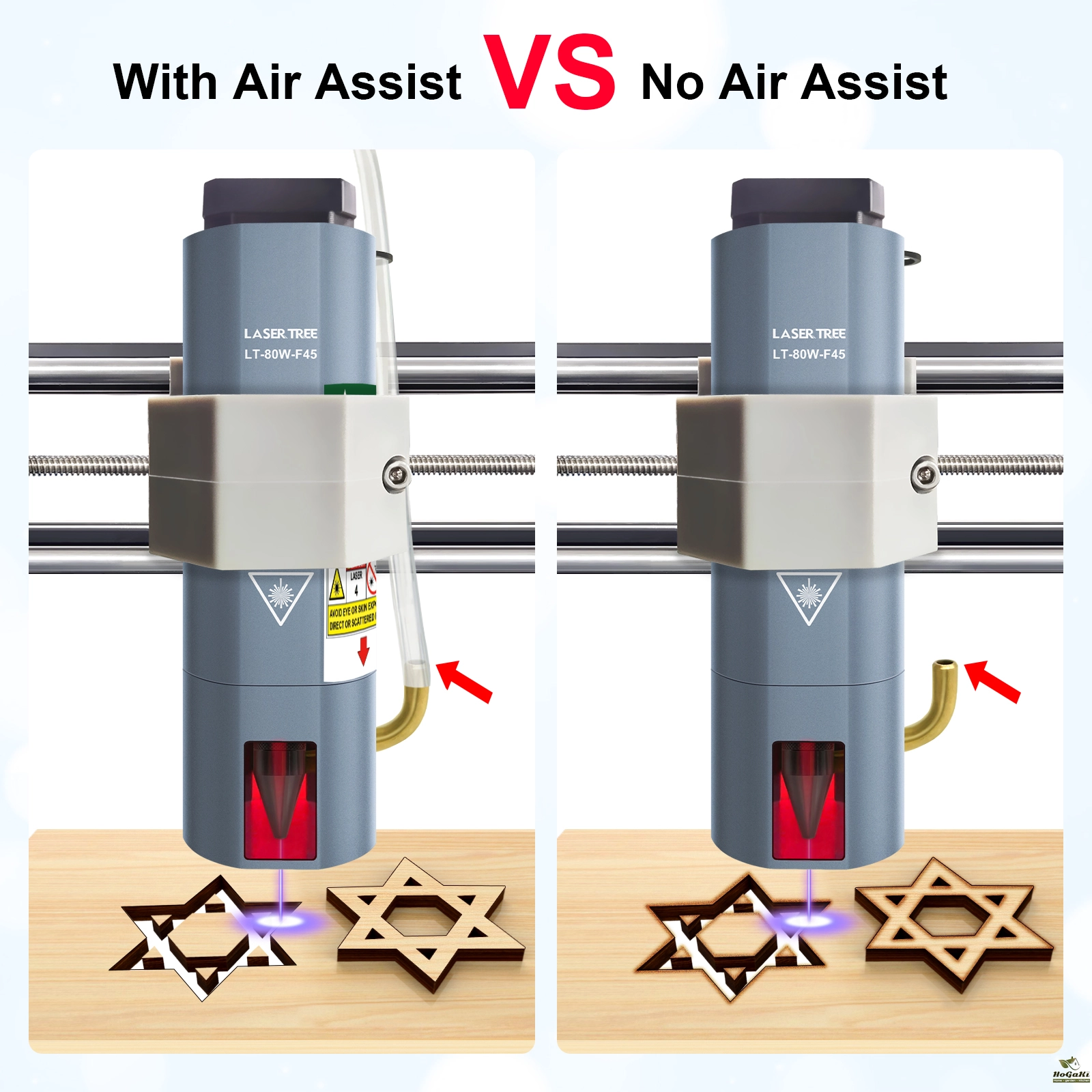

With Air Assist VS No Air Assist
Blowing through the air nozzle to get clean-cut edges, improve cutting performance
without Air Nozzle: Scorched Edges
with Air Nozzle: Clean-Cut Edges

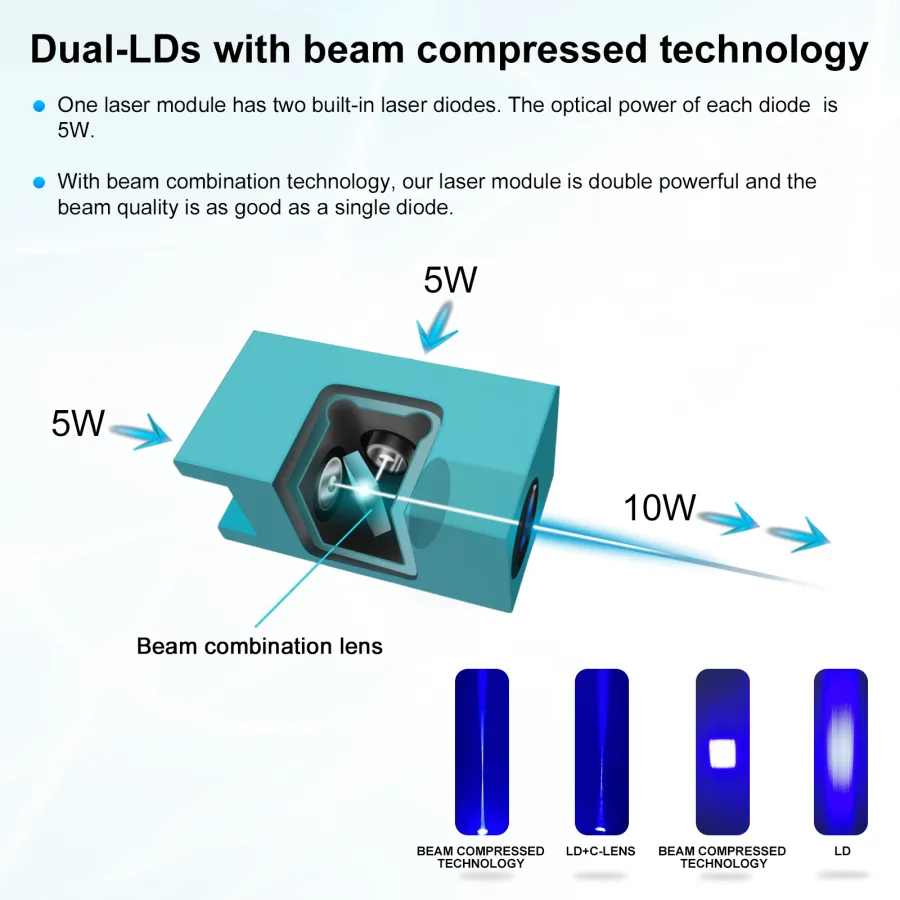

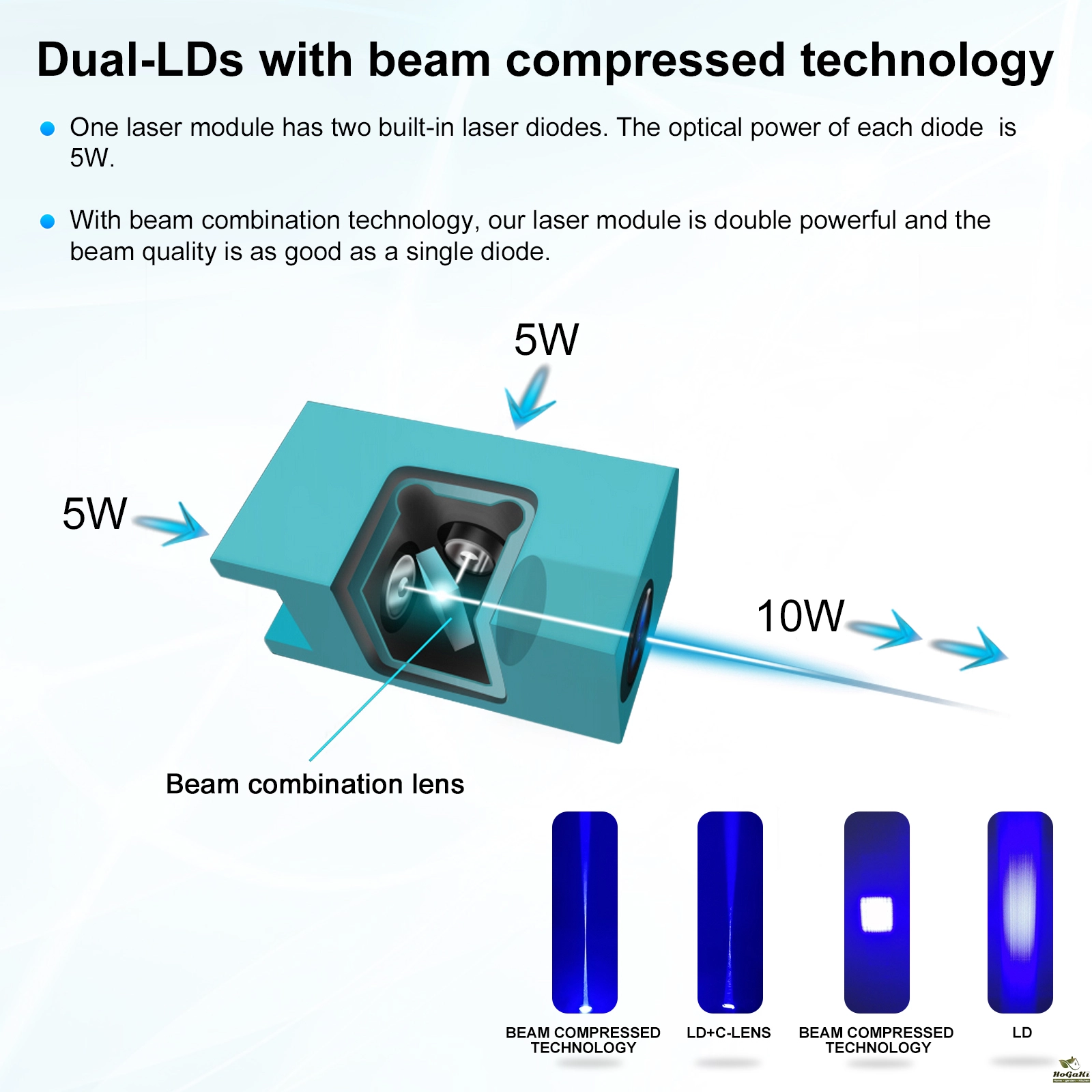

Dual-LDs With Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

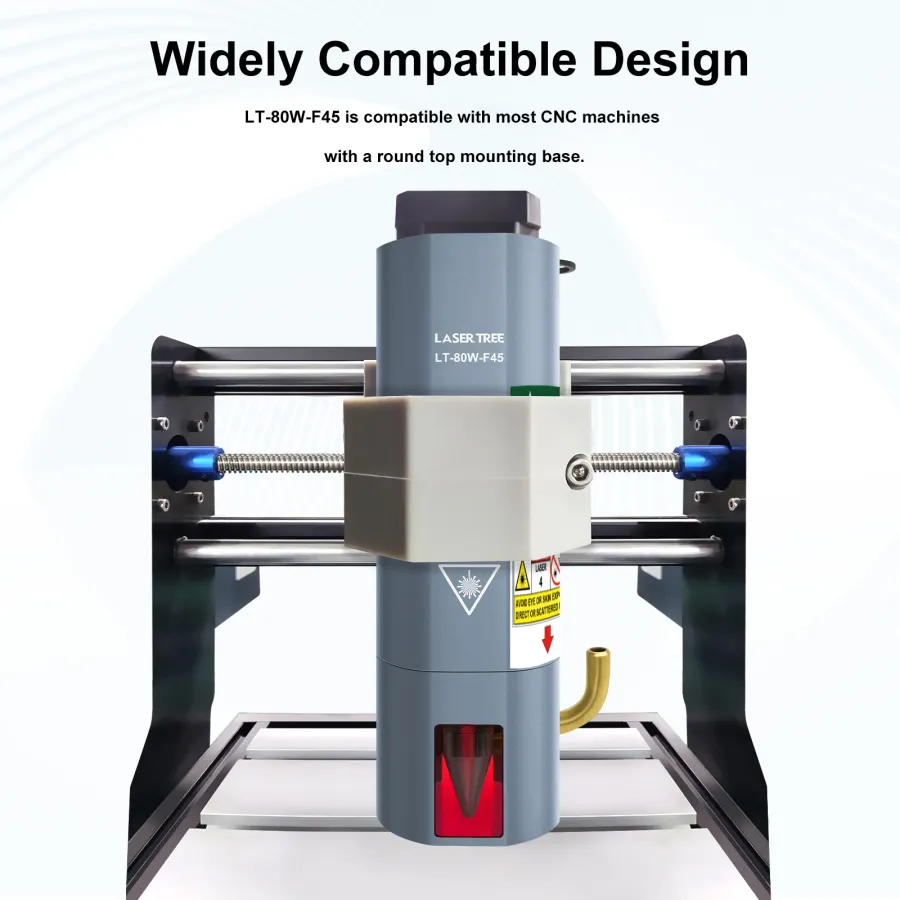

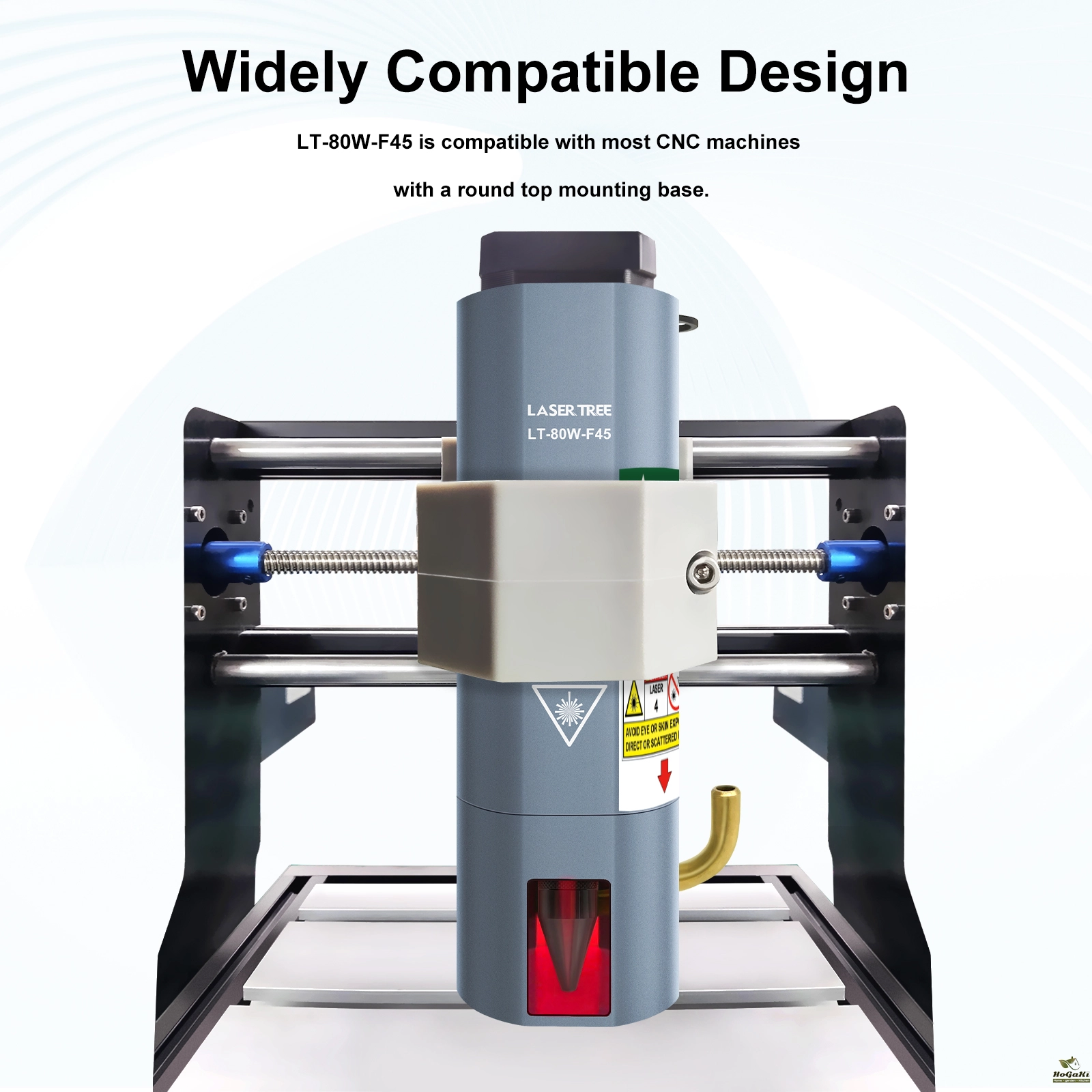

Widely Compatible Design
LT-80W-F45 is a laser engraving and cutting module specially designed for CNC 3018 machines. It is compatible with most CNC machines with a round top mounting base.

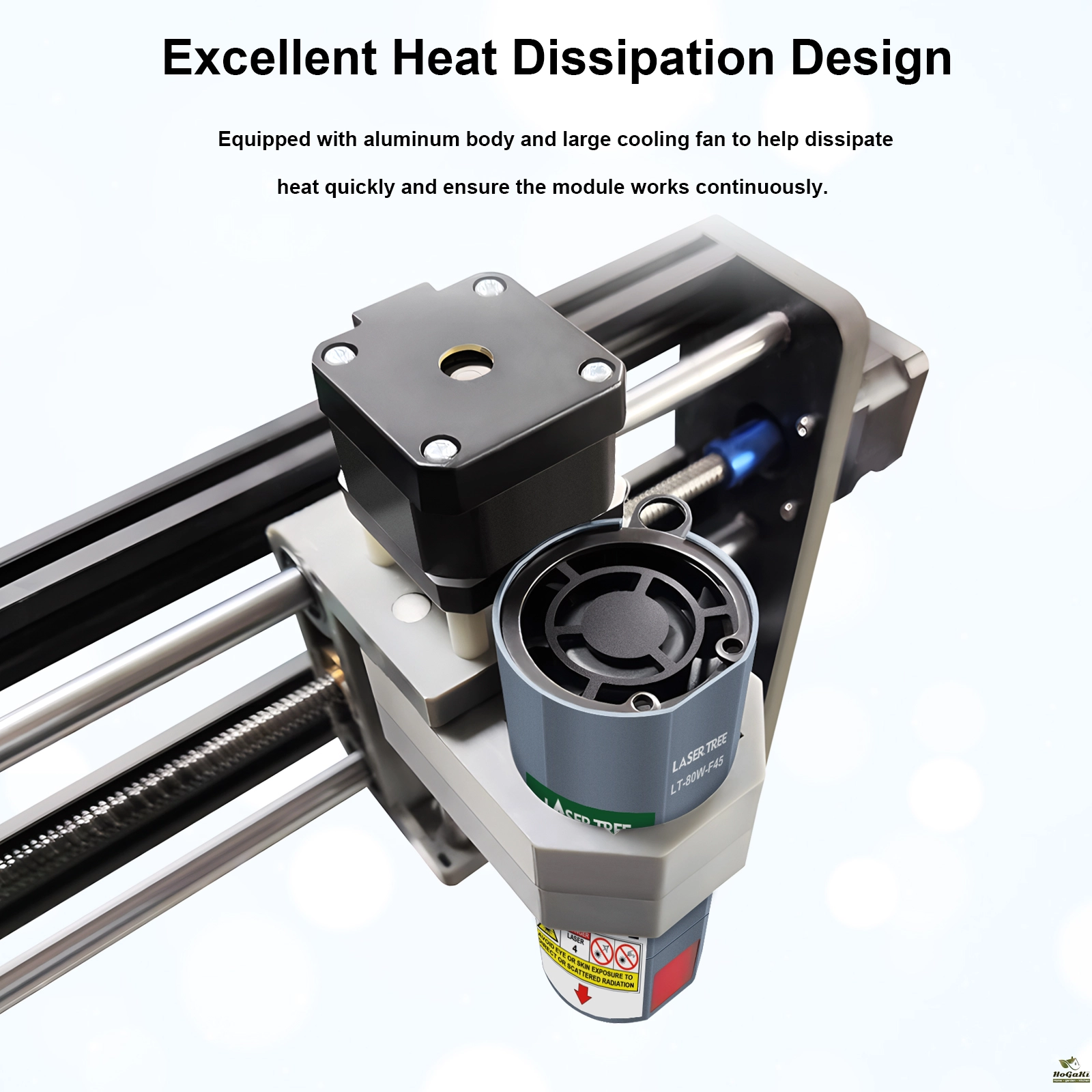

Excellent Heat Dissipation Design
Equipped with aluminum body and large cooling fan to help dissipate
heat quickly and ensure the module works continuously.

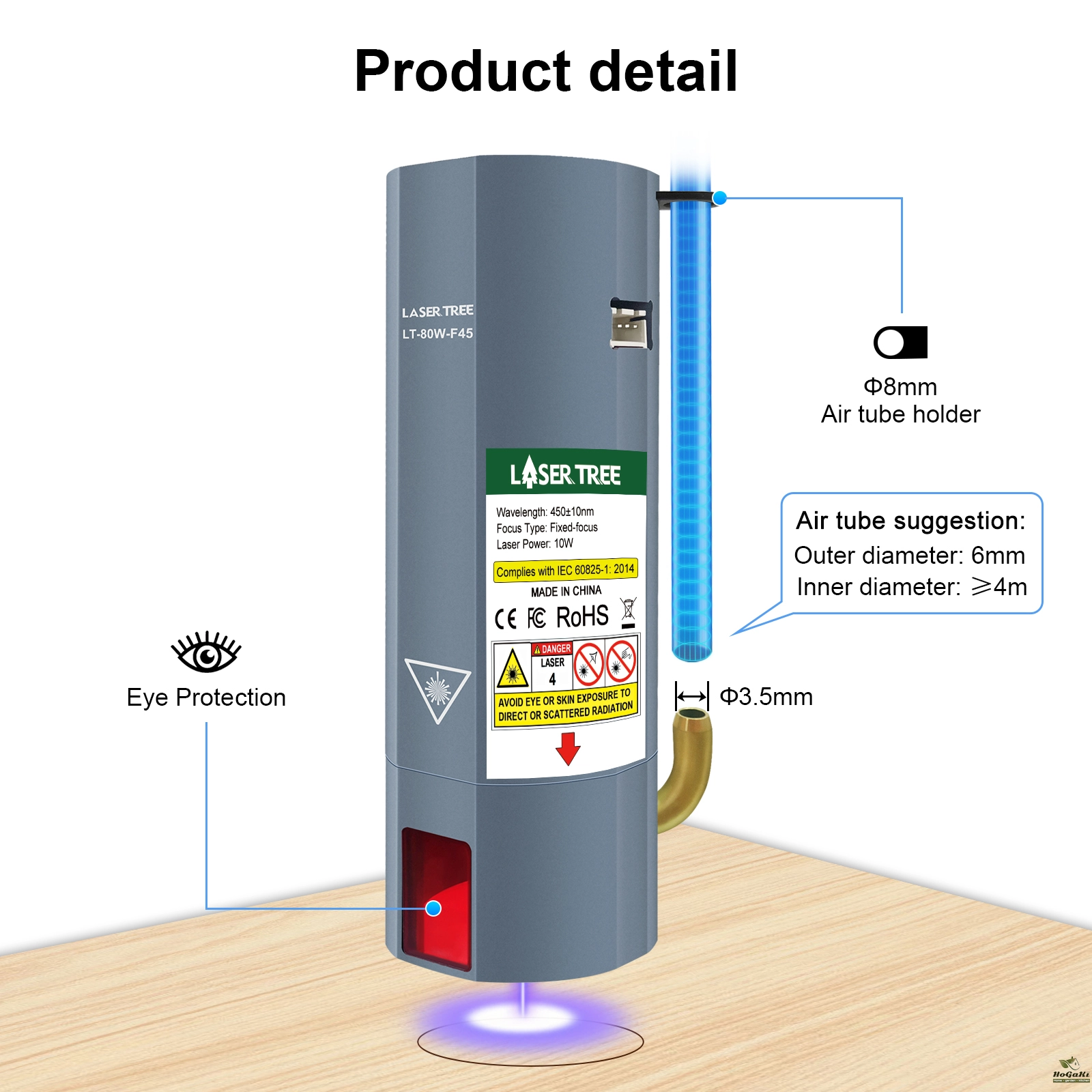

Product detail
Recommended inner diameter of air tube: Φ4mm,outer diameter: 8x6mm
Air pump suggestion:Air pressure and capacity: ≥0.027kPa, 27L/min

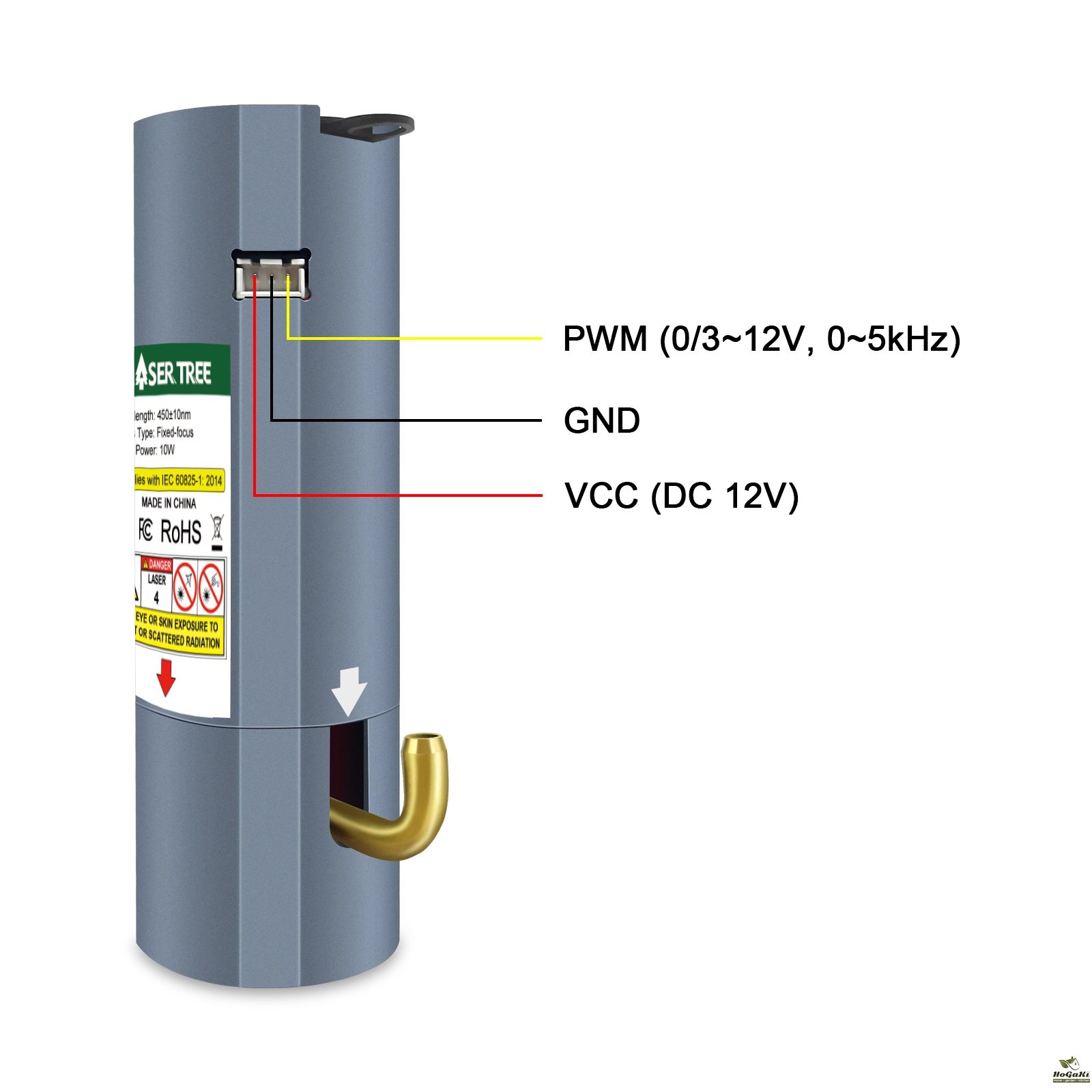

PWM & GND & VCC
PWM (0/3~12V, 0~5kHz)
GND
VCC（DC 12V）

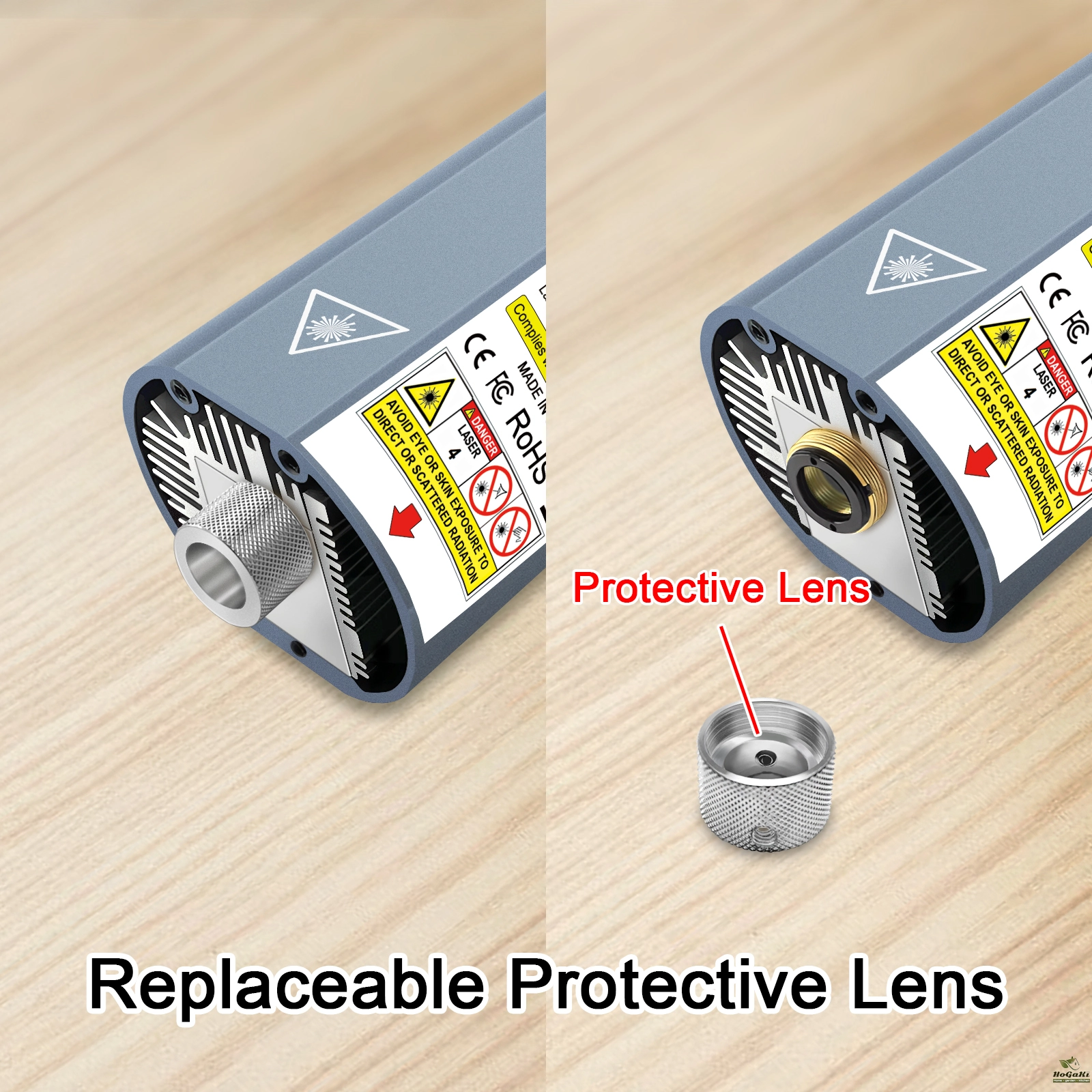

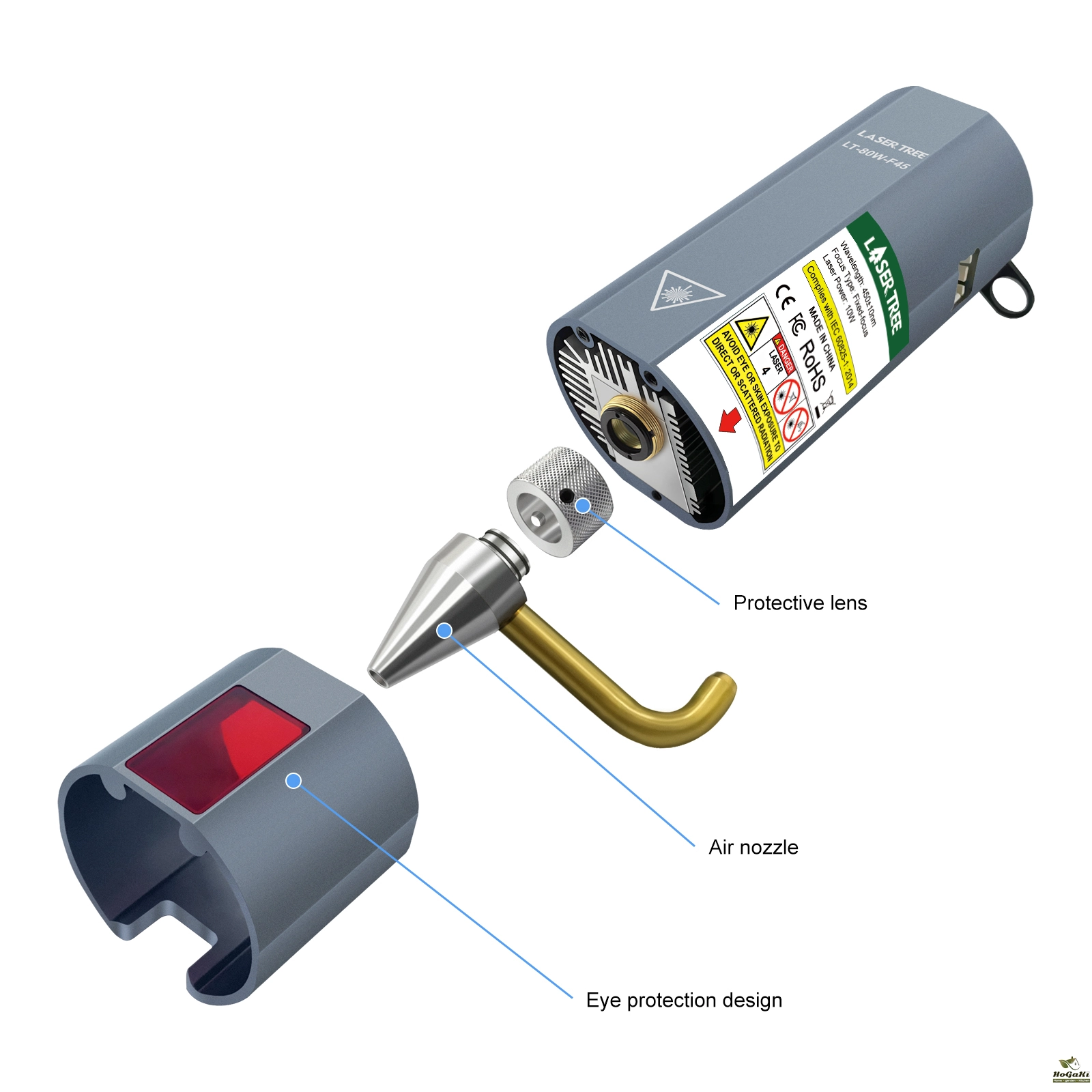

Easy-to-change Protection Window Design
Easy to clean and replace when the lens is contaminated or dusty.

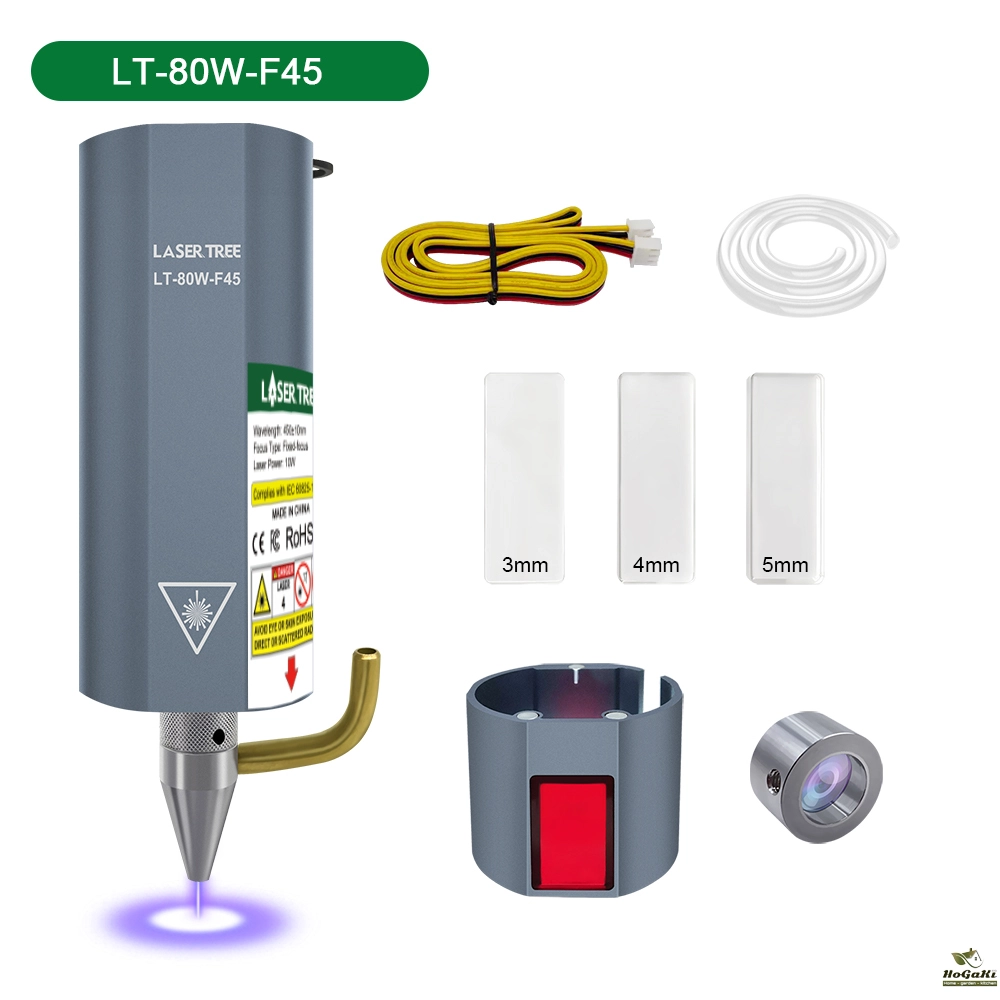

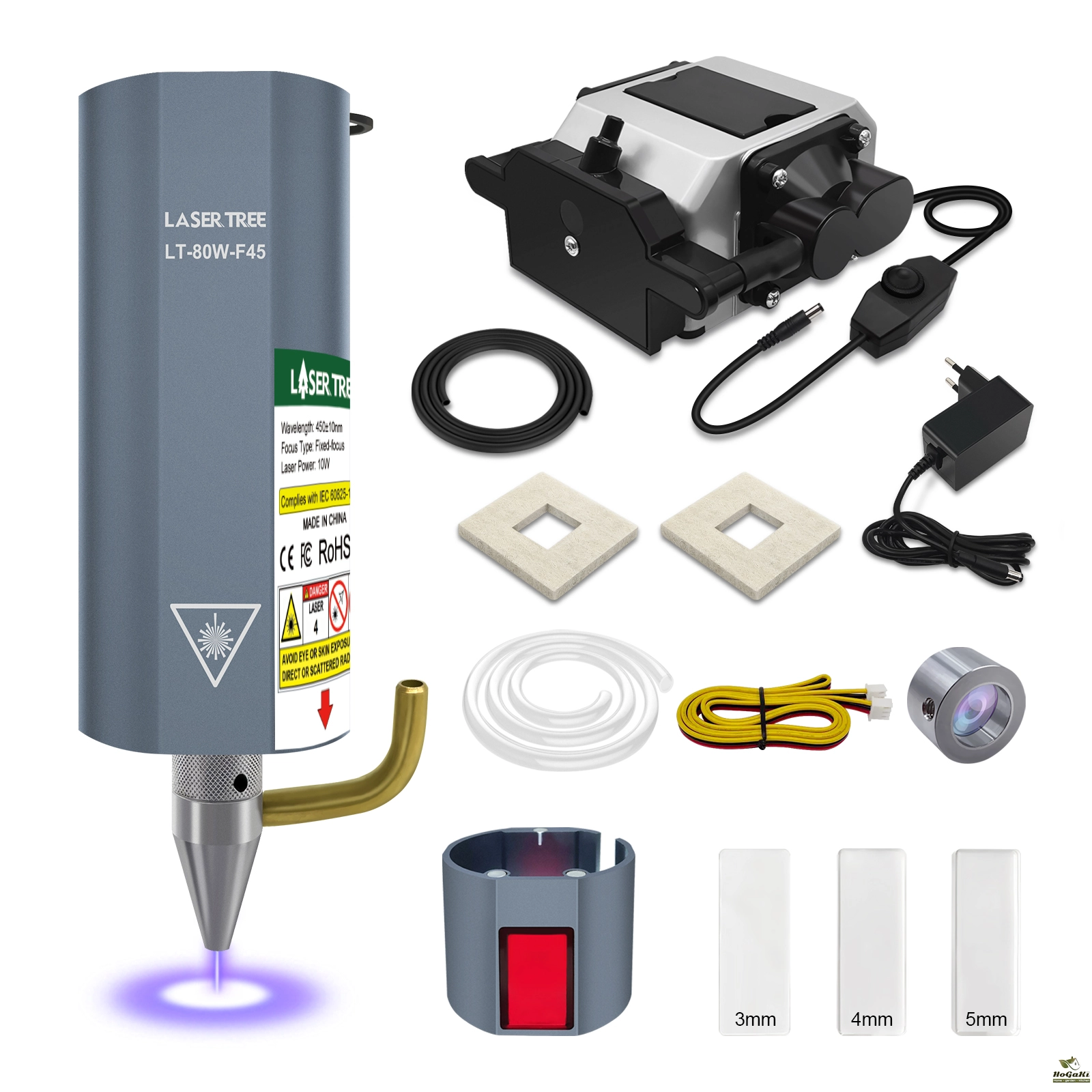

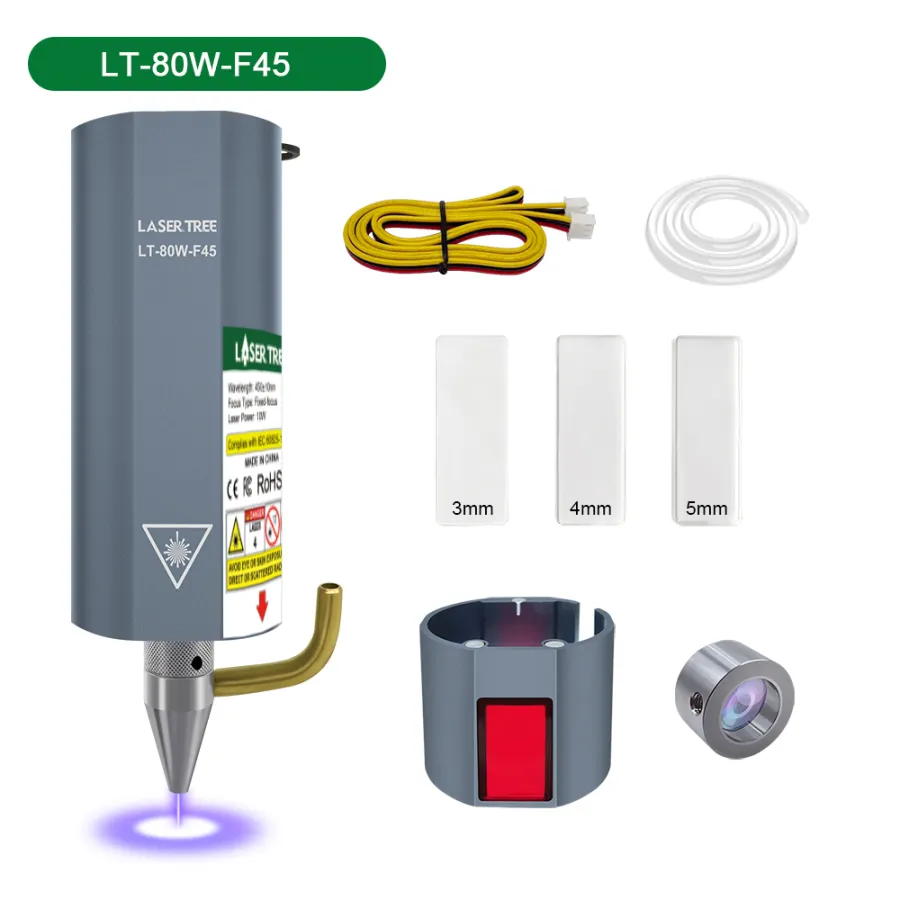

Standard Configuration

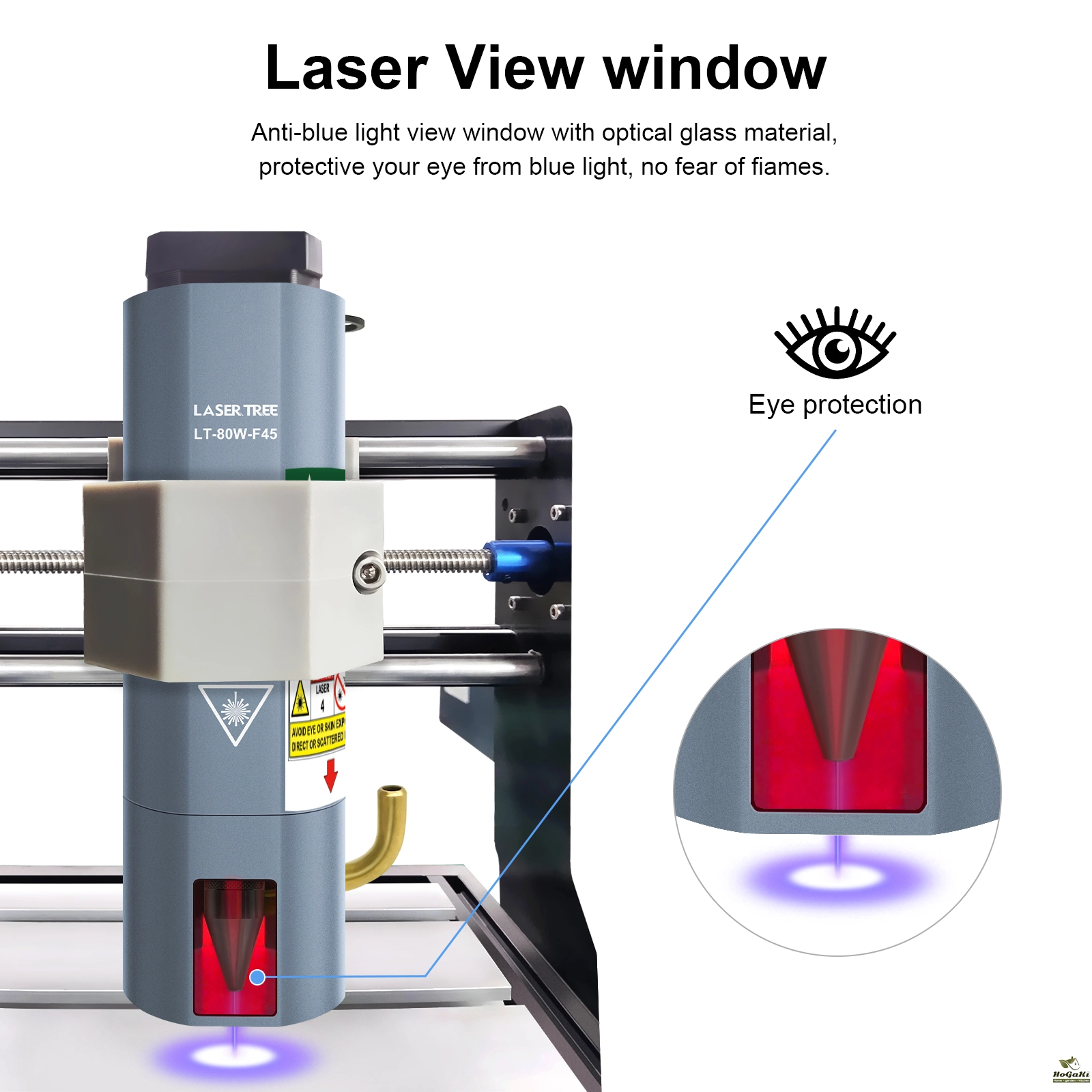

Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
Packaging Details
- Unit Type:
- Package Weight: 0.650
- Package Size: 15x8x20
- Brand Name: Laser Tree
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: LT-80W-F45
- Certification: CE
- Optical power: 10W (±1W)
- Input: DC 12V 3A
- Wavelength: 450nm (±10nm)
- Focus length: 45mm
- PWM modulation: 0/3-12V, 0-5kHz
- Fan speed: 10000rpm
- Operating temperature: 0-60°C
- Interface: XH2.54-3P Socket
- Cable: 3PIN, 80cm
- Module size: 43*130mm
- Module weight: 250g
