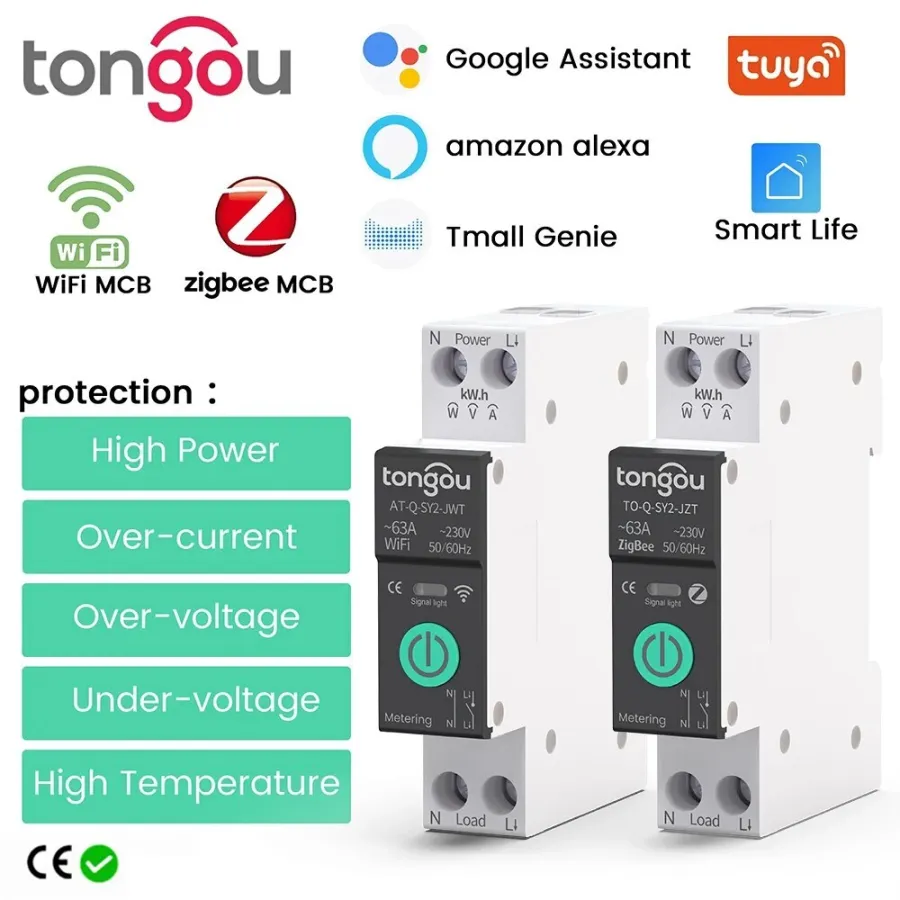

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch
4.9 (836 votes) | 5000 orders
Price:
US $68.71 - 76.37
Discount Price:
US $
33.35 -
36.82
-51%
- Rated Current
• Over-under protection :Protects against overcurrent and undervoltage, ensuring safe and stable power supply.
• Power protection :Provides protection against power surges and fluctuations, preventing damage to electrical appliances.
• Temperature protection :Operates effectively within a wide temperature range, ensuring reliable performance even in harsh environments.
• Remote control switch :Allows for easy and convenient control of the circuit breaker from a distance, making it easier to manage your home's electrical system.
TO-Q-SY2 Din Rail Smart Switch pairing operation and function setting
WiFi 1-63A adjustable Function
Feature:
This item is a WiFi MCB Circuit Breaker.With Over-current Protection and Under-voltage Protection and Over-under-voltage Protection， The rated current is adjustable in APP, 1-63A
Remote control at anytime from anywhere by TUYA APP / Smart Life APP
Smart Life app on mobile ，no distance limit
Schedule / Timing, countdown, cycle timing
Voice control by Amazon Alexa echo dot / Google assistant
Parameter:
Working voltage : AC90-280V， 50 / 60Hz
Wireless type : Wi-Fi 2.4GHz
Support system : Android \ iOS
Rate Current : （1-63A）adjustable
Over-voltage protection : 220-265V
Unde-voltage protection ： 76-240V
Temperature protection: 40-100?
Over-Power protection ： 1-26KW

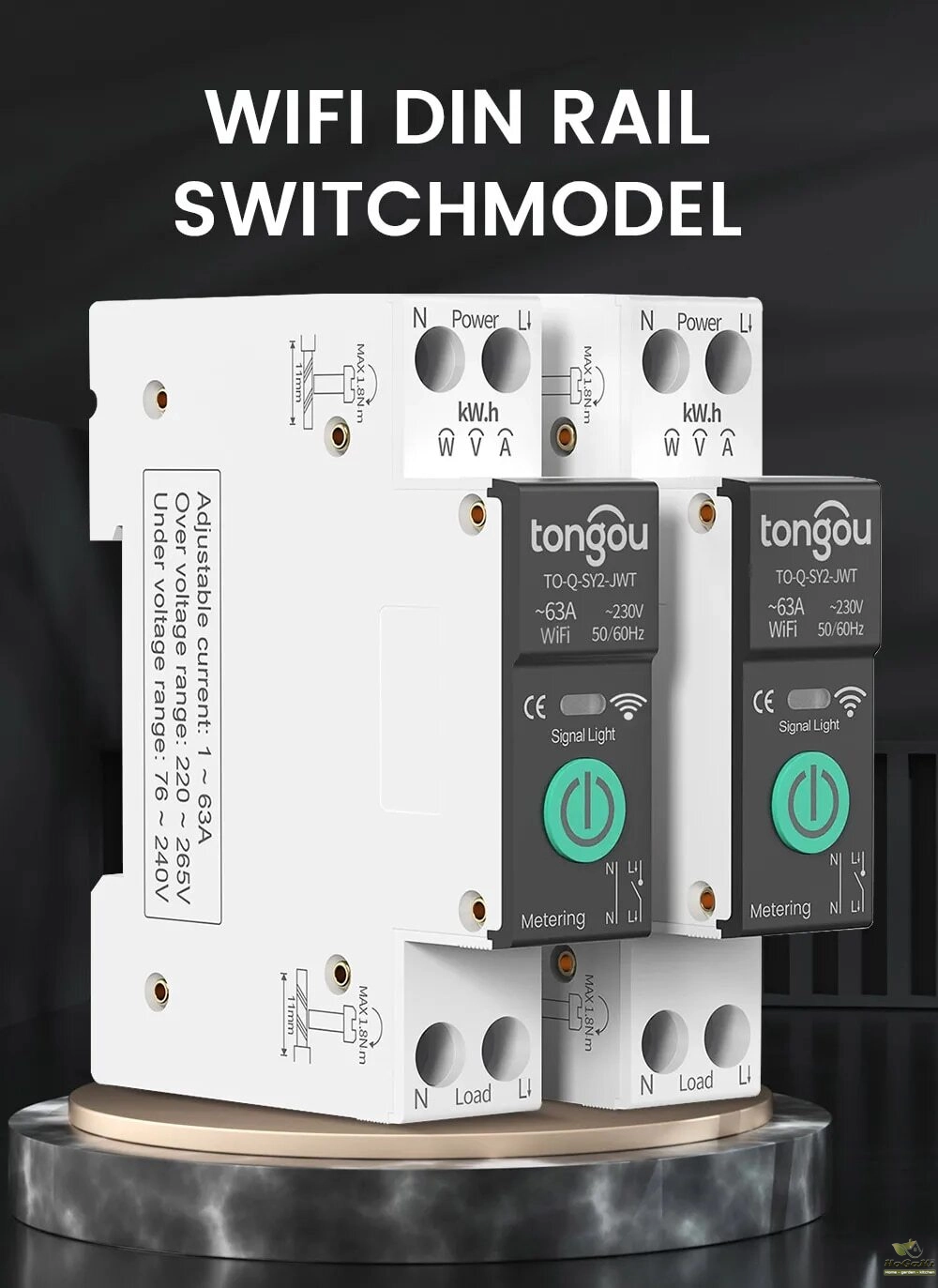

WIFI DIN RAIL
SWITCH MODEL
OPEN ANEW ERA
OF INTELLIGENCE
Into Smart With Your DIY Idea
1 . Remote control / 2 . Timing / 3. Temperature protection
4 . Over-current protection
5 . Over-voltage and under-voltage prontection
6 . Real-time monitoring ofelectricity consumption

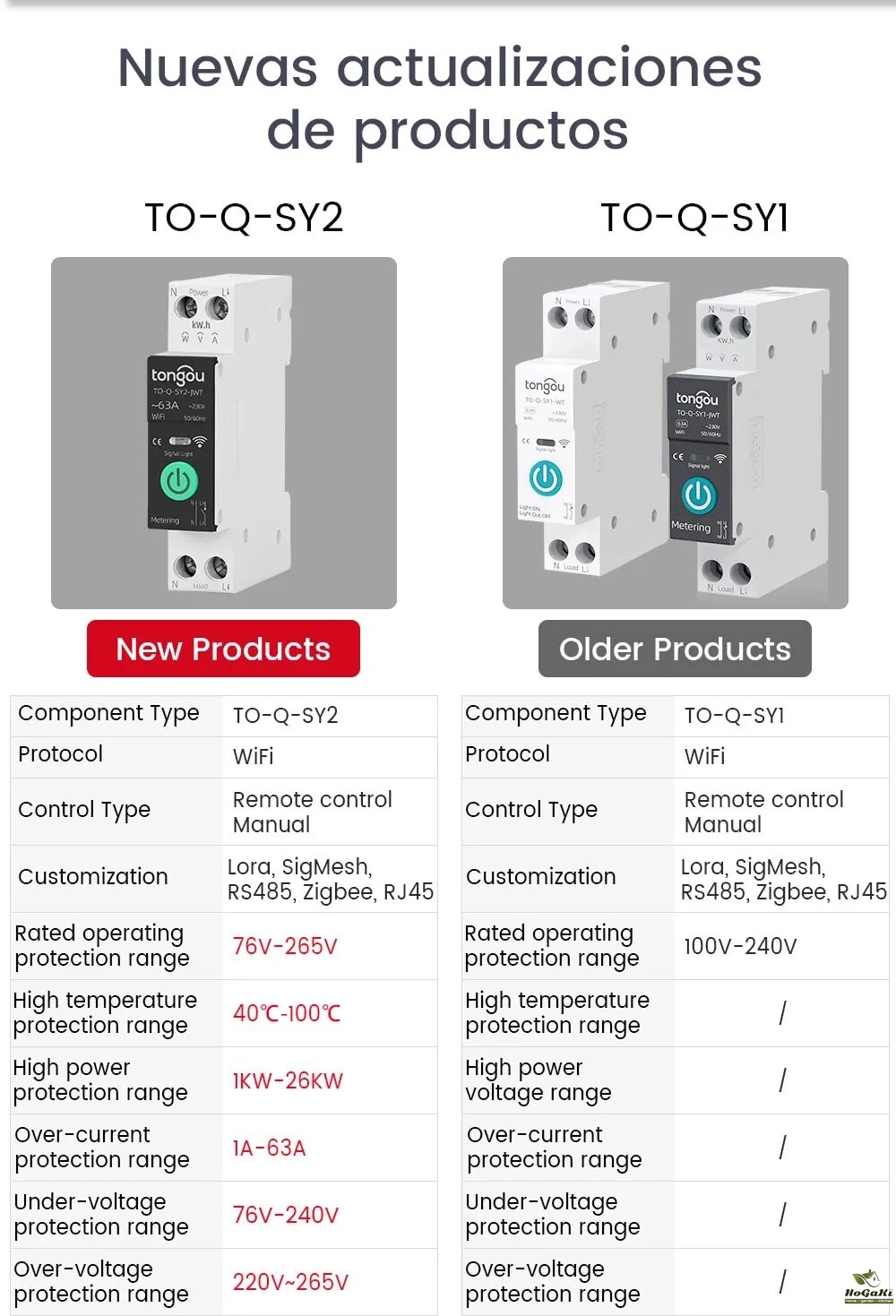

New updates
Of products

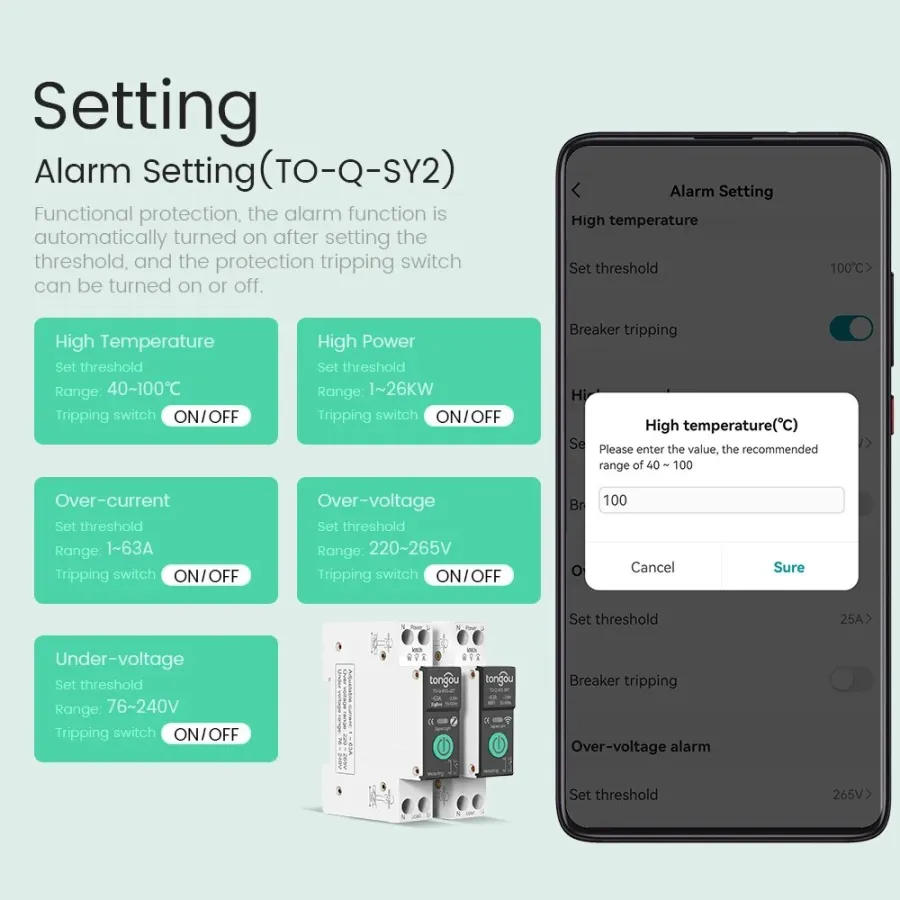

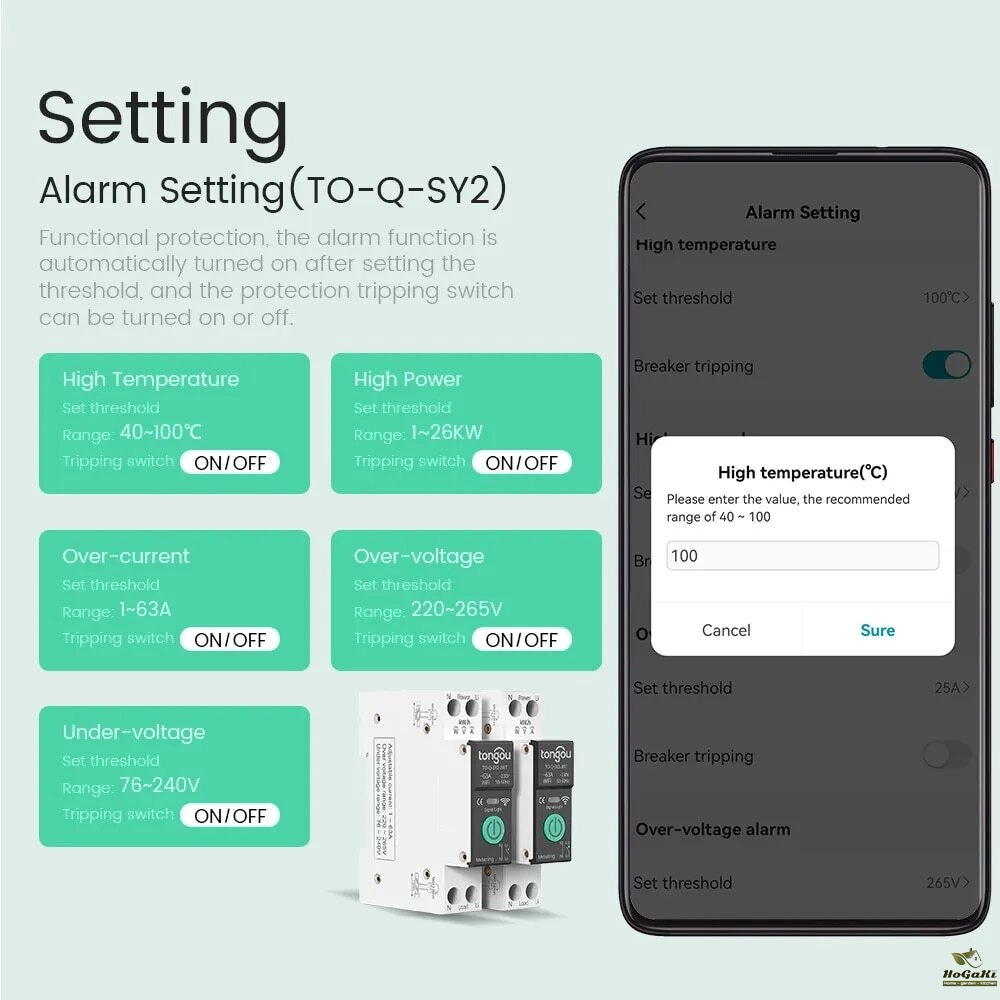

Setting
Alarm Setting (TO-Q-SY2)
Functional protection , the alarm fuction is automatically turned on after setting the theshold , and the protection trpping switch can be turned on or off .
Safe and secure choice
Protection against over-temperature and over-load
over-voltage and under-voltage

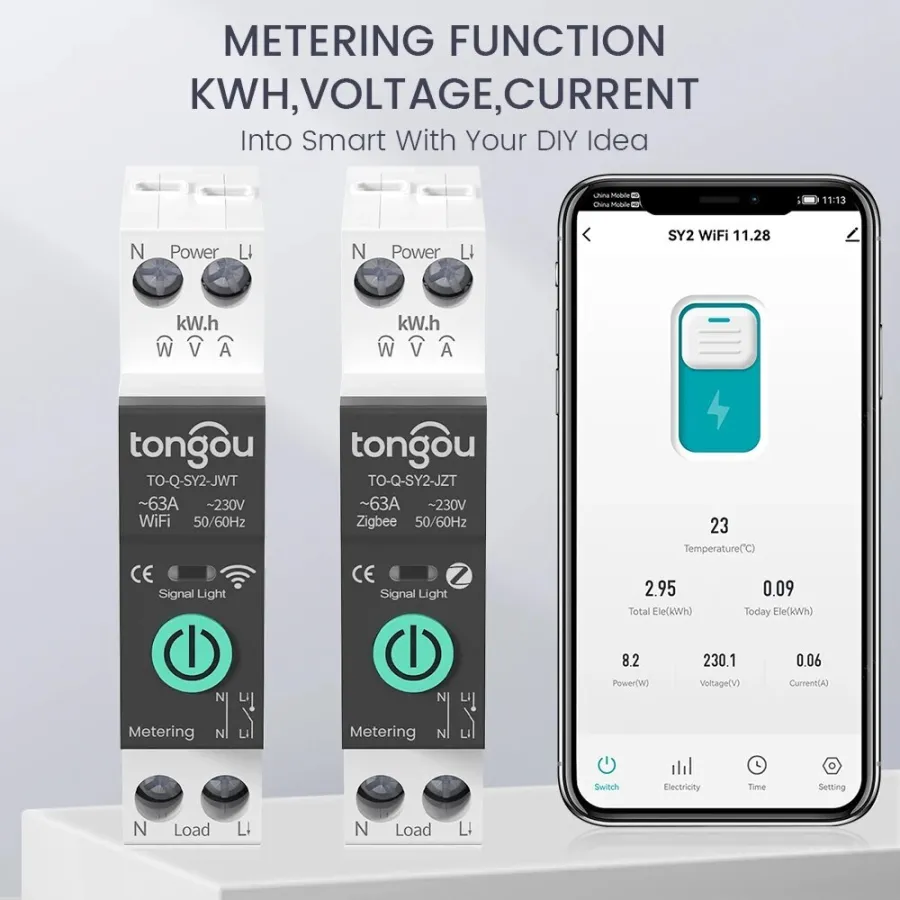

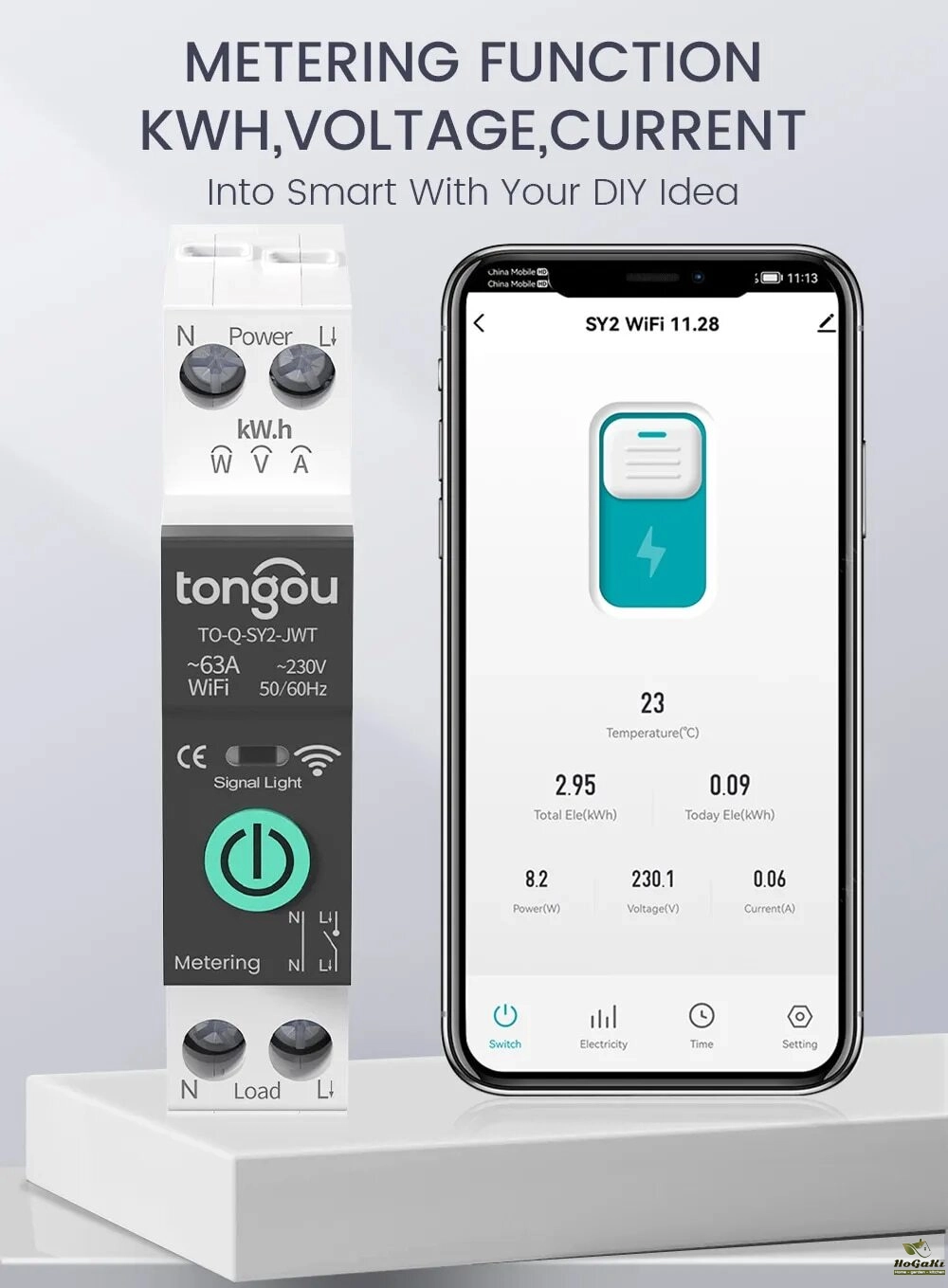

METERING FUNCTIONKWH
VOLTAGE , CURRENT
Into Smart With Your DIY Idea

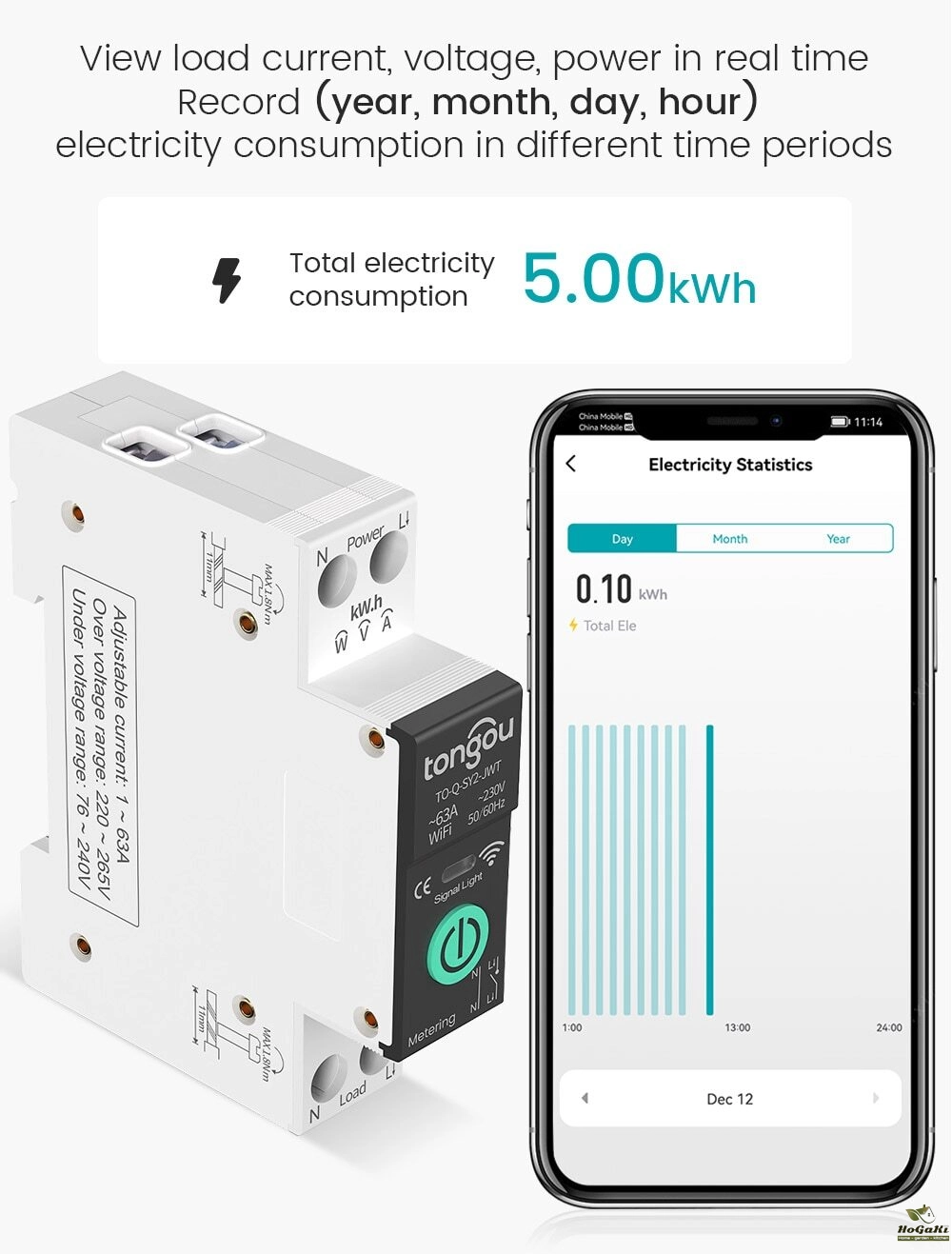

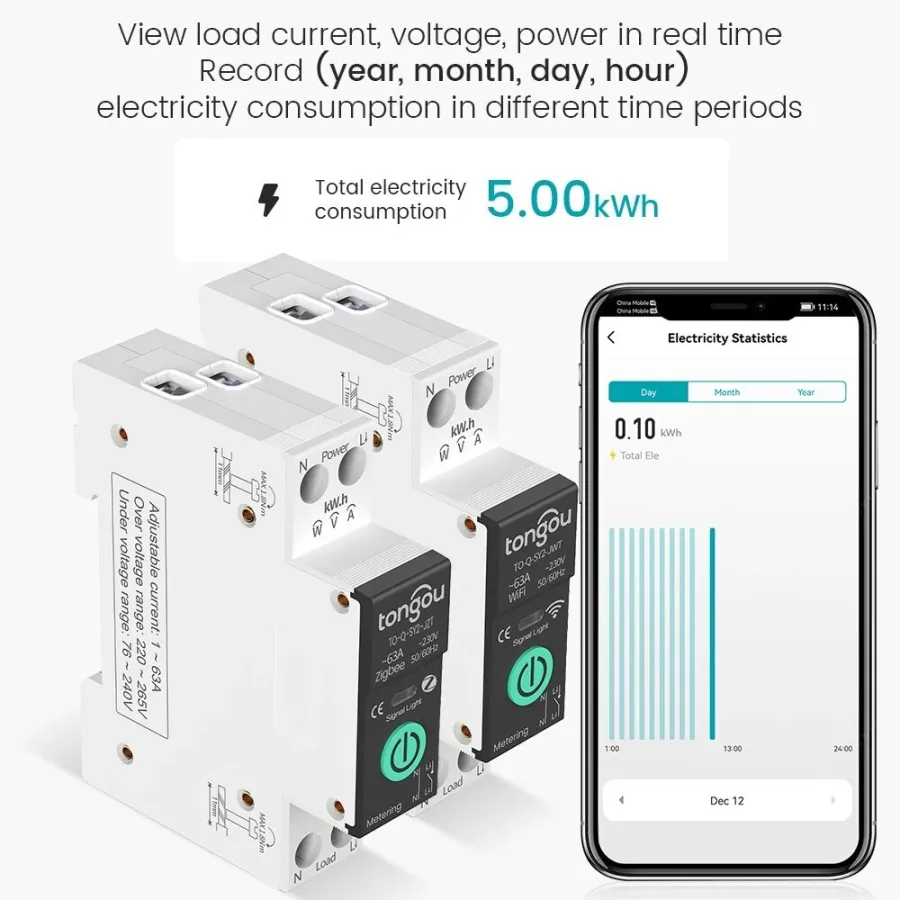

View load current ， voltage , power in real time
Record (year , month , day , hour)
electicity consumption in different time periods

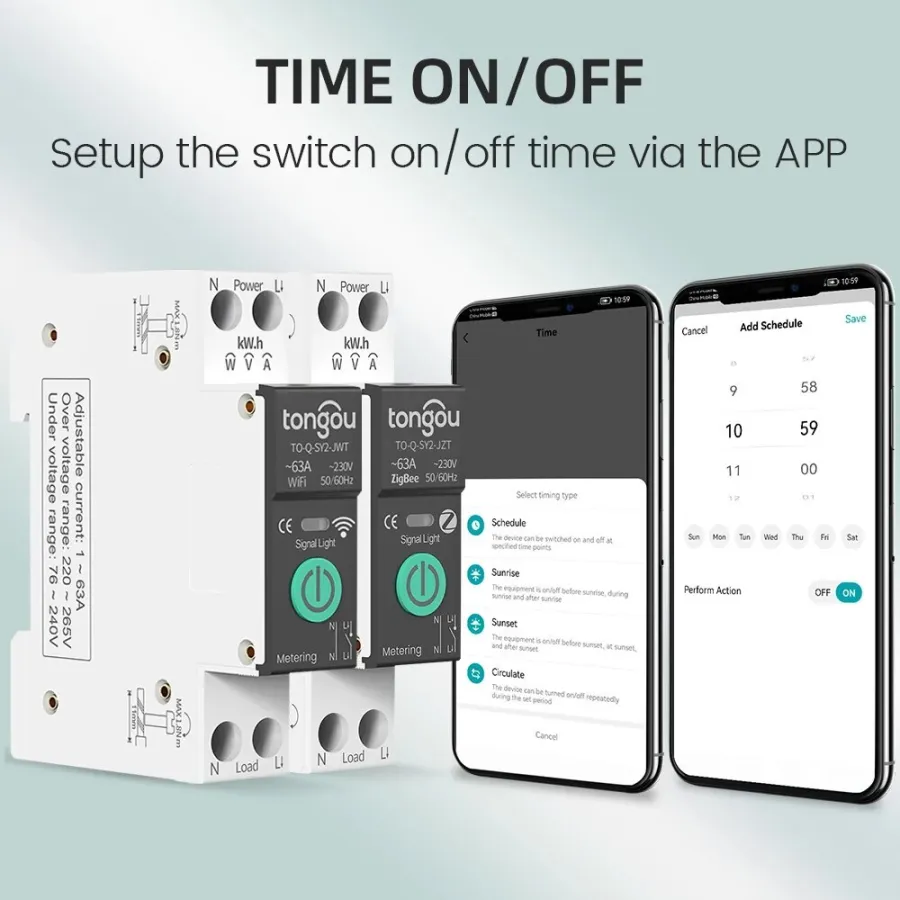

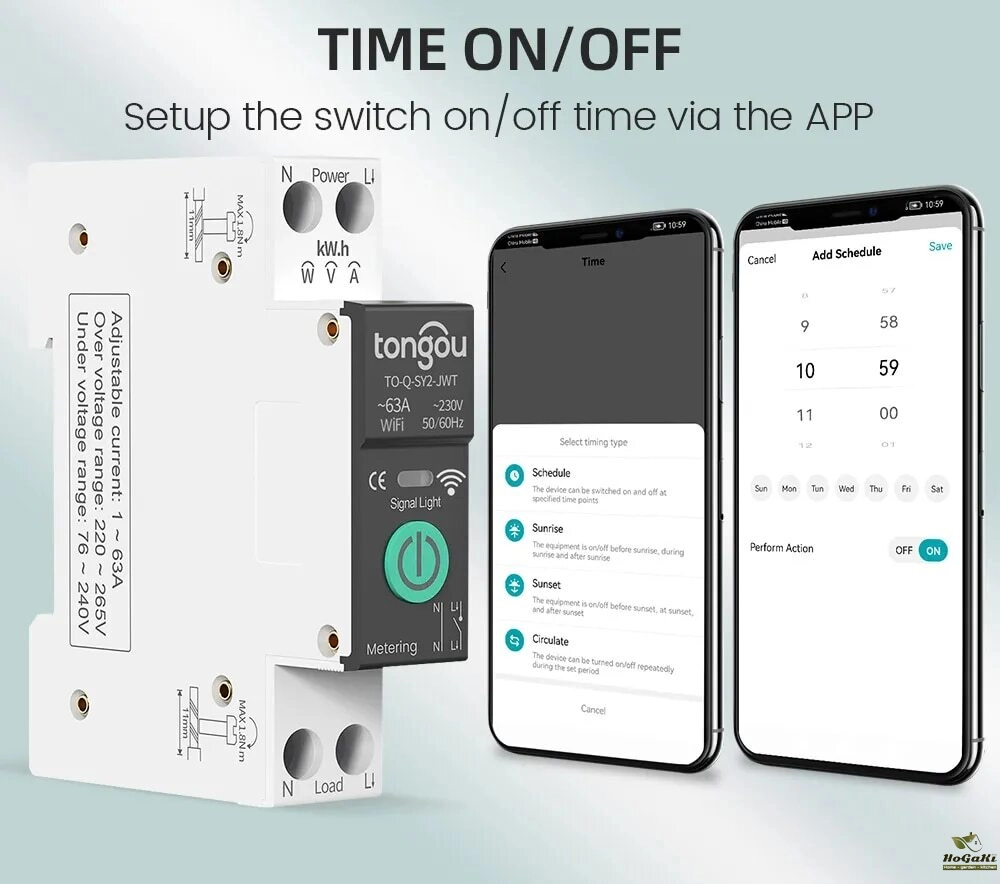

TIME ON / OFF
Setup the switch on / off time via the APP
Three Timing Modes
(Timing Mode / Countdown Mode / Loop Timing)
Timing Mode
Before going home from get off work...
18:30 Turn on the lights.
Countdown Mode
after falling asleep...
turn off the lights after 10 minutes.
Loop Timing
Before waking up / after going to work ...
06:00 Turn on the lights. / 08:00 Lights off .
"Hi Google,turn off the light."
"Okay"
Voice Controls
Voice linkage
Compatible with Amazon Alexa Google Home.
What do you want to control ? just say it .

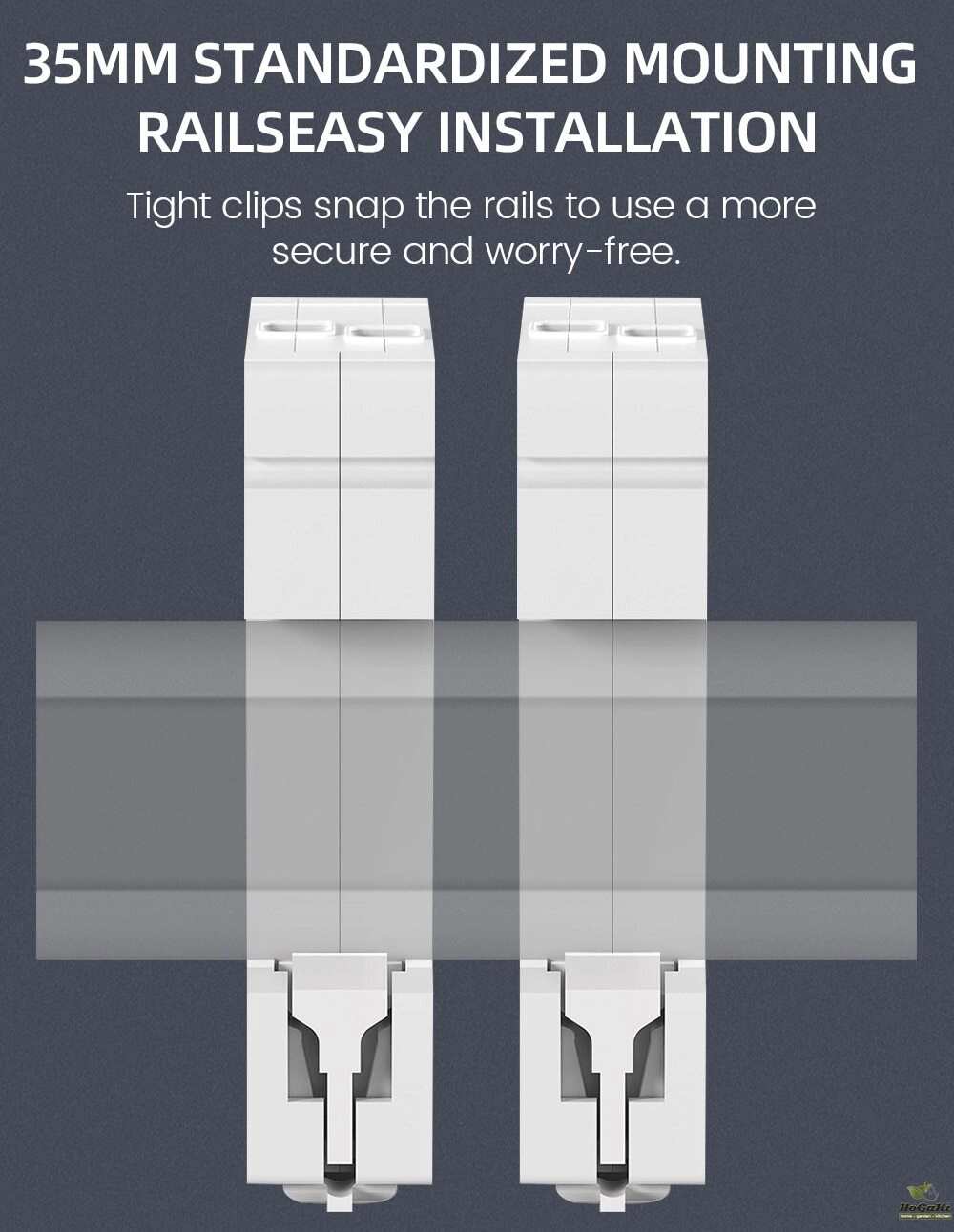

35MM STANDARDIZED MOUNTING
RAILSEASY INSTALLATION
Tight clips snap the rails to use a more
secure and worry-free

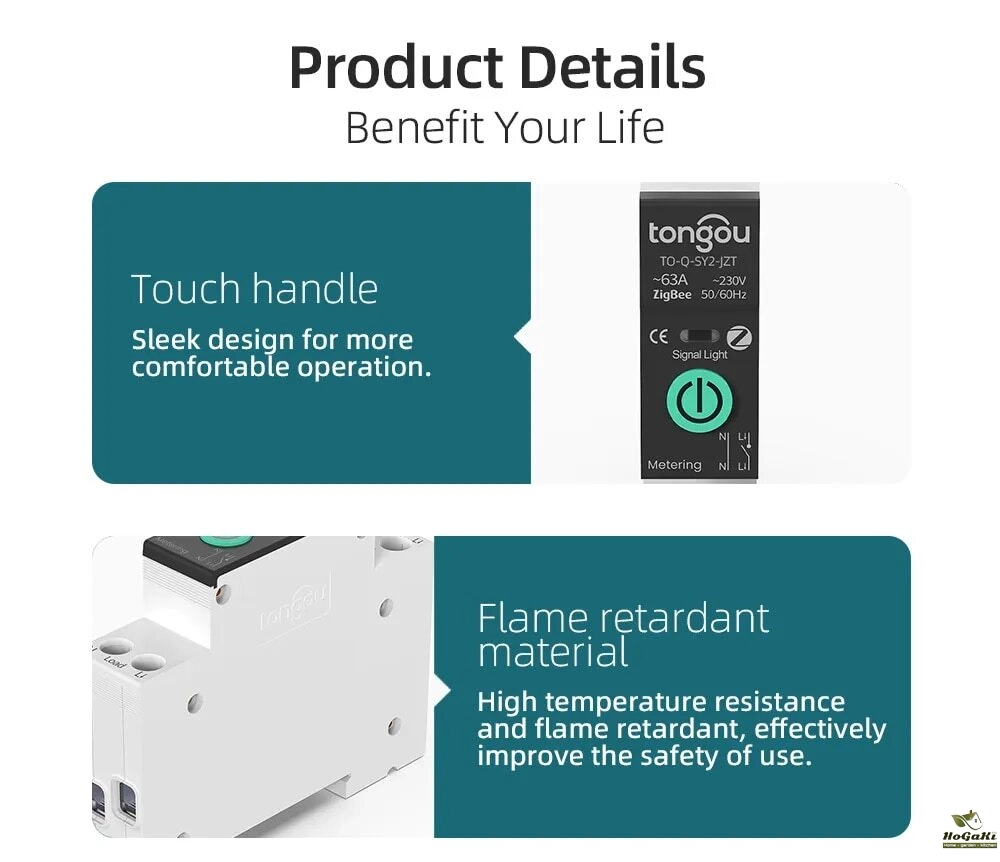

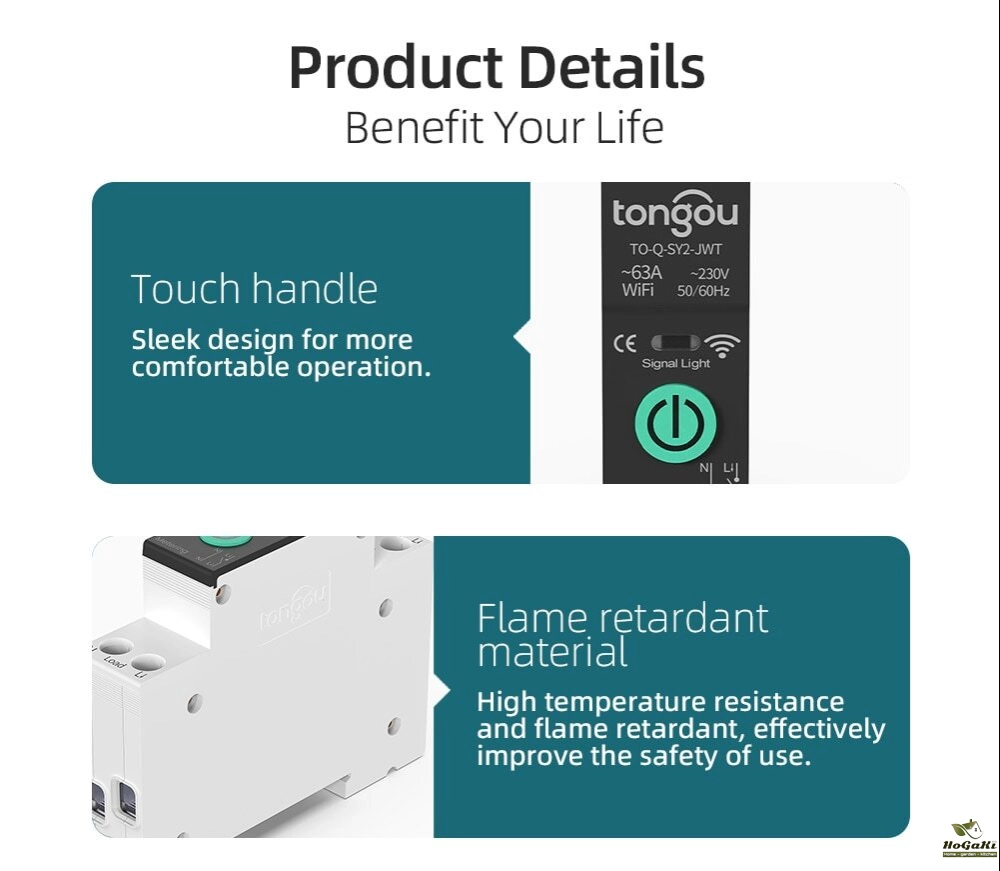

Product Details
Benefit Your Life
Touch handle
Sleek design for more comfortable operation.
Flame retardant material
High temperature resistance and flame retardant , effectively improve the safety of use.

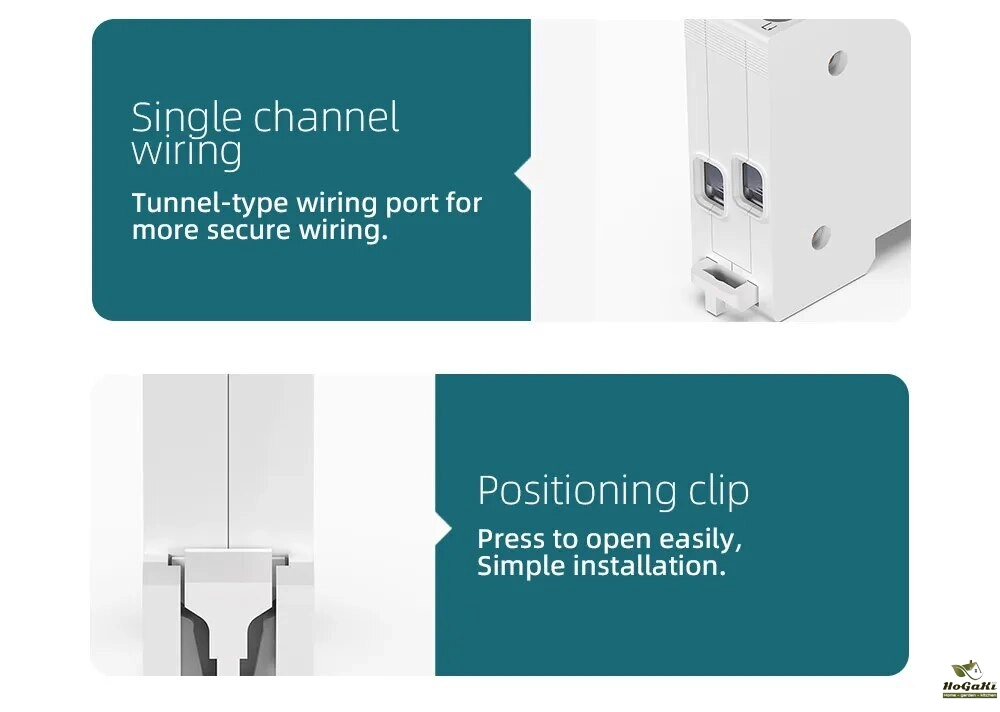

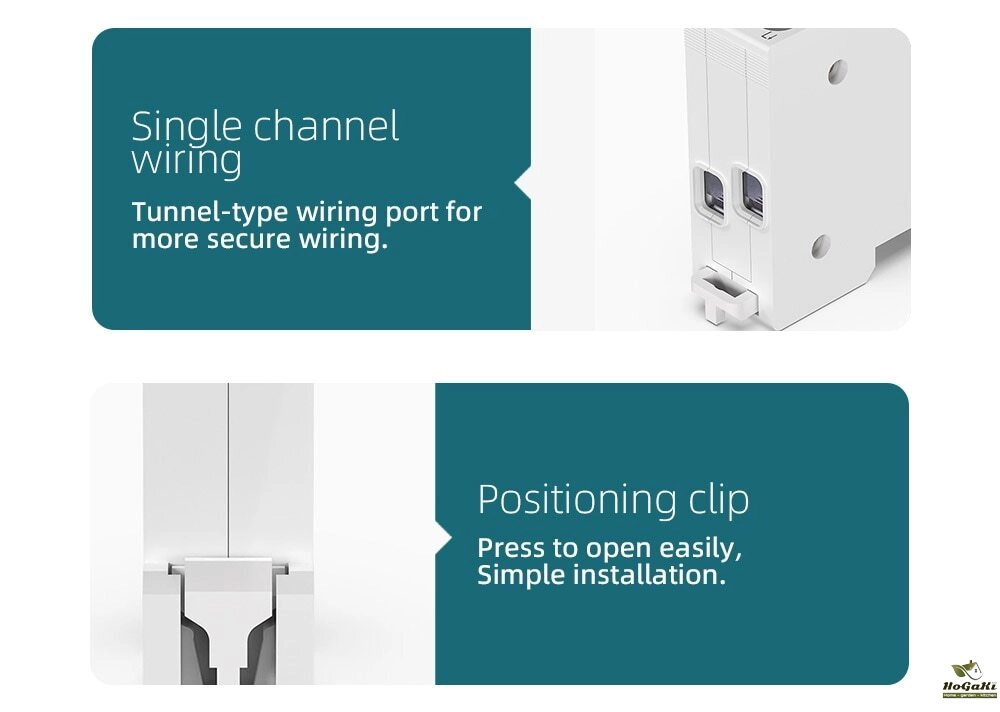

Single channel wiring
Tunnel-type wiring port for more secure wiring.
Positioning clip
Press to open easily , Simple installation.

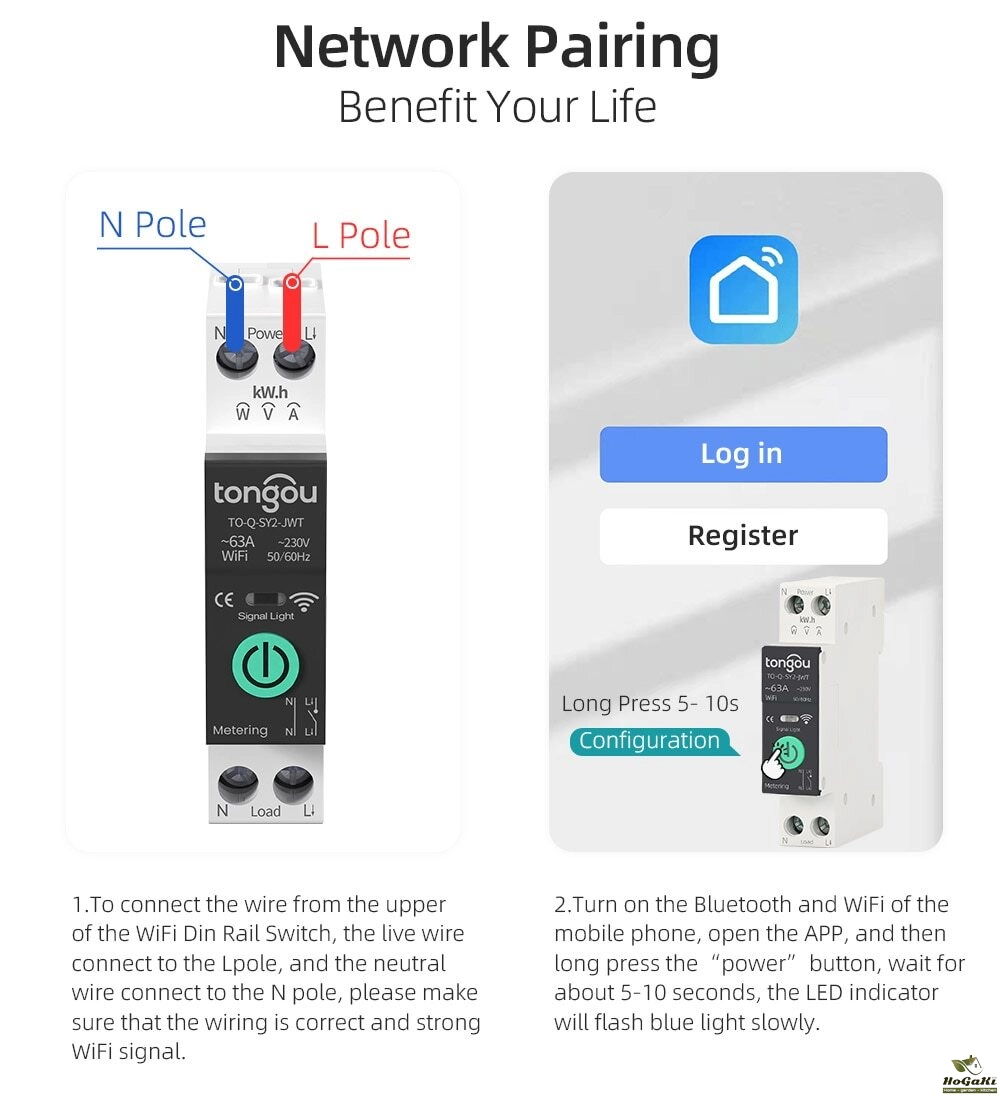

Network Pairing
Benefit Your Life
1 . To connect the wire from the uppper of the WiFi DINRail Switch , the live wire connect to the Lpole , and neutral wire connect to the N pole , please make sure that the wiring is correct and strong WiFi signal.
2 . Turn on the Blue tooth and WiFi of the mobile phone , open the APP,and then long press the"power"button,wait for about 5-10 secaonds , the LED indicator will flash blue light slowly .

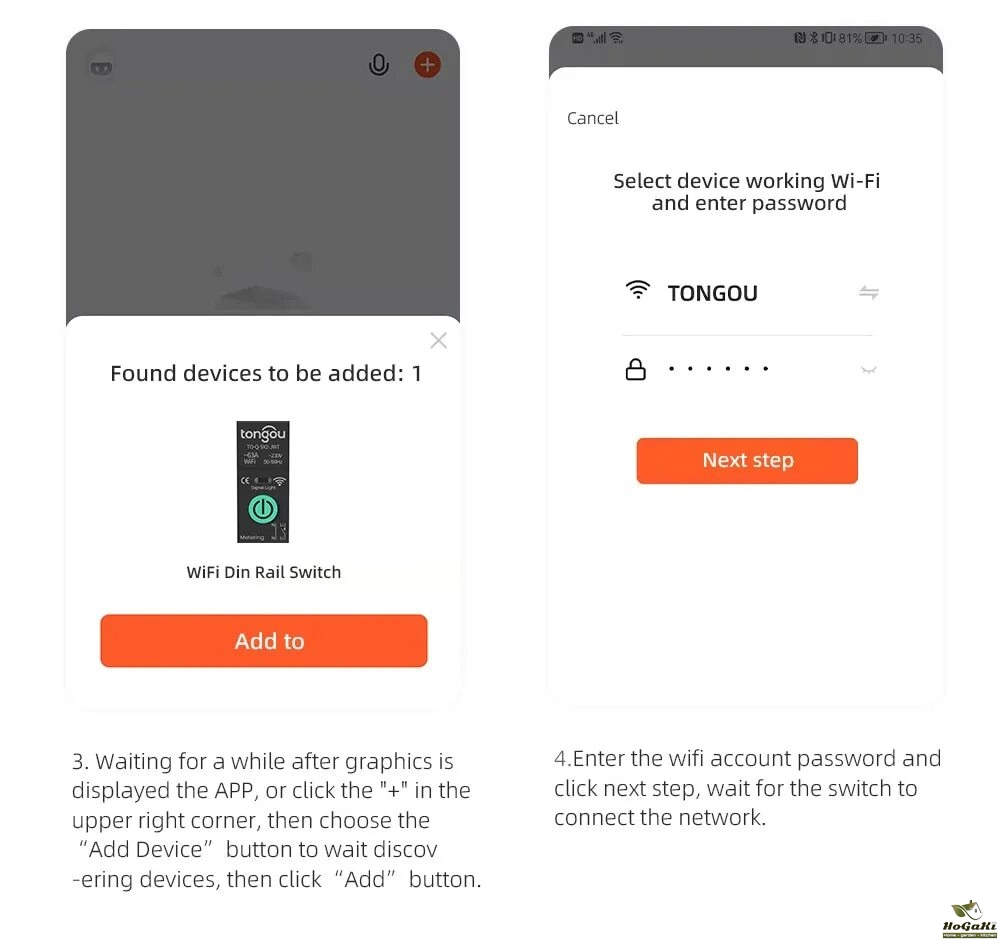

3 . Waiting for a while after graphics is displayer the app,or click the"+"in the upper righe corner , then choose the"Add Device"button to waitdaiscovering devi
4 . Enter the wifi account password and click next step,wait for the switch to connect the netwoek .

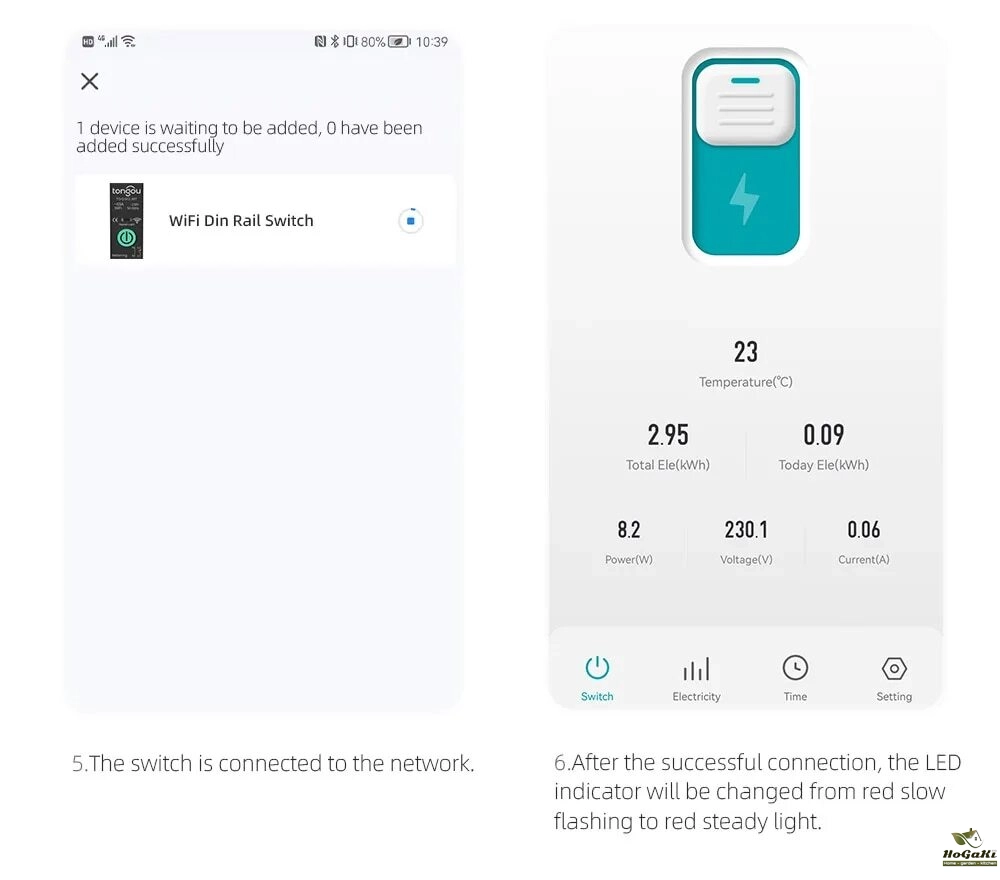

5.The switch is connected to the network
6 . After the successful connection,the LED indicator will be changed from red slow flashing to red steady light
Zigbee1-63A adjustable Function
Notice :
A note on Zigbee gateway adaptability
1、Wired zigbee gateway: please ensure that the firmware version ≥ 1.19.2(WIFI)/1.0.13(Zigbee)
2, WIFI + Zigbee wireless gateway: please ensure that the firmware version ≥ 1.12.0 (WIFI) / 1.0.8 (Zigbee)
3, Mini multimode gateway (the most common version for home use): please ensure that the firmware version ≥ 1.4.8 (WIFI) / 2.4.1 (Zigbee)
4,、WIFI + Zigbee intelligent dual-link gateway: please ensure that the firmware version ≥ 1.8.2 (WIFI) / 1.0.13 (Zigbee)
5、Household multi-mode-function gateway (usually with audible and visual alarm function) and Smart Wired Gateway Pro (usually called Matter Gateway), they do not support temperature and current regulation modules
Zigbee version requires a zigbee hub/Gateway for remote control
This product adopts the emerging zigbee technology and professional manufacturing process
Wiring : Power must enter from the top and must be a live line + neutral (L+N)
Feature:
Remote control at anytime from anywhere by TUYA APP / Smart Life APP
Schedule / Timing, countdown, cycle timing
Voice control by Amazon Alexa echo dot / Google assistant
Parameter:
This item is a ZigBee MCB Circuit Breaker.With Over-current Protection and Under-voltage Protection and Over-under-voltage Protection， The rated current is adjustable in APP, 1-63A
Working voltage : AC90-280V， 50 / 60Hz
Support system : Android \ iOS
Rate Current : （1-63A） adjustable
Over-voltage protection : 220-265V
Unde-voltage protection ： 76-240V
Temperature protection: 40-100?
Over-Power protection ： 1-26KW

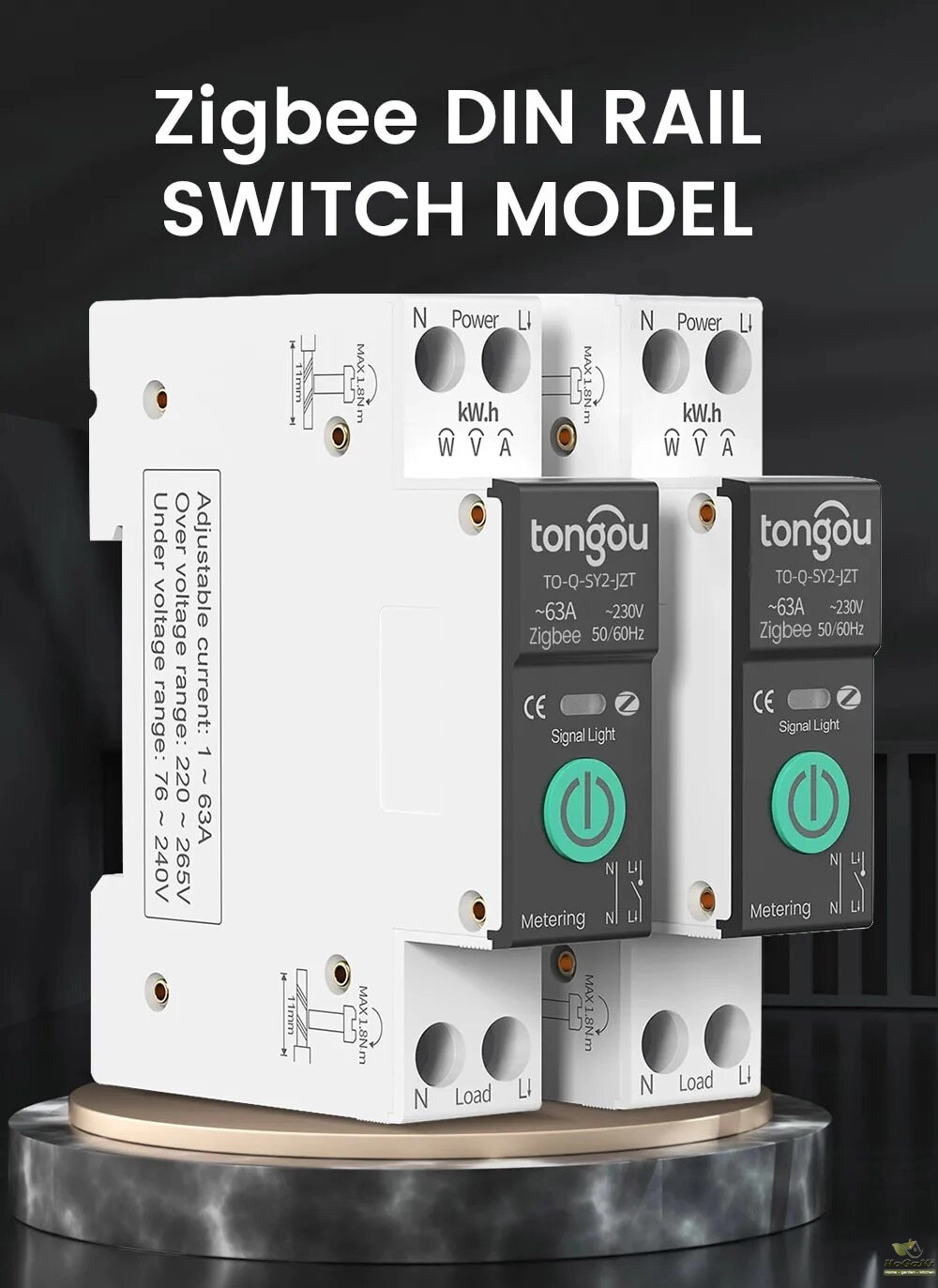

ZIGBEE DIN RAIL
SWITCH MODEL

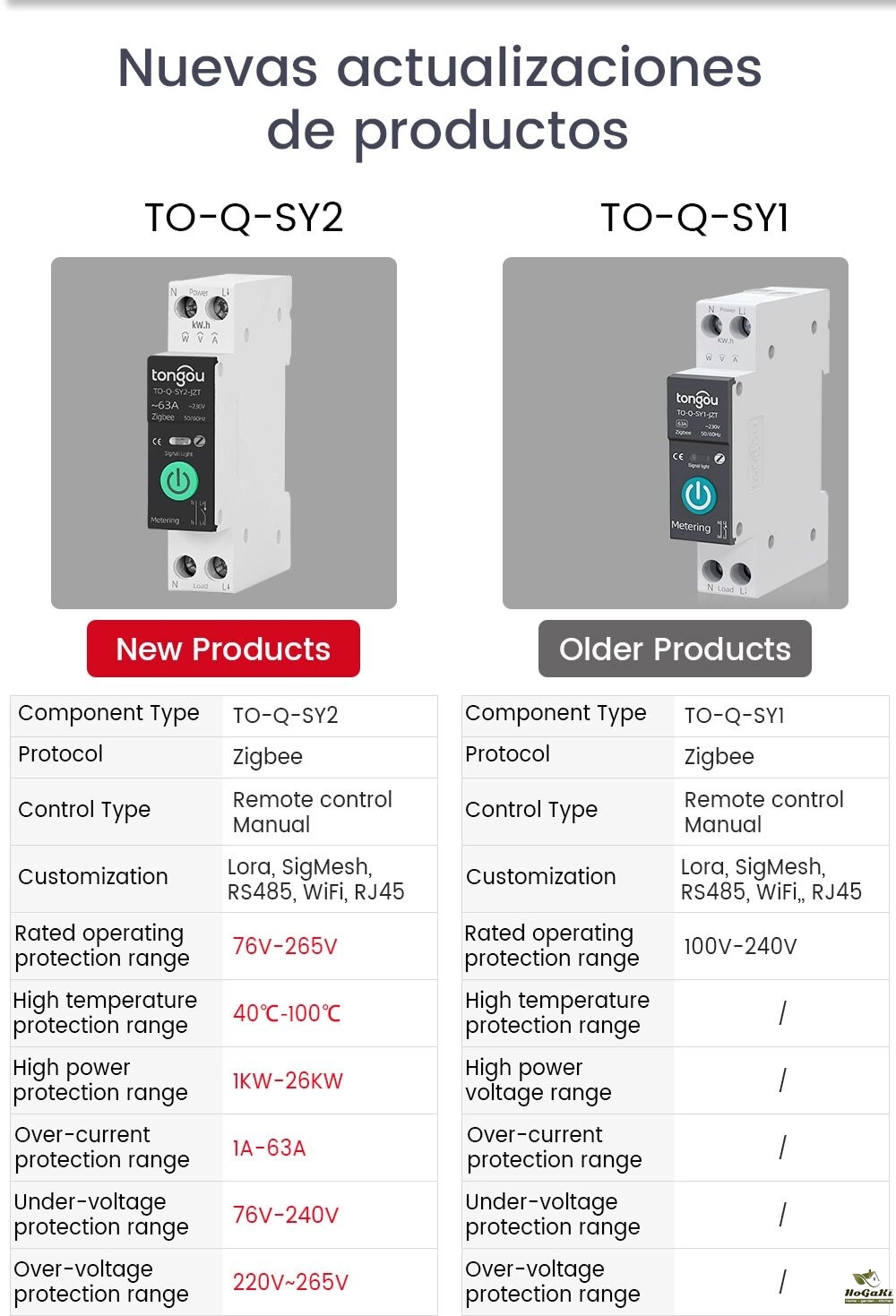

New product updates

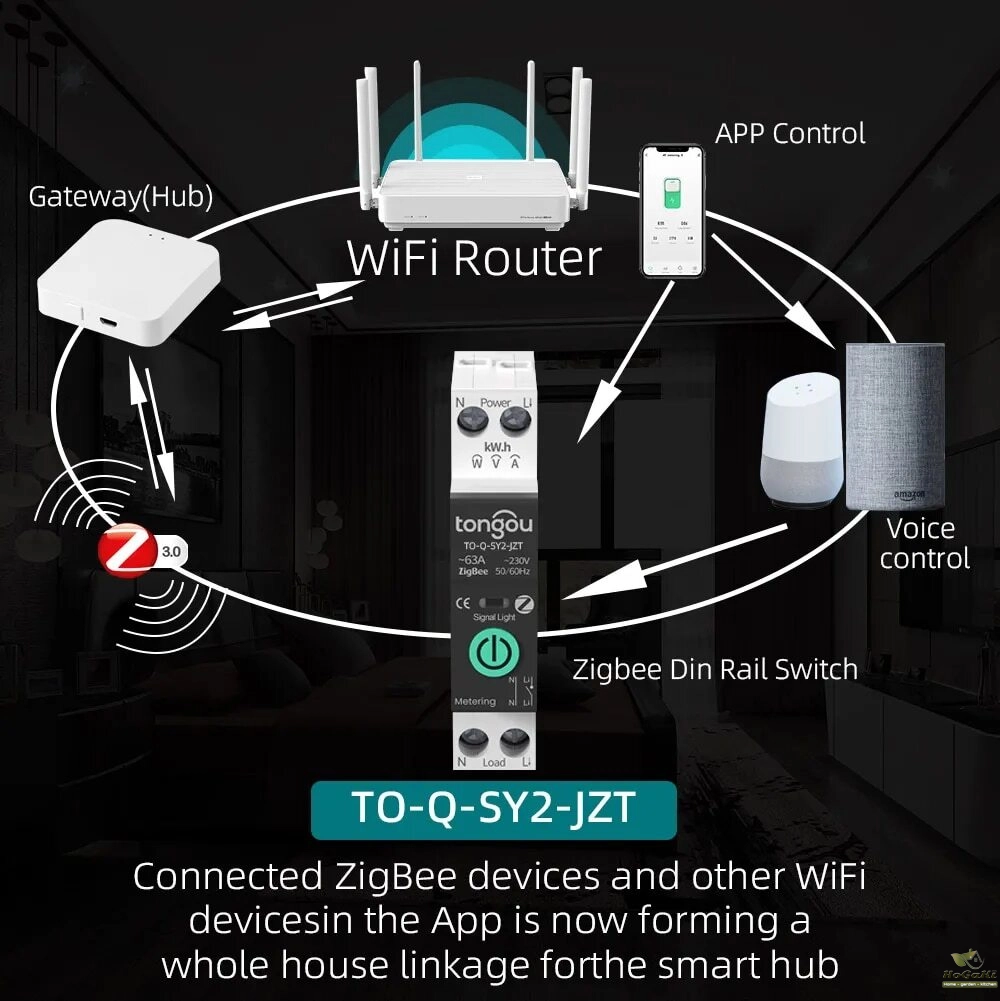

A Whole Linkage of Your Smart
Connected Zigbee devices and other WiFi devices in the App is now forming a whole house linkage forthe smart hub
Product Details
Benefit Your Life
Touch handle
Sleek design for more comfortable operation.
Flame retardant material
High temperature resistance and flame retardant , effectively improve the safety of use .
Single channel wiring
Tunnel-type wiring port for more secure wiring.
Positioning clip
Press to open easily , Simple installation.
Network Pairing
Benefit Your Life
1 . To connect the wire from the uppper of the WiFi DINRail Switch , the live wire connect to the Lpole , and neutral wire connect to the N pole , please make sure that the wiring is correct and strong WiFi signal.
2 . Turn on the Blue tooth and WiFi of the mobile phone , open the APP,and then long press the"power"button,wait for about 5-10 secaonds , the LED indicator will flash blue light slowly .
3 . Waiting for a while after graphics is displayer the app,or click the"+"in the upper righe corner , then choose the"Add Device"button to waitdaiscovering devi
4 . Enter the wifi account password and click next step,wait for the switch to connect the netwoek .
5.The switch is connected to the network
6 . After the successful connection,the LED indicator will be changed from red slow flashing to red steady light
Packaging Details
- Unit Type:
- Package Weight: 0.118
- Package Size: 8x2x9
- Brand Name: TONGOU
- Hign-concerned Chemical: None
- Type: Mini
- Origin: Mainland China
- Type: Circuit breaker
- Model Number: TO-Q-SY2-163JWT/TO-Q-SY2-163JZT
- Certification: CE
- Choice: yes
