NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction, so that the XY axis cutting is balanced and more suitable for cutting; remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640. If most of your work is for cutting, choose E40.  If most of your work is for carving, choose A40640.

Notice： E40 is a fixed-focus module without a focusing lens. If you rotate the inner lens, it will destroy the optical system.

Due to there being only a high-temperature resistant window protection sheet in the middle to protect the lens, which can be replaced. It has a very small focusing spot. Therefore, the optical density is very high, and it is easy to engrave metal and stone, and even cut thin metal sheets(very thin). Another important use of E40 is to cut hard materials less than 5mm and recommend 3mm, such as leather, MDF board, and cardboard, which is the design goal of this module.

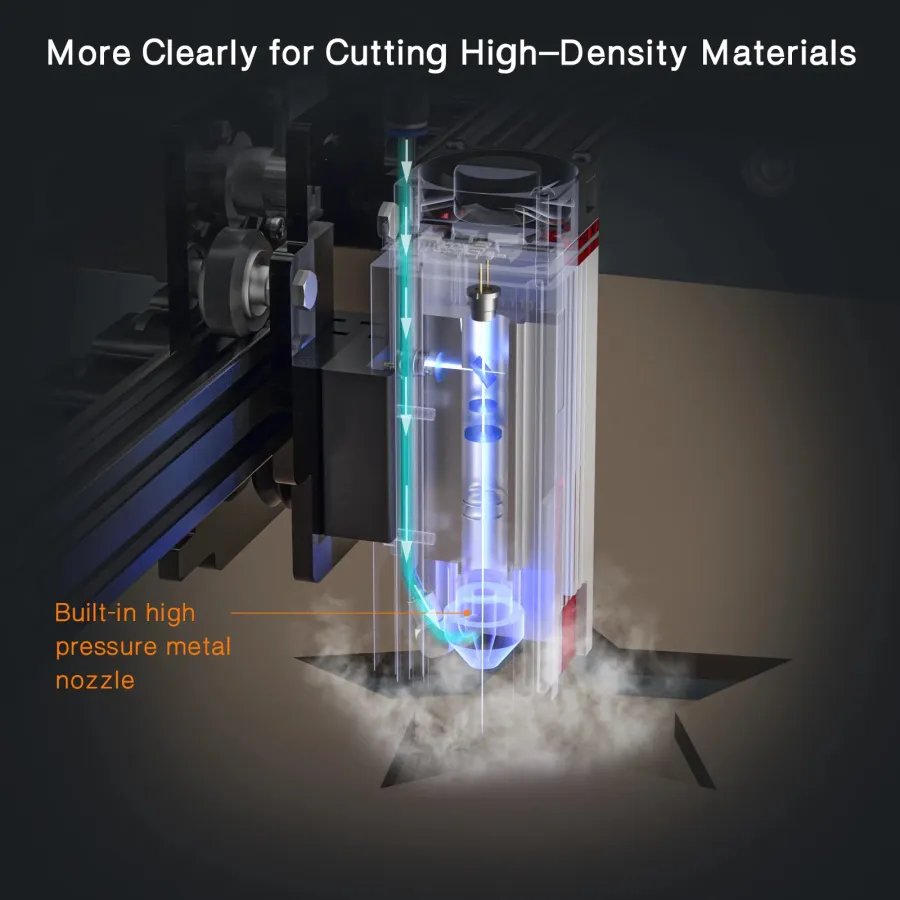

In addition, when using E40 to cut hard materials, it is recommended that the air pressure above 30PSI, the air source of ordinary oil-water filter needs to clean the lens regularly, otherwise it will easily damage the window protection lens.

E40‘S SPECIAL CAPABILITIES

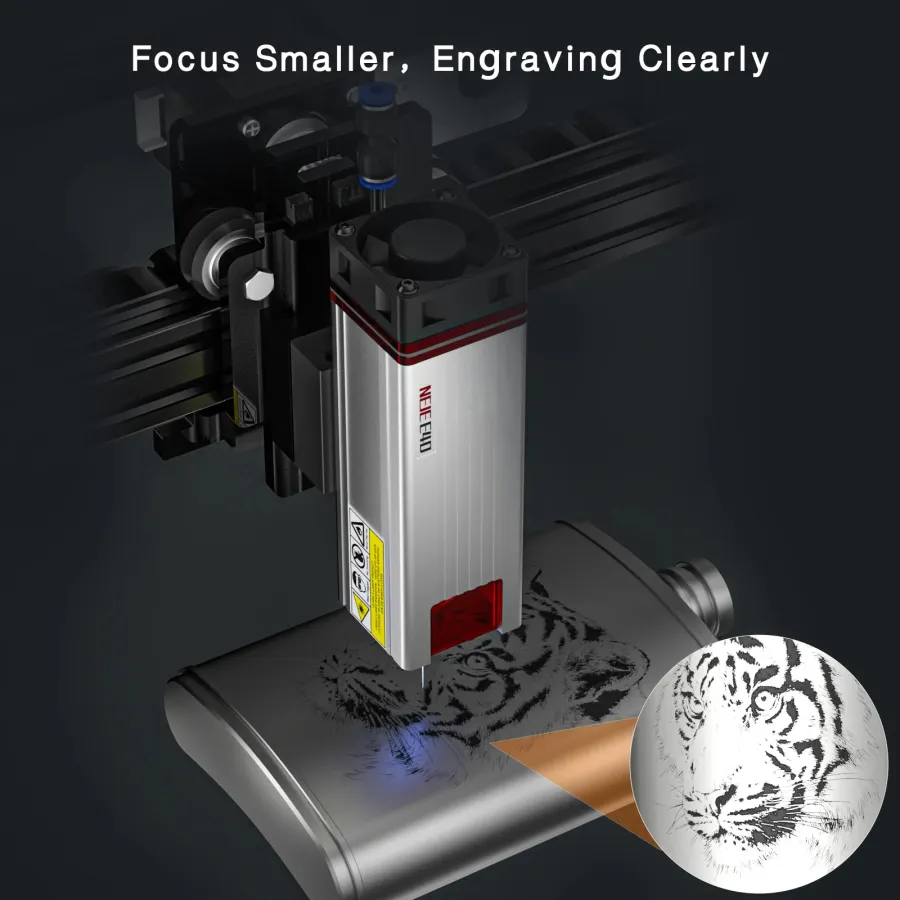

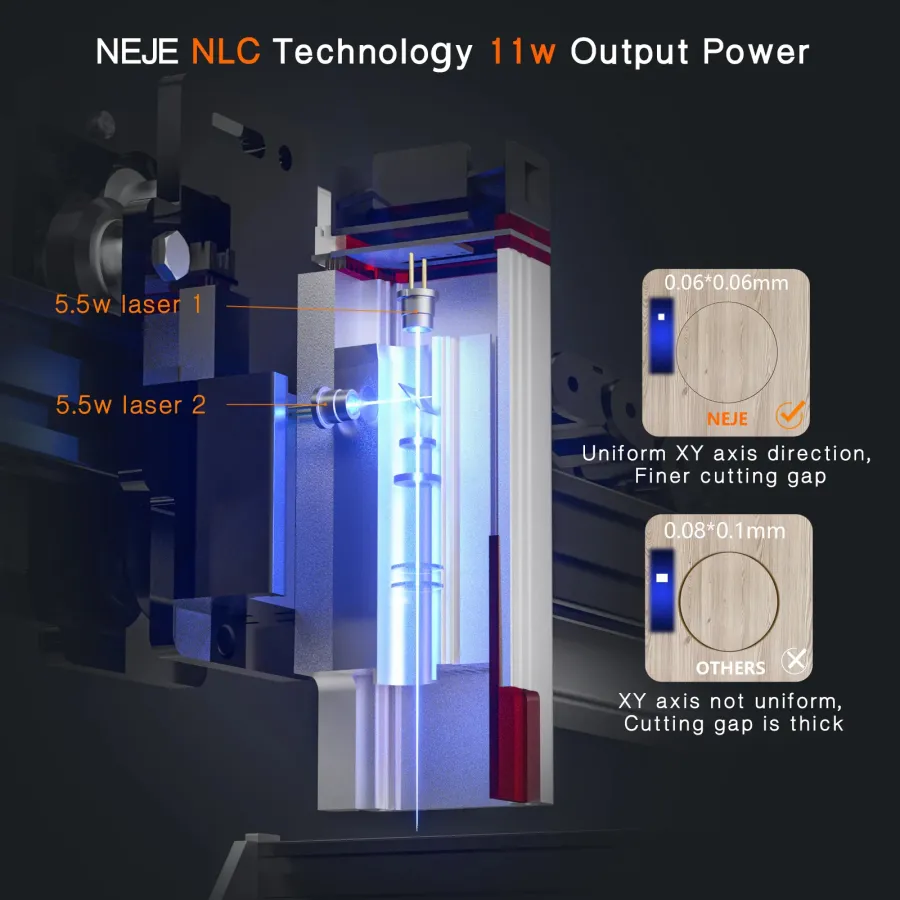

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

SPECIFICATION

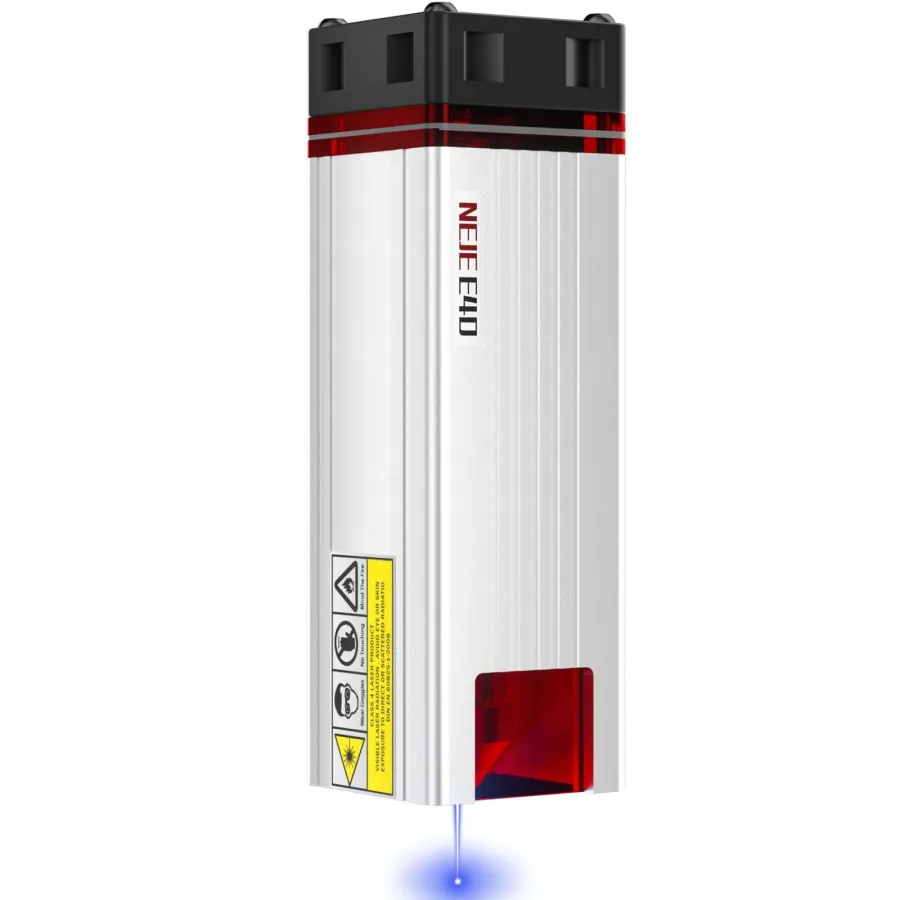

Module: NEJE E40

Focus: 0.06x0.06mm

Focus method: fixed ( 3mm from the radiator  )

Optical power: Pulse 11W+, CW 10W+

Wavelength: 450nm

Weight: 280g

Module Size: 40x48x130 mm

Input: DC 12V 4A

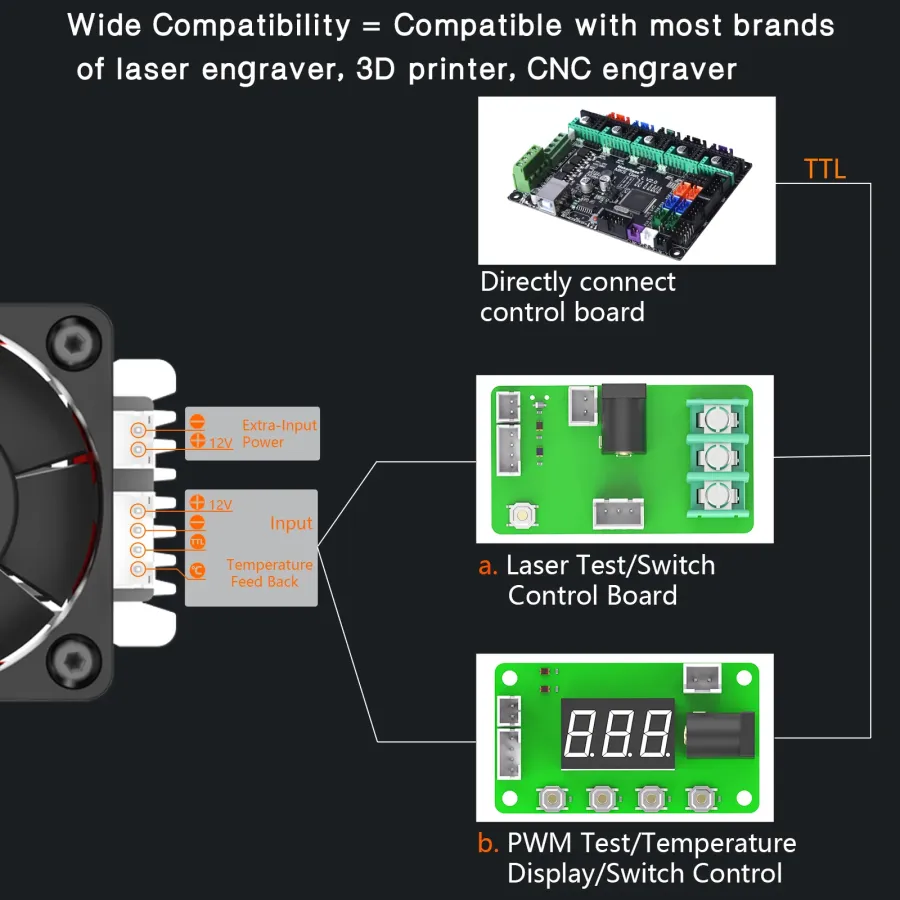

Interface: 4pin PH2.0 + ( 2pin DC12v extra power )

Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc...

Power Control: PWM Power Modulation

Fan: Double Ball High Life Fan

Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.

Surge Protection: Yes

Smart Feedback: Yes

Temperature Feedback: Yes

Temperature control: 45℃

air pump: 0.5-1.5mpa clean air

Air interface: 4mm pvc trachea

Protective window lens: Yes ( withstand 1000℃ )

Original registered brand: Yes

Warranty: 2 years

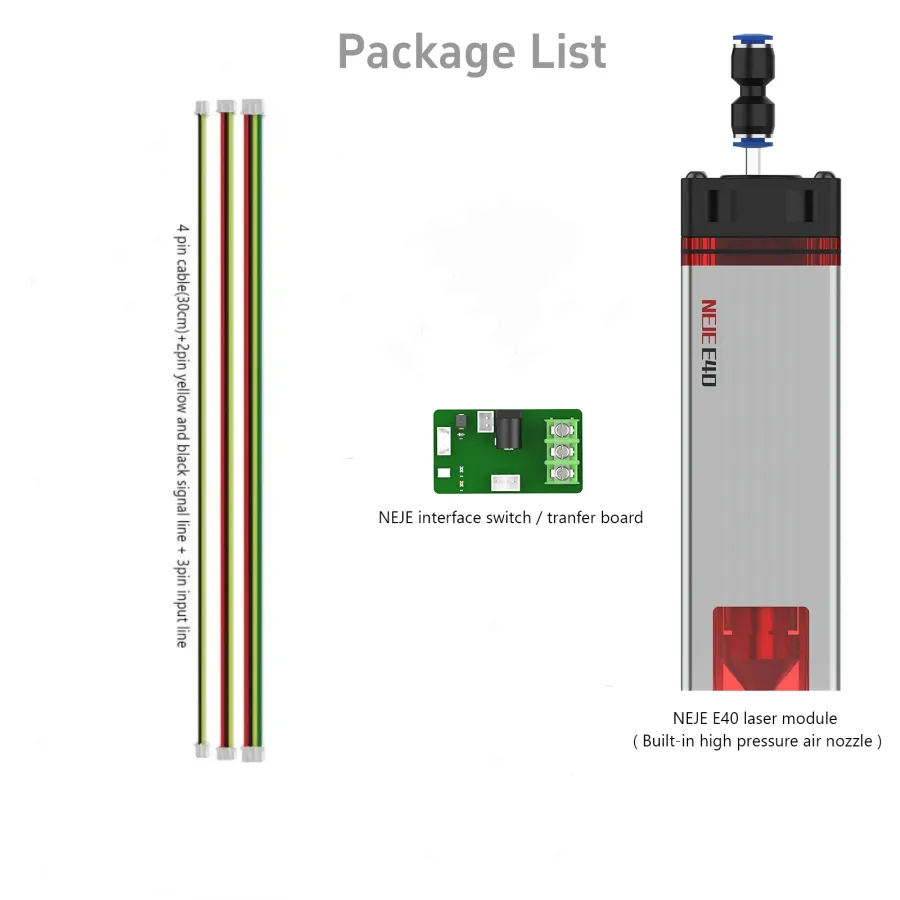

E40 Laser Module Kit Package list:

• 1 x NEJE E40 laser module ( Built-in high pressure air nozzle )

• 1 x 4 pin cable(30cm)

• 1 x 2pin yellow and black signal line + 3pin input line

• 1 x NEJEtest / switch /interface adapter board
