40W Laser Module 450nm TTL/PWM Laser Head, FAC Technology,Engraving Metal Wood Acrylic for Laser Engraving CNC Router Machine
4.0 (6 votes) | 19 orders
Price:
US $303.34 - 318.06
Discount Price:
US $
197.16 -
206.74
-35%
▶Built-in dual laser tubes, FAC design, high efficiency and stability.

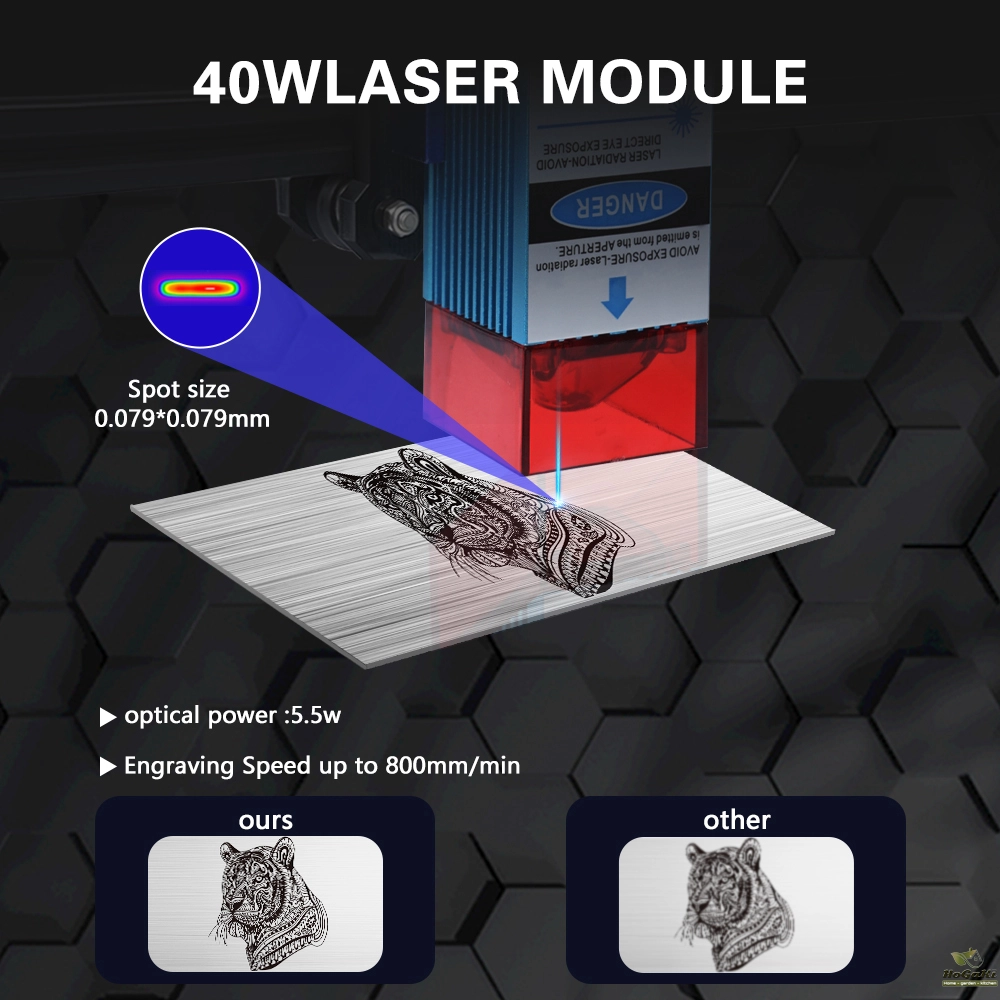

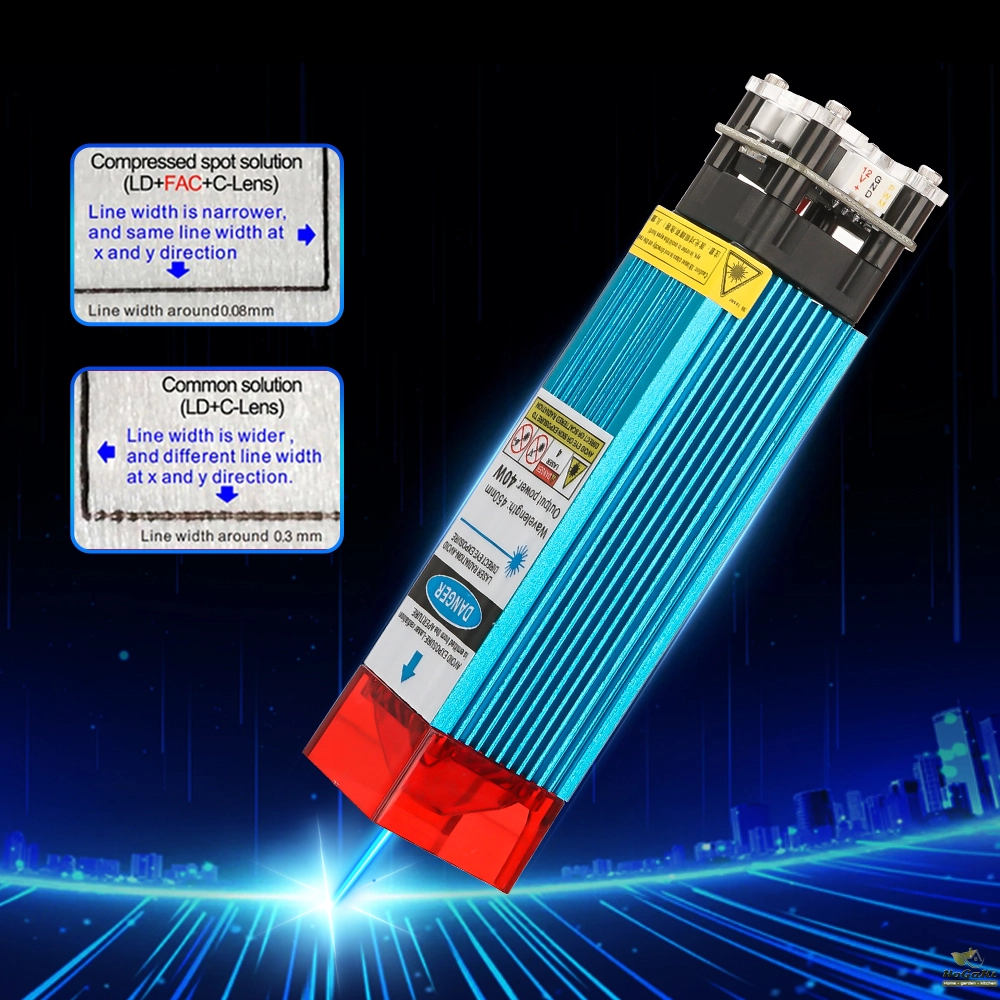

▶0.08mm engraving accuracy, thinner than line.
▶Built-in heat dissipation and intelligent temperature adjustment system to ensure continuous long-term work with low noise.
▶The laser module can be used in 95% of cutting machines, CNC engraving machines and DIY laser engraving machines on the market.
▶It supports various materials such as wood/MDF/leather/bamboo/plastic/paper to realize your DIY freedom and bring you endless fun. ️

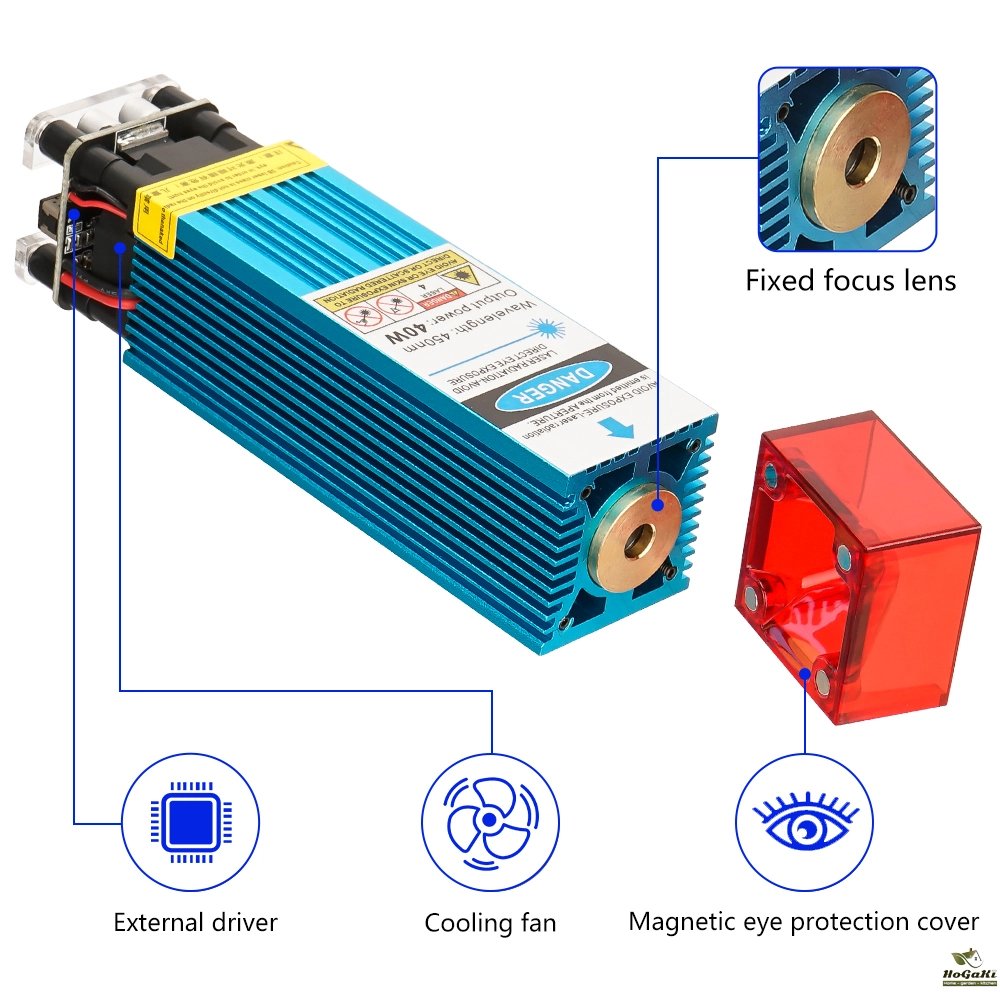

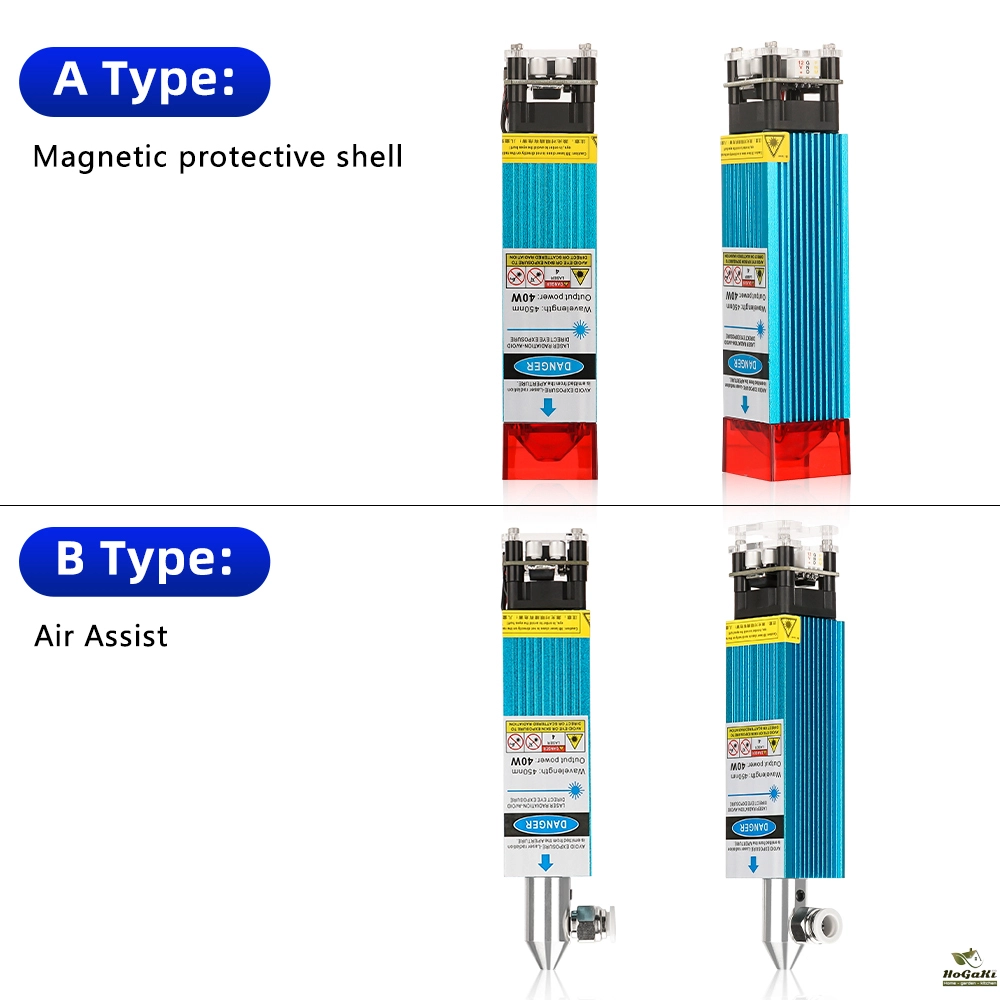

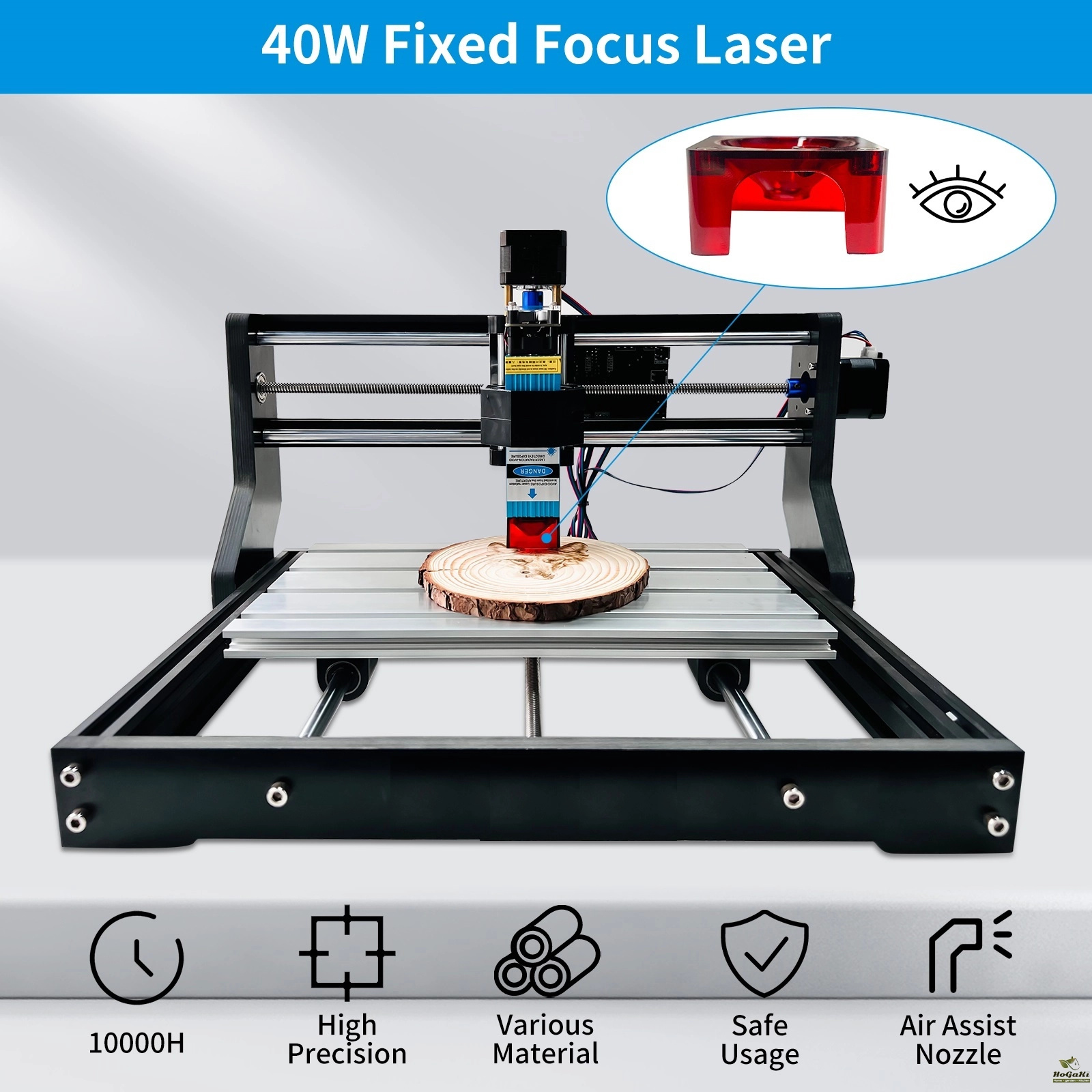

▶Designed with a magnetic protective case, it perfectly protects your eyes. Enjoy the engraving process without additional goggles, more comfortable and convenient. Fixed focus design makes it easier to use.
Gift for buyers:
1W+ sculpture design drawings are provided as a gift, and buyers can contact customer service after ordering.
Including: multi -layer carvings, handicraft bundle bags, 3D modeling design drawings, animals, flowers, jewelry, life of life, Christmas/Halloween/Easter decoration, 3D architecture, car model puzzle and other design drawings.

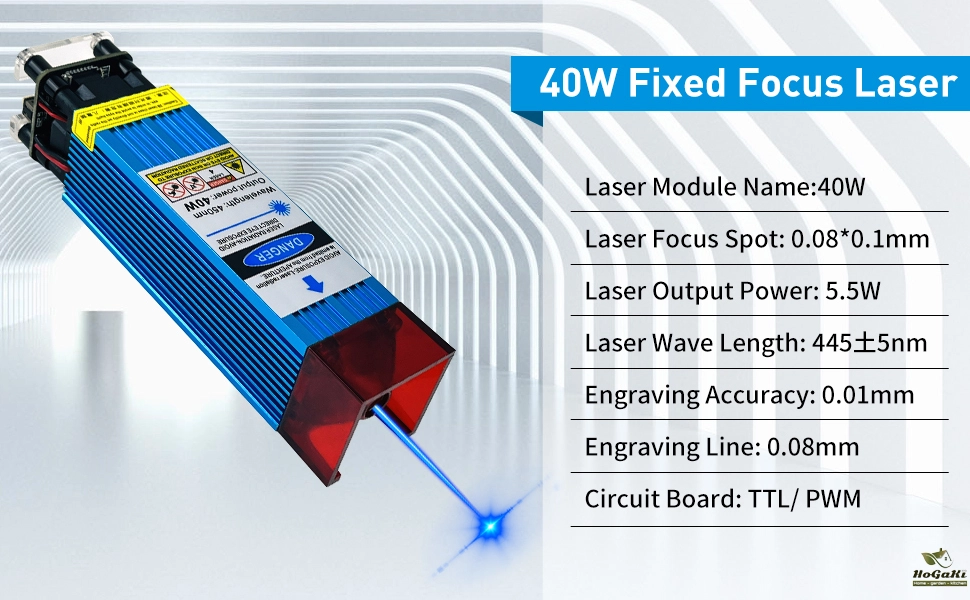

Parameter：
▶Module name：40W
▶Optical power output：5.5W
▶Wavelength：450nm

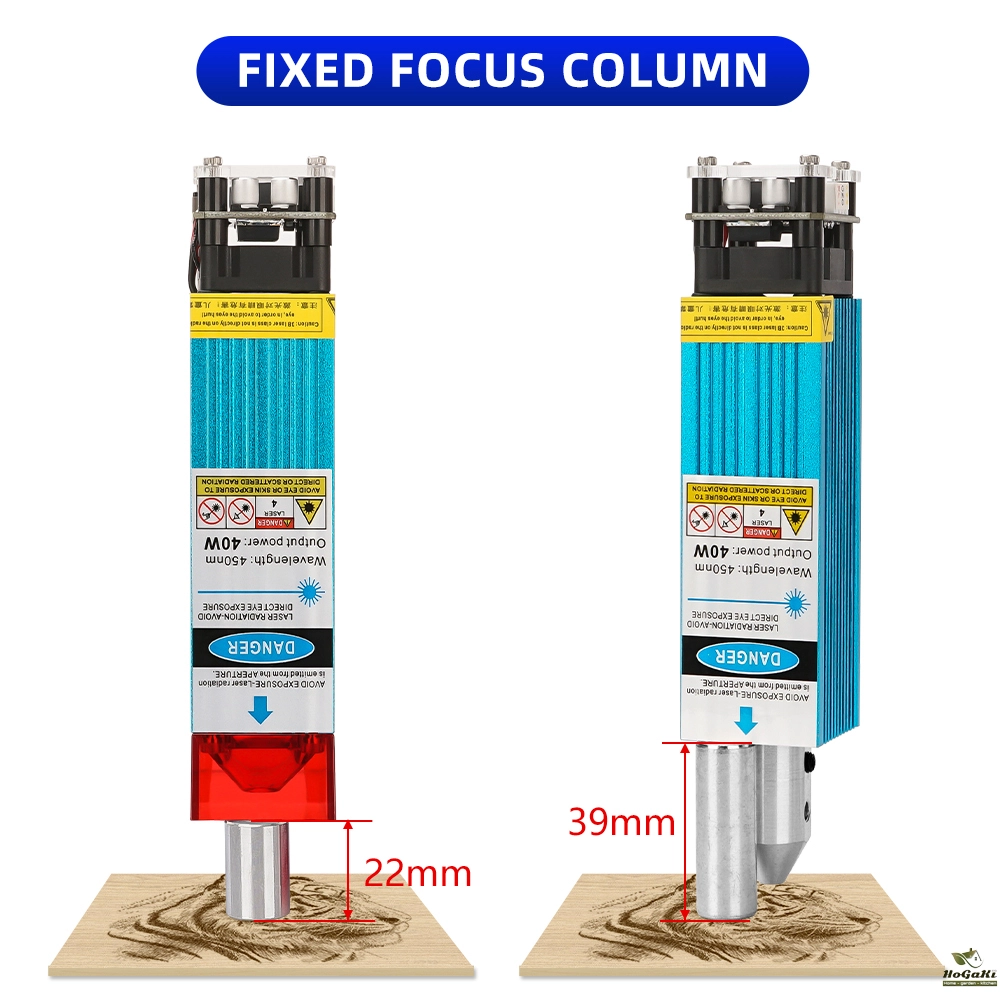

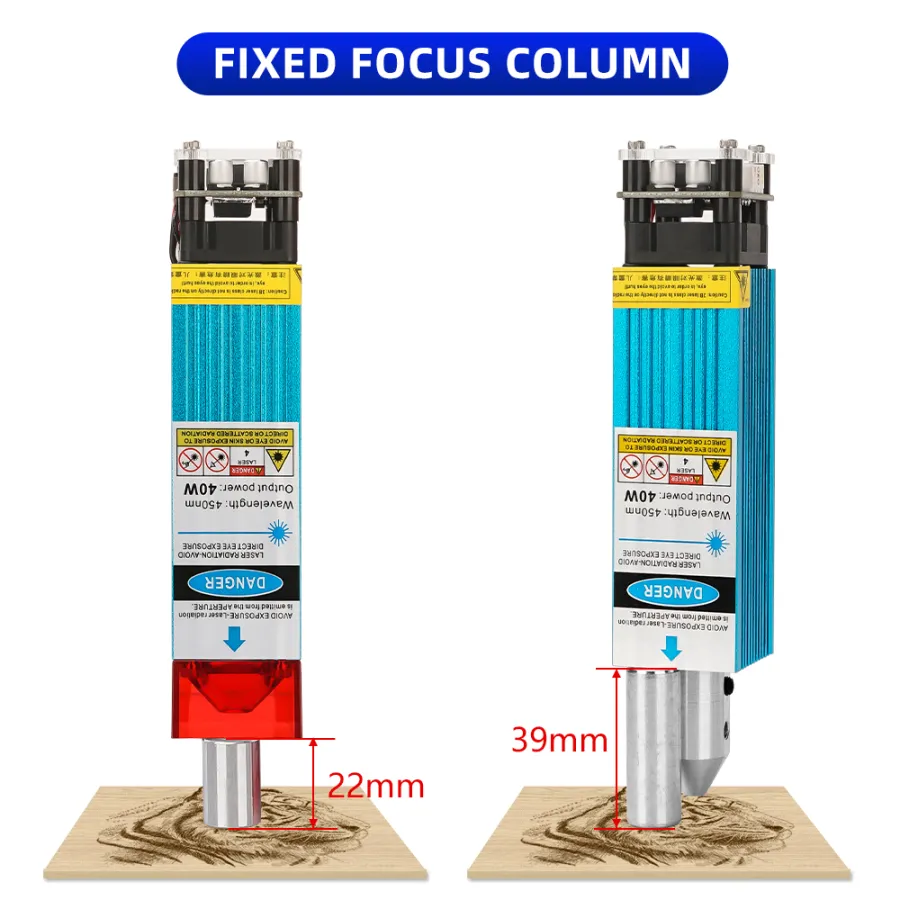

▶Beam Shape：Dot(fixed focues)
▶Working Voltage：DC 12V/24V
▶TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
▶Input Voltage：DC12V 3-4A
▶PWM/TTL Input：DC 0-5/12V

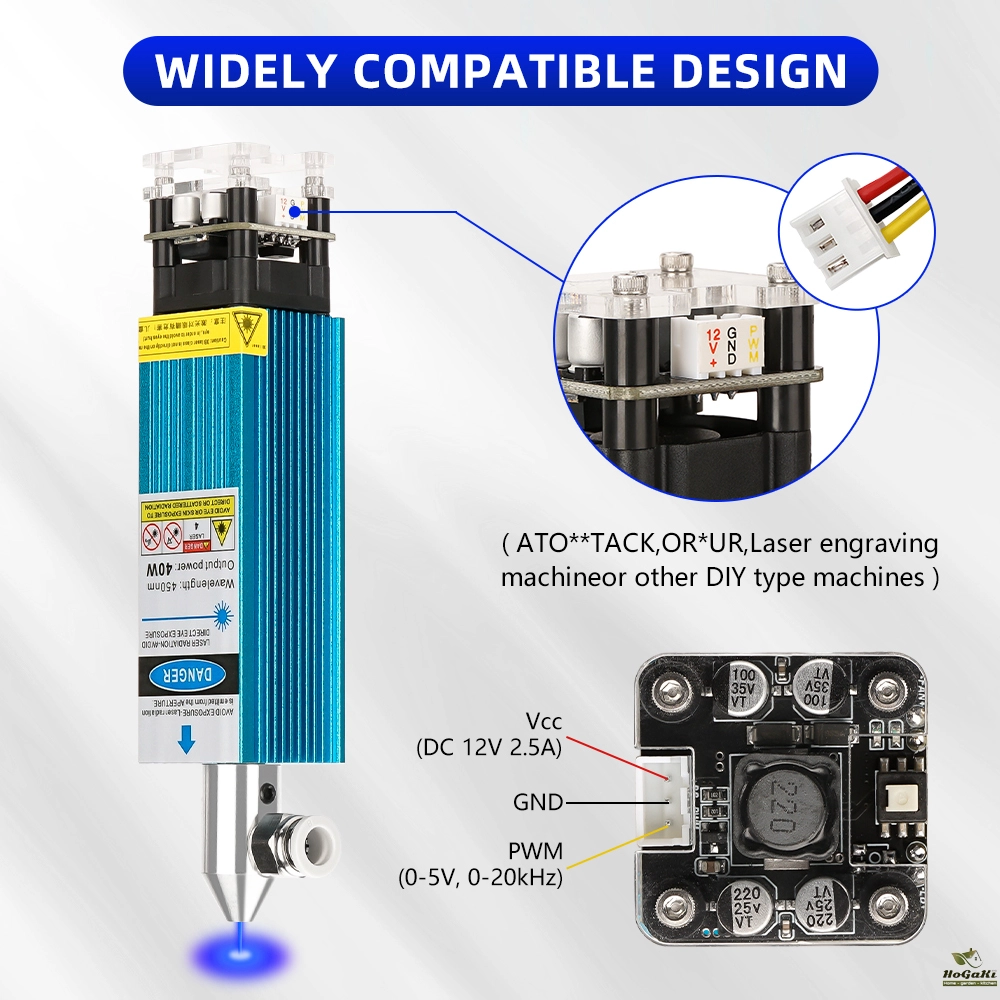

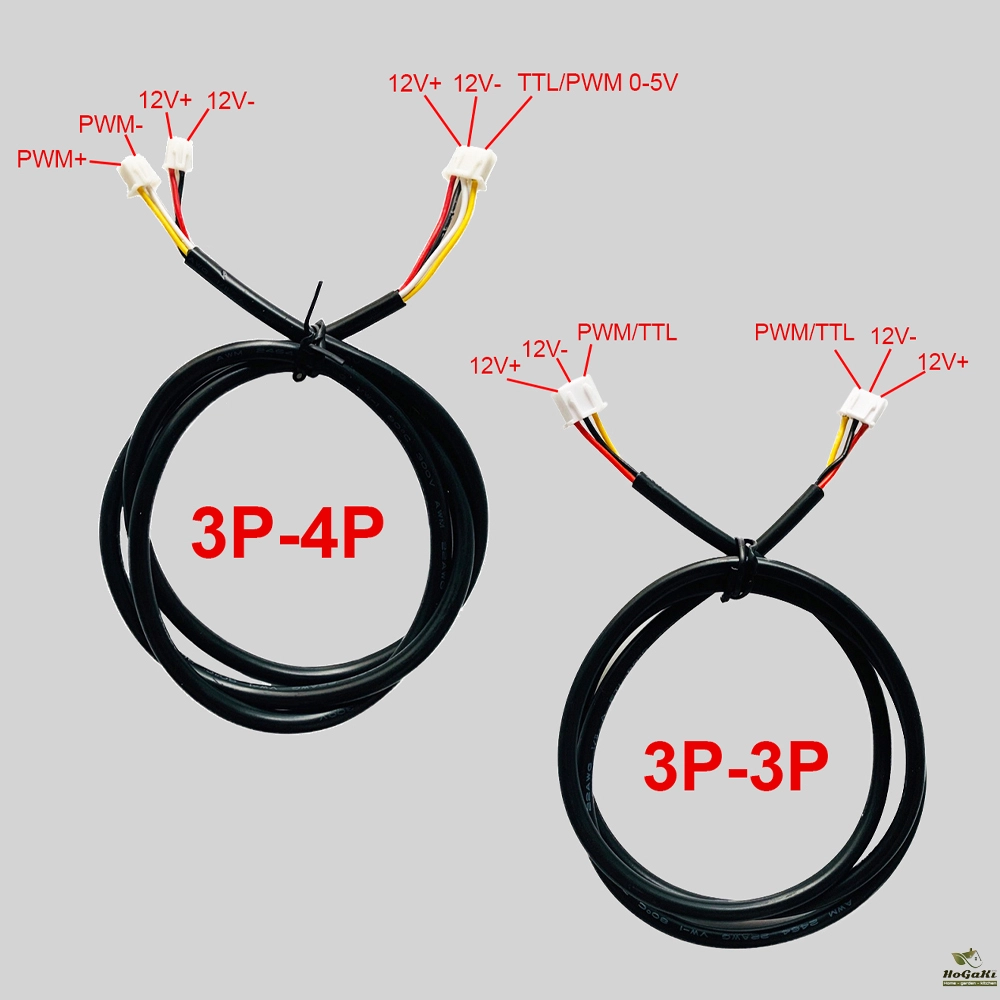

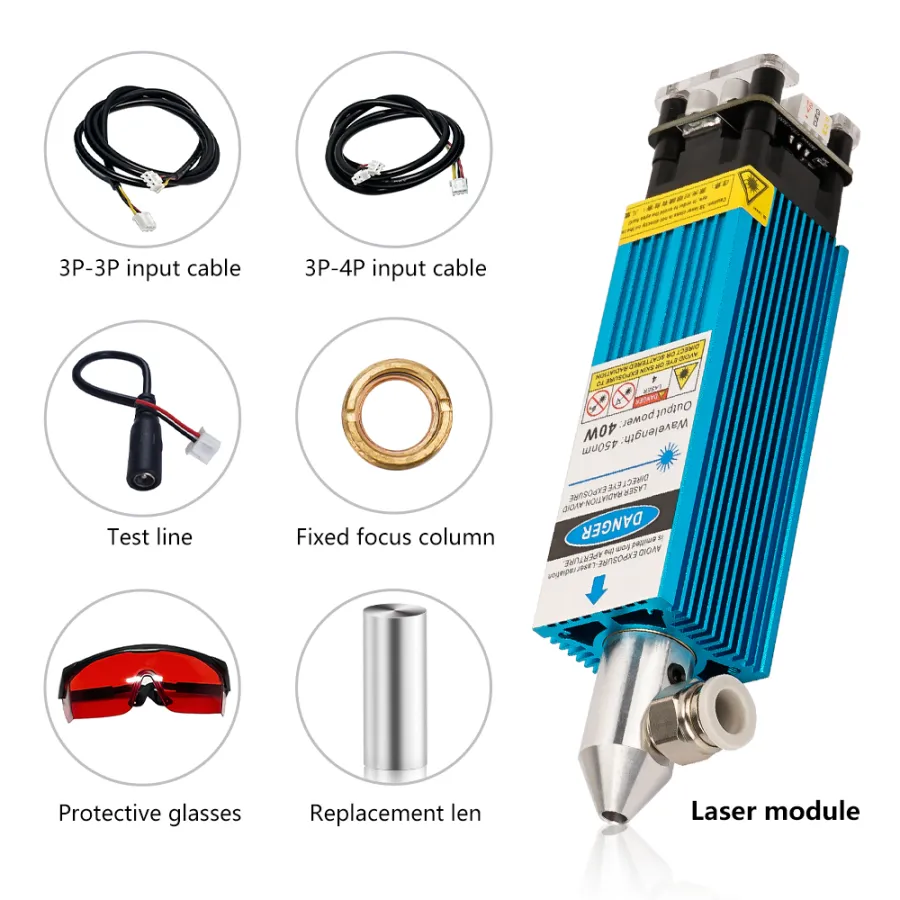

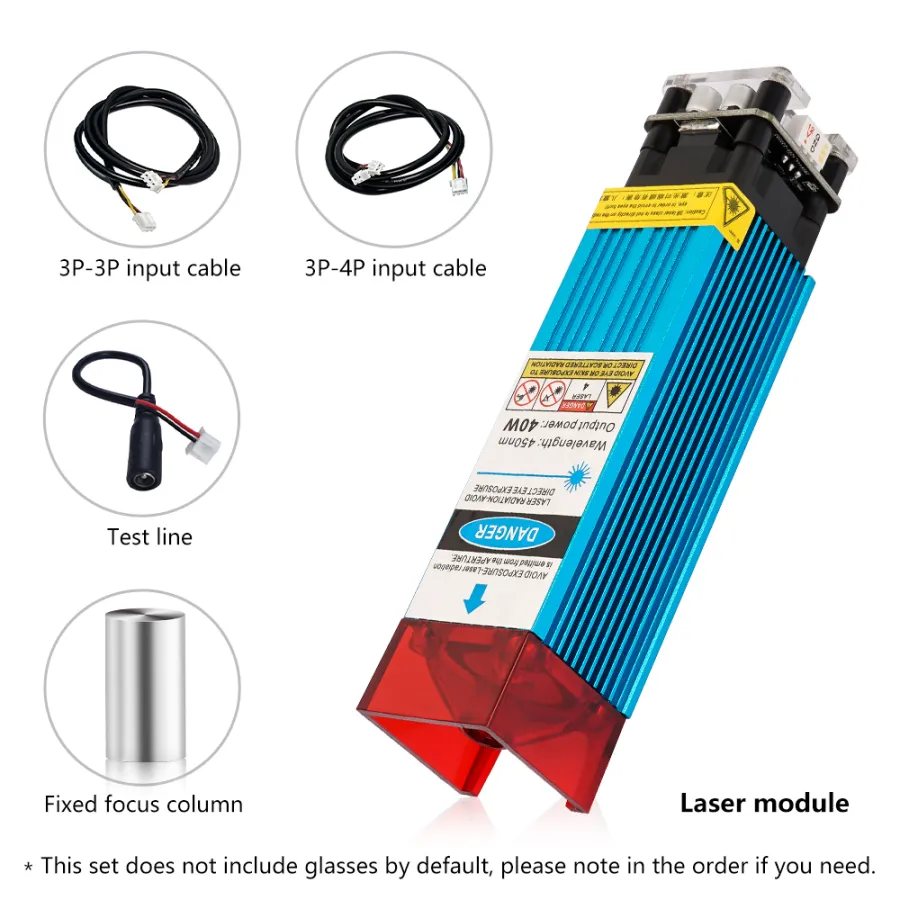

▶Input Interface：3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
▶Safe temperature range：<60 ℃

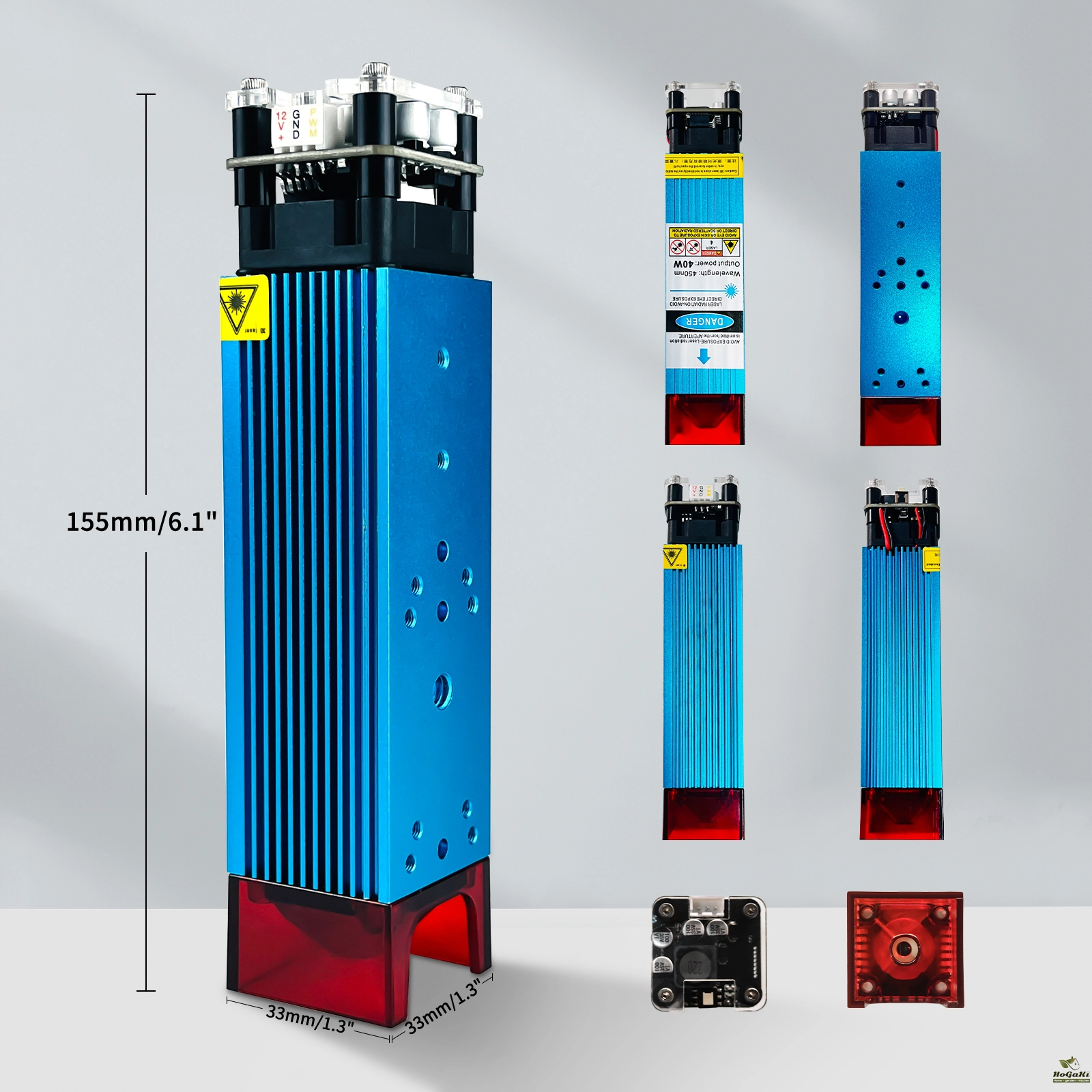

▶Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
▶Life Time：10000-20,000 hours
▶Heatsink Material：Aircraft Aluminum +Blue Shell
▶Luminous Color：Blue
▶Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Important hint! ! !

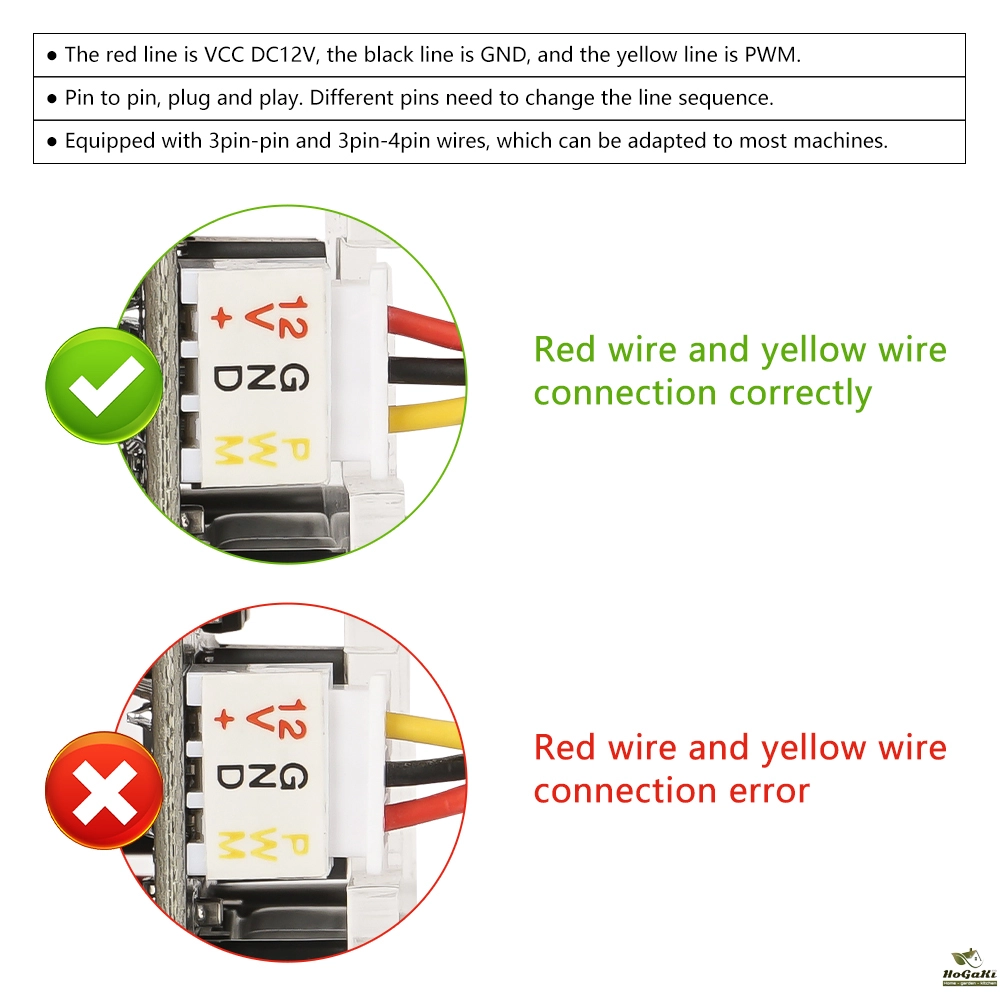

1. The red line is the 12V positive pole, the black line is the negative pole, and the yellow line pwm is the positive pole (0-5/12V, 0-20KHZ). If the Pwm of your control board exceeds 5V/12V, it will not be able to control the Pwm adjustment of the laser. Or you can choose to use our control panel.

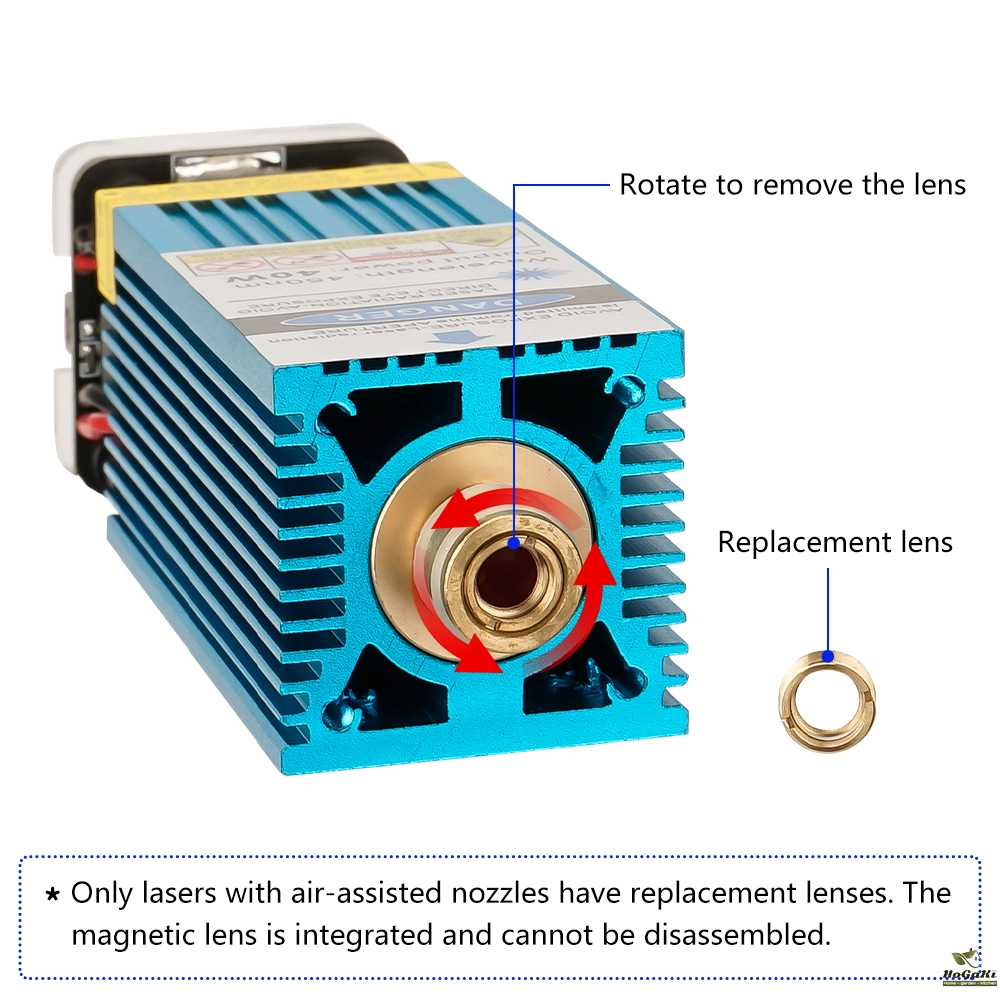

2. Use a laser with a nozzle to cut wood, etc. It is recommended to use it with an air pump to blow away the smoke. After many times of cutting work, the smoke will pollute the lens and affect the engraving effect. Please use alcohol wipes to clean the lens.
3. In the maximum cutting thickness data we show, the wood is pine board/basswood board. The maximum cutting thickness of the laser is affected by the wood density and material.
4. 40w80w is the collective name of laser manufacturers, it does not mean that the input and output power is 40w80w. The specific parameters are displayed on the details page.
We provide high-quality after-sales service, if you have any questions after receiving the goods, you can contact us at any time.

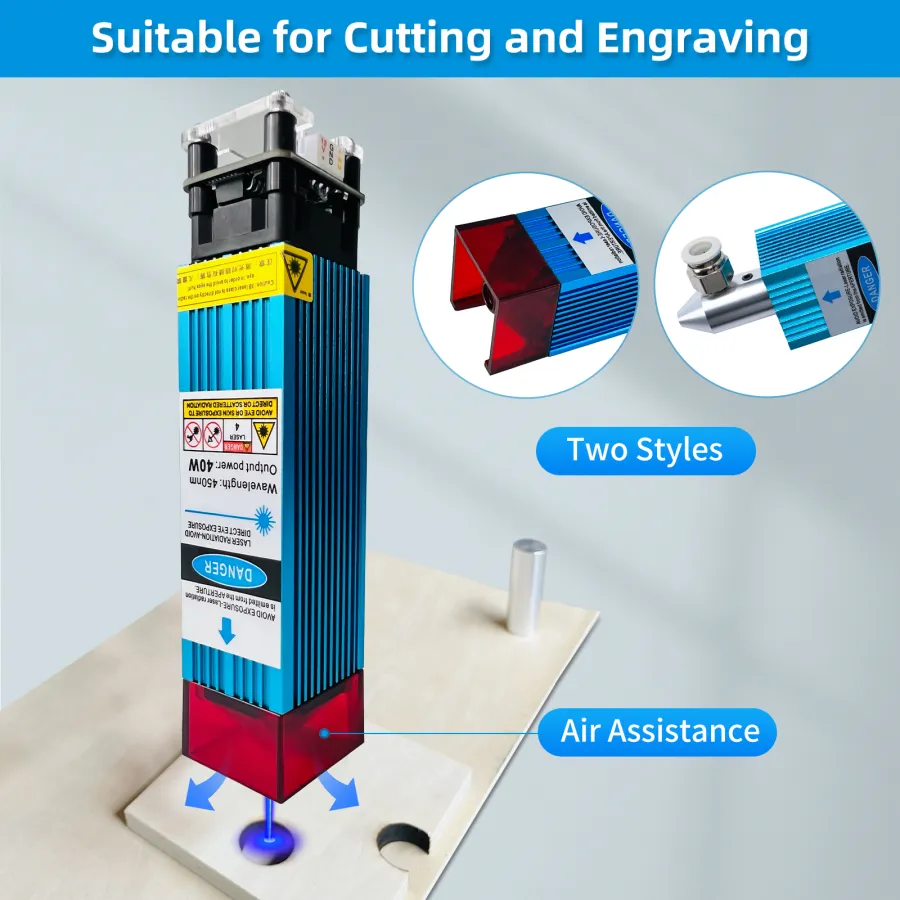

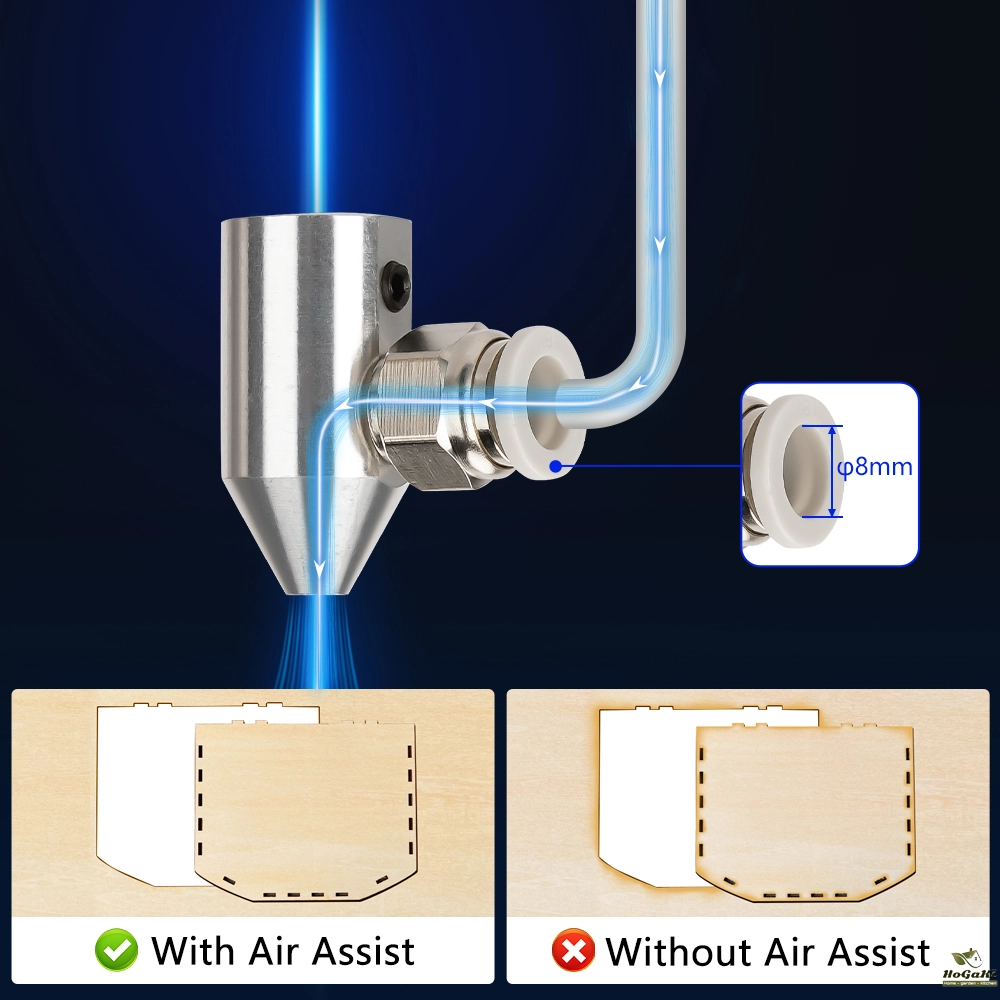

When cutting, it is recommended to use it with an air pump and a nozzle to achieve better engraving results. If cutting without an air pump, it is recommended to remove the nozzle and use the protective case.

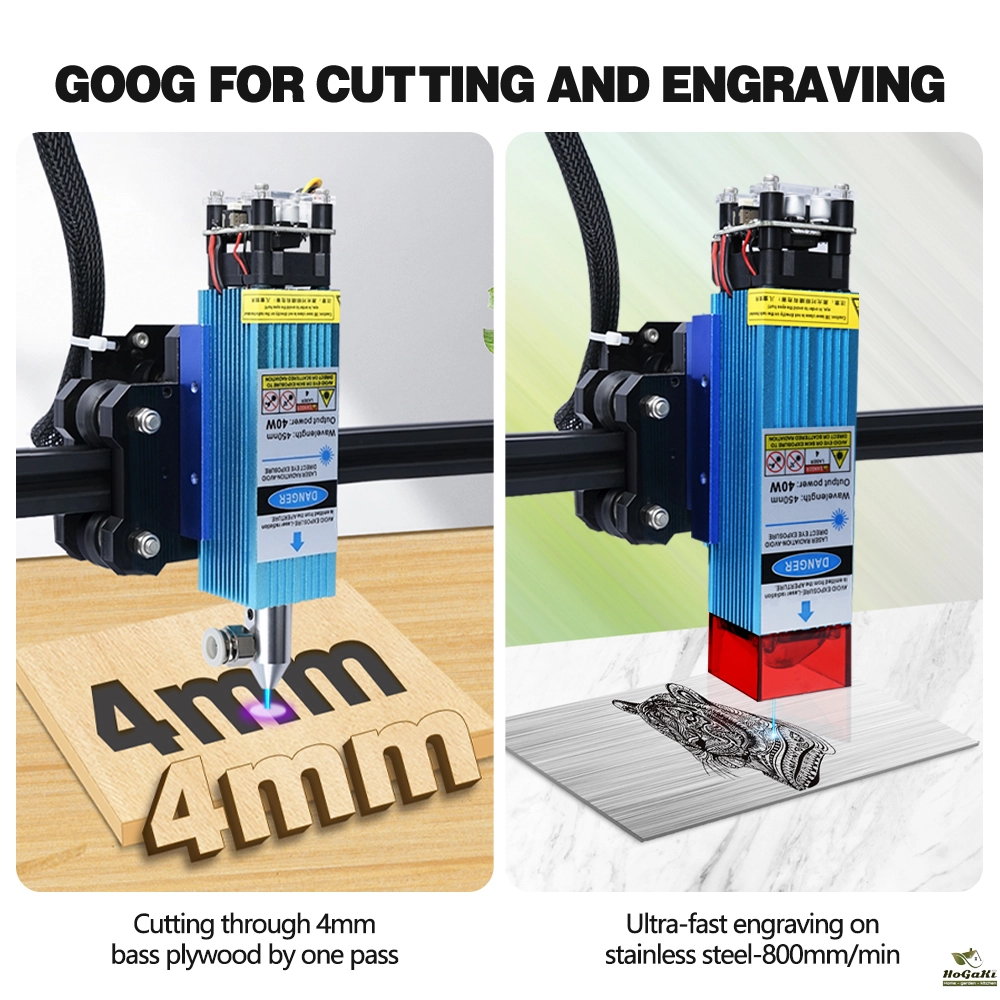

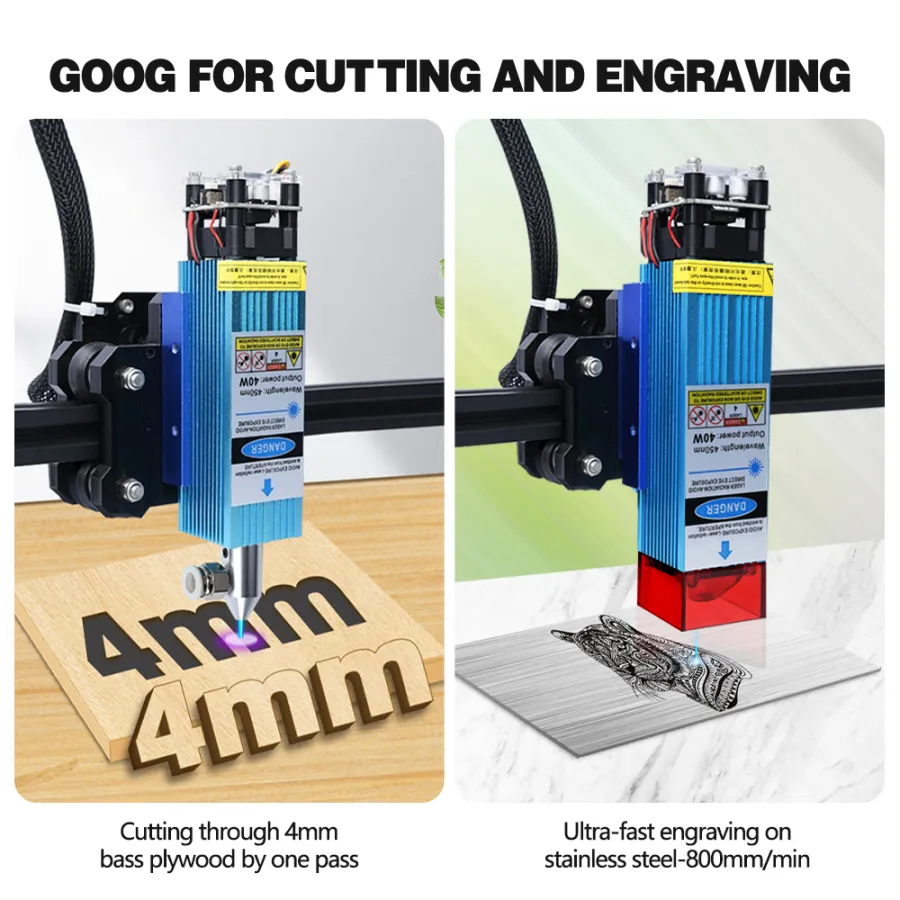

*The above test data is 100-200mm/min, 100% power, Pine or basswood planks. Need to match air pump and honeycomb panel. The specific results will vary depending on the density and material of the plank.
Packaging Details
- Unit Type:
- Package Weight: 0.500
- Package Size: 15x15x15
- Brand Name: JEEL
- Origin: Mainland China
- Model Number: 40w
- CNC or Not: CNC
- Condition: New
- Certification: CE
- Certification: RoHS
- optical power: 5.5w
- Wavelength: 450nm
- Modulation: 0/5-12V TTL/PWM
- Features 1: Focal Fixed
- Features 2: eye protection
- Features 3: FAC technology
- Application: CNC laser engraving machine
