LASER TREE K20 20W Optical Power Laser Head with Air Assist Nozzle 4 Diodes Module for CNC Engraver Cutting Machine DIY Tools
4.8 (10 votes) | 45 orders
Price:
US $2287.80 - 2380.80
Discount Price:
US $
869.36 -
904.70
-62%

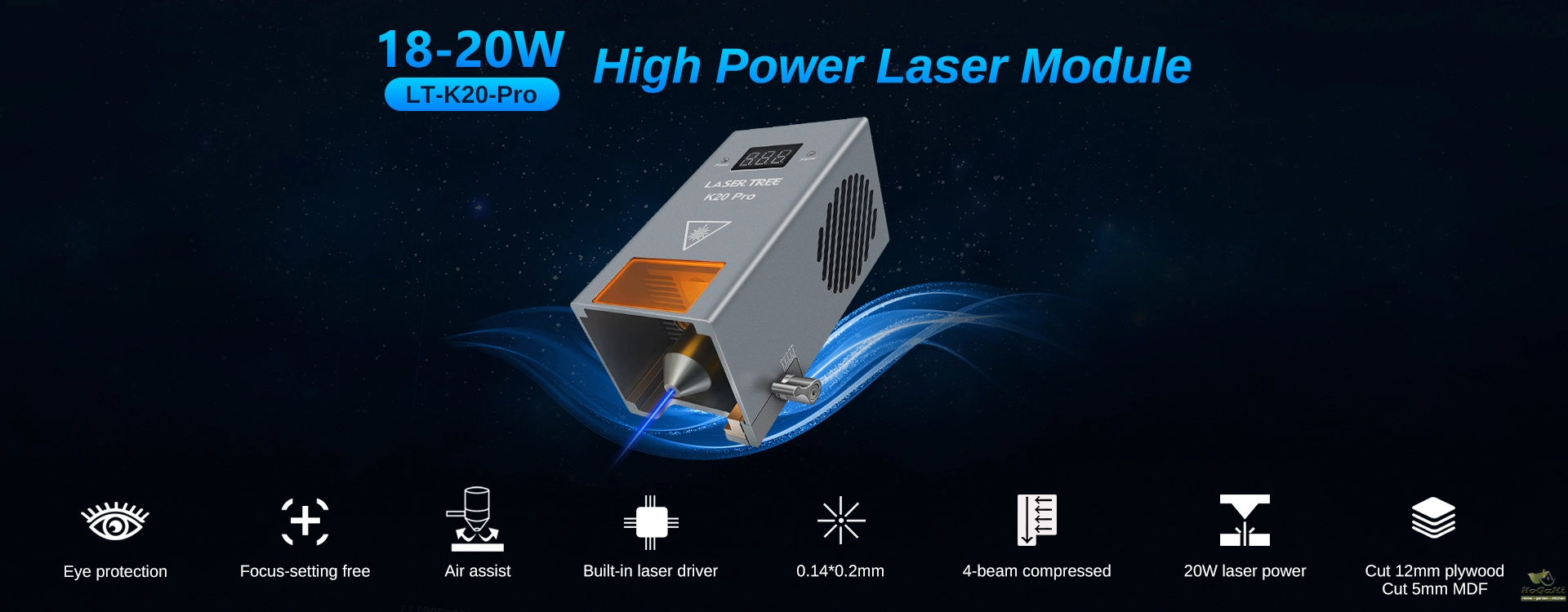

LASER TREE New 20W Optical Power Laser Head with Air Assist Nozzle 4 Diodes Module for CNC Engraver Cutting Machine DIY Tools
LT-K20/LT-K20-PRO (Optical Power 20W) Features:
1. Ultra High Power

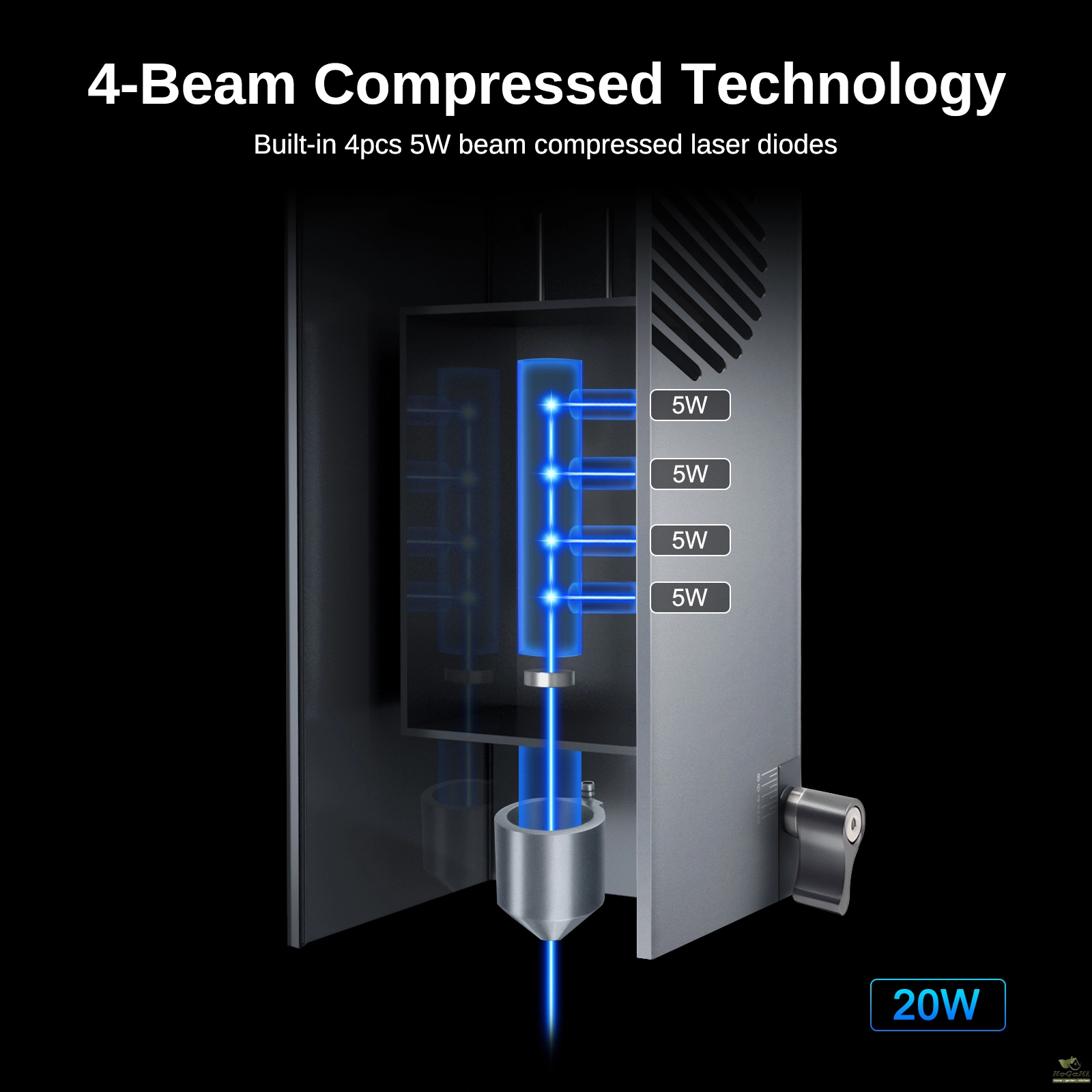

LaserTree K20 is a true 19-21W output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5W laser diodes into a powerful laser beam with 20W laser power.
2. Powerful Cutting Ability
12mm basswood plywood: 100mm/min, one pass
15mm black acrylic: 15mm/min, one pass
15mm pine wood: 100mm/min, one pass
9mm MDF: 100mm/min, 2 passes

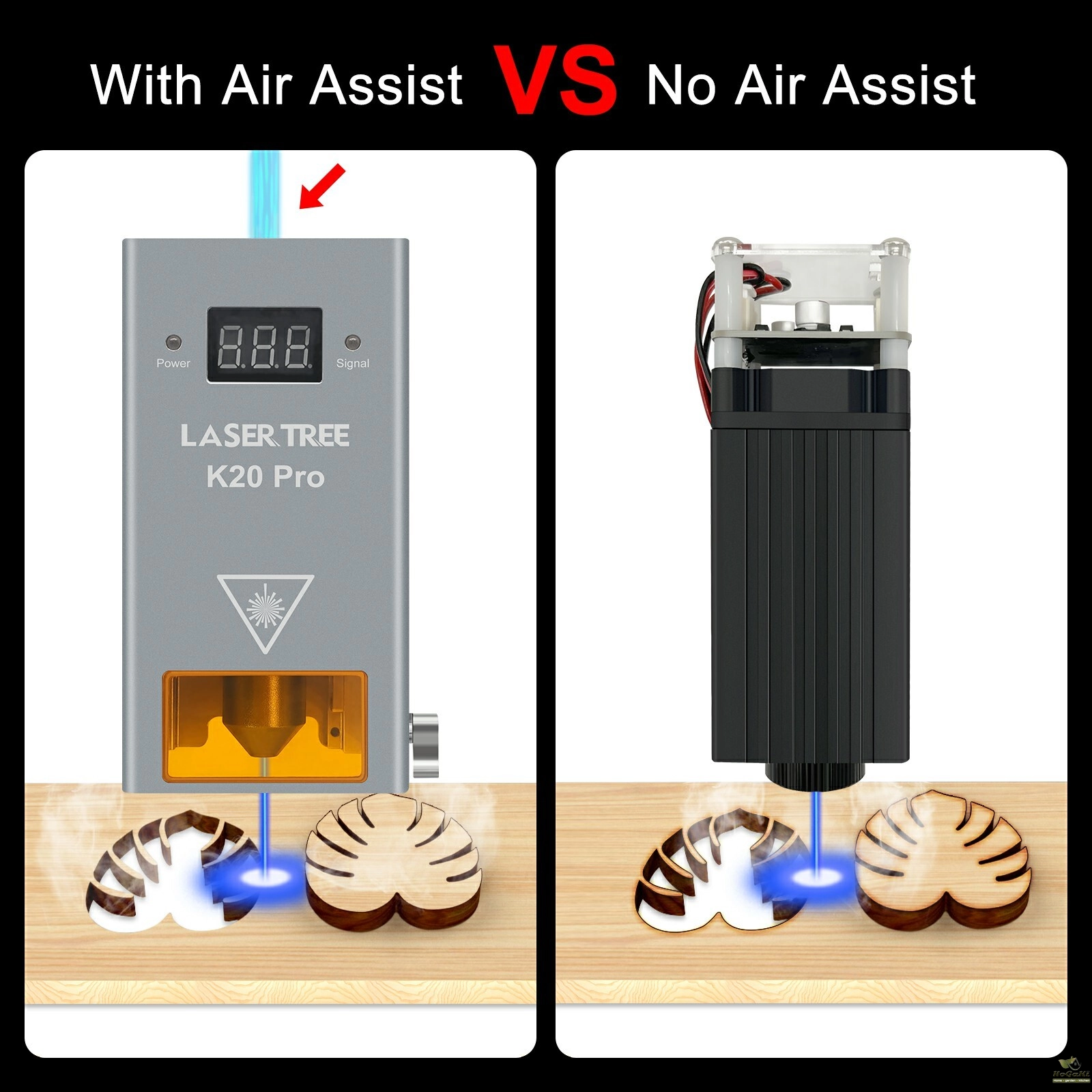

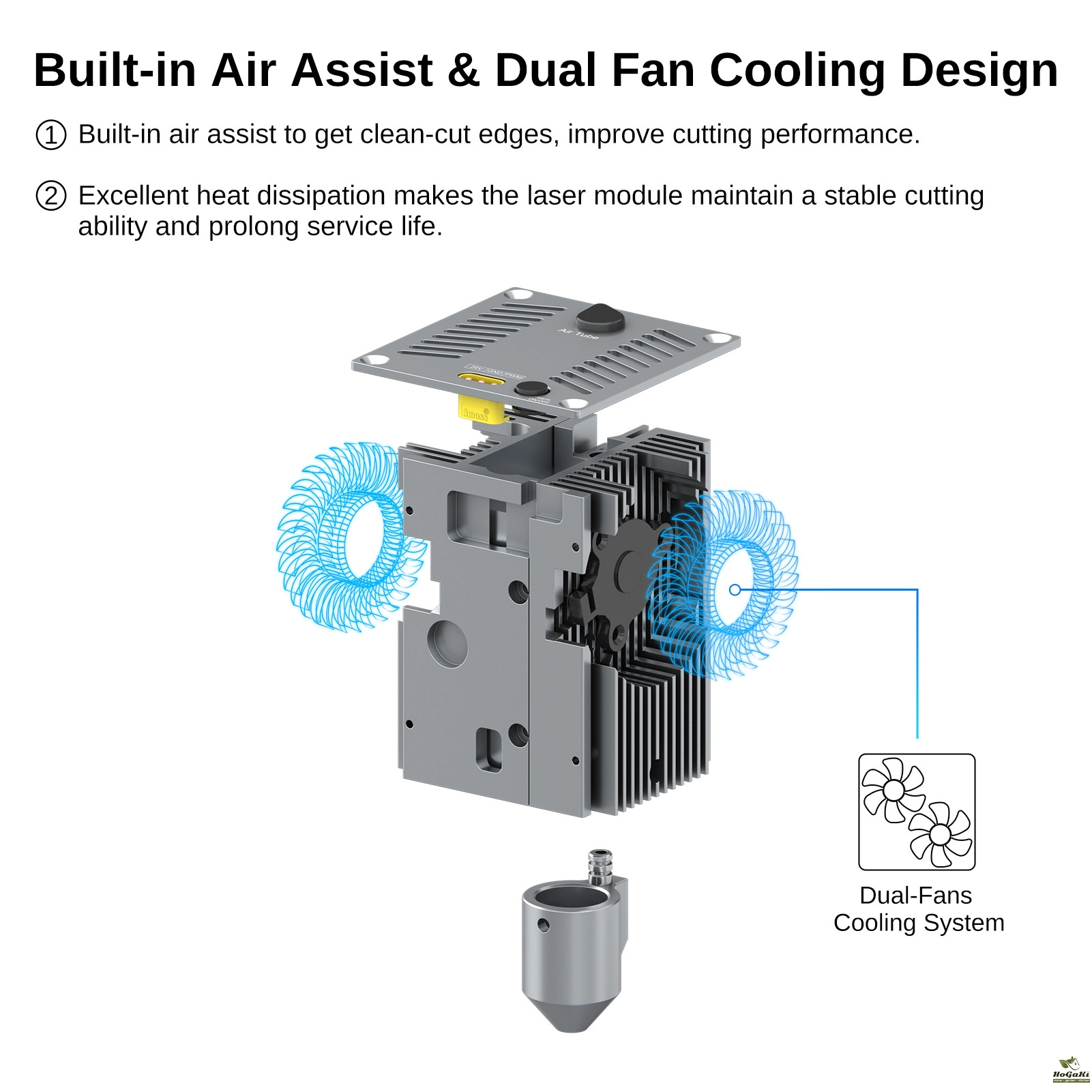

3. Built-in Air Assist Airway & Dual Fan Cooling Design
1>Built-in air assist airway to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

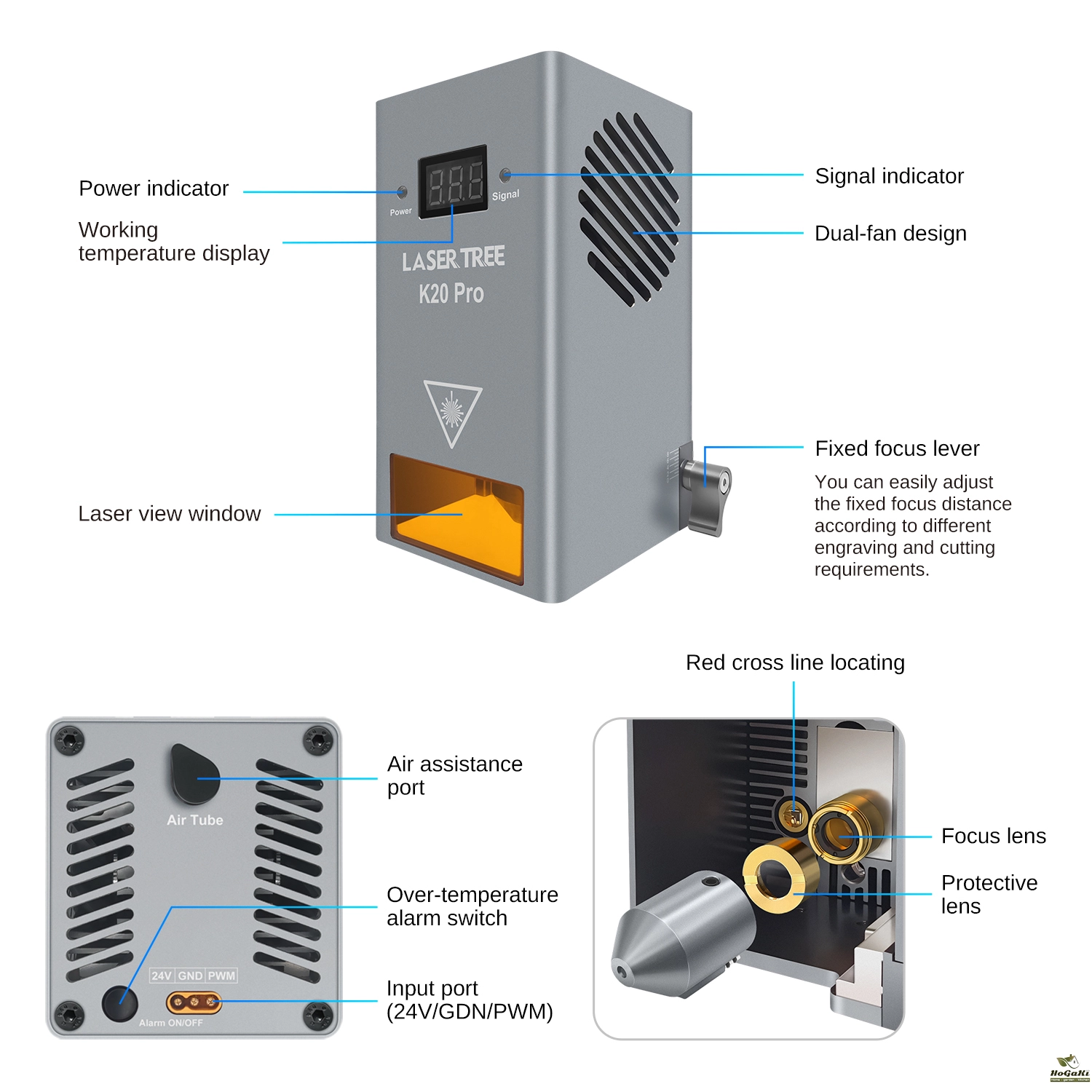

4. Working Status Indicator
The electrical connection status can be easily checked by the "Power" and "Signal" LED indicator.

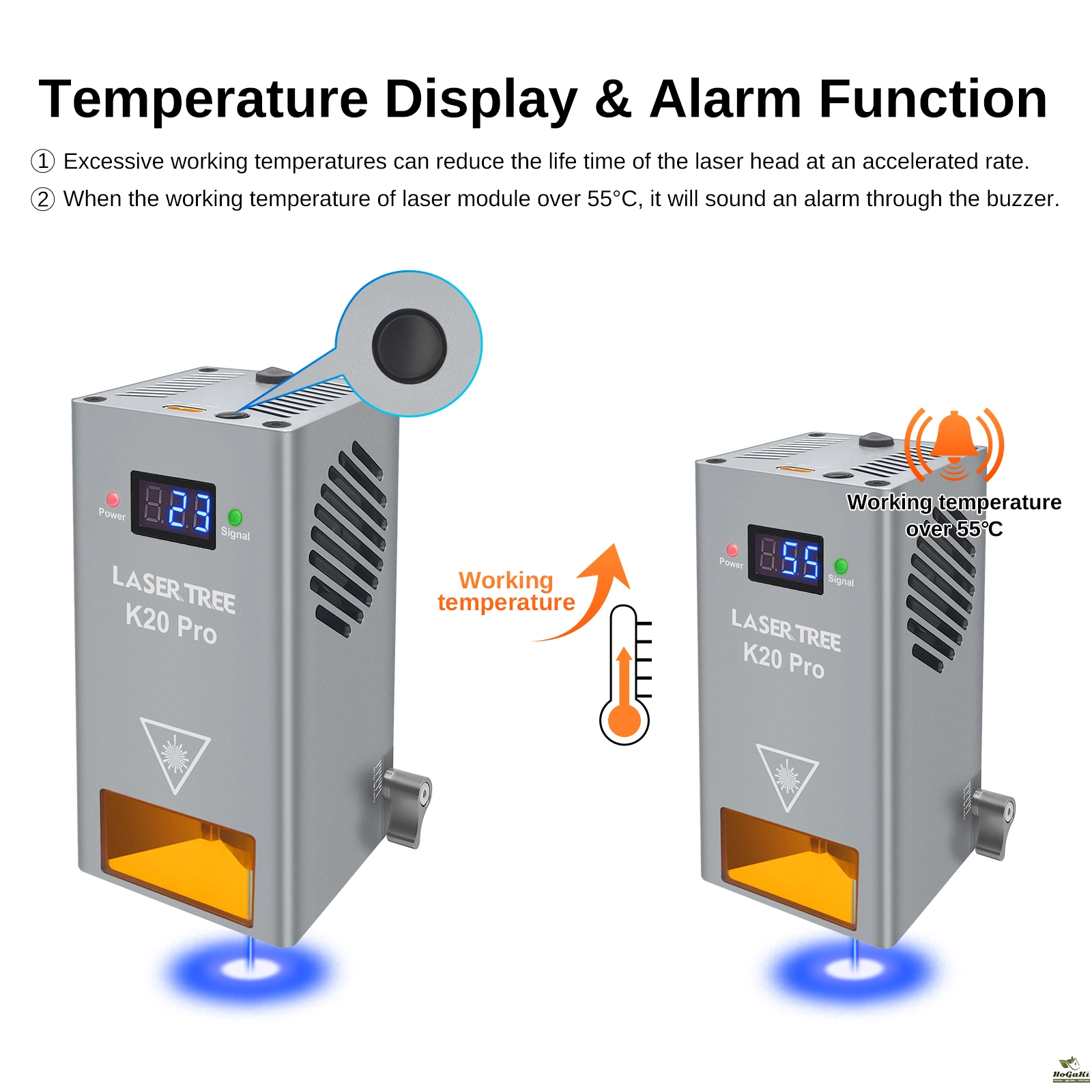

5. Temperature Display & Alarm Function
Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
LaserTree K20 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.
6.Red Cross Line Locating
The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.
7. Copper Core Protection Lens.
Easy to clean and replace when the lens is contaminated or dusty.

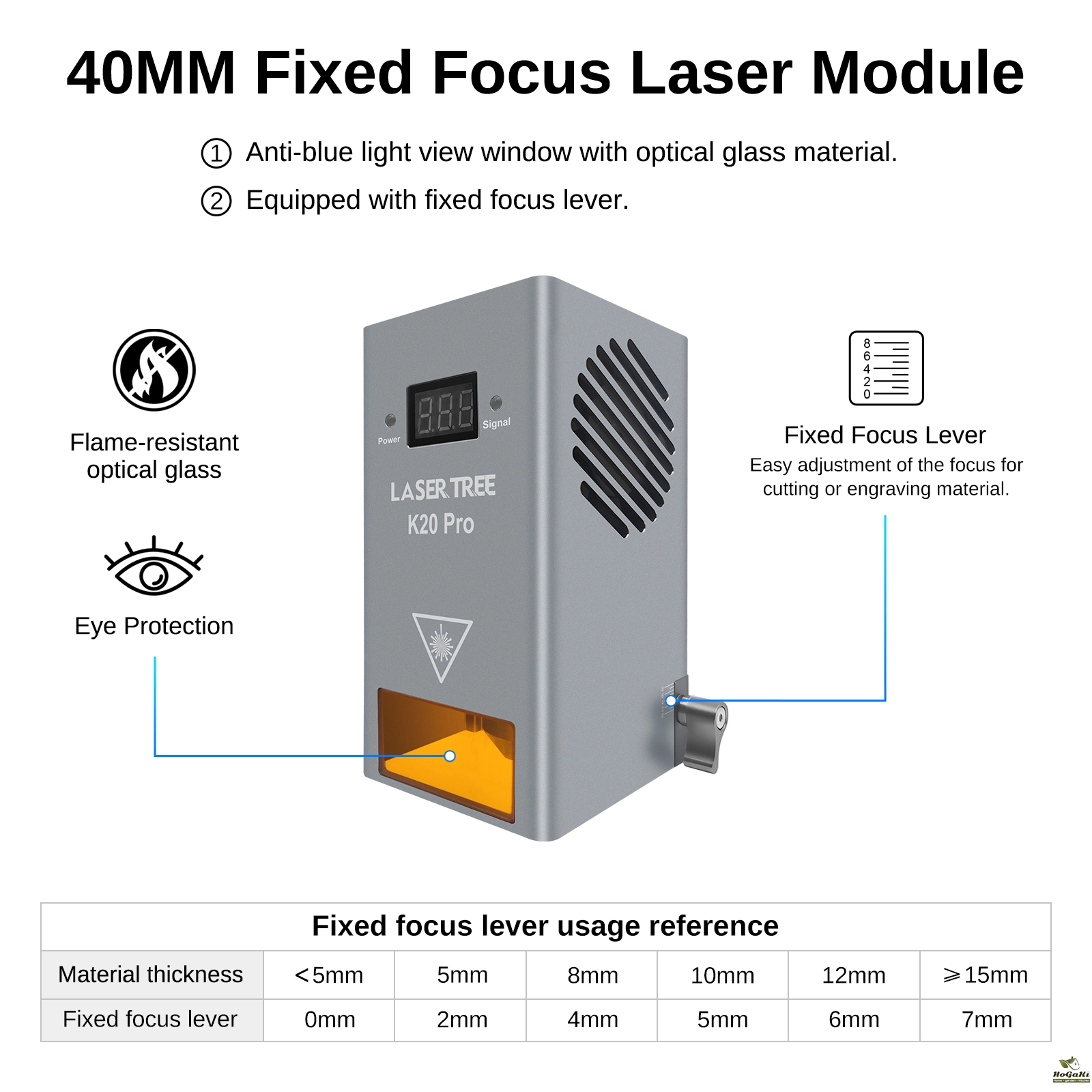

8. Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

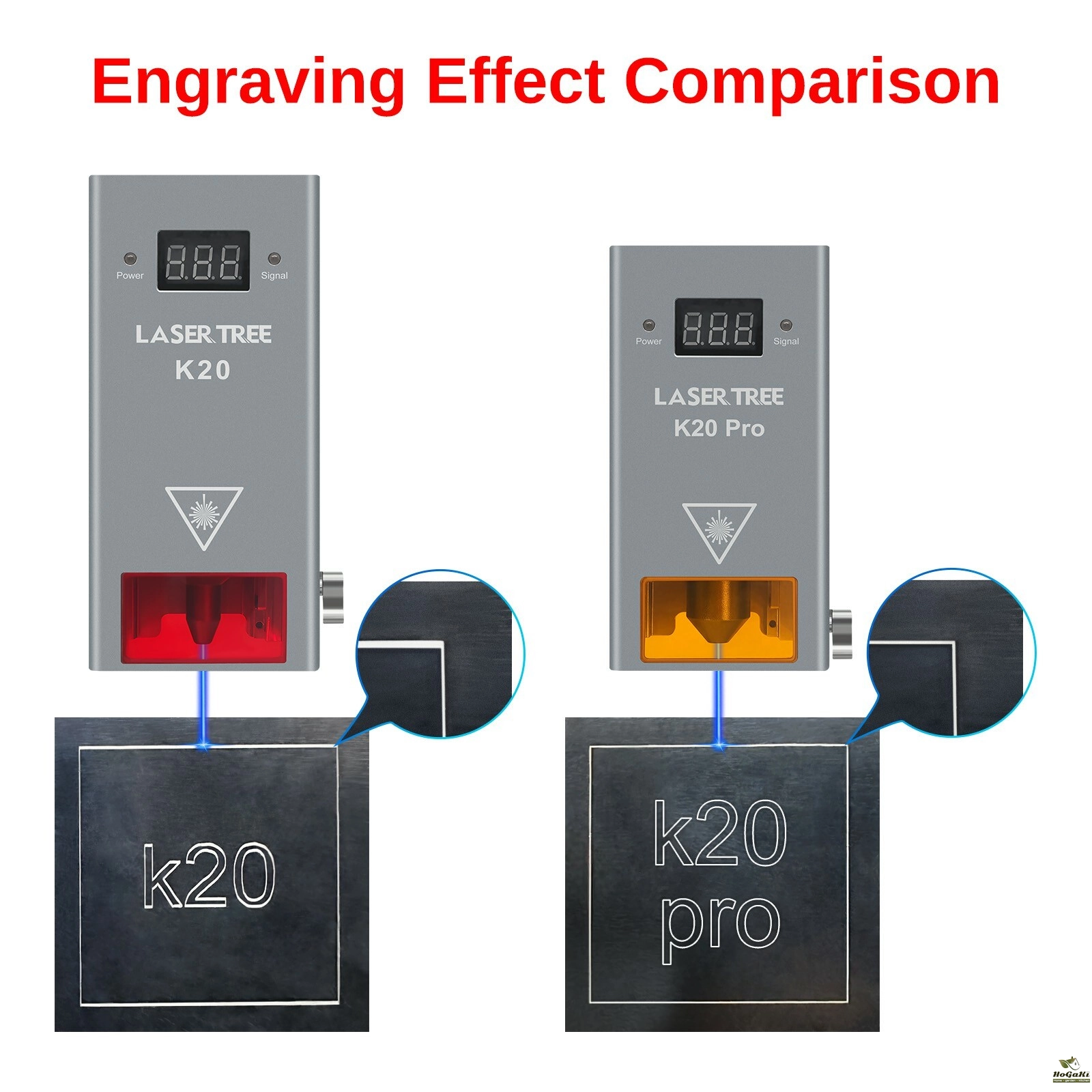

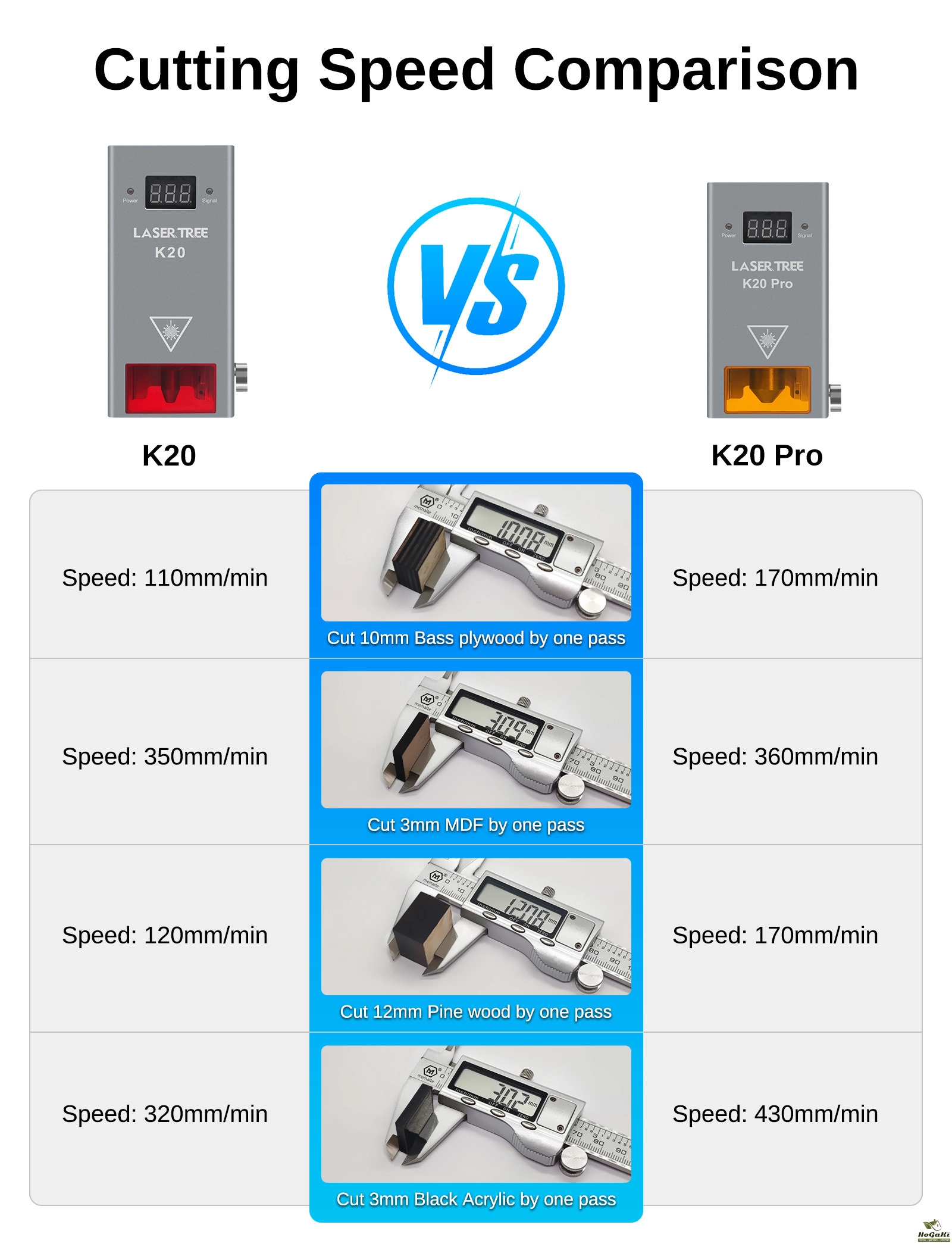

K20 VS K20 PRO
For Cutting
Please make the focus locate lower than the cutting material surface.
For example, if you want to cut 10mm material, the focus should be 5mm lower than material surface, please adjust the fixed focus lever to 5mm.

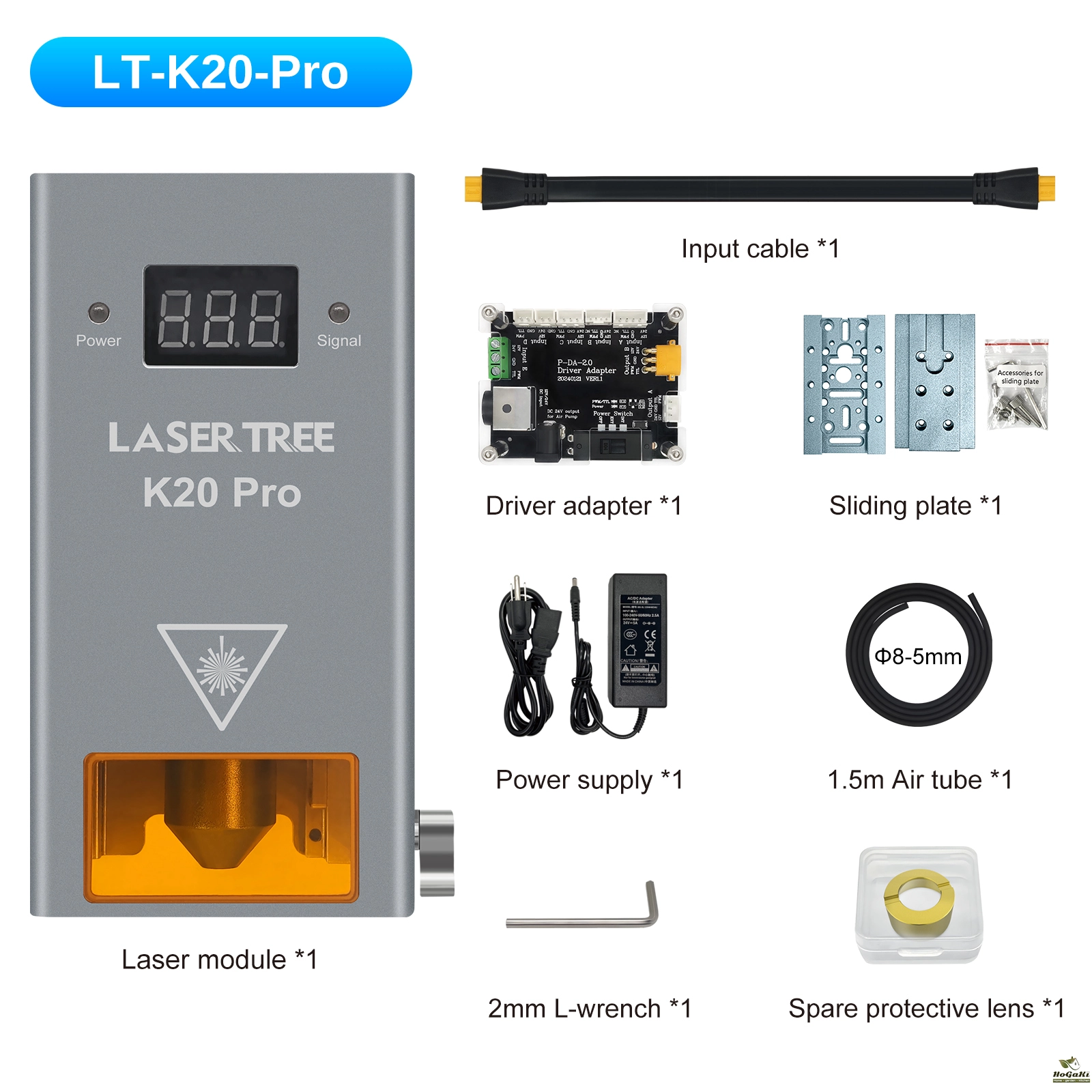

Packaging Details
- Unit Type:
- Package Weight: 2.000
- Package Size: 21x10x27
- Brand Name: Laser Tree
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: LT-K20
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Certification: weee
- Wavelength: 450nm(±10nm)
- Focus length: 40mm
- Optical power: 19-21W
- Input: 24V 4A
- Power adjustable: TTL/PWM
- Drive design: Built-in
- Function: Engraving / Cutting
- Material: Aluminum alloy
- Interface: 2EDG-3.81
- Fan speed: 9000rpm
- Operating temperature: 0-60℃
- Air trachea: 8*5mm
- Module size: 64*66*134mm
- Net weight: 635g
