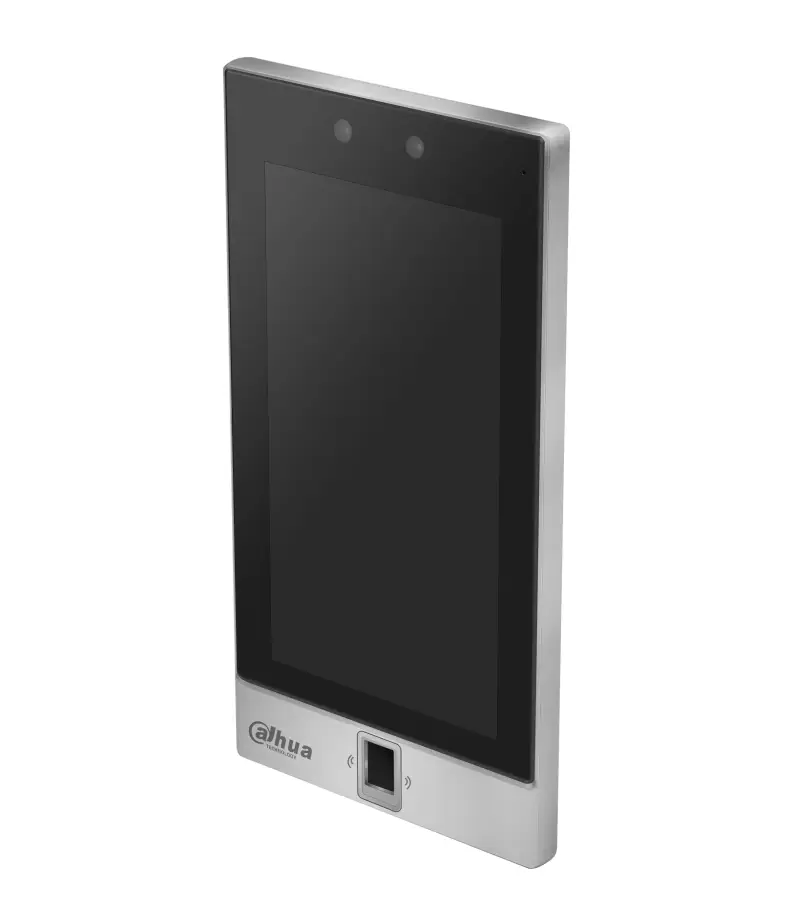

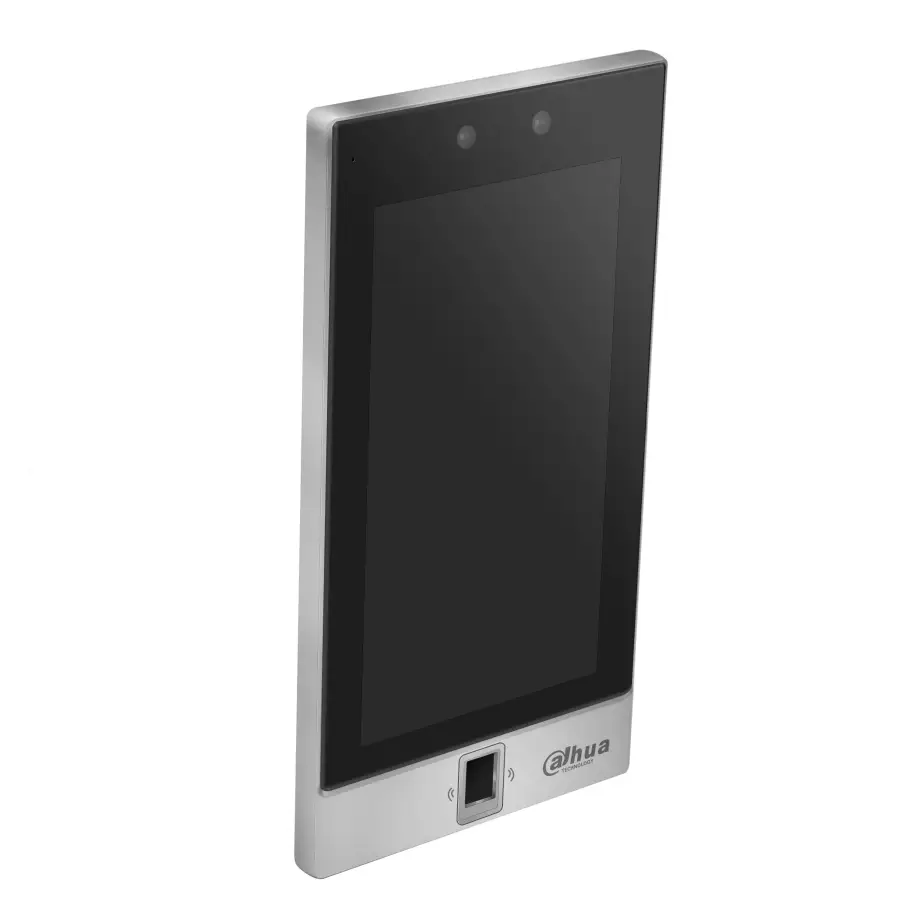

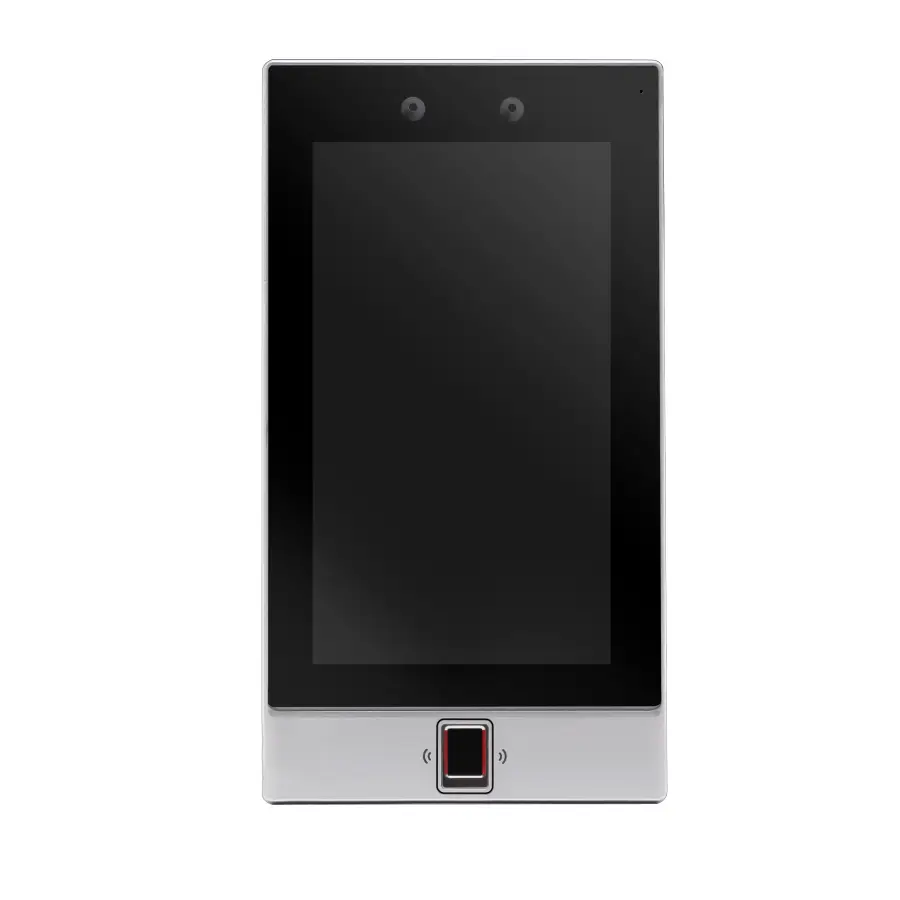

Dahua ASI7214S-W 7" LCD 1024*600 Dual-lens Face Recognition Card Swiping Password Fingerprint Face Recognition Access Controller

> 7" LCD with a resolution of 1024 × 600.

> The 2-MP dual-lens CMOS camera and high-performance image sensor ensure accurate recognition even in poor lighting and dark locations that lack illumination.

> Features auto illumination to effectively reduce light pollution.

> Supports 50,000 users (up to 50 administrators), 50,000 faces, 50,000 passwords, 100,000 cards, 10,000 fingerprints and 300,000 records.

> Multiple unlock methods including face, IC card, password, fingerprint and QR code. You can also combine them to create your own personal unlock methods.

> Displays the face bounding box and detects the face that occupies the most pixels in real time. You can also set target face filtering by configuring the face pixel threshold.

> Recognizes faces 0.3 m to 2.0 m away (0.98 ft–6.56 ft), and detects persons between the height of 0.9 m and 2.4 m (2.95 ft–7.87 ft) when the camera is installed 1.4 m above the ground.

> Powered by the face recognition deep learning algorithm, the device can accurately locate over 360 key points on the face of a target.

> Faces can be recognized within 0.2 seconds, without need for the person to touch the device.

> Features face mask detection and safety helmet detection.

> Multiple display modes and voice prompts are available for broadcasting recognition results to protect the privacy of users.

> Features face mask detection and safety helmet detection.

> Liveness detection is used to detect spoof attempt, such as using a photo or video to gain access.

> Offers multiple types of alarms such as duress, tamper, intrusion, unlock timeout, and excessive use of illegal card and password.

> Supports different types of users, including general, patrol, blocklist, VIP, guest and other.

> Supports making video calls with indoor monitors, the master station, and mobile app.

> TCP/IP and Wi-Fi connection, auto registration, P2P registration, and DHCP.

> Supports beautifying faces.

> Recognizes up to 6 faces at the same time.

> Plays advertisements in video and image format.

> Online update and update through USB.

> Connects to DSS Pro and SmartPSS Lite.

Model：ASI7214S-W

System

Main Processor：Embedded Processor

Network Protocol：UDP; TCP; IPv4; RTSP; SIP; P2P; RTP

OSDP Protocol：Yes

Interoperability：CGI;ONVIF

SDK and API：Yes

Basic

Product Type：Standalone

Display Screen：7" LCD

Screen Type：Capacitive Touchscreen

Screen Resolution：600 (H) × 1024 (V)

Camera：2-MP dual-lens CMOS camera

WDR：DWDR

Light Compensation：Auto IR

Voice Prompt：Yes

Casing Material：Tempered glass/PC

Function

Verification Method：Card; remote; password; fingerprint; face; combination unlock

Card Type：IC card

Period List：128 periods

Holiday Period：128 periods

Network Update：Yes

First User Unlock：Yes

Remote Verification：Yes

Restricted List/Trusted List：Yes

Wi-Fi：Yes

Wireless Standard：802.11b/g/n

Wireless Frequency Range：2.400 GHz–2.472 GHz

Advertisement Playing：Support graphic advertisement play

Peripheral Card Reader：Supports 1 × RS-485 card reader;

1 × Wiegand card reader

Multi-user Authentication：Yes

Real-time Monitoring：Yes

Multi-factor Authentication：Yes

Capture Function：Yes

Web Configuration：Yes

Auto Registration：Yes

Performance

Card Reading Distance：0 cm–3 cm (0"–1.18")

Face Recognition Height Range：0.9 m–2.4 m (2.95 ft–7.87 ft)

Face Recognition Distance：0.3 m–2.0 m (0.98 ft–6.56 ft)

Face Recognition Accuracy：99.9%

Face Recognition Time：0.2 s

Fingerprint Sensor Type：Capacitive

Fingerprint Verification Mode：1:N

Fingerprint Comparison Time：1.5 s

Fingerprint Recognition Time：0.5 s

Supported Codes：QR code

Code Type：Electronic code; printed code

User

User (Card) Type：General users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users

Capacity

User Capacity：50000

Face Image Capacity：50000

Fingerprint Capacity：10000

Card Capacity：100000

Password Capacity：50000

Record Capacity：300000

Port

RS-485：1

RS-232：1

Wiegand：1 (input or output)

USB：1 × USB 2.0 port

Network Port：1 × RJ-45 10/100 Mbps Ethernet port

Alarm Input：2 (digital quantity)

Alarm Output：1 (relay)

Alarm Linkage：Yes

Exit Button：1

Door Status Detection：1

Lock Control：1

Alarm

Anti-pass Back：Yes

Tamper Alarm：Yes

Duress Alarm：Yes

Door Sensor Timeout：Yes

Intrusion：Yes

Illegal Card Exceeding Threshold：Yes

Duress Fingerprint：Yes

General

Power Adapter：Included

Power Supply：12 VDC, 2 A

Power Consumption：≤24 W

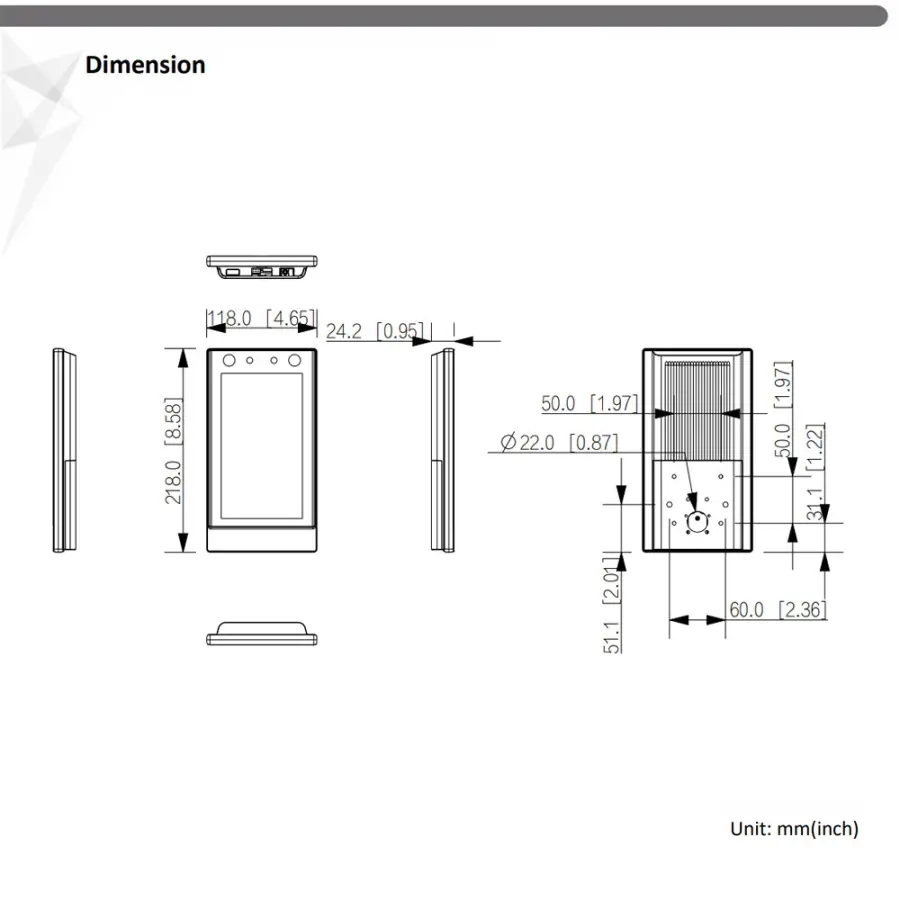

Product Dimensions：218 mm × 118 mm × 24.2 mm (8.58" × 4.65" × 0.95") (H × W × D)

Packaging Dimensions：Carton: 299 mm × 164 mm × 72 mm (11.78" × 6.46" × 2.83") (H × W × D)

Protection box: 390 mm × 320 mm × 360 mm (15.35" × 12.60" × 14.17") (H × W × D)

Operating Temperature：–20 °C to +55 °C (–4 °F to +131 °F)

Operating Humidity：0%–90% (RH), non-condensing

Operating Altitude：0 m–1,300 m (0 ft–4,265.09 ft)

Operating Environment：Indoor

Gross Weight：0.67 kg (1.48 lb)

Accessory：Included: Wall mount bracket

Installation：Turnstile Mount; 86 case mount; wall; floor bracket mount
