Dahua ASI1212D IP Fingerprint Standalone Touch Keyboard LCD Display Support valid cards IC card ID EM card P2P Wiegand RS-485
5.0 (1 votes) | 1 orders
Price:
US $338.28
Discount Price:
US $
247.21
-27%

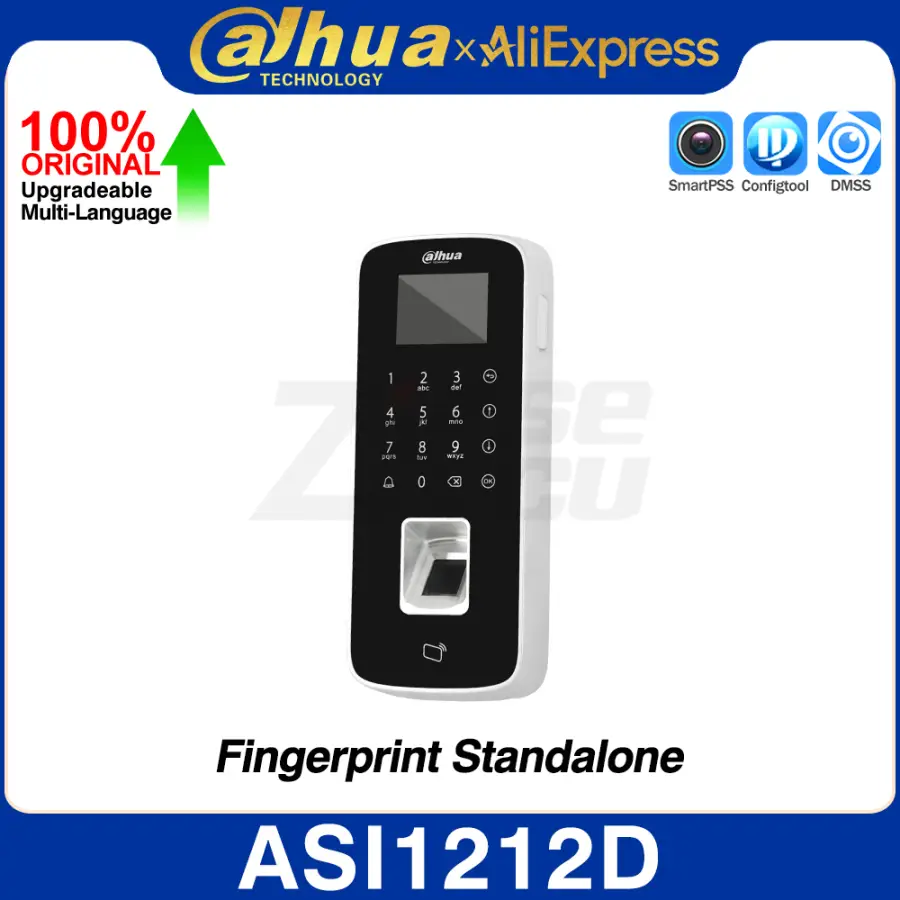

Dahua ASI1212D IP Fingerprint Standalone Touch Keyboard LCD Display Support valid cards IC card ID EM card P2P Wiegand RS-485
ASI1212D Fingerprint Standalone
> Touch keyboard and LCD display
> Support 30,000 valid cards & 150,000 records
> Support multiple cards(default IC card) (“-D” means ID EM card)
> Support card, password, fingerprint and combination
> TCP/IP to PC
> Support P2P add device
> Wiegand or RS-485 interface to reader
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-passback, multi-card open
> Support 128 efficient time and holiday schedules
> USB import/export configuration or log file;

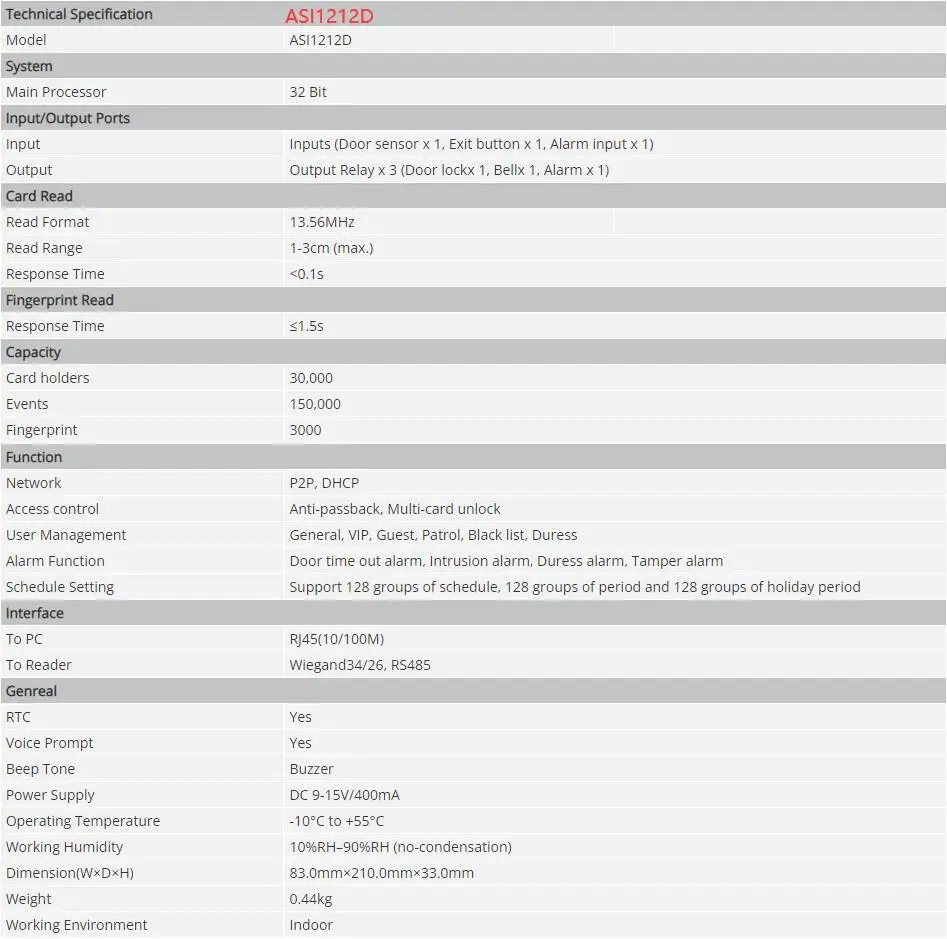

Packaging Details
- Unit Type:
- Package Weight: 0.700
- Package Size: 13x7x31
- Brand Name: Dahua
- Hign-concerned Chemical: None
- Origin: Mainland China
- Smart home platform: None
- Certification: CE
- Certification: FCC
- Model Number: ASI1212D
- Model: ASI1212D
- Main Processor: 32 Bit
- Input: Inputs (Door sensor x 1, Exit button x 1, Alarm input x 1)
- Output: Output Relay x 3 (Door lockx 1, Bellx 1, Alarm x 1)
- Read Format: 13.56MHz
- Read Range: 1-3cm (max.)
- Response Time: <0.1s
- Card holders: 30,000
- Events: 150,000
- Fingerprint: 3000
- Network: P2P, DHCP
- Access control: Anti-passback, Multi-card unlock
- User Management: General, VIP, Guest, Patrol, Black list, Duress
- Alarm Function: Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
- Schedule Setting: Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
- To PC: RJ45(10/100M)
- To Reader: Wiegand34/26, RS485
- RTC: Yes
- Voice Prompt: Yes
- Beep Tone: Buzzer
- Power Supply: DC 9-15V/400mA
- Weight: 0.44kg
- Working Environment: Indoor
