DC 5V 12V Smart Zigbee RGB RGBW Led Controller Tuya Wifi Controller Dimmer For Led Strip Light Alexa Google Assistant Smartthing
4.9 (155 votes) | 700 orders
Price:
US $28.69 - 40.15
Discount Price:
US $
16.65 -
22.54
-42%
- Color
-
-
Buyer Questions & Answers
1.Question: How to choose the correct controller according to the led strip type ?
Answer : ==Please do not use it in different voltage.

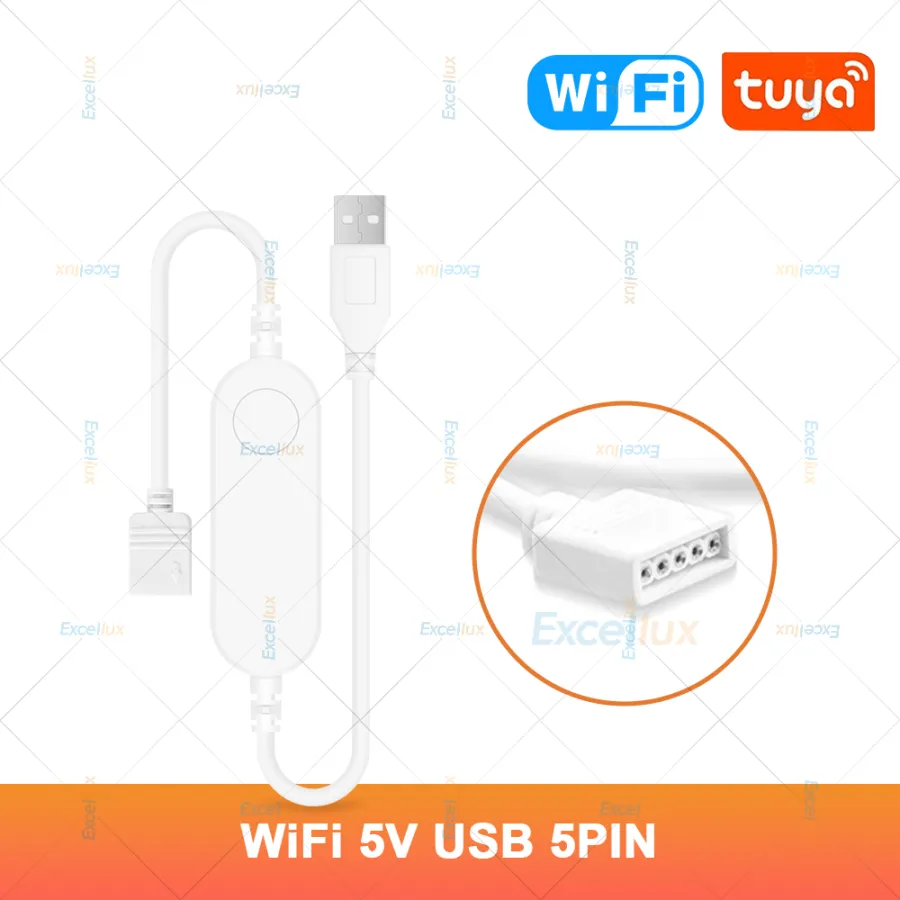

==5V USB controller must work with 5v led strip and 5v USB power. Do not use 5v usb controller with other volatge power led .
==12v dc controller can work with 12v-24v type led .
If you use 12v led strip with dc port controller ,you must use 12v power.If you use 24v led strip with dc port controller ,you must use 24v power. Do not use dc port controller with 5v power input ,which is not suitable.
2.Question:what is the difference between WiFi and zigbee ?

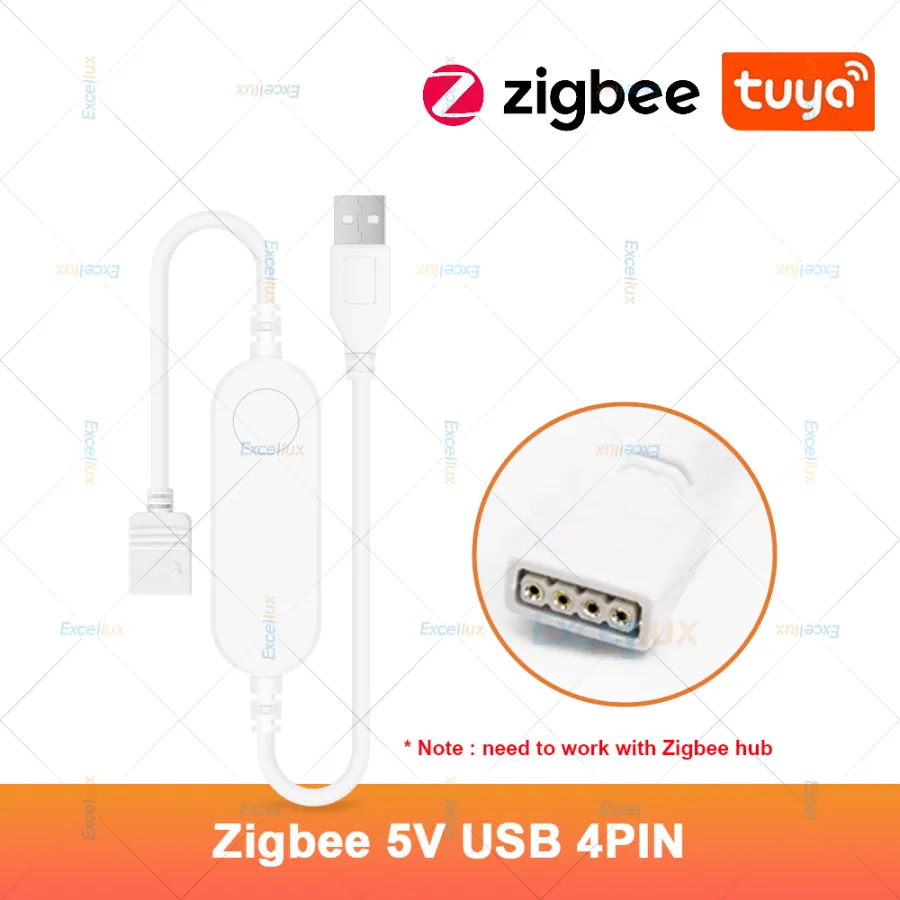

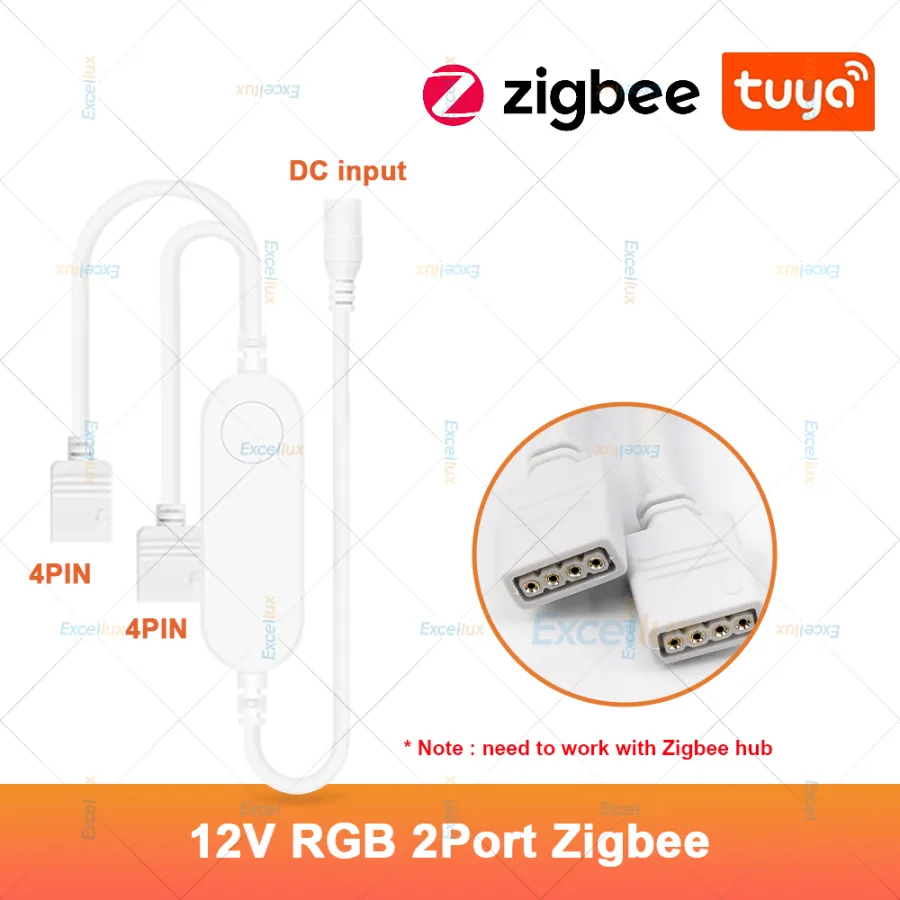

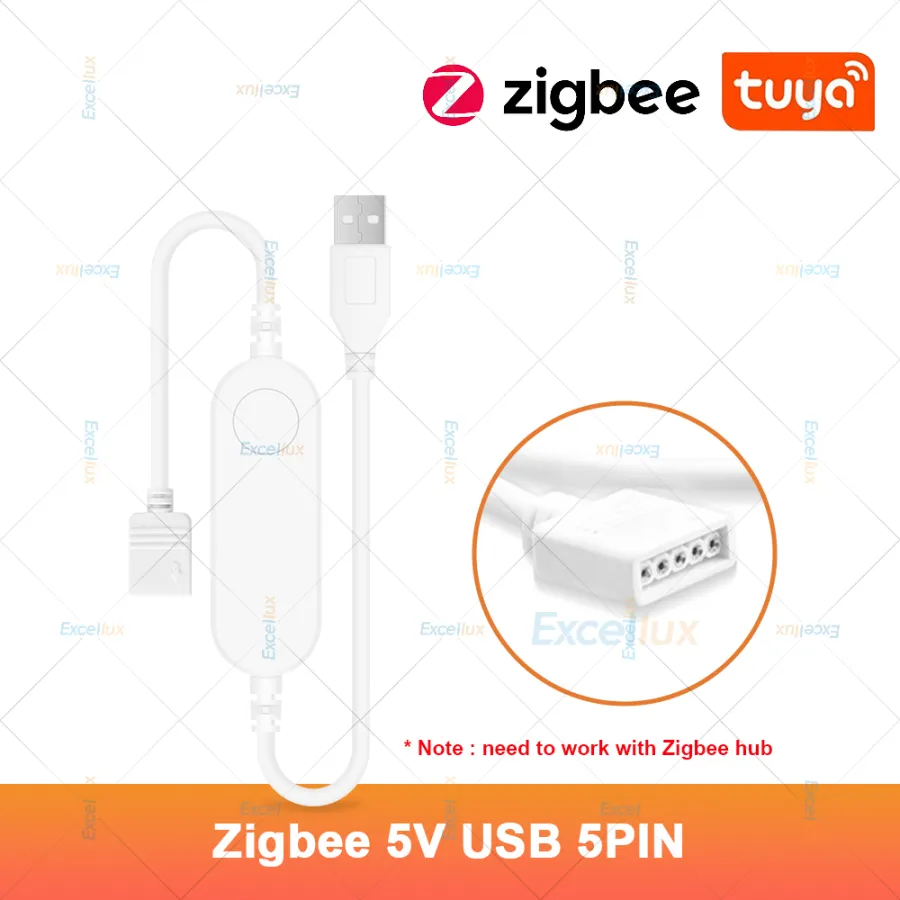

Answer : ==Wifi controller can use with your 2.4ghz wifi network directly ;The zigbee controller must work with zigbee hub or zigbee gateway ! If you do not have zigbee hub ,please buy wifi controller

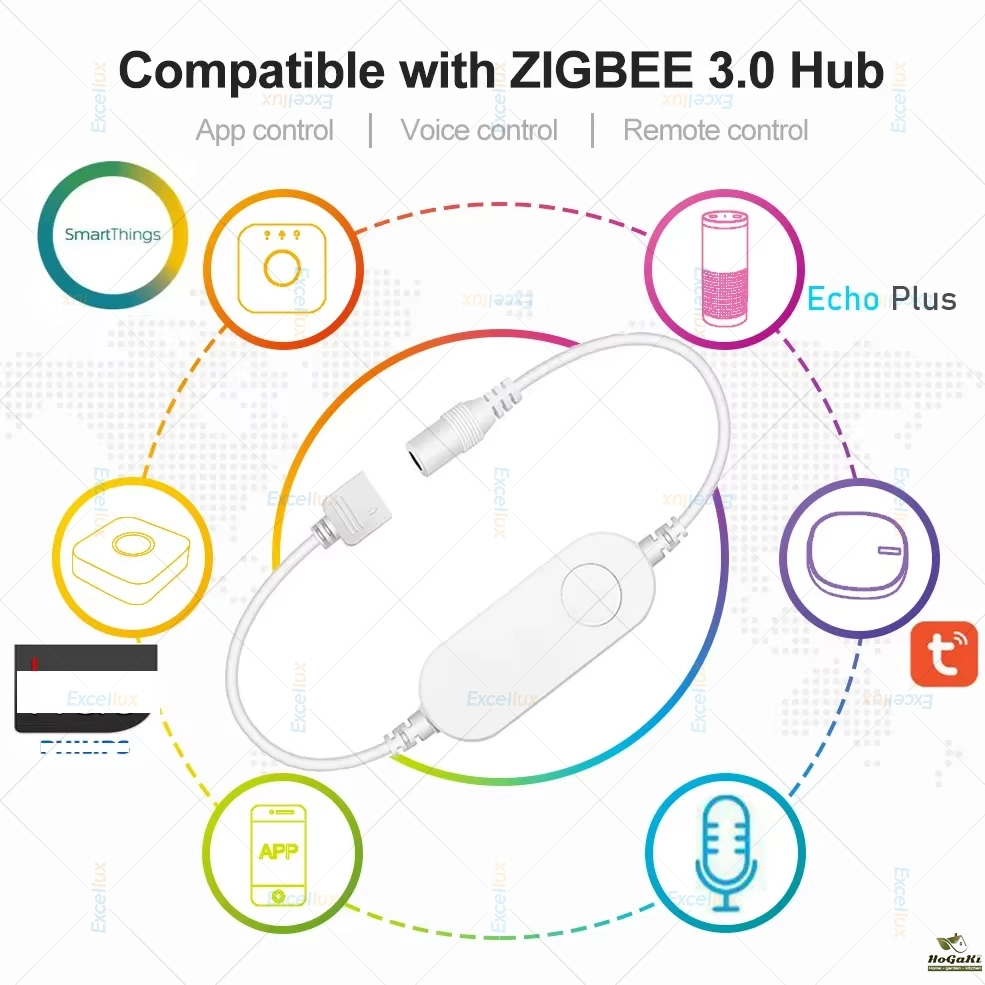

3.Question:Can the zigbee type controller work with other zigbee 3.0 hub or zigbee bridge ?
Answer : == Yes ,it not only can work with tuya zigbee gateway ,but also it can work with other common zigbee 3.0 hub. APP type depends on what kind of zigbee bridge you had.

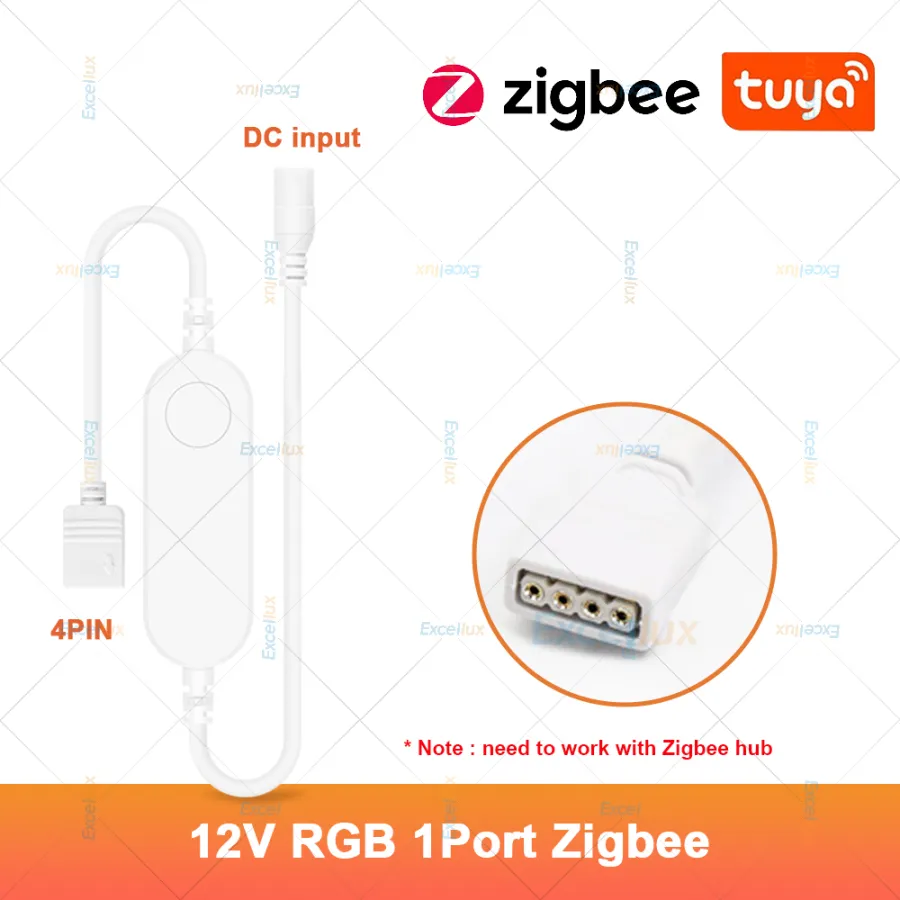

4.Question: what is the different between 4pin and 5pin ?

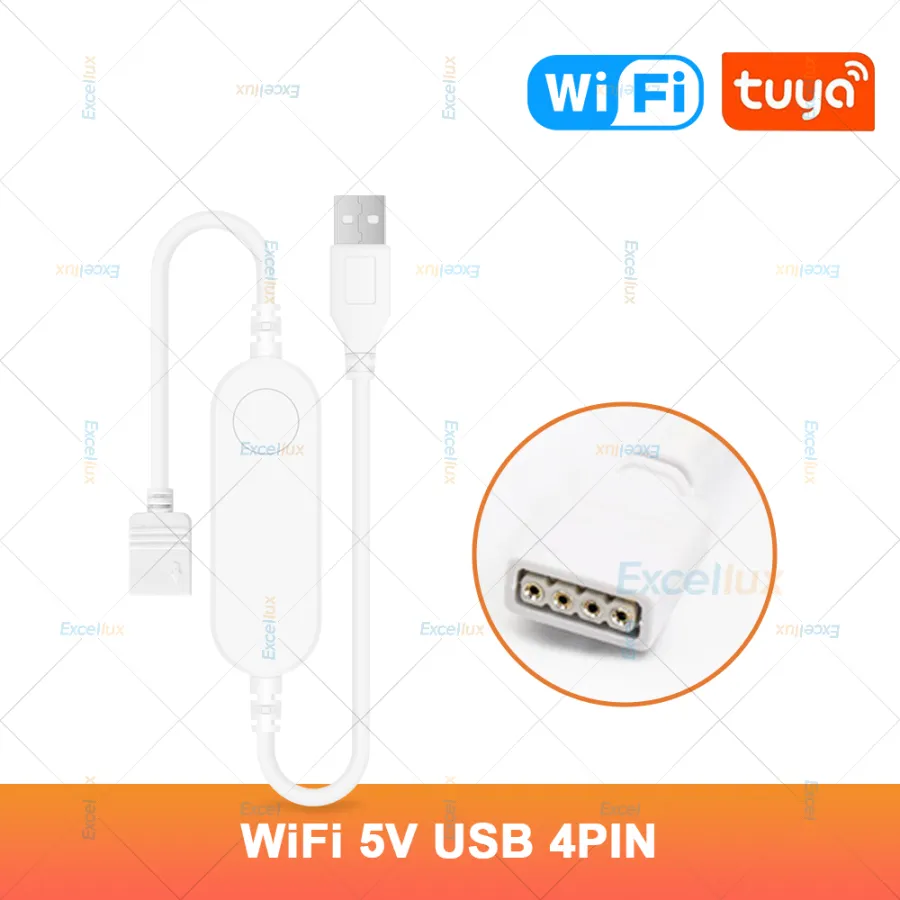

Answer : == 4PIN means'RGB' , 5PIN means'RGBW' or RGBWW
5.Question: What is the color sequence of the led controller ?
Answer :
RGB controller color sequence : G R B
RGBW controller color sequence : G R B W
6.Question: Is it support voice assistant control ?
Answer : Yes,support for alexa ,google assistant ,smartthings voice control . Other voice assistant is not sure.
7.Question: What is the length of the light strip that the controller can connect to ?
Answer :== 5V USB type controller can max power it with 5M 30Leds totally 150pcs led chip ,power with 5v 2A usb adapter
DC port controller can max power with 4x5m 30leds/m 5050 led strip 12v type ,power with 12v 4-5A adapter.
Attention : The advertisement only sell the led controller ,do not have led strip or power adapter ,you need to purchase them individually.
8：Question:What if there is the volatge drop (that the brightness at bothd end is different, the light closed to the power source will be brighter than the other end. The other end brightness is less ) during use ?
Answer:== If connecting the DC connector controller to a lamp that is too long results in inconsistent brightness at both ends, it is due to voltage drop and not a controller issue. If the difference is not significant, it can be used directly.
If it's obvious,you only need to connect another power supply at the end to solve the problem.Power the light at both end.

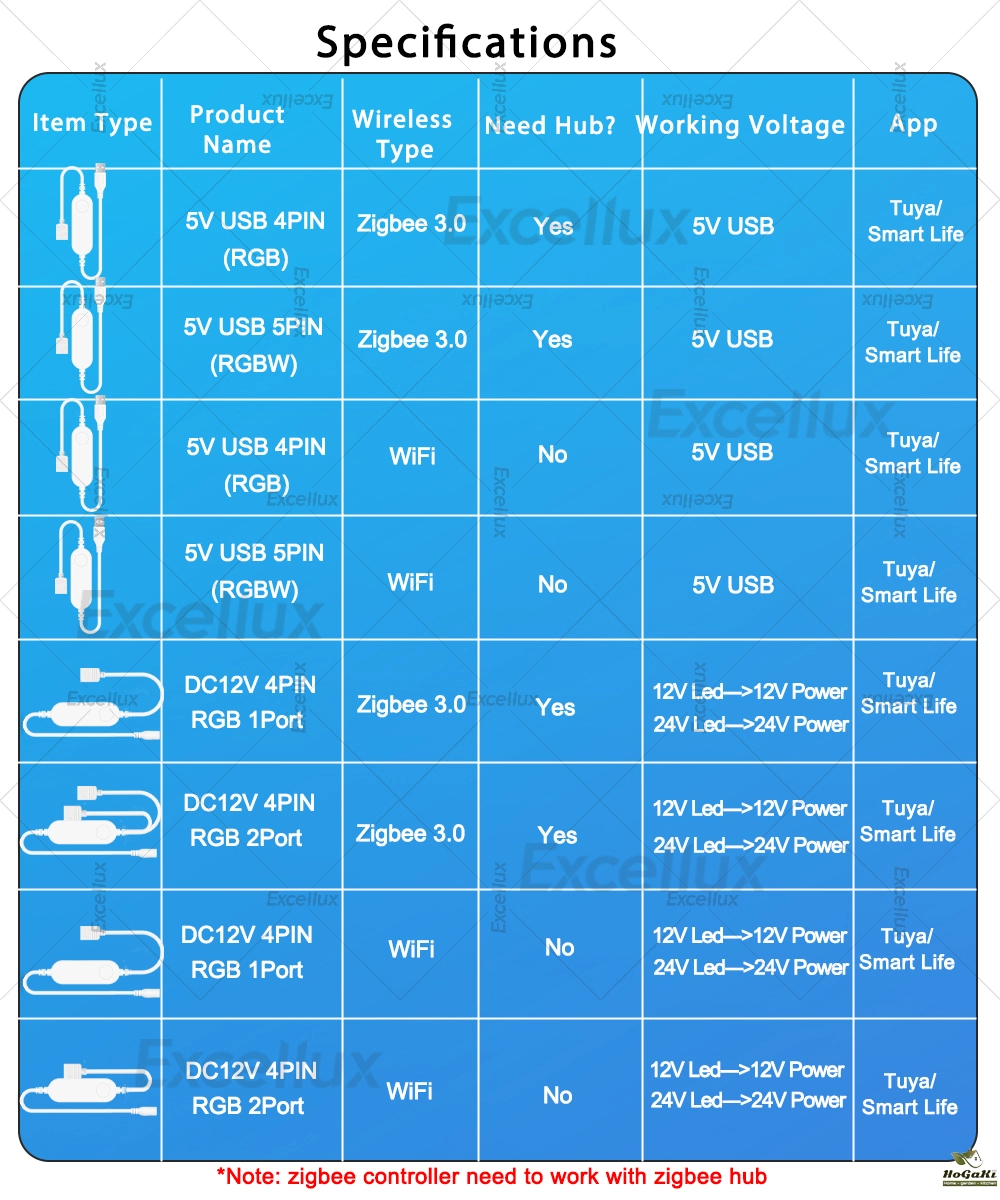

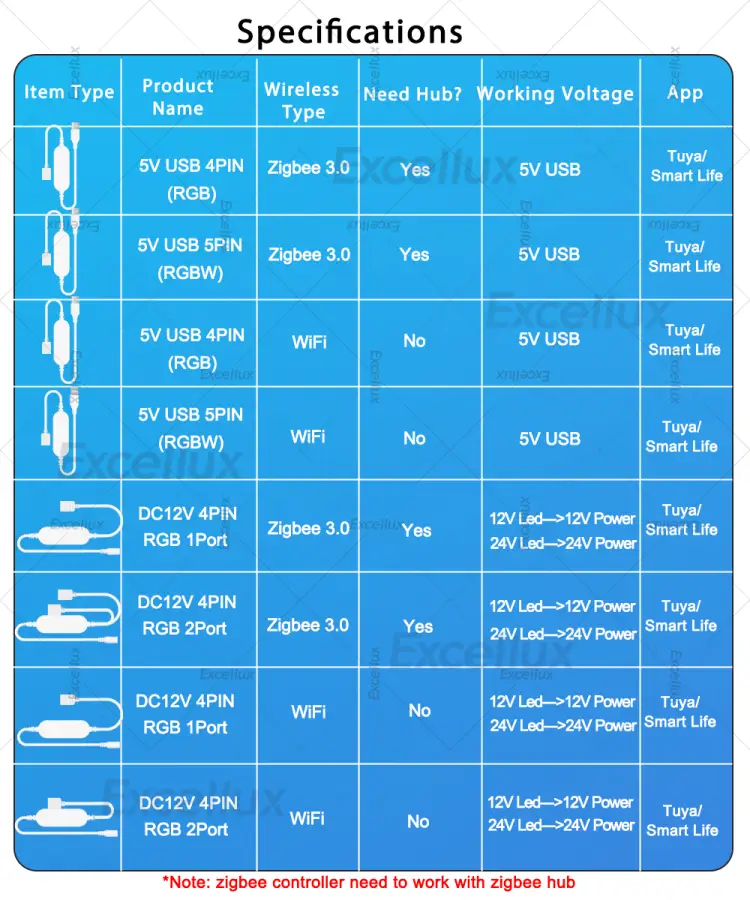

Specifications
Tuya smart RGB RGBW controller
4pin for rgb led strip;
5pin for rgb+white or rgb+warm white led strip;
Led strip width : 10mm

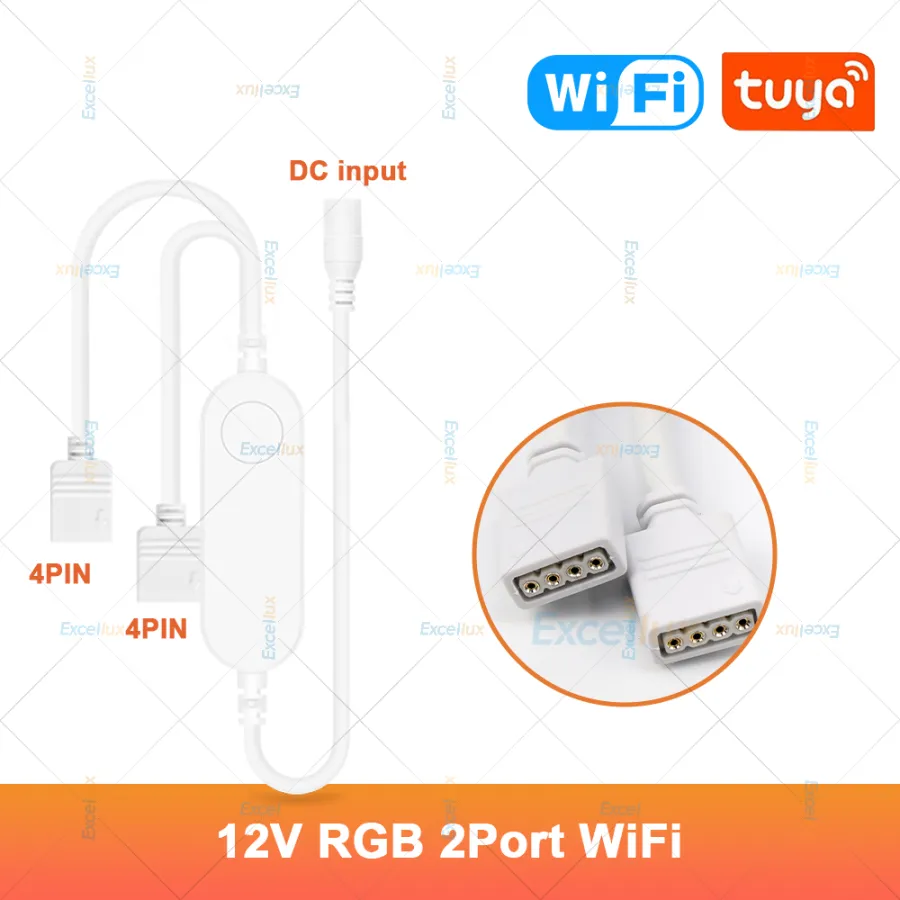

The 2 port controller is more flexible ,you can use it as 1 port connector or the 2 port connector
APP: Smart Life,TUYA
Support mobile: Android/IOS
Support System: Alexa Echo, Google assistant ,or smart things, etc

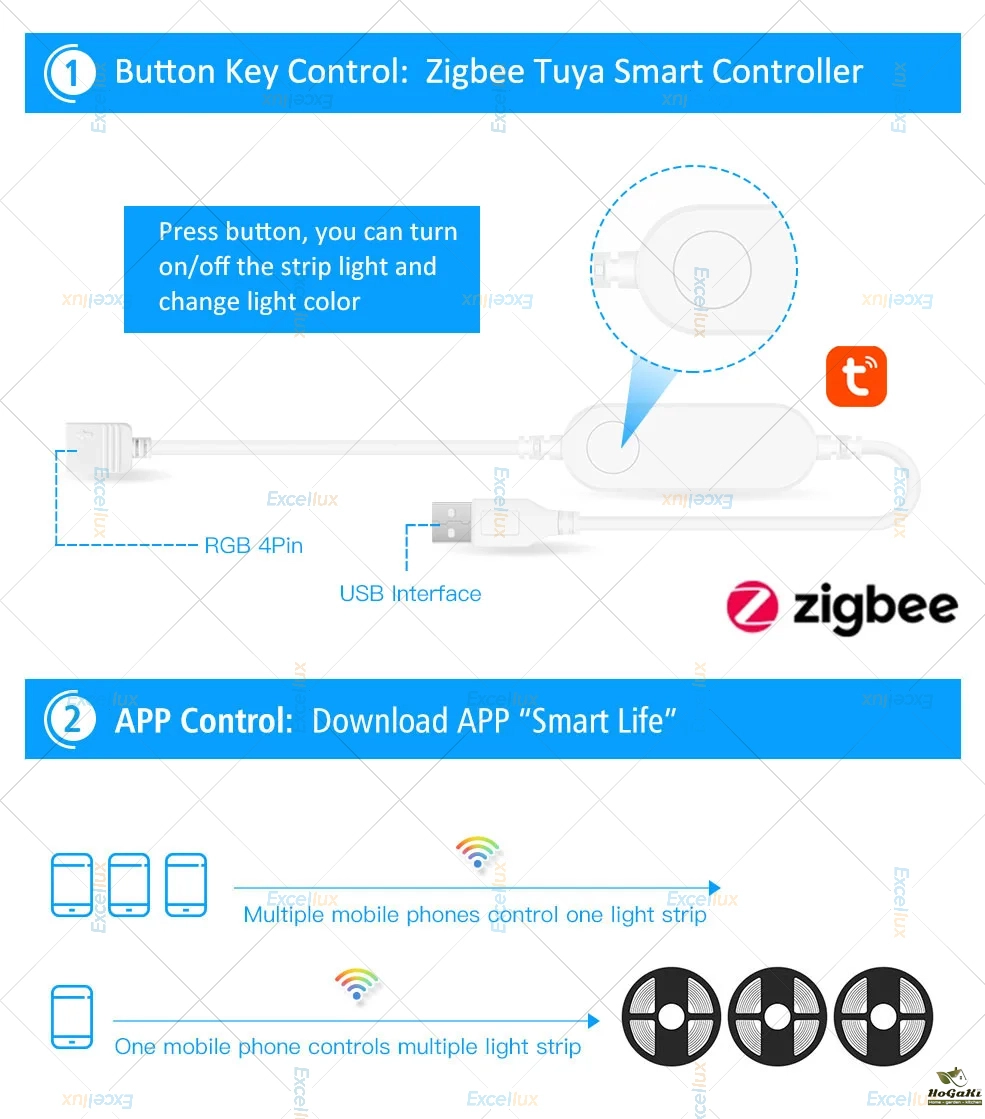

Control: Voice control / Button key control / APP remote control
How to use it?
1.Connect this led strip light controller to the LED light strip via the pin connector, and also connect to power via the DC port with the power adapter of the light strip.
2.When led strip flash red color ,Search "Smart Life" on your app store, or scan the QR code on User Manual to download and install it.
3.Register your Smart Life account.
4.Go to "smart life" app on your phone, click "Direct connect the device control", then you can control your led light strip via your phone.
Features
1. Wifi version Support WiFi 2.4GHz 802.11b/g/n wireless network.
2. Support remote / local control through 2G / 3G / 4G WiFi networks.
3. The main account can be share with other accounts (only 6 mobile phones).
How to pair to APP ?
1.Connect the controller to adapter;
2.Power adapter on-off-on-off-on-off-on adapter,repeat same action for some times,make led strip flash red color itself;
3.Then you can detect the device signal on app,connect successfully.
Packaging Details
- Unit Type:
- Package Weight: 0.030
- Package Size: 14x2x14
- Brand Name: Excellux
- Origin: Mainland China
- Hign-concerned Chemical: None
- Item Type: RGB controler
- Material: plastic/abs
- Warranty: 1
- Certification: ce
- Certification: FCC
- Certification: ROHS
- Connection Mode: wireless
- Power Source: DC
- Wattage: -
- Oscillation frequency: 50-60HZ
- Model Number: rgb led controller
- Remote Distance: 5v(5m) 12v(10m)
- Controled Method: Zigbee
- Features: led controller
- Applicable Lights: USB(5V) DC(12V)
- Width: 10mm LED
- Choice: yes
