LED Controller SP530E Wifi Bluetooth RF 5V 12V 24V 5CH WS2812B WS2811 SK6812 LED Strip Controler Works with Alexa Google Home
ID: 165555

LED Controller SP530E Wifi Bluetooth RF 5V 12V 24V 5CH WS2812B WS2811 SK6812 LED Strip Controler Works with Alexa Google Home

5.0 (27 votes) | 299 orders
Price: US $47.48 - 117.46
Discount Price:
US $ 19.58 - 43.51
-59%
Color
Quantity

Buy Now
Add to Cart

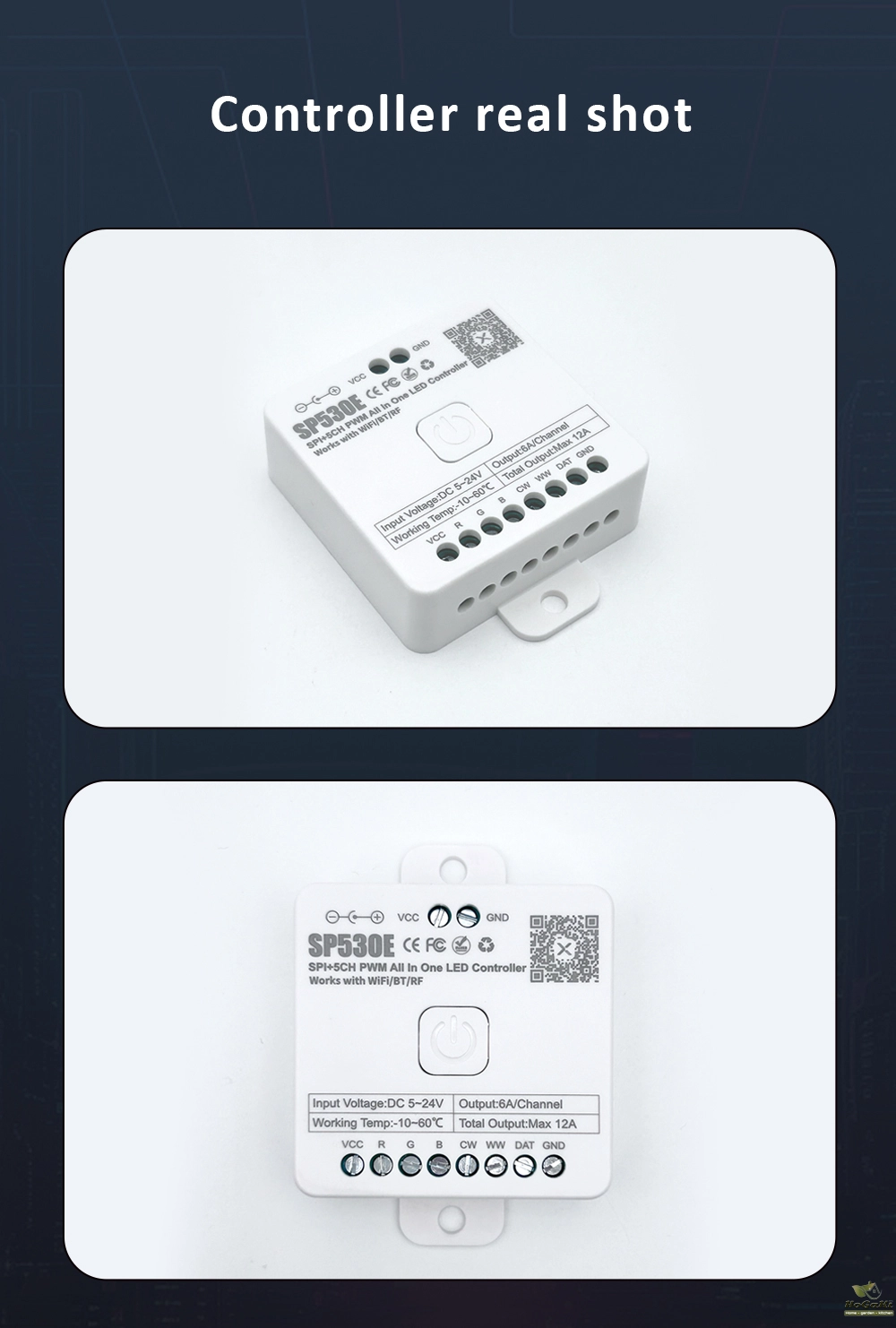

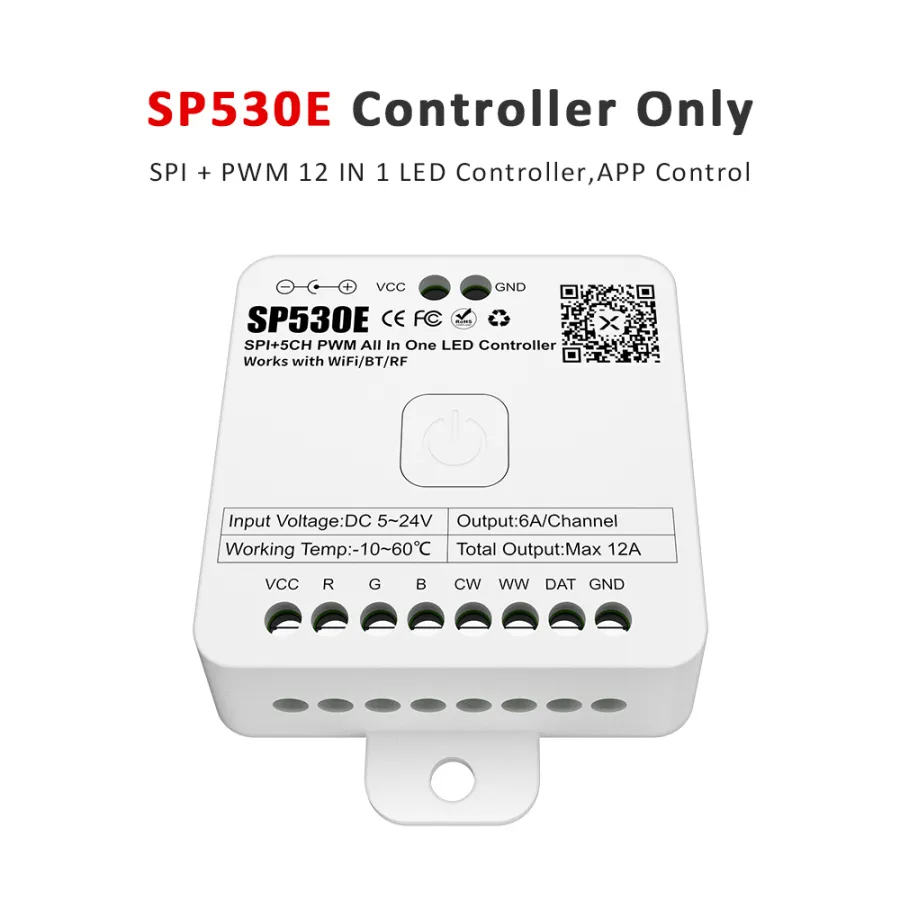

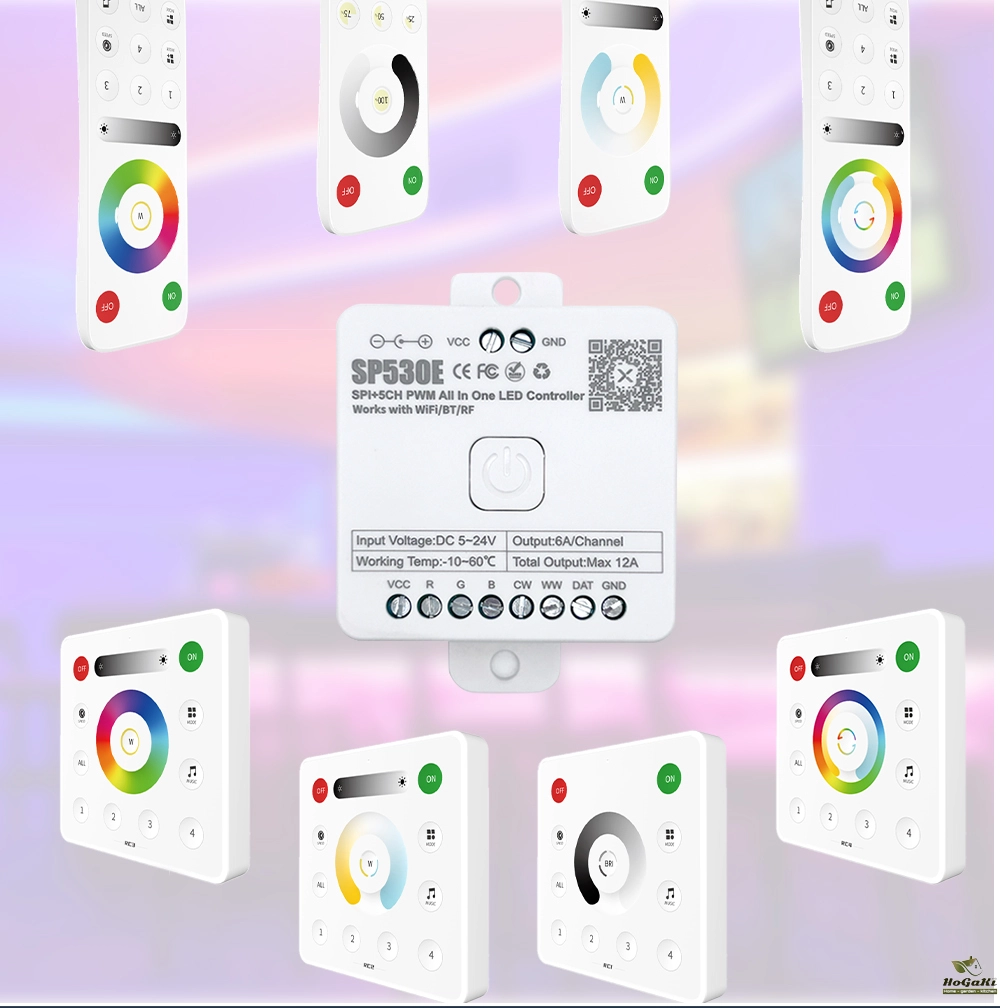

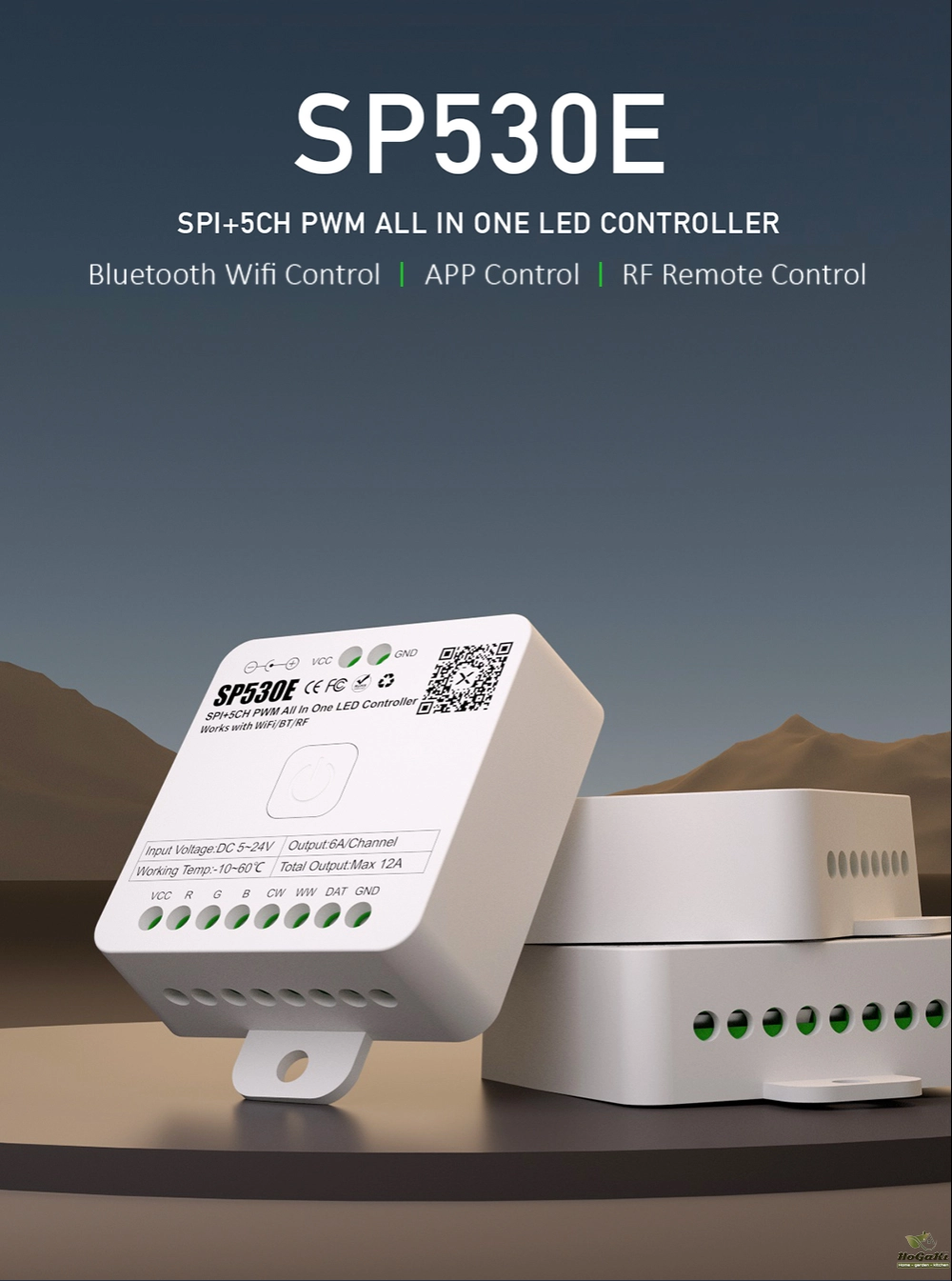

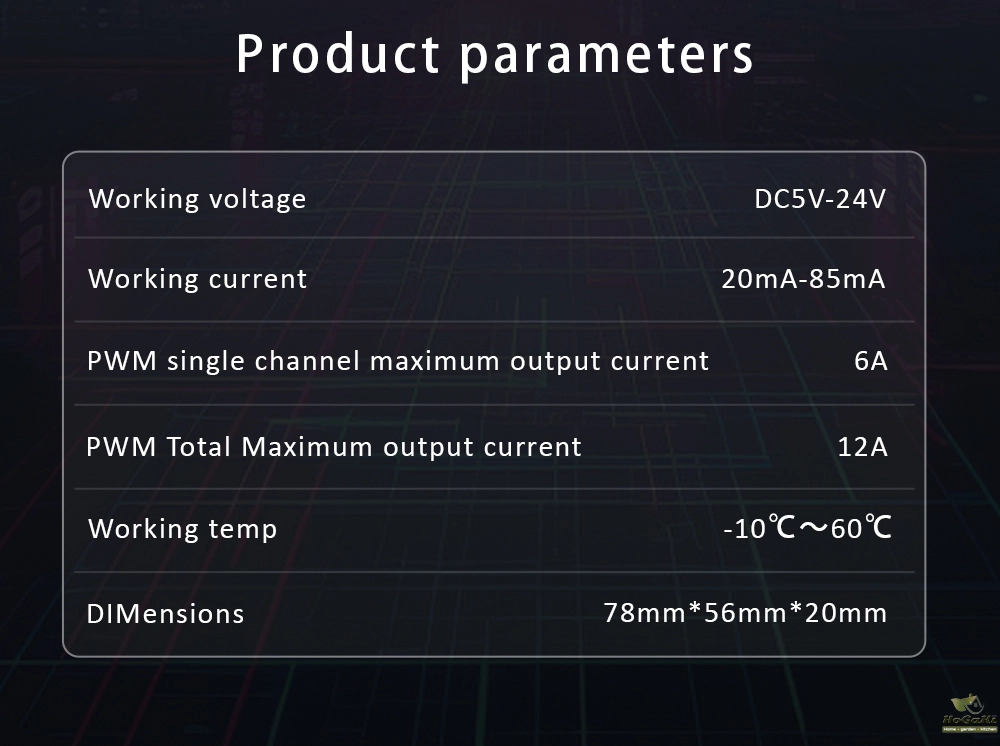

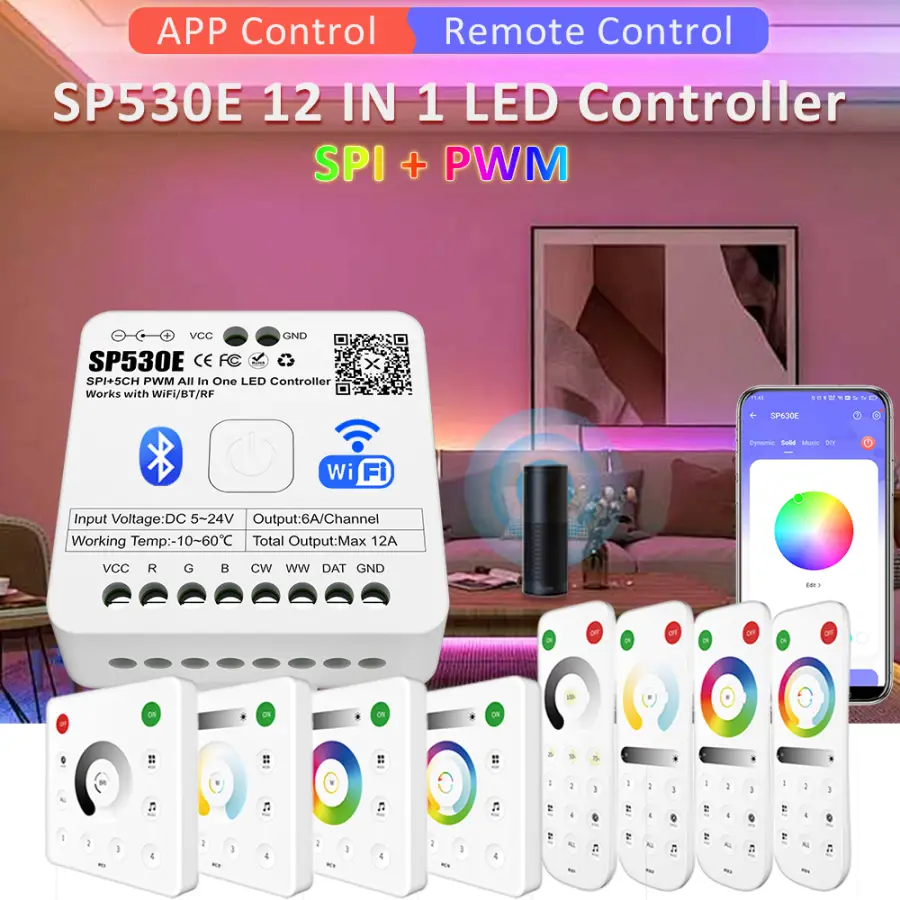

SP530E Controller Parameter

Product name: SP530E LED Controllers
Working Voltage: DC 5~24V
Ways of control: Wifi + Bluetooth + RF remote
APP name: BanlanX
LED light type: SPI IC chip LED strip and PWM LED strip
Support Alexa and Google Assistant.
Support IC QTY: max 600 IC for (Single color + CCT + RGB), max 450 IC for (RGBW), max 300 IC for (RGBCCT)
Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.
Support PWM Chip: all single color, CCT, RGB, RGBW, RGBCCT COB and SMD led strips.
Waterproof Level: IP30 Non-waterproof.
Operation Temperature: -4℉~140℉ ( -20℃~+60℃ ).

Difference between SPI (with IC) strips and PWM (without IC) strips

Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
SP530E Support IC QTY:
SPI DIM: 1800 IC max.
SPI CCT: 600 IC max.
SPI RGB: 1200 IC max.
SPI RGBW: 900 IC max.
SPI RGBCCT: 600 IC max.

Features

1. High performance, low power consumption Bluetooth microprocessor.

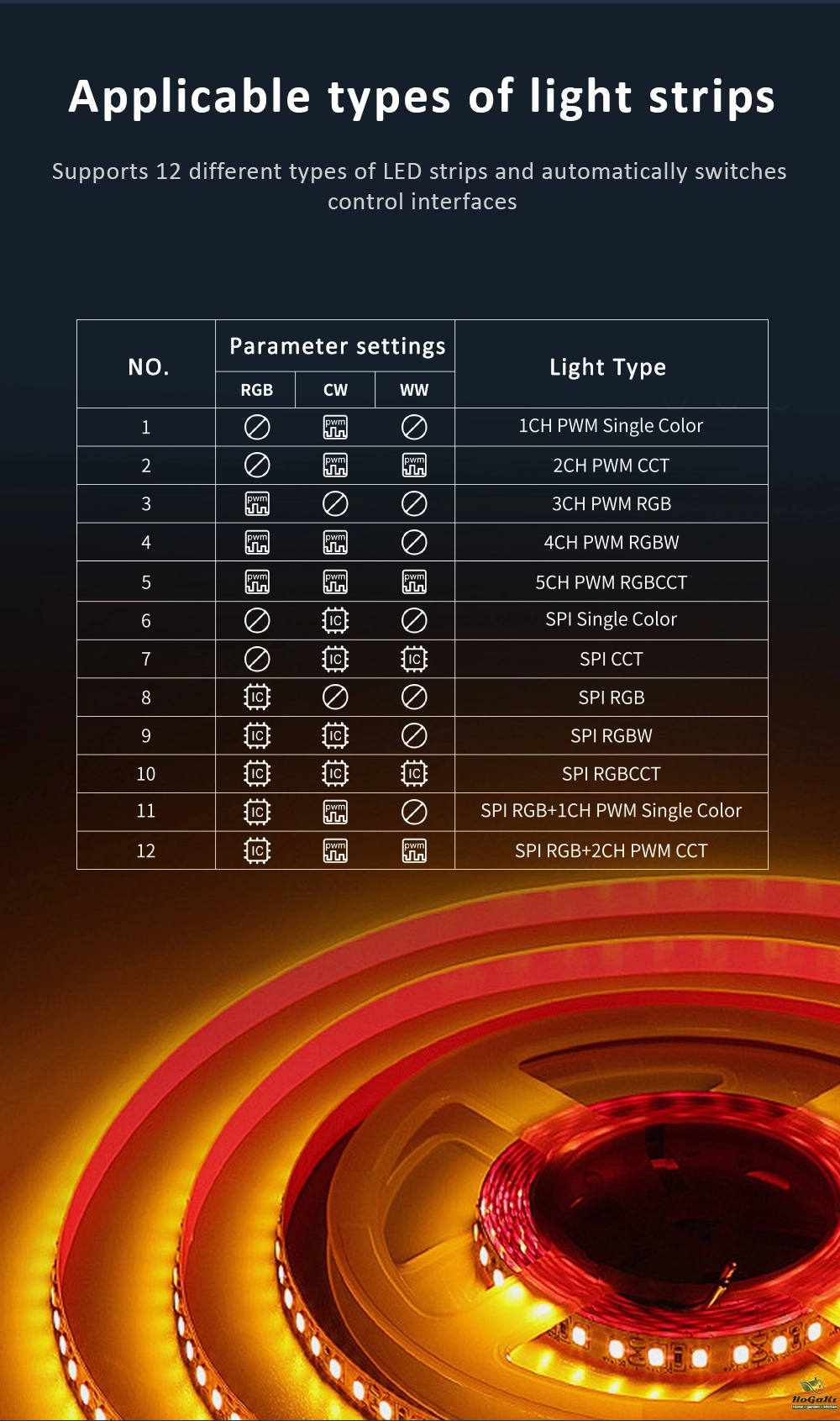

2. Compatible with 12 kinds of type of LEDs.

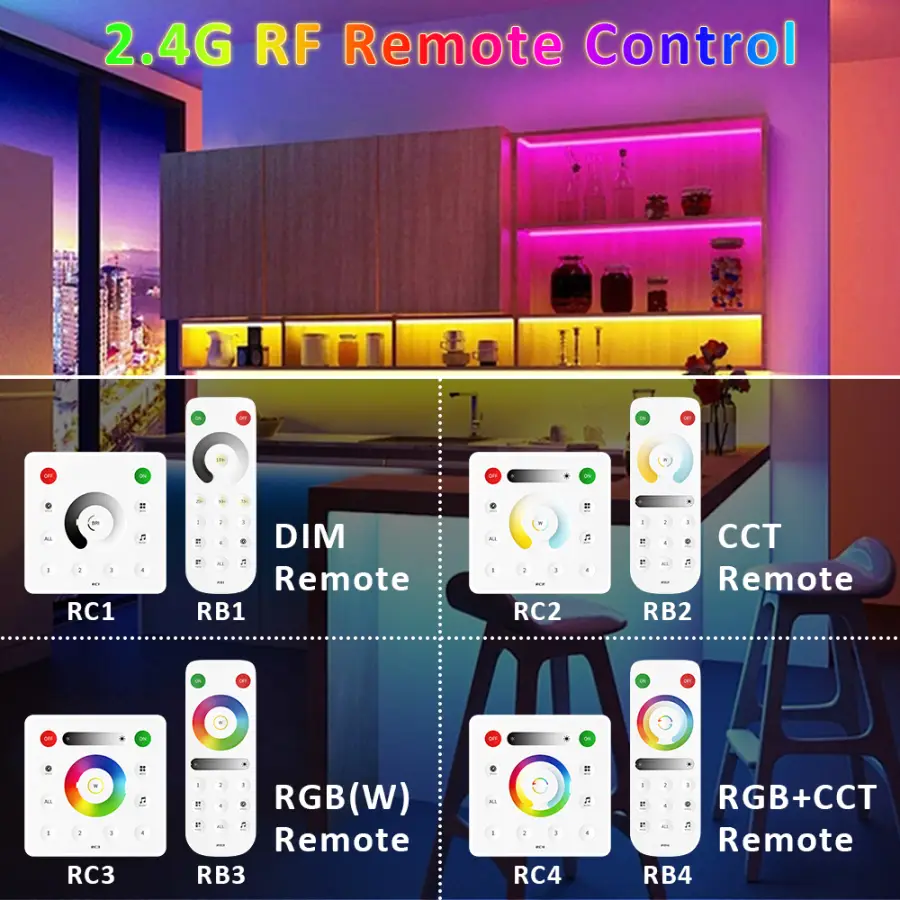

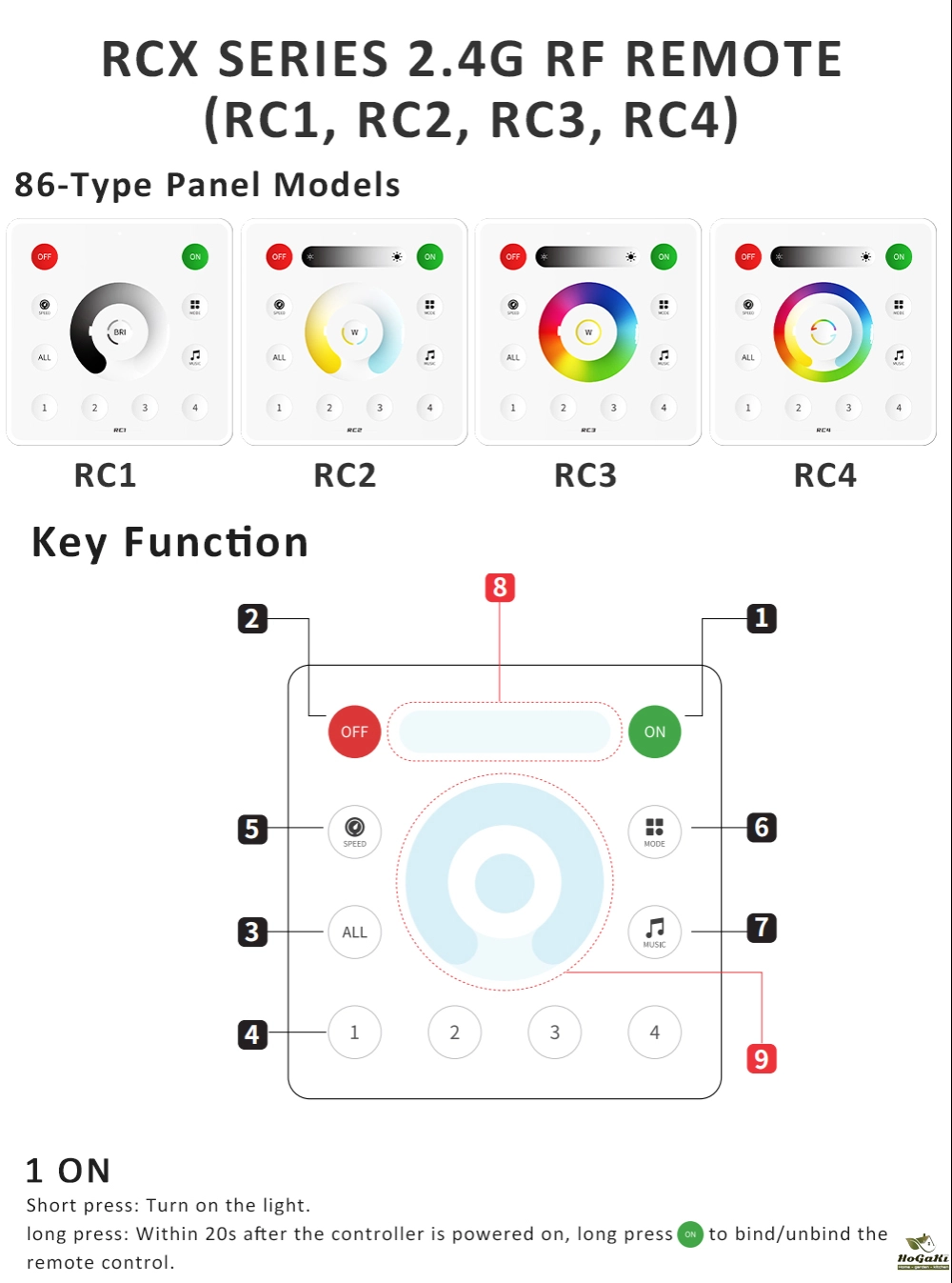

3. Support App control, 2.4G touch remote control and 2.4G touch 86-type control panel.

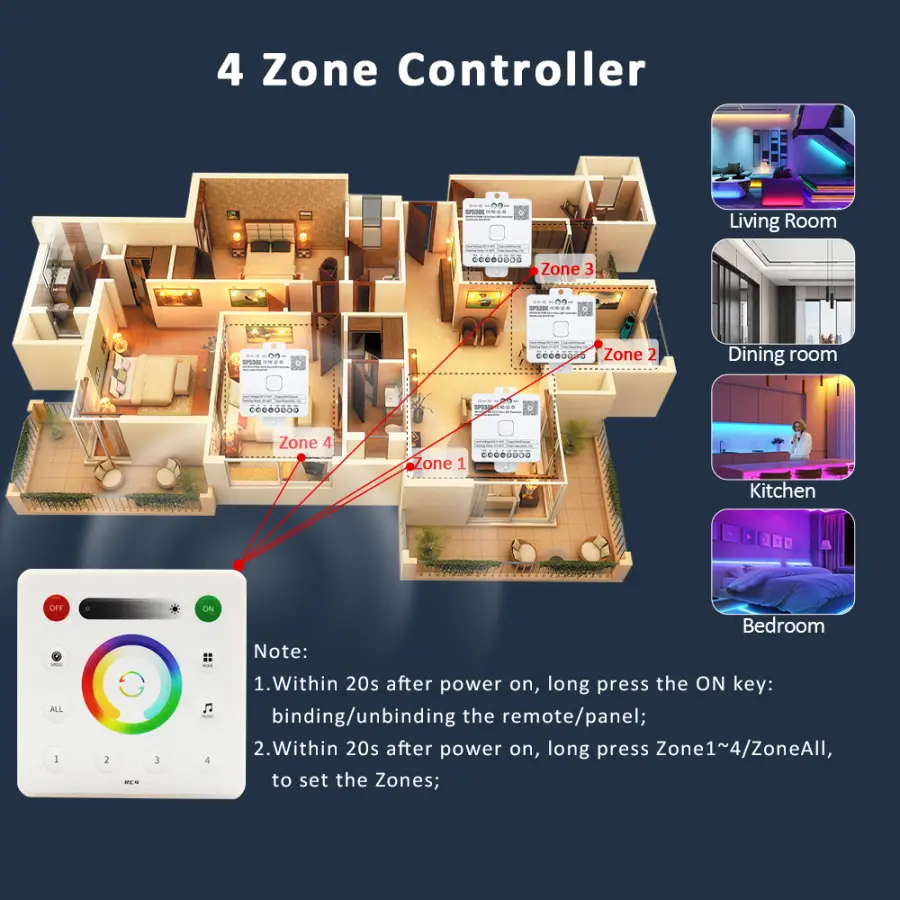

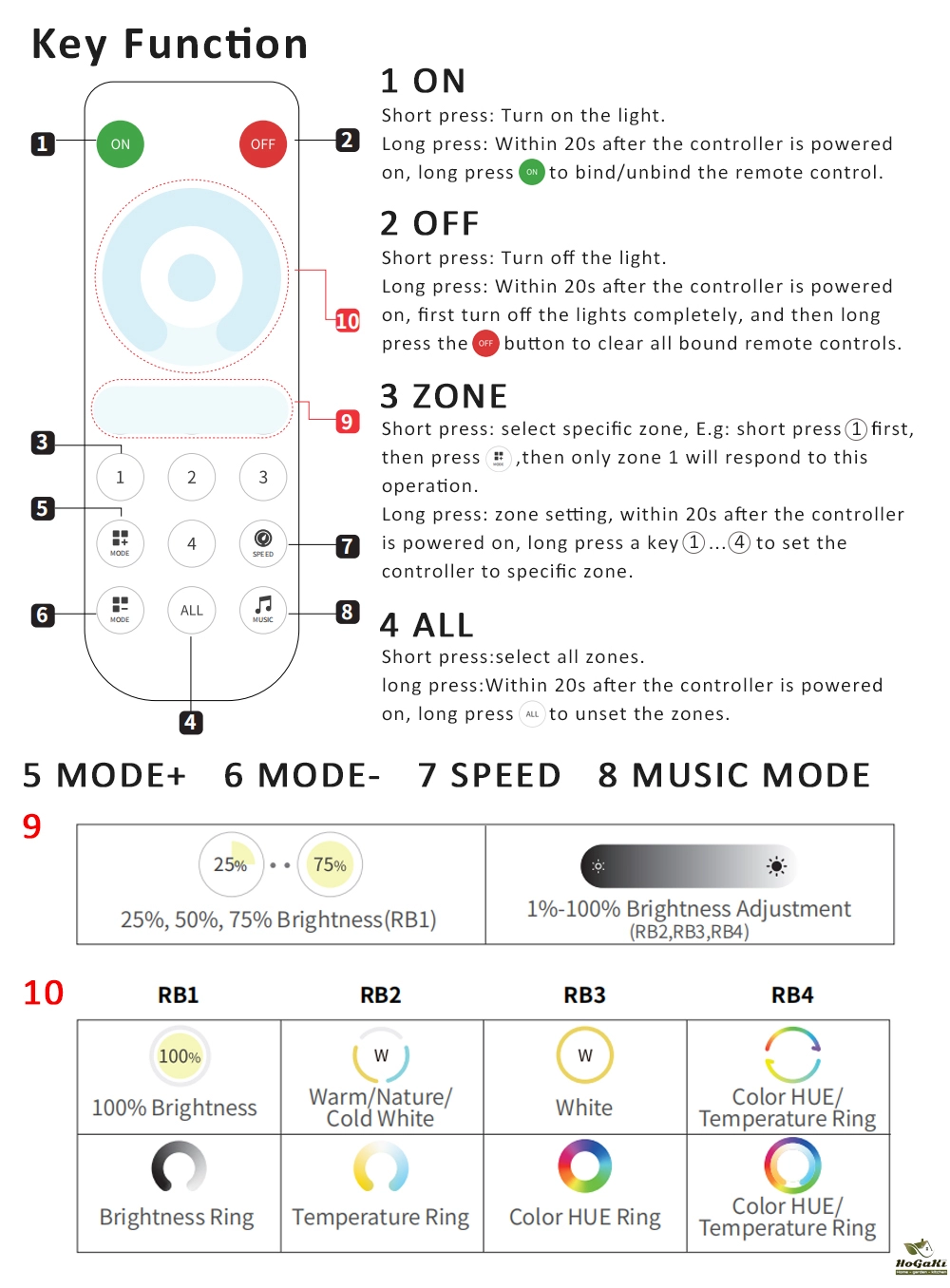

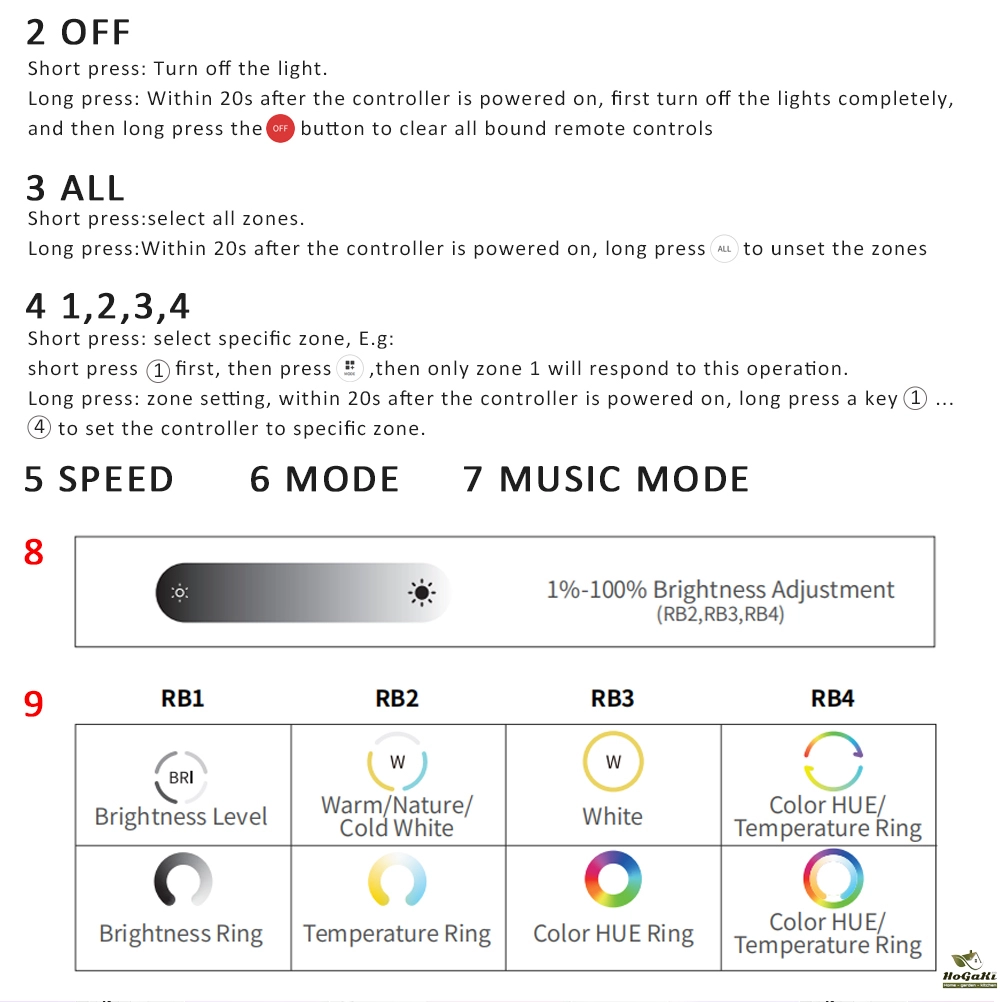

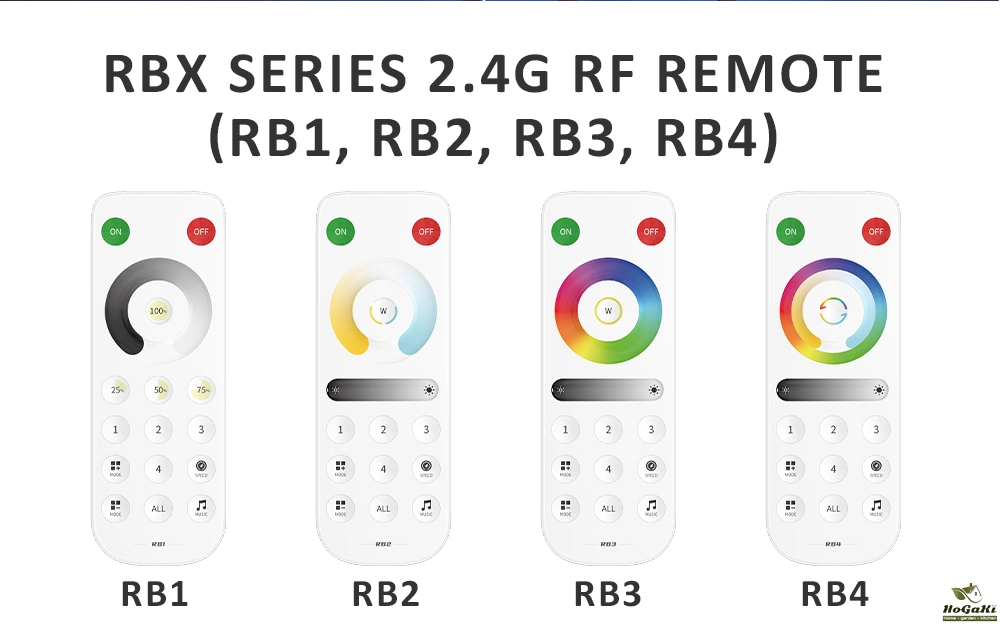

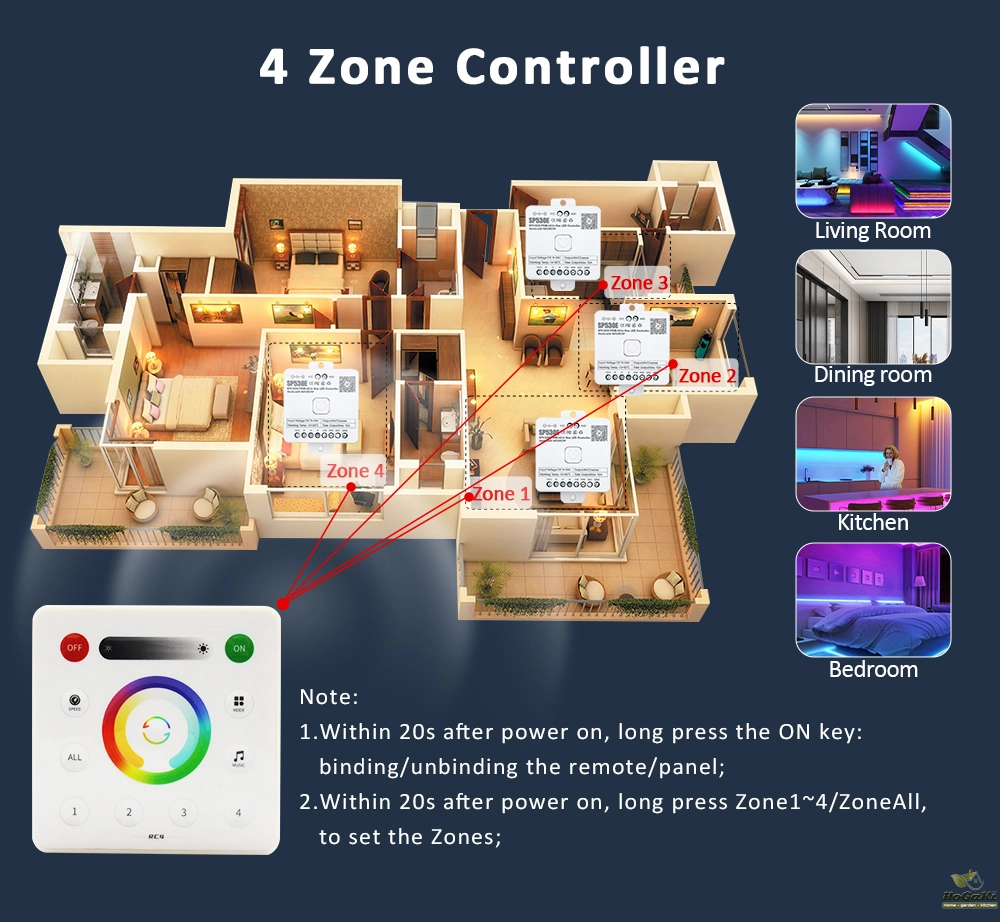

4. The RB and RC remote control panel can be set up for zone-control (can be divided into 4 zones), or unified control (ALL).
5. Support to set kinds of on/off animations and the default power-on state.
6. Support for modifying device name, color order correction and setting timers.

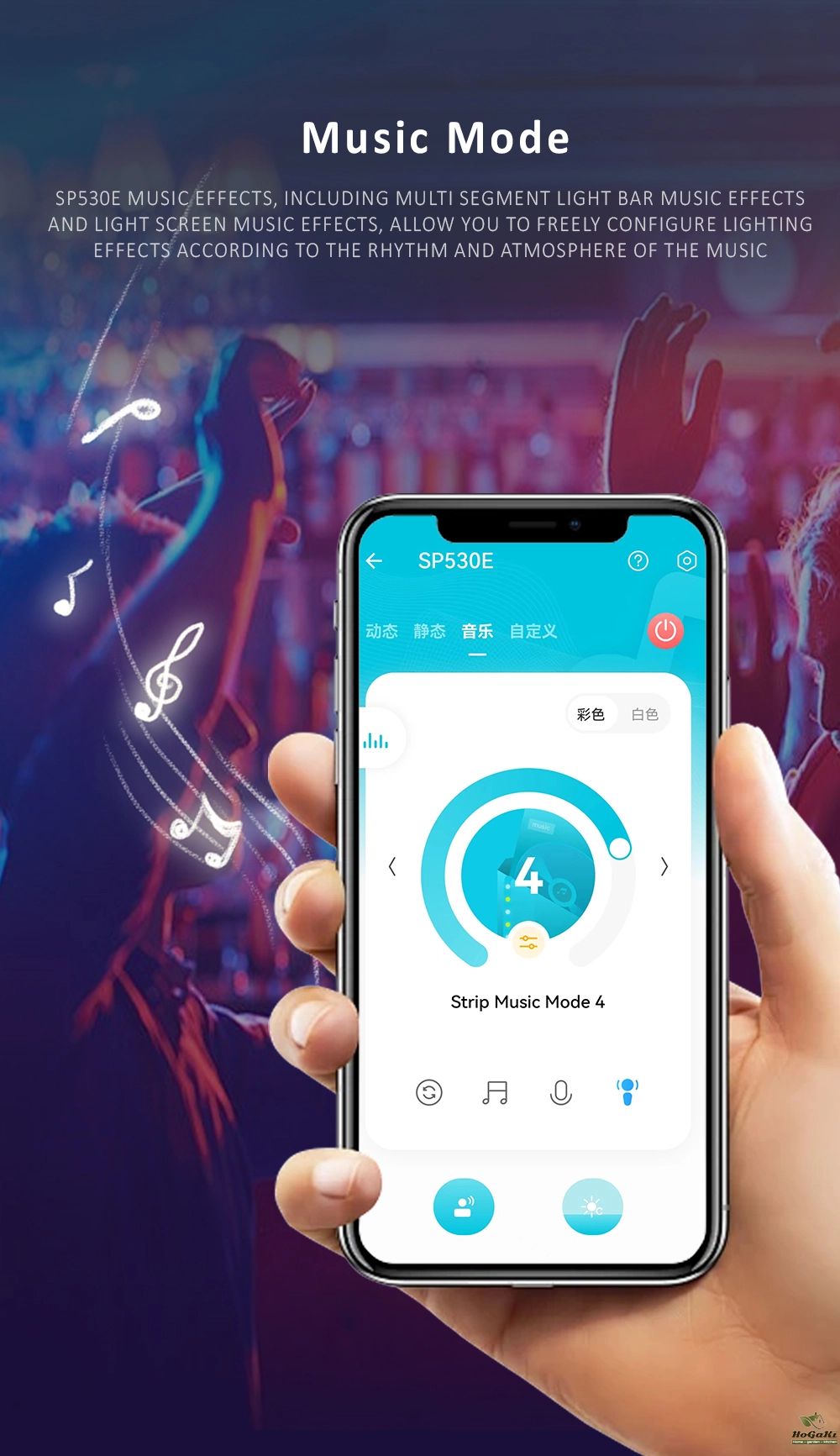

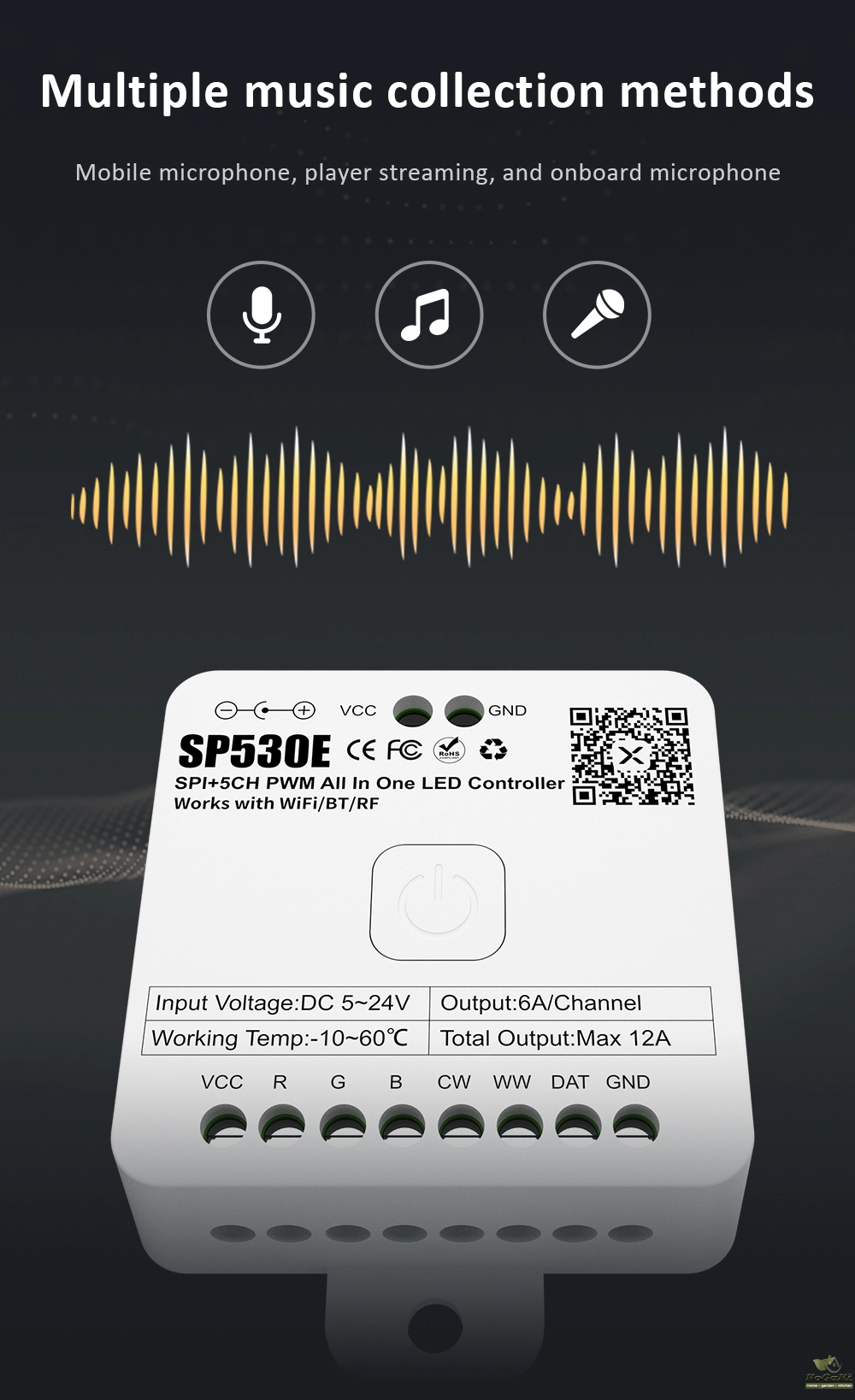

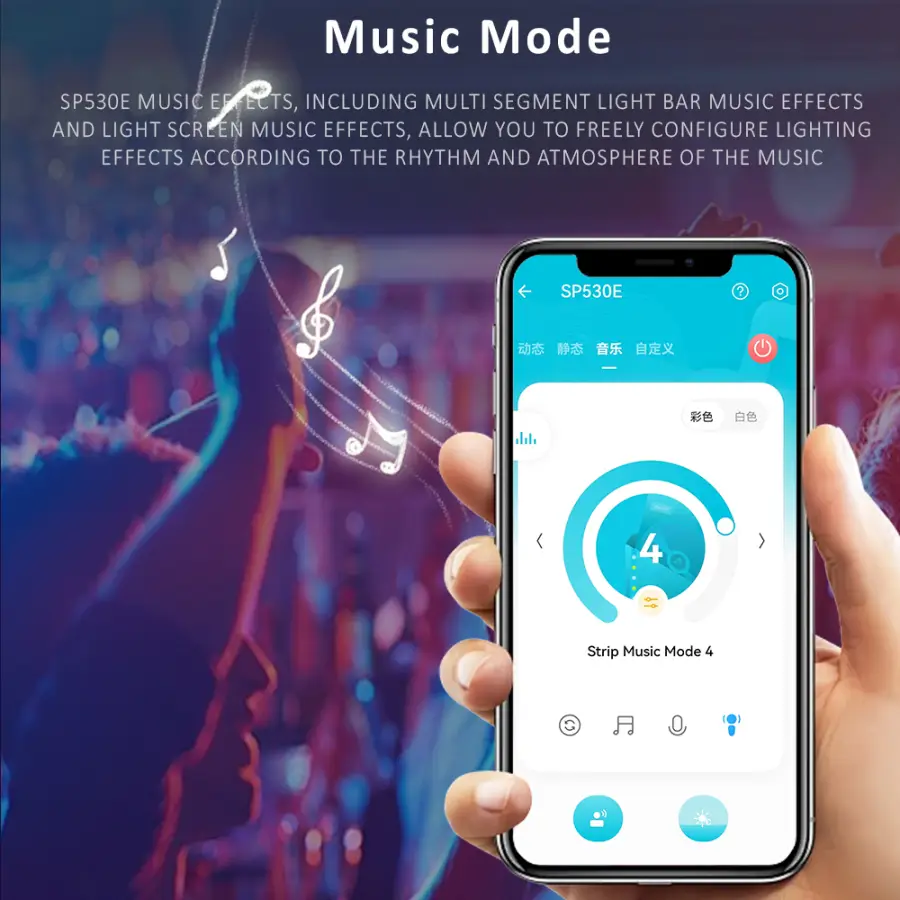

7. Support 3 kinds of music capture modes: cell phone microphone, player streaming, on-board microphone.
8. 5 major control pages in the App: dynamic, static, music, custom and setting. select different types of LED correspond to different App page content.

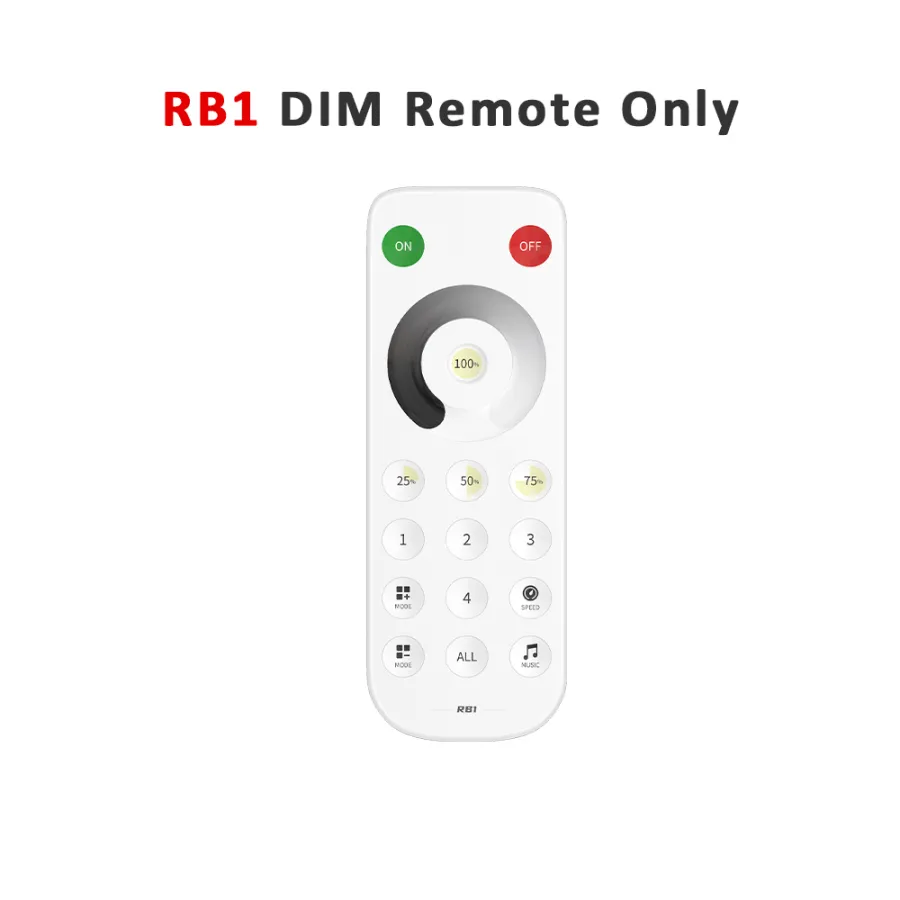

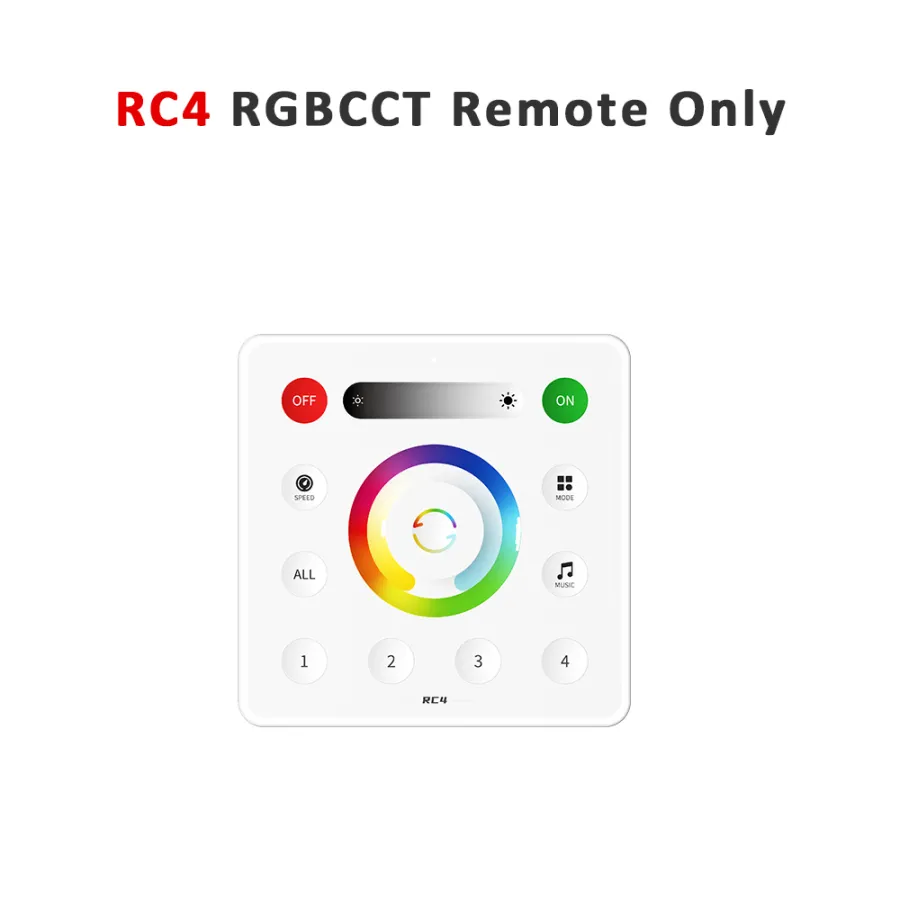

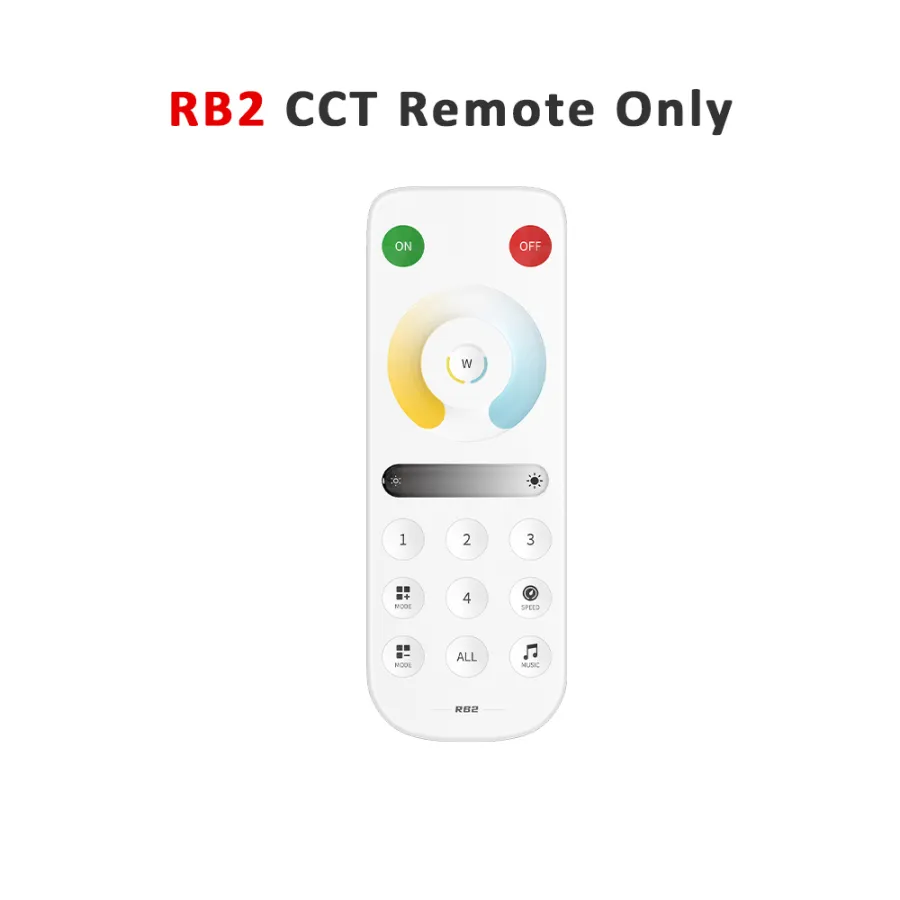

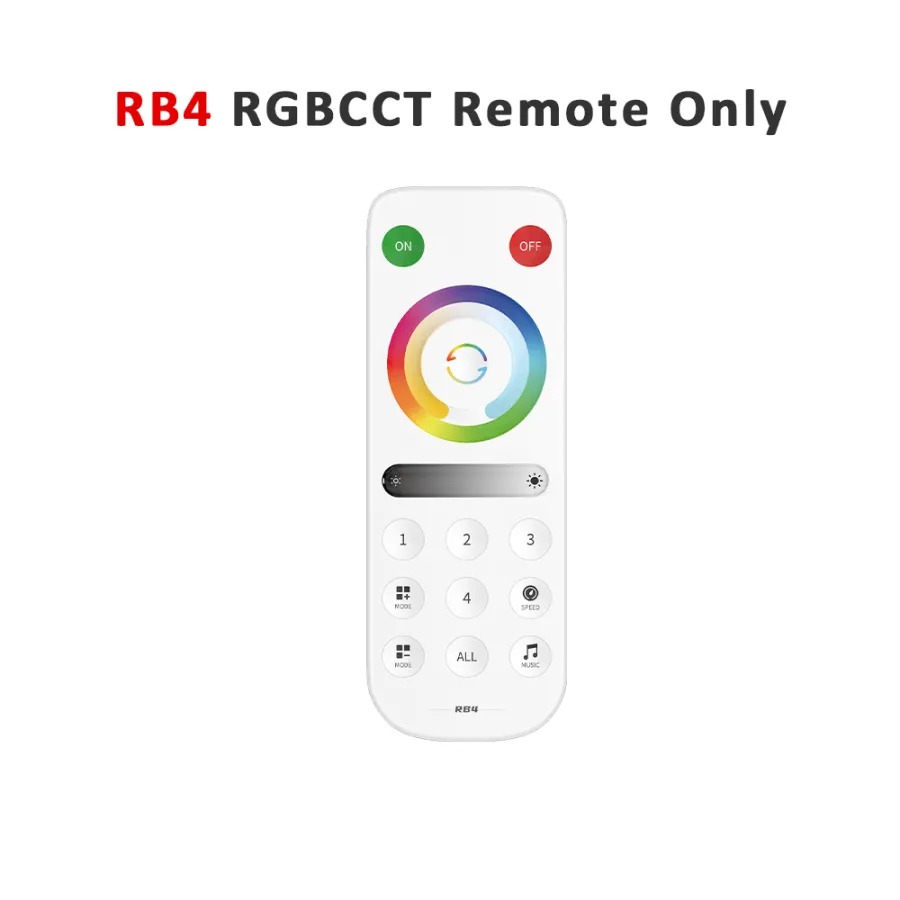

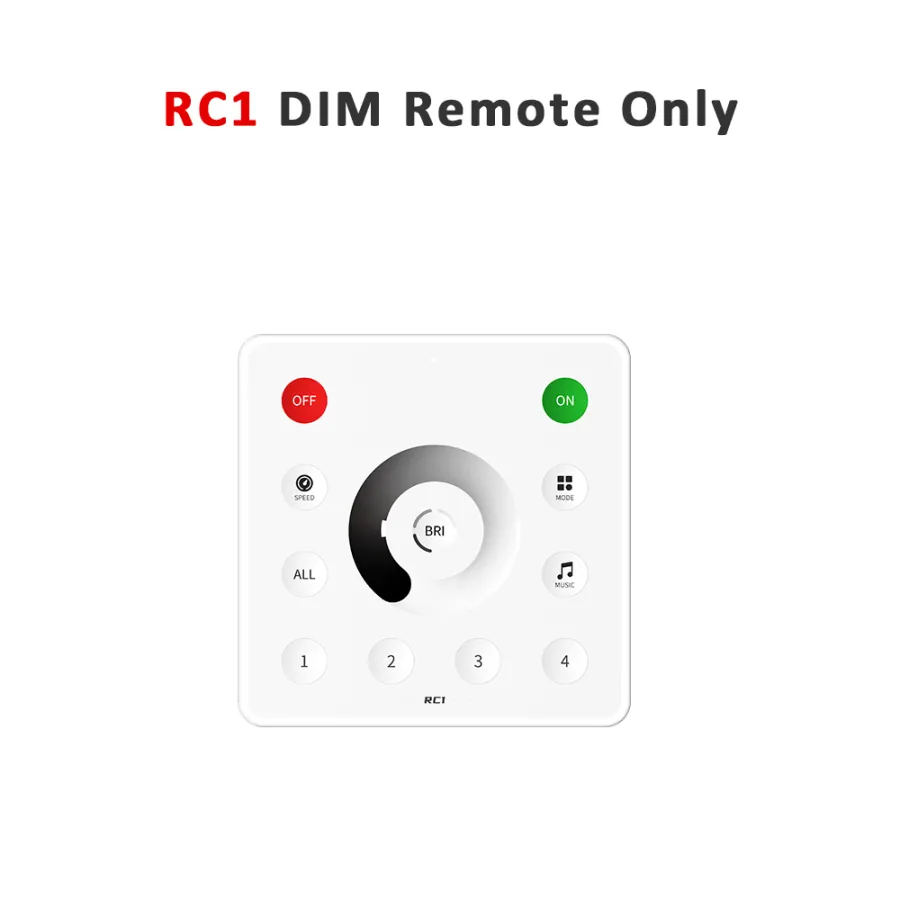

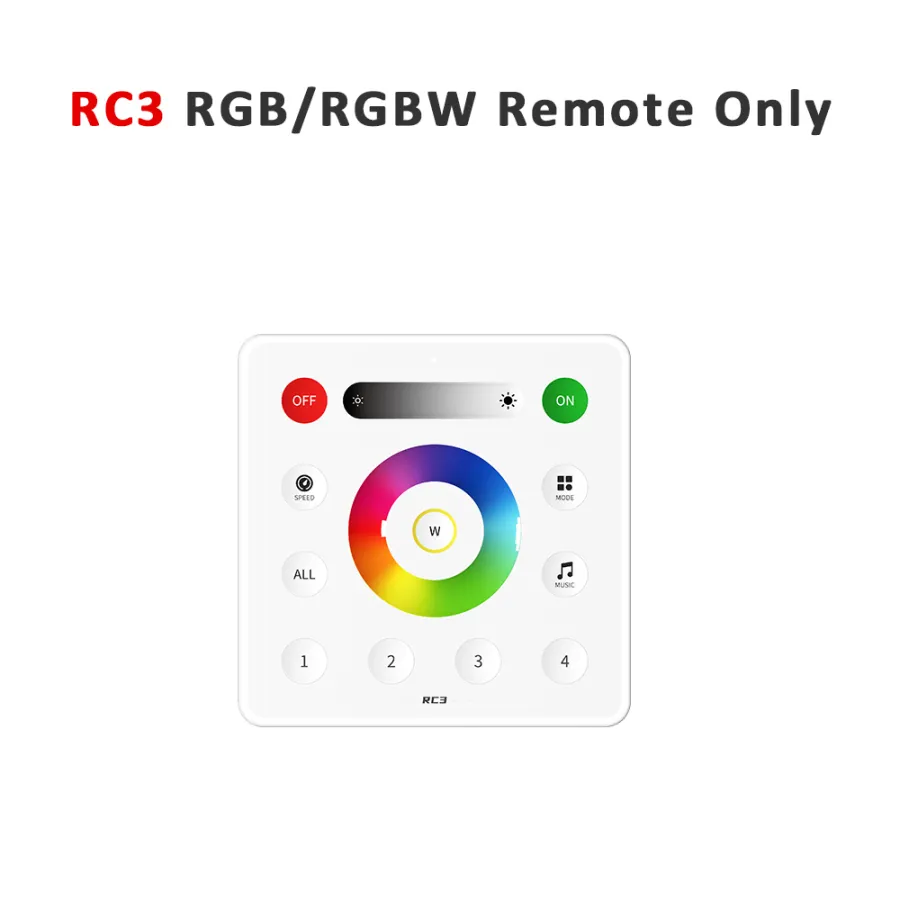

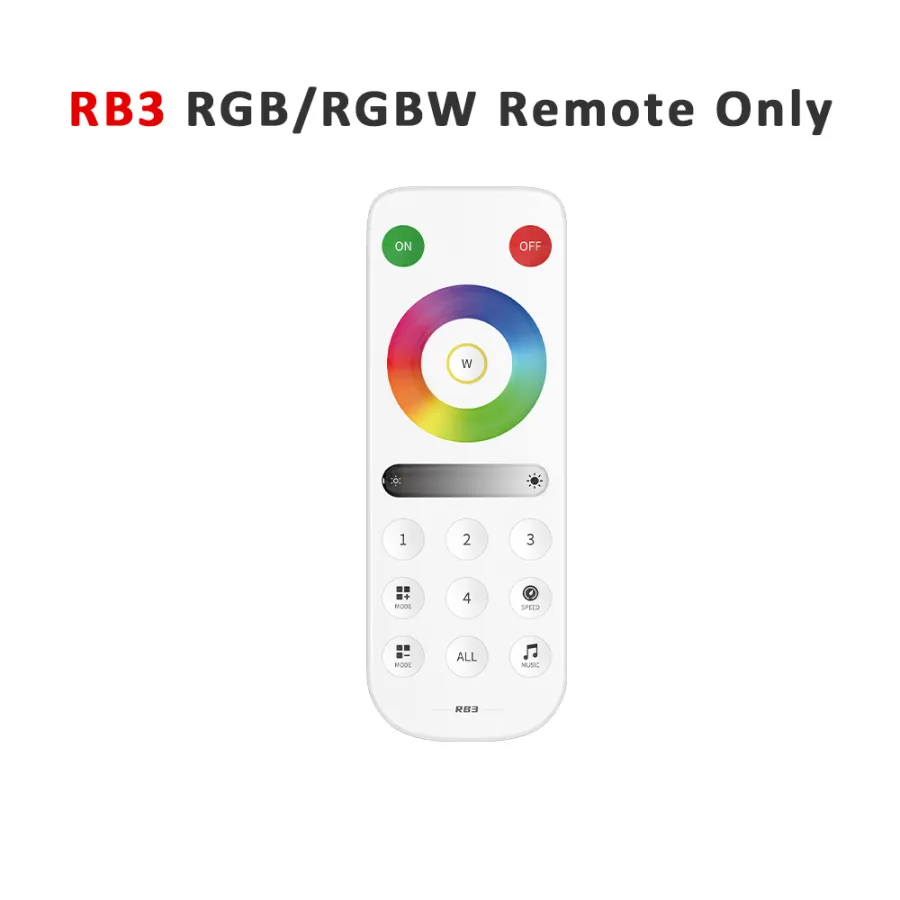

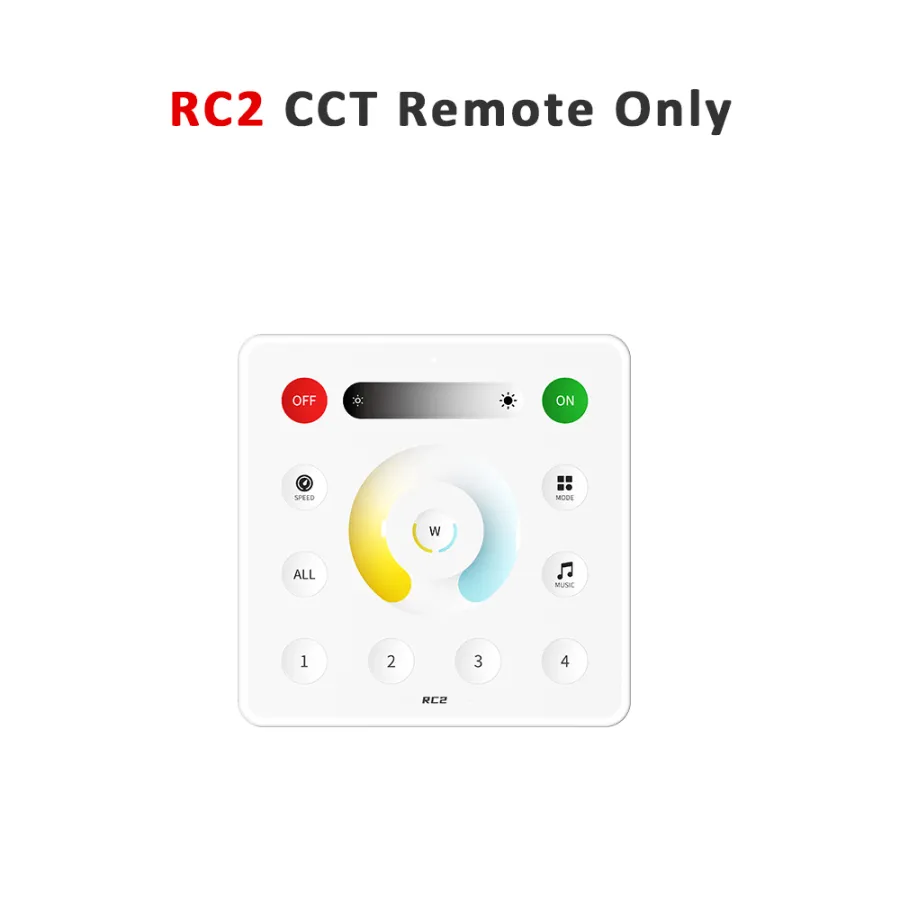

PLS NOTE:YOU CAN BUY SP530E ONLY TO USE,BUT YOU CANNOT BUY REMOTE(RB1/RB2/RB3/RB4/RC1/RC2/RC3/RC4) ONLY TO USE,IF YOU NEED BUY REMOTE ,THEN YOU MUST BUY SP530E TOGETHER.



Packaging Details

  • Unit Type:
  • Package Weight: 0.066
  • Package Size: 9x4x9

  • Brand Name: MJJC
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Item Type: RGB controler
  • Material: Plastic
  • Warranty: 2 Years
  • Certification: CCC
  • Certification: ce
  • Certification: EMC
  • Certification: LVD
  • Certification: ROHS
  • Certification: UL
  • Connection Mode: Wired
  • Power Source: DC
  • Wattage: 60-288W
  • Voltage: 5-24V
  • Model Number: SP530E Bluetooth Controller
  • Remote Distance: Max 20M
  • Controled Method: Wifi Control/Bluetooth APP / 2.4G Remote Control
  • Features: Support Google Home/Alexa
  • Applicable Lights: PWM /SPI Single Color/CCT/RGB/RGBW/RGBCCT LED Strip Lights
  • Max. Load Power: 288W
  • Choice: yes
