M5Stack M5StickC PLUS2 ESP32-PICO Mini IoT Development Kit IR and WiFi 1.14-inch TFTScreen IoT Controller
4.8 (452 votes) | 3000 orders
Price:
US $124.10 - 136.31
Discount Price:
US $
70.36 -
81.00
-43%
- Color
-
-
Original M5StickC PLUS2
Description

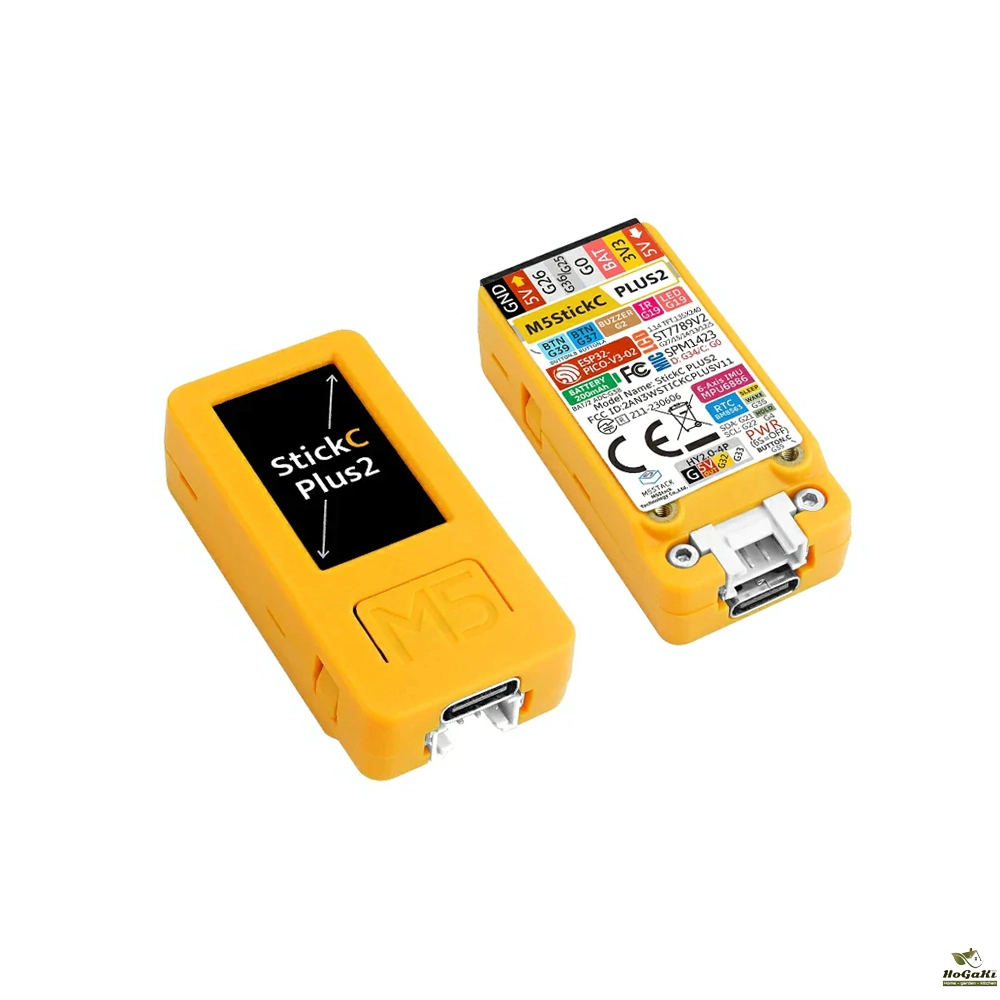

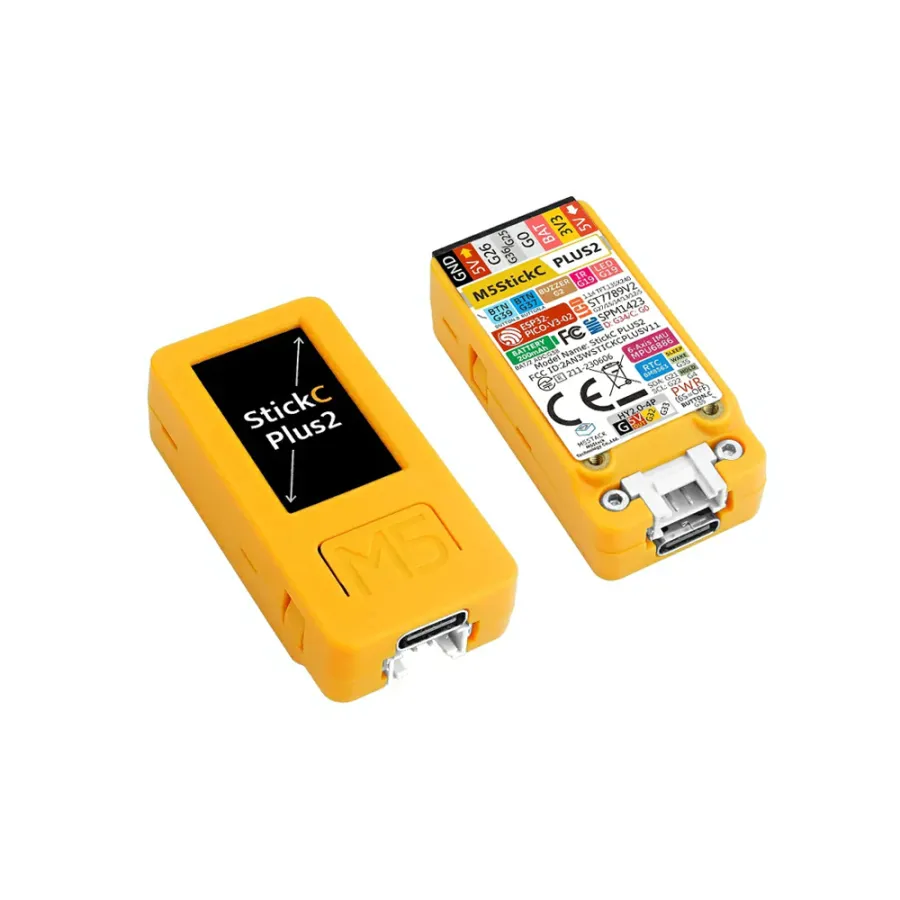

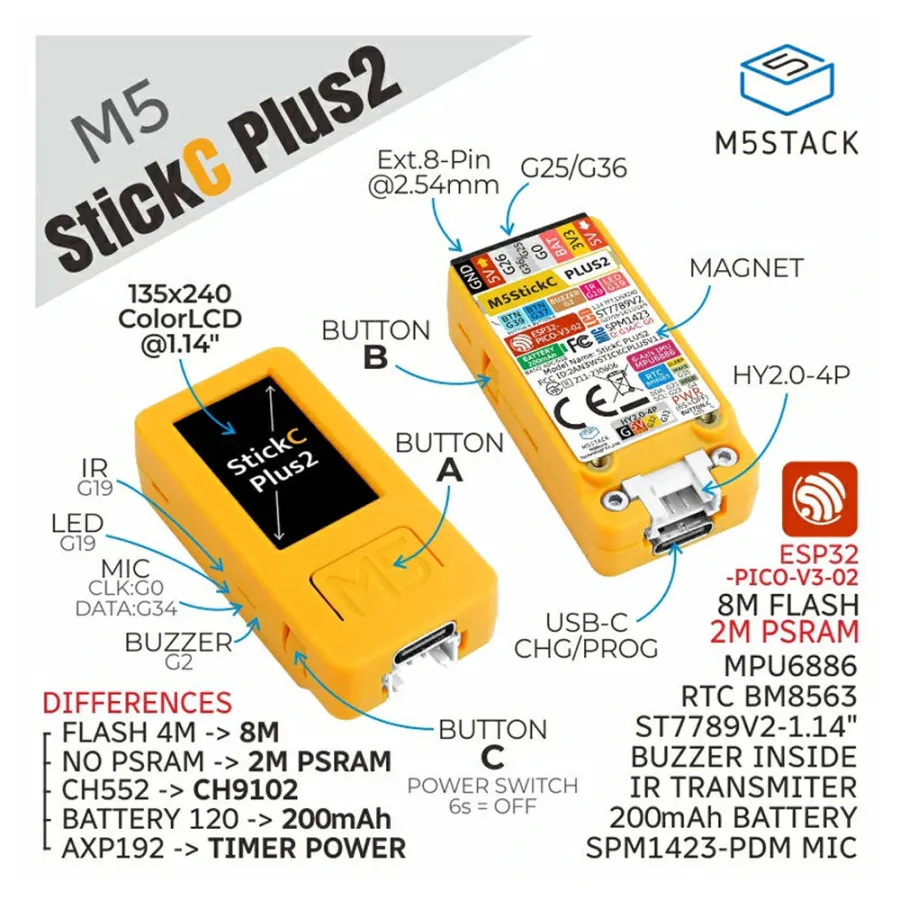

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.
M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.
Features
ESP32-PICO-V3-02-Base, support WiFi
Built-in 6-Axis IMU
IR transmitter
Microphone
RTC
Buttons, LCD(1.14 inch)
Built-in Lithium Polymer Battery@200mAh
Extendable Socket
Built-in Passive Buzzer
Wearable & Wall mounted
Compatible with multi-platform development:
- UIFlow
- MicroPython
- Arduino
- NET nanoFramework
Applications
- Internet of things terminal controller
- Wearable devices
- Stem education product
- DIY creation

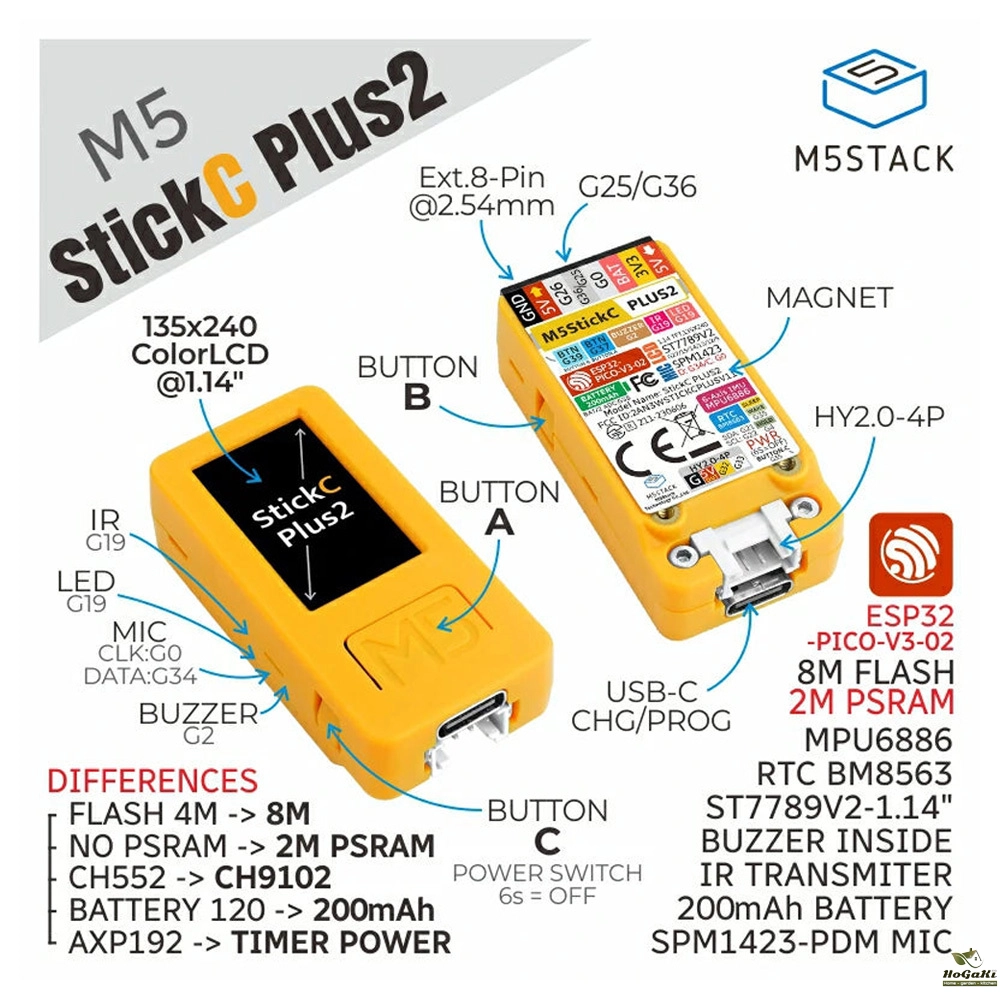

Specification
ESP32: ESP32-PICO-V3-02, 240MHz dual core, support wifi, 2 MB SPI PSRAM, 8 MB SPI flash
PSRAM: 2 MB PSRAM
Flash: 8 MB flash
Power Input: 5V @ 500mA

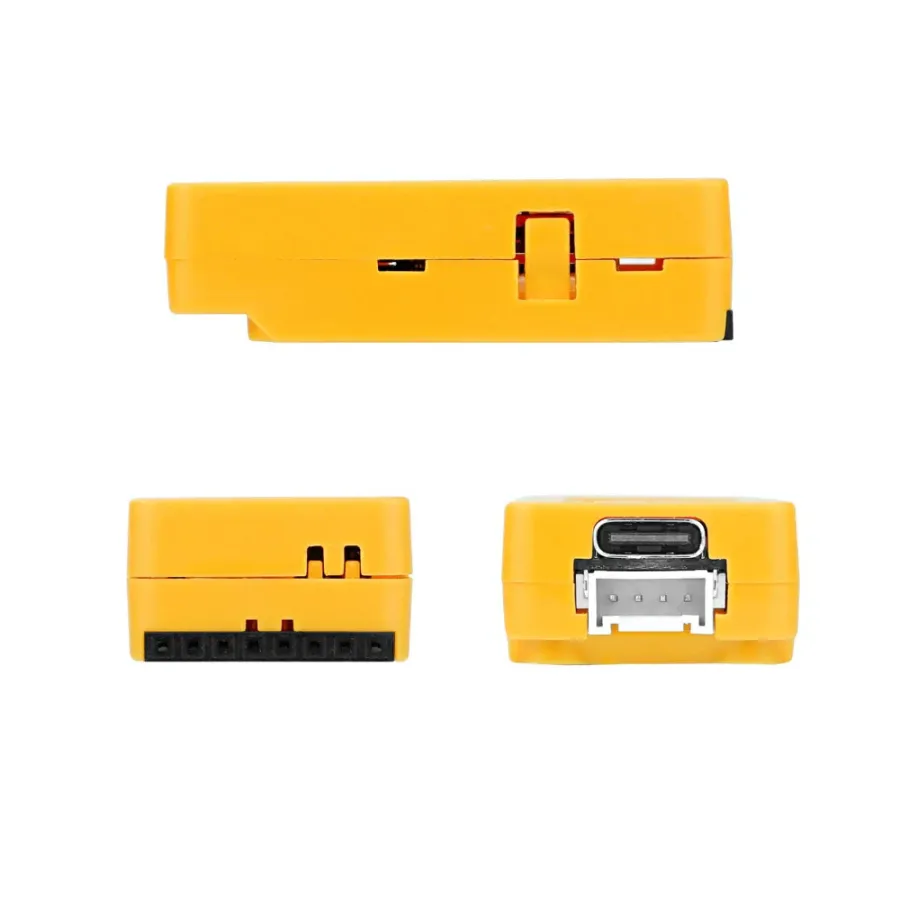

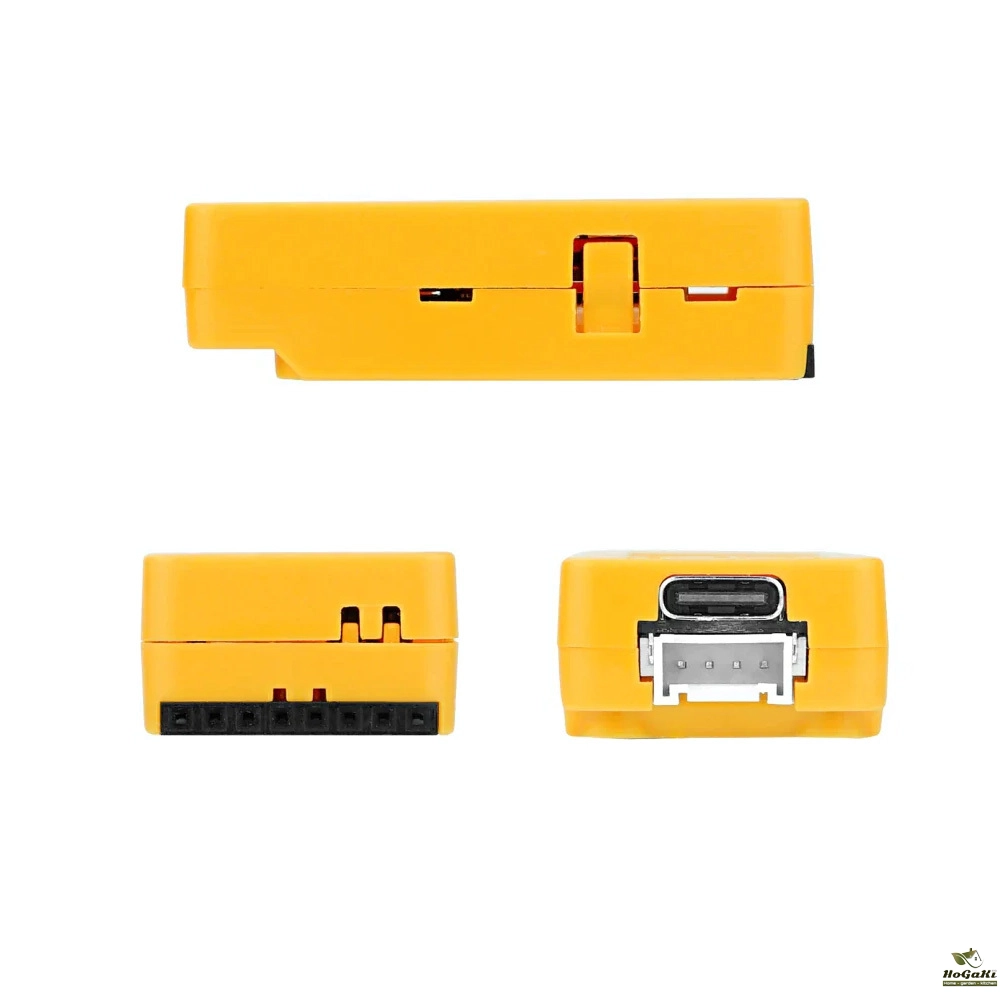

Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen: 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button: Custom button x 3
Power indicator LED: GREEN LED(non-programmable)
MEMS: MPU6886
Buzzer: built-in buzzer
MIC: SPM1423
RTC: BM8563
Battery: 200mAh @ 3.7V
Antenna: 2.4G 3D Antenna

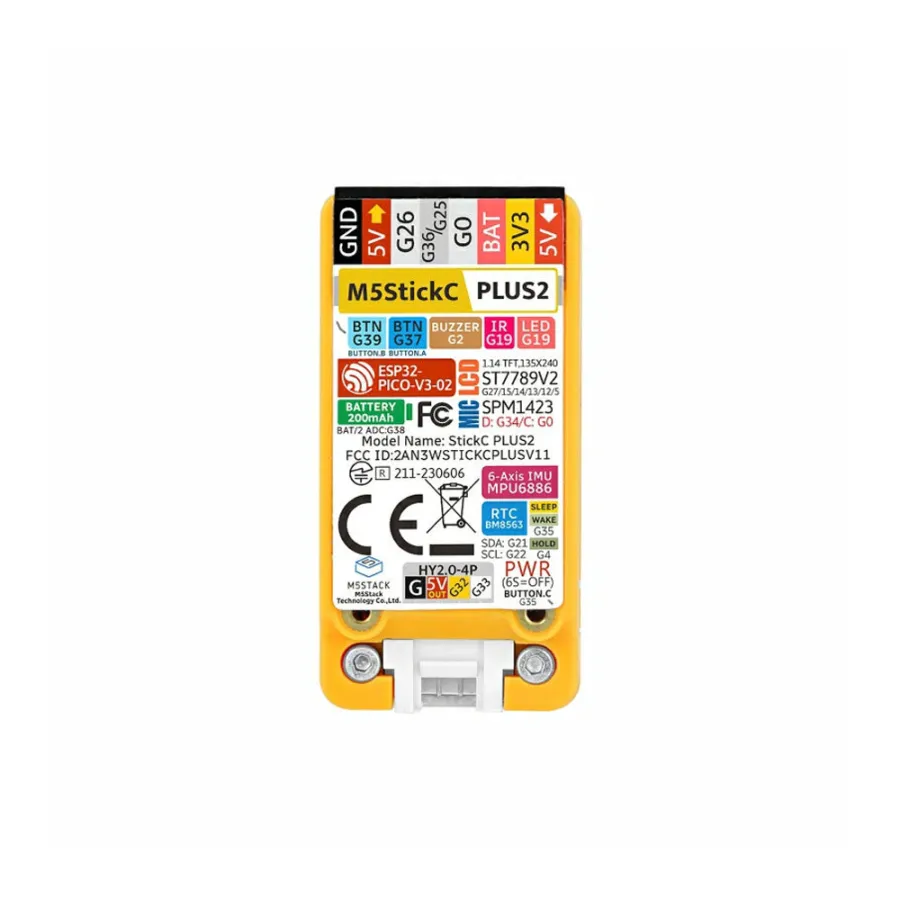

PIN port: G0, G25/G36, G26, G32, G33
Operating Temperature: 0°C to 40°C
Case Material: Plastic ( PC )

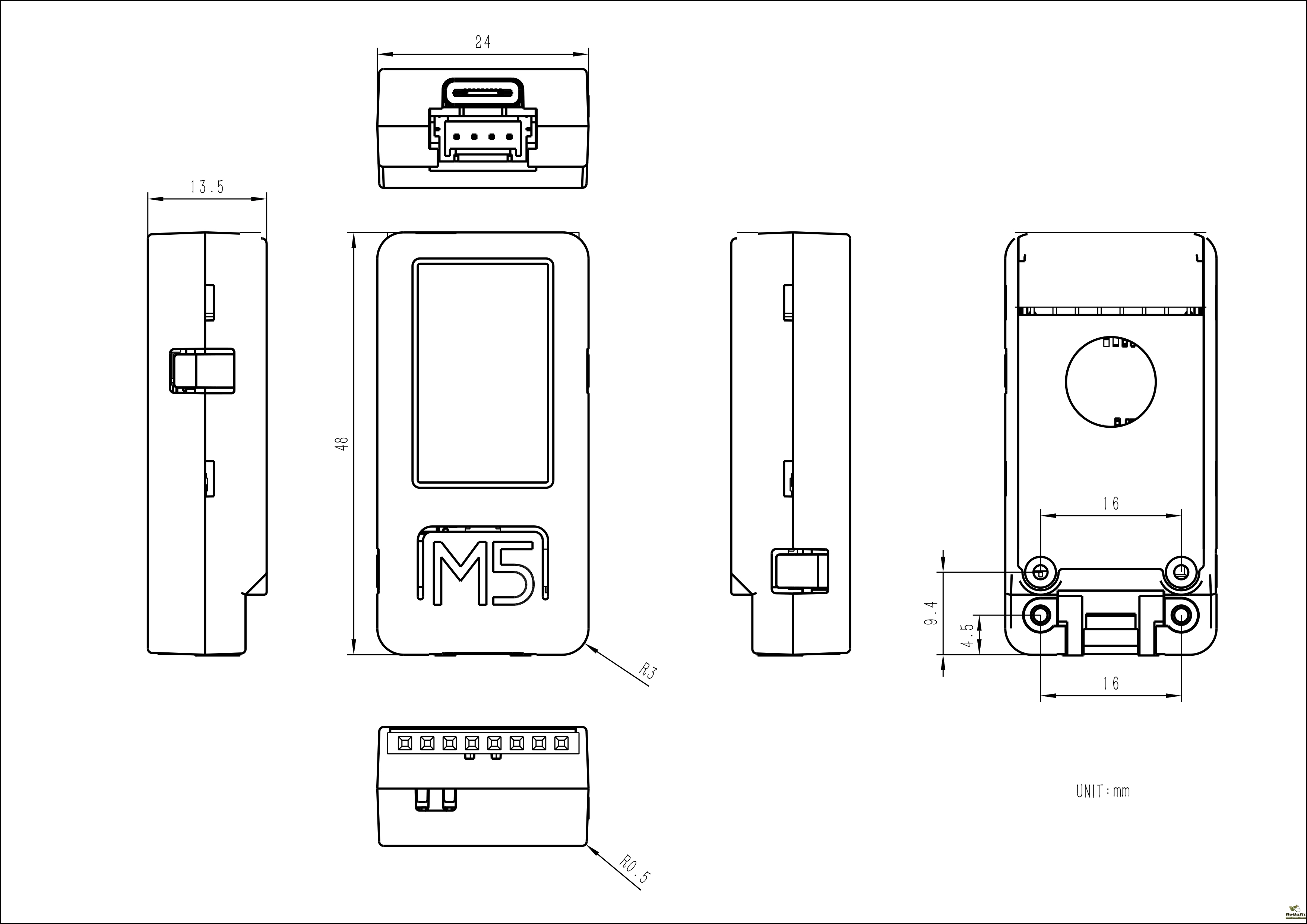

Product Size: 48*25*13mm
Package Size: 114*64*23mm
Product Weight: 17g
Package Weight: 24.8g
Packaging List 1:

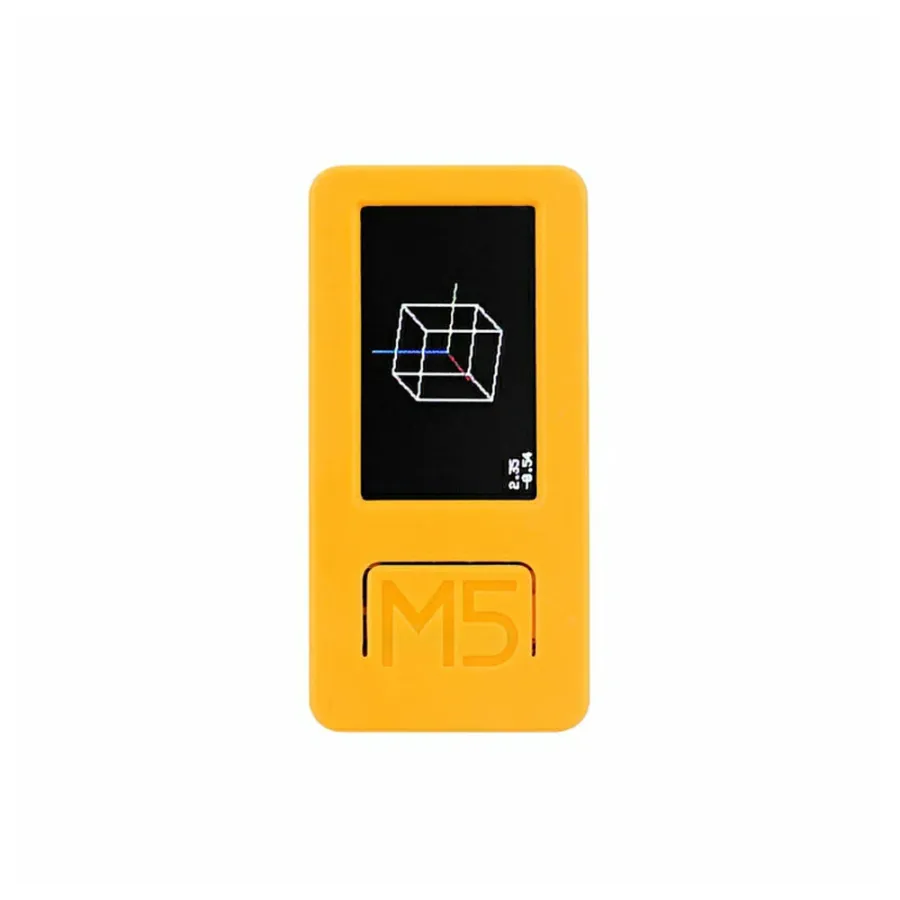

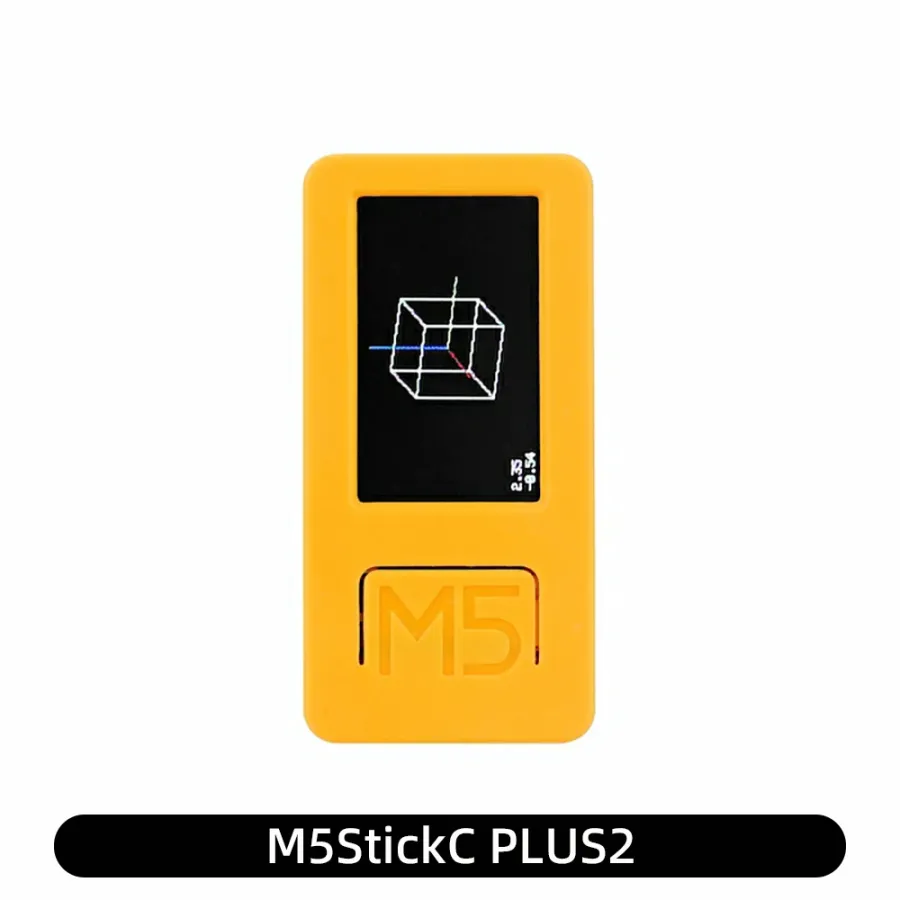

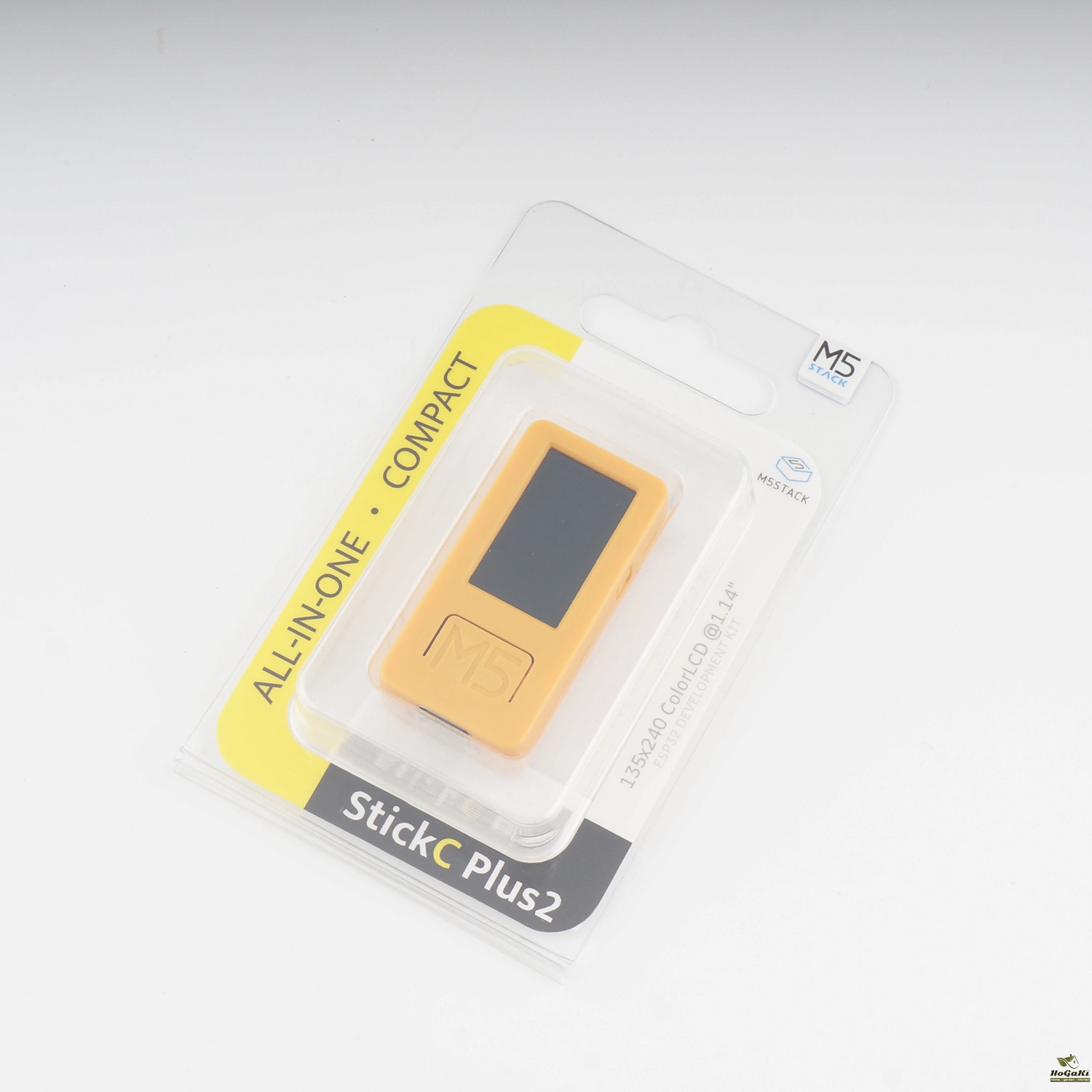

M5StickC PLUS2 Standard package
Packaging List 2:

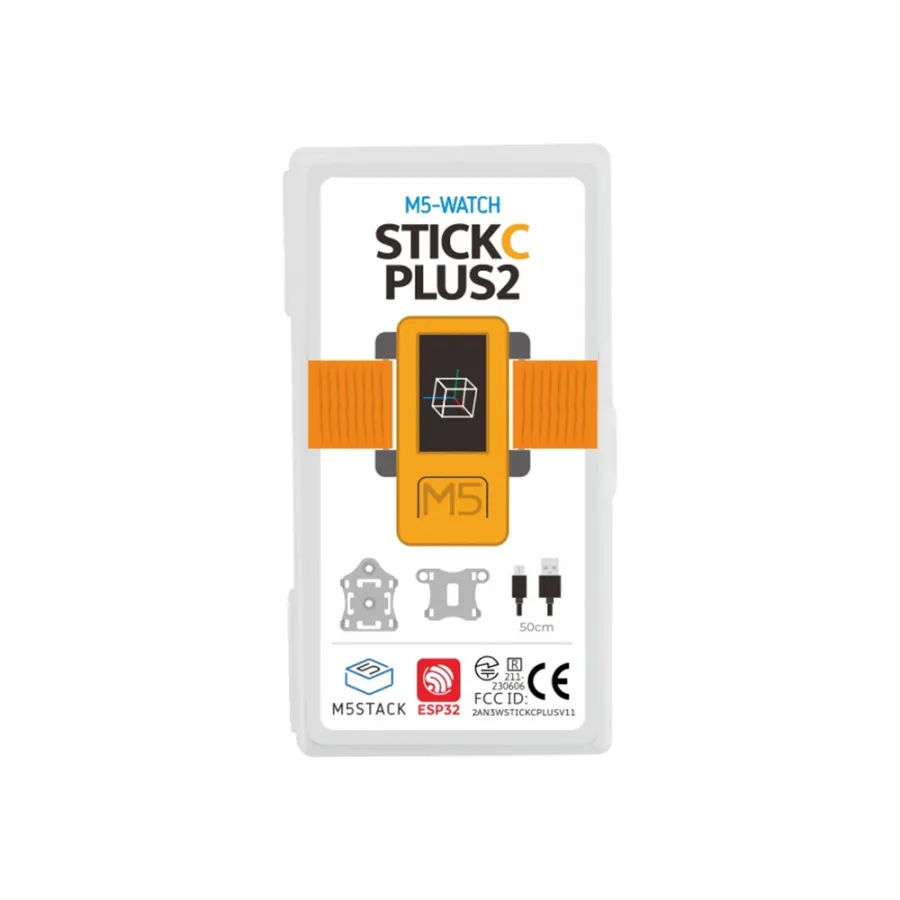

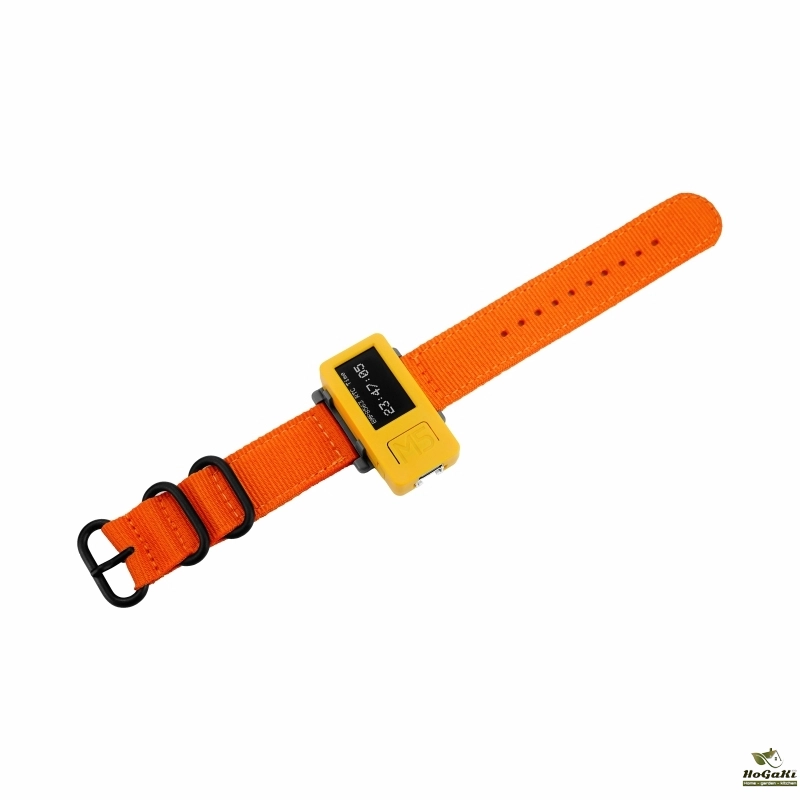

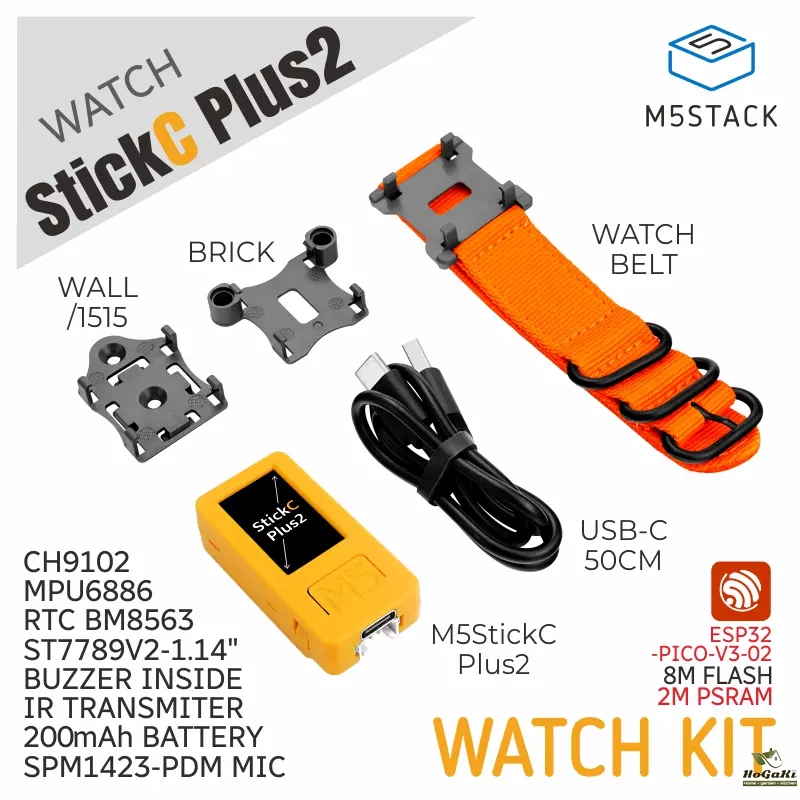

M5StickC PLUS2 with Watch Accessories
Kindly Remind
Wakep signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.
Power on:
Power-on: Press the "BUTTON C" for more than 2 seconds, or wake up via the RTC IRQ signal. After the wake-up signal is triggered, the program must set the HOLD pin (G4) to high (1) to keep the power on, otherwise the device will shut down again.
Power off:
Power-off: Without external USB power, press "BUTTON C" for more than 6 seconds, or set HOLD (GPIO4)=0 in the program to power off. While USB is connected, pressing "BUTTON C" for more than 6 seconds will turn off the screen and enter sleep mode (not a full power-off).
FAQ
Q1: Why is my M5StickC Plus2 black screen/won't boot?

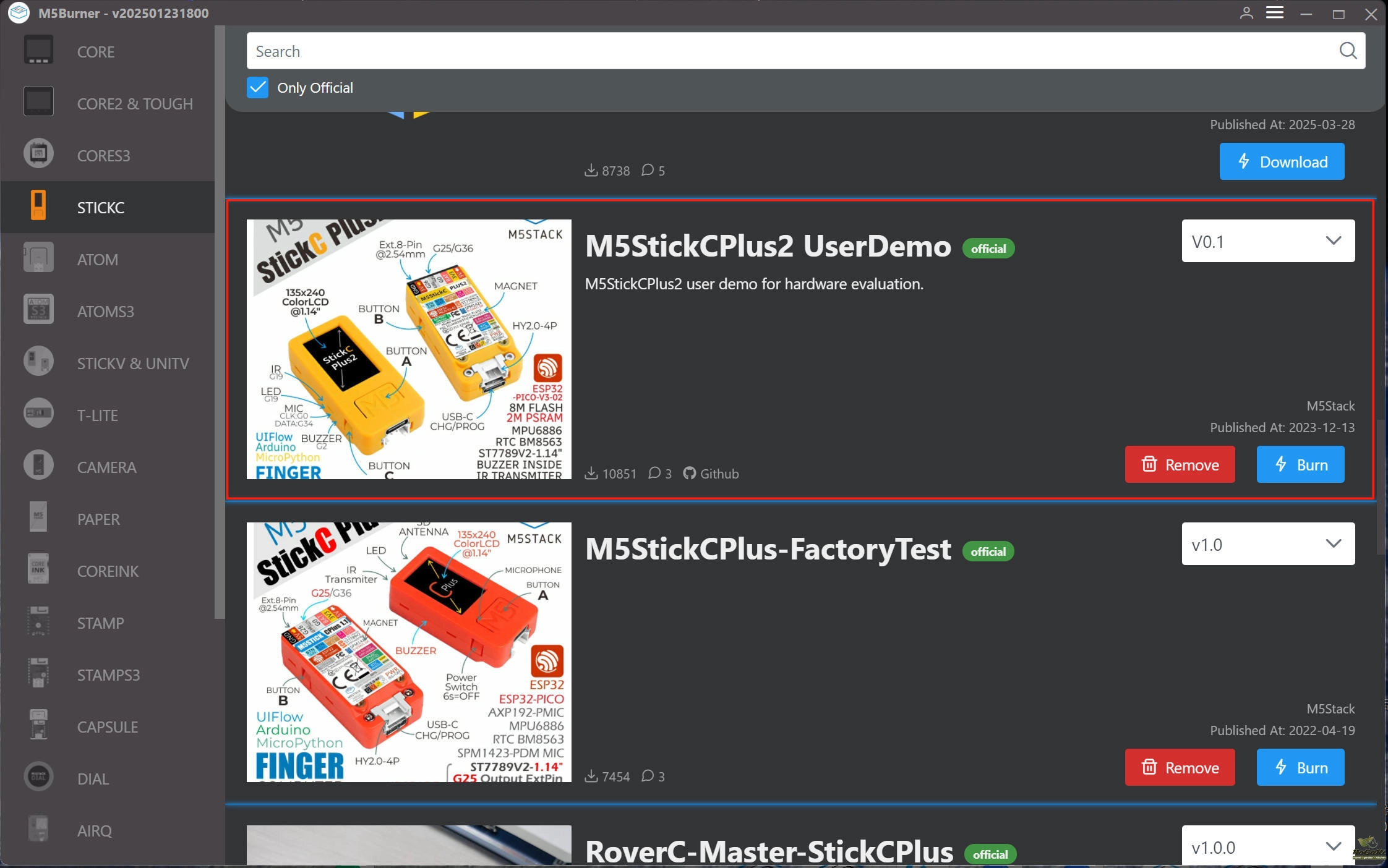

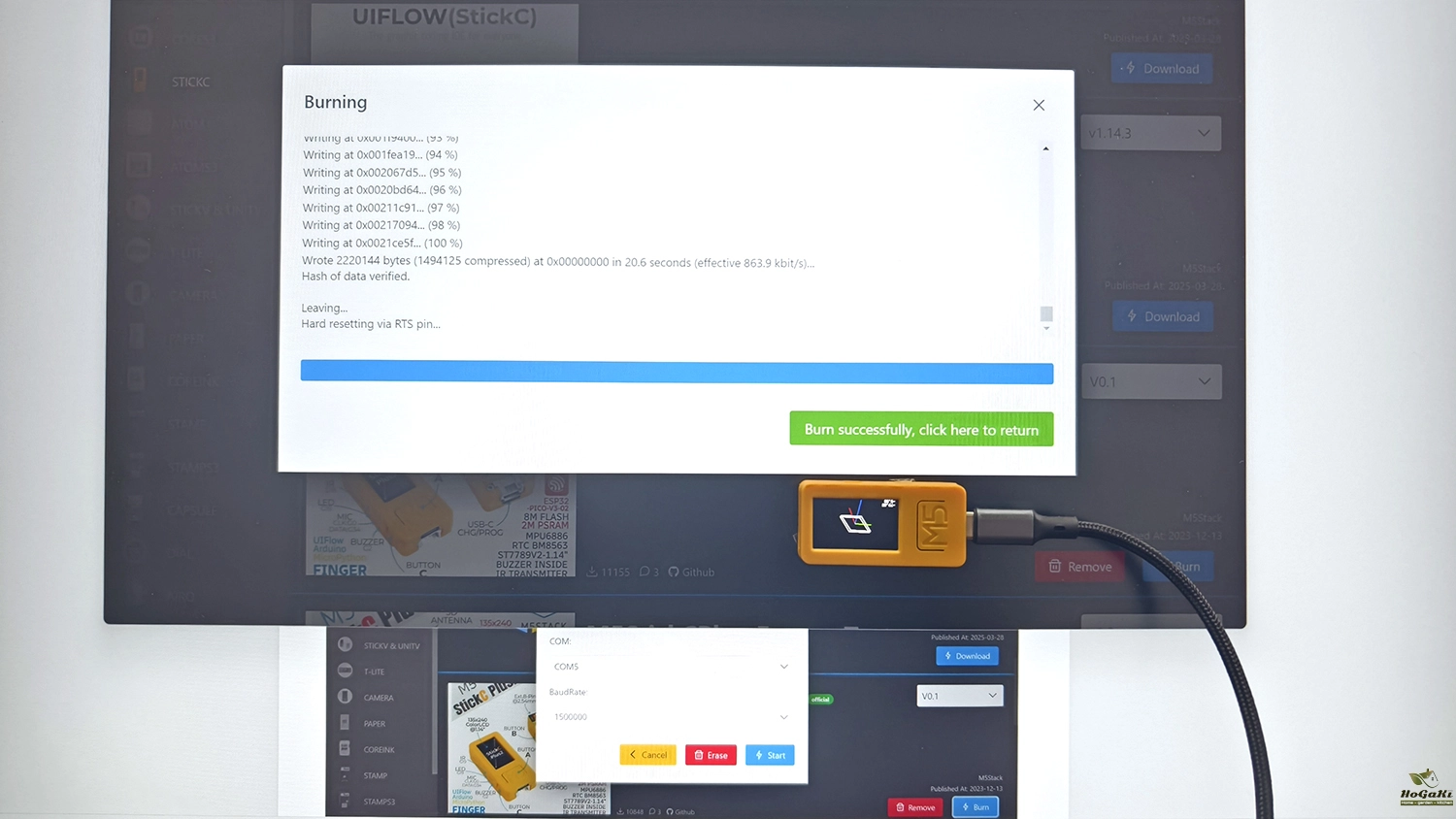

Solutions: M5Burner Burn official Factory Firmware "M5StickCPlus2 UserDemo"

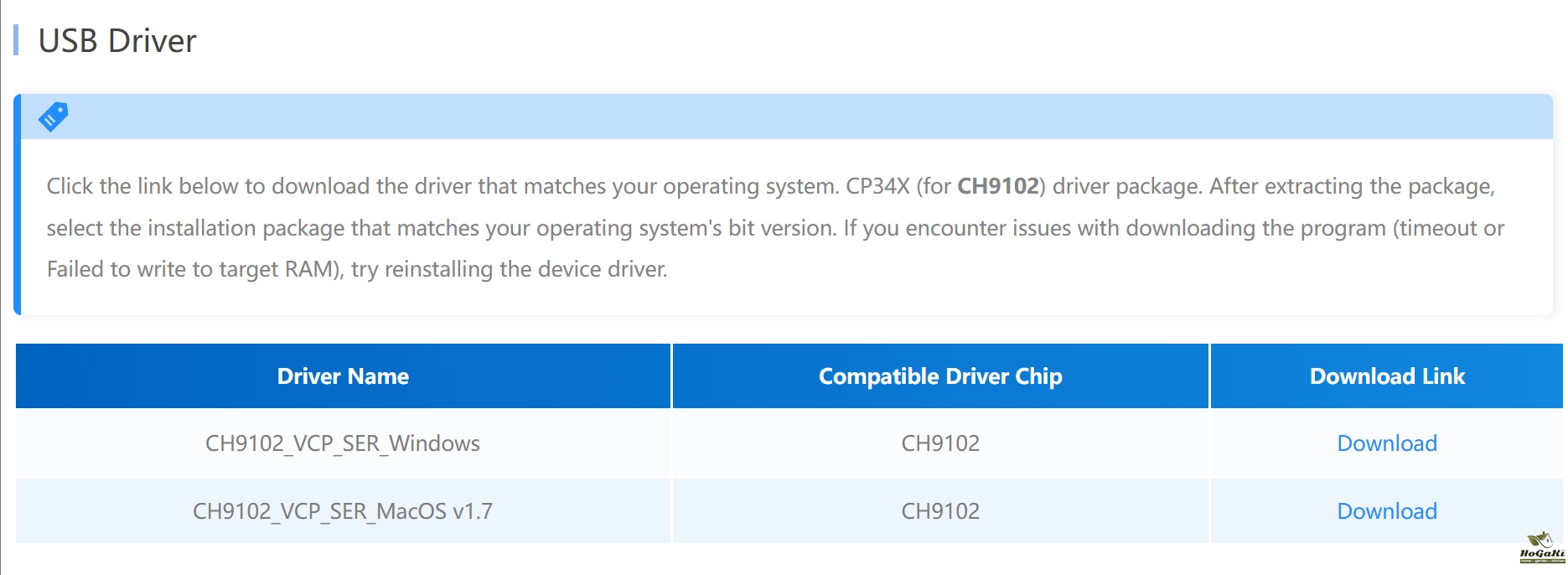

1, Download the driver first, CH9102_VCP_SER_Windows or CH9102_VCP_SER_MacOS v1.7
link: https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/drivers/CH9102_VCP_SER_Windows.exe
2, Download M5Burner

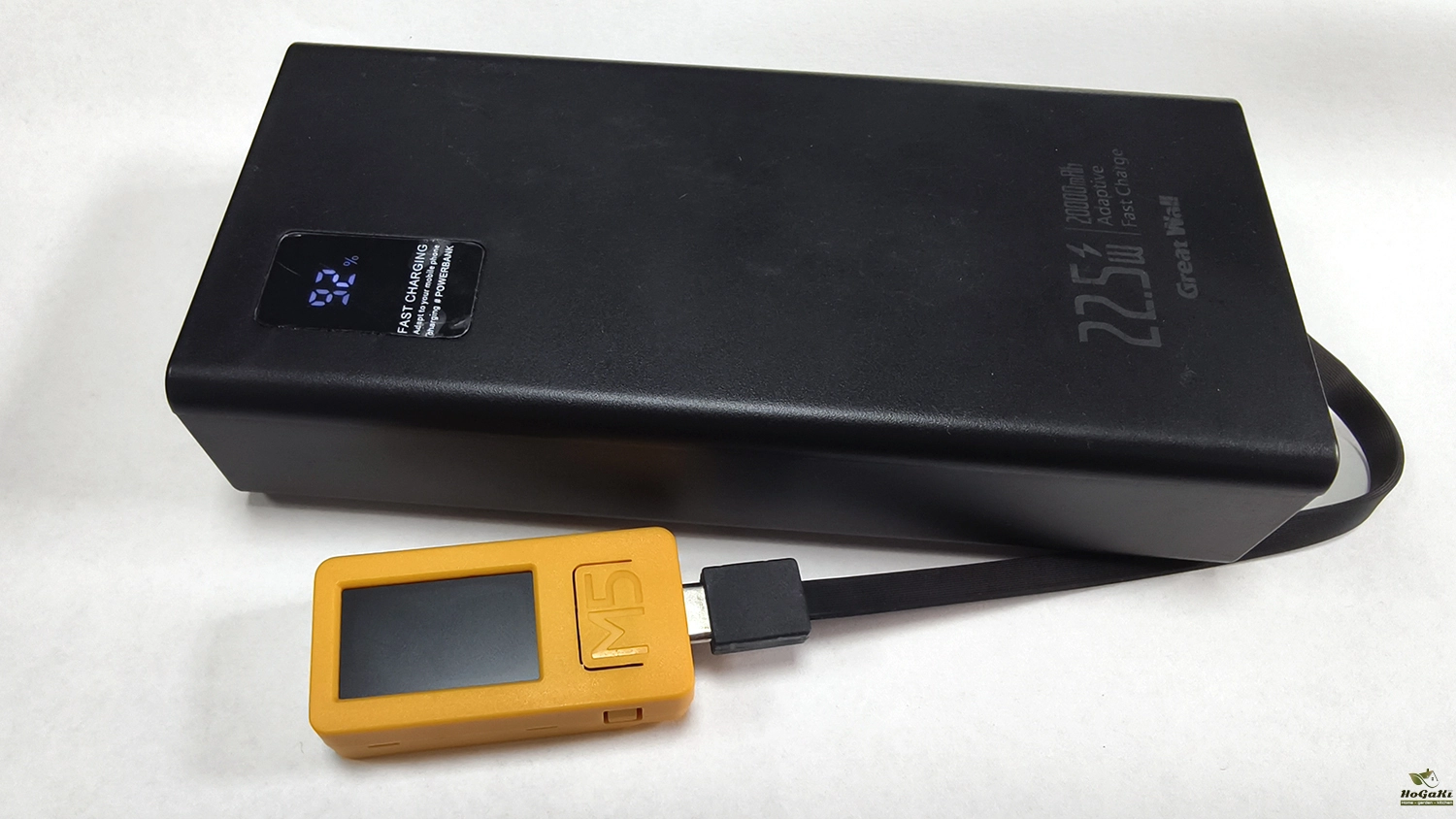

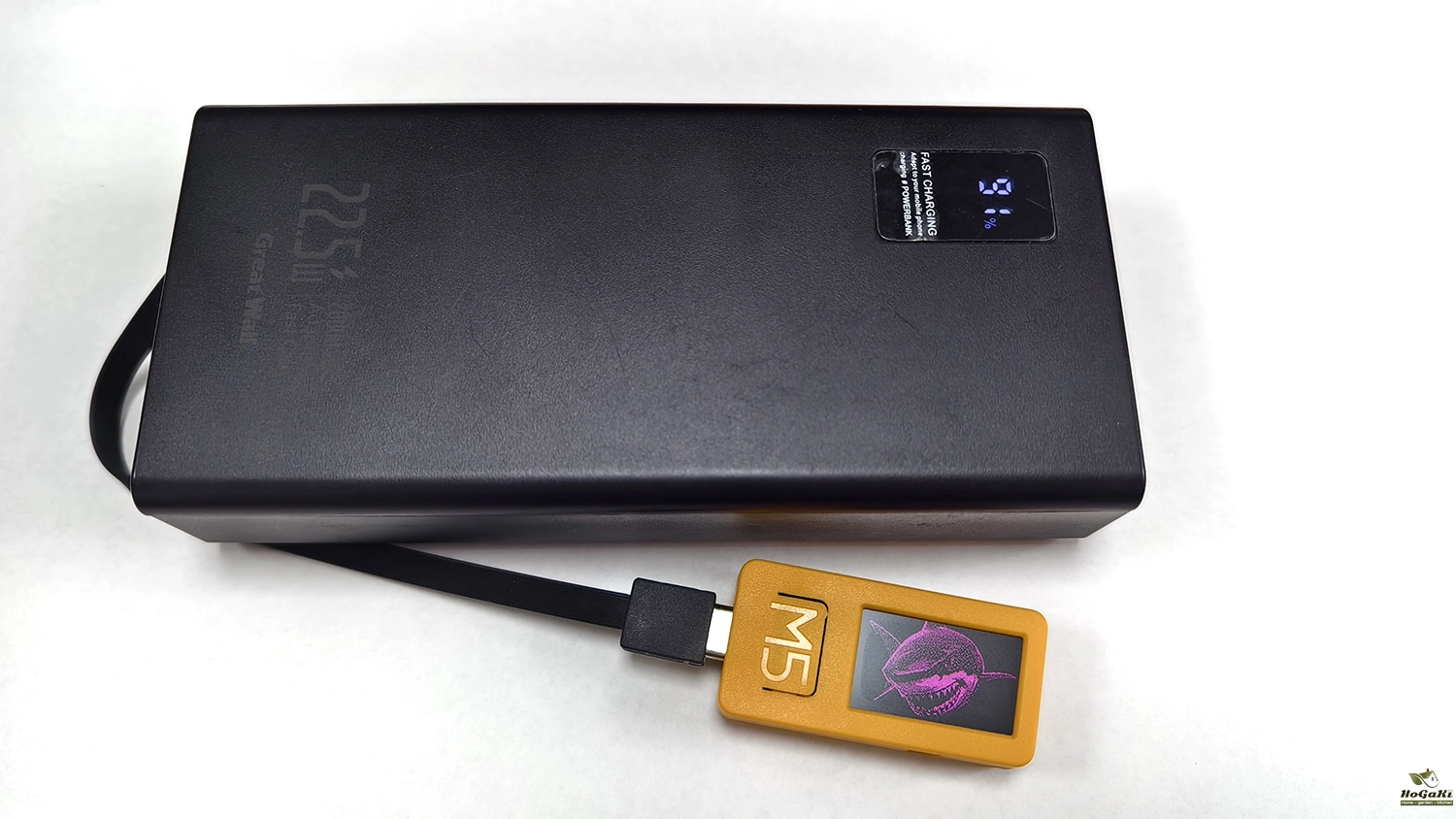

Q2: Why it working time only 3 hours? Why does it 100% charge in 1 minute, remove the charging cable it will turn off?

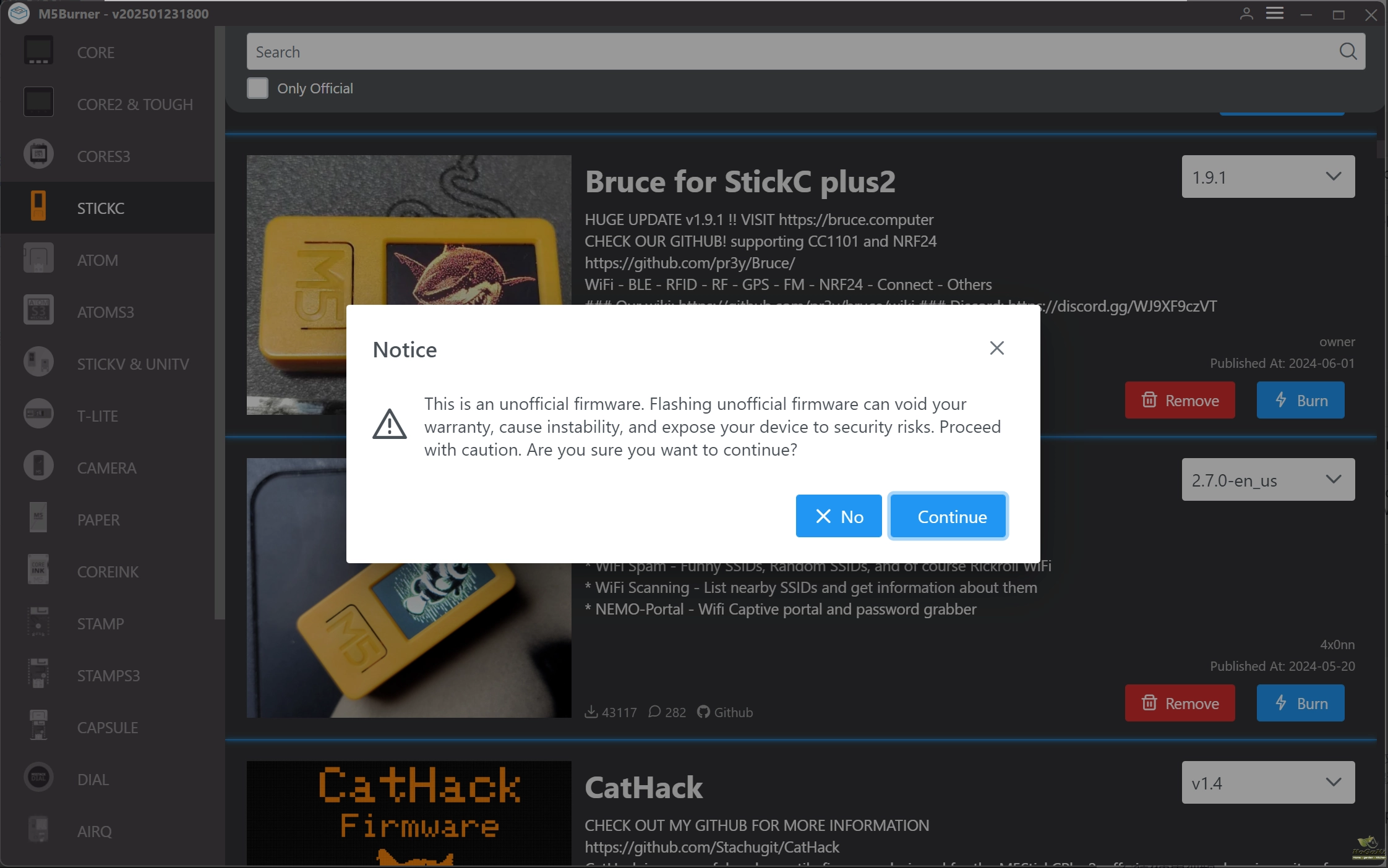

Solutions: "Bruce for StickC plus2" This is an unofficial firmware. Flashing unofficial firmware can void your warranty, cause instability, and expose your device to security risks. Proceed with caution.
Please burn back official firmware. M5StickCPlus2 UserDemo
