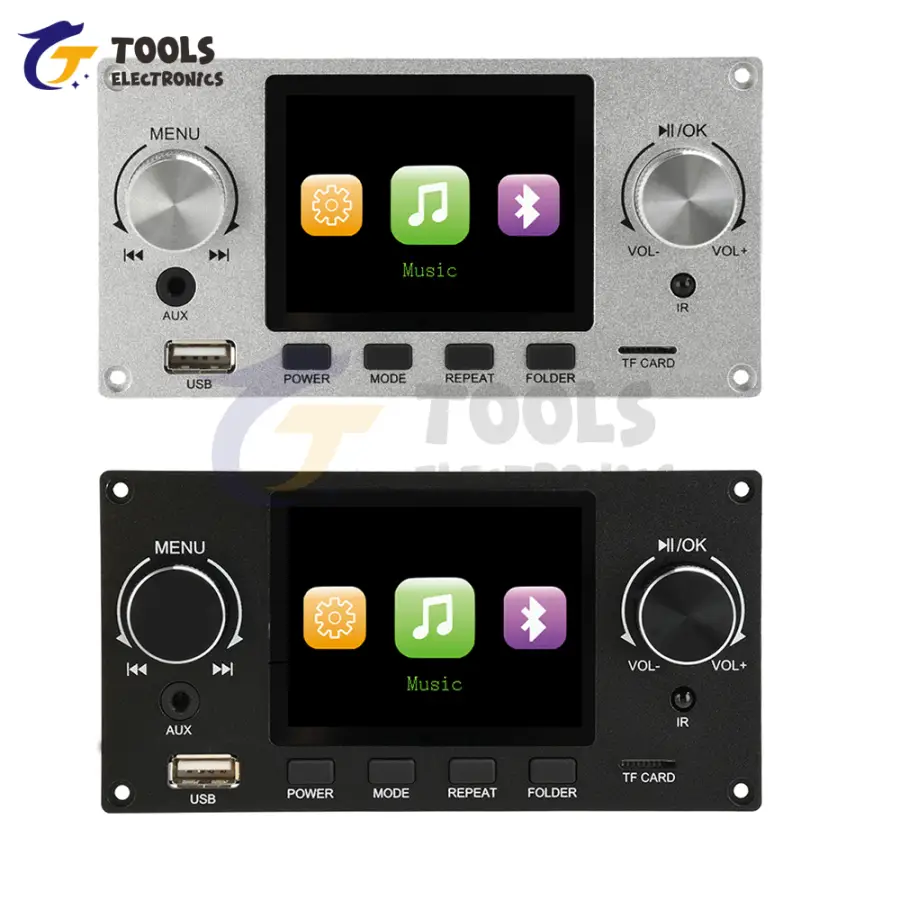

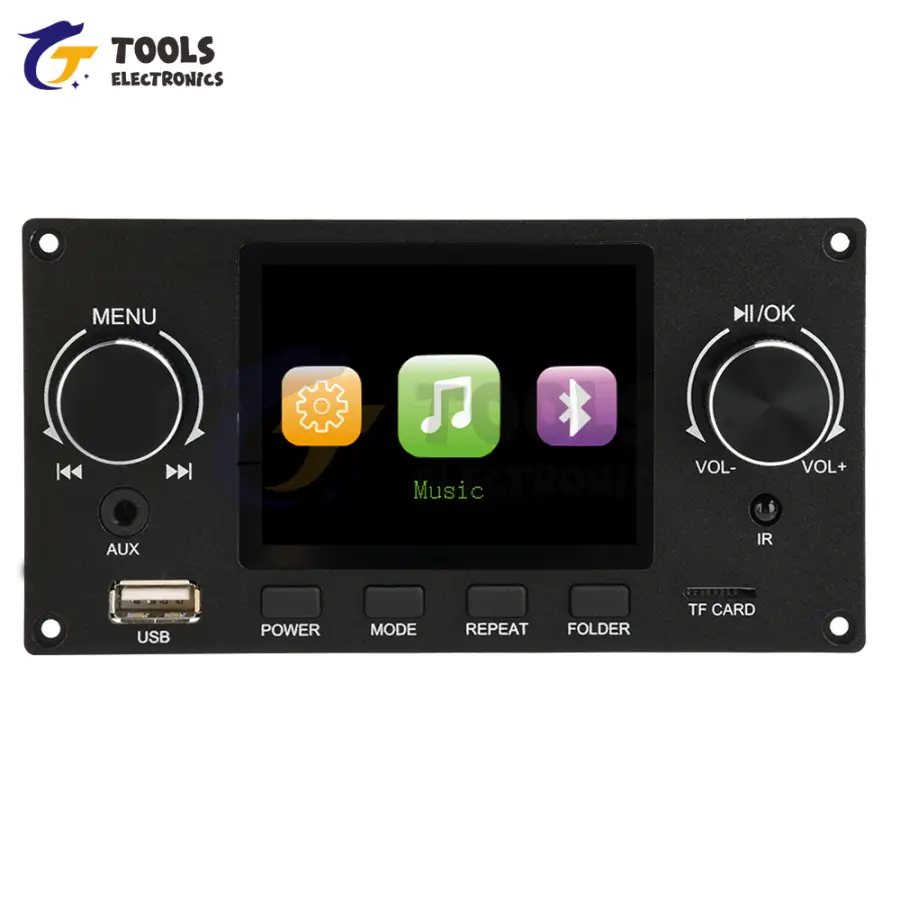

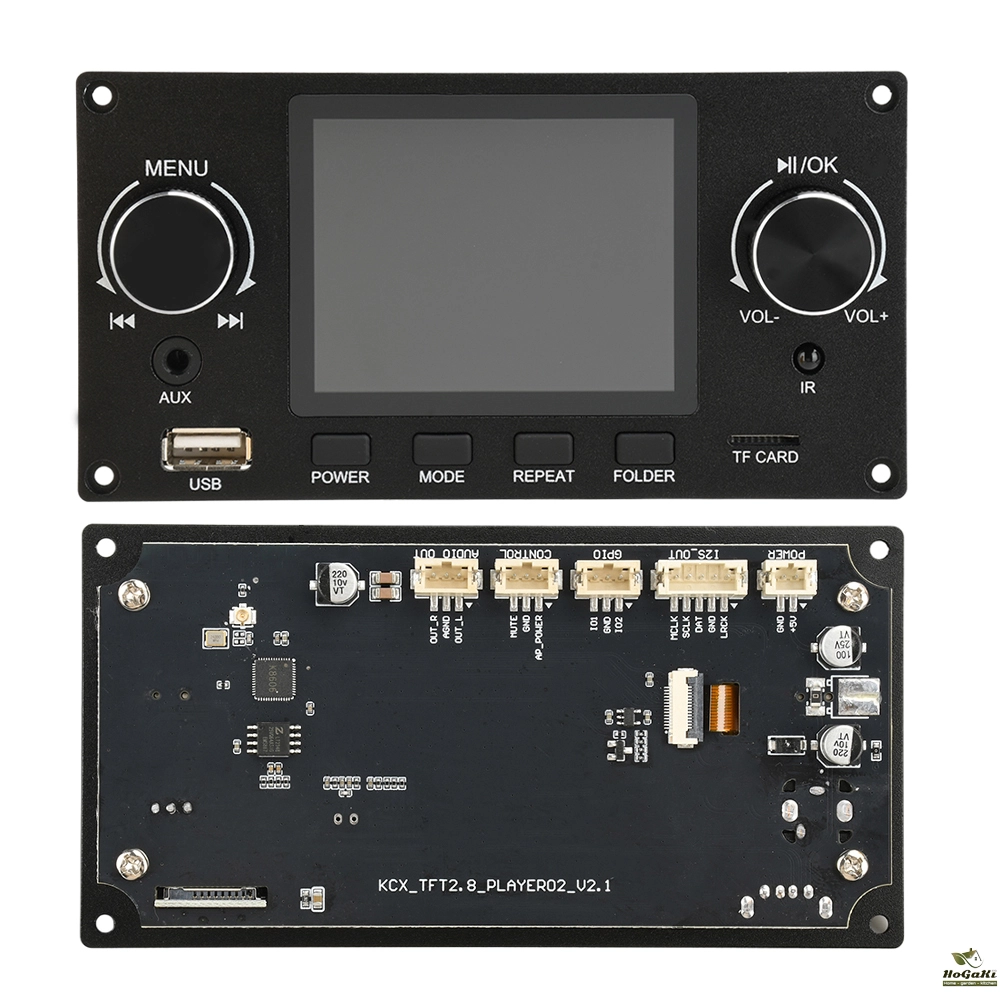

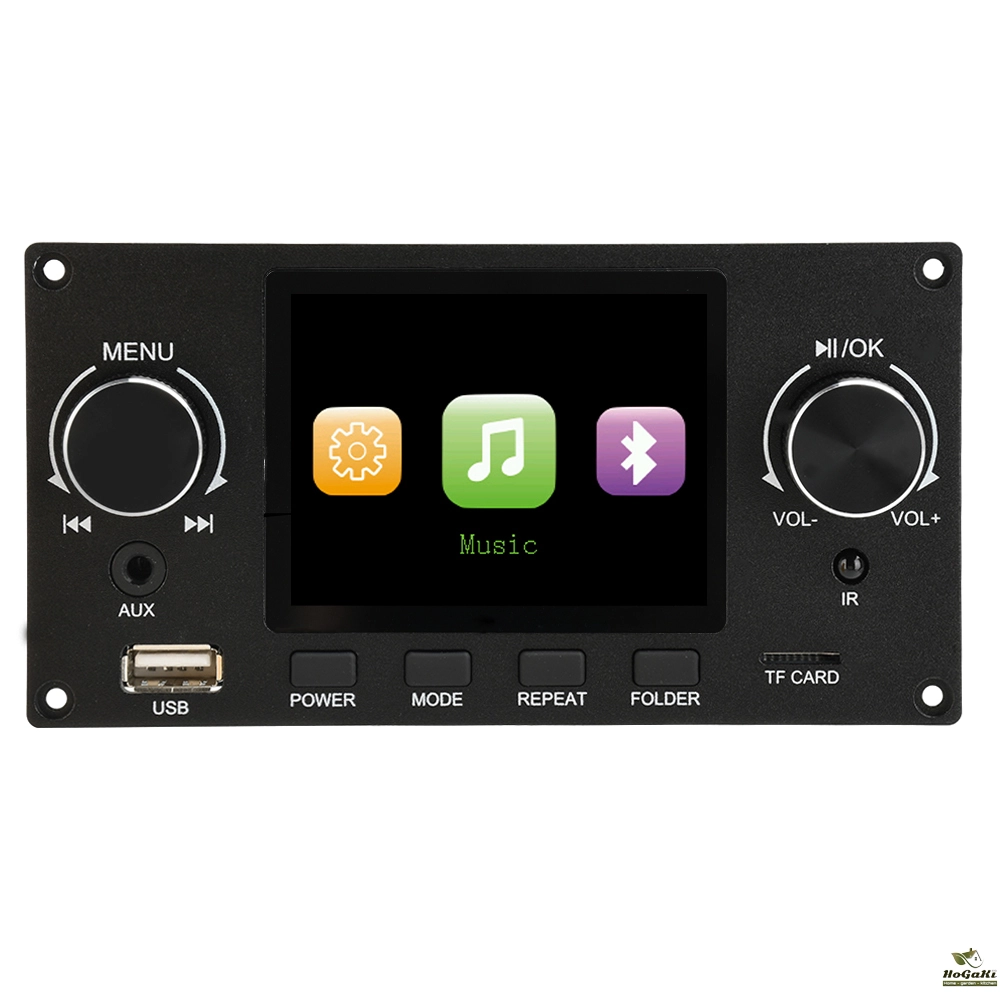

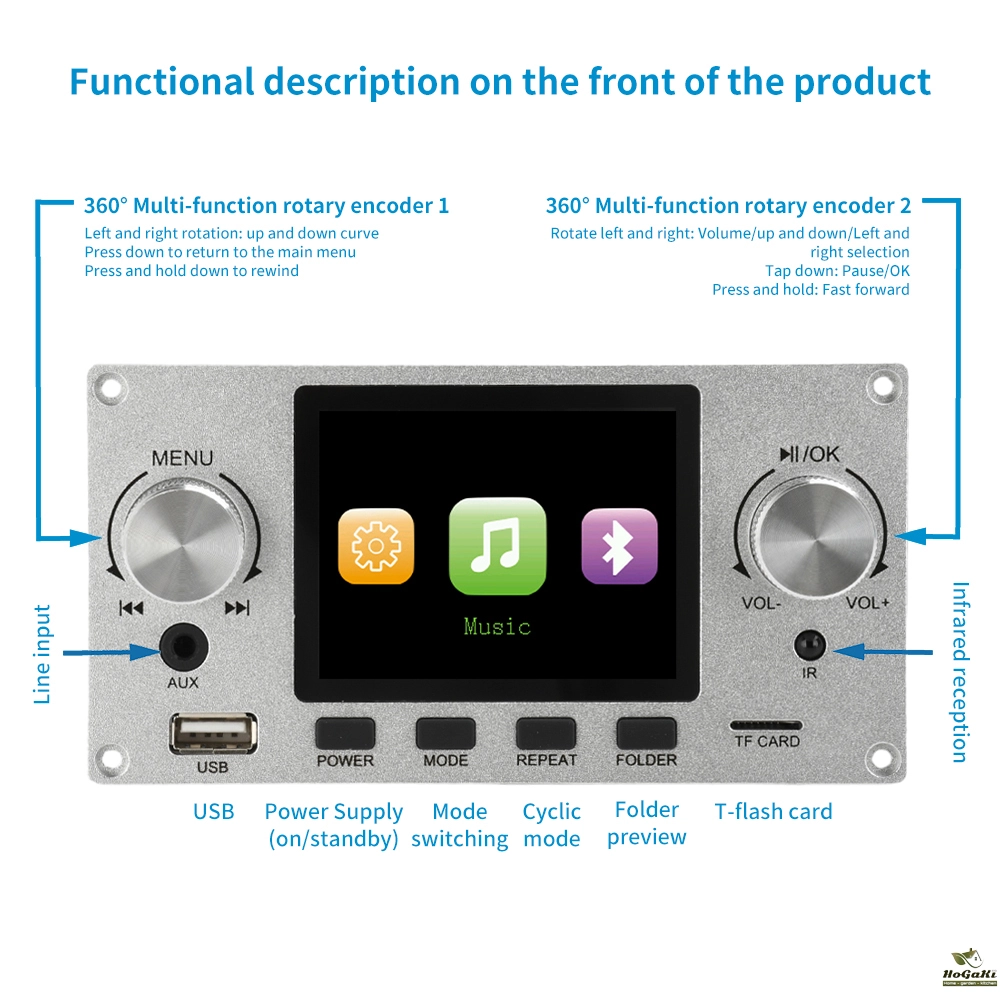

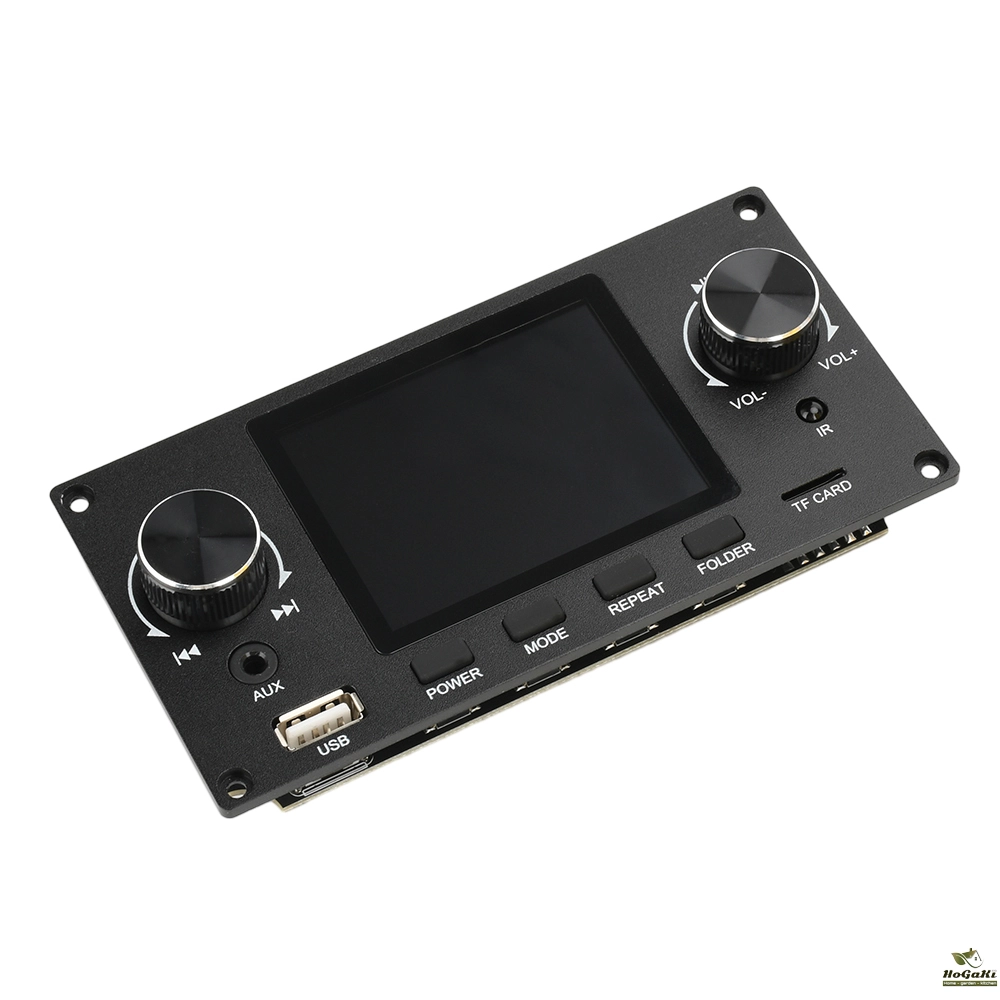

Audio Decoding Module 2.8 Inch TFT Color Screen Lossless Audio Decoding Board Module Support I2S Digital Audio Output Player TF
ID: 160162

Audio Decoding Module 2.8 Inch TFT Color Screen Lossless Audio Decoding Board Module Support I2S Digital Audio Output Player TF

0.0 ( votes) | 2 orders
Price: US $62.03 - 62.39
Discount Price:
US $ 59.35 - 59.71
-4%
Color
Quantity

Buy Now
Add to Cart


Features:

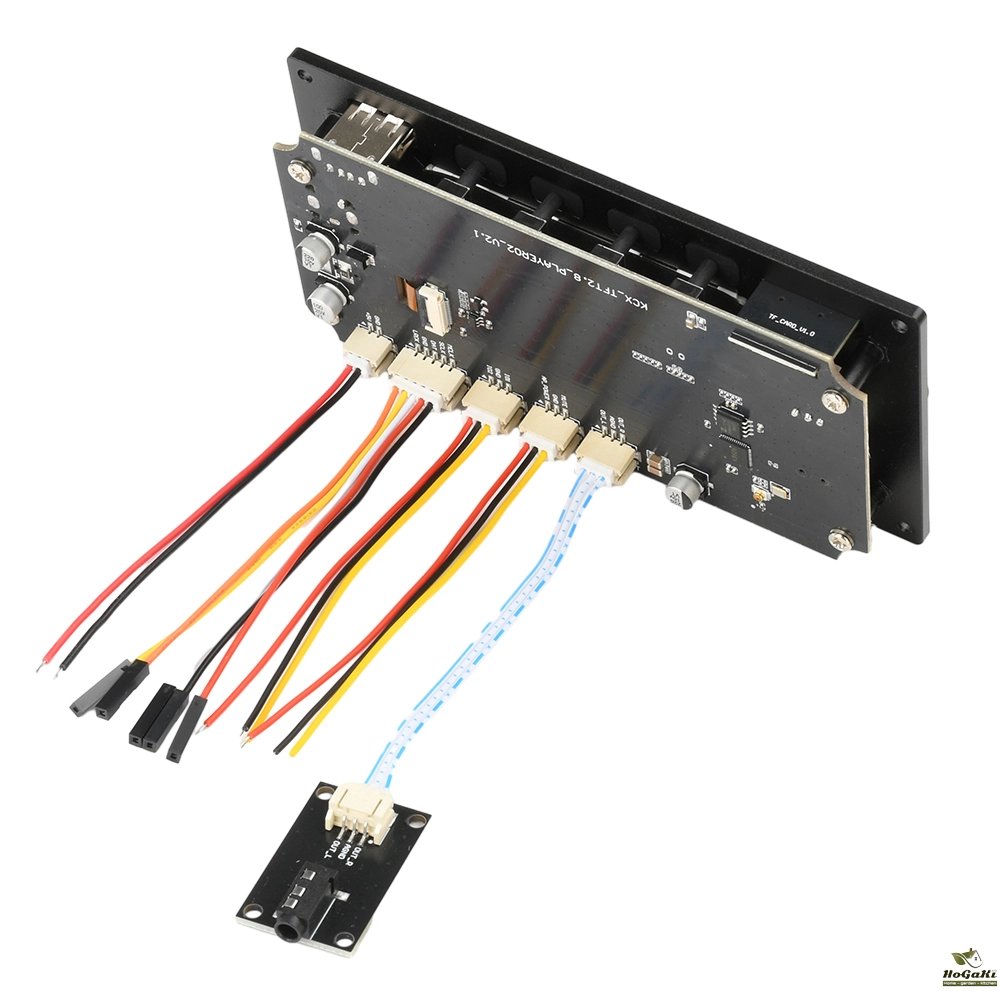

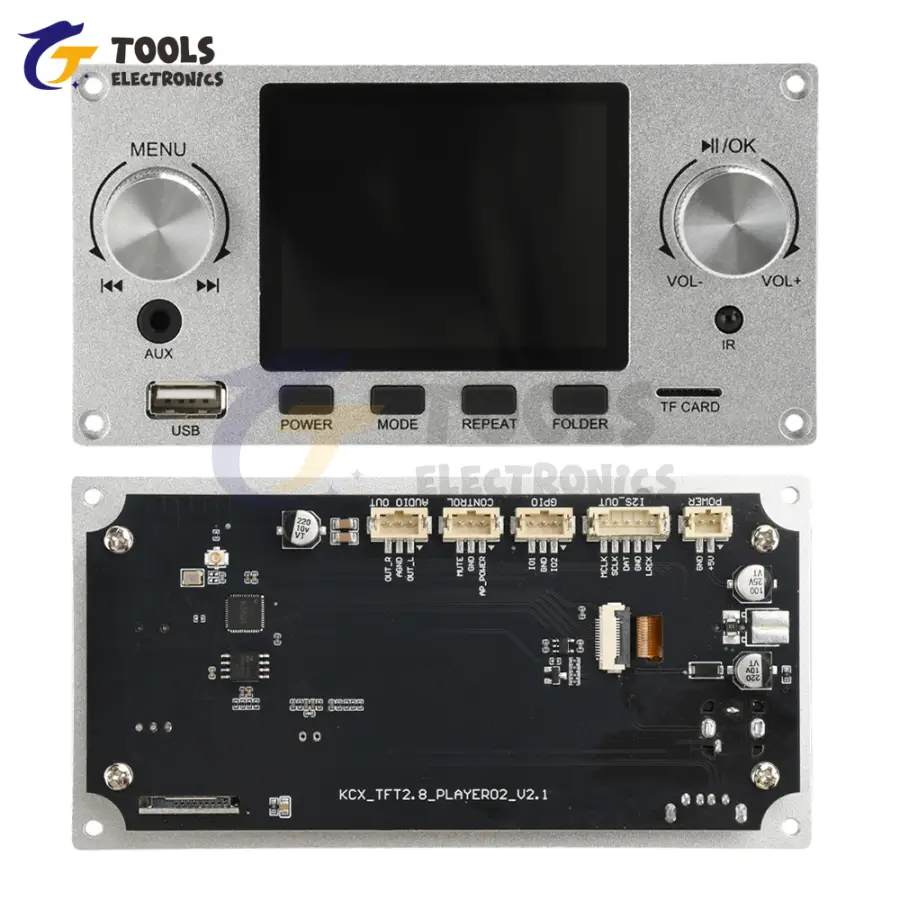

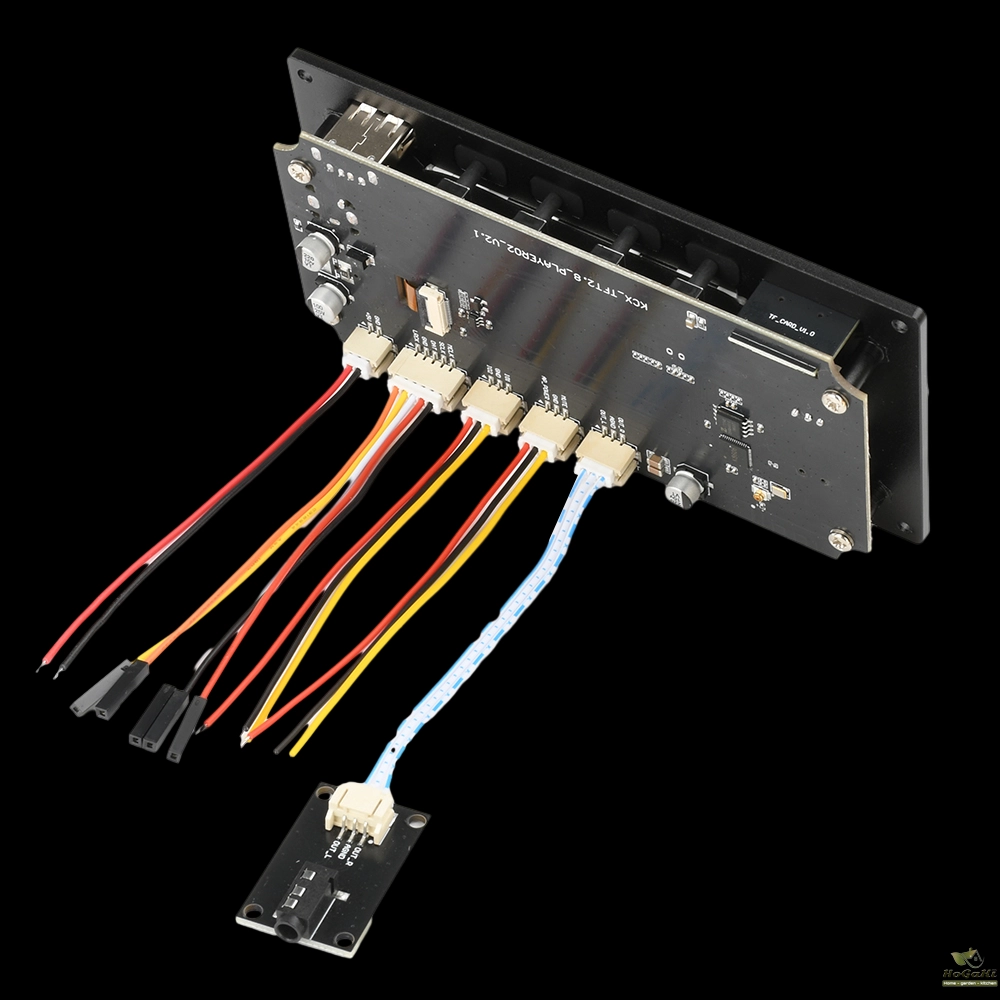

1. It is a multifunctional high-fidelity stereo sound audio decoder board which integrates Bt audio decoding, TF card, U disk music file decoding, computer USB sound card, LINE input.

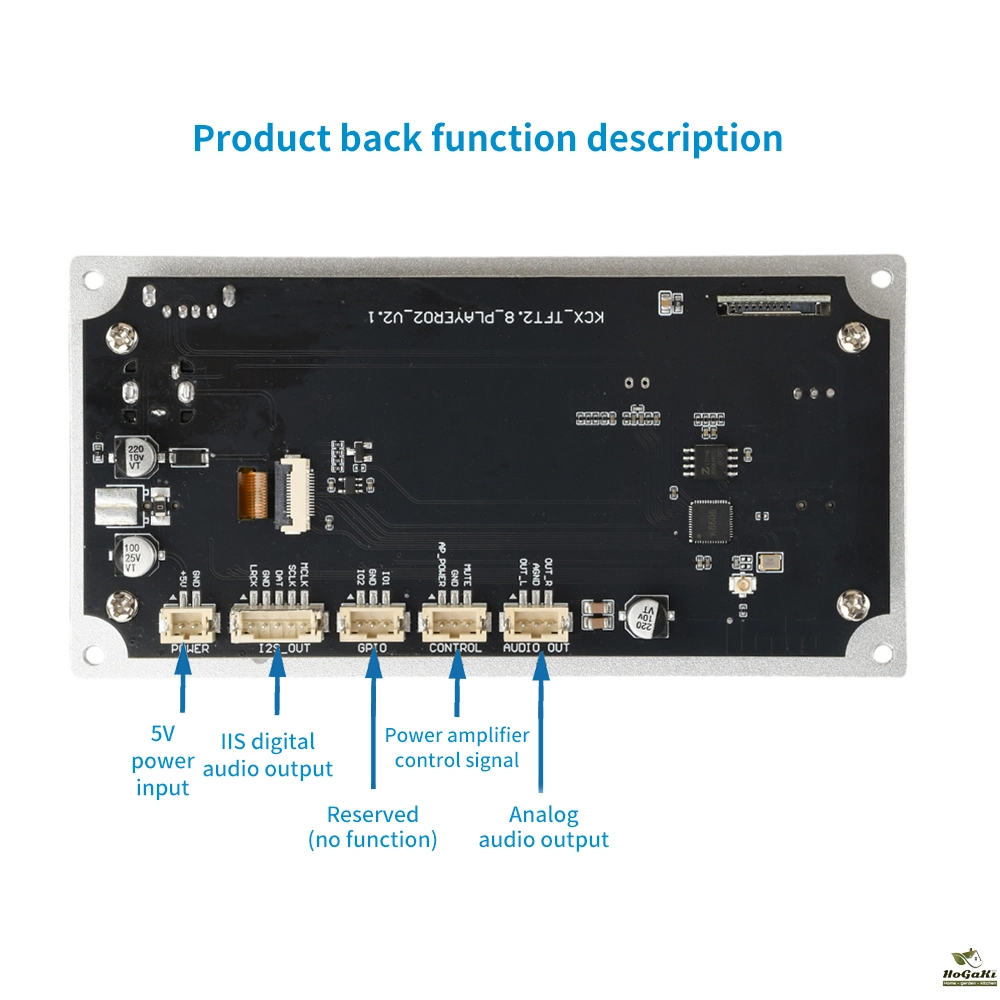

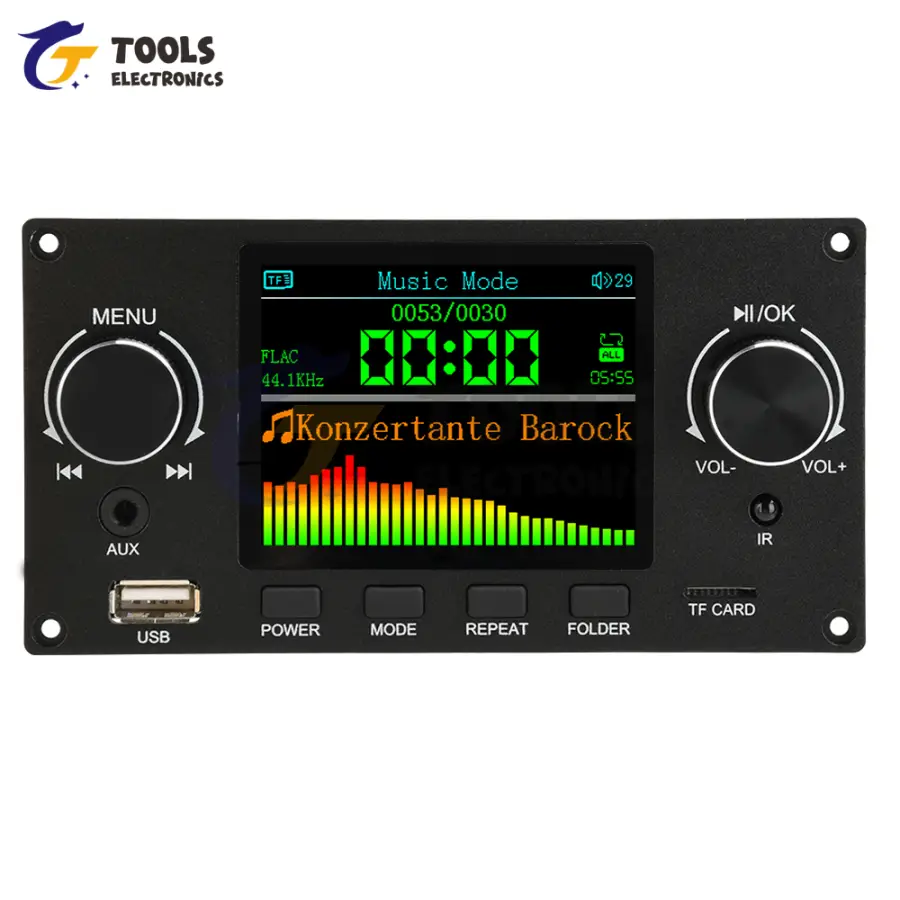

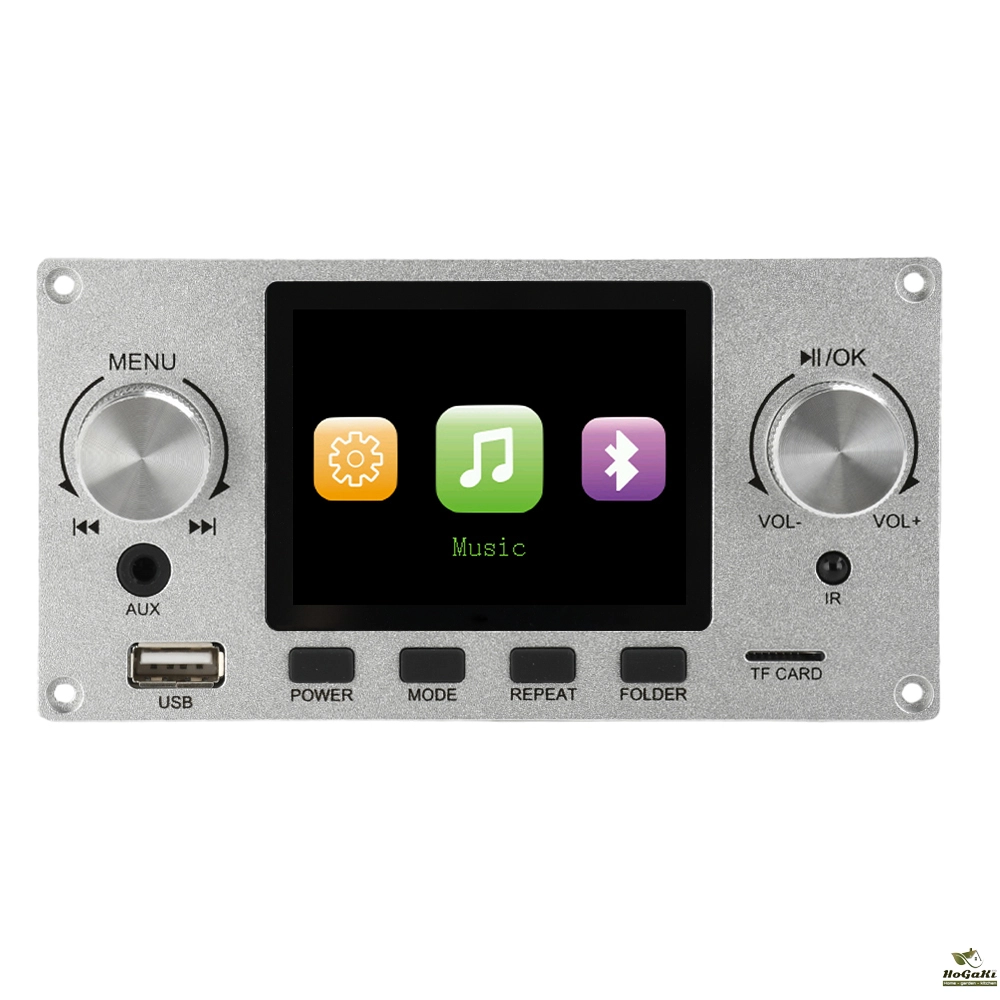

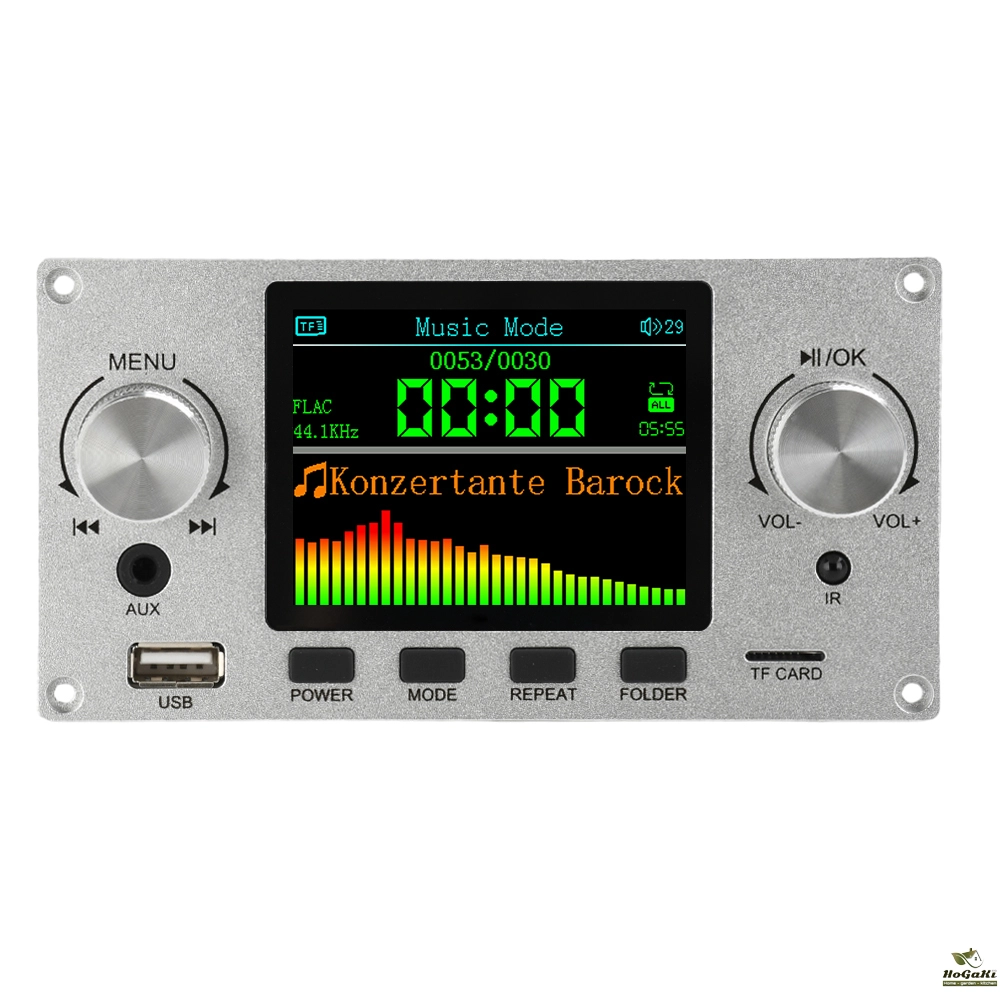

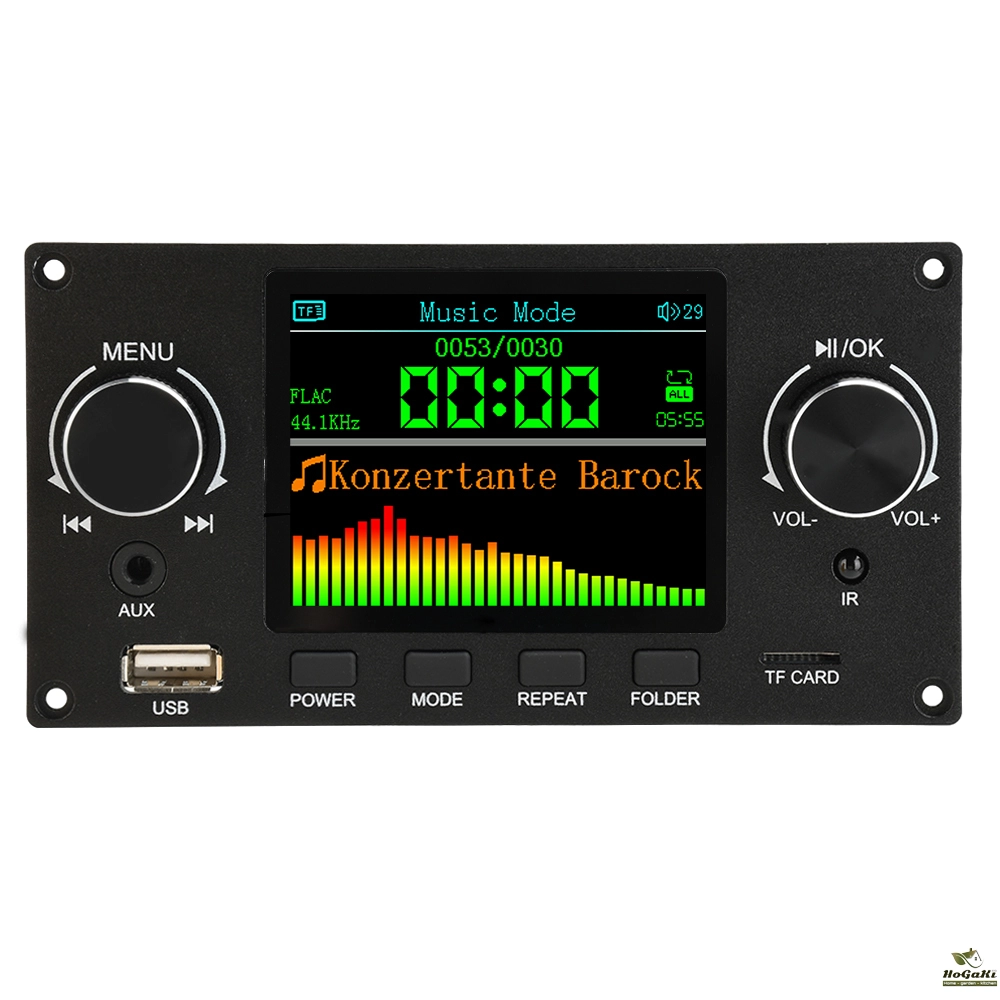

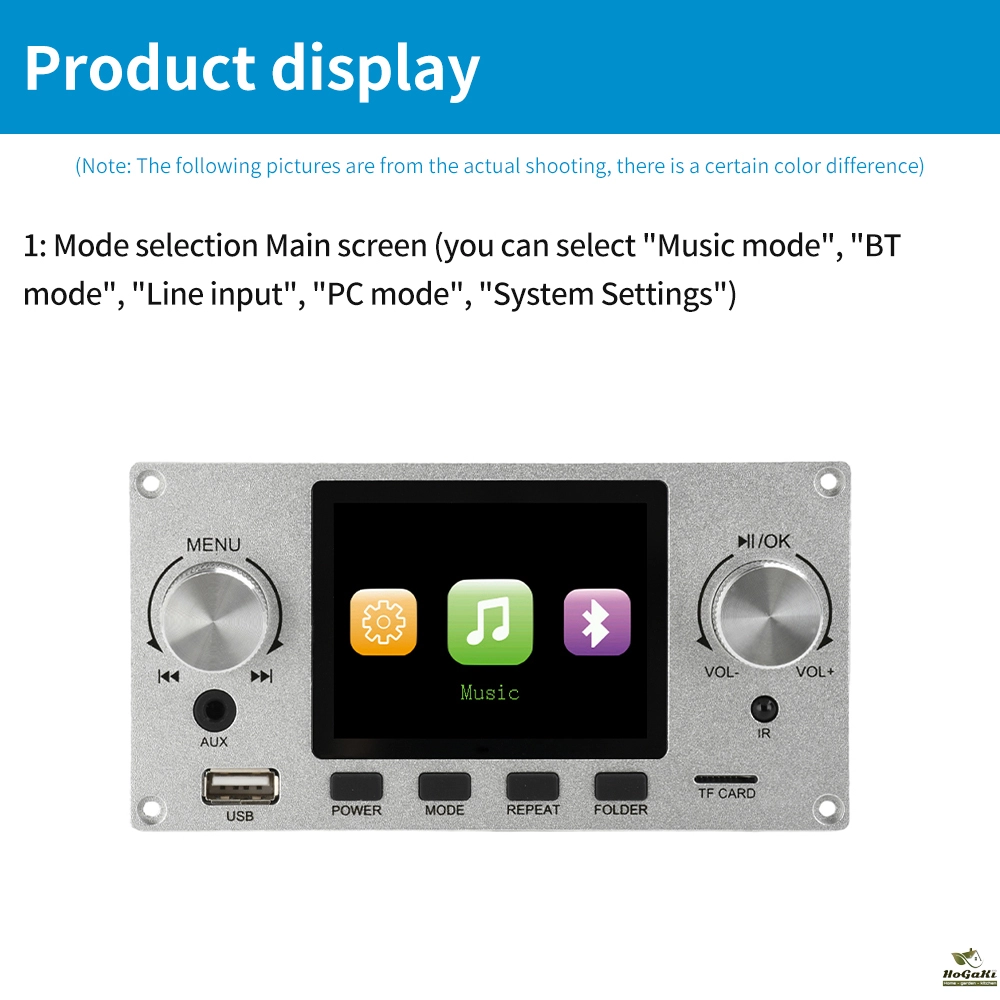

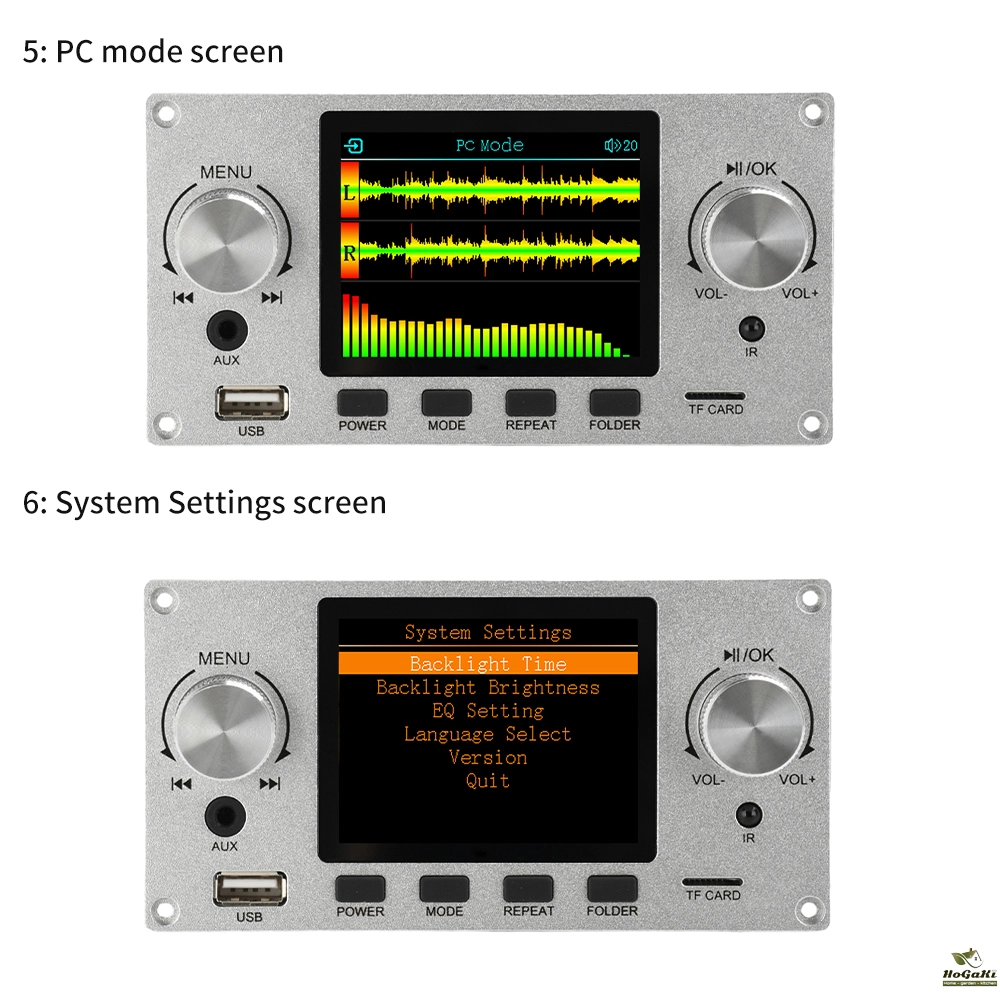

2. 2.8-inch 320 * 240 pixels IPS color screen to do playback status and decoding related information display. Simultaneously support analog audio and digital audio (I2S) output function.

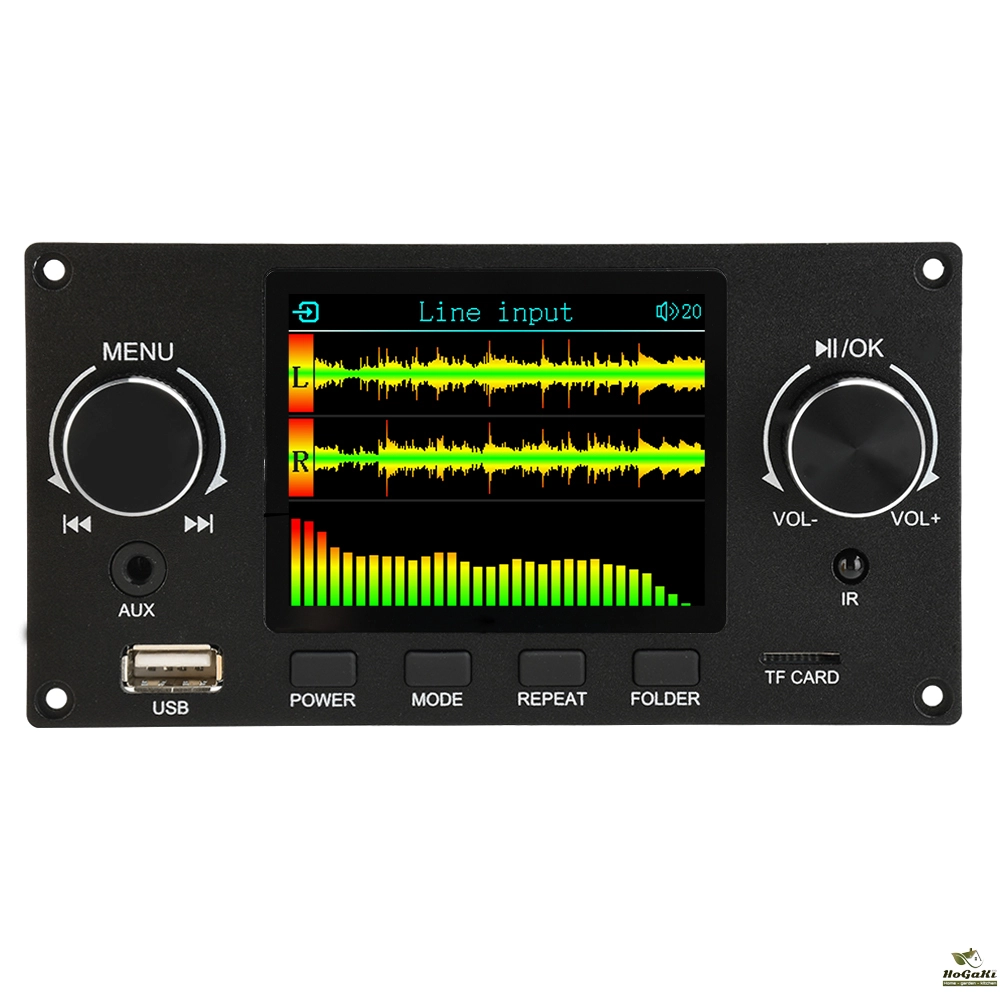

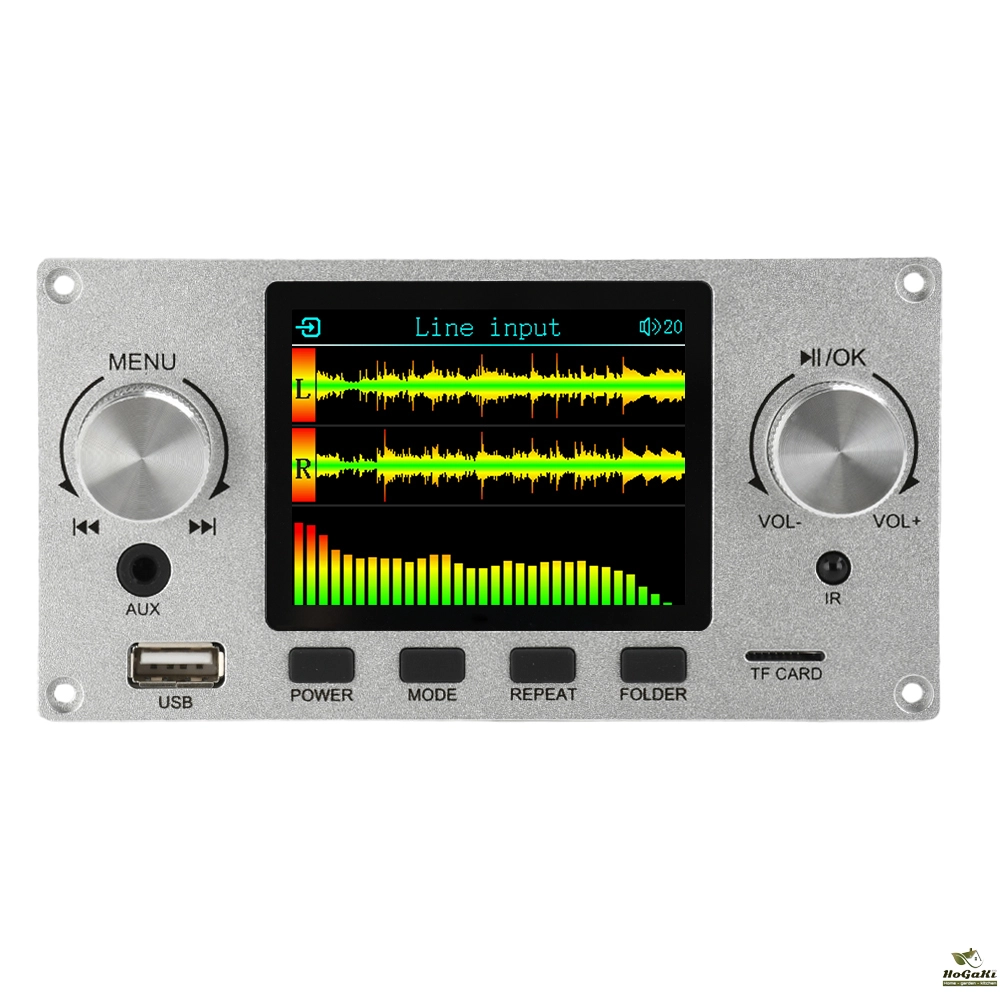

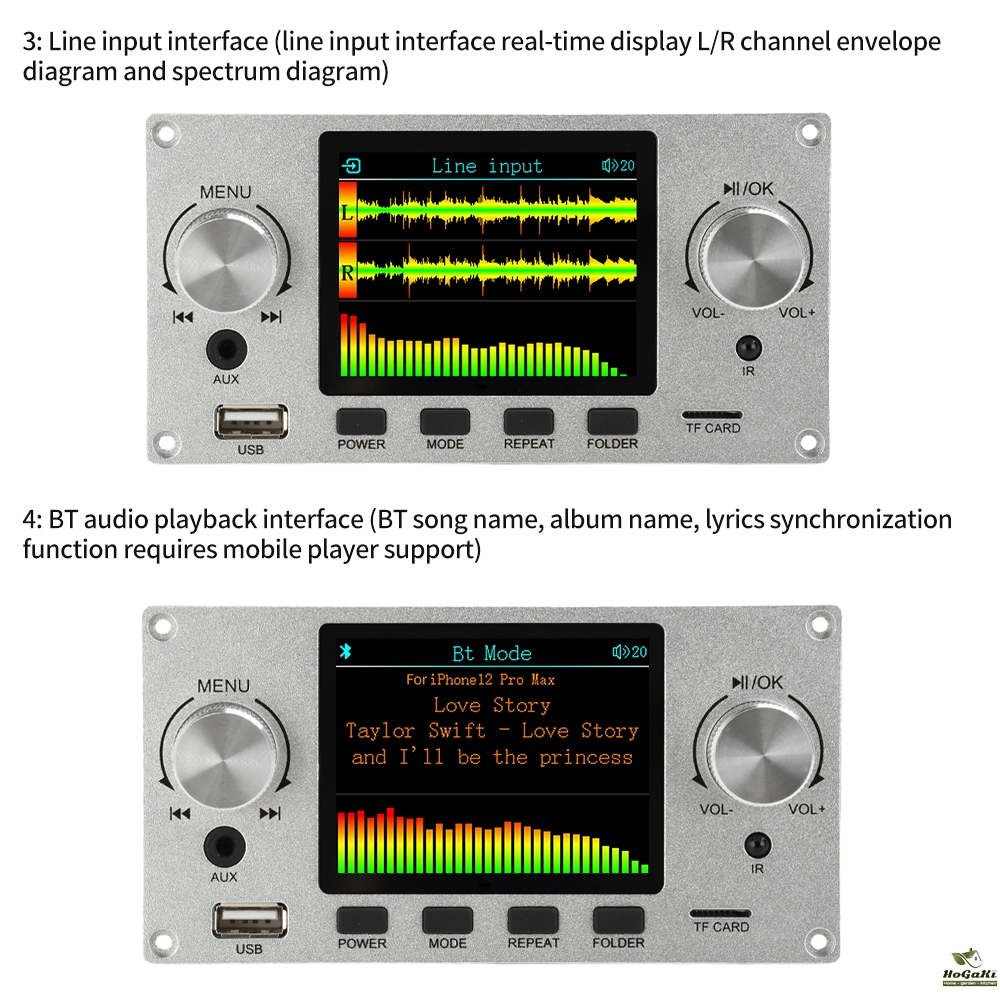

3.3.5mm stereo line-in connector for inputting audio signals from cell phones, computers, MP3 players and other lines.

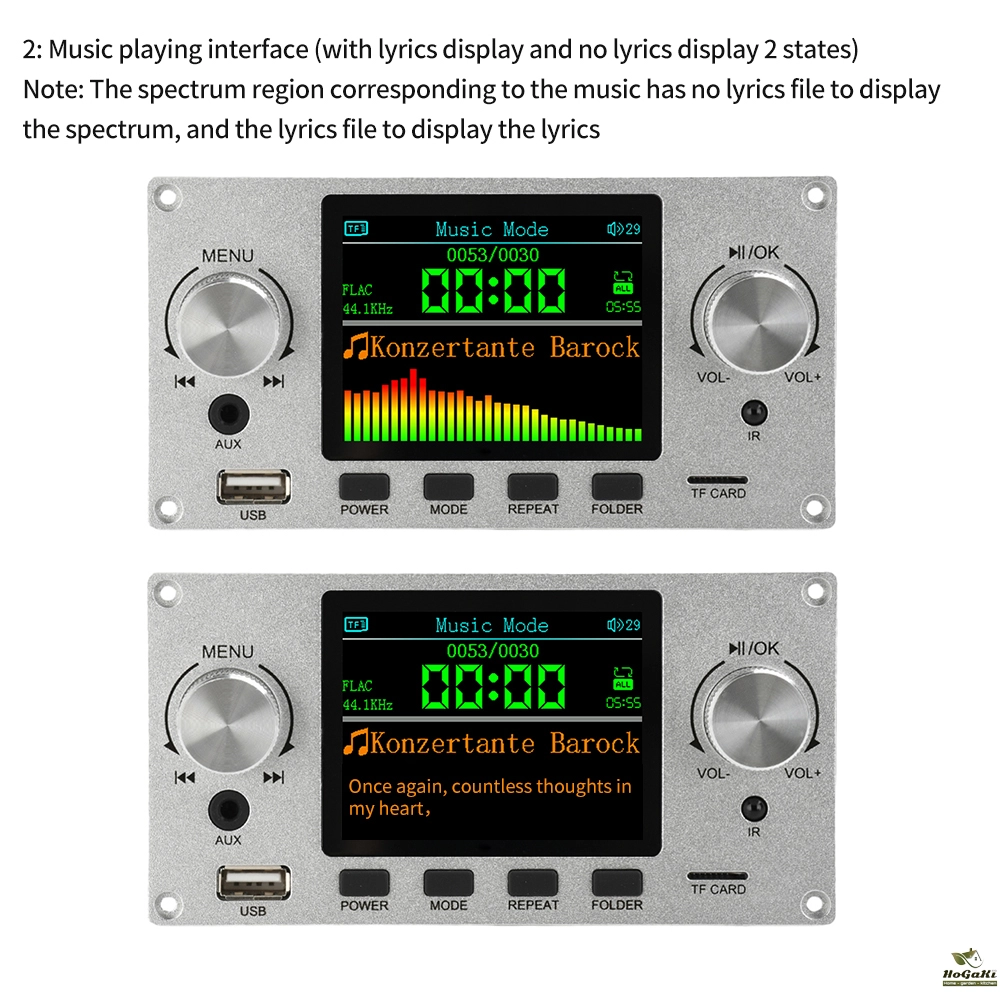

4. Support SBC/AAC audio transmission protocol in Bt mode, support Bluetooth lyrics song title and other ID3 information display, and support spectrum display.

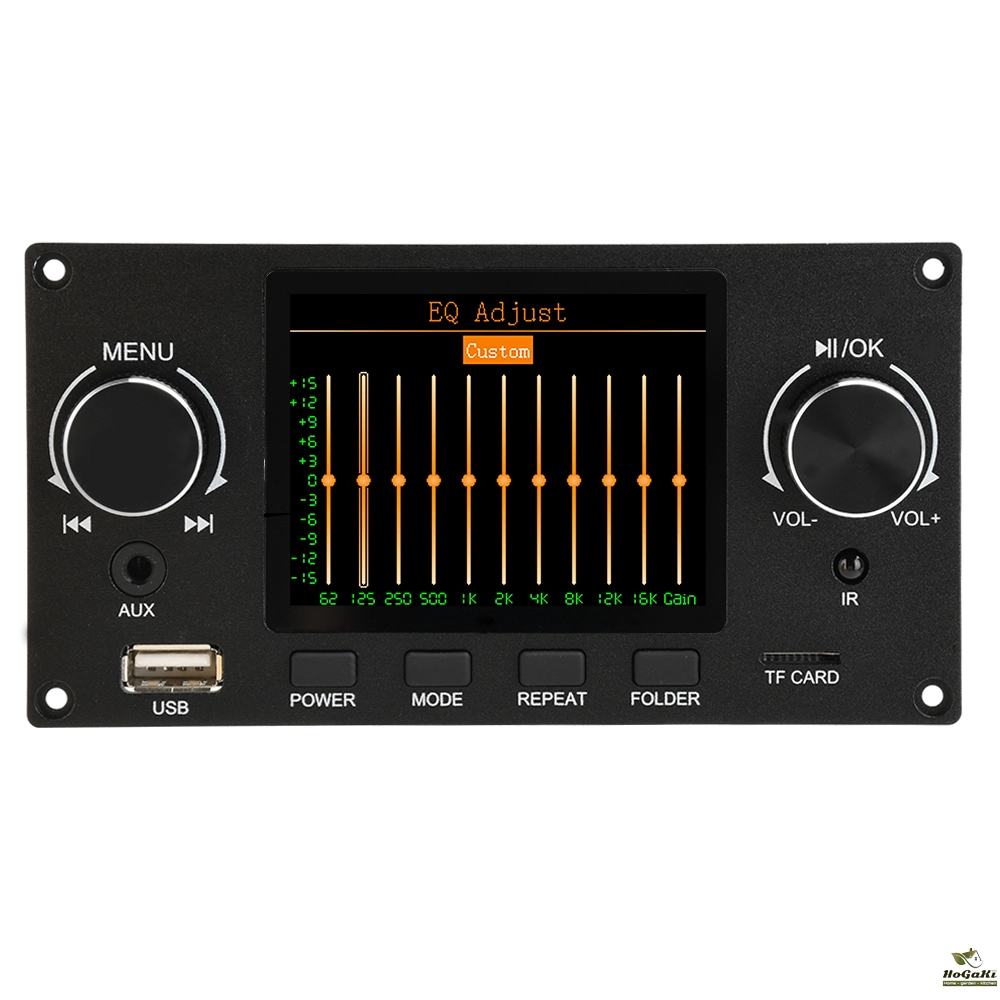

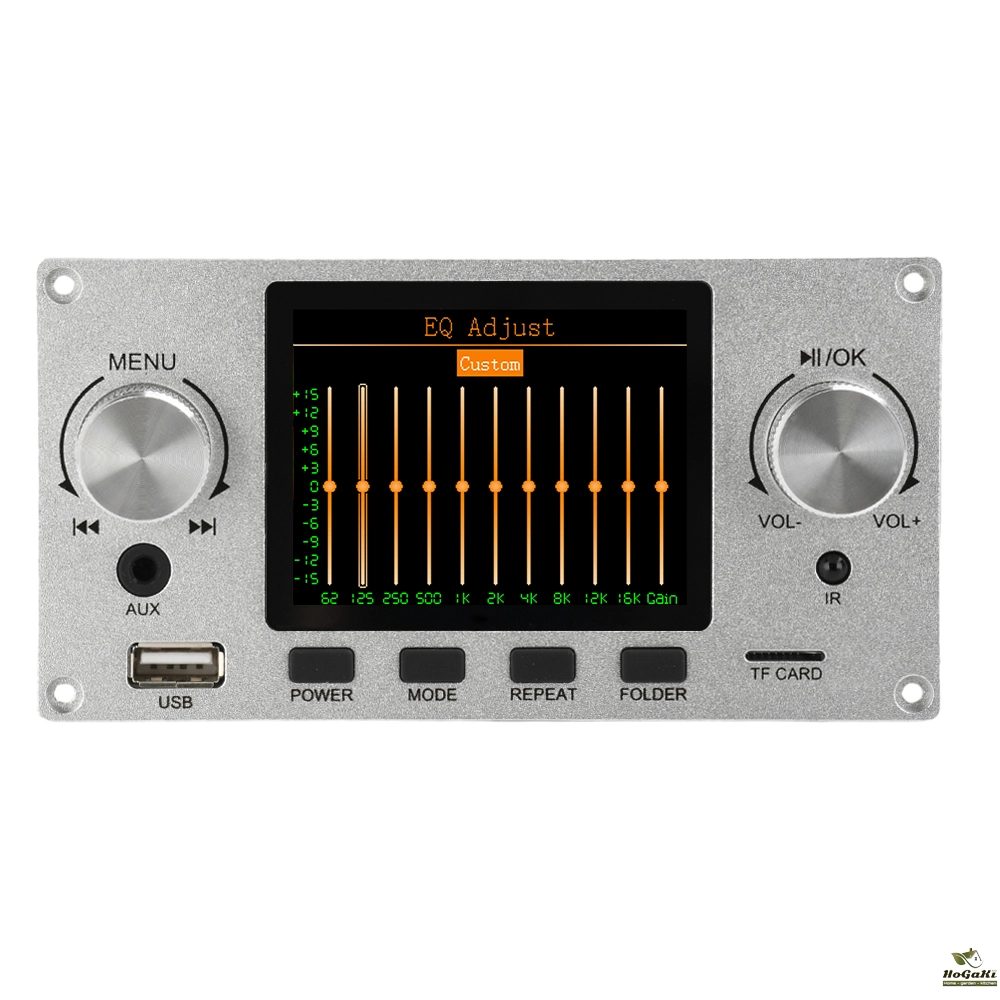

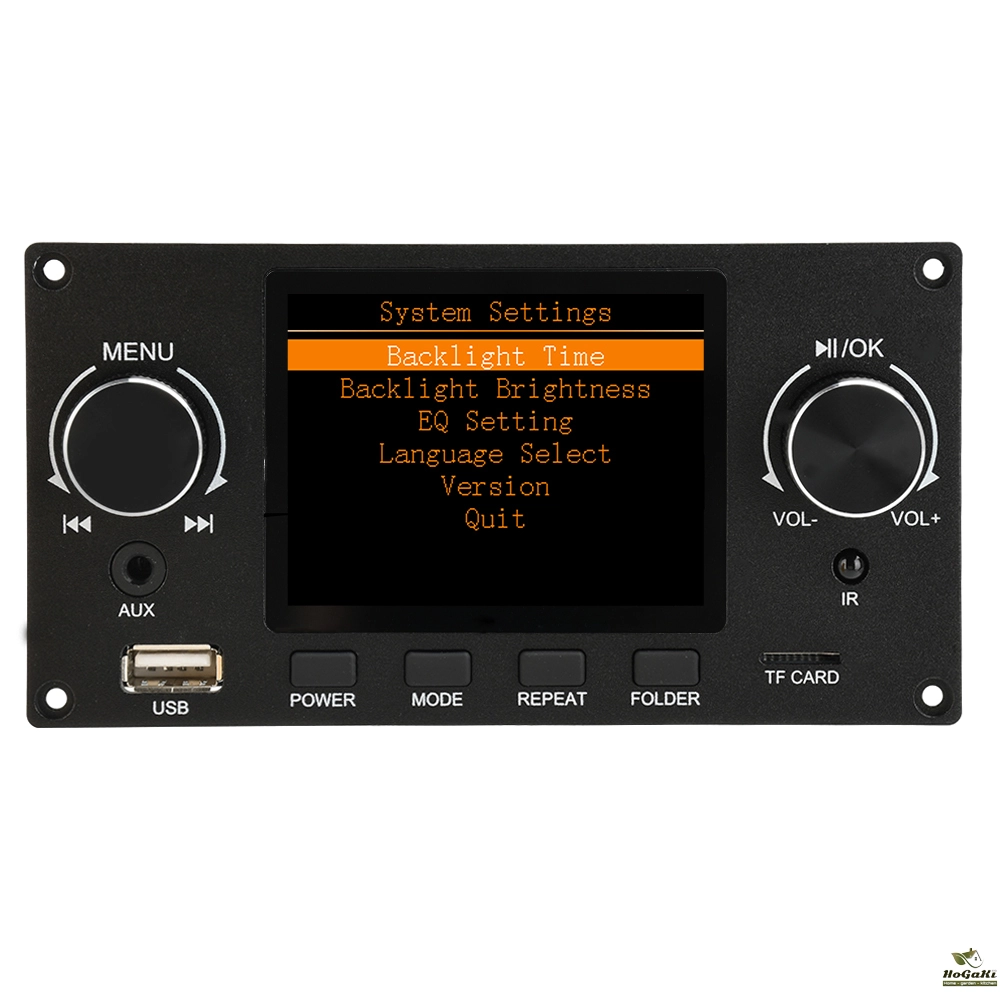

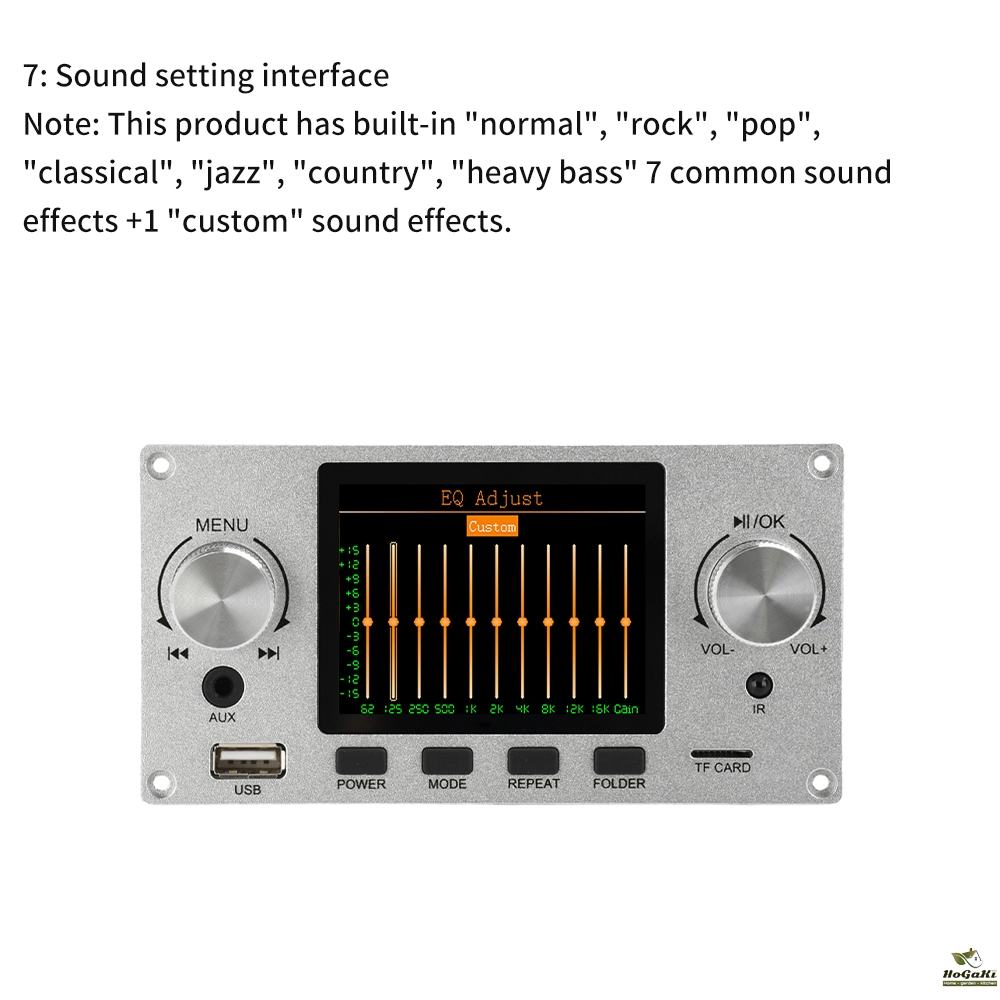

5. Built-in equalizer preset 7 EQ scenes + 1 custom EQ scenes, can be very good with the speakers and personal listening preferences to choose and adjust to their own sound.


Parameter:

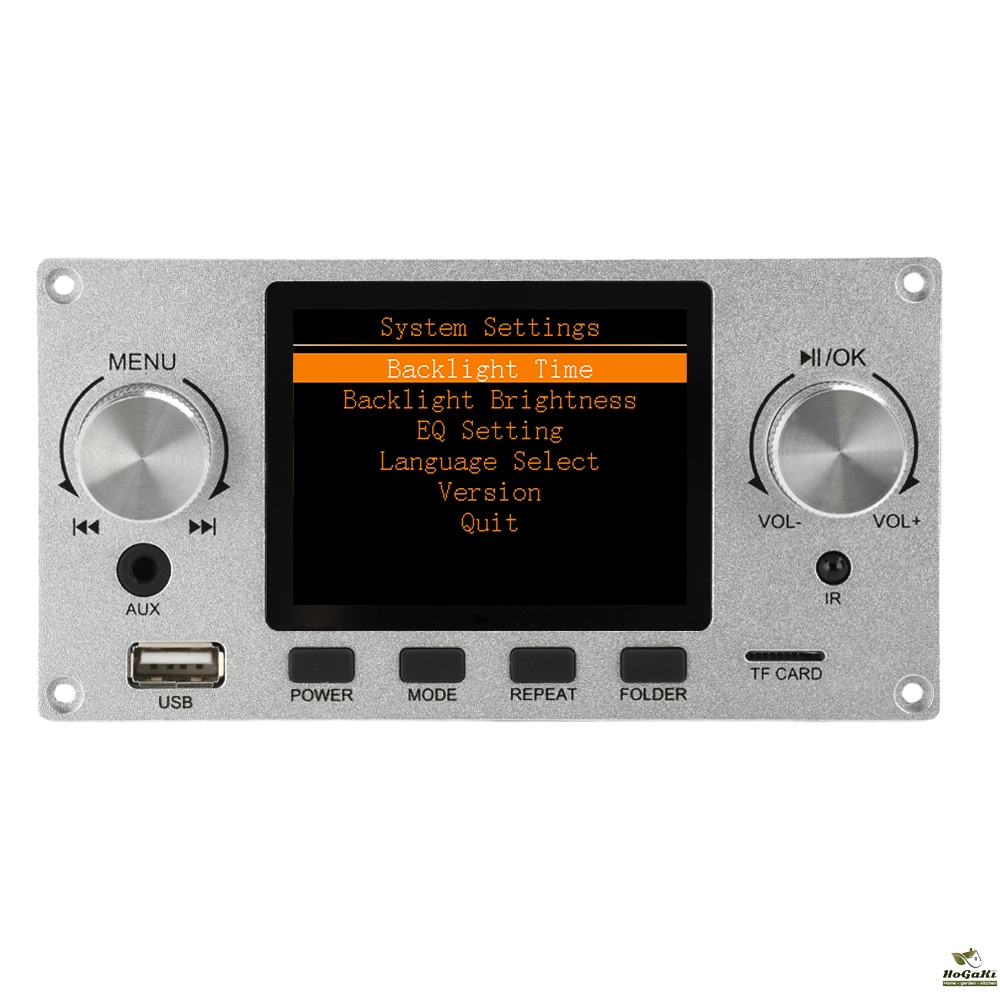

Support Simplified Chinese, Traditional Chinese and English display
Operating voltage: 4.5-5.0V (need regulated power supply)
Standby current: 20mA
Operating current: 30-180mA
Audio output signal power: ≤50mW
Audio output signal-to-noise ratio: SNR≥104db
Output audio signal level: ≤2.8Vp-p
Number of audio output channels: 2 channels
Audio DAC hardware bit width: 24bit
Bluetooth receiving distance: about 10 meters
Bluetooth version: V5.3+BR+EDR
Screen specification: 2.8 inch 320*240 pixels IPS screen

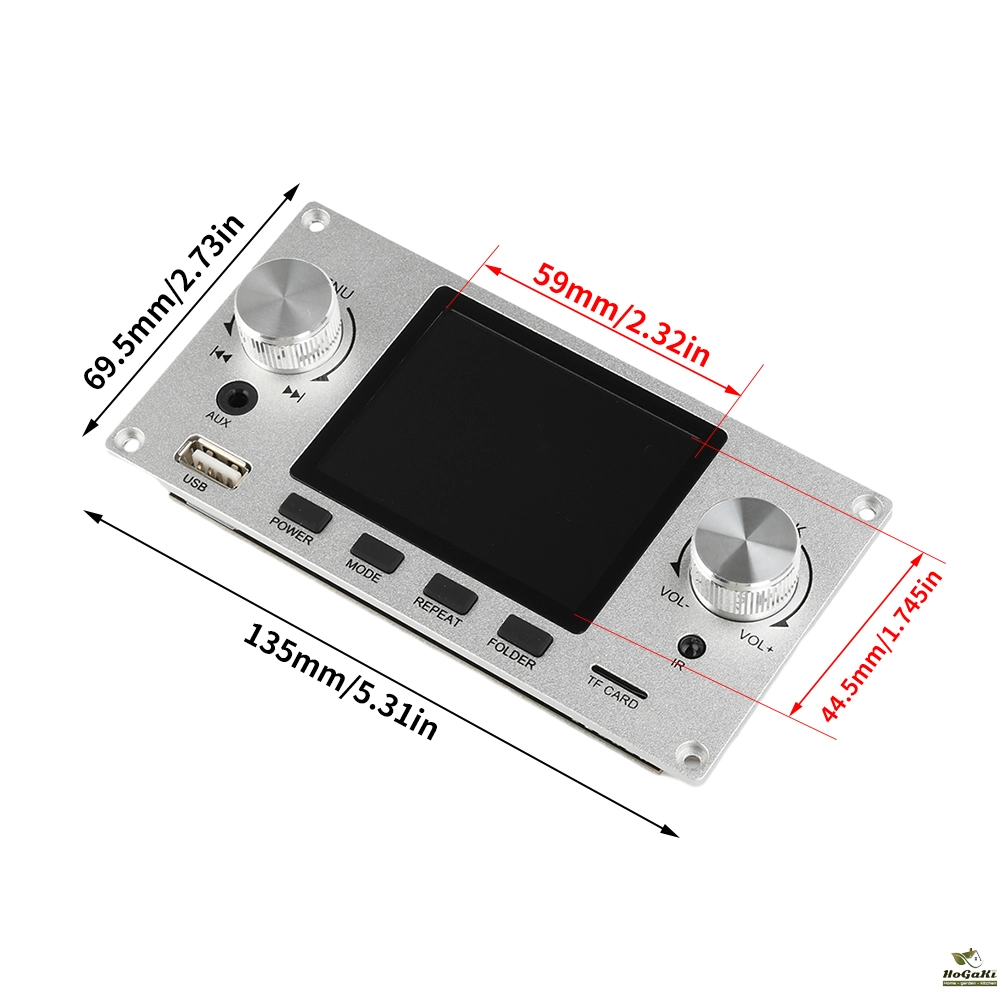

Product size: 13.5*6.95*3.5cm

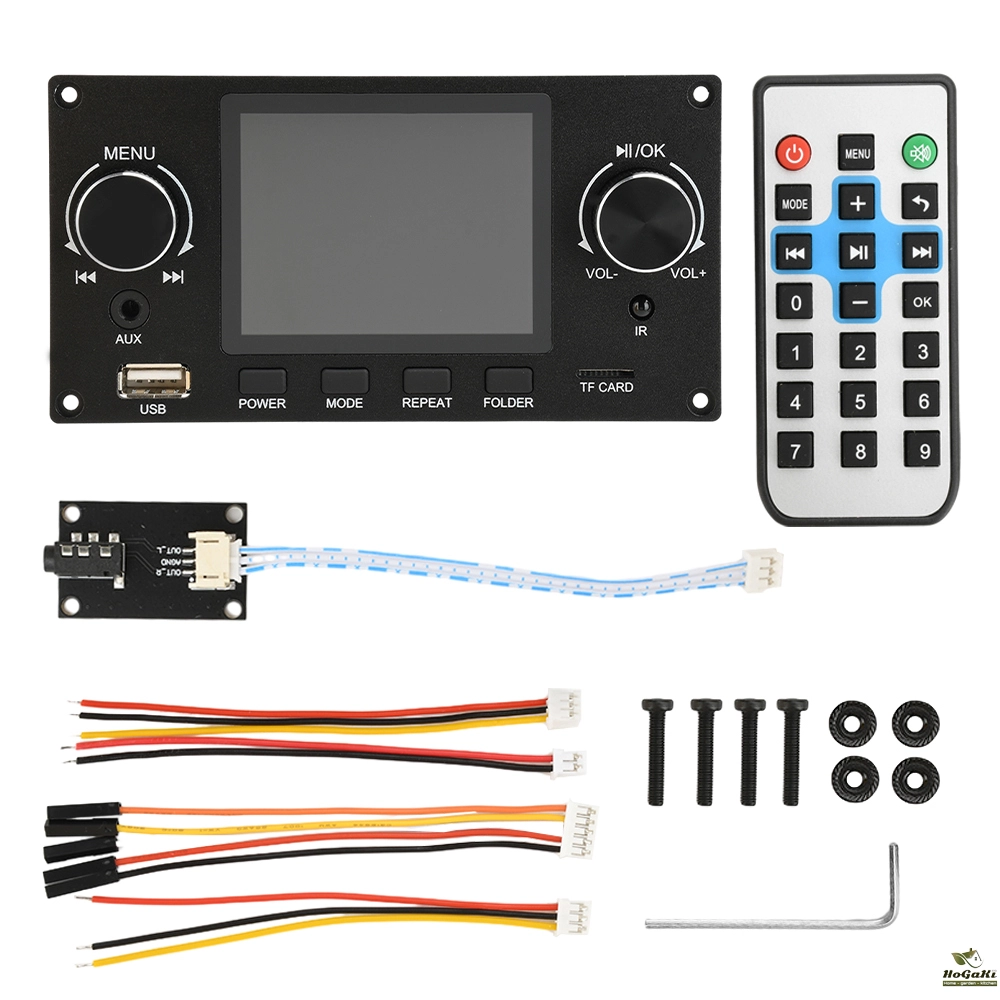

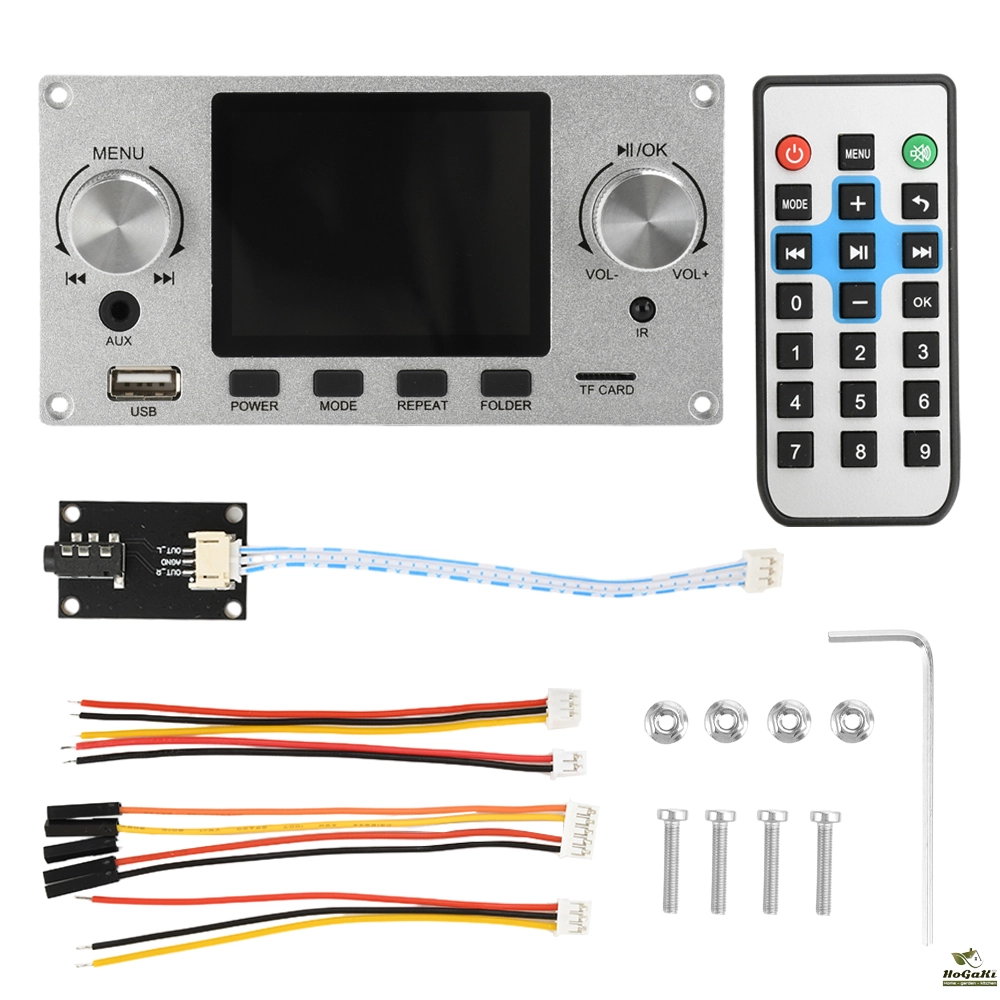

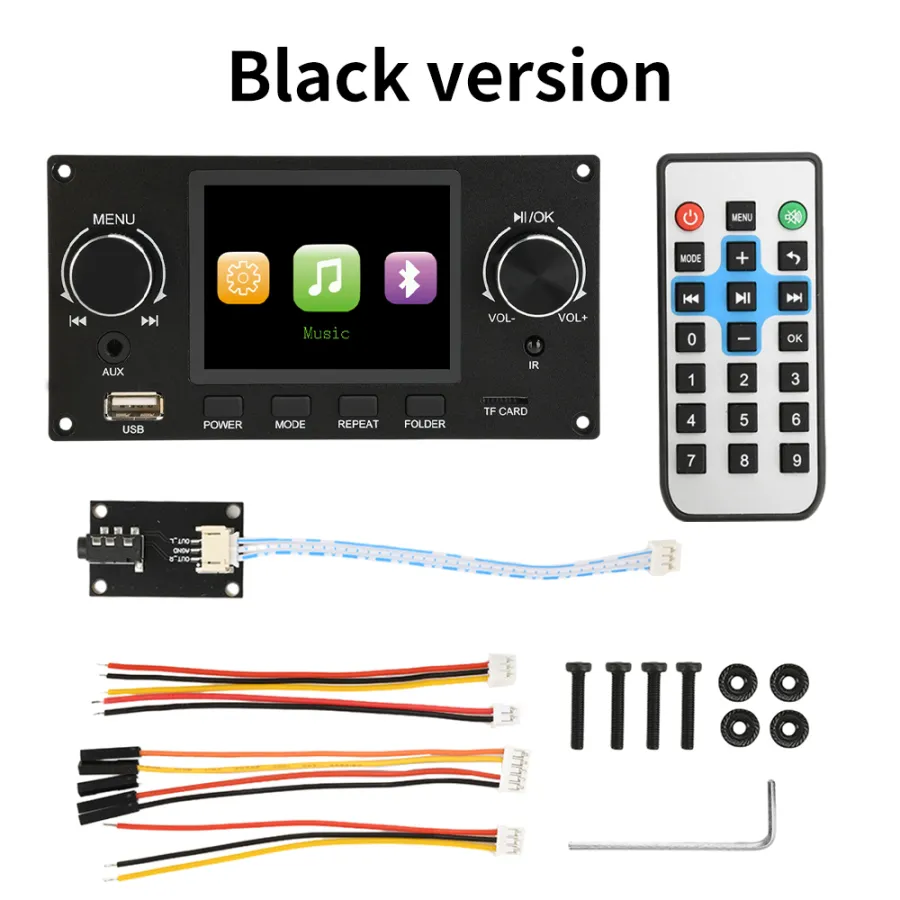

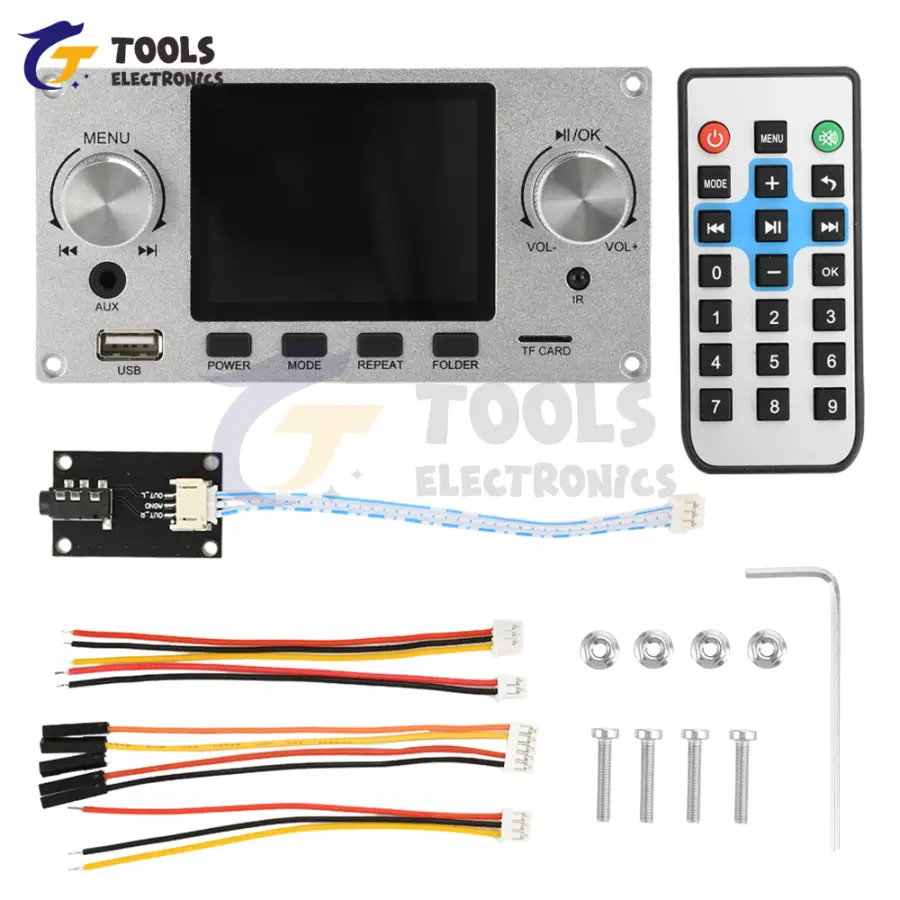

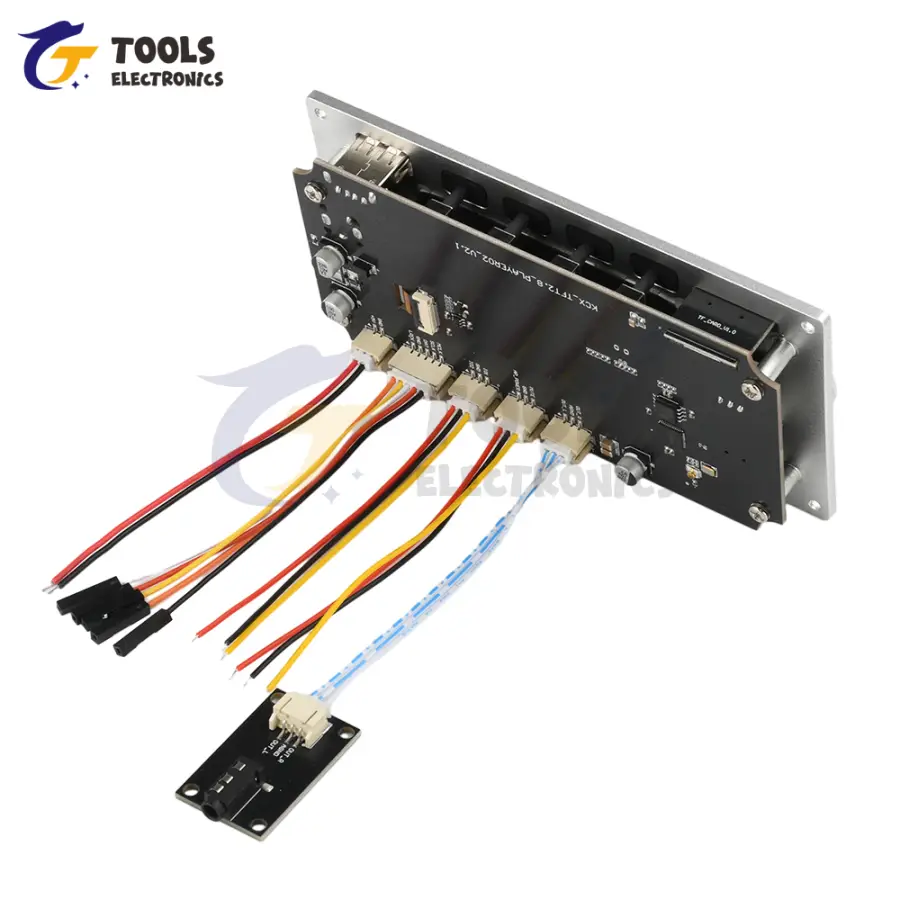

Package include:

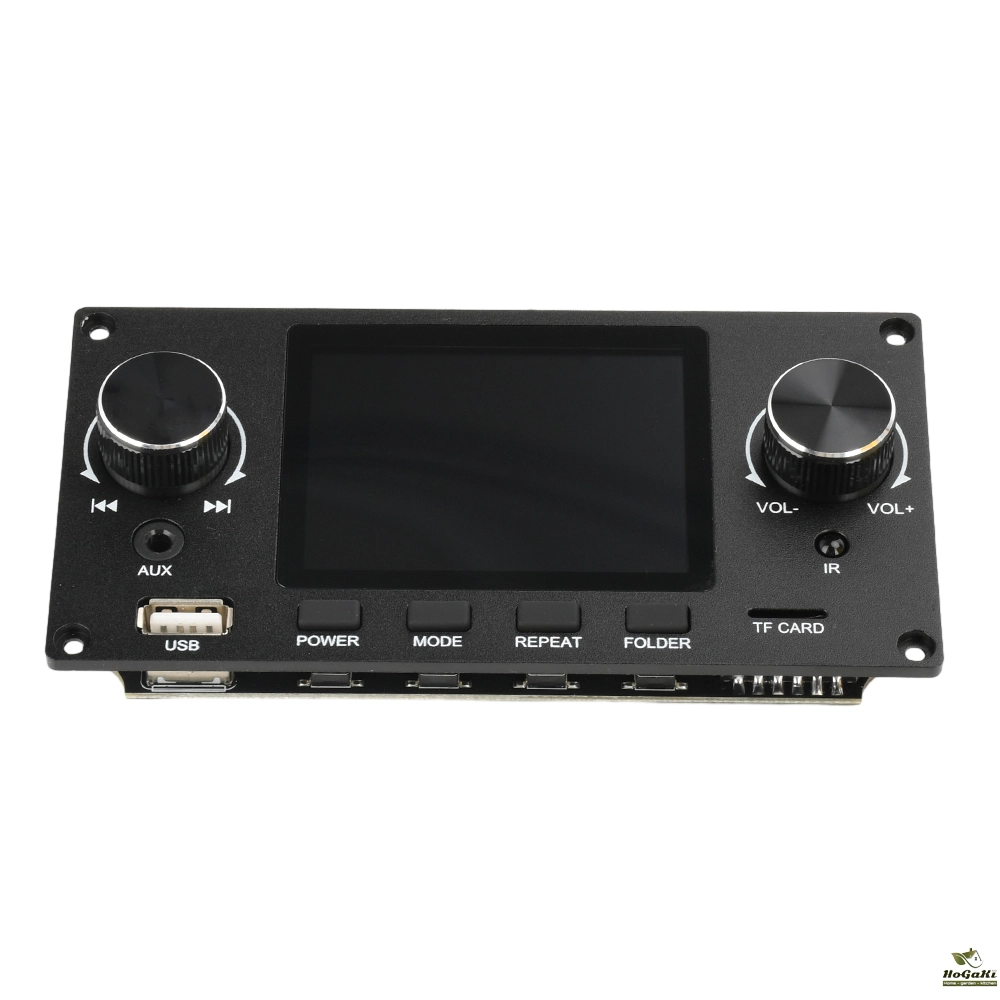

Decoder board module *1
M3 hexagonal wrench *1
M3X16 hexagonal screws + nuts *4
Remote control *1
3.5mm audio jack cable *1
PH2.0/5PIN to Dupont cable*1
PH2.0/3PIN cable*2
PH2.0/2PIN power cable*1
