PelcoD Visca Onvif 4D Joystick IP PTZ Keyboard Controller RS485 RS232 RS422 for Vmix / Broadcasting System
5.0 (1 votes) | 4 orders
Price:
US $1927.62
Discount Price:
US $
1156.58
-40%
PelcoD Visca Onvif 4D Joystick IP PTZ Keyboard Controller RS485 RS232 RS422 for Vmix / Broadcasting system
Introduction:
This product is a real sense of video conference camera control keyboard,
with strong maneuverability, fully compatible with the control network, serial camera,
support network onvif, visca, serial visca, pelco-d/p protocol, etc.
Support fast camera switching, support fast setting of ptz camera parameters and so on.
The industrial blue screen LCD module has excellent display effect and delicate
and clear characters. Support rocker infinitely variable speed control, etc.
Application:
Video conferencing, conference system, teaching and video broadcasting,
Tele-education, Tele-training, etc.

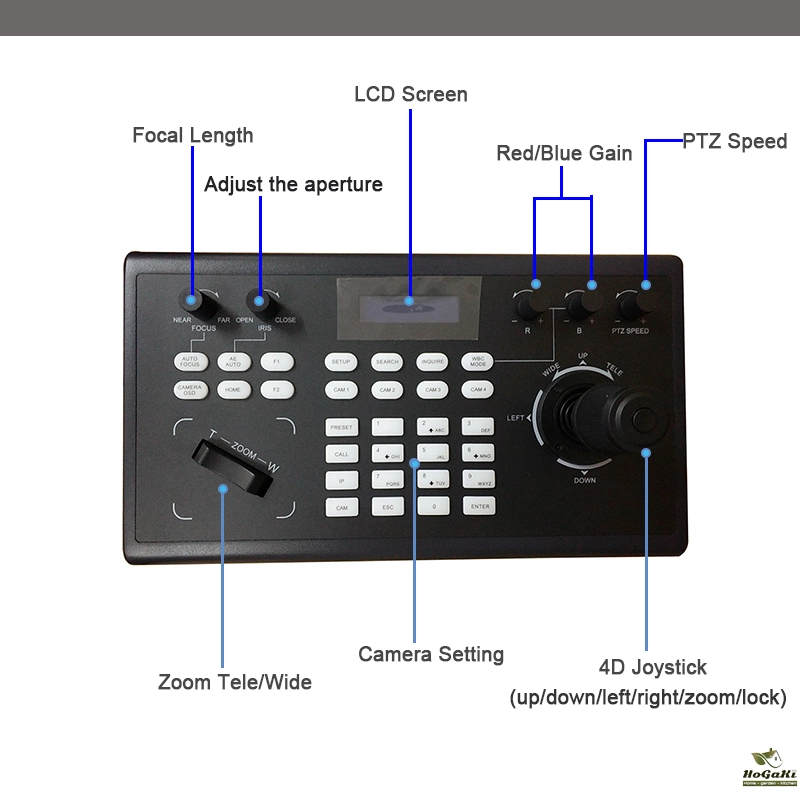

Main Features:
Metal shell, silica gel touch switch button design, feel good;
Support network onvif, visca protocol, serial port visca, pelco-d/p protocol
Quick operation of camera focus, aperture, AE, white balance and other common parameters by keys
Supporting fast selection of camera operation
Stepless speed change of joystick
LCD Display in English and Chinese
Technical Parameter:
Model NO. | K2000 |
Communication | IP onvif,visca, serial visca,pelco-d,pelco-p |

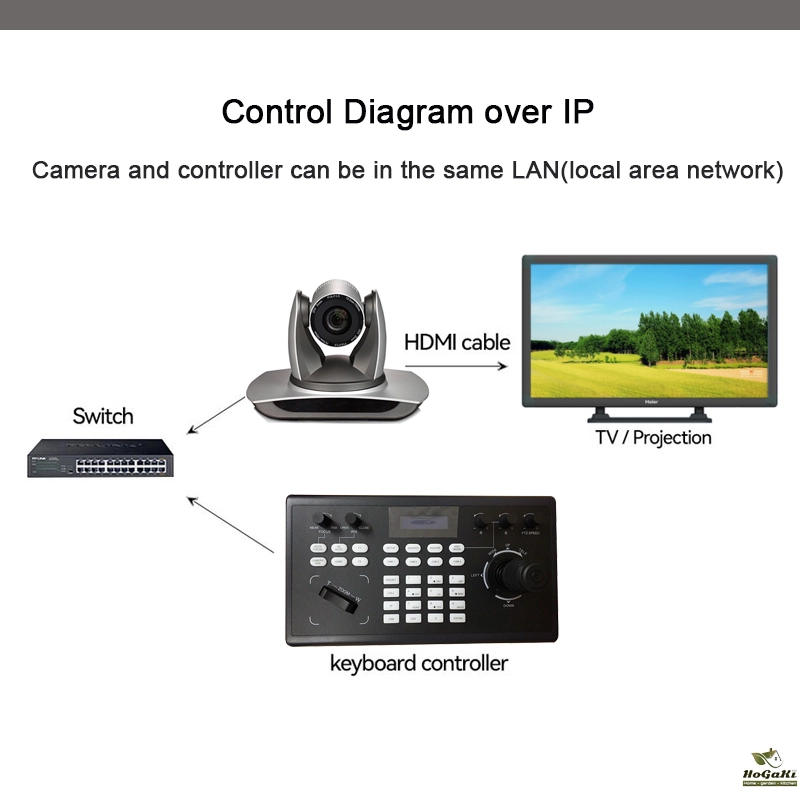

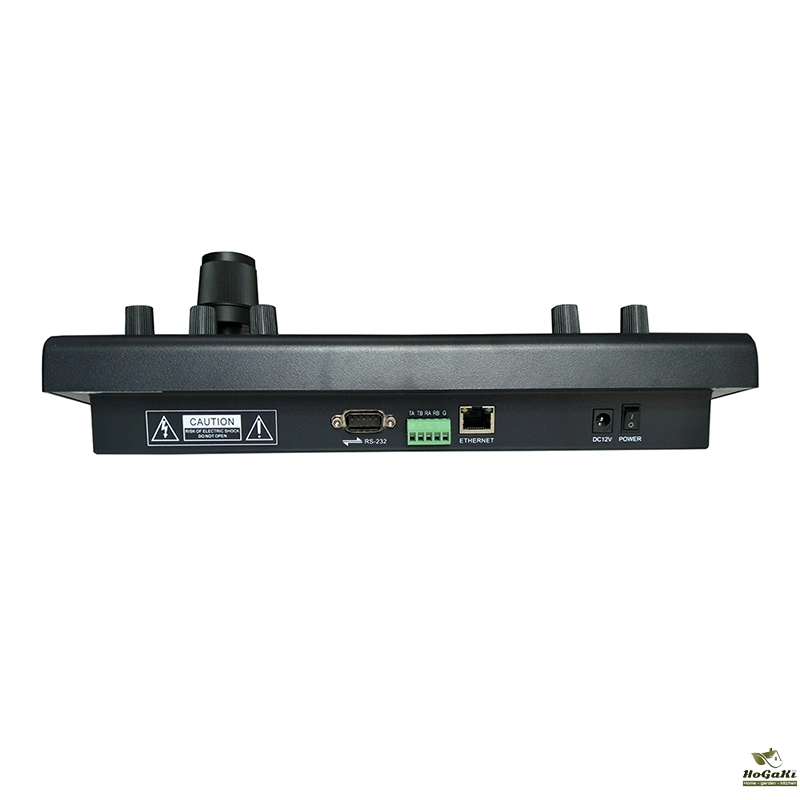

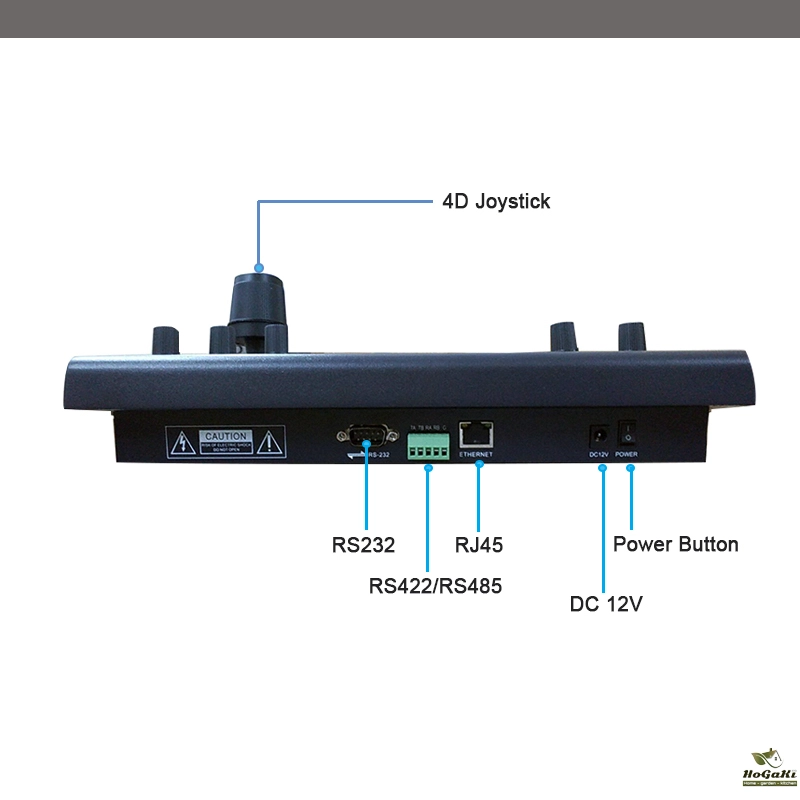

Communication mode | Network: RJ45, serial port: RS485 half duplex, RS232 serial port |
Key | Constant open key |
Baud rate | 1200bps, 2400bps, 4800bps, 9600bps |

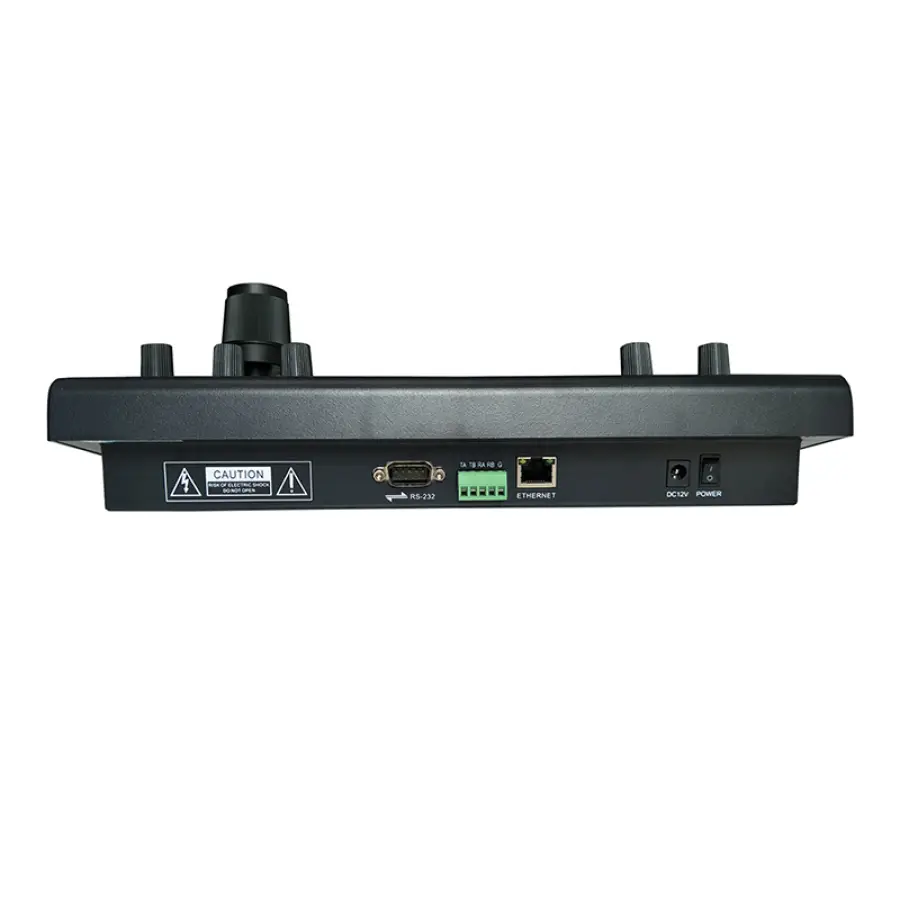

Control interface | RJ45, 232,485 connection ports, DB9 |

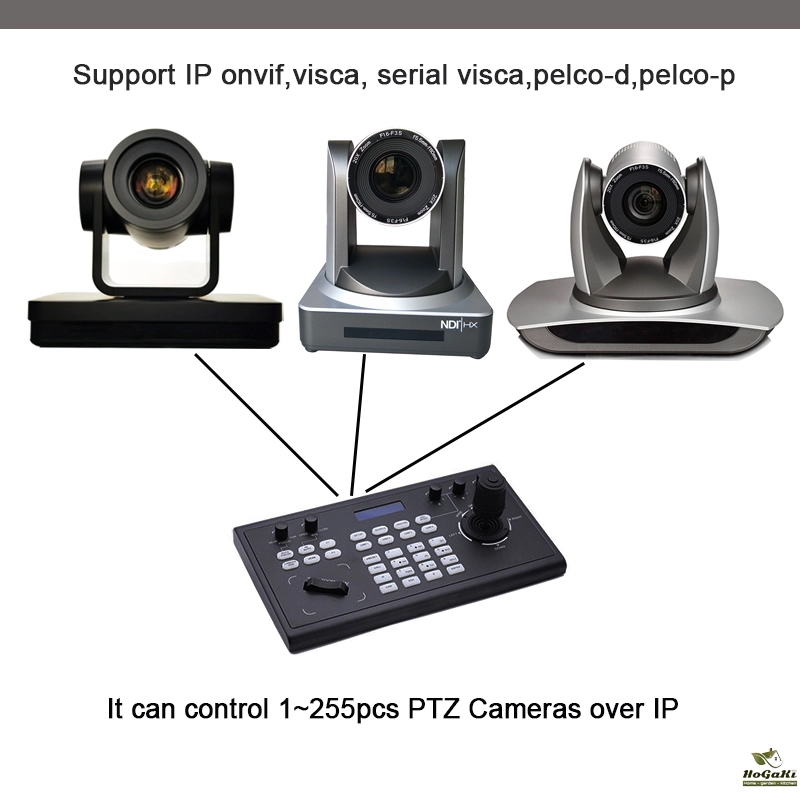

Control Camera Quantity | 1~255Pcs |
Joystick | 3D Joystick(up/down/left/right/zoom) |
Interface mode | 5PIN crimping terminal, DB9 terminal |
Display | Blue Screen LCD Display |
Prompt sound | Keyboard sound prompt on/off |
OSD Menu | English/Chinese |
Power supply | DC12V1A±10% 6W Max. |
Operating Temperature | 0℃～+50℃ |

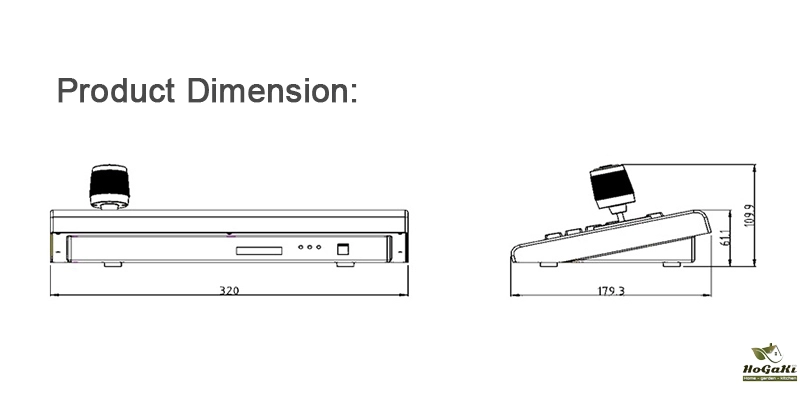

Product size | 350mm*190mm*55mm |

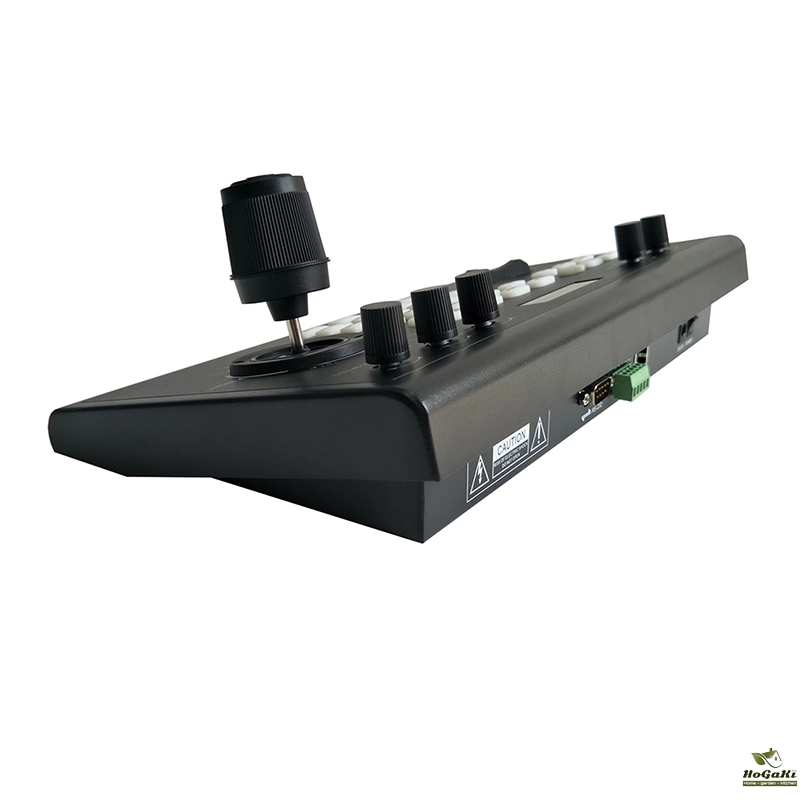

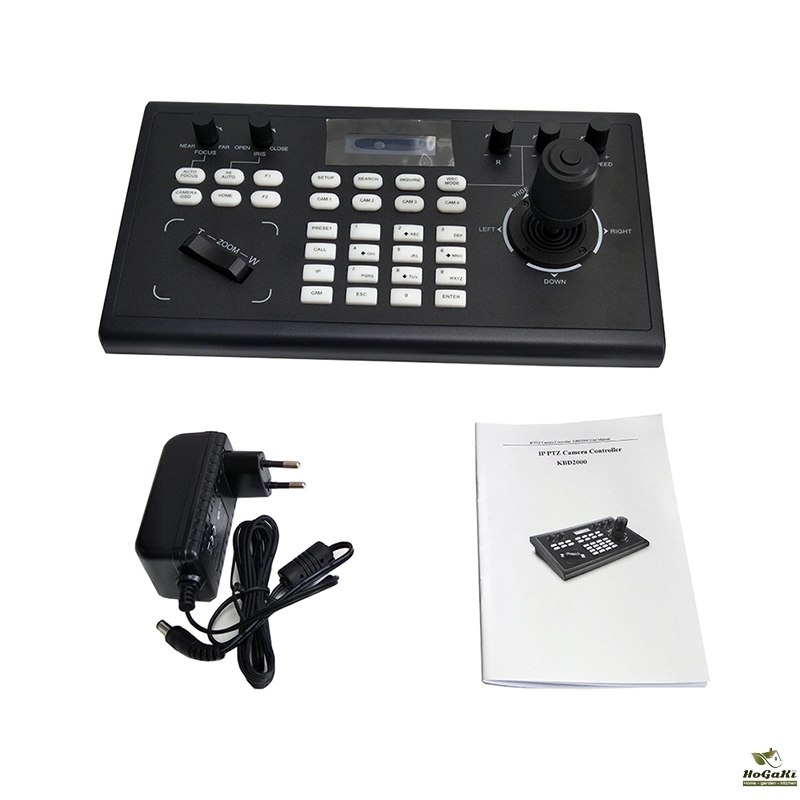

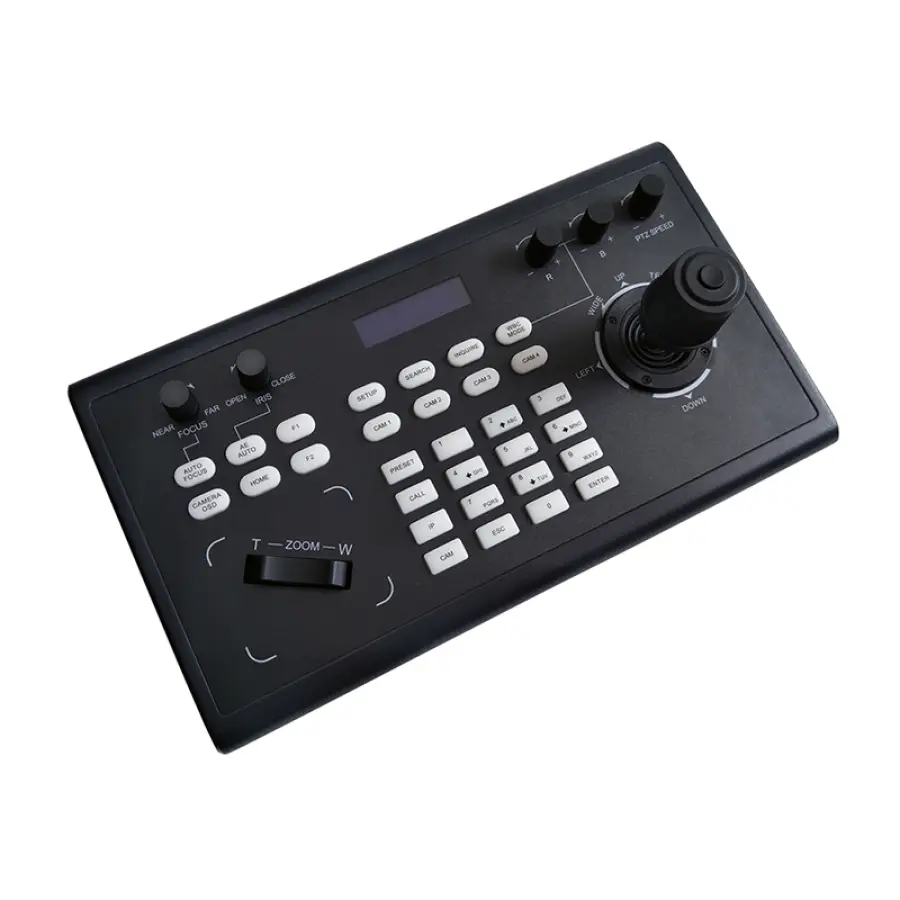

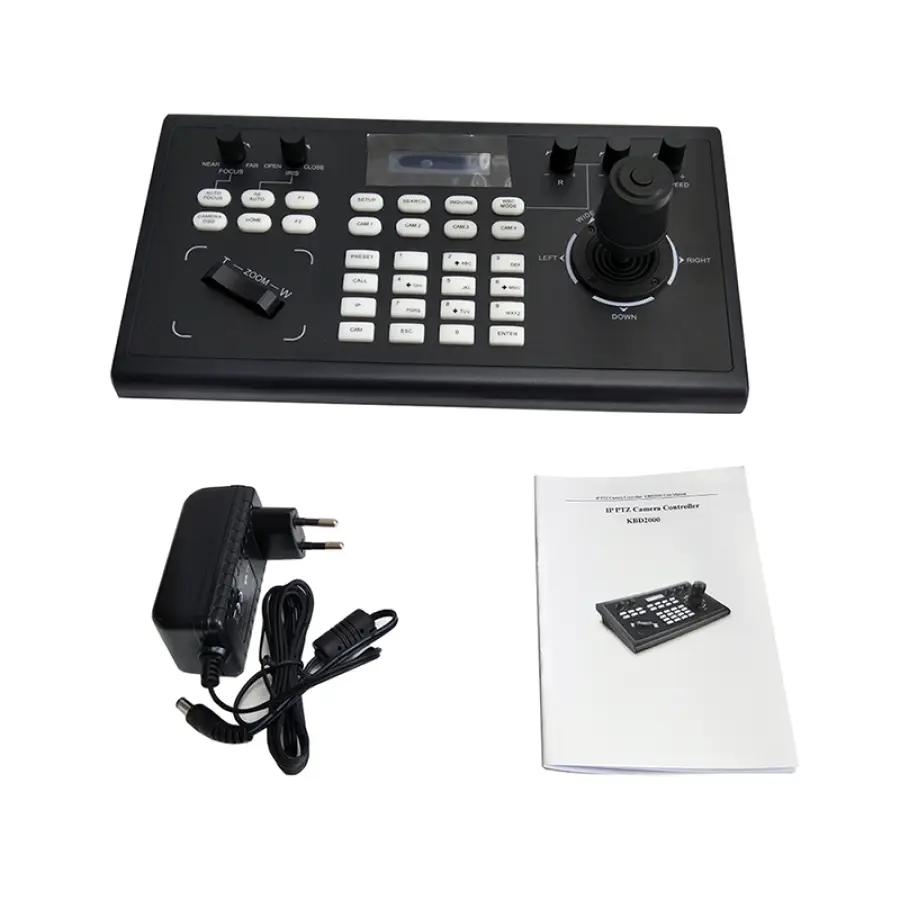

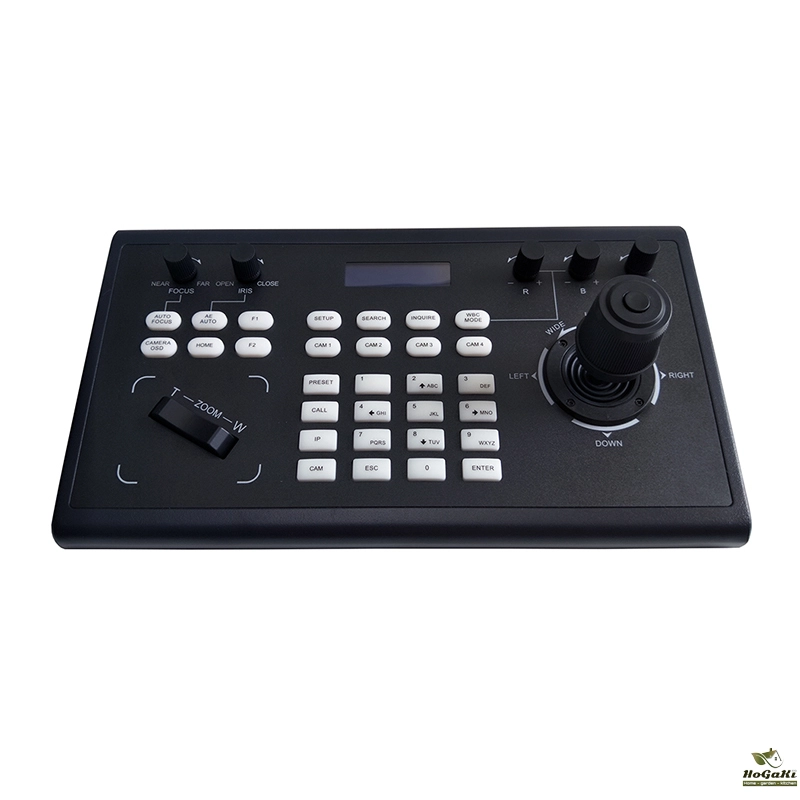

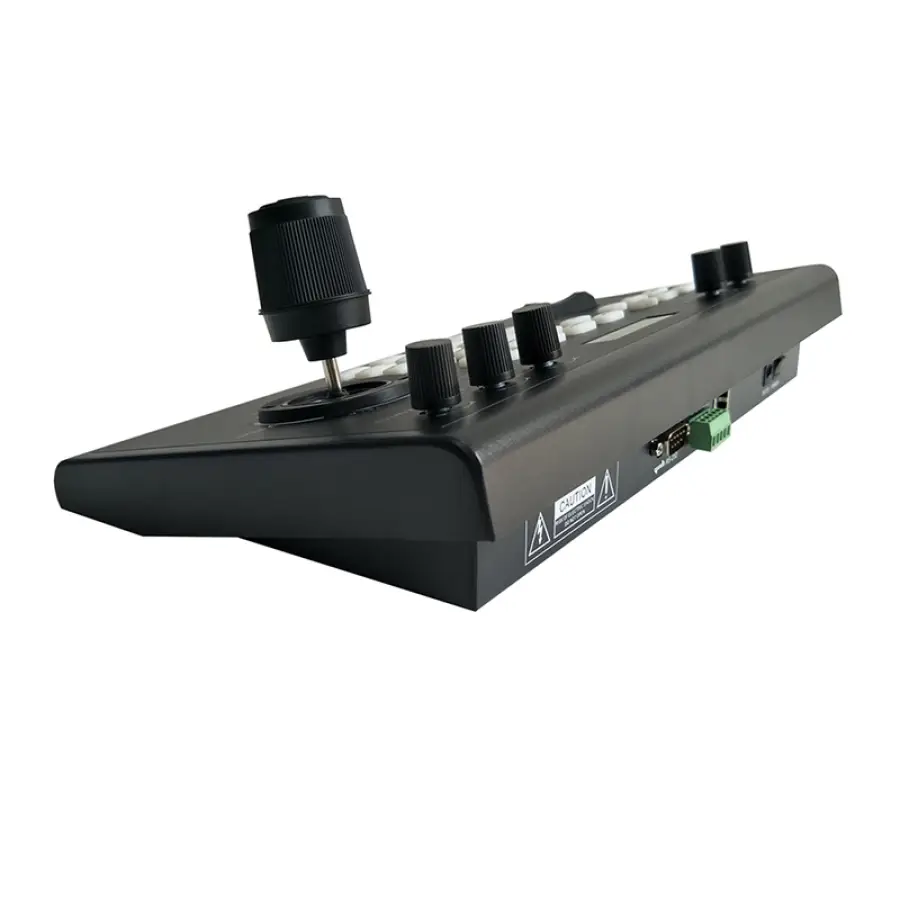

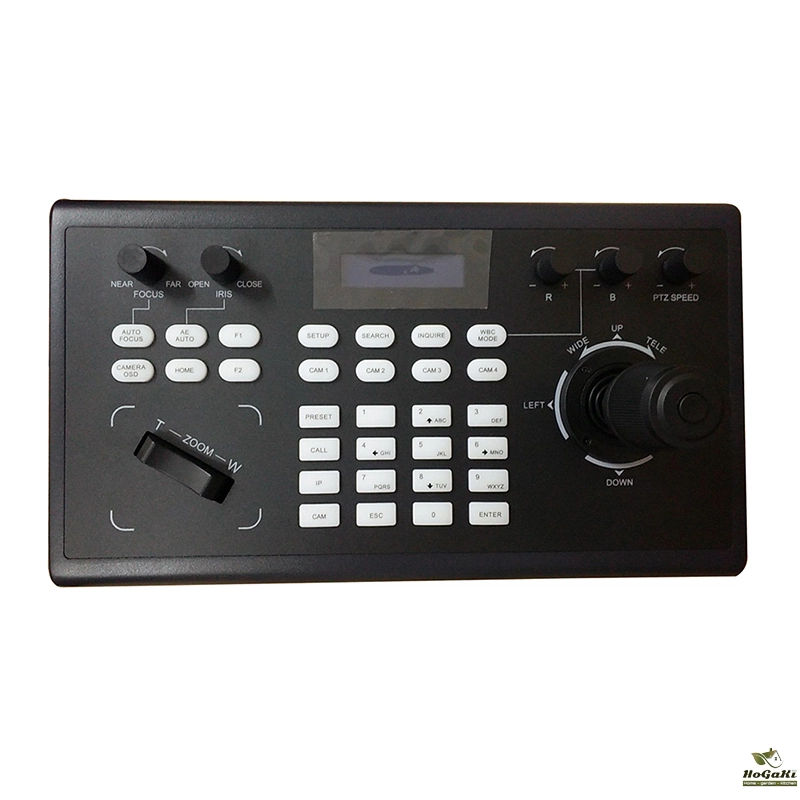

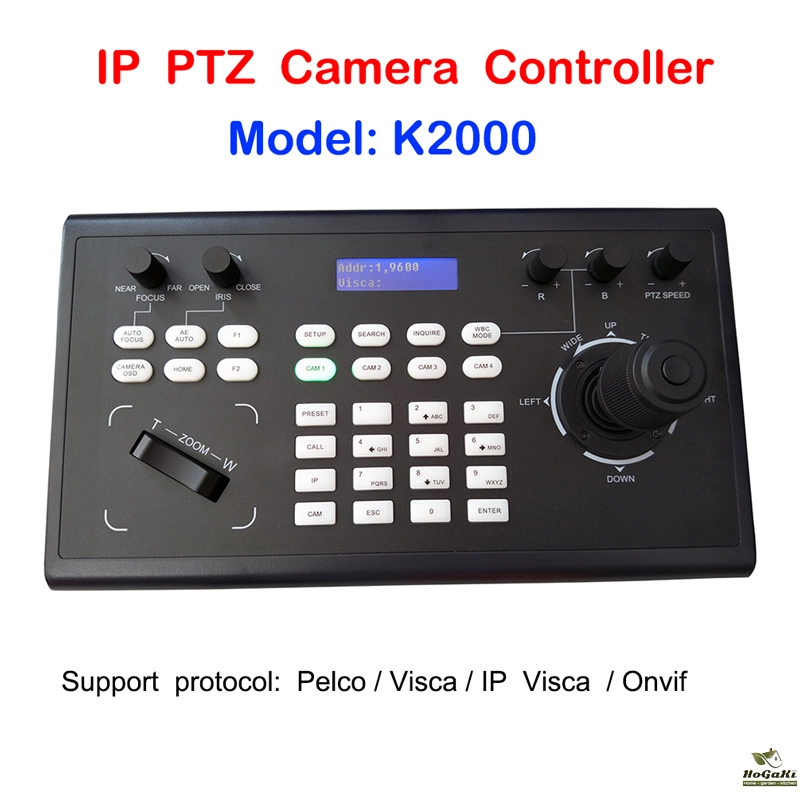

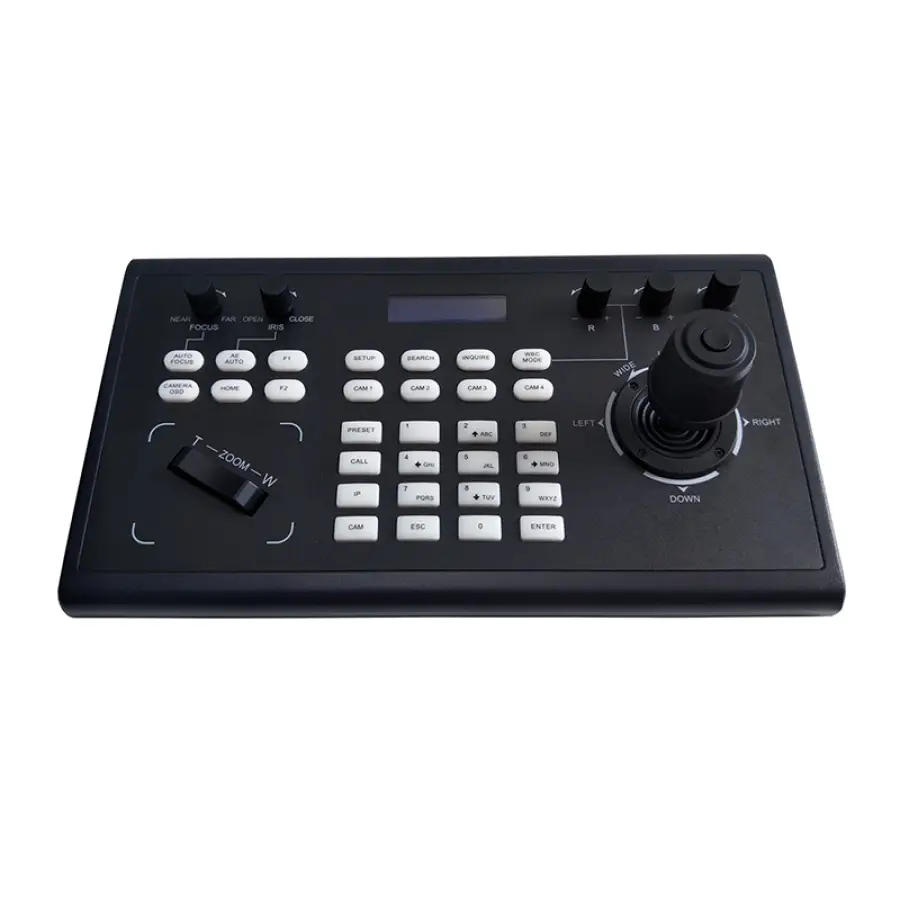

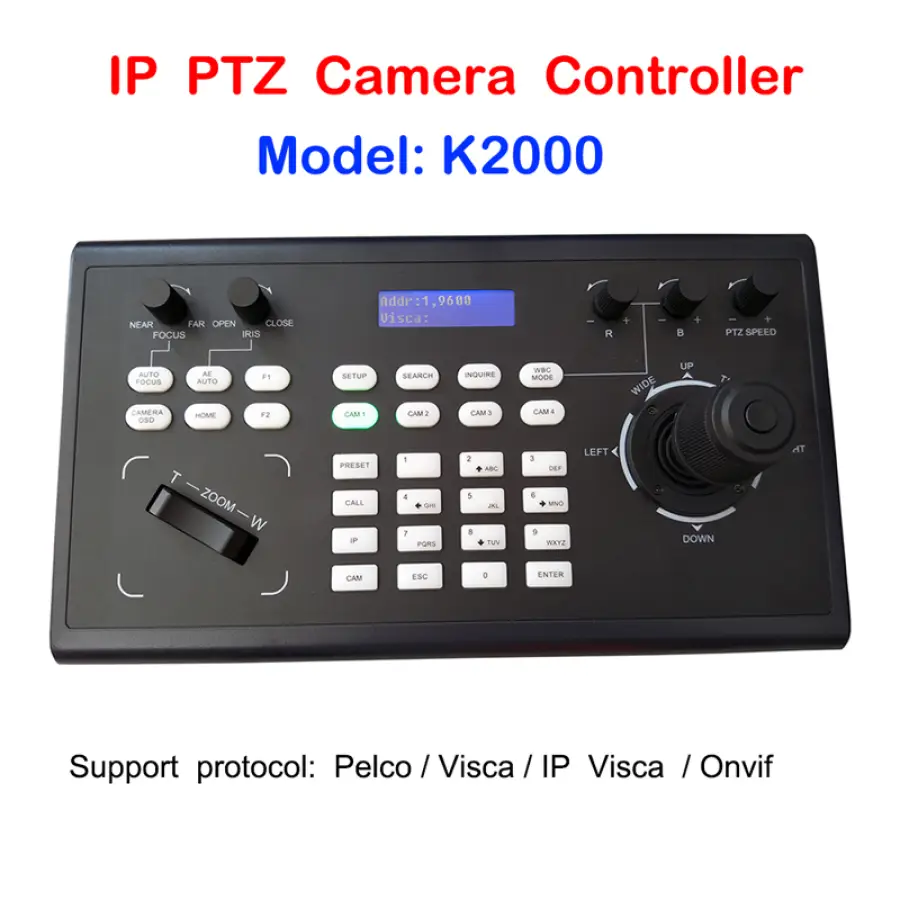

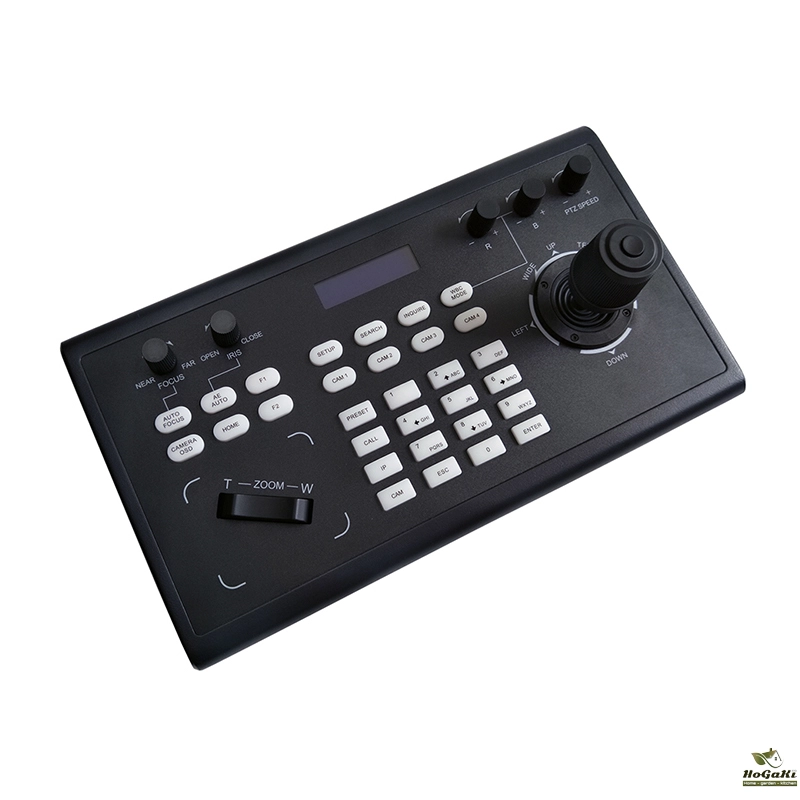

Product Photos:
The Product Warranty of our products is ONE year.
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly ways:
1. If it is quality problem, buyer must provide photos or video or other evidences to seller for evaluation and identification.
2. Man-made damaged, buyers should take full responsibility.
3. Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
Remarks
1. Please contact us before leaving any negative or neutral feedback. We will reply with you to solve problems as sooner as possible.
2.Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
3. Any import charges or fees are the buyer's responsibility.
4. Seller is not responsible for delays caused by the customs department in buyer's country.
5. Additional costs or delays may occur during international trade. We sincerely hope that you do not use additional import costs or customs clearance delays as a reason for requesting refunds or leaving negative feedback.
If you are satisfied, please give us a five-star review⭐⭐⭐⭐⭐
If you have any doubts, please contact us~
Contact us
Sales Manager: 0086 13530601567 Jenia Liu
Skype: jenia_liu
WhatsApp: +0086 13530601567
QQ: 3778090113
WeChat: +0086 13530601567
Packaging Details
- Unit Type:
- Package Weight: 4.500
- Package Size: 26x20x43
- Brand Name: FLA
- Origin: Mainland China
- Model Number: FLA-K2000
- Certification: None
- output interface: RS232/ RS485/ RJ45
- System language: English/Chinese
- Protocol: Support PELCO-D/P / VISCA / Onvif
- Power supply: DC12V
- Product Name: IP PTZ Keyboard Controller
