WIFI HDMI to IP H.265/H.264 video Encoder with HDMI Loopout by HTTP RTSP RTMP/RTMPS UDP SRT ONVIF
5.0 (1 votes) | 2 orders
Price:
US $
334.86

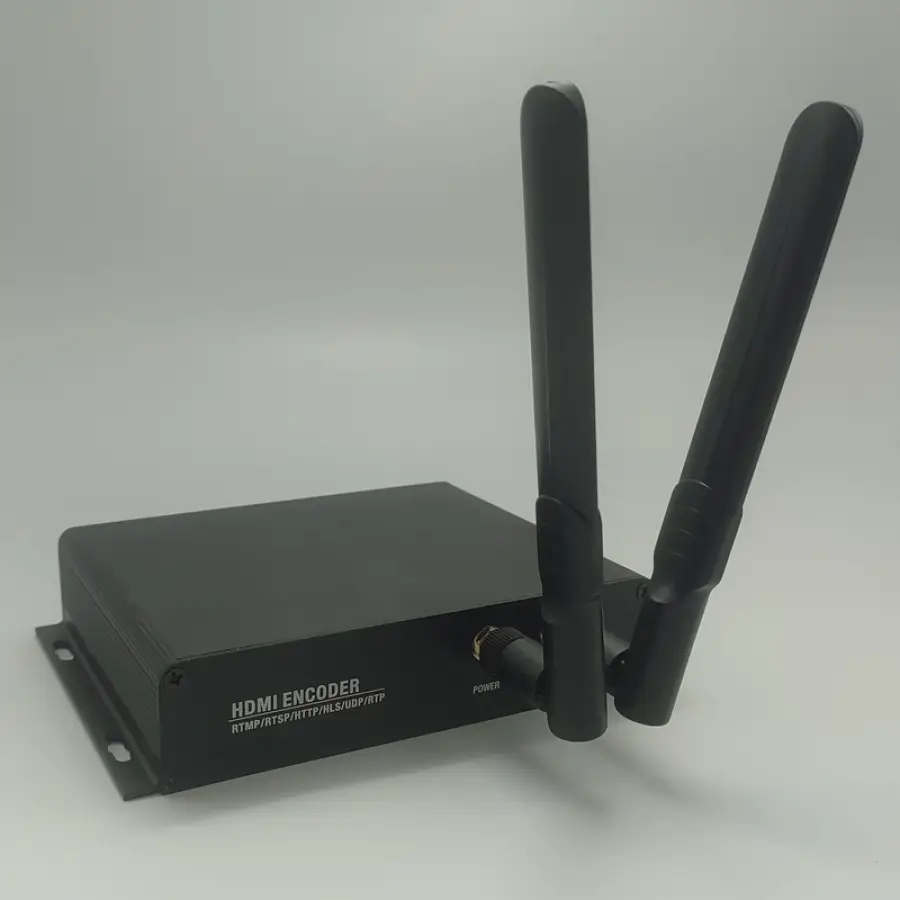

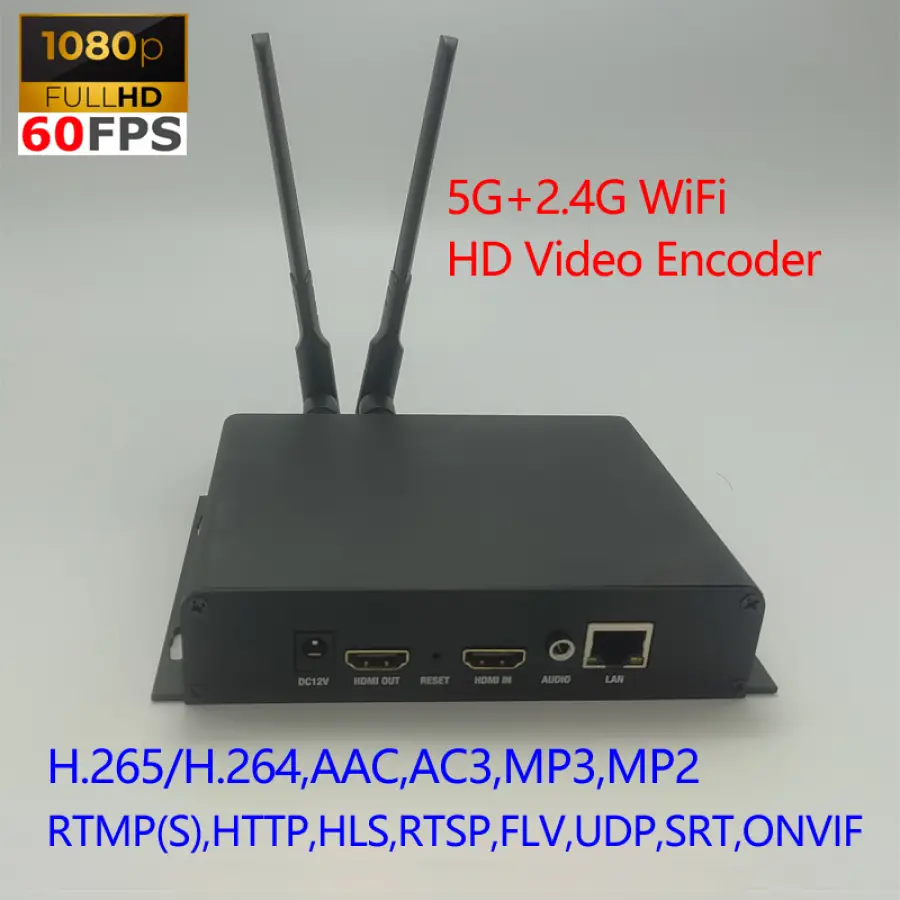

H.265/H.264 HDMI Video Encoder with HDMI Loopout by WiFi and RJ45
Features
1. Embedded Linux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.1.168. the user name is admin and the password is admin.
3. Support RTMP/RTMPS, SRT, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.
4. Support output 1 main stream and 3 sub stream to different Media Server at the same time.
5. Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.
6. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
7. Support two options, one is HDMI IN Video + HDMI IN Audio, the other is HDMI IN Video + Audio IN Audio.
8. Output Stream bitrate adjustable.
9. Support firmware upgrade.
10. IP address can be set by yourself.
11. Support remote control via router port forward.
12. with HDMI Loopout
13. Using 2.4G/5G Wifi and RJ45 network port
Application
1. IPTV
2. Online Live Broadcast, such as YouTube, Ustream, Twitter, Sopplus, etc.
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
Usages
You can play the video directly using some software tools like vlc or potplayer etc, for example,
1) http://192.168.1.168/0.ts
2) http://192.168.1.168/0.hls
3) http://192.168.1.168/0.m3u8
4)
4) http://192.168.1.168/0.flv
5) rtsp://192.168.1.168/0
6) udp://@238.0.0.1:1234
7) srt://192.168.1.168:9000
TS URL: http://192.168.1.168/0.ts
HLS TS URL: http://192.168.1.168/0.m3u8
HLS MP4 URL: http://192.168.1.168/0_mp4.m3u8
MP4 URL: http://192.168.1.168/0.mp4
FLV URL: http://192.168.1.168/0.flv
RTSP URL: rtsp://192.168.1.168/0
RTMP URL: Disable
RTMP(S) PUSH URL(Not Connected): rtmp://192.168.1.169/live/0
Multicast URL: udp://@238.0.0.1:1234
SRT URL: srt://192.168.1.168:9000
SRT PUSH URL(Not Connected):srt://192.168.1.169:9000
HLS PUSH URL:https://a.upload.youtube.com/http_upload_hls?cid=1111-1111-1111-1111-1111©=0&file=
notes: the IP address can be configured to anyone.
also,set the RTMP/RTMPS/RTSP/SRT/HLS push address from the third live webcasting platform, such as Facebook, YouTube, Ustream, Twitter, Sopplus, etc.
rtmp://p1bj.weizan.cn/v/xxxxx_149690778246506326?t=260e1
srt://srt.p1bj.weizan.cn:8100?streamid=xxxxx_149690778246506326?t=260e1

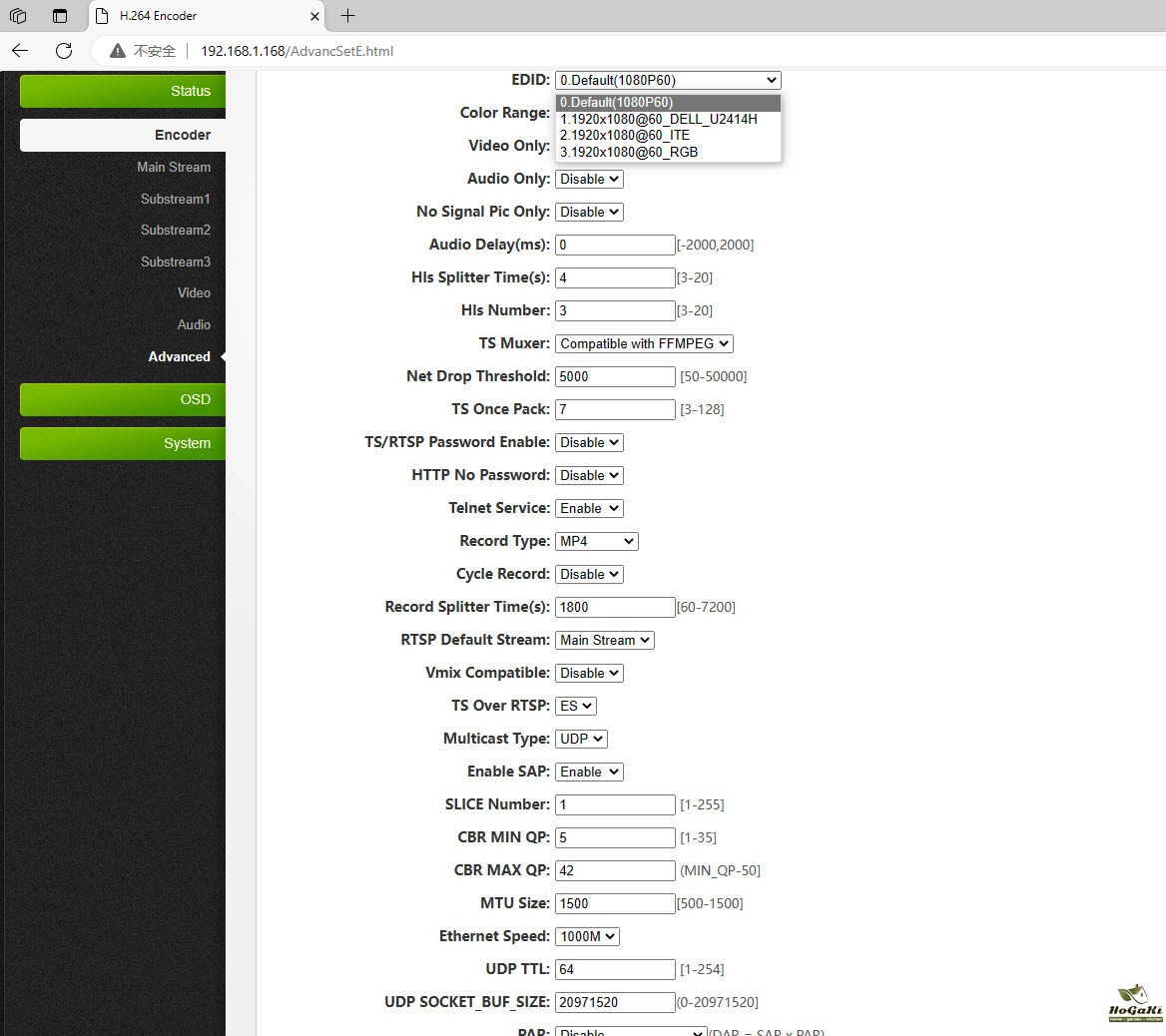

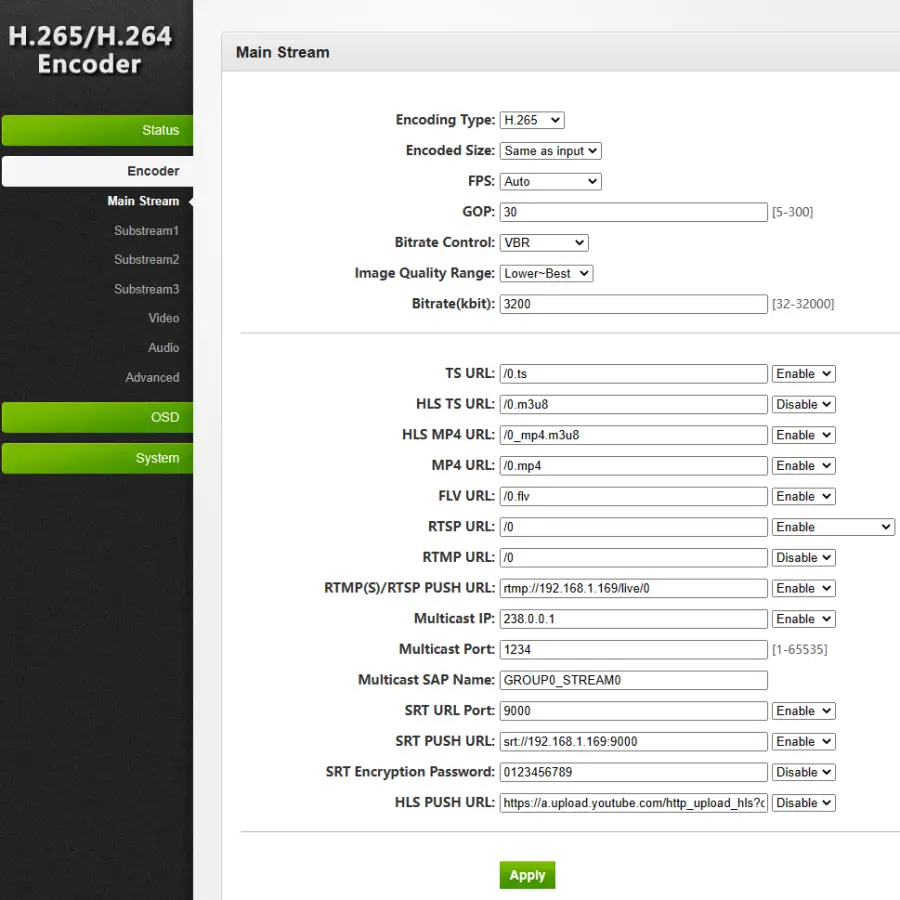

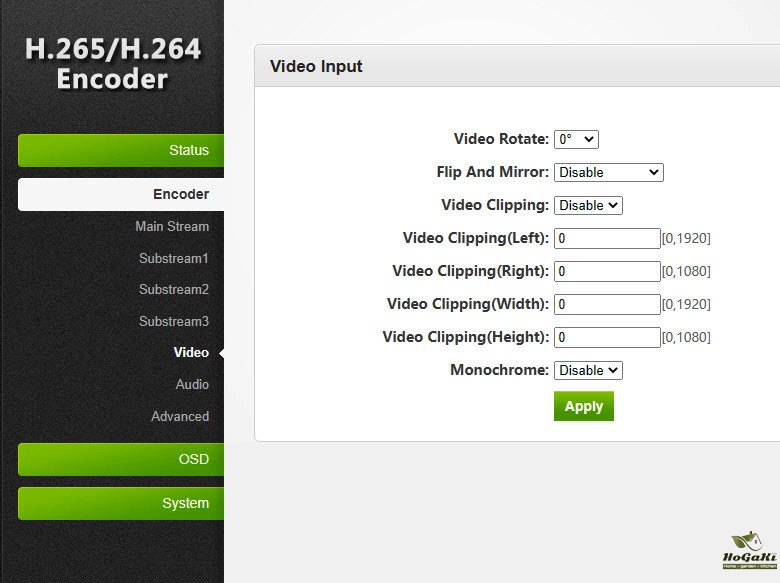

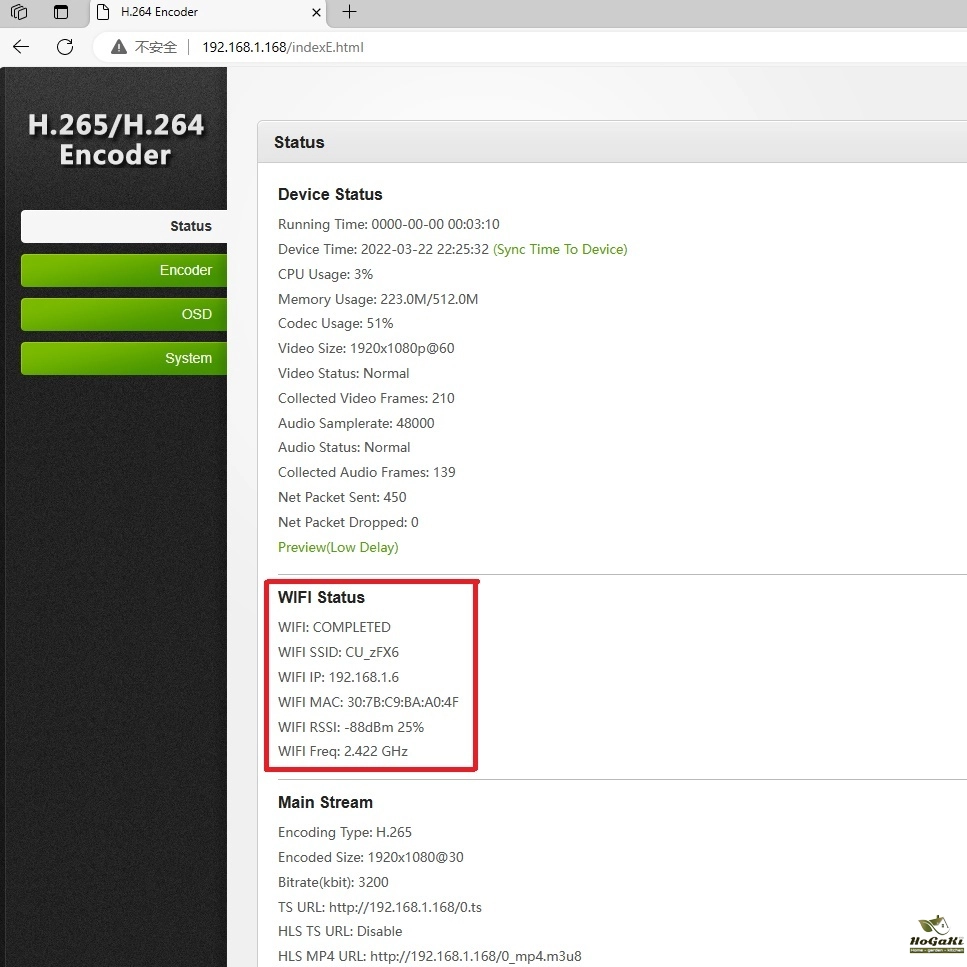

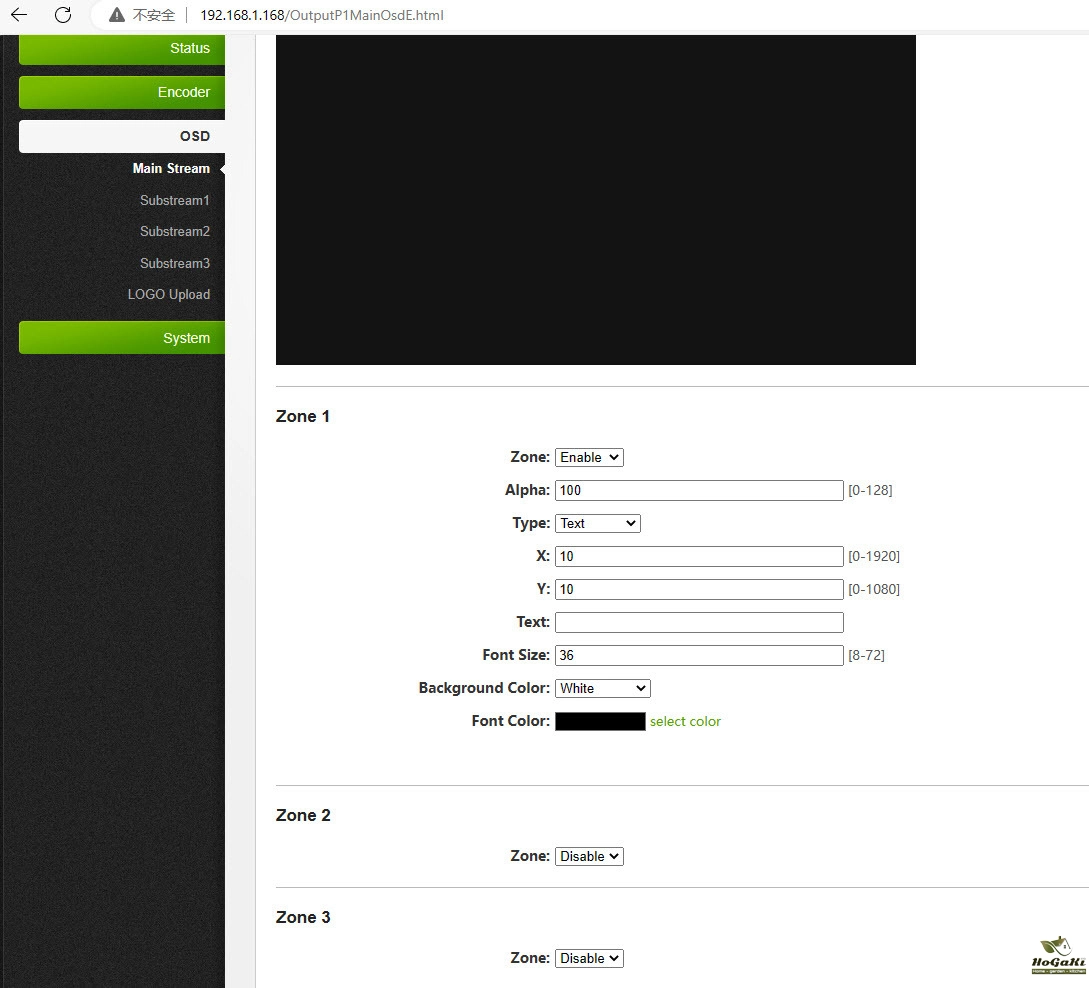

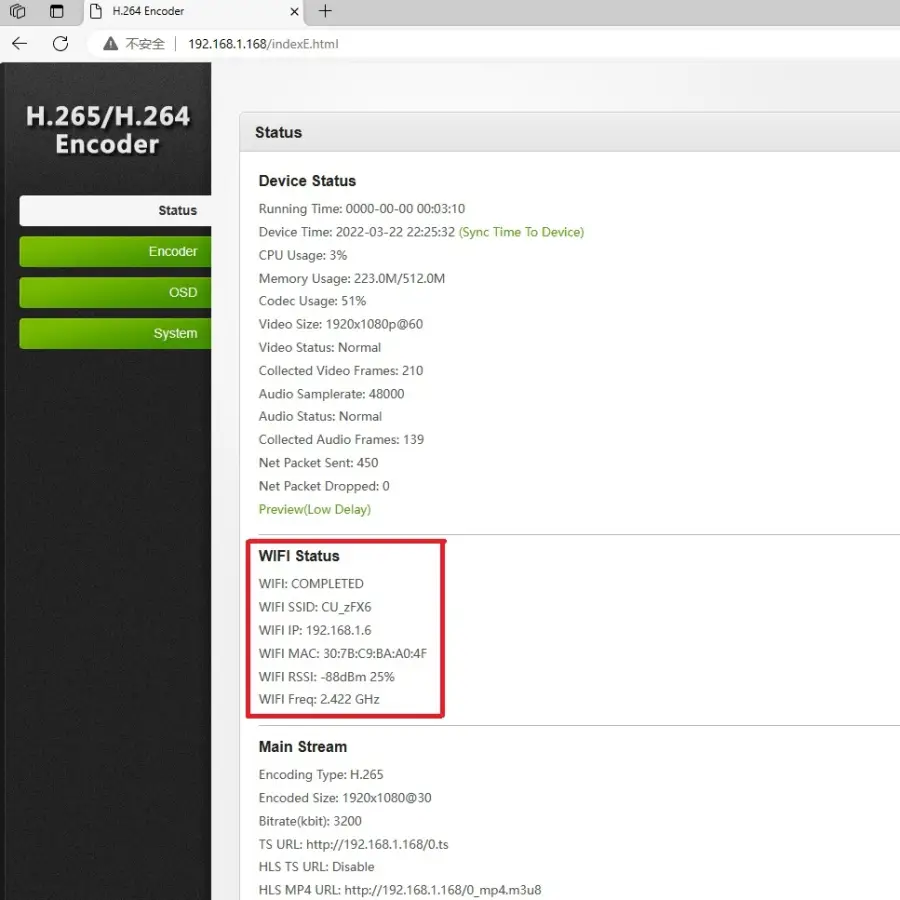

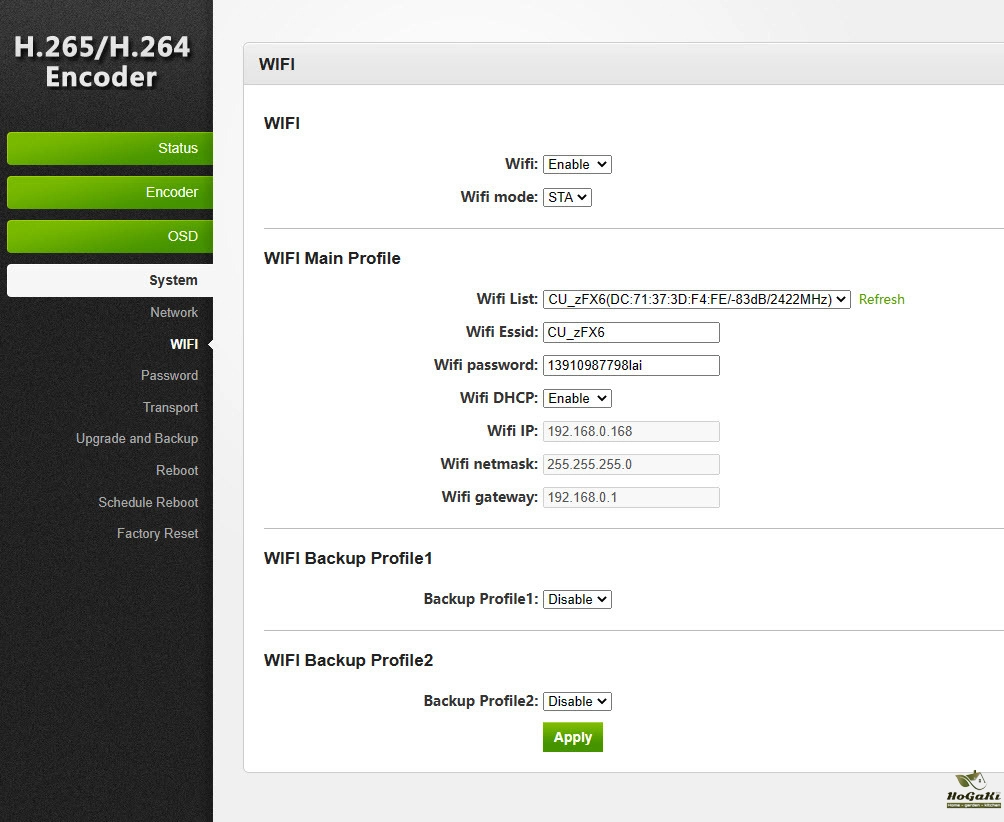

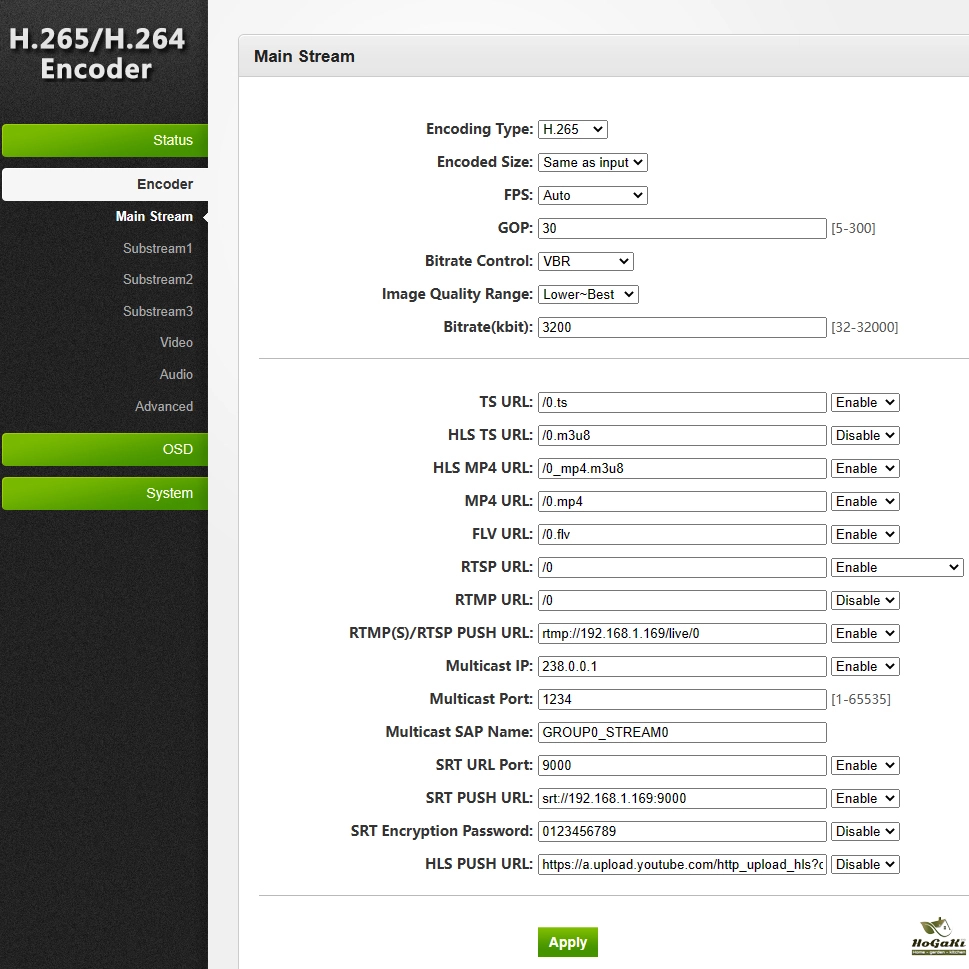

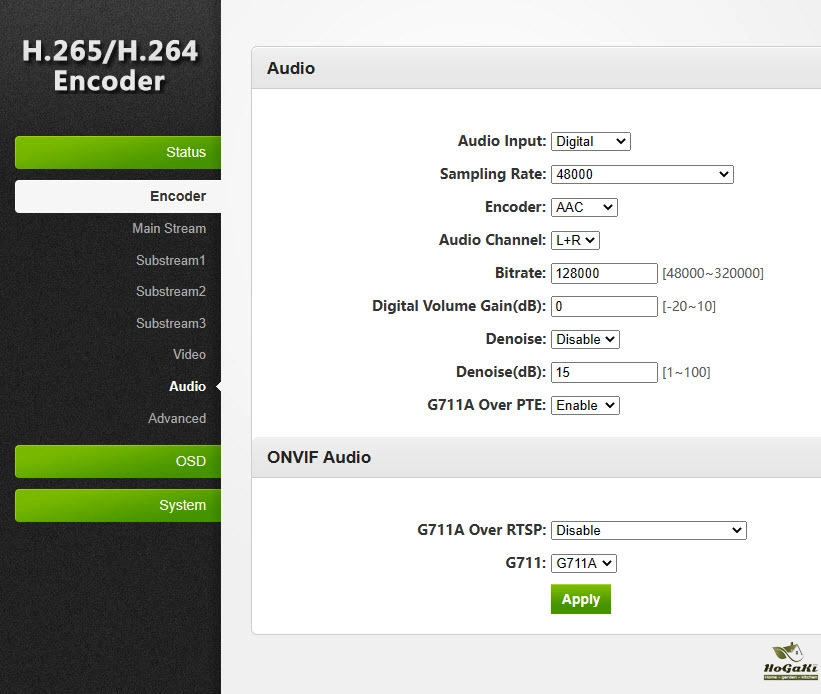

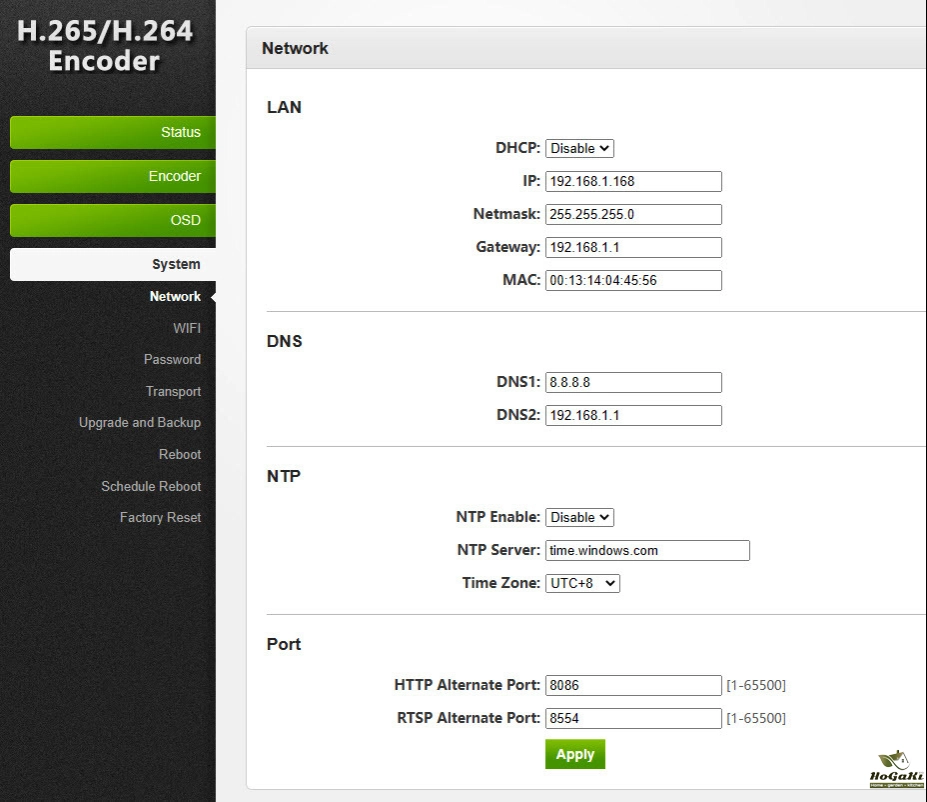

Web configuration Page

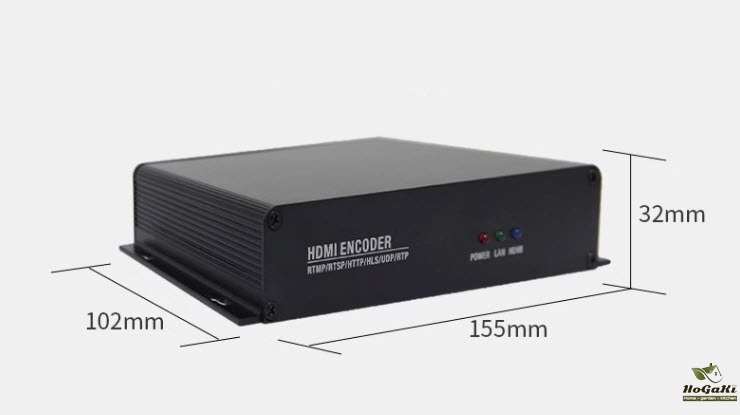

SIZE
Packaging Details
- Unit Type:
- Package Weight: 0.800
- Package Size: 16x8x30
- Brand Name: VBCTECHNOLOGY
- Origin: Mainland China
- Model Number: CEL-HEC503LW
- Smart home platform: None
