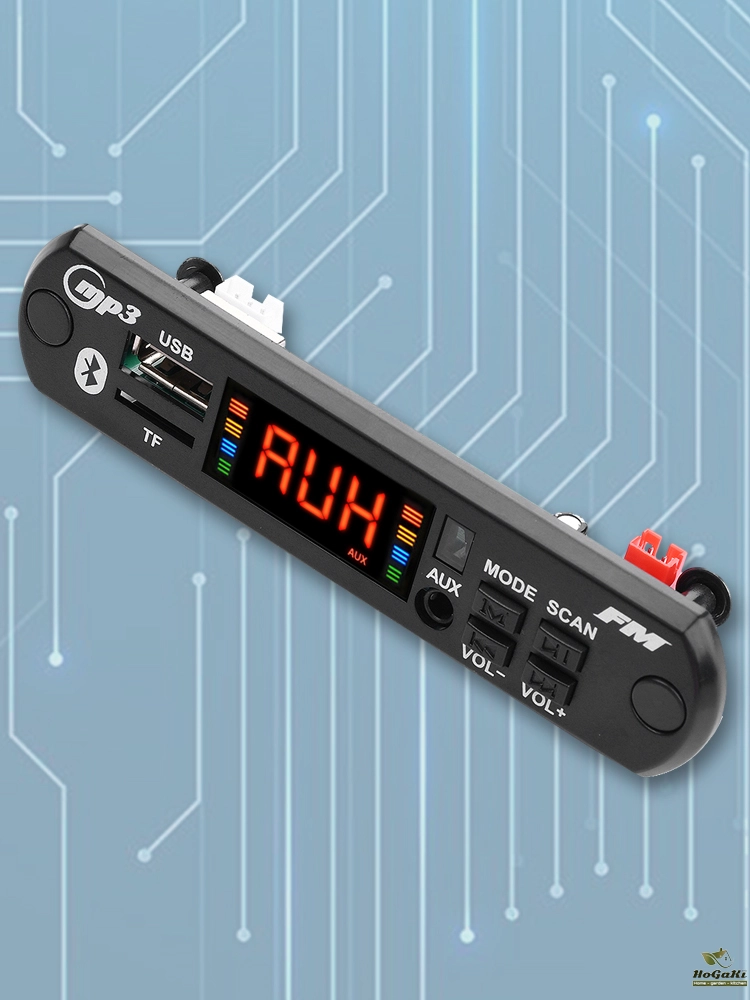

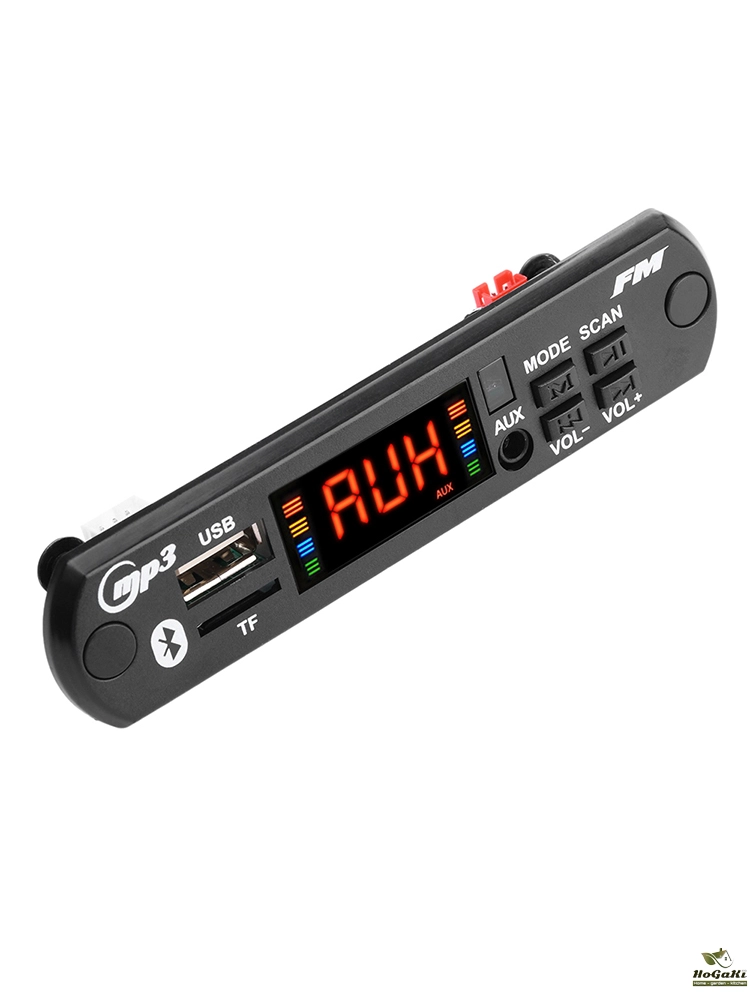

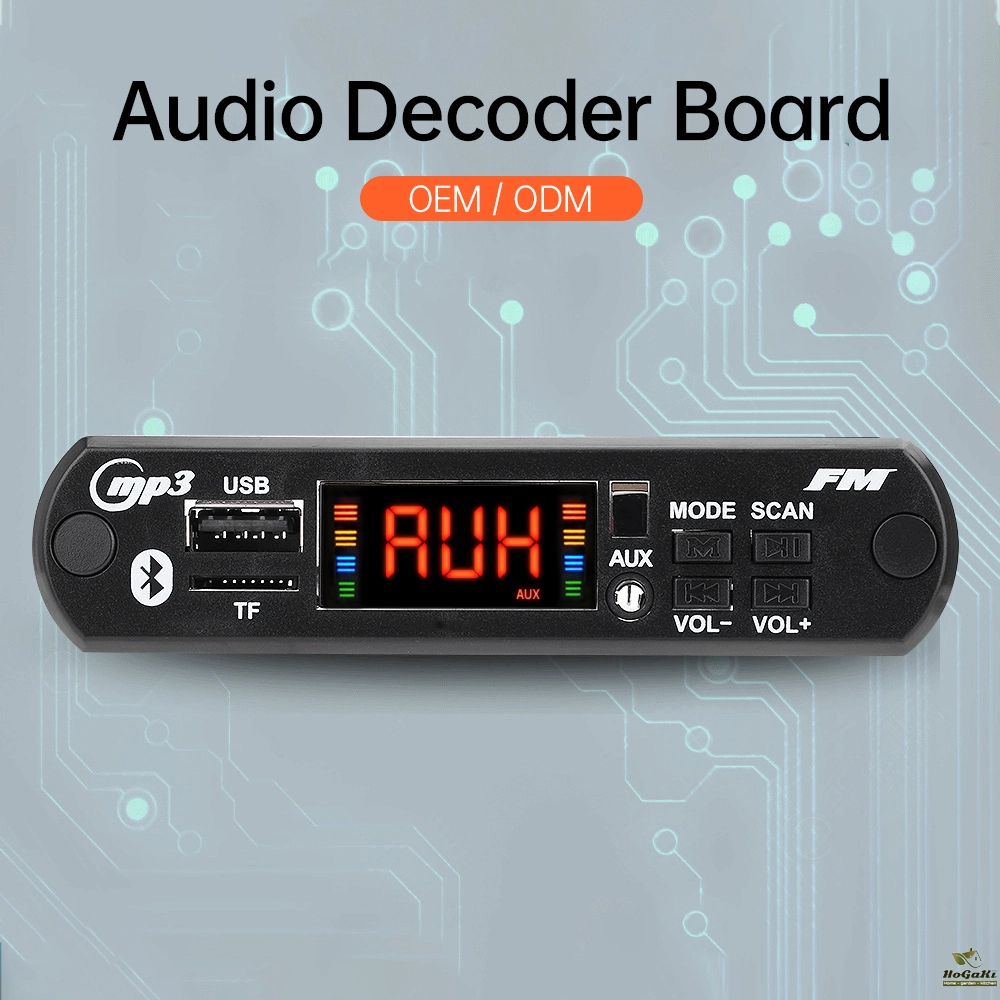

5V/12V color screen BT5.0 MP3 Decoding Board Card Reader Supports BT Function Audio MP3 Player USB TF FM Radio Module
0.0 ( votes) | 3 orders
Price:
US $27.26
Discount Price:
US $
22.09
-19%
- Color
-
-
Features:
1. Made of high-quality materials, durable and equipped with a color screen and digital tube display.
2. Support radio function and multiple music formats, such as MP3/WMA/WAV/APE lossless music.
3. Supports BT function, BT version 5.0, supports infrared remote control operation at a distance of 5-10 meters.
4.2 voltage options available, DC 5V or 12V can be selected according to actual usage needs.
5. Supports MP3/USB/TF/LINE IN/FM/BT/remote control function, with a wide range of applications.
Parameter:
Main control IC: AC6926
BT IC: AC6926
BT version: 5.0 version

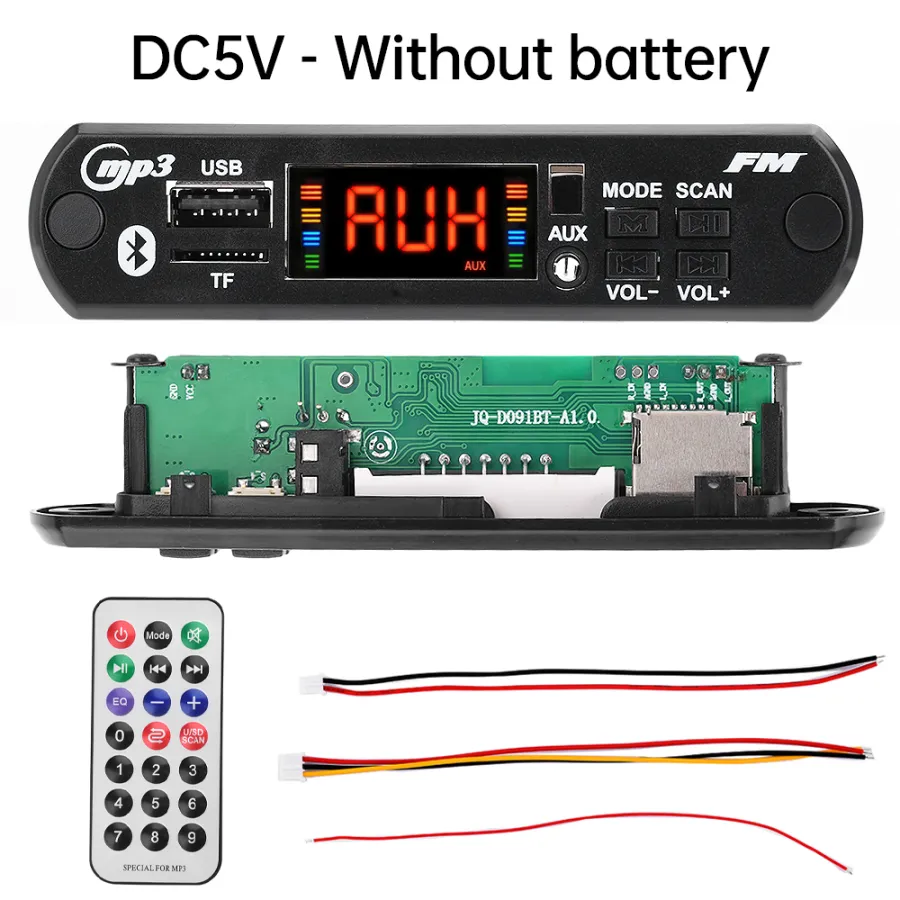

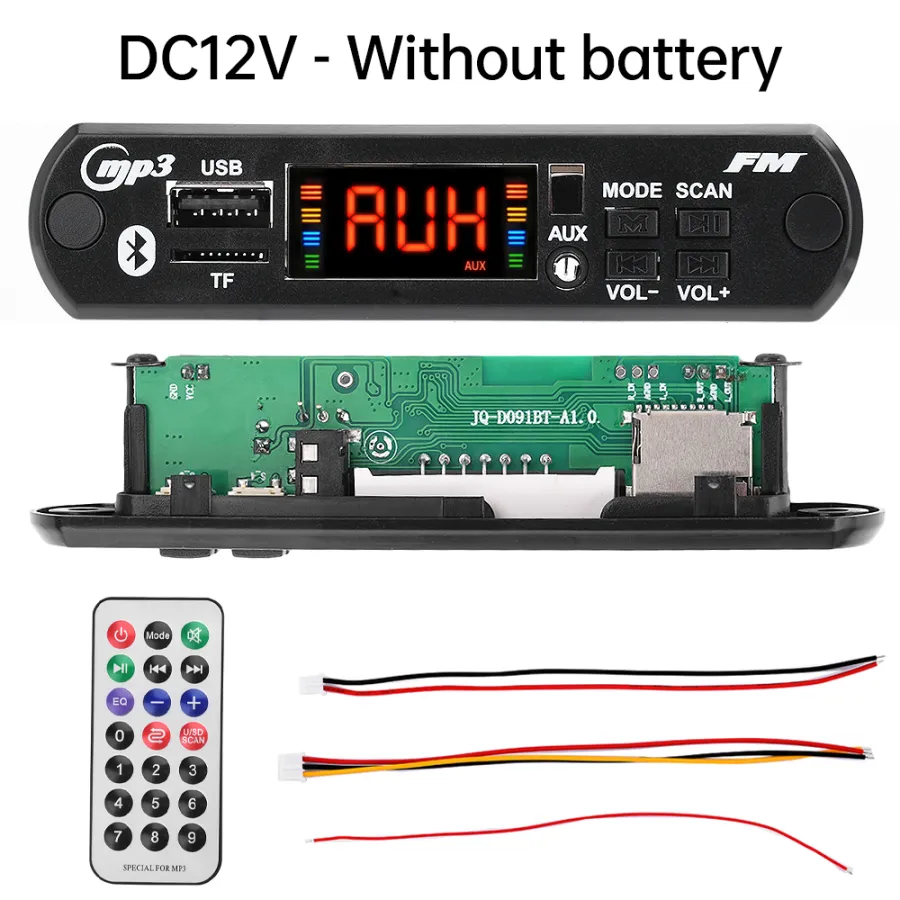

Voltage: DC 5V or 12V (optional)
Music formats: MP3/WMA/WAV/APE lossless format
Radio FM frequency: 87.5-107.5 MHz
Support Function Introduction: Supports MP3/USB/TF/LINE IN/FM/BT/Remote Control/DC 5V or 12V (optional)

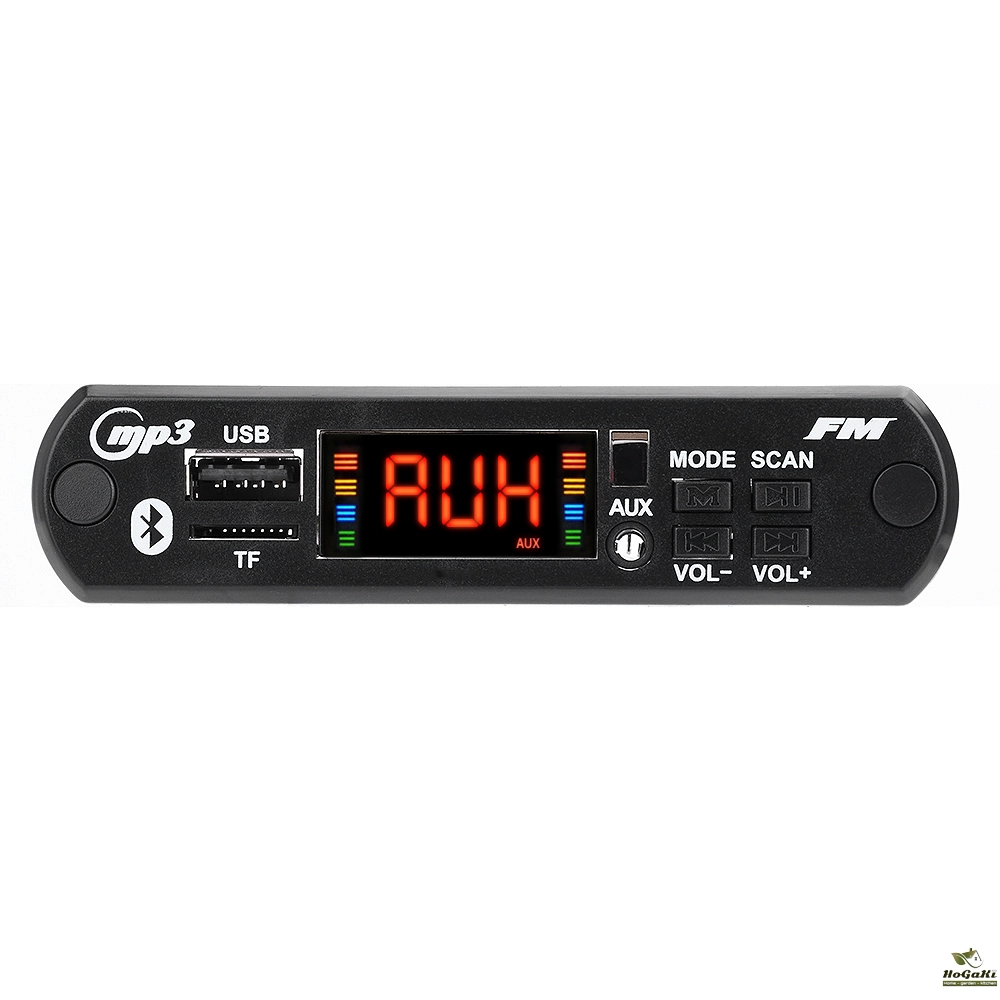

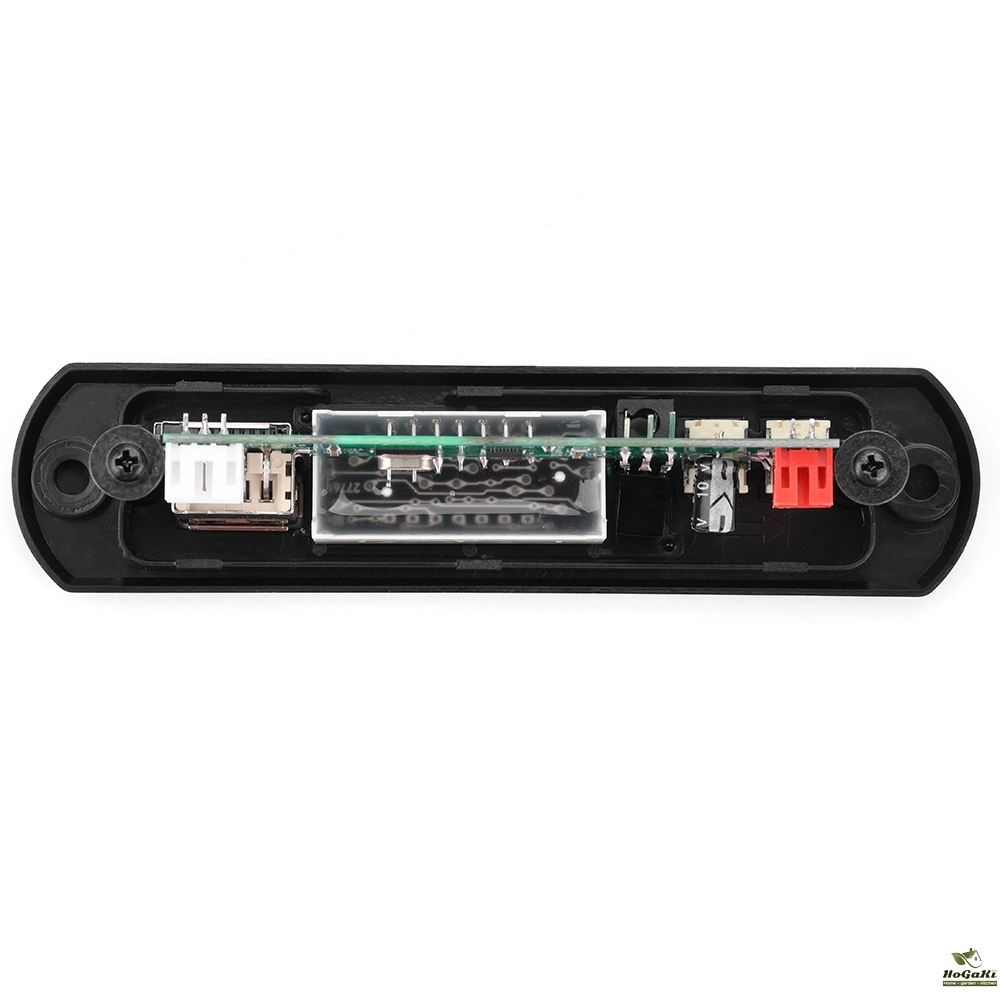

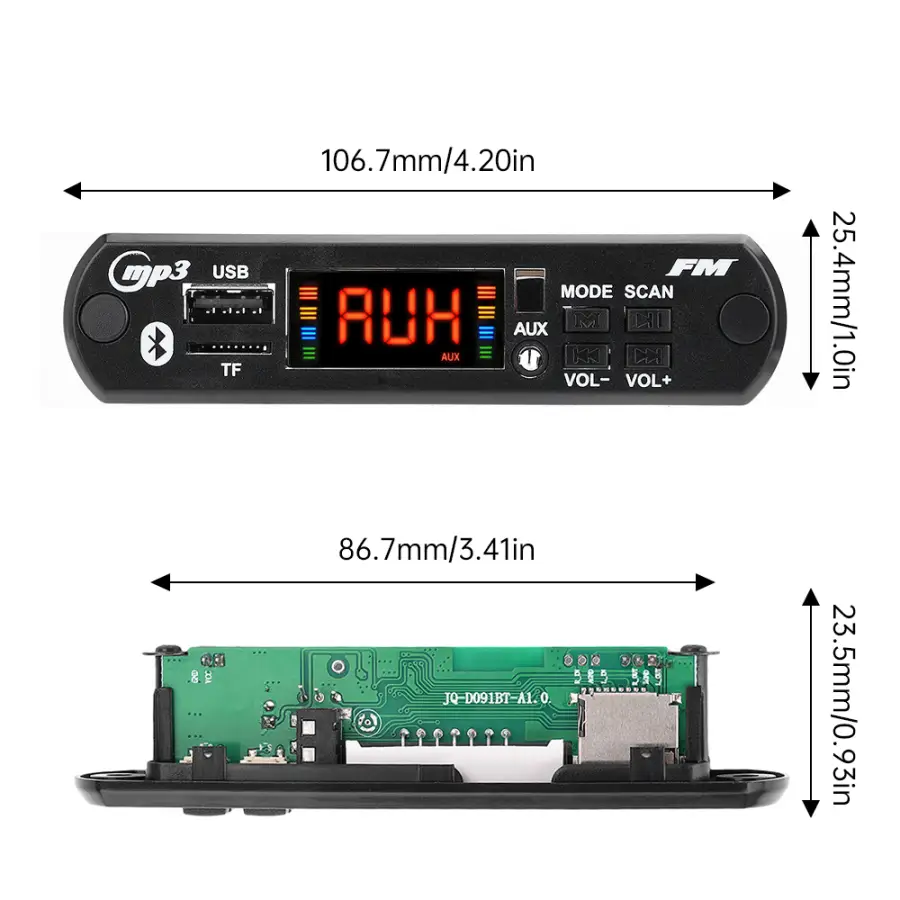

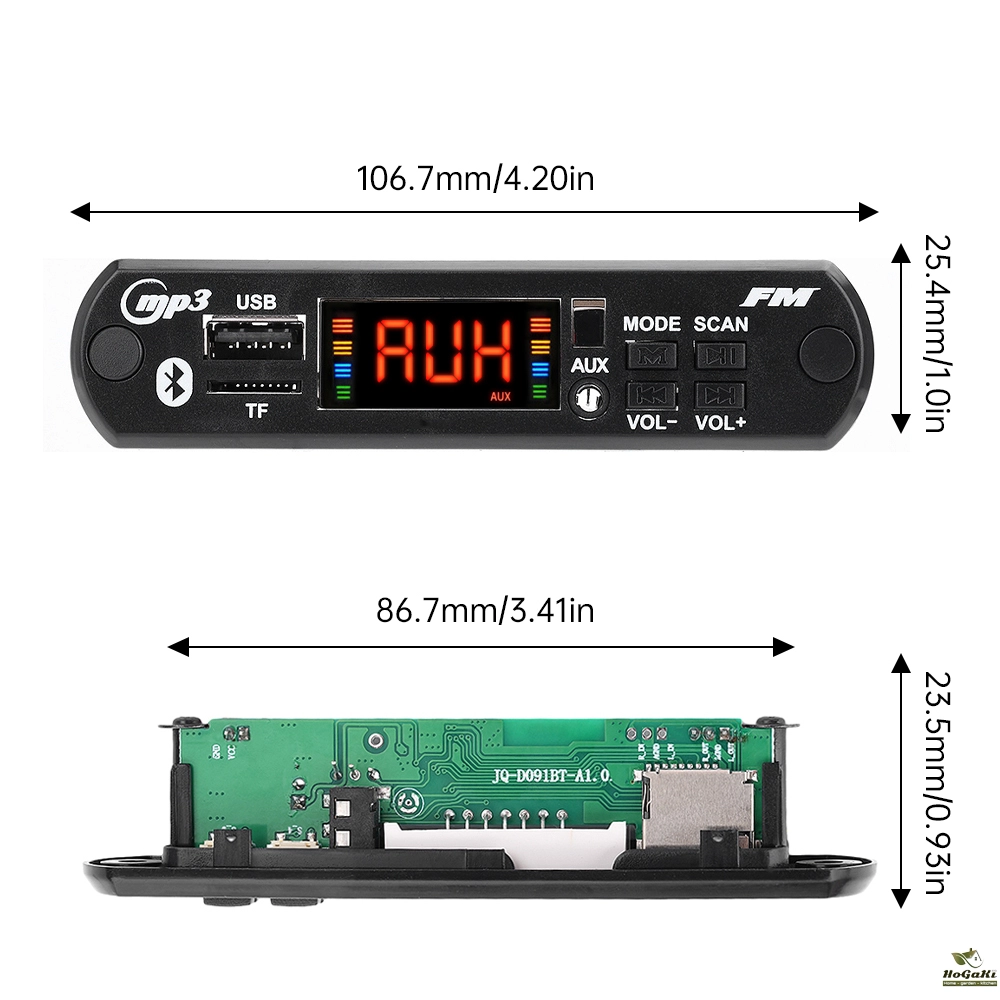

Panel size: 107 * 25 MM, with the two corners and screw hole positions of the panel, and then the cover surface. The depth of the panel is 23 MM
1、 Main functions
1. Dual decoding supports music in MP3/WMA/WAV/FLAC/APE lossless formats;
2. Supports BT function, BT version 5.0;

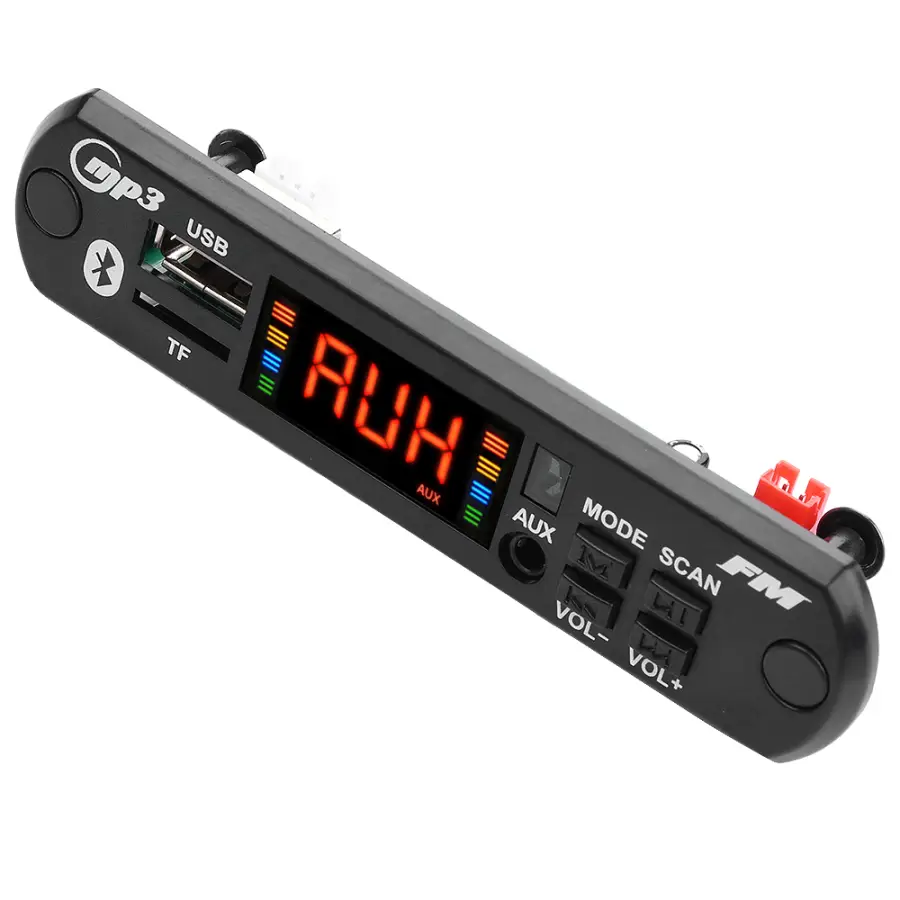

3. Digital tube display with color screen;
4. Supports MMC/SD/MMA cards and USB interfaces (USB drives);
5. Power outage memory function;

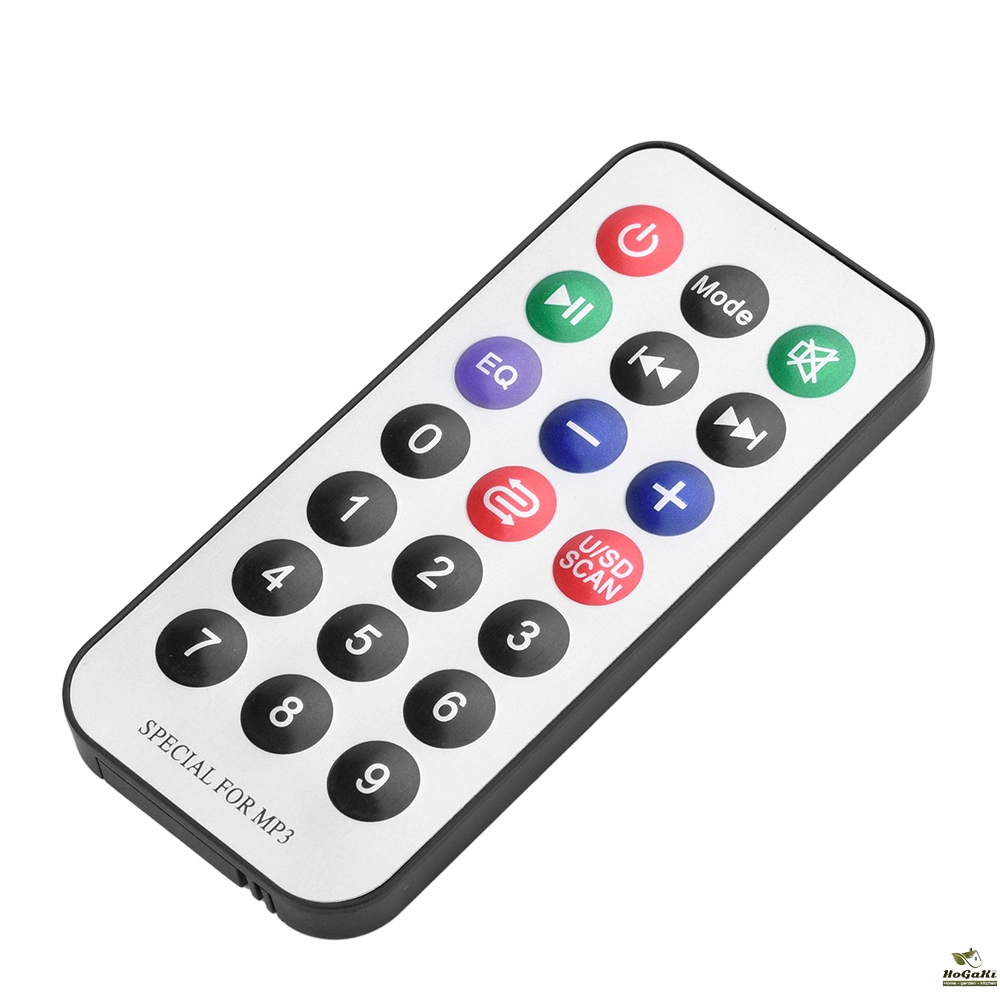

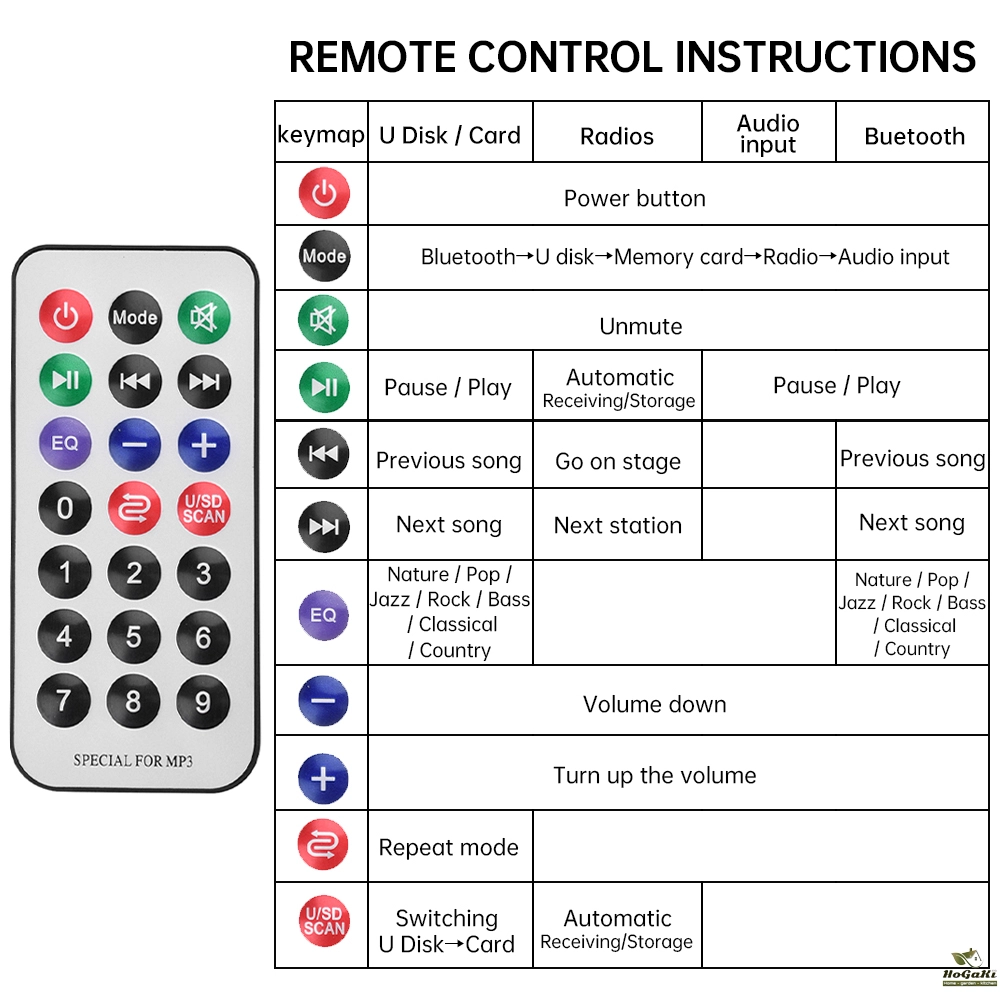

6. Support infrared remote control operation at a distance of 5-10 meters;
7. Support external audio input LINE IN;
8. Supports FM radio and retrieval frequency range (87.5MHz to 108.0MHz);

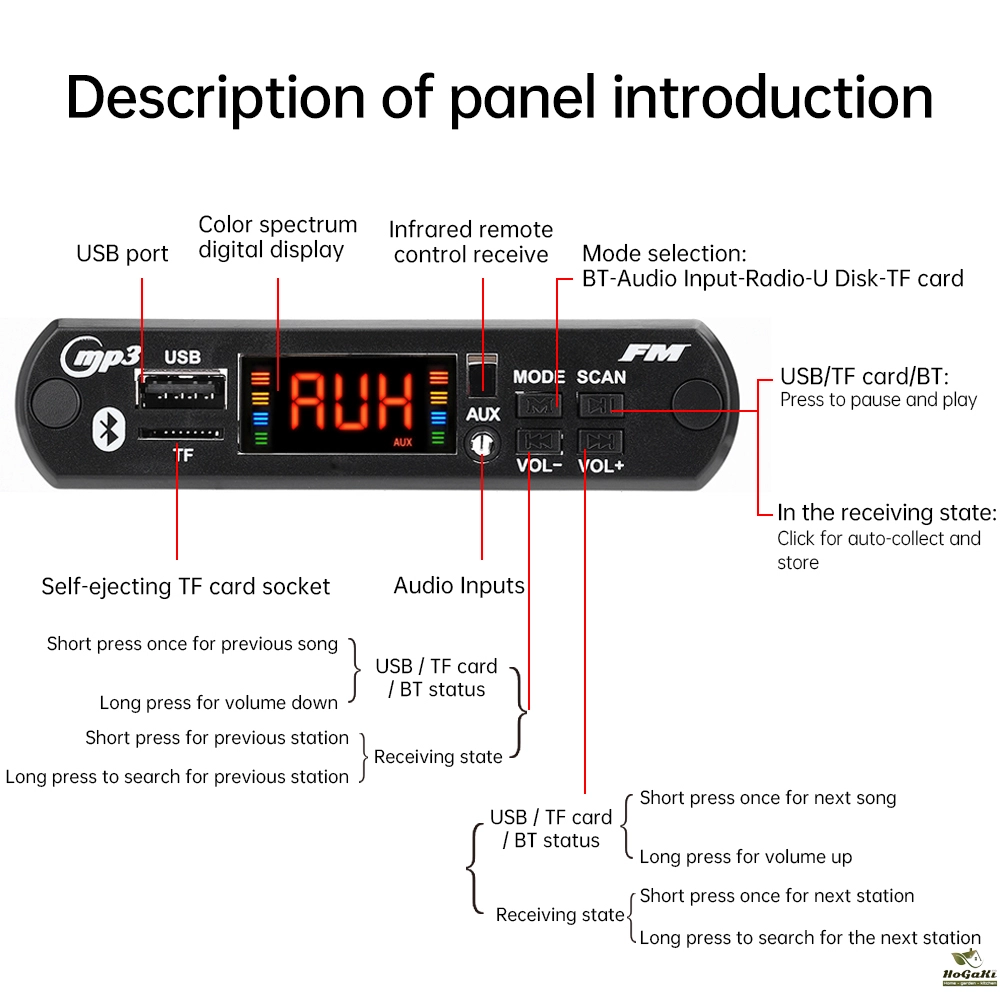

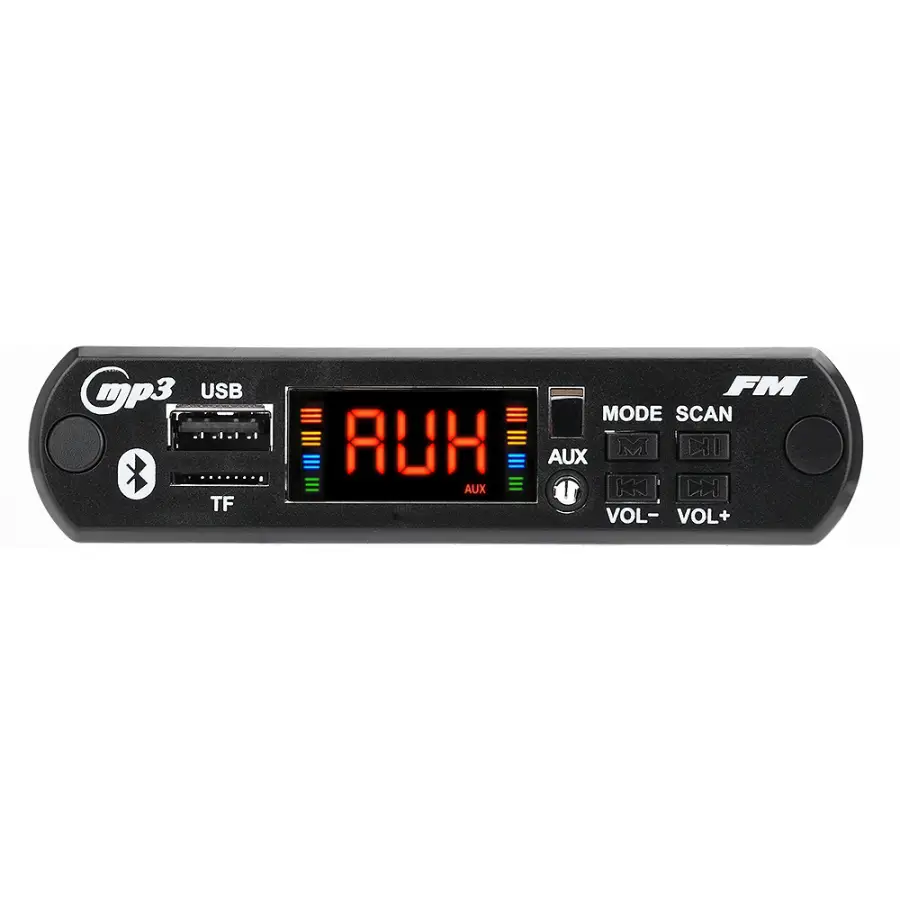

9. Key: Four button multi-directional control, VOL -/AUTO/VOL+/MODE;
2、 Detailed button operation
1. VOL button (previous song/volume decrease): In MP3 mode, VOL - short press to previous song, long press to volume decrease; Short press in FM mode to increase the station number by one; Short press to indicate the previous song in BT function, long press to indicate a decrease in volume.
2. AUTO button (play/pause): Press AUTO briefly in MP3 mode to play/pause; Short press in FM mode for automatic collection and coexistence of stations, long press without function; Short press to play/pause in BT function.
3. VOL+button (next song/volume increase): In MP3 mode, VOL+short press to next song, long press to increase volume; Short press in FM mode to lower the station number by one; Short press in BT function to select the next BT song, long press to select the volume to decrease.
4. MODE button: Switch between USB/TF/FM/LINE IN/BT functions in sequence

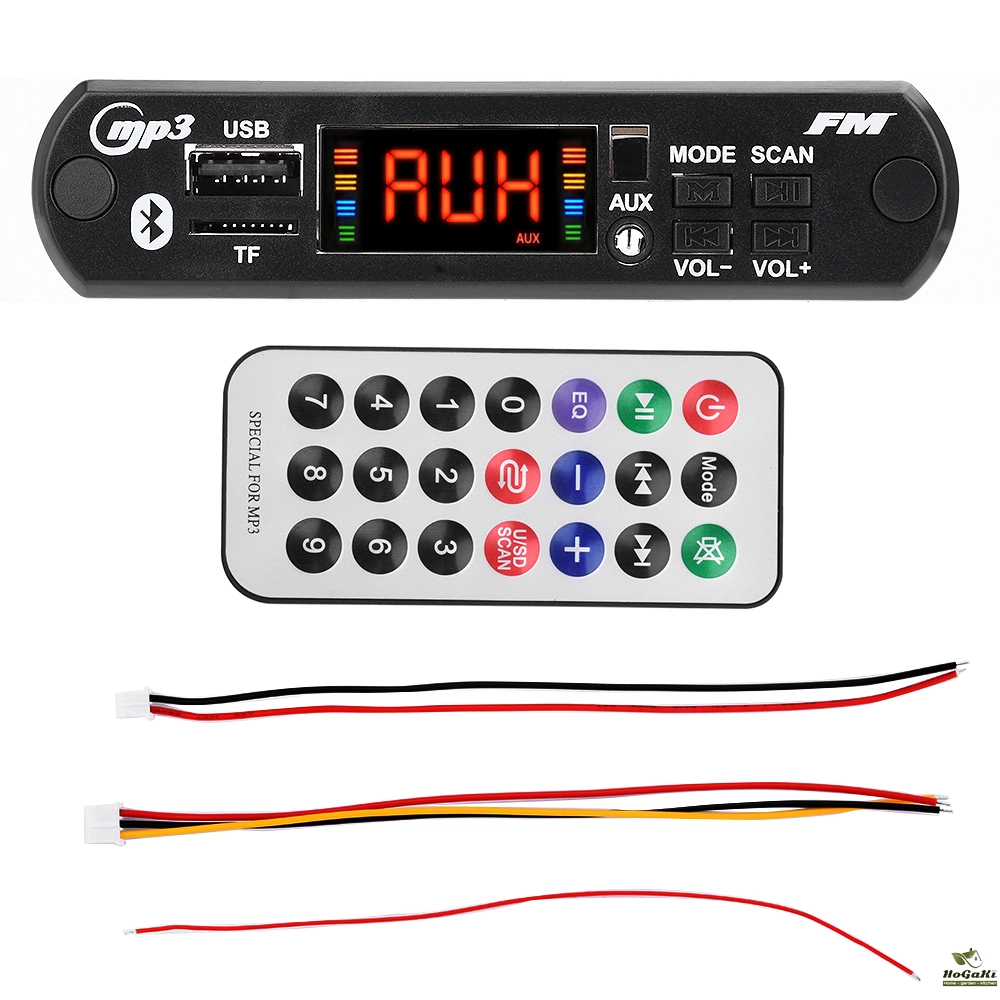

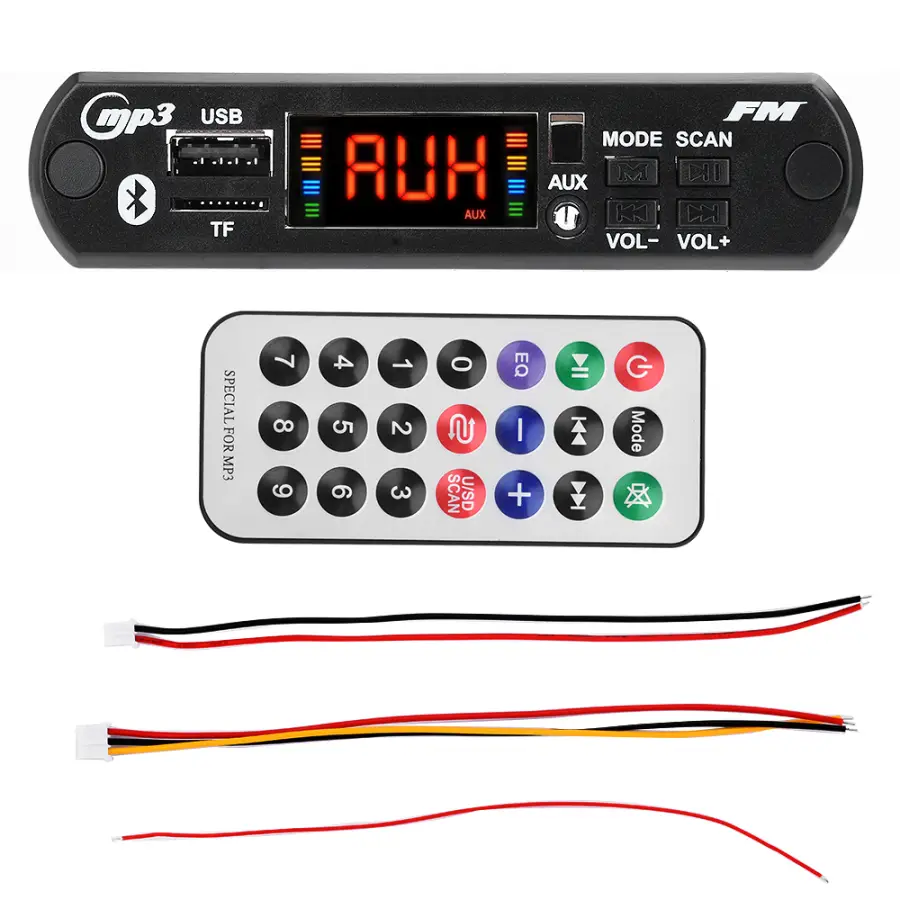

Package include:

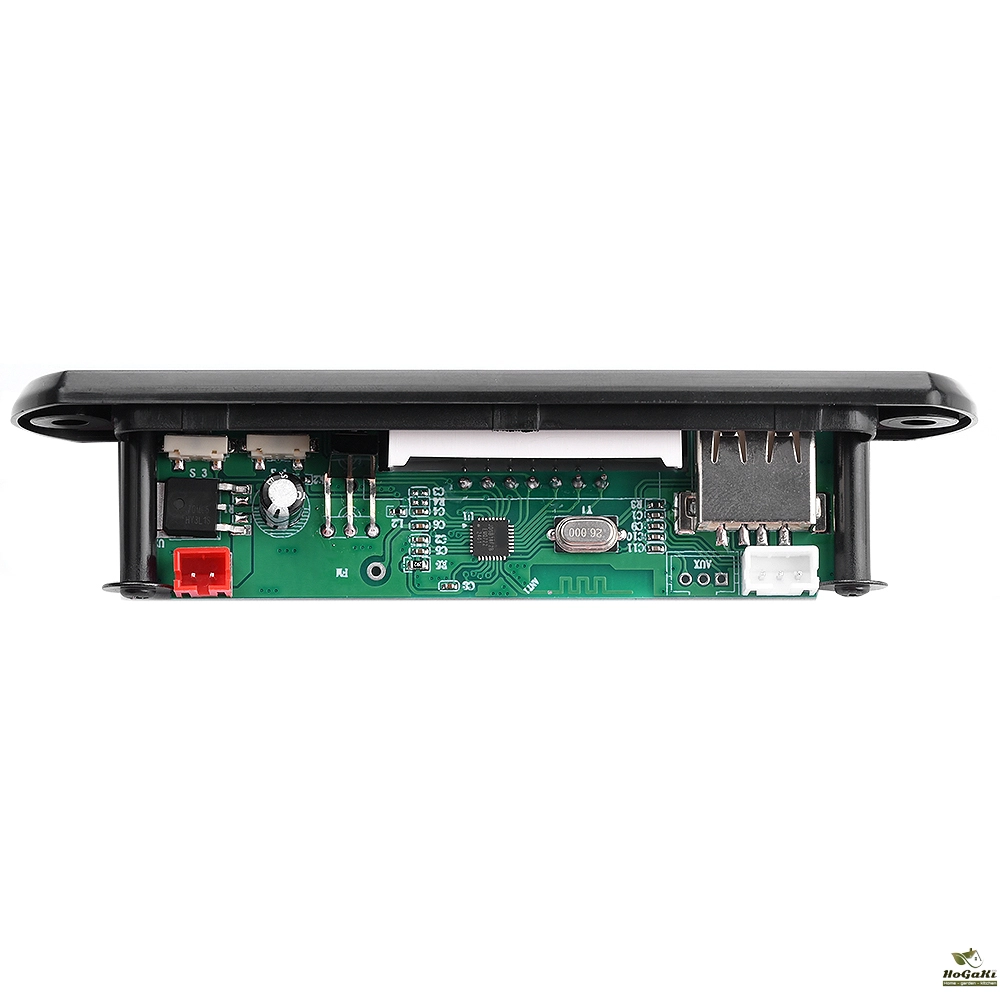

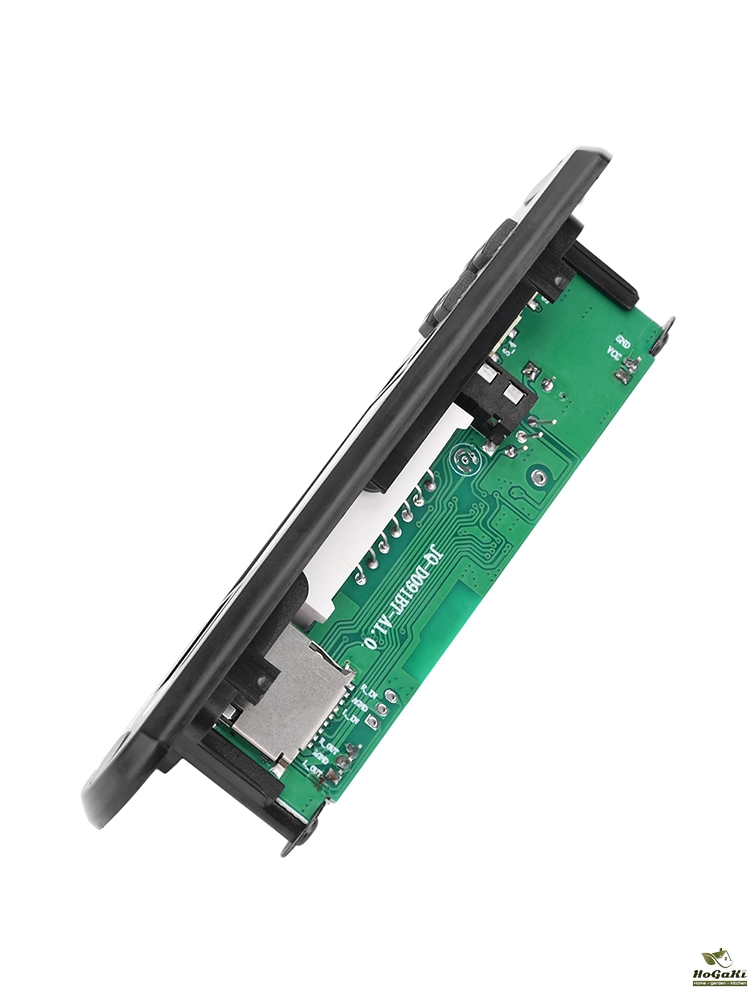

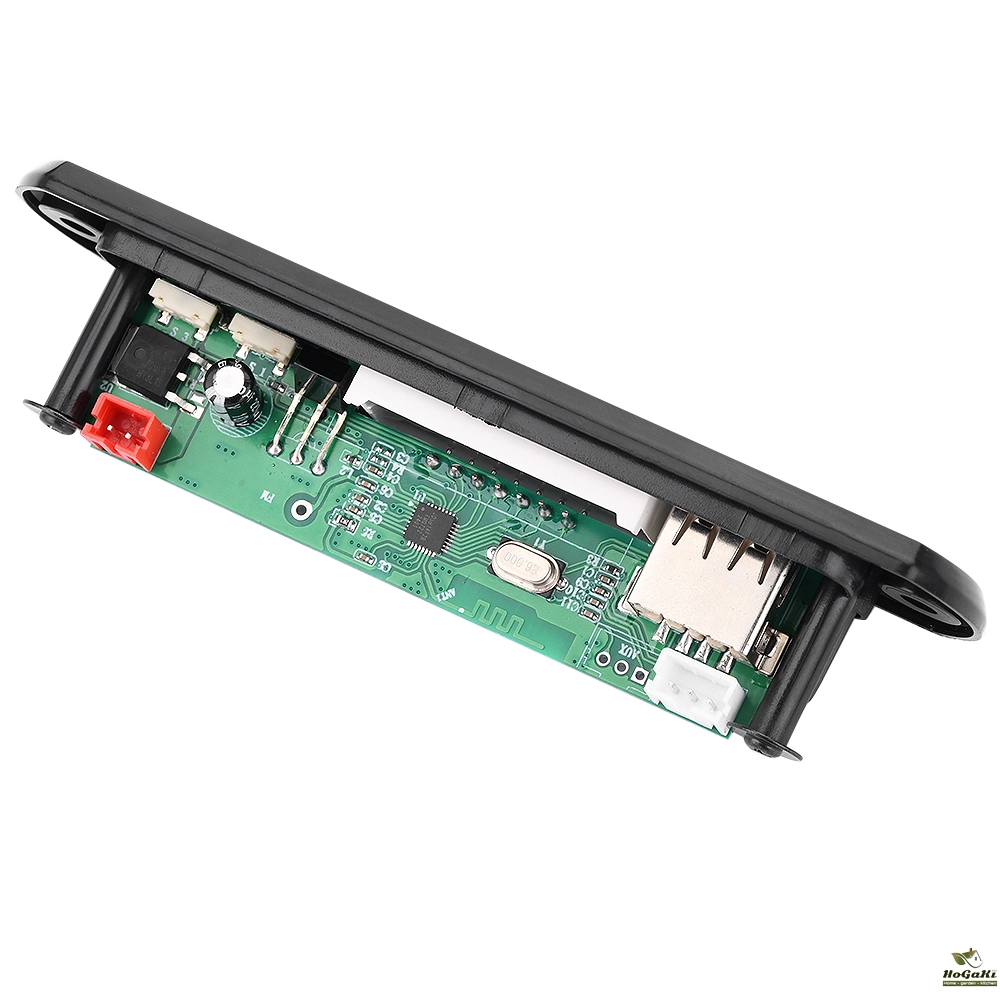

1X decoding board

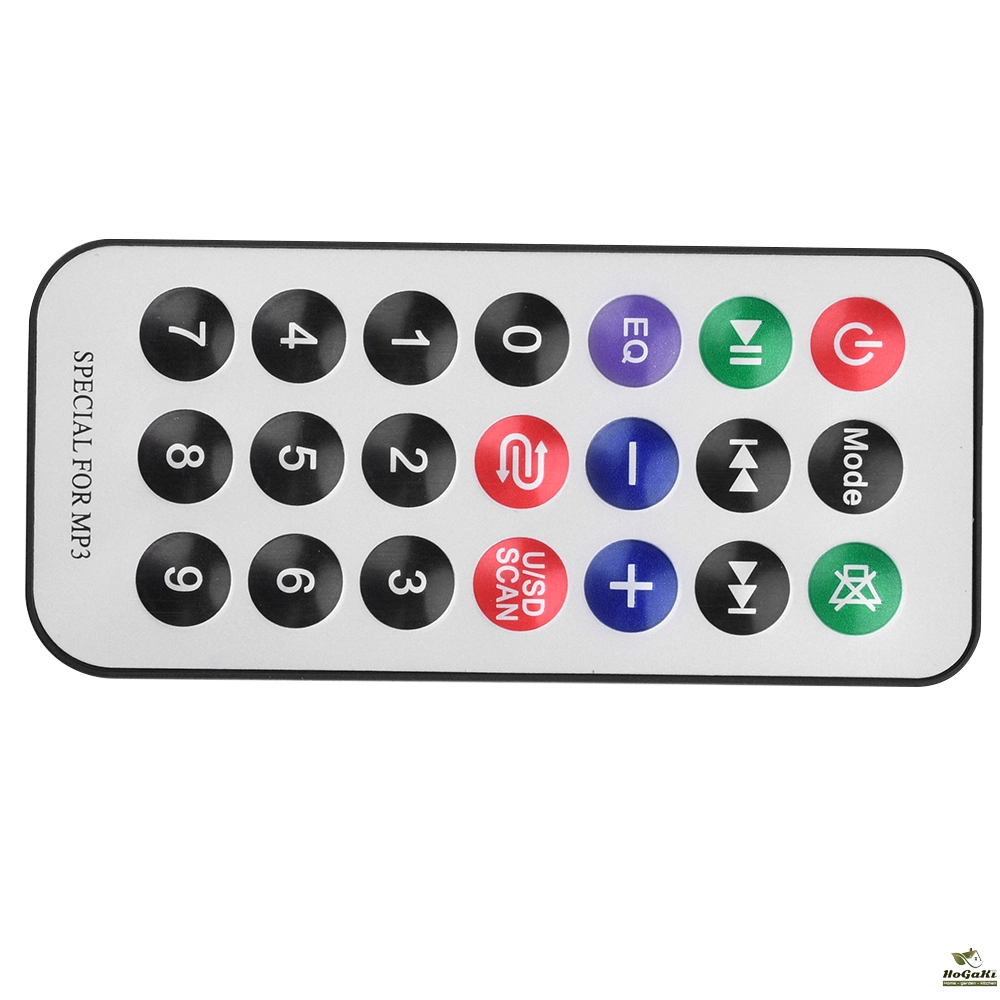

1X remote control

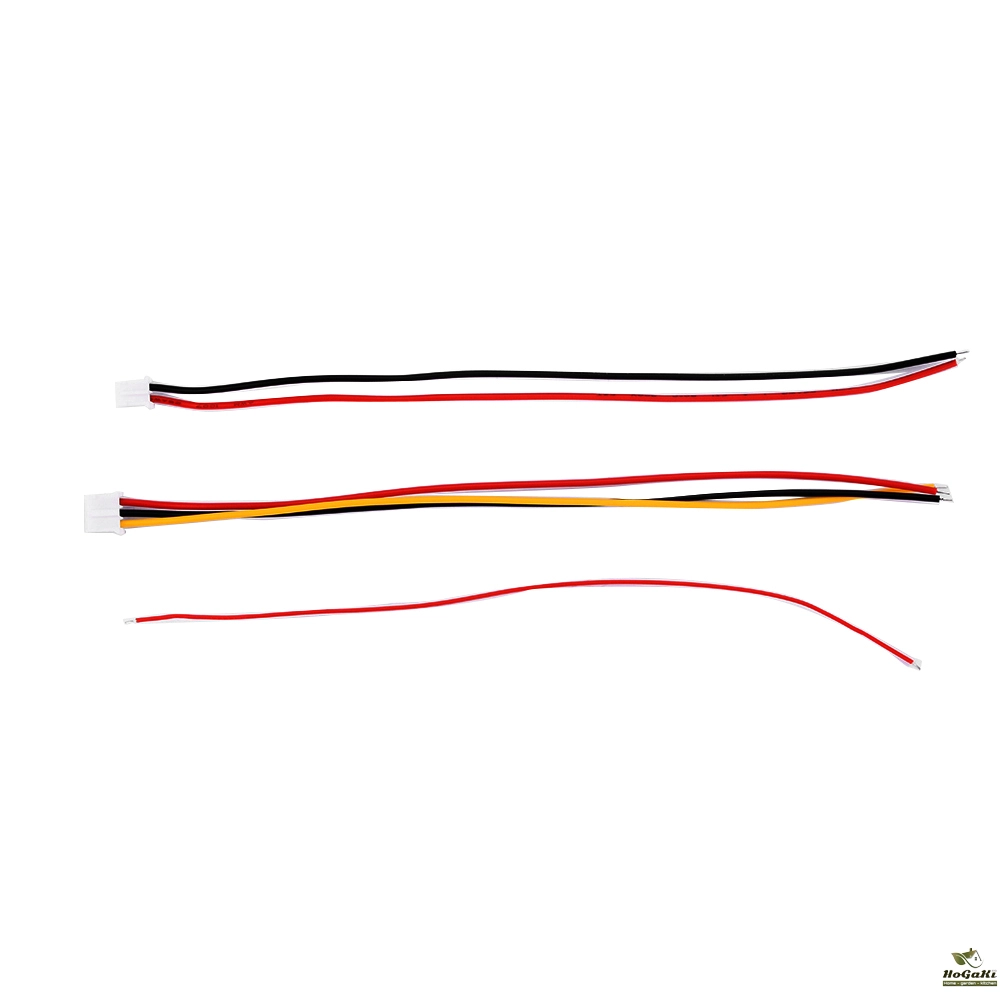

3X connection line
Packaging Details
- Unit Type:
- Package Weight: 0.040
- Package Size: 3x2x11
- Brand Name: occkic
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: None
- Main control IC: AC6926
- Voltage: DC 5V or 12V (optional)
- Music formats: MP3/WMA/WAV/APE lossless format
- Radio FM frequency: 87.5-107.5 MHz
