H.265 H.264 HDMI to IP Video Encoder Streaming HDMI RTSP Video Encoder 4K with SRT, RTMP, RTMPS, RTSP, UDP, HTTP, HLS, FLV
5.0 (1 votes) | 11 orders
Price:
US $331.02 - 953.70
Discount Price:
US $
281.37 -
810.64
-15%
- Color
-
-

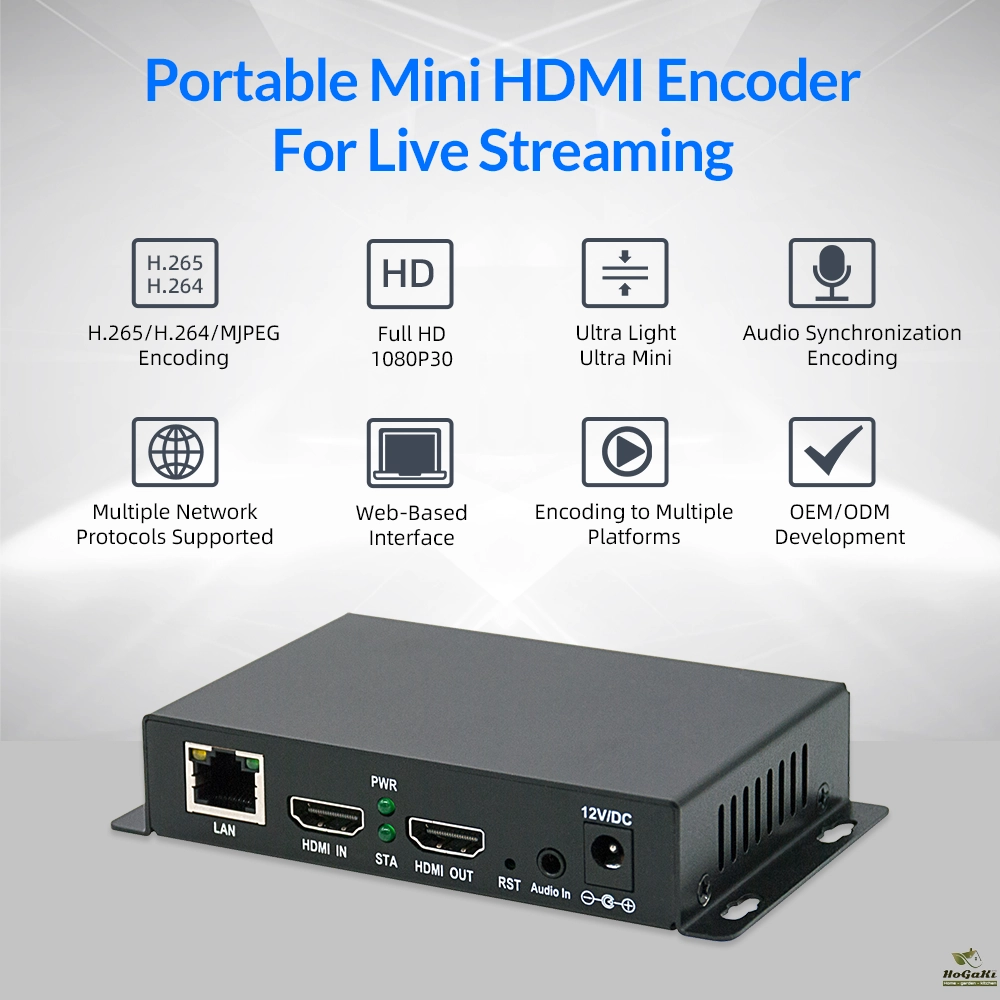

Mini H.265 HDMI Video Encoder

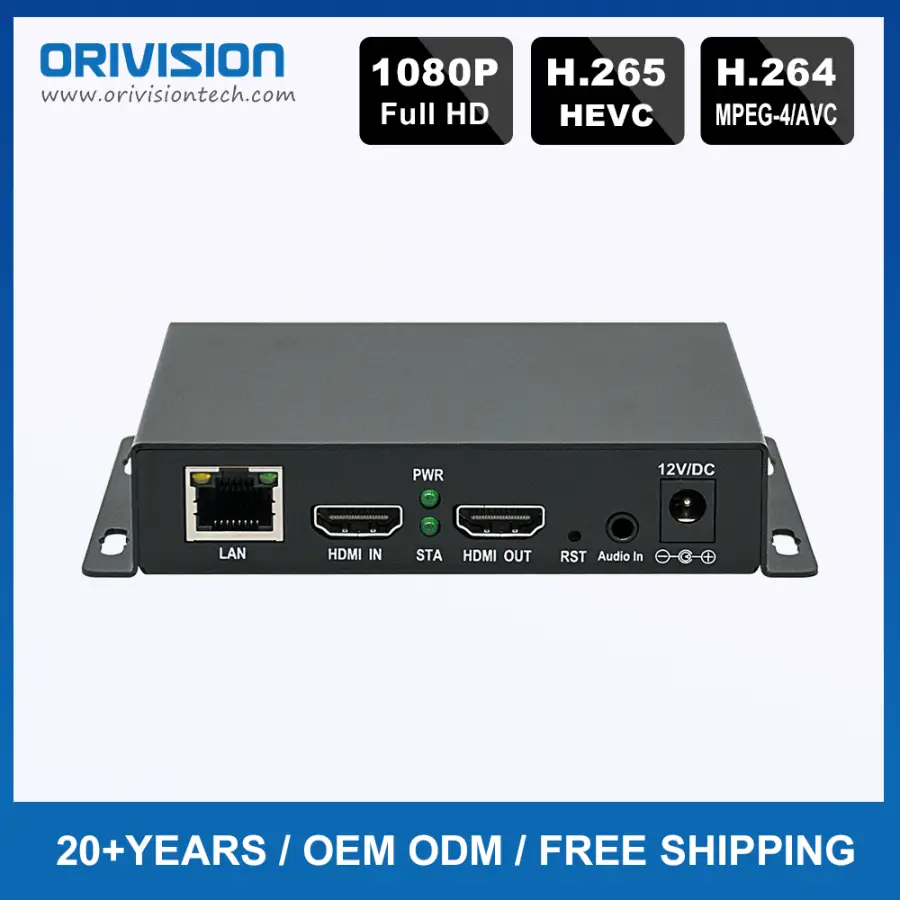

EH1201 is an ultra mini and lightweight hardware video encoder. Which designed to meet the HD/1080P@30 Video transmission applications. It supports H.265 (HEVC)/H.264 high-performance encoding. Also, it supports the most protocols including HTTP/SRT/RTMP/RTMPS/HLS/UDP/RTSP, etc.
The hdmi rtsp encoder's high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the hdmi video encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.
* Support HEVC /H.265, H.264 /AVC, MJPEG video encoding;
Support AACLC, EAAC, EAACPLUS, MP2, AC3, G.711 audio encoding

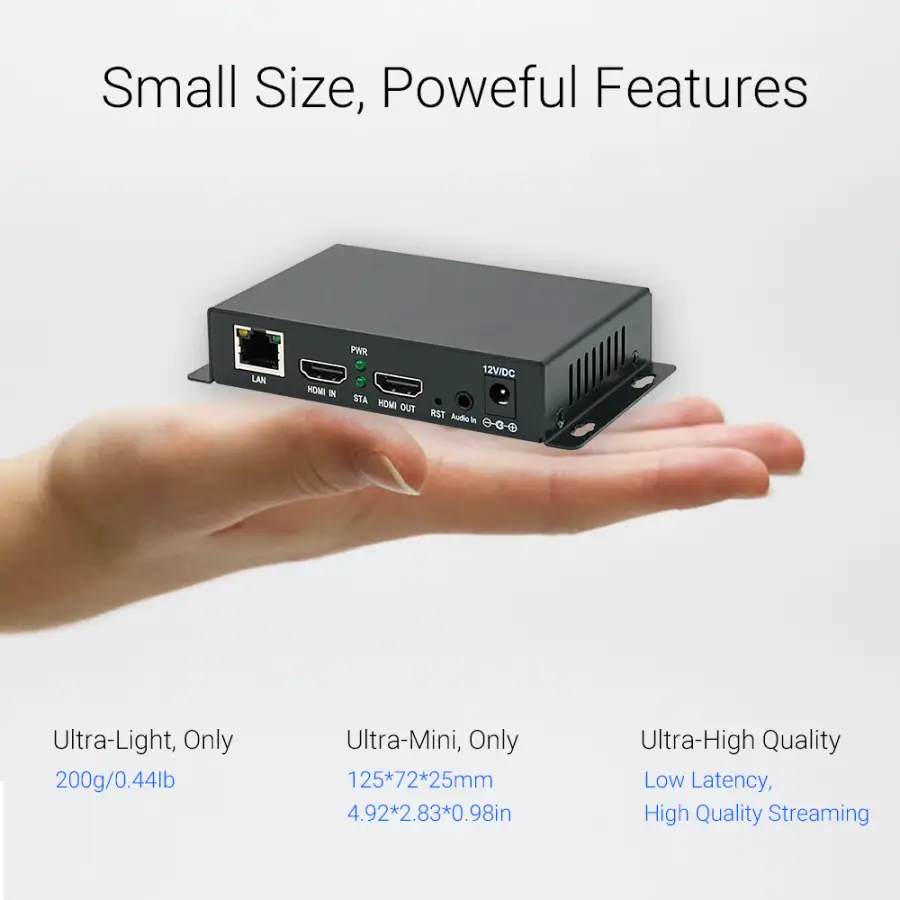

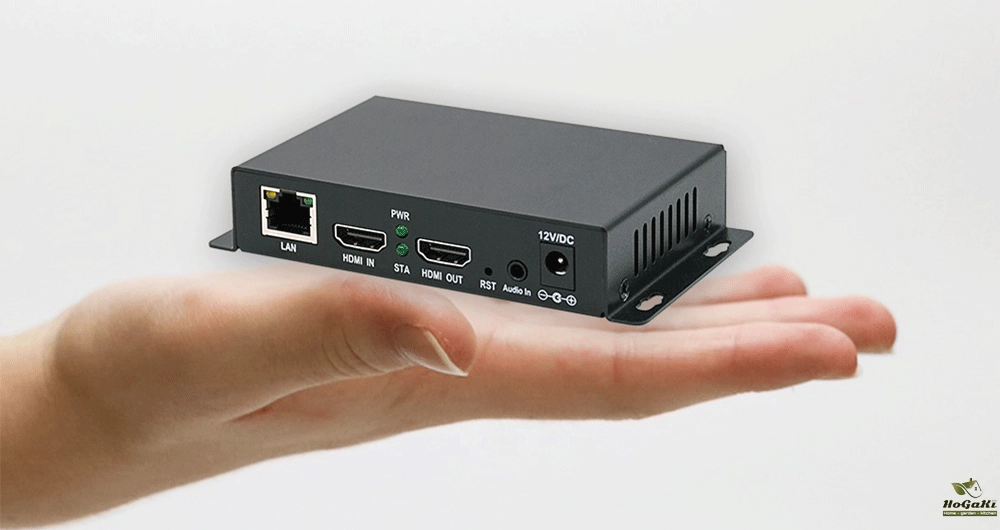

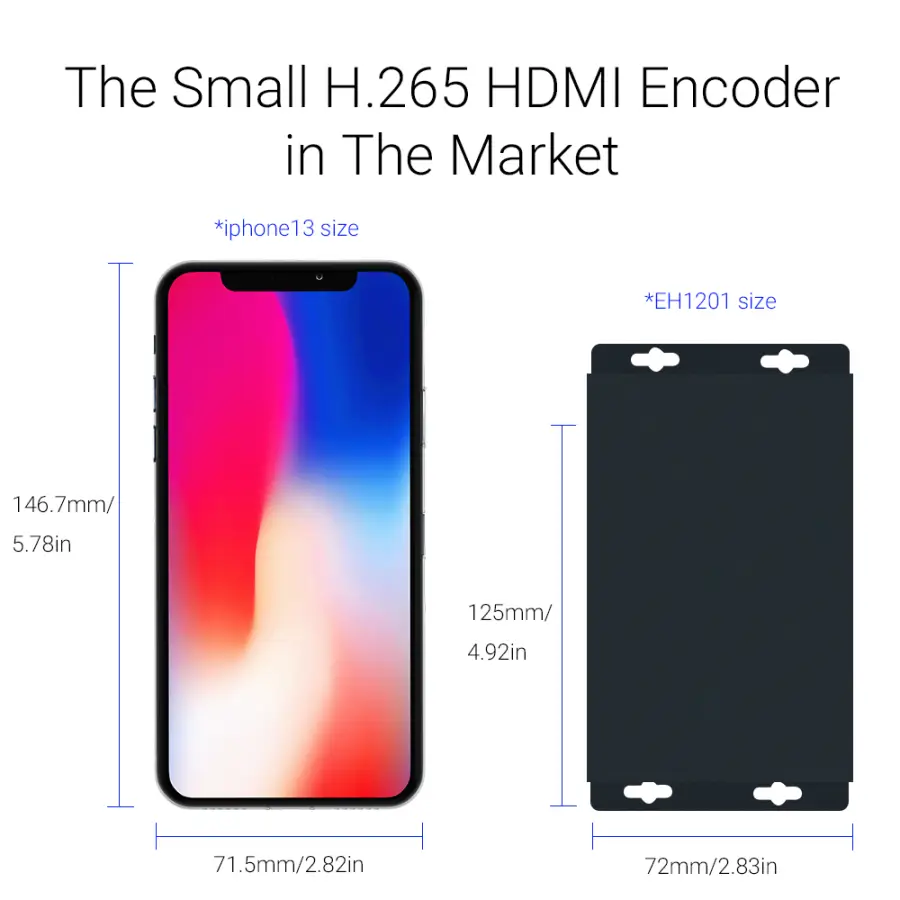

* Ultra mini size(125x72x25mm) and ultra lightweight(200g), the live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space.
* Support real HD video output with resolution up to 1920*1080P@30FPS to ensure that the image quality is perfect.

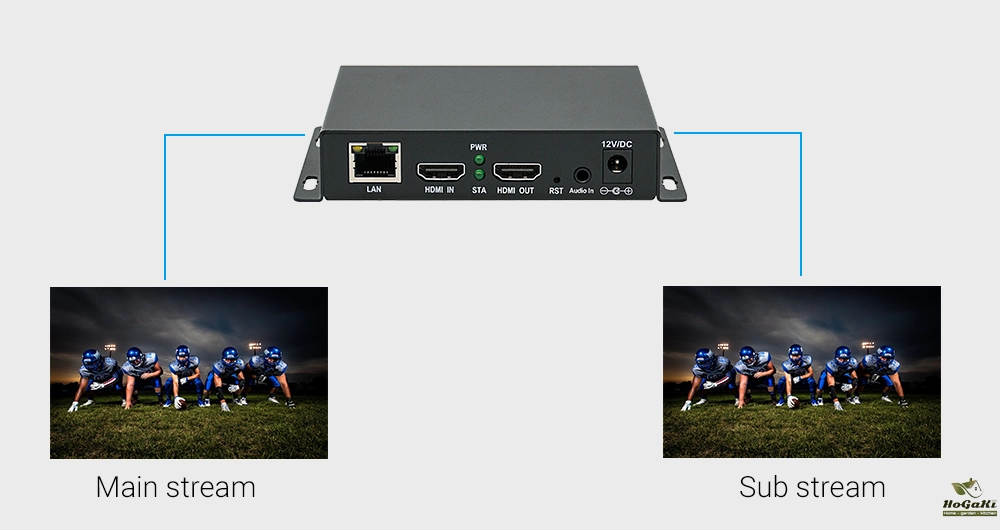

* Support up to 2 streams output simultaneously, support different protocol transmission for each stream

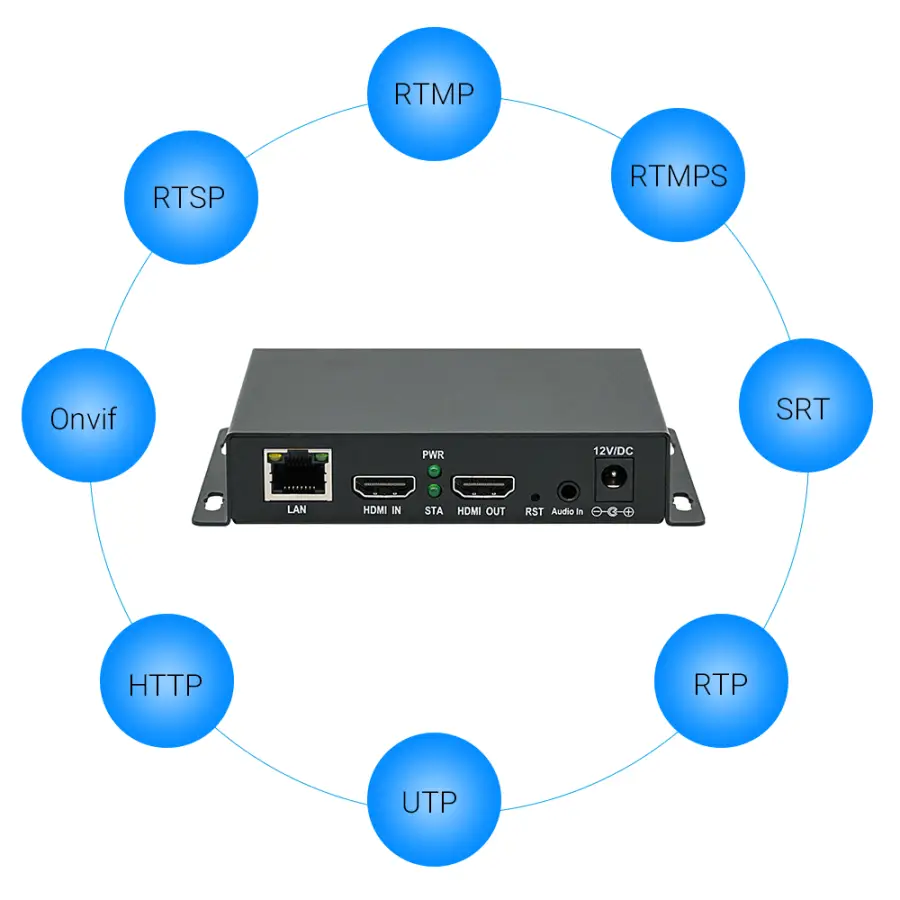

* Support full range of protocols including HTTP/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time.
* Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!

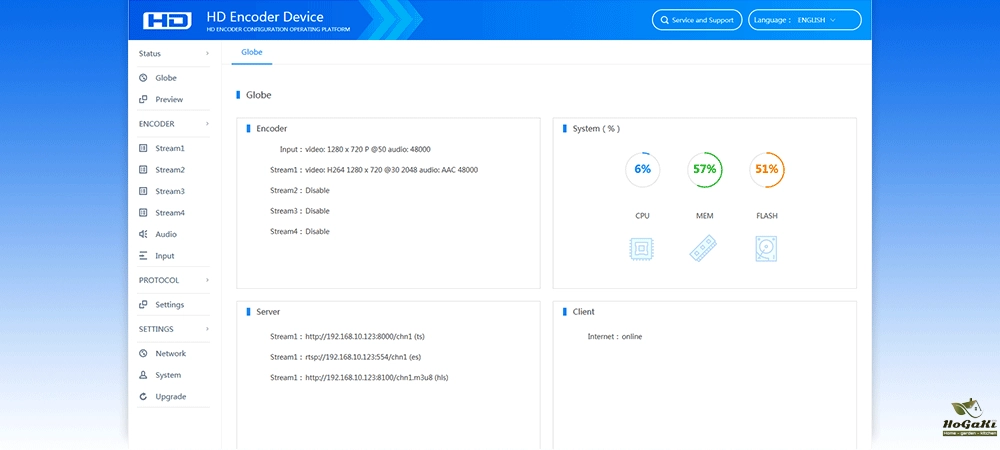

* Web-Based Interface, support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.
Model | ZY-EH1201 |
Output | |
Video | 1×HDMI 1.4 |
Support resolution | 1920*1080,1280*720,1280*800,1280*768,1024*768,1024*576, 960*540,850*480,800*600,720*576,720*540,720*480, 720*404,704*576,640*480,640*360,480*270,Auto |
Frame rate | ≤ 30hz |
HDCP | Support HDCP 1.4 |

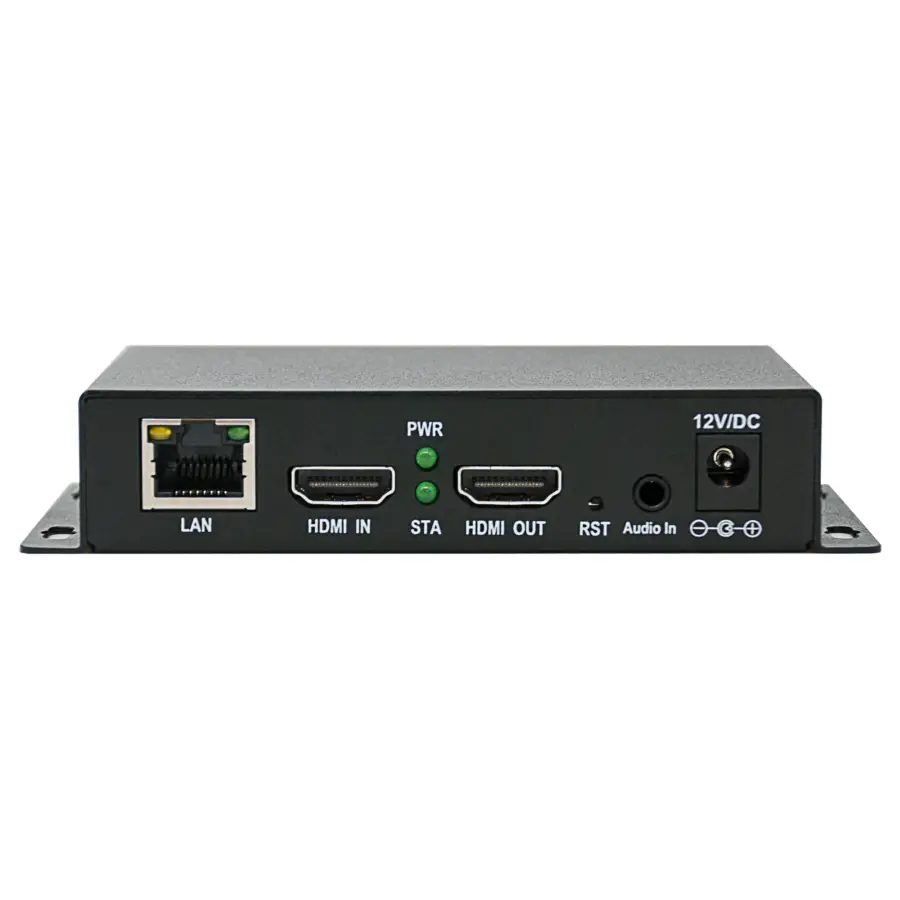

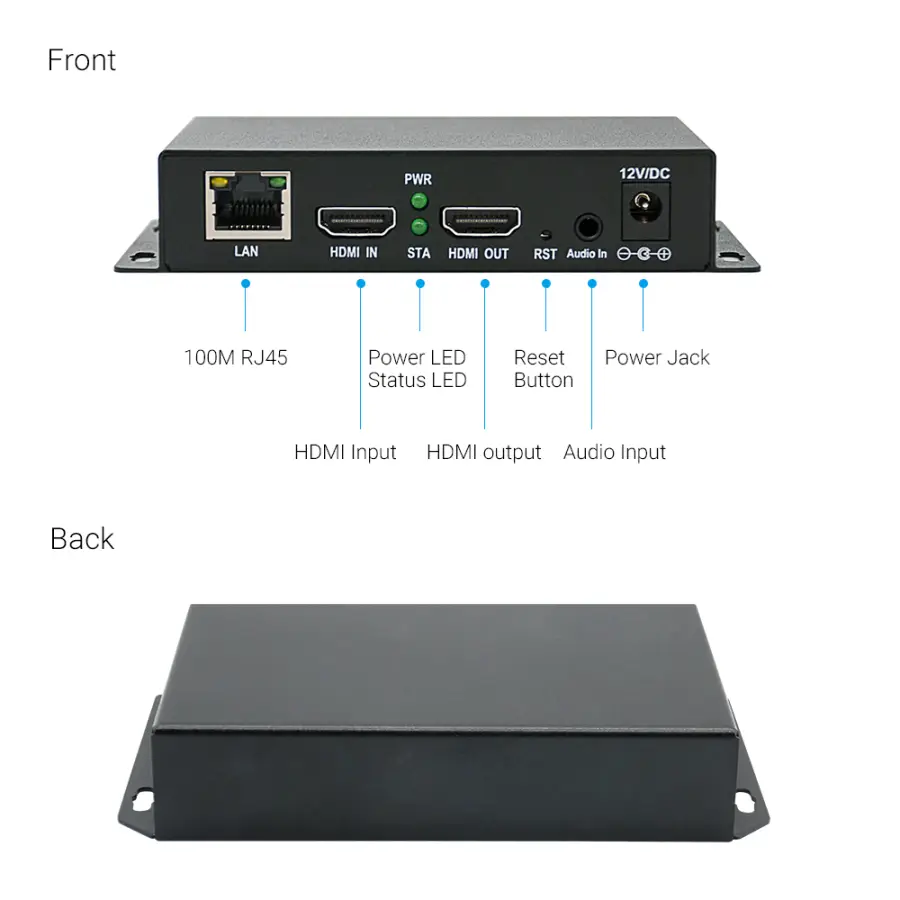

Output interface | 1×Ethernet port (RJ45), 1×HDMI 1.4 Loop-out |
Video encoding | H.265&H.264/MJPEG |
Max bitrate | 16kbps- 12Mbps |
Rate control | CBR/VBR |
Audio | |
Input interface | 1×External audio, HDMI built-in Audio |
Audio encoding | ACC, MP3, G711 |
Audio Encoder type | ACLC, EAAC, EAACPLUS, MP2, AC3 |
Bit-rate Option | 48K,64K,96K,128K,160K,192K,256K |
Sampling Accuracy | 24 Bit |
Audio Data-rate | 64Kb/s to 384Kb/s |
Network | |
RJ45 | 100M Ethernet port |
Protocol | HTTP, RTSP, RTMP/RTMPS, SRT, GB28181, HLS, FLV Multicast: UDP/RTP |
Control Panel | Web panel (Language is English), remote upgrade |
Firmware Update | Enable by uploading files to the dashboard |
General Parameters | |
Dimension | 4.9*2.8*1in(125*72*25mm) |
Gross Weight | 0.2kg |
Temperature | 0~ 45℃（for working）,-20~60℃（for storing) |
Humidity | <90%, non-condensing |
Power supply | DC 12V/1A |
Power Consumption | <5W |
Packaging Details
- Unit Type:
- Package Weight: 1.000
- Package Size: 20x11x24
- Brand Name: ORIVISION
- Hign-concerned Chemical: None
- Origin: Mainland China
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Certification: weee
- Input interface: 1xHDMI 1.4
- Support resolution: Maximum 1080P
- HDCP: HDCP 1.4
- Output interface: 1xEthernet port (RJ45), 1xHDMI 1.4 Loop-out
- Video encoding: H.265&H.264/MJPEG
- Max bitrate: 16kbps- 20Mbps
- Rate control: CBR/VBR
- Audio encoding: ACC, MP3, G711
- RJ45: 100M Ethernet port
- Dimension(W*L*H): 4.9*2.8*1in(125*72*25mm)
- Gross Weight: 0.2kg
