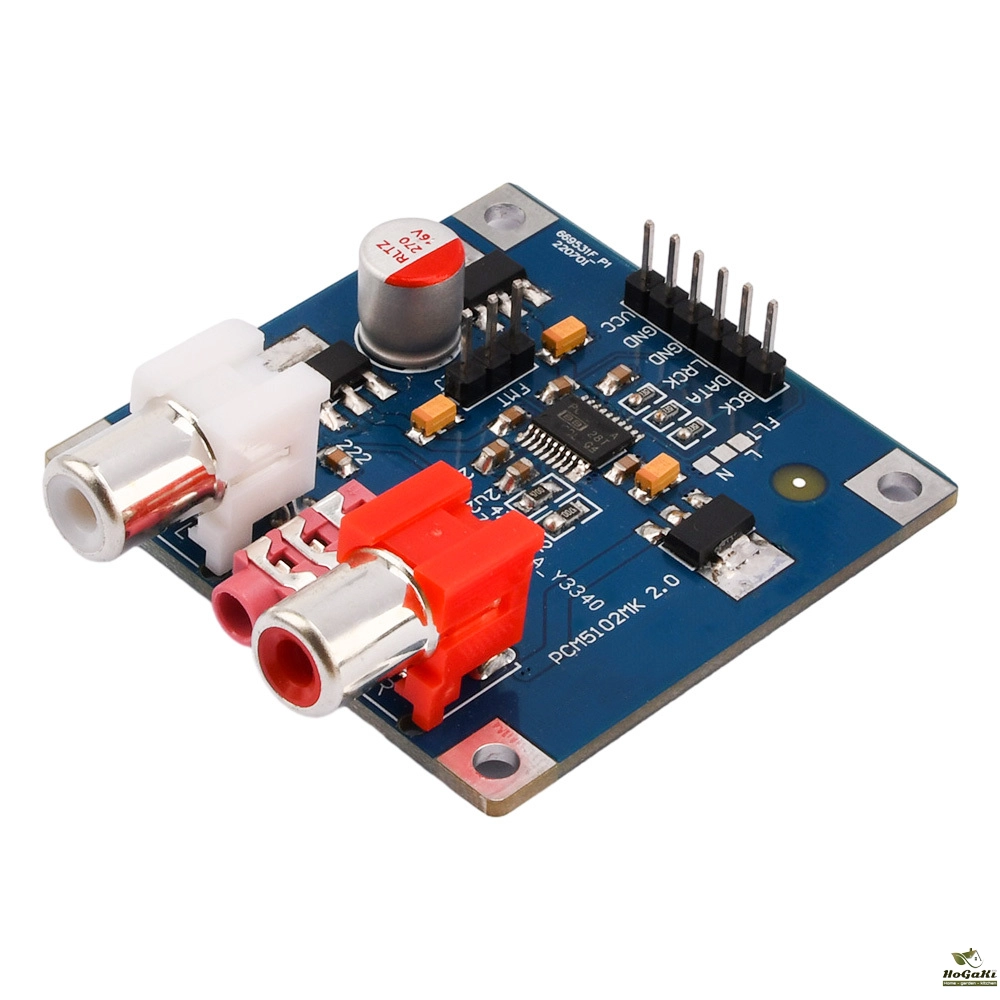

PCM5102/PCM5102A DAC Decoder I2S Player Assembled Board 32Bit 384K Beyond ES9023 Decoder Board Module For Raspberry Pi
5.0 (1 votes) | 8 orders
Price:
US $41.63 - 50.65
Discount Price:
US $
28.29 -
31.90
-32%
- Color
-
-
Features:
Support I2S format/left-justified (left alignment)
Direct signal input (need to switch manually)
Supports two filter modes: normal mode or low-latency mode (set on the FLT port of the board)
Support up to 32bit data 384K sampling rate
Signal-to-noise ratio 112db, distortion -93db, direct output 2.1V RMS audio voltage, no glitch in high frequency, full low frequency, good dive

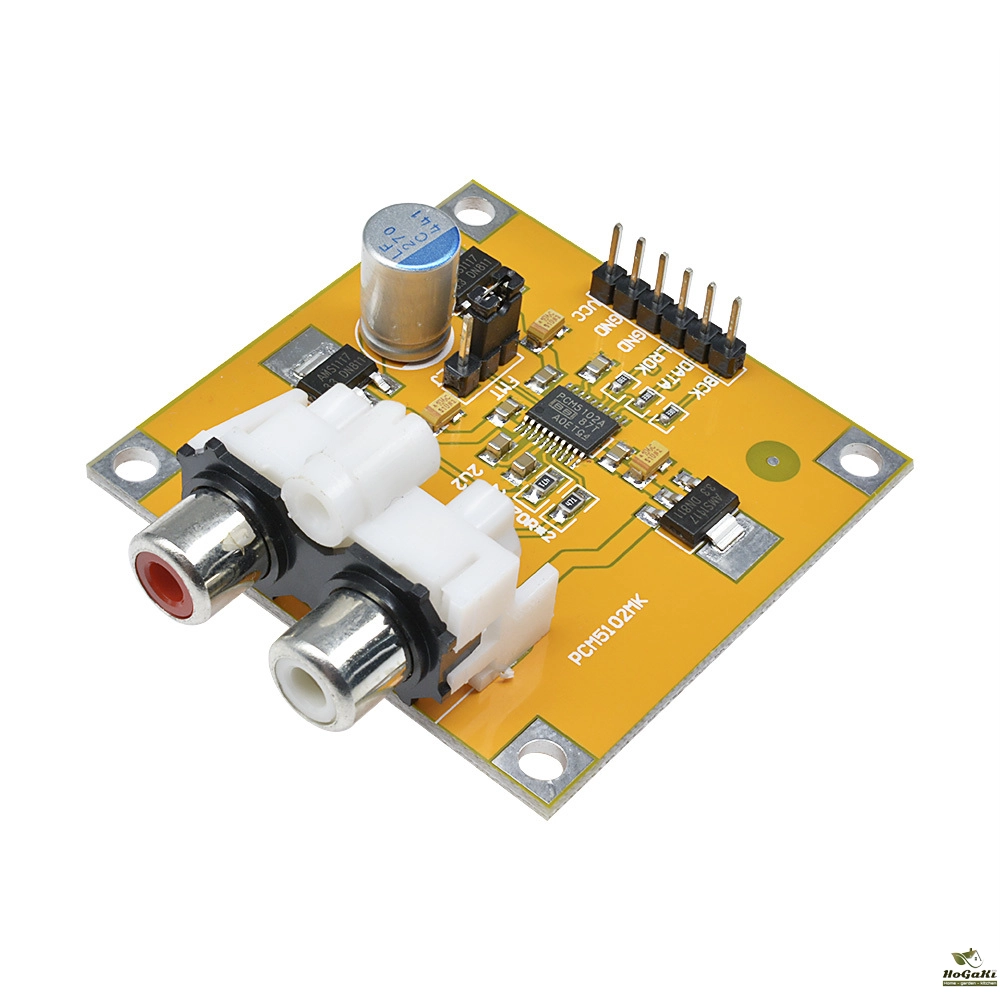

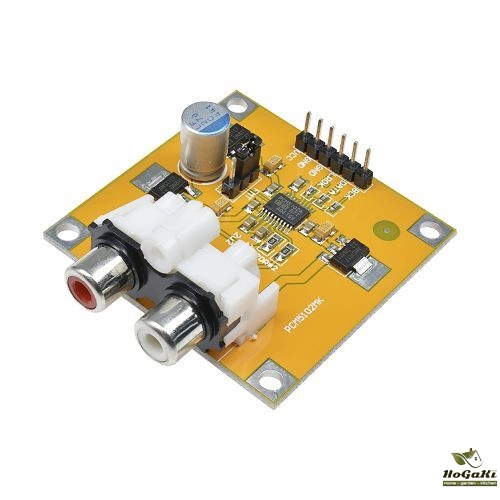

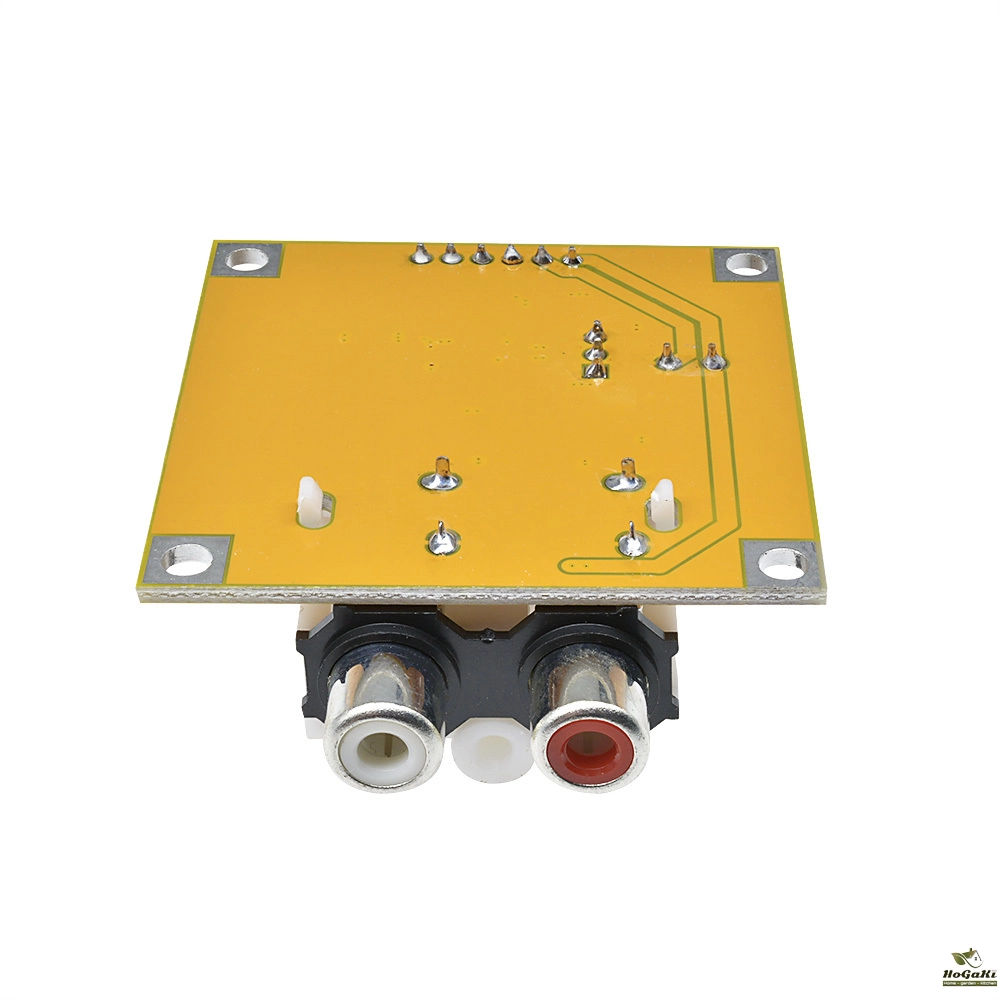

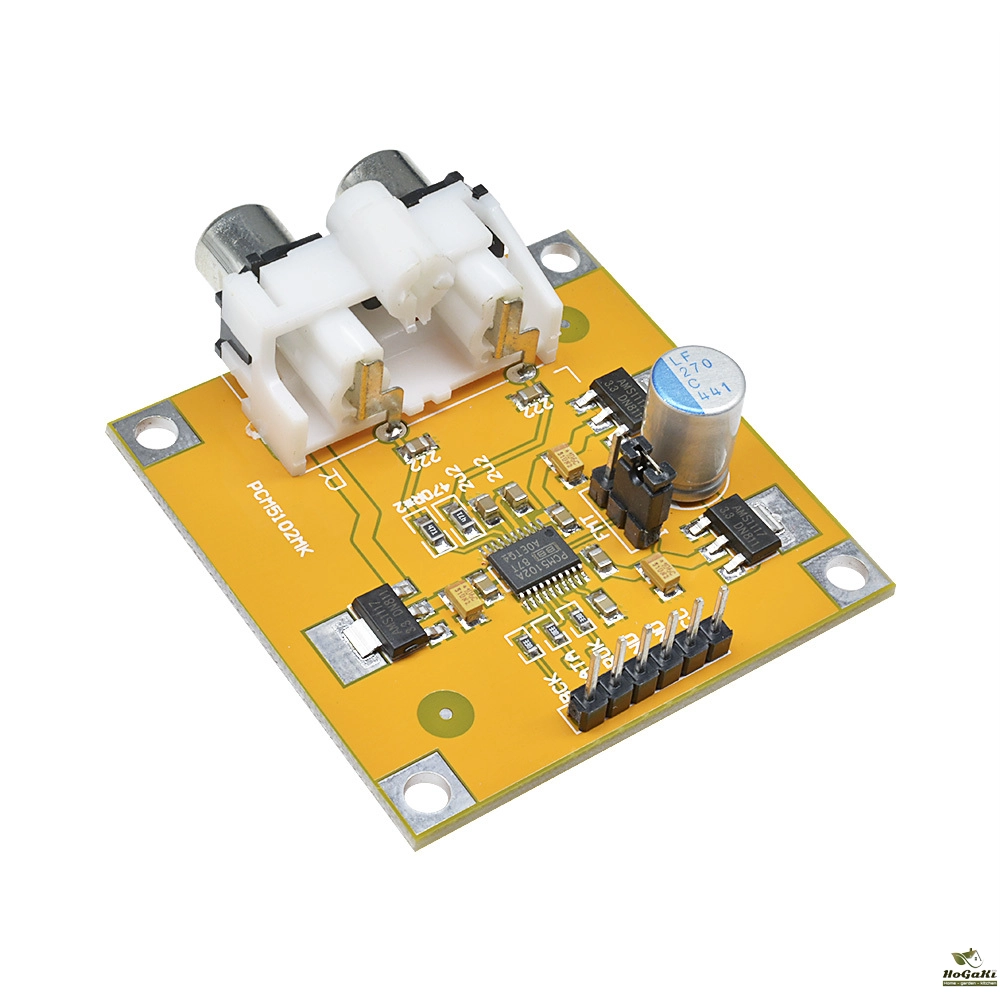

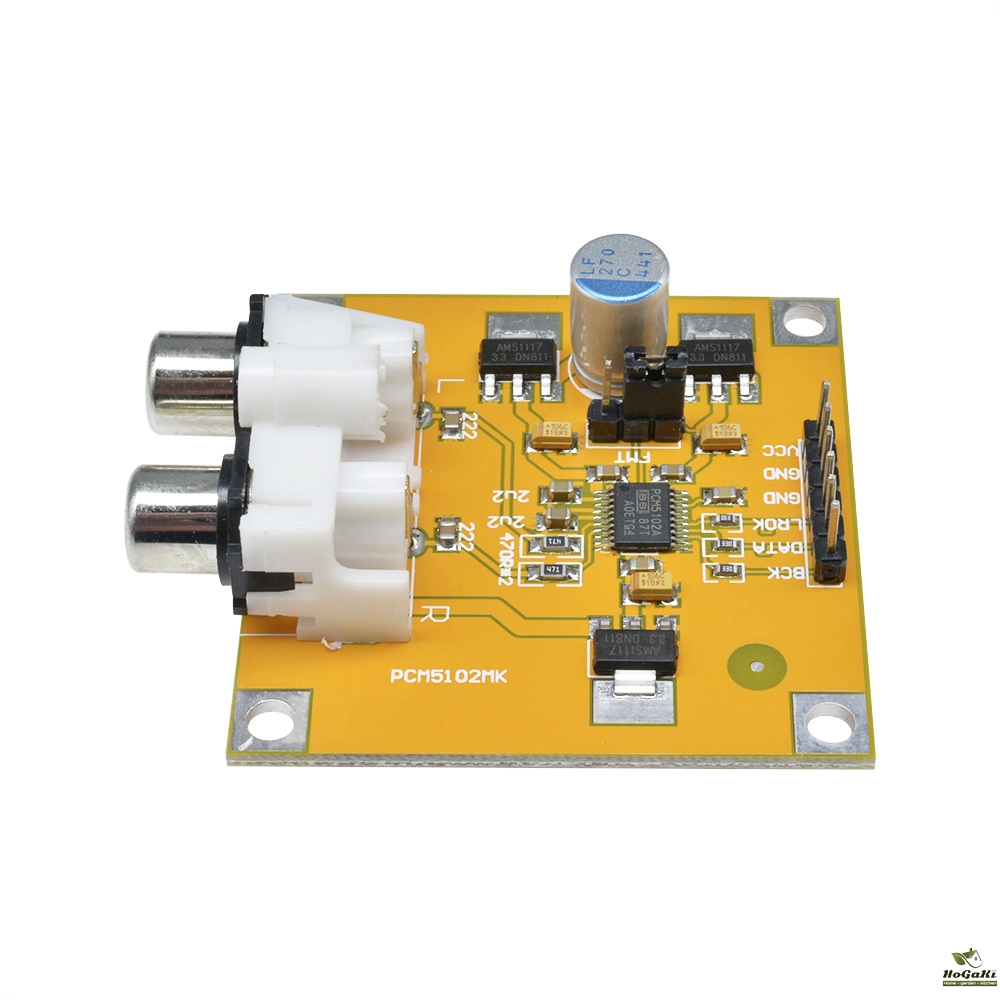

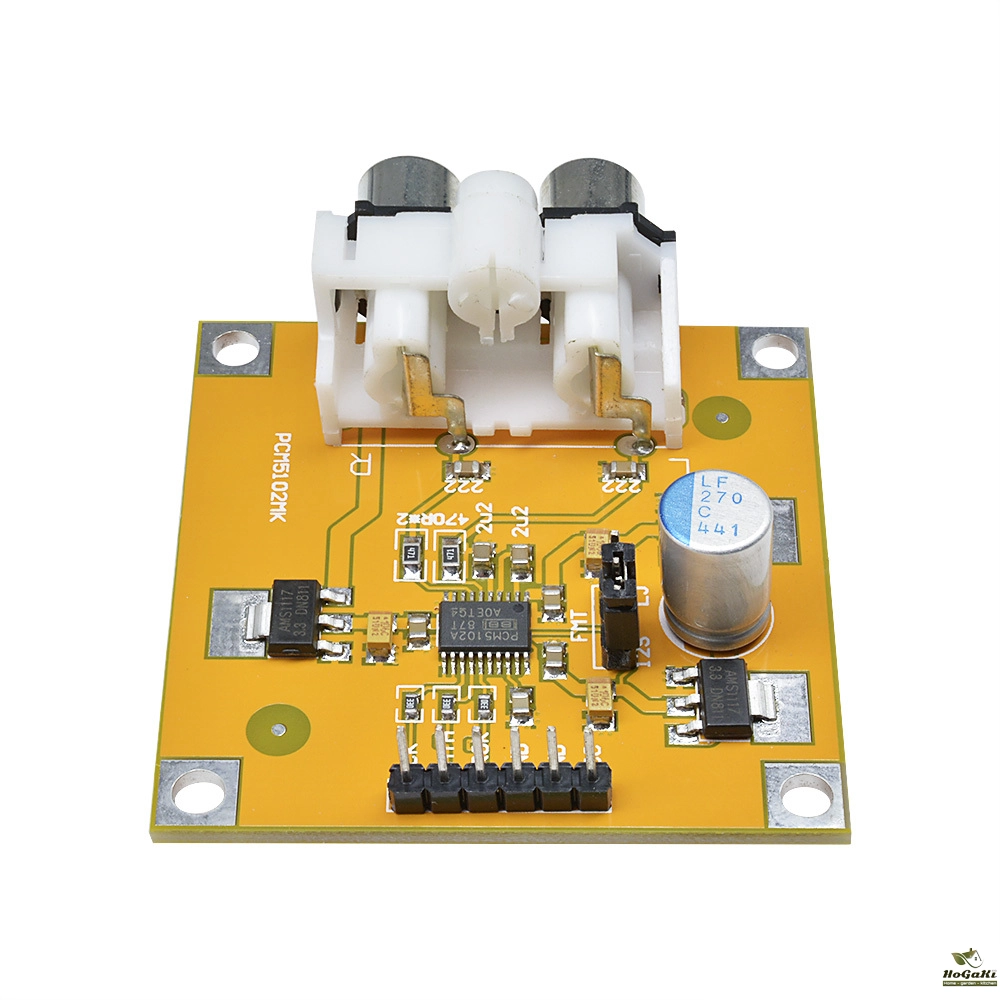

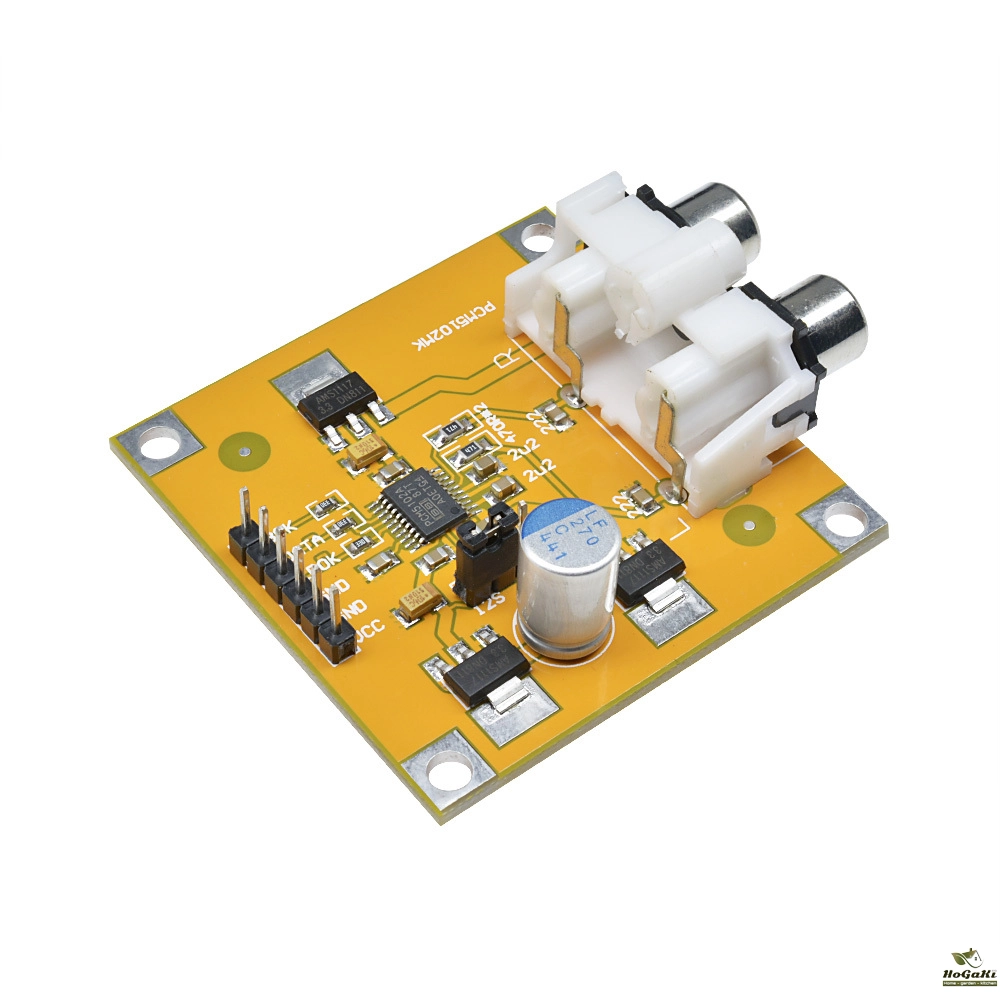

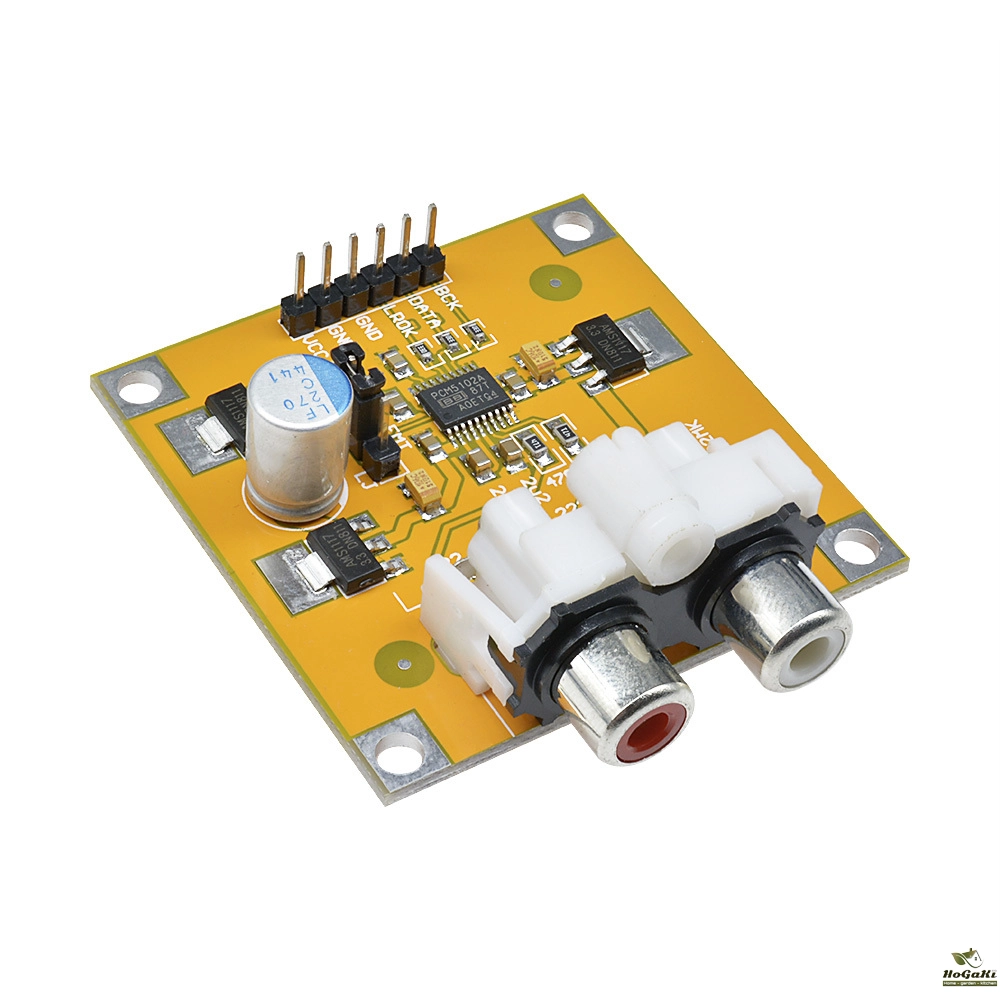

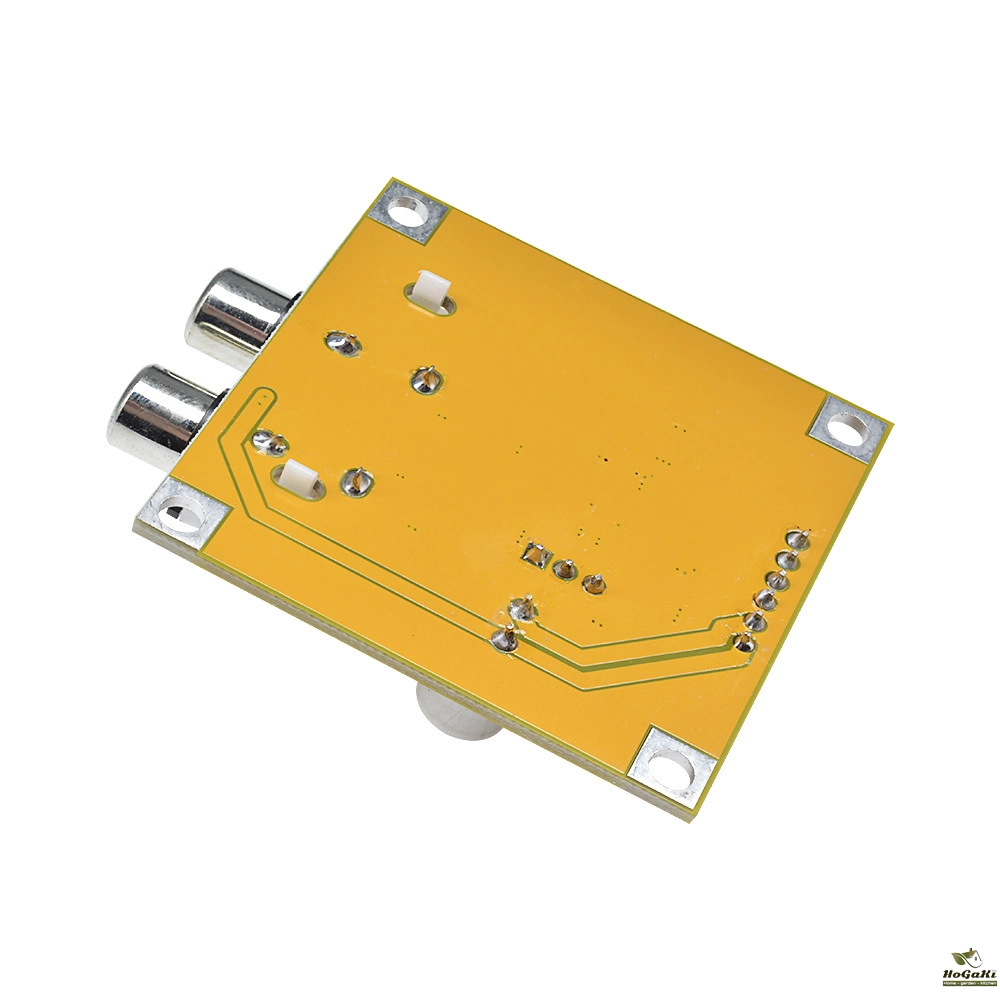

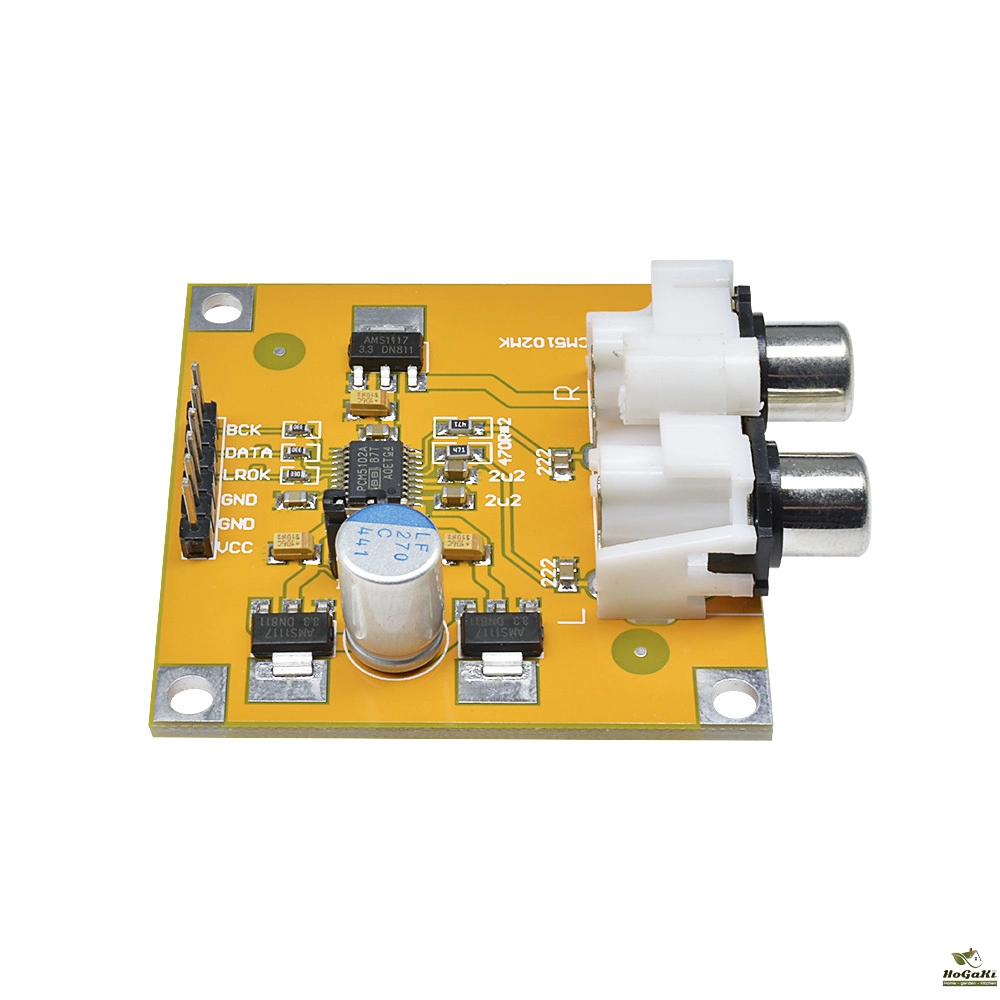

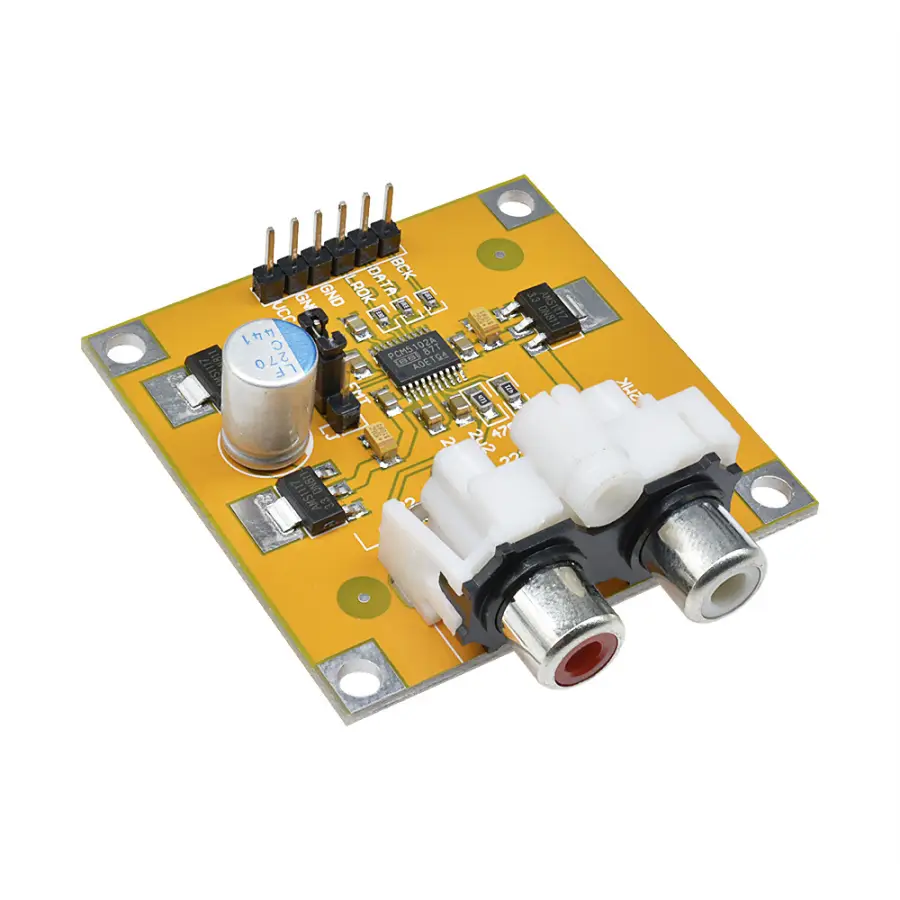

Style 1 parameter:

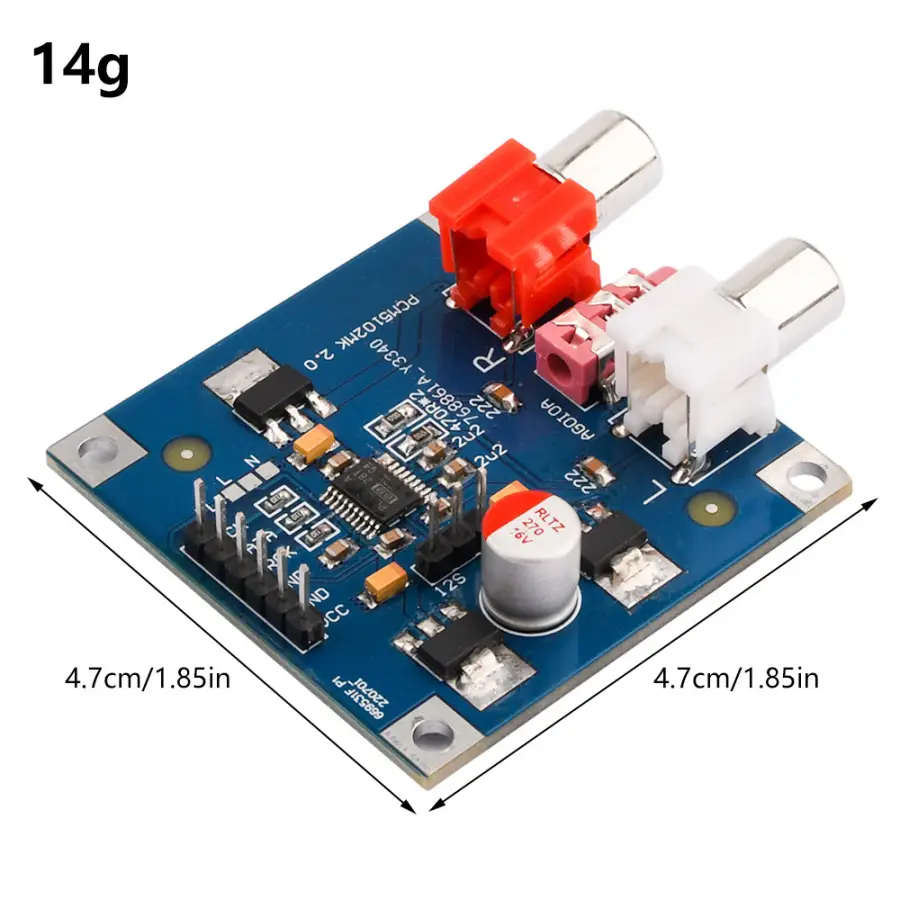

PCB size: 4.8x4.8cm
Power supply: DC 5V-10V
Support I2S/left-aligned signel direct input (can be switched manually)
Maximum support for 32-bit 384K sampling rate!
Two FLT filtering modes (NOM normal mode or low latency mode) can be adjusted manually - switch required!
Signal to Noise Ratio: 112dB
Distortion: -93db
Direct output is 2.1V RMS audio voltage, pure high frequency, full low frequency, surpassing ES9023
Note: BCK and DATA are marked with inverse, please use BCK as data, data BCK!
Assemble PCM5102 DAC decoder I2S32 players beyond 384K es9023
Shipping list:
PCM5102 DAC decoder module X1

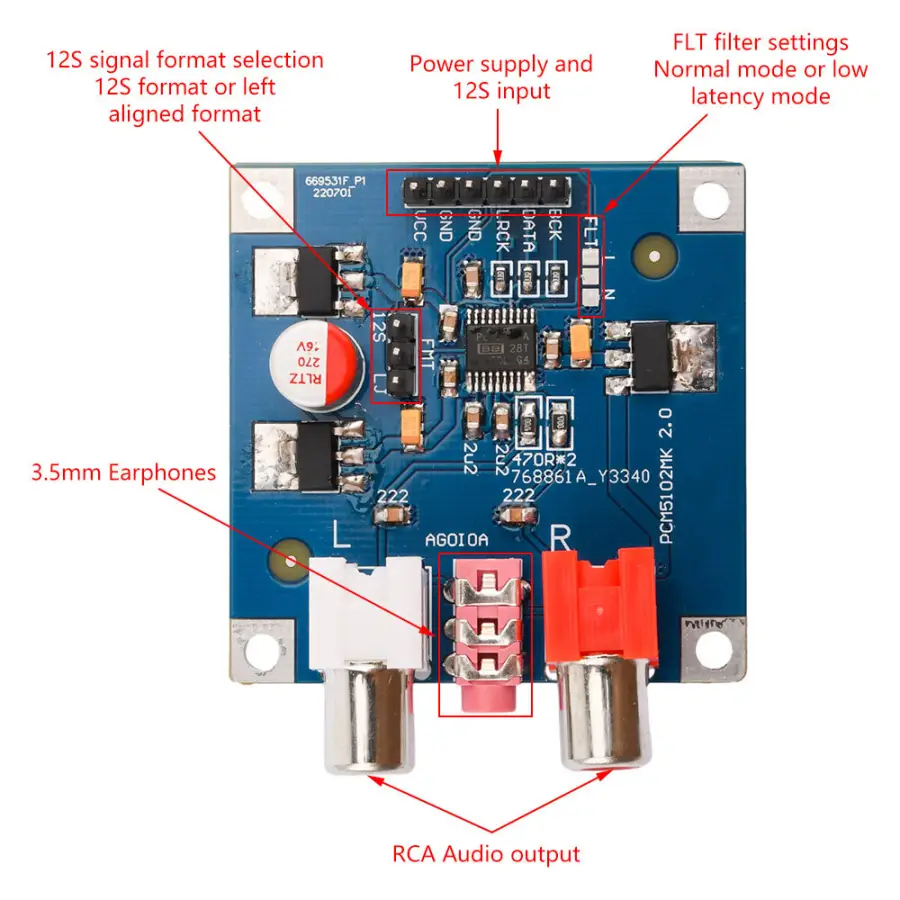

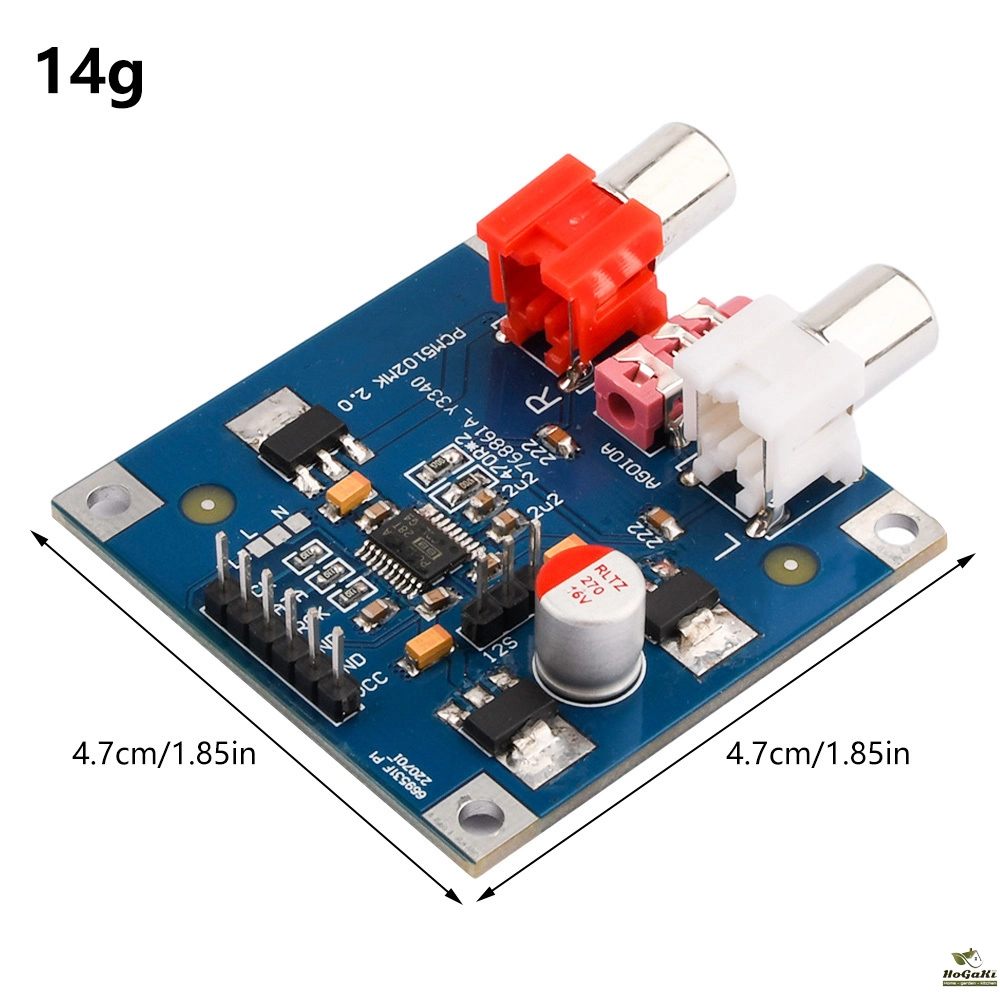

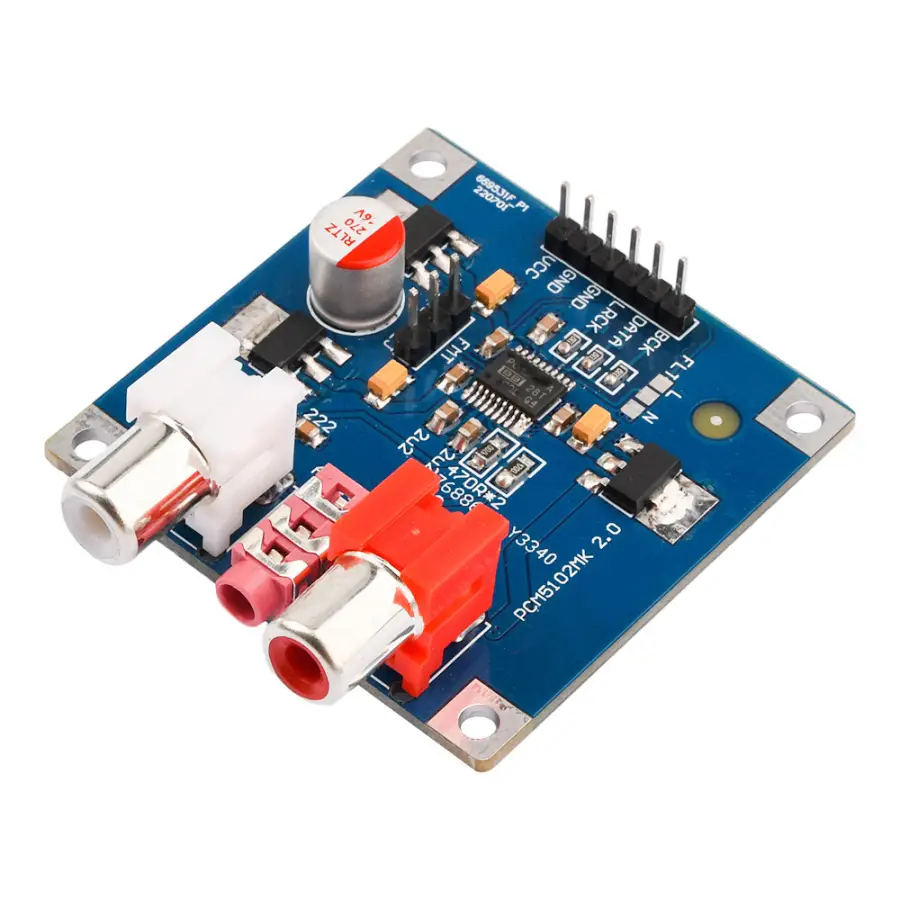

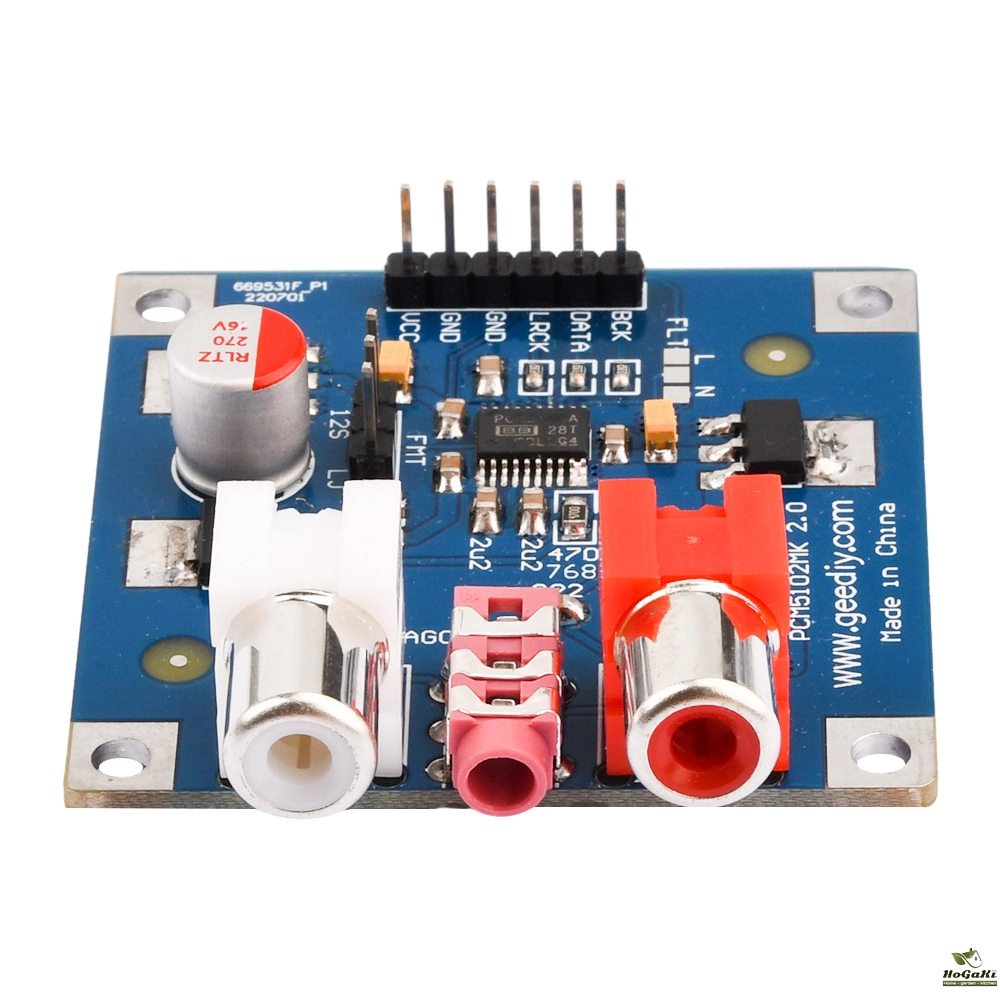

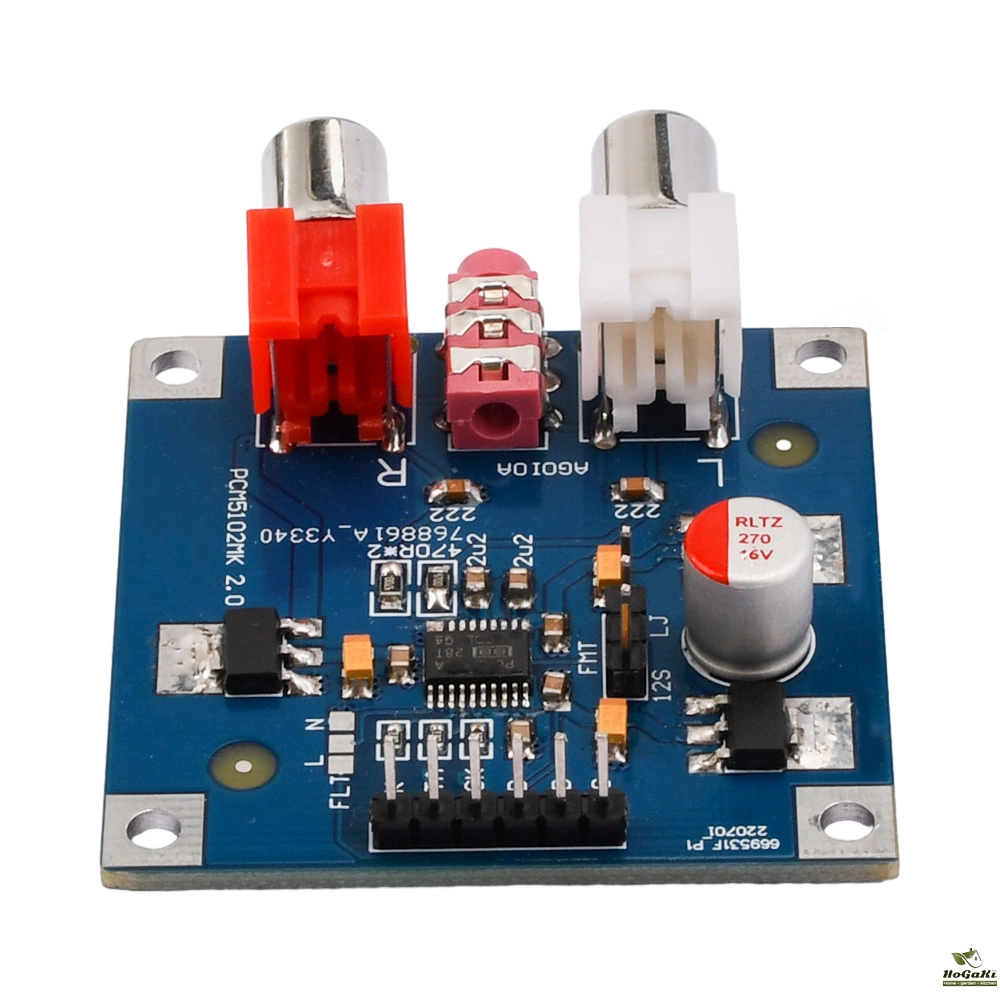

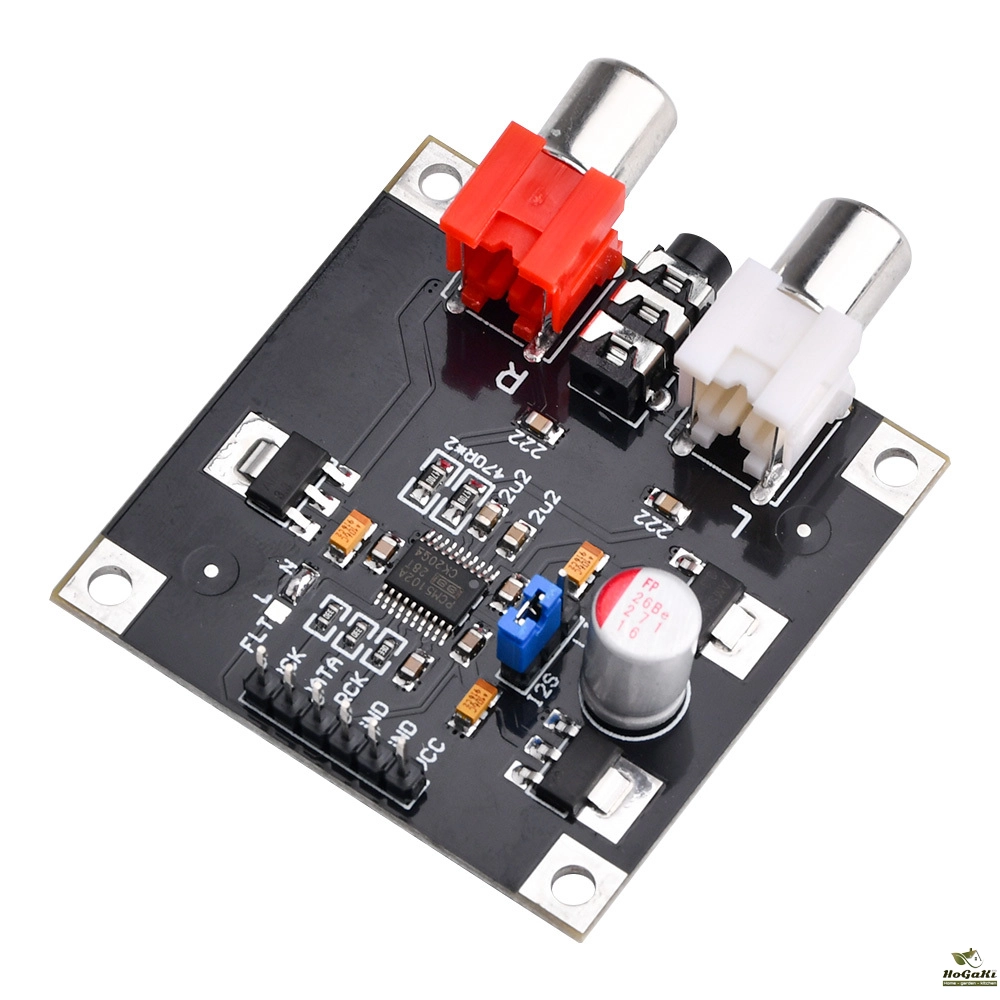

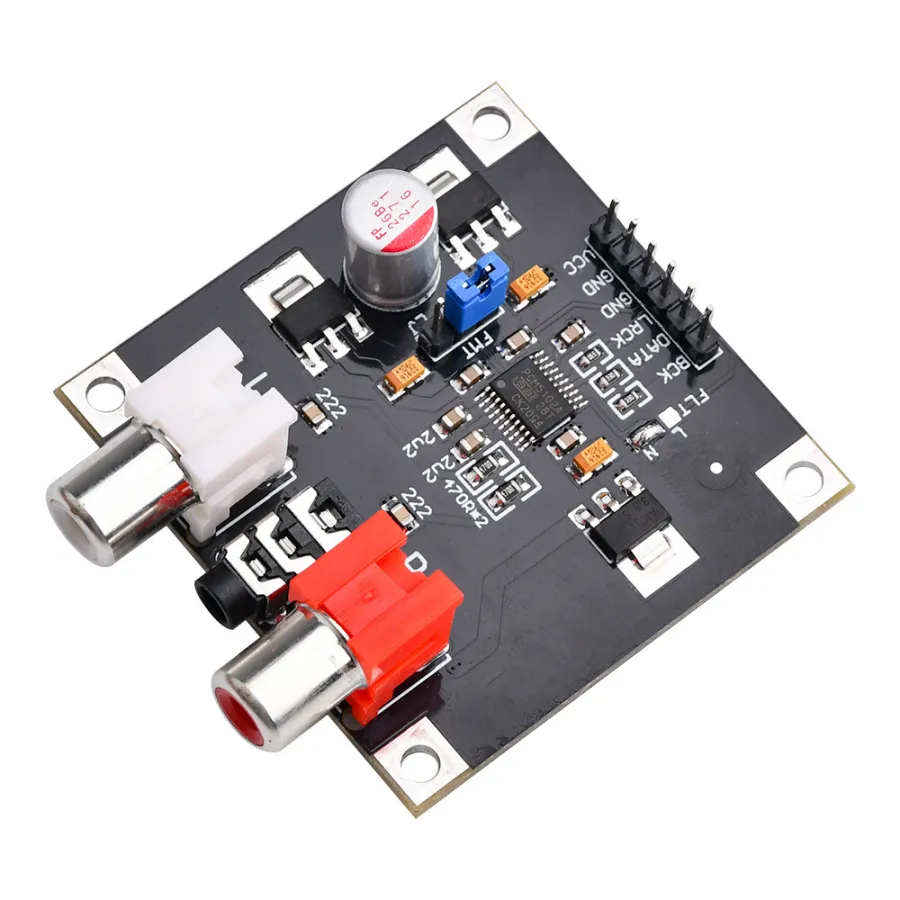

Style 2 parameters:
Power supply voltage: DC5V-10V For example: VCC connects 5-10V GND connects GND. Be careful not to reverse the power supply, otherwise it will damage the board, and the voltage exceeding 10V will also damage the board
Except for VCC GND connected to the power supply, the remaining GND LRCK DATA BCK connected to I2S signal input (this board does not need to be connected to the MCLK chip internal PLL up-frequency to generate MCLK clock, the effect is much better than using asynchronous clock. The internal PLL up-frequency only Used to generate the internal MCLK clock, the audio sampling rate cannot be increased)!
Support I2S format/left-justified (left-aligned) signal direct input (need to switch manually)!
Supports two filter modes: normal mode or low latency mode (set on the FLT port of the board)!
Added a headphone output interface, which can be directly connected to a 3.5mm interface headphone! ! !
The highest support 32bit data 384K sampling rate!
The detailed interface has been marked on the board! ! !
The signal-to-noise ratio is 112db, the distortion is -93db, and it directly outputs 2.1V RMS audio voltage. The high frequency has no glitches, the low frequency is full, and the dive is good. Super ES9023!

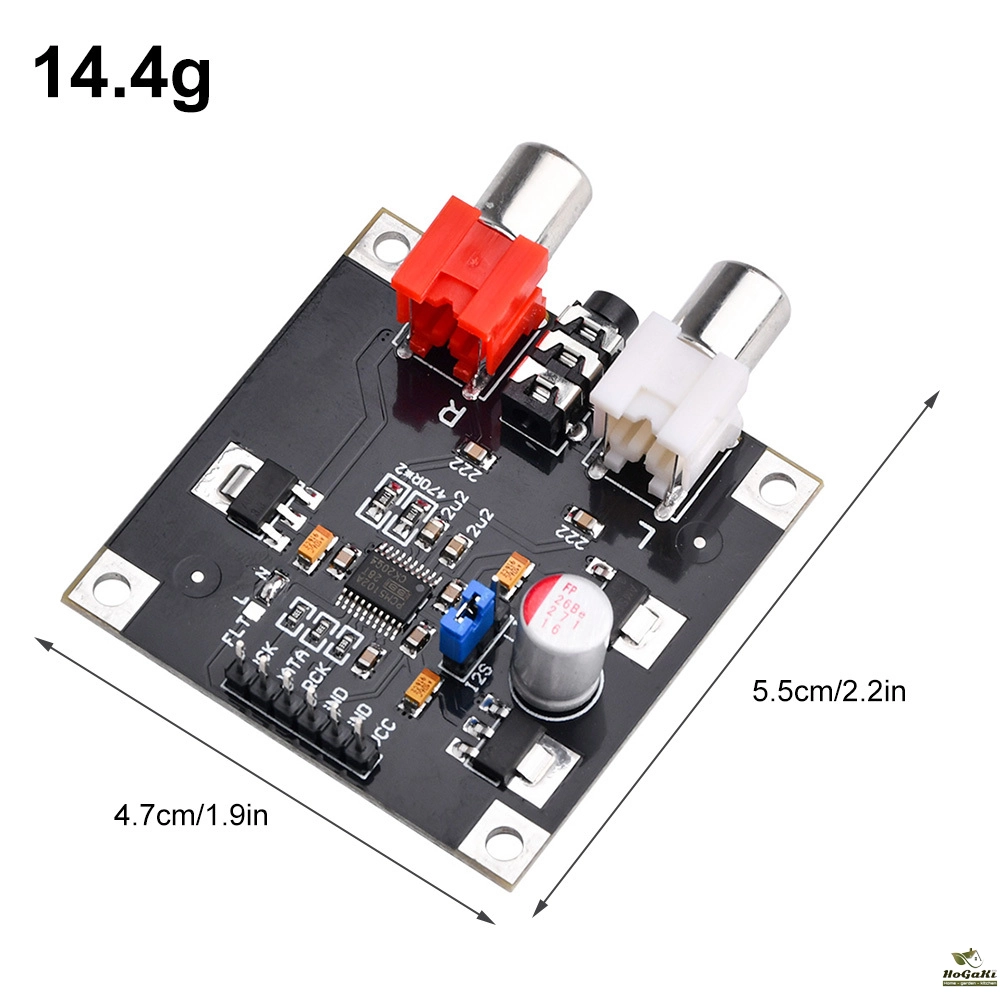

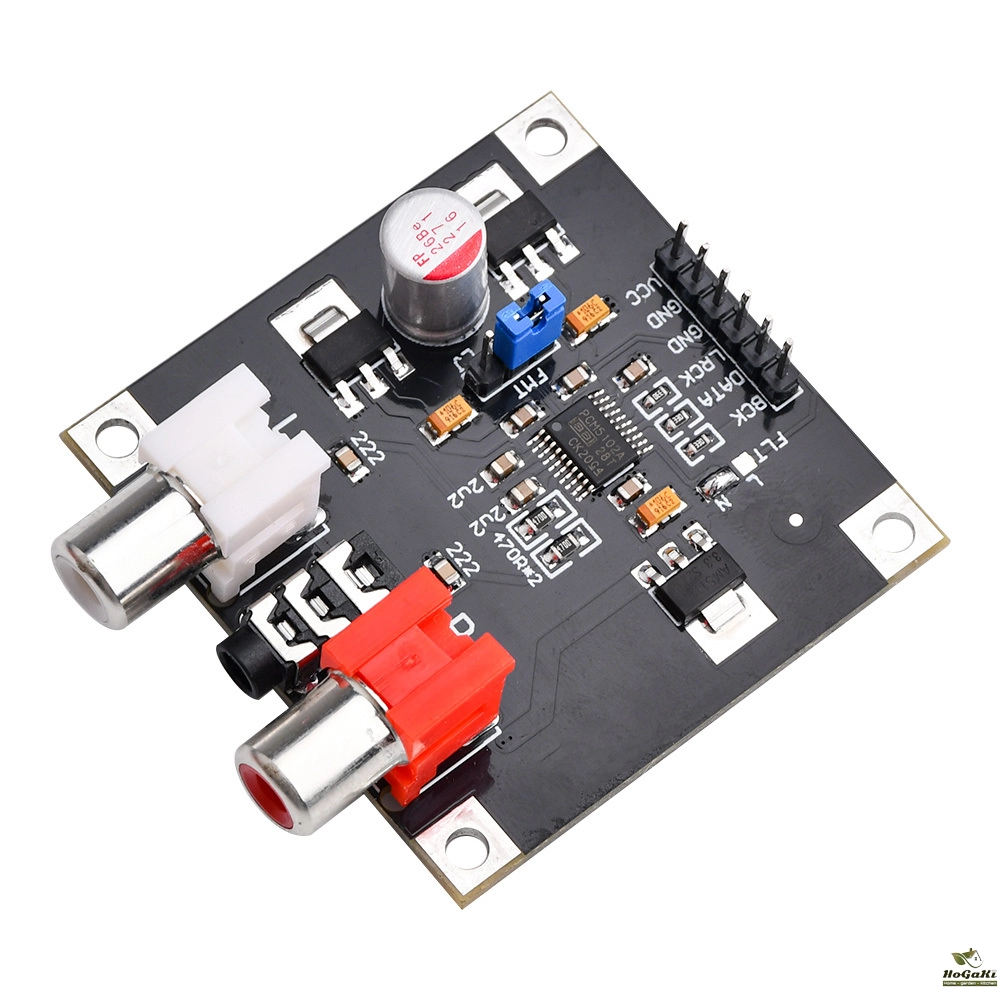

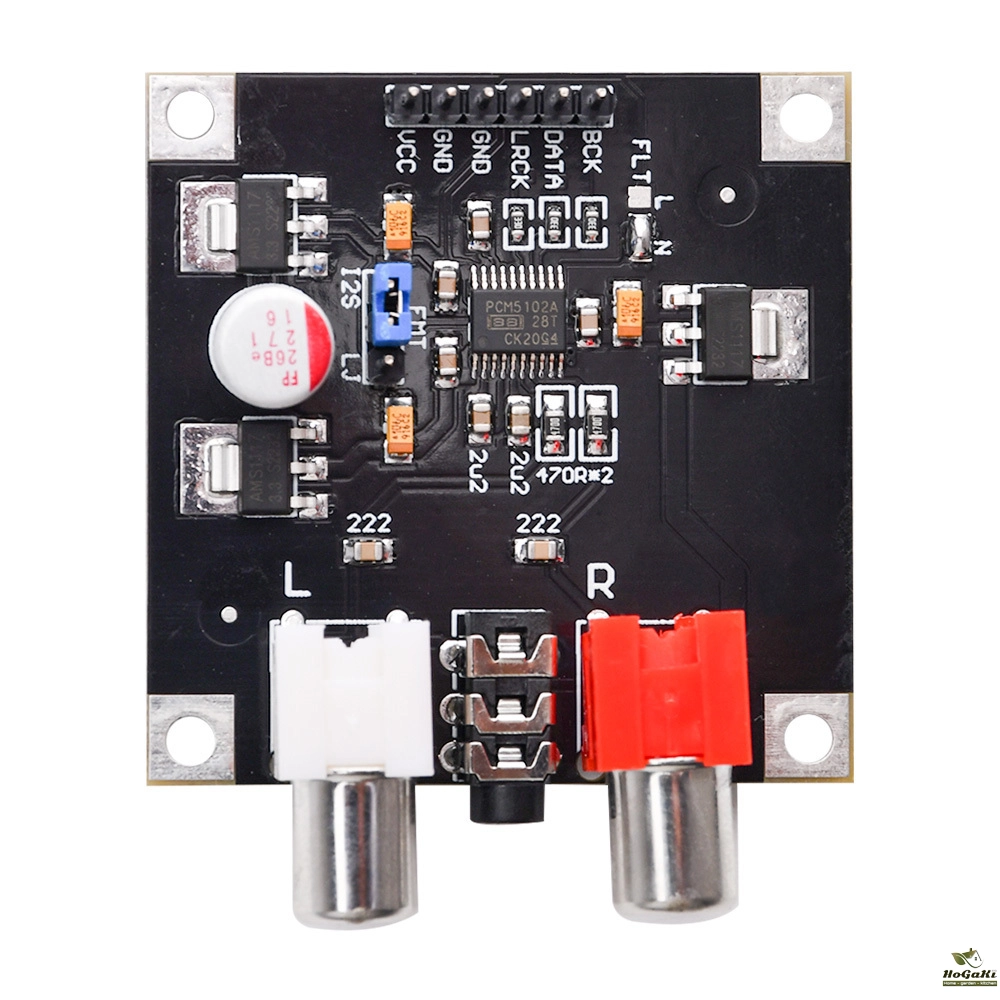

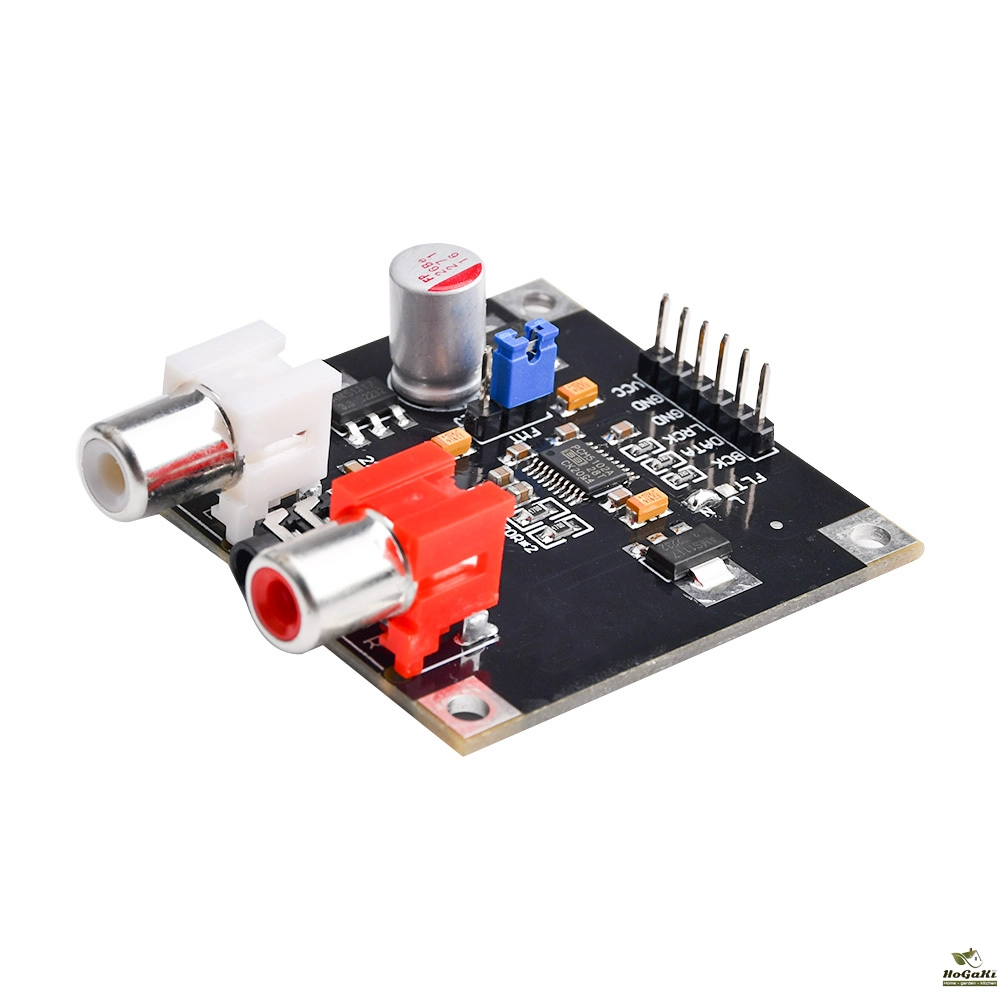

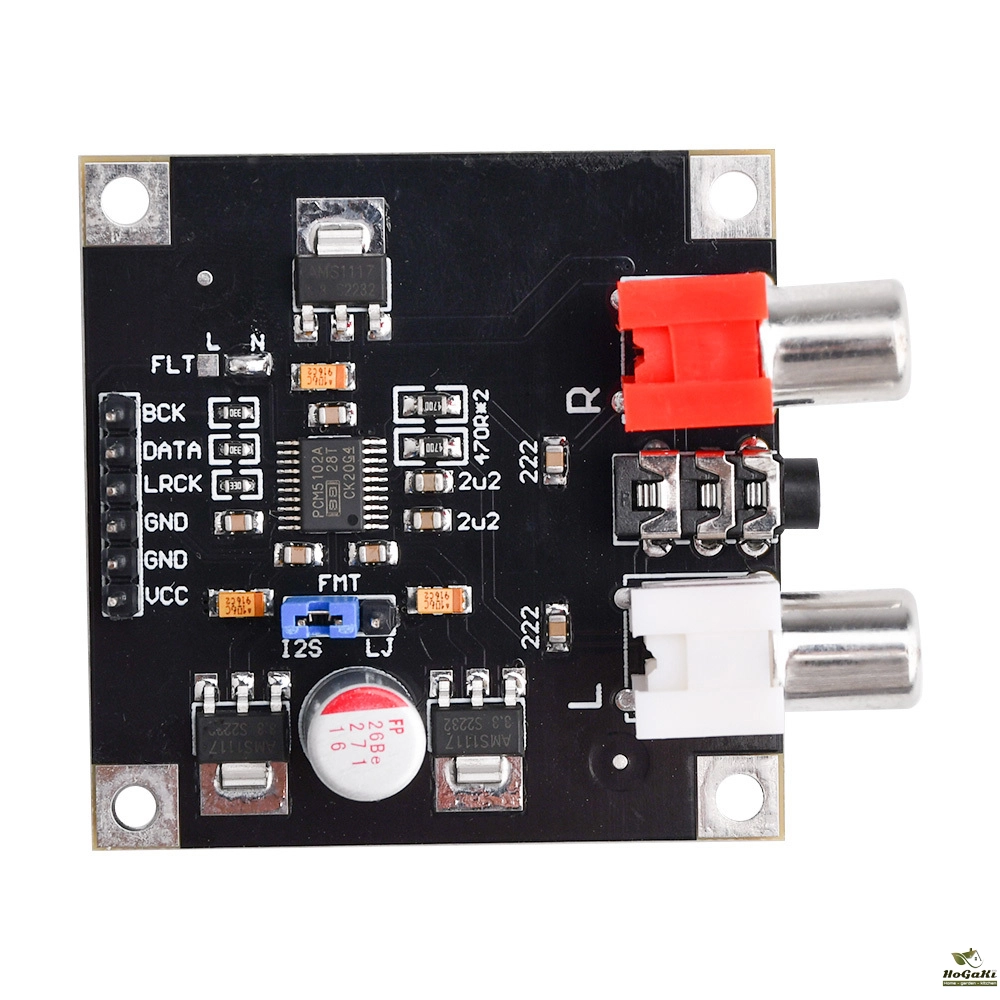

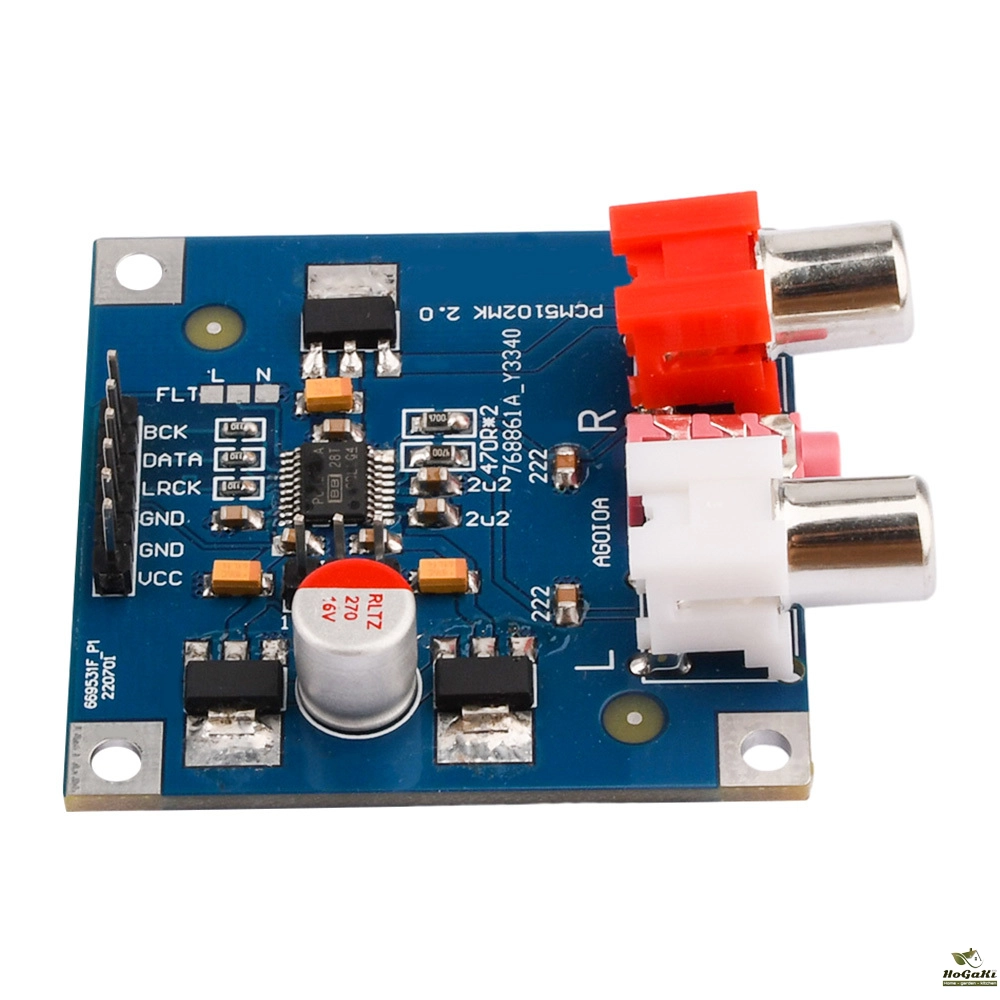

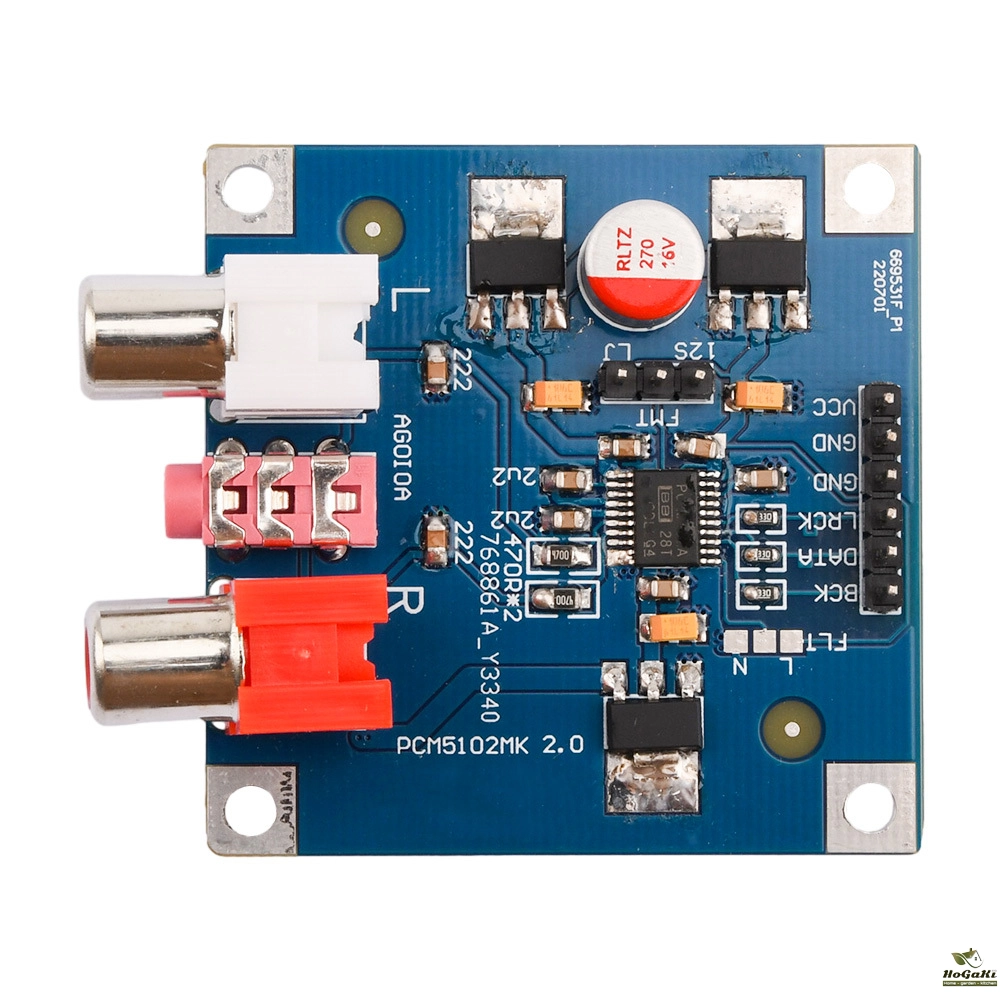

Style 3 parameters:
Power supply voltage: DC 5V-10V
Such as: VCC connected to 5-10V GND connected to GND
Be careful not to reverse the power supply, otherwise it will damage the board, and the voltage exceeding 10V will also damage the board

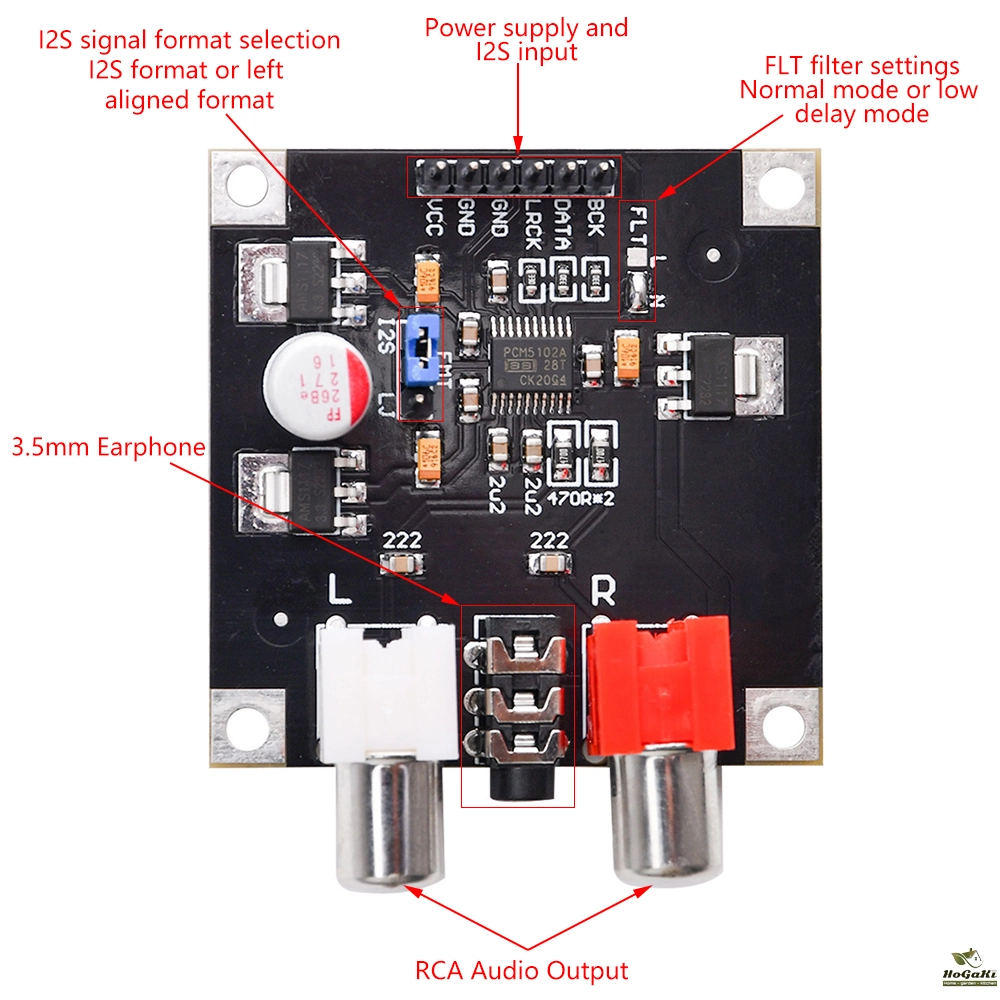

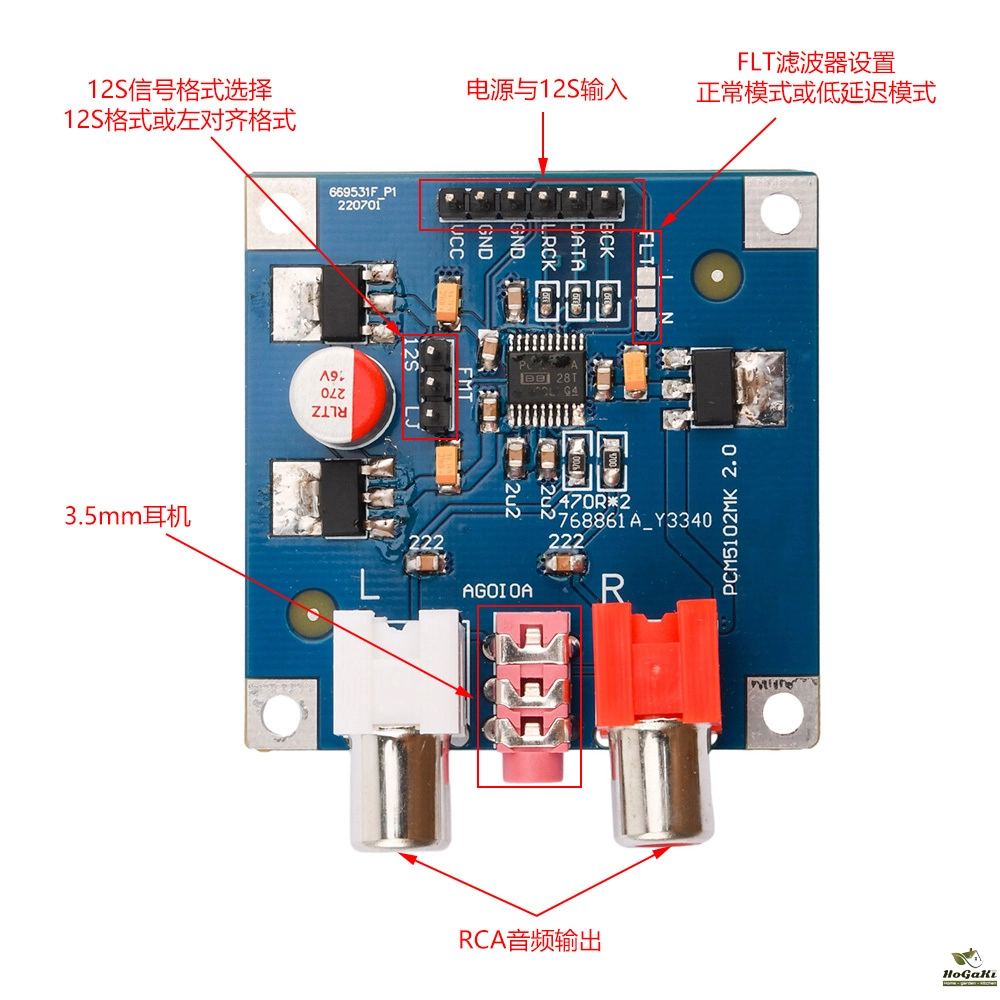

Except for VCC GND connected to the power supply, the remaining GND LRCK DATA BCK connected to I2S signal input (this board does not need to be connected to the MCLK chip internal PLL up-frequency to generate MCLK clock, the effect is much better than using asynchronous clock. The internal PLL up-frequency only Used to generate internal MCLK clock, cannot increase audio sampling rate)
Support I2S format/left-justified (left-aligned) signal direct input (need to switch manually)
Supports two filter modes: normal mode or low-latency mode (set on the FLT port of the board)

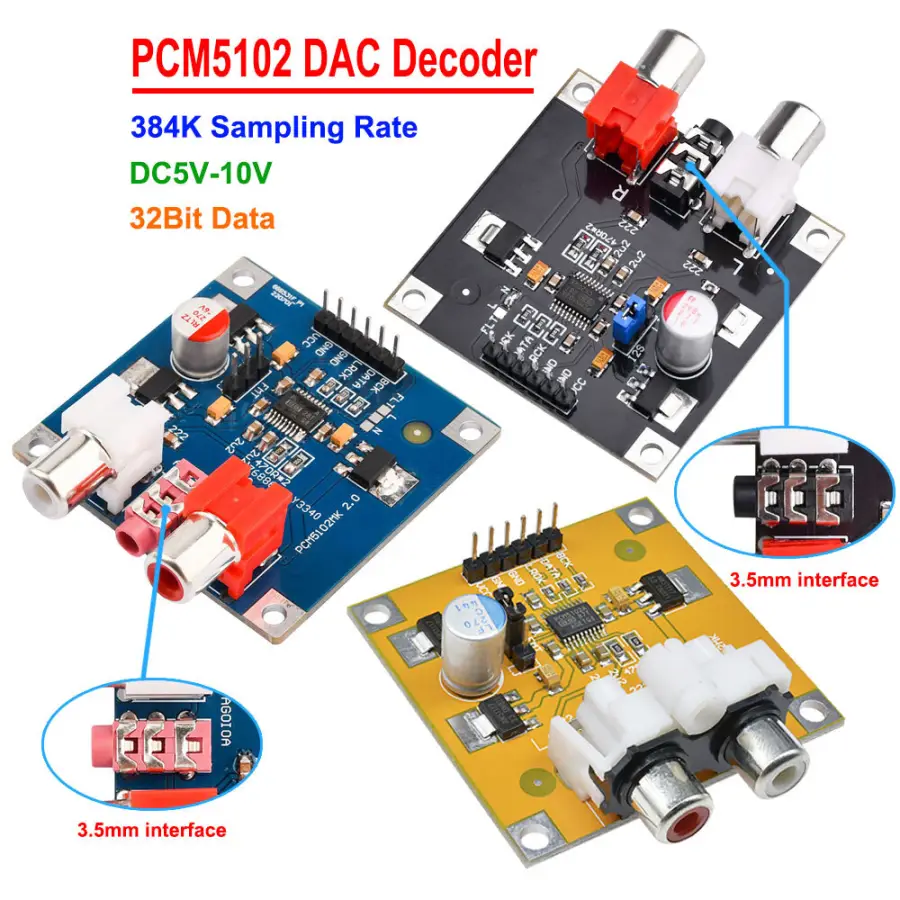

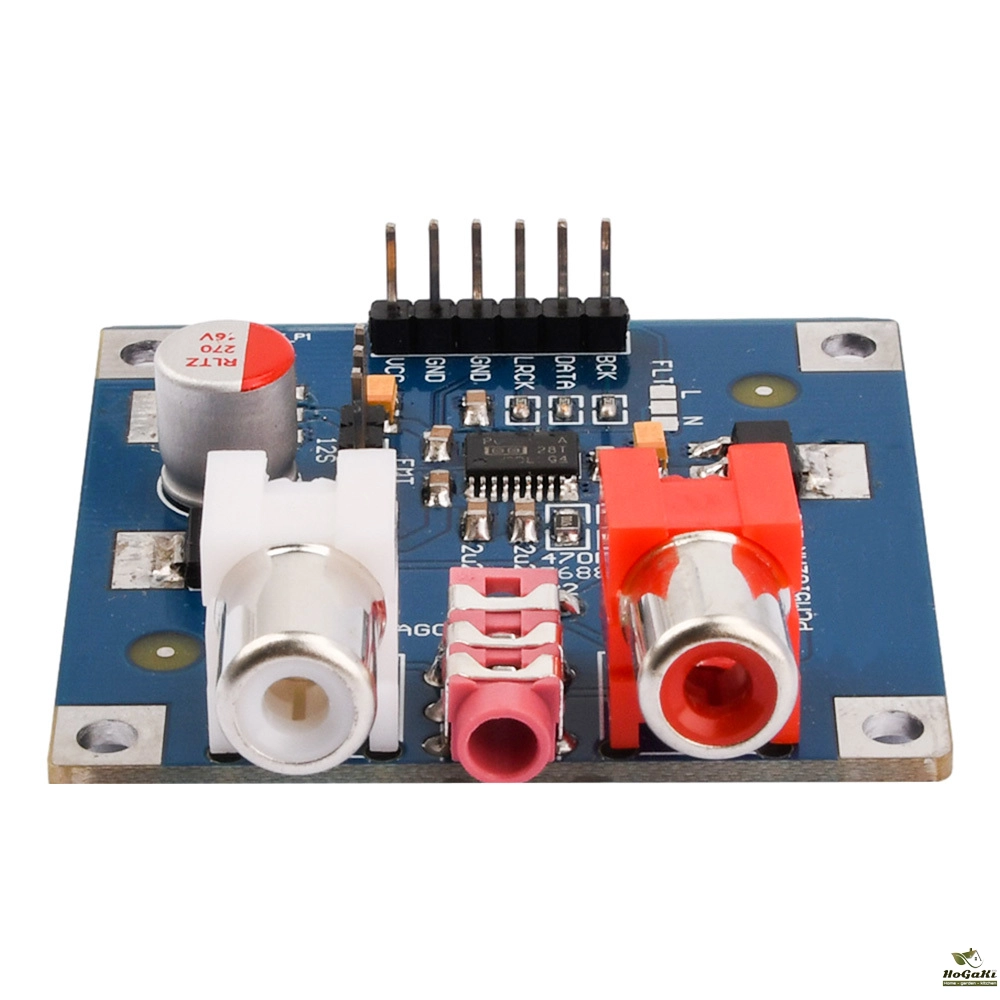

Added a headphone output interface, which can be directly connected to a 3.5mm interface headphone!
The highest support 32bit data 384K sampling rate, the detailed interface has been marked on the board!
Signal-to-noise ratio 112db, distortion -93db, direct output 2.1V RMS audio voltage, no glitch in high frequency, full low frequency, good dive, super ES9023!
Shipping list:
PCM5102 DAC decoder with output interface module X1
Packaging Details
- Unit Type:
- Package Weight: 0.025
- Package Size: 5x1x5
- Brand Name: occkic
- Origin: Mainland China
- Smart home platform: Other
- Certification: None
