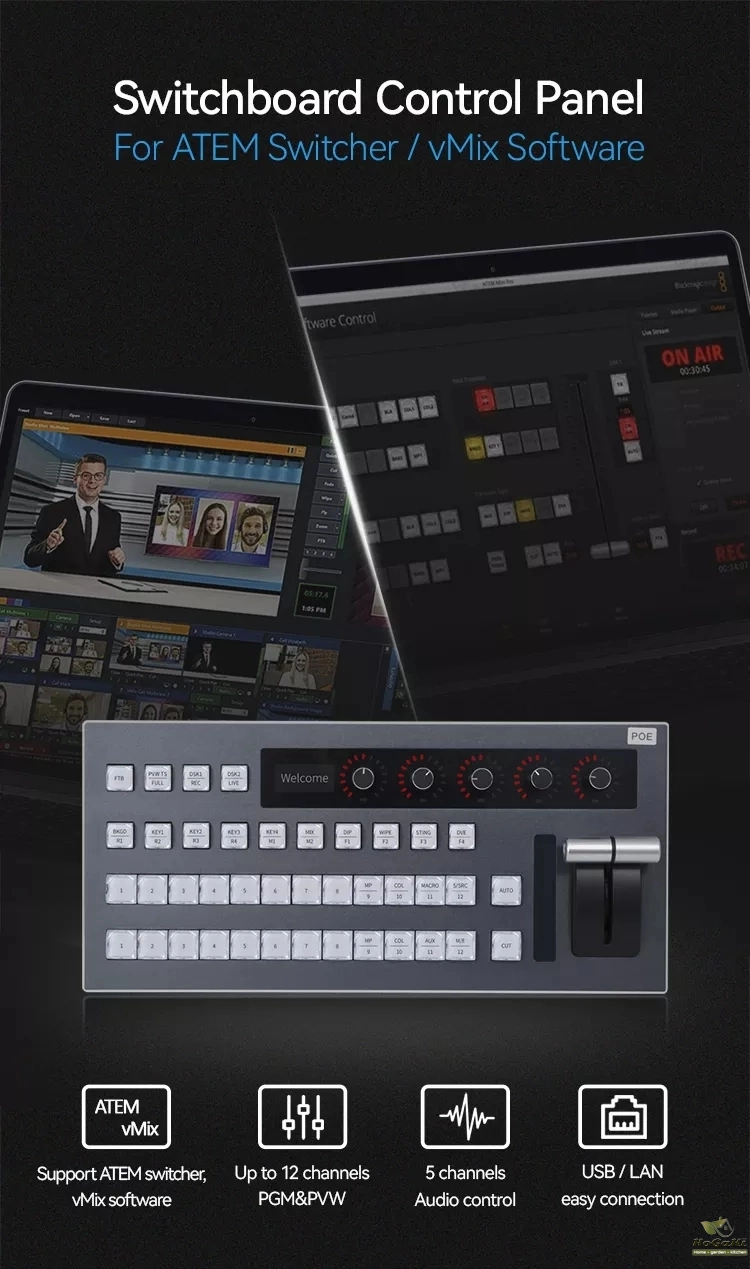

USB vMix Panel Switches Control LAN ATEM switcher For VMix Software Live Streaming Matrix Switchboard Control Panel
0.0 ( votes) | 2 orders
Price:
US $1875.98
Discount Price:
US $
1219.38
-35%
Features
Integrated hardware design:
Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

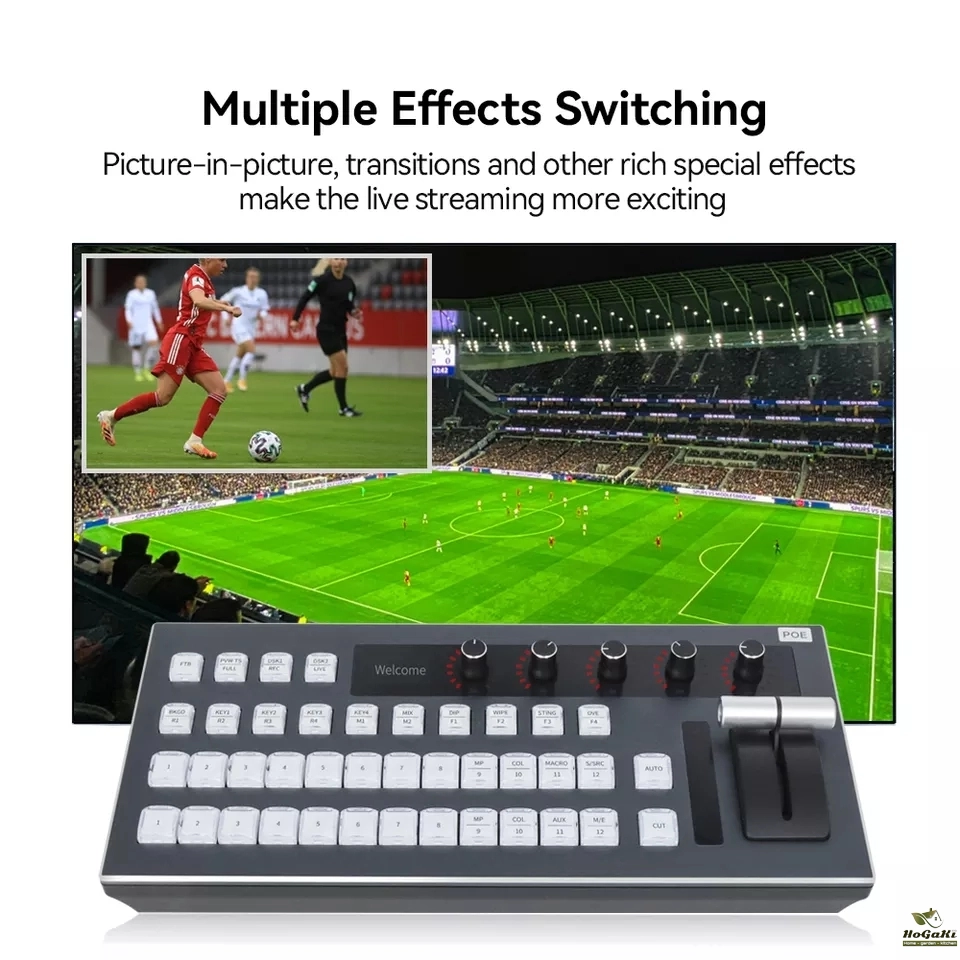

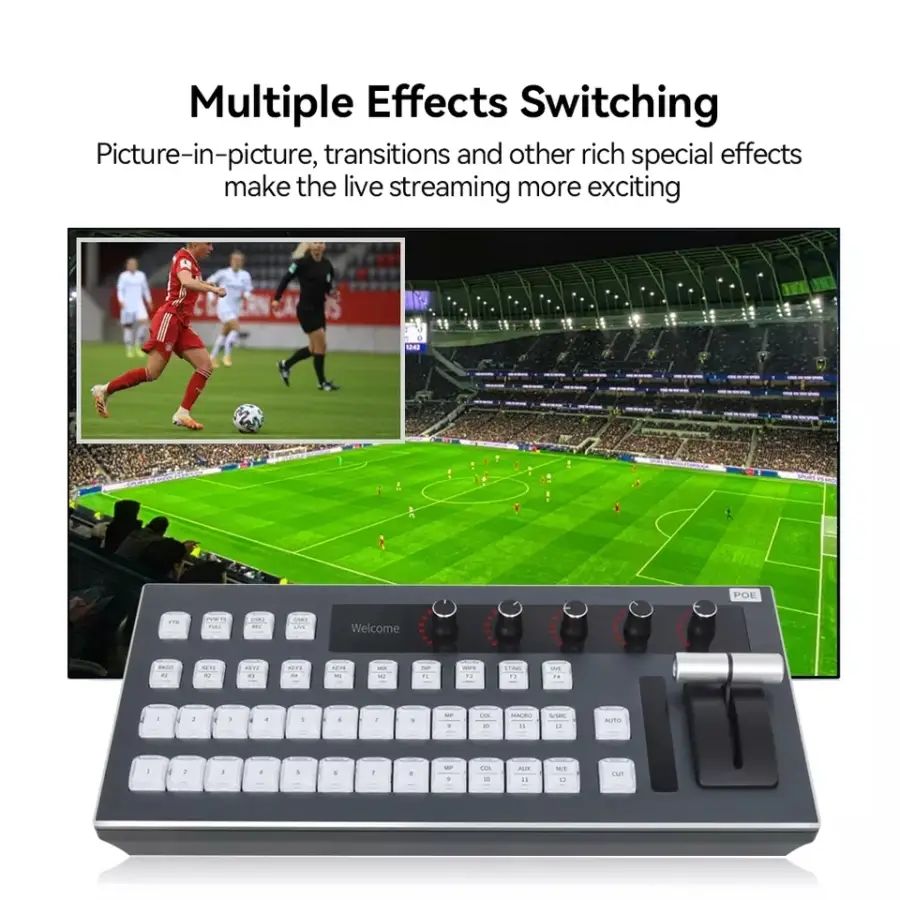

Brand-new upgrade function, custom combination to play more effects:
The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.

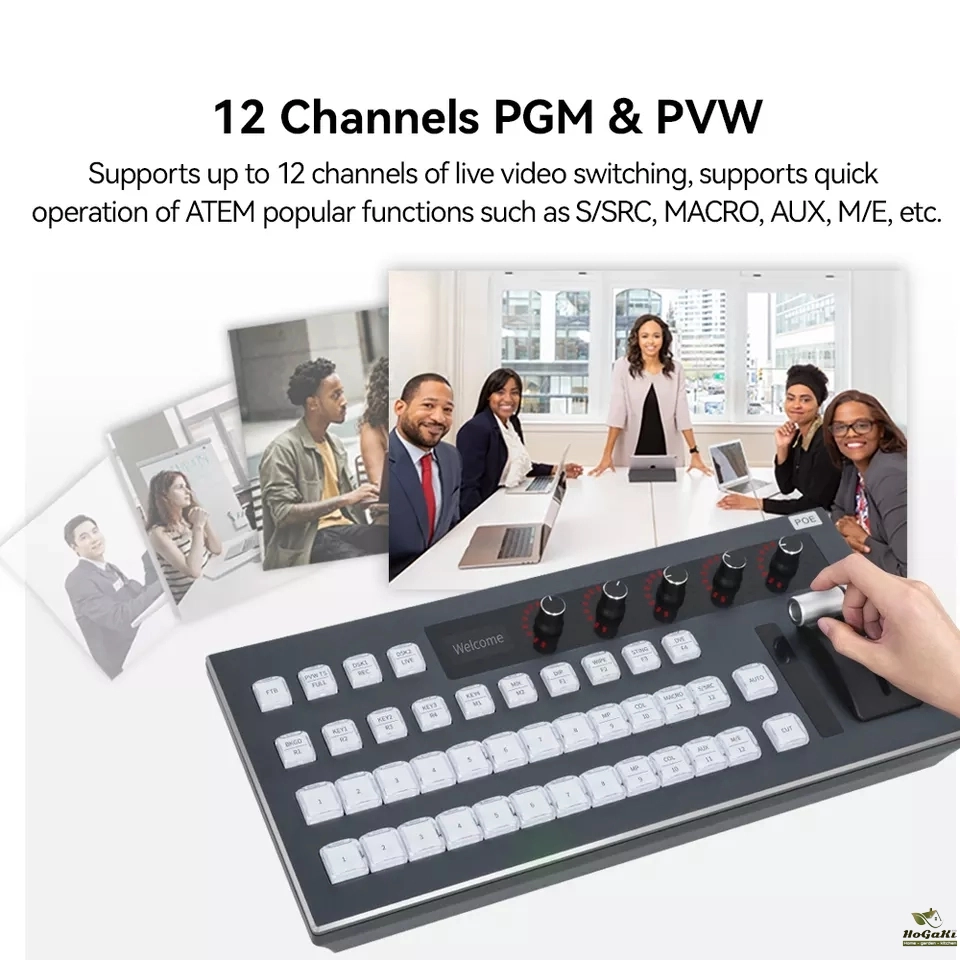

Supports up to 12 channels of live video switching:
ATEM support conventional 8-channel PGM+8-channel PVW live switching, other live software supports up to 12-channel live switching.
Built-in custom audio adjustment function:
Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.
Compatible with plenty of live broadcast software:
In addition to supporting ATEM series devices, it also supports MIDI protocol,compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc.,multi-purpose machine is more worry-free.
Support 24-channel tally output function:
Built-in DP25 tally interface, supports up to 24 tally signal output functions.

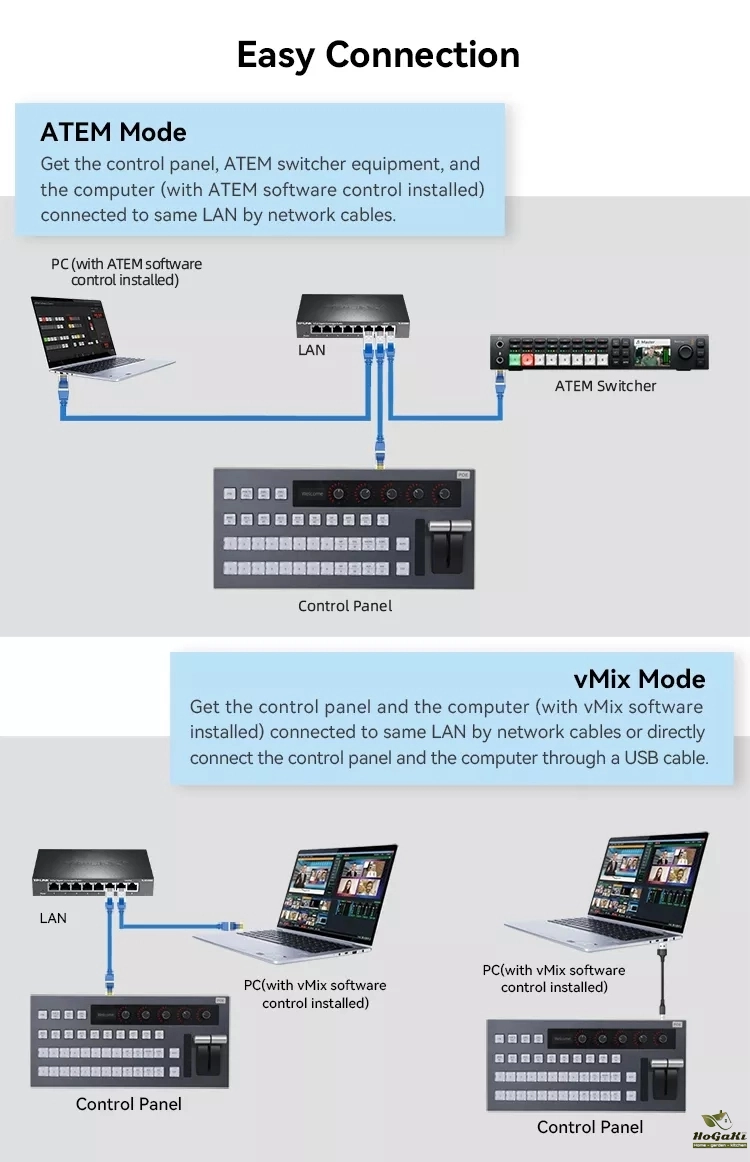

USB 2.0, LAN dual interface connections, simple and convenient:

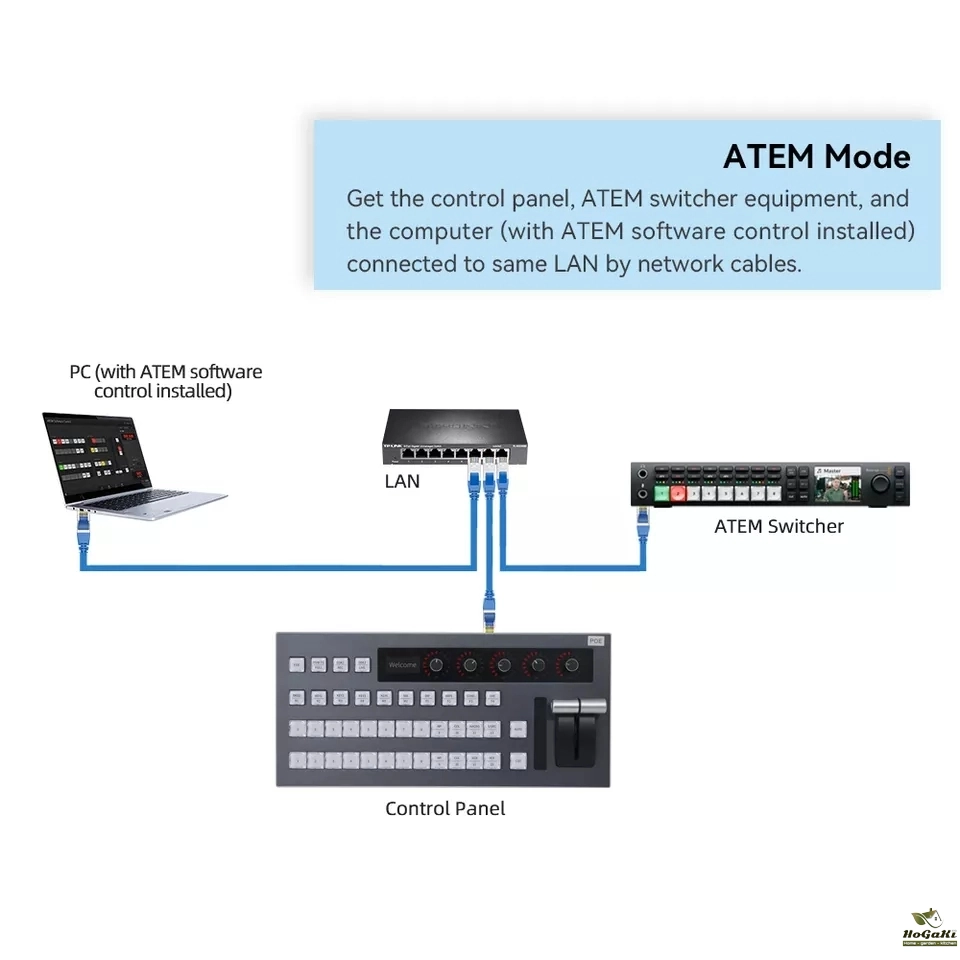

Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supportsLAN connection ), and can transmit video signals to computers and live videoproduction software without a capture card, simple and convenient.
All aluminum alloy body:
Anodized aluminum alloy panel process treatment, outstanding quality.

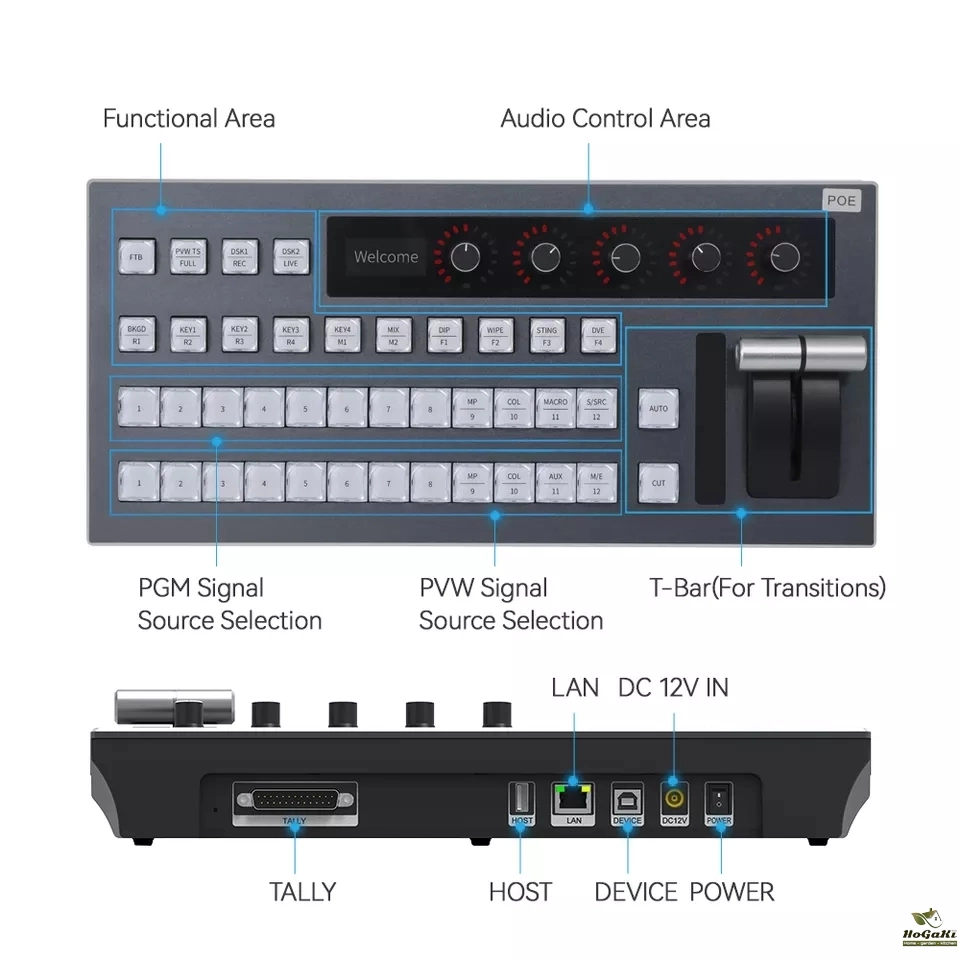

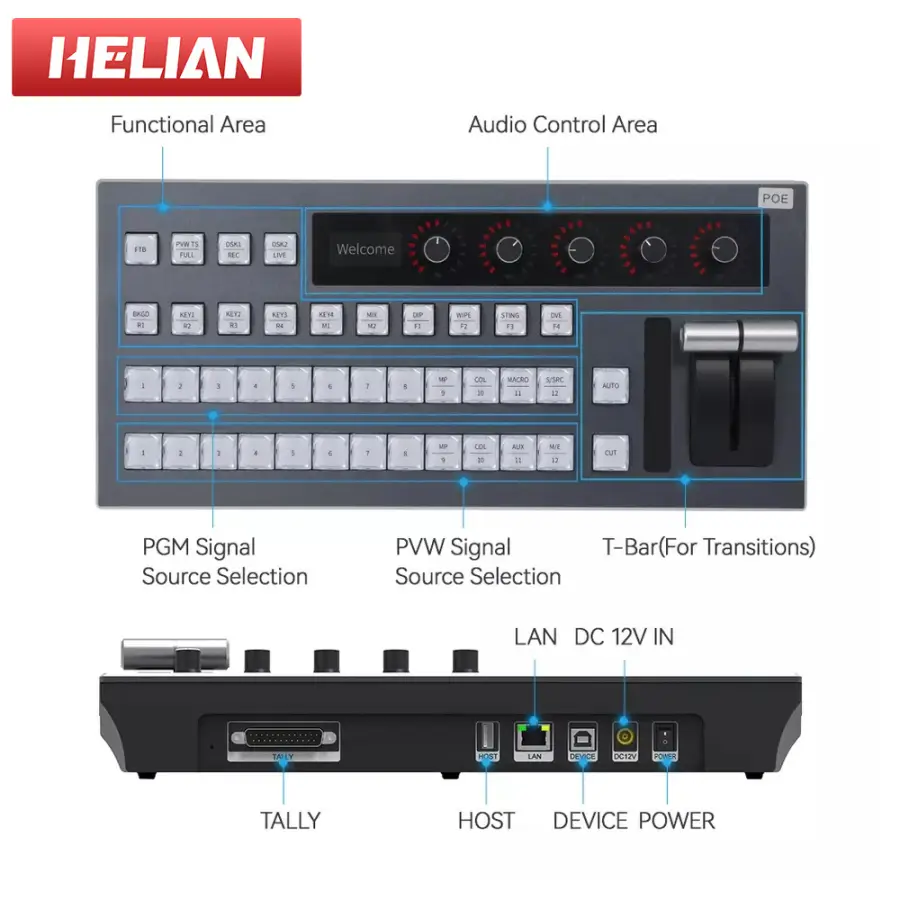

Main Parameters | |
Audio Control | 1ch master+4ch input |
Transition Control | Auto transitions, hard cuts, T-Bar |
OLED Display | Set device parameters |
Indicator Light | Indicate switcher status |
Tally | 12ch PGM+12ch PVW |
ATEM Functions: | |
Connection Method | 100M LAN，support POE 802.3af |
Video Control | 8ch inputs + 1ch COL + 1ch MP |
Transition Effects | MIX / DIP / WIPE / STING / DVE |
Upstream Keyboard | BKGD / KEY1 / KEY2 / KEY3 / KEY4 |
Downstream Keyboard | DSK1 / DSK2 |
FTB | Support |
PREV TRANS | Support |
MACRO | Support |
S/SRC | Support |
M/E | Support |
AUX | Support |
Vmix Functions: | |
Connection Method | 100M LAN，support POE 802.3af |
Video Control | 12ch inputs |
Transition Effects | 4 kinds |
Picture-in-picture Function | R1 / R2 / R3 / R4 |
Playback Setting | M1 / M2 |
REC | Support |
LIVE | Support |
T-BAR | Support |
Power Supply | |
Input Voltage | DC 12V |
InputCurrent | 0.3A |
Rated Power | 4W |
POE | POE 802.3af for optional |
Powered by USB | Support ( rely on the USB power supply capability of the computer ) |
Others | |
Use Environment | Indoor |
Operating Temperature | -10℃~40℃ |
Storage Temperature | -20℃-60℃ |
Dimensions | (L)354*(W)165*(H)67mm |
Weight | 1.5Kg |

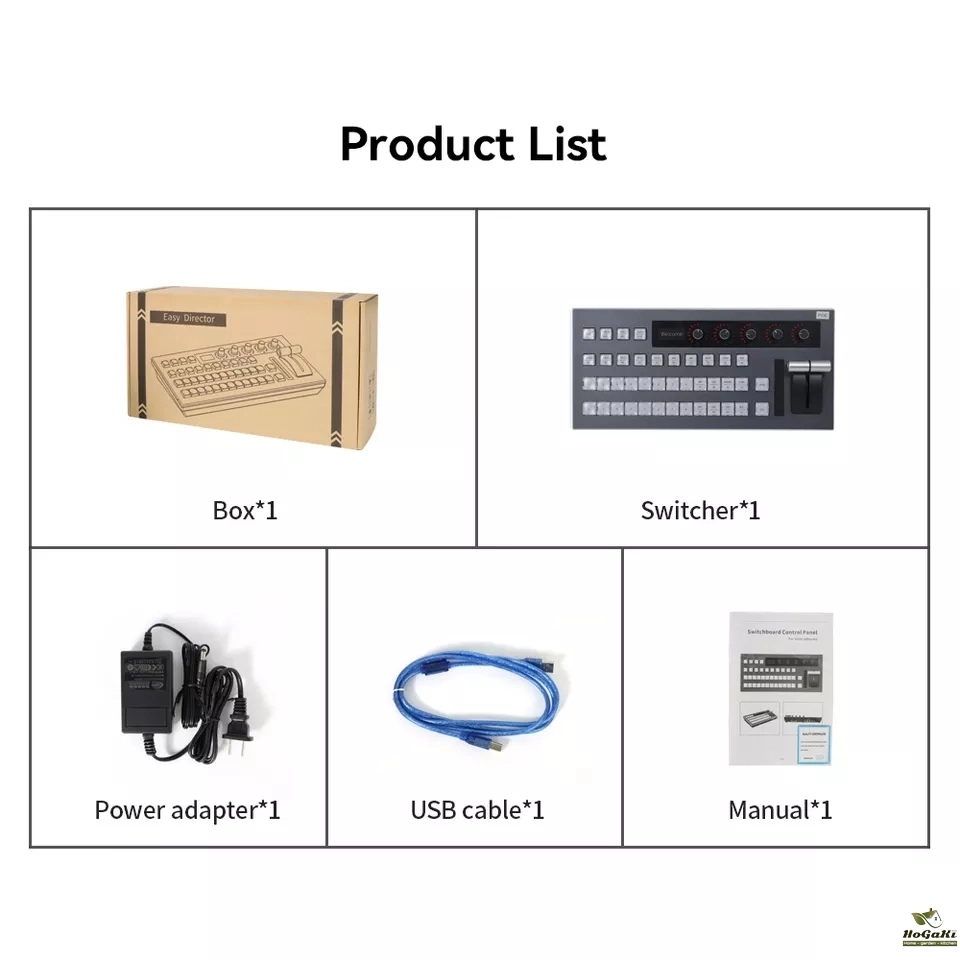

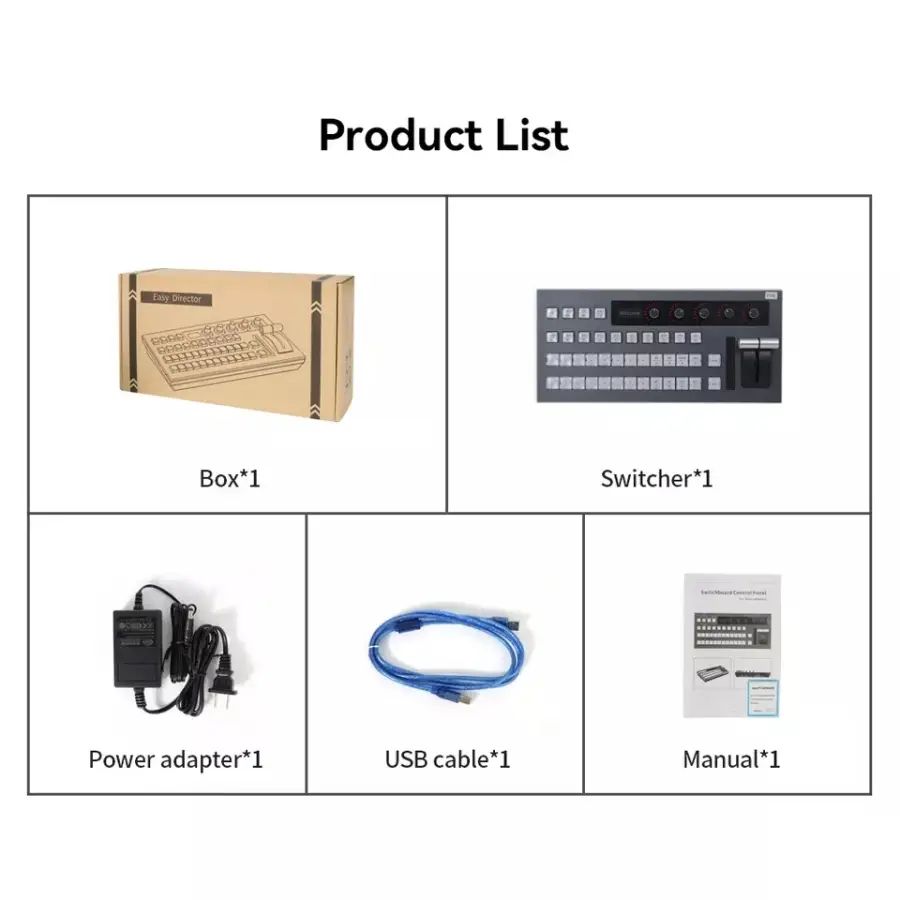

Accessories | Power adapter*1, USB cable*1, User manual*1 |
Specifications
Packaging Details
- Unit Type:
- Package Weight: 2.300
- Package Size: 26x15x45
- Brand Name: HELIAN
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: KD50X
