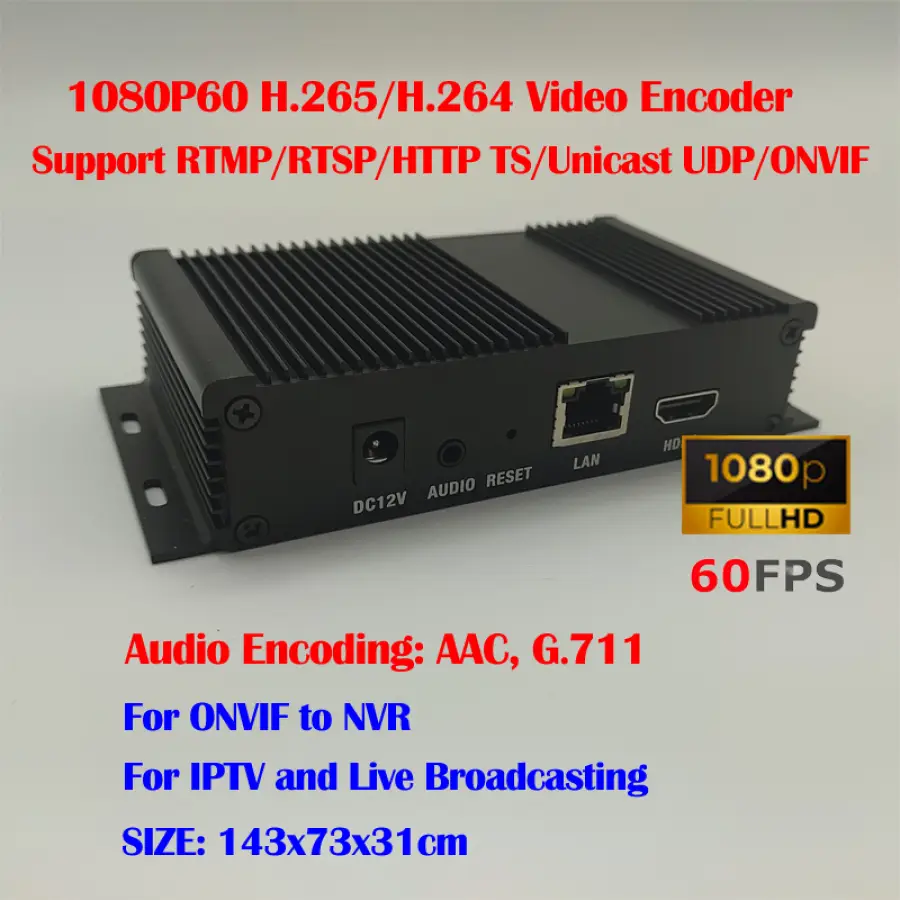

H.265/H.264 HDMI Video Encoder Support RTSP,RTMP,Unicast UDP,HTTP TS,ONVIF Protocol work with NVR
5.0 (4 votes) | 25 orders
Price:
US $
158.40
H.265/H.264 HDMI Video Encoder Support RTSP,RTMP,Unicast UDP,HTTP TS,ONVIF Protocol
H.265/H.264,AAC,G.711
RTSP,RTMP,UDP,HTTP TS,ONVIF
HDMI Video and Audio to IP, HDMI Video + External AudioIN to IP
Features
1. Embedded Linux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.1.168. the user name is admin, and the password is 123456.
3. Support RTMP,RTSP,Unicast UDP,HTTP TS and ONVIF Protocols.
4. Support output 1 main stream and 1 sub stream to different Media Server at the same time.
5. Main Stream Support output resolution - 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,720x404,704x576,640x480,640x360,608x448,544x480,480x480,480x384,480x360,480x320,480x272,480x270,400x320,400x224,352x480,352x228,320x256,320x240,320x180,240x180,176x144.
6. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
7. Support two options, one is HDMI-IN Video + HDMI-IN Audio, the other is HDMI-IN Video + Audio External Audio.
8. Output Stream bitrate adjustable.
9. Support firmware upgrade.
10. IP address can be set by yourself.
Application
1. IPTV
2. Online Live Broadcast, such as YouTube, Ustream, Twitter, Sopplus, etc.

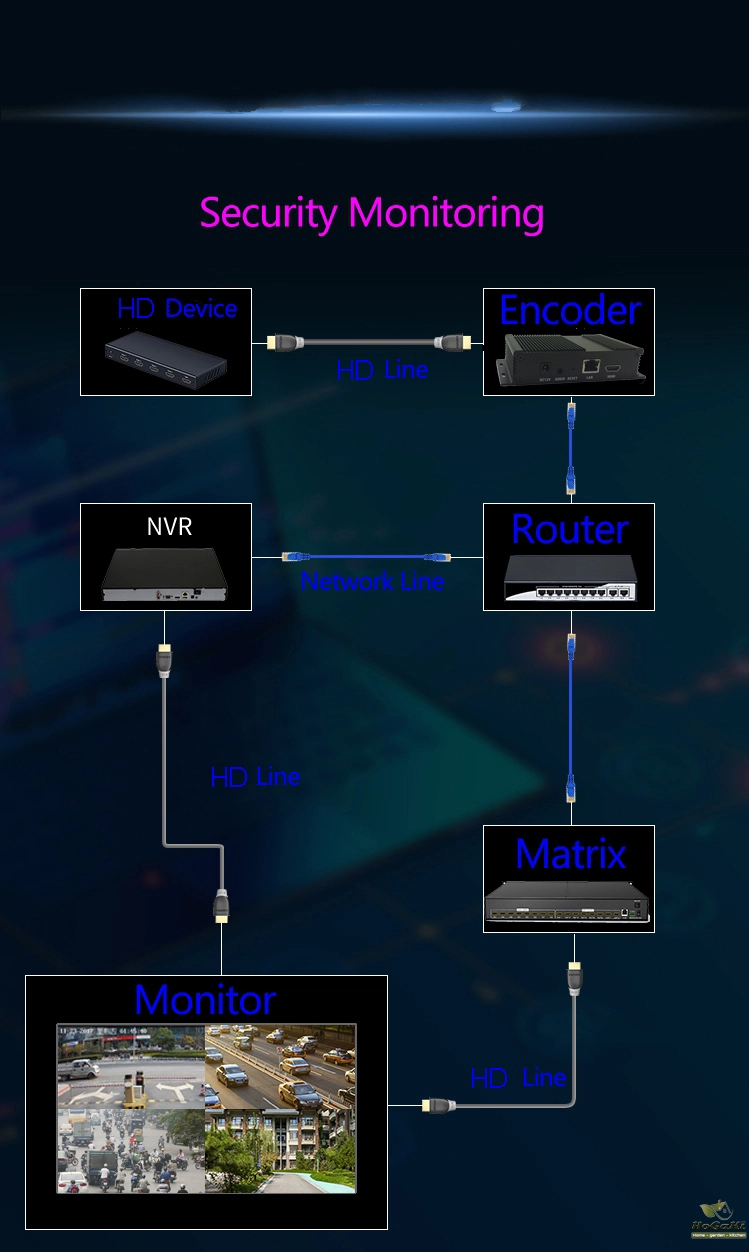

3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System.
Usages
You can play the video directly using some software tools like vlc or potplayer etc, for example,
RTSP stream address: rtsp://192.168.1.168:554/main, also, support rtsp://admin:123456@192.168.1.168:554/main
UDP Unicast TS address: udp://192.168.1.98:20000
HTTP-TS address: http://192.168.1.168:8081
notes: the IP address can be configured to anyone.

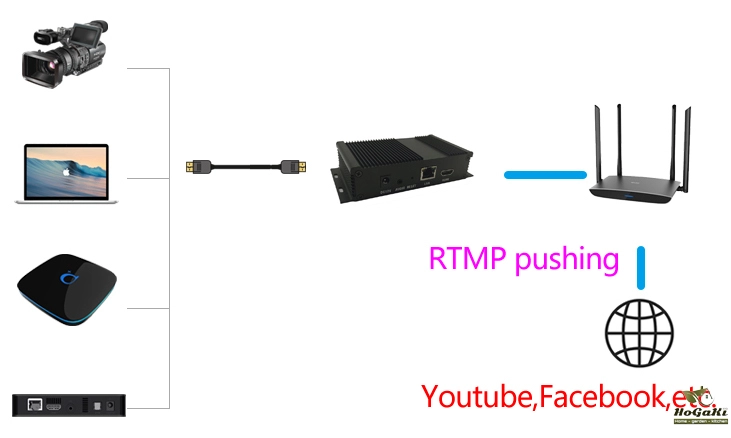

also,set the RTMP push address from the third live webcasting platform.
rtmp://p1bj.weizan.cn/v/xxxxx_149690778246506326?t=260e1
Pay attention
Not support Multicast UDP stram,,
also, can't provide a pre-picture to show when no signal input.

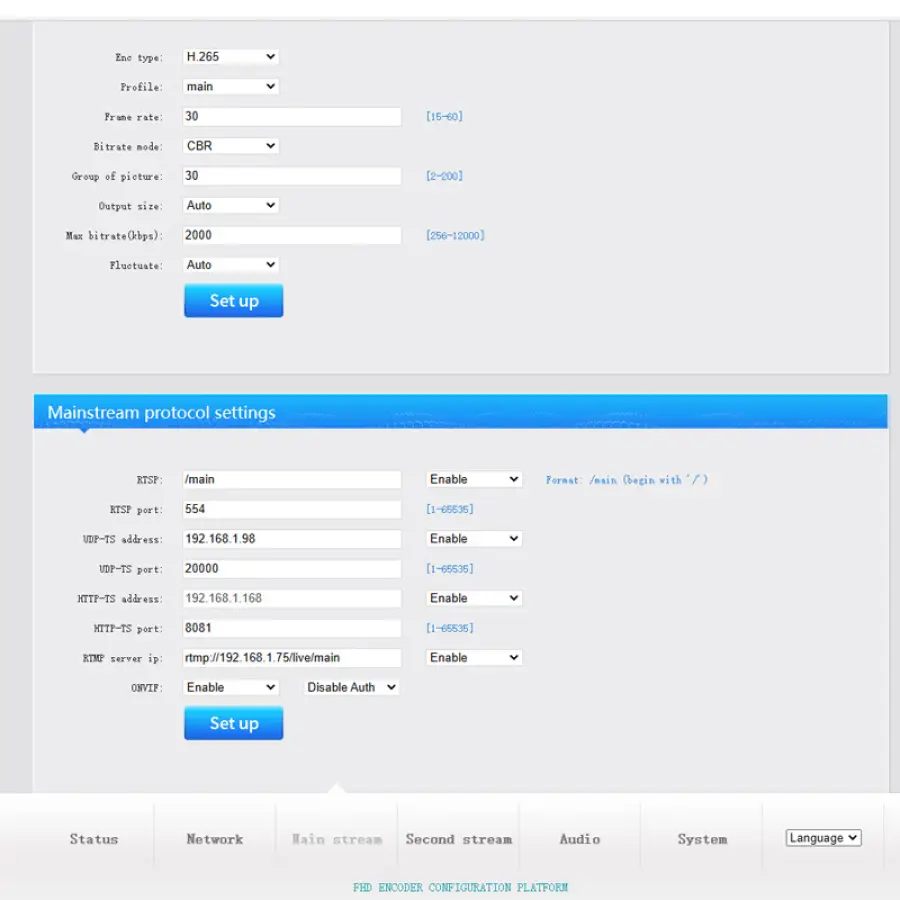

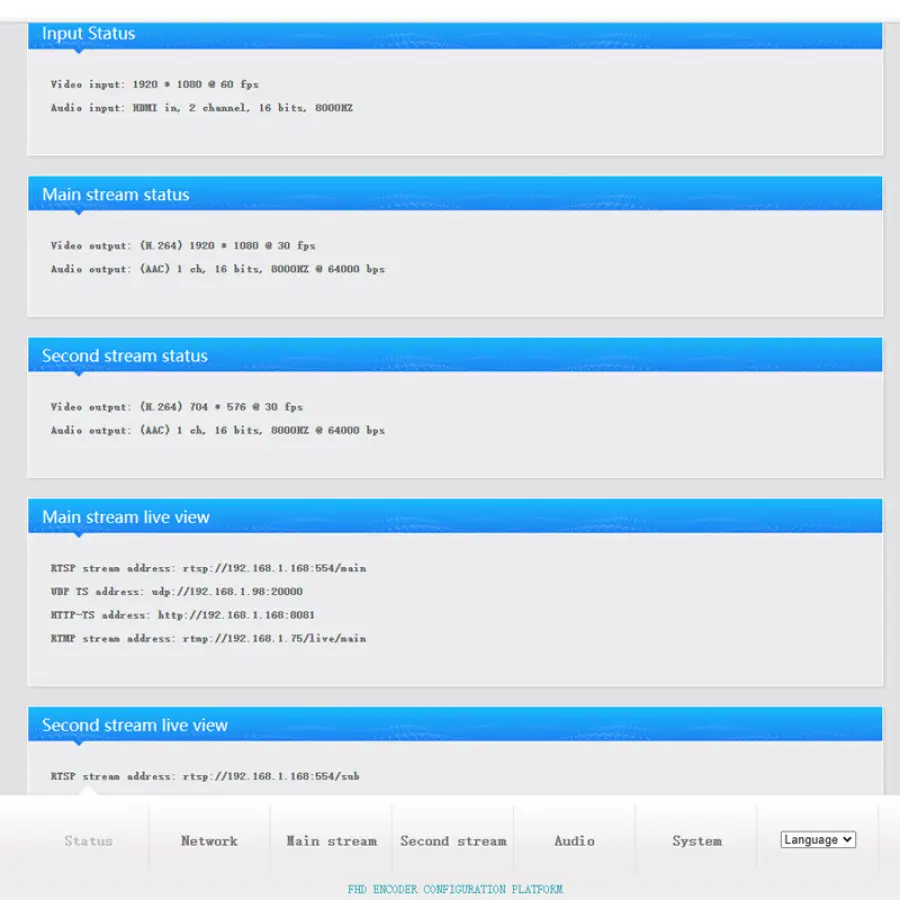

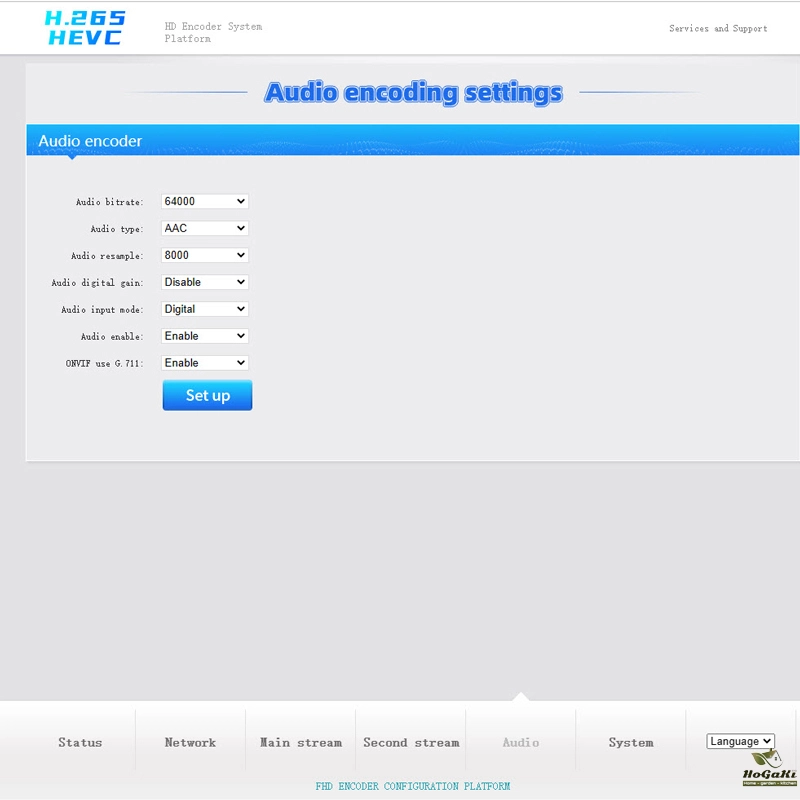

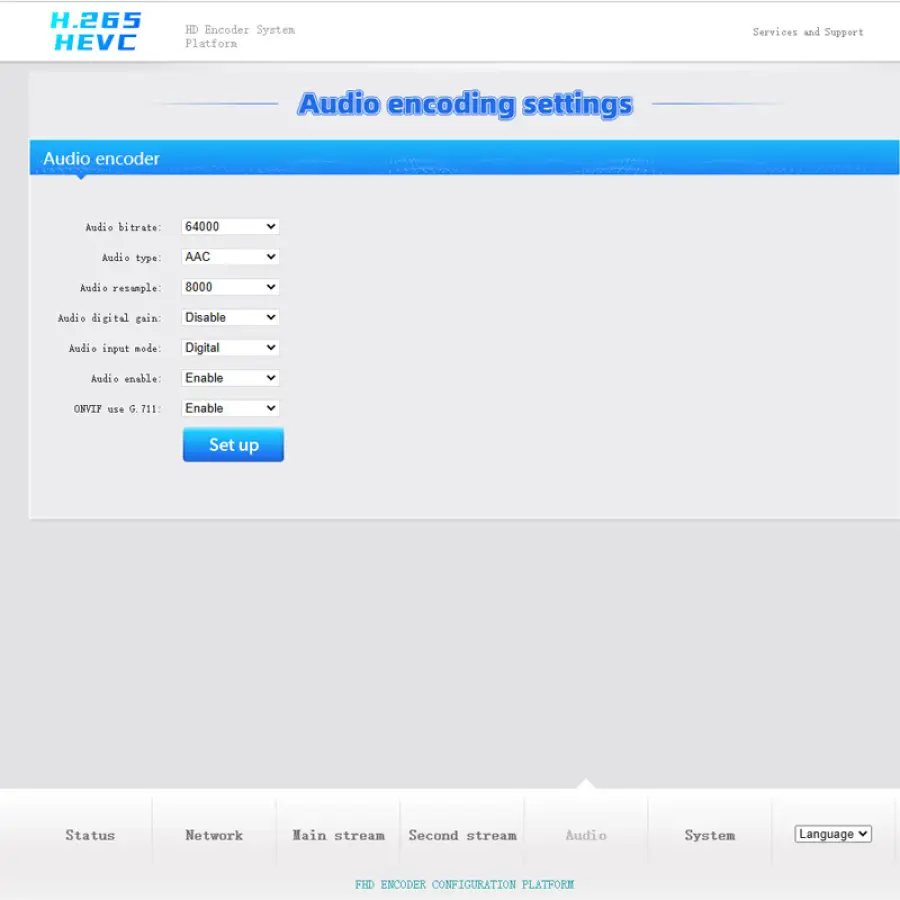

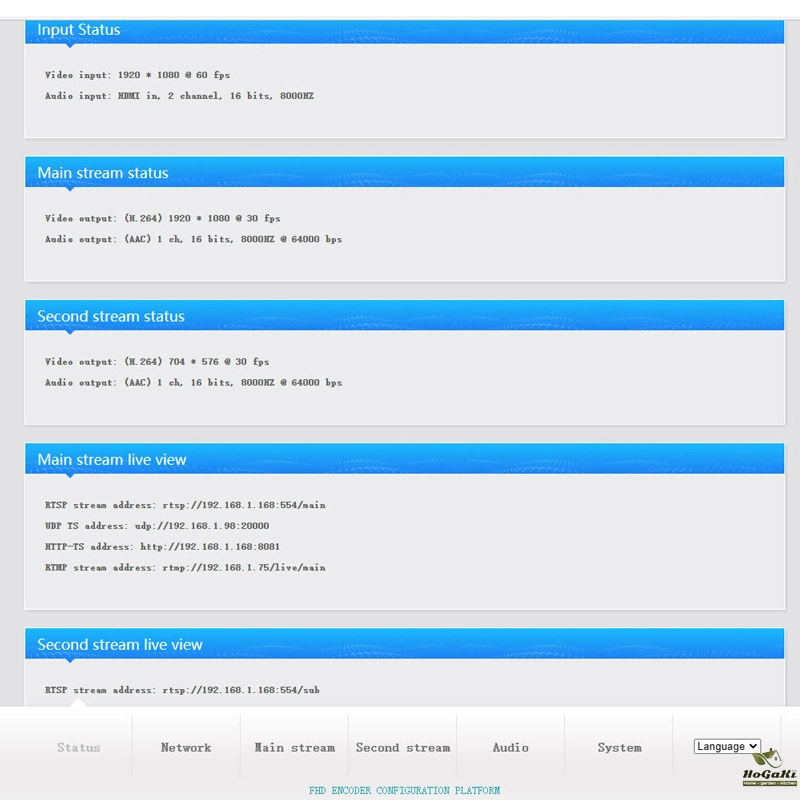

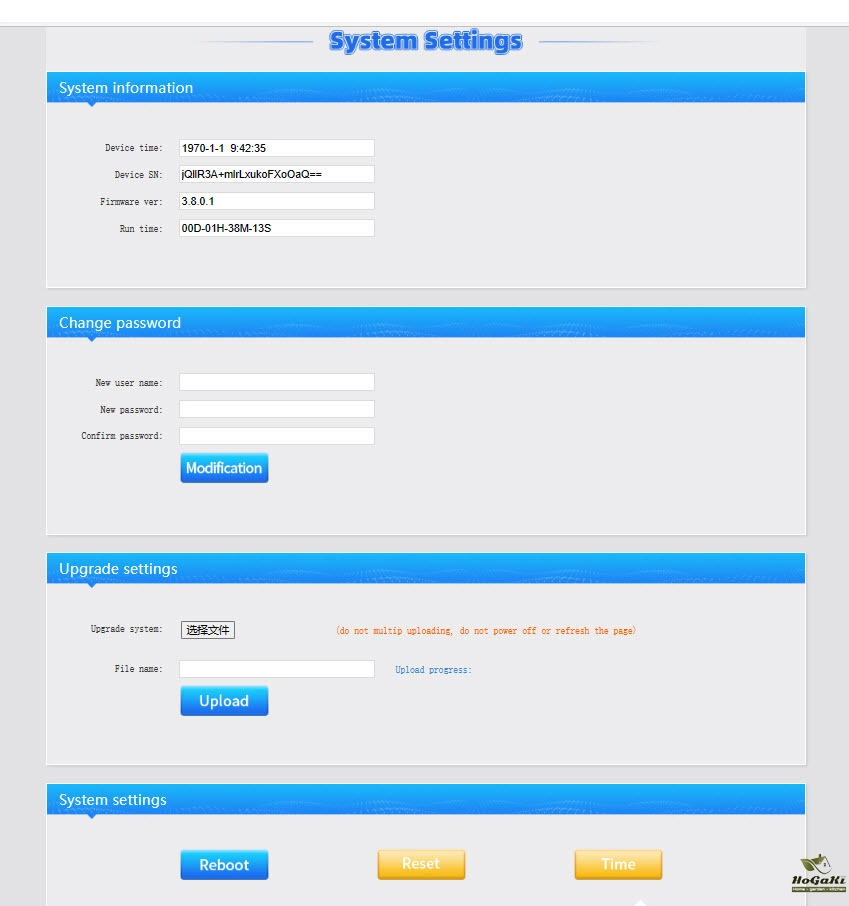

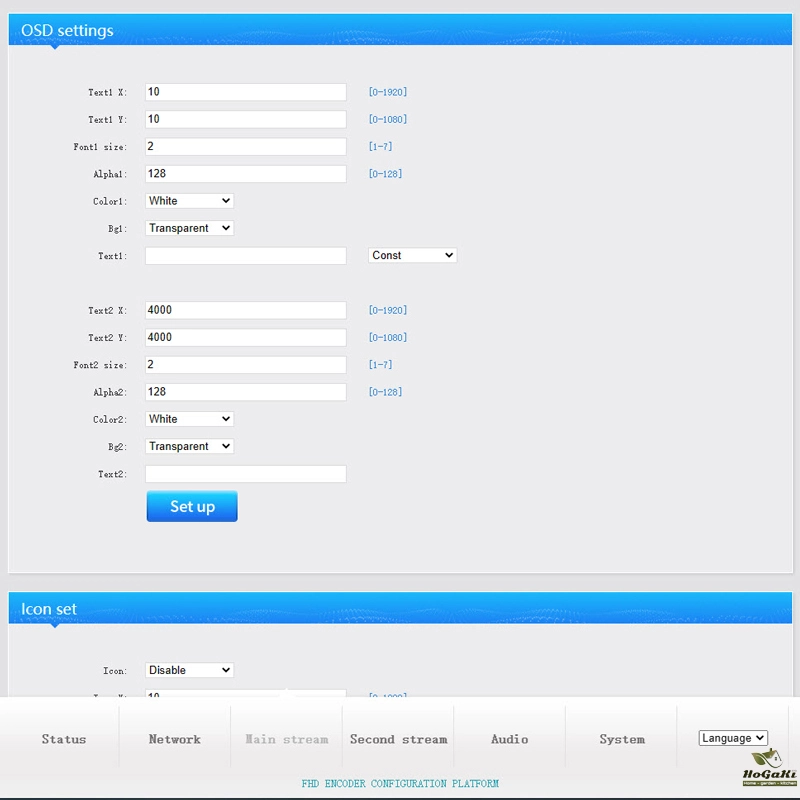

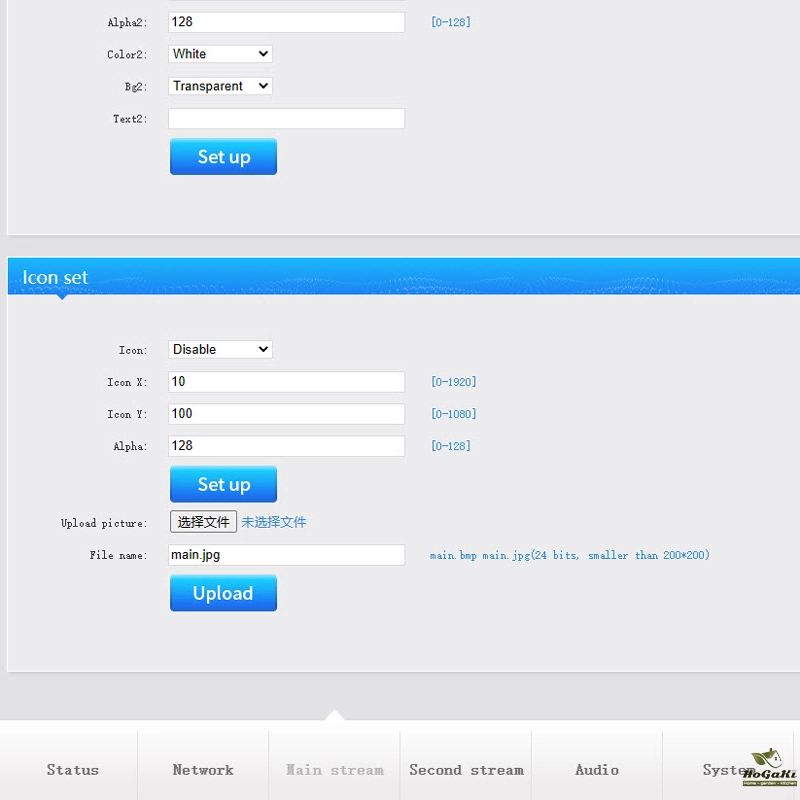

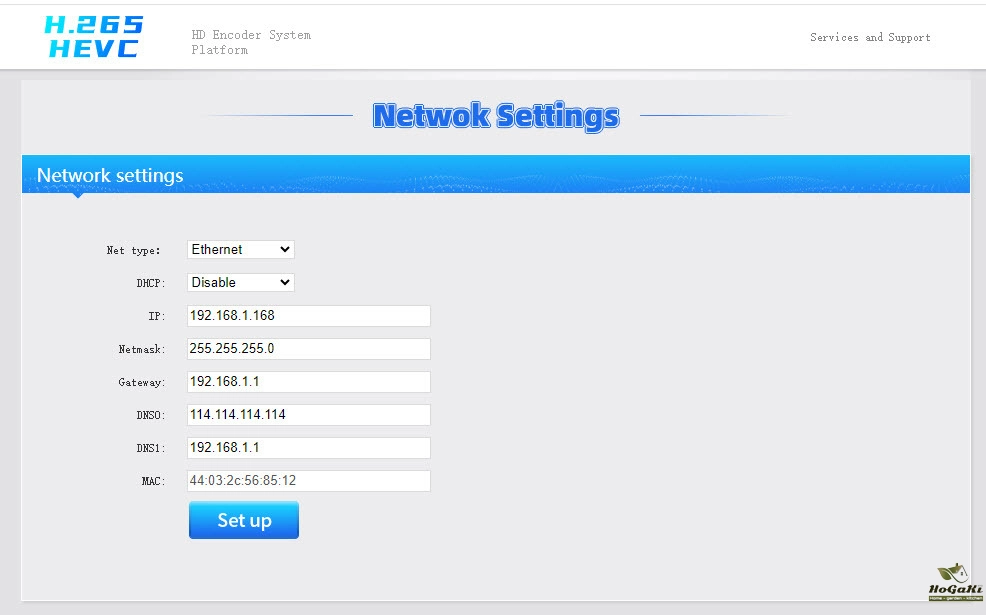

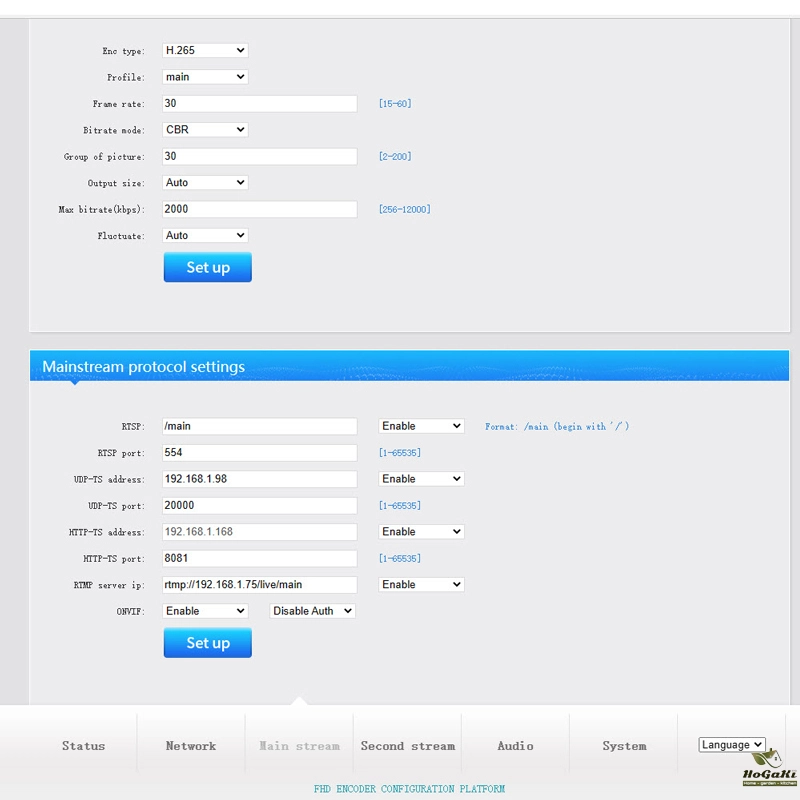

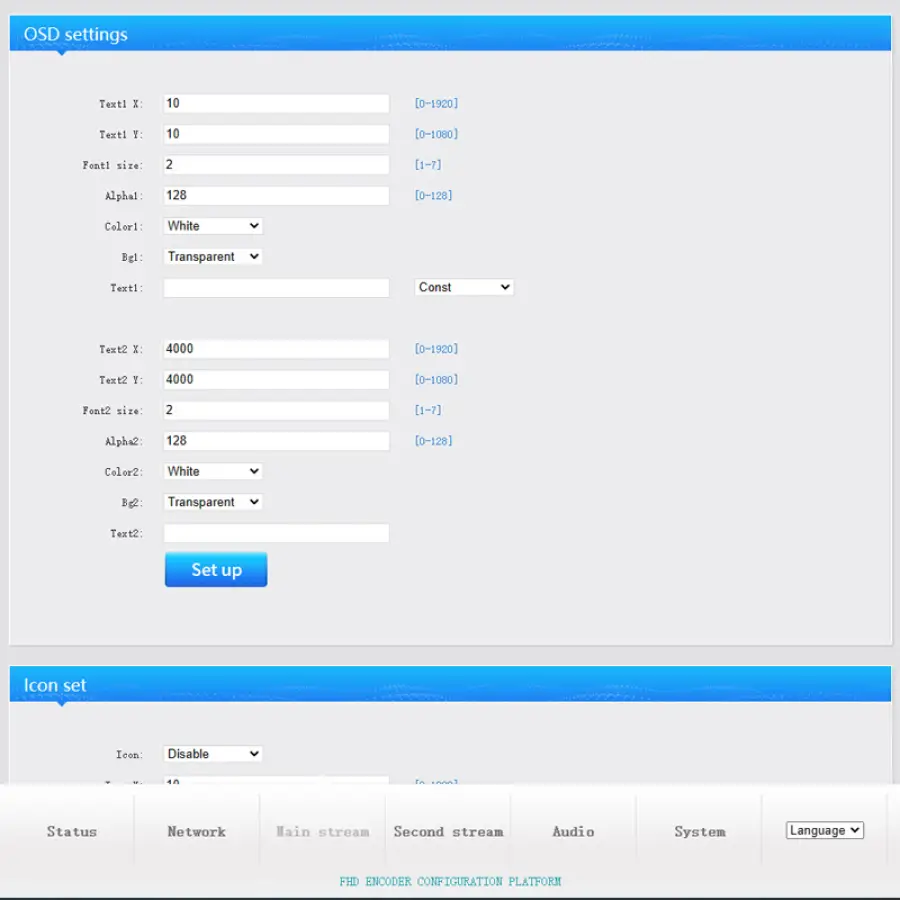

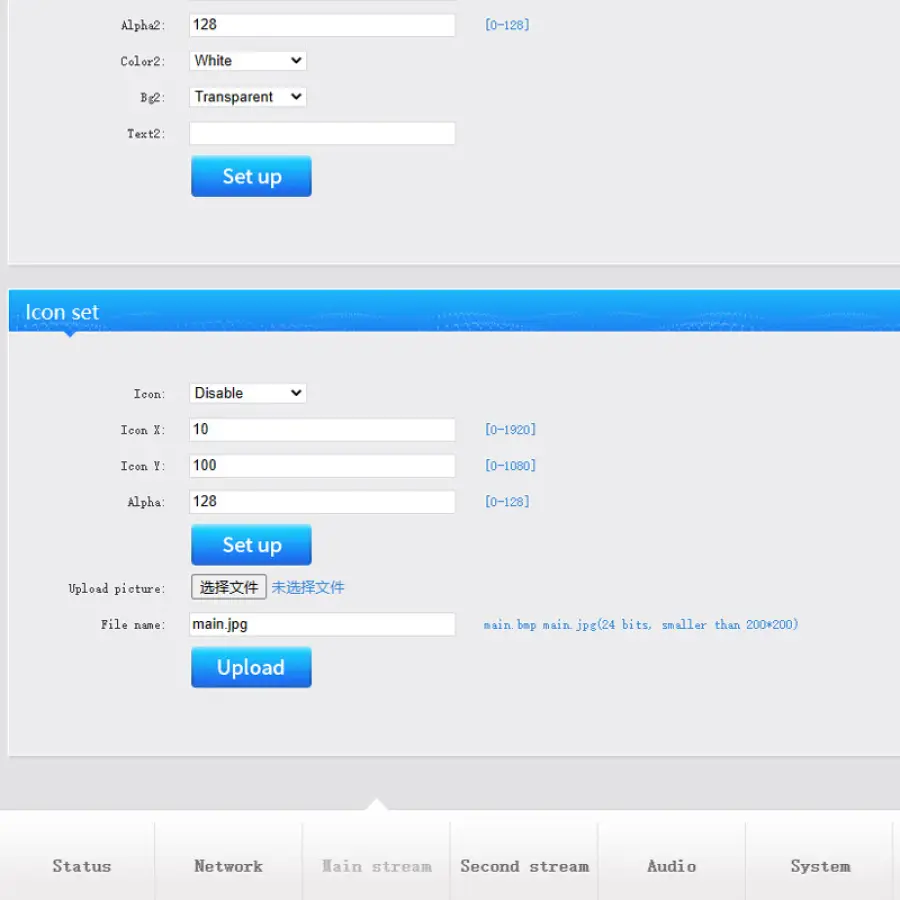

Web cnfiguration Page
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 15x6x15
- Brand Name: VBCTECHNOLOGY
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: CEL-HEC506
- Smart home platform: None
- Certification: CE
