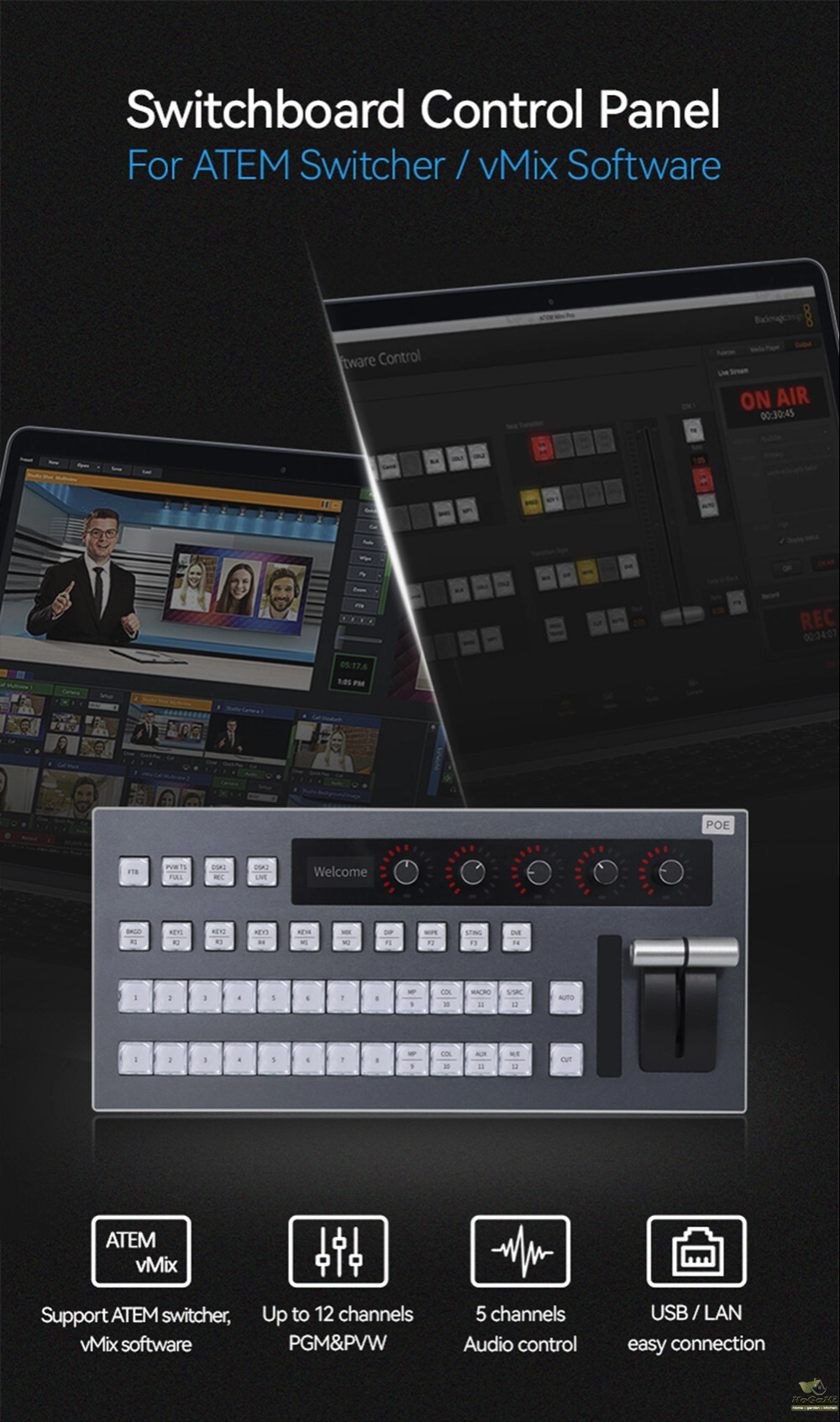

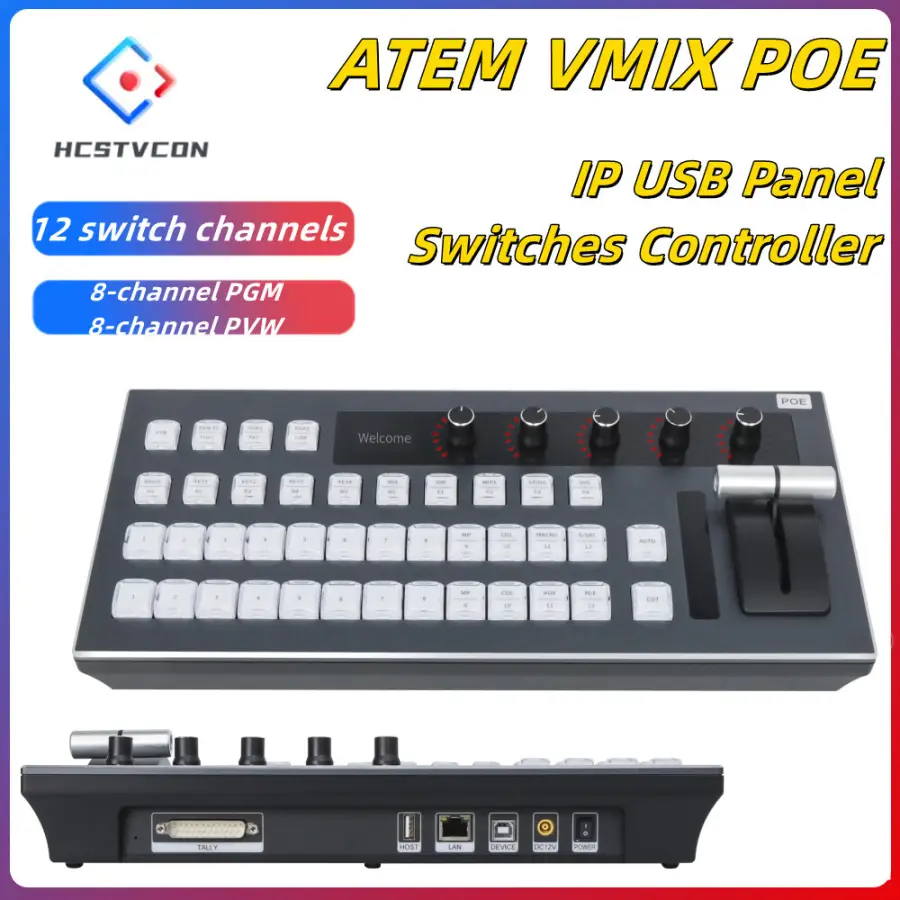

USB vMix Panel Switches Control LAN ATEM switcher For VMix Software Live Streaming Matrix Switchboard Control Panel
1,875.98 1,219.38 $
ID: 160126
Quantity
IP USB vMix ATEM Panel Switches Controller Video Mixer Switcher Blackmagic Atem Brodcast Equipment for Large Meeting Conference
5.0 (2 votes) | 23 orders
Price:
US $3377.40
Discount Price:
US $
1882.66
-44%
IP USB vMix Panel Switches Controller Video Mixer Switcher Blackmagic Atem Brodcast Equipment for Large Meeting Conference
Features：
Integrated hardware design:
Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.
Brand-new upgrade function, custom combination to play more effects:
The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.
Supports up to 12 channels of live video switching:
ATEM support conventional 8-channel PGM+8-channel PVW live switching, other live software supports up to 12-channel live switching.
Built-in custom audio adjustment function:
Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.
Compatible with plenty of live broadcast software:
In addition to supporting ATEM series devices, it also supports MIDI protocol,compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc.,multi-purpose machine is more worry-free.
Support 24-channel tally output function:
Built-in DP25 tally interface, supports up to 24 tally signal output functions.
USB 2.0, LAN dual interface connections, simple and convenient:
Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supportsLAN connection ), and can transmit video signals to computers and live videoproduction software without a capture card, simple and convenient.
All aluminum alloy body:
Anodized aluminum alloy panel process treatment, outstanding quality.

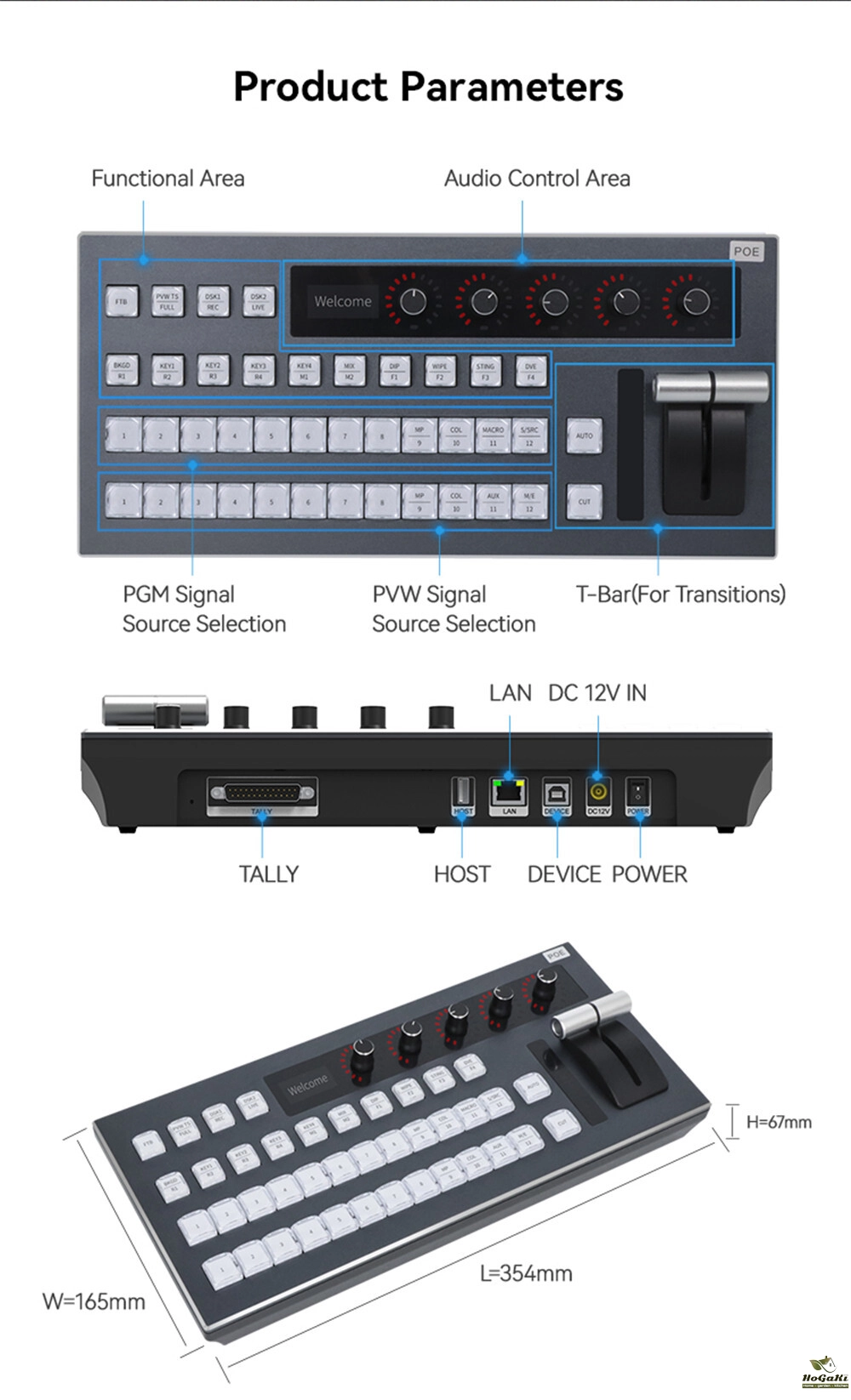

Specifications：
Main Parameters：
Audio Control： 1ch master+4ch input
Transition Control： Auto transitions, hard cuts, T-Bar
OLED Display： Set device parameters
Indicator Light： Indicate switcher status
Tally： 12ch PGM+12ch PVW
ATEM Functions:

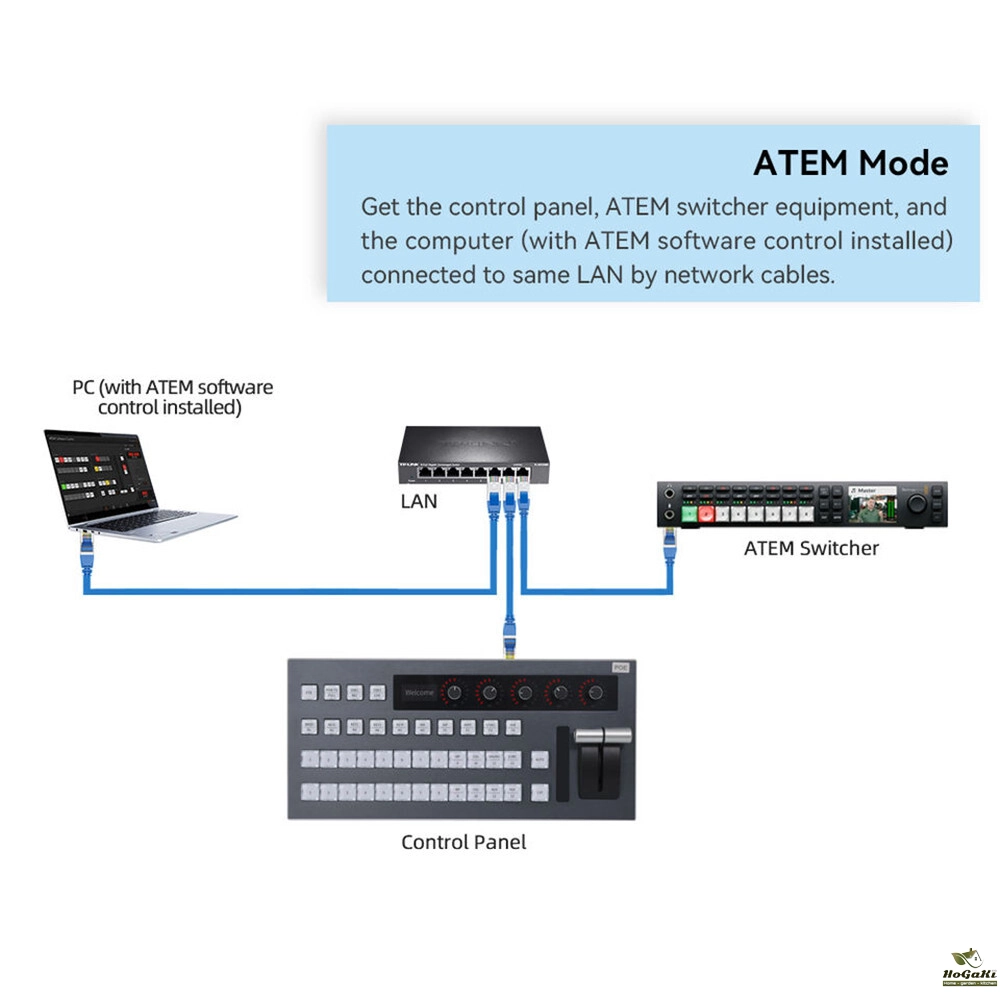

Connection Method： 100M LAN，support POE 802.3af
Video Control： 8ch inputs + 1ch COL + 1ch MP
Transition Effects： MIX / DIP / WIPE / STING / DVE
Upstream Keyboard： BKGD / KEY1 / KEY2 / KEY3 / KEY4
Downstream Keyboard：DSK1 / DSK2
FTB： Support
PREV TRANS： Support
MACRO： Support
S/SRC： Support
M/E： Support
AUX： Support
Vmix Functions:
Connection Method: 100M LAN，support POE 802.3af
Video Control: 12ch inputs
Transition Effects: 4 kinds
Picture-in-picture Function：R1 / R2 / R3 / R4
Playback Setting： M1 / M2
REC: Support
LIVE: Support
T-BAR: Support
Power Supply:
Input Voltage: DC 12V
InputCurrent : 0.3A
Rated Power: 4W
POE: POE 802.3af for optional
Powered by USB: Support ( rely on the USB power supply capability of the computer )

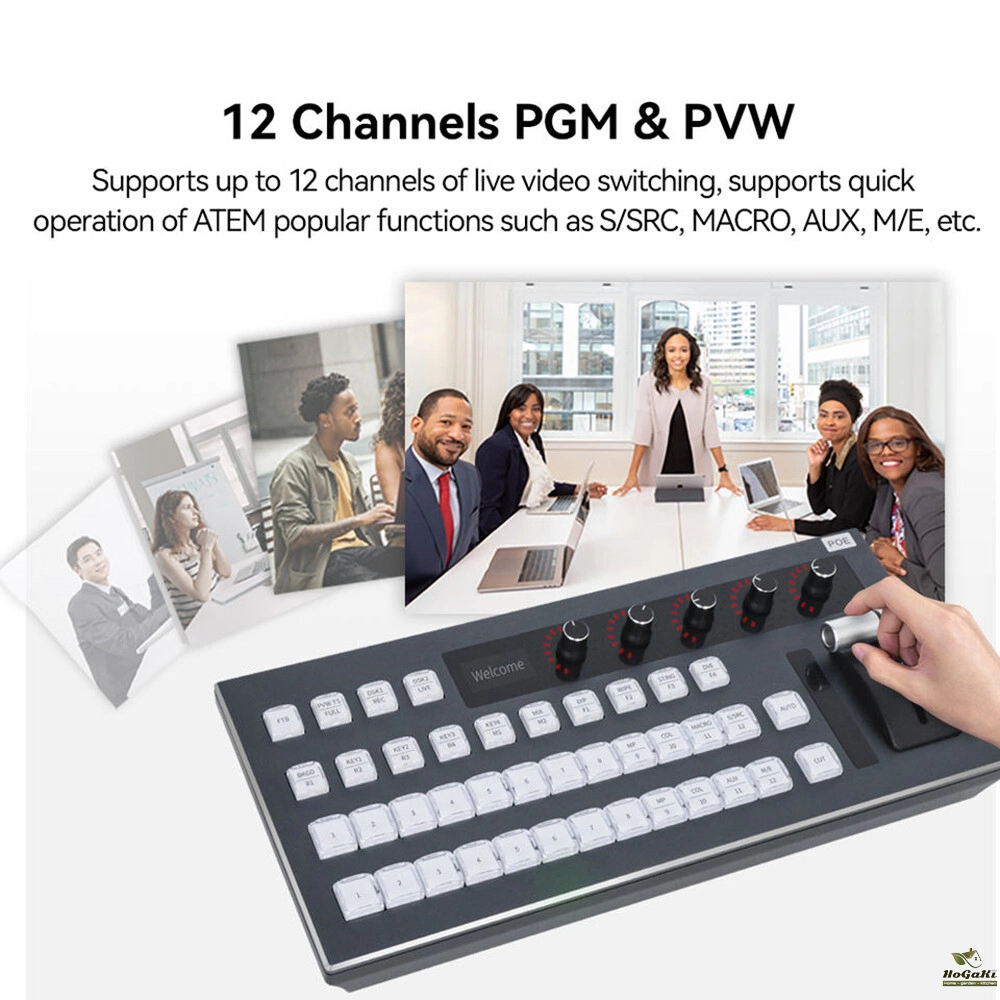

12 Channels PGW & PVW

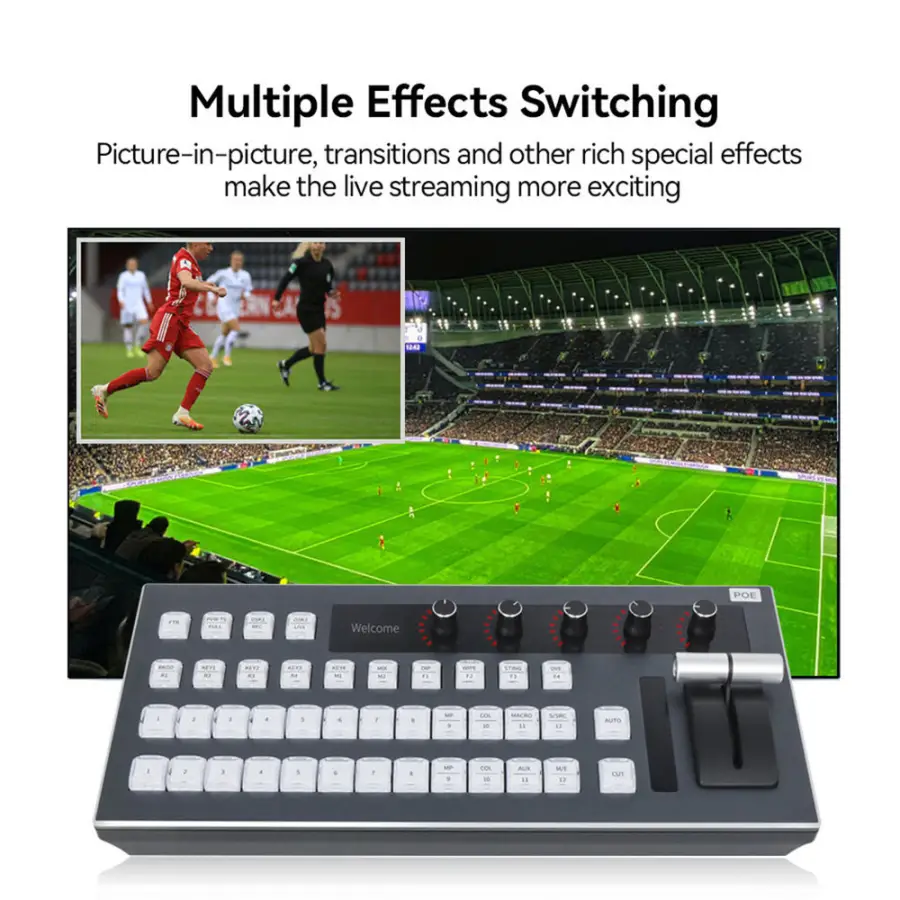

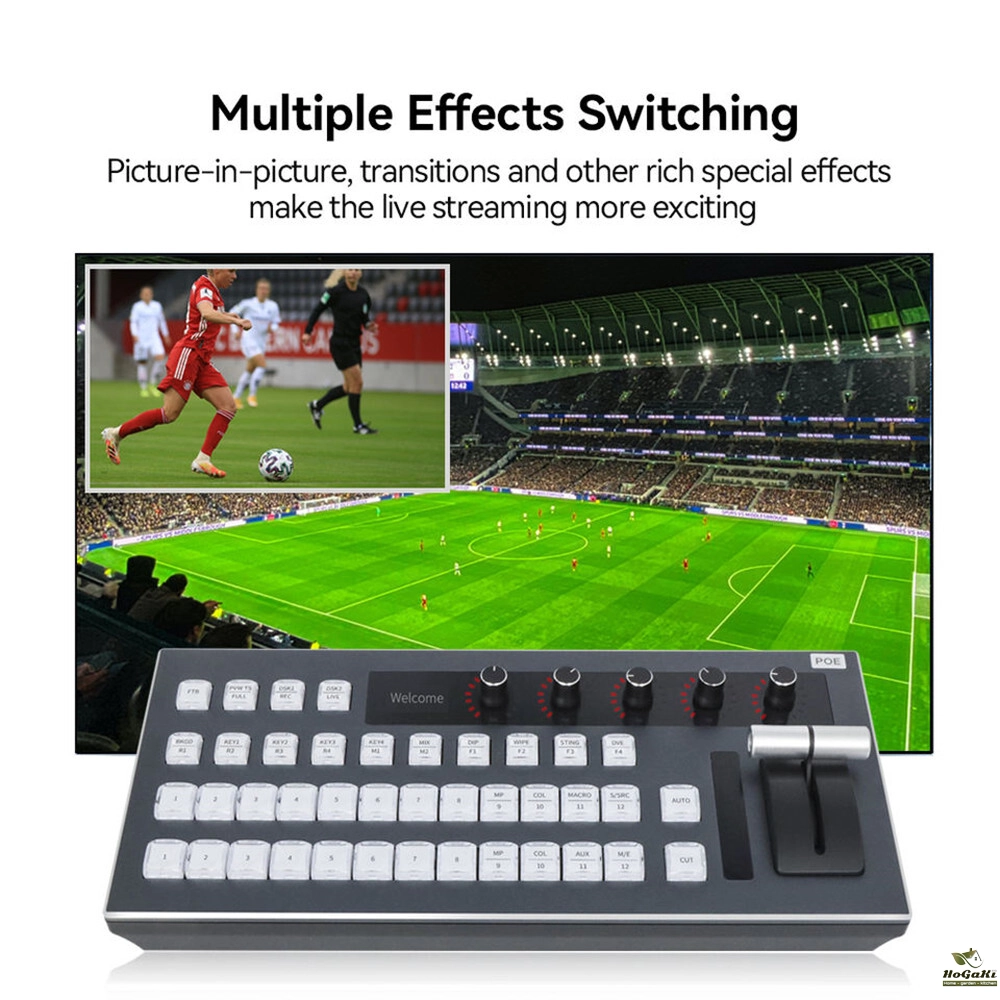

Multiple Effects Switching

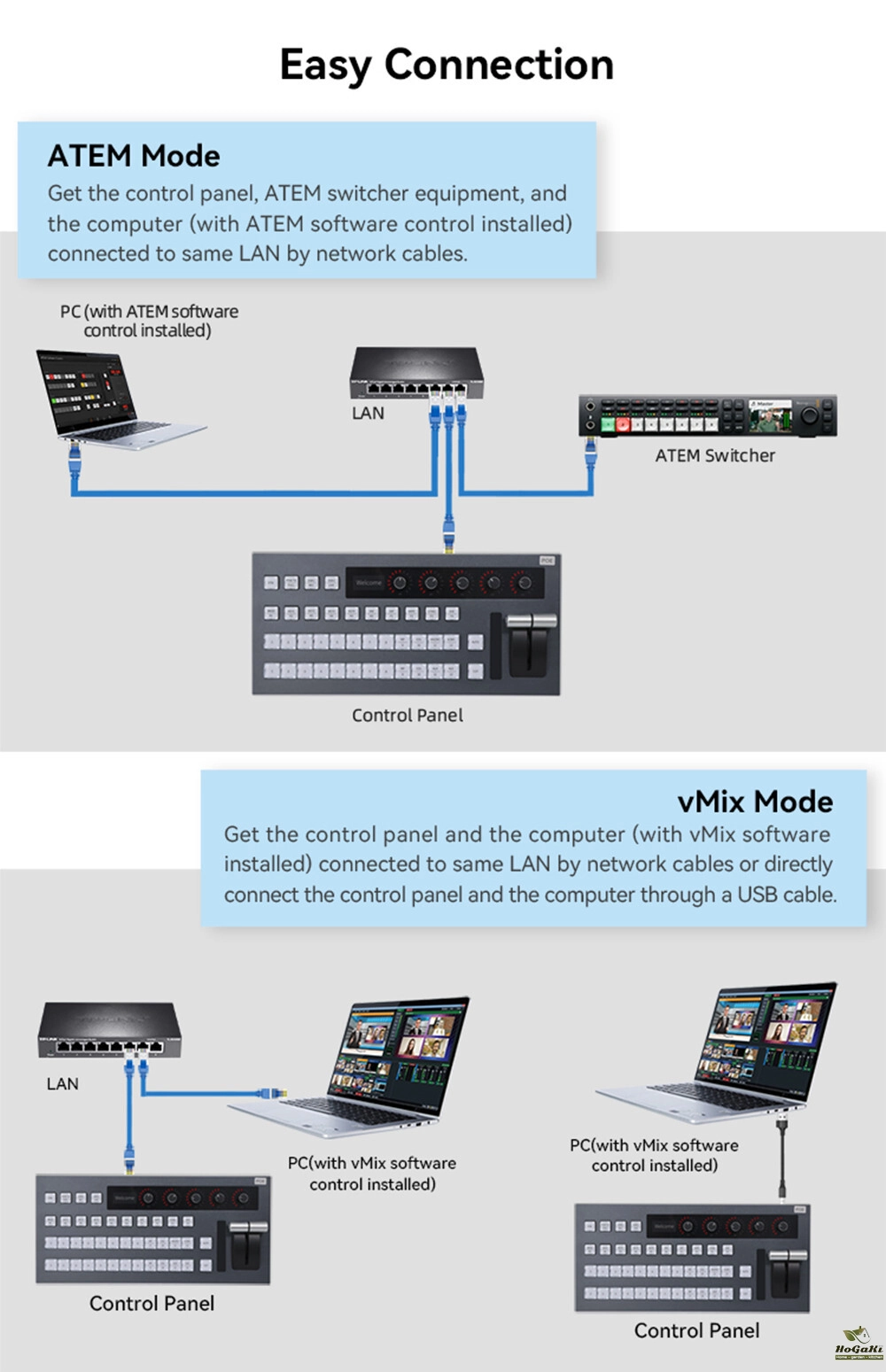

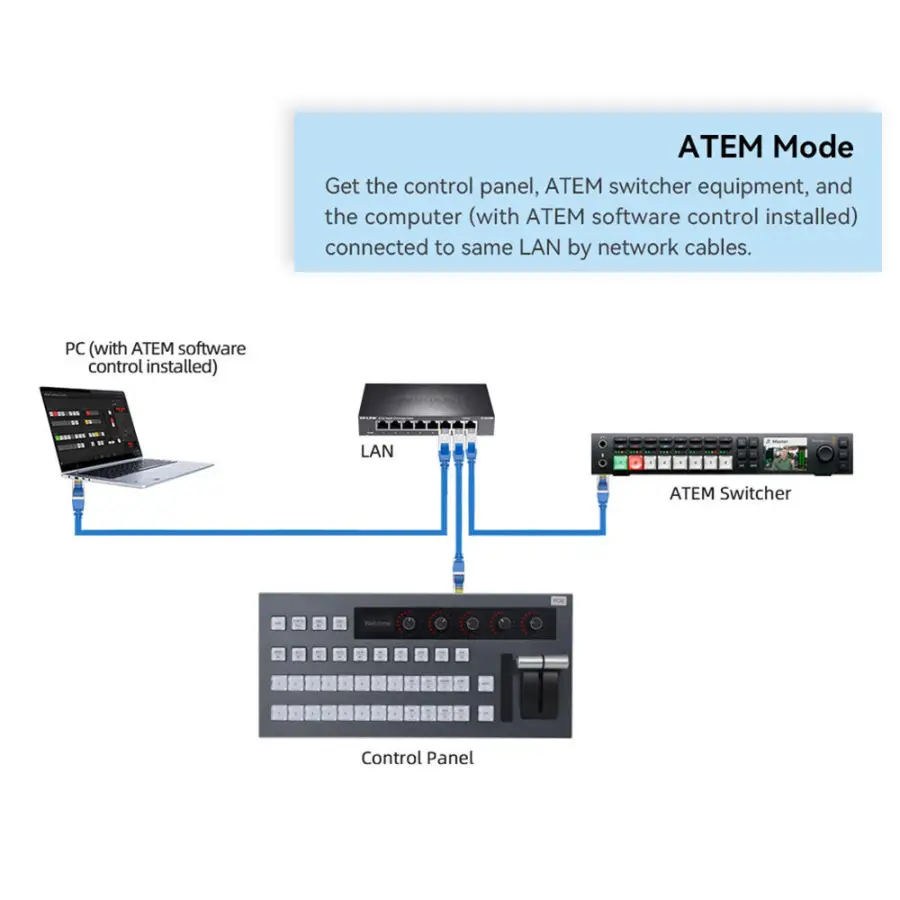

Easy Connection

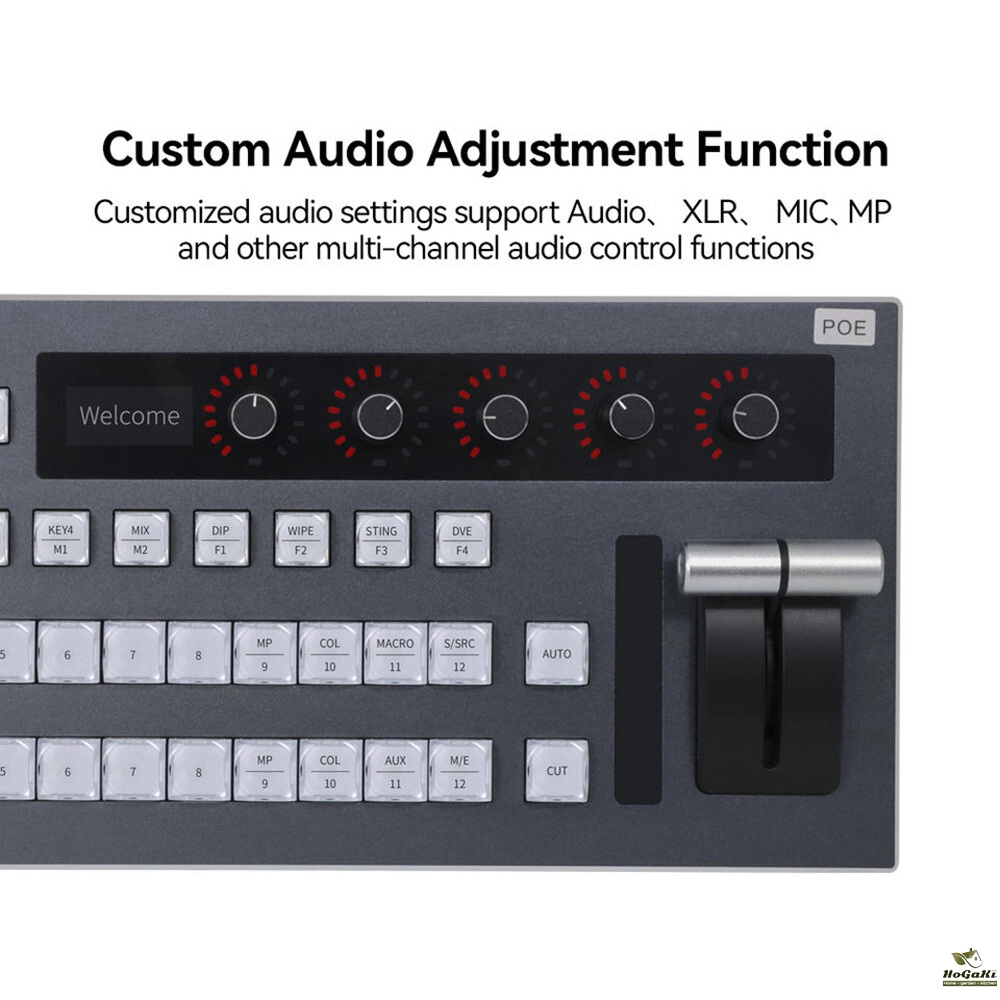

Custom Audio Adjustment Function
Packaging Details
- Unit Type:
- Package Weight: 4.500
- Package Size: 25x25x25
- Brand Name: HCSTVCON
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: KD50X
- Smart home platform: None
