4-20MA Output Integral Level Transmitter Liquid Oil Water Level Sensor Probe Detect Controller Float Switch 1-10m RS485 for Pump
4.9 (25 votes) | 379 orders
Price:
US $121.21 - 196.57
Discount Price:
US $
60.75 -
97.53
-50%
1. Product Overview

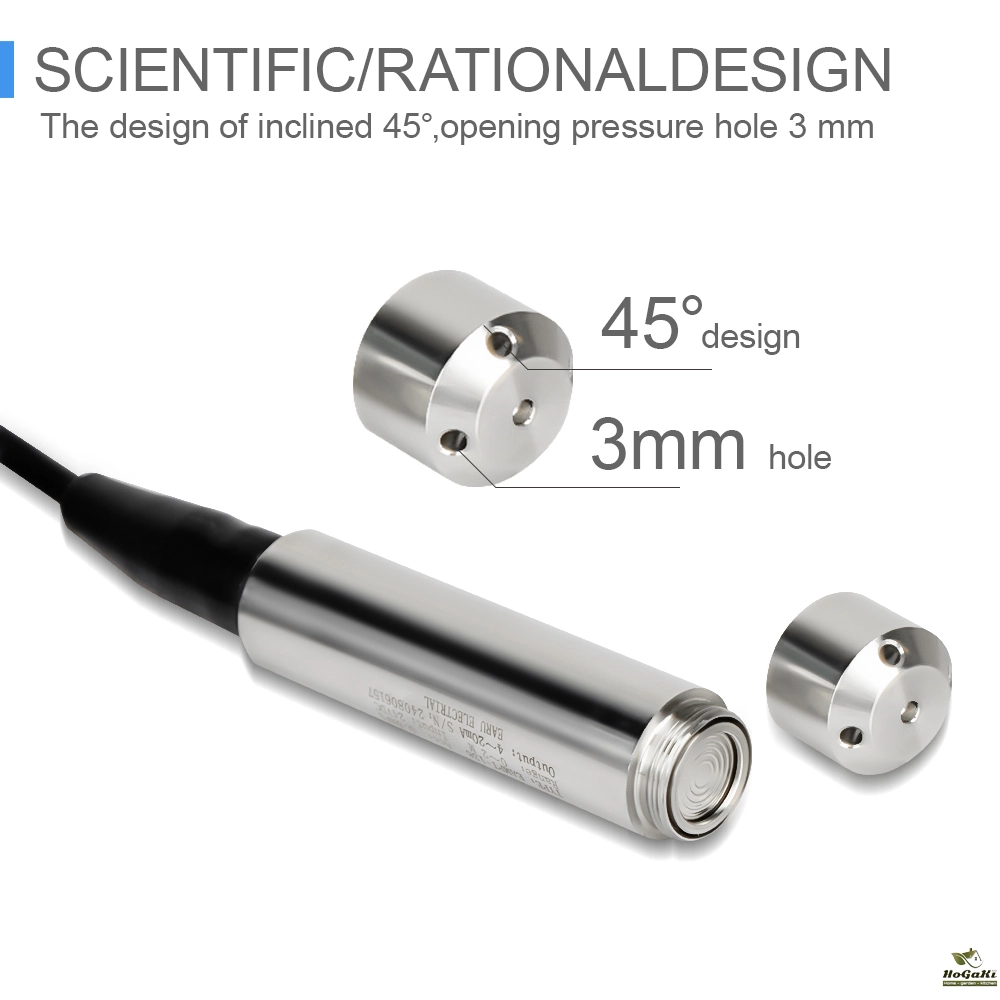

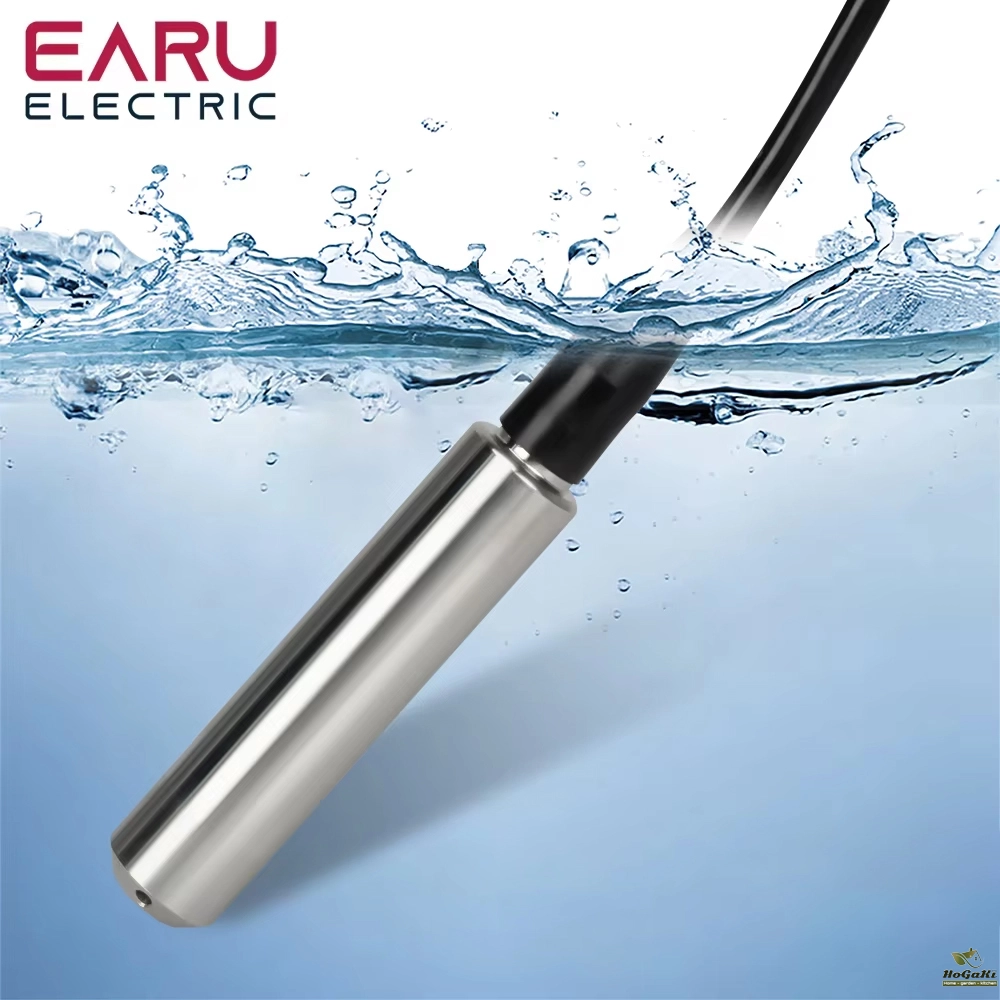

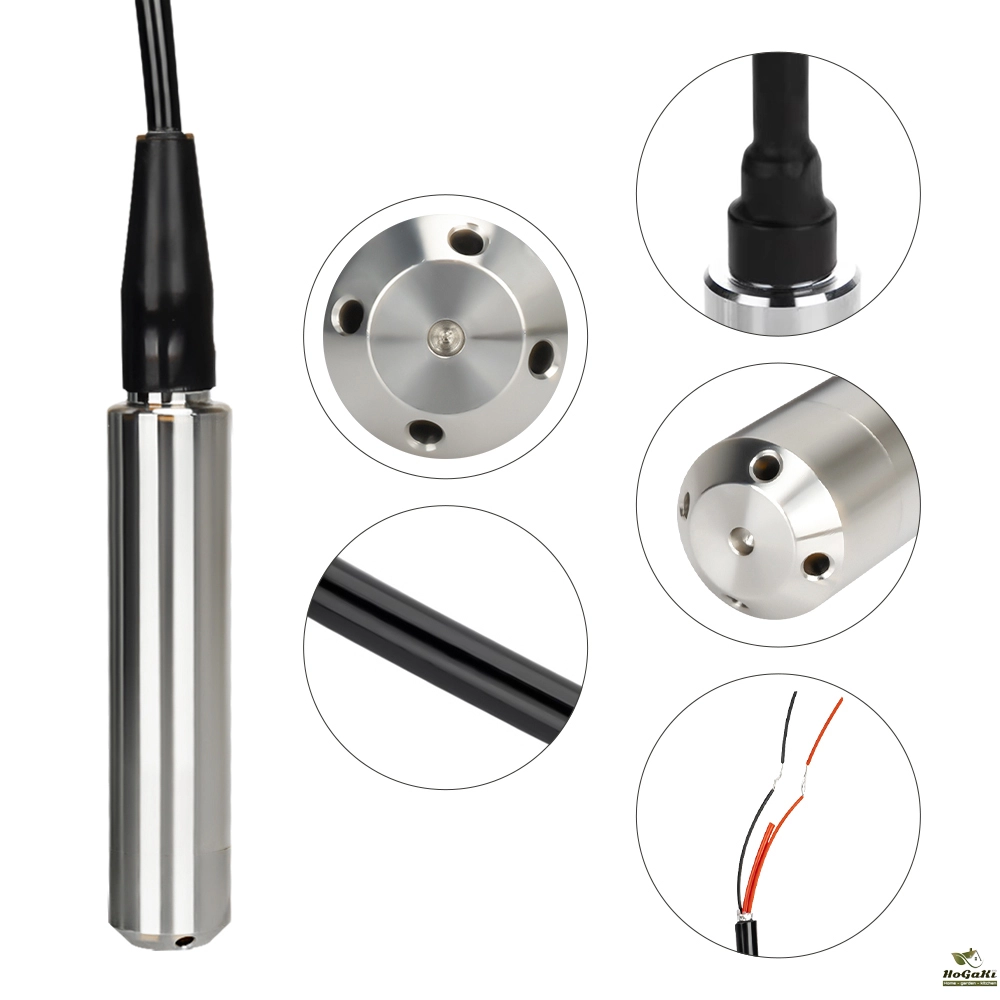

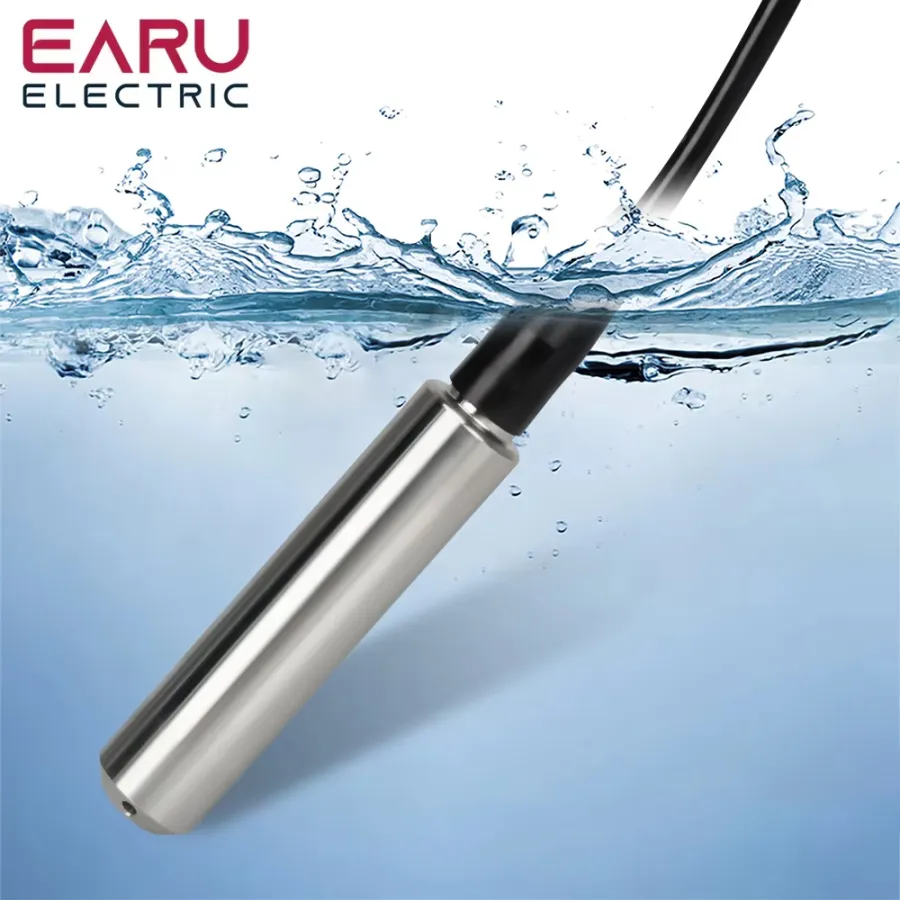

The input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless steel housing. The front end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.
2. Application range
Widely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places
3. Technical parameters
◆ fully enclosed circuit, with moisture, condensation, anti-leakage function

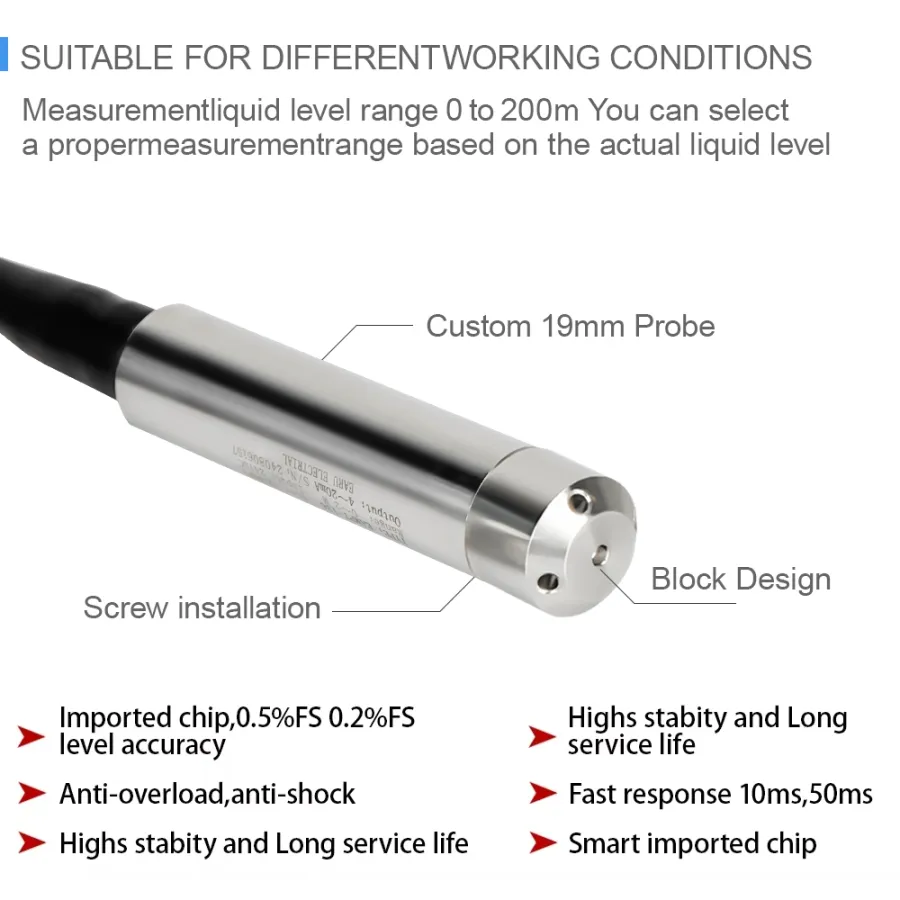

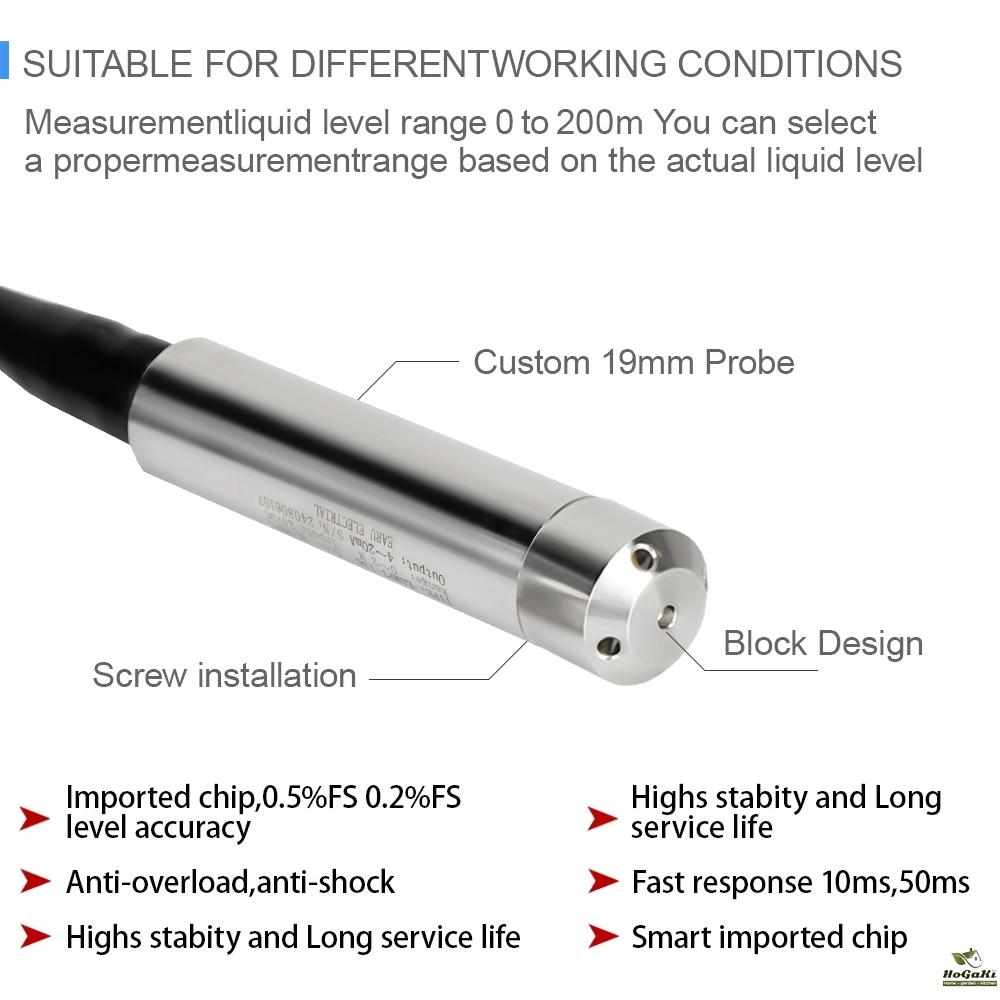

◆ Range: 0～200 meters
◆ One-piece
◆ Accuracy: 0.5%FS

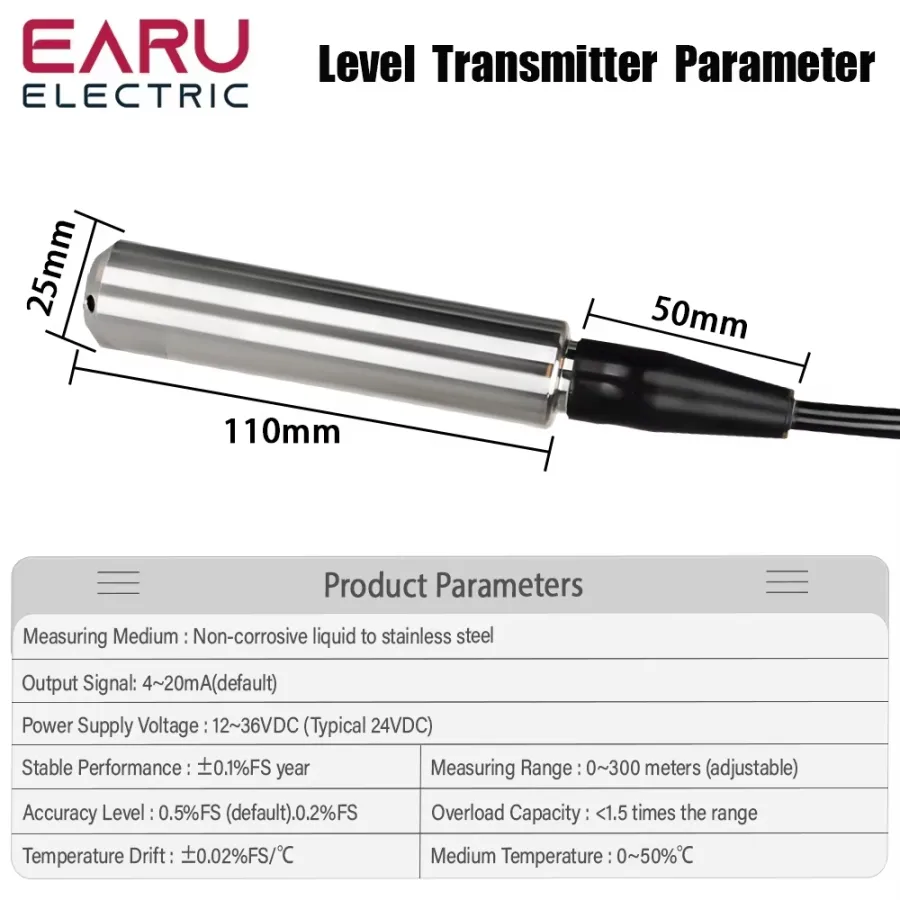

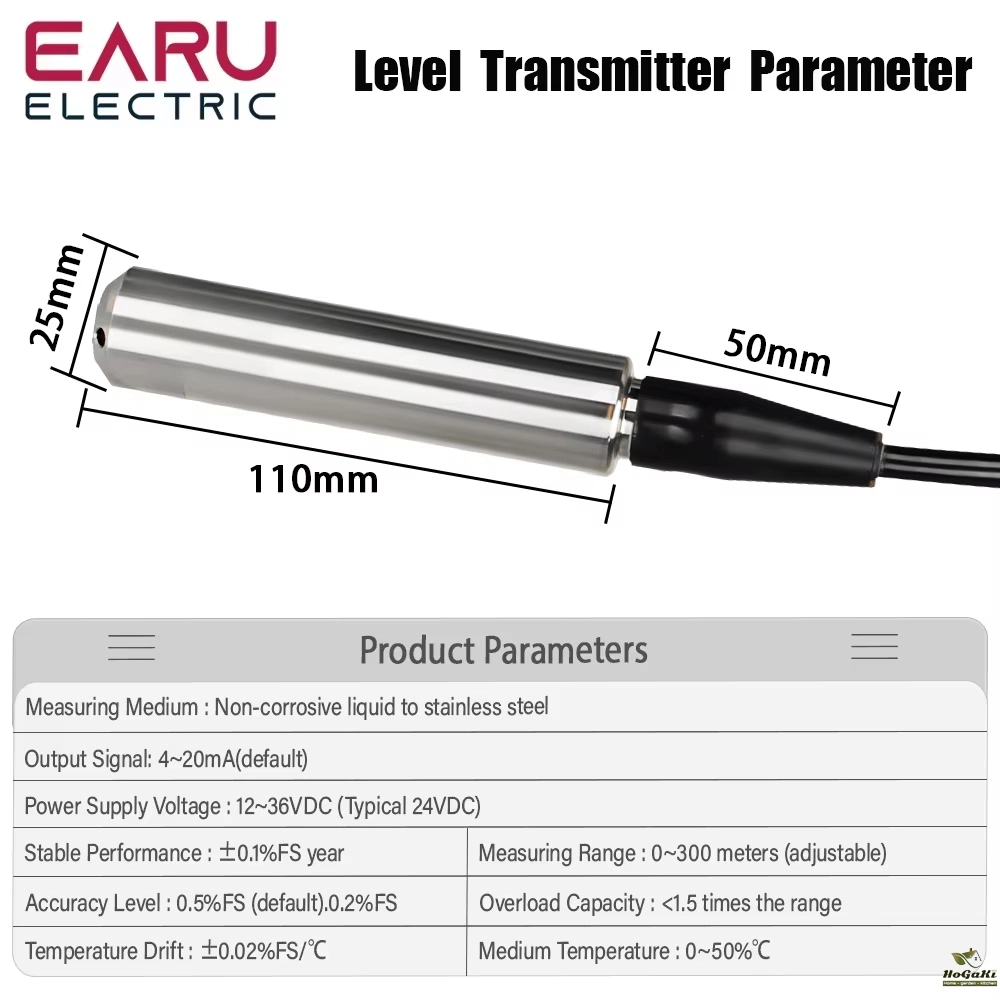

◆ Appearance size is about 145mm, diameter 28mm
4. Technical parameters:
Measurement form and range 0～1～200mH2O
Allow overload 2 times full scale pressure
Working temperature -20～60°C
Temperature compensation -10～60°C
Storage temperature -40～80°C

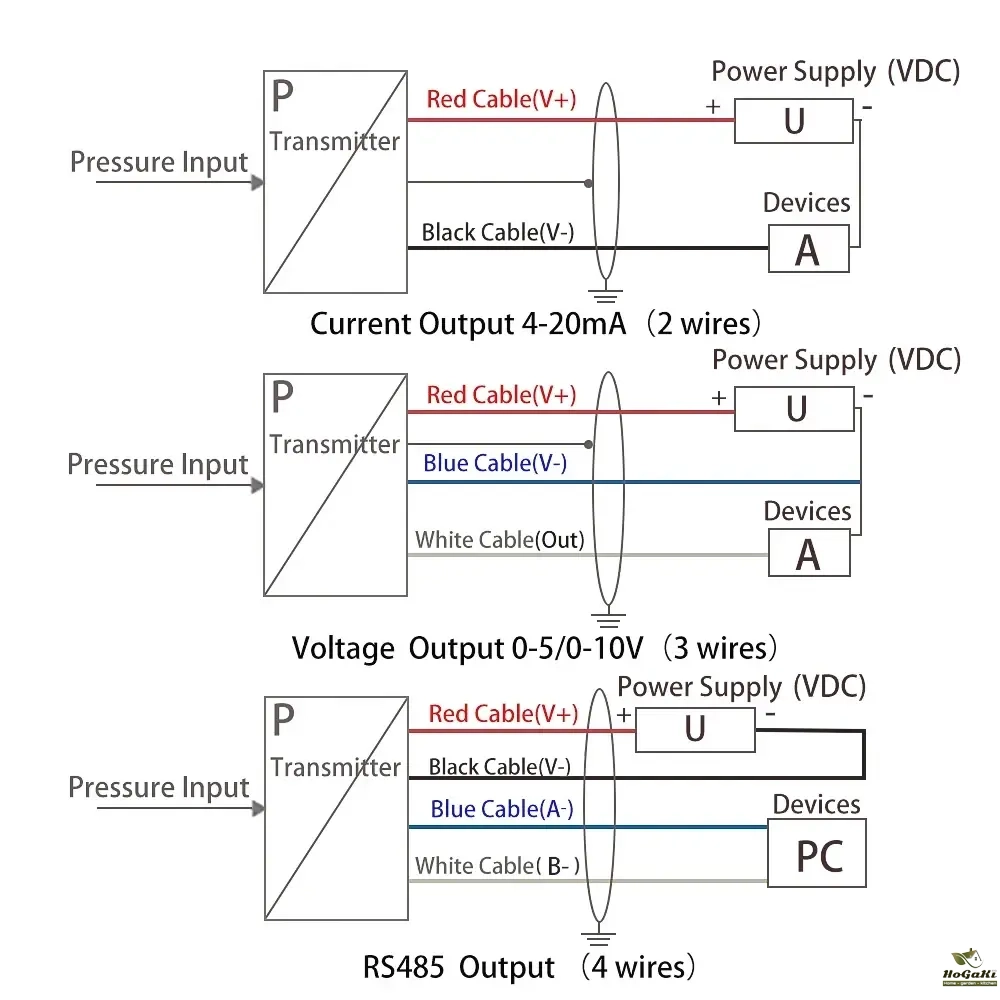

Output signal 4-20mA
Power supply:
Sensor: 10~30 VDC (standard voltage 24VDC) / Controller：85~260 VAC

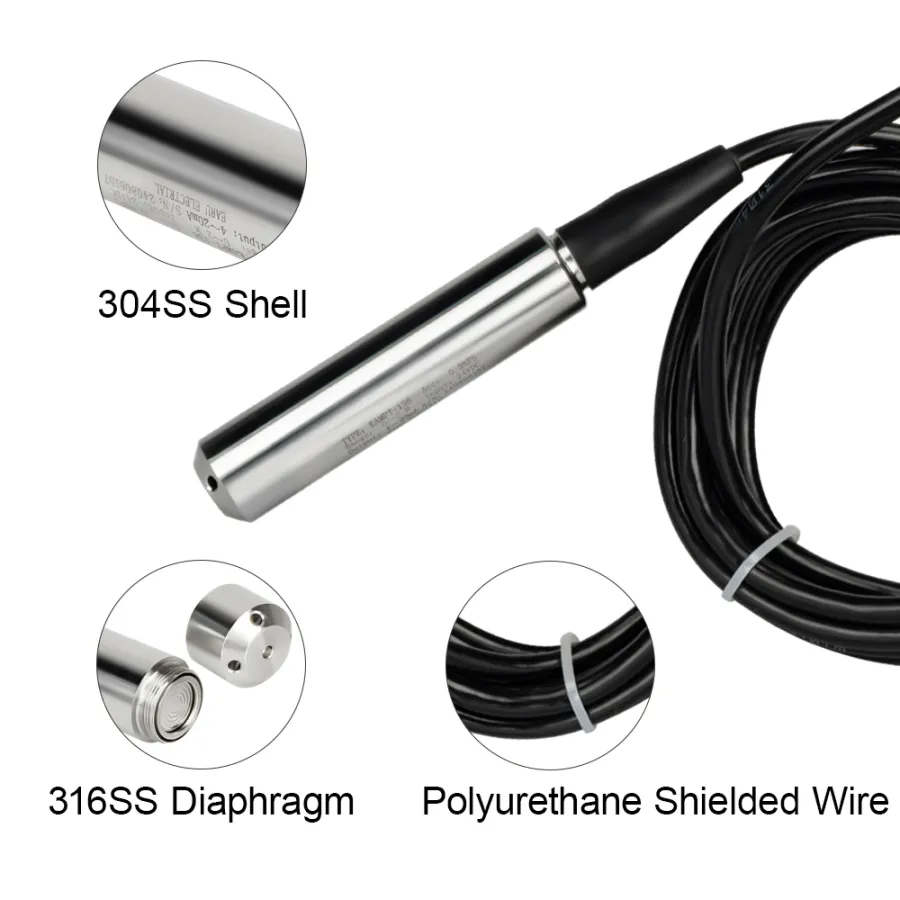

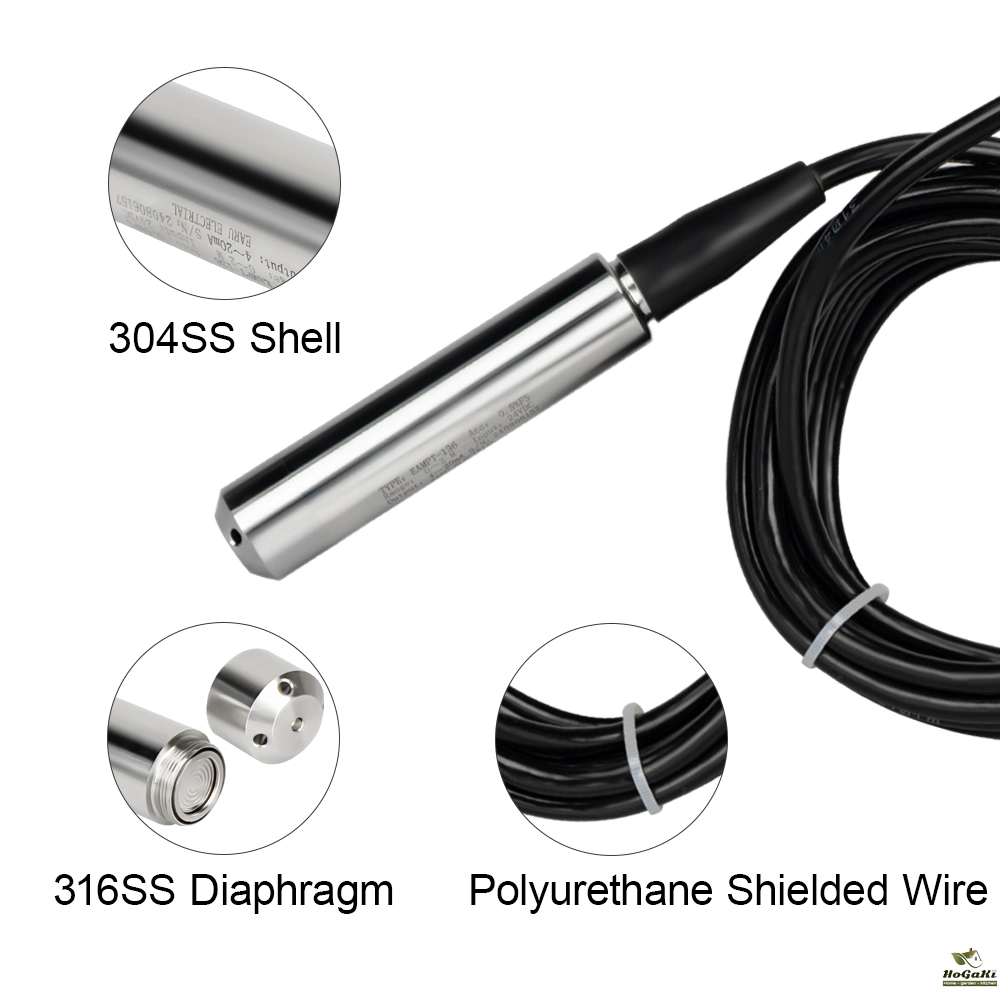

Shell Material 304 Stainless Steel(except we mark for 316 matrial ,others is 304)
Cable waterproof breathable cable

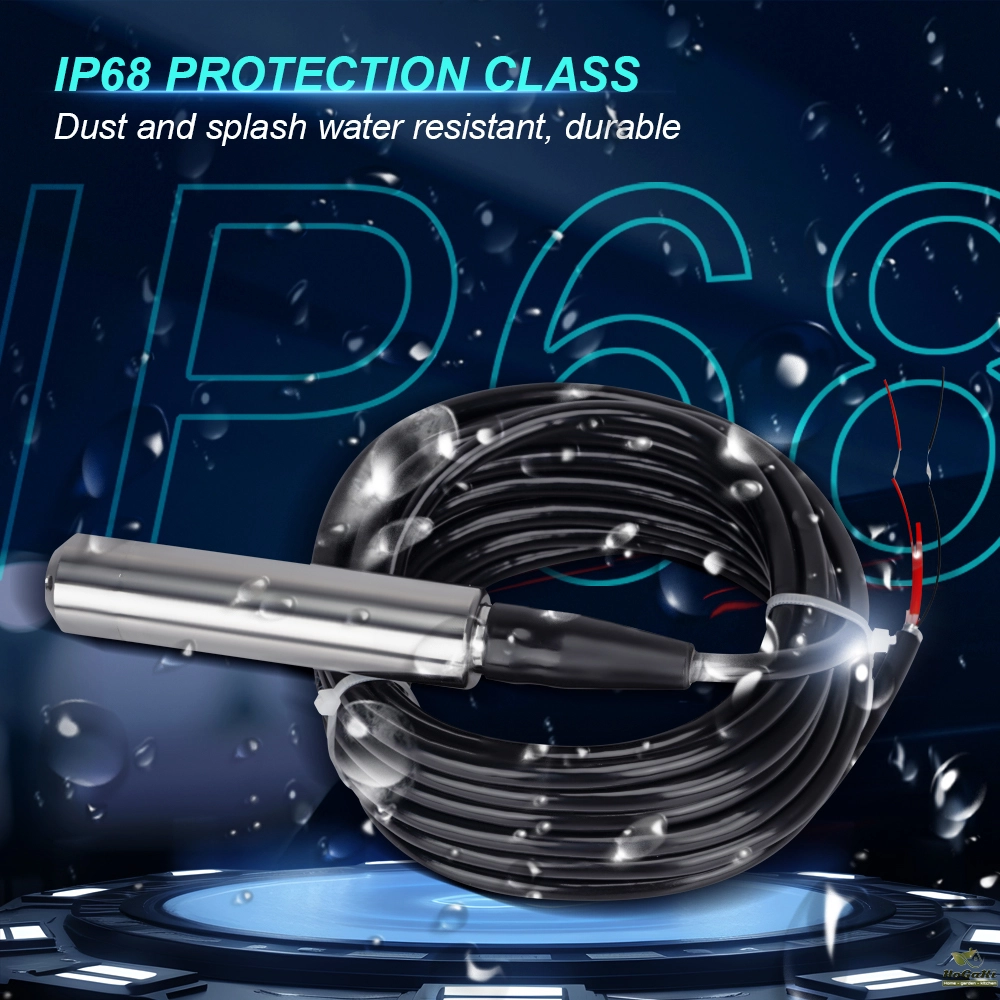

Protection class IP68
1m cable=1m range with 1m cable
2m cable =2m range with 2m cable
3m cable=3m range with 3m cable
4m cable=4m range with 4m cable
5m cable=1m or 2m or 3m or 4m or 5m range with 5m cable ,
please choose which range you need .or we default 5m range with 5m cable
Packaging Details
- Unit Type:
- Package Weight: 0.847
- Package Size: 23x7x24
- Brand Name: EARUELETRIC
- Hign-concerned Chemical: None
- Origin: Mainland China
- Max Measuring Range: 200 - 399 Bar
- Model Number: level transmitter
- Certification: CE
- Feature 1: Liquid Level Transmitter
- Feature 2: Liquid Level Detector
- Feature 3: Water Level Sensor
- Feature 4: Liquid Level Sensor
- Feature 5: Level Sensor
- Output: 4-20mA
- Choice: yes
