H.265/H.264 video Encoder HDMI to IP For RTMP/RTSP/HTTP TS/M3U8/MP4/UDP/SRT/ONVIF Live Streaming
5.0 (1 votes) | 7 orders
Price:
US $
168.18

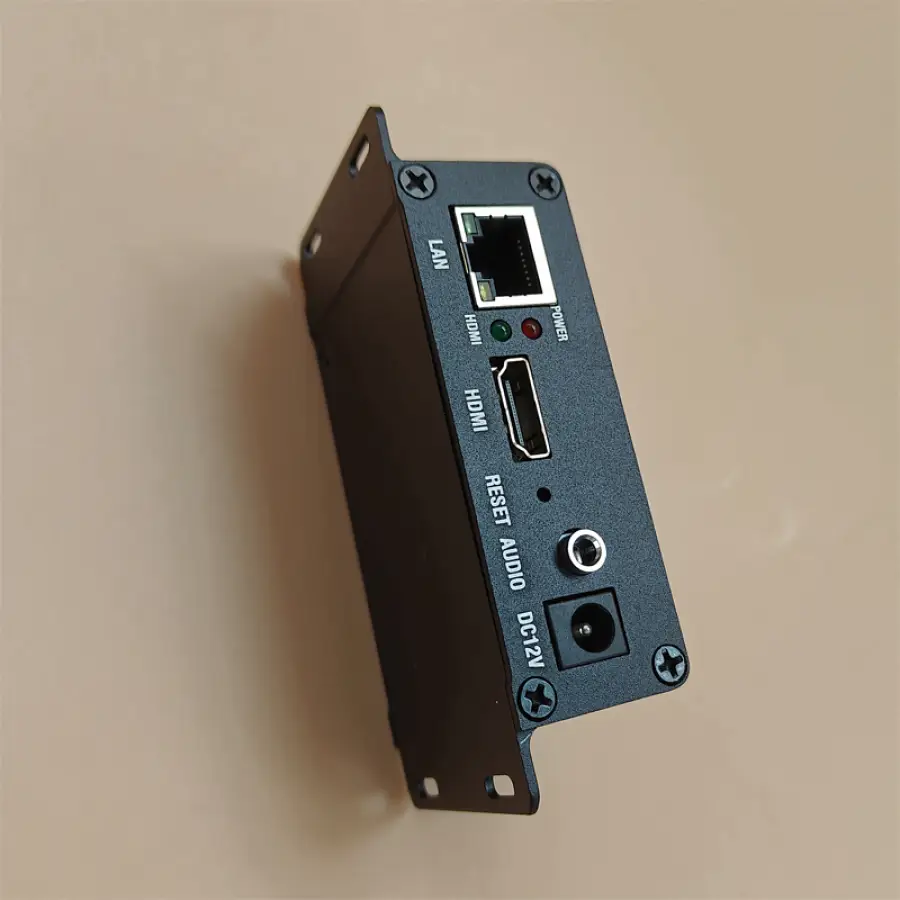

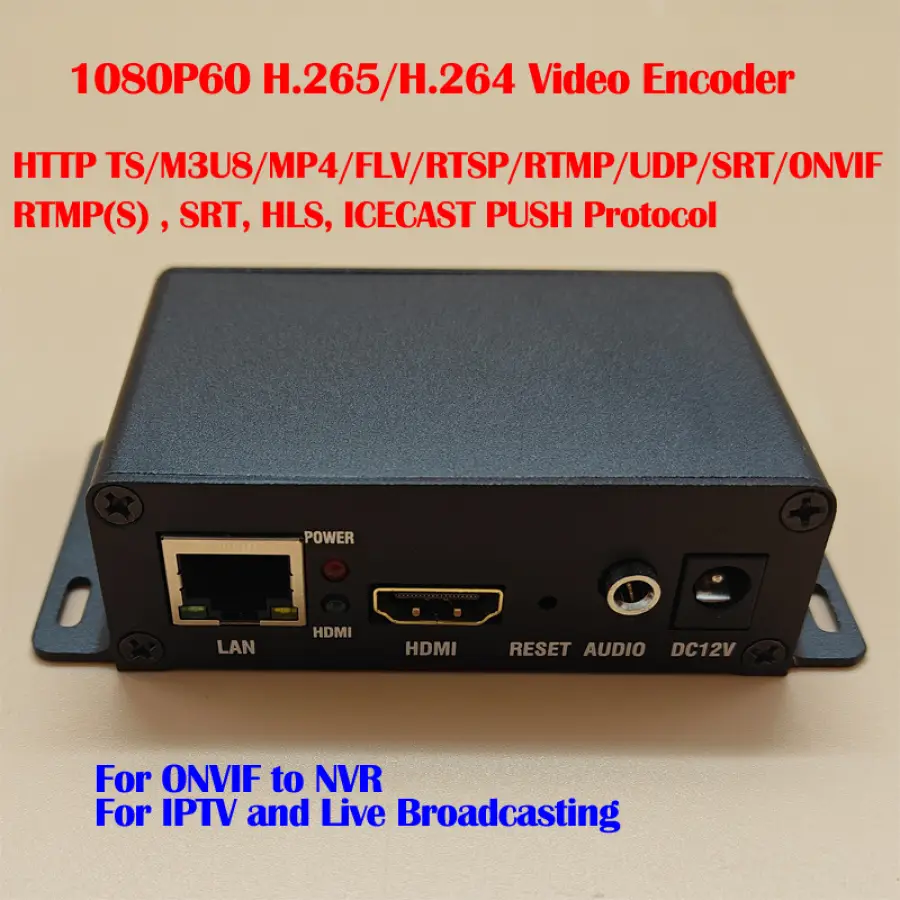

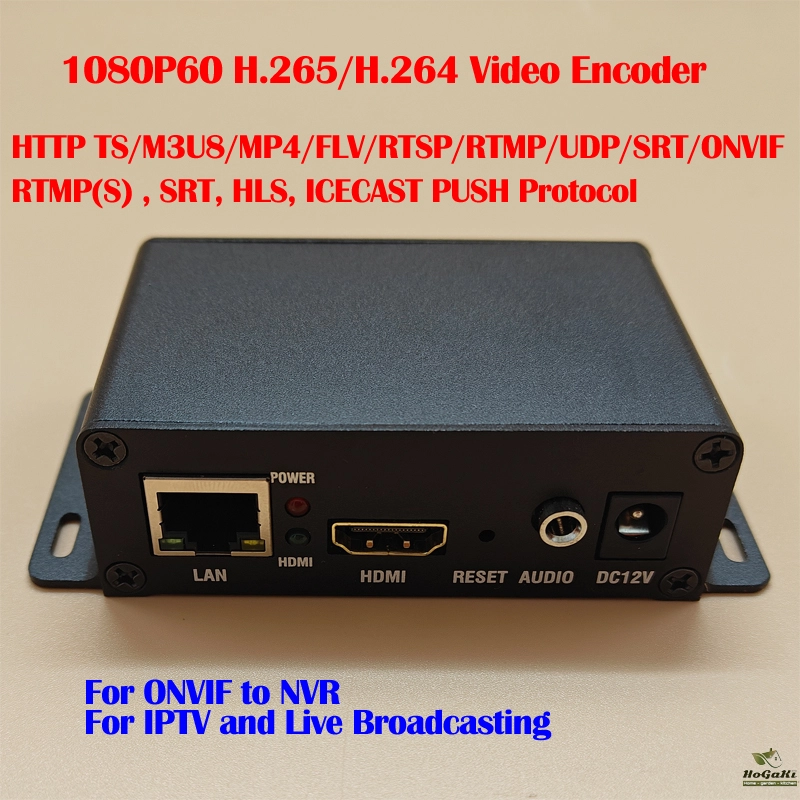

Mini H.265/H.264 video Encoder HDMI to IP Stream
Features
1. Embedded Linux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.1.168. the user name is admin and the password is admin.
3. Support HTTP TS/M3U8/HLS MP4/MP4/FLV/RTSP/RTMP/UDP/RTP/SRT/ONVIF pulling protocols, and RTMP(S),SRT,HLS,ICECAST Pushing Protocols.
4. Support output 1 main stream and 3 sub stream to different Media Server at the same time.
5. Main Stream Support output resolution - 1920*1200,1920*1080,1680*1056,1680*1050,1600*1200,1600*900,1440*900,1366*768,1280*1024,1280*720,1024*768,1024*576, 960*540,850*480,800*600,720*576,720*540,720*480,720*404,704*576,640*480,640*360,608*448,544*480,572*288,480*480,480*360,480*320,480*272,480*270,480*320,400*224,352*480,352*228,320*256,320*228,320*256,320*240,320*180,240*180,Auto
6. Support Text , BMP photo, scrolling text, time message insert as Stream Logo for main stream & 2nd stream.
7. Support two options, one is HDMI IN Video + HDMI IN Audio, the other is HDMI IN Video + Audio IN Audio.
8. Output Stream bitrate adjustable.
9. Support firmware upgrade.
10. IP address can be set by yourself.
11. Support remote control via router port forward.
Application
1. IPTV
2. Online Live Broadcast, such as YouTube, Ustream, Twitter, Sopplus, etc.
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
Usages
You can play the video directly using some software tools like vlc or potplayer etc, for example,
1) http://192.168.1.168/0.ts
2) http://192.168.1.168/0.m3u8
3) http://192.168.1.168/0_mp4.m3u8
4) http://192.168.1.168/0.mp4
5) http://192.168.1.168/0.flv
6) rtsp://192.168.1.168/0
7) rtmp://192.168.1.168/0
6) udp://@238.0.0.1:1234
7) srt://192.168.1.168:9000
also,set the RTMP/RTMPS/RTSP/SRT/HLS push address from the third live webcasting platform, such as Facebook, YouTube, Ustream, Twitter, Sopplus, etc.
rtmp://p1bj.weizan.cn/v/xxxxx_149690778246506326?t=260e1
srt://srt.p1bj.weizan.cn:8100?streamid=xxxxx_149690778246506326?t=260e1
https://a.upload.youtube.com/http_upload_hls?cid=1111-1111-1111-1111-1111©=0&file=
The Web Configuration Page

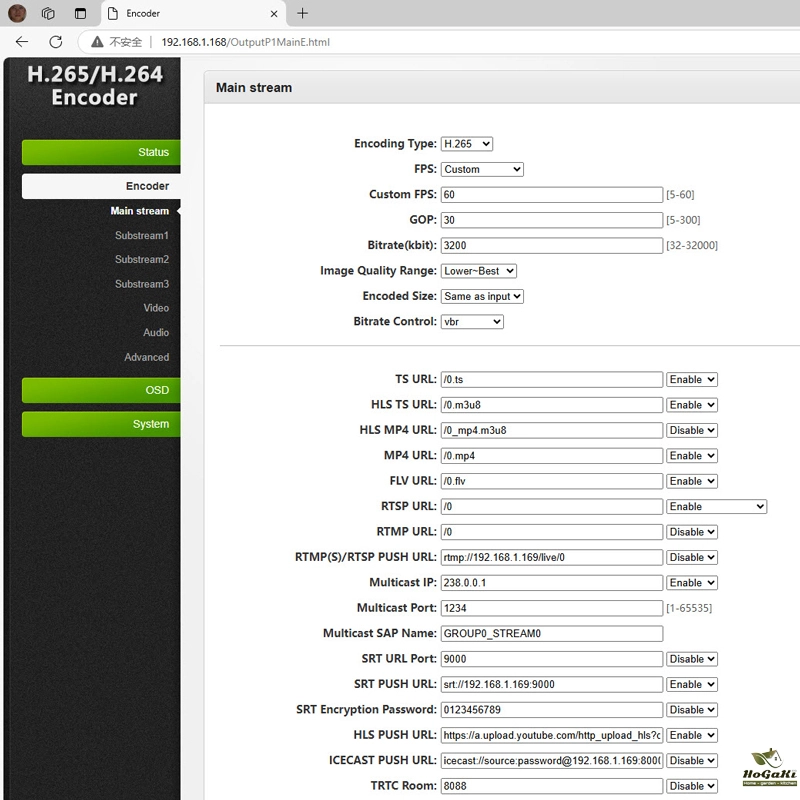

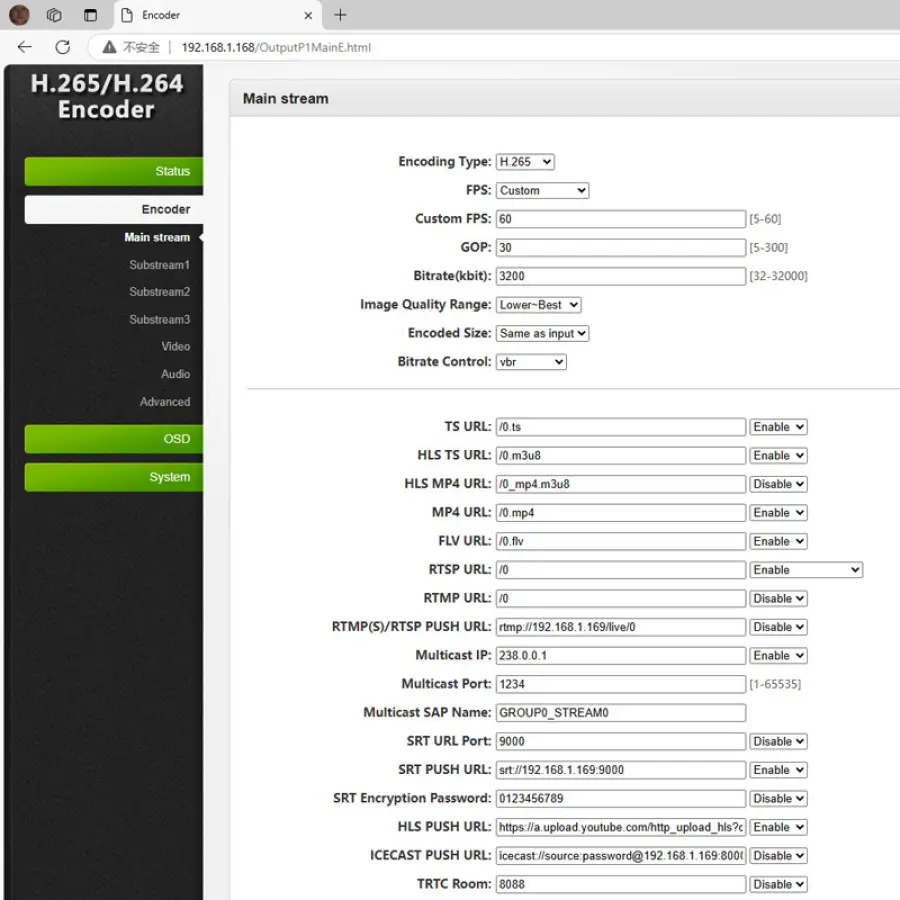

Encoder

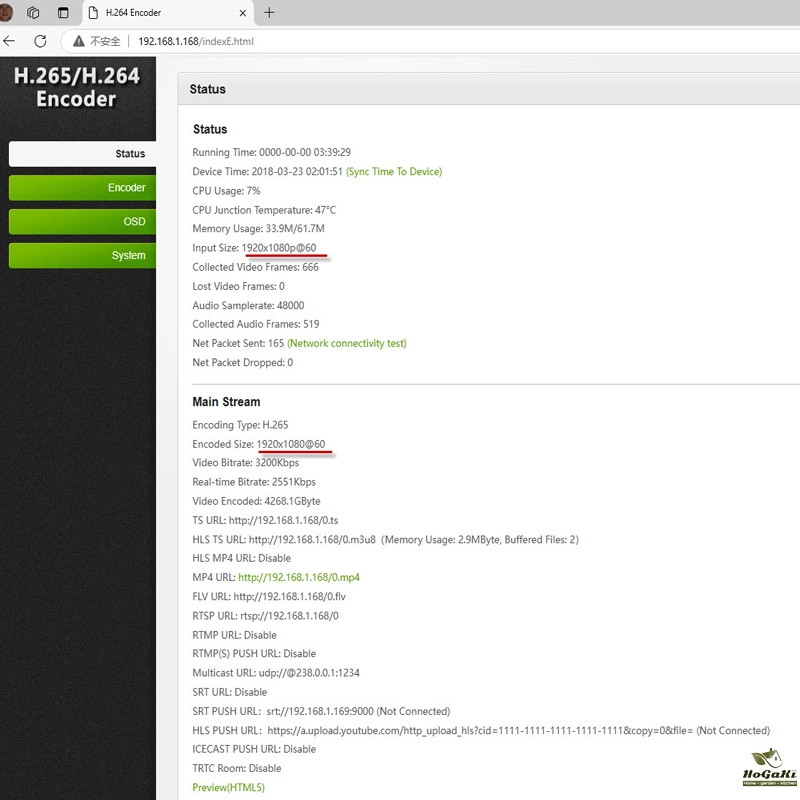

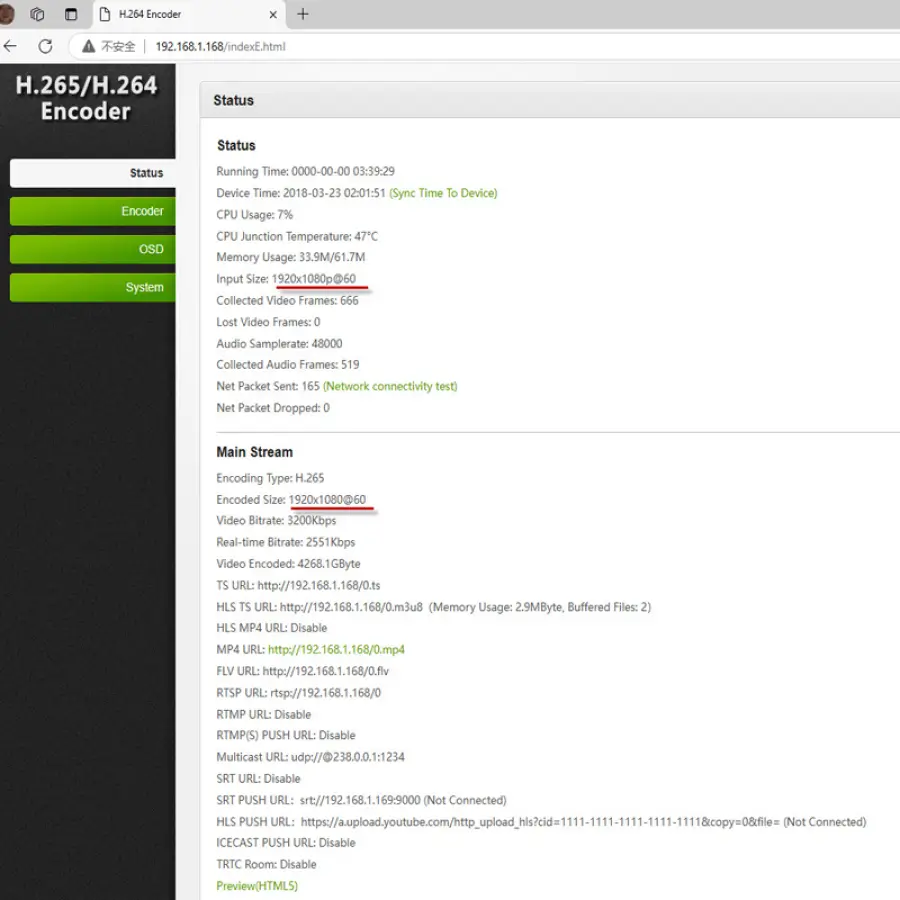

Status Page

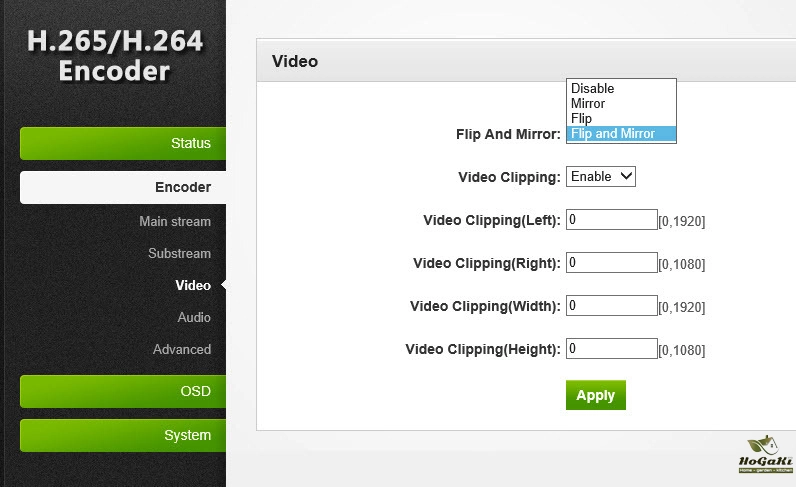

Video

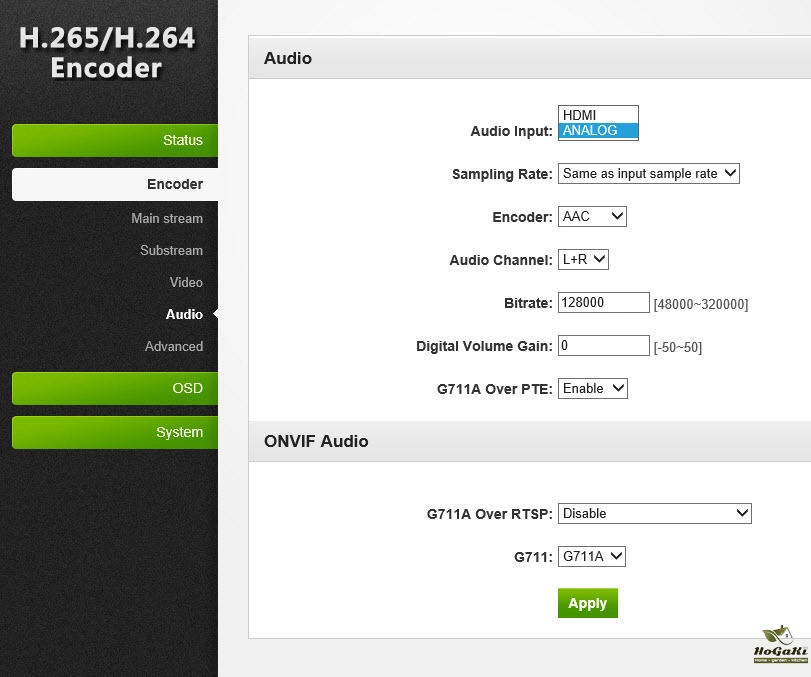

Audio

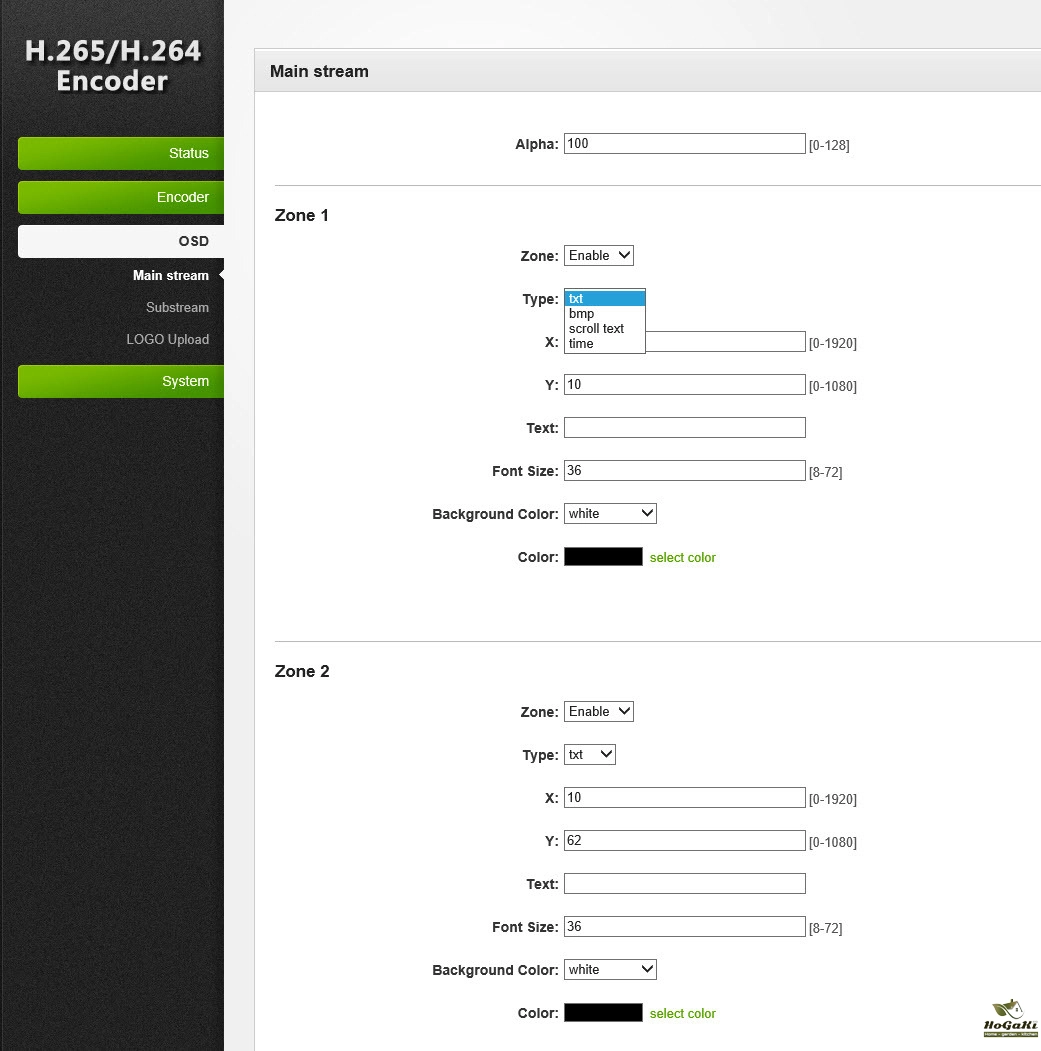

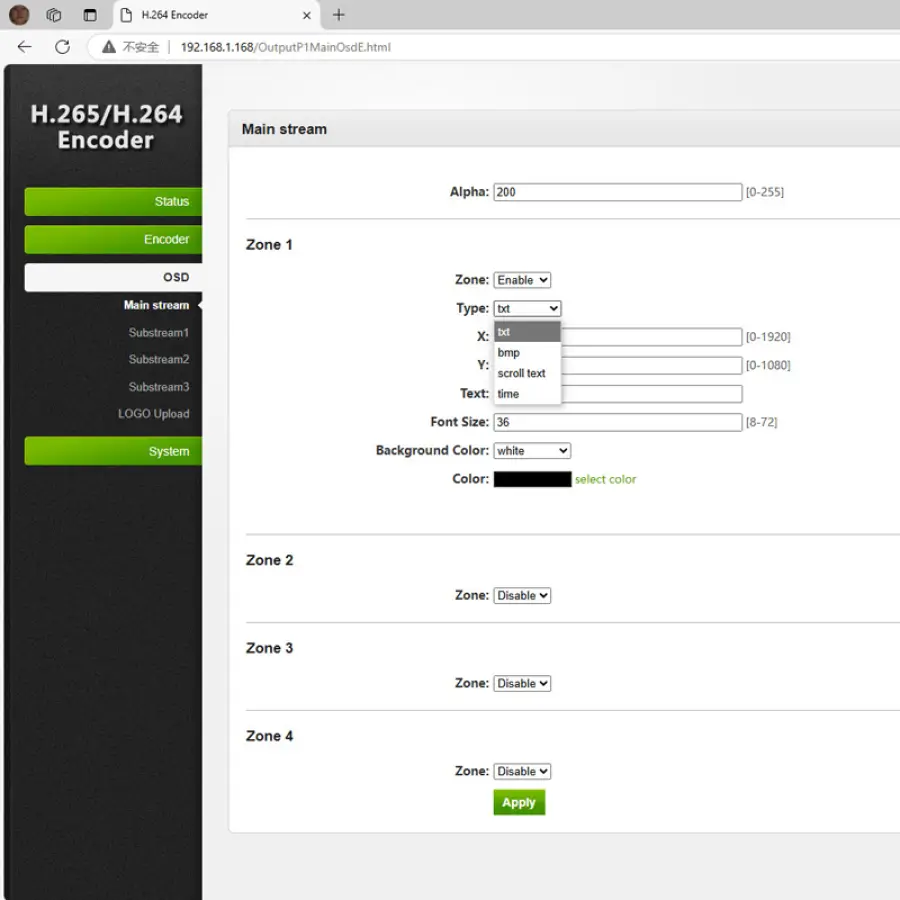

OSD
Specifications
Model | CEL-HEC504MINIE |
Output | |
Video | 1×HDMI 1.4 |
Support resolution | 1920*1200,1920*1080,1680*1056,1680*1050,1600*1200,1600*900,1440*900,1366*768,1280*1024,1280*720,1024*768,1024*576, 960*540,850*480,800*600,720*576,720*540,720*480, 720*404,704*576,640*480,640*360,608*448,544*480,572*288,480*480,480*360,480*320,480*272,480*270,480*320,400*224,352*480,352*228,320*256,320*228,320*256,320*240,320*180,240*180,Auto |
Frame rate | ≤ 60fps |
HDCP | Support HDCP 1.4 |
Output interface | 1×Ethernet port (RJ45) |
Video encoding | H.265&H.264/MJPEG |
Max bitrate | 32kbps- 32Mbps |
Rate control | VBR/CBR/Strong CBR |
Audio | |
Input interface | 1×External 3.5mm audio, HDMI built-in Audio |
Audio encoding | AAC,AAC+,AAC++,MP3,MP2,AC3,Opus |
Bit-rate Option | 48000~320000 Bit |
Sampling Rate | 44100,48000,Same as the input rate |
Network | |
RJ45 | 100M Ethernet port |
Protocol | HTTP TS/M3U8/HLS MP4/MP4/FLV/RTSP/RTMP/UDP/RTP/SRT/ONVIF RTMP(S),SRT,HLS,ICECAST PUSH Protocol |
Control Panel | Web panel (Language is English), remote upgrade |
Firmware Update | Enable by uploading files to the dashboard |
General Parameters | |

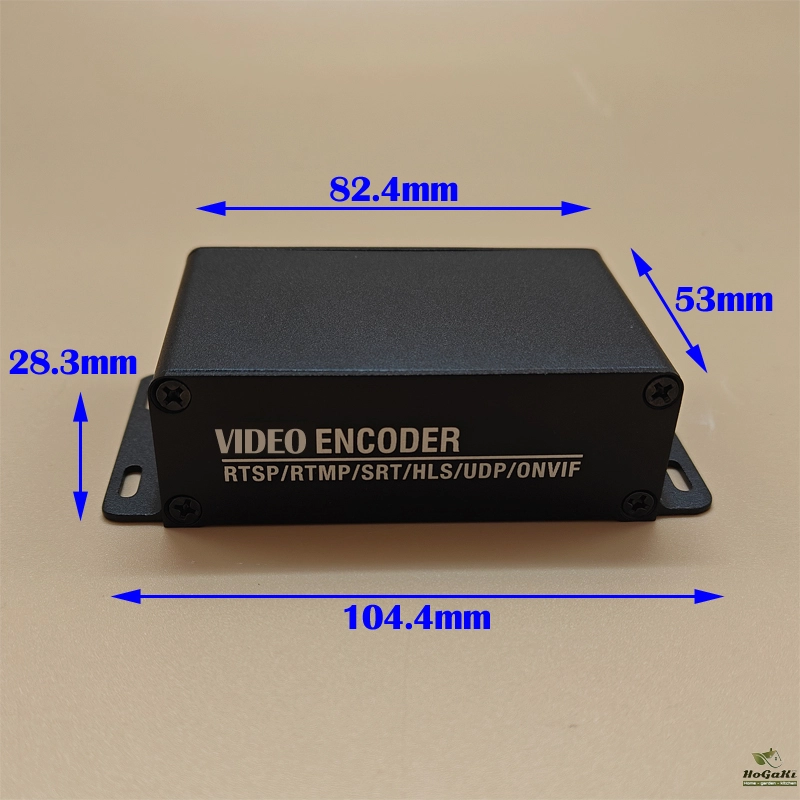

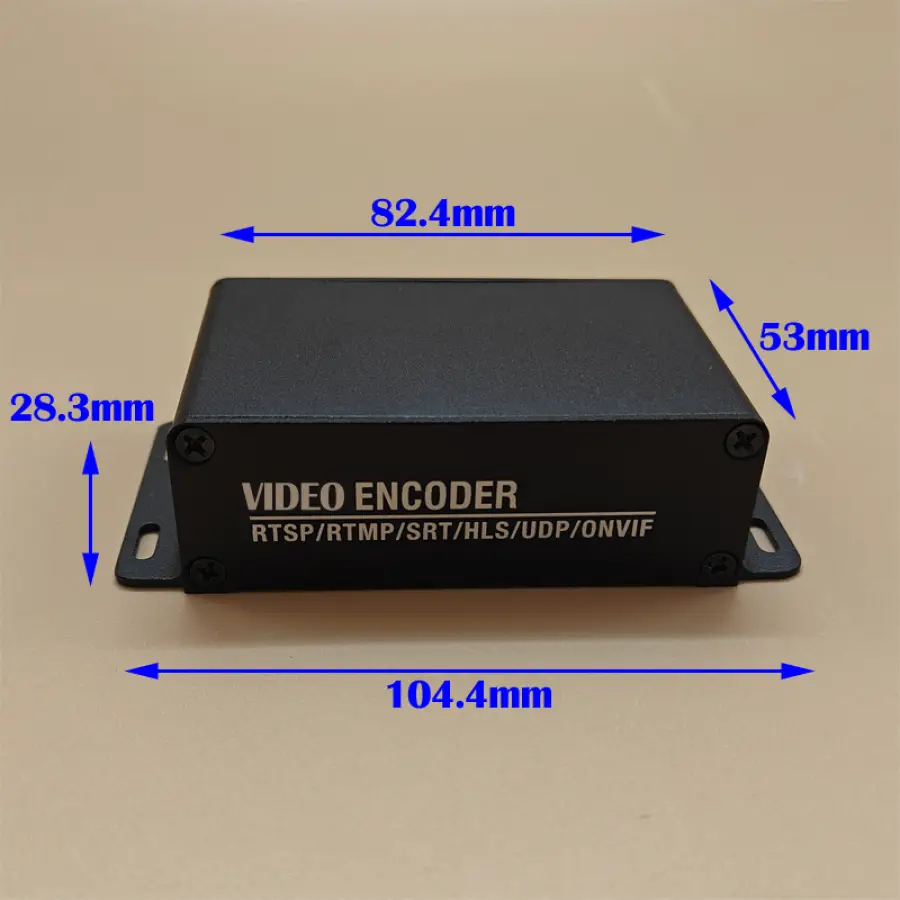

Dimension | 104.4*53*28.3mm |
Gross Weight | 0.3kg |
Temperature | 0~ 45℃（for working）,-30~60℃（for storing) |
Humidity | <90%, non-condensing |
Power supply | DC 12V/1A |
Power Consumption | <4W |
Package Included
1 x (Video Encoder)
1 x (110-220V AC to 12V DC Power Adapter)
Packaging Details
- Unit Type:
- Package Weight: 0.500
- Package Size: 15x6x15
- Brand Name: VBCTECHNOLOGY
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: CEL-HEC504MINIE
- Smart home platform: None
- Certification: CE
