Audio Video Selector 16 inputs 1 outputs video switcher AV Switcher AV Selector CCTV
392.93 283.31 $
ID: 160147
Quantity
IP USB switcher atem switchboard control panel switch video mixer switcher vMix software switchboard control panel
0.0 ( votes) | 5 orders
Price:
US $2531.80
Discount Price:
US $
1898.84
-25%

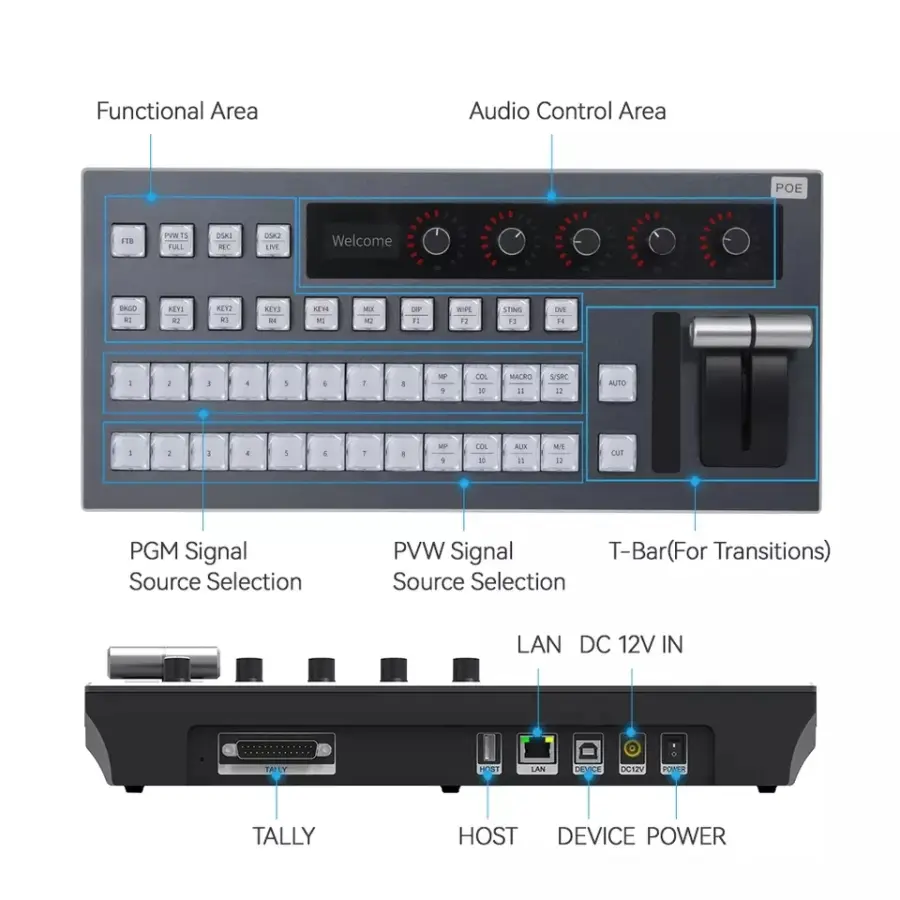

Features
Integrated hardware design:
Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

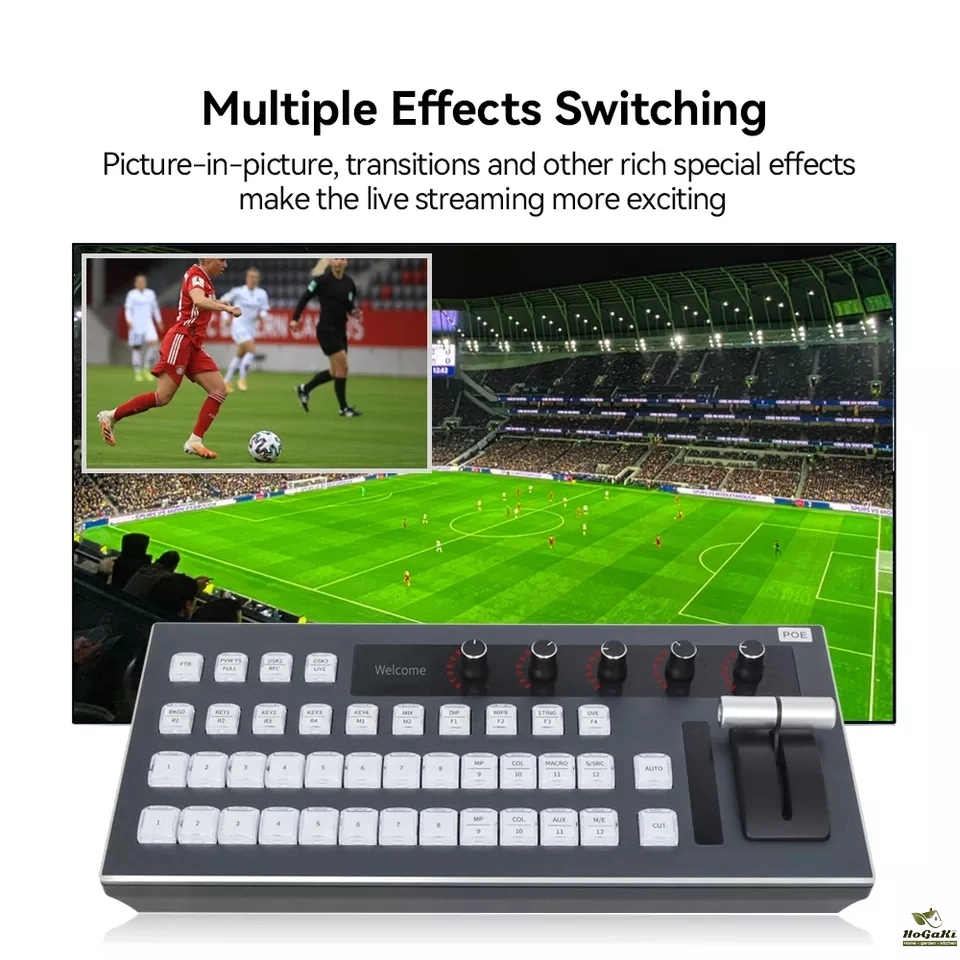

Brand-new upgrade function, custom combination to play more effects:
The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.

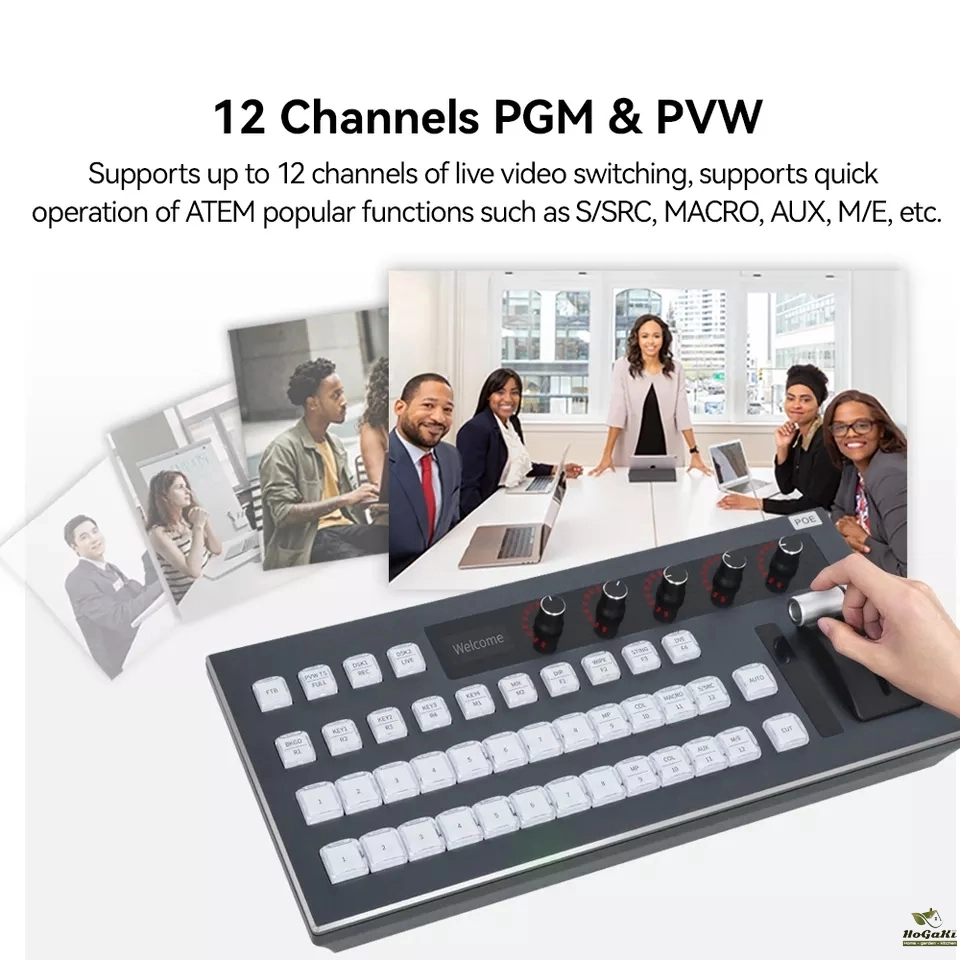

Supports up to 12 channels of live video switching:
ATEM support conventional 8-channel PGM+8-channel PVW live switching, other live software supports up to 12-channel live switching.

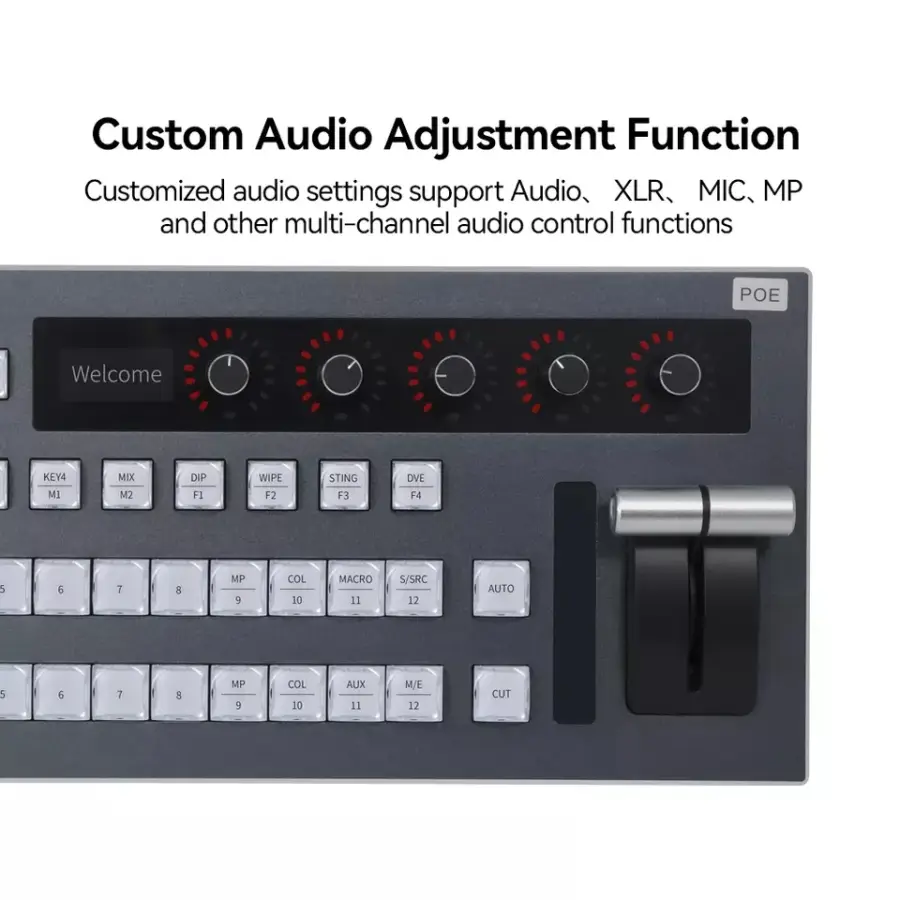

Built-in custom audio adjustment function:
Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.

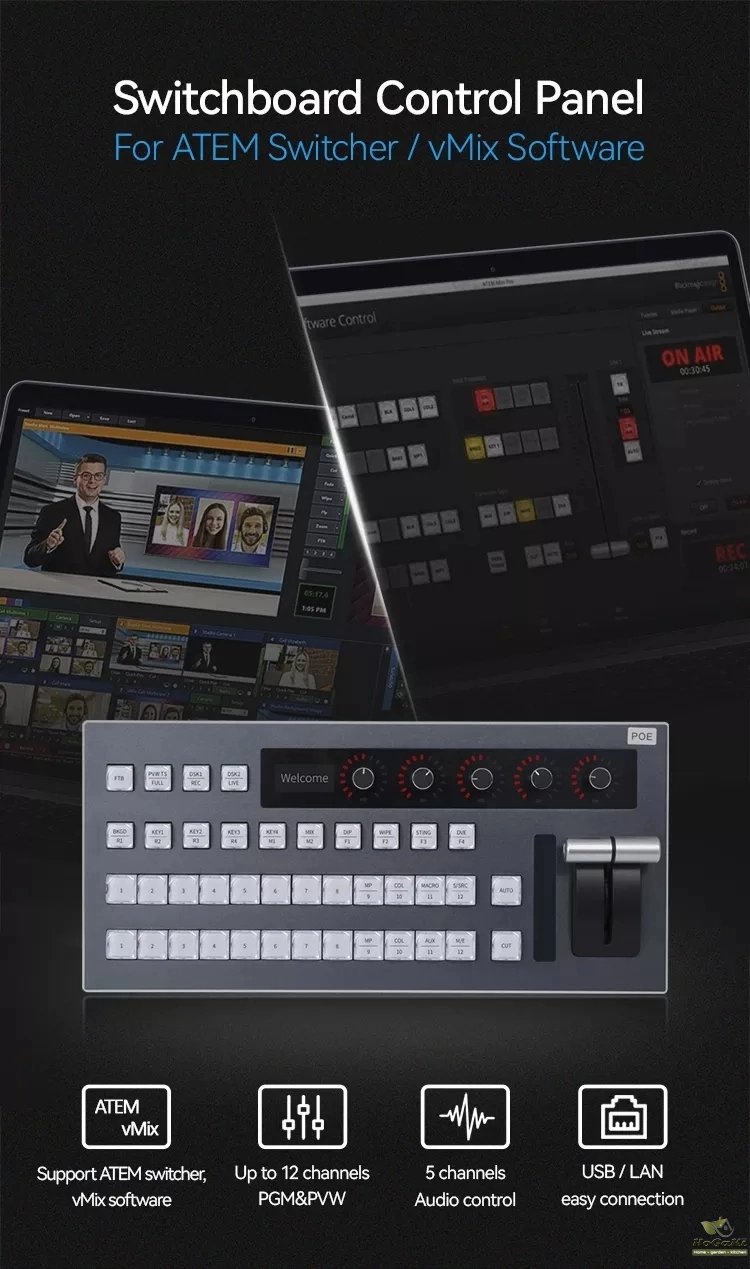

Compatible with plenty of live broadcast software:
In addition to supporting ATEM series devices, it also supports MIDI protocol,compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc.,multi-purpose machine is more worry-free.
Support 24-channel tally output function:
Built-in DP25 tally interface, supports up to 24 tally signal output functions.

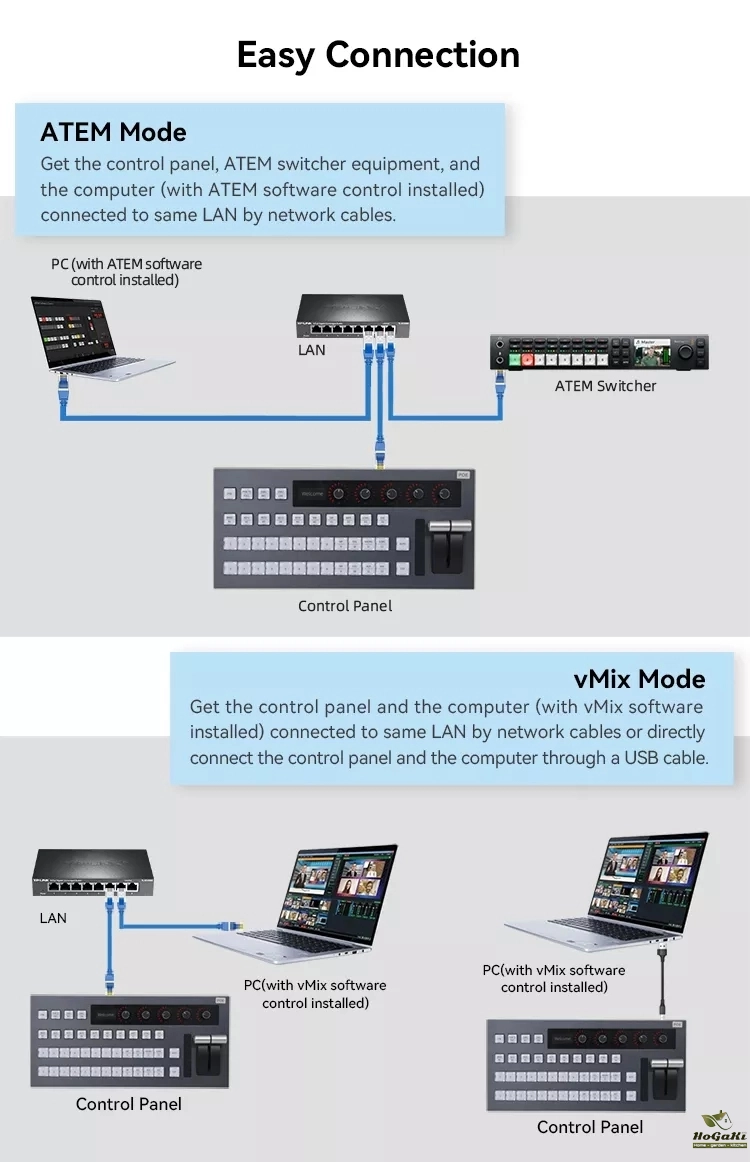

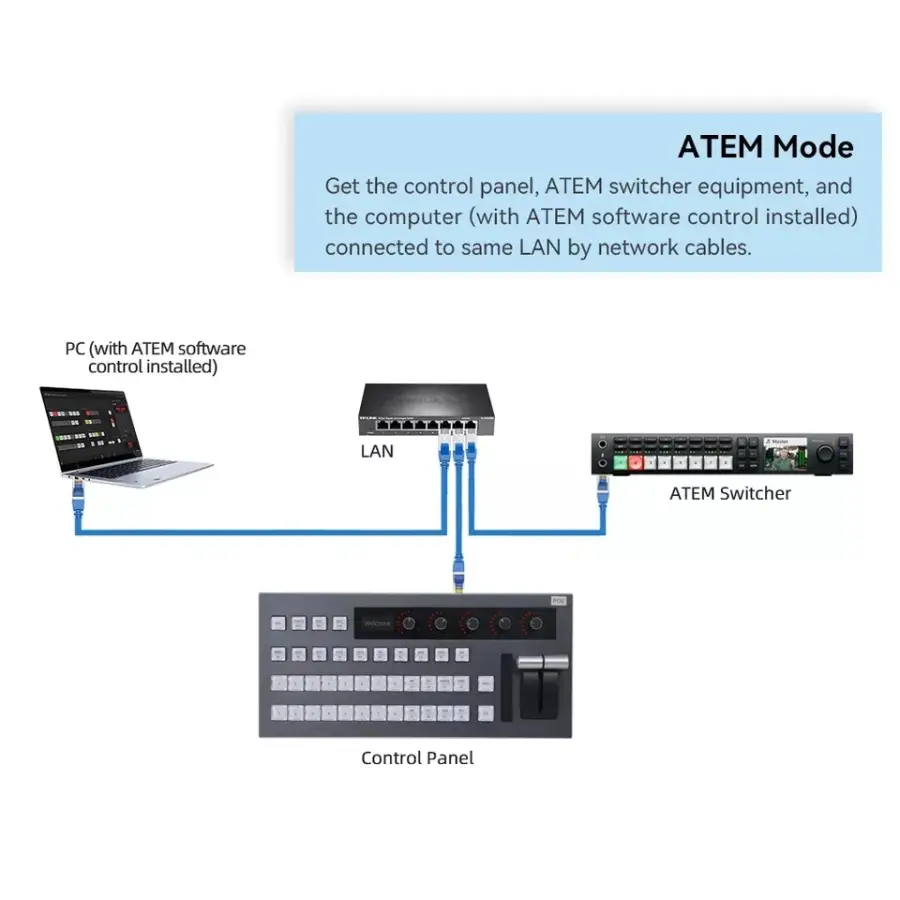

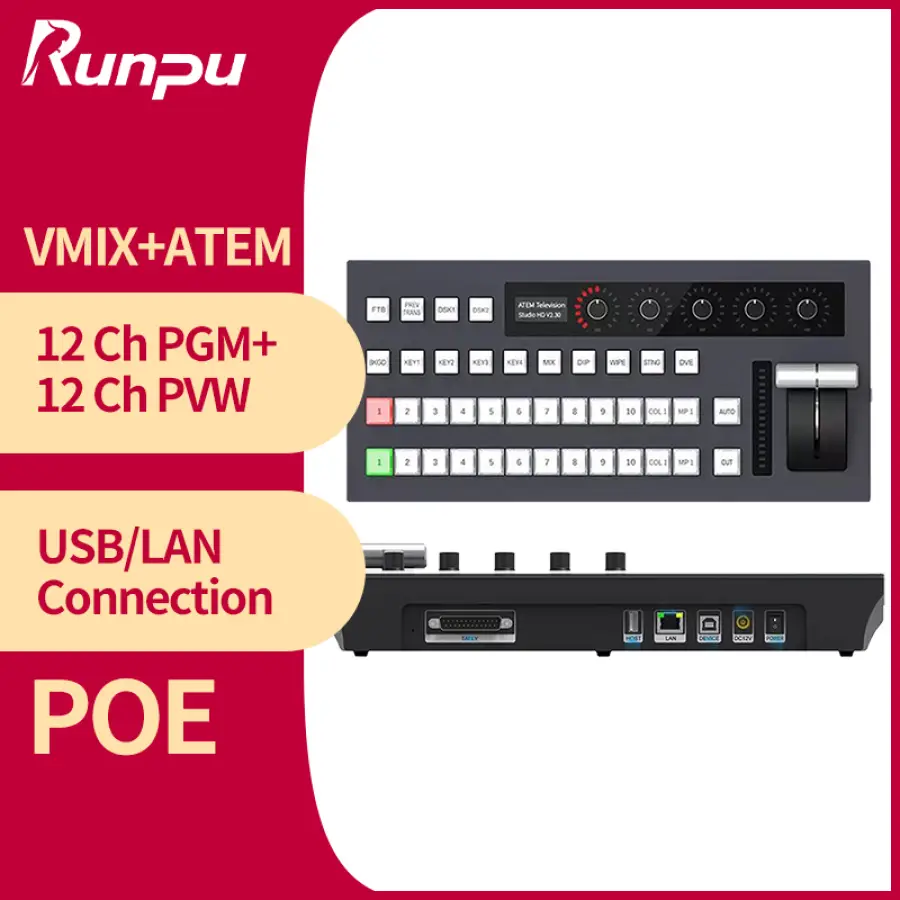

USB 2.0, LAN dual interface connections, simple and convenient:
Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supportsLAN connection ), and can transmit video signals to computers and live videoproduction software without a capture card, simple and convenient.
All aluminum alloy body:
Anodized aluminum alloy panel process treatment, outstanding quality.
Specifications
Main Parameters | |
Audio Control | 1ch master+4ch input |
Transition Control | Auto transitions, hard cuts, T-Bar |
OLED Display | Set device parameters |
Indicator Light | Indicate switcher status |
Tally | 12ch PGM+12ch PVW |
ATEM Functions: | |
Connection Method | 100M LAN，support POE 802.3af |
Video Control | 8ch inputs + 1ch COL + 1ch MP |
Transition Effects | MIX / DIP / WIPE / STING / DVE |
Upstream Keyboard | BKGD / KEY1 / KEY2 / KEY3 / KEY4 |
Downstream Keyboard | DSK1 / DSK2 |
FTB | Support |
PREV TRANS | Support |
MACRO | Support |
S/SRC | Support |
M/E | Support |
AUX | Support |
Vmix Functions: | |
Connection Method | 100M LAN，support POE 802.3af |
Video Control | 12ch inputs |
Transition Effects | 4 kinds |
Picture-in-picture Function | R1 / R2 / R3 / R4 |
Playback Setting | M1 / M2 |
REC | Support |
LIVE | Support |
T-BAR | Support |
Power Supply | |
Input Voltage | DC 12V |
InputCurrent | 0.3A |
Rated Power | 4W |
POE | POE 802.3af for optional |
Powered by USB | Support ( rely on the USB power supply capability of the computer ) |
Others | |
Use Environment | Indoor |
Operating Temperature | -10℃~40℃ |
Storage Temperature | -20℃-60℃ |

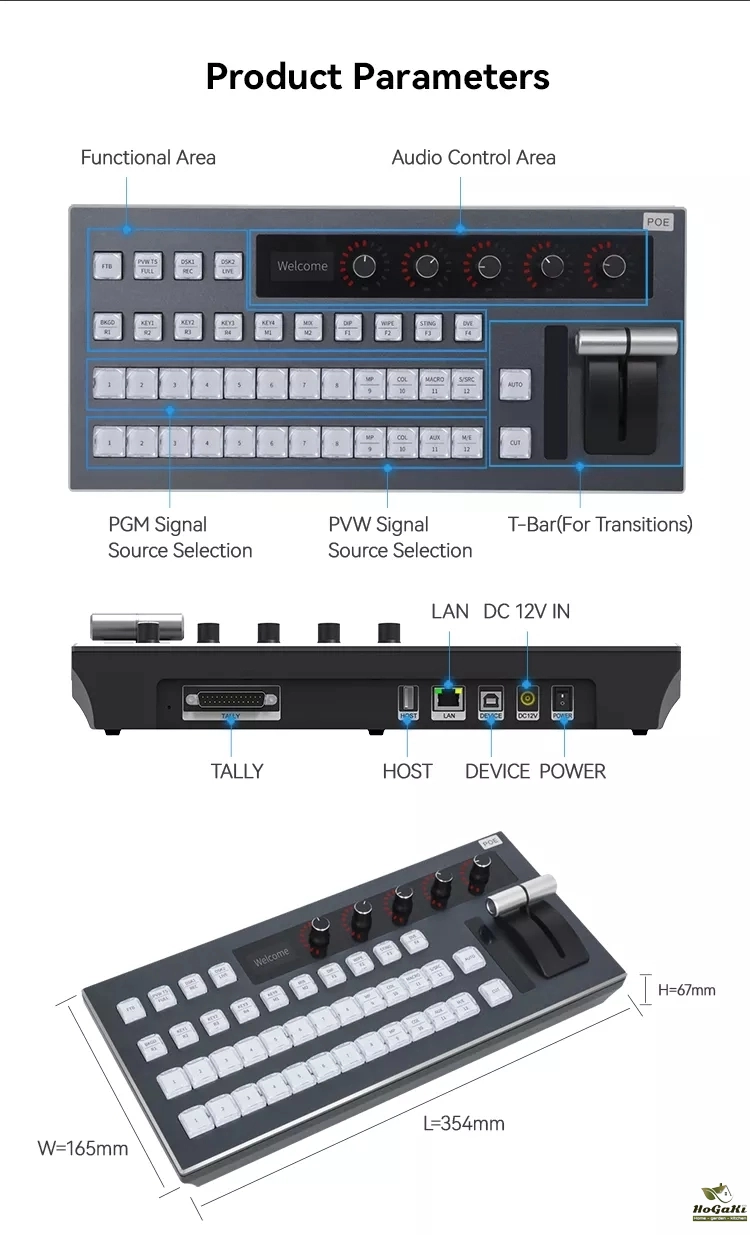

Dimensions | (L)354*(W)165*(H)67mm |
Weight | 1.5Kg |

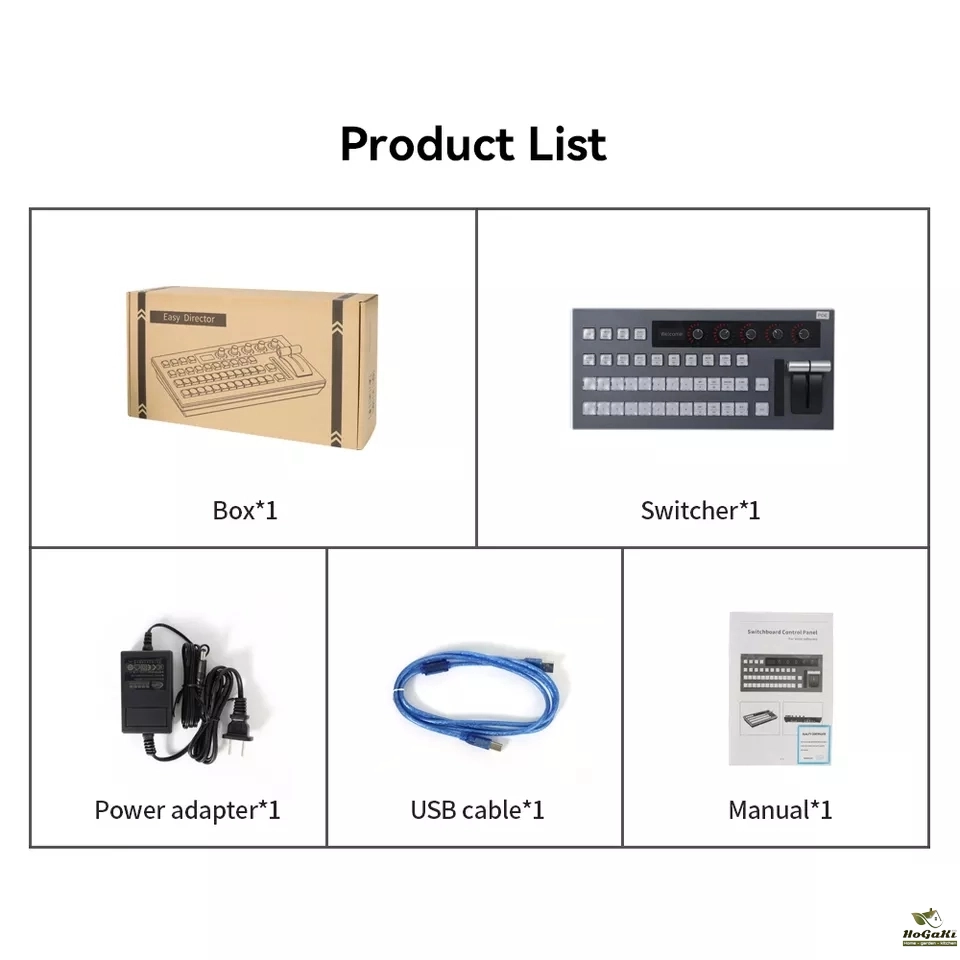

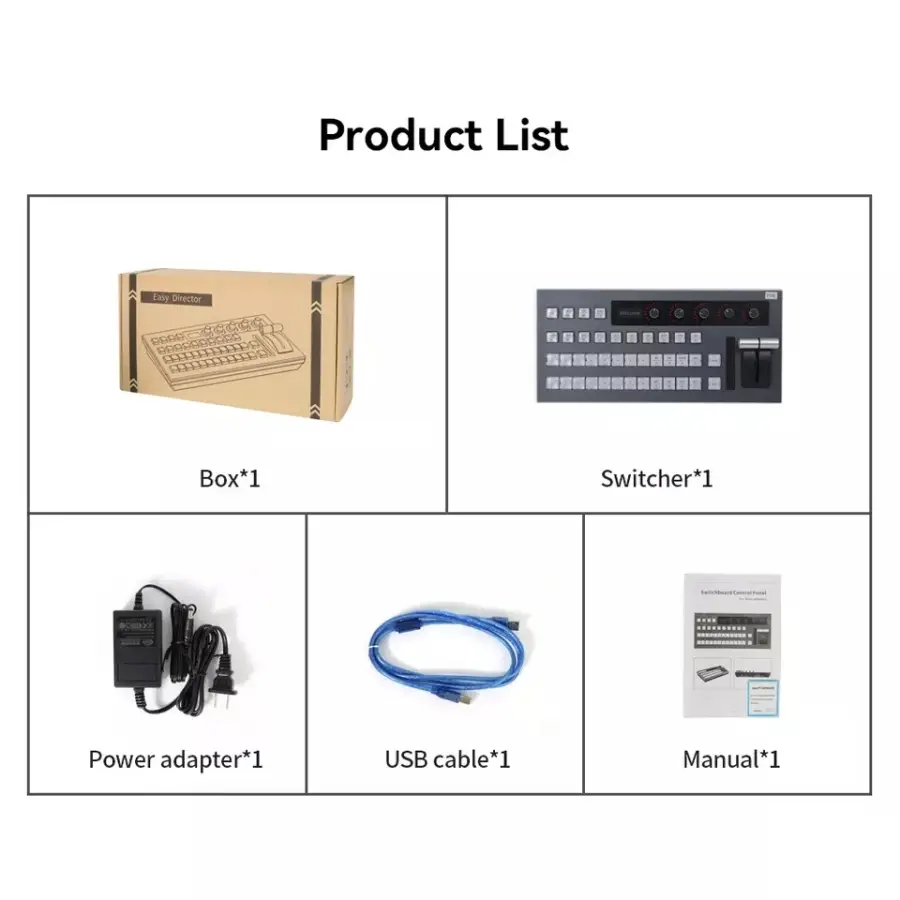

Accessories | Power adapter*1, USB cable*1, User manual*1 |
Our Certificate
Q&A
Q:The quality of your products?
A: We are a professional company with quality assurance, two-year warranty, professional customer service, please rest assured to buy.Before the product is sent, we will strictly check the quality of the product
Q:Does it support dropshipping?
A: Yes, we are looking forward to cooperating with you, we have sufficient inventory, and we have good industry prices~
Q:What brand are you?
A: Runpu Shitong Technology Co.,ltc., was established in 2015 and is one of the leading product providers in the field of video conferencing in China. The company focuses on video conference cameras, omnidirectional microphones, video capture cards, etc. The comprehensive application and development of technology is a high-tech enterprise specializing in the sales and service of conference cameras, omnidirectional microphones, video capture and other products. Shenghua Shitong is a technology research and development enterprise. It has always been the company's strategic policy to build core competitiveness with research and development innovation.
Q:Can I change my order info? Such as receiving address or item purchased?
A: Order info cannot be changed after being placed. Please cancel your order and place a new one if order info is incorrect. Otherwise your parcel is going to be shipped according to the initial order info.
Q:Why is my parcel returned?
A: That’s because receiving address or phone number being incorrect or the logistics company cannot ship to your address. Please reach out to our customer service directly if the issue persists.
If you are satisfied, please give us a five-star review⭐⭐⭐⭐⭐
If you have any doubts, please contact us~
Contact us
Address:1608, Unit 2, Floor 17, Building 2, No. 87 West Building Materials City Road, Changping District, Beijing
Sales Manager: 0086 18668833617 Alice Zhang
Skype: +0086 18668833617
WhatsApp: +0086 13552206410
QQ: 1037416237
WeChat: +0086 18668833617
Packaging Details
- Unit Type:
- Package Weight: 4.500
- Package Size: 14x15x28
- Brand Name: Runpu
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: RP-KD50X
- Certification: CE
- Certification: FCC
- Certification: RoHS
