2-Axis Joystick Mini Mobile CCTV Keyboard Controller for Vehicle DVR PTZ Speed Dome Camera Pan Tilt Zoom Preset RS485 Control
5.0 (2 votes) | 1 orders
Price:
US $
121.88
/ piece

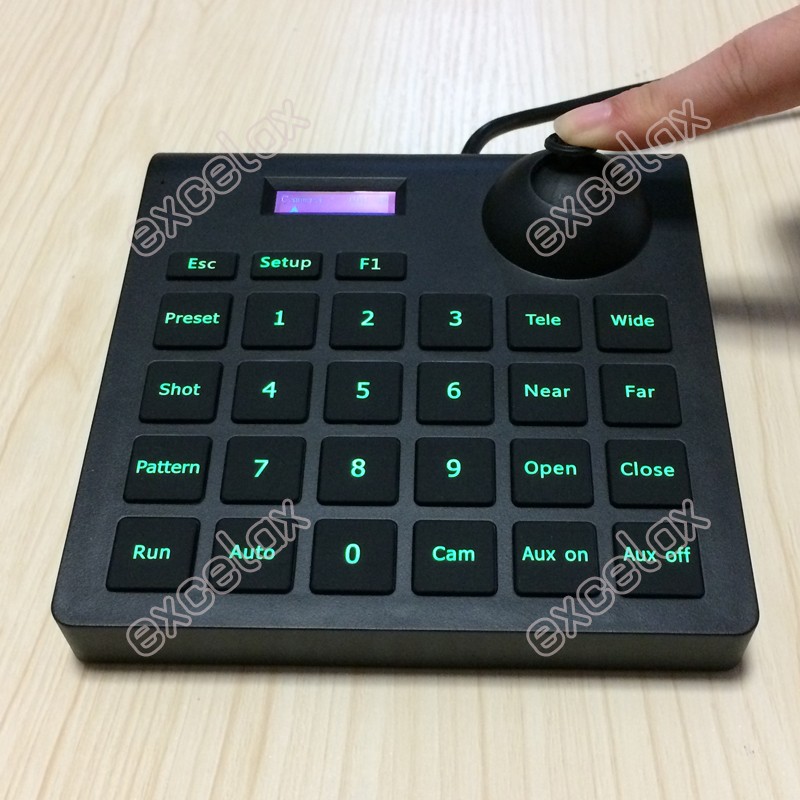

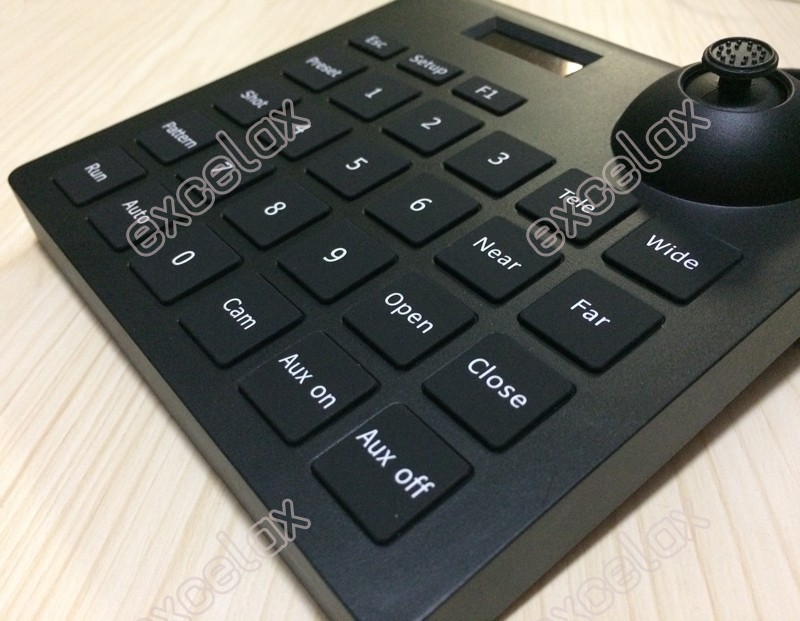

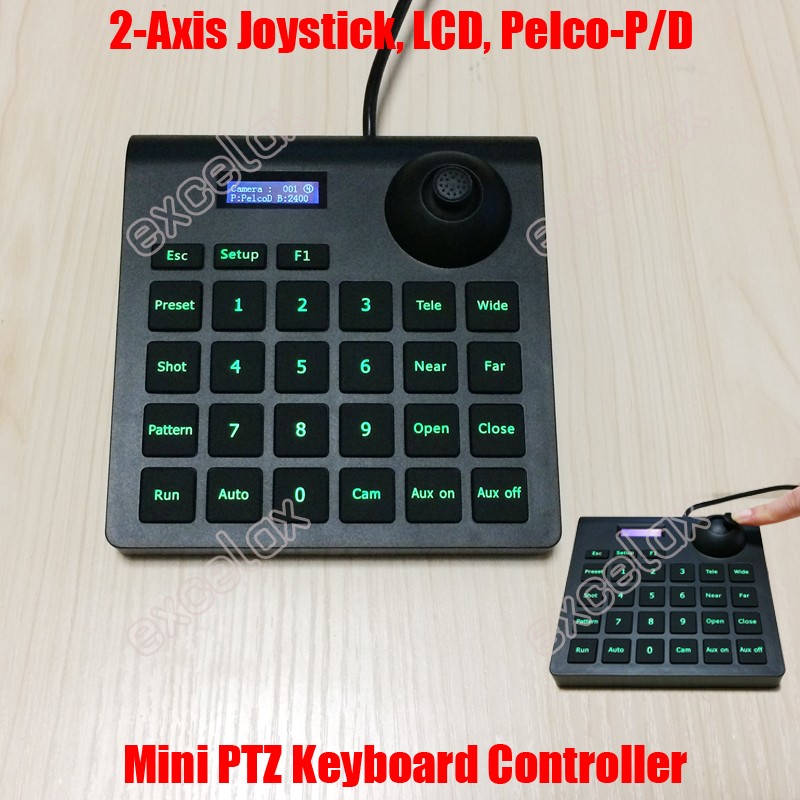

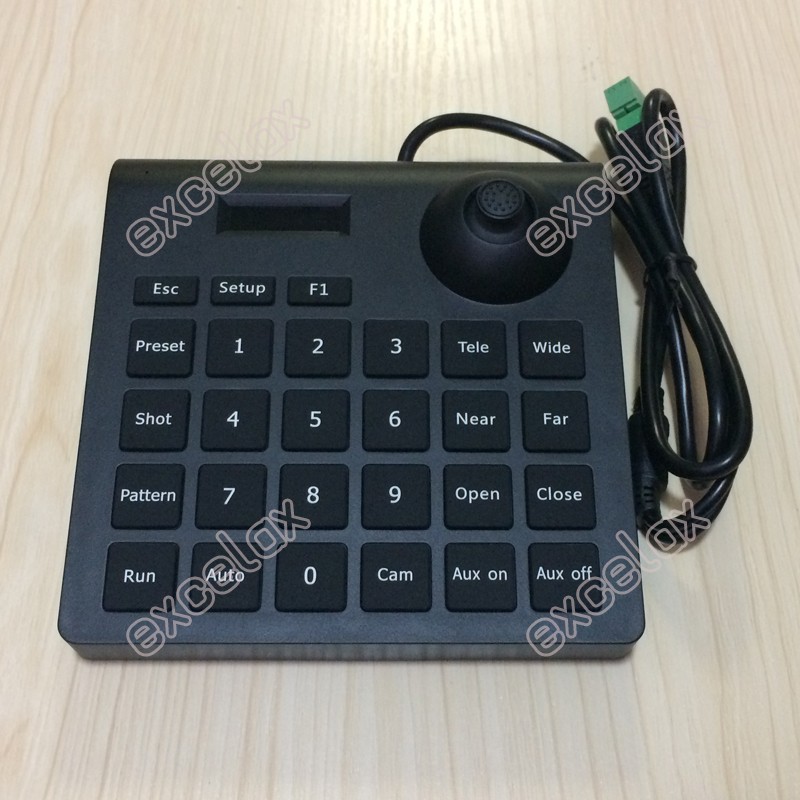

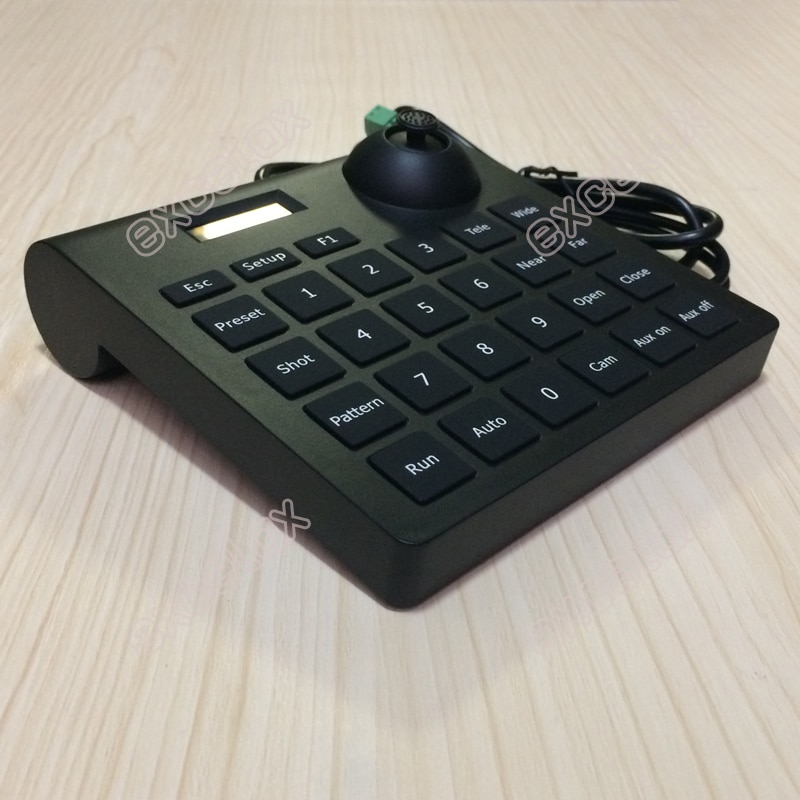

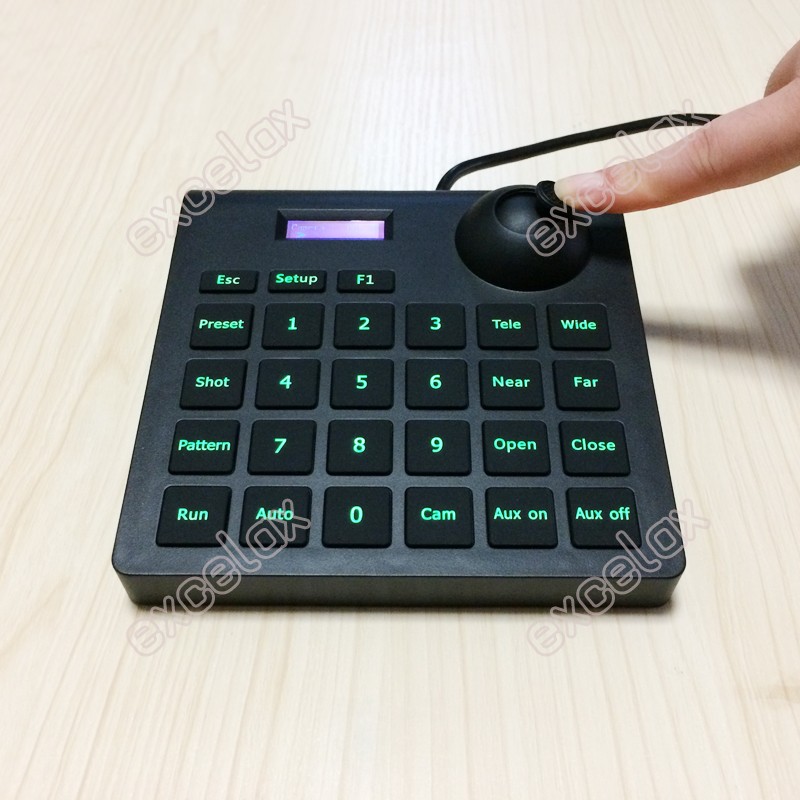

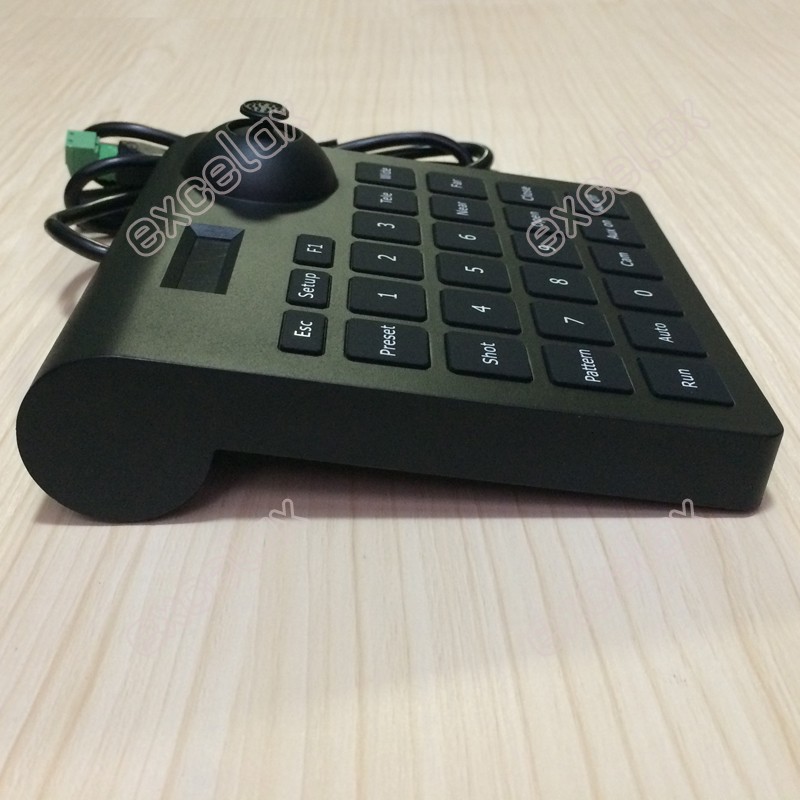

2-Axis Joystick Mini Mobile CCTV Camera Keyboard Controller
Description:
The keyboard controller is an independent rear end control device in integrated security system,it is specially designed for quick control of speed dome camera and PTZ which are unable to control conveniently through DVR, achieving speed dome camera PTZ control easier.
Special Functions:
Real-time display current control address agreement and baud rate
Available to set 4-level control speed
Available to switch speed dome ID directly by pressing "AUX ON"/ "AUX OFF"
Adjustable key press sound volume
Small size suitable for use in car
Basic Functions:
RS485 control BUS, available to control up to 255 speed dome cameras
All input and output communication ports adopt anti-radar design, powerful anti-jamming performance
Standard transmitting distance is up to 1200 meters
Excellent communication compatibility, built-in Pelco-P, Pelco-D, Hikvision and Dahua protocols
Keyboard operation password on/off/lock function

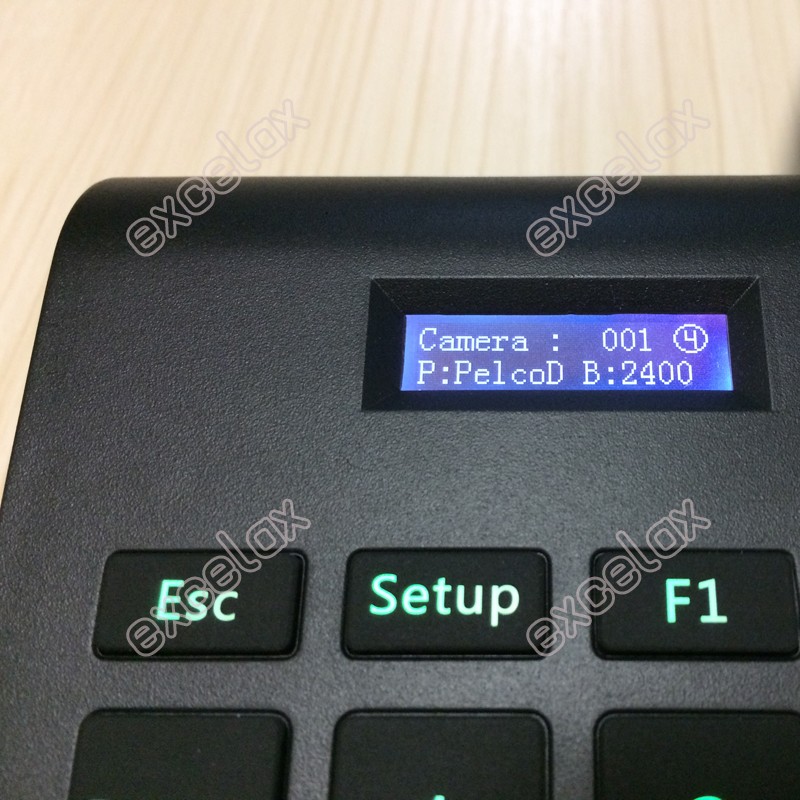

LCD screen to real-time display its operation status

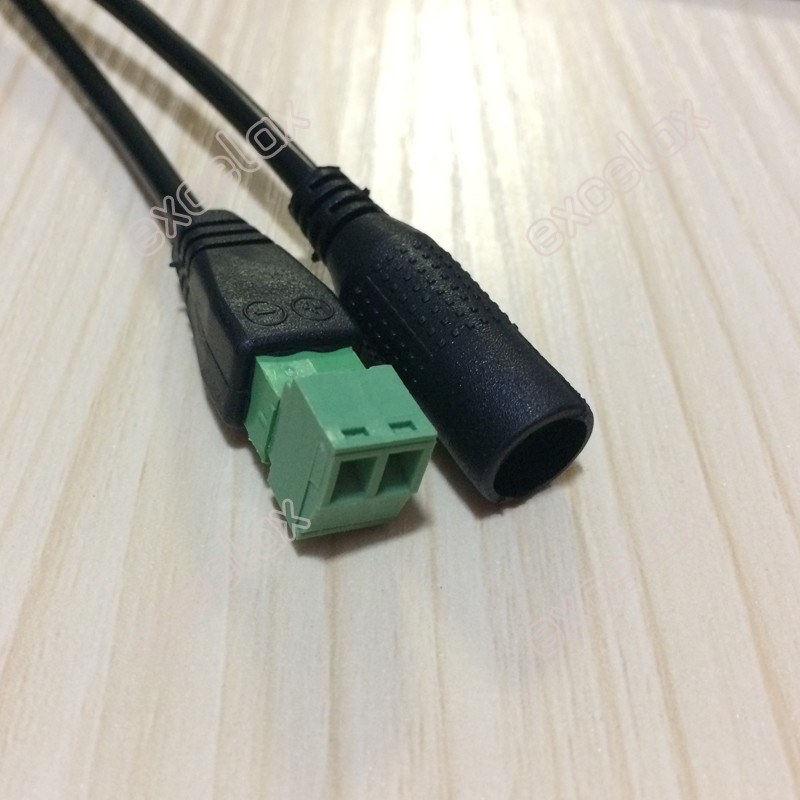

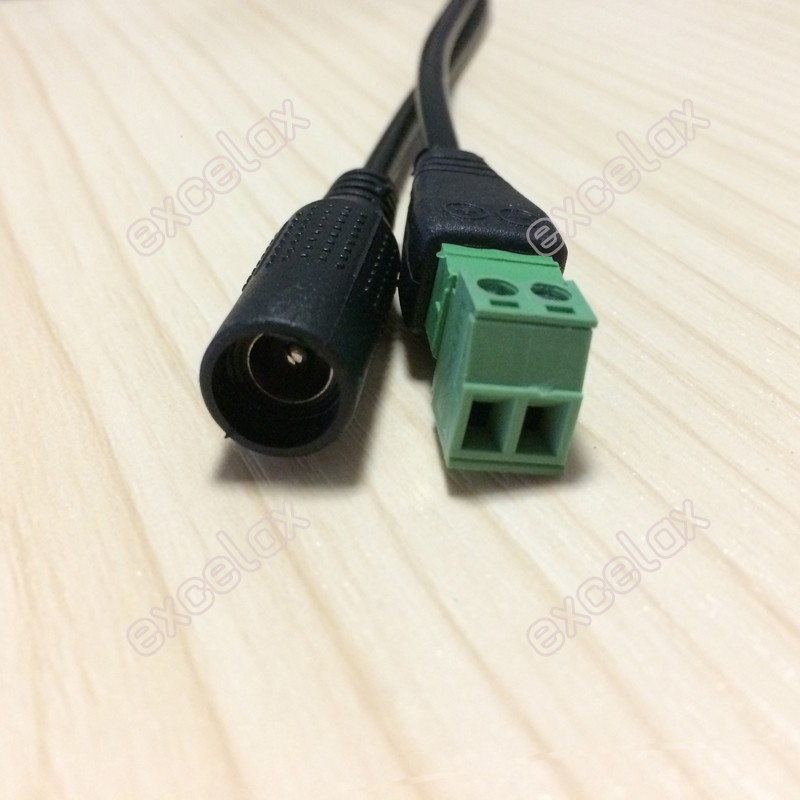

RS485 port pitch 5.08mm (Common DVR pitch is 3.81mm)
Specifications:
Model No. | |
Protocol | Pelco-P, Pelco-D, Hikvision, Dahua |
Baud Rate(bps) | 1200, 2400, 4800, 9600, 19200, 38400bps |
Control Address | Control 255 dome cameras/decoder at the most, address code: 0-254 |
Communication Mode | RS485 half-duplex |

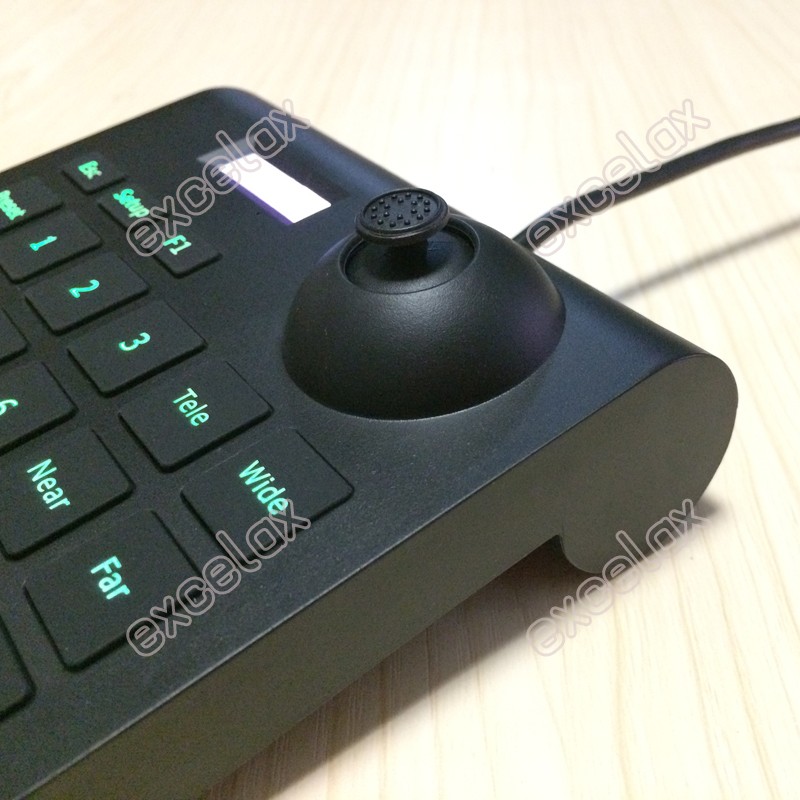

Joystick | Control: up, down, left, right |
Menu and Key-press | English |
Warning Tone | Key-touch beep on/off |
Power Supply | DC 12V +/-10% |
Power Consumption | 5W Max. |
Working Temperature | 0 ~ 50C degrees |
Storage Temperature | -20 ~ 70C degrees |

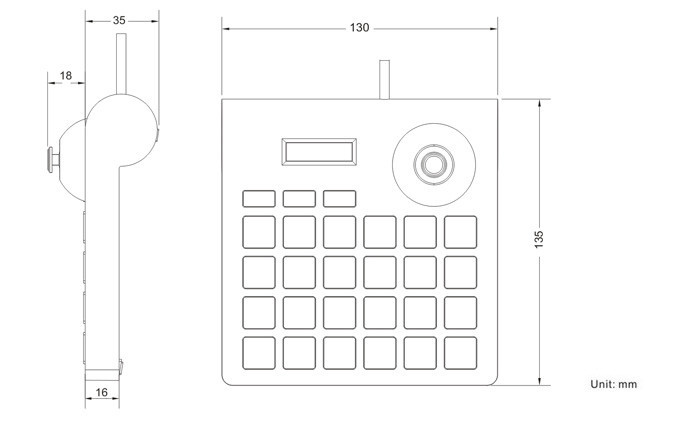

Package Size(mm) | Mini size, 180x165x90mm / 7.09x6.50x3.54in |
Gross Weight(kg) | 0.61kg / 1.34lb |

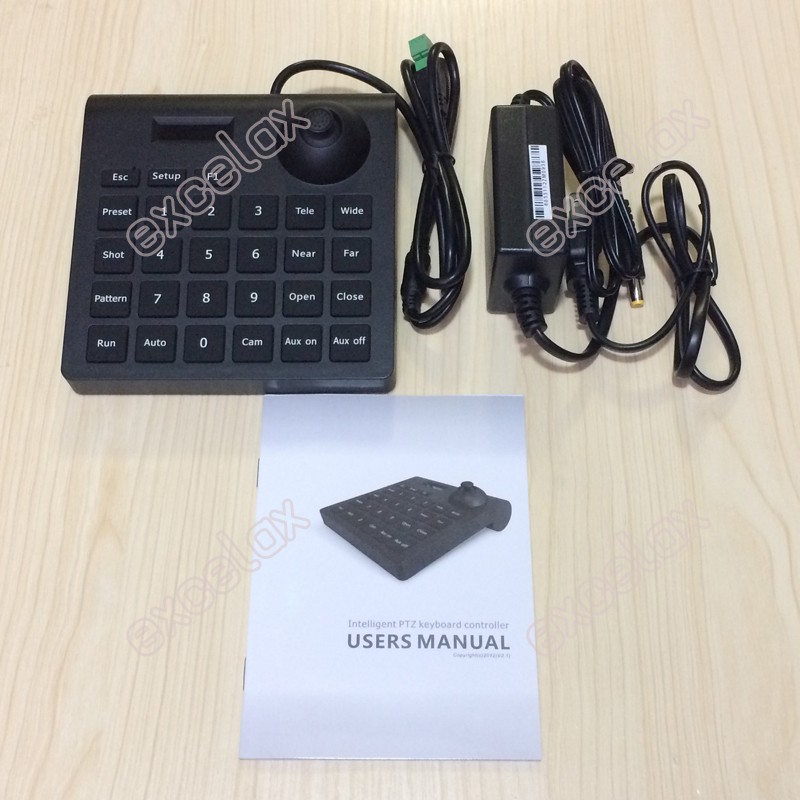

Package Content:
1* Mini Keyboard Controller

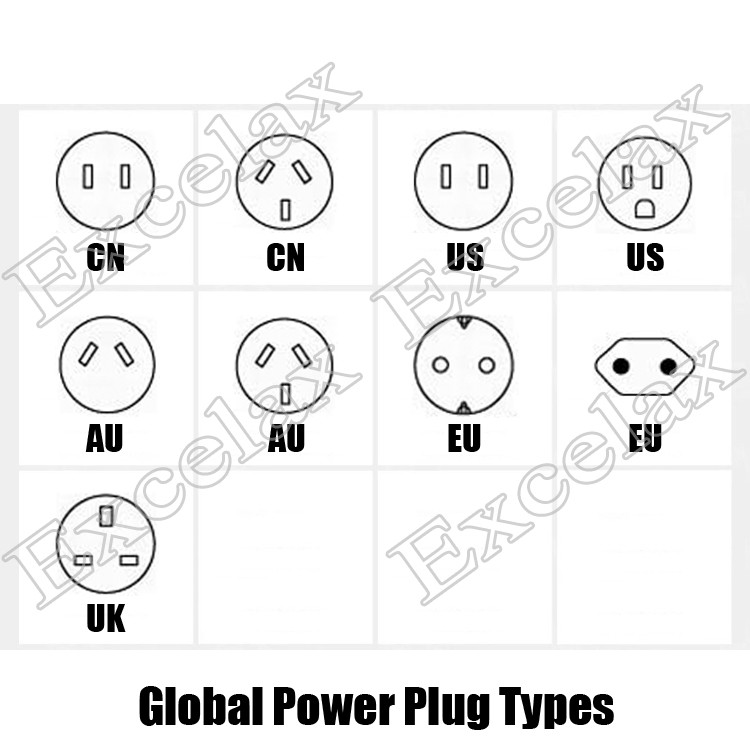

1* Power Adapter (Default US/CN type power plug. Please leave message for EU/UK/AU type.)
1* User Manual
Tips:
For other keyboard operations related to PTZ camera, pan/tilt scanner with decoder built in, decoder and other equipment, please refer to respective user manual.
- Model Number: SK-KB02
- Brand Name: SankiView
- Origin: Mainland China
- Certification: NONE
- Joystick: 2D
- Pan/Tilt/Zoom Control: Yes
- RS485: Yes
- Power Supply: DC 12V 1A
- RS485 Port Pitch: 5.08mm
