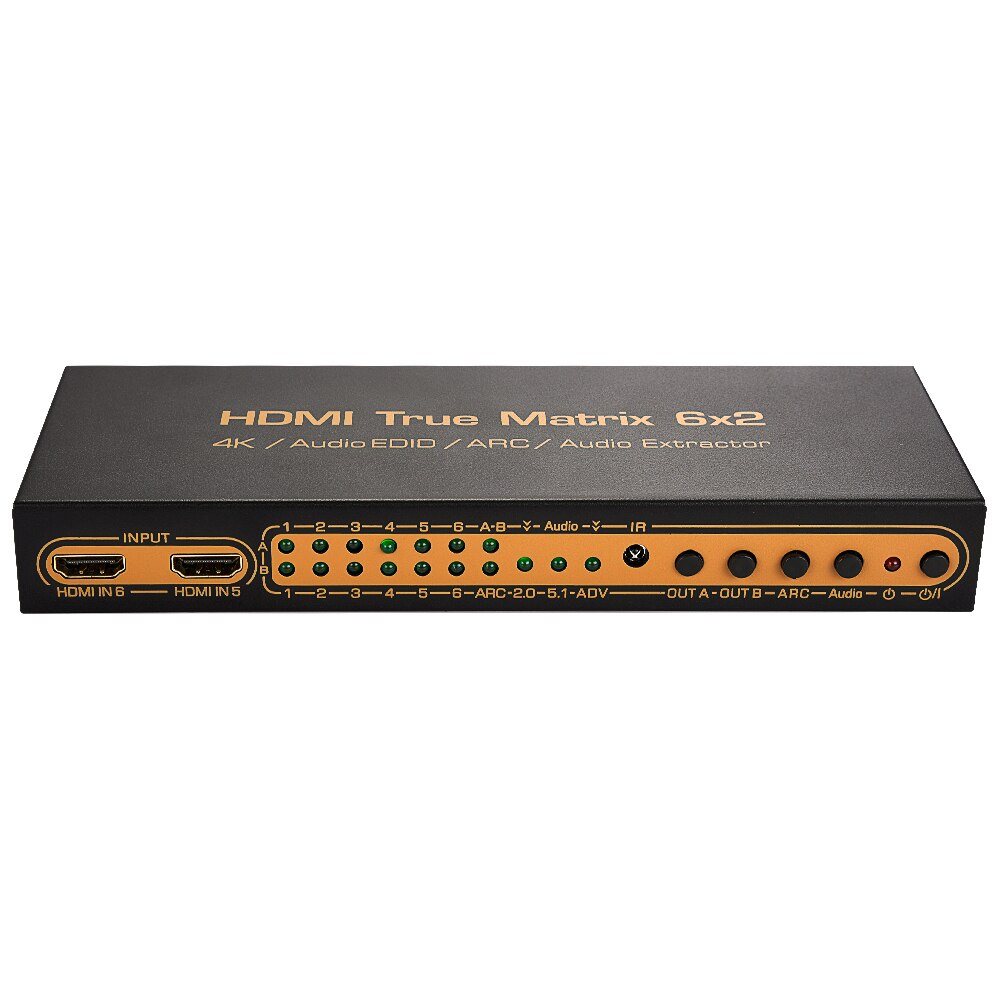

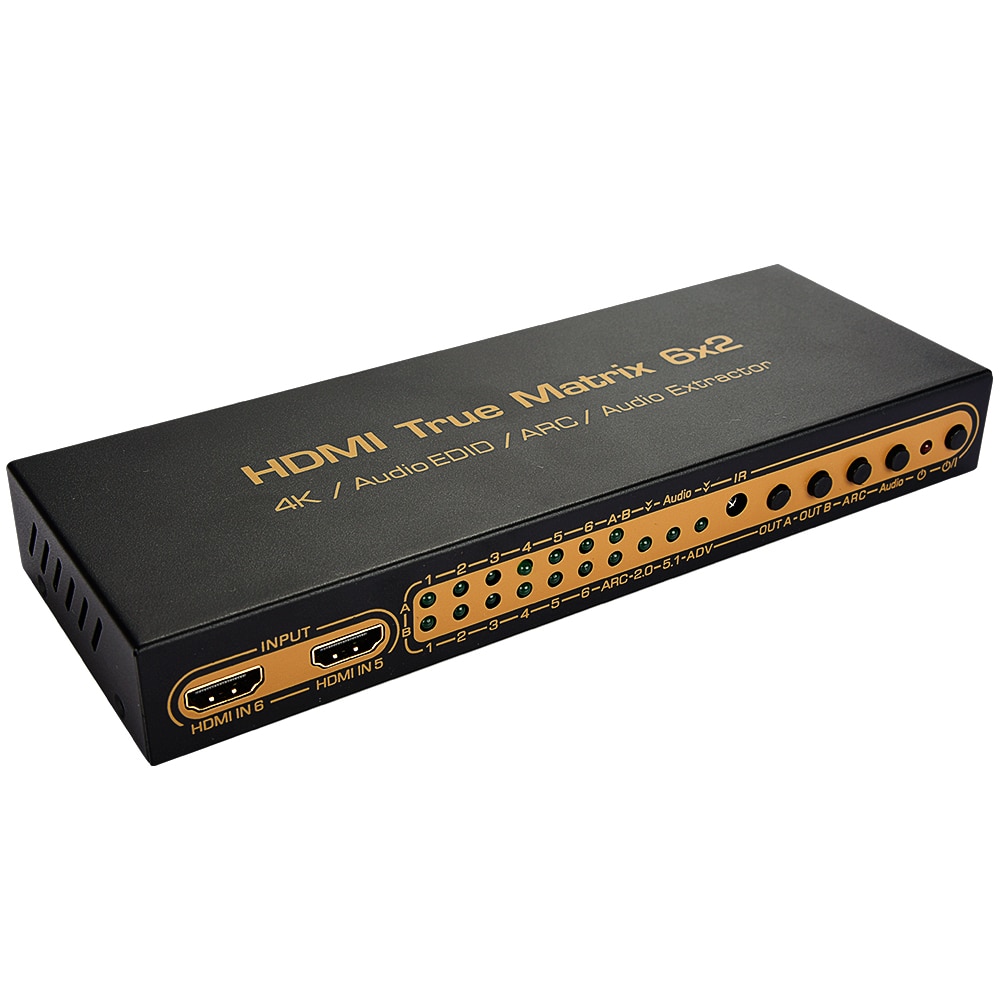

6x2 HDMI Matrix PIP 1.4V 4K*2K 3D Audio EDID/ARC/Audio Extractor 5.1CH switch splitter 6 input 2 output converter for HDTV 06M1

0.0 ( votes)
Price: US $160.88 / piece
Discount Price:
US $ 101.34 / piece
-37%
Quantity

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. The products are designed to make your A/V device use more convenient, comfortable, productive and cost-efficient.

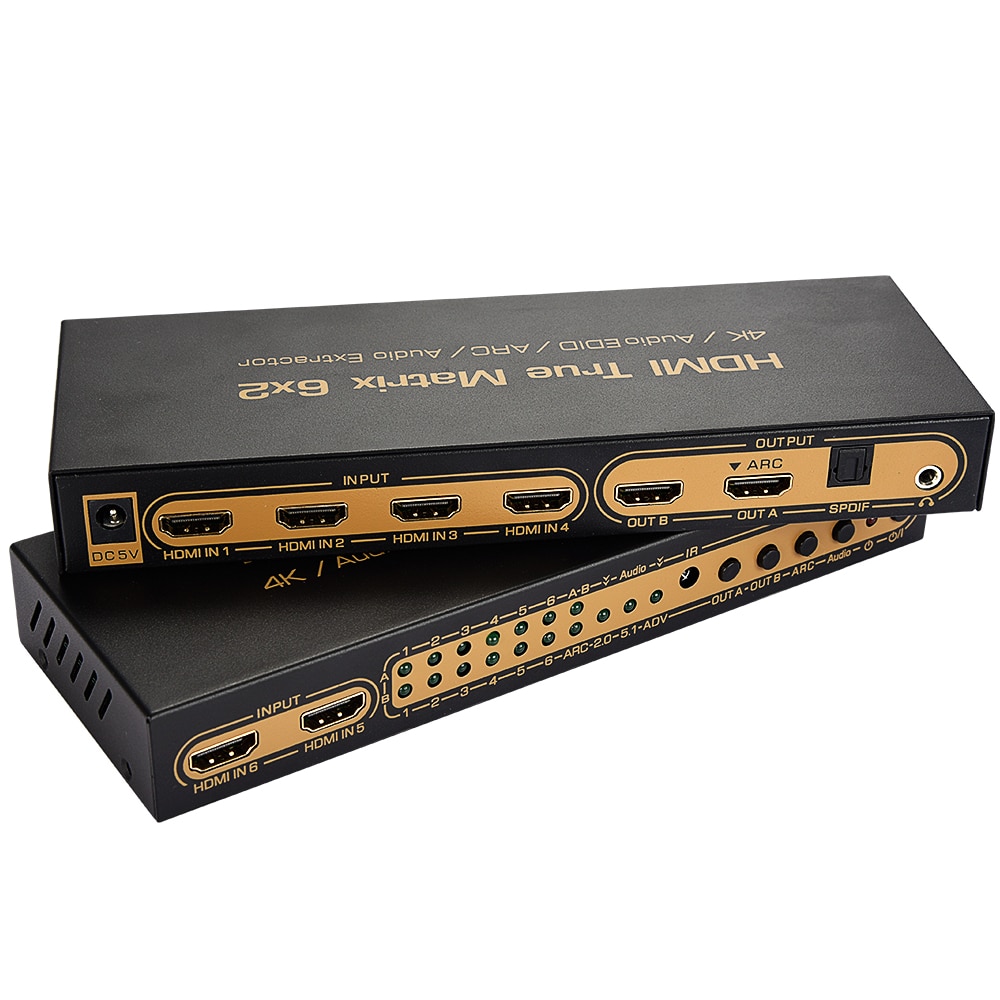

The 6x2 HDMI Matrix supports the feature of PIP, ARC, 4K and 3D, which can switch or splitter the six HD input sources to the two HD Displays. It also can do the audio extract by the Optical port or HP port. ARC feature can let you return your TV audio to the av receiver; the PIP feature can let you choose the input sources channel by watch the small picture window at the Display.

FEATURES

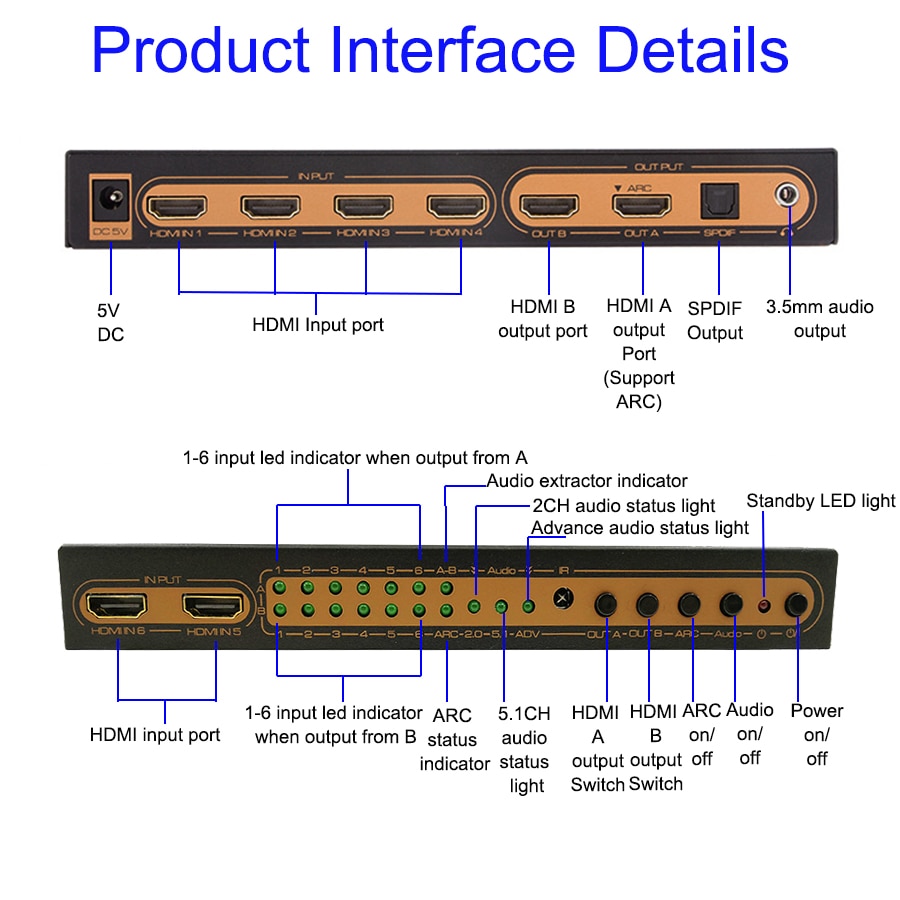

* Six HDMI Inputs switch or split to two HD Displays. * HDMI supports Full HD,3D and 4Kx2K video * Any input HD Source can do audio extract by the SPDIF or 3.5mm Headphone audio output port. * HDMI to achieve the synchronization of audio signal separation. * Support 2.0/ 5.1/ ADV three kinds of audio mode options * Supports ARC ,TV audio will return and out by the Optical Port;(only the OUT A port supports ARC function). * Supports HDMI audio separation, can output by optical and 3.5mm Headphone at the same time * Support SPDIF digital audio format: for Dolby digital (AC3), DTS and LPCM2.0 * Support PIP function: have one main picture and five small pictures, it can do switch of input sources by press button or remote. * LED indication: when source or sink is working, LED related will go bright. *Support IR Remote Control and Push Button at device control. *Led Status Light allows the user to know the working status easily. *Power-off memory *No loss of quality *Need DC5V/2A power supply

SPECIFICATIONS:

HDMI resolution …………………………4KX2K/3D/1080p/1080i/720p/576p/576i/480p/480i Support HDMI audio format………………………….for DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD Digital Audio Output Supported Audio Format………………………LPCM2.0/for Dolby AC3/ DTS Digital Audio Output Sampling Rate……………………32KHz, 44.1KHz, 48KHz,88.2KHz, 96KHz, 176.4KHz, 192KHz Maxtransmission bandwidth…….………………….………………………………….. 300MHz Max baud rate…………………………………………………………………………….9.0Gbps Input/Output TMDS signal ………….…………………………..……………… 0.5~1.5Volts p-p Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL) Input cable distance..…... …………….. ≤10m(1080P)/5M(4K) AWG26 HDMI standard cable Output cable distance………………..... ≤15m(1080P)/5M(4K) AWG26 HDMI standard cable Max working current…………………………………………………………………………700mA Power adapter format………………..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A Operating Temperature range……..…………….………………………………………-0 to +40 Storage Temperature range…………………………………………………………… -20 to +60 Operating Humidity range………………………….….……….5 to 85%RH (No Condensation) Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation) Dimension (L x W x H) ……………………………….……………………..…205x74x26(mm)

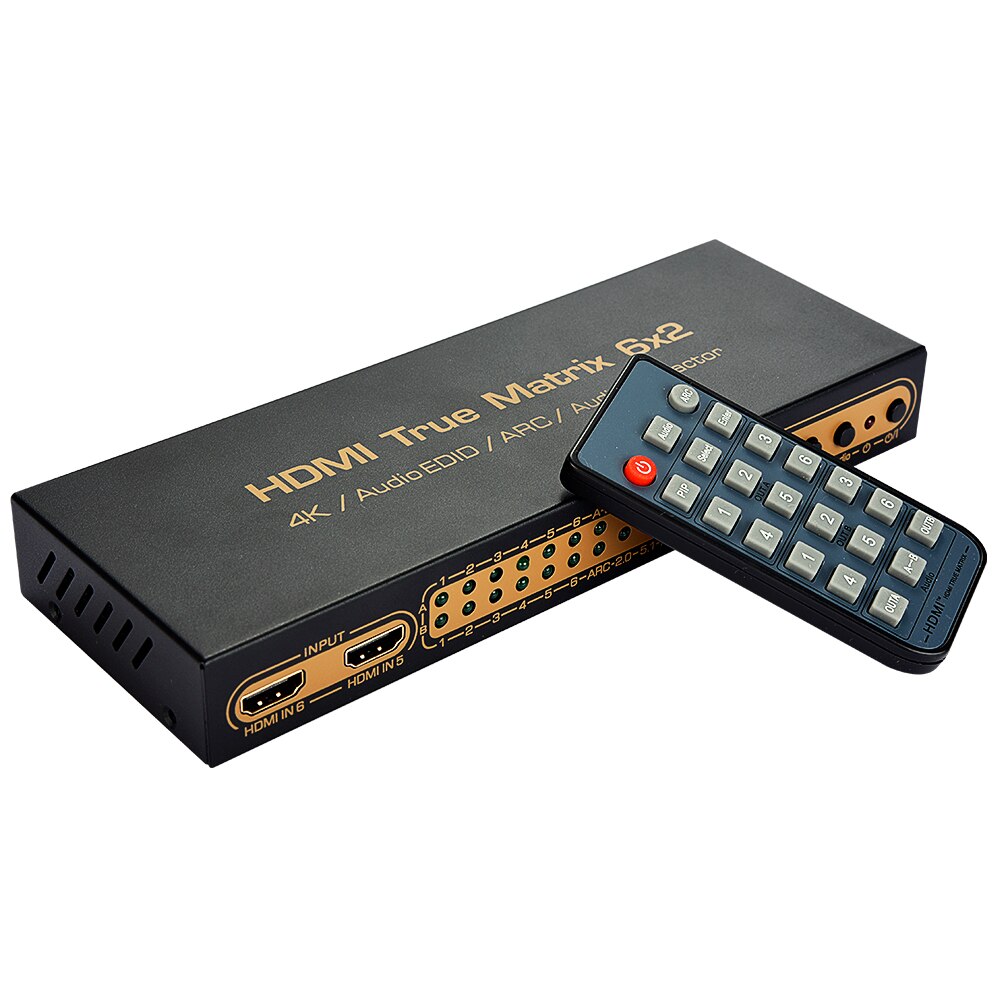

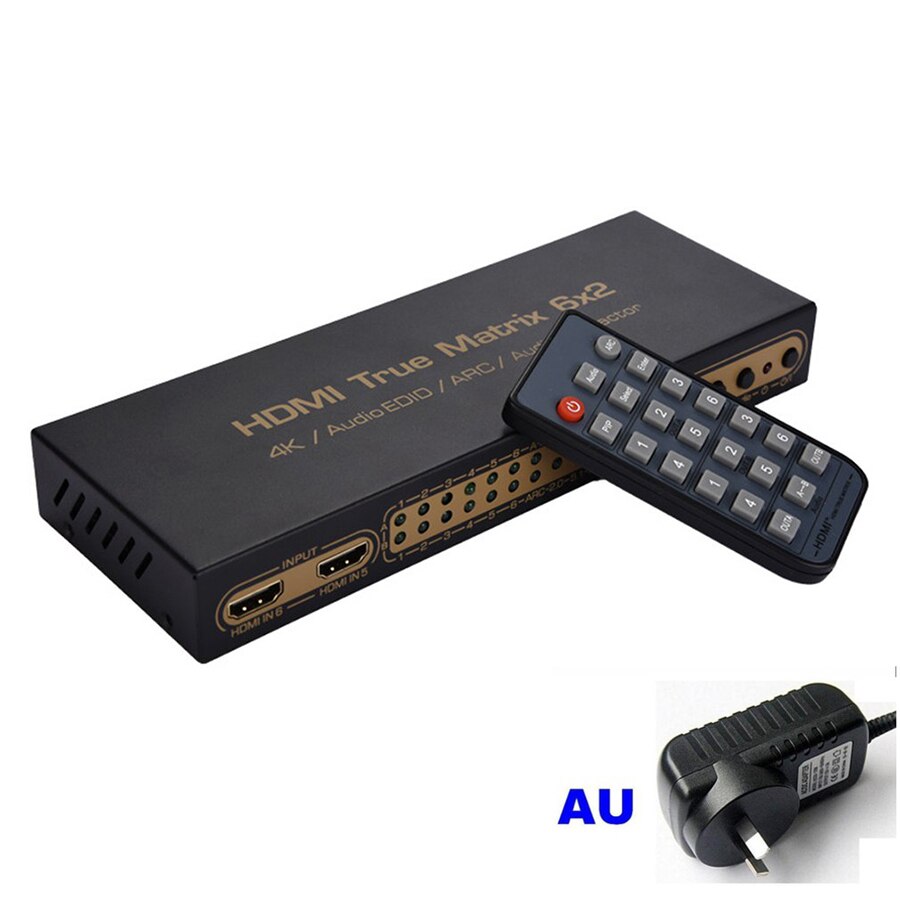

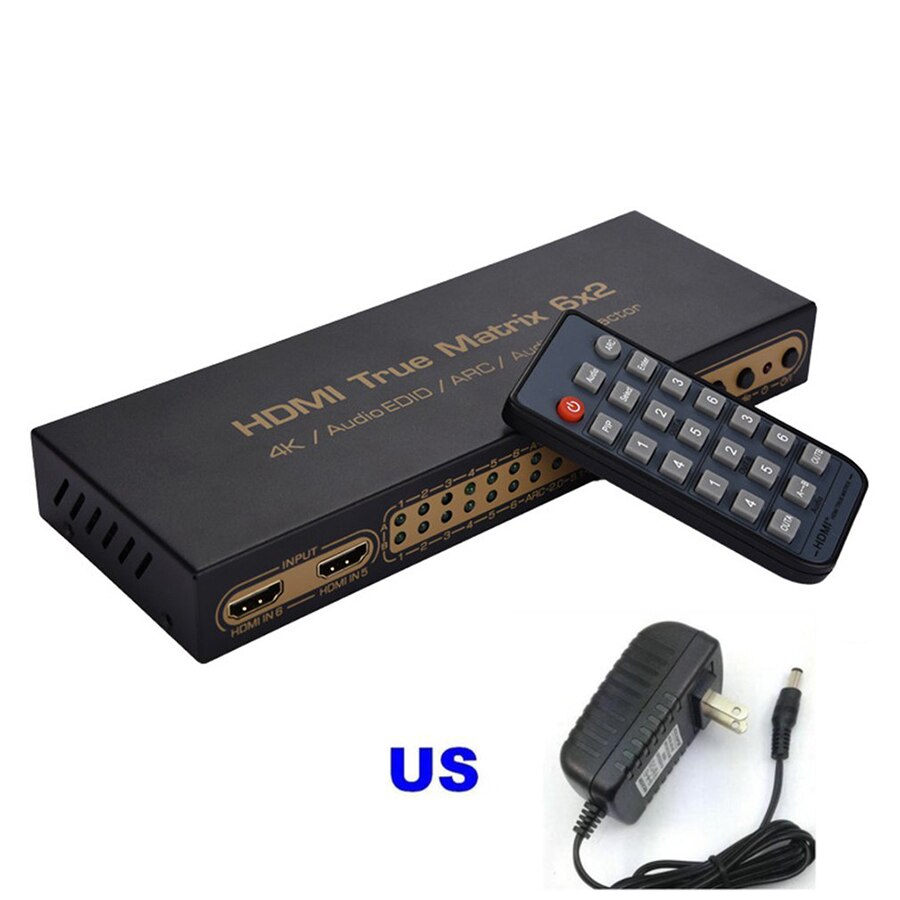

The accessories with the machines lists as picture:

1.5V power adapter 1pcs 2.Remote 1pcs 3.User manual 1pcs

Operation and connection:

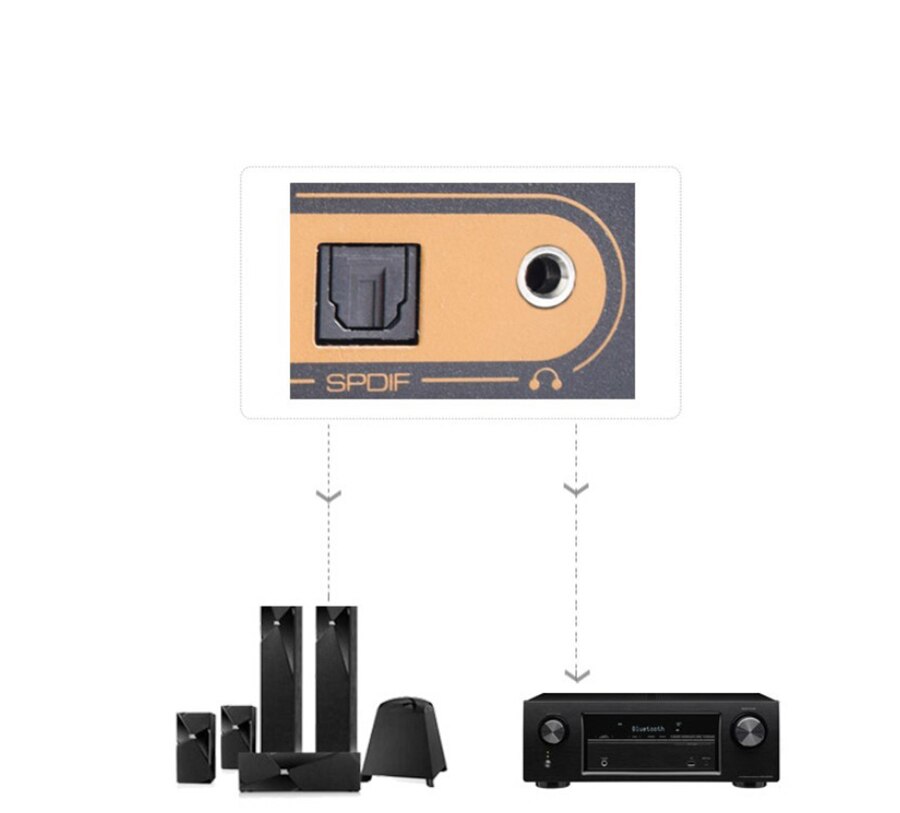

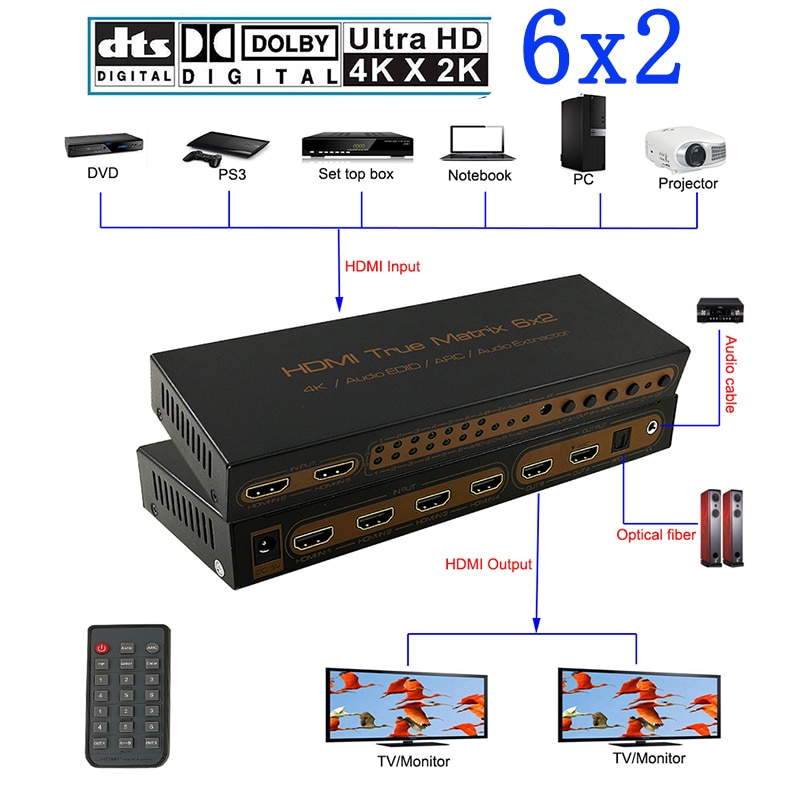

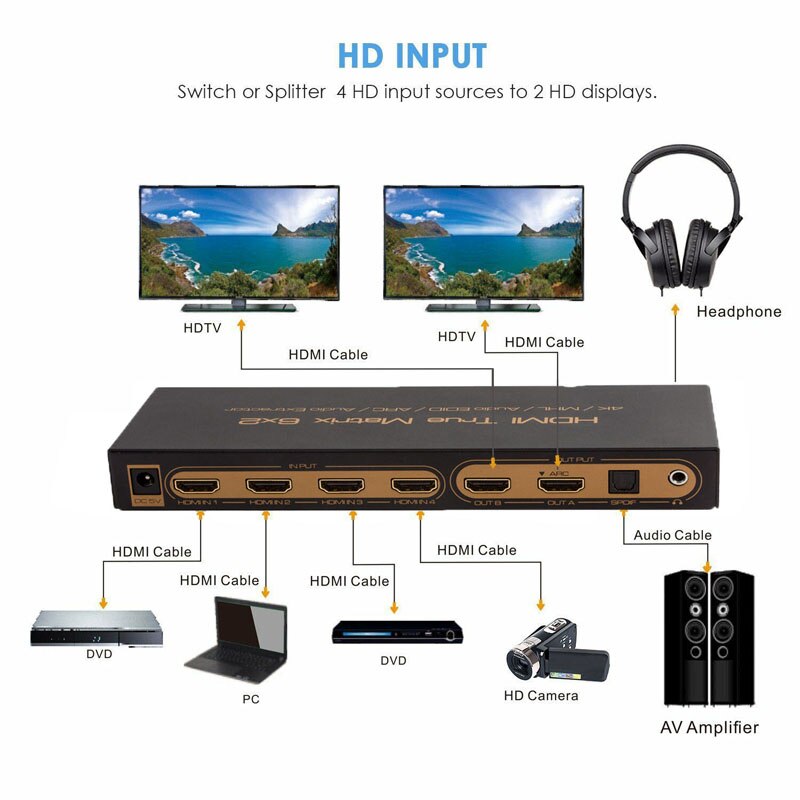

1. Connect each HDMI signal source to the matrix input terminal through an HDMI cable. 2. Connect the matrix output terminal to the HDMI display device through the HDMI cable. 3. Connect the optical fiber output end of the matrix to the AV amplifier through an optical fiber cable. 4. Connect the analog output of the matrix to the analog input of the active speaker through an analog audio cable. 5. Use the keys on the matrix or the infrared remote control to select the corresponding input signal source. 6. Connect the matrix to a 5V power supply


  • Model Number: 6x2 HDMI Matrix
  • Brand Name: YPAY
  • Origin: Mainland China
  • Certification: CE
