2/4/5/10/20pcs Arduino Analog Micro Servo Motor SG90 9G For RC Car Toy Airplane Fixed Wing Helicopter Aircraft Models 180 360

4.8 (69 votes)
Price: US $16.20 - 133.29 / piece
Discount Price:
US $ 11.35 - 93.31 / piece
-30%
Speed(RPM)
Voltage(V)
Quantity

Please click the photo below to buy!


Note:
1.
Servo Plastic means spindle and gearwheel are Plastic made; Metal means spindle and gearwheel are metal made
2. This servo 360 degrees rotates continuously. I
f need to control the angle, plesae choose the option 180 Degree Servo
3. This servo is suitable for ordinary small electric aircraft models and is not recommended in large fixed wing and electric helicopter
4. For 180 degree servo, some controllers can not control the angle accurately; please use a professional PWM Servo Controller to control the angle, as shown in the video:  https://youtu.be/zv6vd7eud_o

YIDI 2/4/5/10/20pcs Arduino Analog Micro Servo Motor SG90 9g For RC Car Toy Airplane Fixed Wing Helicopter Aircraft Models 180 360


Specification:
Product model: SG90
Color: Blue

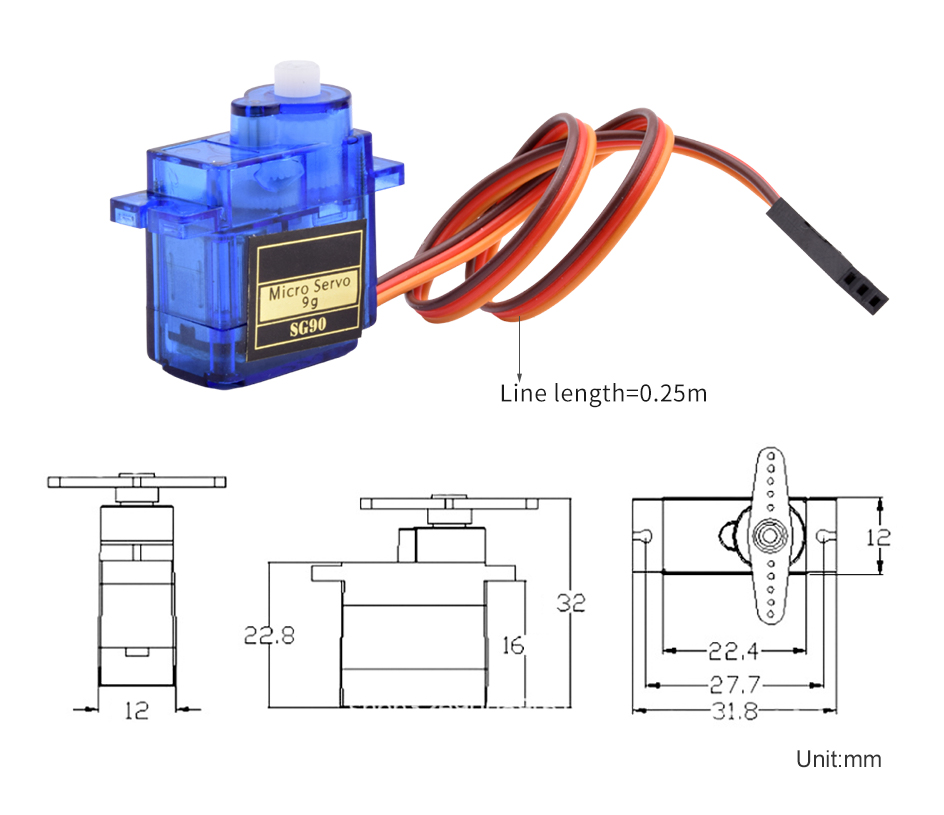

Dimensions: 22.8 x 22.4 x 12mm
Rotation Angle: 0-180°/360°( Continuous rotation)
Operating Speed: 0.1 second/ 60 degree(4.8V).
Gear Medium: Nylon
Operating Mode: Analog
Control Signal: PWM
Stall Torque: 1.6kg/cm
Temperature Range: 0 ℃- 55 ℃
Dead Band Width: 10usec.
Operating Voltage: 4.2V
Plug Type: JR, FUTABA General
Connector Wire Length: 250mm(Brown: Negative; Red: Positive; Orange: Pulse Input)

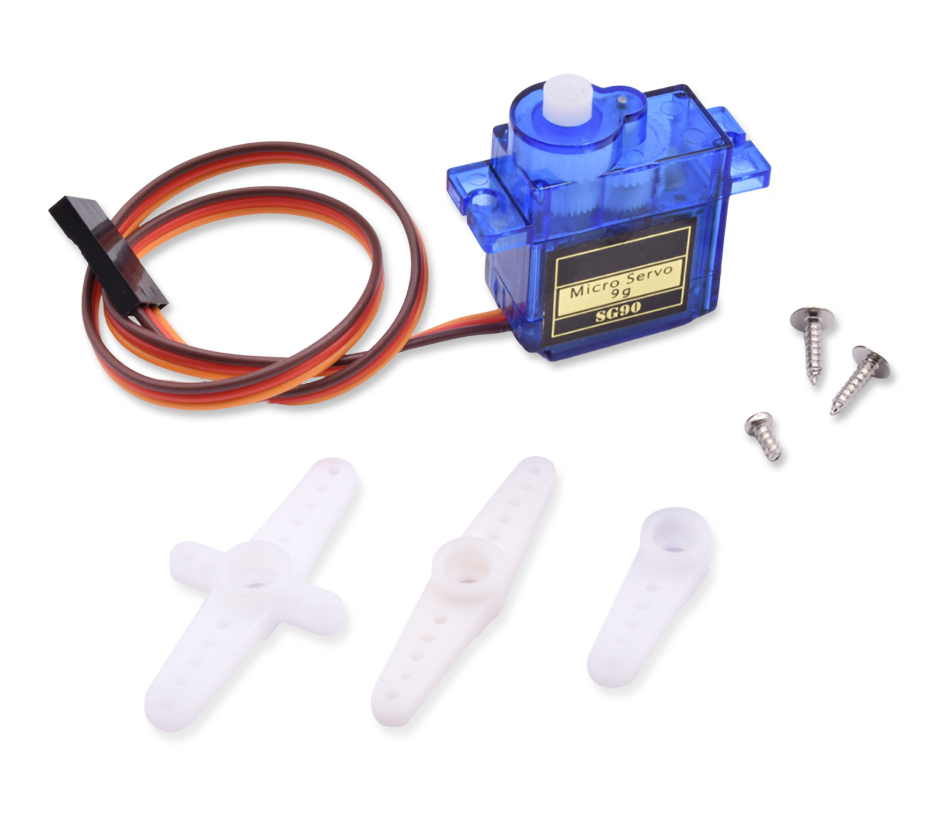

Accessories: Multi-arm, Fixing screws
Application: Mini Car / Mini Ship / Helicopter & Airplane

Steering Gear Control:

The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.

1. Servo 0-180 Degree

The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees
2.0ms--------------135 degrees;
2.5ms--------------180 degrees

For 180 degree servo, please use a professional PWM Servo Controller to control the angle


2. Servo 360 Degree

The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation. There is no 0-360 degree angle control function.

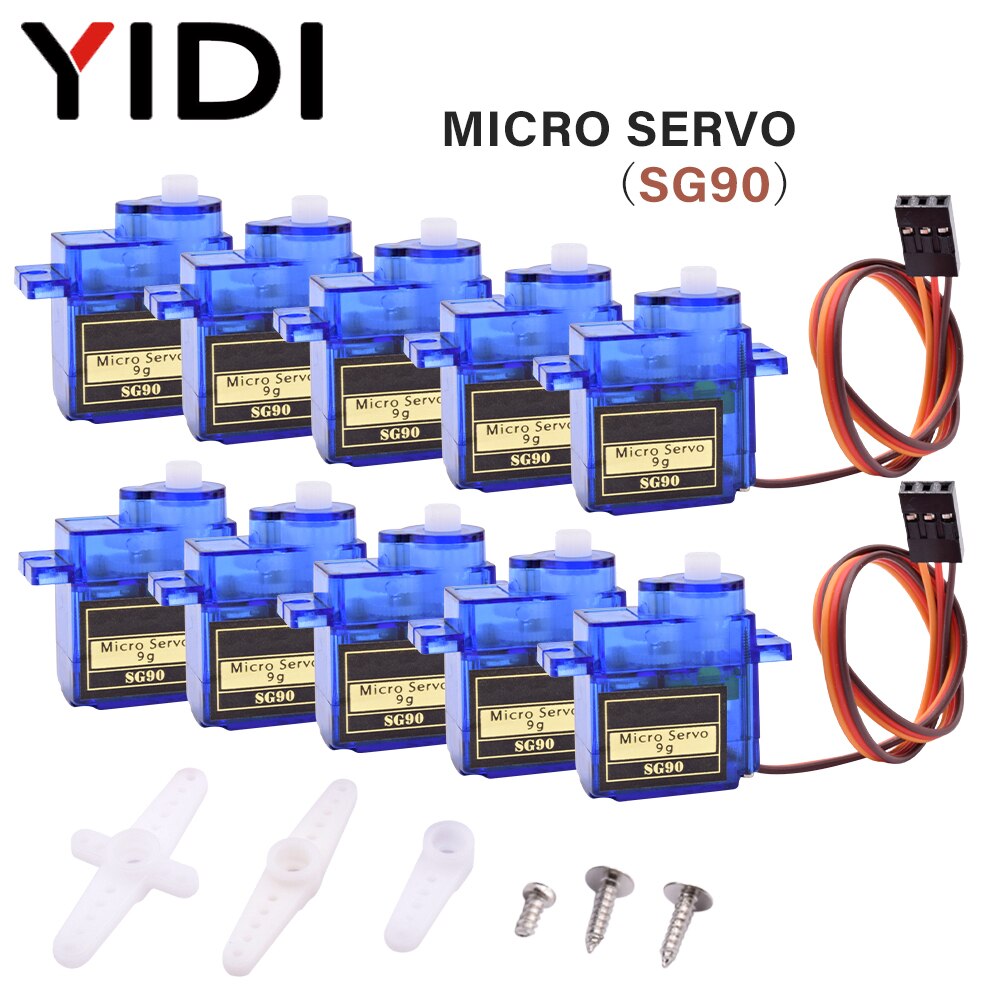

Packing: 2/4/5/10/20 x SG90 9G Servo Motor (with Accessories)

If have any other problem, feel free to contact us.


Angle: 0-180°/360°(Continuous Rotation)







  • Torque: 1.6kg/cm
  • Usage: Aircraft Models
  • Model Number: SG90
  • Protect Feature: Totally Enclosed
  • Type: Servo Motor
  • Certification: CCC,ROHS,CE
  • Brand Name: YIDI
  • Origin: Mainland China
  • Rotation Angle: 0-180°/360°(Continuous ro
  • Gear Medium: Nylon
  • Operating Mode: Analog
