TKDMR T-80S New Panel Test Tool LED LCD Screen Tester for TV/Computer/Laptop Repair Inverter Built-in 80 Kinds Program
5.0 (16 votes) | 93 orders
Price:
US $125.06 - 255.74
/ piece
Discount Price:
US $
96.57 -
197.20
/ piece
-23%
Advantages of t-80s tester
1: Each of the 80 real screen parameters has been tested, instead of copying one kind of resolution, three kinds of four kinds of screen parameters and making up 55 or 60 or more kinds of resolution
2: The minimum resolution is 640x480, the maximum resolution is 3840x2160, which is more than any screen measuring instrument on the market (the maximum resolution of ordinary screen measuring instrument is 1920x1200), (4K screen needs protocol conversion circuit board - purchased separately)
3: 2021 new LCD screen tester has 14 kinds of professional test pictures, while there are only 8 kinds of 12 kinds of test pictures on the market
4: The resolution adjustment code of 2021 new LCD screen tester is one bit and ten bit respectively, while the current screen tester on the market is adjusted from small to large, for example, 56. The new version only needs to adjust one bit to 5 and ten bit to 6, while the current screen tester on the market needs to adjust from 1.2.3 to 56 and 56 times
5: 2021 new LCD screen tester comes with LED boost board, which is constant current board. The maximum output voltage is 30V and the current is 120mA. However, the current LCD screen tester does not come with constant current board, which is boost board
6: 2021 new LCD screen tester LVDS screen line interface professional protection card slot, can be multiple plug, prevent bending needle, and the current market screen tester is not, only double row 30 needle
7: 2021 new LCD screen tester adopts full interface circuit short-circuit protection, which opens a new era of LCD screen protection. Not only screen line short-circuit protection, but also interface short-circuit protection of high-voltage board and booster board. Different short-circuit prompts different codes in different places, which fully opens the era of protection. At present, the screen tester on the market only has screen line protection, which can't really avoid screen burning
8: 2021 new LCD screen tester has the function of quick setting of resolution code and automatically saving memory. If you turn off the power and turn it on, the screen parameters of the last code will be automatically restored. However, the screen testers on the market do not have this function
9: 2021 new LCD screen tester supports our developed LVDS to 4K adapter board and LVDS to EDP adapter board
10: 2021 new LCD screen tester PCB circuit board adopts military grade circuit board design, capacitor adopts solid-state capacitor closed inductor, good workmanship, enough materials, more than any LCD screen tester on the market
11: 2021 new LCD screen tester can directly adjust the resolution code in the power on state, and the signal source chip will reset automatically. For another code on the market, you have to press the power switch, turn it on and off again, and reset manually to display the test scree
1: Each of the 80 real screen parameters has been tested, instead of copying one kind of resolution, three kinds of four kinds of screen parameters and making up 55 or 60 or more kinds of resolution
2: The minimum resolution is 640x480, the maximum resolution is 3840x2160, which is more than any screen measuring instrument on the market (the maximum resolution of ordinary screen measuring instrument is 1920x1200), (4K screen needs protocol conversion circuit board - purchased separately)
3: 2021 new LCD screen tester has 14 kinds of professional test pictures, while there are only 8 kinds of 12 kinds of test pictures on the market
4: The resolution adjustment code of 2021 new LCD screen tester is one bit and ten bit respectively, while the current screen tester on the market is adjusted from small to large, for example, 56. The new version only needs to adjust one bit to 5 and ten bit to 6, while the current screen tester on the market needs to adjust from 1.2.3 to 56 and 56 times
5: 2021 new LCD screen tester comes with LED boost board, which is constant current board. The maximum output voltage is 30V and the current is 120mA. However, the current LCD screen tester does not come with constant current board, which is boost board
6: 2021 new LCD screen tester LVDS screen line interface professional protection card slot, can be multiple plug, prevent bending needle, and the current market screen tester is not, only double row 30 needle
7: 2021 new LCD screen tester adopts full interface circuit short-circuit protection, which opens a new era of LCD screen protection. Not only screen line short-circuit protection, but also interface short-circuit protection of high-voltage board and booster board. Different short-circuit prompts different codes in different places, which fully opens the era of protection. At present, the screen tester on the market only has screen line protection, which can't really avoid screen burning
8: 2021 new LCD screen tester has the function of quick setting of resolution code and automatically saving memory. If you turn off the power and turn it on, the screen parameters of the last code will be automatically restored. However, the screen testers on the market do not have this function
9: 2021 new LCD screen tester supports our developed LVDS to 4K adapter board and LVDS to EDP adapter board
10: 2021 new LCD screen tester PCB circuit board adopts military grade circuit board design, capacitor adopts solid-state capacitor closed inductor, good workmanship, enough materials, more than any LCD screen tester on the market
11: 2021 new LCD screen tester can directly adjust the resolution code in the power on state, and the signal source chip will reset automatically. For another code on the market, you have to press the power switch, turn it on and off again, and reset manually to display the test scree
Instructions For Use
Special Reminder:
1.
Please do not plug in the device, first connect it and then power on it. Otherwise, it may burn the device or screen. Burning the device will charge a certain cost. The screen voltage interface is fully protected, but if the screen voltage is adjusted incorrectly, To burn the screen, that is, if it is a 3.3V or 5V screen, the screen voltage is adjusted to 12V, the screen will be burned directly, please be sure to pay attention to this friend, there is one more special reminder Please use 12V-19V 4A or 5A power supply for power supply. Do not exceed 19V. Otherwise, the screen will be burned off.
2.
Please use the standard LVDS screen line on the universal board or the universal board. Do not use the screen line on the original board. Otherwise, the equipment or screen will be burned out and the equipment manufacturer will not burn it. Because even if the same model of the screen, the board produced by different manufacturers is not the same, it also determines the interface definition of the driver board screen line is not the same, so the line order of the screen line is not the same, for example, the same 32 of Haier and Hisense LCD TV, the same screen, but the board is not the same, which determines the definition of the screen interface of these two brands is not necessarily the same, so the two screen lines are not universal, not the standard LVDS screen line, this must pay attention to.
1. The Product Overview
T-60s universal LVDS screen tester, integrated with up to 100 kinds of screen parameters, built-in factory-level professional test screen, perfect short-circuit protection design, is the most supported screen on the market, the most compatible, the simplest operation The universal tester supports almost 5.6-84-inch 95% LVDS screens and can support vertical screen resolution tests of common small-size LVDS interfaces, such as Google's first generation screen 800x1280.
1.
Support LVDS interface horizontal screen resolution and vertical screen resolution screen, maximum support 2048x1536 resolution, dual channel 8 bit (24bit);
2.
built-in LCD screen LED backlight constant current source, the default constant current is 120mA, adaptive boost, the maximum boost voltage is 30V, support LED + / LED - positive and negative short circuit protection alarm, 30V overvoltage protection. The default current adapts to the screen size (5.6 inches - 17.3 inches);
3.
built-in a variety of factory-level professional LCD screen detection screen, very convenient to detect various kinds of bad LCD screen;
4.
internal integration of a variety of resolution programs, according to the screen resolution to light up the LCD test;
5.
The tester output interface is short-circuit protected. Each interface corresponds to a short-circuit code. When short-circuited, the buzzer will alarm, the power indicator will flash, and the digital tube will display which interface is short-circuited.
6.
screen parameter selection digital tube display digital will automatically remember, support digital tube one digit and ten quick settings;
7.

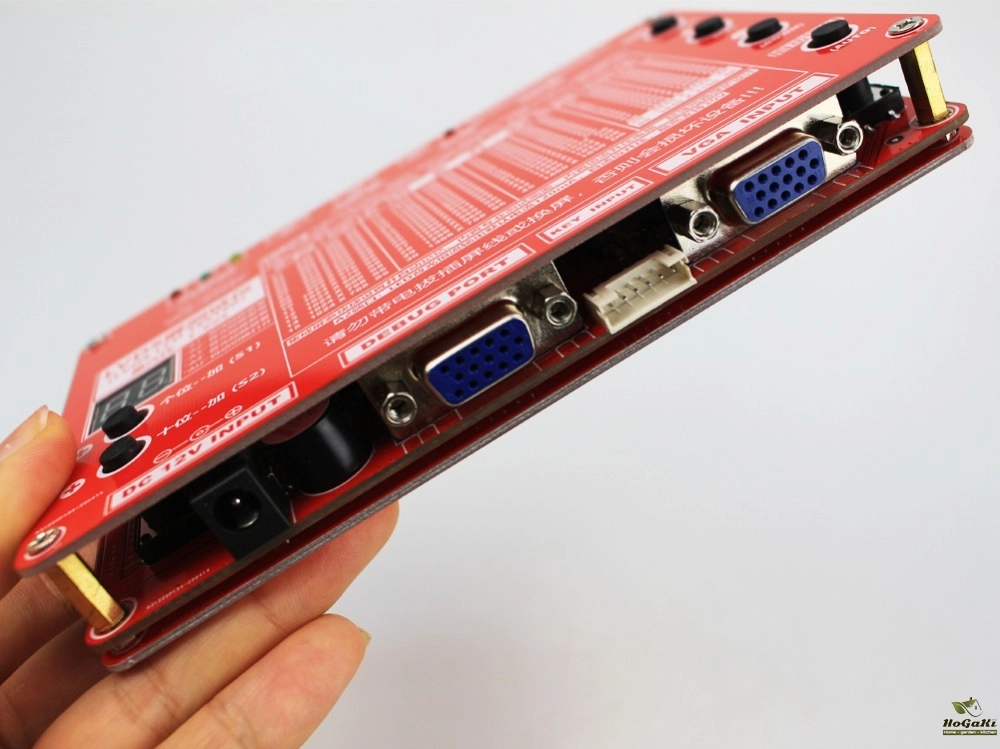

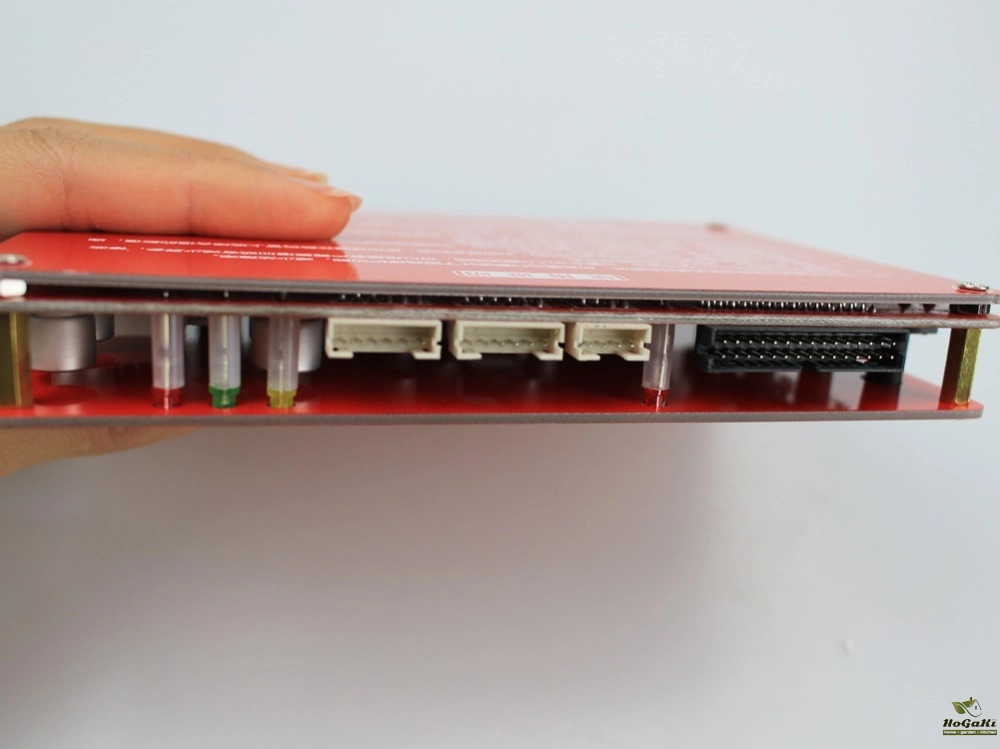

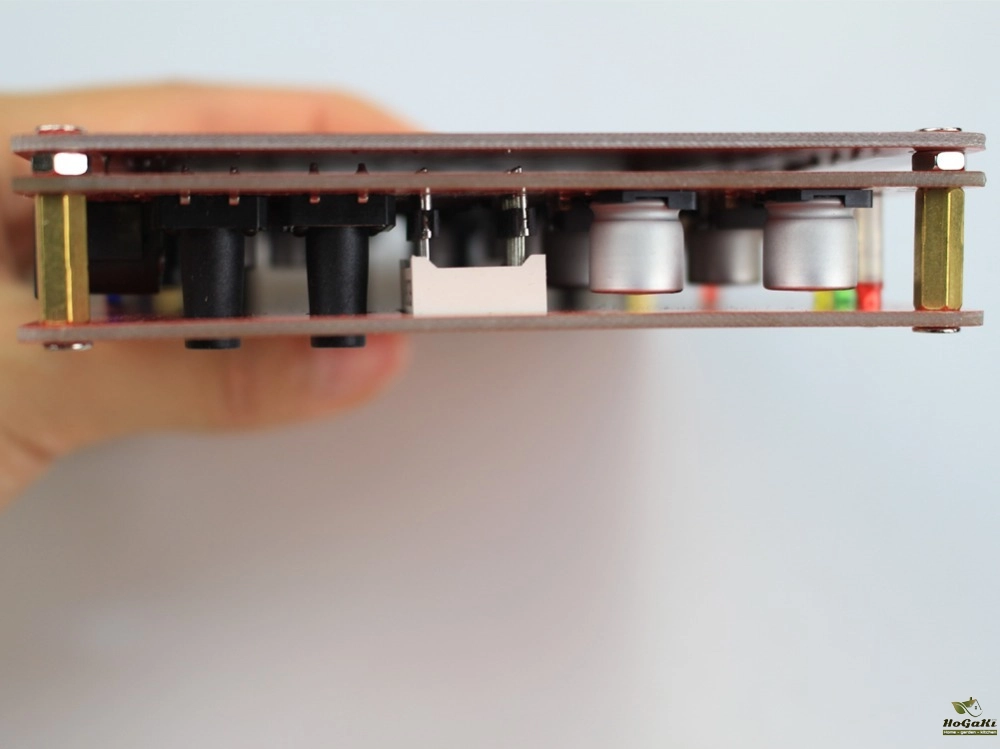

Appearance size: 155mm X 105mm X 22mm, oxidation process of aluminum alloy casing;
8.
input power: 12V-19V input (current size can be selected according to the overall power consumption of the screen), select 12V / 3A-4A below 27 inches, 32-inch TV screen, power supply select 19V/2A or more input.
TV screens over 32 inches, power supply of 12V-19V/2A-5A can be selected.(12V 5A full-current can also be, the country for the new version of the interface protection chip, there is voltage drop through the interface protection core, 12V power supply into about 10V drive screen voltage out, 19V into 12V drive screen voltage out, generally 12V drive screen voltage above 9.5V can work normally, please do not worry about it).
Unique Skills: (other screens are not available)
1.
The real 60 kinds of screen parameters, each type of screen parameters have been tested, instead of copying one resolution out of three kinds and four kinds of 60 kinds or more.
2.
The lowest resolution of 640X480, the highest resolution of 2048X1536, surpassing any current screen tester on the market (the highest resolution of 1920X1080 for common screen testers), laying the foundation for testing 4K screens in the future.
3.
14 kinds of professional screen test screens of the new LCD screen tester, and currently there are only 8 test screens on the market.
4.
The new LCD screen measuring instrument adjusts the resolution code, which is one digit and ten digits respectively. The current screen measuring instrument on the market is from small to large, for example, 56 code, the latest one only needs to be adjusted to 5 The ten digits can be adjusted to 6 or not, but the current screen measuring device on the market needs to be adjusted from 56 to 56 and 56 times.
5.
The new LCD screen measuring instrument comes with LED booster board, which is constant current board, the output voltage is up to 35V, 120MA current, and the current screen measuring instrument on the market does not have constant current board, which is the booster board.
6.
The new LCD screen measuring instrument LVDS screen line interface has a professional card slot, which can be inserted and removed multiple times to prevent bending needles, but currently there is no screen measuring instrument on the market, only double row 30 needles.
7.
The new LCD screen measuring instrument adopts full interface circuit short circuit protection, open a new-era of LCD screen protection, not only screen line short circuit protection, high voltage board, boost board and other interface short circuit will also protect, different places short circuit prompt different code , the era of protection is fully open, and currently the screen detectors on the market only have screen line protection, and can not really do not burn the screen.
8.
The new LCD screen detector integrated screen parameters are quickly set and saved automatically. The function is not only what code is adjusted this time. When the power is turned off and then turned on, the last code screen parameter is automatically restored, and the current screen is on the market. The instrument does not have this function.
9.
The new LCD screen monitor supports our LVDS to 4K adapter board and LVDS to EDP adapter board.
10.
The new LCD screen measuring instrument PCB circuit board uses military-grade circuit board design, the capacitor uses solid capacitor, work well, with enough material, more than any LCD screen tester on the market.
11.
The new LCD screen detector can adjust the resolution code directly in the power-on state, the signal source chip is automatically reset, and the other code on the market has to press the switch, turn it on and off again, manually reset to display the test. Picture.
12.
The new screen detector supports square screen, wide screen, and strong screen. The screen detector on the market can't support the screen.
The 6th generation newest LED LCD panel tester tool are getting more refined with new hardwaredriver and software programs.
1.Easy and convenient to operate,there is a builtin procedure with55 kinds of Lvds screen resolutions.
2.With digital number display indicator,you can choose corresponding resolution by swifting button.
3.Make screen cable in proper position and prevent driver board from damage with LCD power supply short circuit protection function. The digital number display indicator will show flickering'00'and buzzer will sound if the screen cable is short-circuited.
The digital number display indicator will return to normal after removing short circuit.(More than 10 minutes' short circuit is not allowed).
4.More convenient, durable, convenient, high efficiency and practical.
5.There are a variety of built-in standardized testing charts ,powerful and applicable.
6.The screen will show external VGA input signal when plug external VGA cable.
7.Support to test LCD and LED screen with LVDS Interface from 7 inches to 84 inches.
8.Suitable for LVDS interface LCD screen test with 55 kinds of resolutions.
Attention:
To use this tool, you need to know the resolution of the LCD/LED screen,screen voltage and the bit number of the LVDS cable for that screen, then check them against the list of screen parameter on the panel to find the right parameter and input it with the "+" key and "-" key on the panel digital tude.
(You can know your panel information in http://www.panelook.com/)
Then connect the LVDS cable and inverter. Choose the right screen voltage.Press the power key to turn on the power.During the test procedure, if you want to test another screen, you don't need to unplug the power adapter, just press the power key on the panel to turn the power off.
(You can know your panel information in http://www.panelook.com/)
Then connect the LVDS cable and inverter. Choose the right screen voltage.Press the power key to turn on the power.During the test procedure, if you want to test another screen, you don't need to unplug the power adapter, just press the power key on the panel to turn the power off.
Precautions for Use
LCD tester (Fifth Edition) has done a sound encryption and security protection, unauthorized removal of the test instrument program will automatically remove the lock, and re on the digital tube display '88', a long ring. In this case we refuse to guarantee, please know!

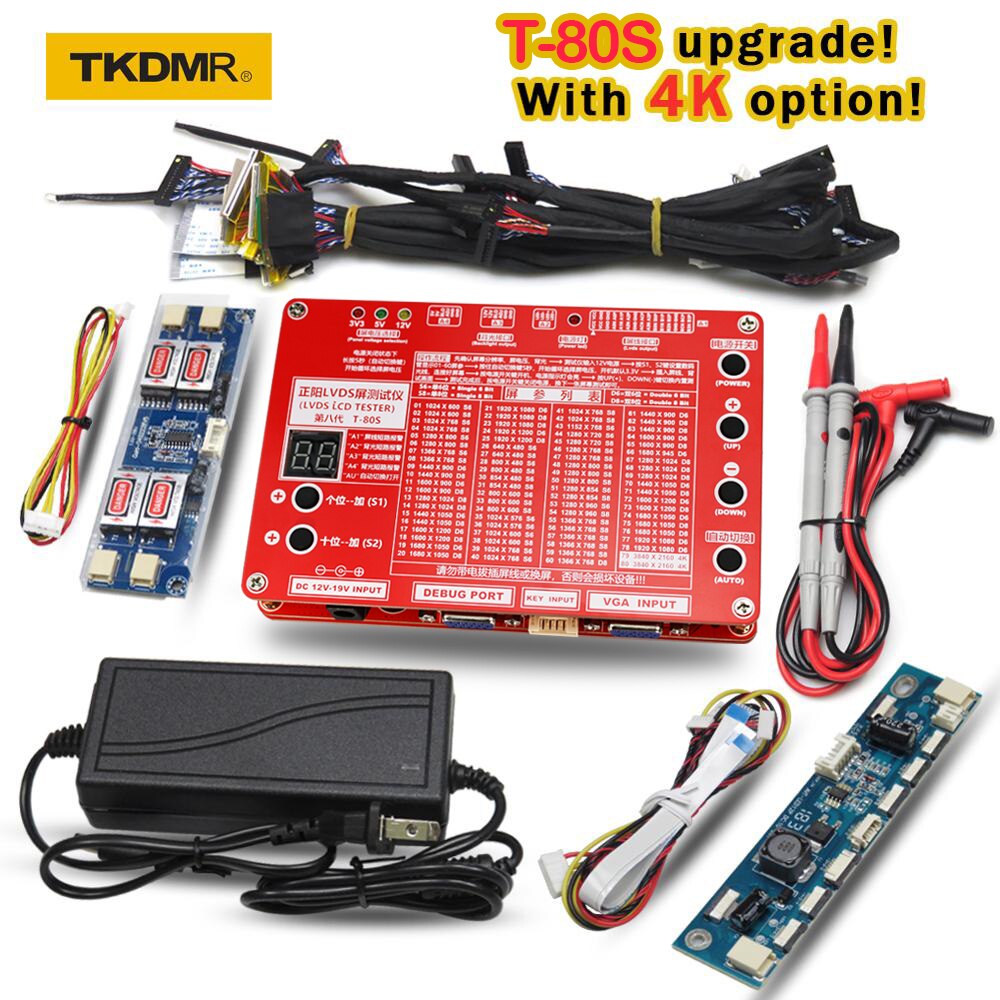

Package Include:
Package Include:

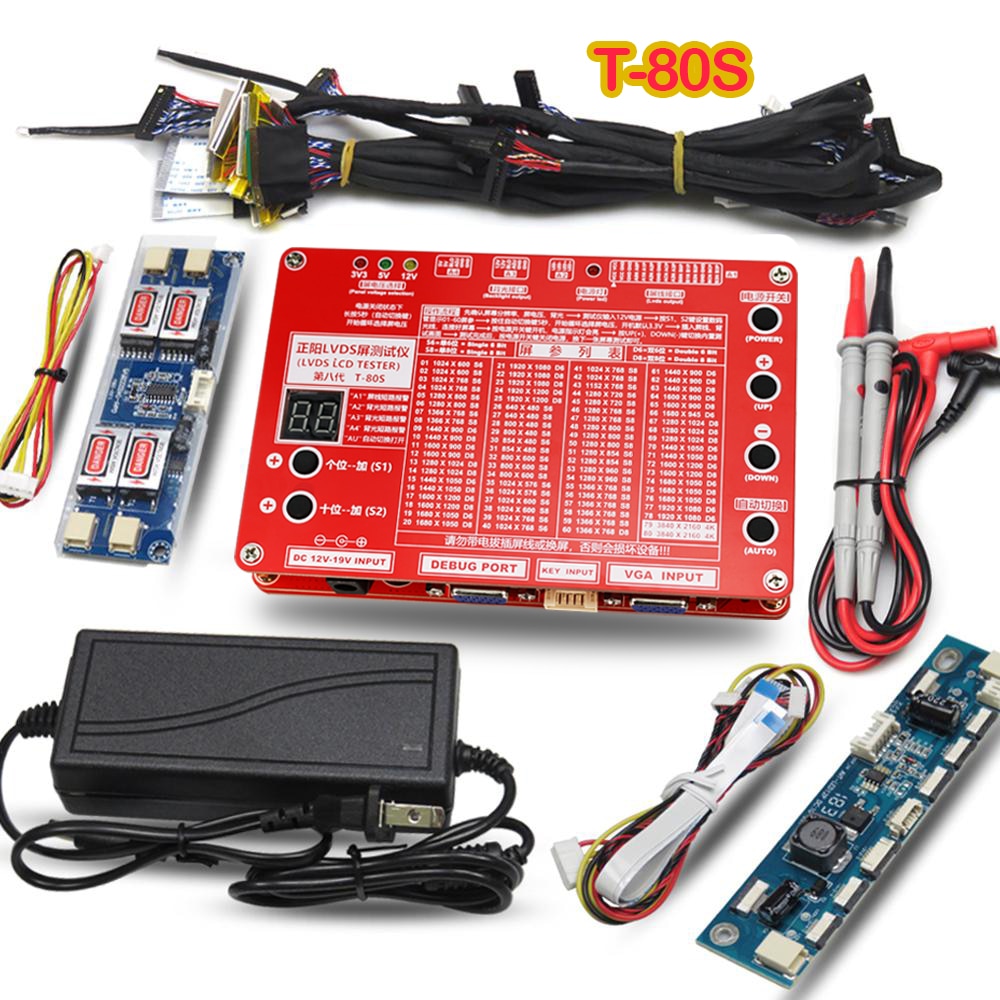

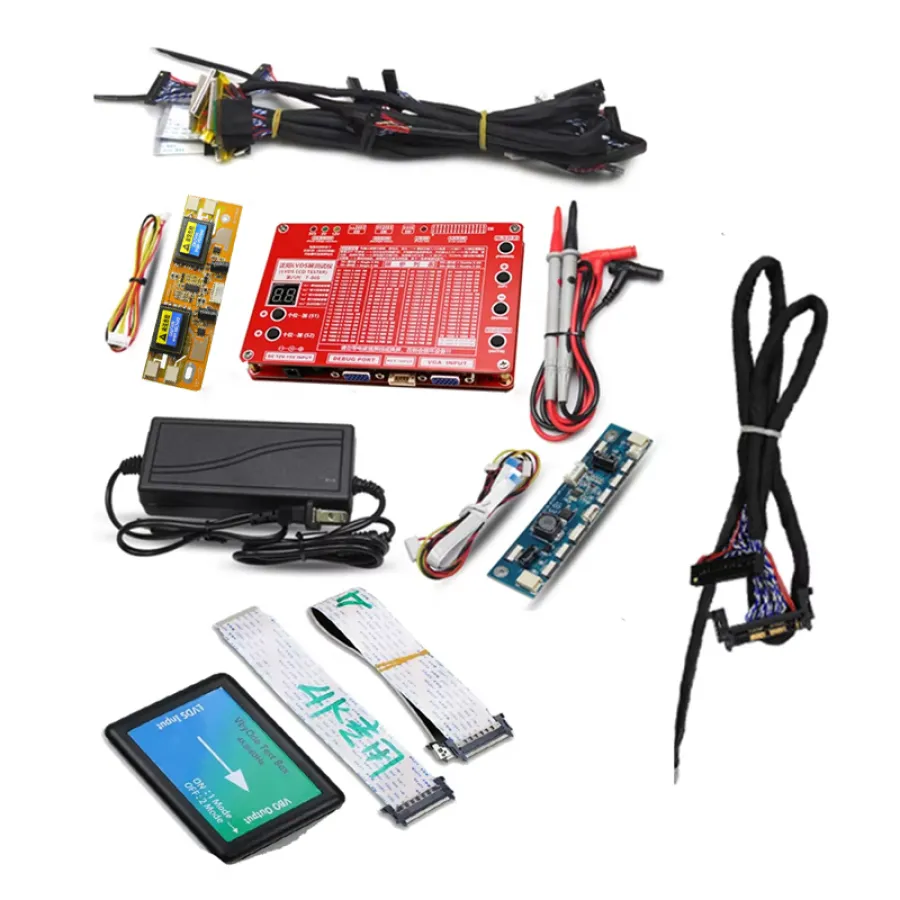

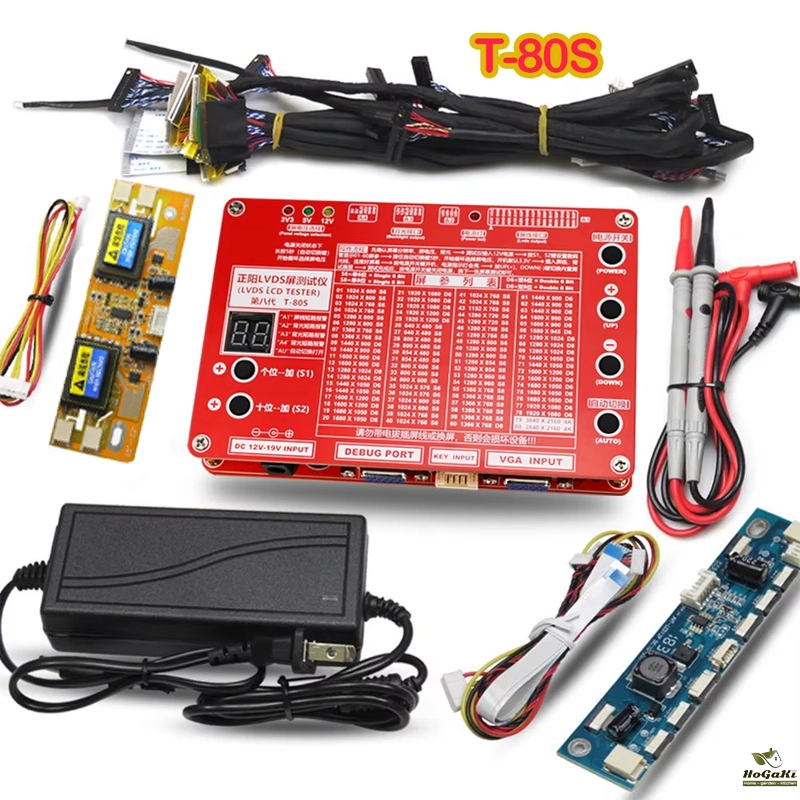

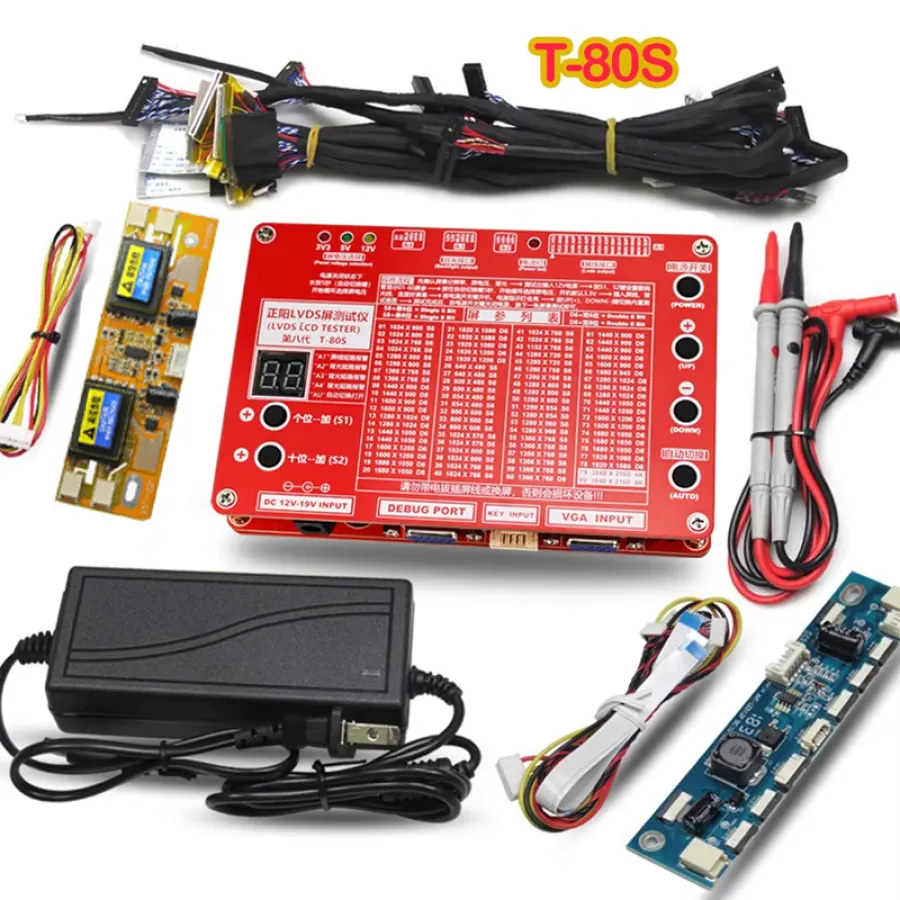

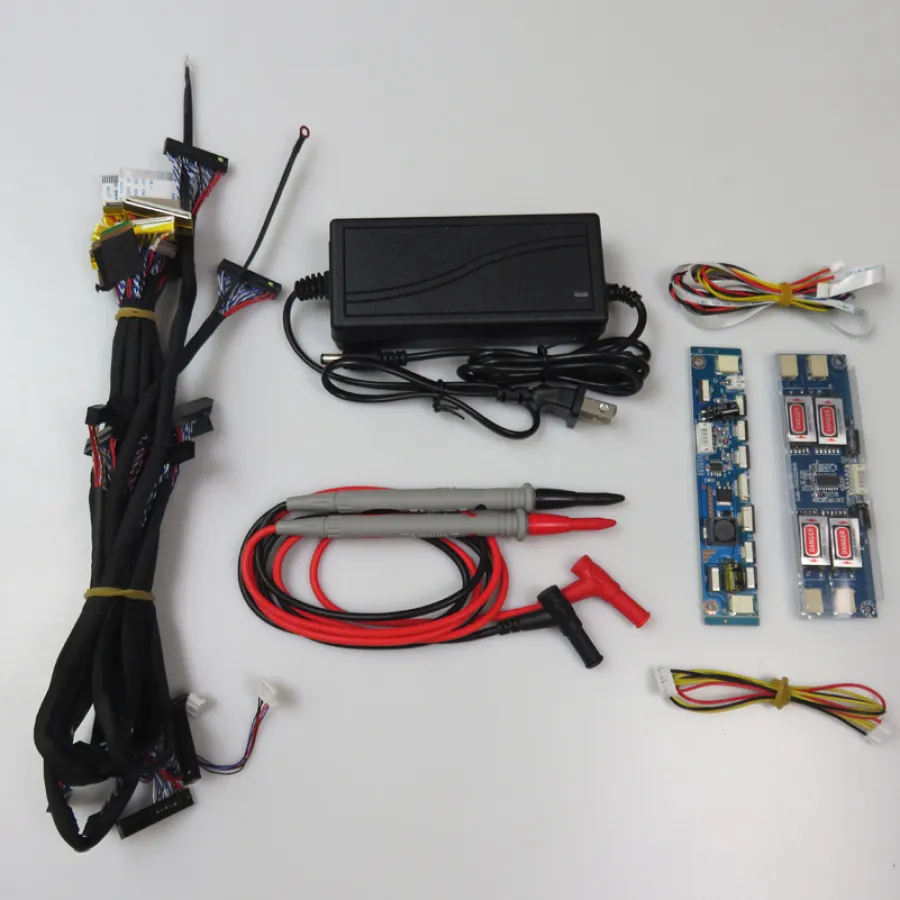

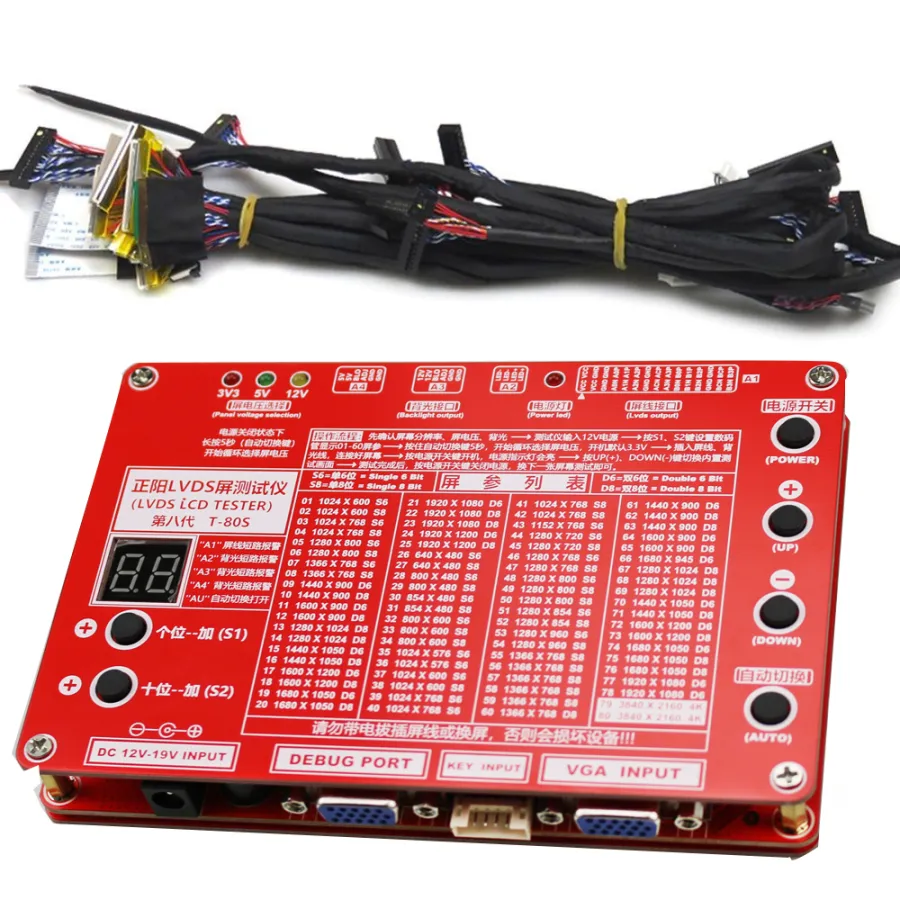

1)Five-piece set
Panel Tester *1PCS
Screen line *14PCS
4 lamp high voltage board *1PCS
12P constant current board *1PCS
Power supply *1PCS
2)Two-piece set
Panel Tester *1PCS
Screen line *14PCS
3)Panel Tester
Panel Tester *1PCS

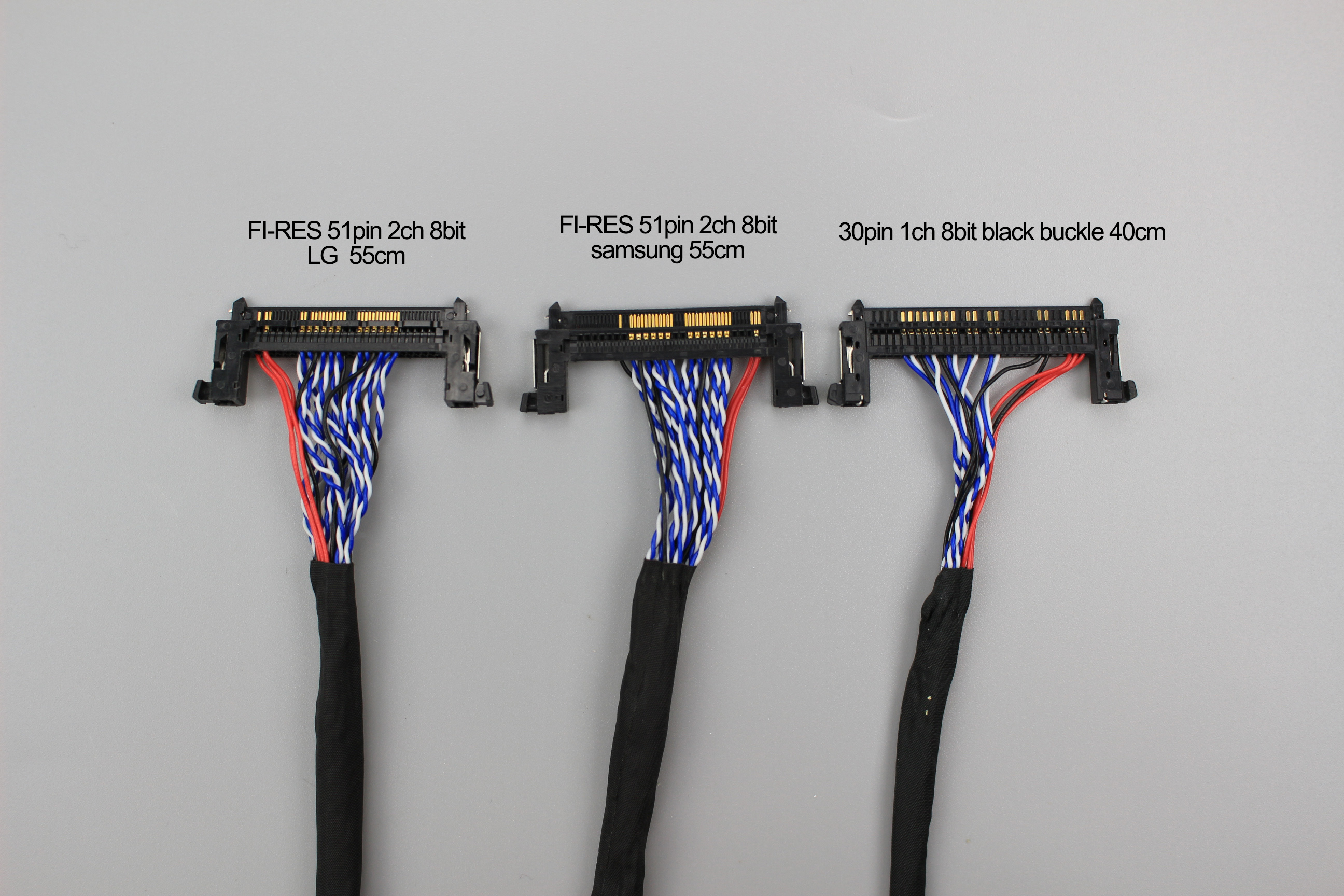

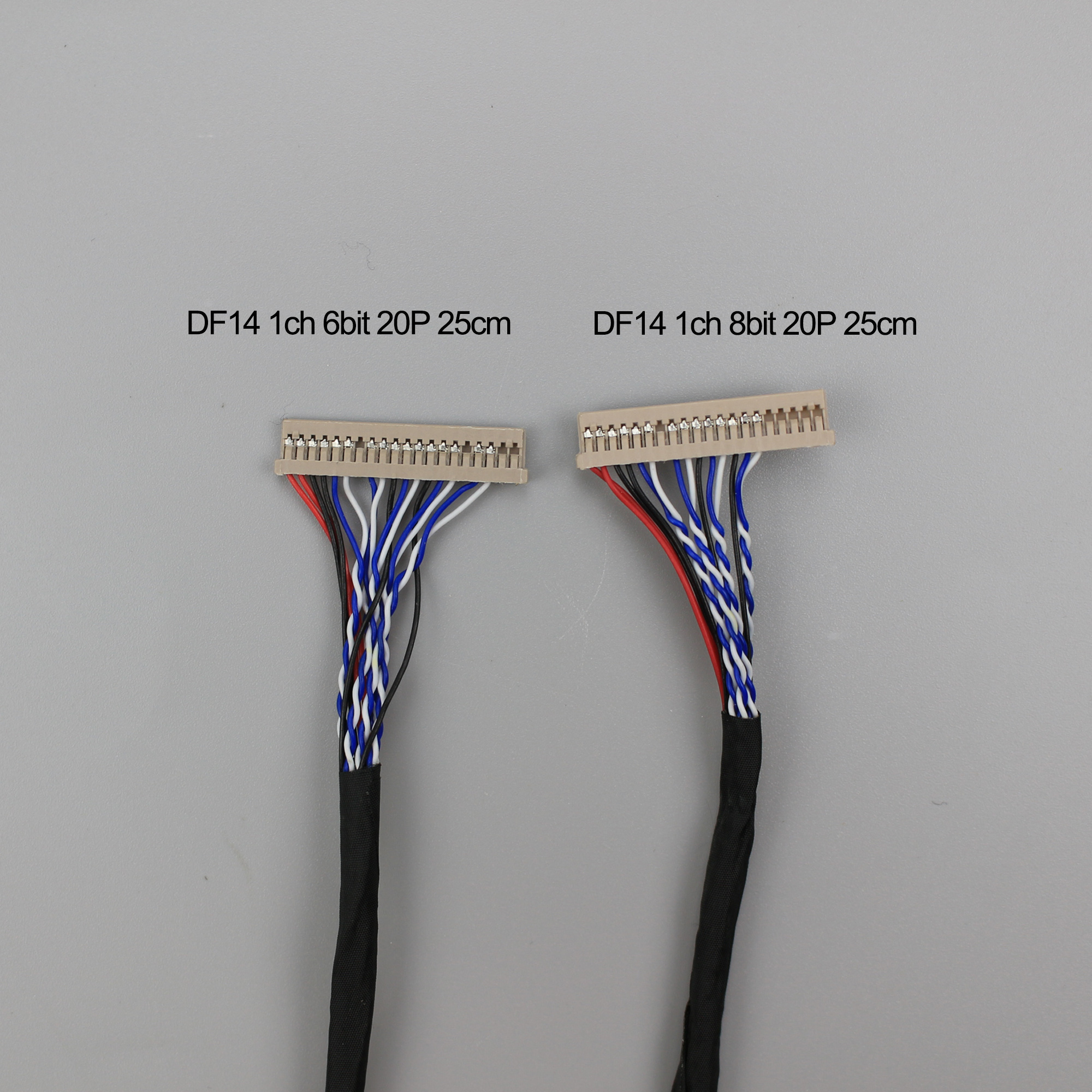

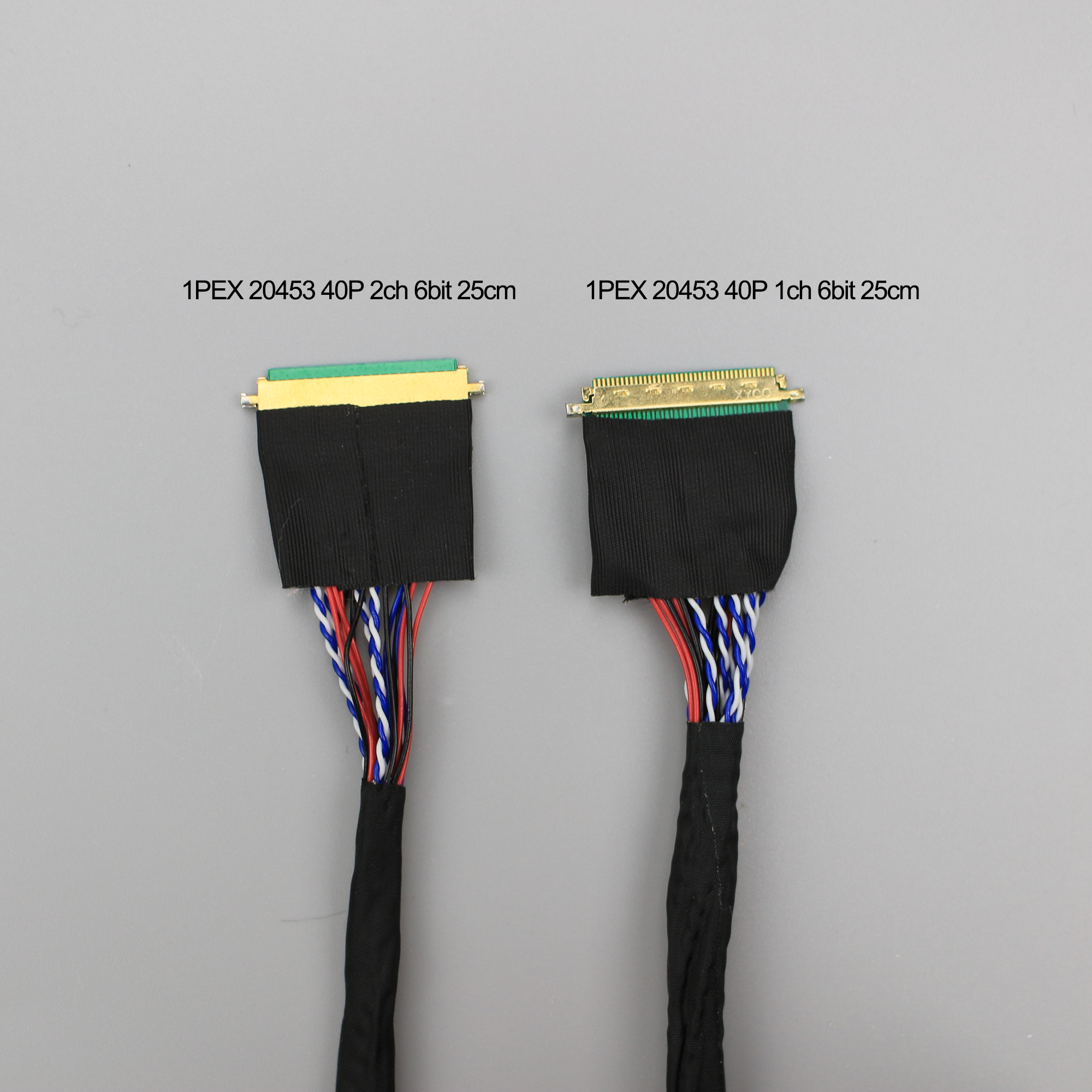

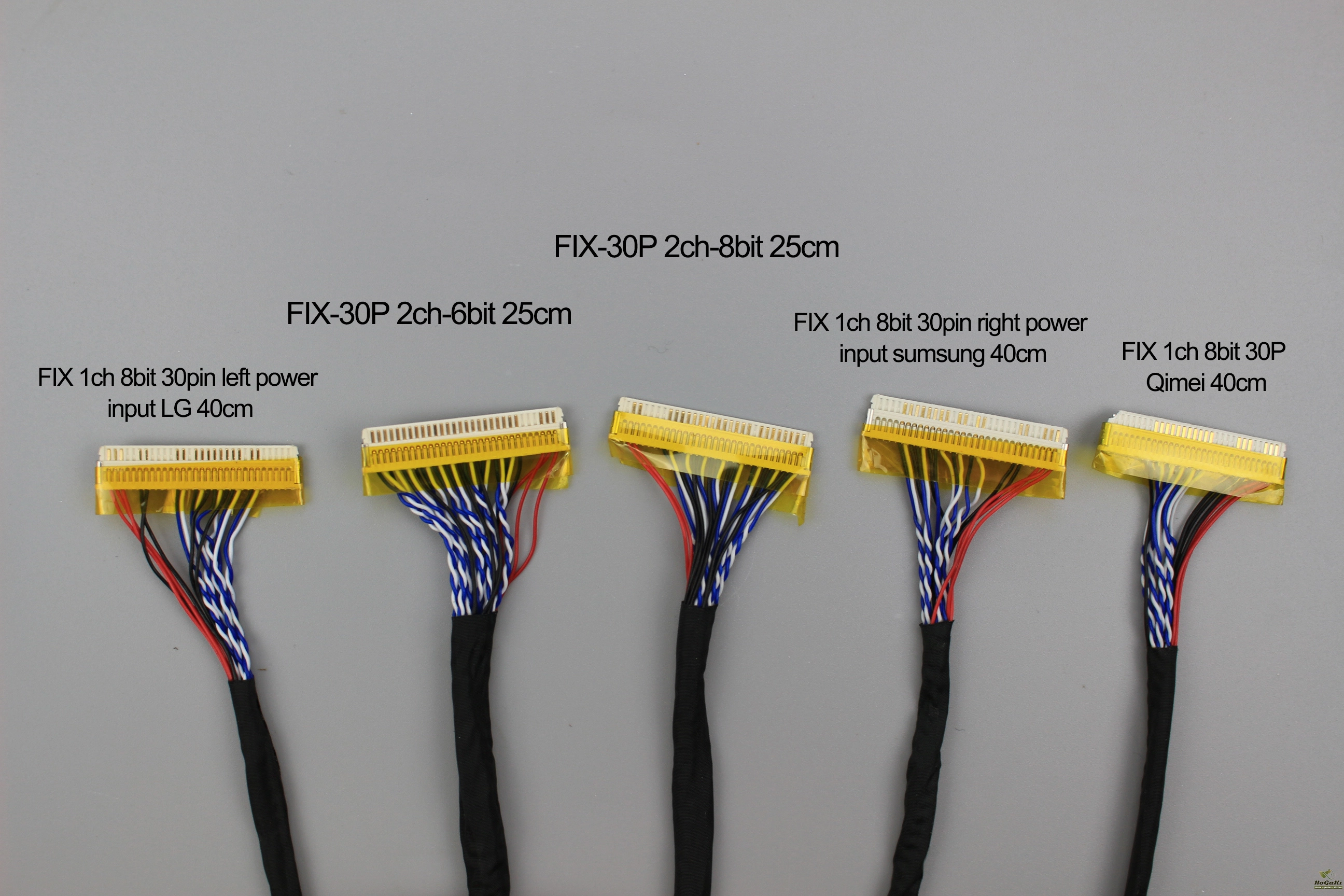

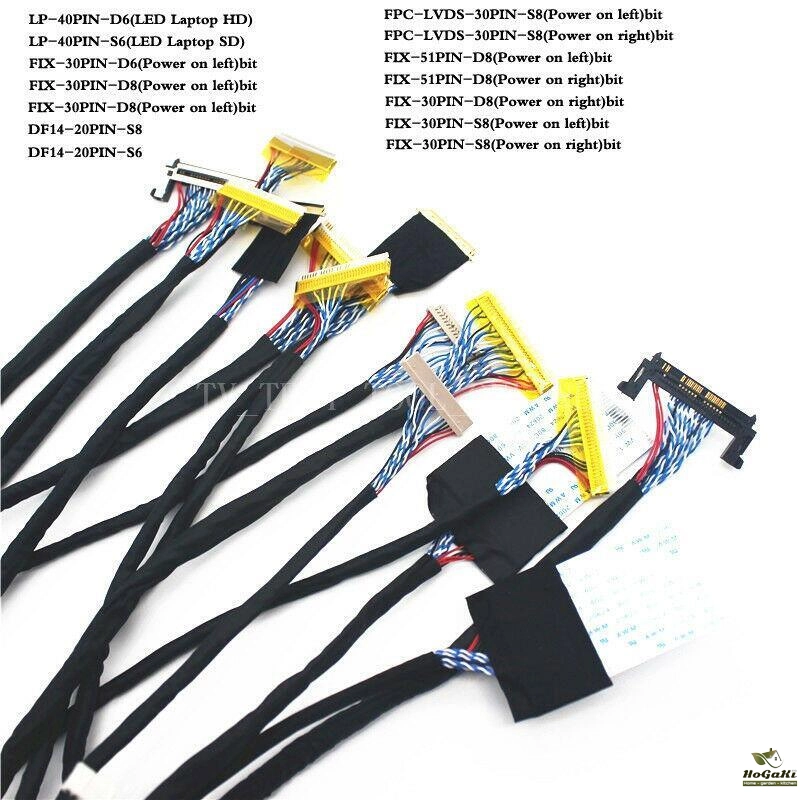

Detailed information about the LVDS cables:

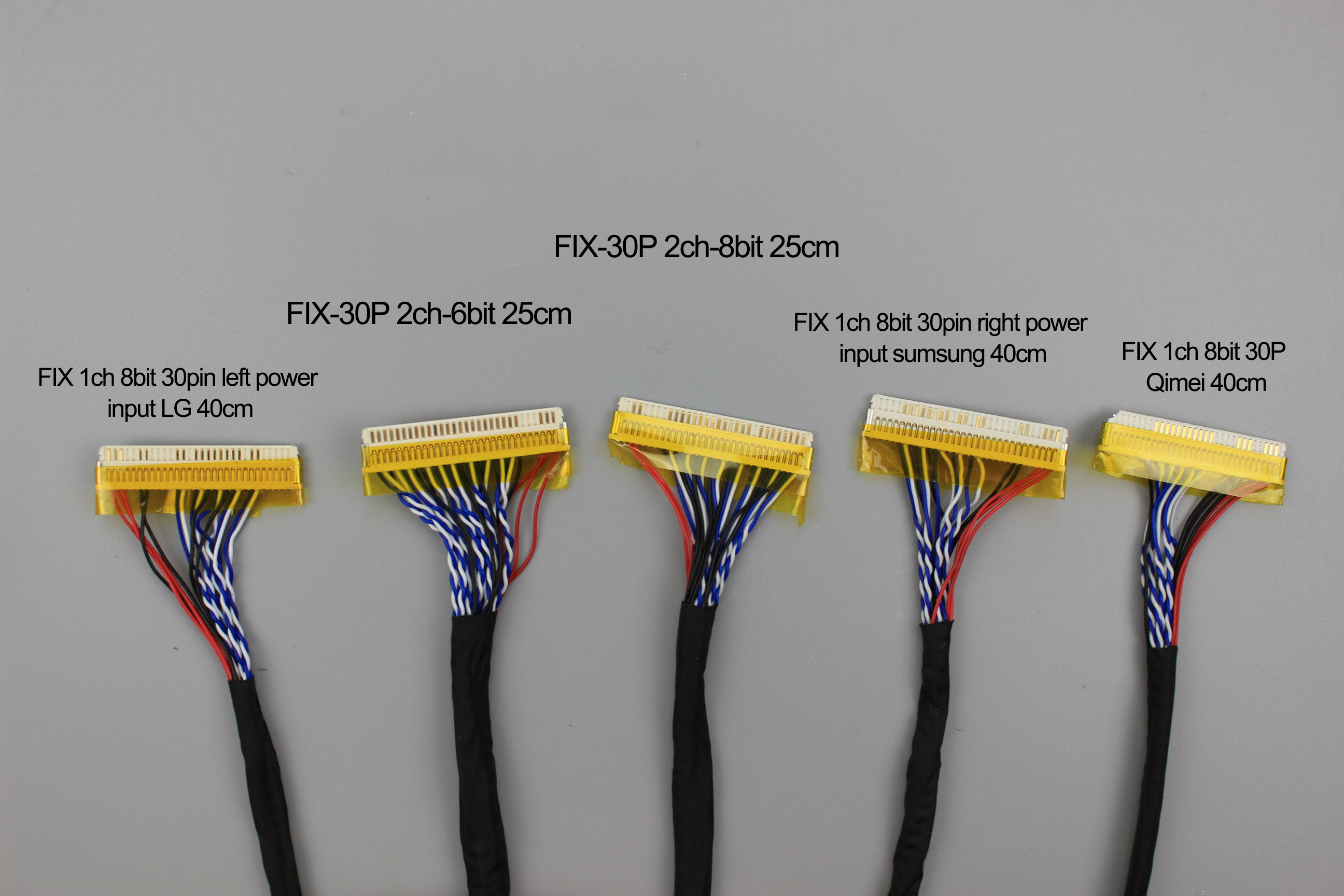

DF14-20Pin-S8
DF14-20Pin-S6
FIX-30Pin-S8(power on left) bit
FIX-30Pin-S8(power on right) bit
FIX-30Pin-D6 (power on left) bit
FIX-30Pin-D8 (power on left) bit
FIX-51Pin-D8 (power on left) bit (Most universal LVDS cable for 32''-65'' screen)
FIX-51Pin-D8 (power on right) bit(Most universal LVDS cable for 32''-65'' screen)
FIX-30Pin-D8 (power on left) bit (for 17''-42'' screen)
FIX-30Pin-D8 (power on right) bit(for 17''-42'' screen)

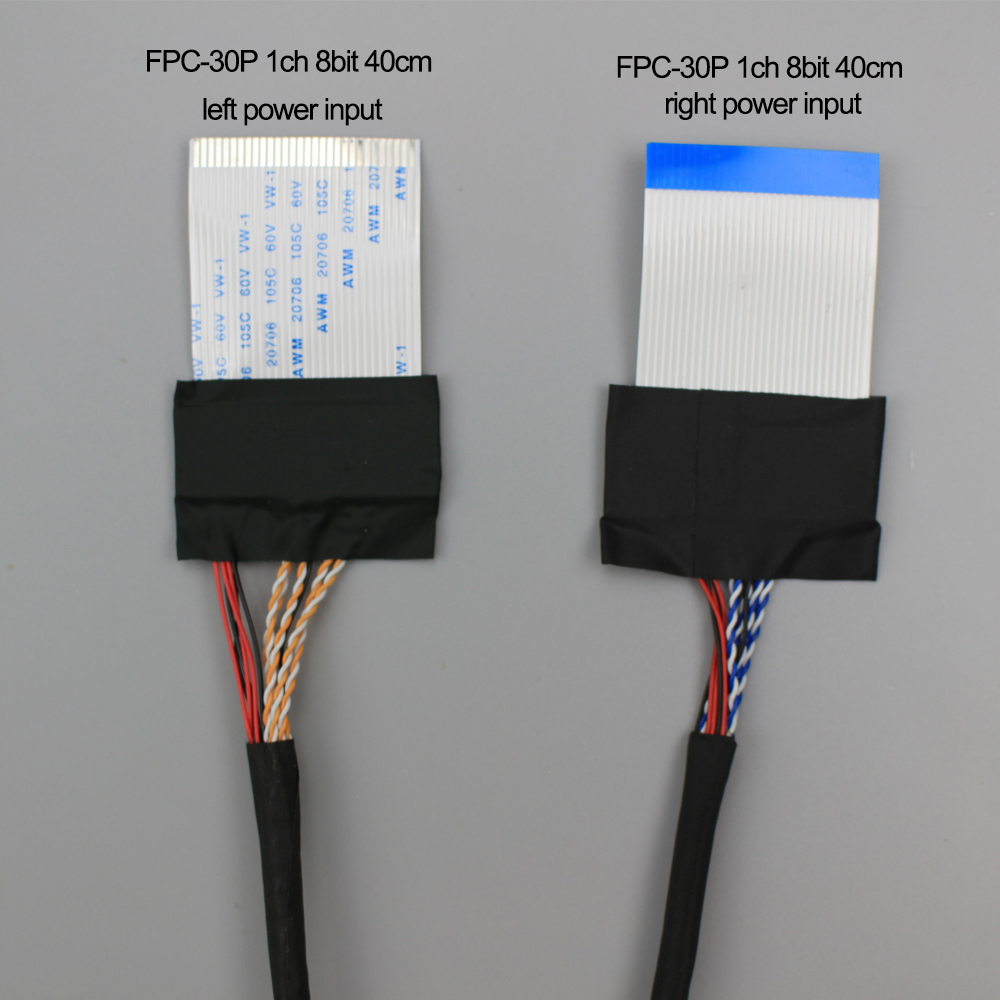

FPC-LVDS-30Pin-S8 (power on left) bit
FPC-LVDS-30Pin-S8 (power on right) bit
LP-40Pin-D6(LED laptop HD)
LP-40Pin-S6(LED laptop SD)
Totally 14 pcs LVDS/FPC cables for 12''-65'' laptop/TV screen
