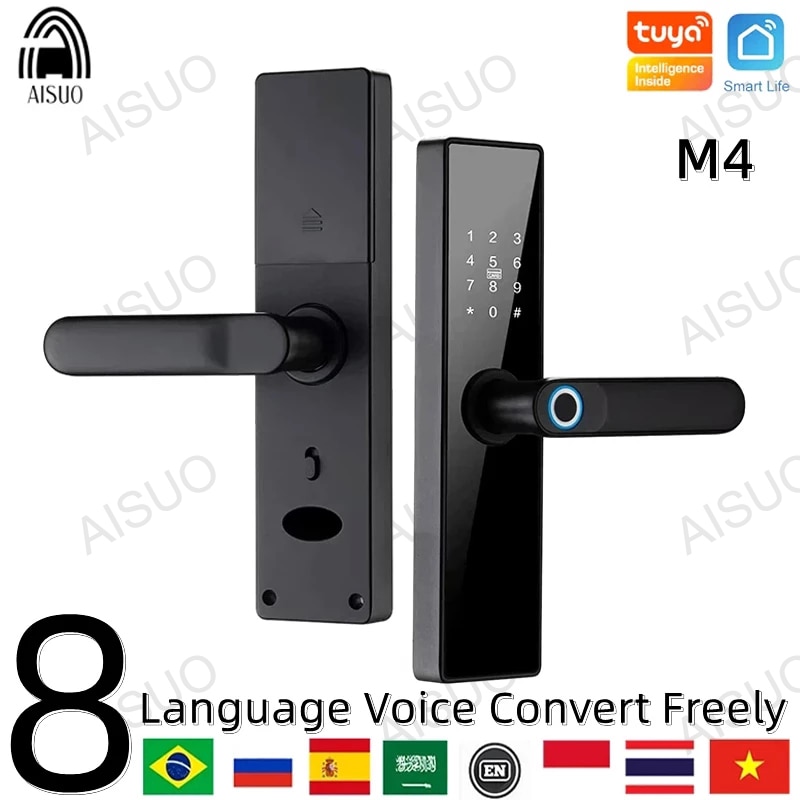

AISUO M4 TUYA WIFI Mobile Phone Remote Unlock Fingerprint Magnetic Card Password Key Temporary Password Smart Door Lock

4.4 (31 votes) | 165 orders
Price: US $433.27 / piece
Discount Price:
US $ 131.54 / piece
-70%
Ships From
Color

Sorry! This item is out of stock

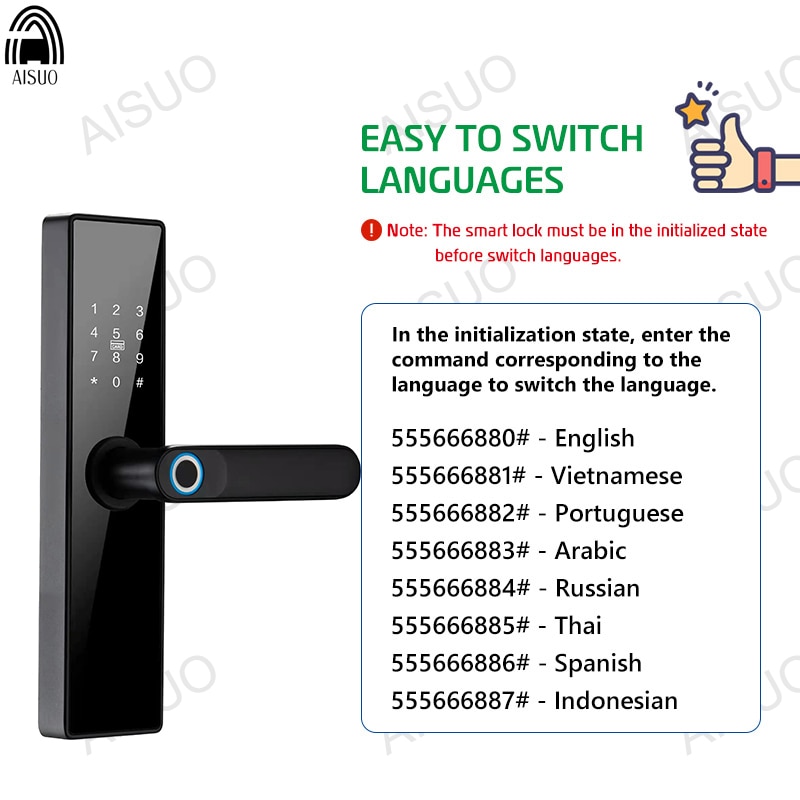

About language/voice

Eight languages, switch at will. If you cannot switch, please contact customer service for video tutorials.

About installation

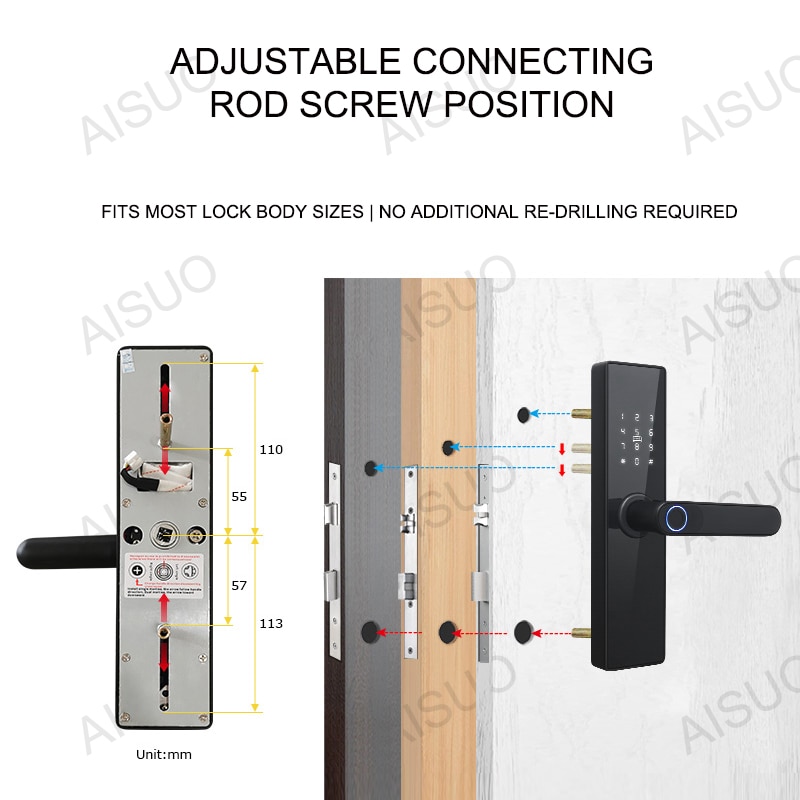

The length of individual accessories needs to be trimmed according to the actual door thickness during installation. If you have any questions, please contact our customer service.





Product parameters

1. Fingerprint capacity: ≤50
2. Password capacity: ≤100
3. Magnetic card capacity: ≤100
4. Panel material: aluminum alloy

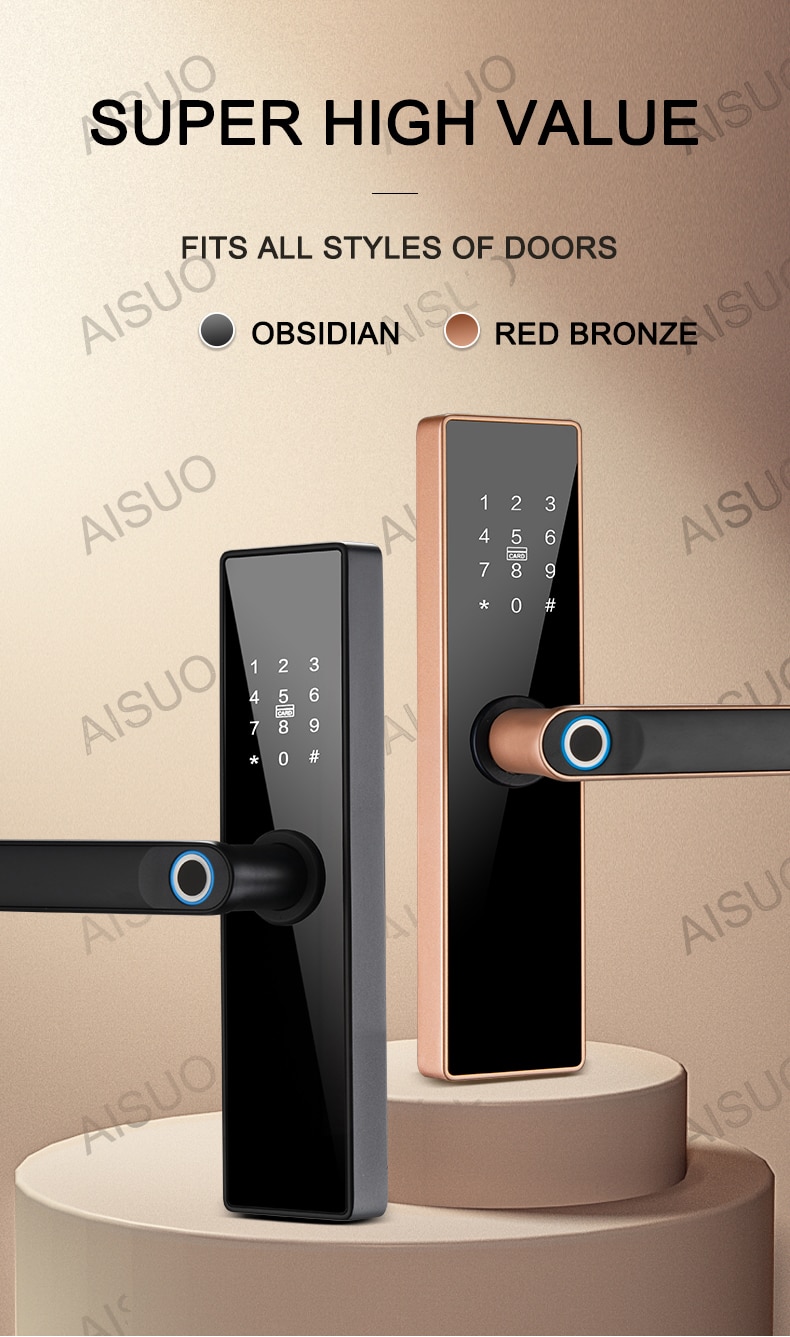

5. Color: black, red bronze
6. Panel size: 260*60*21mm
7. Support system: IOS7.0 or Android 4.4 and above
8. Battery life: 10,000 times normally open (12 months)
9. Power supply: DC6V, 4 alkaline batteries
10.WIFI frequency: 2.4GHZ, other frequencies need to switch connections
Magnetic card frequency: 13.56mhz
11. Quiescent current: 45Ua
12. Dynamic current: <200Ma
13. Unlocking time: 0.2S≤

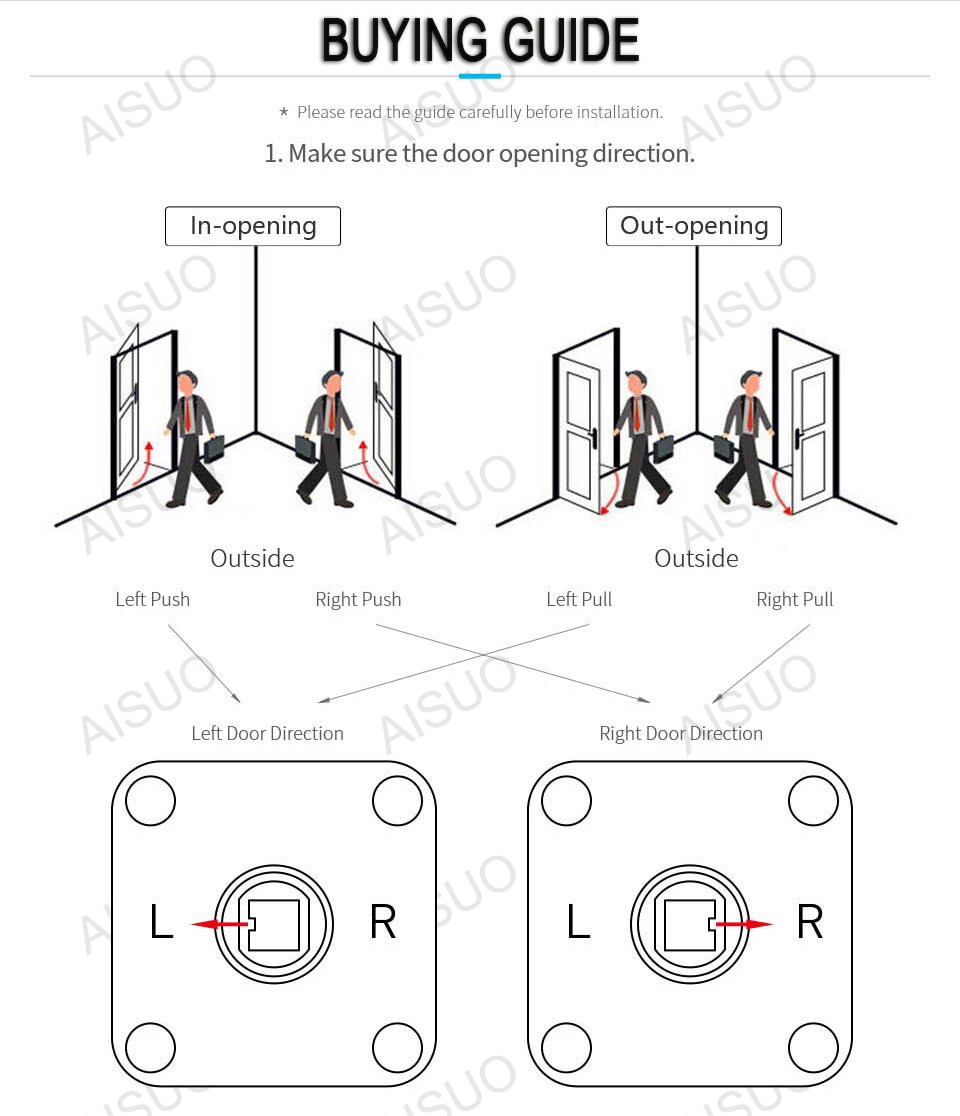

14. Handle direction: the left and right directions can be freely adjusted
15. Waterproof grade: slightly waterproof, not suitable for any rainy environment and direct sunlight
16. System language/voice: Portuguese/Russian/Spanish/English/Arabic/Indonesian/Thai/Vietnamese (the door lock system can turn off the system voice)

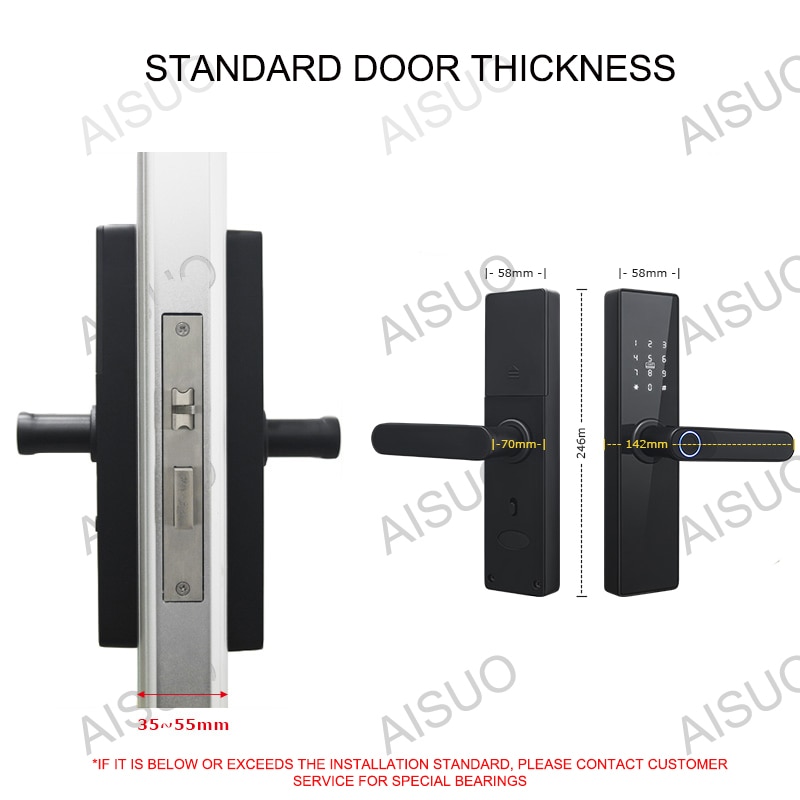

17. Installation standard door thickness: 30mm-50mm (below or exceed the standard, please contact customer service, need to be equipped with extended screws and bearings)
18. About factory ODM customization service content: motherboard system, system voice/language, magnetic card style, trademark customization, smart program (WIFI/Bluetooth), packaging box, free combination of functions, etc.
Contact: +86 13145825985
Factory official website: WWW.AisuoSmart.com;

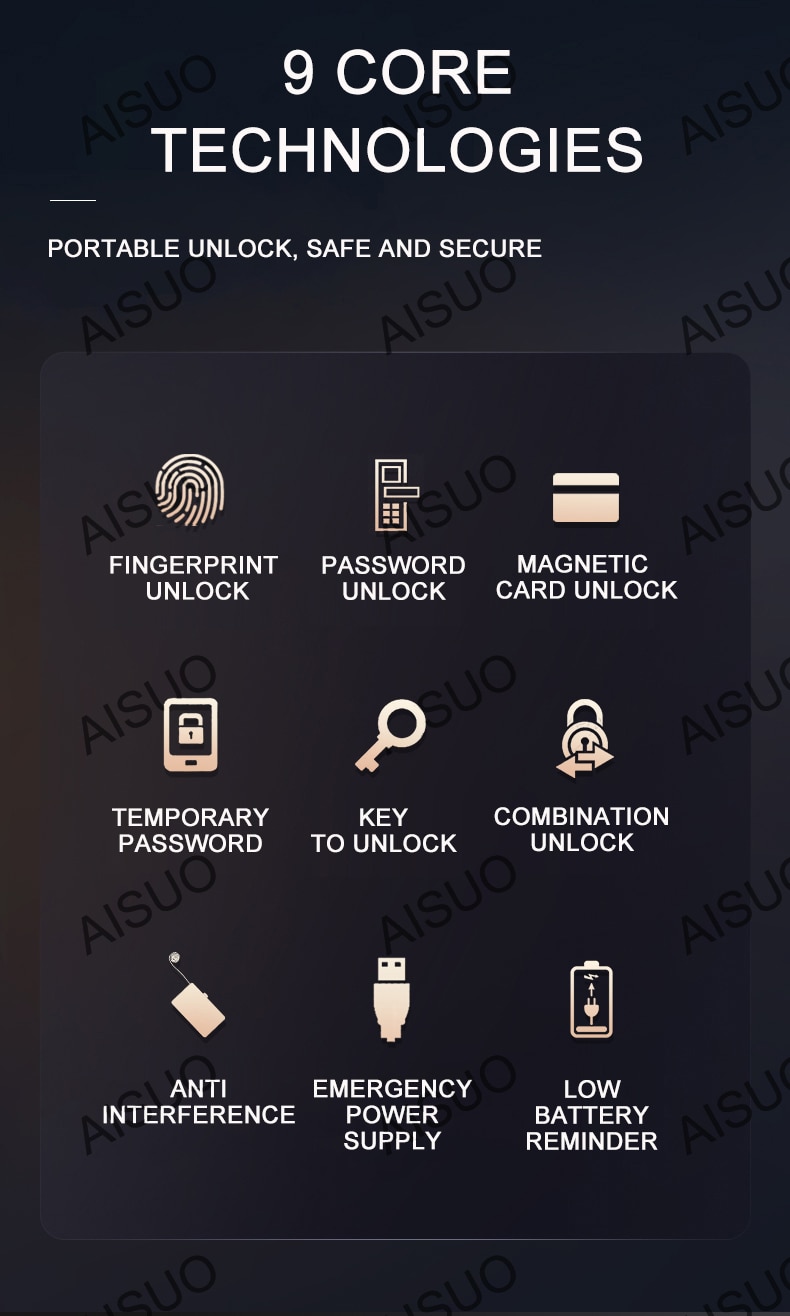

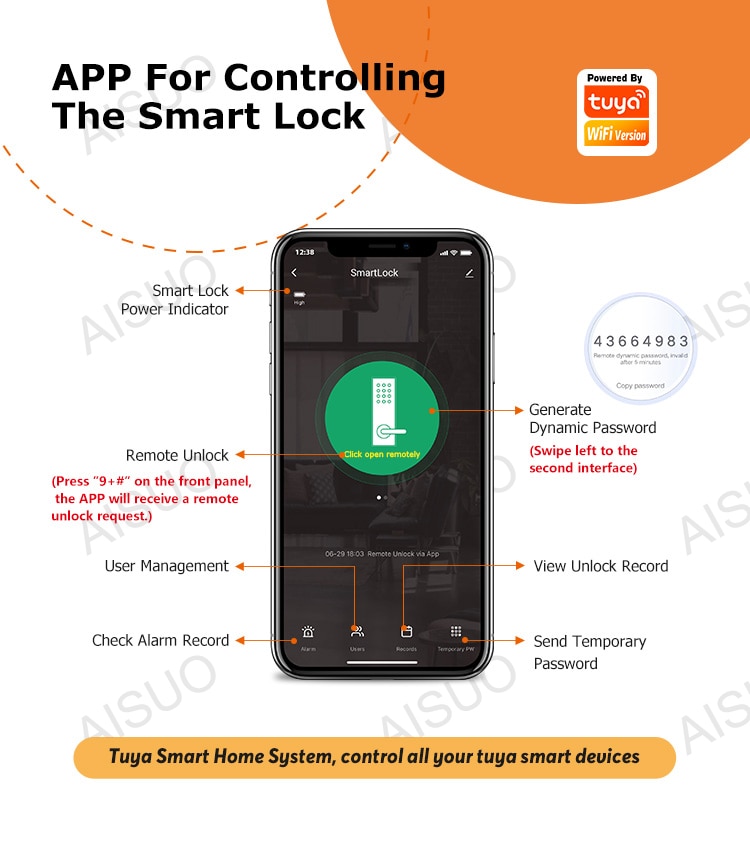

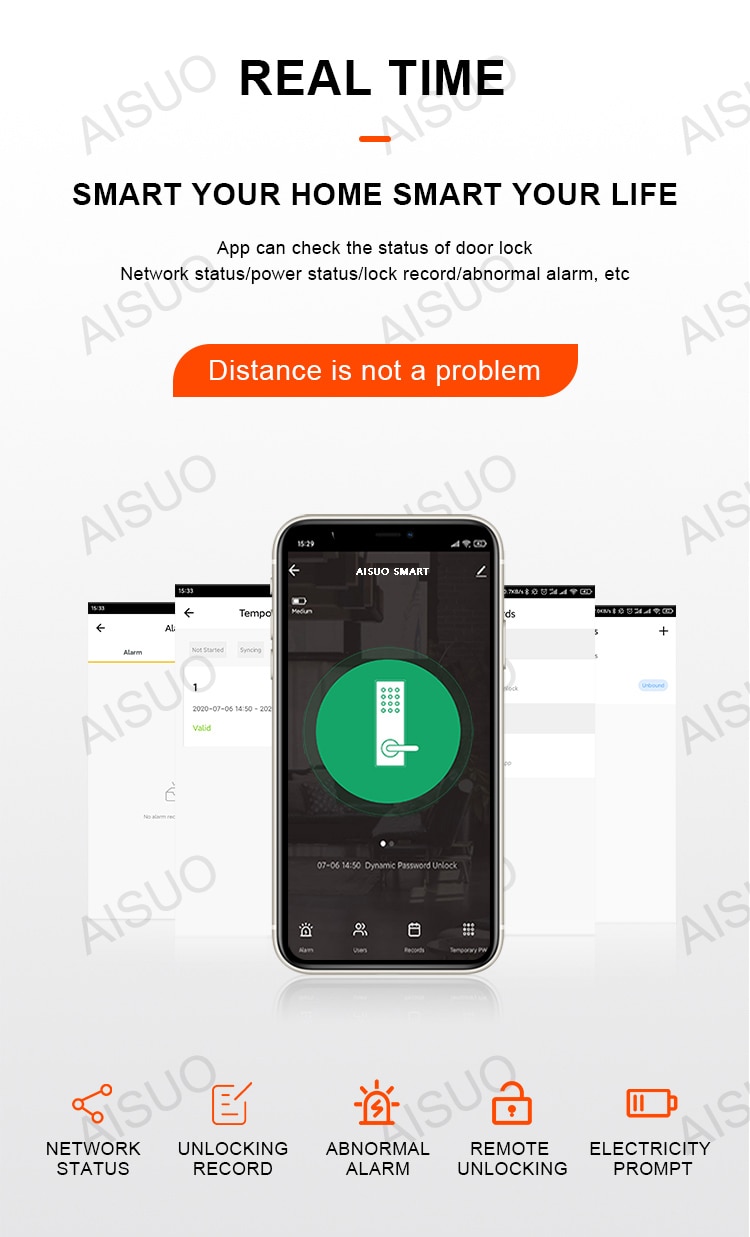

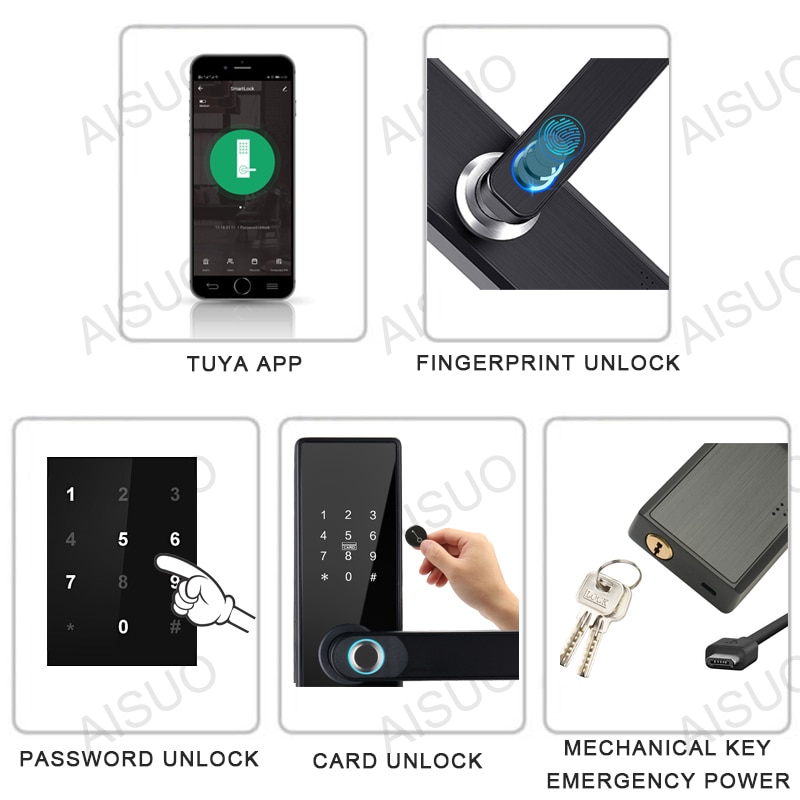

TUYA Function Introduction

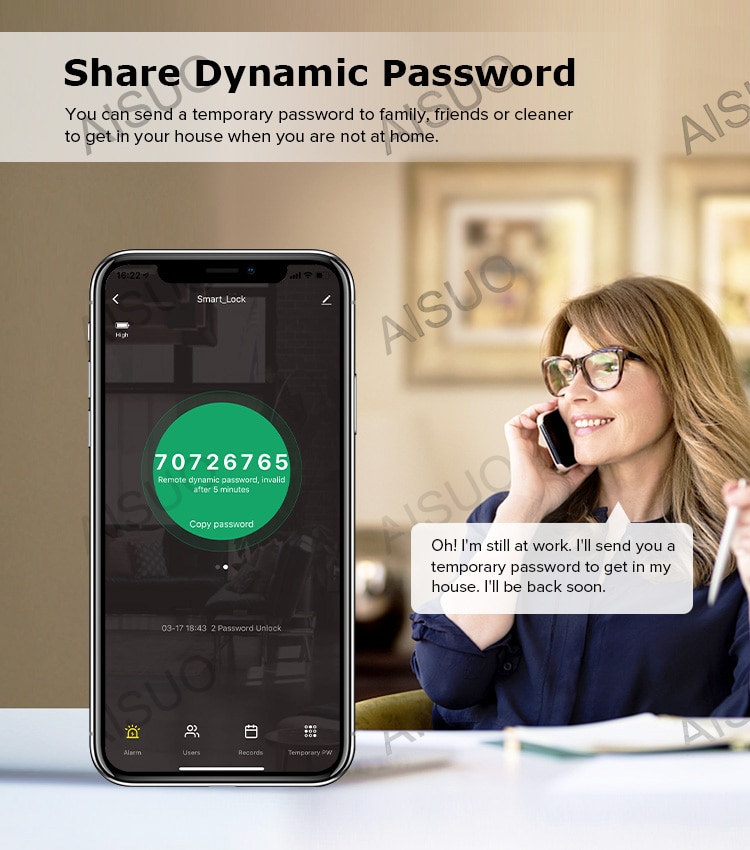

Remote unlock (no gateway required) + unlock reminder + unlock record + temporary password

Optional TT LOCK Bluetooth version (Chinese/English)

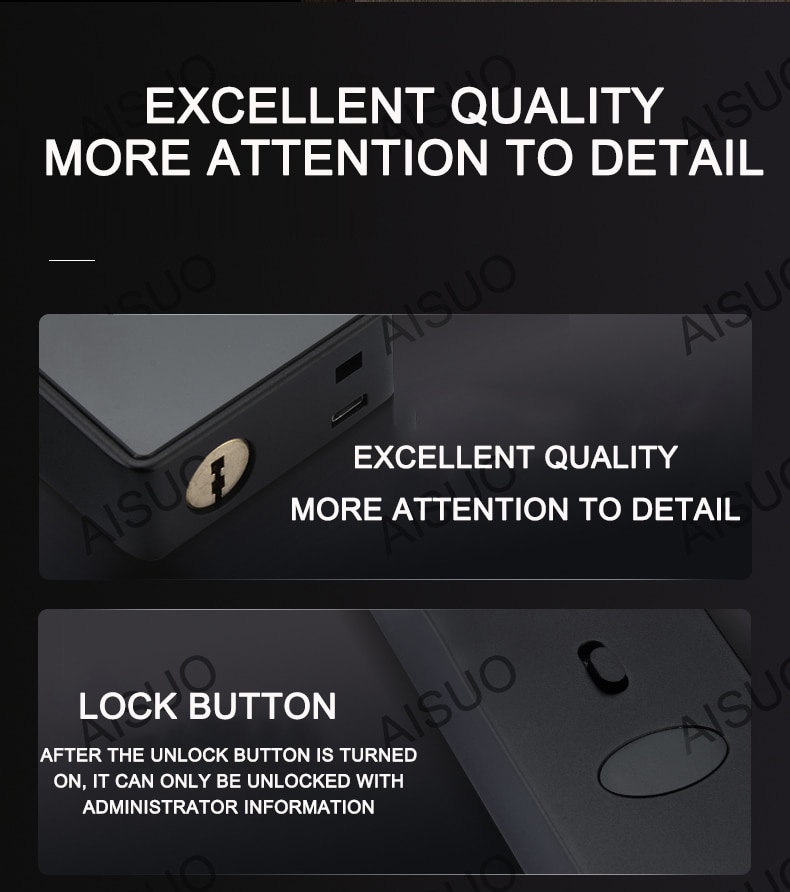

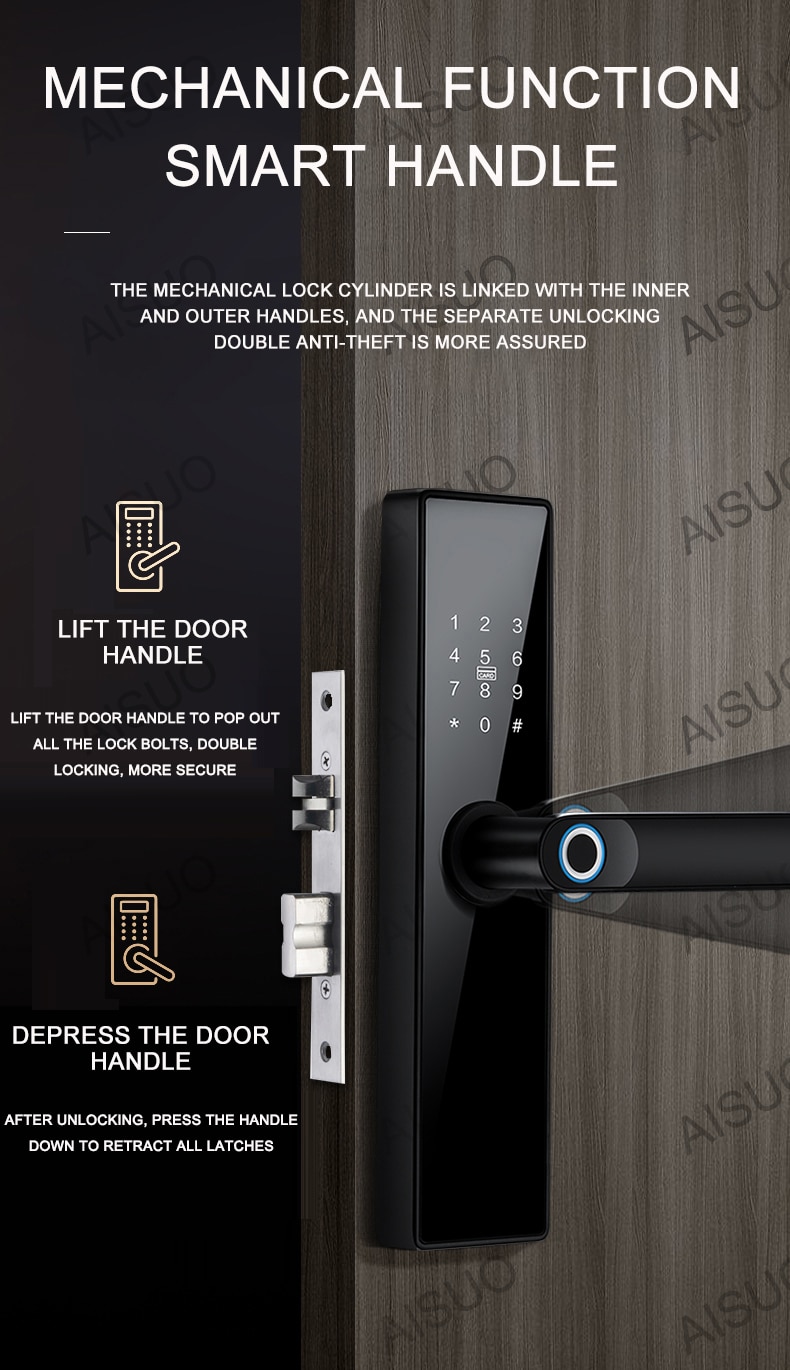

Mechanical Safety Functions

You only need to lift the handle to double-lock, and the rear panel can be locked with one key, which is more secure; normally open mode: only need to use the administrator user information (fingerprint/magnetic card/password) to unlock, enter 5+#, then The normally open mode can be maintained, and the normally open mode will be automatically closed after unlocking with the administrator information again.

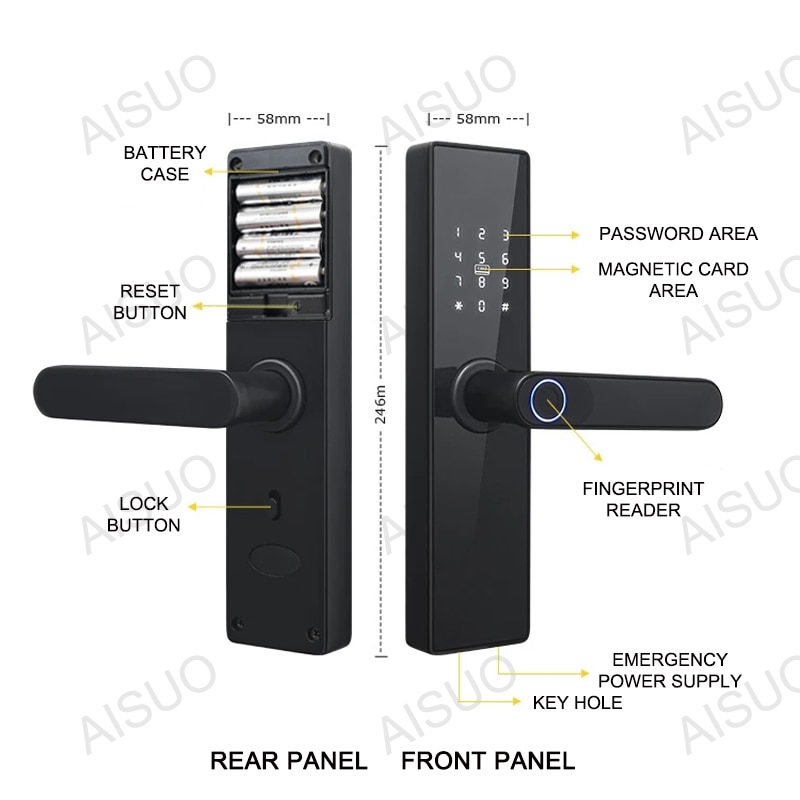

Product Size

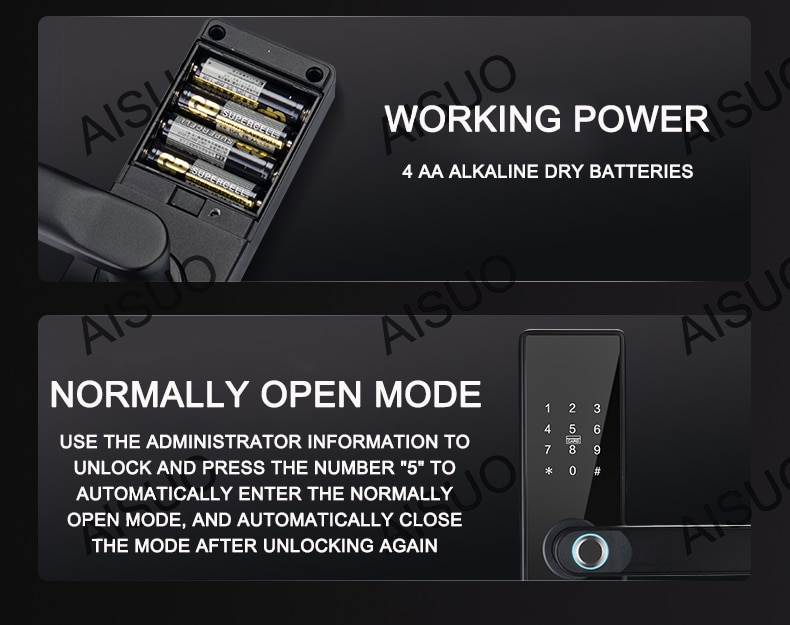

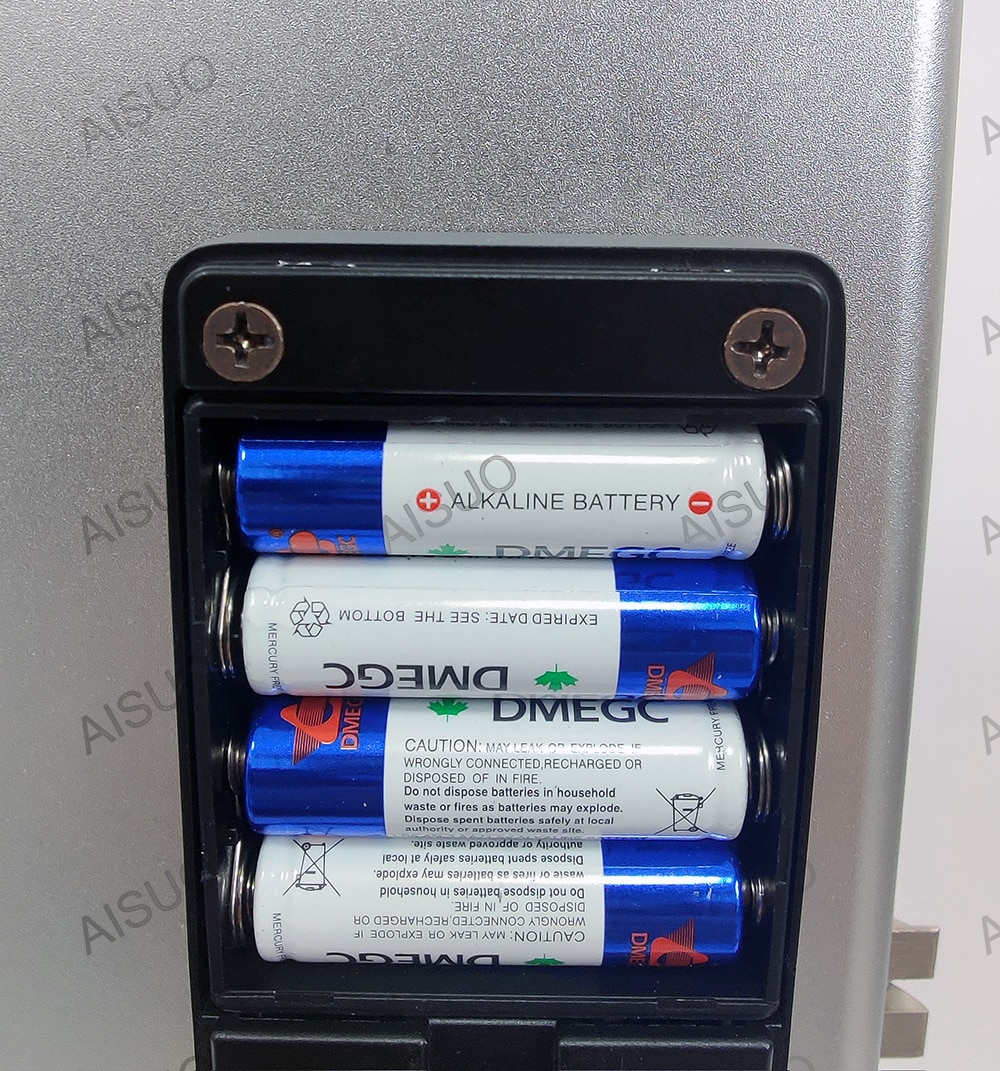

Use 4pcs AA 1.5V Battery

Please use the not rechargeable Alkalin battery; The AA battery is bigger than the AAA battery, it have longer Endurance capability,Other model is use smaller AAA battery.
(battery not include in the package)

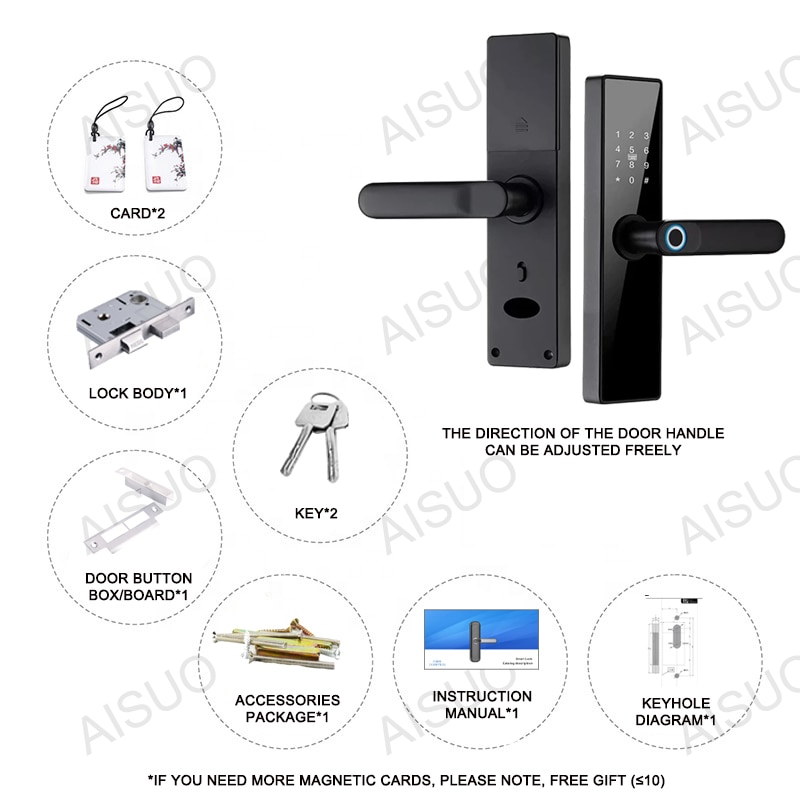

Product Content

Front panel*1
Rear panel*1
Optional lock body*1
Random magnetic card*2
Key*2
Hardware accessories package*1
Door buckle box*1
Hardware edge*1
Keyhole diagram*1
Instruction manual in eight languages (TUYA)*1
If you need more magnetic cards, please note the number of magnetic cards in the order, free gift (no more than 10)

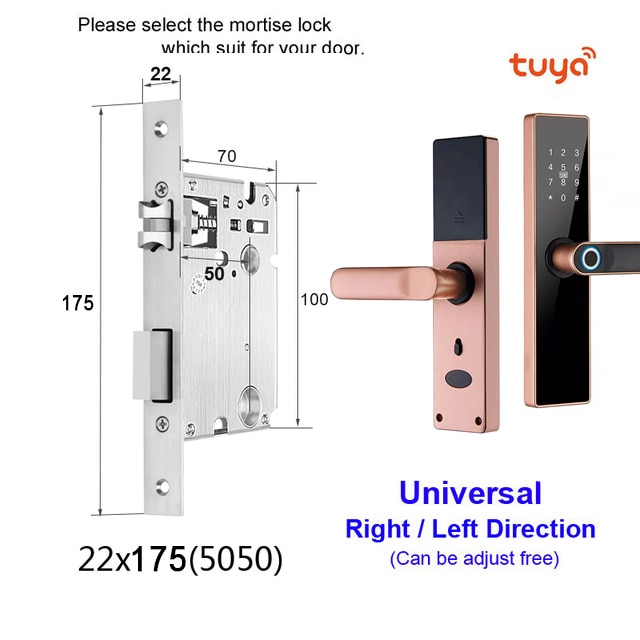

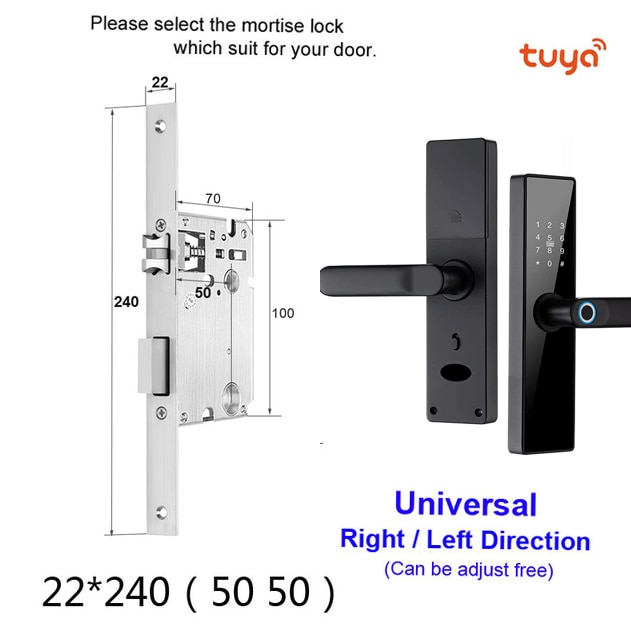

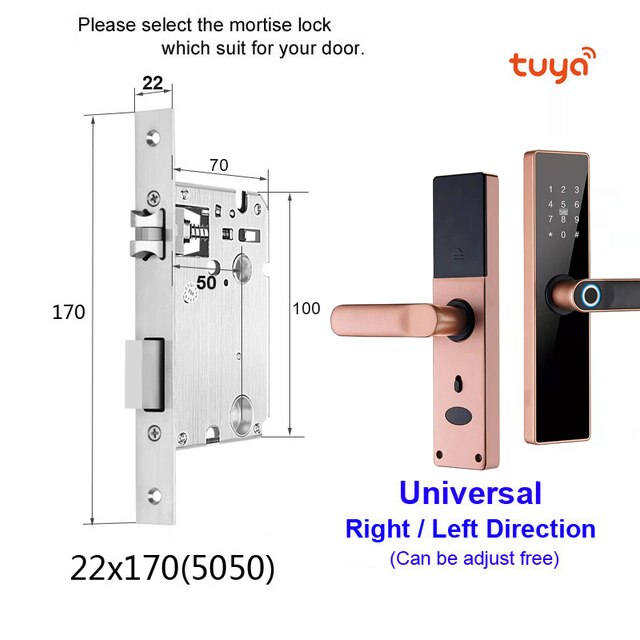

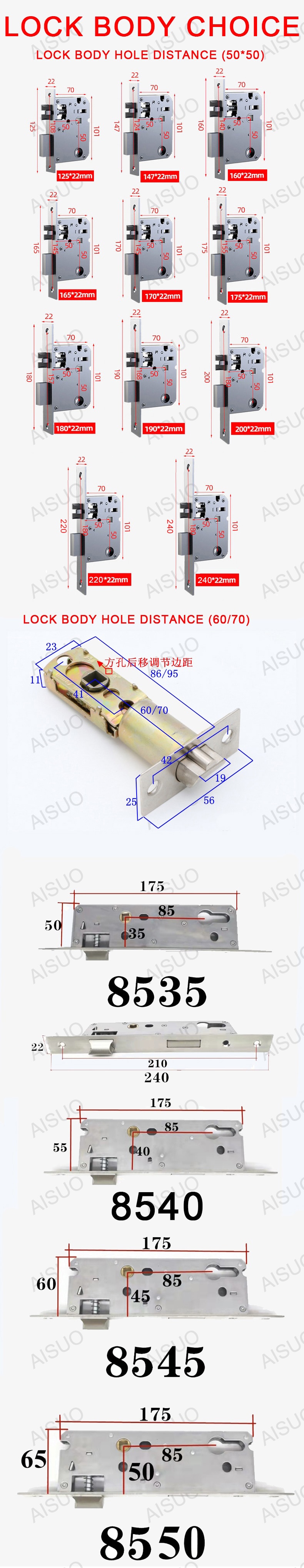

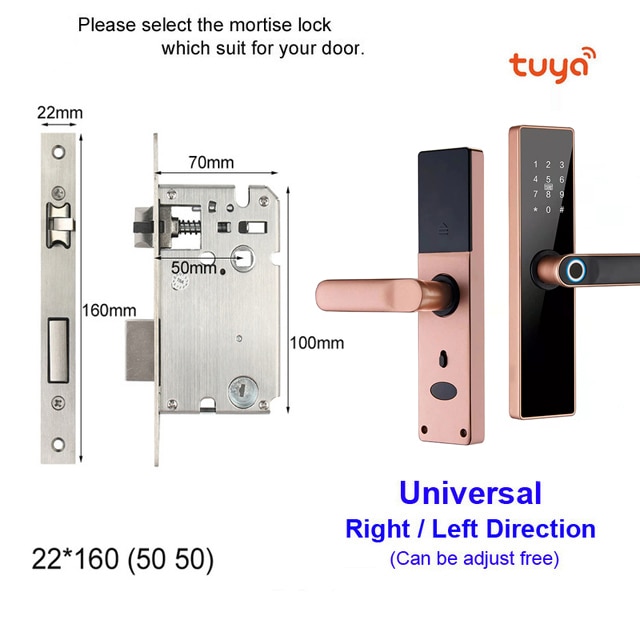

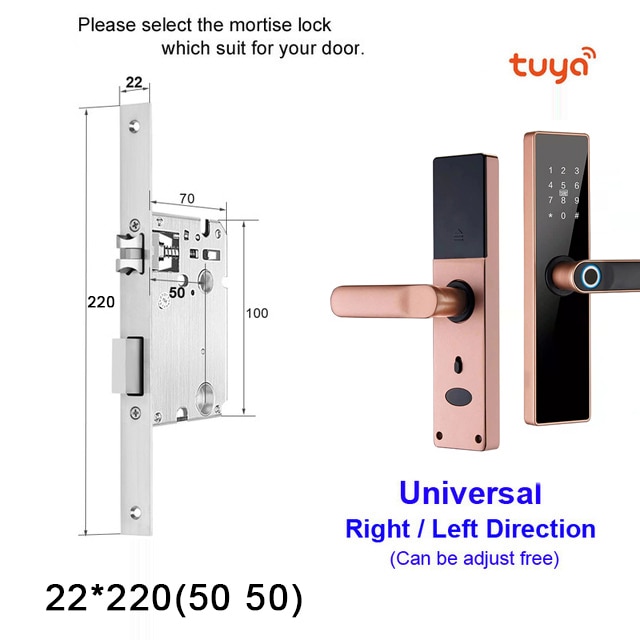

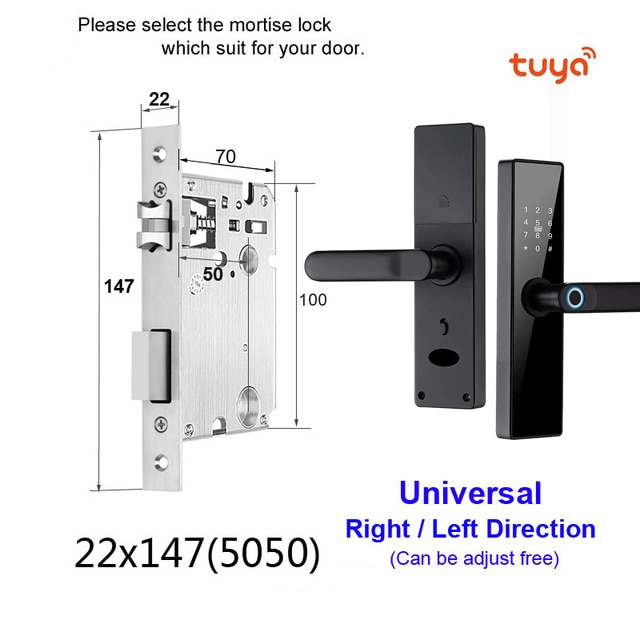

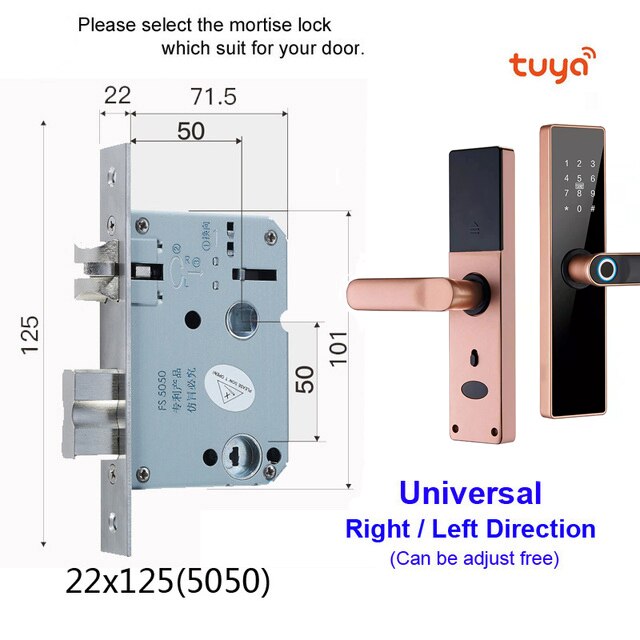

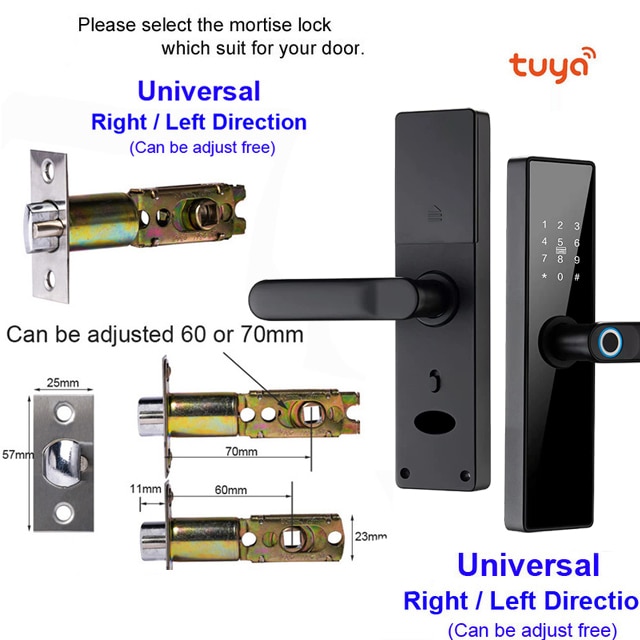

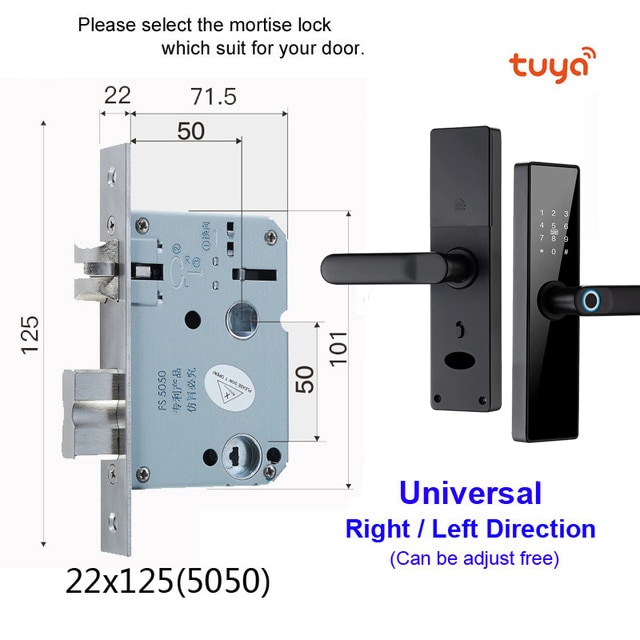

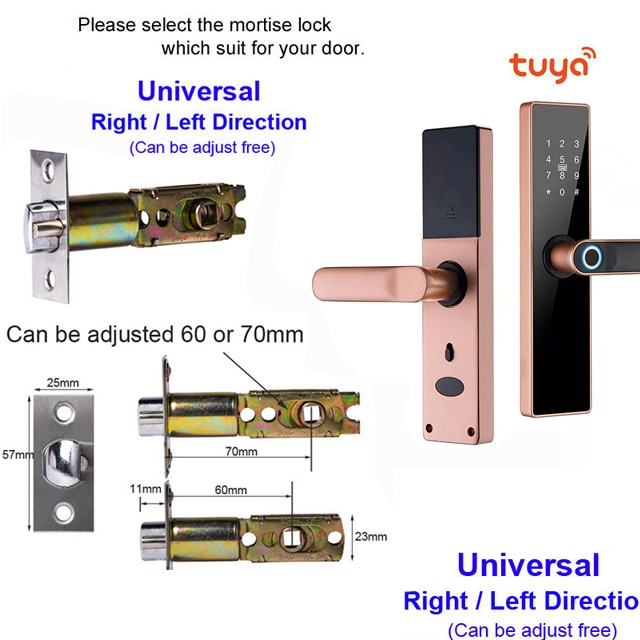

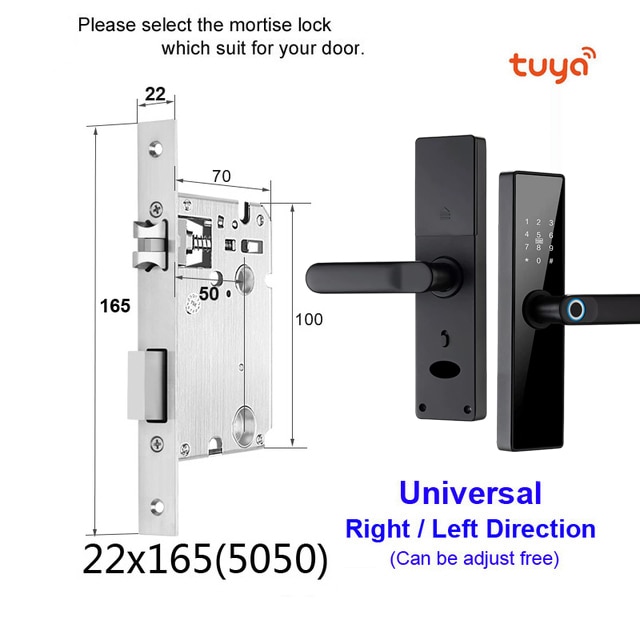

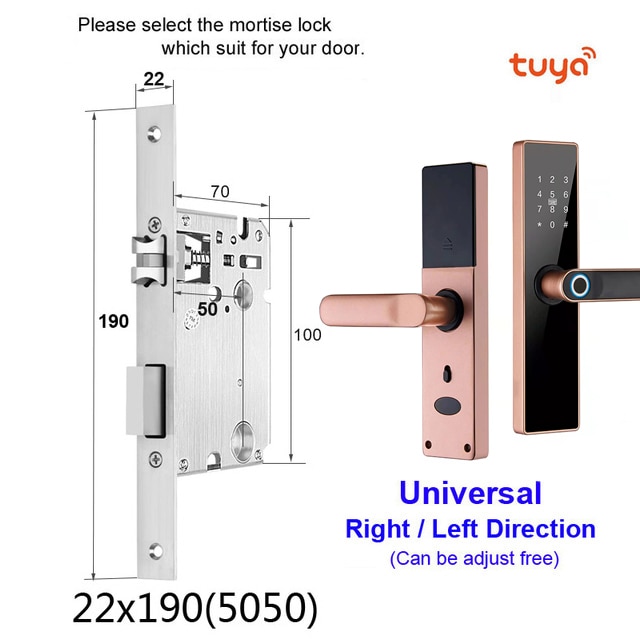

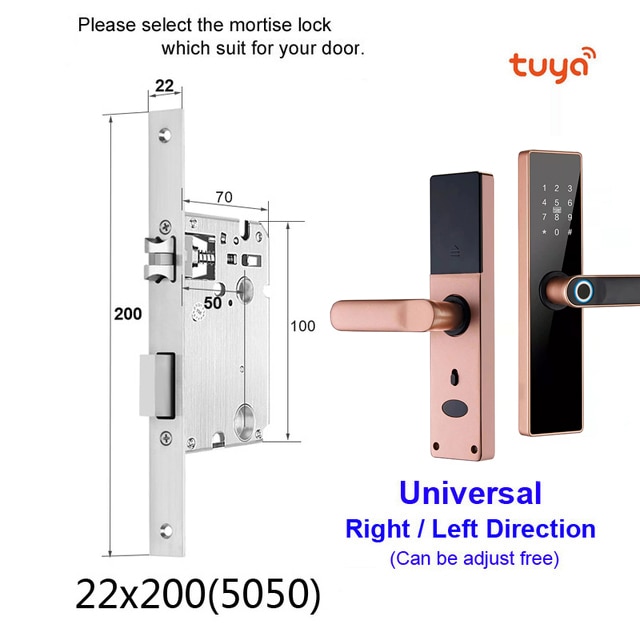

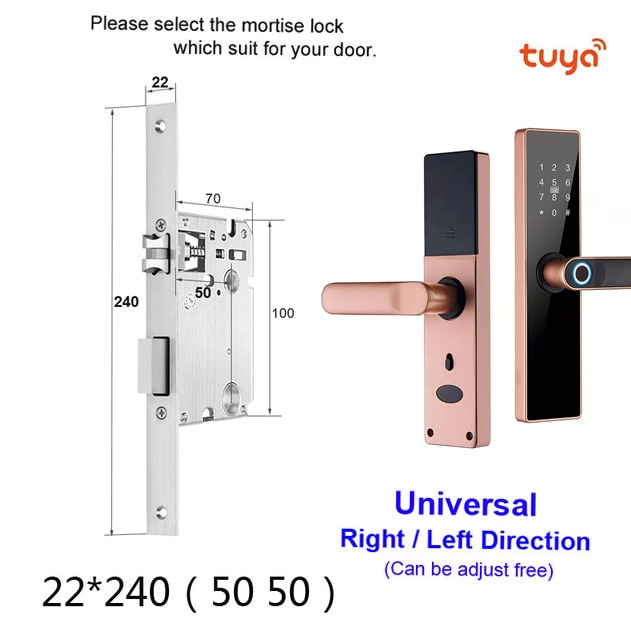

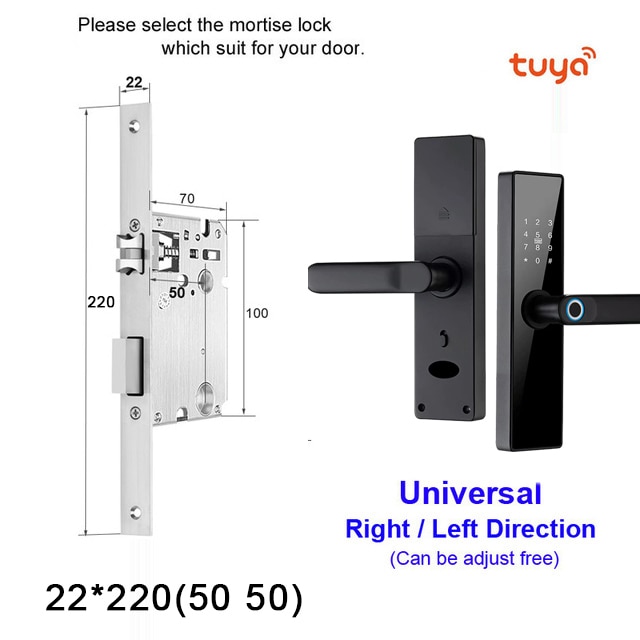

About Size

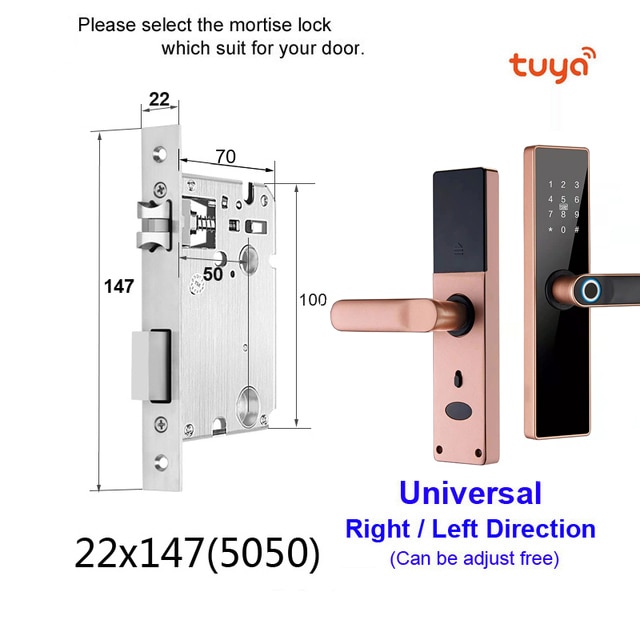

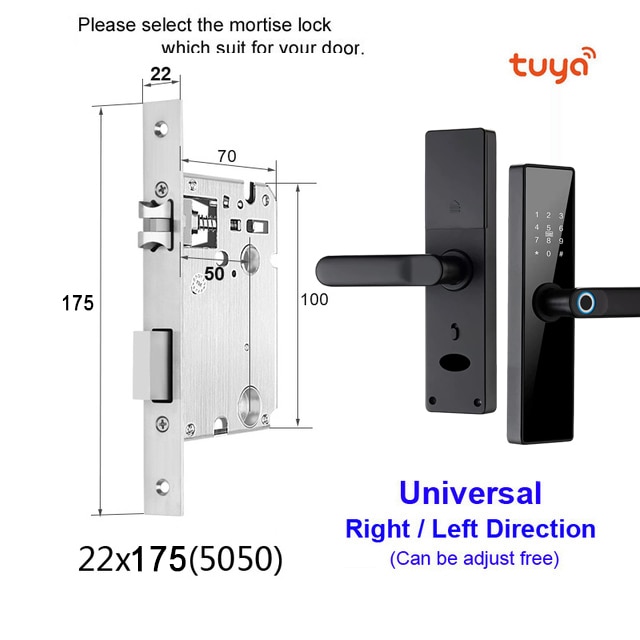

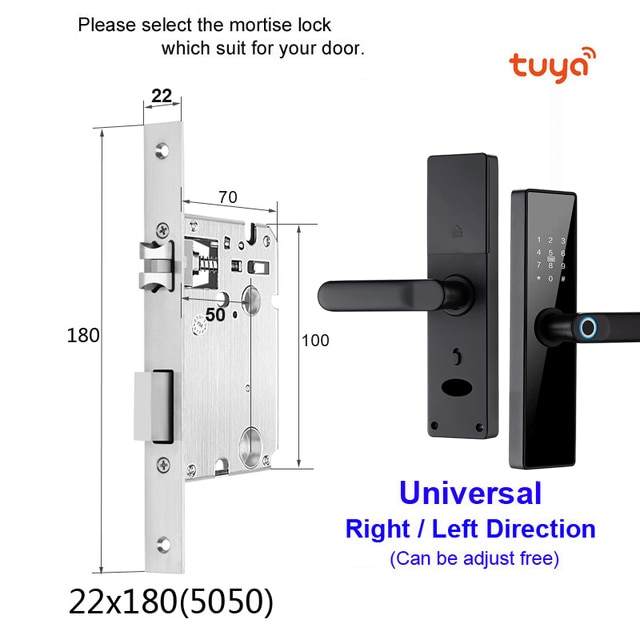

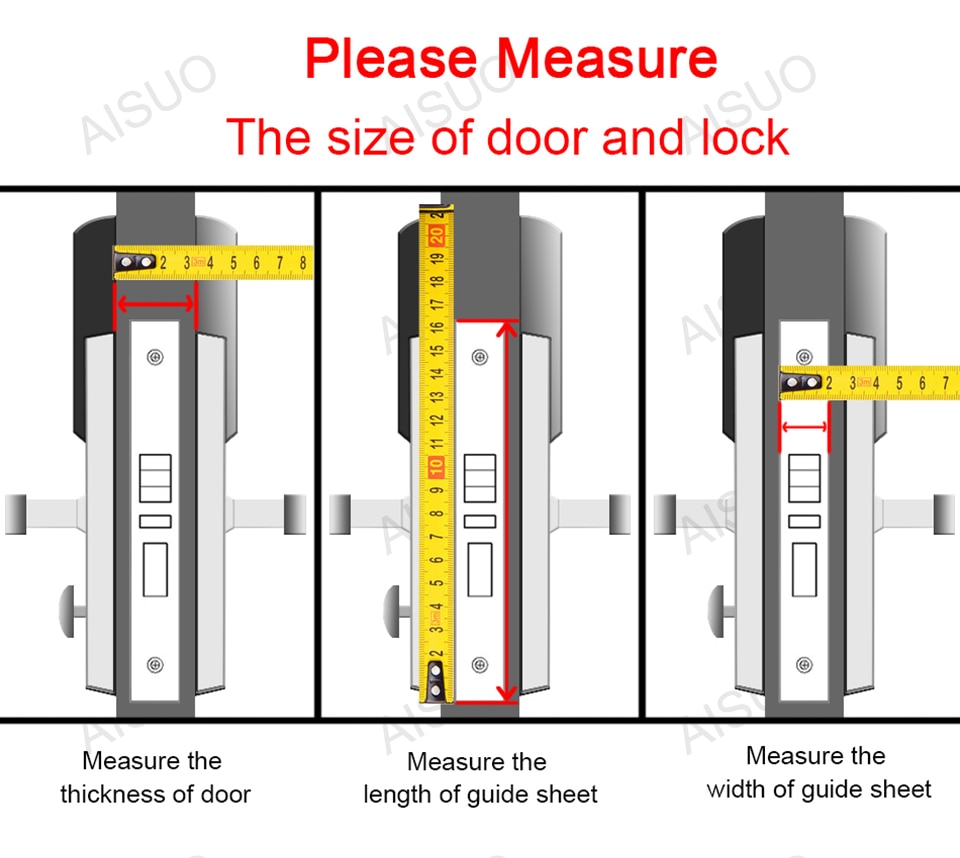

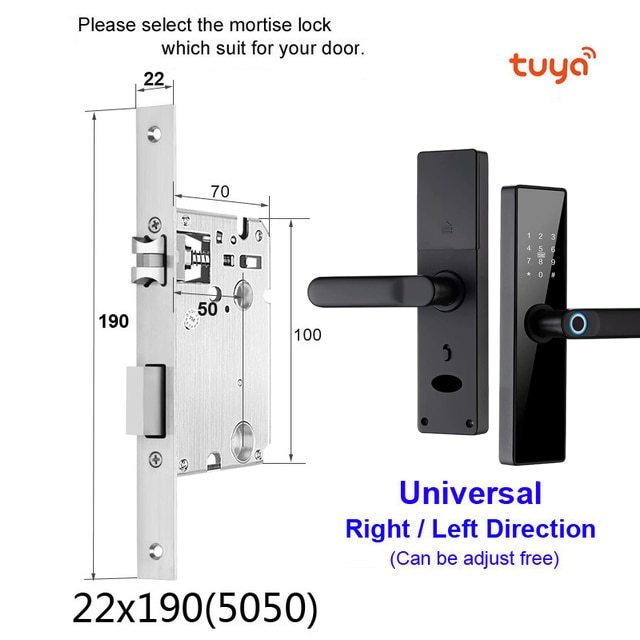

Please measure the length and width of the door lock edge strip according to the picture. If it is a standard size, it can be directly replaced and installed. If the size is between long and short, you can choose a longer size for cover installation. If the maximum size is exceeded, please contact customer service. Handle orientation and bolt orientation can be adjusted. If necessary, you can contact customer service to get the video. In addition to the 12 standard size locks, other sizes of locks require additional lock body fees, thank you

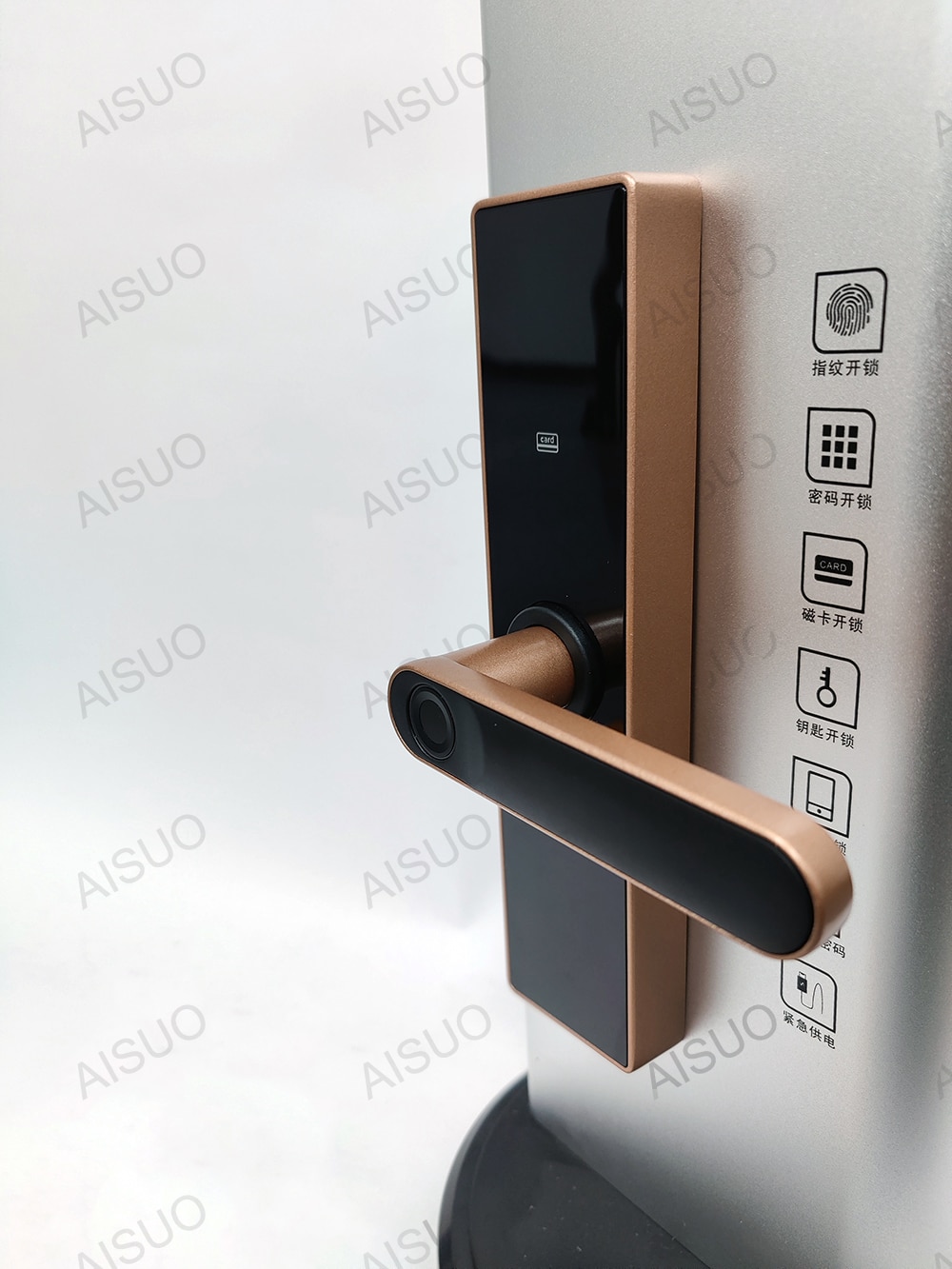

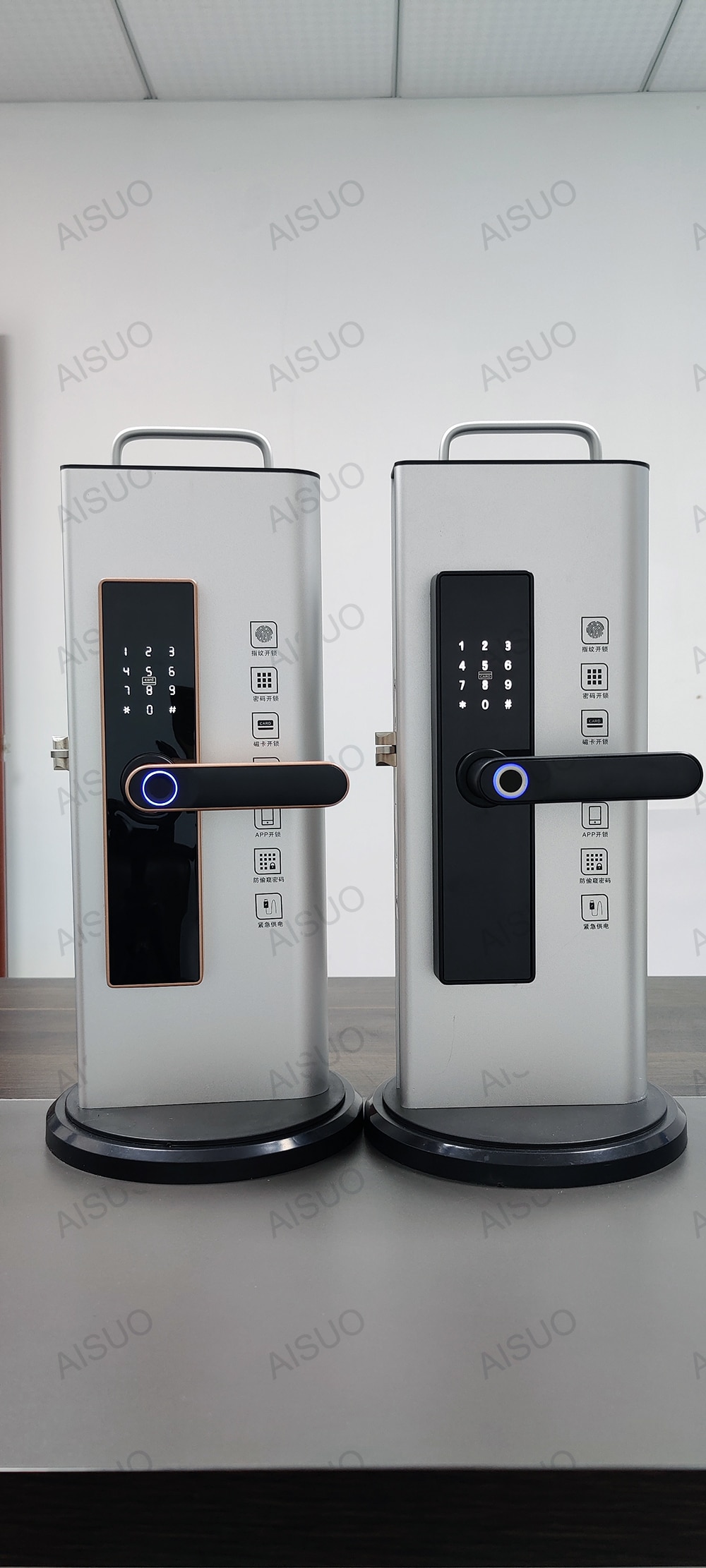

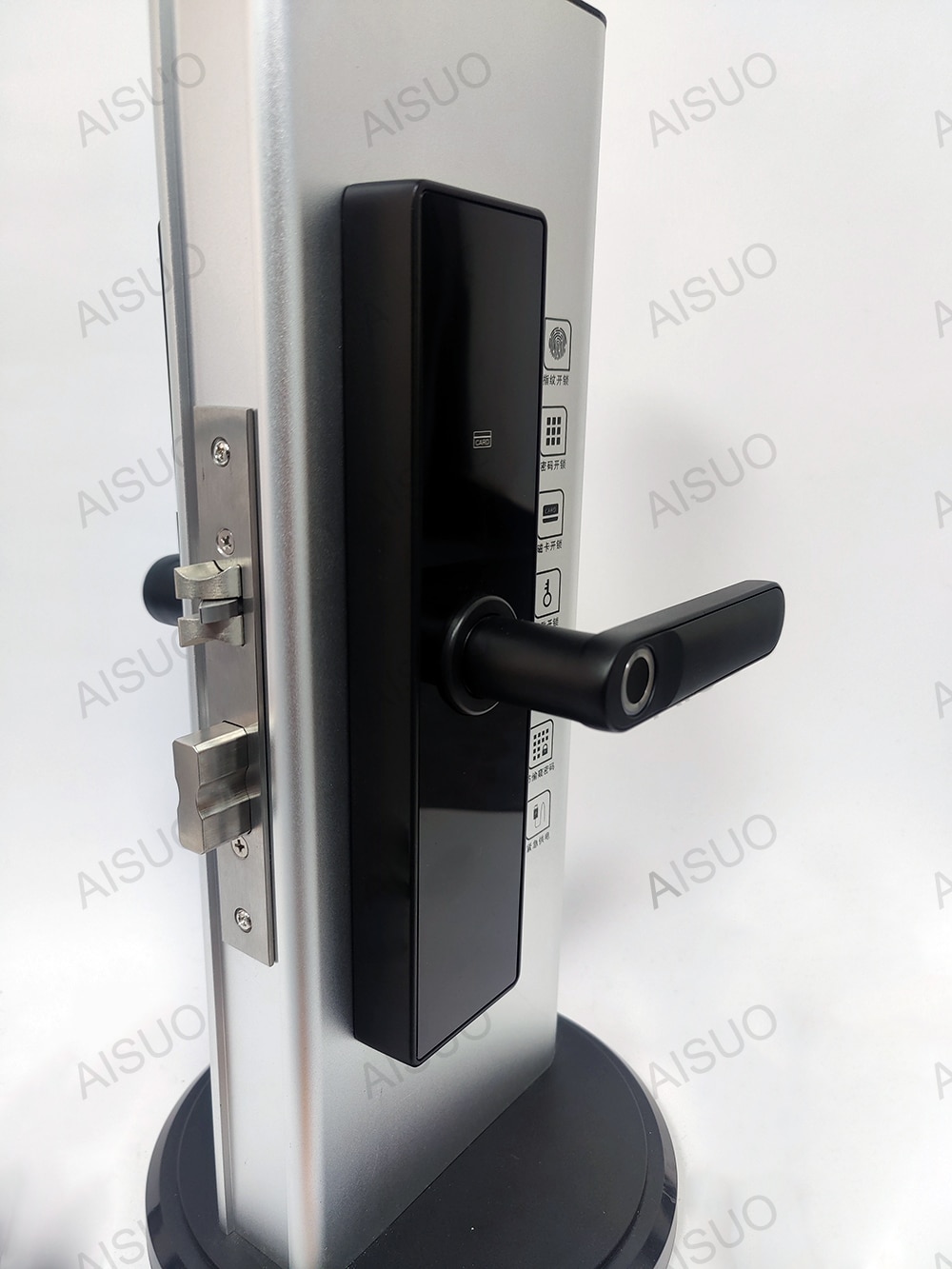

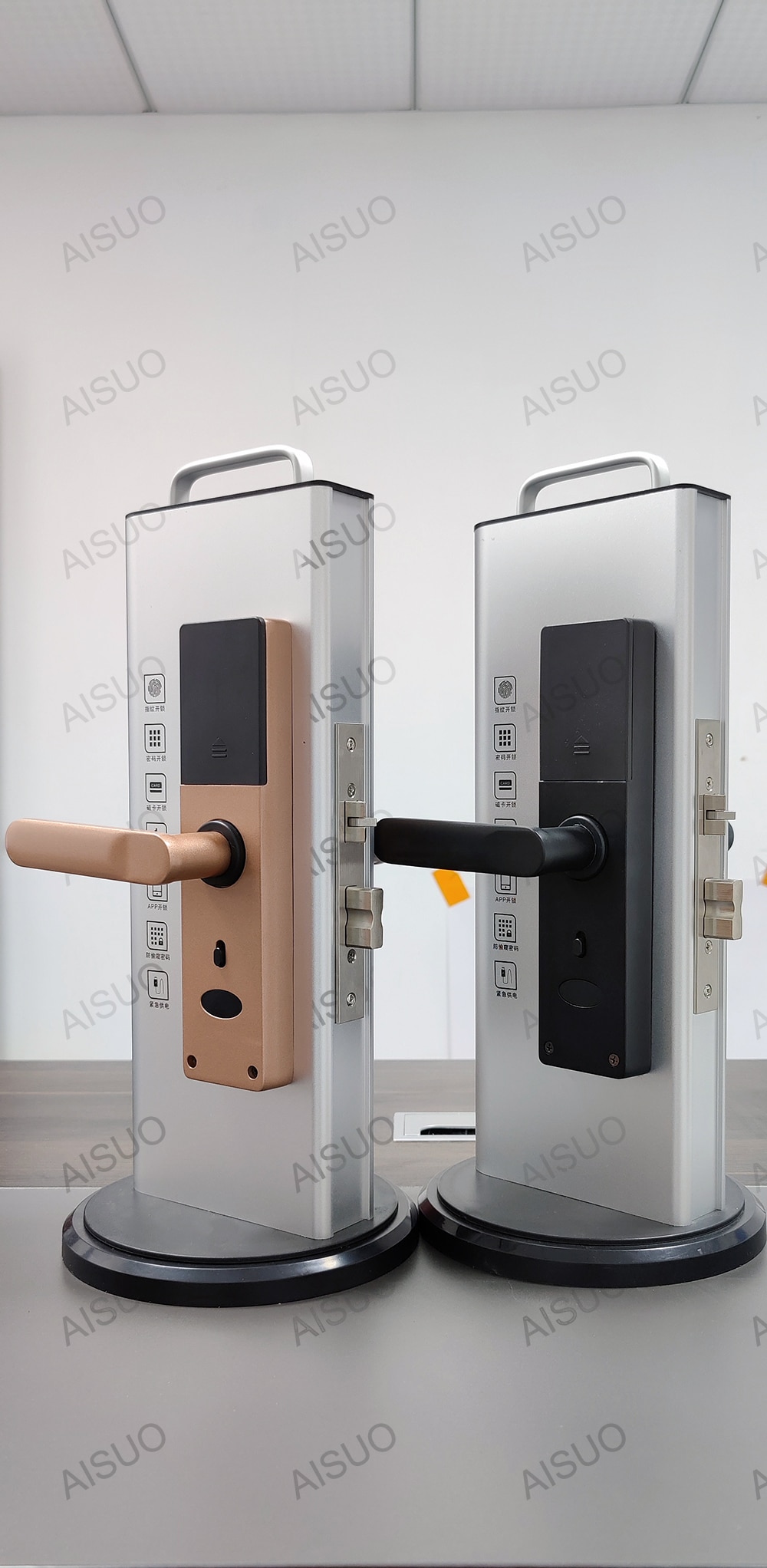

Product Physical Picture

About Logistics

The logistics size is 35*16*13cm², and the weight is 1.7KG-1.96KG. If you choose Hogaki, it can be shipped within one hour. If it is international express, the express company needs 1-2 days to generate the express tracking number. Please note that the declared amount is usually the declared amount commonly used in the destination country. Sellers can only do their best to help buyers, but the probability of success is not 100%. Product prices do not include any taxes, and additional fees are not related to the merchant. Sellers can only help recipients as much as possible. If you are an enterprise user, when facing wholesale orders, we have a duty-free special line, you can choose air/sea shipping, the price is extremely low, if you have any questions or requirements, please contact customer service, thank you





  • Brand Name: AISUO
  • Origin: Mainland China
  • Ways To Unlock: APP,Mechanical Keys,Finger Vein Recognition,Card,WiFi,Other,Password,Fingerprint
  • Material: aluminium alloy
  • Model Number: M4
  • Power Supply: Dry Battery
  • Suitable Door Type: Steel Door,Wooden Door,Brass Door,Stainless Stell Door,Other
  • Connectivity: WiFi
  • Suitable for Mortise: 5050
  • Certification: CE,RoHS
  • Doorknob Funcition: Biometric,Key & Keypad
  • Finish Type: Polished
  • Handle Direction: Direction Reversible
  • Protection Level: No Waterproof
  • Smart home platform: Other,Tuya
  • Fit Door Thickness: 35-55
  • Color: Black Red Bronze
  • Size: 35*16*13
  • Weight: 1.96kg
