H.265/H.264 video encoder and decoder HDMI to IP and IP to HDMI and USB Camera to IP
0.0 ( votes) | 2 orders
Price:
US $
280.82
/ piece
- Ships From
Sorry! This item is out of stock

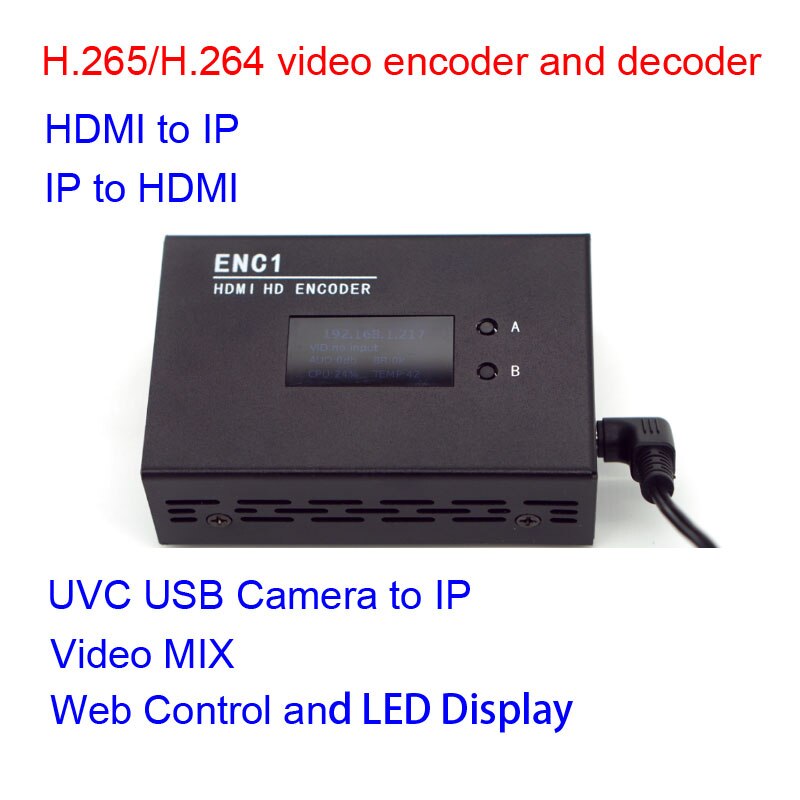

H.265/H.264 video encoder and decoder HDMI to IP & IP to HDMI & USB Camera to IP
Features:
1) HDMI to IP video encoder
-- CEL-BI503 high-definition encoder supports 1080P@60fps input, which is mainly used for embedded hardware devices for high-definition video and audio signal encoding and network transmission.
-- CEL-BI503 has built-in self-developed full frame rate de-interlacing technology (such as 1080i @ 60 input, 1080p @ 60 after de-interlacing, not 1080P @ 30, which is especially important for football live and game live).
-- CEL-BI503 supports video encoding format H.264 And H.265, the supported audio encoding formats are AAC, MP3, PCMA, etc.
-- CEL-BI503 supports HTTP, HLS, RTSP, RTMP push streaming, RTMP pull streaming, UDP, Multicast and other network protocols, and all network streams can be enabled at the same time on the same channel.
2) IP to HDMI video decoder
CEL-BI503 supports foreign network streaming and local video and audio files (such as U disk) for transcoding and streaming.
3) USB camera to IP video encoder
CEL-BI503 supports USB UVC cameras. In the future, external USB UVC cameras can be added for encoding, storage and live broadcasting.
4) Video MIX funciton
CEL-BI503 supports multi-input source splicing output (such as 9-square grid, 2 + 1 picture, picture-in-picture, etc.).
The main parameters of the processor are as follows:
CEL-BI503 uses Huawei's HiSilicon chip: Hi3520DV400 Processor core
ARM Cortex A9 dual-core@1.4GHz
32KB L1 I-Cache, 32KB L1 D-Cache
256KB L2 Cache
Support NEON / FPU
Multi-protocol video codec
H.265 Main Profile, Level 5.0 encoding
H.265 Main Profile, Level 5.1 decoding
H.264 Baseline / Main / High Profile, Level 5.1 encoding
H.264 Baseline / Main / High Profile, Level 5.2 decoding
MPEG-4 SP, L0 ~ L3 / ASP L0 ~ L5 decoding
MJPEG / JPEG Baseline codec
Video codec processing
H.265 / H.264 & JPEG multi-stream codec performance:
8x1080p @ 30fps H.265 / H.264 encoding + 8xD1 @ 30fps H.265 / H.264 encoding +
8x1080p @ 30fps H.265 / H.264 decoding + 8x1080p @ 2fps JPEG encoding
16x720p @ 30fps H.265 / H.264 encoding + 16xD1 @ 30fps H.265 / H.264 encoding +
16x720p @ 30fps H.265 / H.264 decoding + 16x720p @ 2fps JPEG encoding
32x960H @ 30fps H.265 / H.264 encoding + 32xCIF @ 30fps H.265 / H.264 encoding +
16x960H @ 30fps H.265 / H.264 decoding + 32x960H @ 2fps JPEG encoding
Support CBR / VBR / AVBR / FIXQP / QPMAP five rate control modes
The output code rate is up to 40Mbps

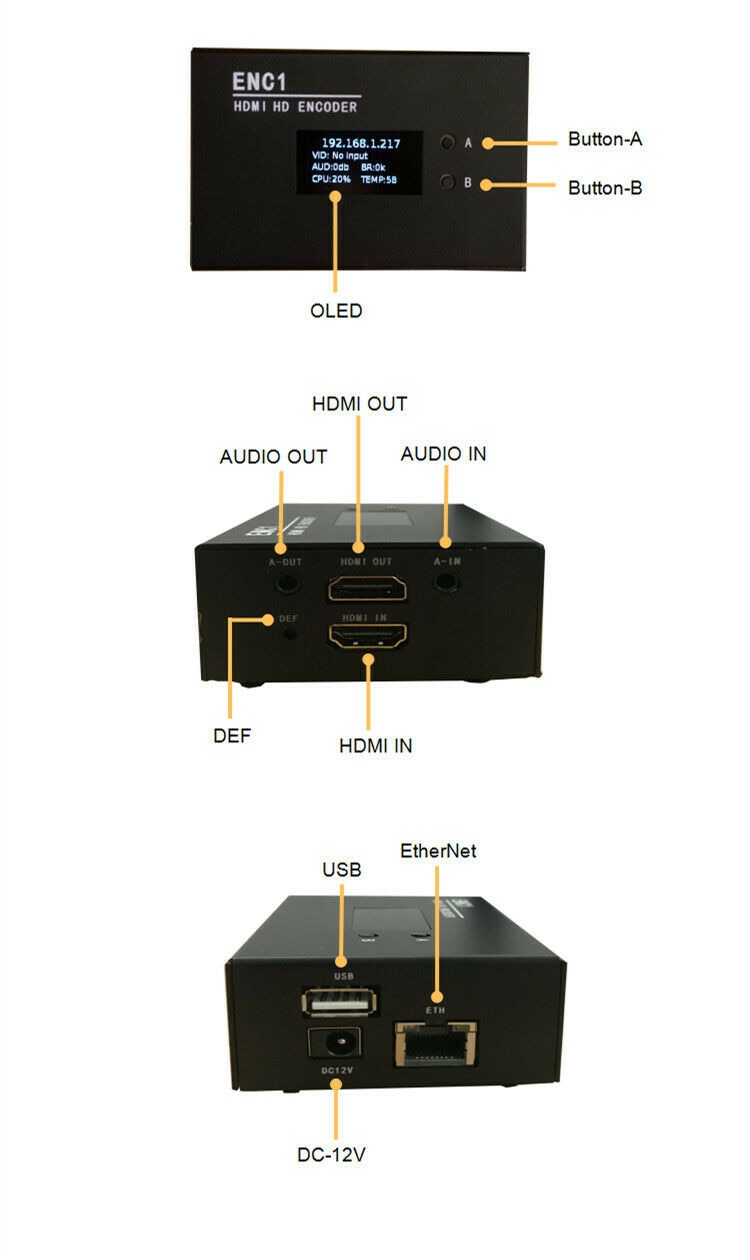

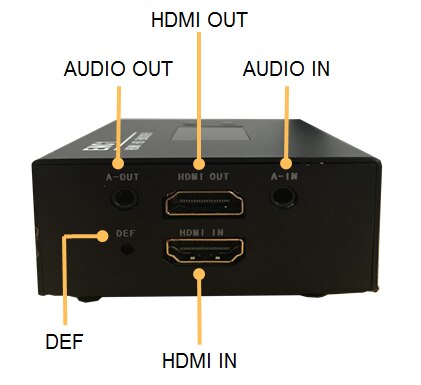

Interface:
Web Control Interface

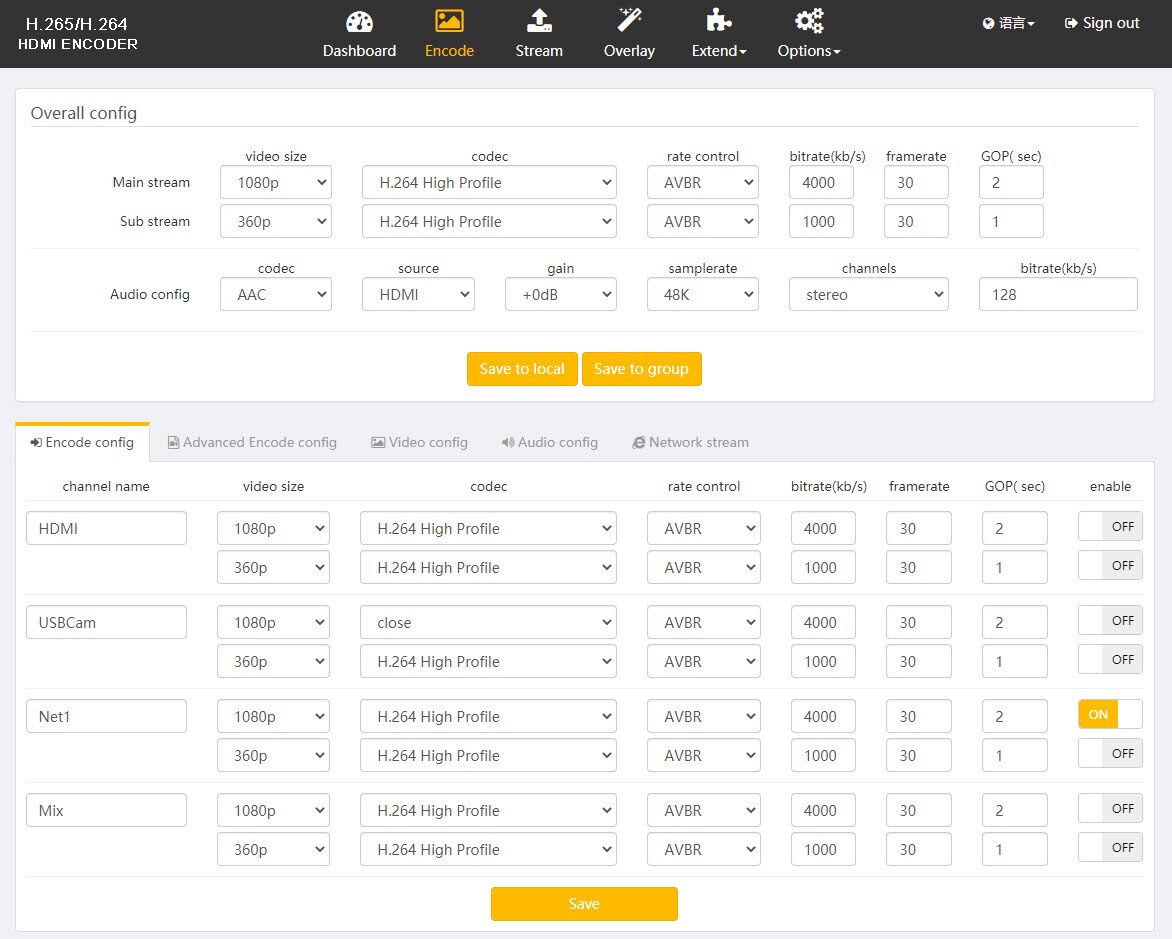

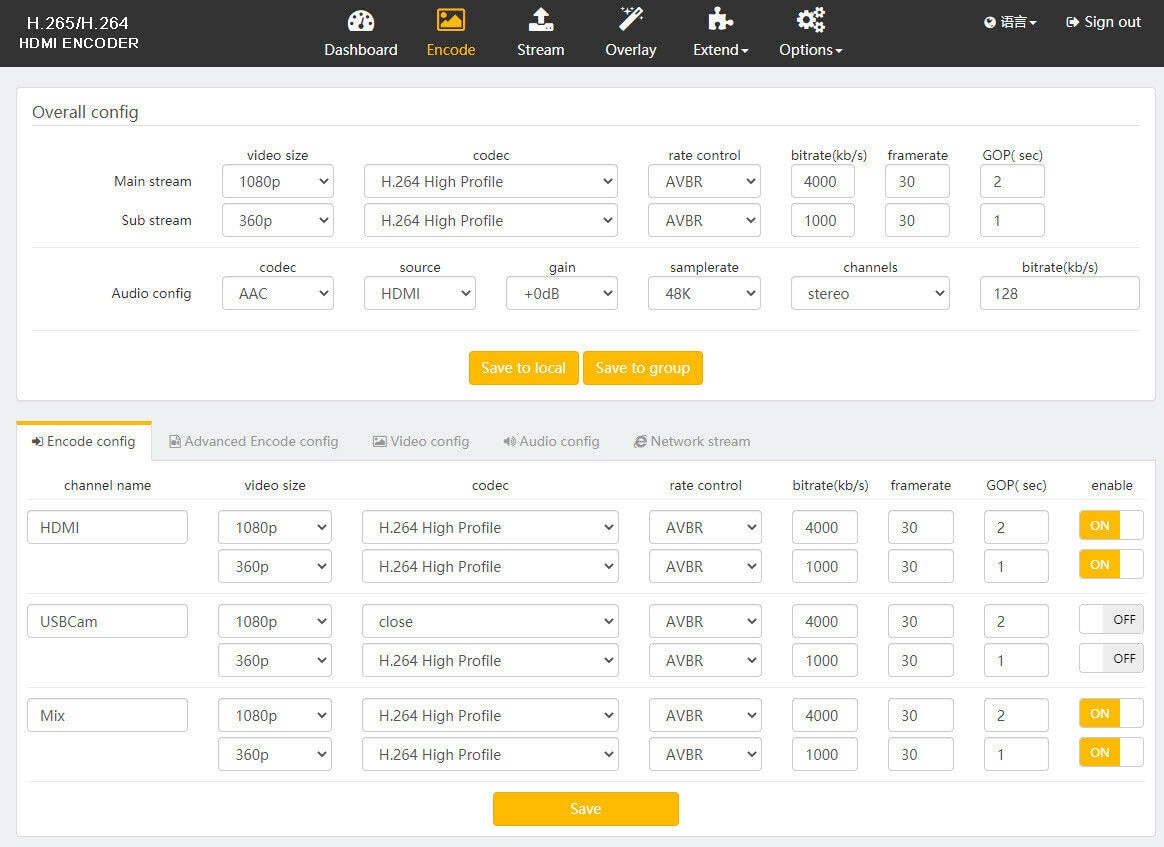

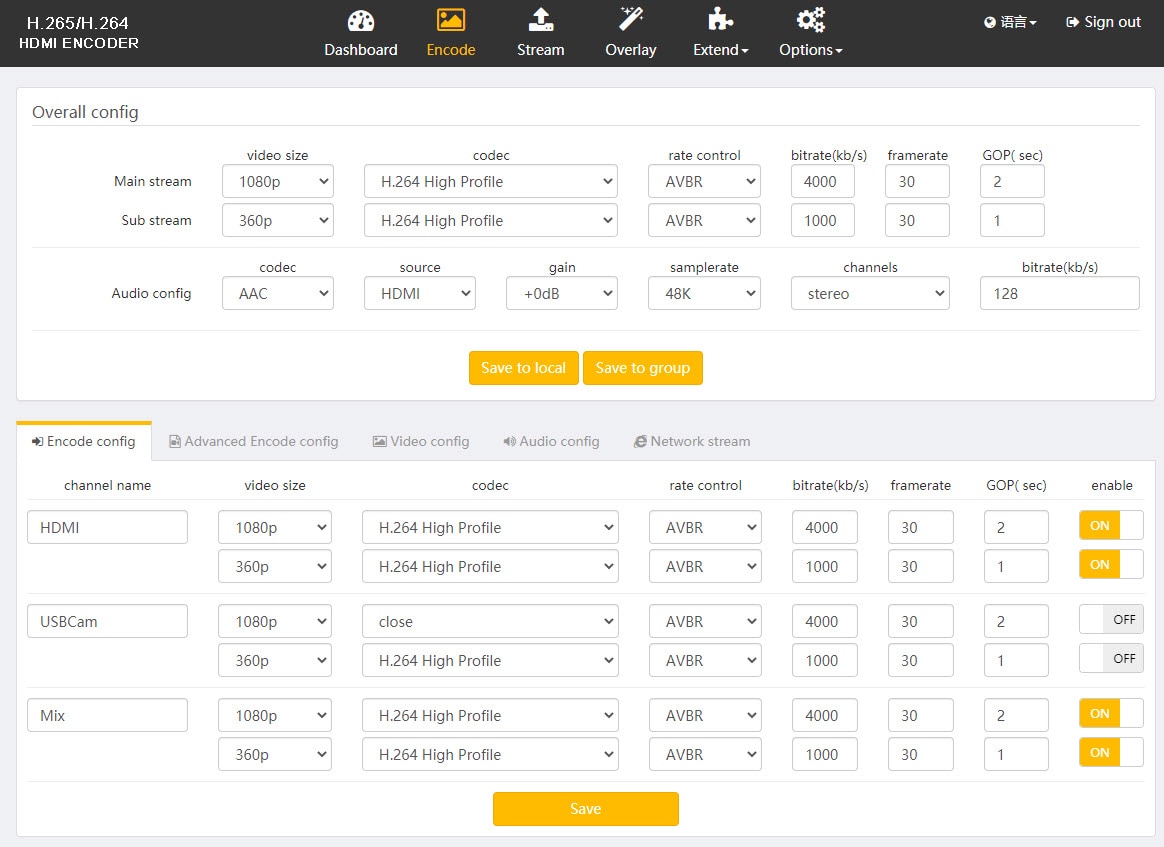

HDMI to IP configuration

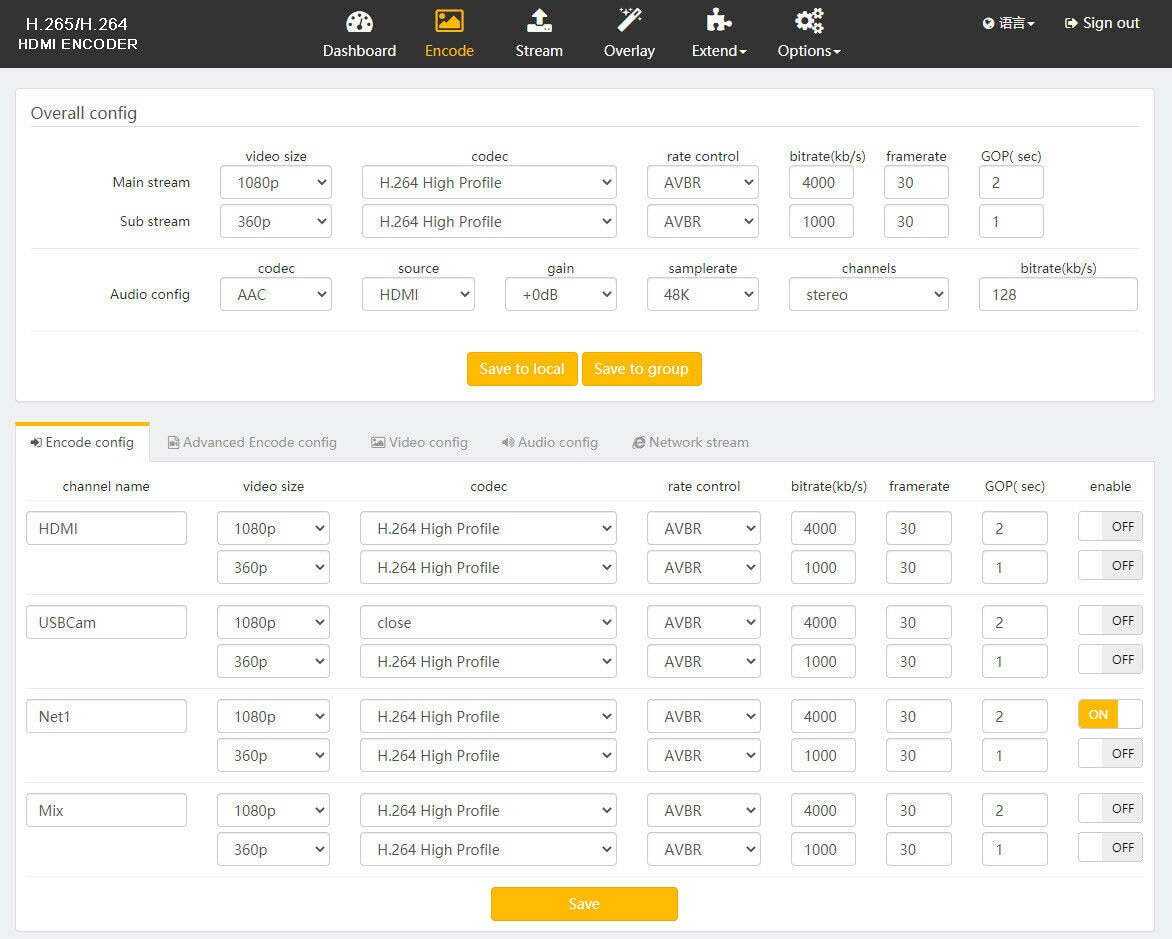

IP to HDMI configuration

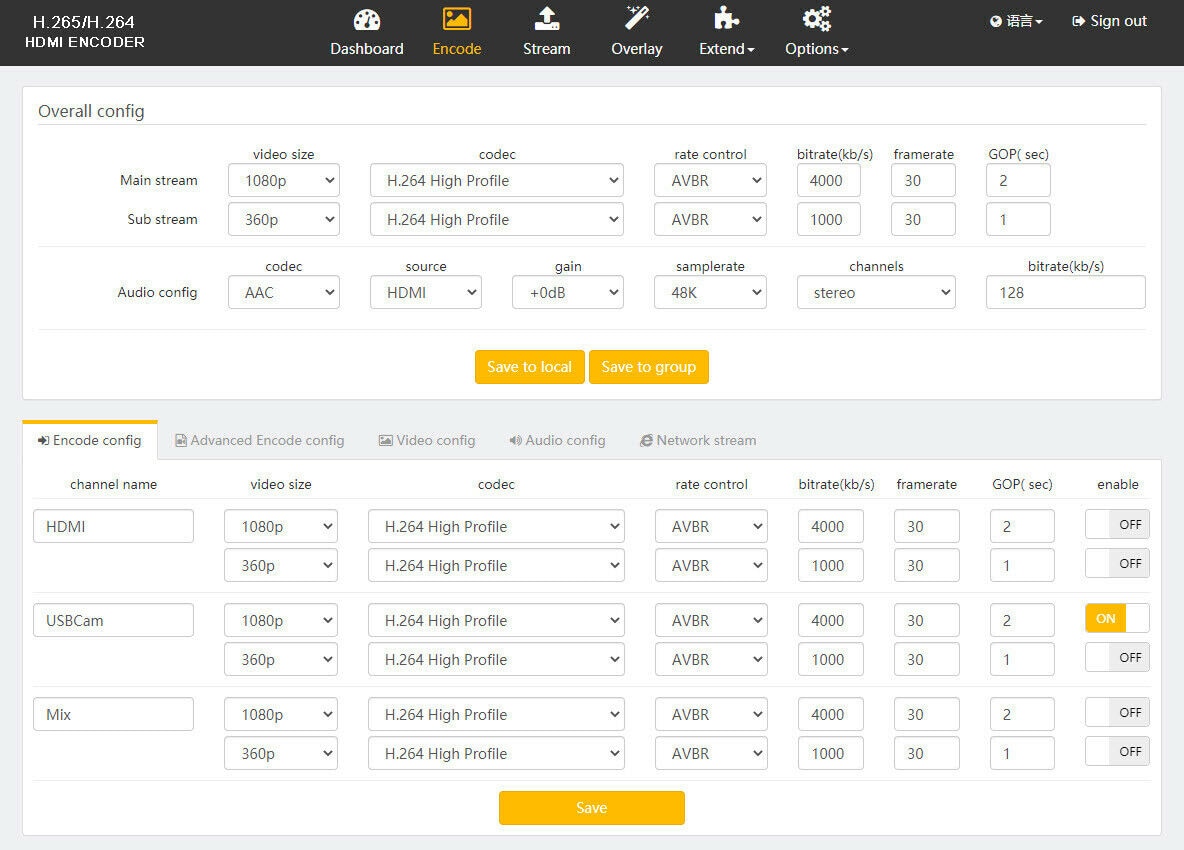

USB camera to IP configuration

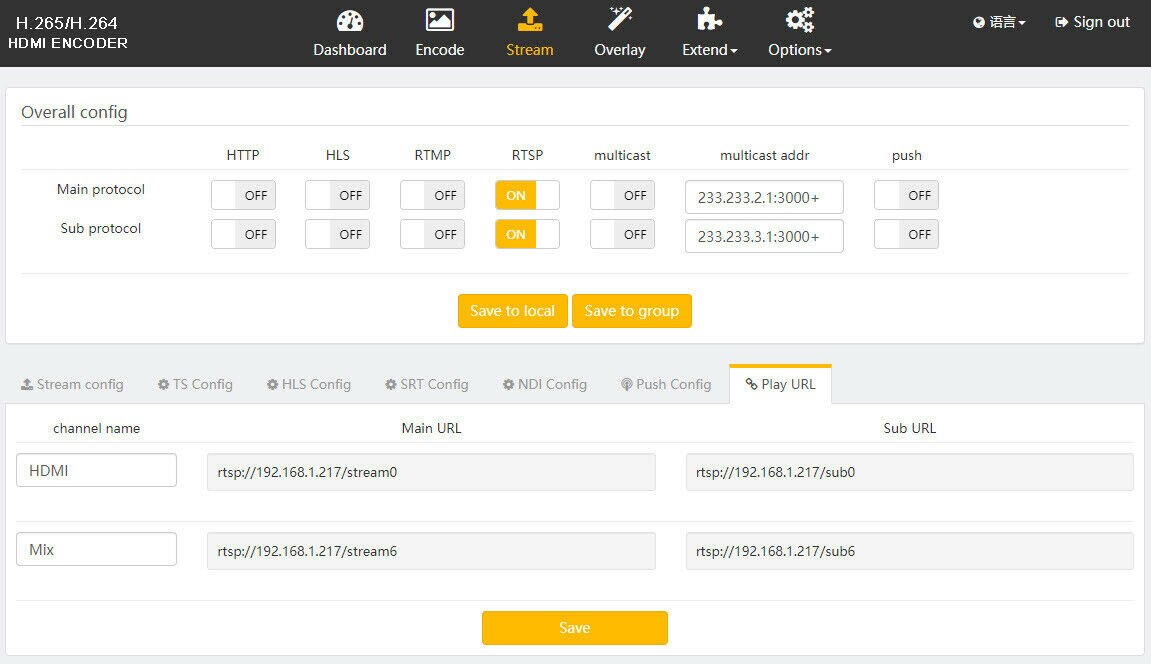

Stream Configuration

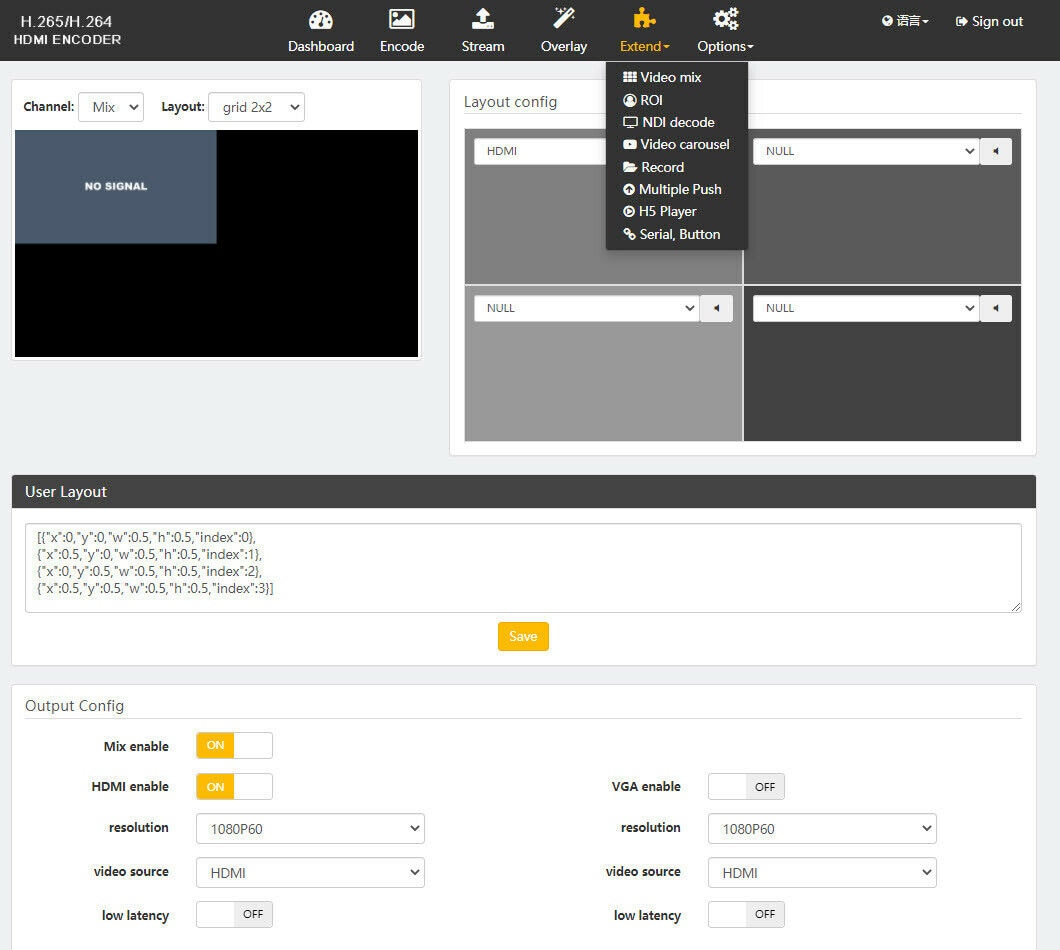

Video MIX confiuration
Status

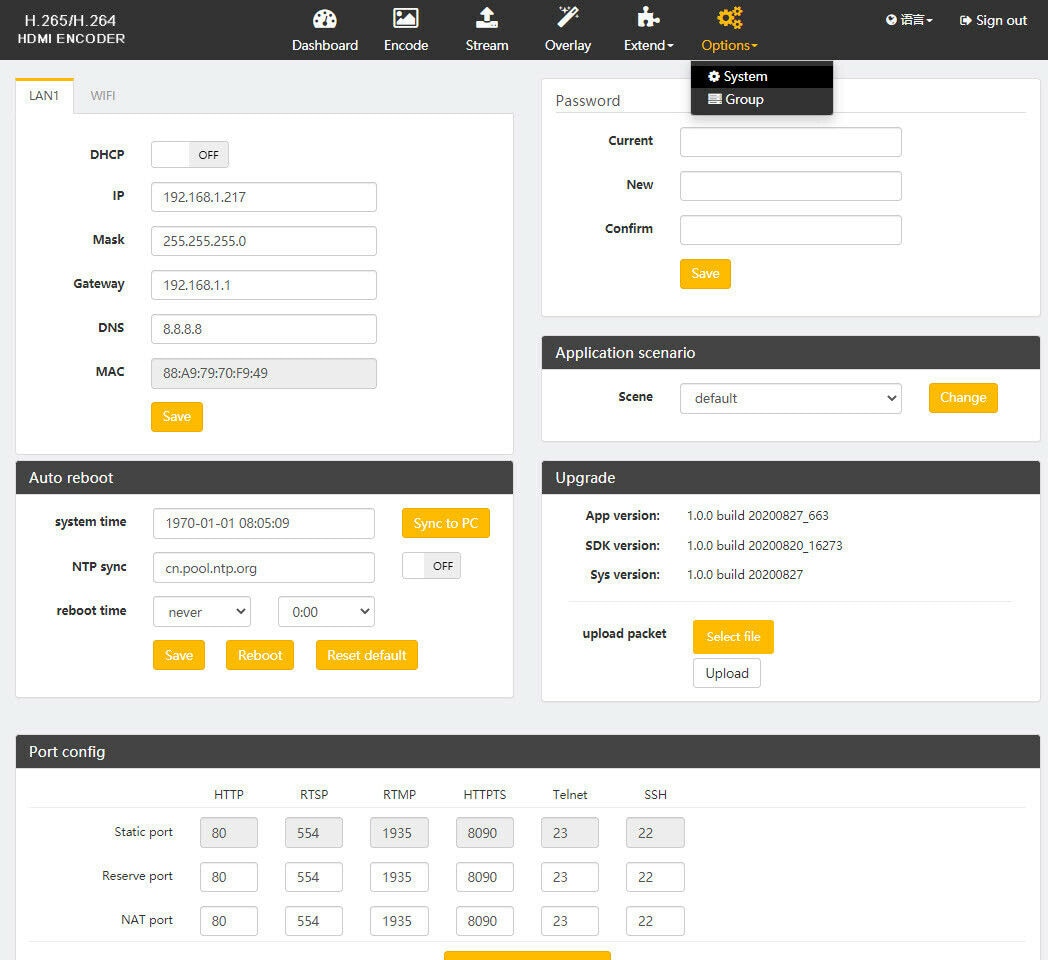

System Configuration
- Brand Name: VBCTECHNOLOGY
- Origin: Mainland China
- Certification: NONE
- Model Number: CEL-BI503
