RFID Kit RC522 Reader Chip Card NFC Reader Sensor Module Key Ring Standard S50 Blank Card/Shaped Card Curved /Straight Row Pin
11.06 10.51 $
SALE
ID: 98550
Quantity
Premium RFID Reader Writer Duplicator, NFC Copier, Smart Card Programmer,125KHz 13.56MHz Decoder, T5577 UID Key Fobs Cards, USB
4.9 (40 votes) | 45 orders
Price:
US $16.58 - 45.58
/ piece
Discount Price:
US $
11.60 -
31.90
/ piece
-30%
- Color
-
-
Before Ordering, You Must Know These Issues:
①Our products have different purchasing options, among which the low price option
ONLY includes the keys cards and does NOT include any card reader device.
If you choose the card reader only, there would be NO any keys cards included.
Please check carefully before placing an order.
②If you choose the option of "card reader + 5 keys + 5 cards", then the white card is
used to copy 125KHz cards, the blue key is used to copy 13.56MHz mifare IC cards,
and the keys cards of the two frequencies cannot be mixed when writing data.
The blue keys and white cards we provide are BLANK and have no data, so reading
directly would fail.
③The software of the card reader is stored inside the machine and can be downloaded
by connecting it to a computer.
If you can’t find it or can’t use the software, please ask us for the software link directly.
RFID Reader Writer Copier / 125KHz Key Fob Cards Duplicator / 13.56MHz
Encrypted Card Decoder with USB
Product Features
【Working frequency】 125KHz / 13.56 MHz, supports IC / ID dual frequency replication.
【LED Warning Light / Buzzer】 The LED reminder light is red in standby mode, the green light is in card reading status, and a built-in buzzer is provided for convenient and effective reminders.
【Lightweight and easy to use】 ABS flame retardant material shell, small size and thin, high-quality microchip control inside, fast card reading effect.
【Efficient high-speed USB】 1.2 meters length USB transmission line connected to the device, respond immediately, no need to install a driver, quickly read the card number.
【Obtain the software】 When you connect this product to a computer, you can find the software on the computer. You can also download the software through the following link: http://www.nsccn.com/download/soft/nfc/nfcPro_wbw.exe
【NOTE】Our device mainly used for access control, the applicability of our reader is limited, it cannot match all types of FRID cards. Please read our product description carefully. If your card is not the type listed by us, or if you don’t know the type of your card, please feel free to consult us before ordering. Thanks!
RFID Duplicator Fob Copier Access Control ReaderNFCReader125KHzReaderRFID ID Card Writer EM4305 Duplicator T5577 Card CopierEM4100ReaderTK4100CardReader 13.56MHz Writer
Product Parameters
Dimensions: 108 (L) X 68 (W) X 12 mm (H)
Interface: USB full speed
Working Voltage: 5 V DC
Working current: 200mA
Standby current: 50mA
Normal current: 100mA
Working frequency: 125KHz / 13.56 MHz

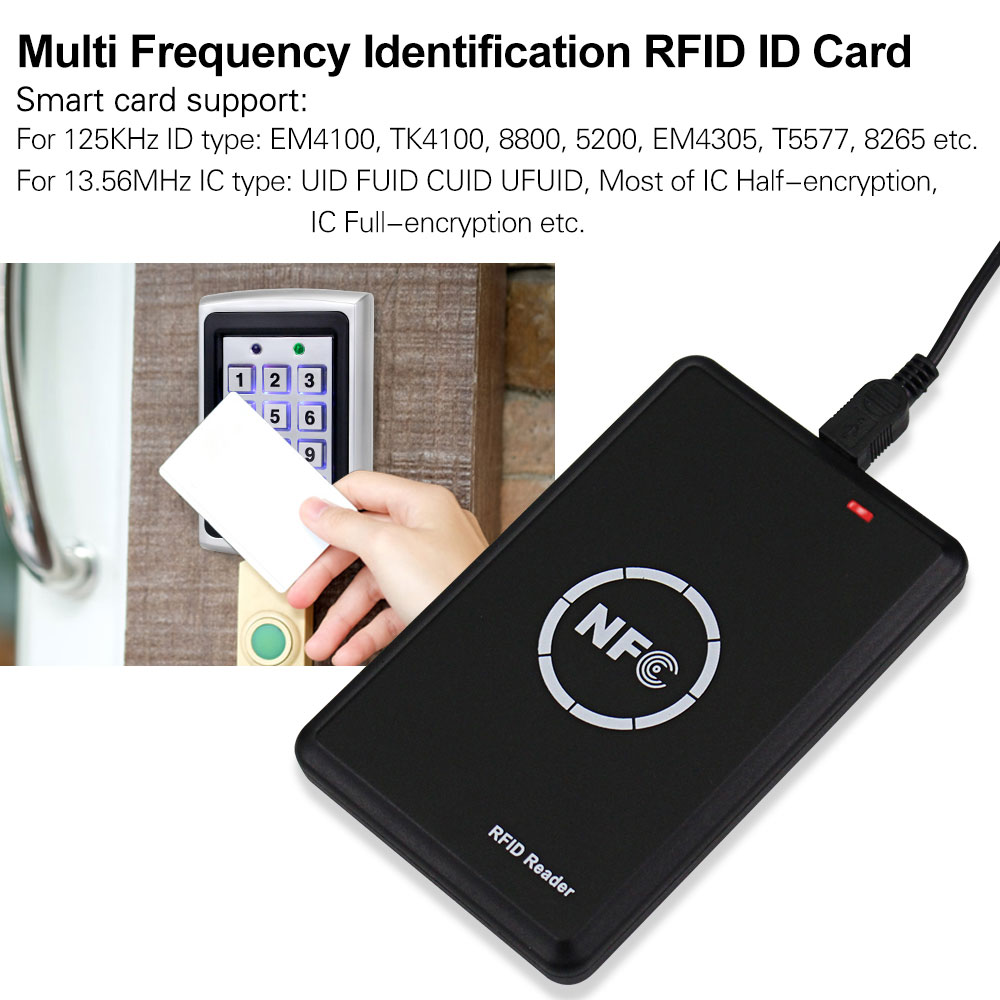

Smart card support: for 125KHz ID type: EM4100, TK4100, 8800, 5200, EM4305, T5577, 8265 etc.
For 13.56MHz IC type: UID FUID CUID UFUID, Most of IC Half-encryption, IC Full-encryption etc.
Supported operating systems: SupportWindows computer. Not support Linux, Mac.
How to use the card reader?

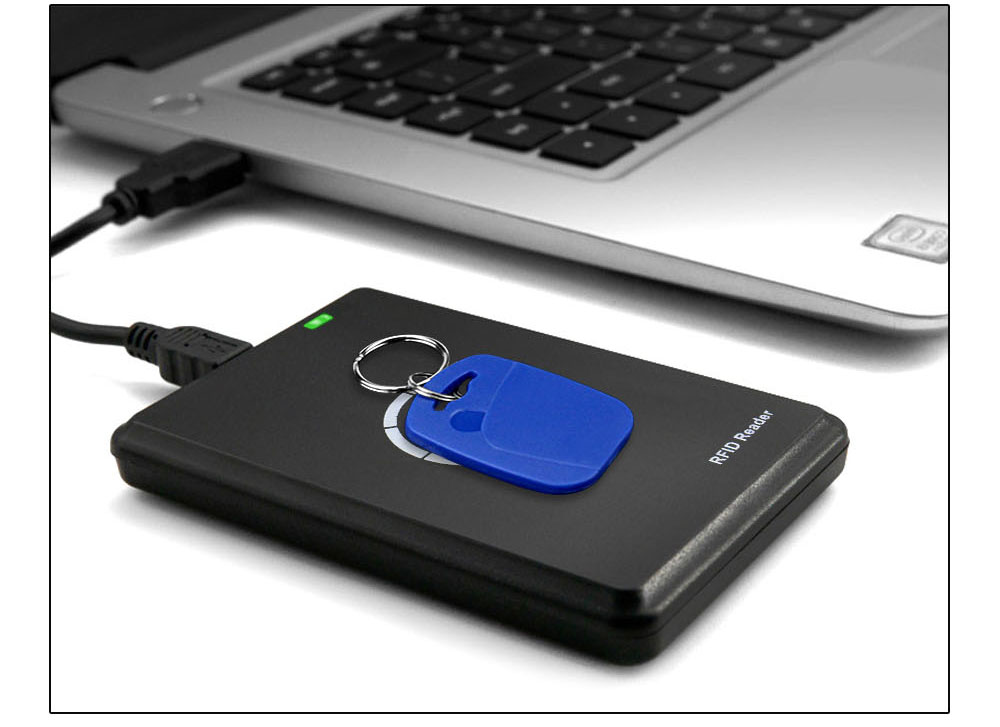

1) Connect the device to your computer with the USB cable.
2) Then the software would display on your desktop, open the software. Put the RFID card into the card reading area of this card reader, and then you can read or scan it on your computer.
3) If you can not find the software when you connect this device to the computer, you can download this software via this link: http://www.nsccn.com/download/soft/nfc/nfcPro_wbw.exe
Read and write ordinary 125KHz RFID card.
1. Put the card into the reading area and press "Read" on the software to scan the card.
2. The software will scan and display the card number. Then take the card away.
3. Put a writable T5577/EM4305 (125KHz writable chip) into the card reading area and press "Write" on the software.
4. The message would be write into the new card.
Read and write 13.56MHz IC, IC half encryption card, IC full encryption card.
1. Put the card into the card reading area and press "Card number" or "Start decoding" on the software.
2. Place a writable UID (13.56MHz writable chip) into the card reading area and press "Write Card" on the software.
Product Description

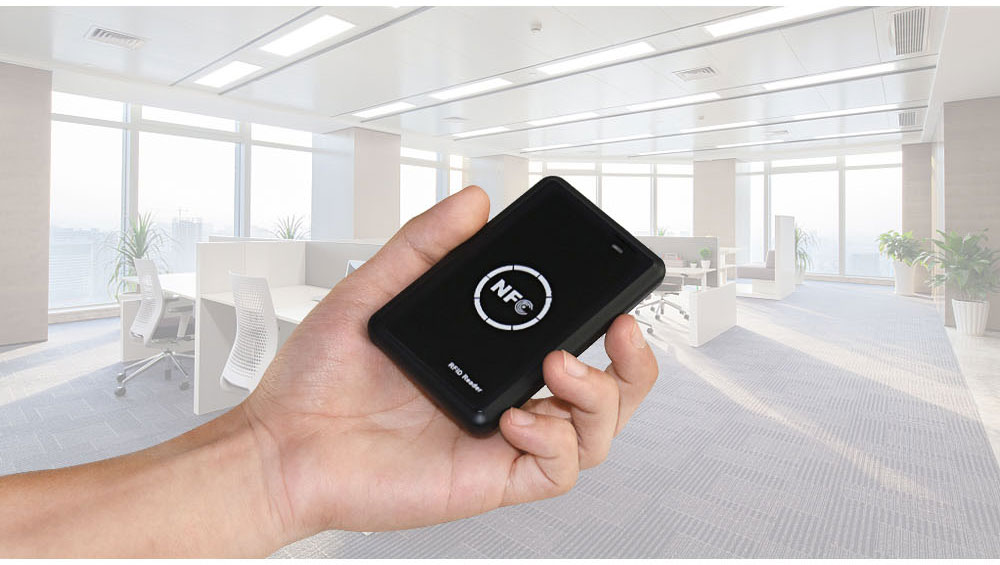

Smaller Than Your Smart Phone, Take It Anywhere
ABS flame-retardant material, small and light, the interior is controlled by high-quality microchip, and the card reading effect is marvelous.

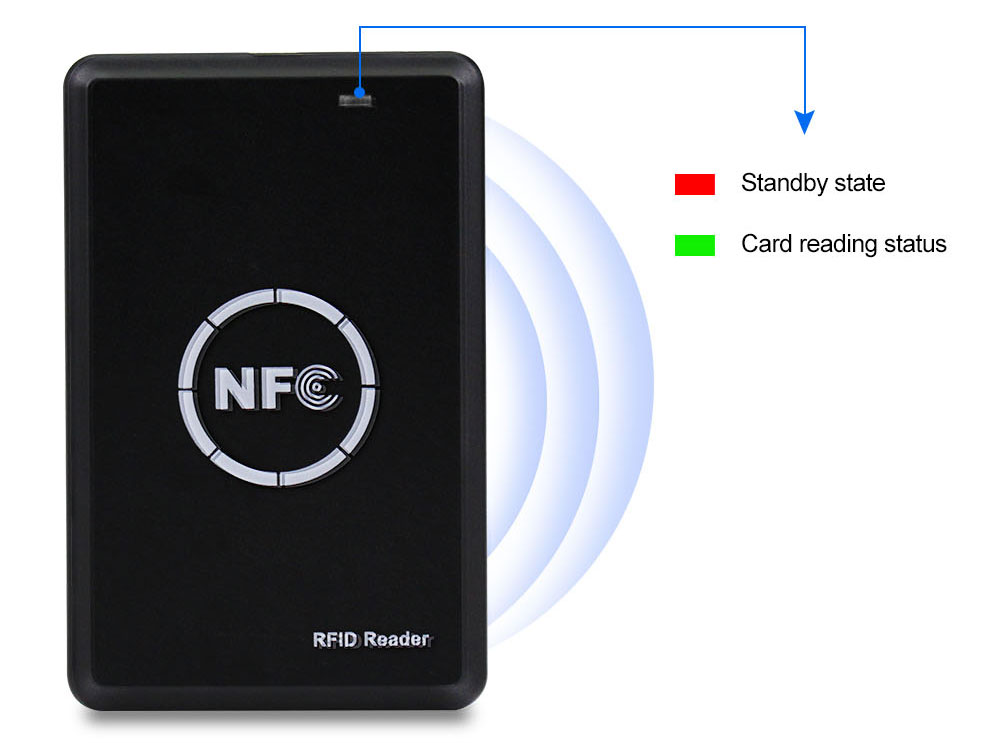

Intelligent LED Indicator Light & Buzzer
The LED indicator light is red under standby mode, and it's green under the card reading status.
Built-in buzzer, very convenient for effective prompts.

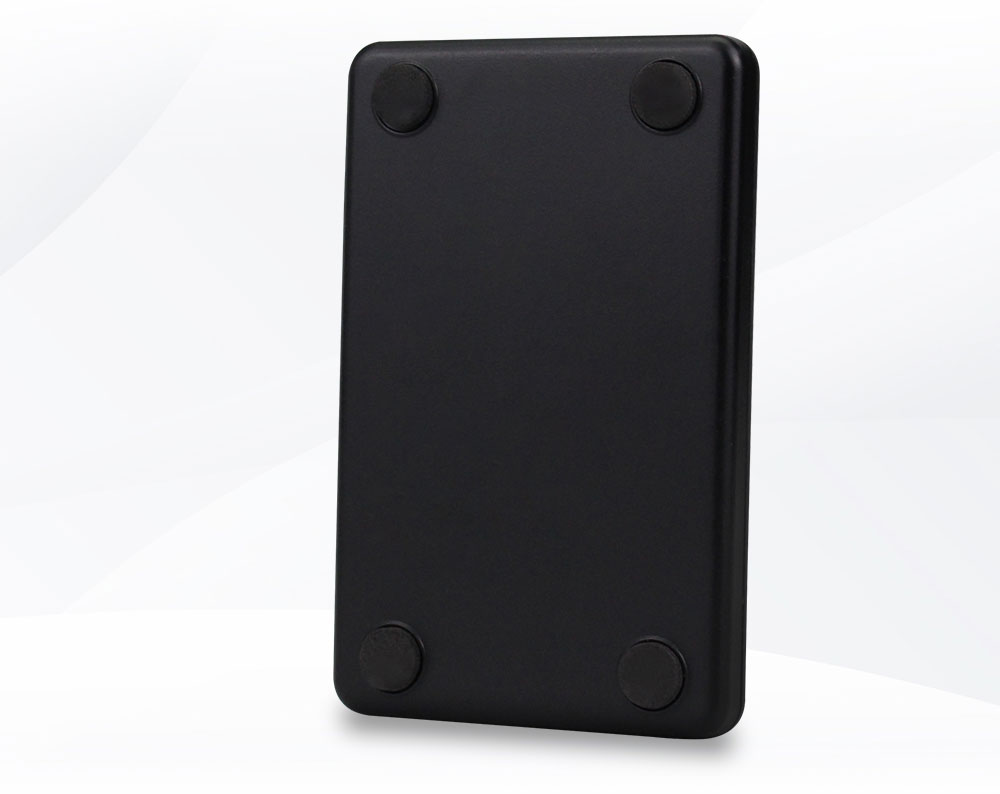

Anti-Slip Mat
The bottom is made of a sponge mat, and the inside of the sponge is a removable screw.
USB Full Speed Accessory
1.2m(4ft) long USB transmission cable, fast response. No need to install the driver, quickly read the card number

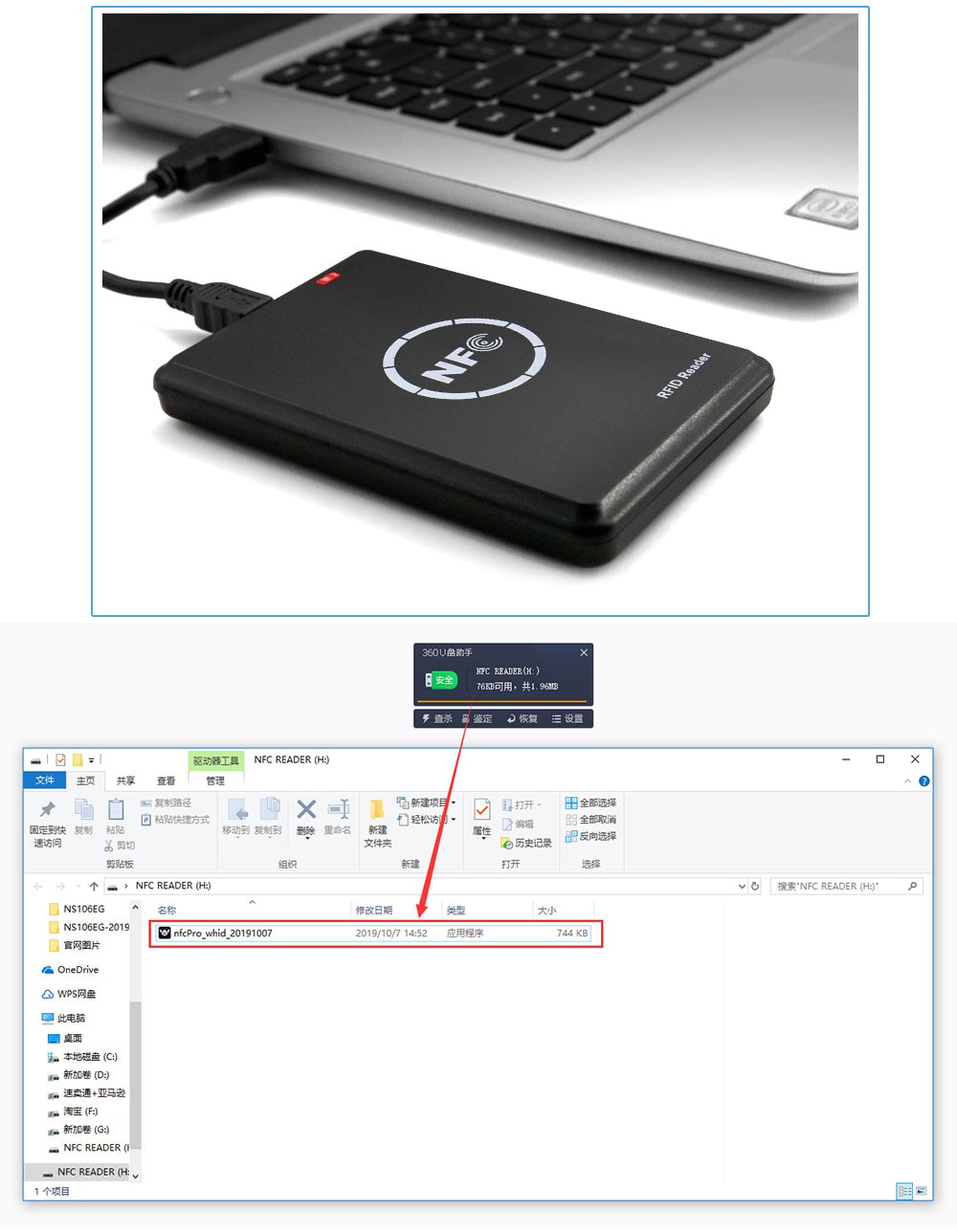

Built-in Mobile Disk with Software
Connect the RFID reader to your computer with the USB cable, then the software would come out on your desktop.
Frequently Asked Questions
1) Where can i download the software?
Answer: You can download the software via this link: http://www.nsccn.com/download/soft/nfc/nfcPro_wbw.exe

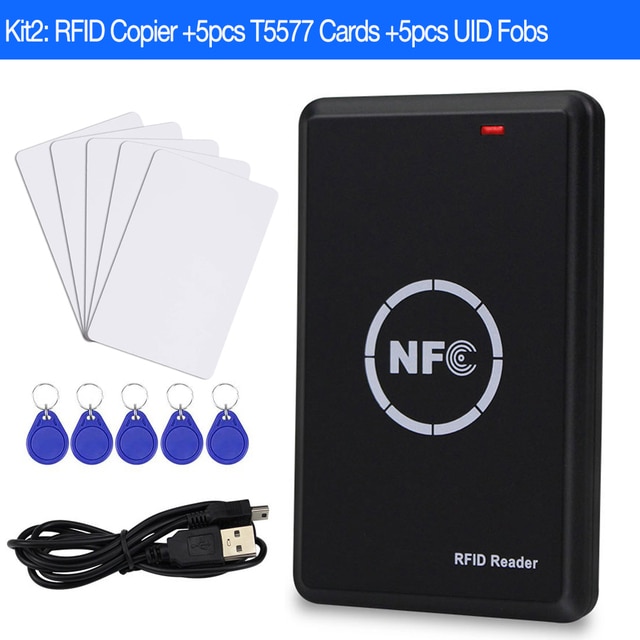

2) Which chip inside in the 5pcs blue keyfobs and 5pcs white cards?
Answer: If you buy the RFID copier + 5pcs UID keyfobs + 5pcs T5577 cards. The 5pcs UID keyfobs is working with 13.56MHz frequency, used to copy the mi-fare 1k card. The 5pcs T5577 cards is working with 125KHz frequency, used to copy the EM4100, TK4100 cards. They are different type card.
3) Why the 5pcs cards in package read failure?
Answer: Please don't worry, these 5pcs white cards is T5577 (EM4305) type, they haven no data before write. They will can be read successfully after finished written from your TK4100 or EM4100 type card. Thank you.
- Model Number: NS106 RFID Programmer
- Brand Name: YiToo
- Origin: Mainland China
- Certification: CE
- Working Frequency: 125KHz, 13.56MHz
- Support Working Mode: RFID Card Reading/ Writing/ Duplicating/ Decoding/ Encrypted Card Cracking
- Support Card Type: RFID 125KHz 13.56MHz, NFC/ID/IC/UID/EM/T5577/HID, etc.
- Working Method: Connect to the Computer via USB Cable
- Size: 108*68*12 mm (L/W/H)
- Material: ABS High Quality
- Mode 1: RFID Writer
- Mode 2: access card writer
- Mode 3: Smart Card Programmer
- Mode 4: RFID Reader USB
- Mode 5: door card duplicator
