8 In 16 Out Composite CVBS BNC Video Distributor 8CH Input 16CH Analog CCTV Security Camera Signal Amplifier Video Splitter
5.0 (1 votes) | 2 orders
Price:
US $
74.47
/ piece

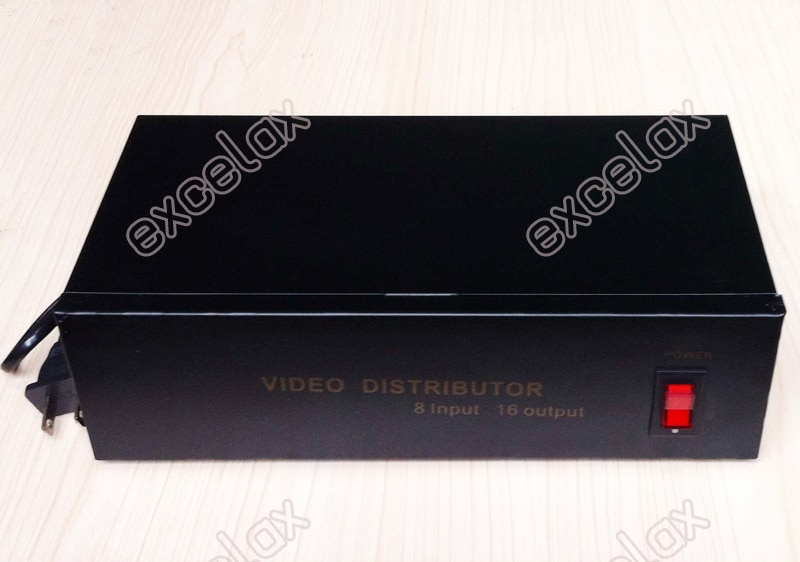

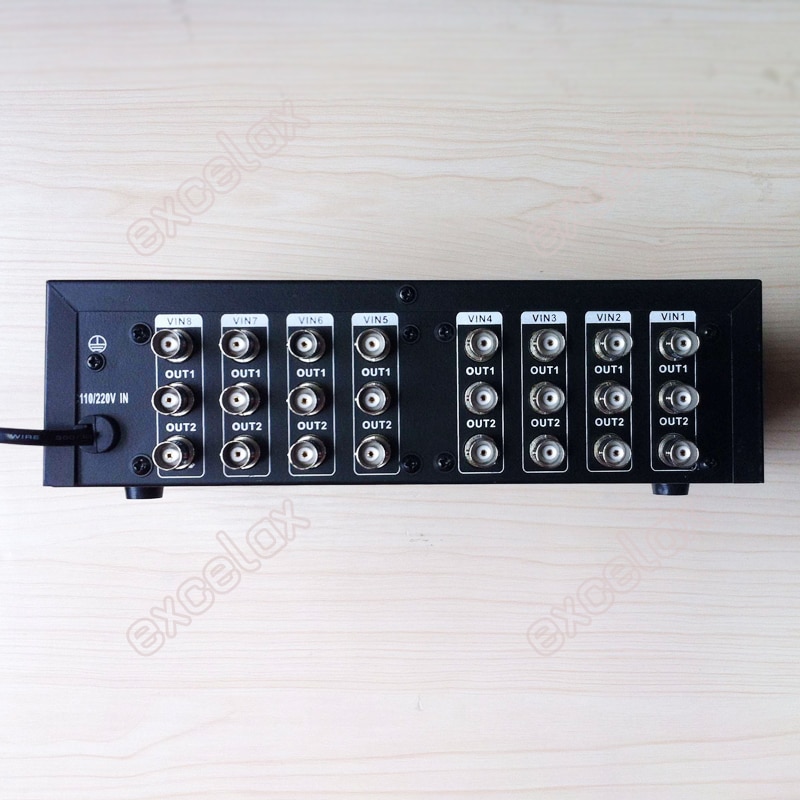

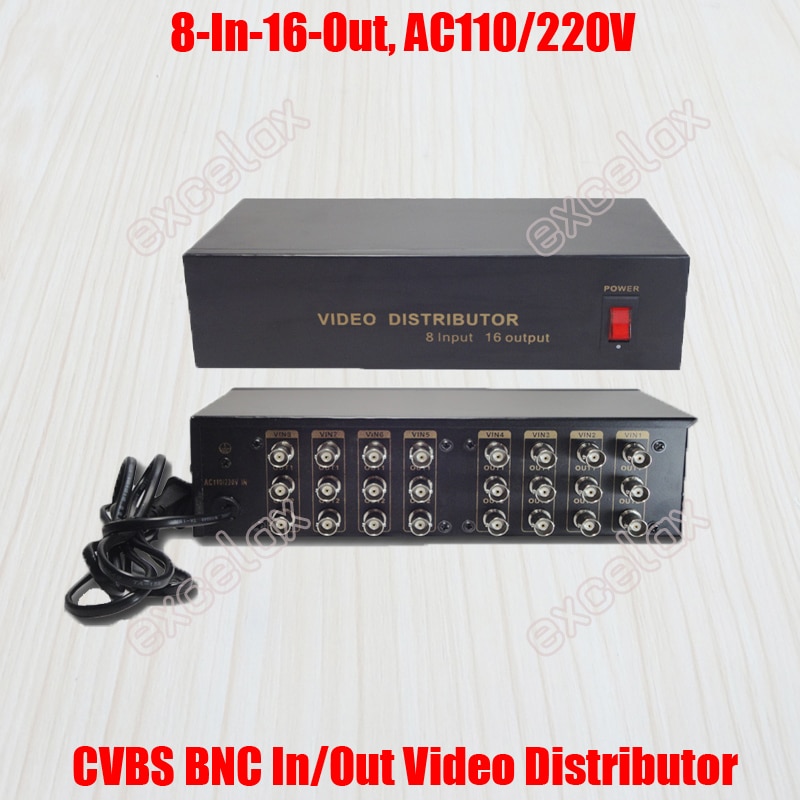

8-Channel Input 16-Channel Output CVBS BNC Video Distributor
Notice:
1. The video distributor supports CVBS analog camera input only, NOT for AHD/TVI/CVI camera use.
2. There are 2 versions to be sent subject to stock availability without prior confirmation.
Product Description:
- The video distributor can divide 1 channel video input signal into multi-channel video output signals, or divide 1 channel video input signal into 2 channels video output signals.
- Adopt special video operational amplifier, when the video signal are divided, it can realize definite phase correction and
correct the phase distortion on the video transmission cable to a certain extent.
- The video distributor is a video matching device suitable for entertainment, electrified education, CCTV systems, etc.
Basic Functions:
- High fidelity circuit and high precision components to achieve almost 0dB loss of signal restoration;
- Lightning-proof design can effectively isolate the interfering signal which intrudes through video cable;
- When the video signal is divided, this can realize definite phase correction and correct the phase distortion on the video transmission cable to a certain extent;
- Easy to install. Elegant design.
- Each channel is with a separate IC for signal amplification and dividing into 2 channels
- Video signal regulation technology for dependable video/image
- Adopt the latest surface mount technology (SMT), without signal compression and delay
- Output distance 200~300m without loss
Specifications:
Model | SK-VD0816 (8-channel input, 16-channel output) |
Interface Mode | BNC |
Video Gain | 6dB |
Frequency Bandwidth | 10~15MHz (±0.3dB) |
Input/Output | 1.0Vp-p Composite Video Input/Output (75Ω/BNC) |
S/N Ratio | >60dB |
Transmission Range | 200~300m |
Power Supply | AC110V / AC 220V ±10% (Default US/CN type power plug only) |
Power Consumption | Max. 3W |
Working Temperature | -10 ~ 55°C |
Humidity | 15%~90%RH (Non-condensing) |
Product Dimension | 240(L)x130(W)x70(H)mm |
Weight | 1.2kg |
Package Content:
1* CVBS Video Distributor
- Model Number: SK-VD0816
- Brand Name: SankiView
- Origin: Mainland China
- Certification: NONE
- Input: CVBS
