GM65 1D 2D Barcode Scanner USB UART PDF417 Bar Code Reader QR Code Module CMOS With Cable For Bus Supermarket Hospital

4.5 (2 votes) | 15 orders
Price: US $77.33 / piece
Discount Price:
US $ 69.35 / piece
-10%
Quantity



















GM65 Features:


1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.


2. High-efficiency recognization and high upload speed for improving your working efficiency.


3. With buzzer for reminding you that the scanning successfully or not.


4. Compatible with USB and UART interface.


5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8. Superior reading performance utilizing advanced decoding algorithms




GM65 Parameters:

Parameter

Performance

Sensor

CMOS

Scan Mode

640*480

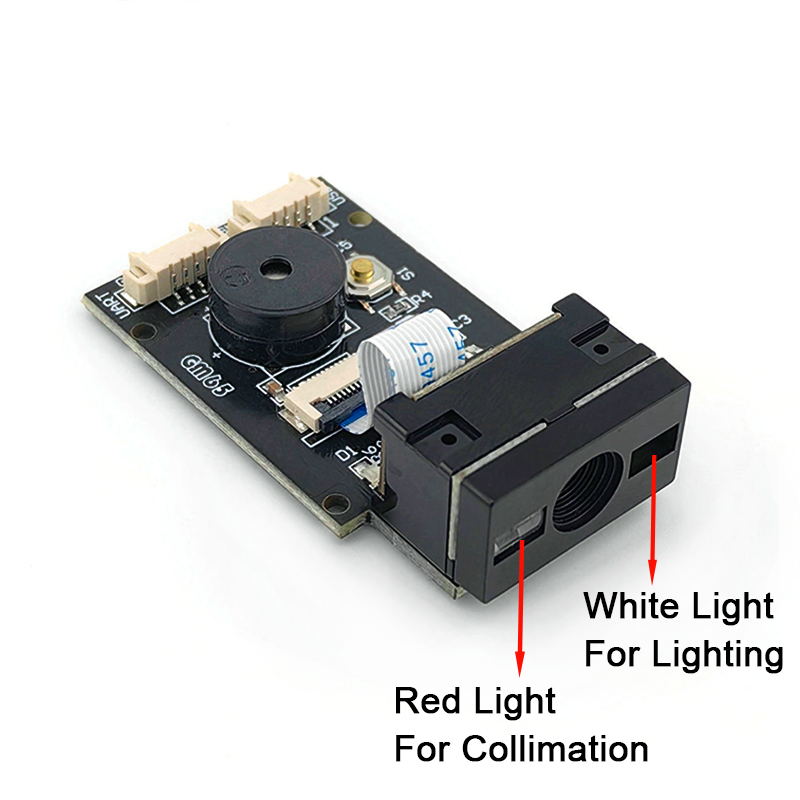

Lighting

White LED

Collimation Light

Red LED


Read Code Type

1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128,

Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,

Matrix2of5, Code 39,Code11, MSI-Plessey,

GS1 Composite,GS1-Databar (RSS)


2D: QRCode, DataMatrix, PDF417, Micro QR, Micro PDF417, Aztec

Contrast*

>25%

Scan Angle**

Roll:360°Pitch:65°Yaw:65°

Viewing Angle

67°(Horizontal)53°(Vertical)

Accuracy of reading*

≥10mil




Mechanical/electrical Parameters:

Parameter

Performance

Interface

TTL-232/USB

Size(mm)

46 * 27.5 * 13.5mm

Weight

8.5g

Prompting mode

Buzzer, LED Indicator

OperatingVoltage

5V

Operation Current

70mA(Max)

Standby Current

≤6mA(Typical)

Startup time

≤250mS (Typical)



Environmental Parameters:

Parameter

Performance

Operatingtemperature

-20℃~+60℃

Storage Temperature

-40℃~+70℃

Operating Humidity

5%~95%(Non-Condensing)

Environmental Light

Normal indoor light source

Fall

Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)



You can dowload GM65 user manual from the following website:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0



GM65 Operation Video on Youtube:https://youtu.be/8S2HvjtlIe4

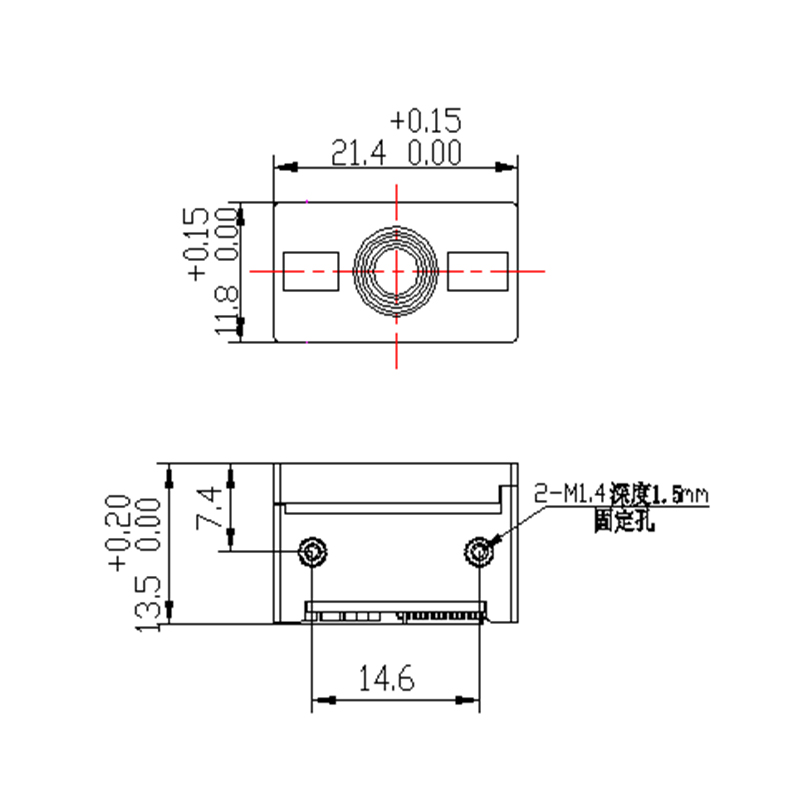

Scan Head Size:




Control Panel Size:

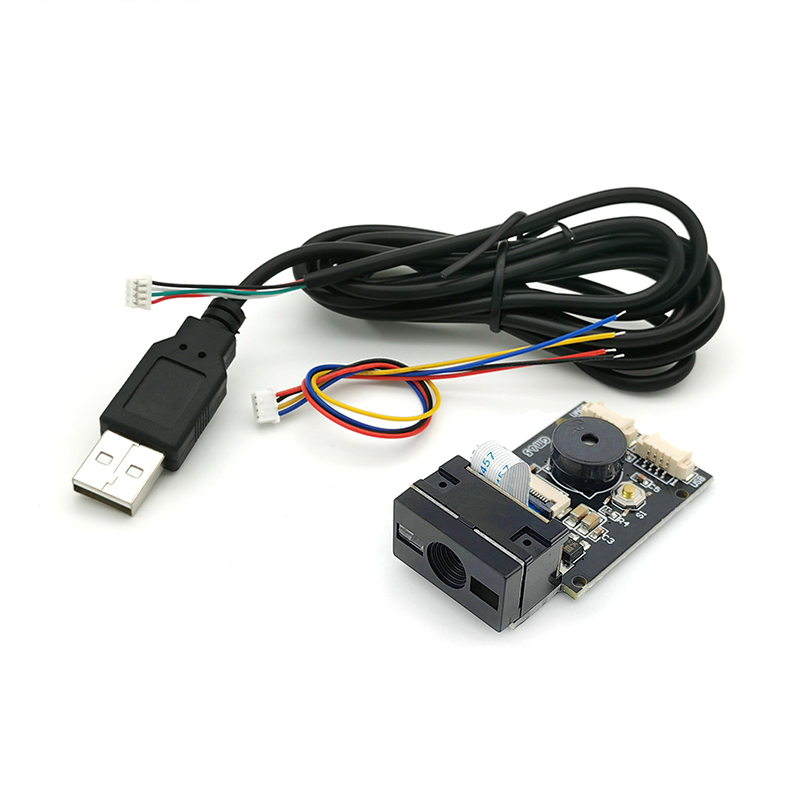

For shipment list, please see the following photo:







Packaging Details

  • Unit Type: piece
  • Package Weight: 0.120
  • Package Size: 8x9x13

  • Brand Name: grow
  • Type: Barcode Scanner
  • Scan Element Type: CMOS
  • Origin: Mainland China
  • Optical Resolution: 640*480dpi
  • Scan Breadth: A4
  • Scan Speed: 4mill
  • Interface Type: USB, TTL232
  • Hign-concerned Chemical: None
  • Signal Connection Type: None
  • Product Type: Bar Code Scanner
  • Certification: CE
  • Model Number: GM65
  • Scanning Light Source: LED
  • Interface: USB2.0/UART
  • Operating Voltage: 5V
  • Operating Current: 120mA
  • Resolution: 0.10mm (4mil)
  • Size: 46.5*27.5*14mm
