NFC Tuya Access Control Fingerprint Keypad 125K RFID& 13.56M IC Standalone Access System Door Opener WG26 Card Reader APP Unlock
79.70 43.15 $
ID: 161093
Quantity

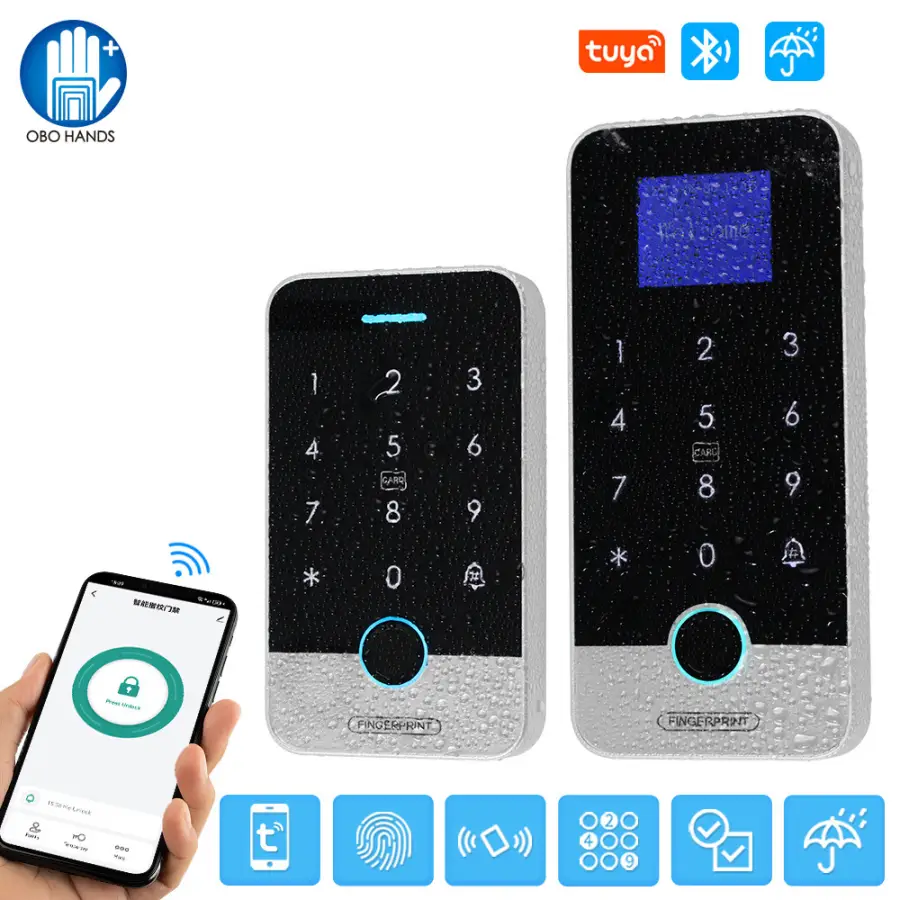

Waterproof Bluetooth Tuya APP Fingerprint Access Controller Standalone RFID Keyboard Touch Keypad 13.56MHz Door Opener System
4.9 (90 votes) | 462 orders
Price:
US $63.16 - 100.34
Discount Price:
US $
33.33 -
51.53
-47%
- Color
-
-
Waterproof Bluetooth Tuya APP Fingerprint Access Controller Standalone RFID Keyboard Touch Keypad 13.56MHz Door Opener System
Product Specification:
Material: high quality ABS plastic
Working voltage: DC 12V
Working current: 500mA
Fingerprint capacity: 300
Card capacity: 1000
Password capacity: 1000
Panel: touch screen panel
Working frequency: 13.56MHz
Card reading type: support MF 1K compatible card
Card reading distance: 0-5CM
ldentification method: Fingerprint, RFID Card, Password, Tuya APP.
Record capacity: Mobile phone APP remotely view the latest door opening information.
Backlight: has white backlight
Waterproof function: IP65
Doorbell button: support wired doorbell
Display Language (S300X): Supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian.
Working temperature: -20。C ~ 50。C
Working Humidity: 20% ~ 90%

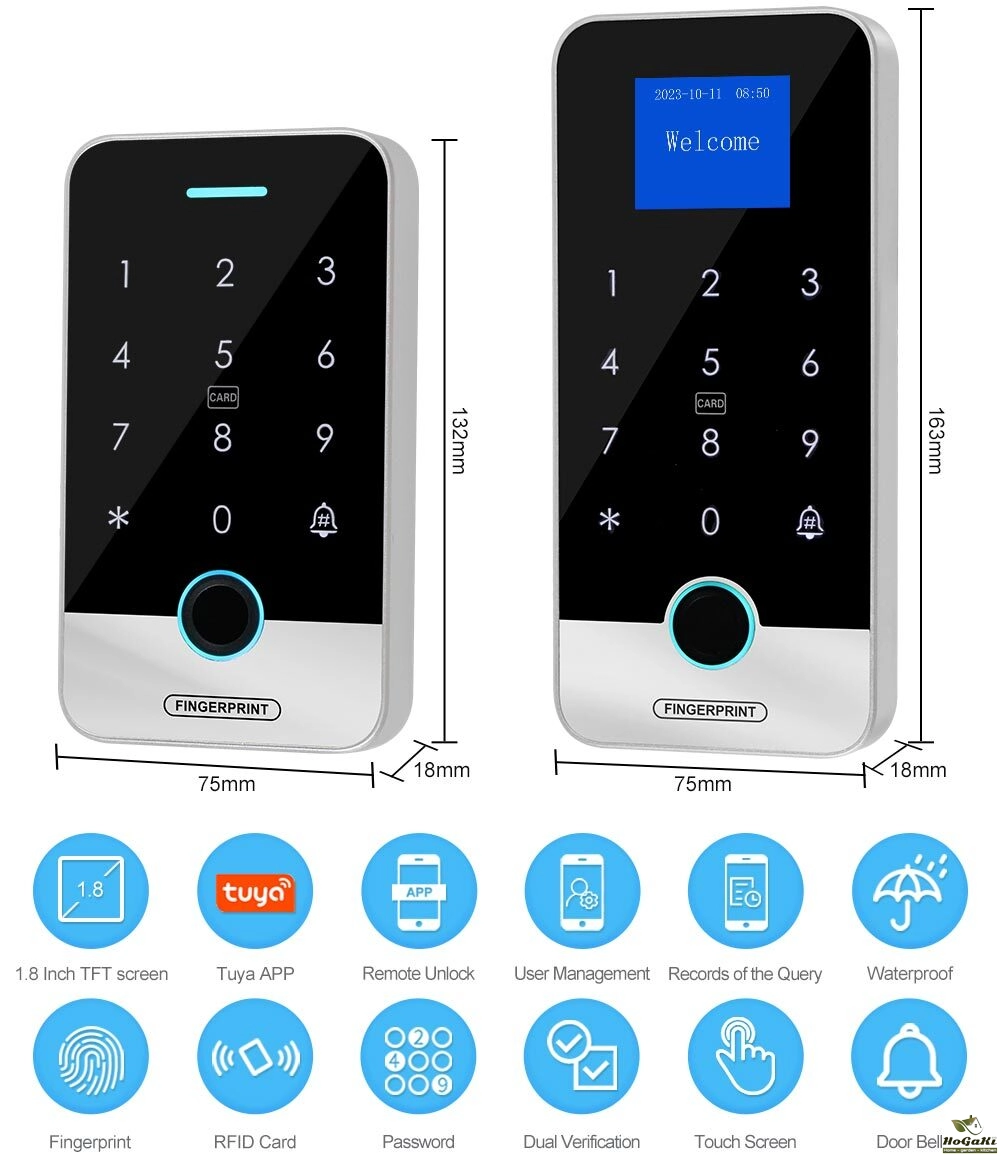

Product size of S300A: 132*75*18mm
Product size of S300X: 163*75*18mm
Product Details:

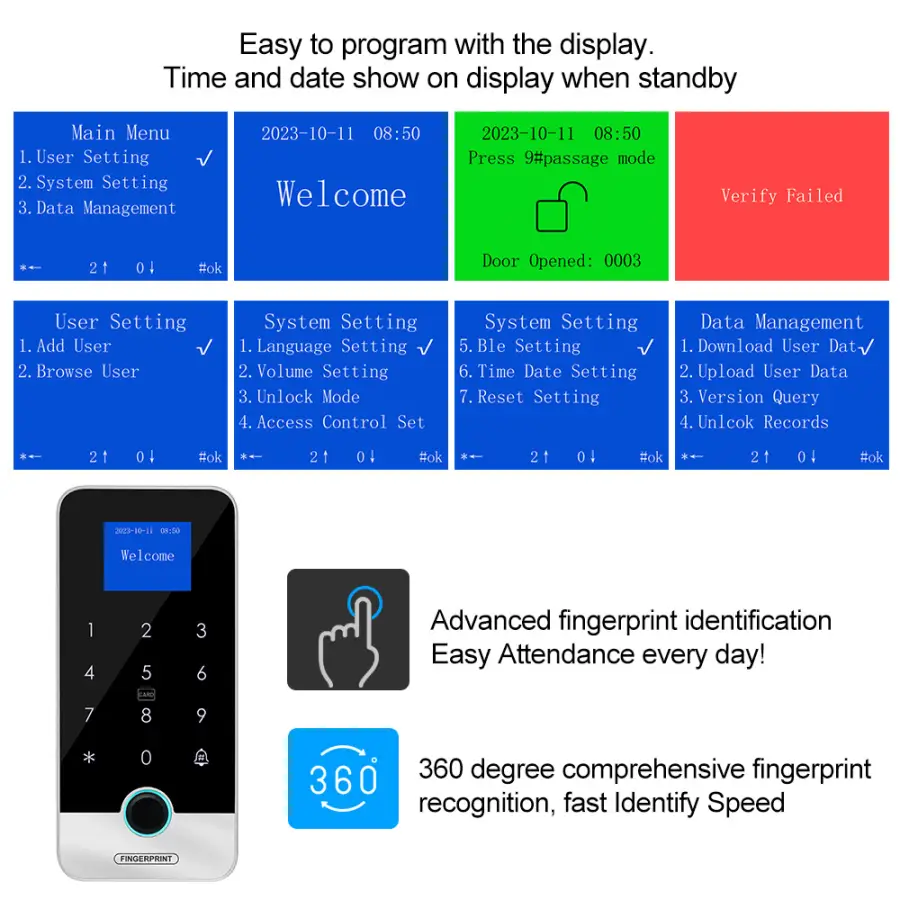

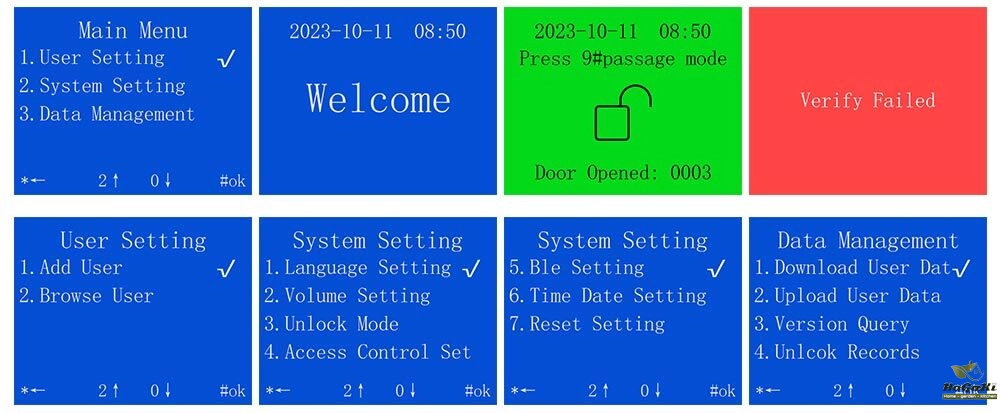

1.8inch Color TFT Screen, Easy to program with the display.
Display supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian language
Time and date show on display when standby(S300X model)

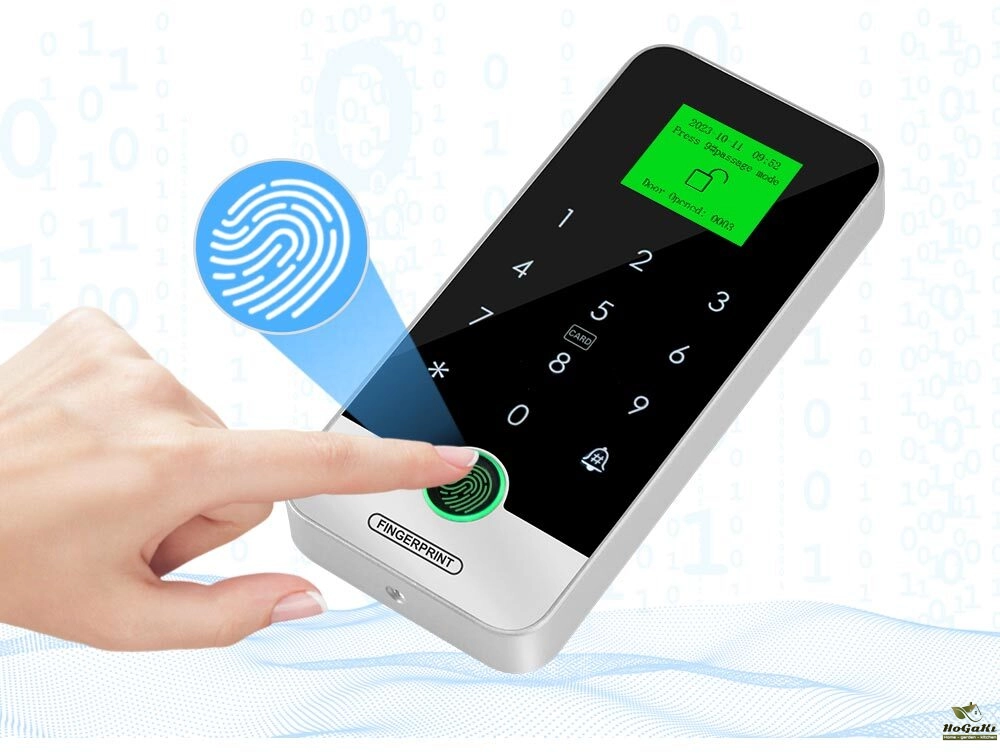

360 degree comprehensive fingerprint recognition, fast identify speed
For different angles of fingerprints, it can be quickly and accurately identified

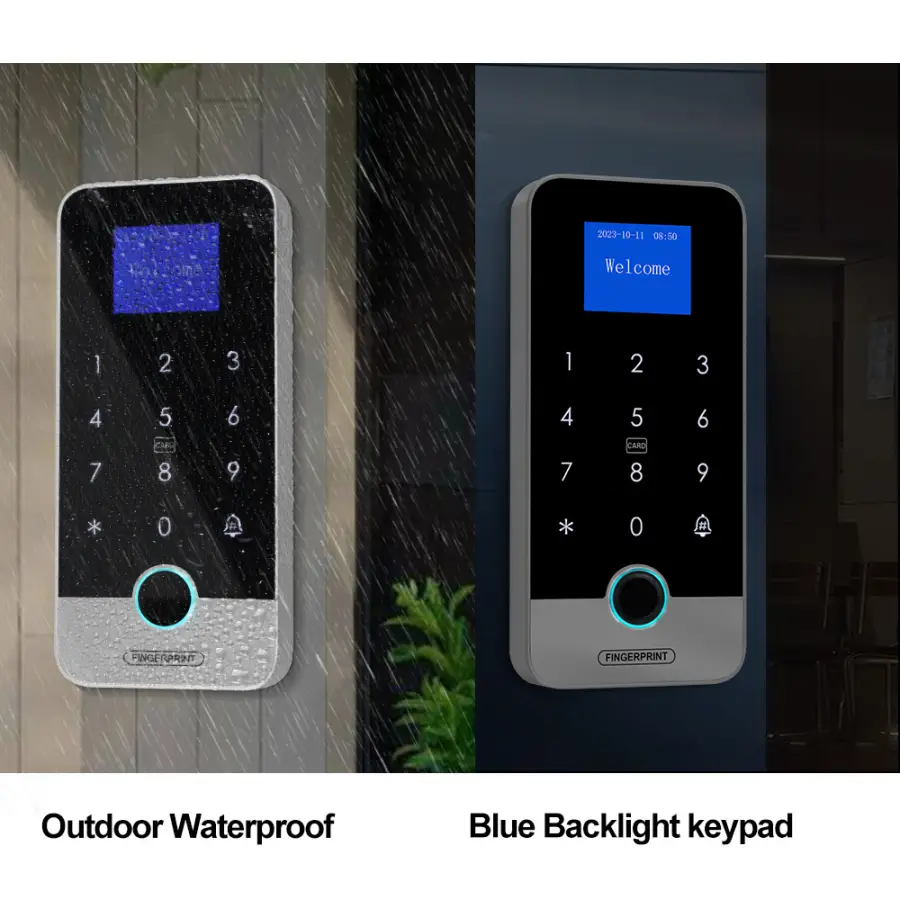

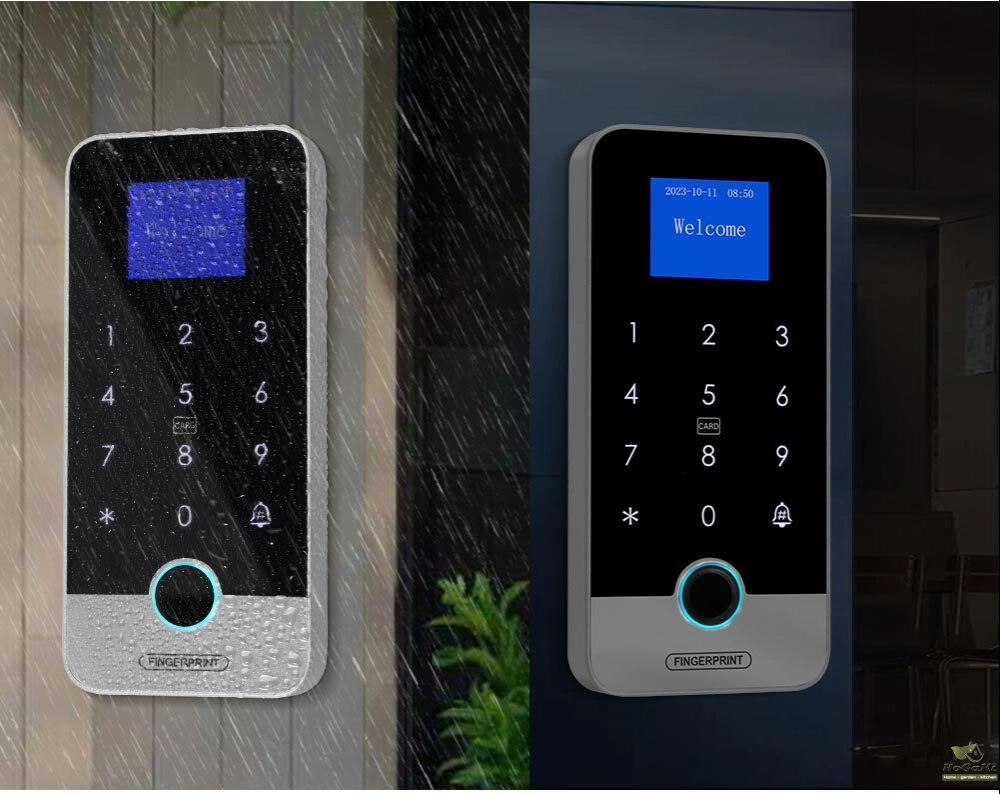

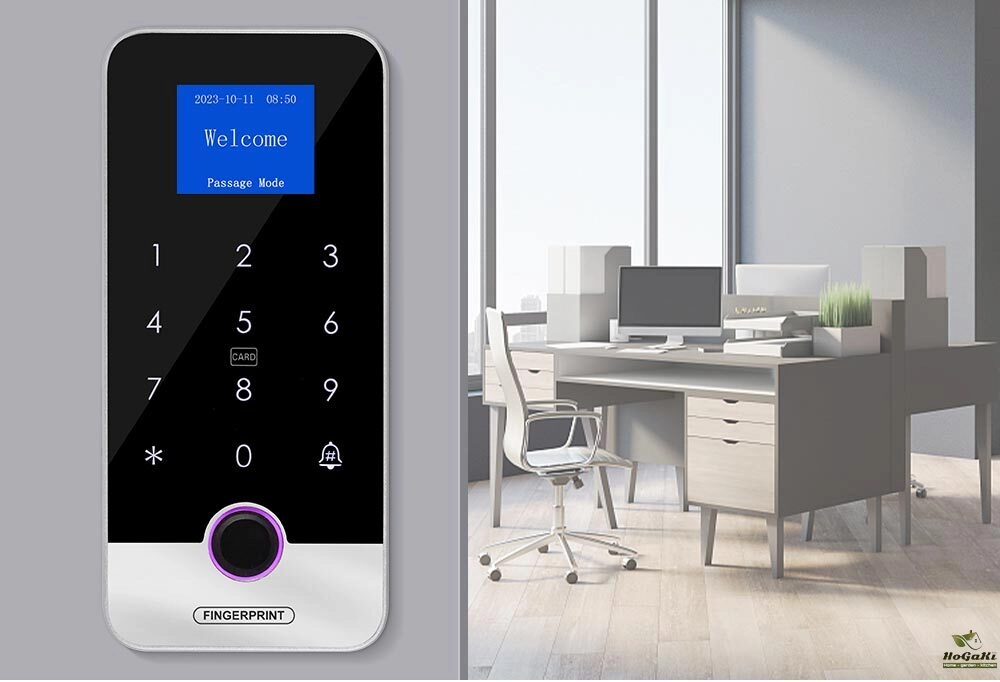

IP65 Waterproof. Can be installed outdoor.
Has a door bell button, can install a wired door bell.
White backlight keypad. The digits number can be seen clearly even at dark.
Can set the door keep Normally Open model
Frequent entry and exit can be set to normally open model

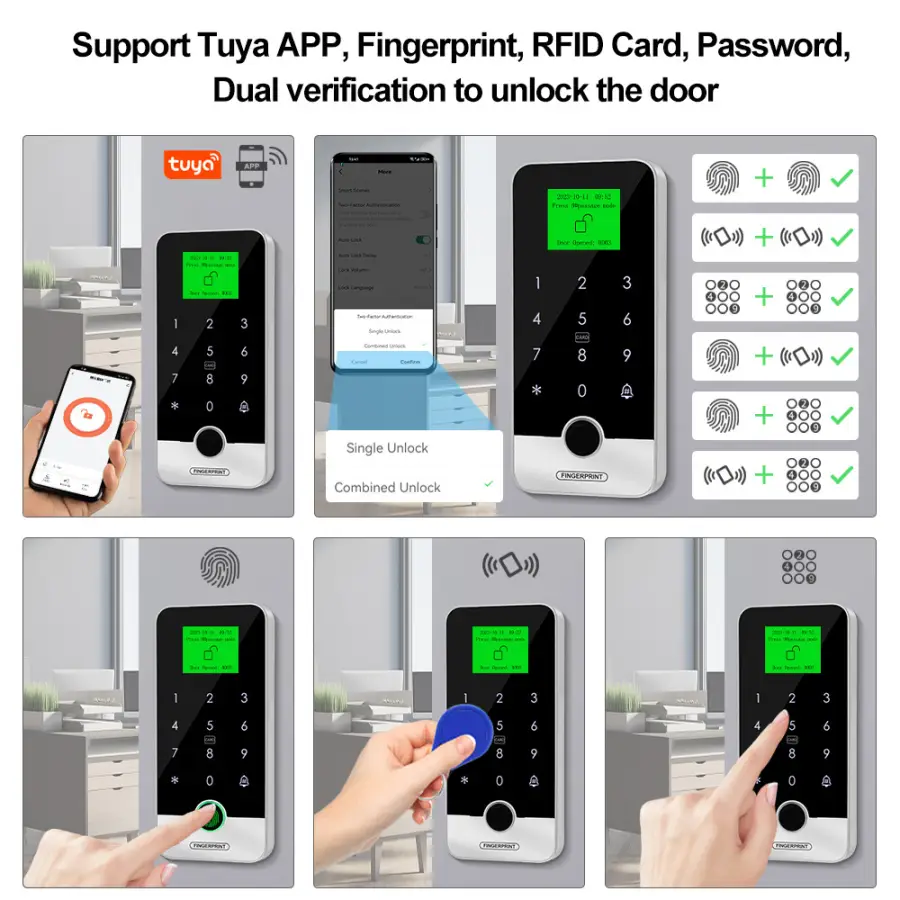

Support Fingerprint, RFID Card, Password, Tuya APP, dual verification to unlock the door
Support 300 Fingerprints, 1000 RFID cards, 1000 password user capacity,
Mobile phone APP remotely view the latest opening information, more secure!
Support 300 Fingerprints, 1000 RFID cards, 1000 password user capacity,
Mobile phone APP remotely view the latest opening information, more secure!

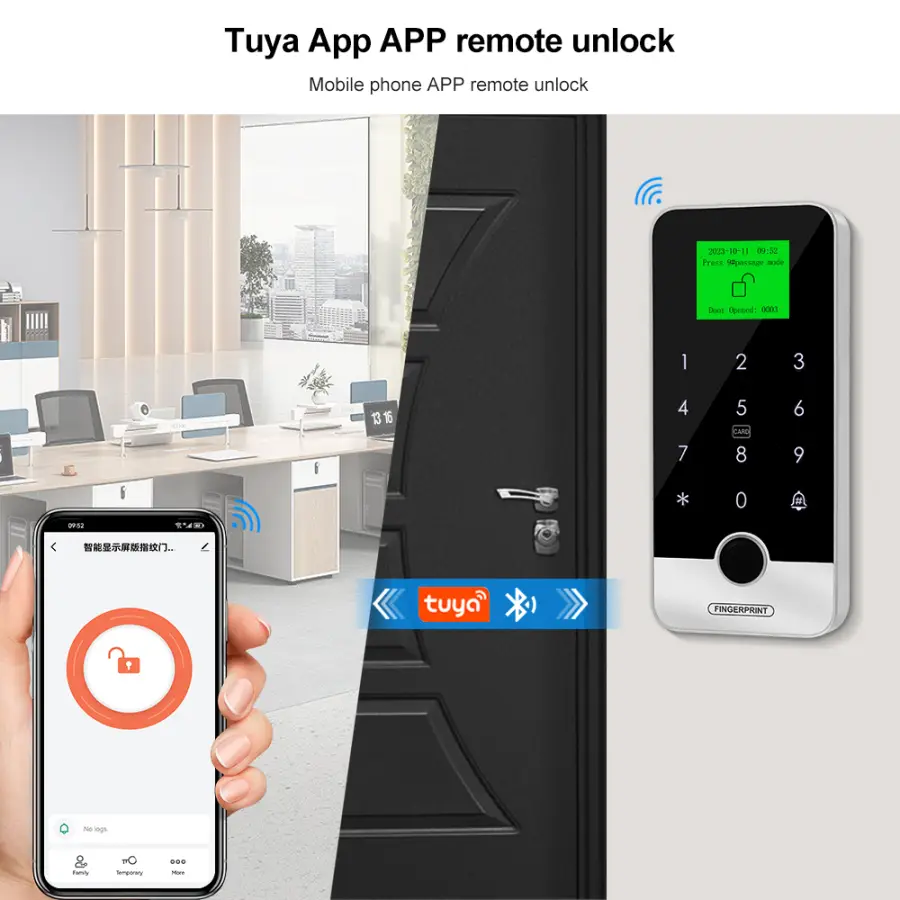

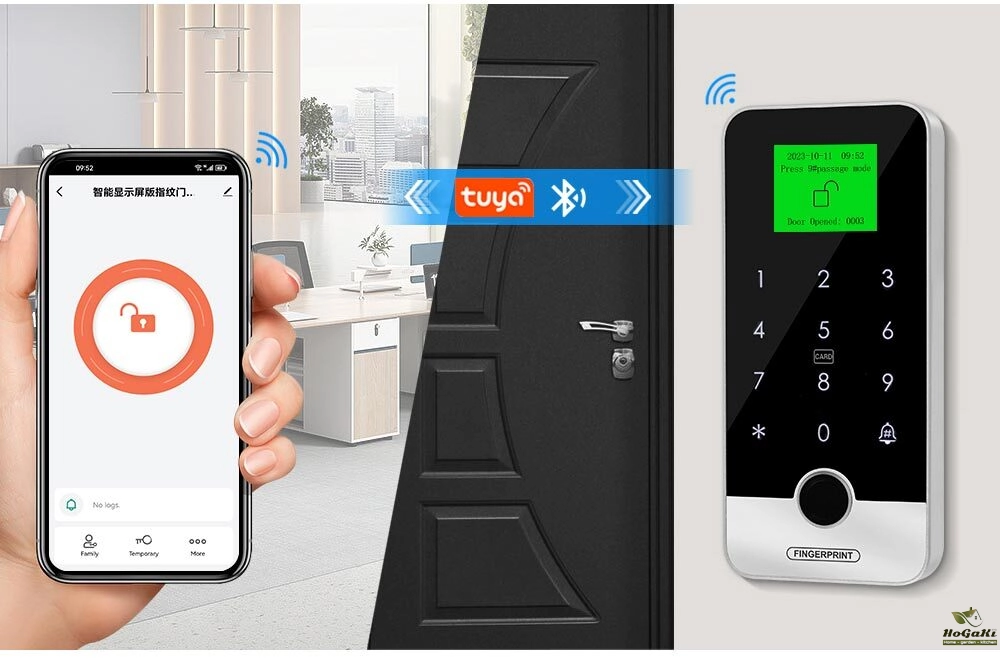

Support Tuya APP remote unlocking
Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP

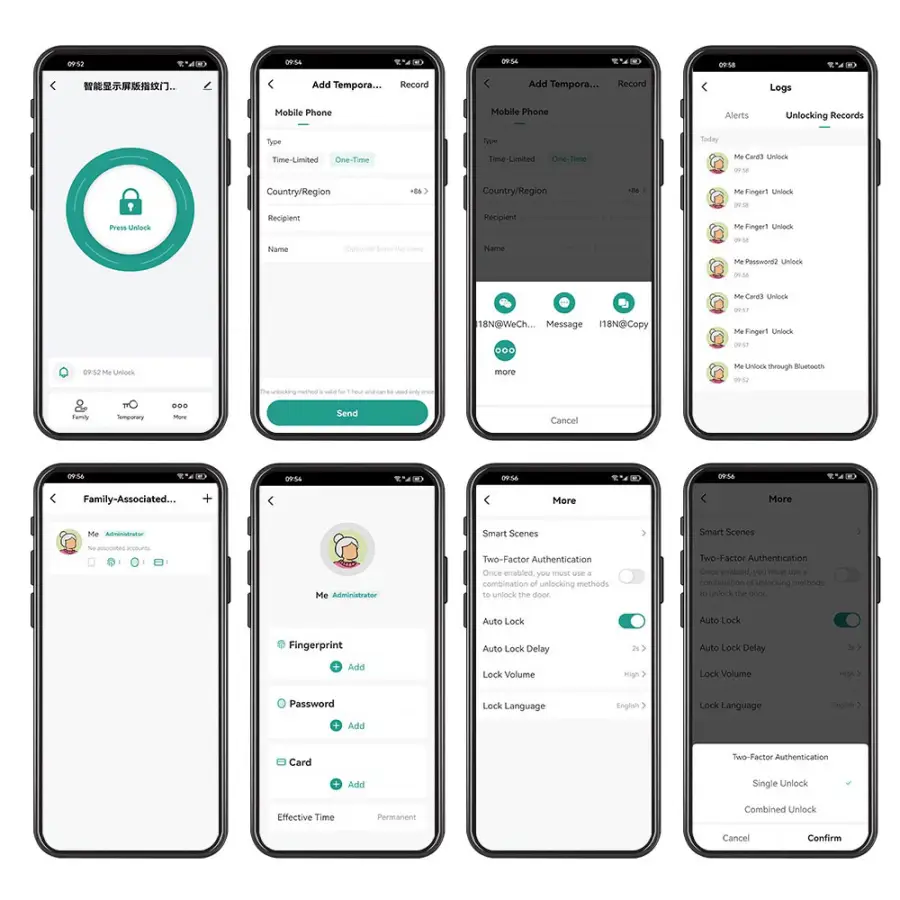

About Tuya APP
1) Supports language: Chinese, English.
2) Can add fingerprints, password, RFID cards on the APP, it's very convenient.
3) Can unlock the door with Tuya APP unlocking button, or Tuya password.
4) Can view unlock records. Click reminder information to view logs.
5) Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP.
1) Supports language: Chinese, English.
2) Can add fingerprints, password, RFID cards on the APP, it's very convenient.
3) Can unlock the door with Tuya APP unlocking button, or Tuya password.
4) Can view unlock records. Click reminder information to view logs.
5) Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP.

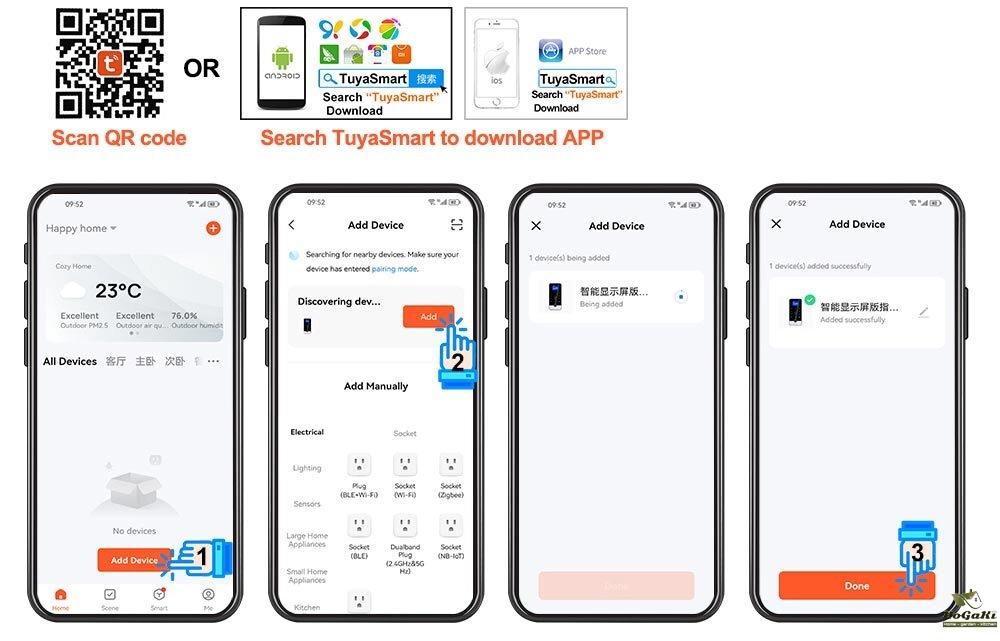

Tuya APP Setting Instruction
1) Scan QR code, or Search "Tuya" on App store to download it.
2) Turn on Tuya APP to add new equipment.
3) Trun on bluetooth, Select "Auto scan", click "Searching".
4) Connect with available devices, click "Next".
5) Connecting, Added successfully, click "Done".
6) Click setting, turn on "remote unlock setting".
7) Select user, click "+" to add user, fill in name, click next step.
8) Add user fingerprints, Code, Cards.
9) Add ordinary user by clicking ordinary member “+”.
10) Add code user by Time-Limited: input phone number, set effective time and ineffective time, click "Send".
11) Add temporary code: click "One-Time'", input phone number, click "Send". (Notice: The code valid time for 1 hours and only can be used once.)
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.

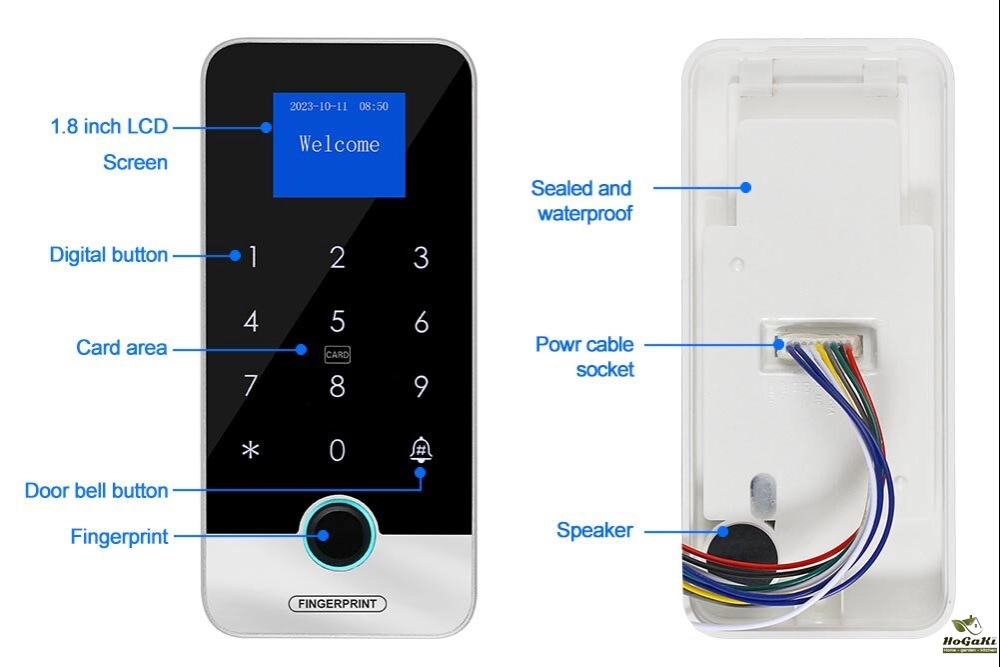

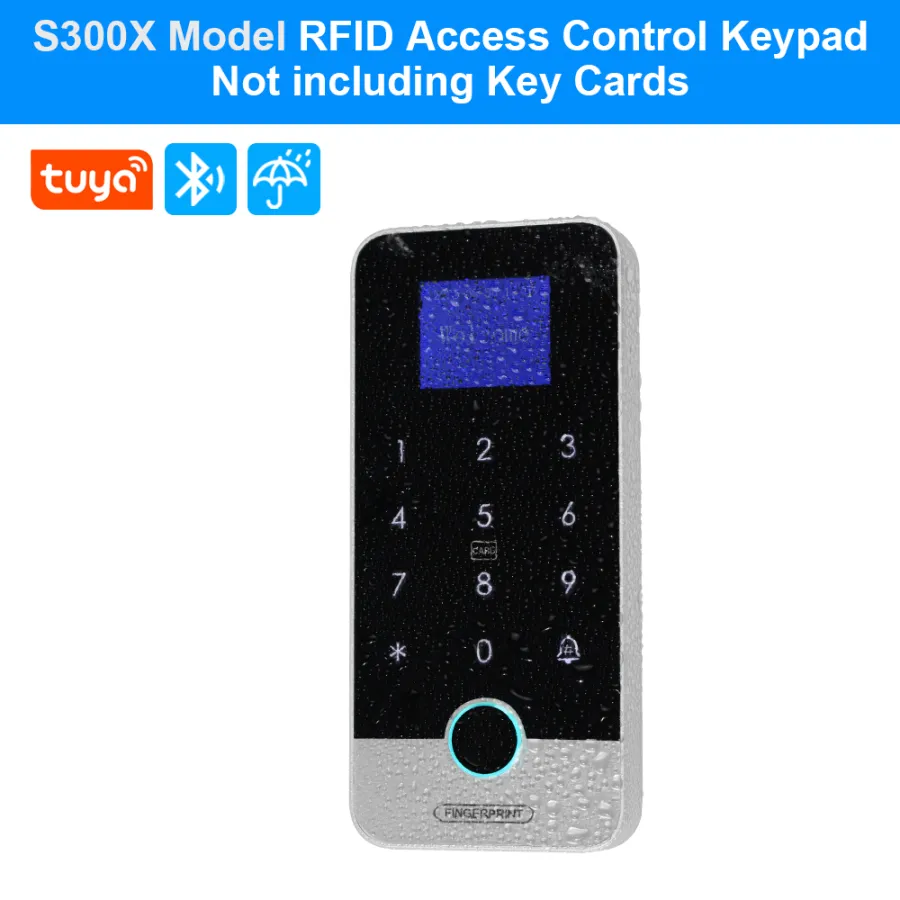

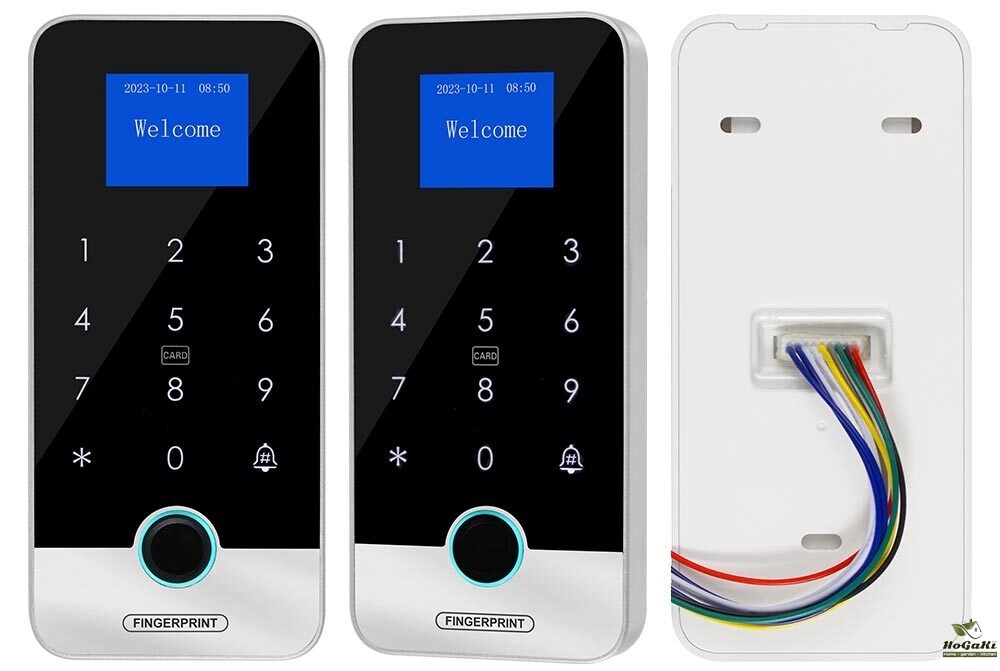

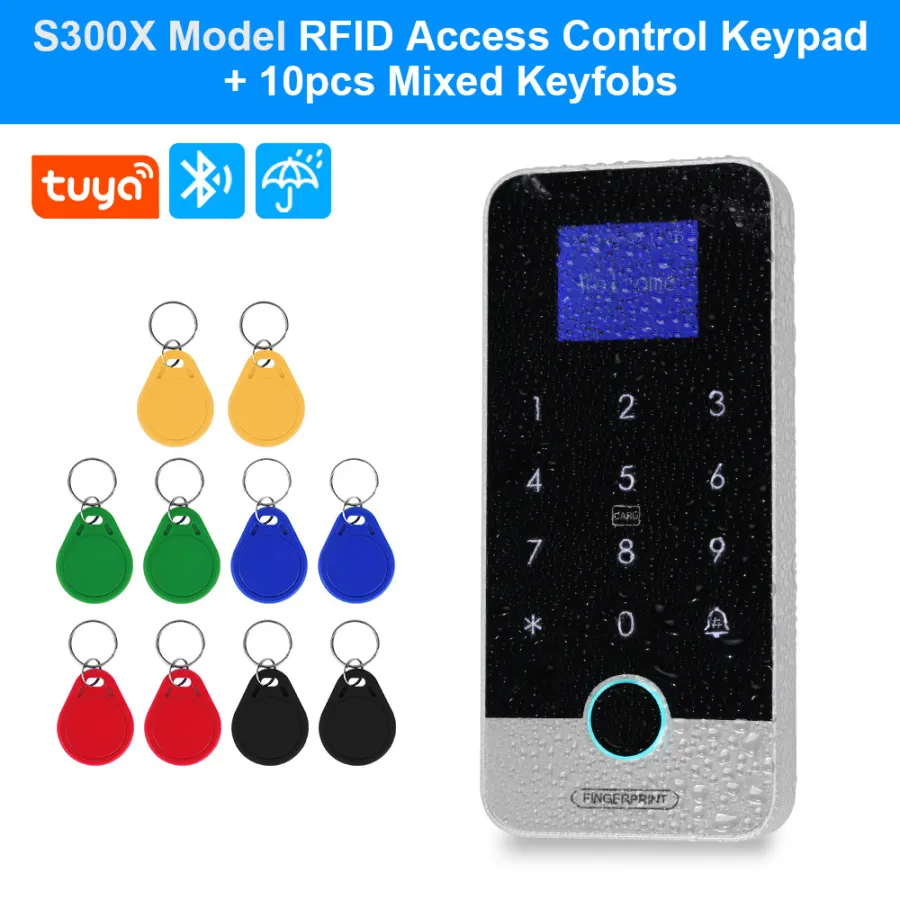

S300X Model, with 1.8inch display screen.

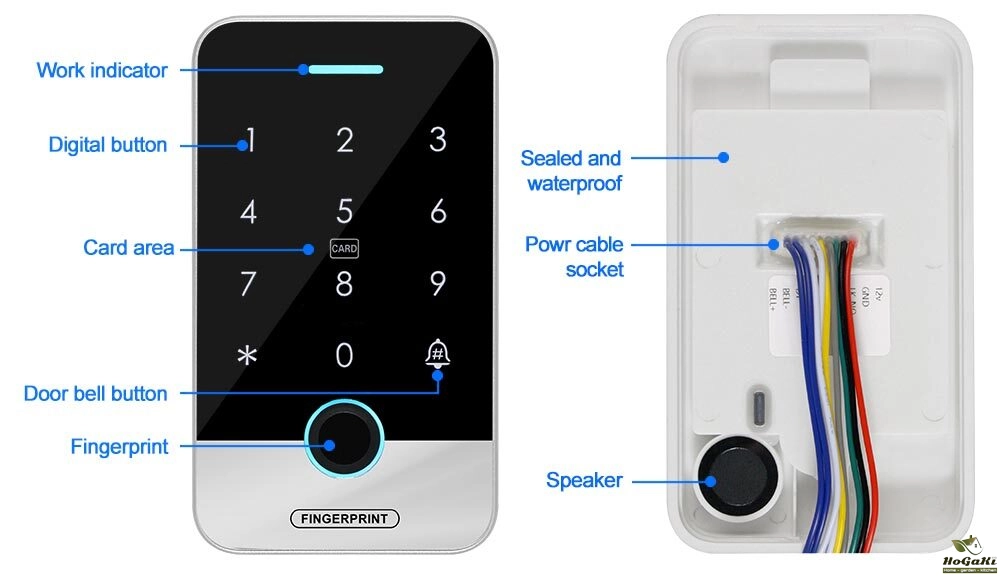

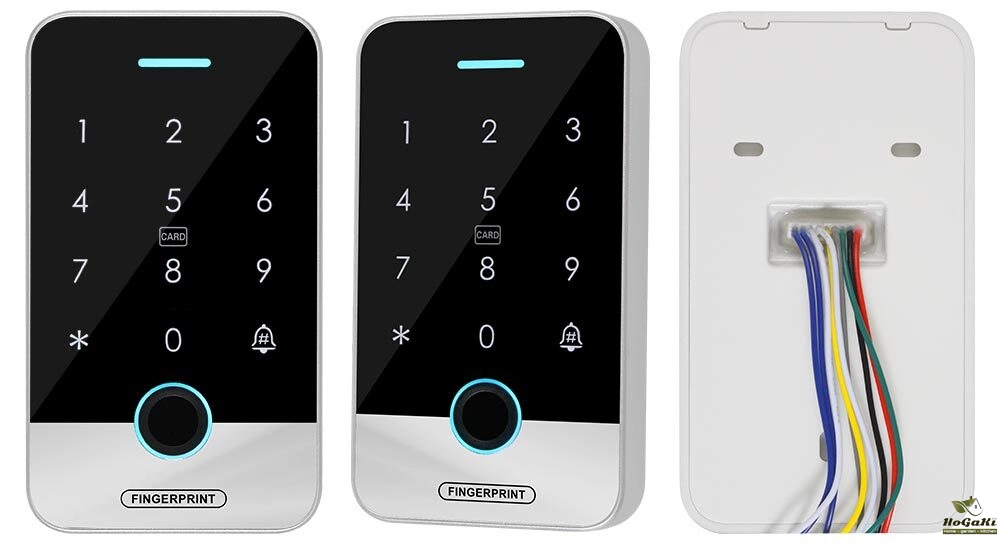

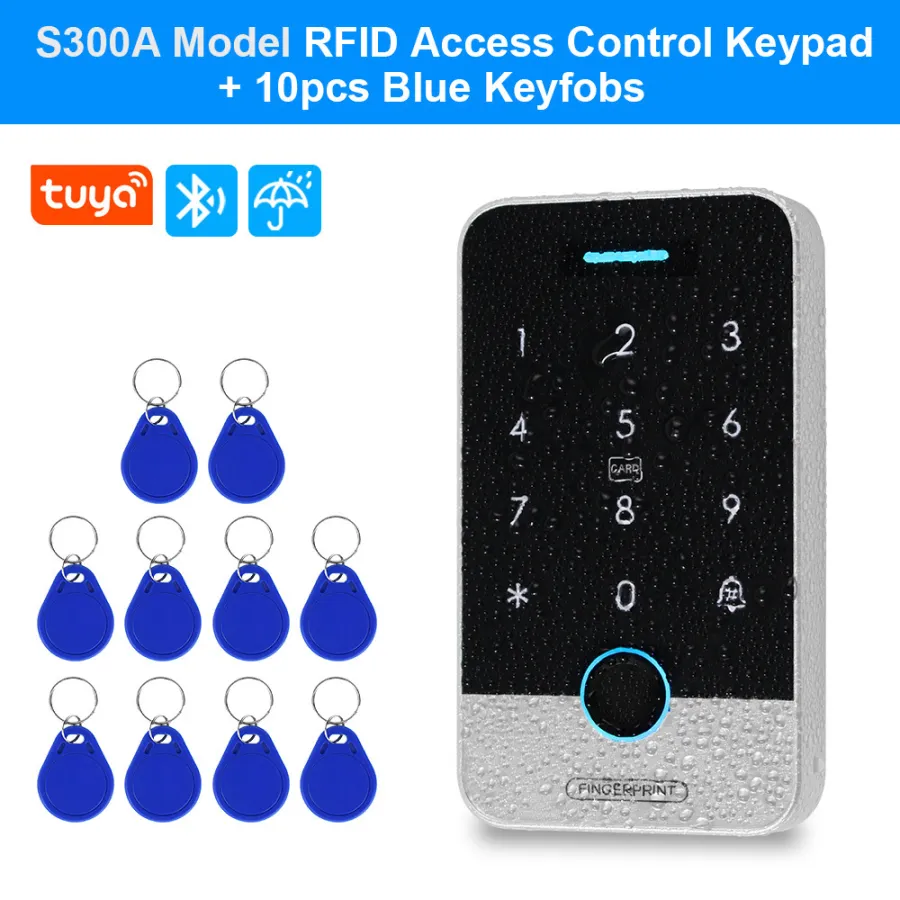

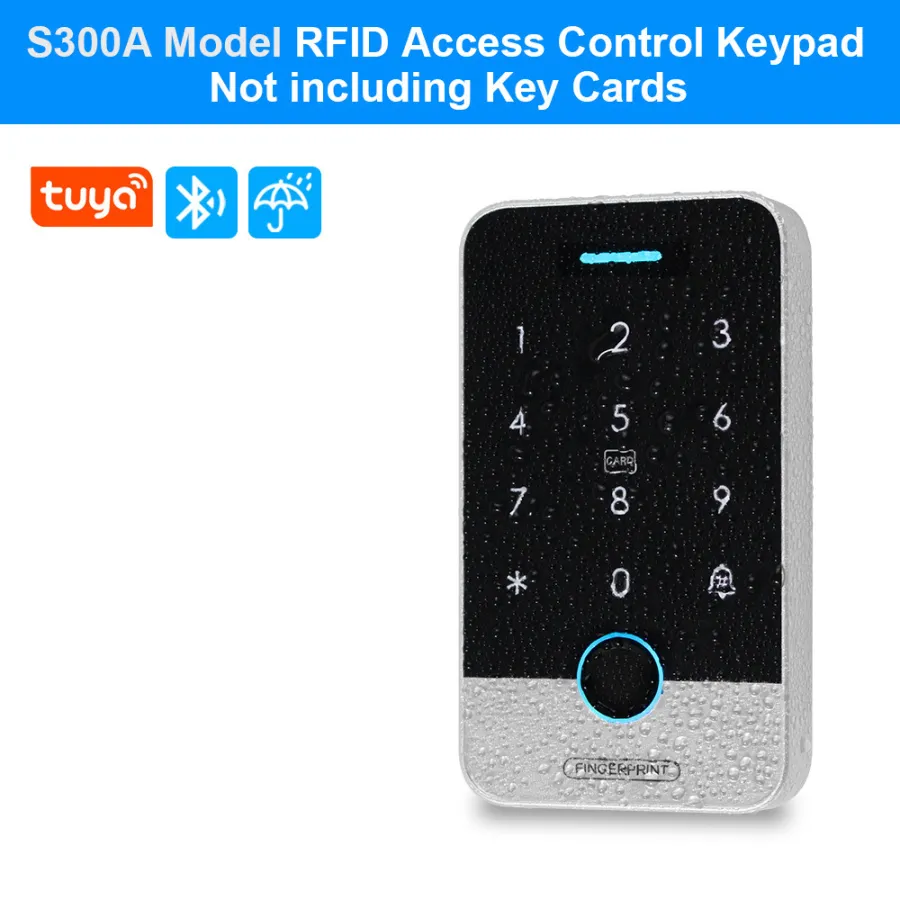

S300A model, without display screen (other function is same with S300X model)

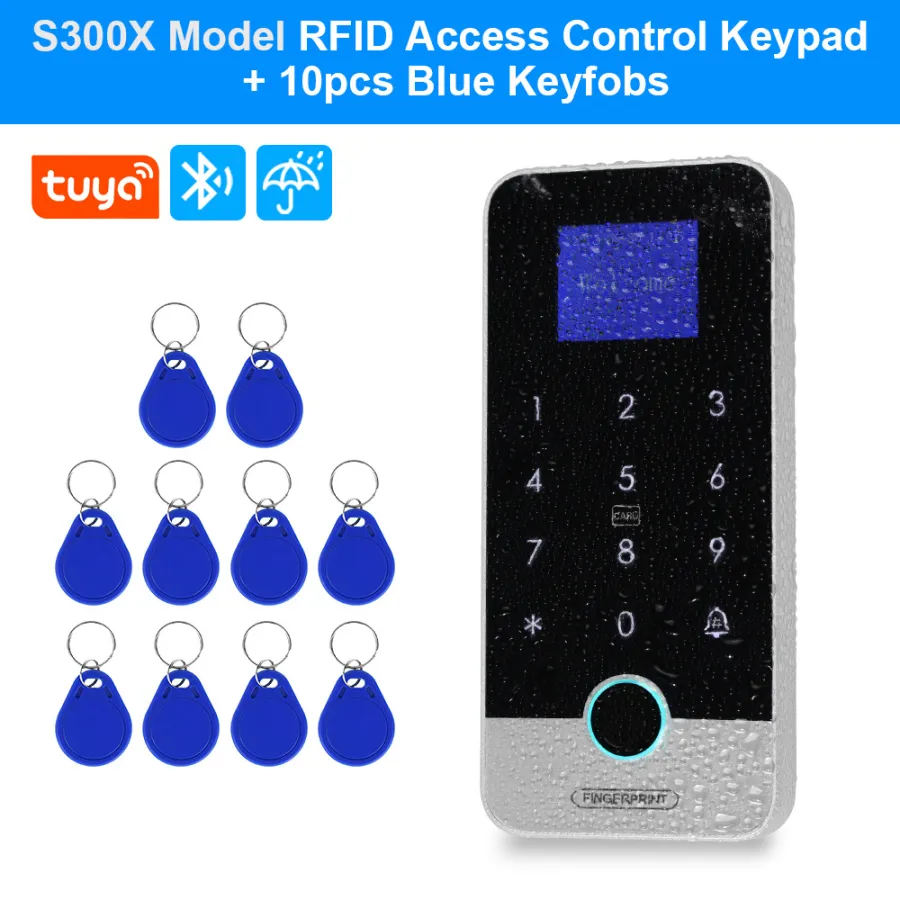

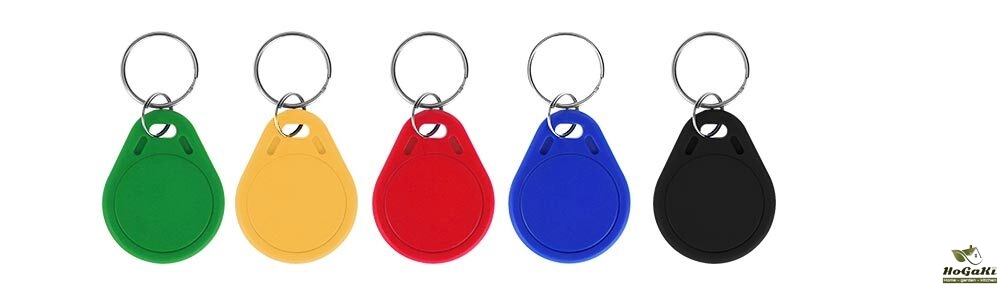

RFID Keyfobs:
Material: ABS
Operating frequency: 13.56MHz
Operating frequency: 13.56MHz
Chip: MF-1K
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.

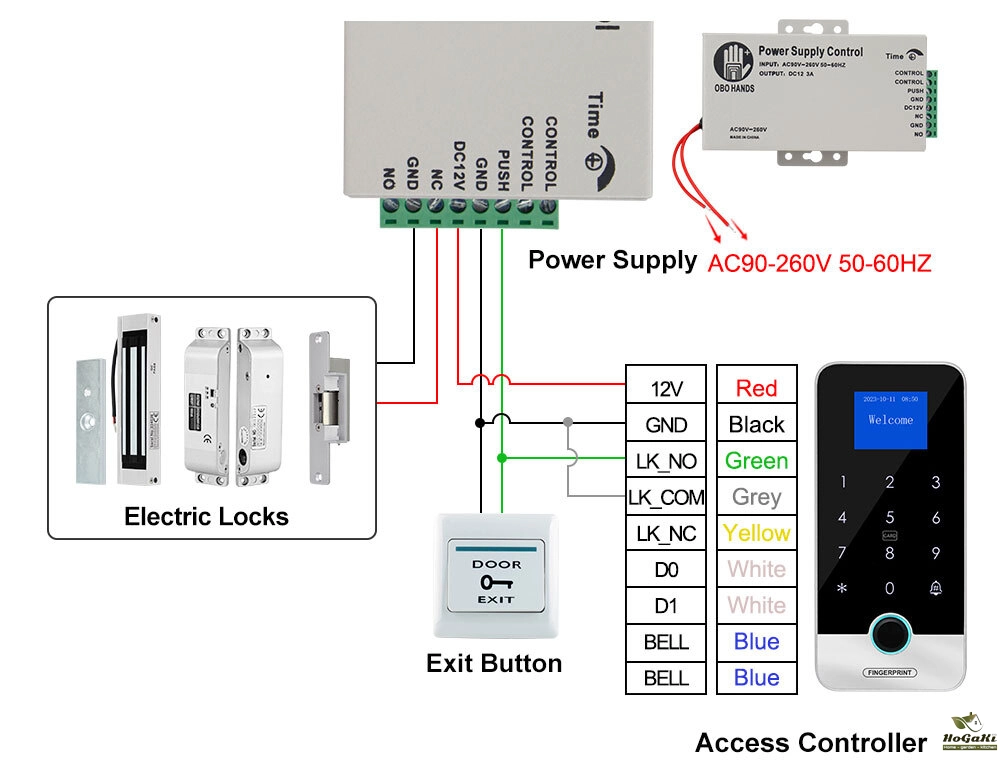

Wiring Diagram
(The power supply, electric locks, door exit button are not included in the package, need to purchase extra.)
Packaging Details
- Unit Type:
- Package Weight: 0.242
- Package Size: 24x5x26
- Brand Name: OBO HANDS
- Origin: Mainland China
- Model Number: S300Tuya+10k
- Certification: None
- Material: High quality ABS
- Working Voltage: DC12V
- Working frequency: 13.56MHz
- User capacity: 300 fingerprints, 1000 cards, 1000 Code
- Waterproof function: IP65 Waterproof
- Door bell: Support
- Unlock method: Tuya APP, Fingerprint , RFID Card, Password
- Wiegand interface: WG26 / 34
- Type: Access Control Keypad
- Choice: yes
