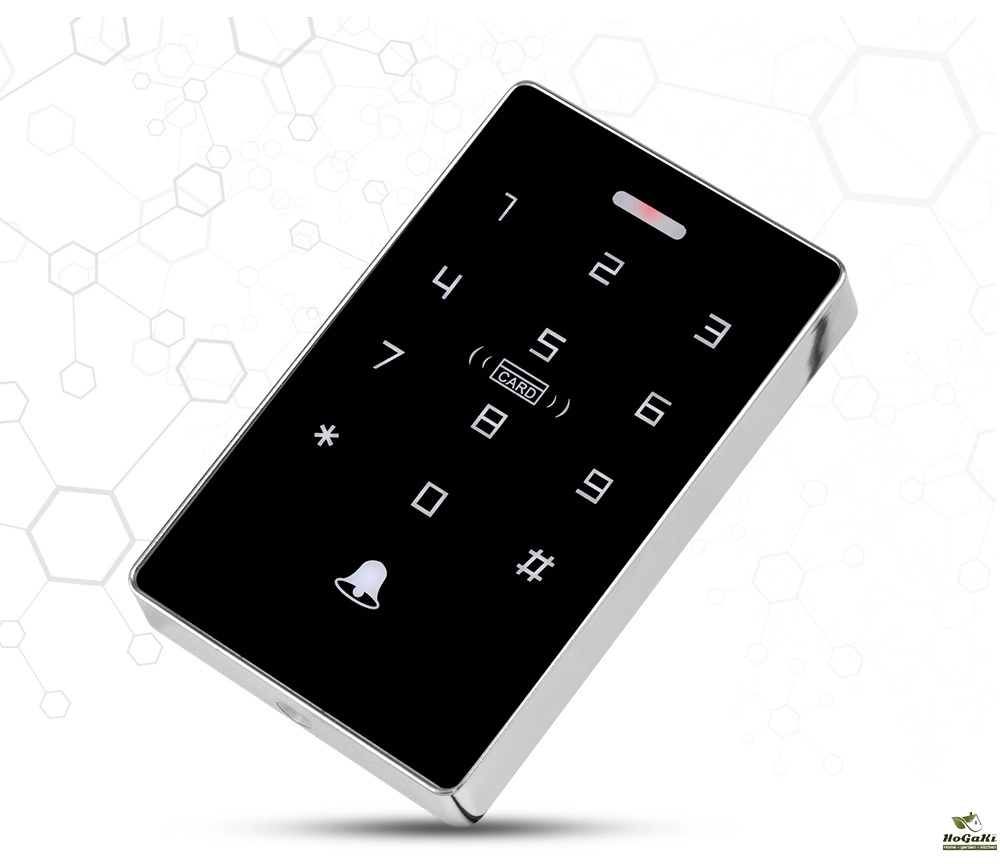

Waterproof Bluetooth Tuya APP Fingerprint Access Controller Standalone RFID Keyboard Touch Keypad 13.56MHz Door Opener System
129.11 45.01 $
ID: 161116
Quantity
NFC Backlight Touch Dual Frequency 125KHz + 13.56MHz RFID Card Access Control Keypad Door Lock Opener WG Output IP68 Watreproof
5.0 (7 votes) | 30 orders
Price:
US $87.05 - 98.59
Discount Price:
US $
31.98 -
35.95
-63%
- Color
-
-
NFC Backlight Touch Dual Frequency 125KHz + 13.56MHz RFID Card Access Control Keypad Door Lock Opener WG Output IP68 Watreproof

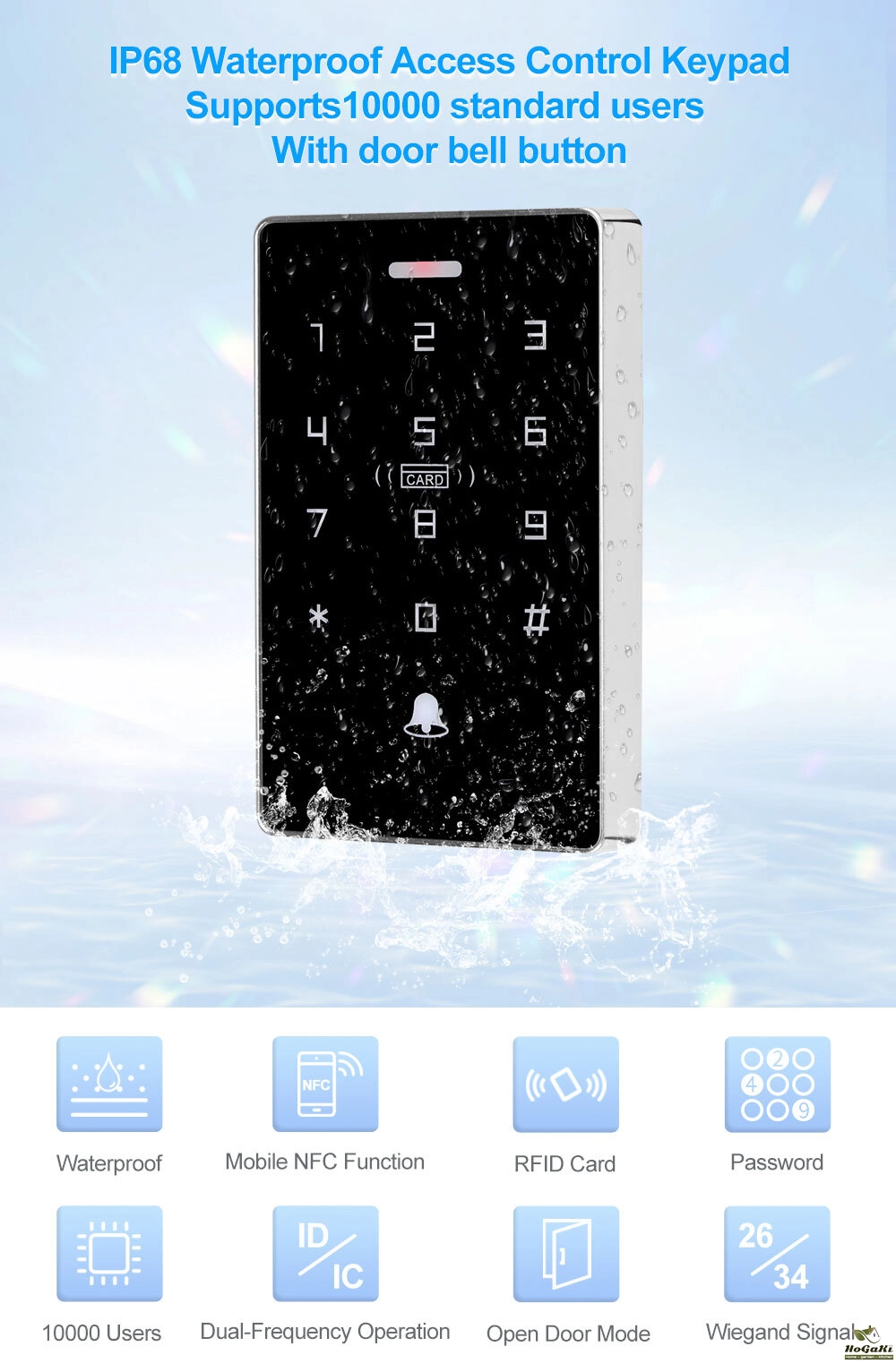

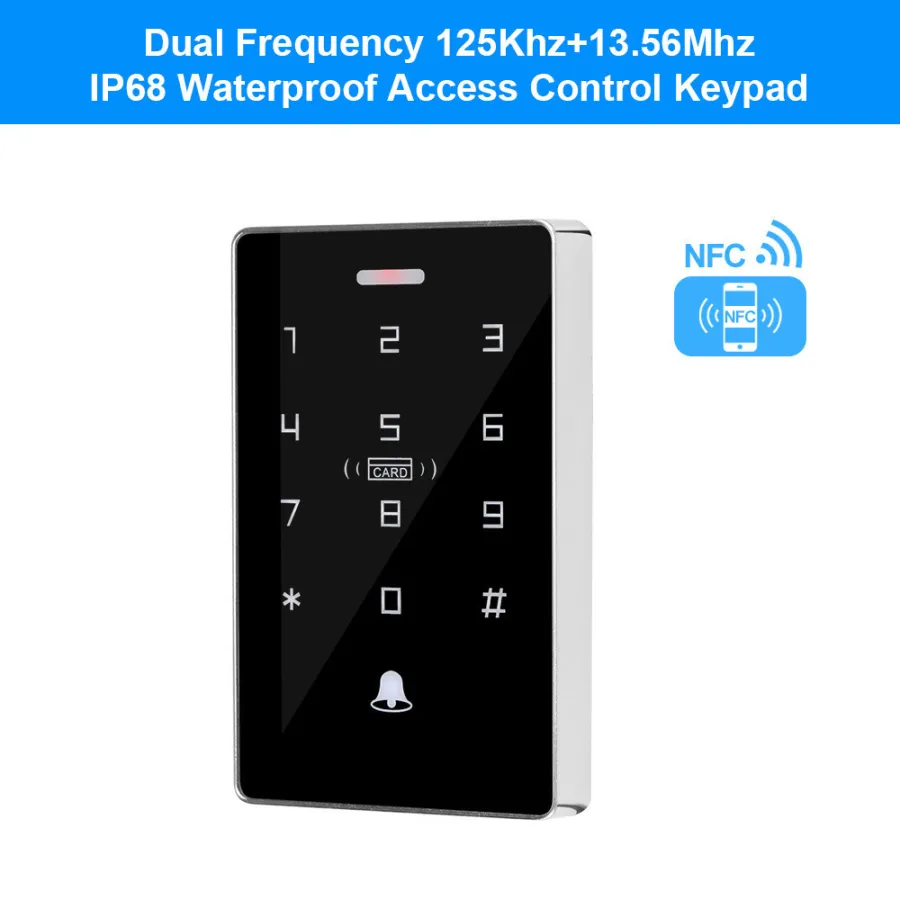

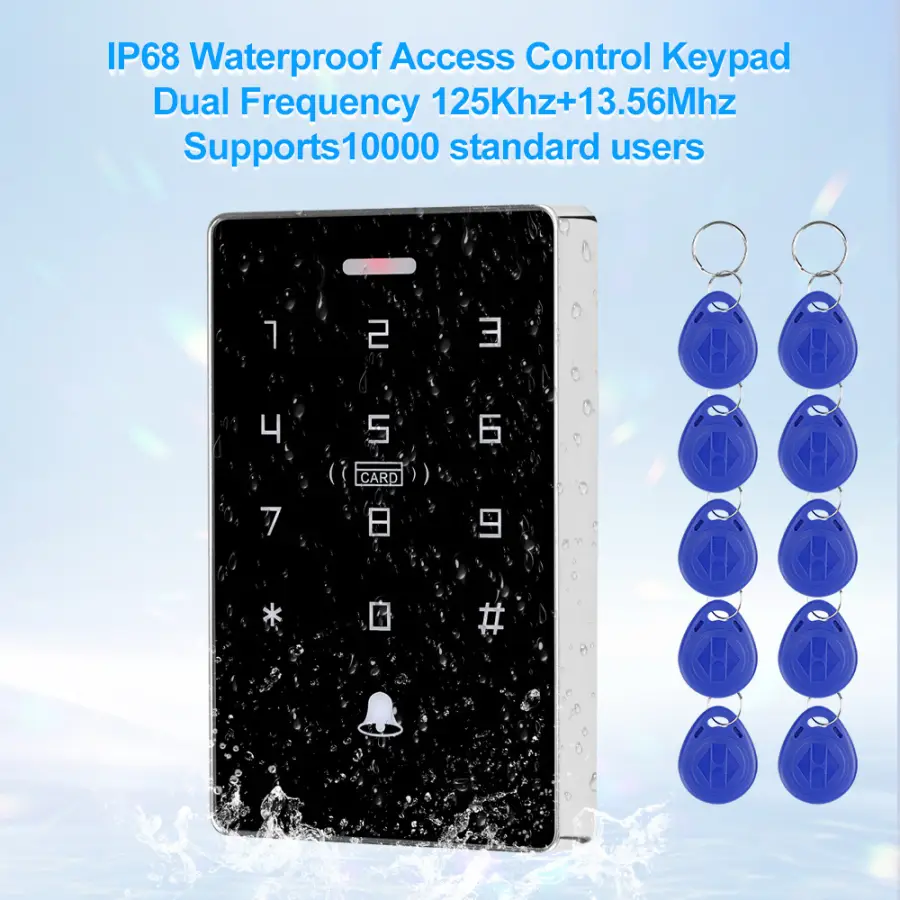

Dual Frequency 125KHz + 13.56MHz IP68 Waterproof RFID Access Controller
High quality / 1000 large user capacity / 4 unlock methods
Product Specification:
User capacity: 10000
Material: ABS high quality material
Panel: touch screen panel
Working frequency: 125KHz + 13.56MHz dual frequency
Card reading type: support EM ID and MF 1K compatible cards
Card reading distance: 0-5CM
Identification method: RFID card, password, RFID card + password, NFC
Backlight: has white backlight
Waterproof function: IP68 waterproof, can be installed outdoor
Doorbell button: support wired doorbell
Wiegand signal: WG26 / WG34 input/output
Can set management card: yes
Working voltage: DC 12V
Door opening time: 0-99 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%

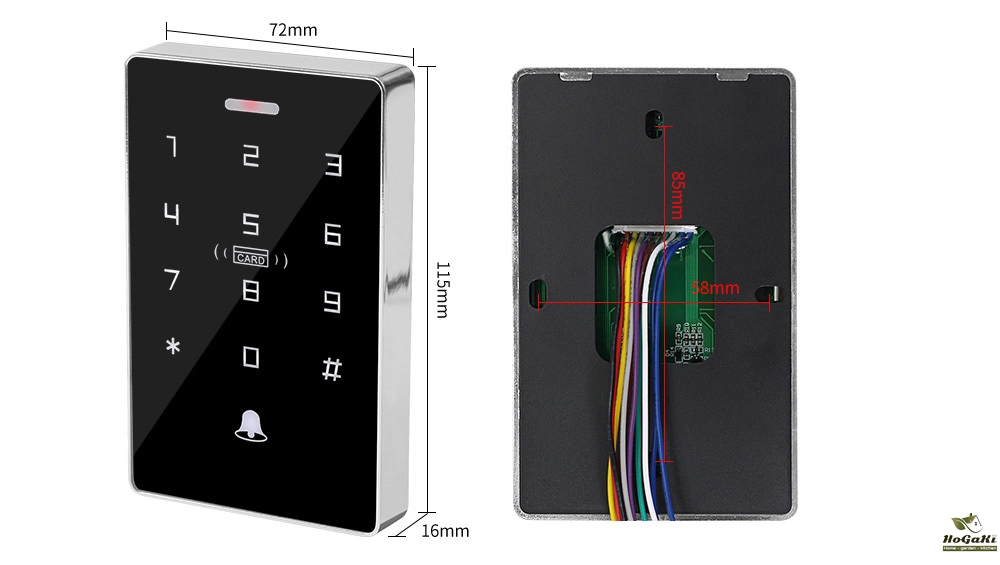

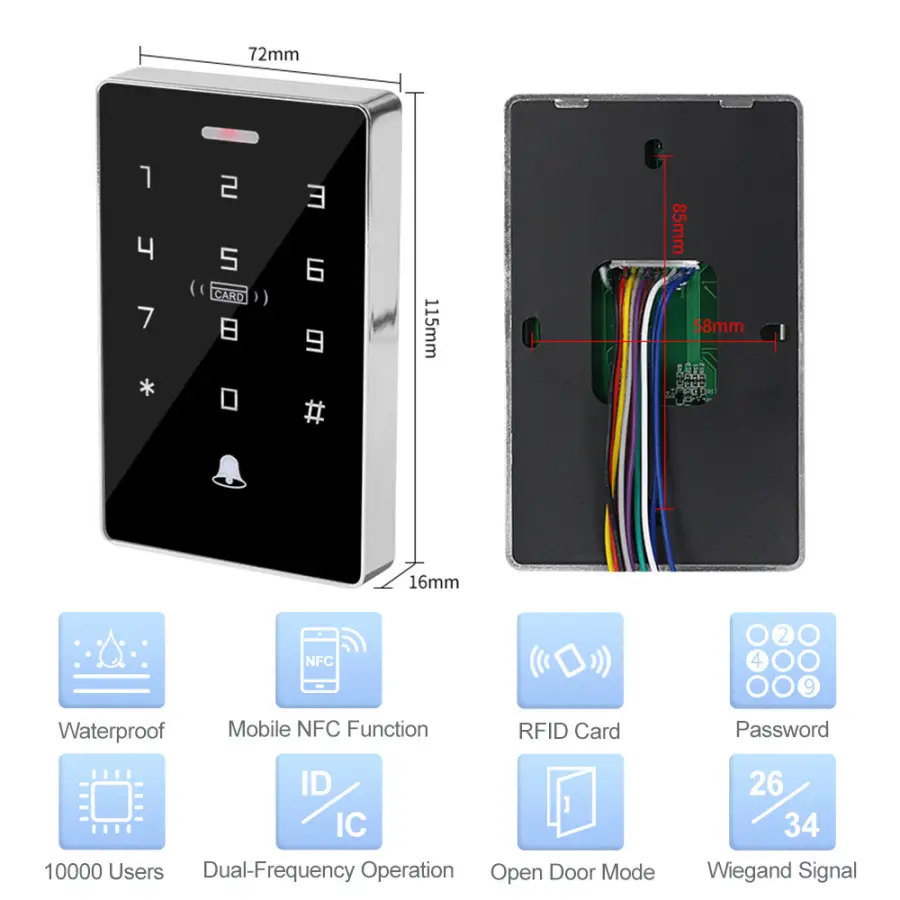

Product size: 115*72*16mm
Support machine data copy function, register one machine, share data of multiple machines, reduce workload. (Not all devices support this function. If you want this function, please contact us.)
Product Details:

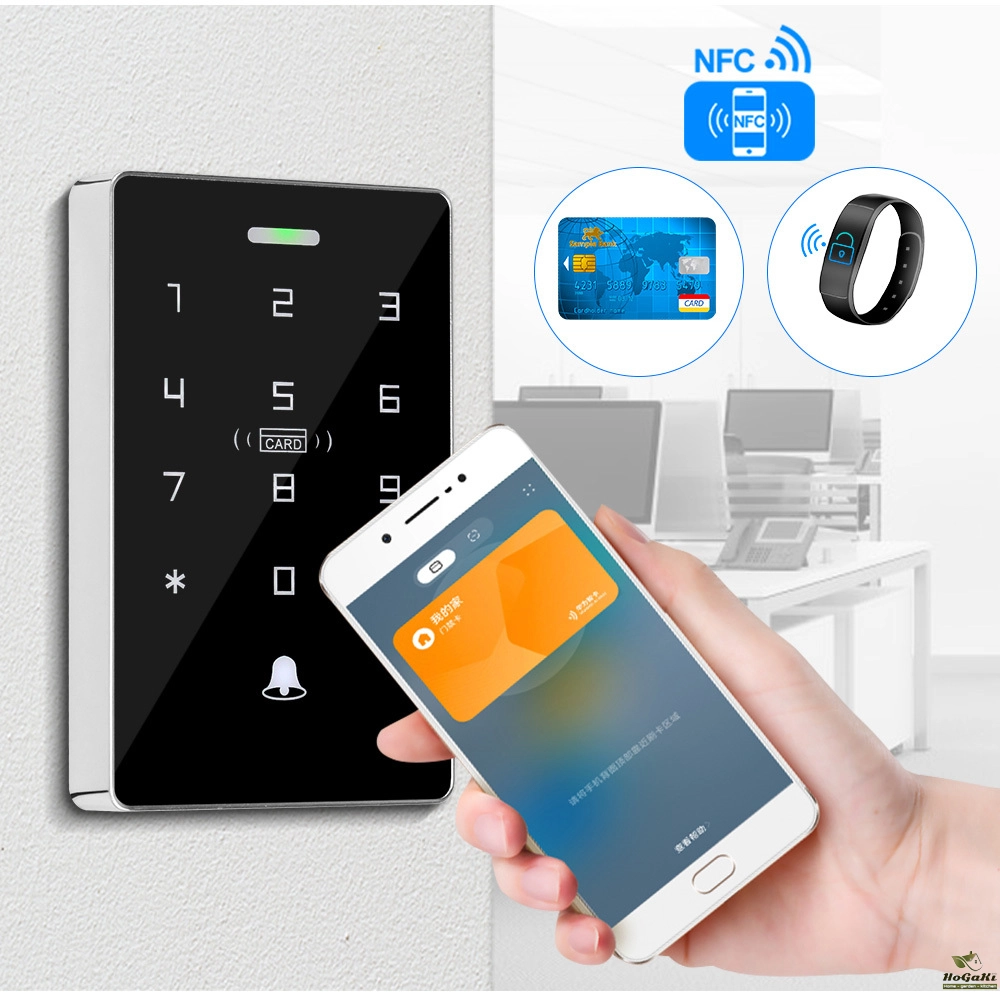

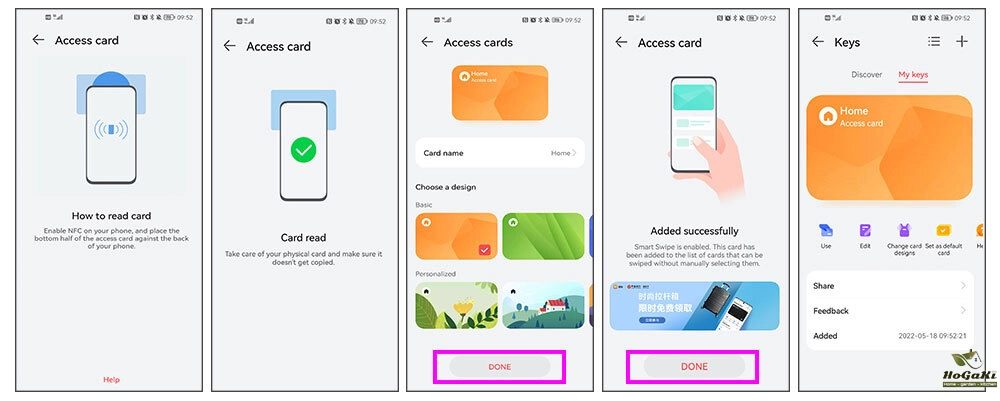

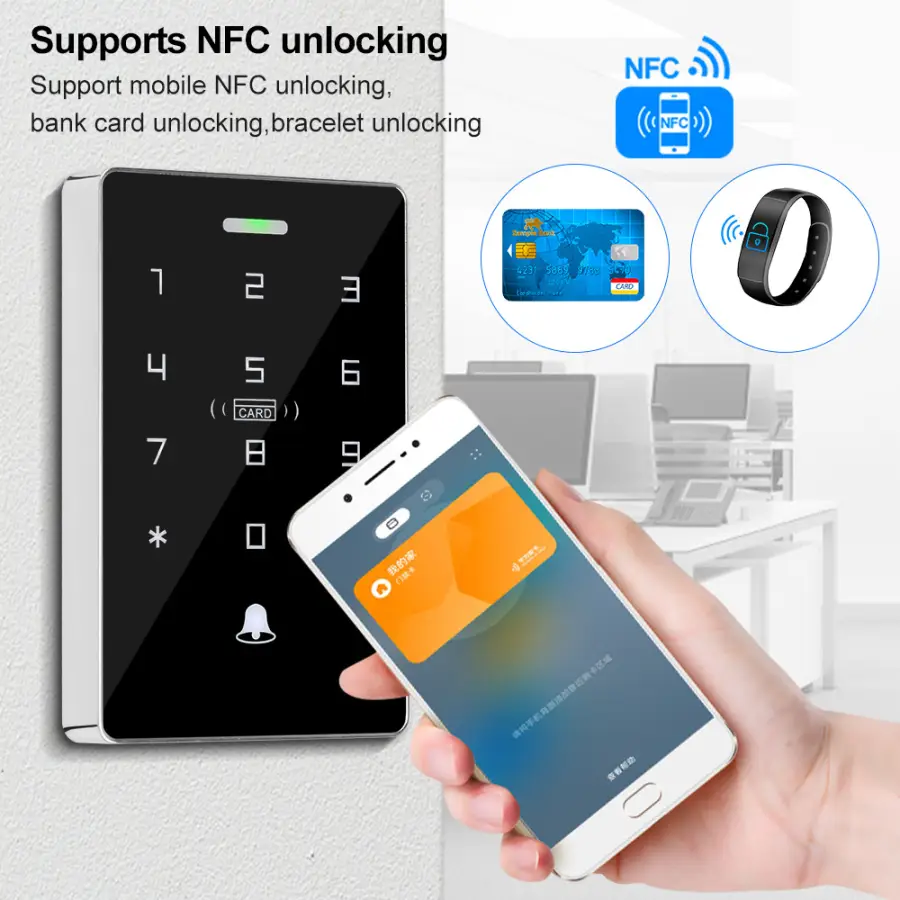

Support NFC unlocking
Support Moblie phone NFC unlocking, bank card unlocking, bracelet unlocking

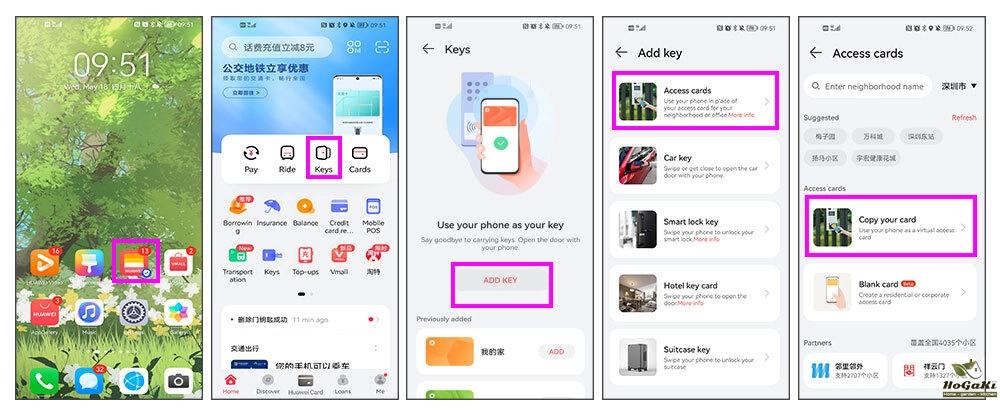

This instruction is about Android, if your phone is ISO system, need to add a bank card first.

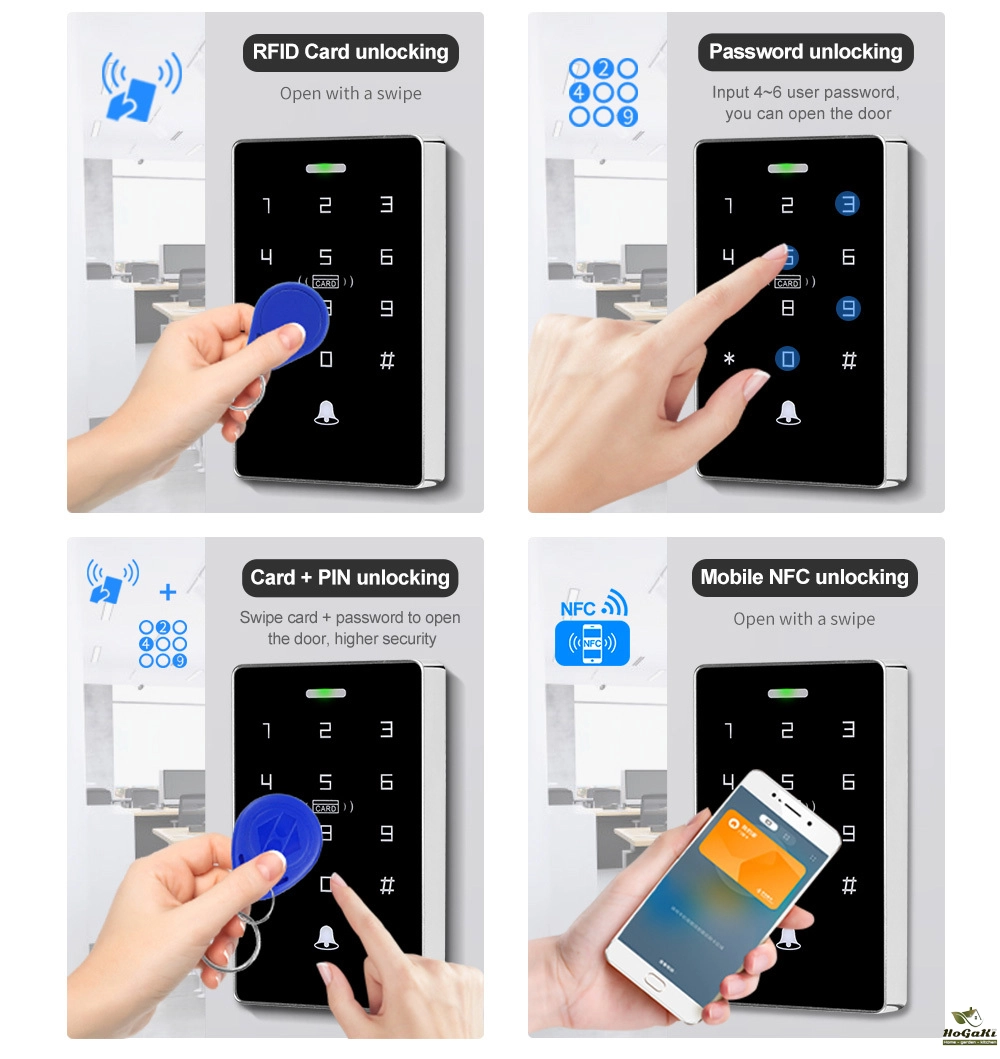

Support RFID Card, Password, Mobile Phone NFC to open the door
Support 10000 cards, 10000 password user capacity, more secure!

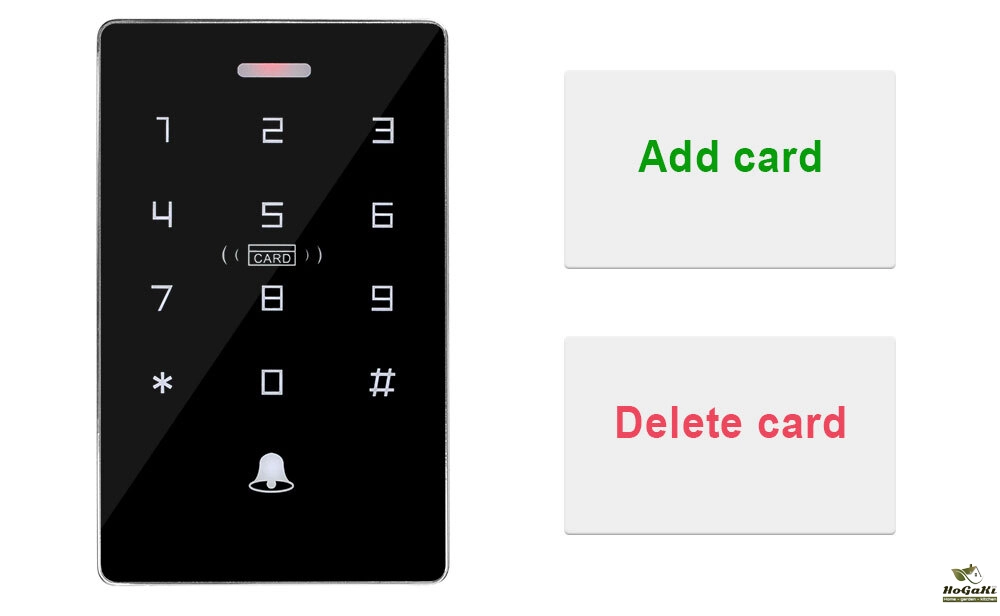

Can set Management card. Very easy to program!
Don't need to connect to computer.
( Package not including Management cards, need to set by yourself)

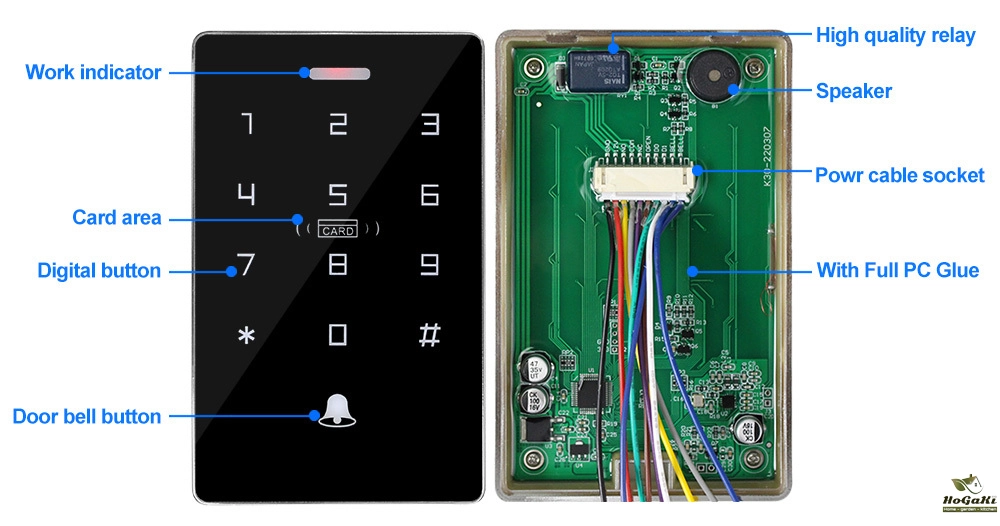

ABS fire retardant material shell
Touch keyboard, beautiful design. Has a door bell button, can install a wired door bell!

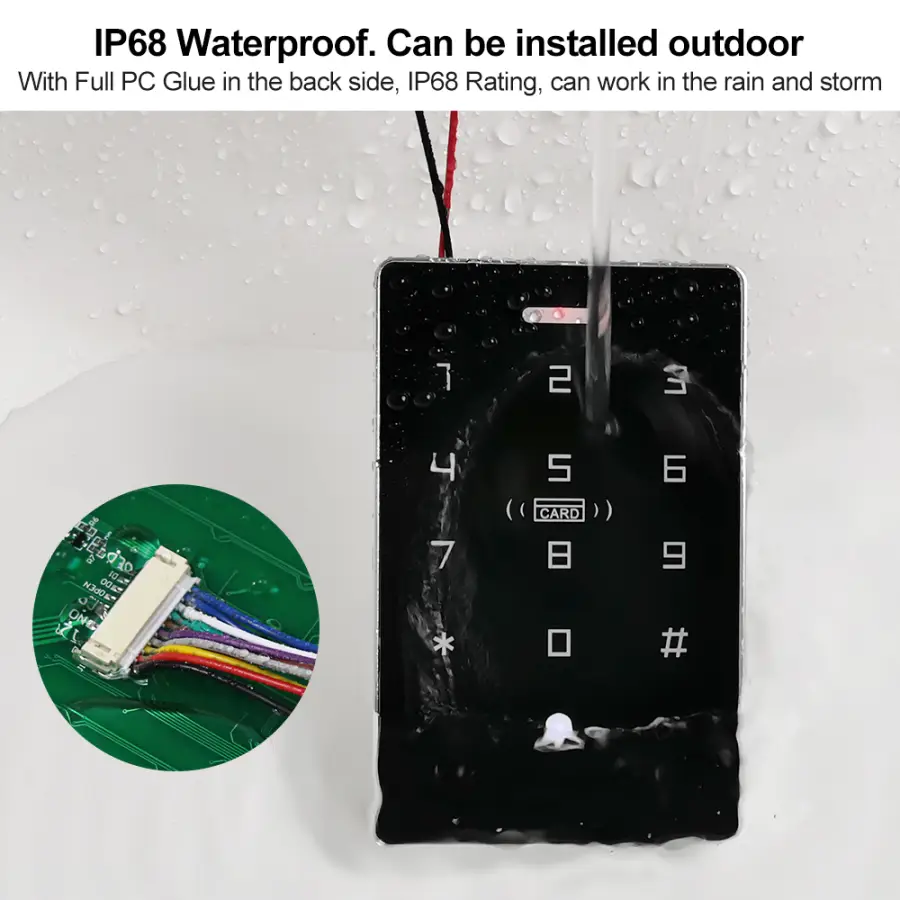

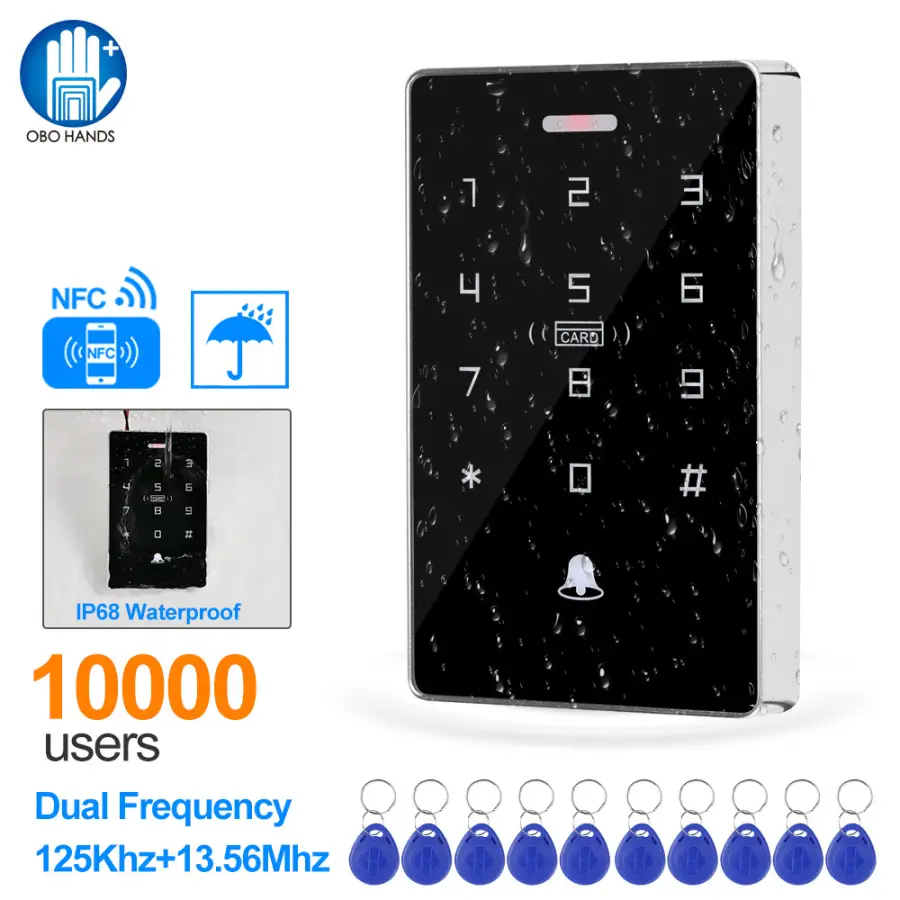

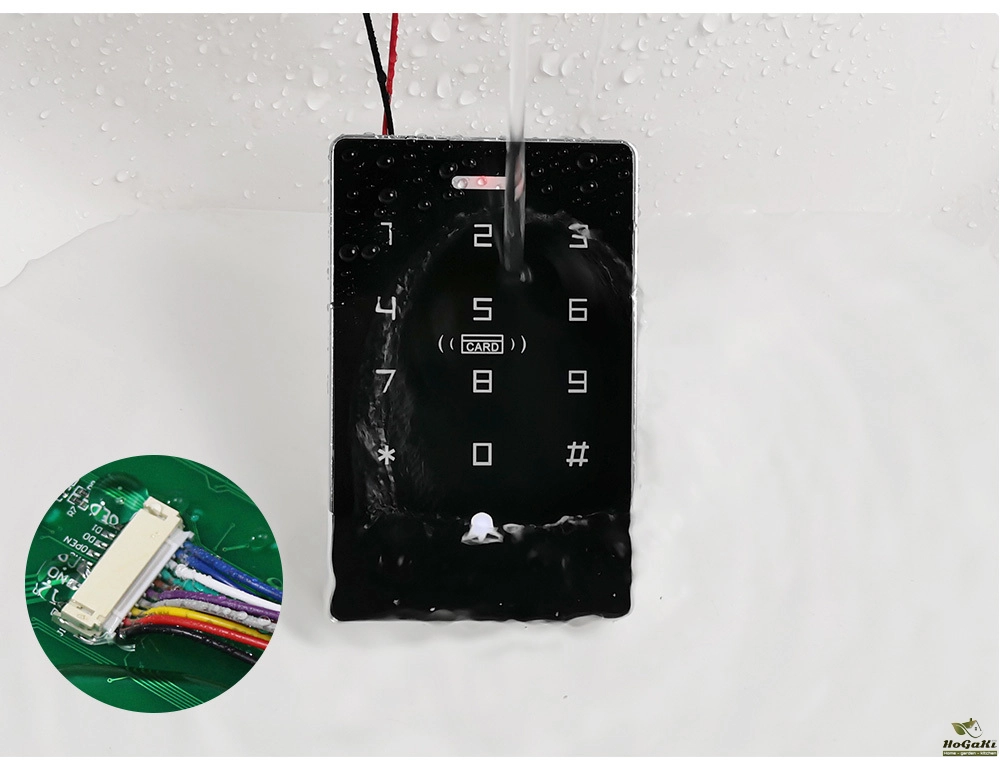

IP68 Waterproof. Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

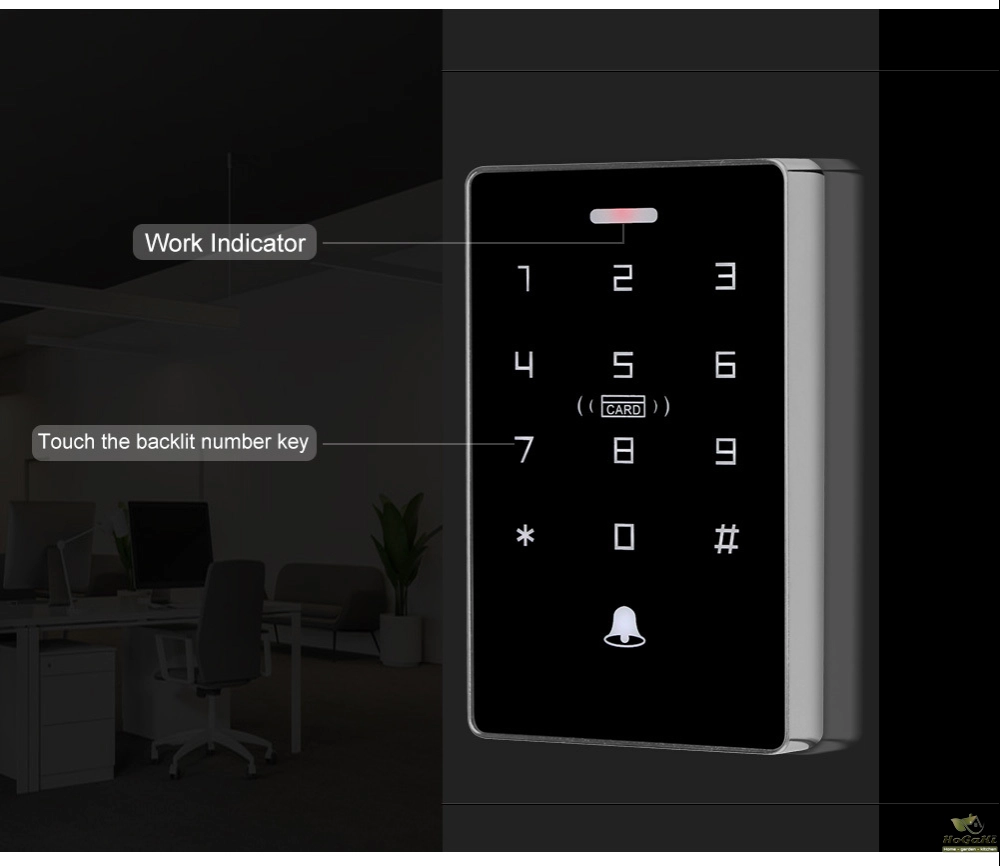

White Backlight keypad
The digits number can be seen clearly even at dark

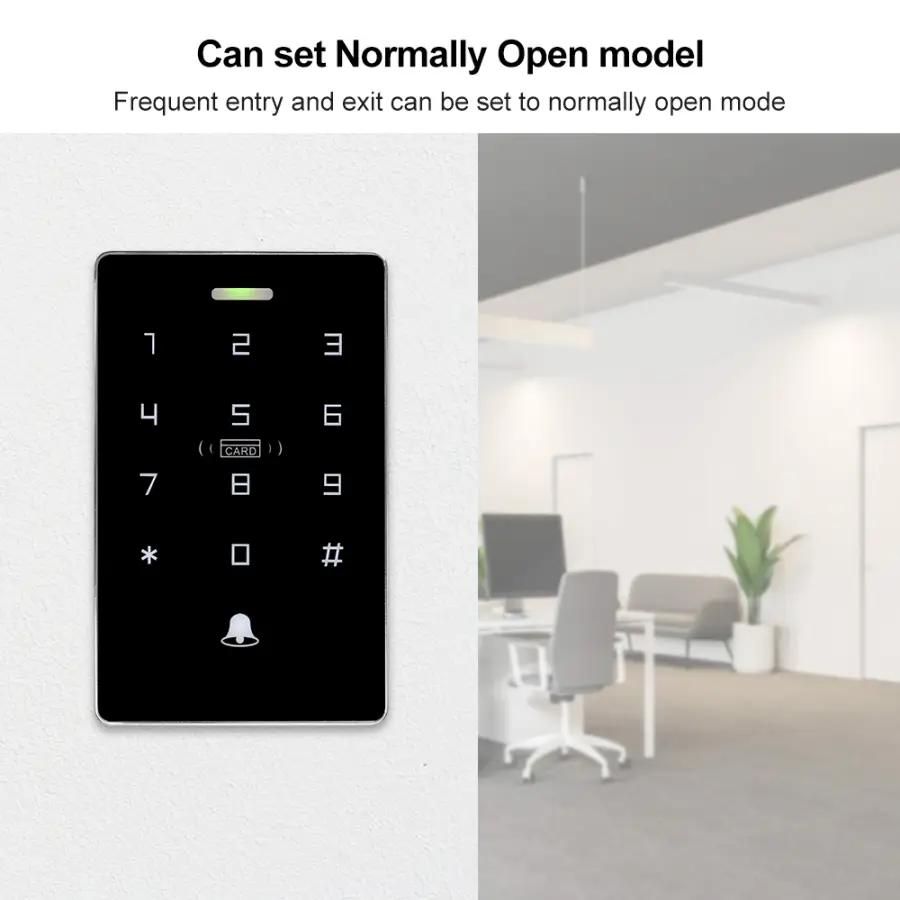

Can set Normally Open model
Frequent entry and exit can be set to normally open model

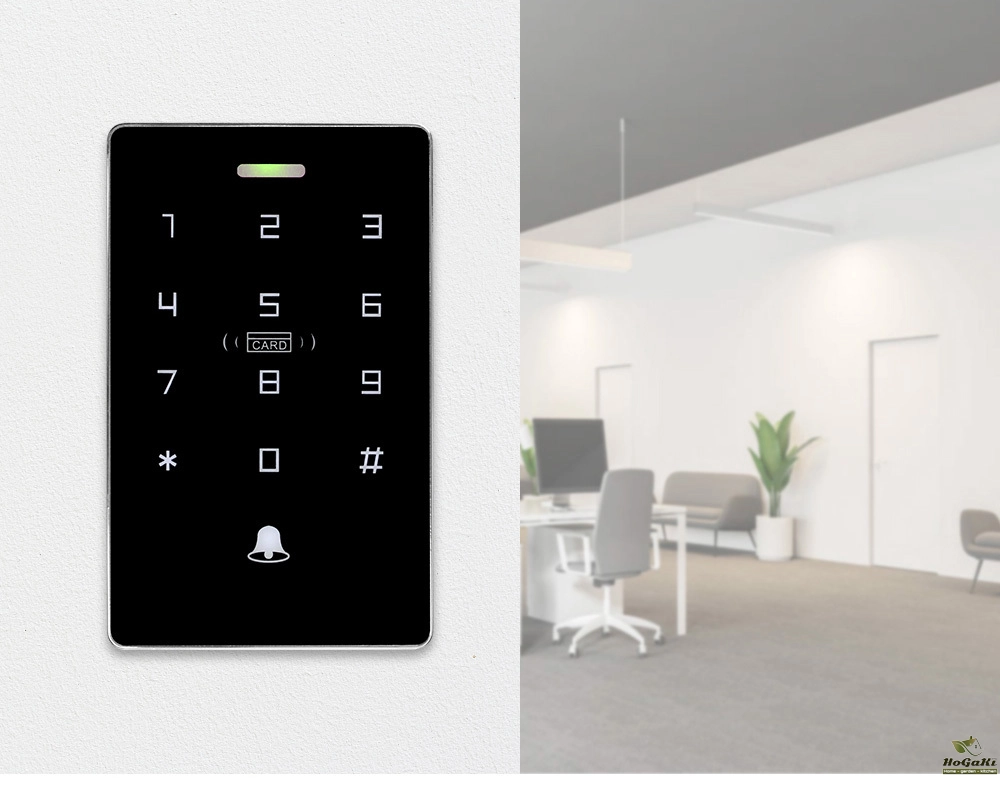

Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Suitable for most major access control solution.

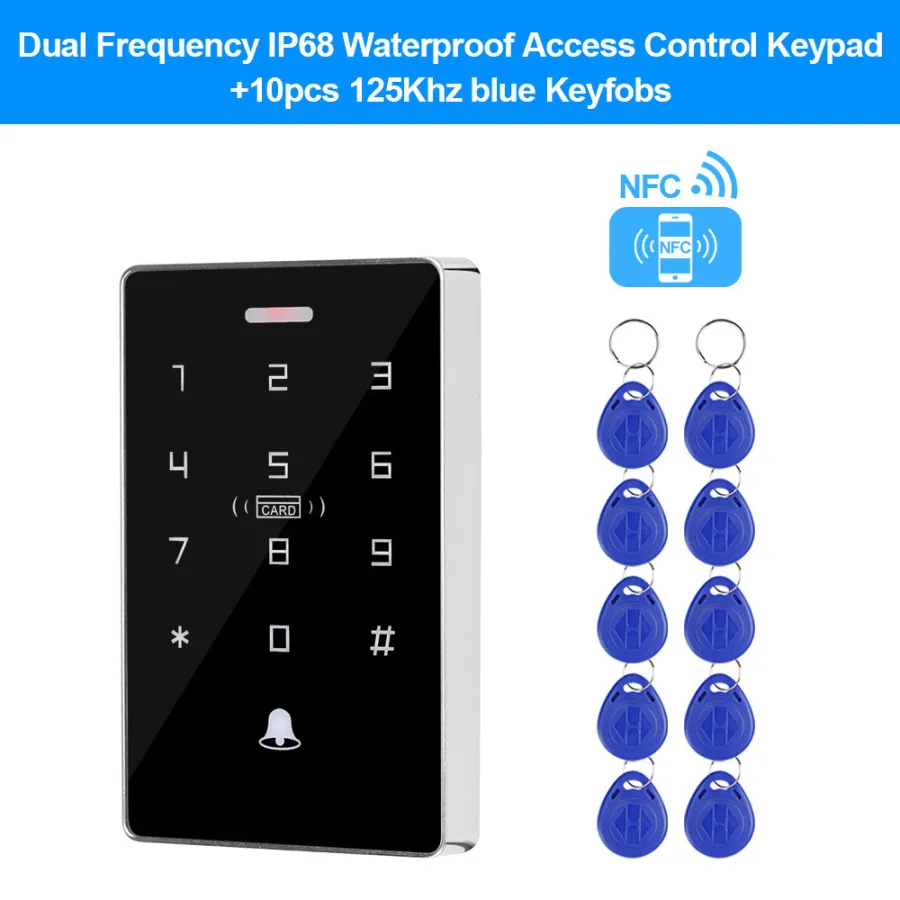

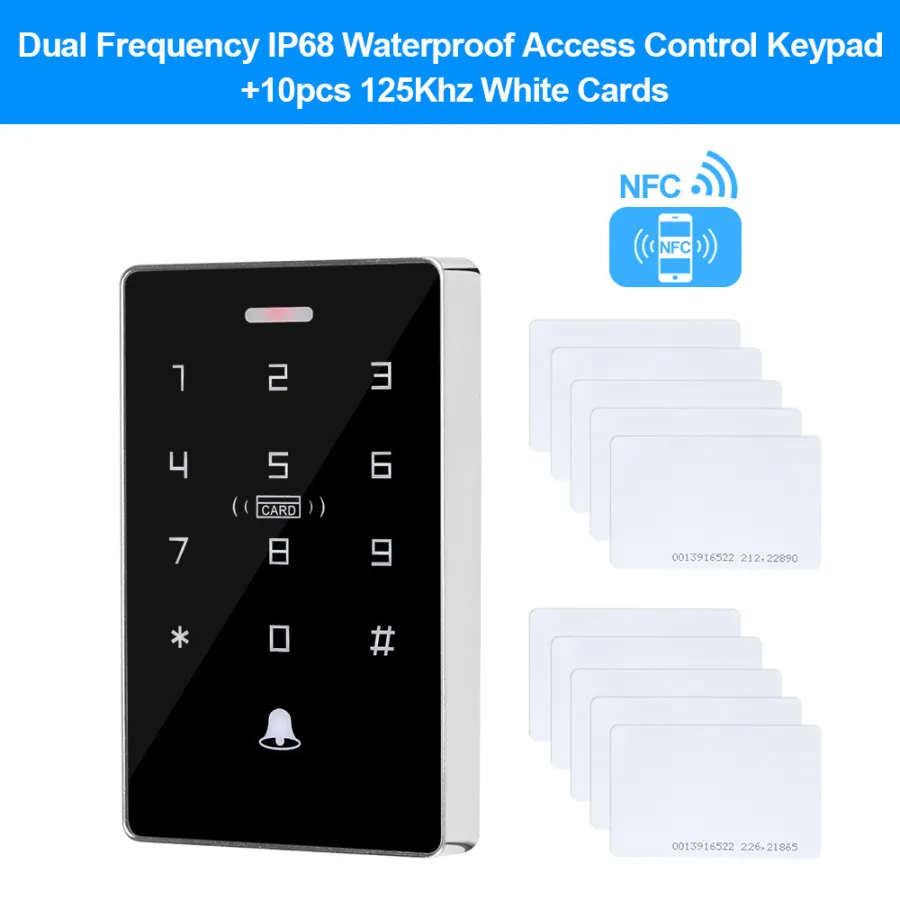

RFID Keyfobs
1. Material: ABS
2. Working Frequency: 125KHz / 13.56MHz
3. Chip: EM, Mi-fare 1k
4. Support: read only, not support write.
5. Reading distance: 0-5cm
6. Each one has a metal keyring.

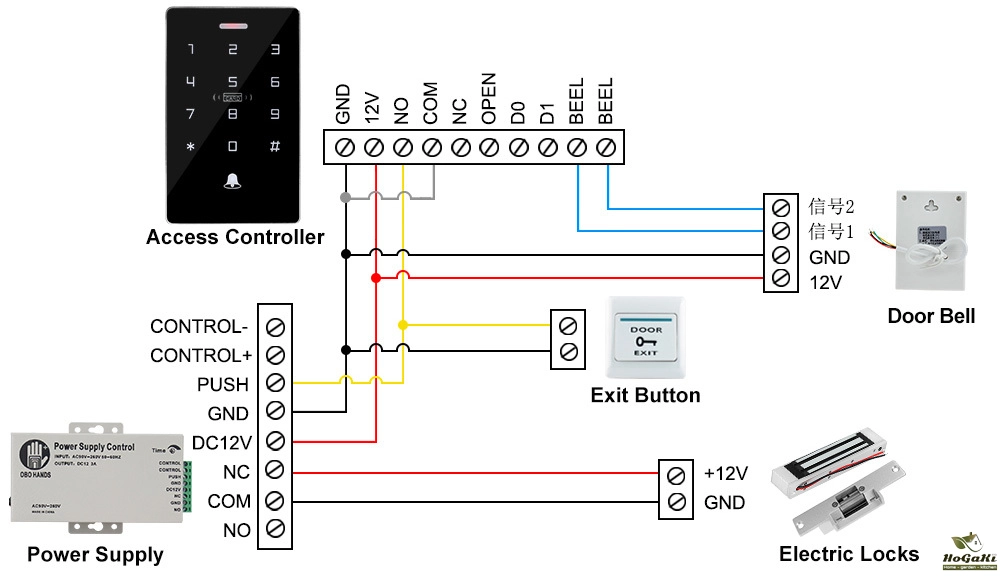

Wiring Diagram:
(Note: Both of the power supply, lock, exit button are Not included in the package, need to buy extra)
Packaging Details
- Unit Type:
- Package Weight: 0.193
- Package Size: 14x5x17
- Brand Name: OBO HANDS
- Origin: Mainland China
- Model Number: S10 ID IC+10
- Certification: CE
- Material: High quality ABS
- User capacity: 10000 users
- Working Voltage: DC12V
- Working frequency: 125KHz, 13.56MH
- Card type: EM ID, MF 1K Card
- Unlock method: NFC, RFID Card, Password, RFID card + password
- Wiegand interface: WG26 / WG34
- Waterproof: IP68
- Blacklight: White backlight
- Choice: yes
