Dual Frequency WiFi Tuya Access Control Keyboard Fingerprint Door Lock ID+IC Card Reader Controler Keypad Waterproof Door System
5.0 (3 votes) | 23 orders
Price:
US $121.73
Discount Price:
US $
65.14
-46%
Dual Frequency WiFi Tuya Access Control Keyboard Fingerprint Door Lock ID+IC Card Reader Controler Keypad Waterproof Door System

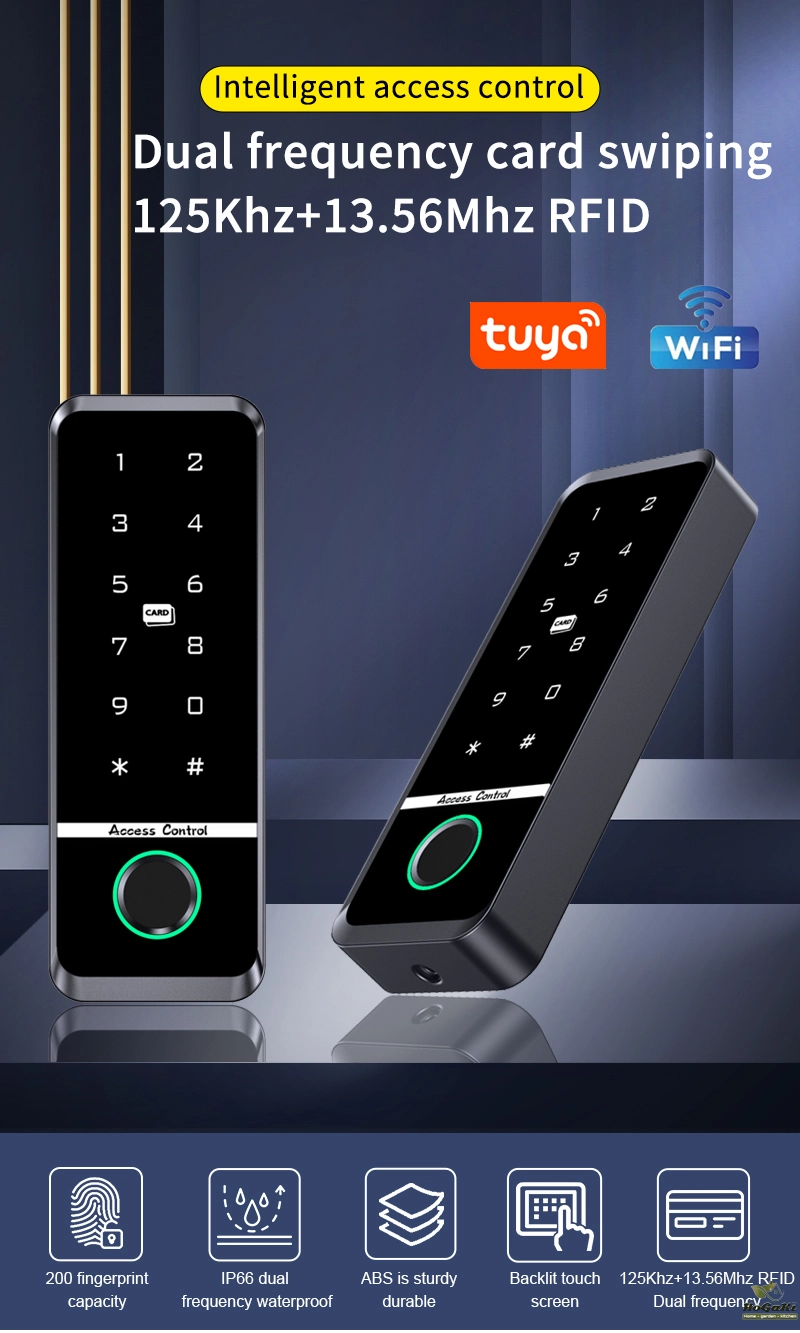

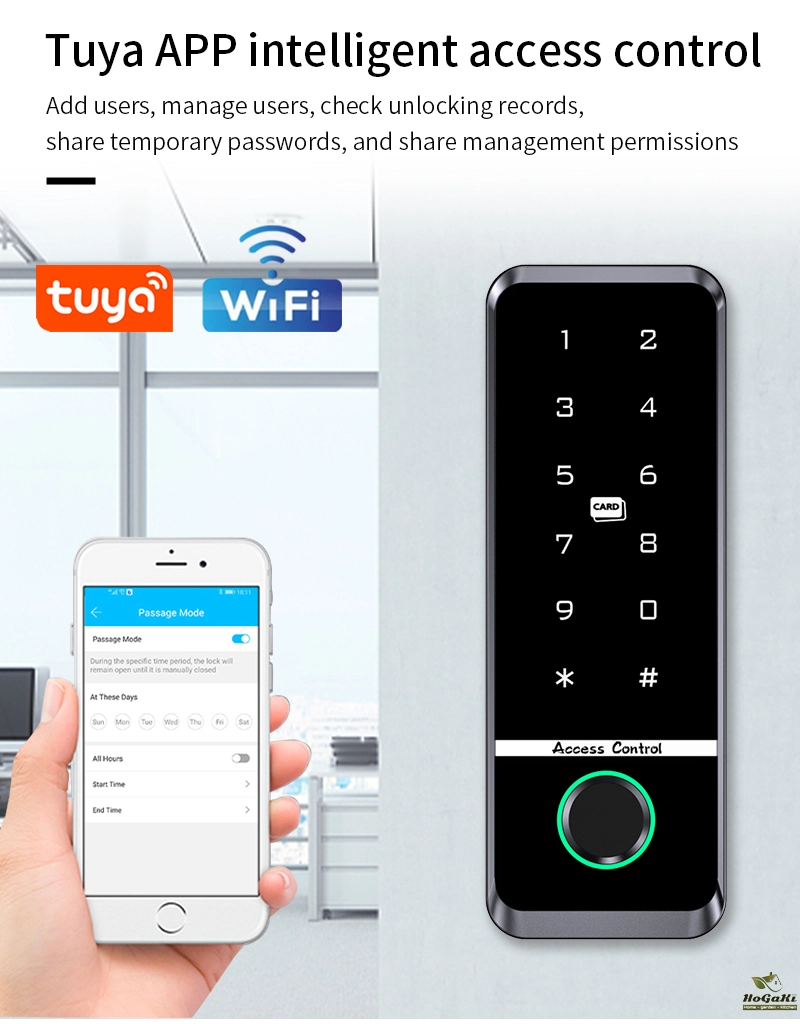

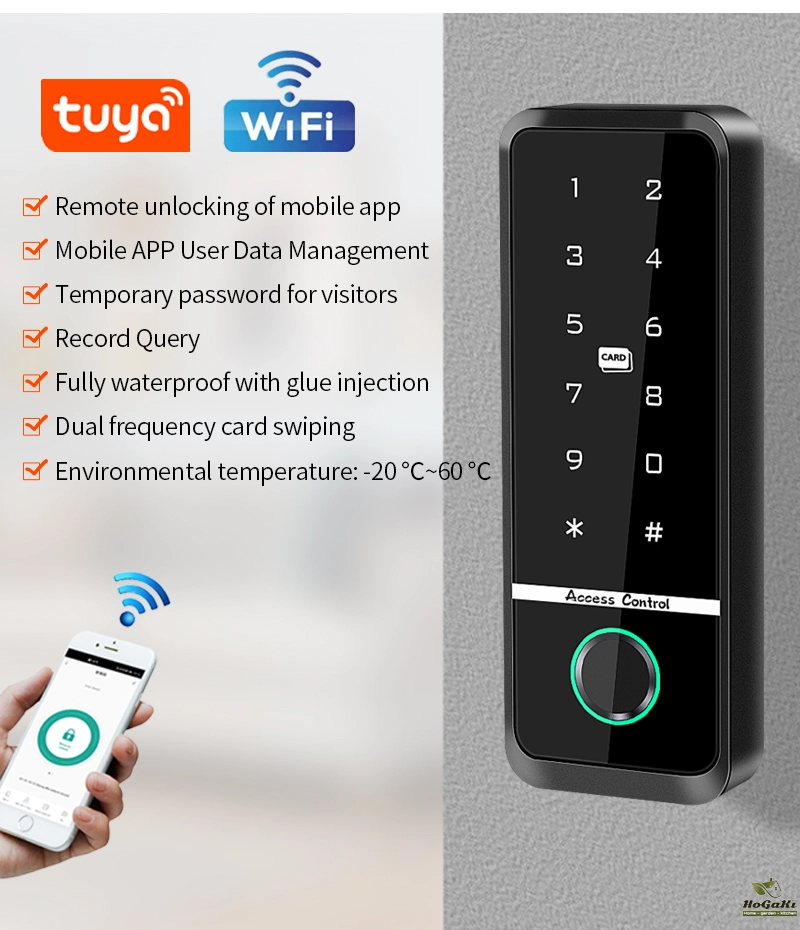

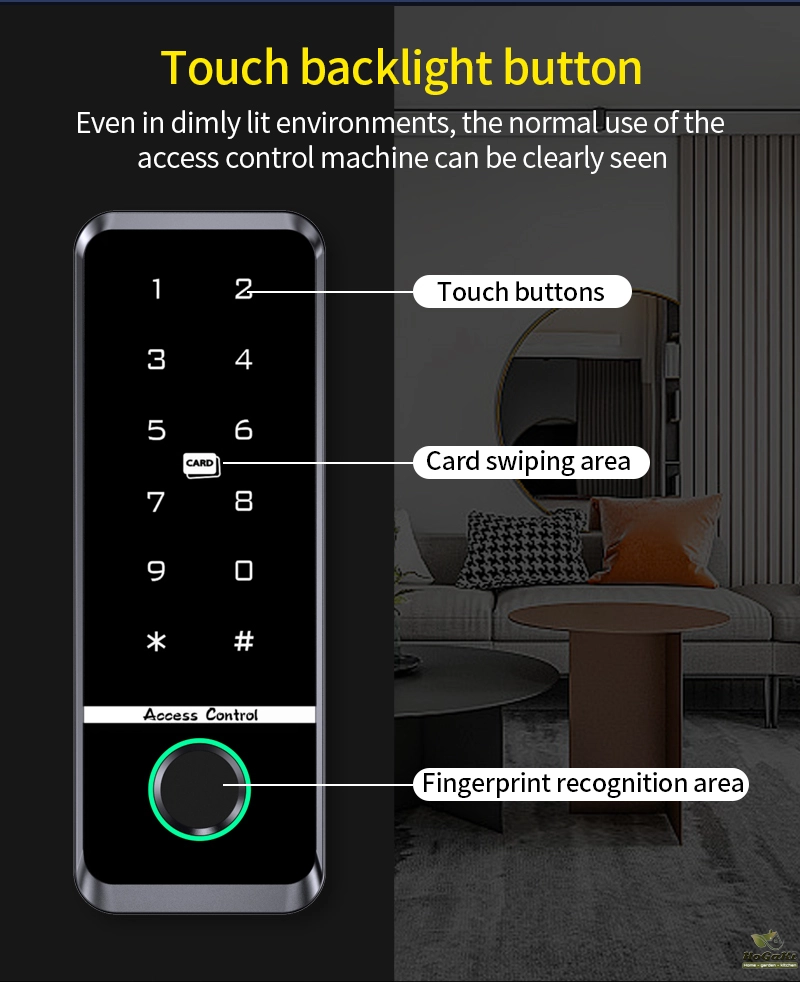

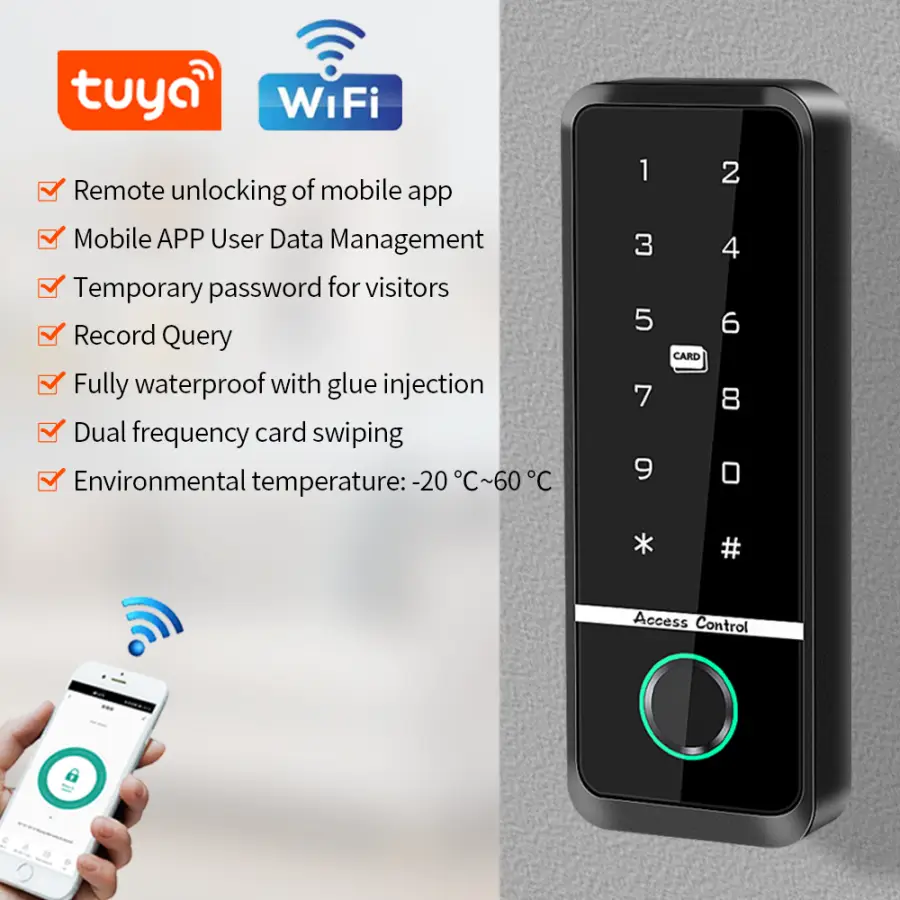

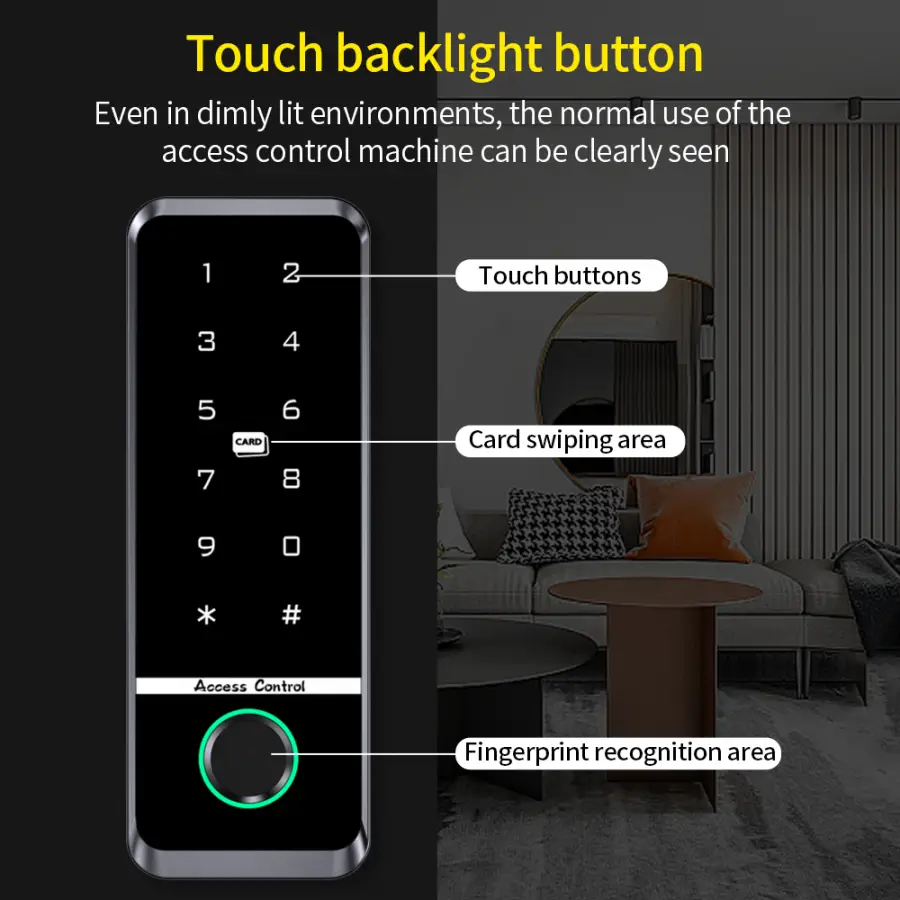

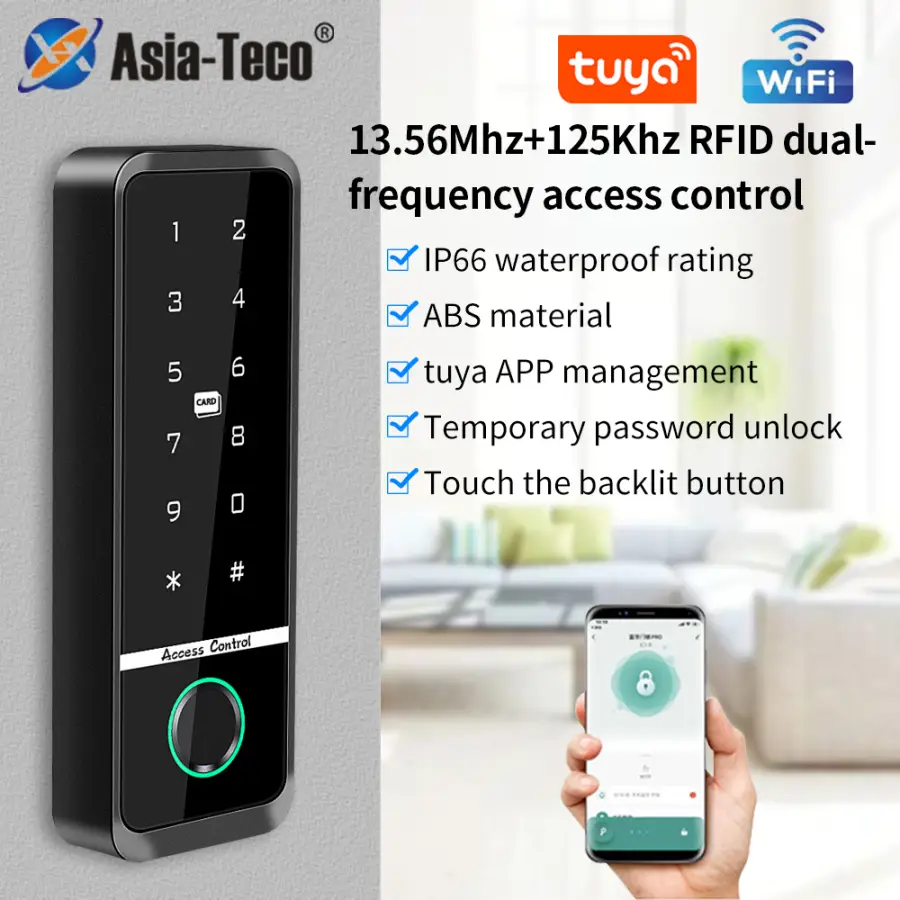

This device is a new generation,newly designed stylish Tuya waterproof fingerprint access control integrated stand-alone machine with card reading function, with an ABS shell, anti prying, IP66 waterproof grade, suitable for outdoor use. Supports 200 fingerprints+1000 card users, with app door opening/fingerprint door opening, card door opening, password door opening, app generated temporary password door opening, and multi user combination door opening. Support visitor users, can be set as a professional Wiegand card reader, and can upload/download card or password user data.
Advantages and Features

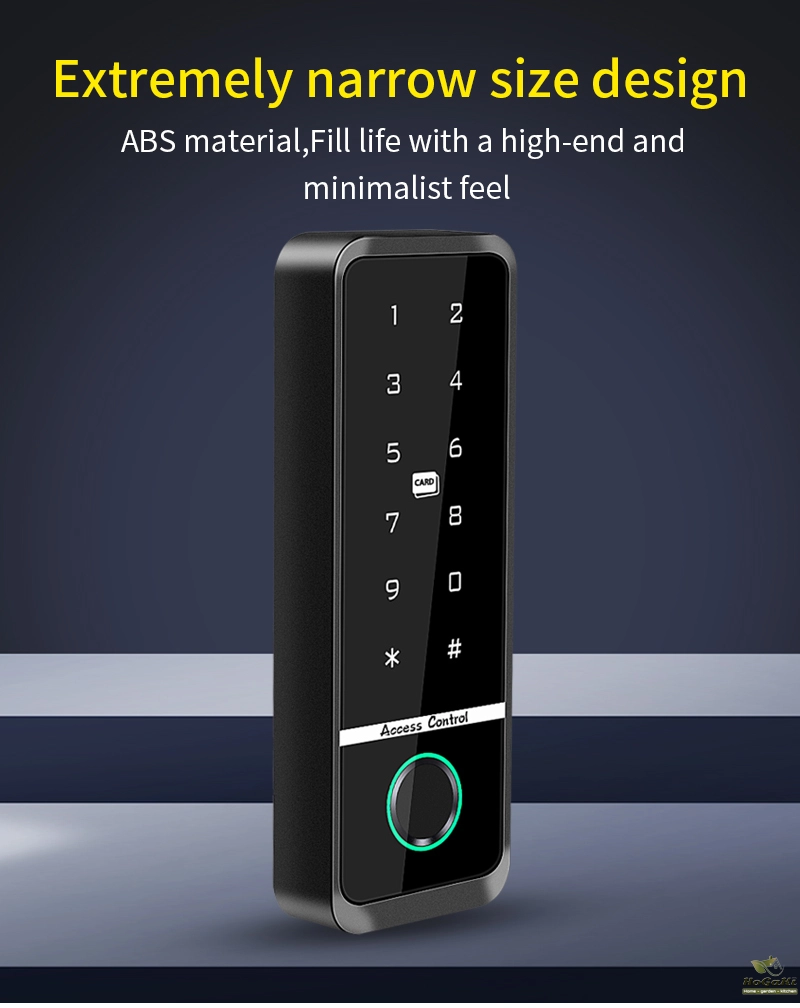

ABS+PC material, Anti-vandal and Anti-explosion,

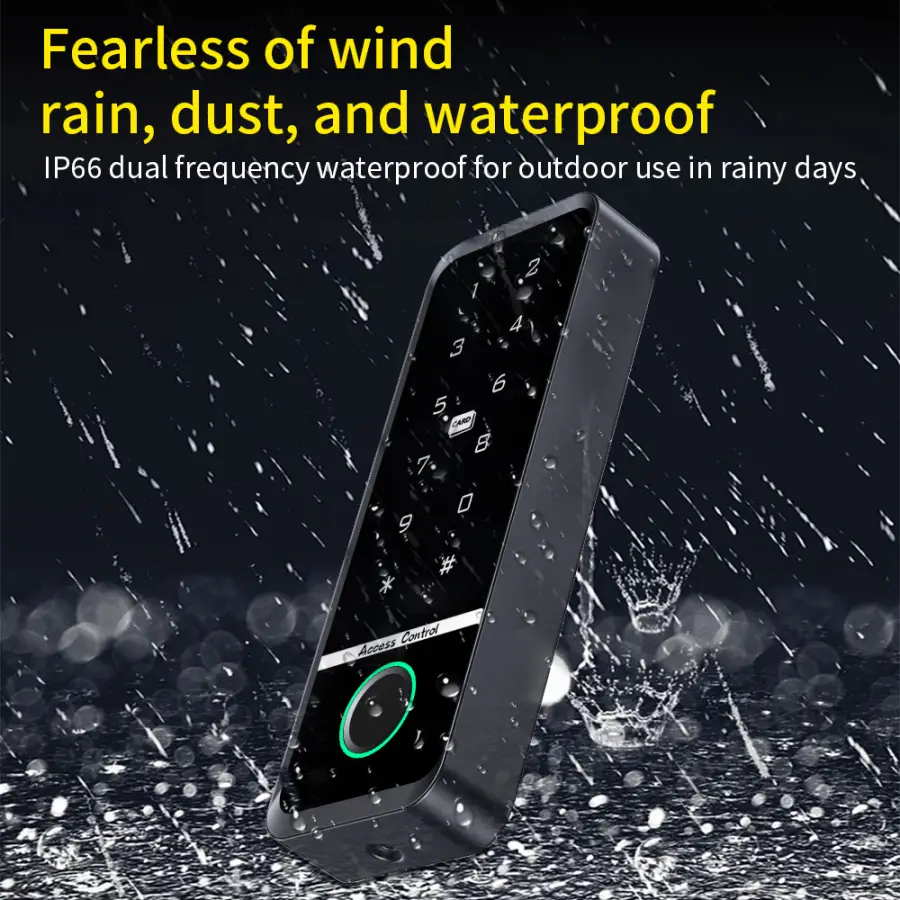

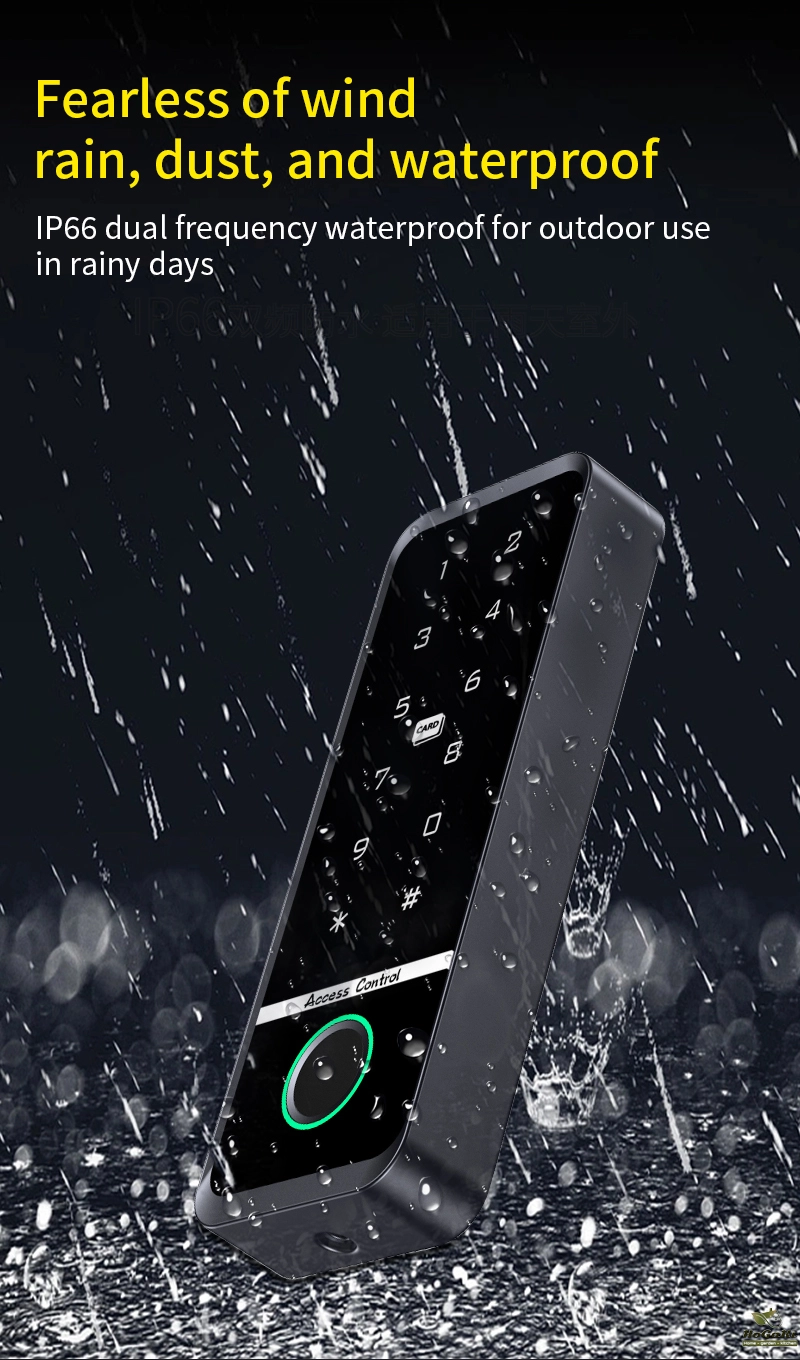

Waterproof, Conforms to lP66
Support EM and Mi-fare card
User Capacity :
Local capacity:100 fingerprints, 2800 cards
APP capacity: 100 fingerprints, 400 cards
10 Visitor users

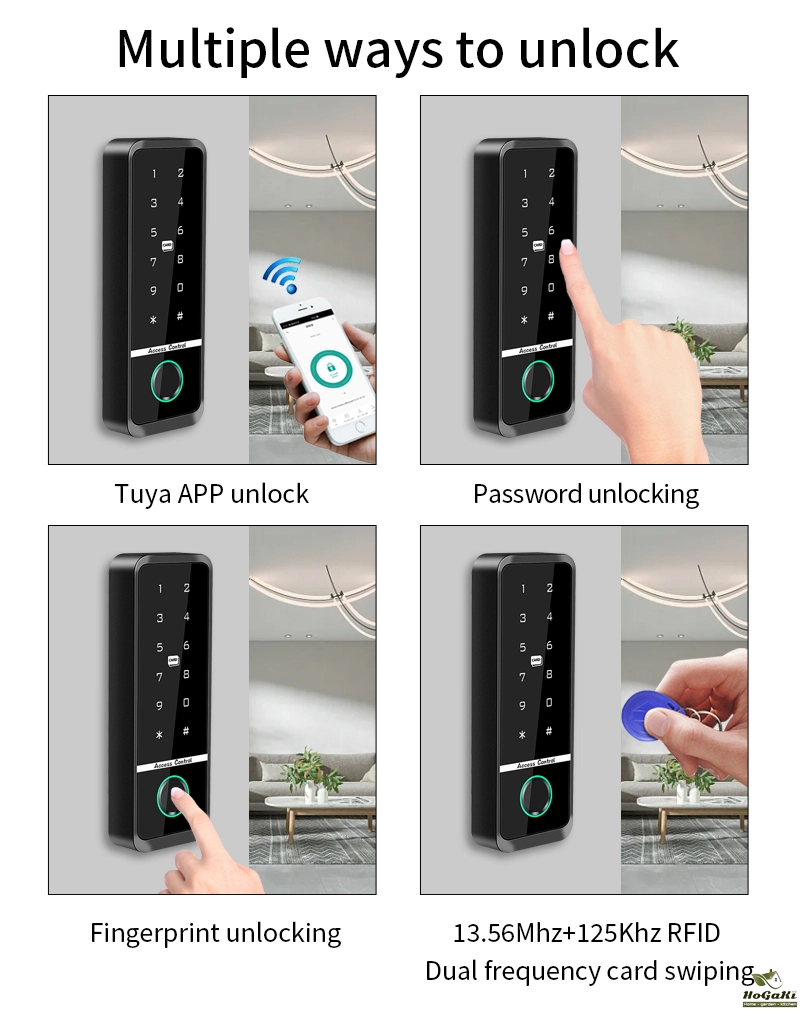

Access Mode/Access Method: fingerprint, card, PiN, multi users
Mi-fare(13.56mhz) Wiegand: 26-44 bits, 56 bits, 58 bits Input&output
EM(125Khz) Wiegand: 26 bit.
PIN Wiegand output formats: 4 bits, 8 bits(AsCll), 10 digitsvirtual card number.
Supports Pulse Mode and Toggle Mode

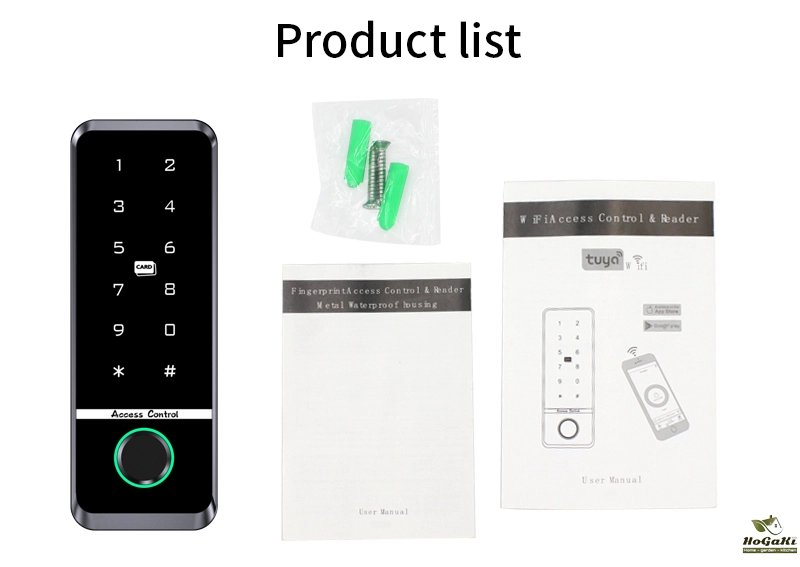

Packaging Details
- Unit Type:
- Package Weight: 0.200
- Package Size: 10x10x15
- Brand Name: Asia-Teco
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: TF108EM/MF-W-WIFI
- Certification: CE

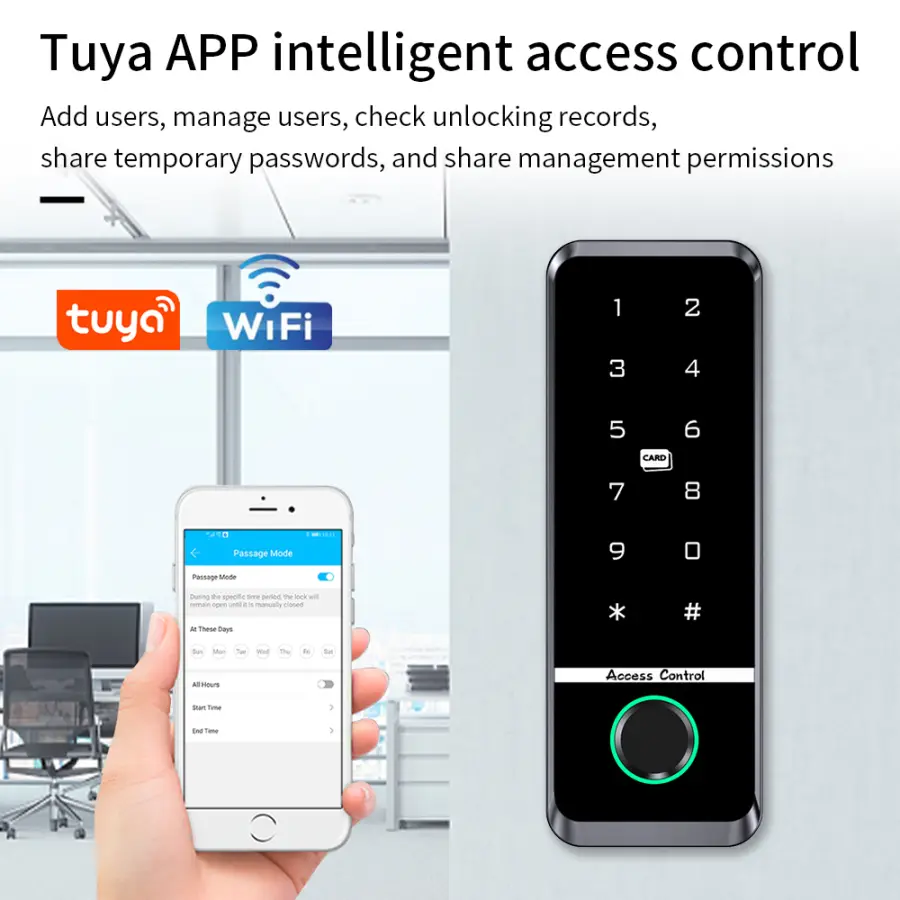

- Smart home platform: Tuya
- Smart home platform: Tuya App

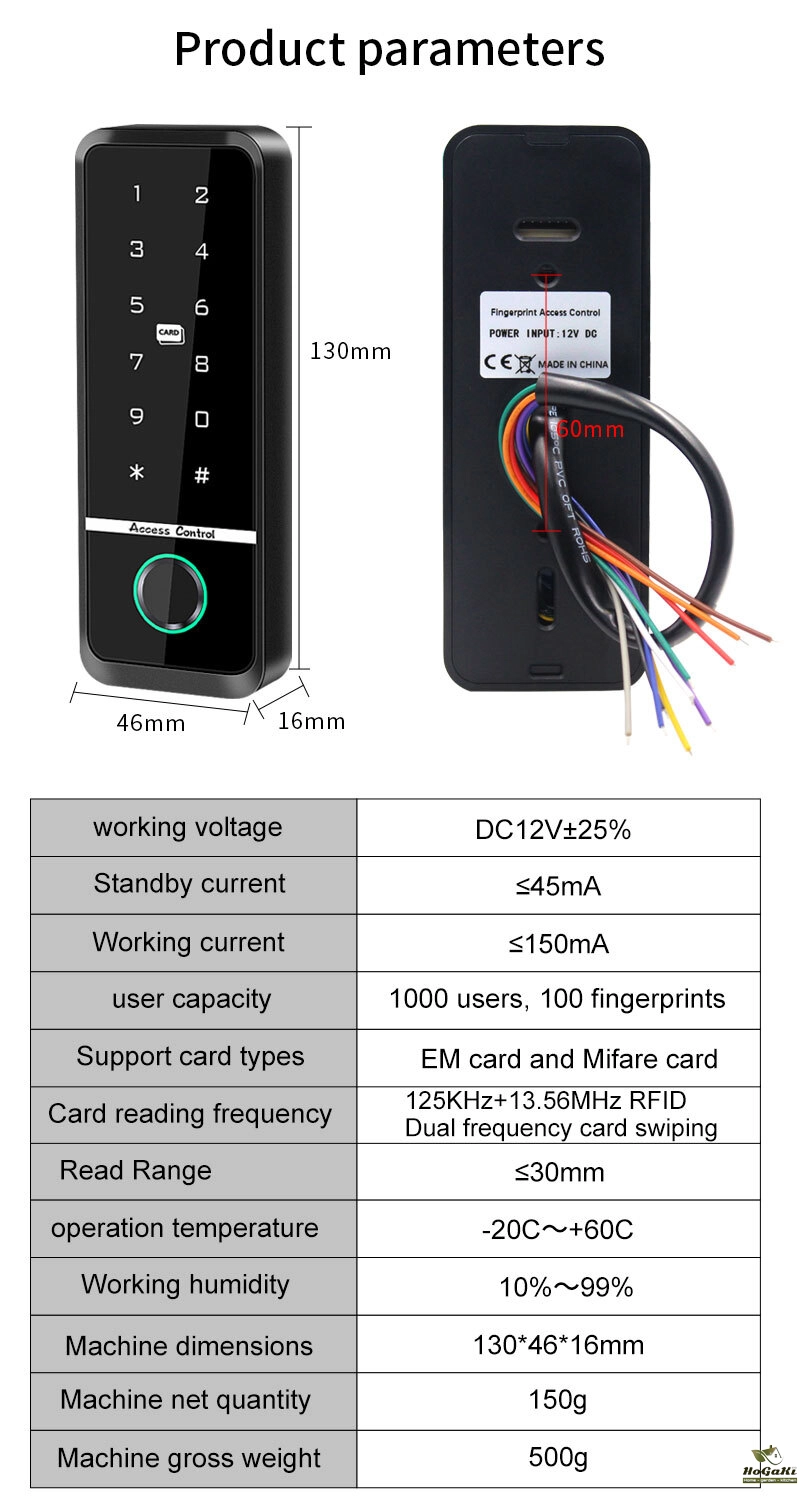

- Operating Voltage: DC12V±25%
- Idle Current: ≤45mA
- Active Current: ≤150mA
- Card Type: both EM and Mi-fare card
- Card Frequency: 125KHz and 13.56MHz
- Read: ≤30mm
- Operating Temperature: -20℃~+60℃
- Operating Humidity: 10%~99%

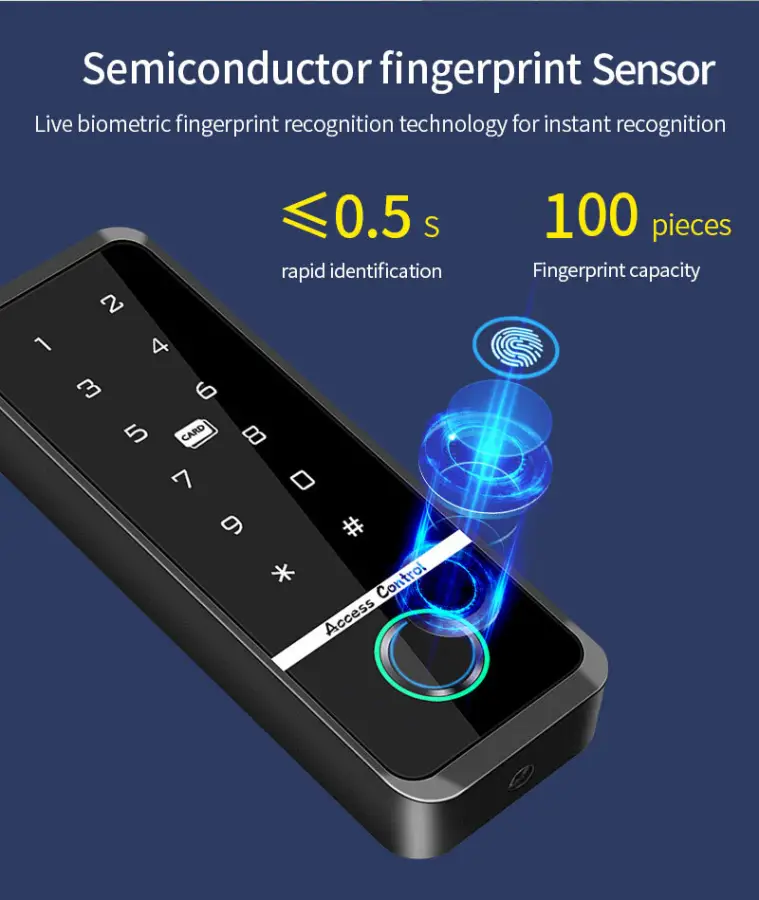

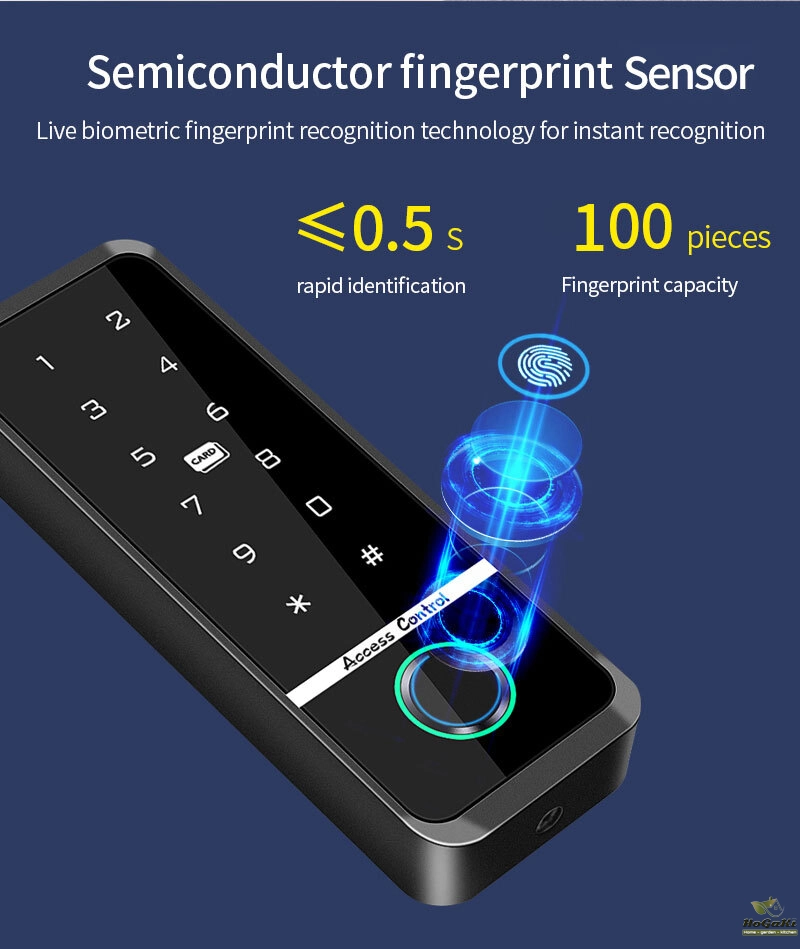

- Fingerprint User: 100
- Card User/ PIN User: 1000
