NFC Tuya Access Control Fingerprint Keypad 125K RFID& 13.56M IC Standalone Access System Door Opener WG26 Card Reader APP Unlock
79.70 43.15 $
ID: 161149
Quantity
125KHz RFID Touch Keyboard IP68 Waterproof Access Control Keypad Controller Digits Lock Door Opener System Electronic Key Cards
5.0 (1 votes) | 22 orders
Price:
US $85.55 - 87.86
Discount Price:
US $
31.46 -
33.14
-63%
- Color
-
-
IP55 waterproof vision, can be installed indoor; IP68 waterproof version, can be installed indoor and outdoor.
IP68 Waterproof RFID Card Door Access Controller With Wiegand 26 / 34 Output
High quality / 3000 user capacity / 3 unlock method
Product Specification:
User capacity: 3000
Material: ABS high quality material
Panel: touch screen panel
Working frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-10CM

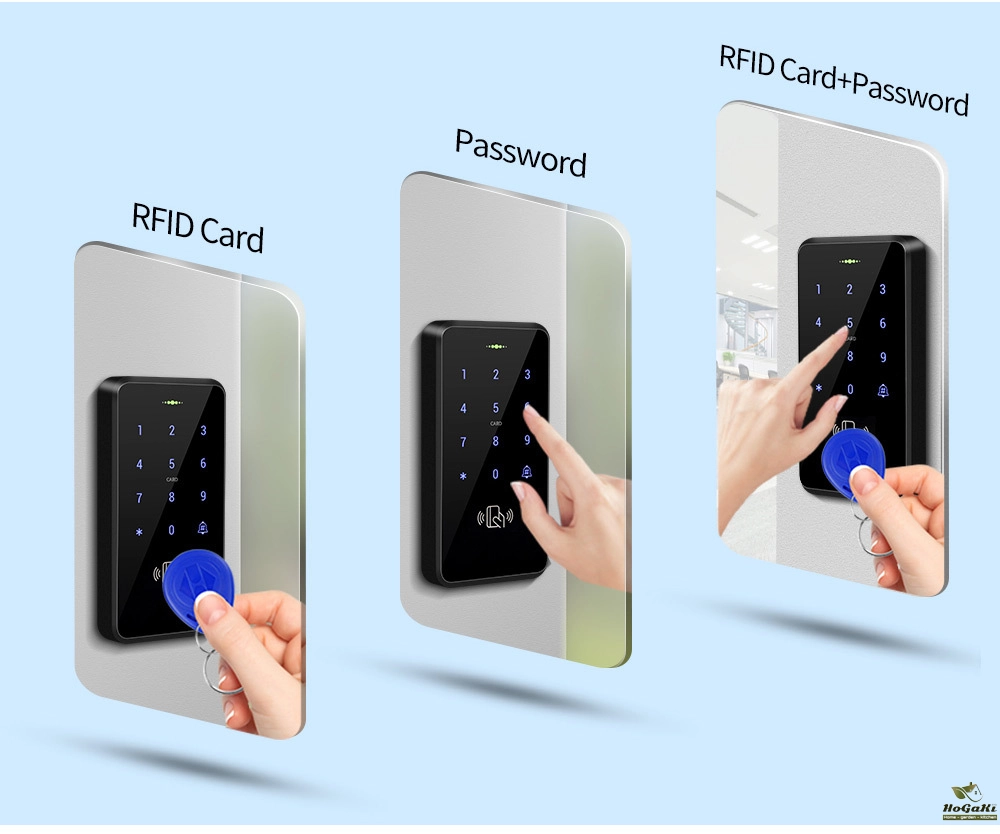

Identification method: card, password, card + password
Backlight: has blue backlight
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds

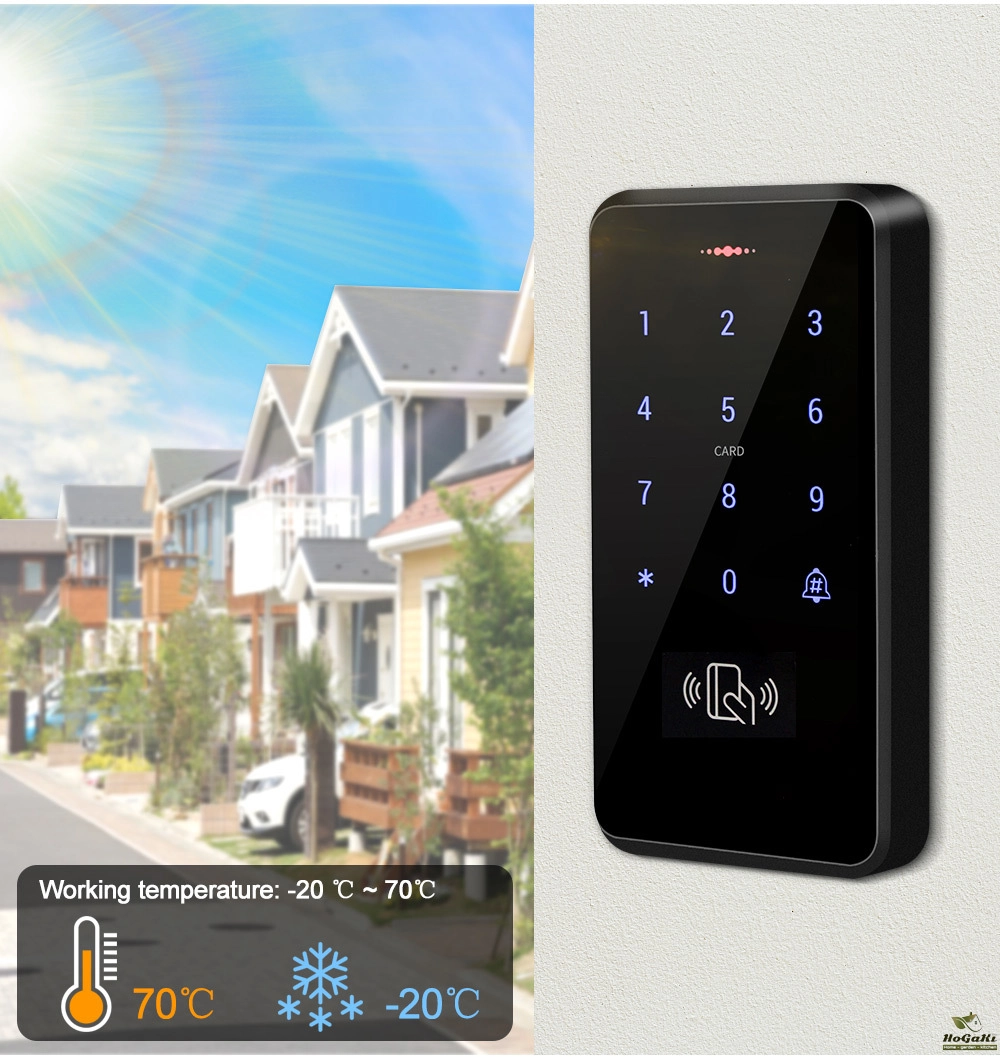

Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%

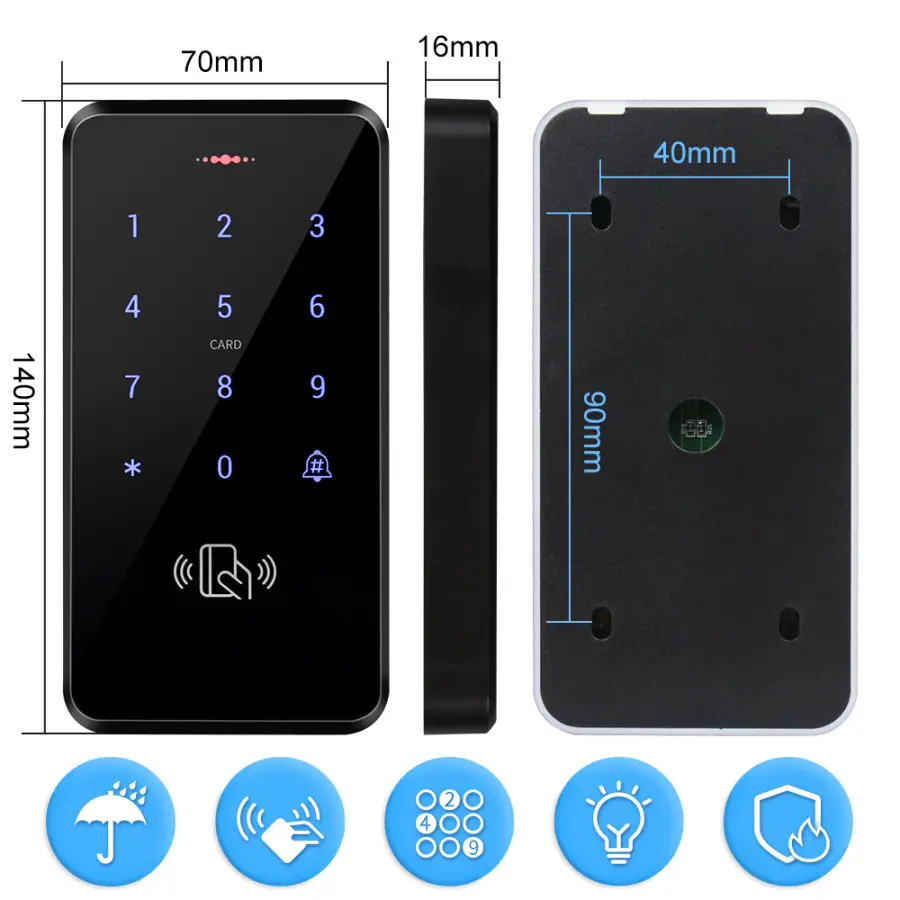

Product size: 140*70*16mm
Product Details:

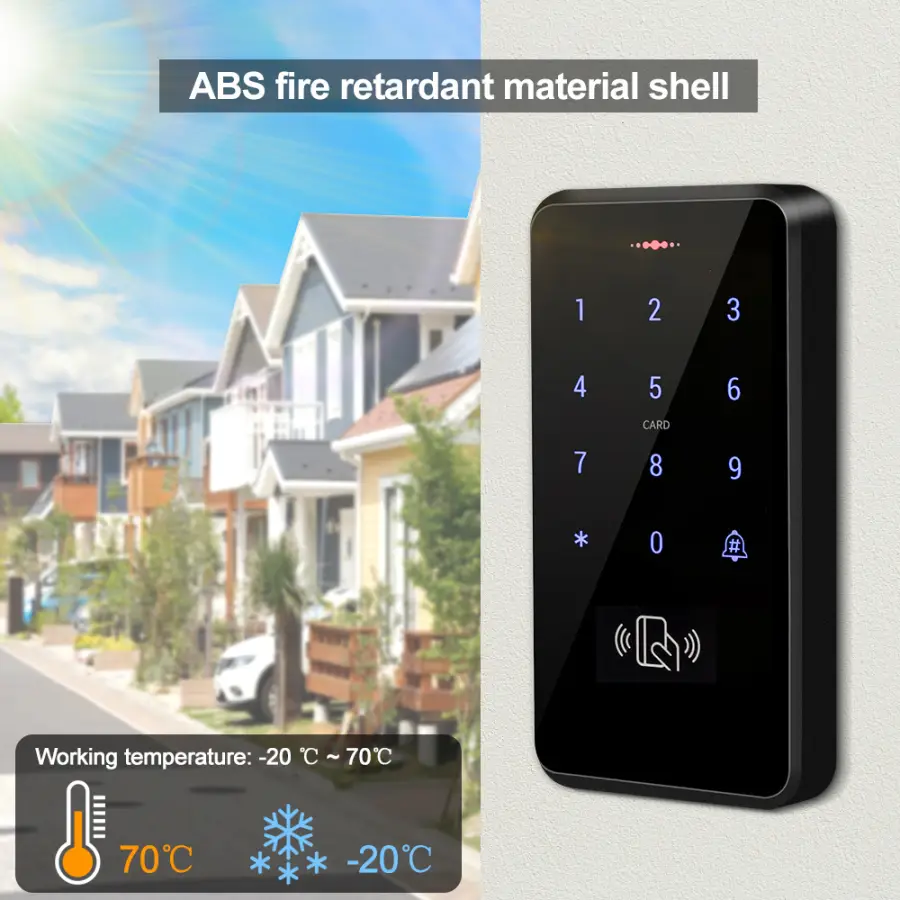

ABS fire retardant material shell
One-piece molding, hard plastic treatment. Fire retardant, impact resistant and wear resistant!

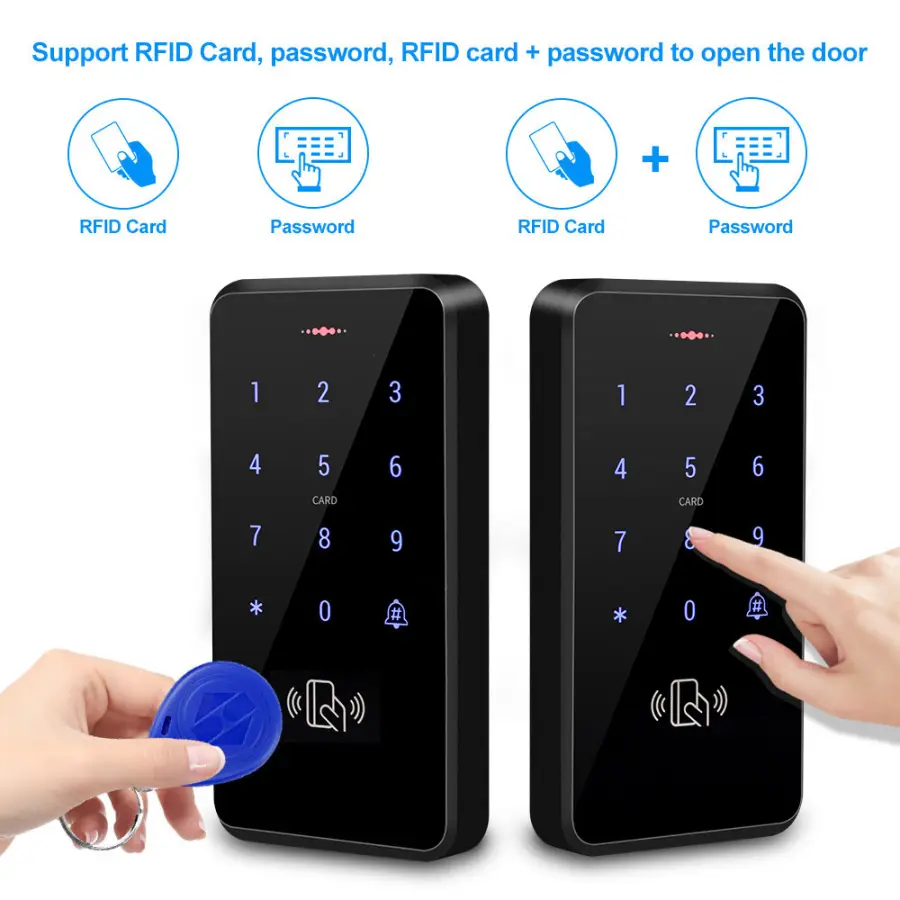

Support RFID Card, password, RFID card + password to open the door
Support 3000 card and password user capacity, can set card + password to open the door, more secure!

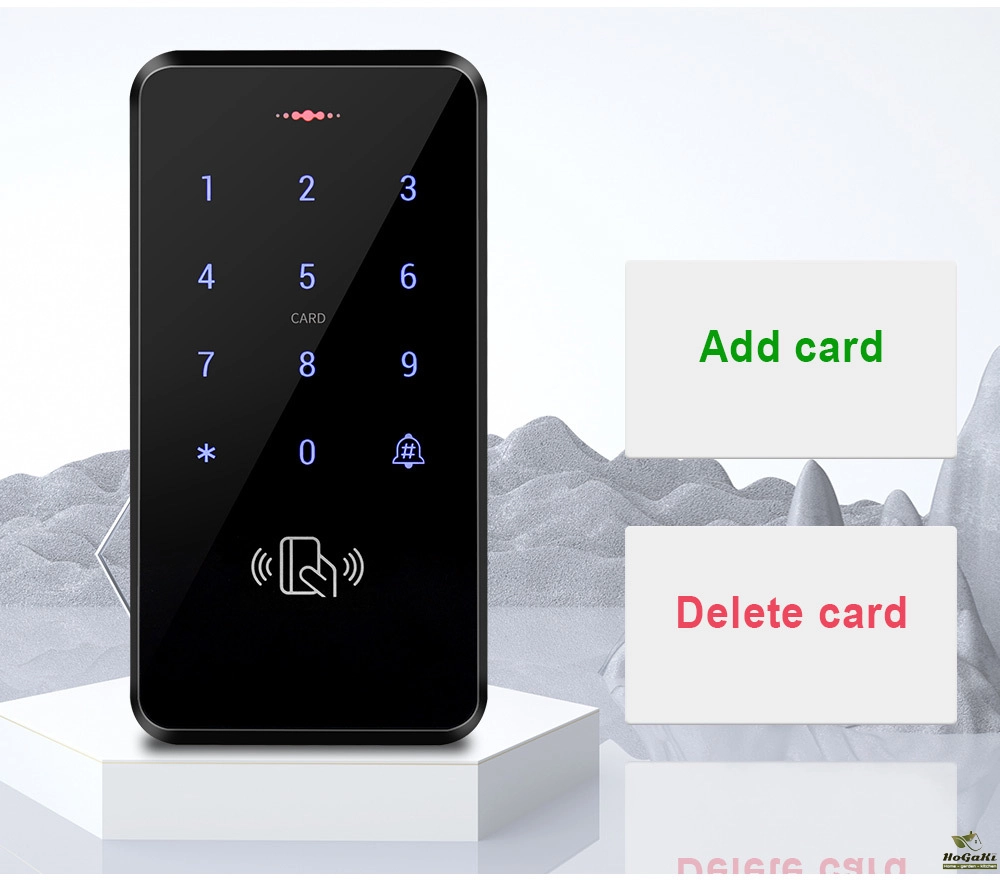

Can set Management card. Very easy to program!
Don't need to connect to computer.
(Package not including Management cards, need to set by yourself)

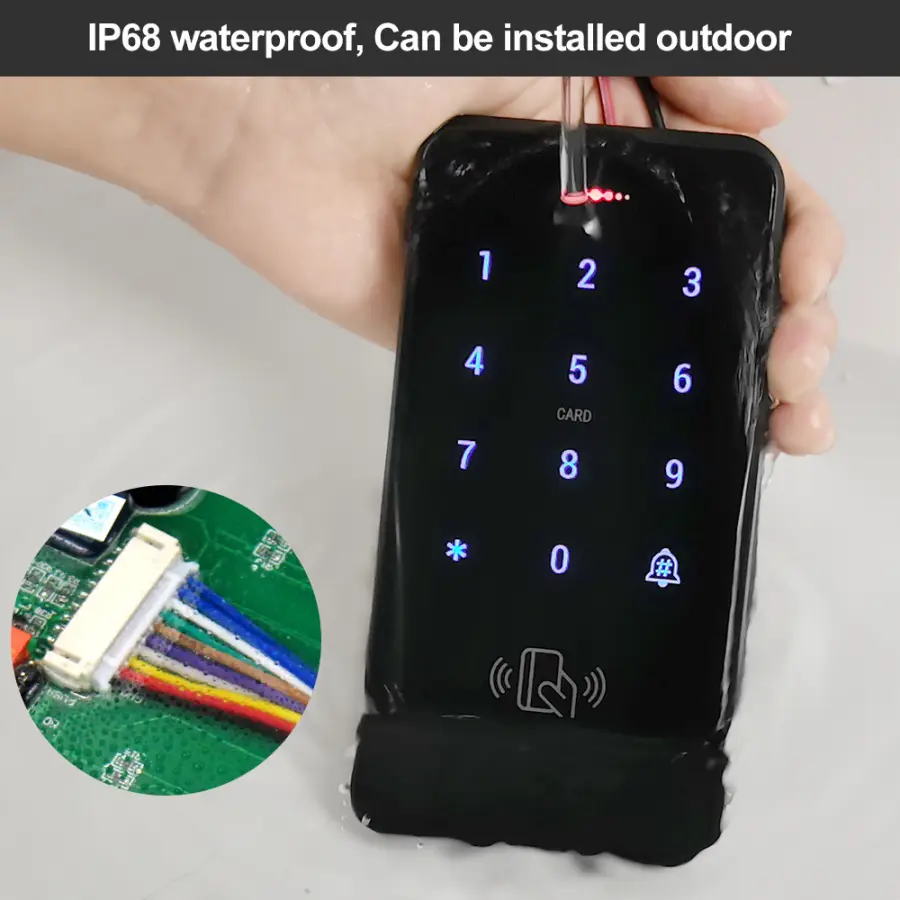

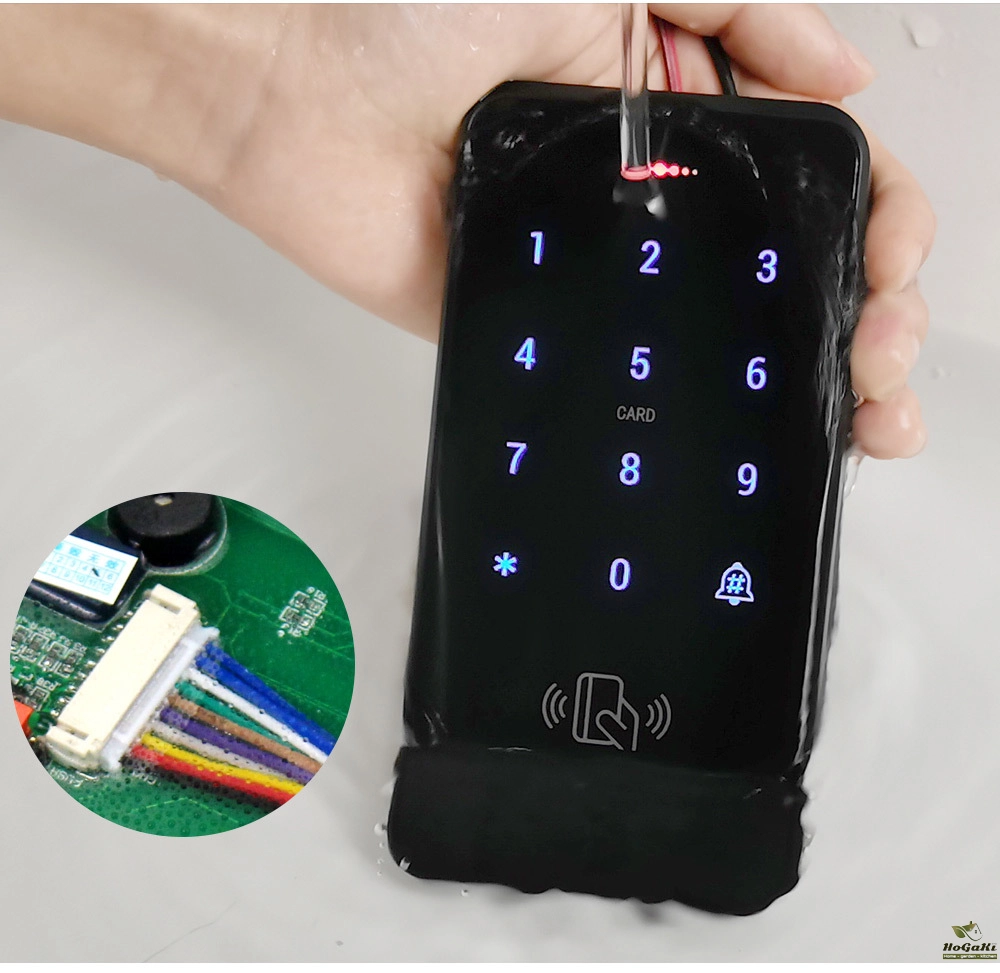

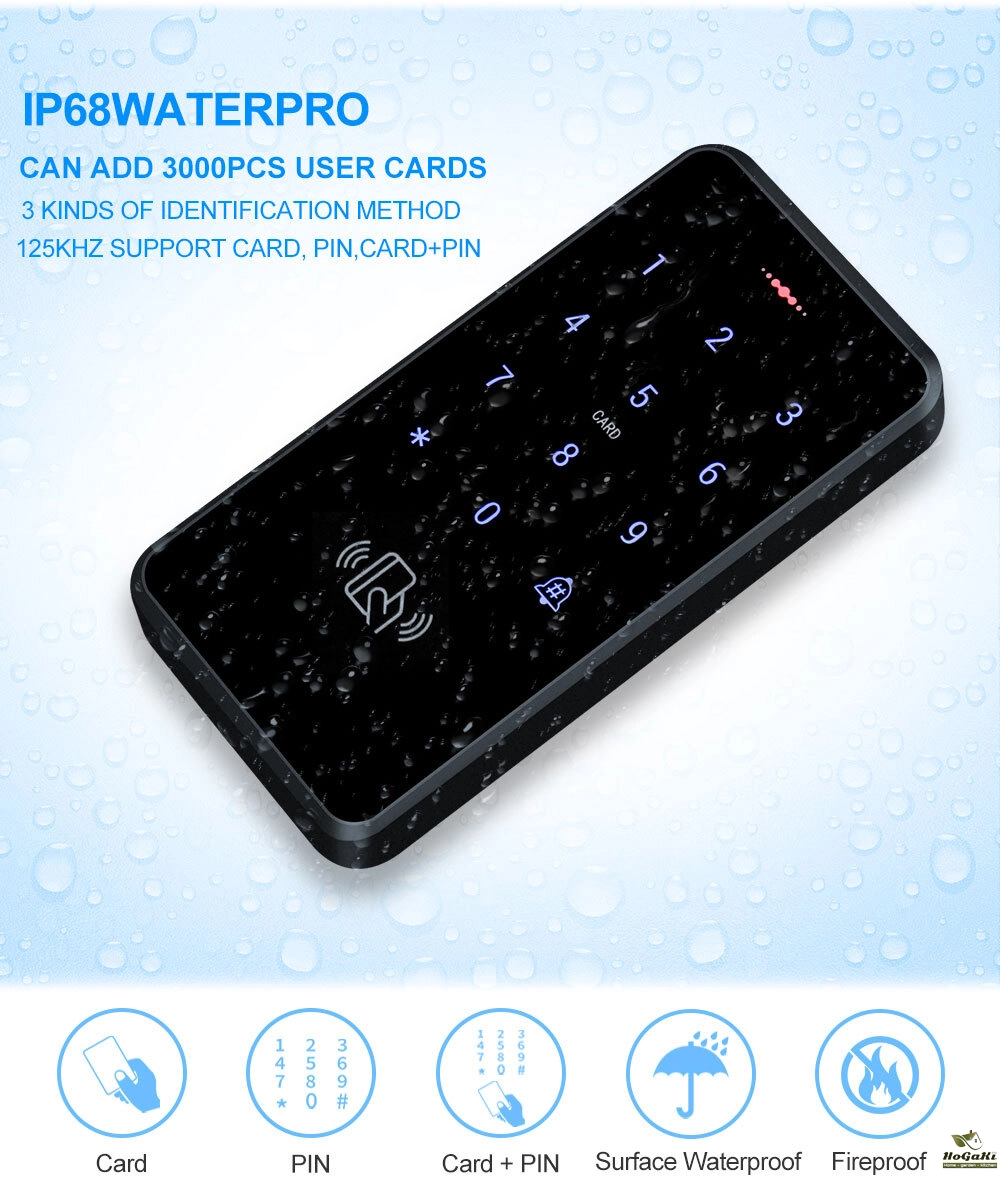

IP68 waterproof, Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

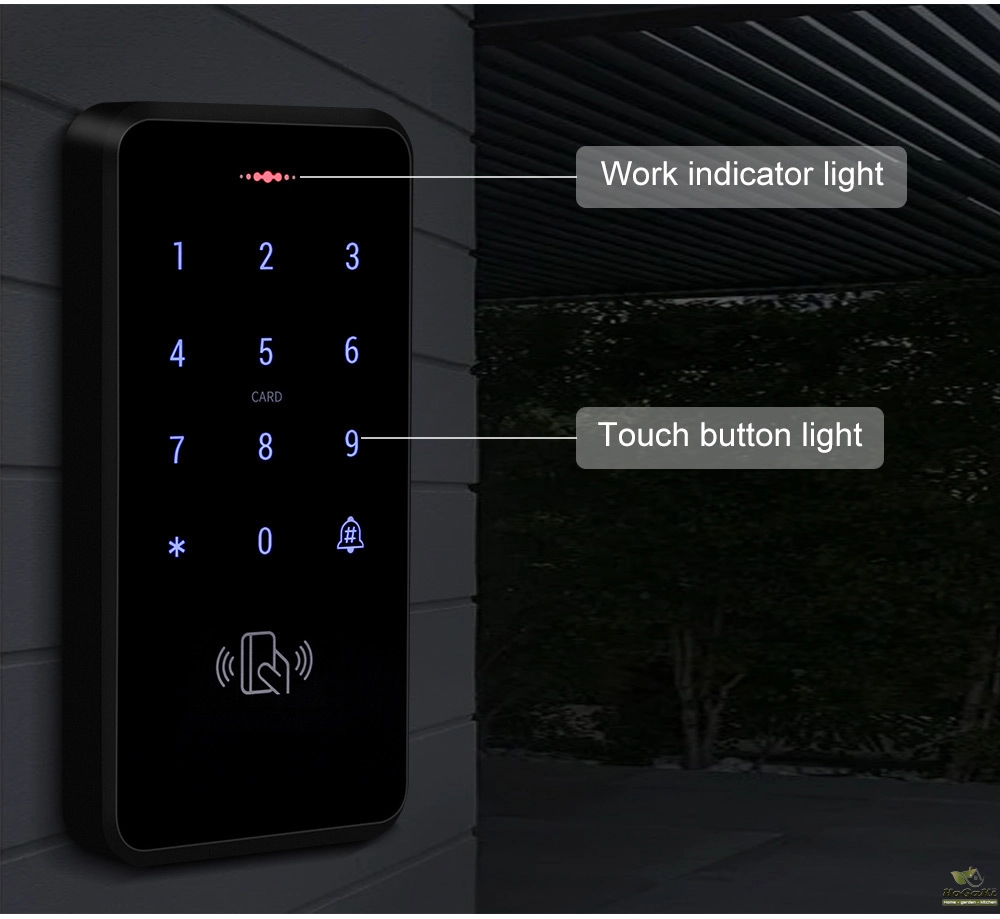

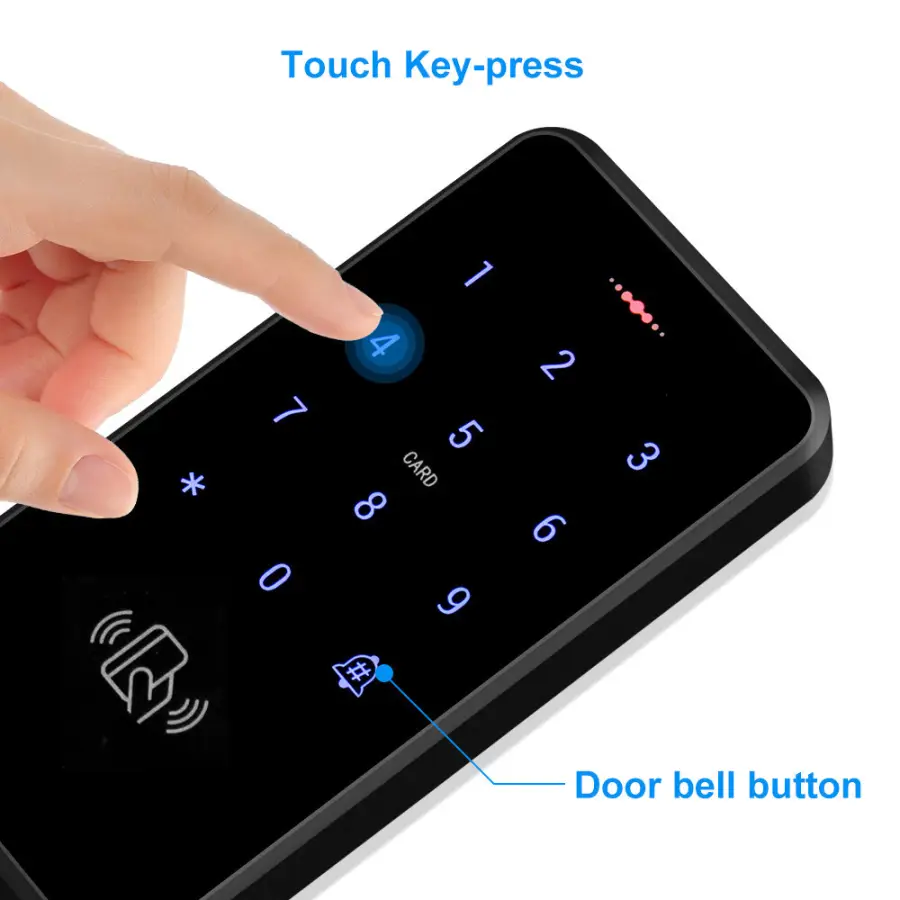

Blue Backlight keypad
The digits number can be seen clearly even at dark

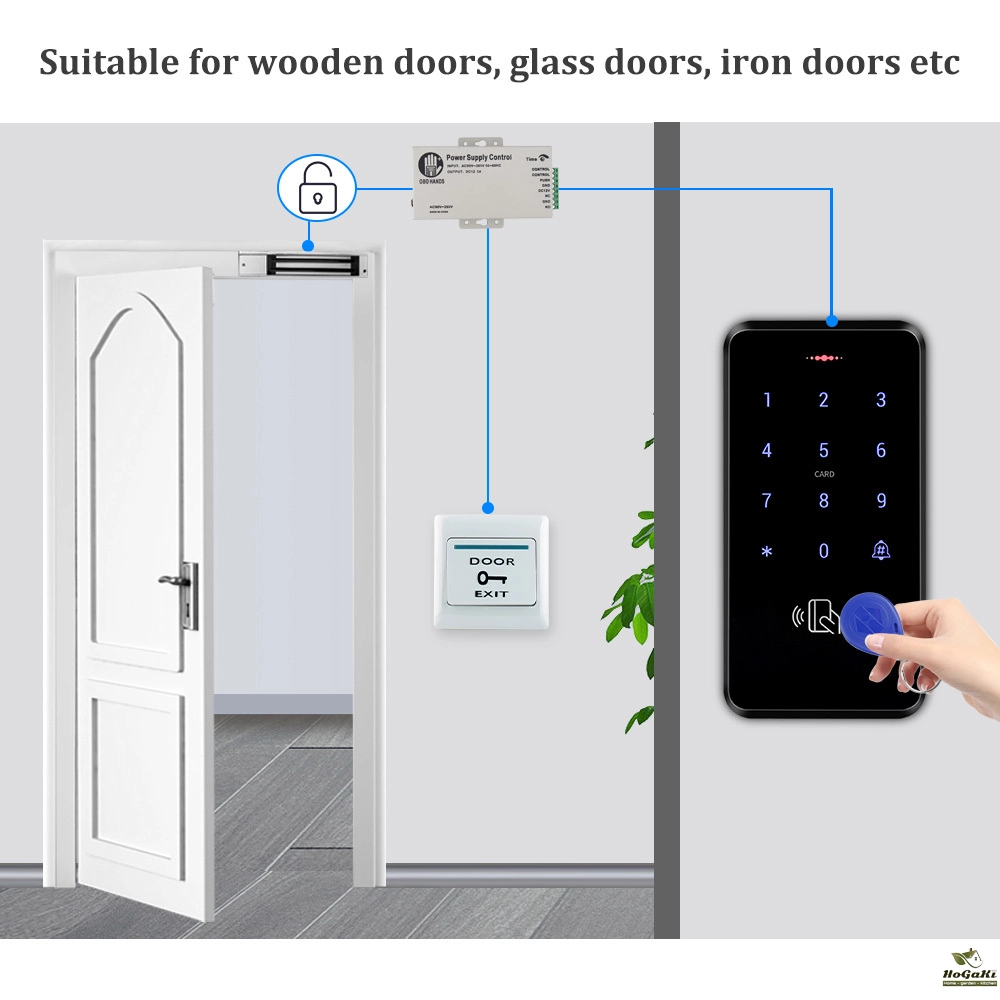

Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Suitable for most major access control solution.

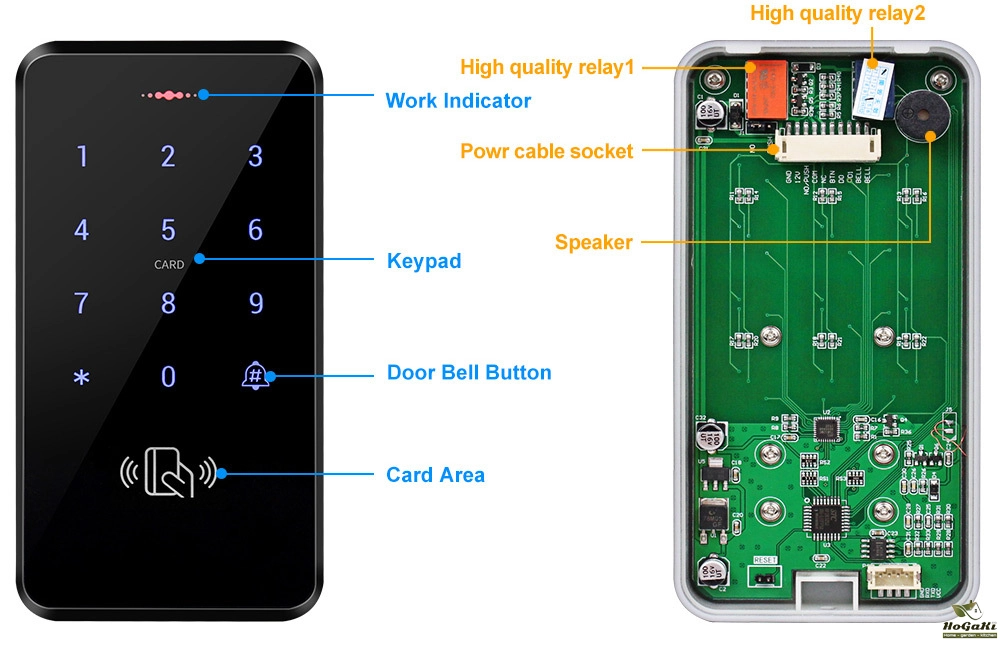

Product Analysis
Very Important!

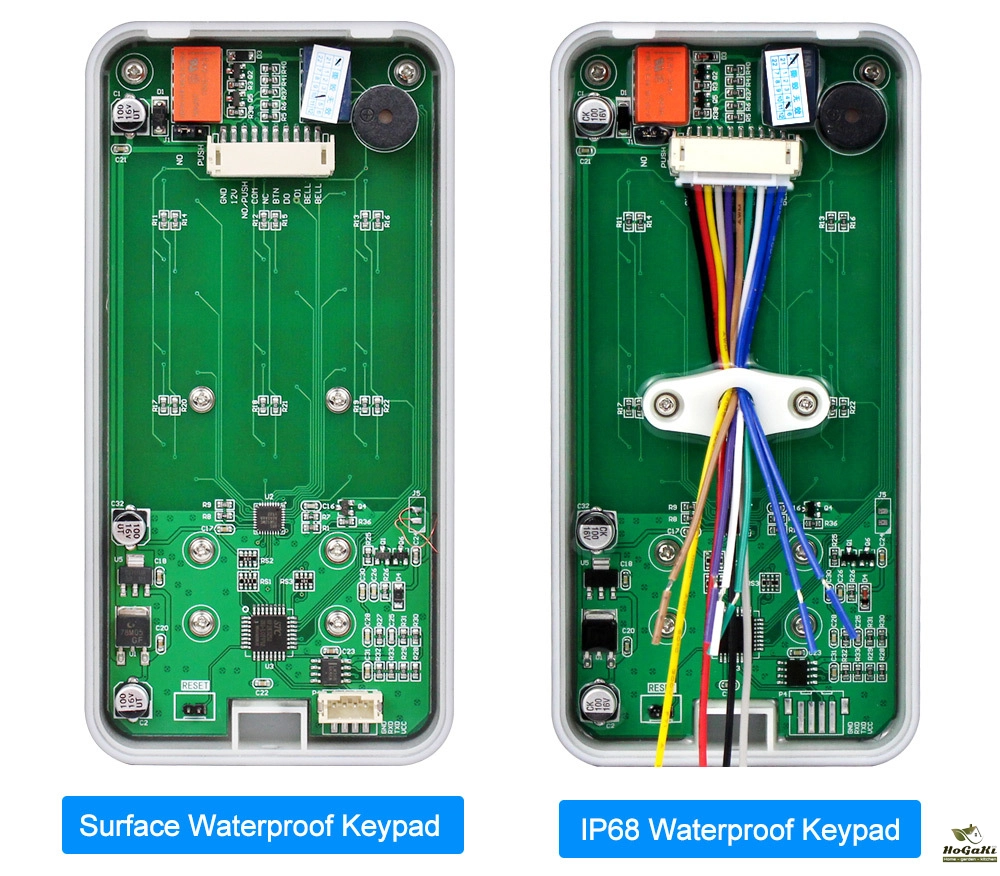

The Surface waterproof keypad can't be used under the rain directly.
The IP68 waterproof keypad can be installed outdoor, and used under the rain directly.

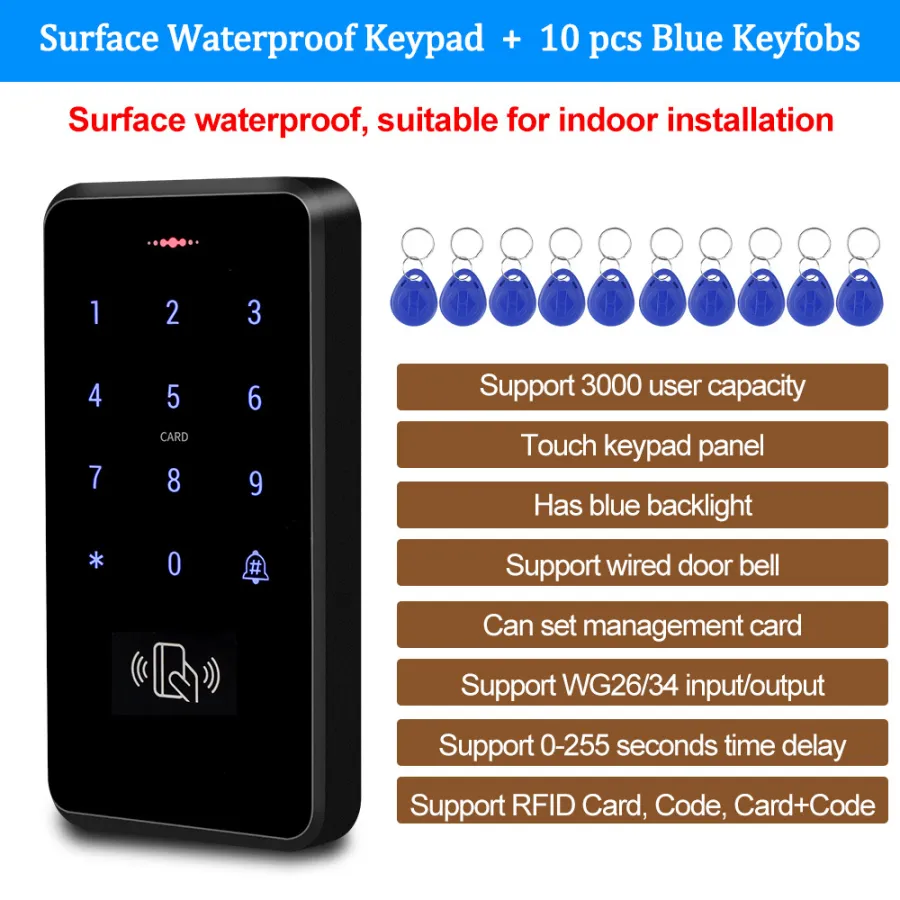

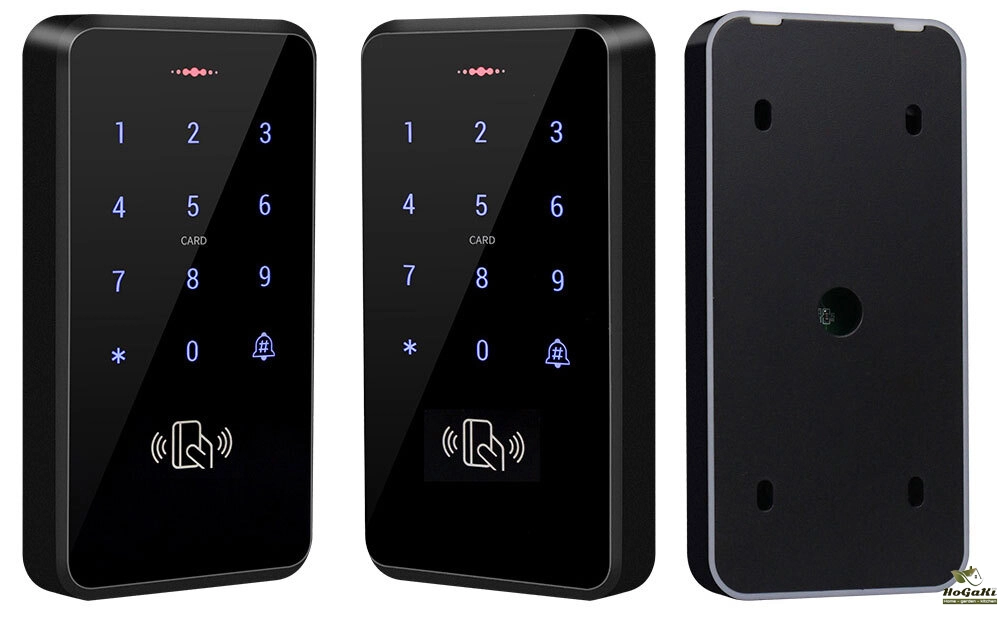

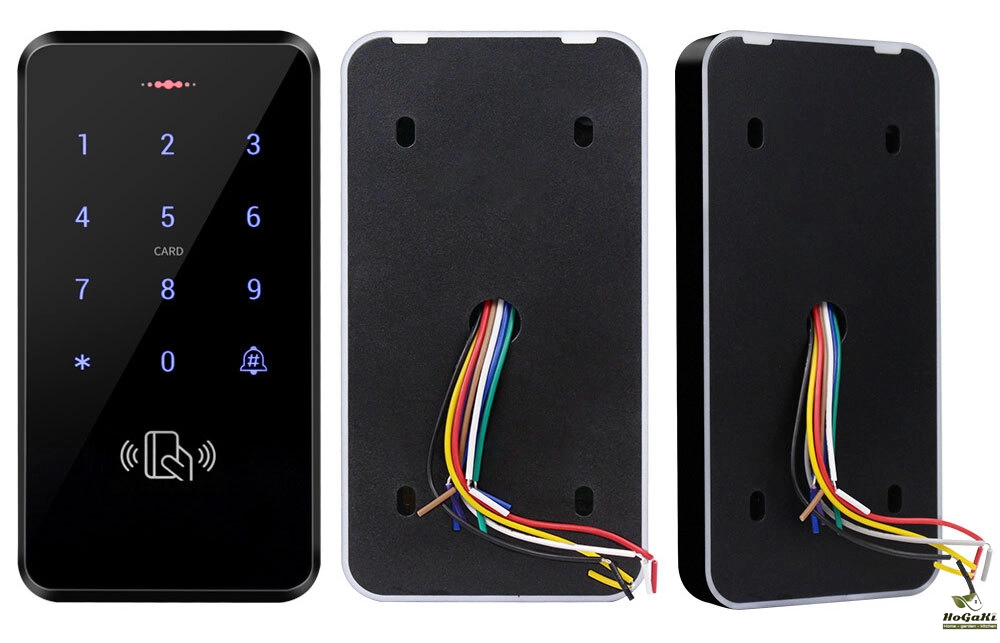

S20 surface waterproof Keypad, with full black color.

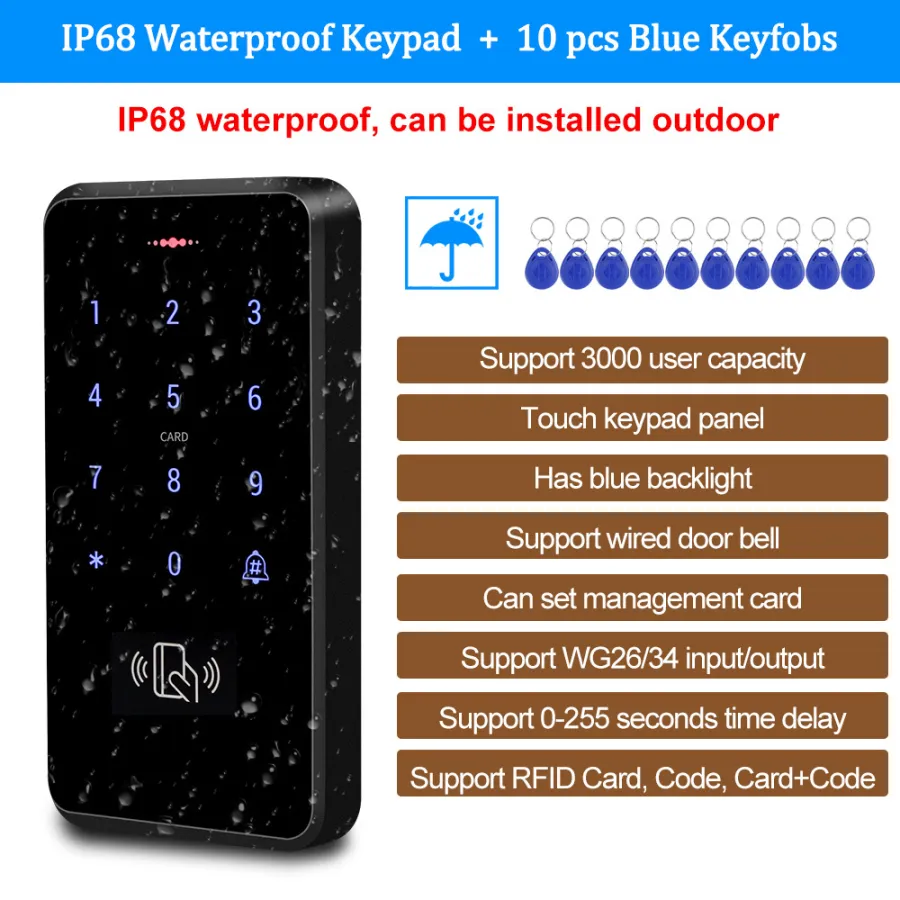

S20 IP68 waterproof Keypad, with full black color. Can be installed outdoor.

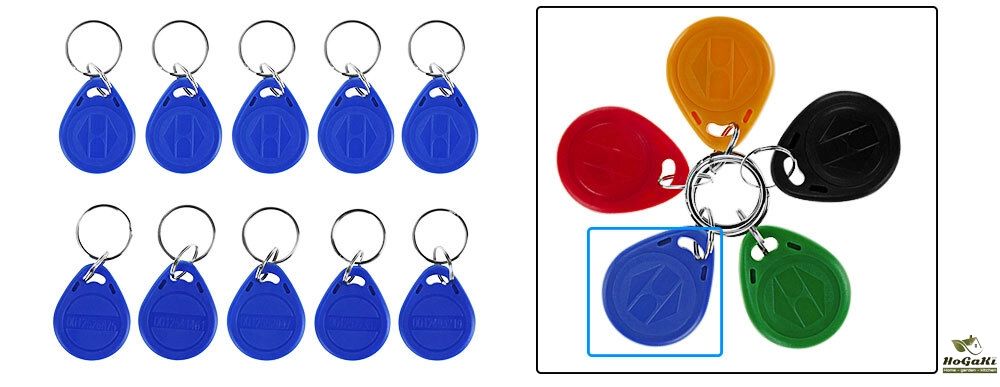

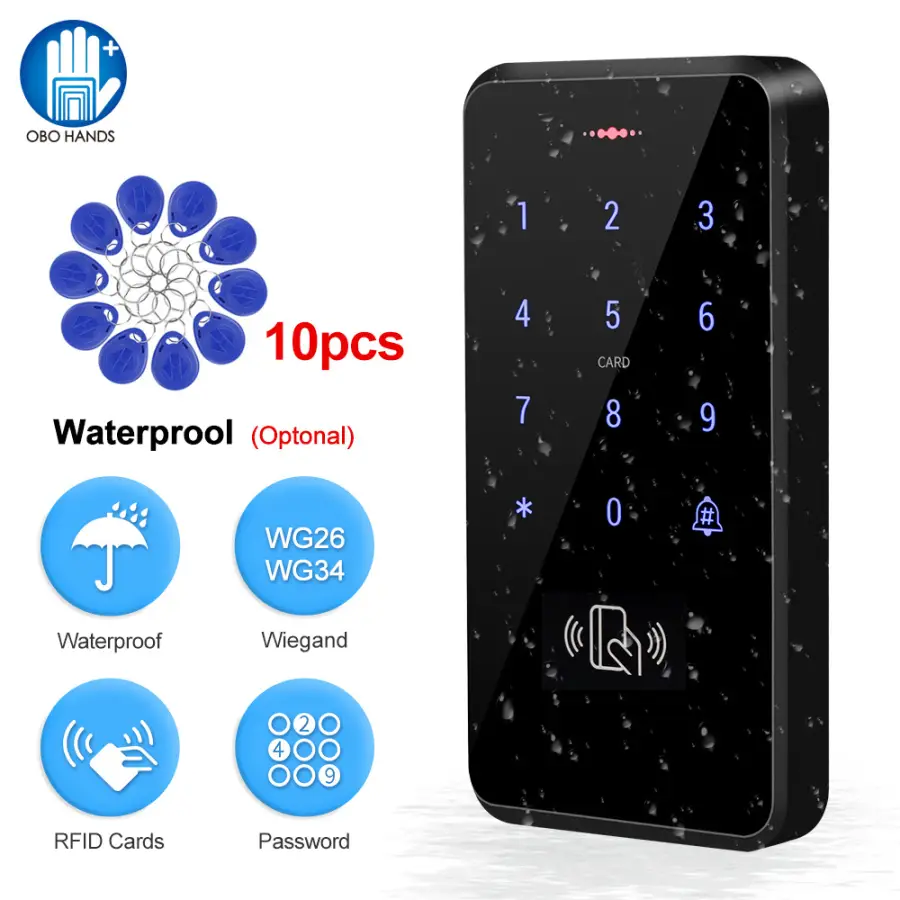

RFID Keyfobs
1. Material: ABS
2. Working Frequency: 125Khz
3. Support: read only, not support write.
4. Reading distance: 0-10cm
5. Each one has a unique ID number printing on it
6. Color: blue
Quantity: 10pcs

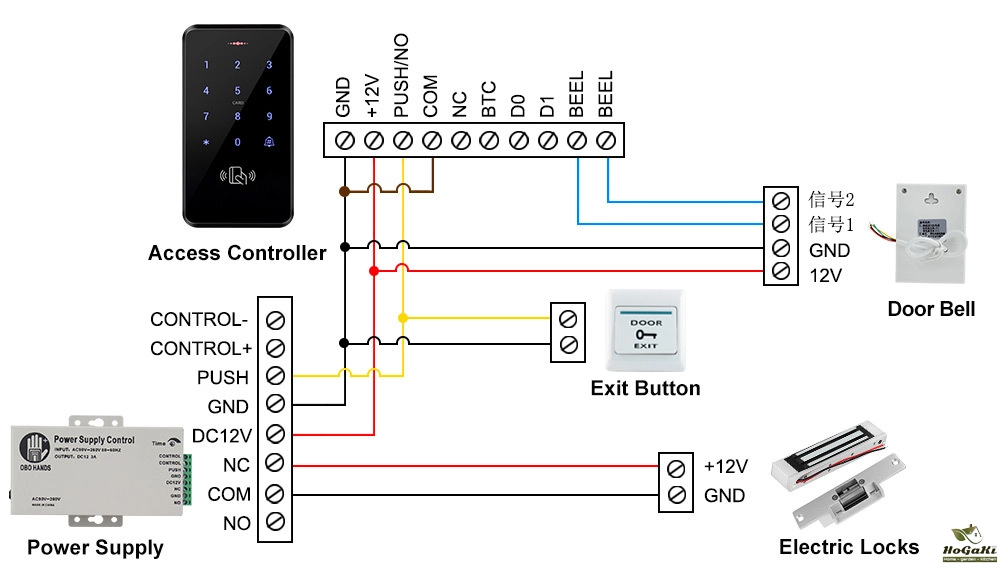

Wiring Diagram:
(Note: Both of the power supply, lock, exit button are Not included in the package, need to buy extra)
Packaging Details
- Unit Type:
- Package Weight: 0.226
- Package Size: 15x5x23
- Brand Name: OBO HANDS
- Origin: Mainland China
- Model Number: S20FS+10
- Certification: CE
- Type: Access Control Keypad
- Material: High quality ABS
- Working voltage: DC 12V
- Working frequency: 125KHz
- User capacity: 3000 users
- Card type: EM4100 chip
- WG interface: WG26/34 input/output
- Waterproof function: IP68 Waterproof (optional)
- Door bell function: Support
- Unlock method: RFID Card, password, RFID card + password
- Choice: yes
