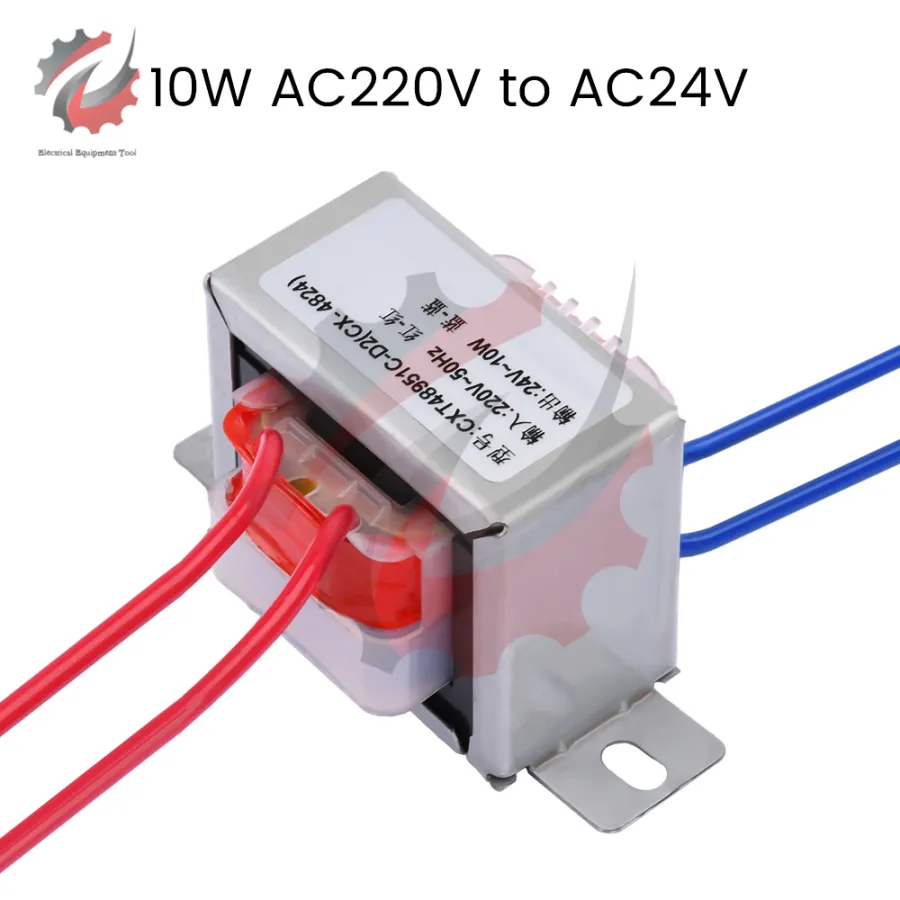

10W AC-AC Power Transformer AC 220V to AC 24V Step-down Power Module Buck Convert Single Voltage 2-wire Output Voltage Regulator
ID: 151641

10W AC-AC Power Transformer AC 220V to AC 24V Step-down Power Module Buck Convert Single Voltage 2-wire Output Voltage Regulator

4.6 (14 votes) | 118 orders
Price: US $23.52
Discount Price:
US $ 22.97
-2%
Color
Quantity

Buy Now
Add to Cart

Features:
1. Made of high quality materials, durable and practical
2. Transformer are made of full copper wire package, coil full, full power
3. Selection of nylon flame retardant rubber core production, fire retardant, high safety and reliability
4. Use new high temperature resistant lead wire, all copper wire, high temperature and high pressure resistance.
5. Wide range of applications, suitable for all kinds of industrial DIY occasions.

Parameter:
Core Model: EI48*24
Rated power: 10W
Input voltage: AC220V/50Hz
Single output voltage: AC24V
Frequency characteristics: low frequency
Iron core shape: EI type
Moisture-proof way: open type
Cooling method: natural cooling
Cooling form: liquid / oil immersion
Structure: isolation transformer
Coil material: all copper enameled wire
Installation size: coil width: 41MM foot distance: 75MM hole distance: 61MM
Two poles linear: red line primary input, blue line secondary output, yellow line tap zero line
Each line length: input line length 130MM, output line length 130MM

Warm reminder: the rated voltage of the transformer is made according to the load voltage, no-load measurement of the voltage will show a high 10% or so, is a normal phenomenon, with the load will drop to the rated voltage, please buyers rest assured that the use of!

Package include:
Small transformer * 1


Packaging Details

  • Unit Type:
  • Package Weight: 0.375
  • Package Size: 3x4x5

  • Core model: EI48*24
  • Rated power: 10W
  • Input voltage: AC220V/50Hz
  • Single output voltage: AC24V
  • Frequency characteristics: Low frequency
  • Core shape: EI type
  • Brand Name: Aideepen
  • Model Number: 10W AC-AC Power Transformer
  • Usage: electronic
  • Origin: Mainland China
  • is_customized: Yes
  • Certification: None
  • Choice: yes
  • semi_Choice: yes
