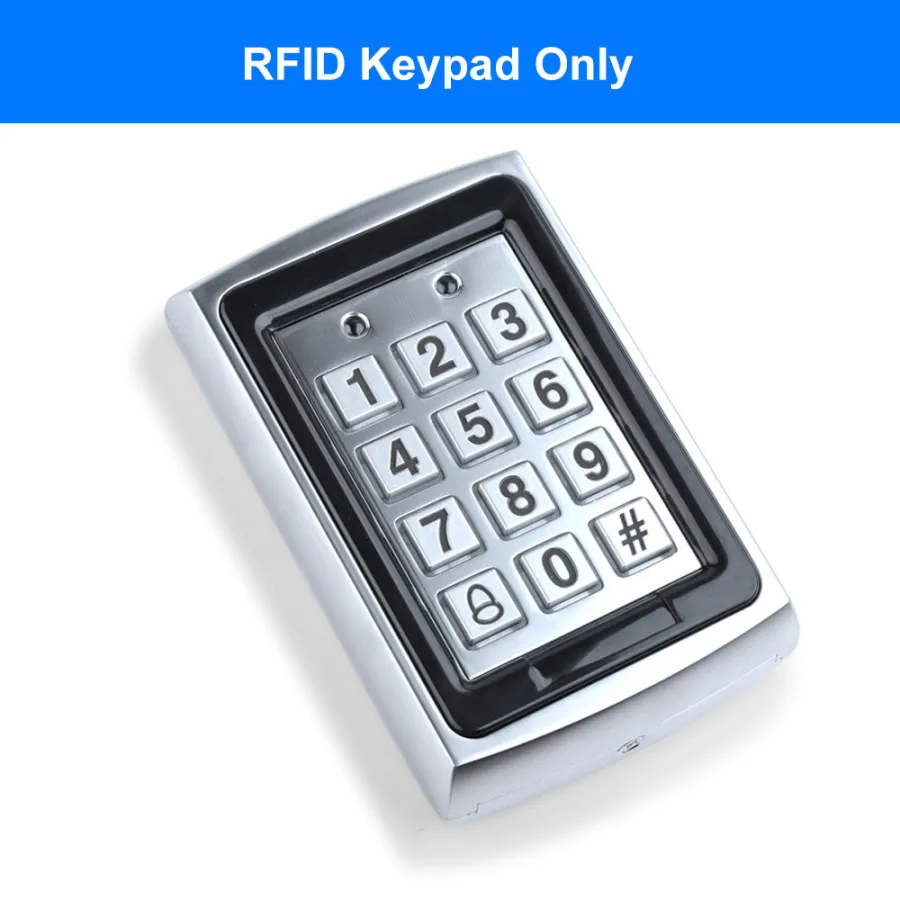

125KHz RFID Standalone Access Control Keypad

High quality / 1000 user capacity / 3 unlock method

Product Features

Classical metal standalone access control adopts zinc alloy. Based on low power consumption and low cost. Suitable for household, office and department.

• High quality and high security

• Sensitively and response quickly.

• 1000 standard users capacity.

• Has door bell button, backlight digits keypad.

• Has WG26 interface. 2 relays output

• Has time delay, tamper alarm function

• Support RFID card, password, password plus card to open the door

• Classical Appearance with useful function.

• Professional design for Home and Office.

• Support one-door

• Can be used as a stand alone keypad

• Doesn't need to connect on the computer, can works alone

• Application: Home/ hotel/ office/ apartment/ factory, etc

Product Specifications

• User Capacity: 1000 user cards

• Dimension: 77*120*27mm(L/H/W)

• Working Frequency: 125KHz

• Working Voltage: DC12V

• Working Current: 1.2A

• Working Temperature: -20 to +70

• Reading Distance: 0-10cm

• Relative Humidity: 20%-90%

Product Details

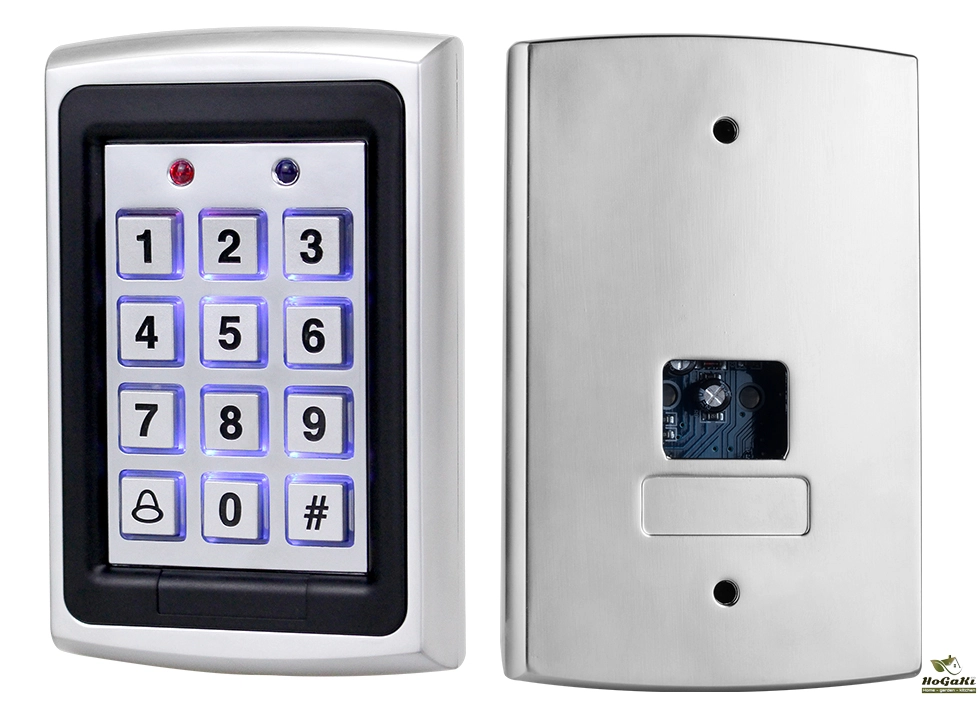

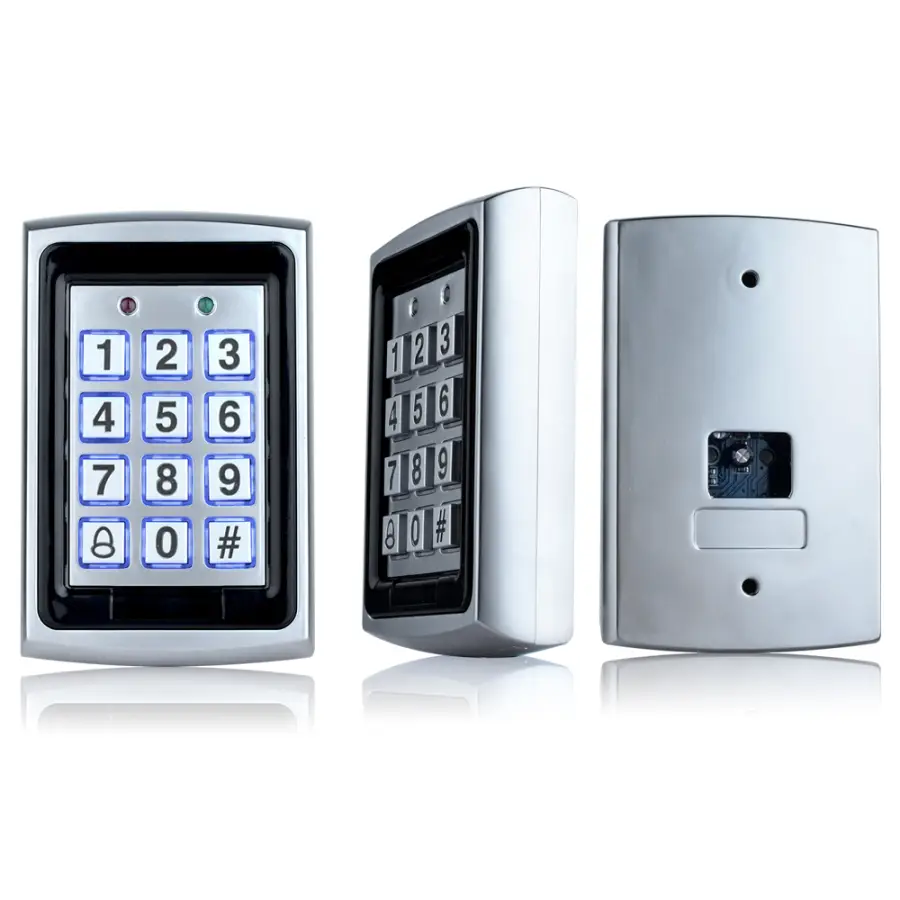

Metal structure, safe and durable

eco-friendly zinc alloy, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different environmental installation.

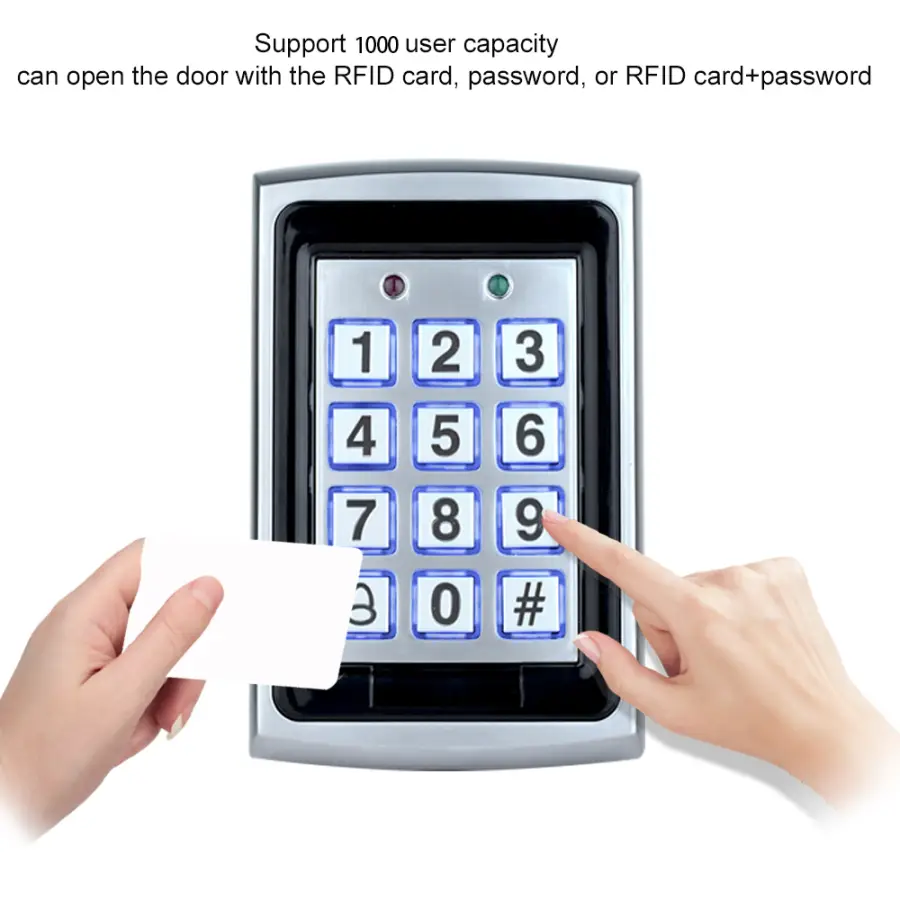

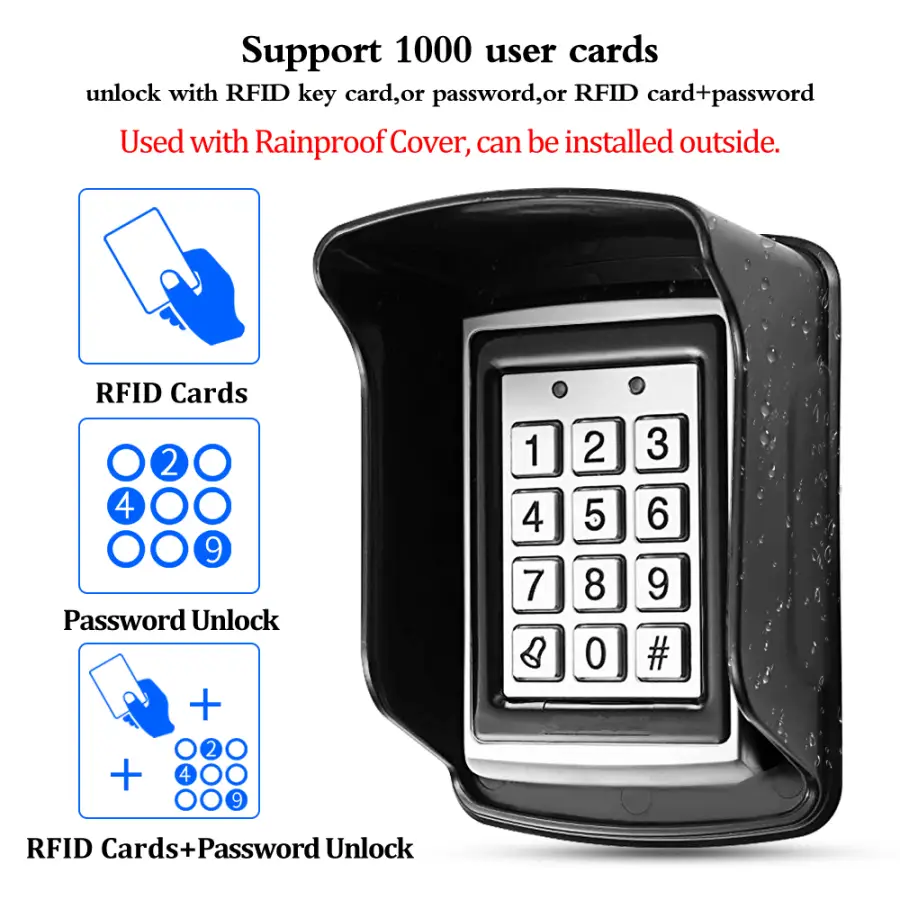

Support 1000 user cards. and 4 digits password. Has 3 different unlock method.

unlock with rfid card, password, rfid card + password

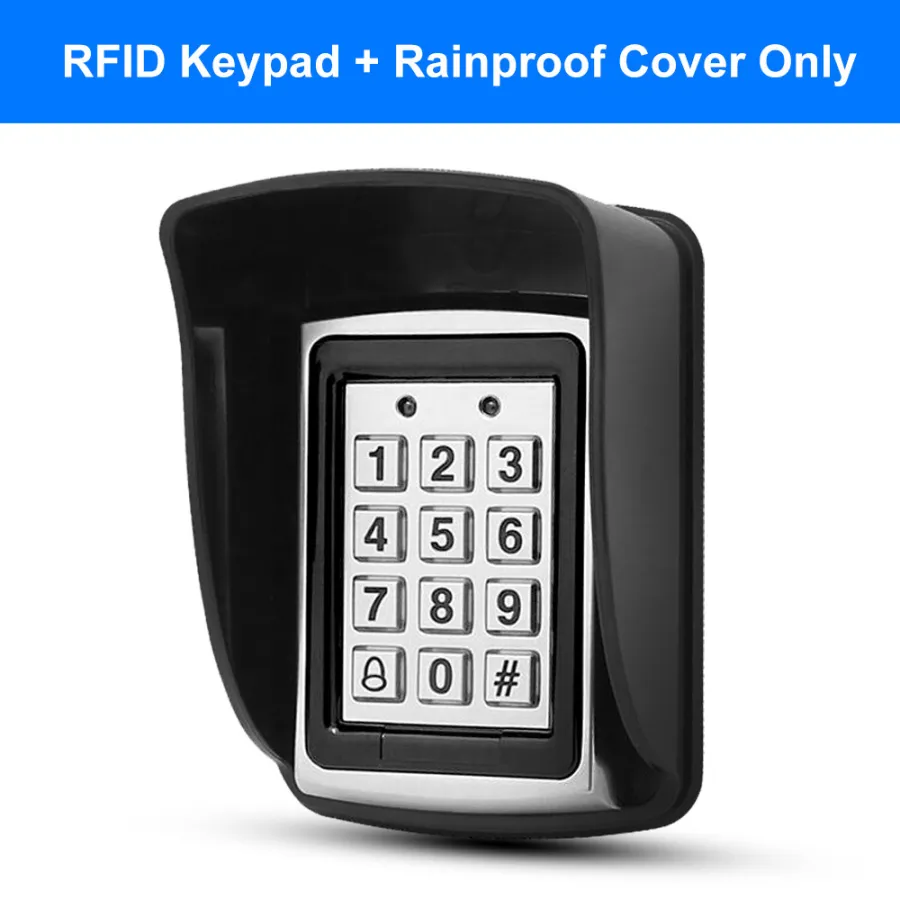

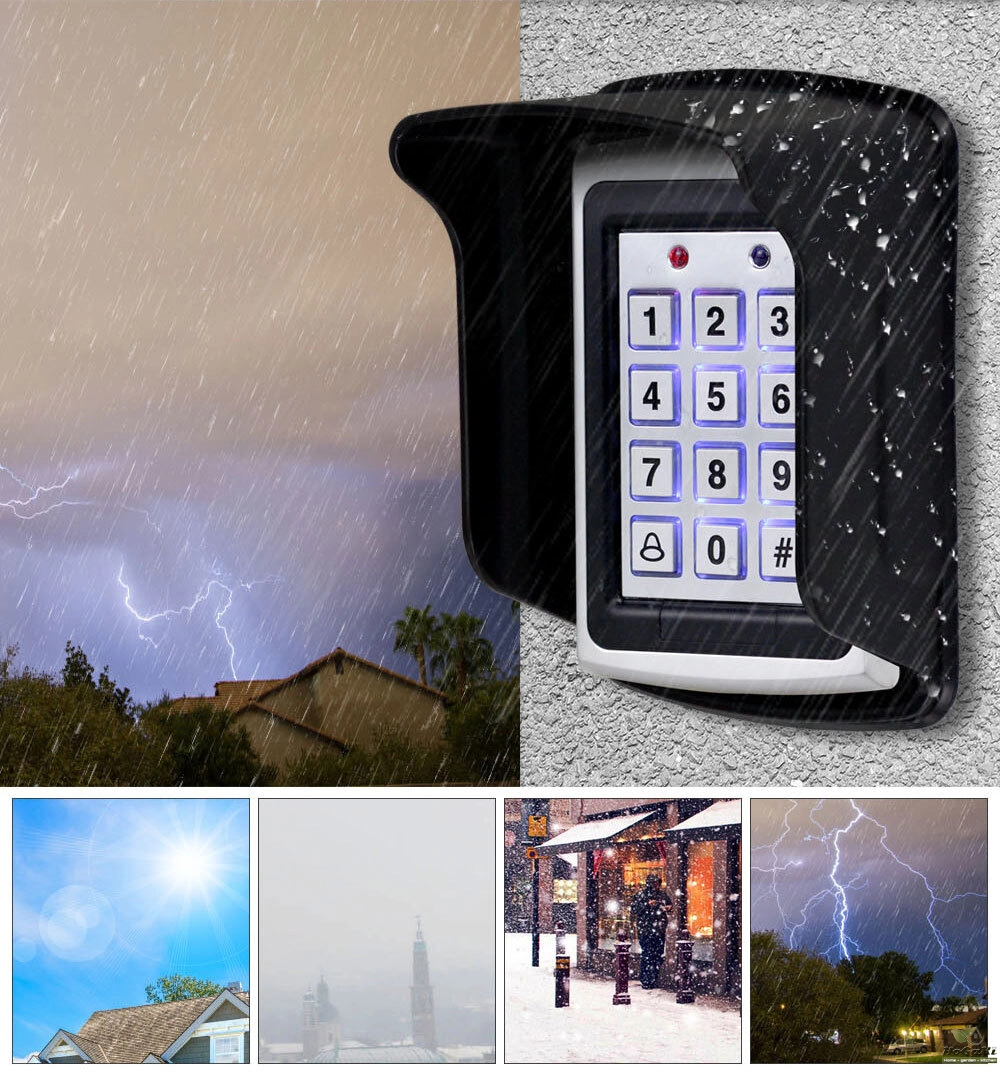

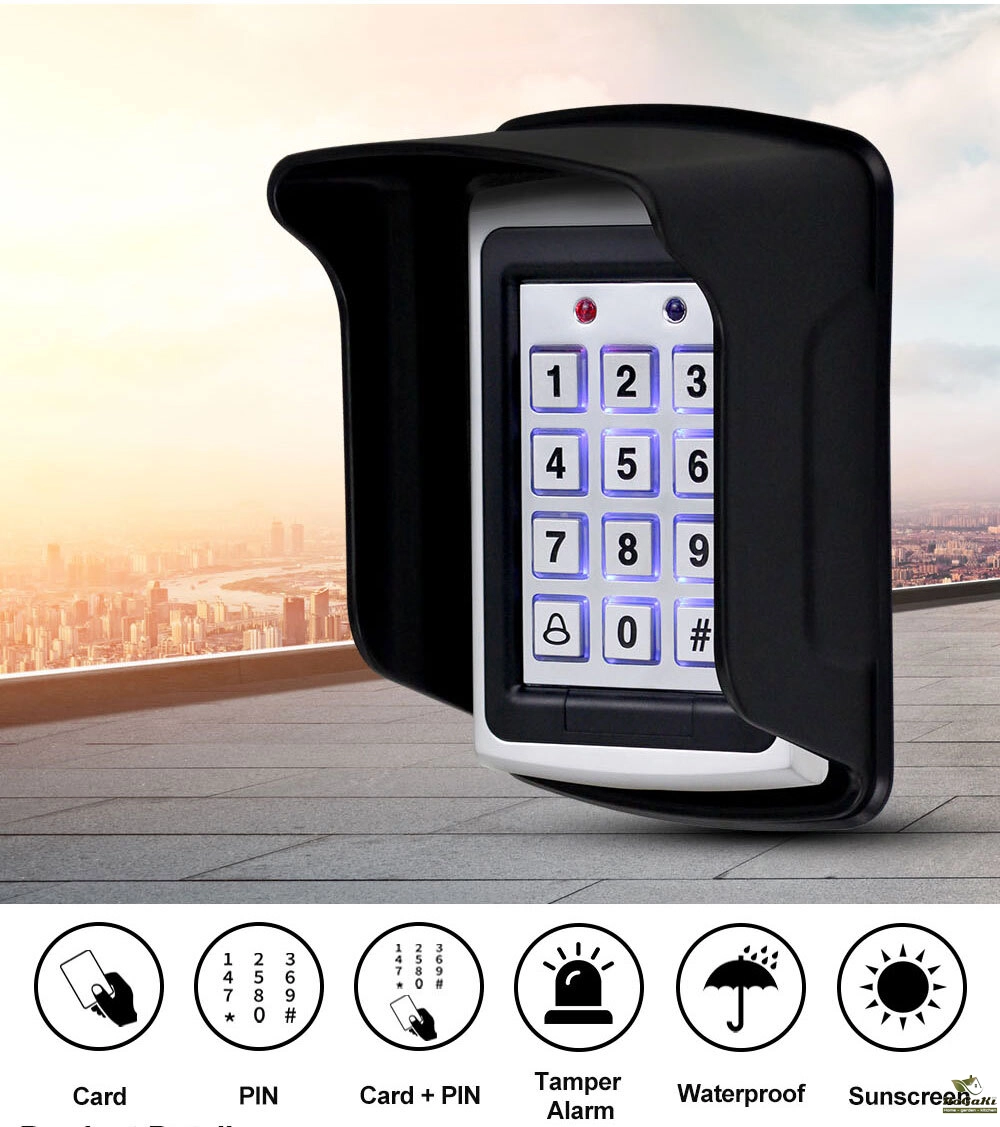

Used with Rainproof Cover, can be installed outdoor

Support tamper alarm function

Prevent the outdoor access control machine from being removed and automatically alarm when dismantling.

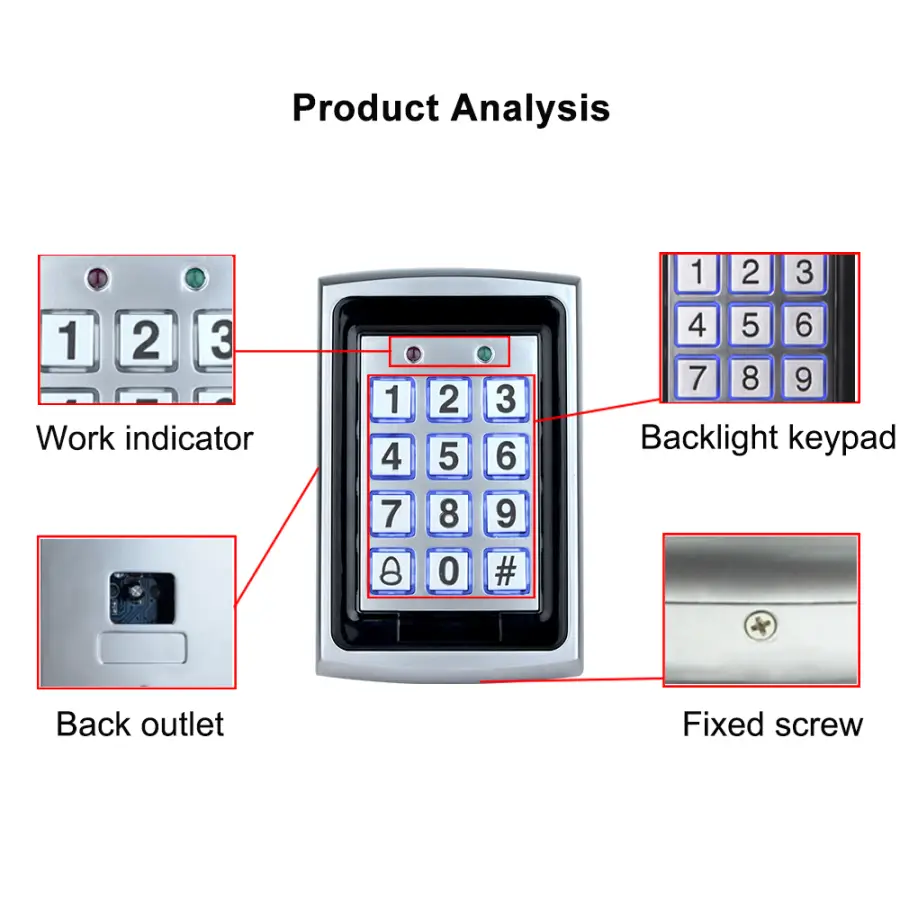

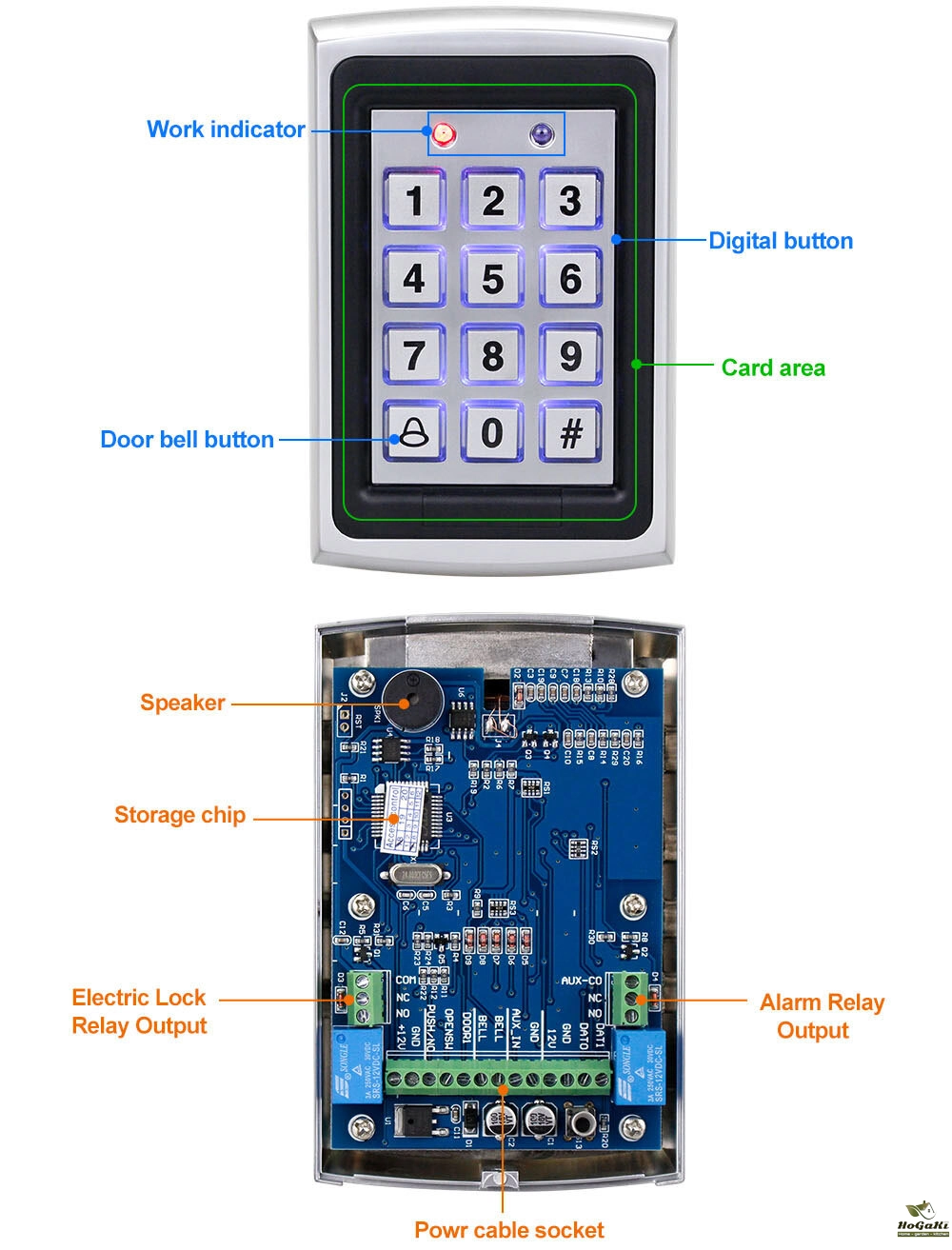

Metal keypad, blue backlight

All programming can be done on the keypad. and the digital backlight key is convenient in night or dark environment. Up to 1000 user capacity

Easy to install and operation

Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

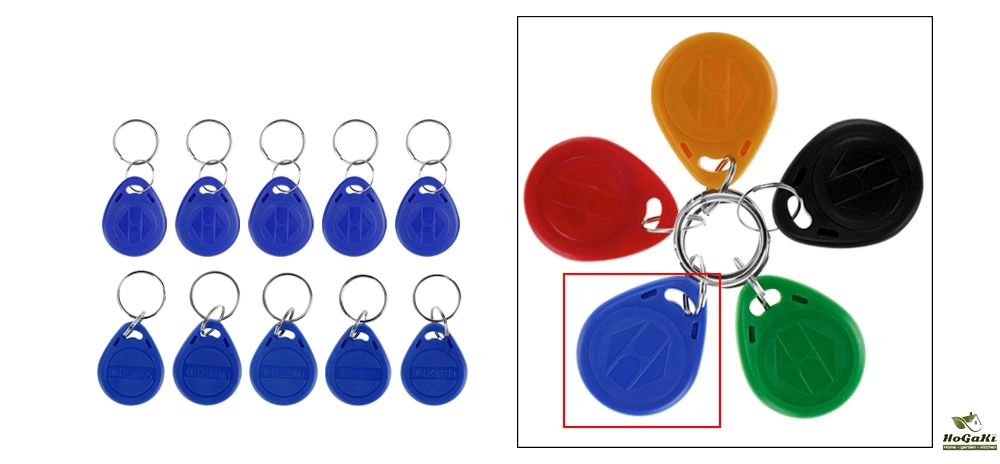

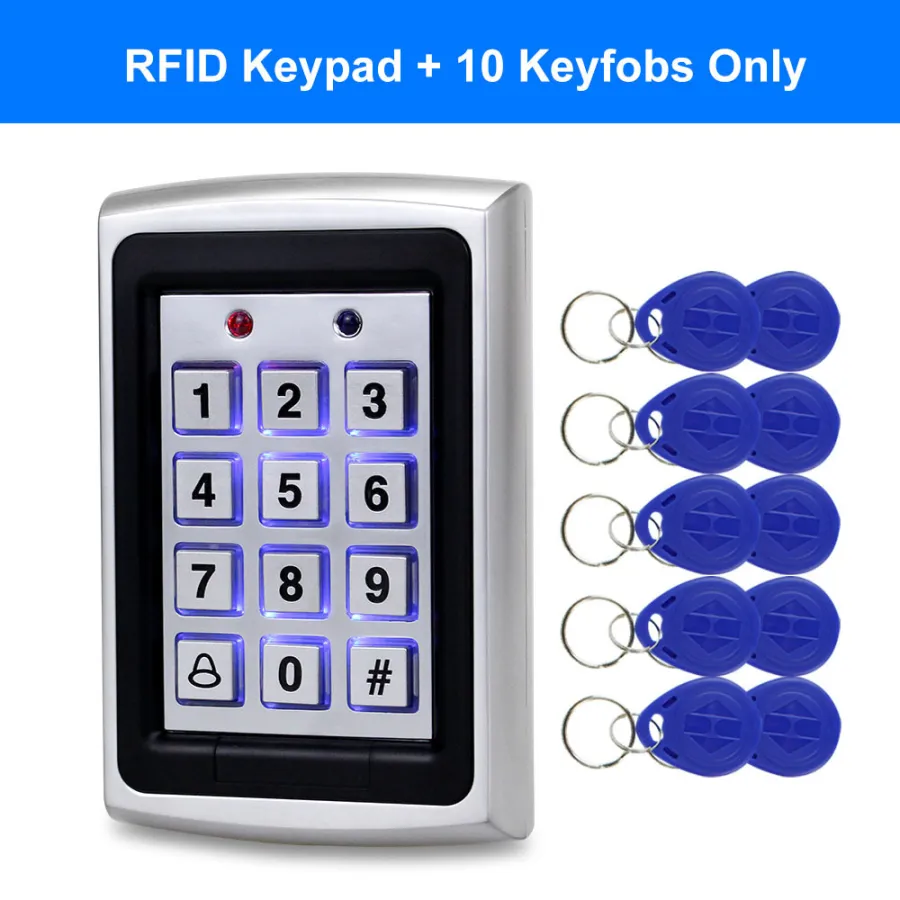

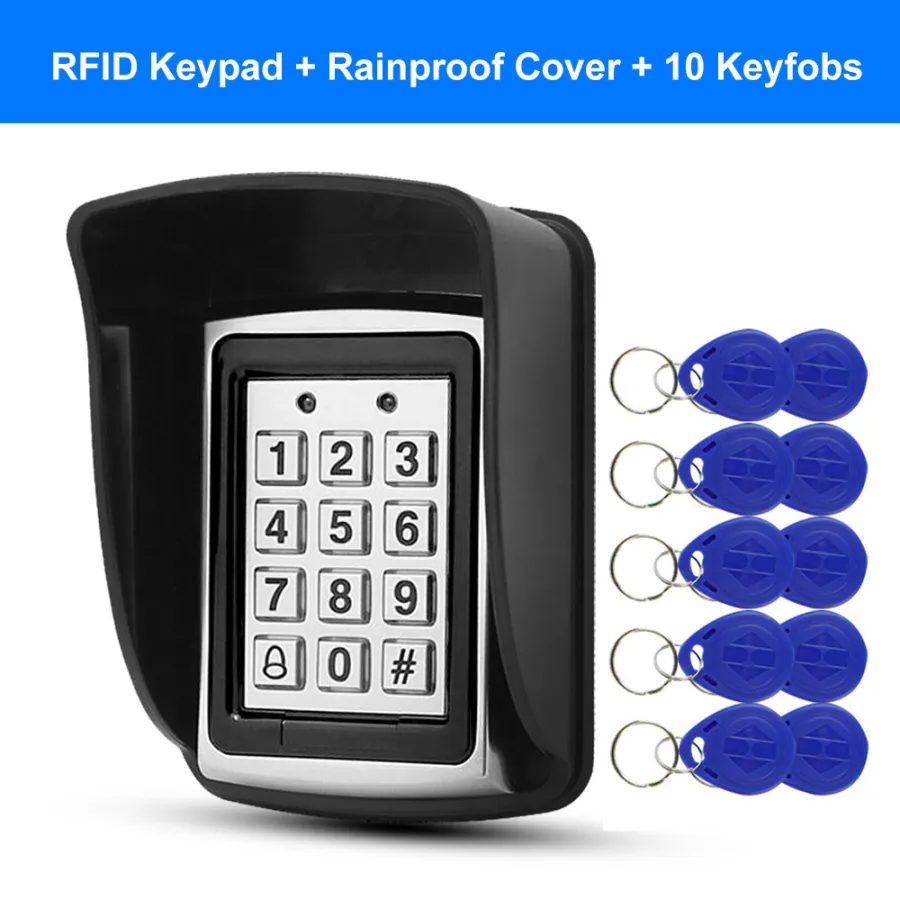

RFID Keyfobs (blue)

Use RFID keys to open the door convenient. Only the keys finished programed can be open the door.
Working Frequency: 125KHz
ABS high quality material
Each one has unique ID number on it
Reading Range: 0-10cm
Color: Blue

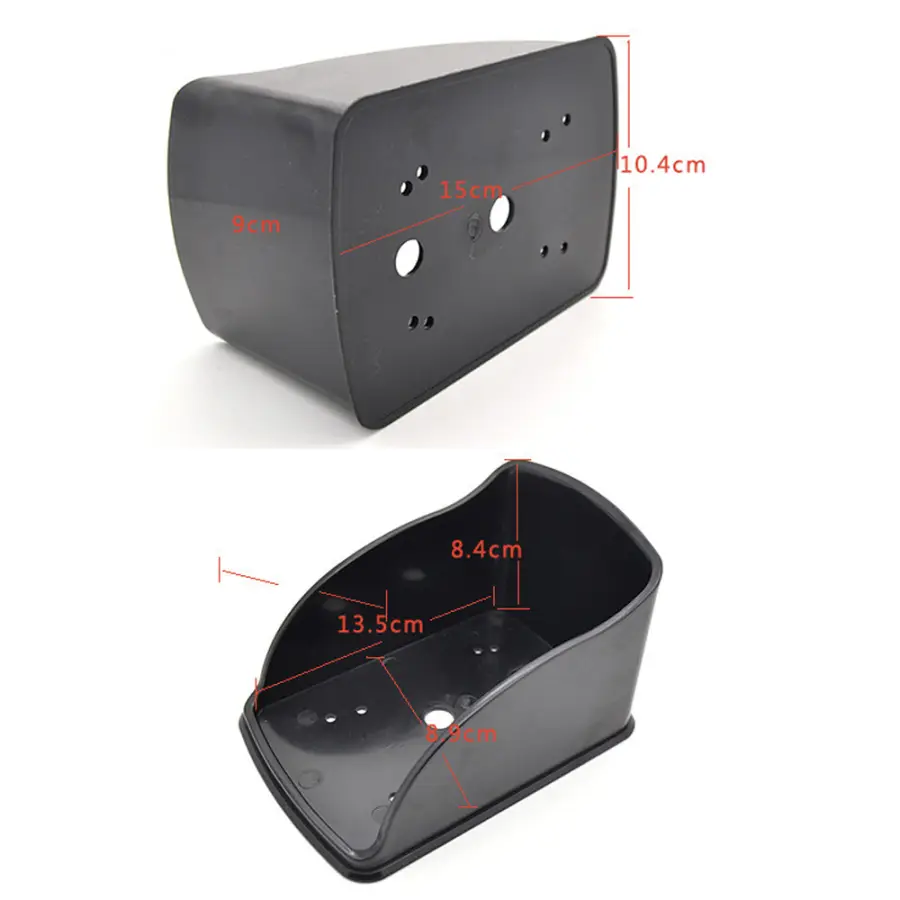

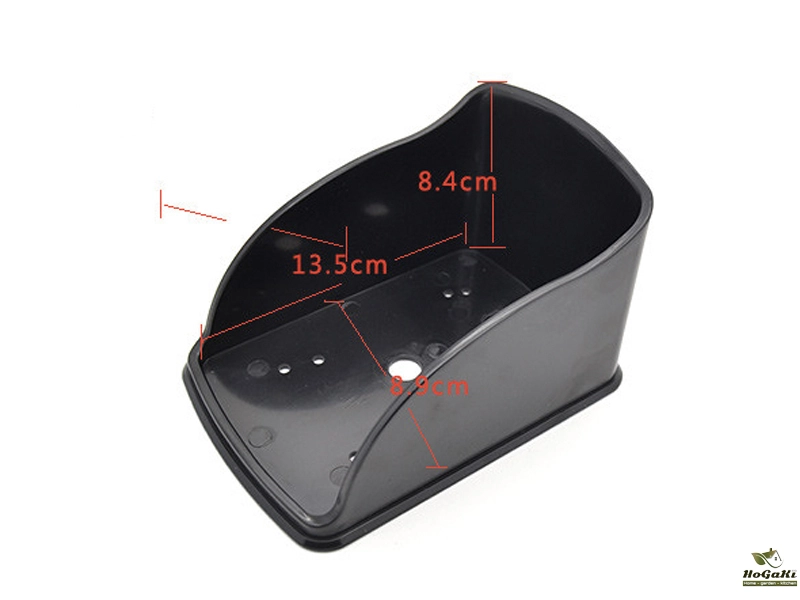

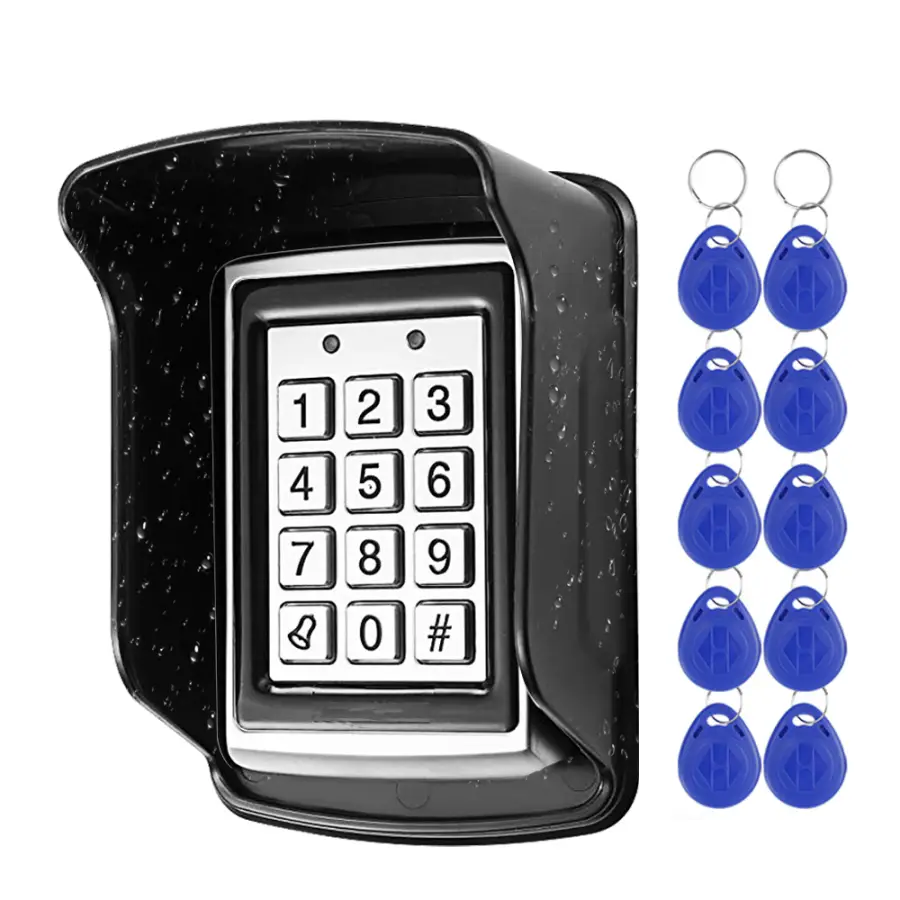

Rainproof Cover

This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.

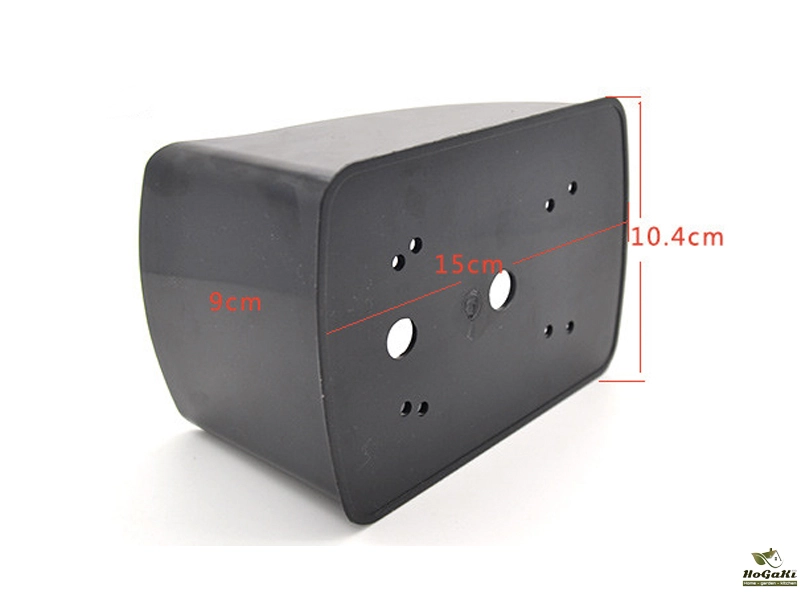

Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( The 7612 model access control is still working when there are some water on the surface, but can’t be use in rain directly. If you want to install item outside, please buy this rainproof cover to protect it. )

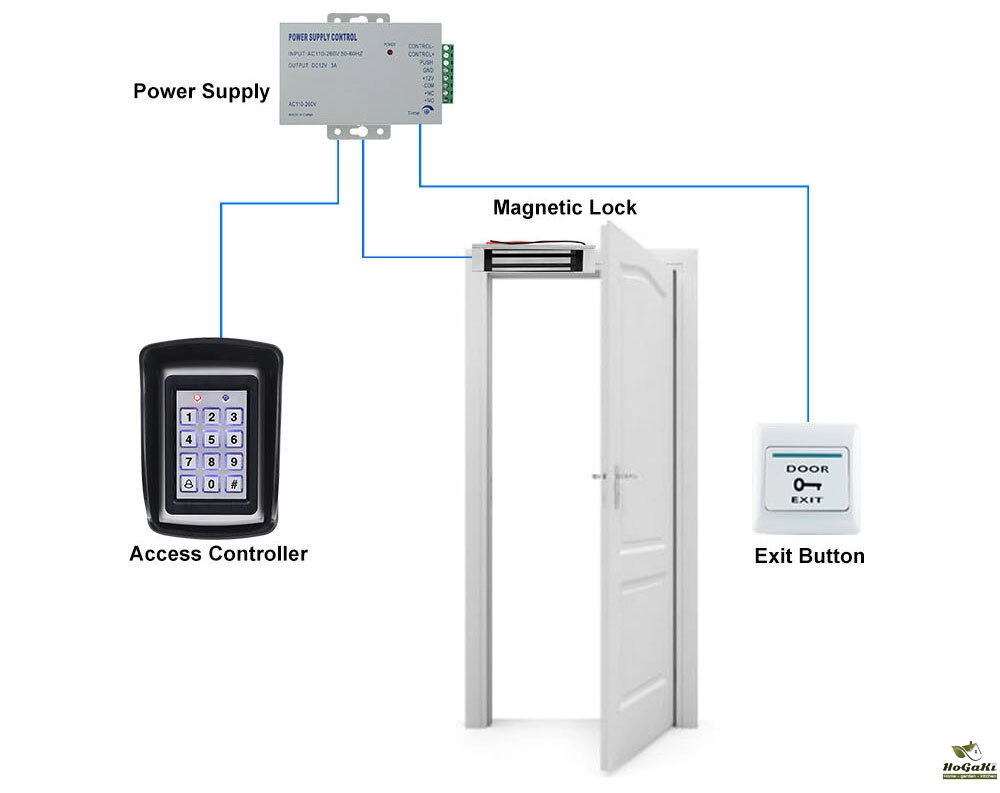

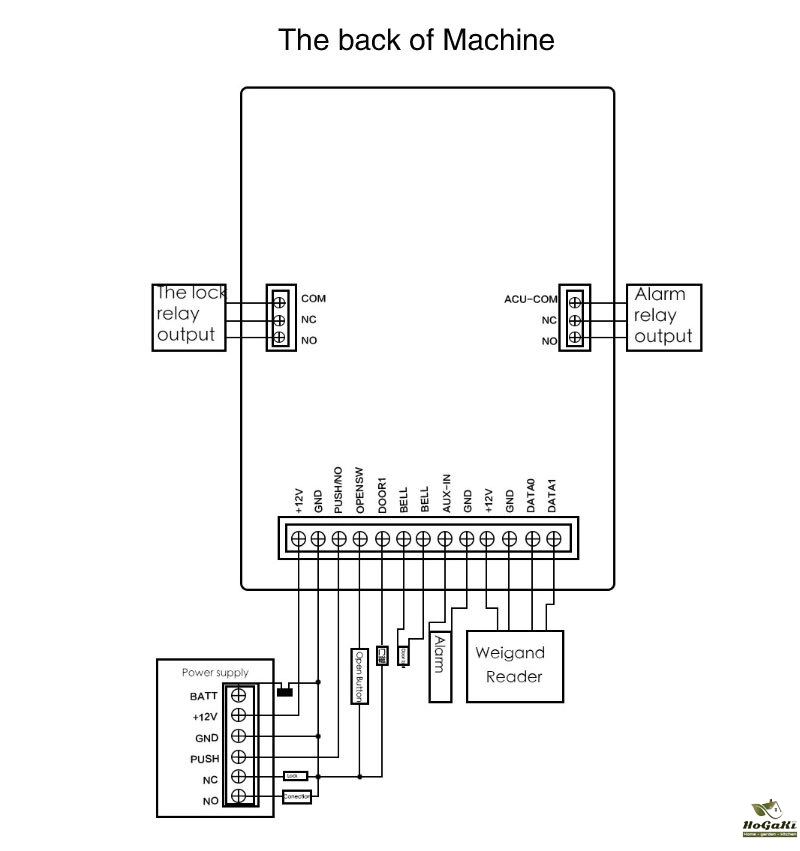

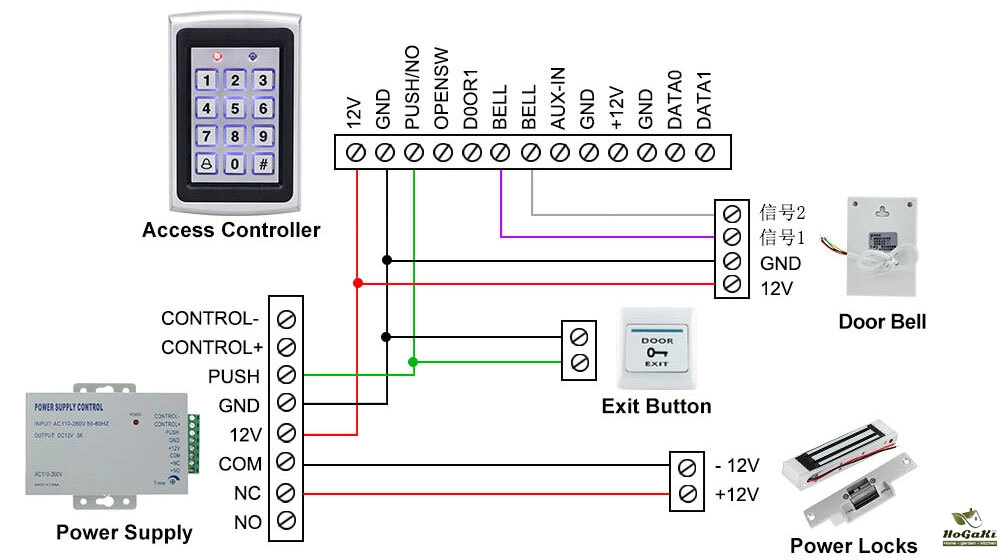

Wiring Diagram

This Access Control Keypad is don't need to connected to the computer. Only need to connect item to the DC12V power supply, electric lock, exit button.

The power supply and electric lock, exit button, door bell are not included in the package, need to buy extra.
