KTC800A Manual Tension 4A Magnetic Powder Machine Controller with Constant current, constant voltage and constant power
0.0 ( votes)
Price:
US $140.64
/ piece
Discount Price:
US $
133.94
/ piece
-5%

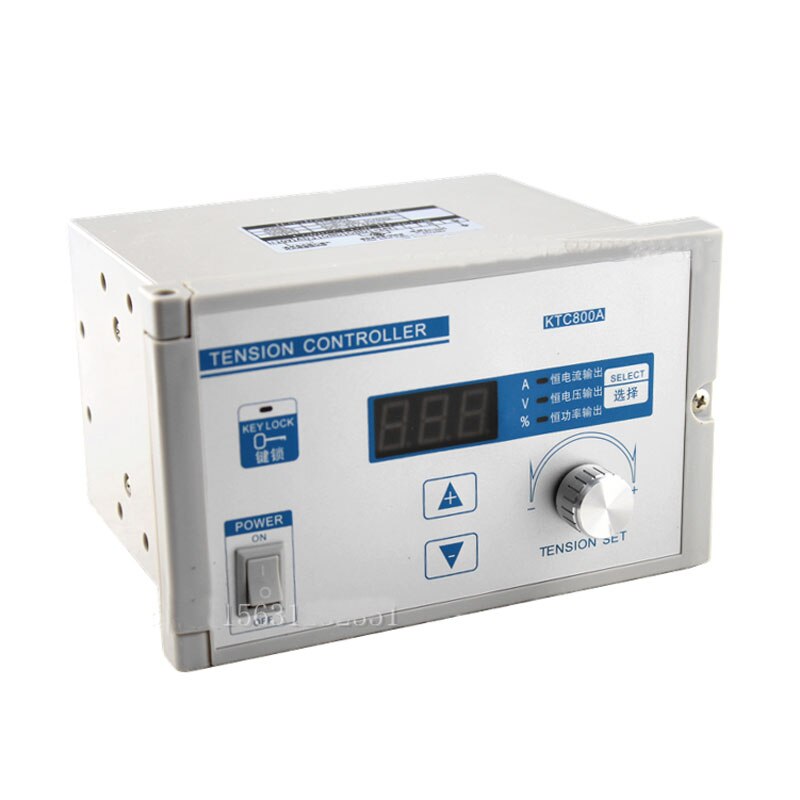

KTC800A manual tension controller is composed of high-speed microprocessor and high-power switching power supply. It can work in constant current, constant voltage, constant power (constant torque) and other modes. It can automatically compensate the clutch/brake thermal attenuation and torque output. Stable and reliable. The maximum output current is up to 4A. KTC800A manual tension controller can easily realize high-precision and stable control of film processing, such as winding machine.
Specification:
Control method: pulse width modulation
Input power: single phase AC185V~264V 50/60Hz

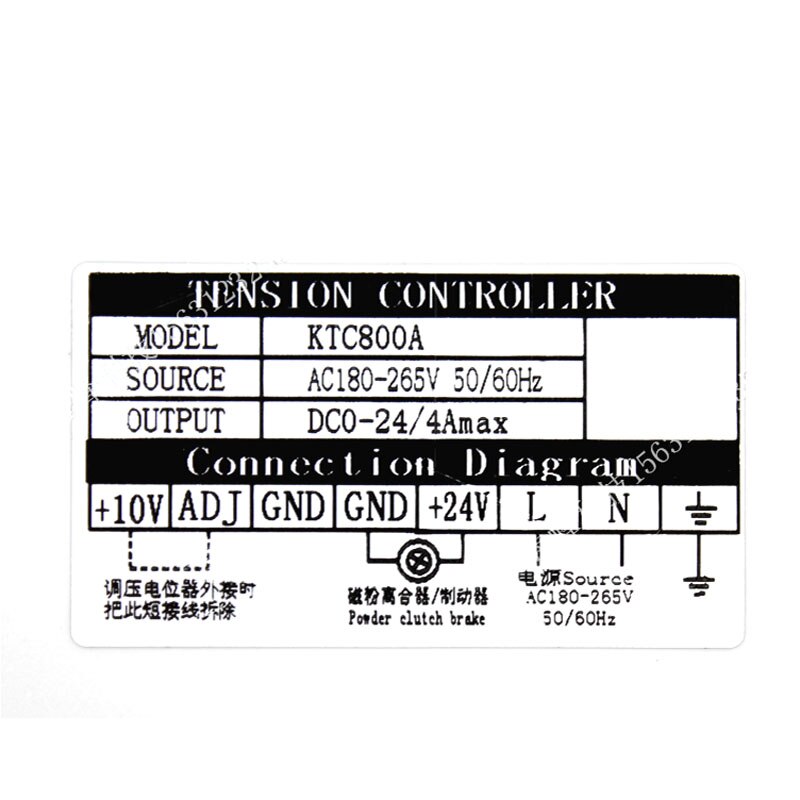

Output: DC0~24V 4A Max
Applicable models: magnetic powder clutch, magnetic powder brake, voltage adjustment supply
External control signal: input 0-10V, corresponding output 0-24V
Installation method: floor-mounted installation wall-mounted installation flush installation
Operating environment: -10~65°C relative humidity below 85RH
Weight: 1Kg
1. Working mode selection

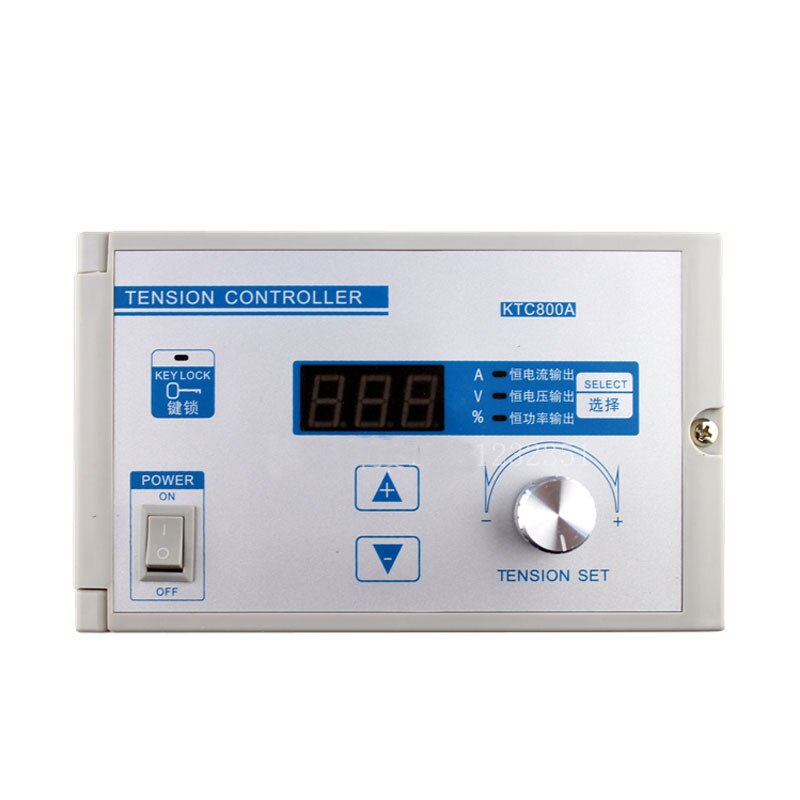

Press and hold the "SELECT Select" button for 3 seconds to cycle through the constant current (constant current output), constant voltage (constant voltage output), constant power output, external potentiometer (external voltage control) and other four working modes. The indicator light is on or off (when the external potentiometer is selected for control, the constant current mode indicator flashes. When other modes are selected, the corresponding indicator light is on).
2. Constant current mode (constant current output)
Switch to constant current mode first, the “constant current output” indicator on the panel will be on. At this time, turn the adjustment knob to adjust the current setting value. The setting range is 0.00~4.00A and the step is 0.01A. It should be noted that if the clutch/brake power
Smaller, the current flowing through the clutch/brake will be less than the set value. At this time, the controller will flash the set value to indicate that the set current has not been reached. After 3 flashes, it will automatically adjust to the actual value. Maximum current value. For example, if the controller is connected to a 12Nm magnetic powder clutch, the rated working condition is 24V/1.2A on the nameplate. If the current is set to 1.3A, the current flowing through the clutch coil is not enough. The controller will flash the set value 3 times, then automatically adjust the set value to 1.2A.
3. Constant voltage mode (constant voltage output)
Switch to constant voltage mode, the “constant voltage output” indicator on the panel lights up. At this time, turn the adjustment knob to adjust the output voltage. The setting range is 0.0~24.0V, stepping 0.1V.
4. Constant power mode
The clutch/brake needs to be calibrated before using the constant power mode. The method is to disconnect the power supply, connect the clutch/brake, and then press the “SELECT Select” button to turn on the power. The controller will automatically detect the maximum power of the clutch/brake.
During the calibration process, the “Constant Power Output” indicator will flash and the detected current value will be displayed on the digital screen. Calibration completed
After that, the constant power mode can be used. After calibration once, there is no need to repeat calibration afterwards (if replacing different types of clutches)
/ brakes need to be recalibrated). In constant power mode, turn the adjustment knob to adjust the output power, range 0%-100%, step 1%
5. External potentiometer control (external voltage control)
Switch to the external potentiometer control mode first, then the “A constant current output” indicator on the panel flashes, and the controller digital screen displays the measured current value in real time. In this mode, the upper and lower buttons and the adjustment knob on the panel do not work. The output voltage will be controlled by an external potentiometer (or external 0~10V), and the corresponding output is 0~24V.
- Voltage: AC180-265V
- Material: Plastic
- Model Number: KTC800A
