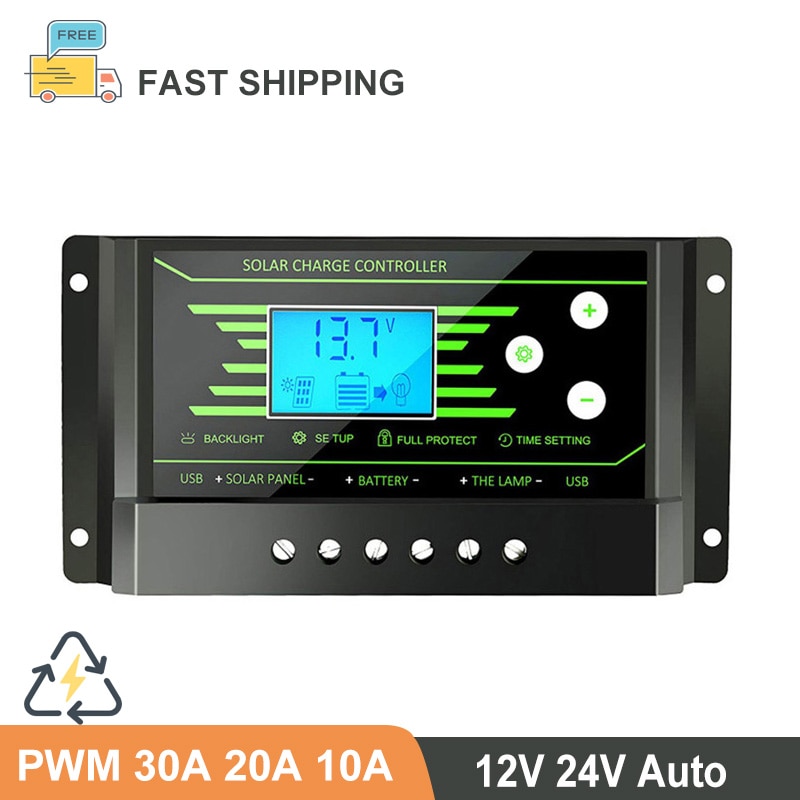

PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW
37.34 31.52 $
SALE
ID: 9799
Quantity
PWM Solar Controllers 30A 20A 10A 12V 24V Auto PV Solar Charge Controller Back-light LCD Display Dual 5V USB Battery Regulator
0.0 (8 votes) | 18 orders
Price:
US $30.42 - 36.25
/ piece
Discount Price:
US $
21.24 -
25.02
/ piece
-30%
PWM Solar Controllers 30A 20A 10A 12V 24V Auto PV Solar Charge Controller Back-light LCD Display Dual 5V USB Battery Regulator

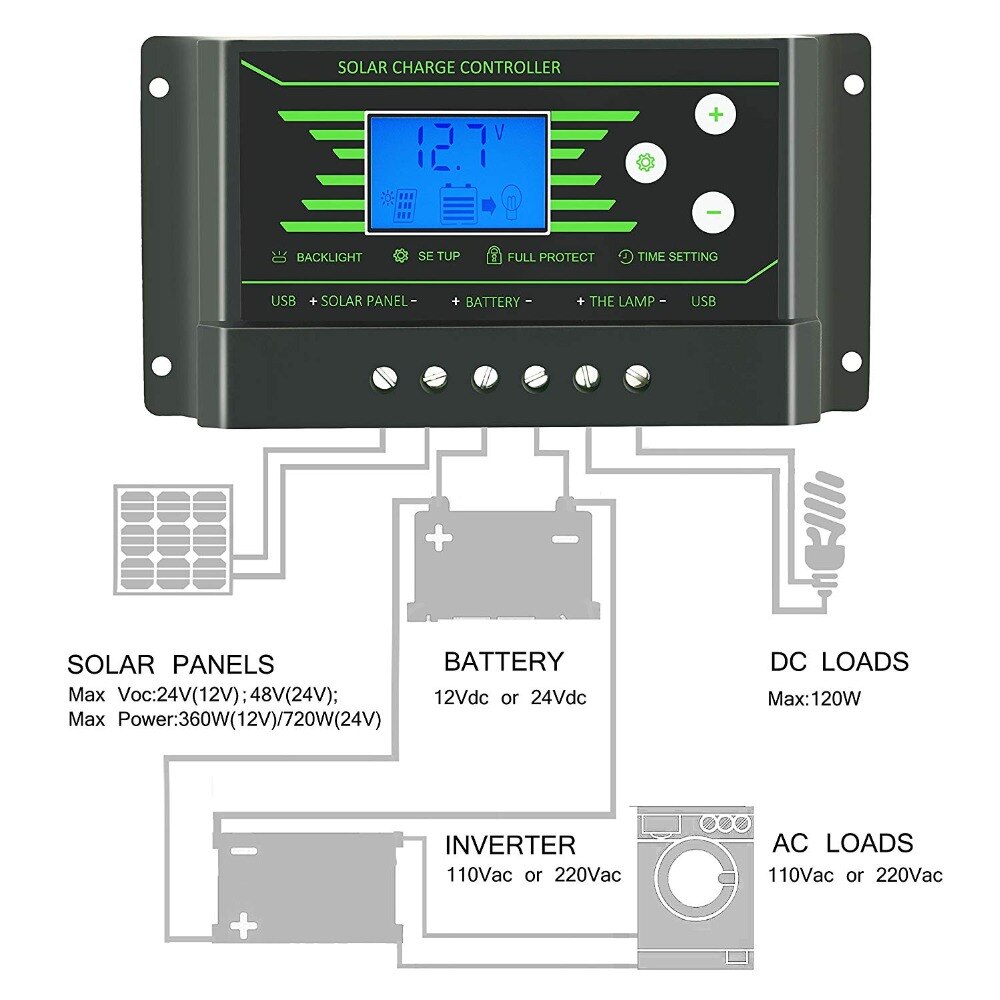

For Z10 10A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
For Z20 20A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
For Z30 30A solar controller, Max Voc: 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
Product Features
❶4-Stage charging(Boost, ABS, Equalization,Float),and equipped with industrial-grade STM 8 microprocessor to prolong your battery life cycle.Dual USB can give your electronic product max 5V 2.5A.

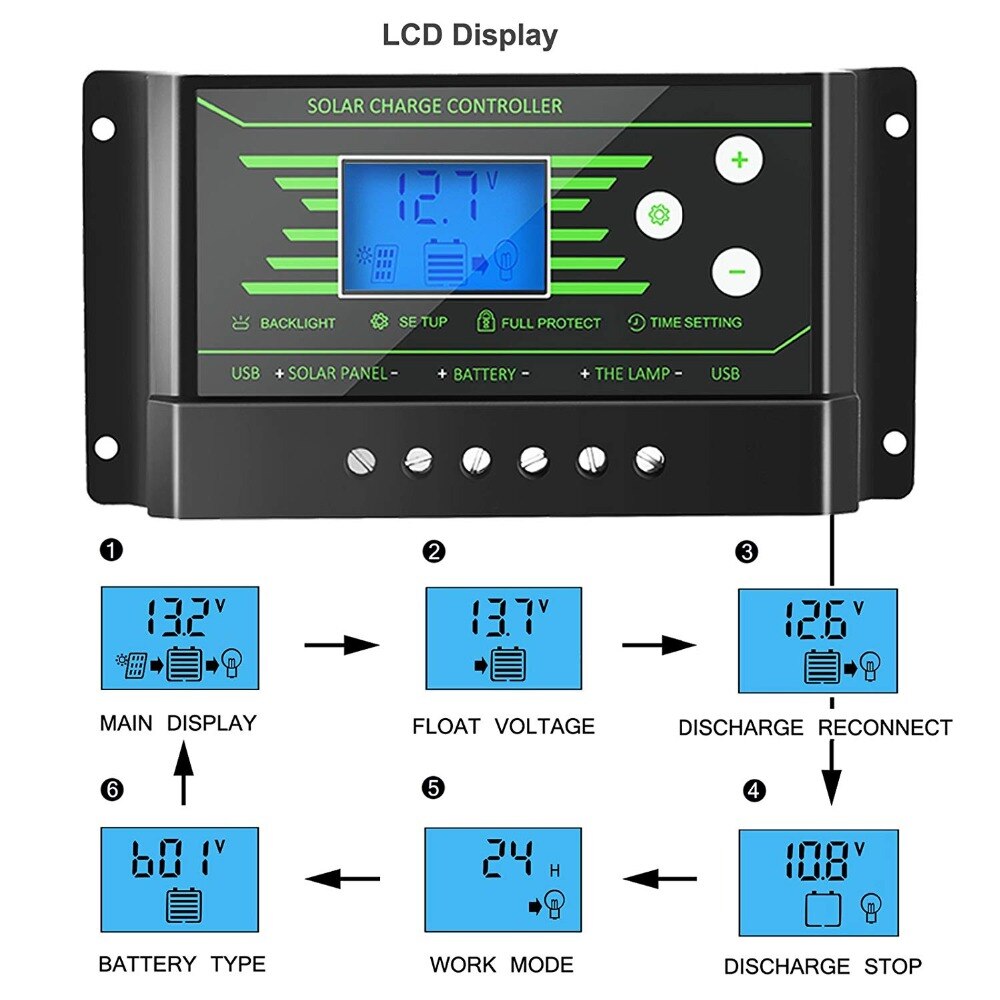

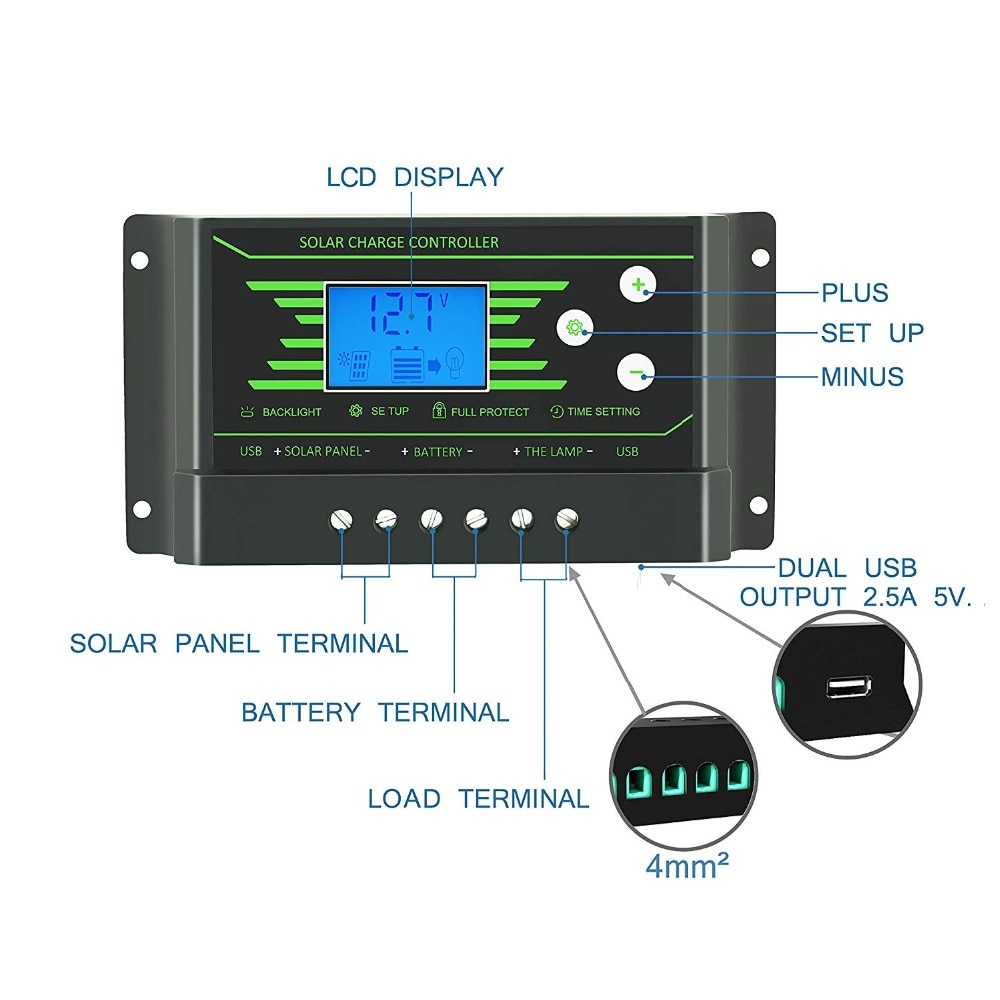

❷This solar controller backlight display PV/Battery/Load charge and discharge parameter. like the fourth picture, adjustable Floating voltage/LVD/LVR/Timer according needs with with power-off-memory function.

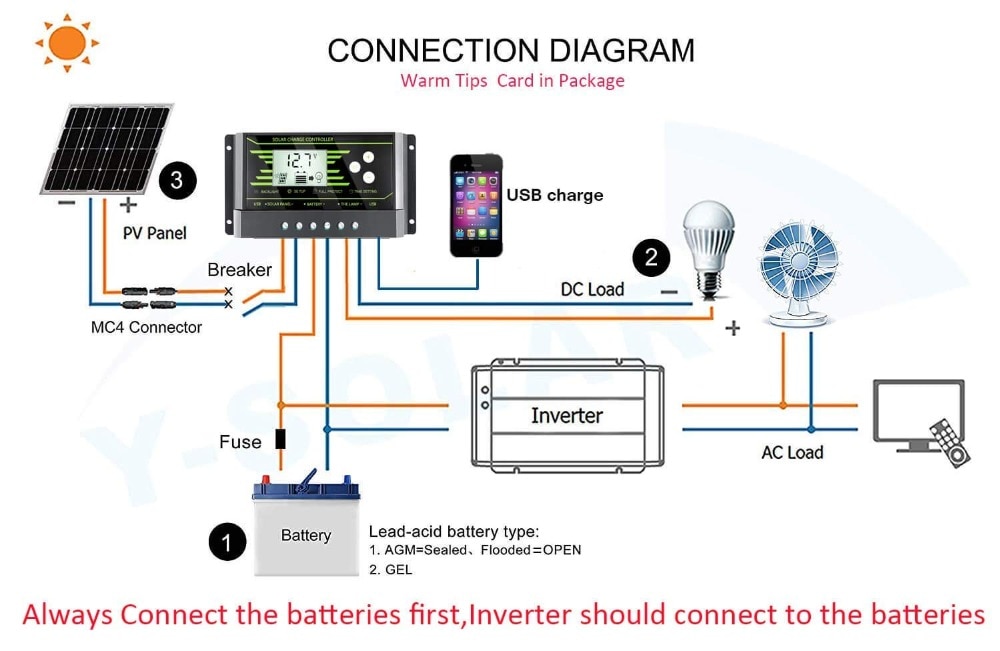

❸This solar charge controller fit for Lead-acid batteries(OPEN,AGM,GEL) with mutiple load timer.Load should be DC. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically.

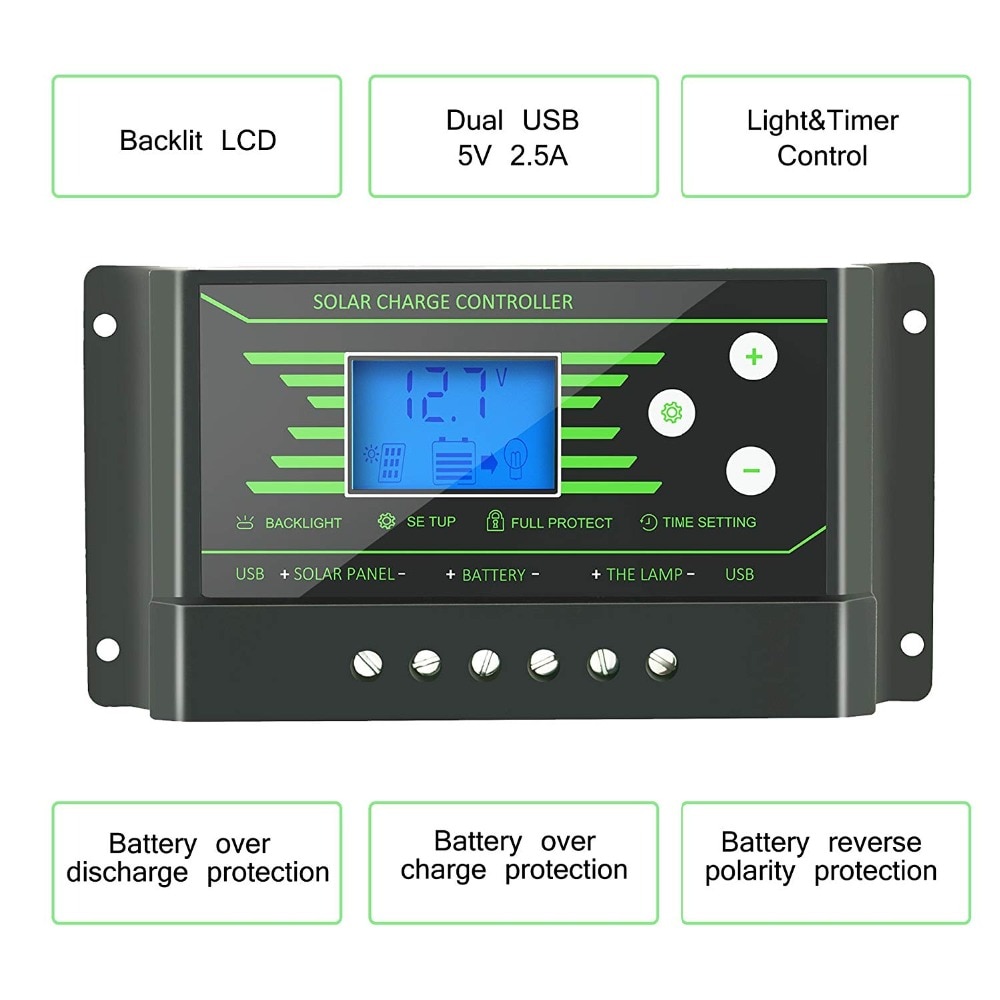

❹Eight PWM charge controller Protection:Power off memory /Dual MOSFET Reverse current /over heat /Under-voltage discharge /short-circuit /open-circuit / over-load /over-charging protection.more safe for home, industrial,commercial etc.
❺12 months warranty from PowMr and 24hrs after service.
Technical Parameter
Model | Z10 | Z20 | Z30 |
Battery Voltage | 12V/24V Auto | ||
Charge current | 10A | 20A | 30A |
Discharge current | 10A | 10A | 10A |
Max Solar Panel Input | Max 23V(12V) ,Max 46V(24V) | ||
Equalization | 14.4V | ||
Float Voltage | 13.7V(Default,adjustable) | ||
Discharge stop | 10.7V(Default,adjustable) | ||
Discharge reconnect | 12.6V(Default,adjustable) | ||
Charge reconnect | 13V | ||
Voltage of oepn light | Solar Panel 8V | ||

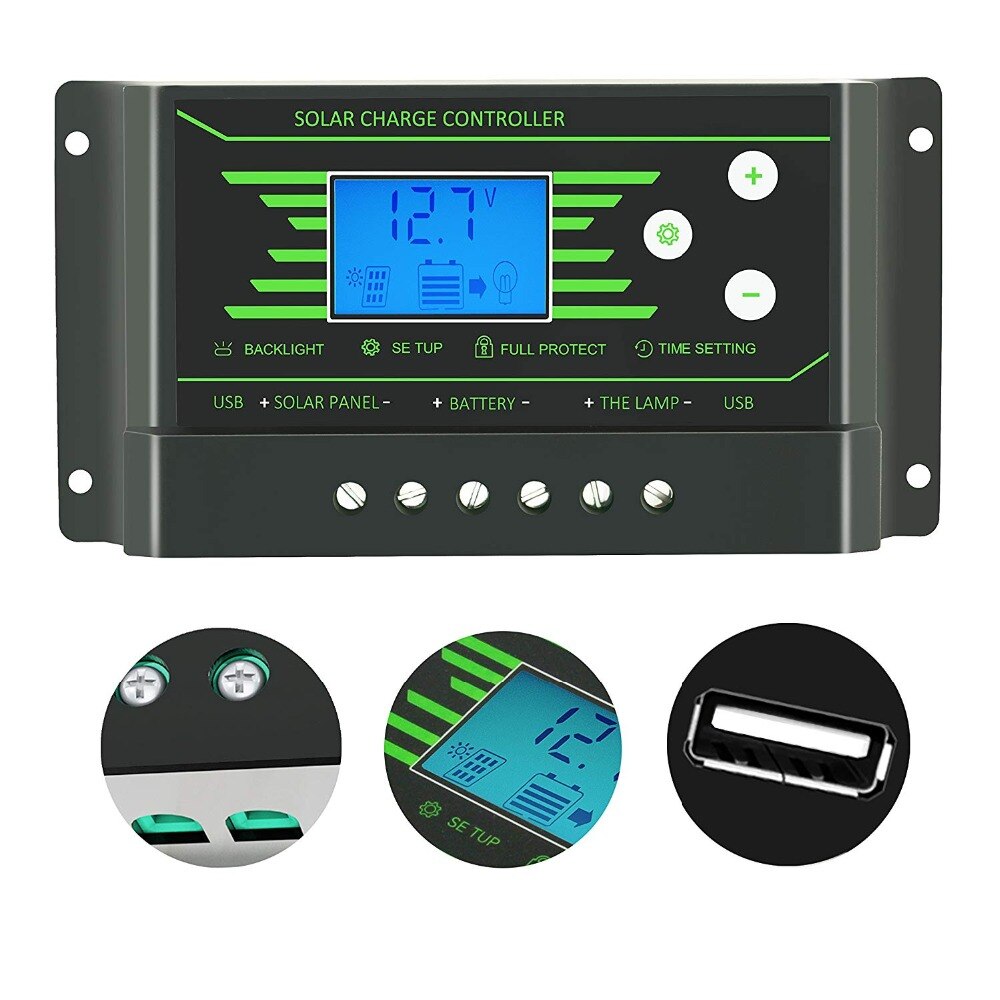

USB output | Dual USB output 5vV/2.5A(Max) | ||
Self-consume | <10mA | ||
Operating temperature | -35°C~60°C | ||
all red color voltage x2 when using 24V system
Product Overview
- is_customized: Yes
- Maximum Current: 30A/20A/10A

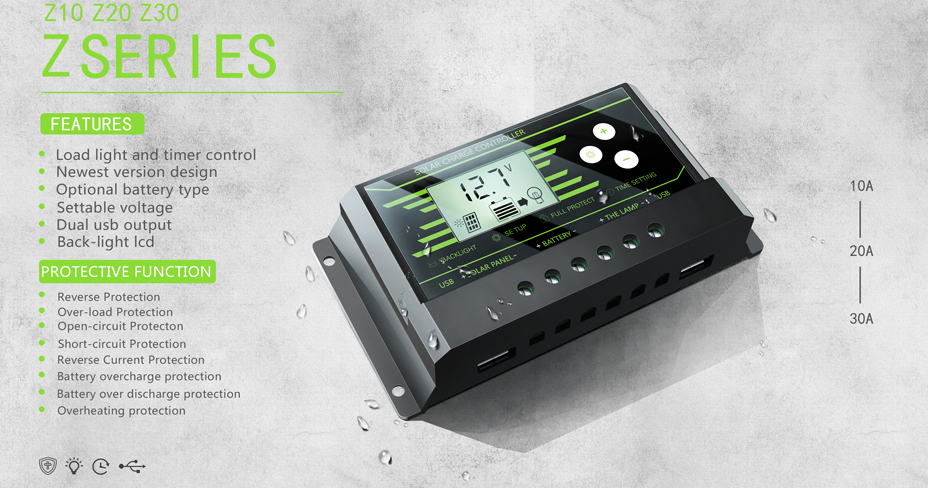

- Model Number: Z10/Z20/Z30
- Application: Charger Controller,Solar System Controller,Voltage Controller,Lighting Controller,Solar Working Station,Home PV system
- Origin: Mainland China
- Certification: CE
- Charging Current: 10A/20A/30A
- Discharging Current: 10A/20A/30A
- Max Solar Panel Input: Max 23V(12V system) Max 46V(24V System)
- Equalization: 14.4V
- Float Charge: 13.7V(default,adjustable)
- Low Voltage Disconnect Voltage(LVD): 10.7V(default,adjustable)
- Low Voltage Reconnect Voltage (LRD): 12.6V(default.adjustable)
- Voltage of open light: solar panel 8V
- LCD: Back-light LCD
- USB: Dual USB Output 5V/2.5V(Max)
