10pcs Solar Panel 5V 0.75W 150mA extend cable Polycrystalline Solar Cells Standard Epoxy DIY Battery Charge Module
26.79 26.70 $
For Wholesale,please feel free to contact us via Hogaki message!!!()

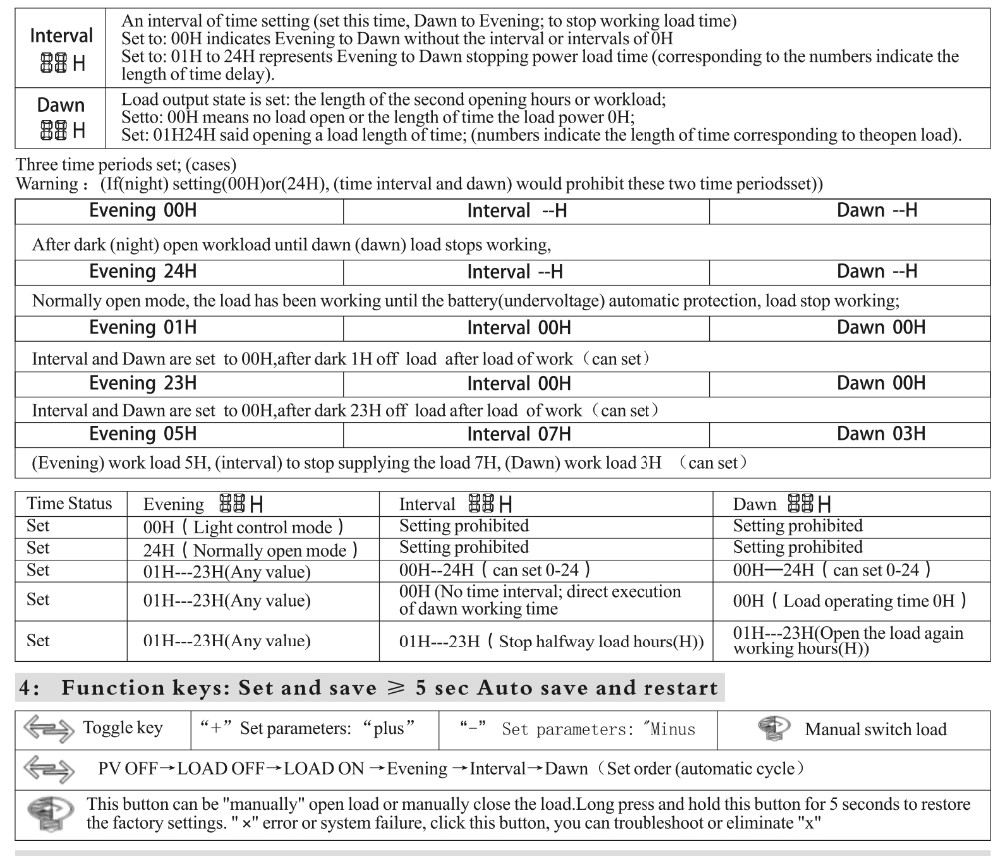

This is a three-time controller into the evening(evening)working time,an interval of rest or pause time,Dawn working time(morning light function),the user can according to their needs,set a different time.
A:time(evening working)B:time(Pause working)C:time(dawn working)
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,he not only has efficient MPPT controller charging function to automatically track the maximum power point,10%-30% higher than the ordinary controller chargingefficiency,also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT

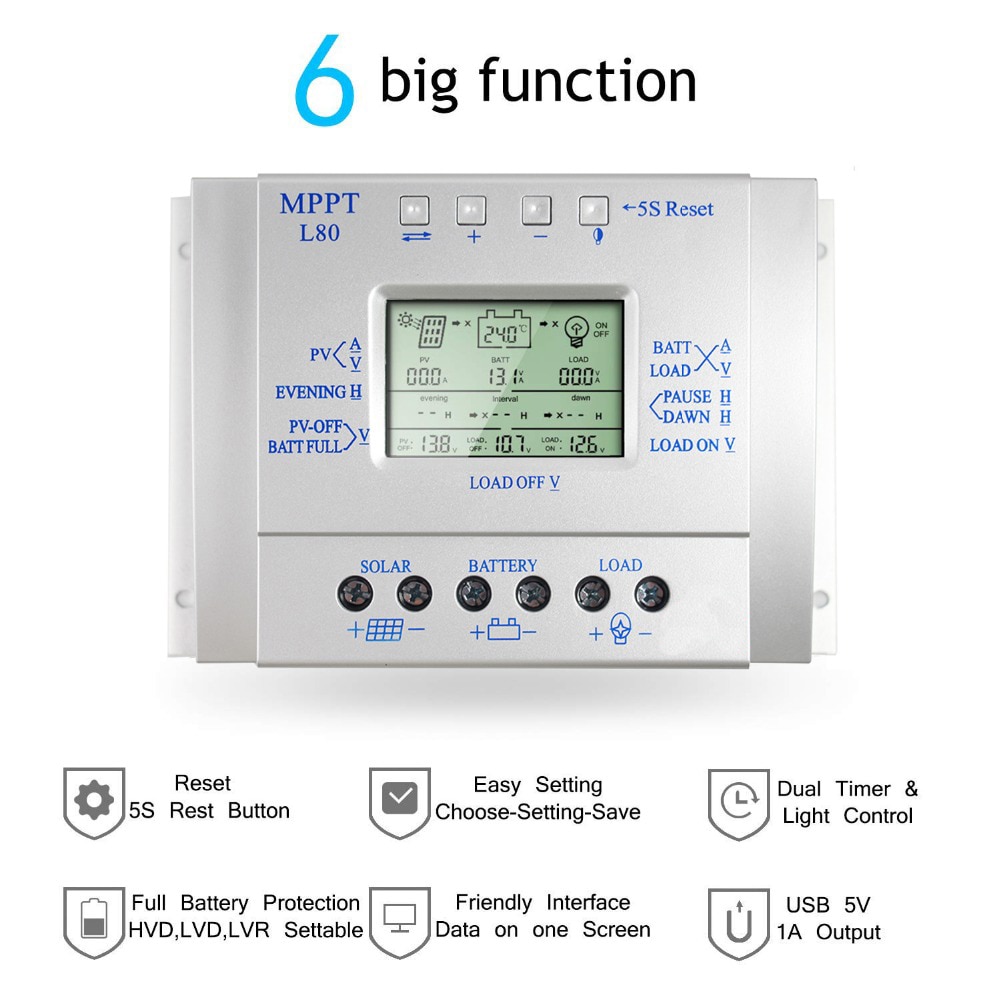

"T"series of an intelligent,multi-purpose solar charge controller
LCD Screen display | Battery reverse discharge protection |
Simple(and more time control) operation | Battery reverse polarity protection |
PWM charing mode+MPPT | Battery under voltage protection |
Parameter user can reset | Overload,short-circuit protection |
A key to open and close the load | Automatic Temperature compensation function |

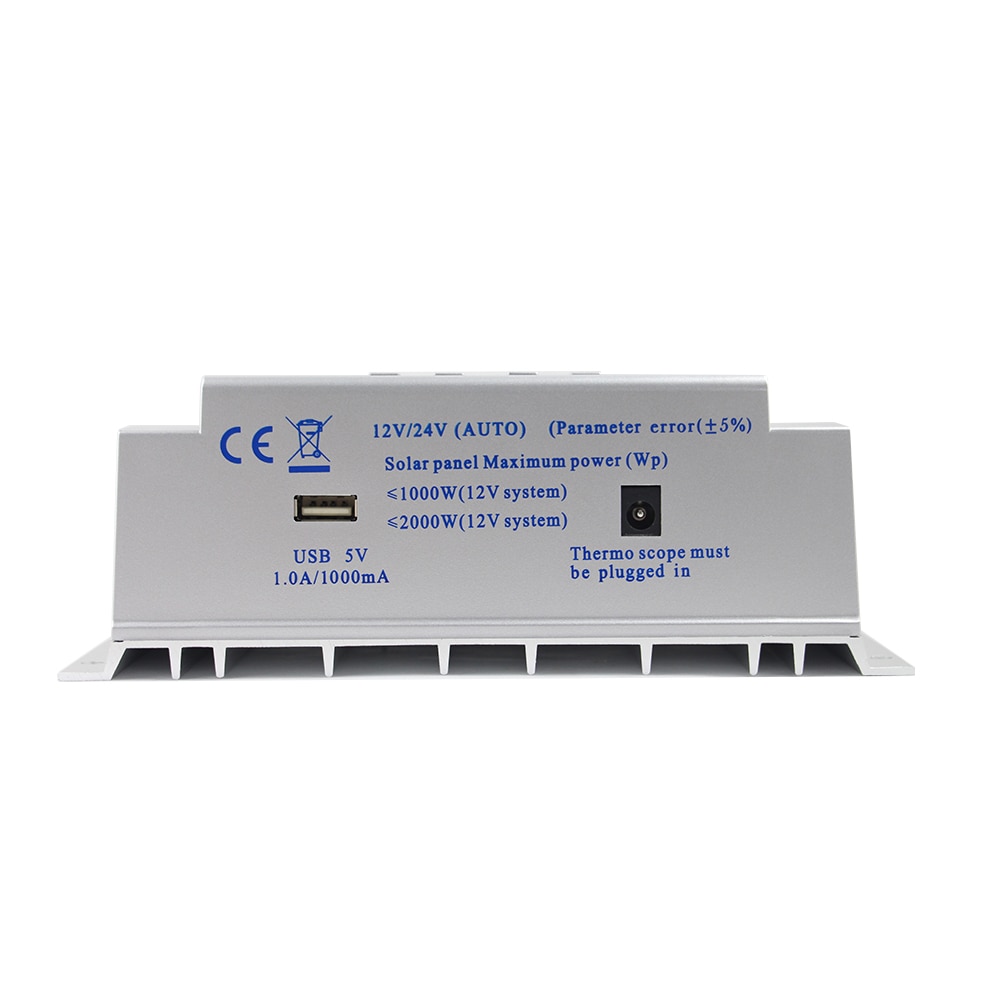

A key to restore the factory setting | USB 5V charge(current 1500mA/1.5A)Optional |

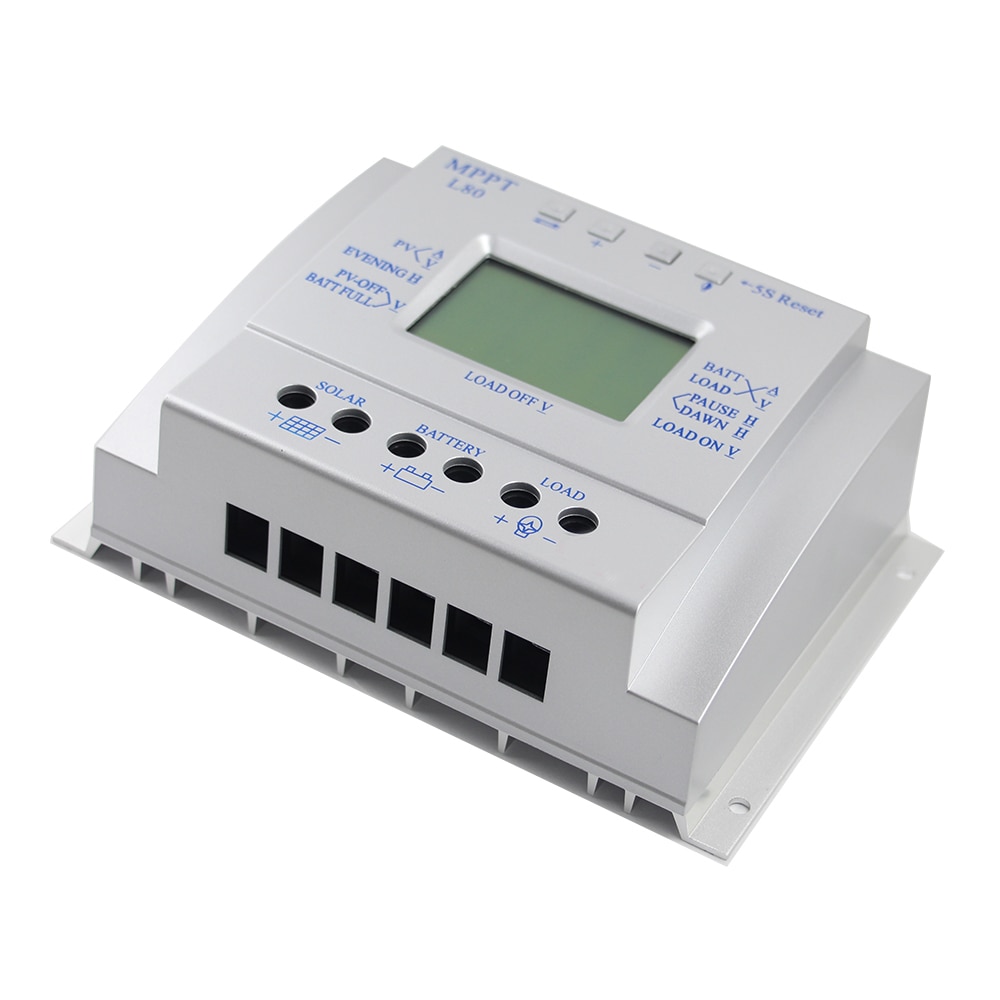

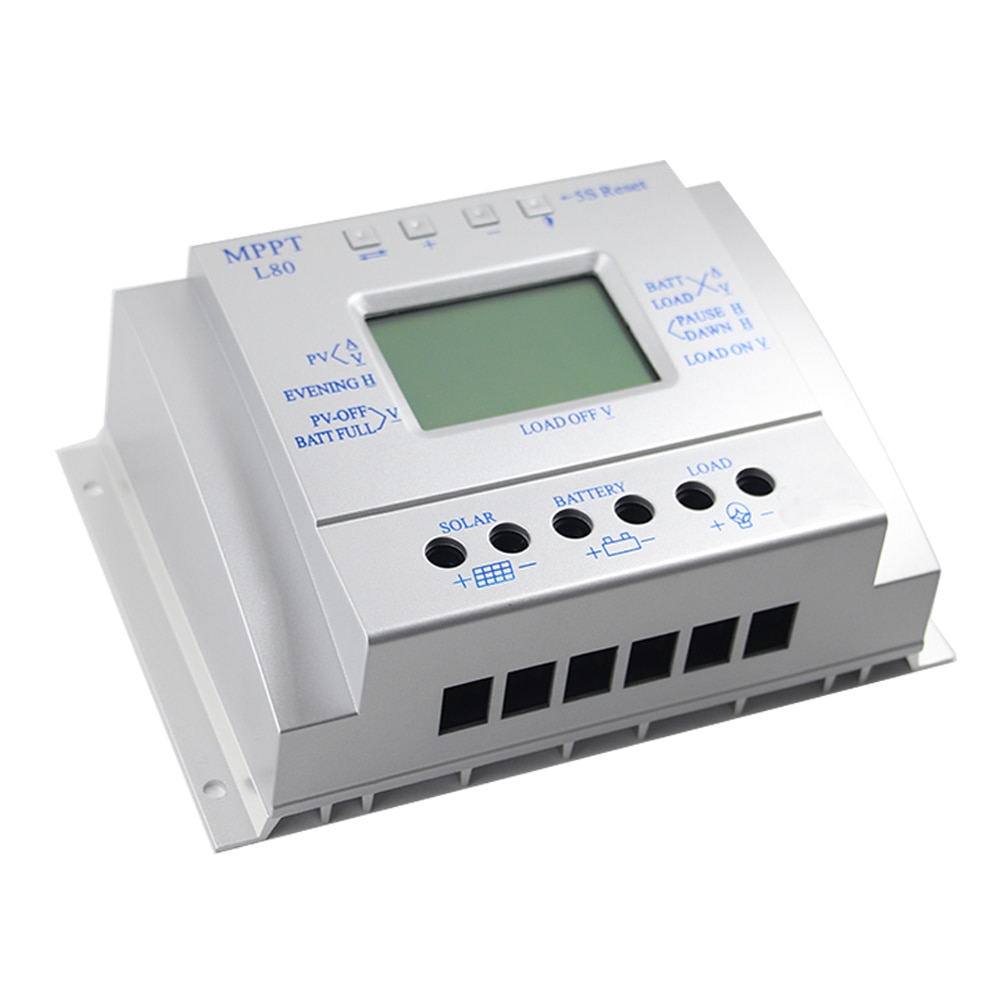

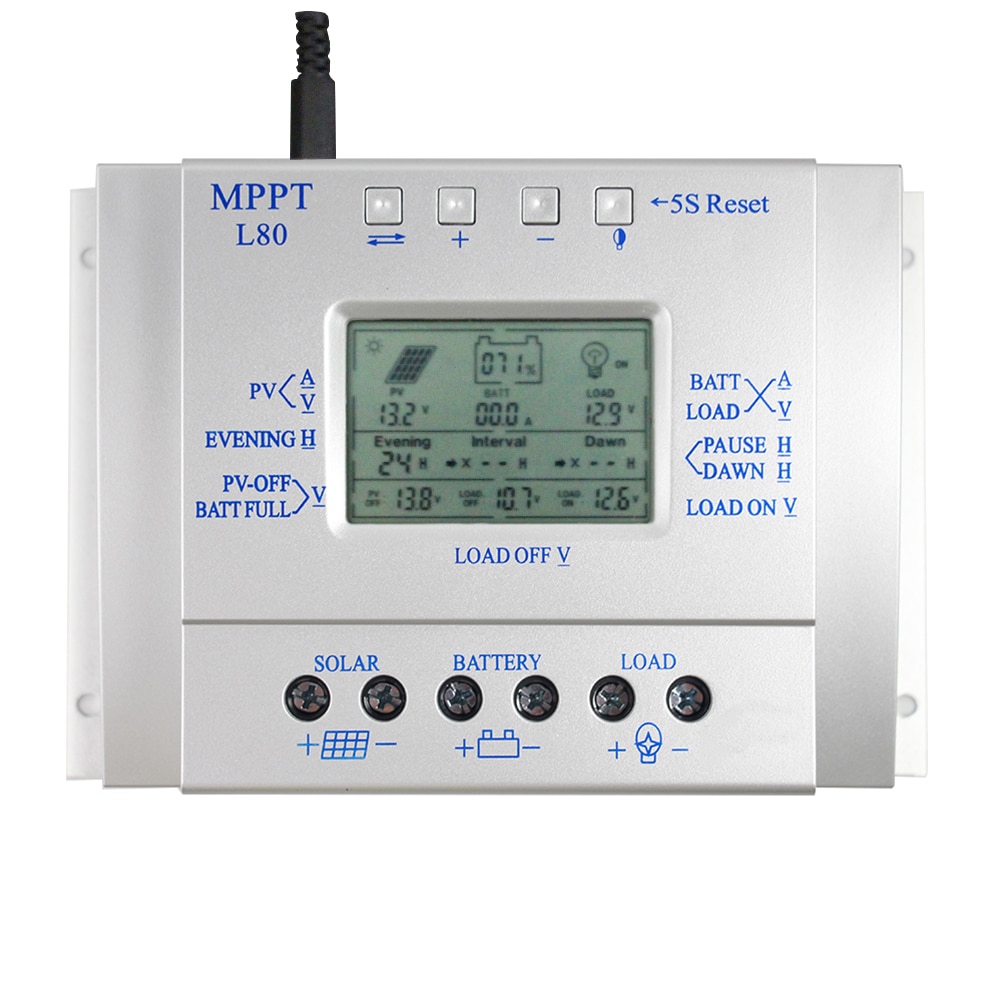

1pcs 80A Solar Controller MPPT L80
1pcs Temperature Sensor
1pcs English User Manual

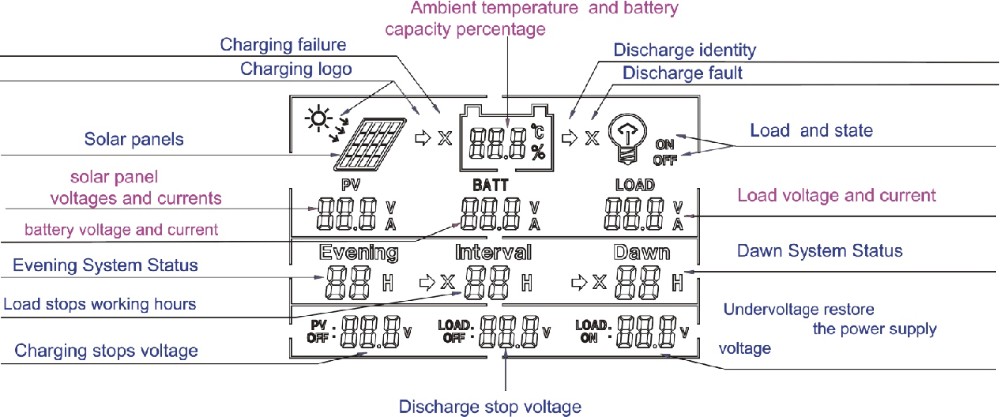

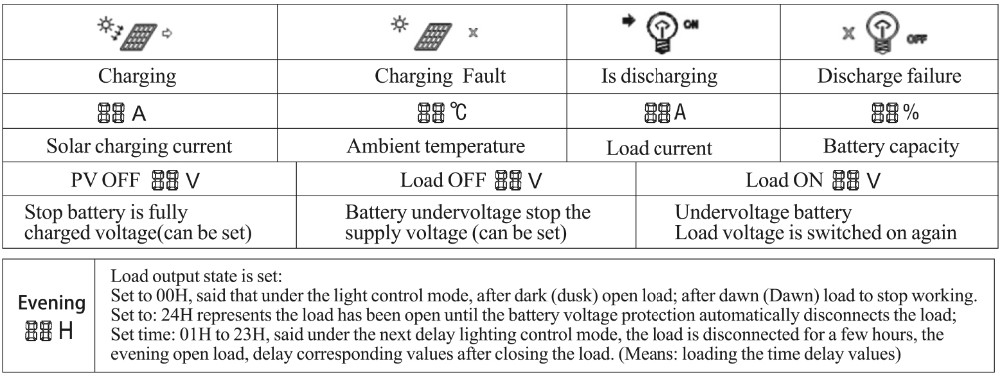

LCD Operating interface description :
Parameters/Model | MPPT T-10 | MPPT T-20 | MPPT T-30 | MPPT T-40 | MPPT T-60 | MPPT T-80 |
Maximum Power Current | 12A | 20A | 30A | 40A | 60A | 80A |
Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 | 16mm2 | 20mm2 |
Installaton Line(AWG) | 10#(AWG) | 8#(AWG) | 7#(AWG) | 6#(AWG) | 4#(AWG) | 2#(AWG) |
Weight | 280g | 300g | 475g | 500g | 800g | 900g |
Peak power of solar cell panel (Max Wp) | 130W | 260W | 380W | 500W | 800W | 1000W |
Battery capacity configuration | 100AH | 200AH | 300AH | 400AH | 600AH | 800AH |
Dimensions | 143*89*46(mm) | 187*97*61(mm) | 188*128*61(mm) | |||
Battery float voltage | 13.8V(12V system)/27.6V(24V system) | |||||
Battery (under voltage) protection | 10.6V(12V system)/21.2V(24V system) | |||||
Battery(under voltage)recovery voltage | 12.6V(12V system)/25.2V(24V system) | |||||
System load loss:<=13mA | Loop Buck;<=100mV | |||||
Operation Temperature :-10°C~60°C | Storage Temperature :-30°C~-70°C | |||||
Operation Temperature :<=90%,No condensation | Temperature compensation :-4mV/Cell/°C | |||||
Maximum open circuit voltage of the solar panel | 18V~24V(12V system) 36V~48V(24V system) | |||||
Solar Panel maximum open circuit voltage | <=48V | |||||
Link | Click |
1.Ready Qi installation tools and materials,and cable.Please matching suitable cable
2.Ensure that the current desity<4A/mm2 That will help reduce the line pressure drop.check the installation site meets the relevant safety requirements,avoid damp,dusty,flammable,explosive and corrosive gases
3.Install the controller fixed to the vertical plane,see Section V mounting aperture and hole spacing.In order to ensure a good controller cooling conditions,the controller on the bottom of each reserved 10cm space
4.As shown on the right wiring sequense:load,battery,solar Battery plate is connected to the controller to be taken to ensure that the load,battery,The polarity of the solar cell panel and controller
5. Before use:external temperature sensor probe into the left of the controller temperature probe interface probe placed in similar battery temperature.(Line extensive must be build-in devices of the external temperature probe coextensive Otherwise,the controller will control parameters of the temperature compensation of the error
6.Warning:In order to prevent accidents from occurring,install:non-professionals can not be engaged in loading and unloading operations
No proper installation of solar panels cable polarity(“+””-”) Removing the polarity,you can re-install the correc
More than the rated power of solar panels to reduce solar panel power does not exceed the rated power controller discharge Problem Solution
Removing the load is not properly connected to the load,re-install the correct
More than the rated load power to reduce load power,the controller does not exceed the rated power
Instantaneous starting current is too large,the battery capacity is too small,the replacement of high-capacity batteries,button troubleshooting
Wire Cable polarity loose or too square and increase retightening bold cable
All keys can troubleshoot faults,press 5 seconds to restore factory settings.
