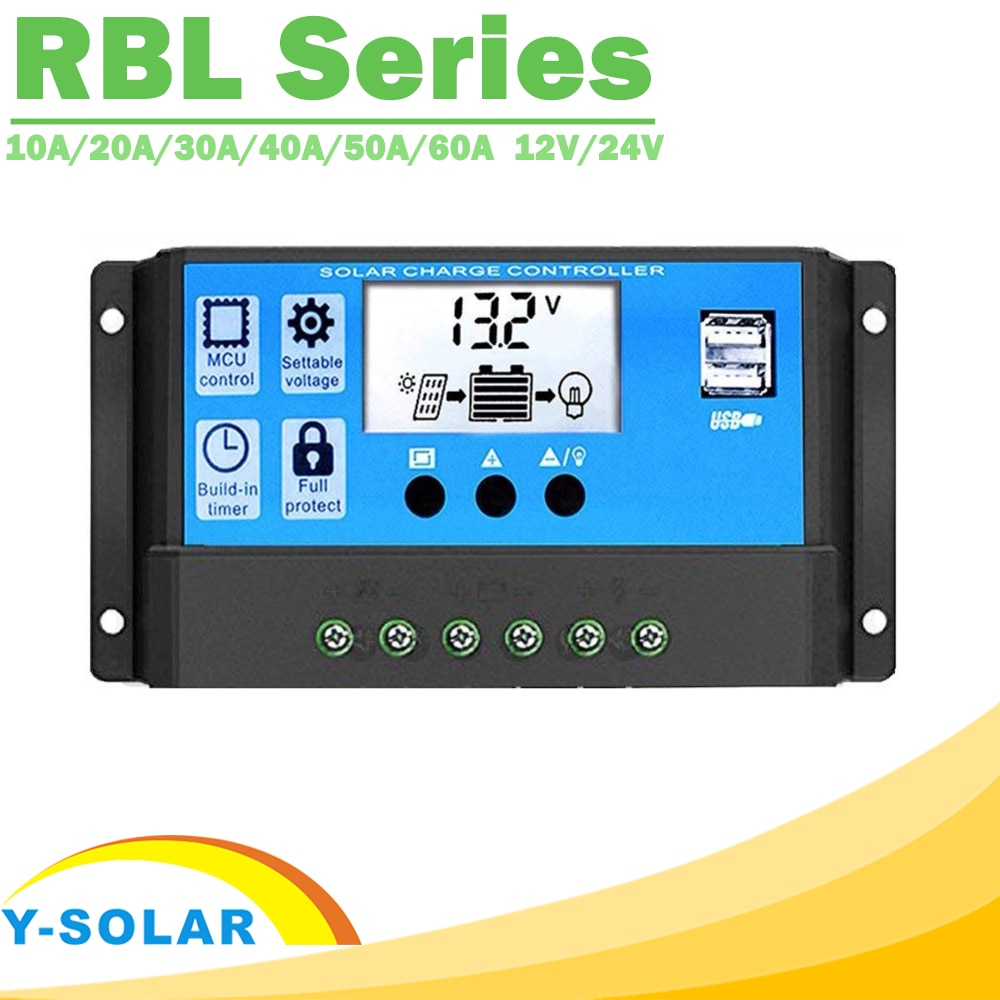

Y-SOLAR PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW
4.7 (3 votes) | 14 orders
Price:
US $27.36 - 58.07
/ piece
Discount Price:
US $
18.06 -
40.45
/ piece
-34%
Y-SOLAR PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

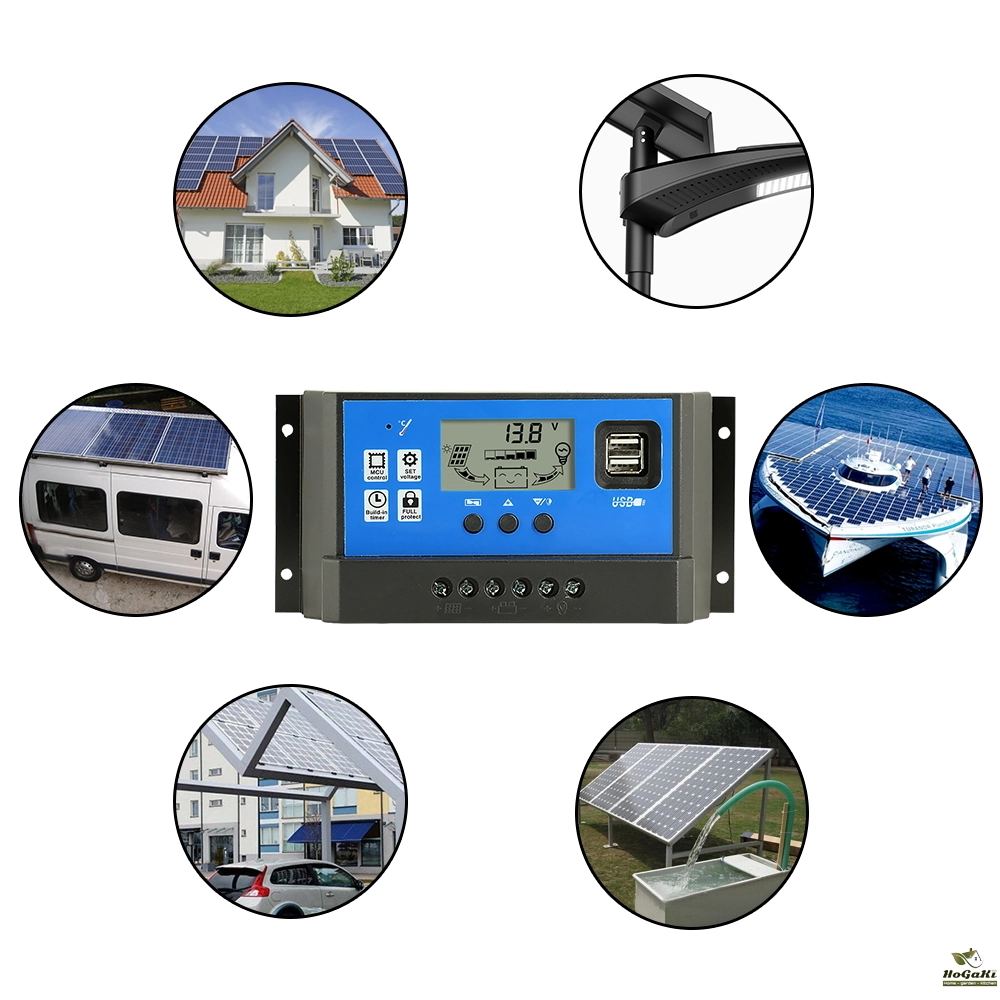

This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements
There are optional 10A 20A 30A 40A 50A 60A model
RBL-10A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 120W (12V), 240W (24V);
RBL-20A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 240W (12V), 480W (24V);
RBL-30A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 360W (12V), 720W (24V);
RBL-40A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 520W (12V), 1040W (24V);
RBL-50A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 650W (12V), 1300W (24V);
RBL-60A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 780W (12V), 1560W (24V);
Recently there are many similar products on the market, they have different prices and many sales, but please note that only Y-SOLAR Store's products are 100% genuine and highest quality, we can provide permanent after-sales service, if you are reseller, We can give you free samples and competitive price !!!
1.Build-in industrial micro controller.

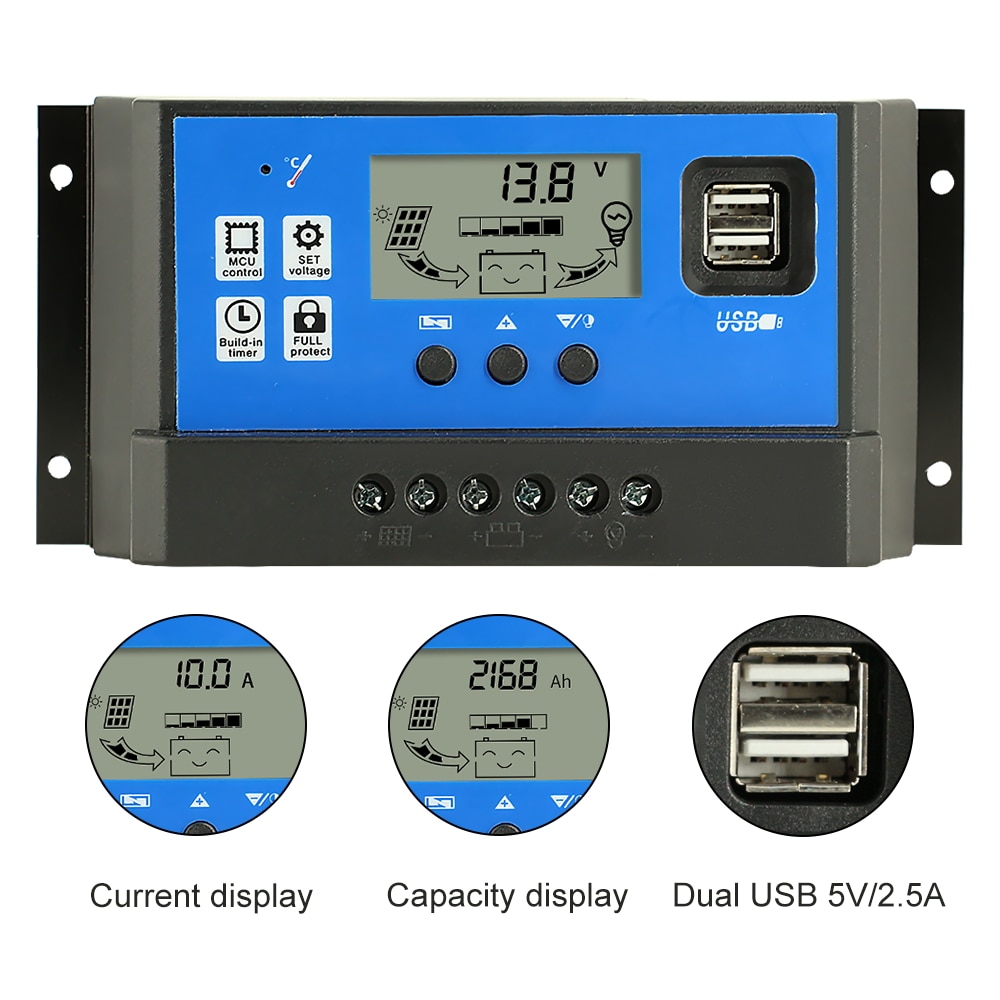

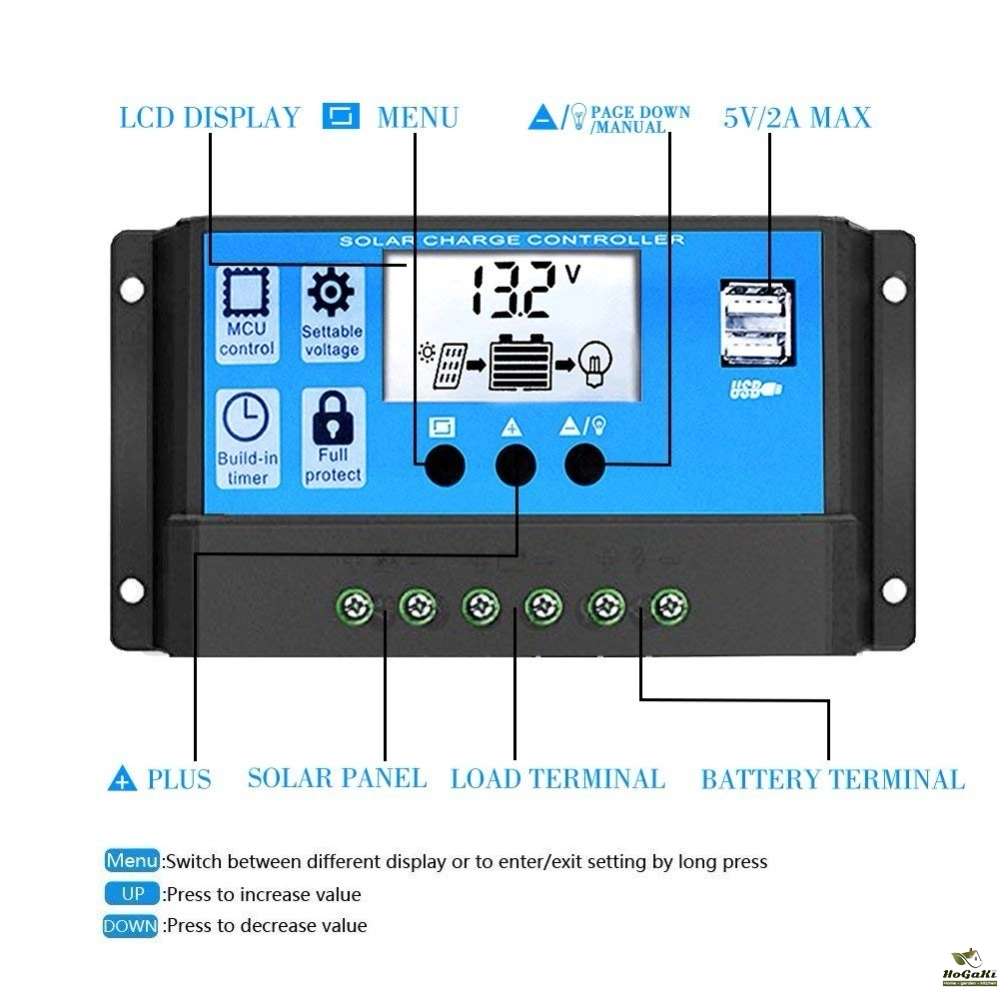

2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
MODEL | RBL-10A | RBL-20A | RBL-30A | RBL-40A | RBL-50A | RBL-60A |
Battery Voltage | 12V 24V Auto | |||||
Charging Current | 10A | 20A | 30A | 40A | 50A | 60A |
Discharging Current | 10A | 10A | 10A | 20A | 30A | 30A |
Max Solar input | 48V(for 24V battery) 24V(for 12V battery) | |||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
Float charge | 13.7V(defaul,adjustable) | |||||
Discharge stop | 10.7V(defaul,adjustable) | |||||
Discharge reconnect | 12.6V(defaul,adjustable) | |||||
Charge reconnect | 13V | |||||
Voltage of open light | Solar Panel 8V(Light lights delay) | |||||
Voltage of close light | Solar Panel 8V(Light off delay) | |||||

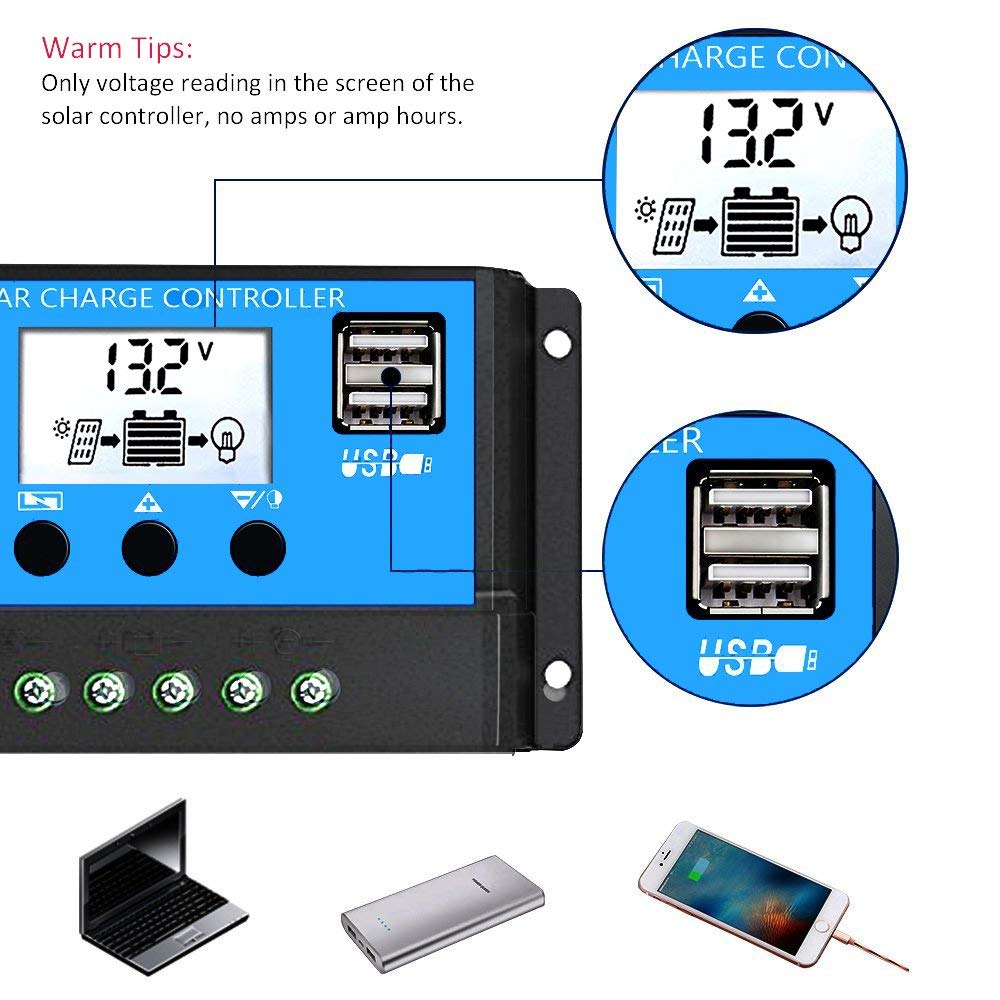

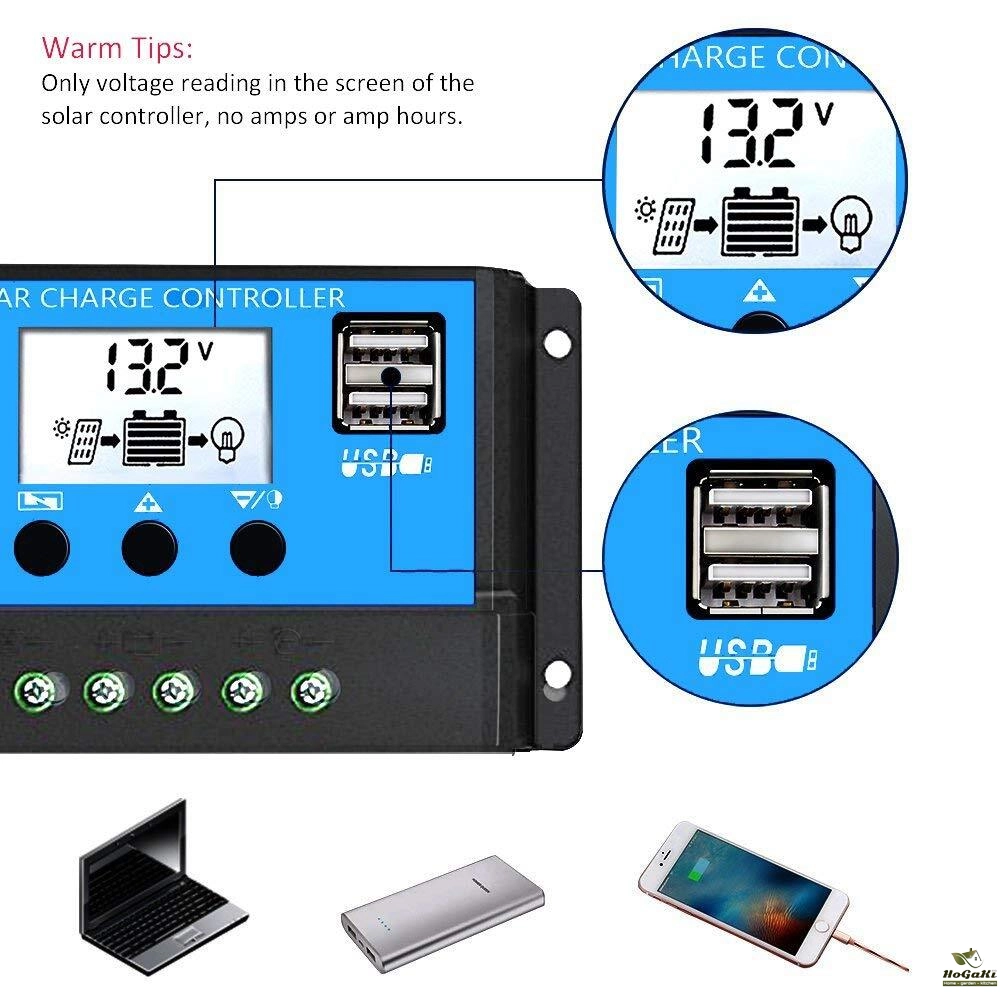

USB output | 5V/3A | |||||
Self-consume | <10mA | |||||
Operating temperature | -35°C~+60°C | |||||

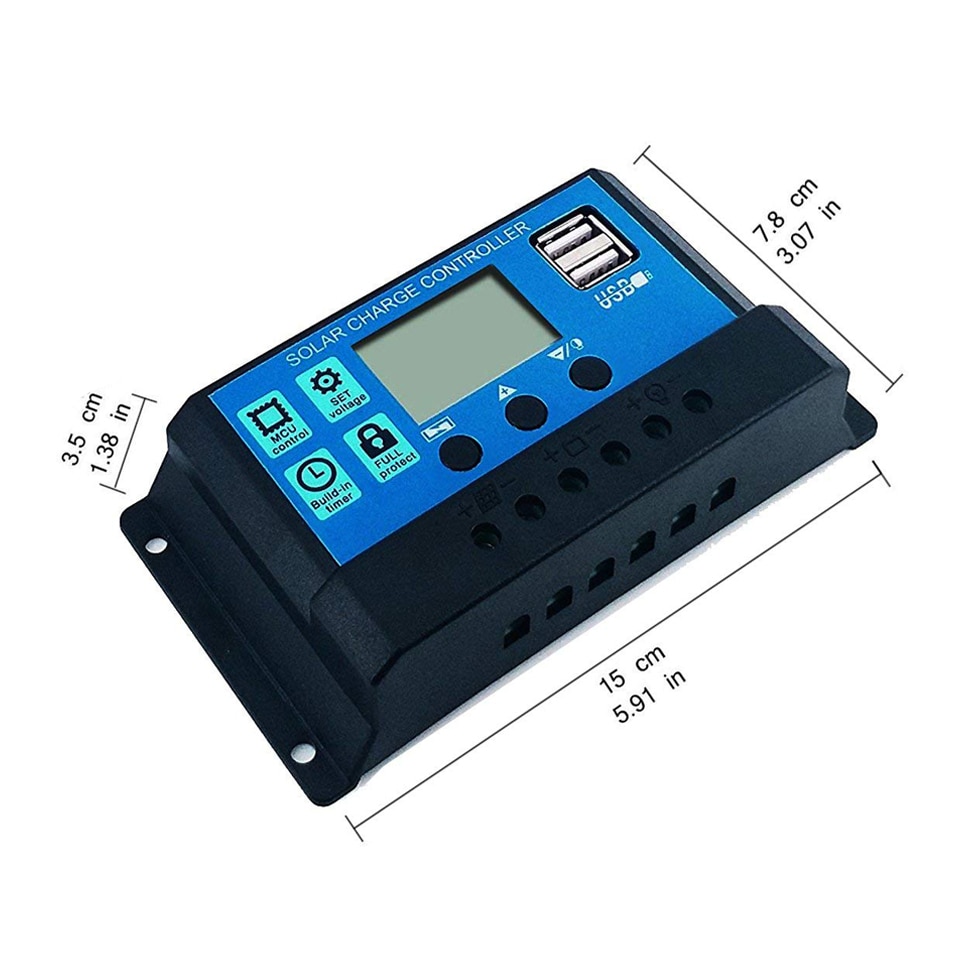

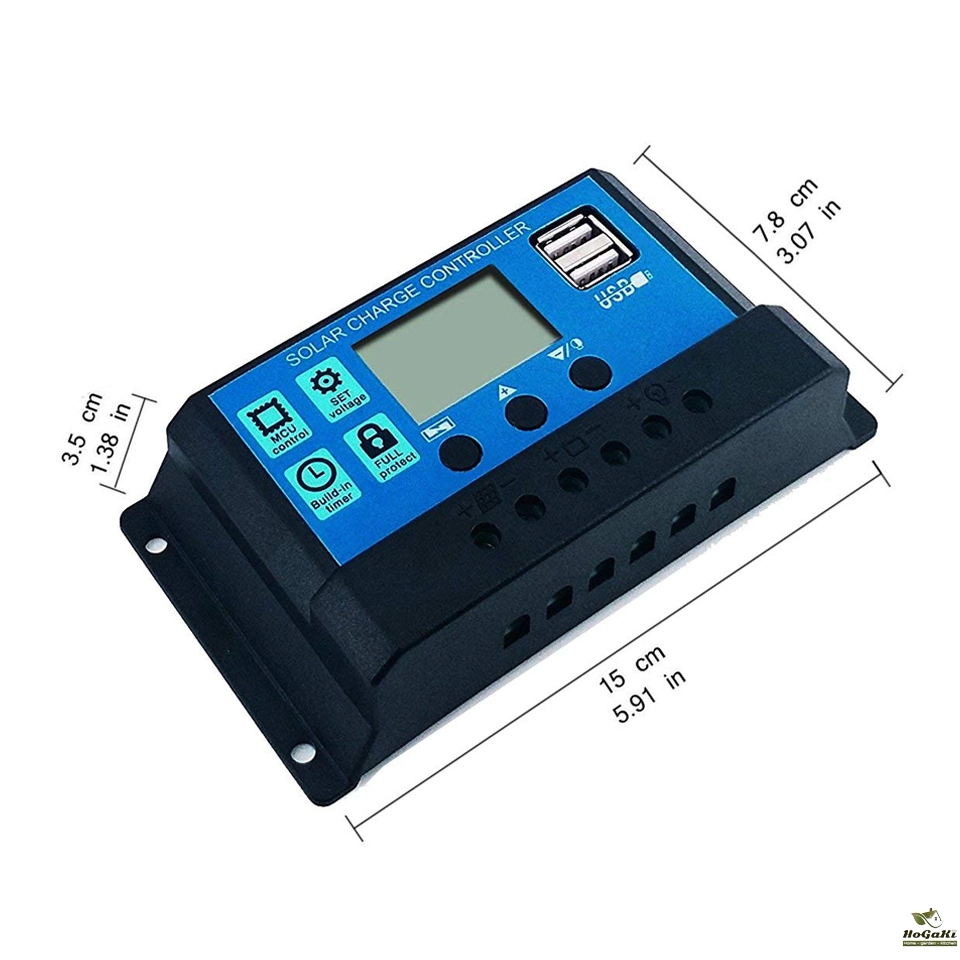

Size | 133.5*70*35mm | 188*90*47mm | ||||

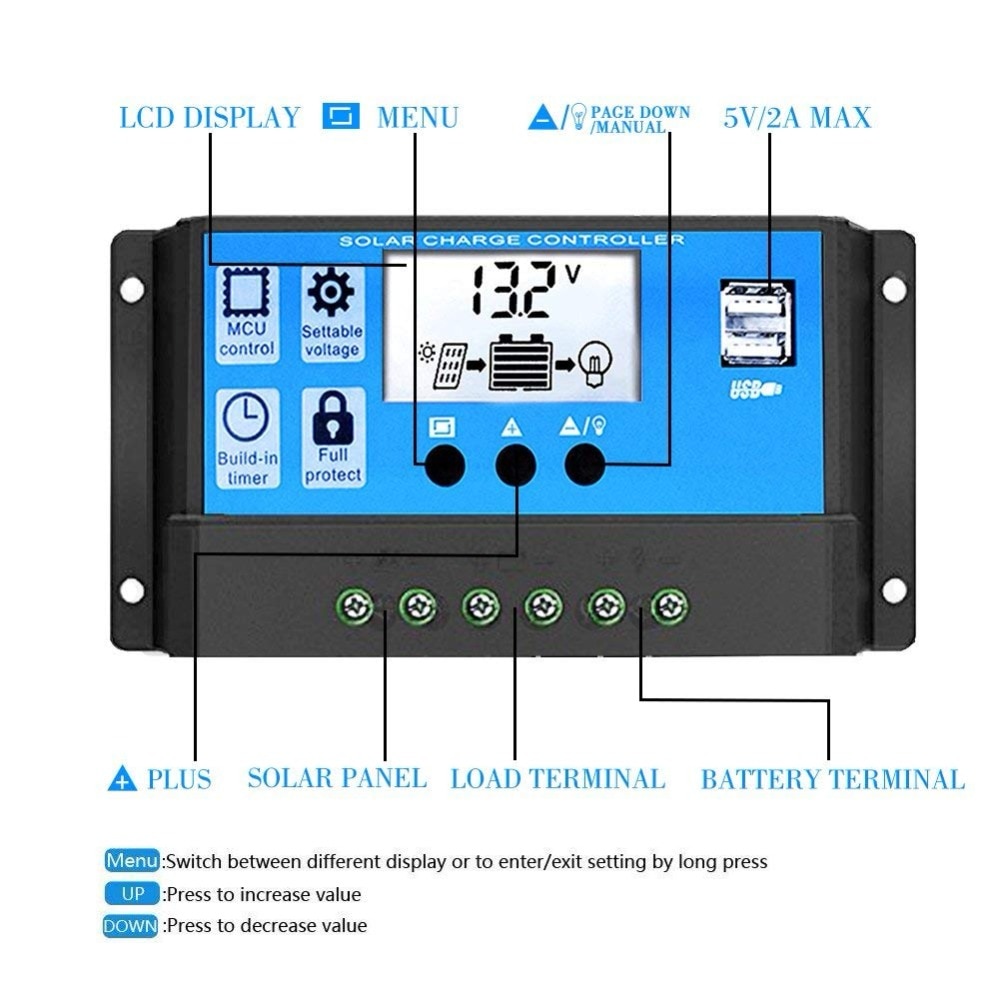

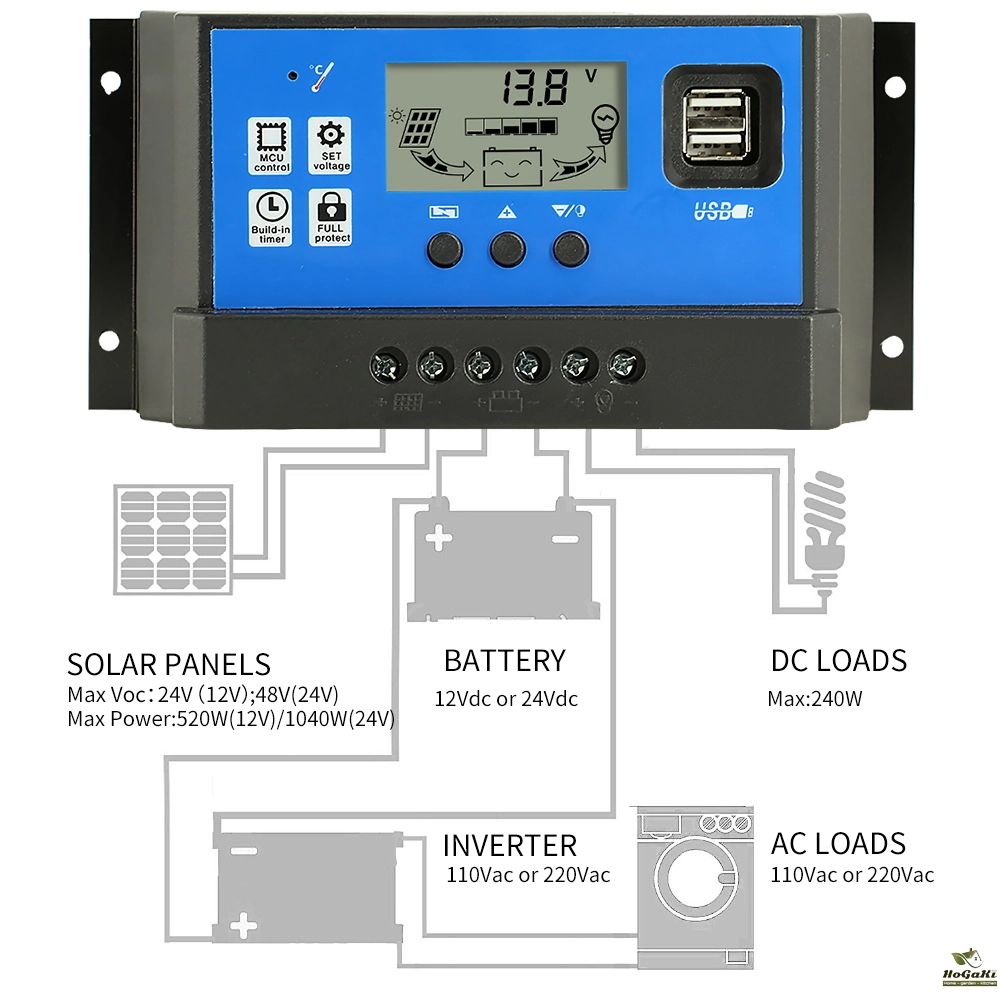

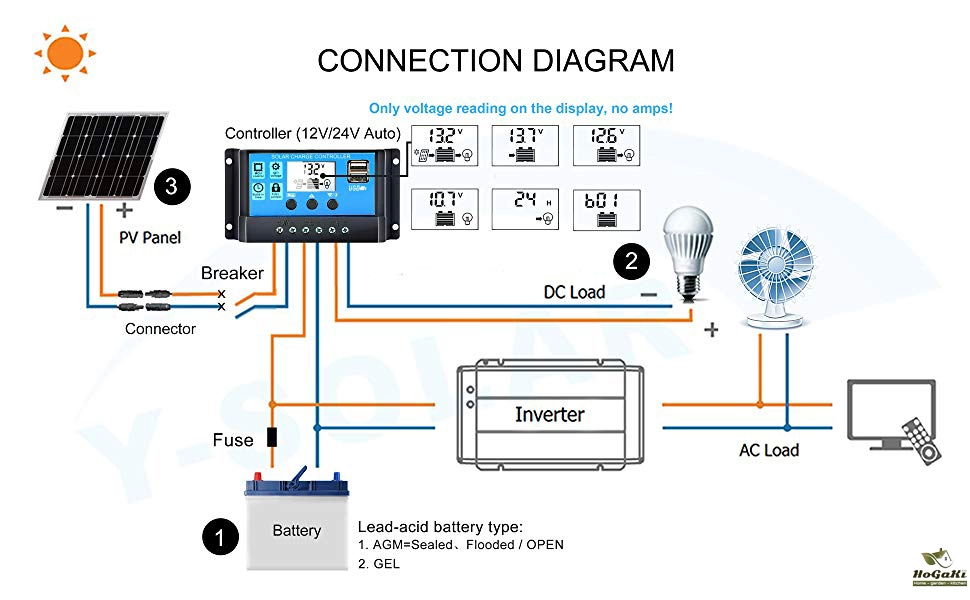

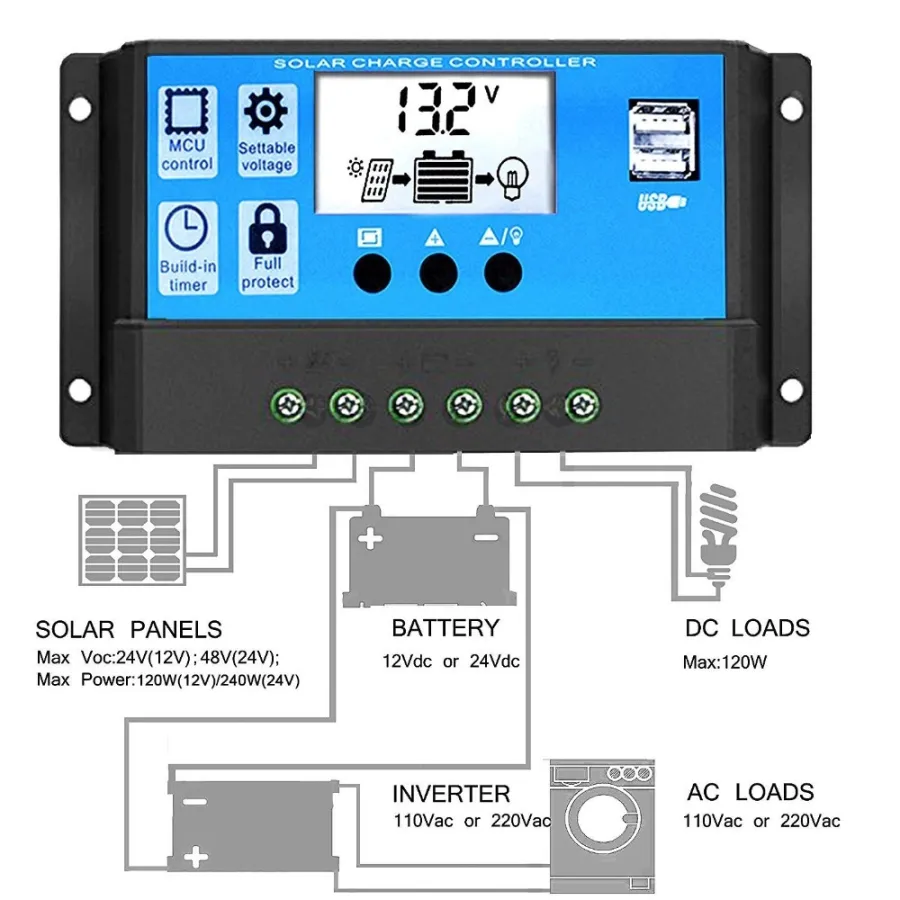

1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!

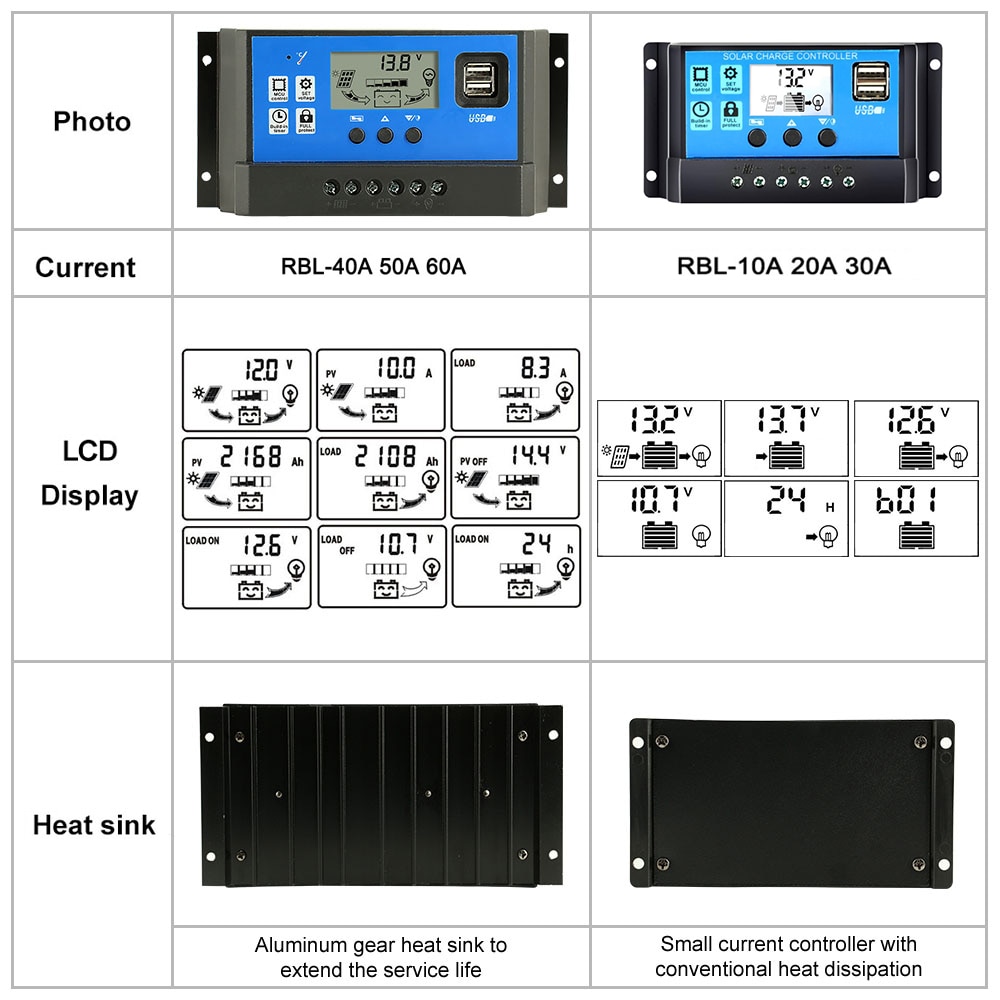

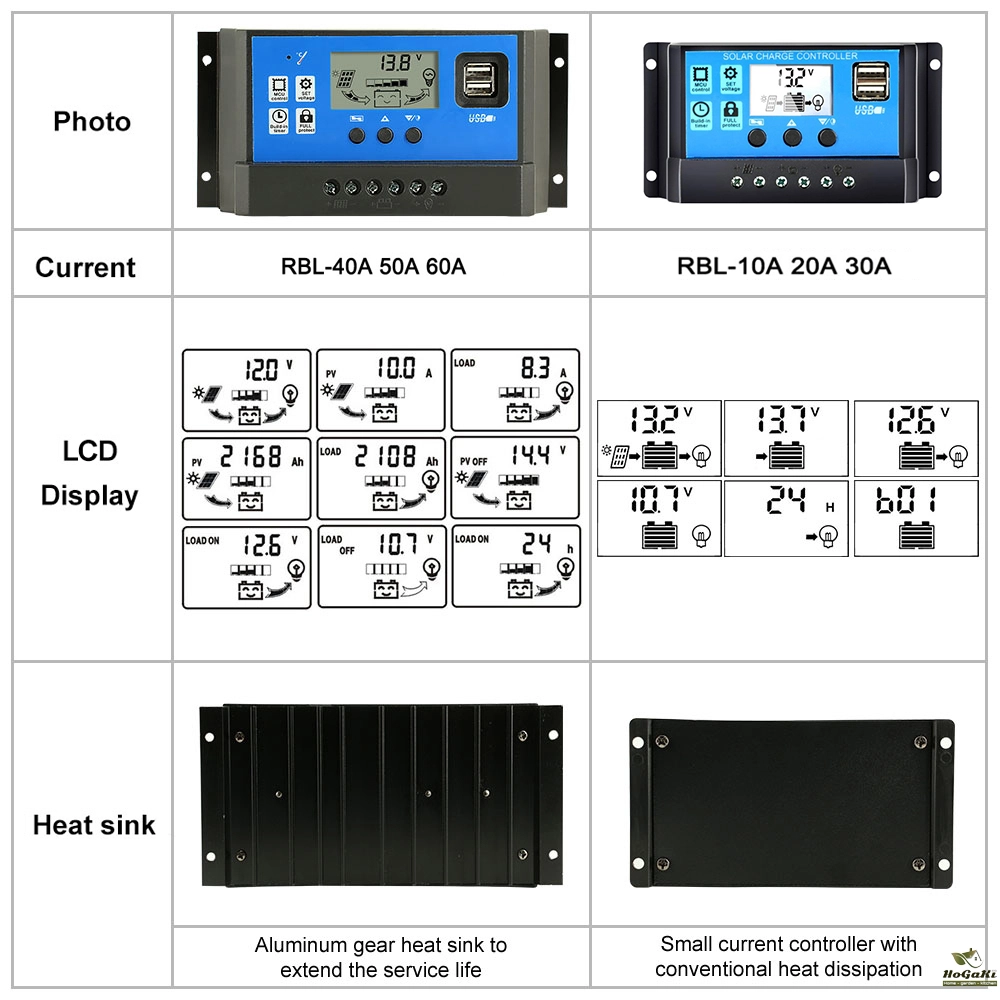

Difference between 10A 20A 30A and 40A 50A 60A

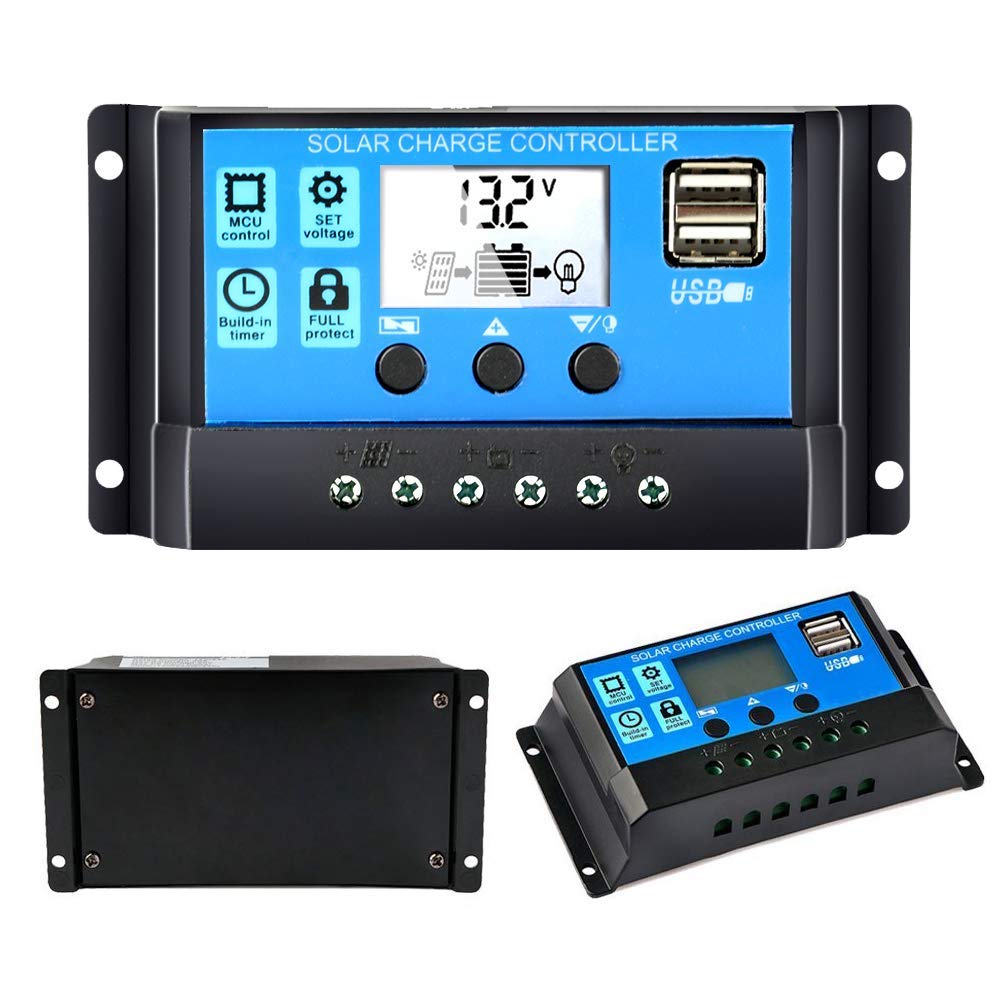

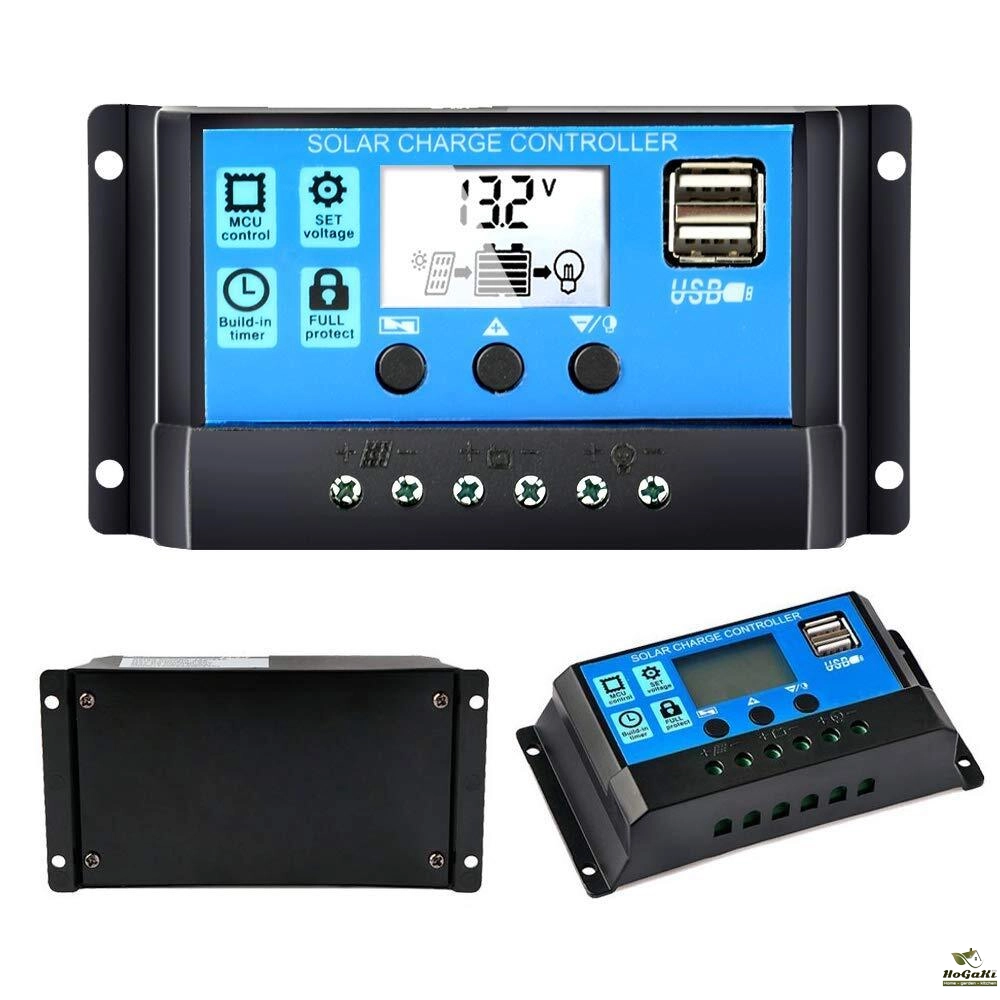

RBL 10A 20A 30A

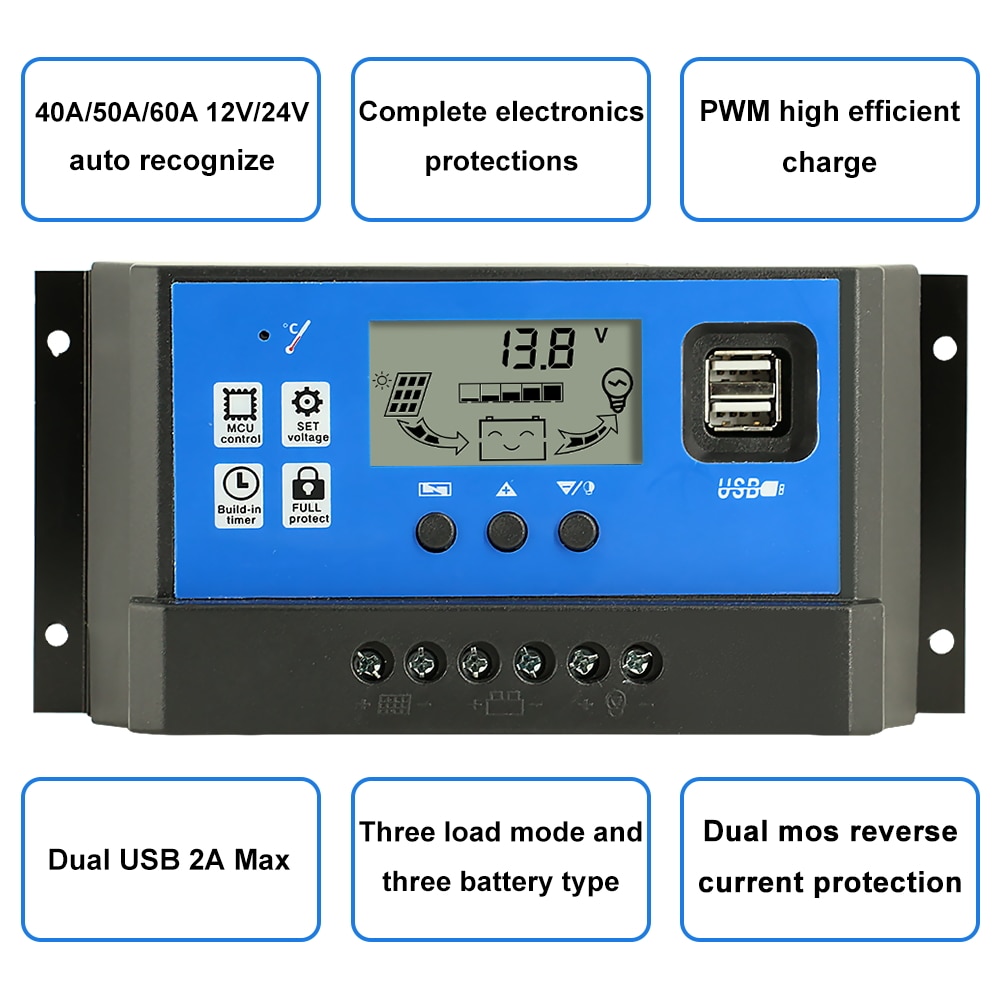

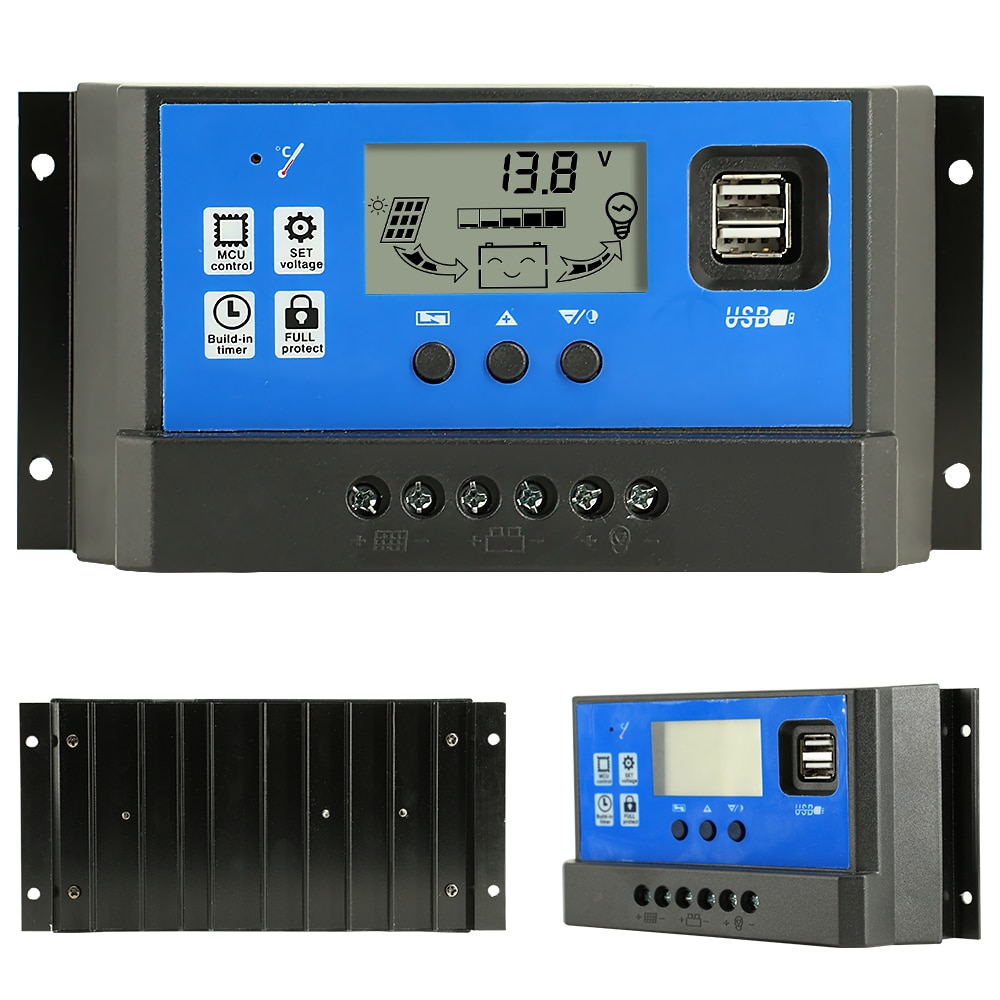

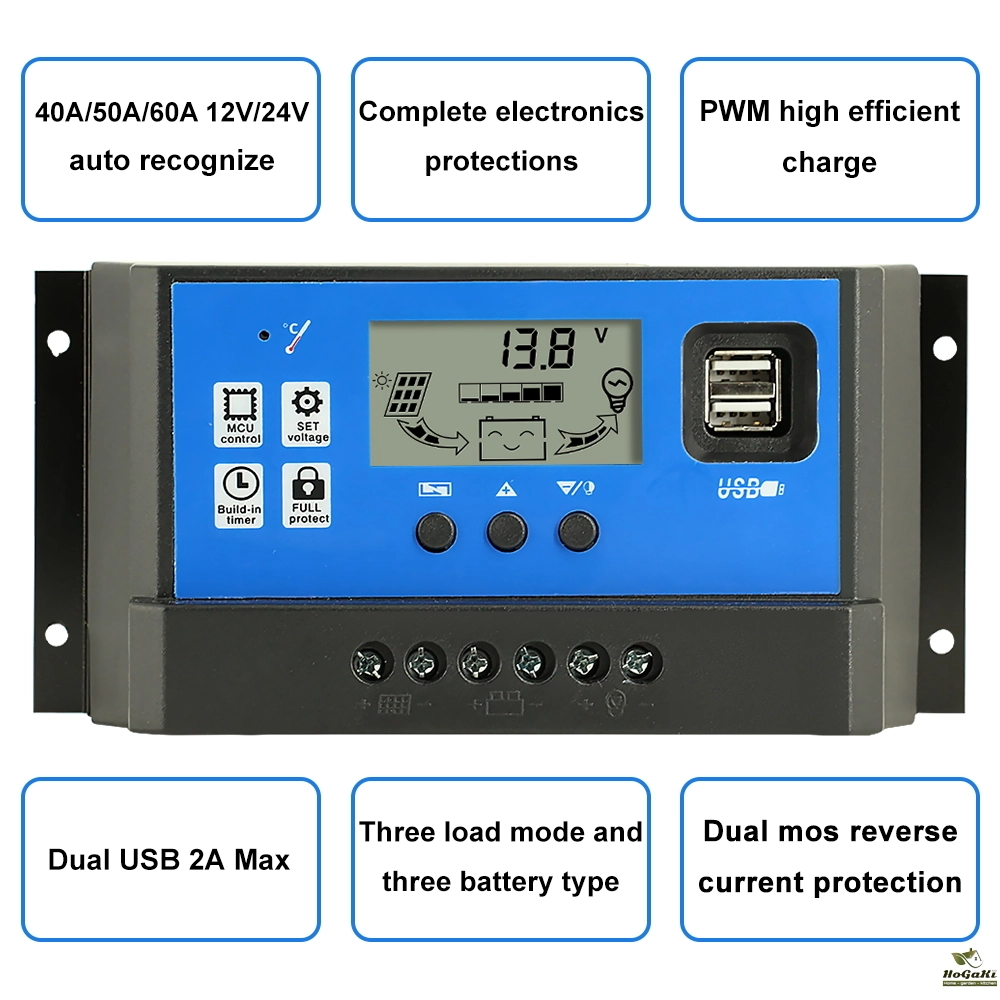

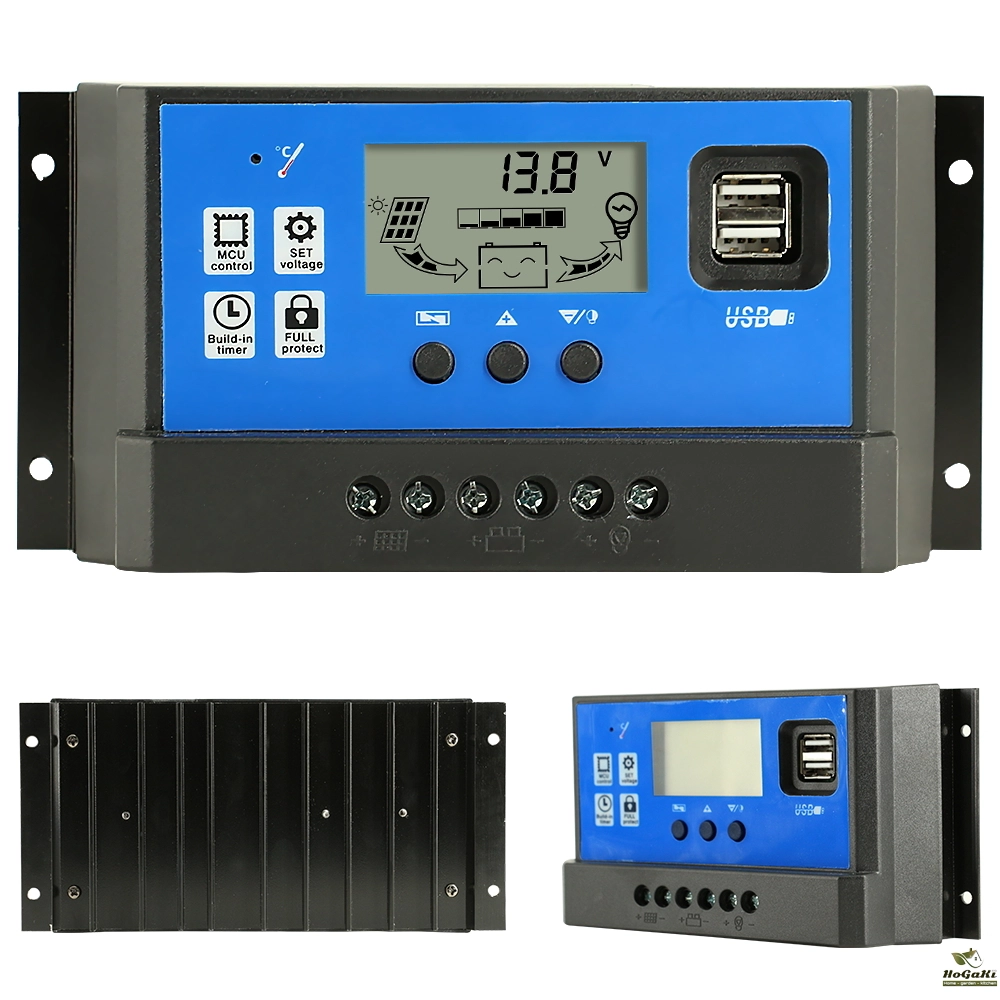

RBL 40A 50A 60A
Packaging Details
- Unit Type: piece
- Package Weight: 0.180
- Package Size: 5x5x10
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Model Number: RBL-10A/20A/30A/40A/50A/60A
- Maximum Current: 10A/20A/30A/40A/50A/60A
- is_customized: Yes
- Application: Charger Controller
- Application: Solar System Controller
- Application: Voltage Controller
- Application: Solar Working Station
- Application: Lighting Controller
- Application: Home Solar System
- Battery Voltage: 12V 24V Auto
- Max solar panel input: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
- Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
- Float charge: 13.7V(defaul,adjustable)
- Discharge stop: 10.7V(defaul,adjustable)
- Discharge reconnect: 12.6V(defaul,adjustable)
- USB output: 5V/3A(Total)
- Charging Mode: PWM
