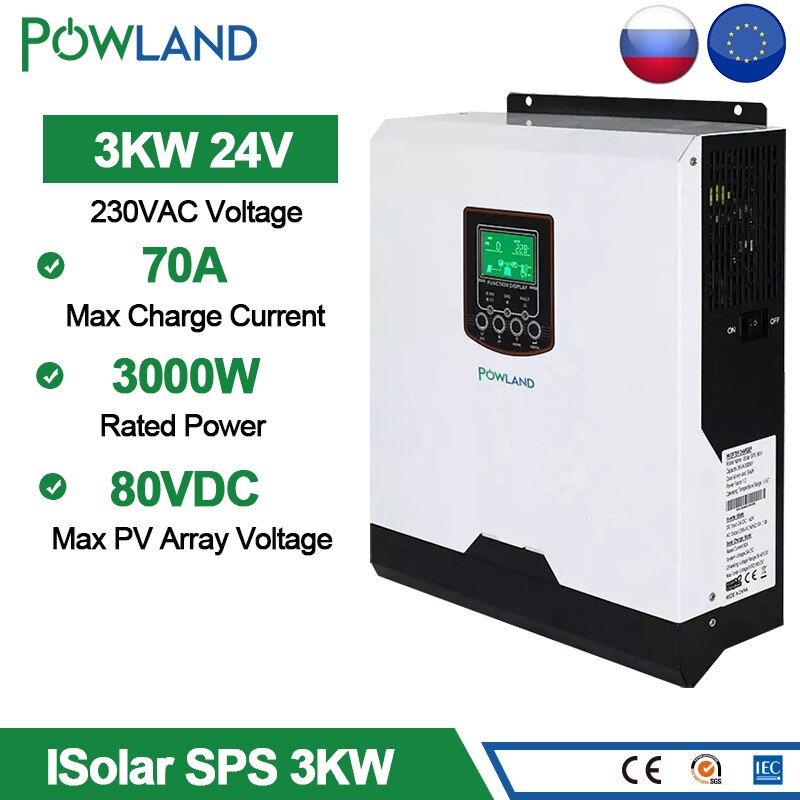

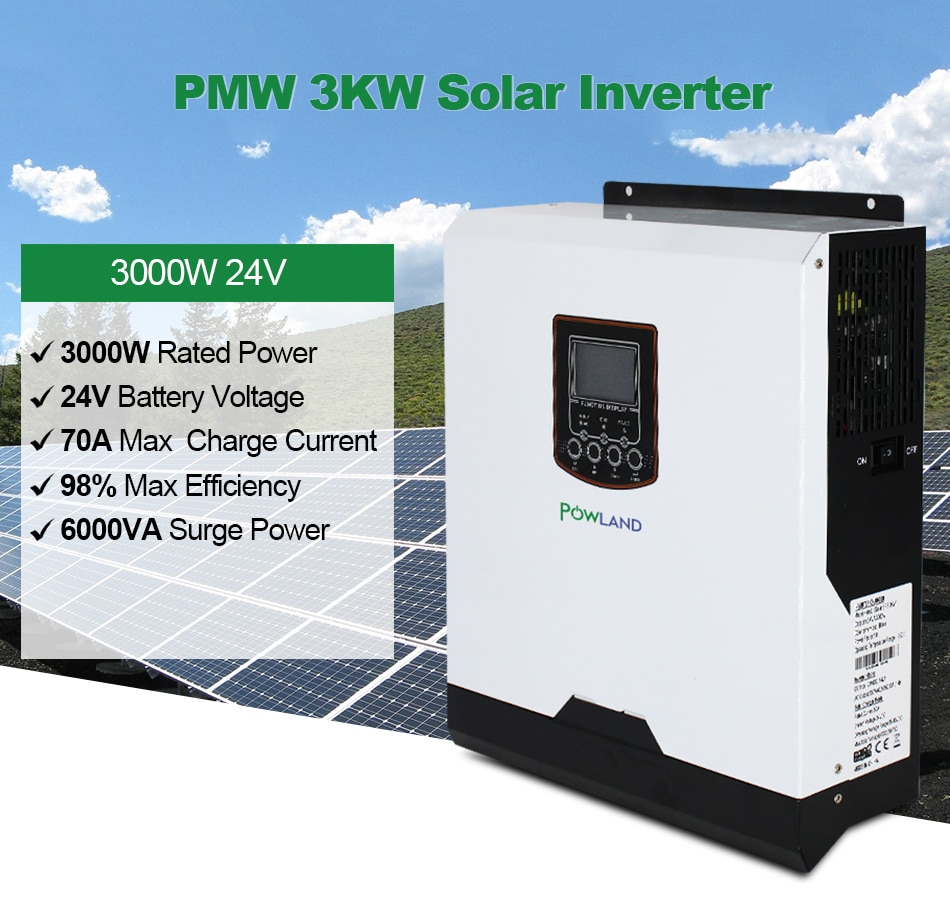

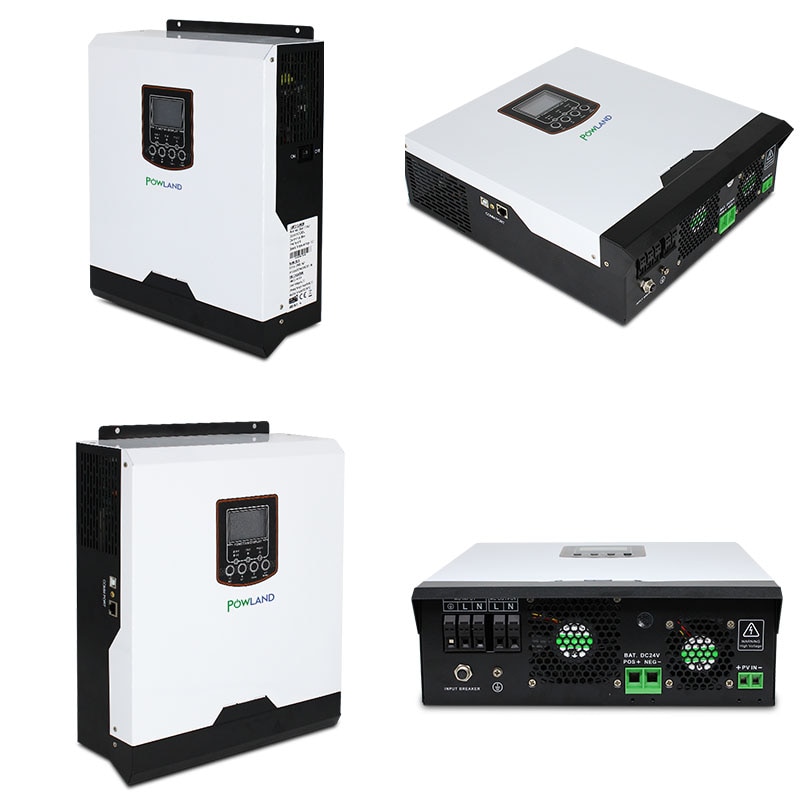

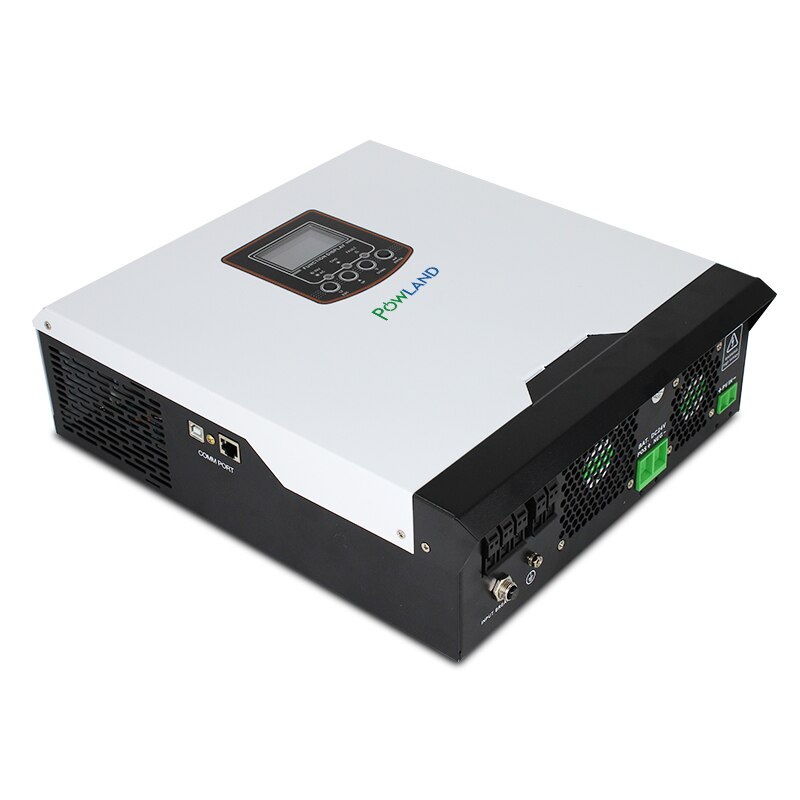

3000va 3000w Solar Inverter 24V 230VAC 50Hz/60Hz Hybrid Inverter Pure Sine Wave PWM Battery Charger inversor

4.4 (13 votes) | 98 orders
Price: US $1171.80 - 1298.26 / piece
Discount Price:
US $ 703.46 - 765.42 / piece
-40%
Color
Ships From
Quantity


Tips:

How to avoid VAT for EU country customers

You can place orders from China to avoid VAT if we have goods in stock in EU warehousemore than 150 euros, we will shipthe products from the EU warehouse for you,On the order page, you can see the priceafter VAT is reduced for you.


3000va 3000w Solar Inverter 24V 230VAC 50Hz/60Hz Hybrid Inverter Pure Sine Wave PWM Battery Charger inversor

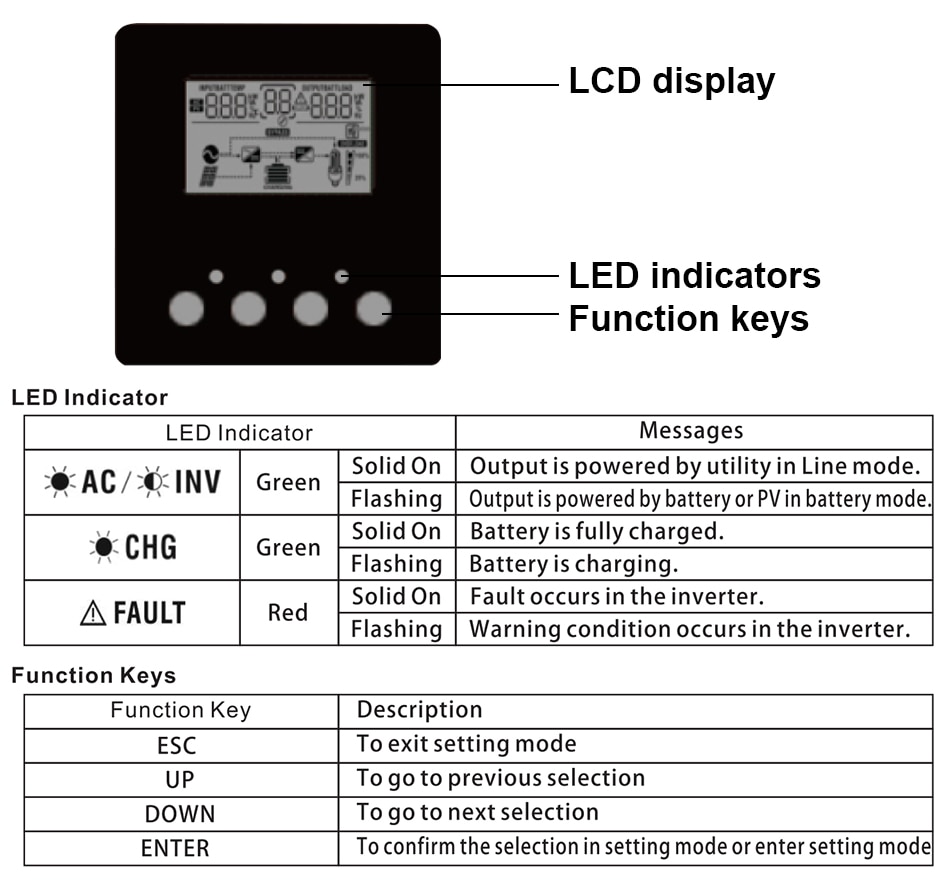

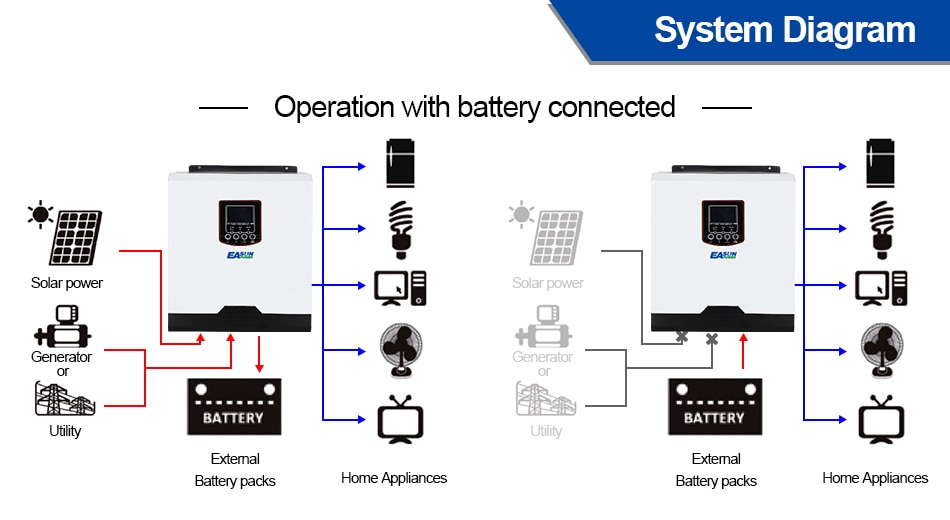

This is multi-function inverter/charger ,combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications


Featurs:

1. Pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate

2. Selectable input voltage range for home appliances and personal computers

3. Selectable charging current based on applications4. Configurable AC/Solar input priority via LCD setting
5. Solar charger and AC charger built inside, Compitable to grid power or generator power
6. Auto restart while AC is recovering, auto charge and switch, unattended operation
7 Smart battery charger and management for optimized battery performance
8. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption
9. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.


Model

SPS-3K

The rated power

3000VA/3000W

INPUT

Voltage

230 VAC

Selectable Voltage Range

90-280VAC (For Personal Computers), 170-280VAC (For Home Appliances)

Frequnecy Range

50Hz/60Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Model)

230VAC ± 5%

Surge Power

6000VA

Power factor

1.0

Efficiency(Peak)

90%

Transfer Time

10ms (For Personal Computers), 20ms (For Home Appliances)

Wave form

Pure sine wave

BATTERY

Battery voltage

24VDC

Floating Charge Voltage

27VDC

Overcharge Protection

32VDC

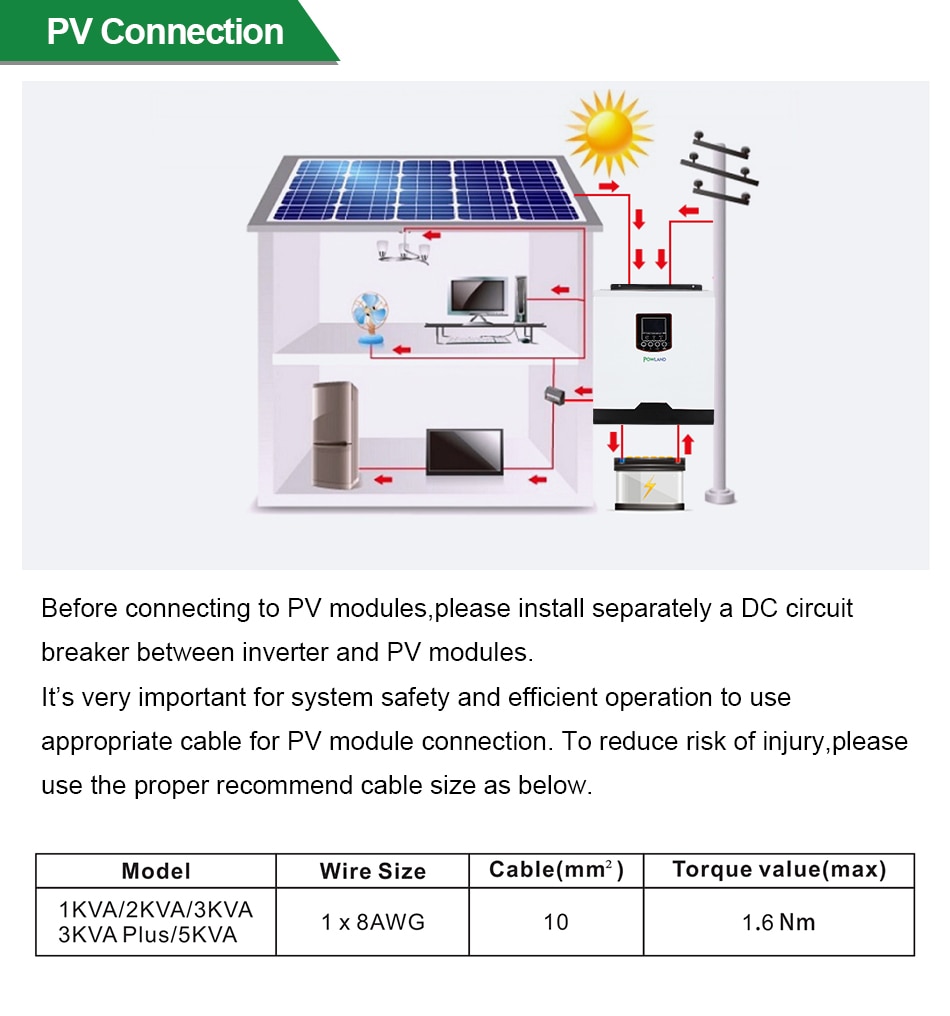

PWM SOLAR CHARGER & AC CHARGER

Maximum PV Array Power

1200W

Best Panel configuration

200Wp/36V*4pcs*30V(1200Wp)

PWM Range Operation Vol

18-80VDC

Maximum PV Array Open Circuit Vol.

80VDC

Standby Power Consumption

28W

Maxmum Solar Charge Current

50A

Maxmum AC Charge Current

25A

Maxmum Charge Current

70A

Maxmum Efficiency

98%

PHYSICAL

Products Dimension, D*W*H(mm)

363*297*107mm

Packing size, D*W*H(mm)

424*390*193

Net Weight (kgs)

N.W.: 7, G.W.:8KGS

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operation Temperature

0℃-50℃





  • Is Smart Device: YES
  • is_customized: Yes
  • Output Current: 50A
  • Output Frequency: 50Hz/60HZ
  • Output Power: 1 - 200KW
  • Output Type: single
  • Weight: 8KG
  • Size: 424x390x193mm
  • Model Number: SPS 3KW
  • Brand Name: POWLAND
  • Origin: Mainland China
  • Certification: CE
  • Usage A: Inverter 3000W
  • Usage B: Solar inverter 24v
  • Description 1: Inverter Charger
  • Description 2: Pure sine wave inverter charger
  • Function 1: Solar inverter 220V
  • Output Voltage: 220-240VAC
  • Function: Solar inverter 24V 220V
  • Maximum PV Array Power: 1200W
  • PWM Range Operation Voltage: 18-80VDC
  • Maximum PV Array Open Circuit Voltage: 80VDC
  • Maxmum Solar Charge Current: 50A
  • Maxmum Charge Current: 70A
