Parking Automatic card dispenser DCD-800S (Replace DCD-820M)/ Auto ticket vending machine/ high way card dispensing system
SALE
ID: 16324

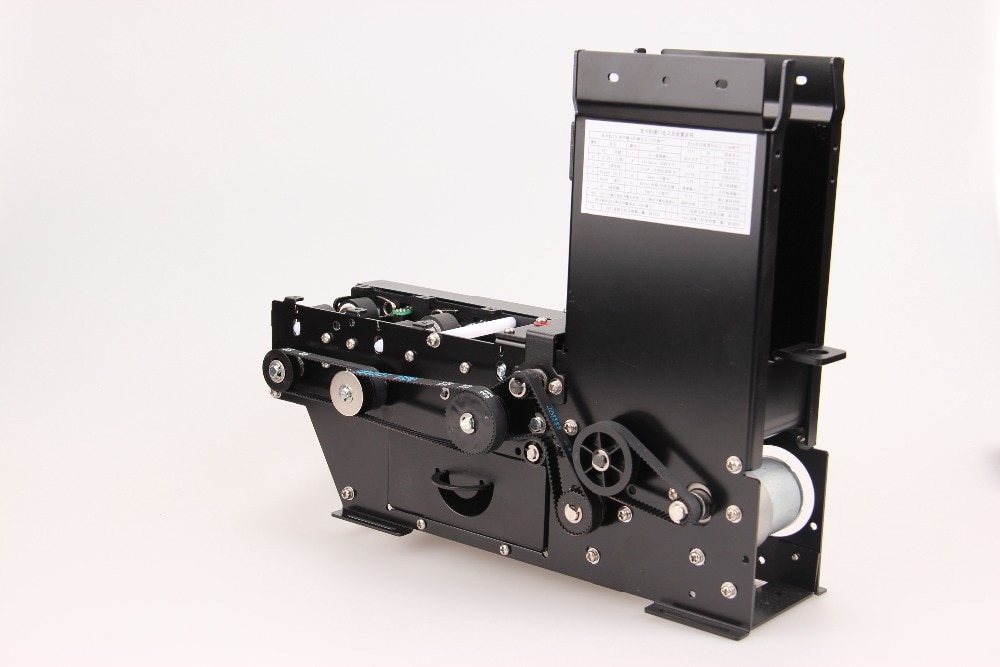

Parking Automatic card dispenser DCD-800S (Replace DCD-820M)/ Auto ticket vending machine/ high way card dispensing system

0.0 ( votes)
Price: US $532.37 / piece
Discount Price:
US $ 483.81 / piece
-9%
Quantity

Buy Now
Add to Cart

Note : Free shipping means, Freight cost can be free from China to your country.but for tax issue, we are not responsible in your country. Please understand.

Foto QQ20141011170745

Packing:

  • 1* 800S card dispenser
  • 1* Cable 1(12 line)
  • 1* Serial port (232) line
  • 1* Press block
  • 1* baseboard assembly
  • 1* Card mouth K3

Main characteristics

  • Industrial design, adjust to high temperature and other bad environments;
  • Simulated manpower friction card issuers ">,better adaptability to various deformed cards;
  • Watchdog of hardware and embedded operating system to ensure properly running;
  • Pre-dispense function accelerate dispensing speed;
  • Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
  • Automatic buzzer alarm when no cards, fewer cards or failure.
  • Provide both RS232 and I/O voltage control interface;
  • Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
  • Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;
  • Slide card stacker with a capacity of 40pc;
  • Adjustable of card stacker with a capacity of 120pc each;
  • Automatic withdrawal to prevent card lost (only for DCD800F series">)
  • Slide design to make installation and disassembling easier;
  • Molded production to ensure high consistency of precision and quality.



Technical parameters


  • Operating voltage: 20VCD (max current 2A, static current 0.1A)
  • Operating temperature: -20 to 85degree
  • Operating humidity: 30-90% (comparatively)
  • Use condition: install in bin
  • Card available: width: +/-0.5mmLength: 85+/-0.5mmThickness: 0.3-2.5mm (adjustable)
  • Card material: Paper or Polyester card
  • Net weight of card dispenser: 2.0kg (including the briquette)
  • Time of issuing: max0.5s
  • Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed

 Control interface

      This dispenser provides both I/O and RS232 interface of power level. PWL control interface is led by standard 12pin (2.54mm)
socket CN3of the control board, RS232 control interface is led by the standard 3pin (2.54mm) socket CN7.



TTL control interface (CN3)

Pins

Signal Definiens

Signal Description

1

-24V

Operating Voltage cathode

2

+24 VDC

Operating Voltage anode

3

0 V

Link with Operating Voltage anode

4

Pay out

Input, Low-Level(min 200mS) effective

5

Reset

Input, Low-Level(min 200mS) effective

6

OV

Link with Operating Voltage cathode

7

VD

Input, Low-Level (min 200mS) effective. use as Enable Signal

8

Callback

Input, Low-Level (min 200mS) effective

9

Out ok

Output Low-Level effective

10

Lower

Output Low-Level effective

11

Error

Output Low-Level effective

12

Empty

Output Low-Level effective



RS232 control interface (CN7)

Pins

Signal Definiens

Signal Description

1

GND

Ground

2

RXD

RS232 receiver port

3

TXD

RS232 send port

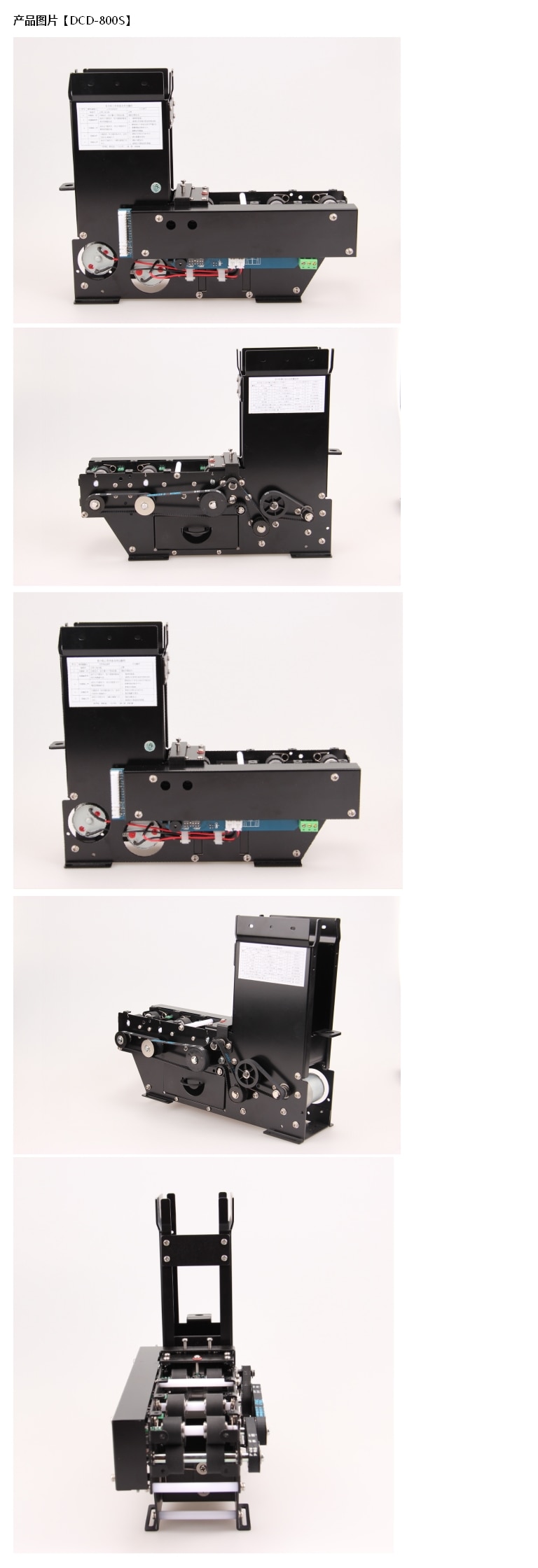

DCD-800S









  • Model Number: DCD-800S
  • Brand Name: LPSECURITY
