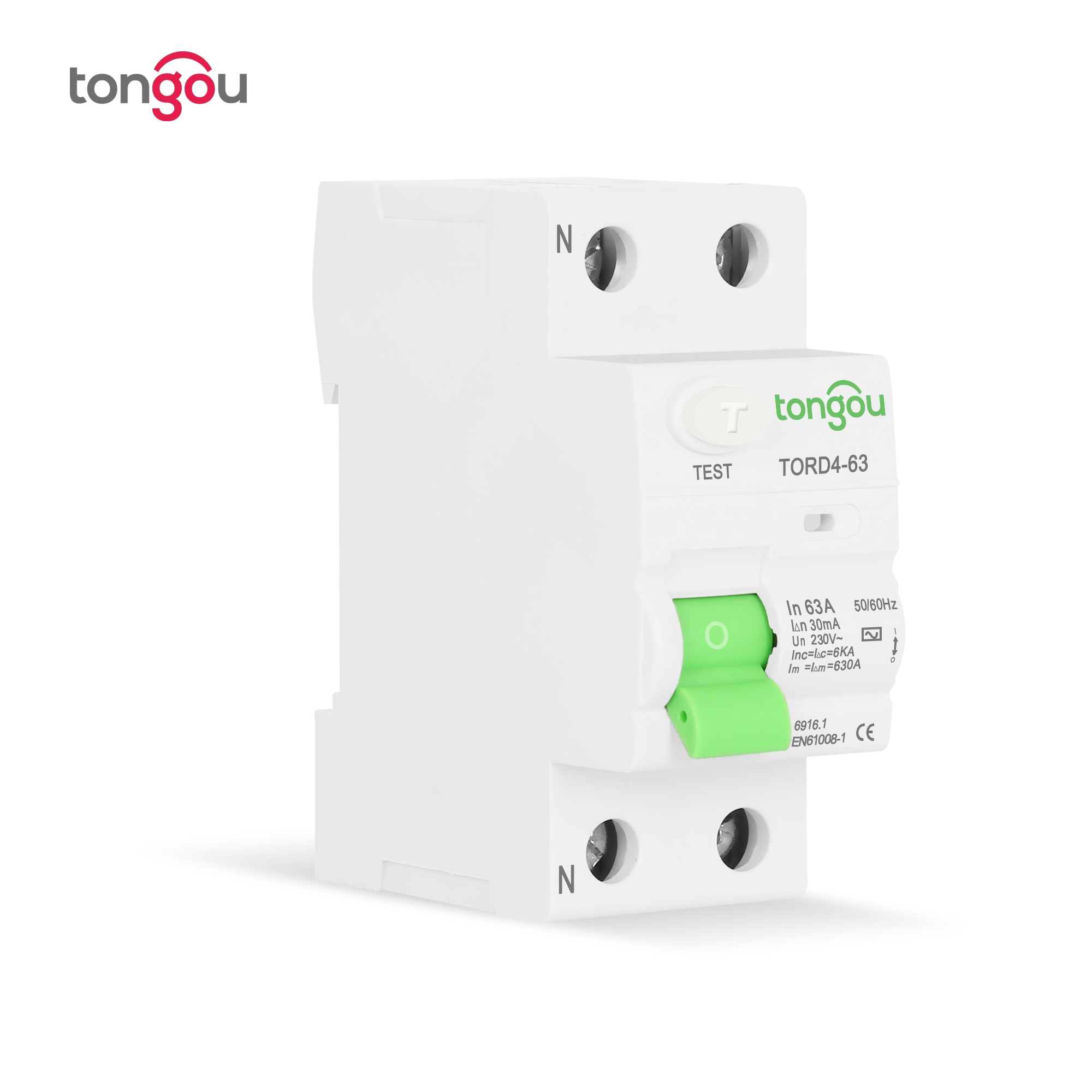

AC Type RCCB Electromagnetic Residual Current Circuit Breaker AC ELCB 2 Pole 16A 25A 40A 63A RCD 10mA 30mA 100mA 300mA TONGOU
4.9 (94 votes) | 266 orders
Price:
US $32.28 - 34.18
/ piece
Discount Price:
US $
24.51 -
25.95
/ piece
-24%
- Ships From
- Poles Number
Hot Sale
General:
Tips: 30mA, 100mA, 300mA is electromagnetic type, 10mA is electronic type.10mA cannot be tested with 5V battery.
There is a wiring diagram above the test button, please follow the it. The power supply must enter from the top and output from the bottom. The neutral line on the left and the live line on the right.
The default rated voltage of the product is 230V, (110V needs to be customized, please contact customer service)
Residual Current Circuit Breaker is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 16Amp.
The RCCB provides indirect protection to the operator’s body under such condition that the exposed live parts should be connected to a proper earthing pole.The RCCB also provides protection against the fire danger caused by earth fault current due to function failure of over-current protection device.
Special tips:

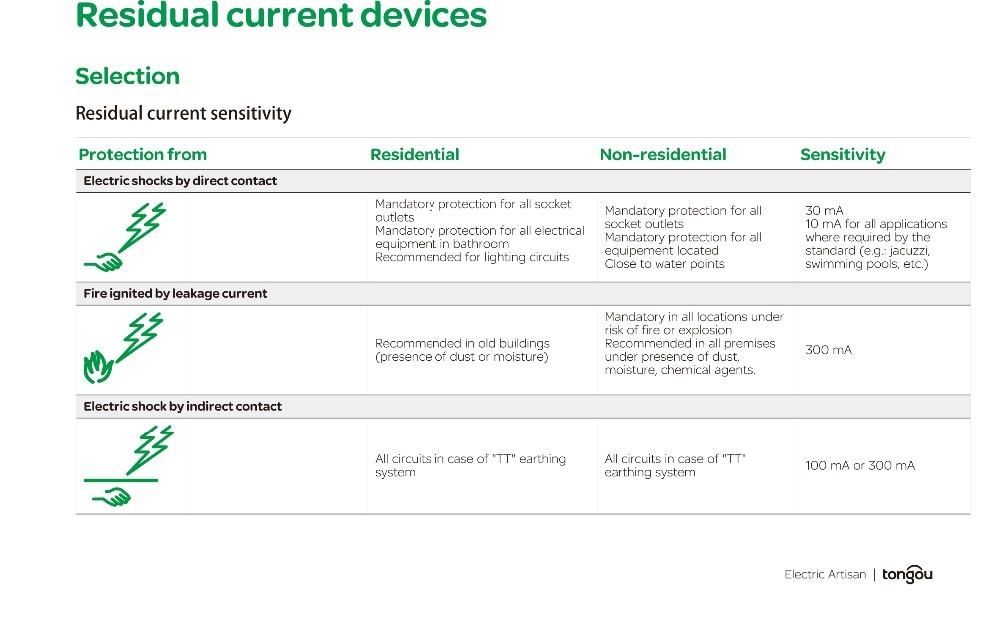

1. RCCB with rated sensitivity up to 10mA could be used as supplementary protecting device in case other
protecting device fails its protection against electric shock.
2. RCCB designed for household installation and other similar application, is for non-professional operation,
and no maintenance is required.
3. RCCB provides on protection against electric shock resulted from direct contacts of both protected lines,or
leakage current between these two lines.
4. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to RCCB as precaution against potential surge voltage and current occurring at its power input side.

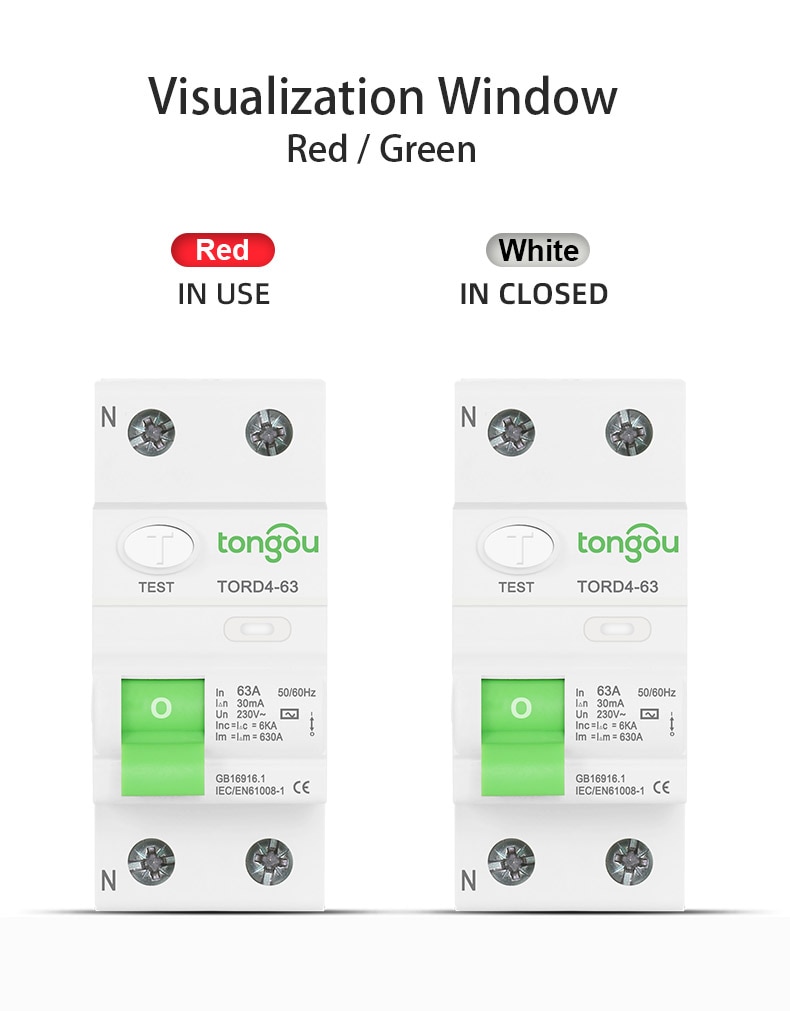

5. Satisfying conditions and applications as mentioned above,RCCB with “ON-OFF” indicating device is considered suitable for isolation function.

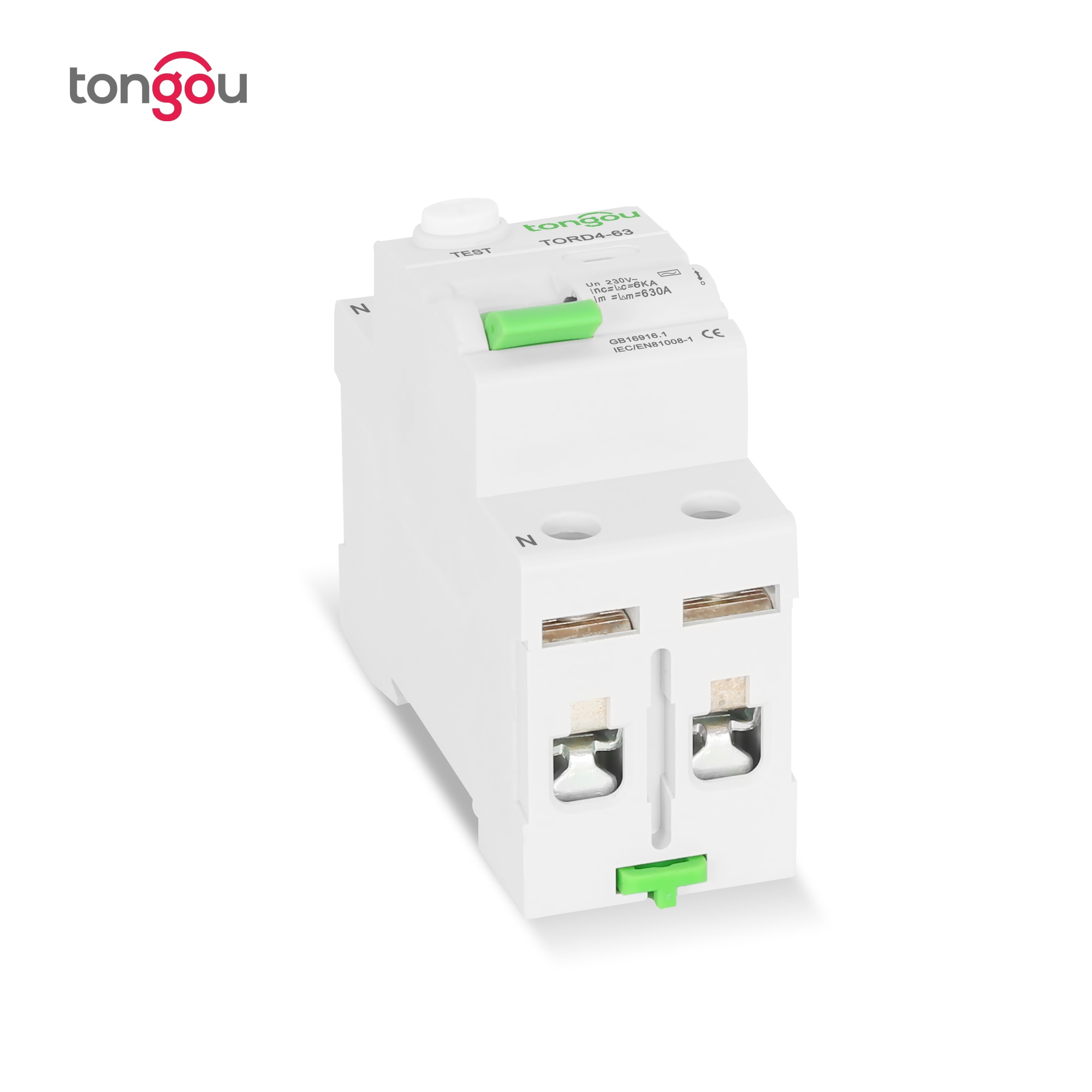

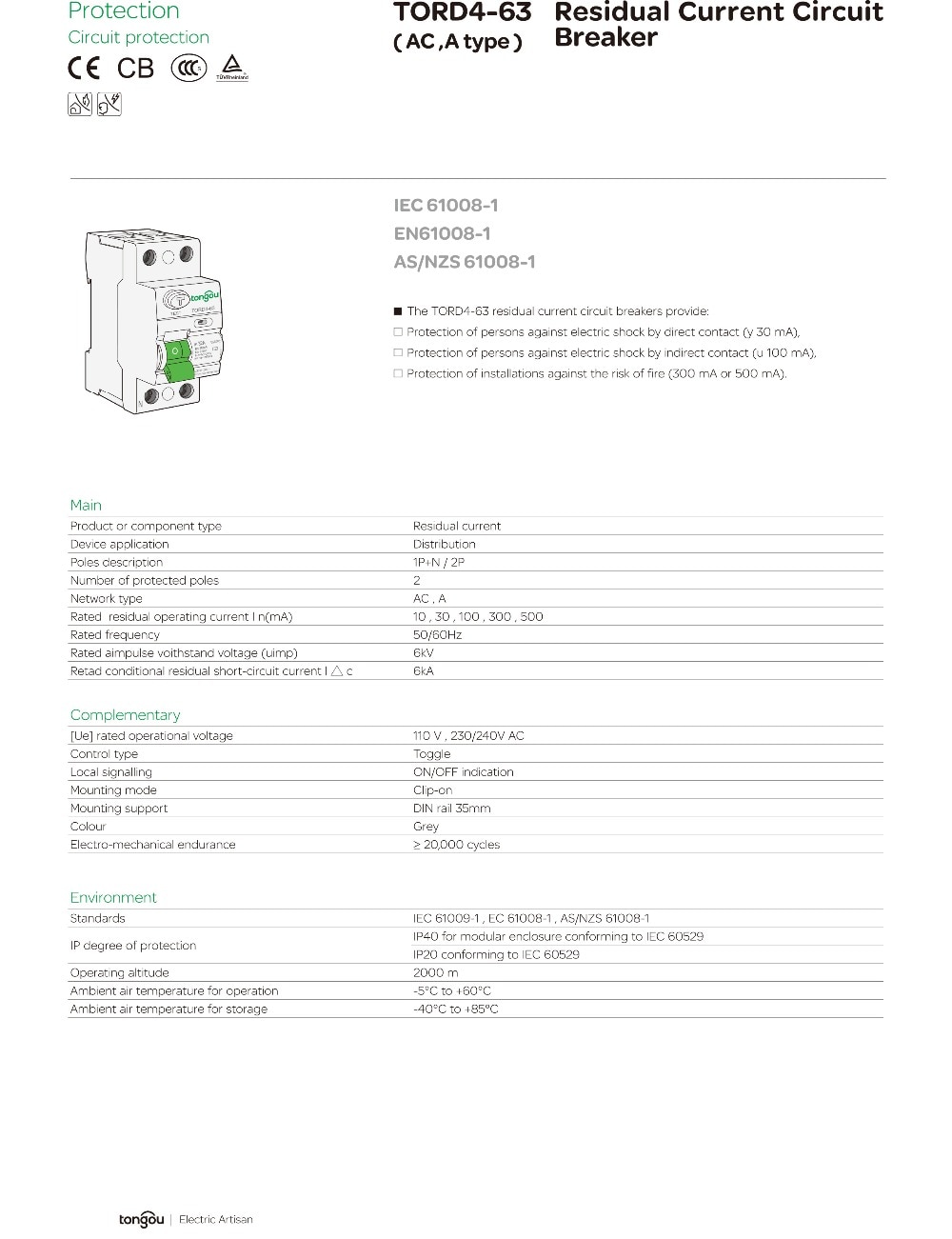

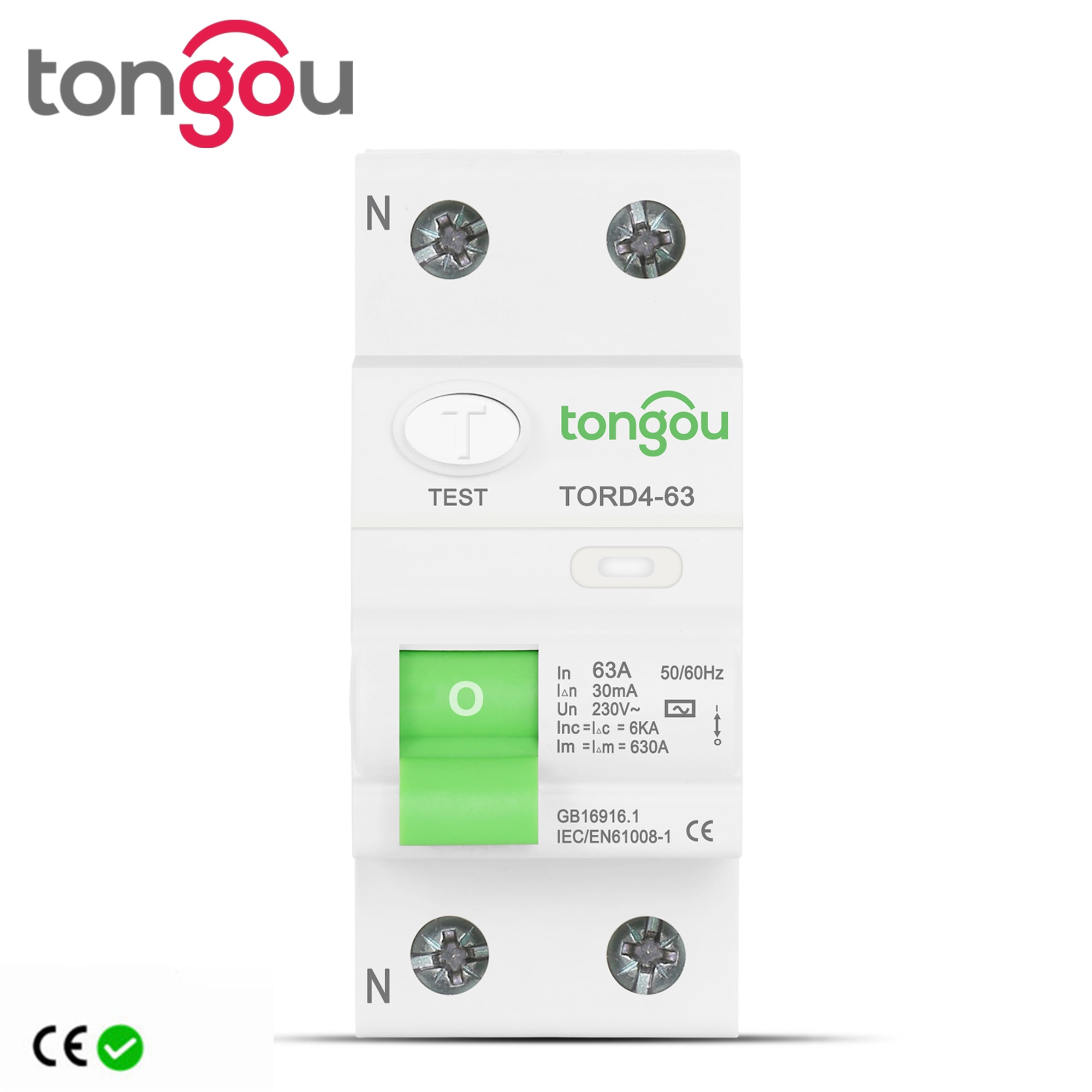

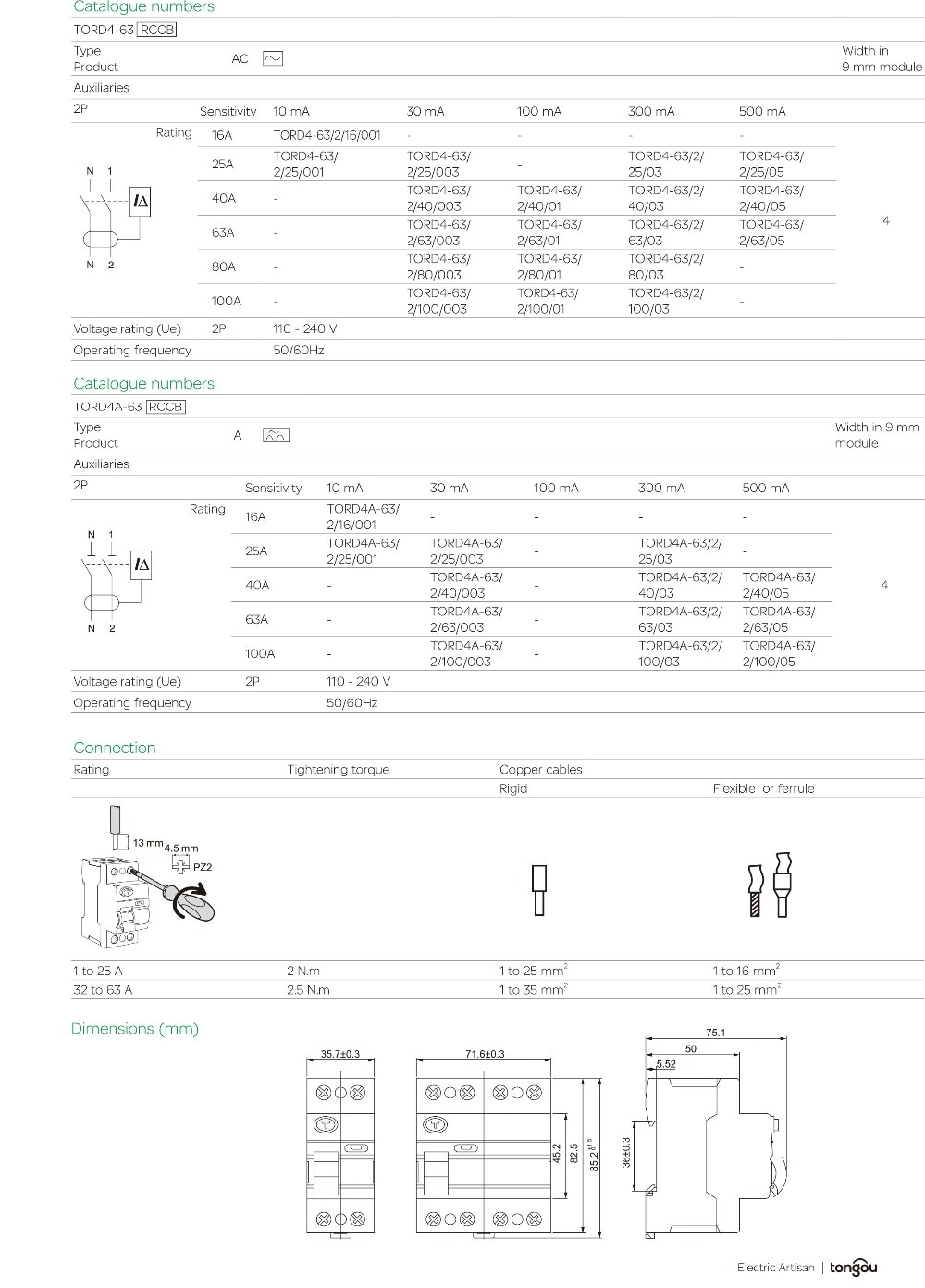

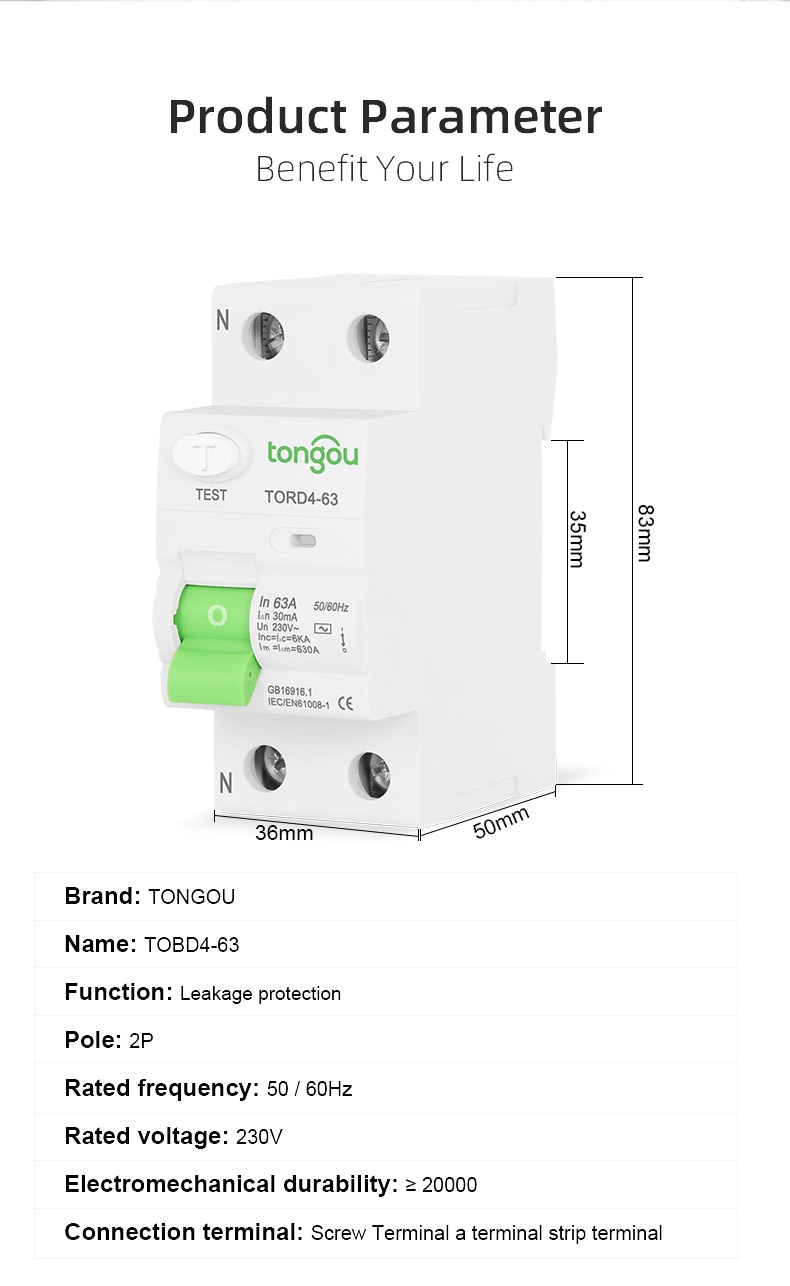

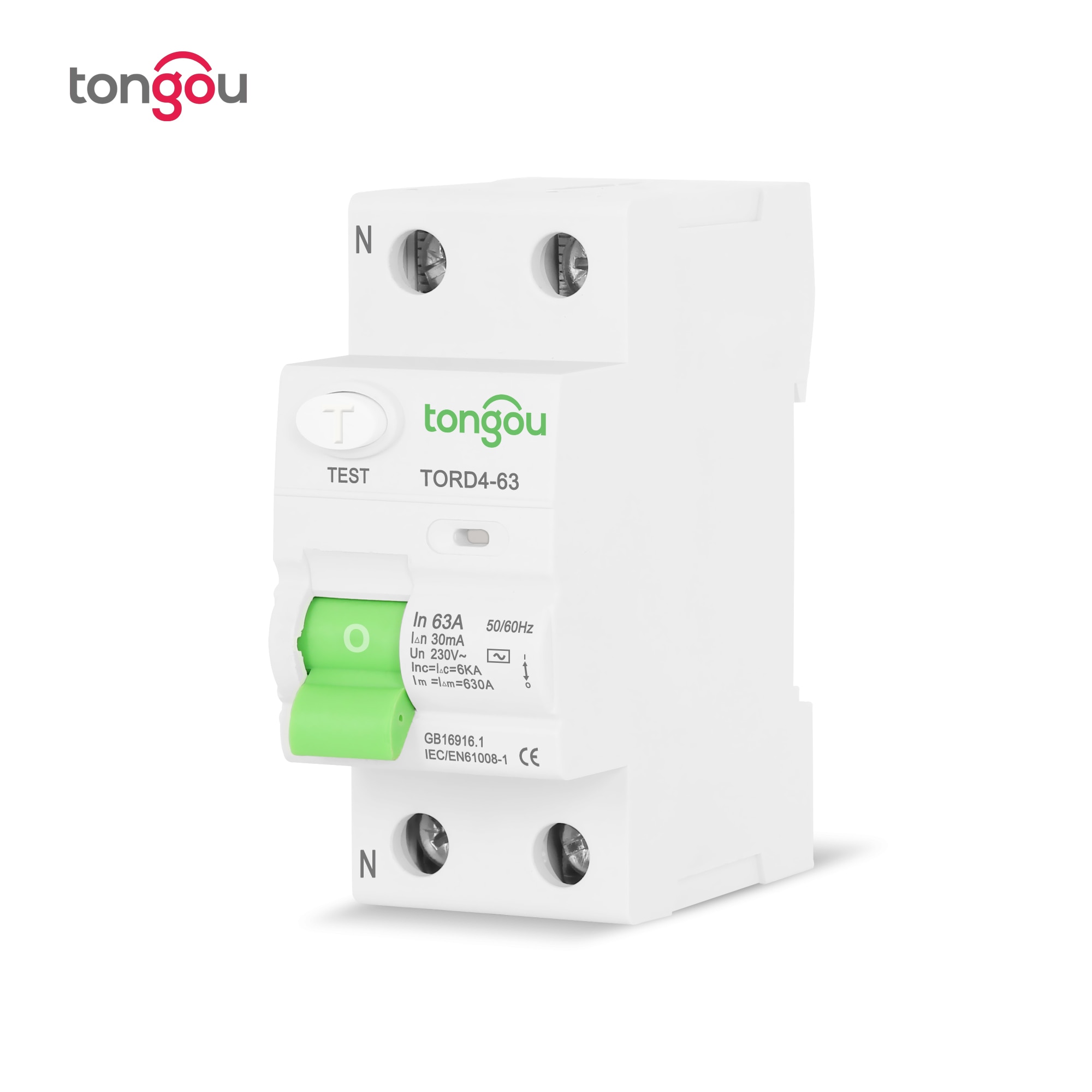

Model Name | TORD4-63 |
Model | Electronic / Magnetic type |
Residual Current characteristic: | AC |
Pole No: | 2P |
Rated making and breaking capacity | 630A |
Rated current（A） | 16A |
Rated voltage | 110V 220V 230V AC |
Rated frequency | 50/60Hz |
Rated residual operating current |△(A): | 0.01 |
Rated residual non operating current |△ no: | 0.5|△ n |
Rated conditional short-circuit current inc: | 6kA |
Rated conditional residual short-circuit current |△c: | 6kA |
Tripping duration: | Instantaneous tripping ≤0.1s |
Residual tripping current range: | 0.5||△n~|△n |
Electro-mechanical endurance | ≥20000 cycles |
Connection capacity: | Rigid conductor 25mm⊃2; |
Connection terminal | Screw terminal |
Fastening torque | 2.0 Nm |
Installation | On symmetrical DIN rail 35mm |
About Us
Dear TONGOU Buyer:
"Thank you for your attention to and for placing an order in our store."
1.If the amount of your order is greater than $150 (the selling price does not include VAT).
In any case, you pay the same amount of money. If next time you don't want to pay VAT locally, please make sure your order amount is less than $150, and will charge VAT automatically.
2.The item price is not including any taxes or charges locally, if the parcel get stuck at local customs, buyer need to contact the customs and do the customs clearance. We won't bear the customs taxes or any fees caused by custom or buyer reject package .
3. If you choose DHL,this is not including DHL remote cost/custom duty, or any commission charged by DHL for custom clearance or warehouse storage cost.
4.Please open the parcel in post officer's presence,If the parcel damaged or empty(stolen),please ask the post office to provide official document,especially the claim request paper.
5.Five-Star Feedback is very important for us. We have one year warranty. We hope that you can contact us immediately before you give us neutral or negative feedback, so that we can help you solve the problem.Thanks!
- is_customized: Yes
- Model Number: RD4-63
- Type: Earth Leakage
- Brand Name: TONGOU
- Origin: Mainland China

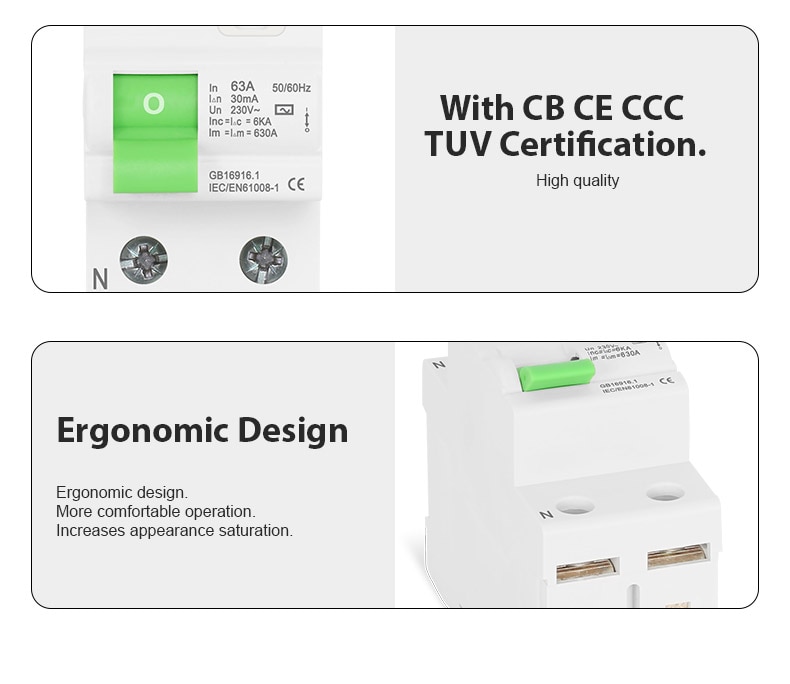

- Certification: CE
- Rated voltage: 230V AC, ( 110V Customized )
- Rated current: 16A
- Rated residual operating current: 10 mA
- Rated making and breaking capacity: 630A
- Electro-mechanical endurance: More than 20000 cycles
- Rated frequency: 50/60Hz
- Model: 30 - 300mA is Magnetic type, 10mA is Electronic type
- Certification: CE CB TUV
- Residual Current characteristic: AC
- Standard: IEC/EN 61008-1
- Breaking capacity: 6KA
