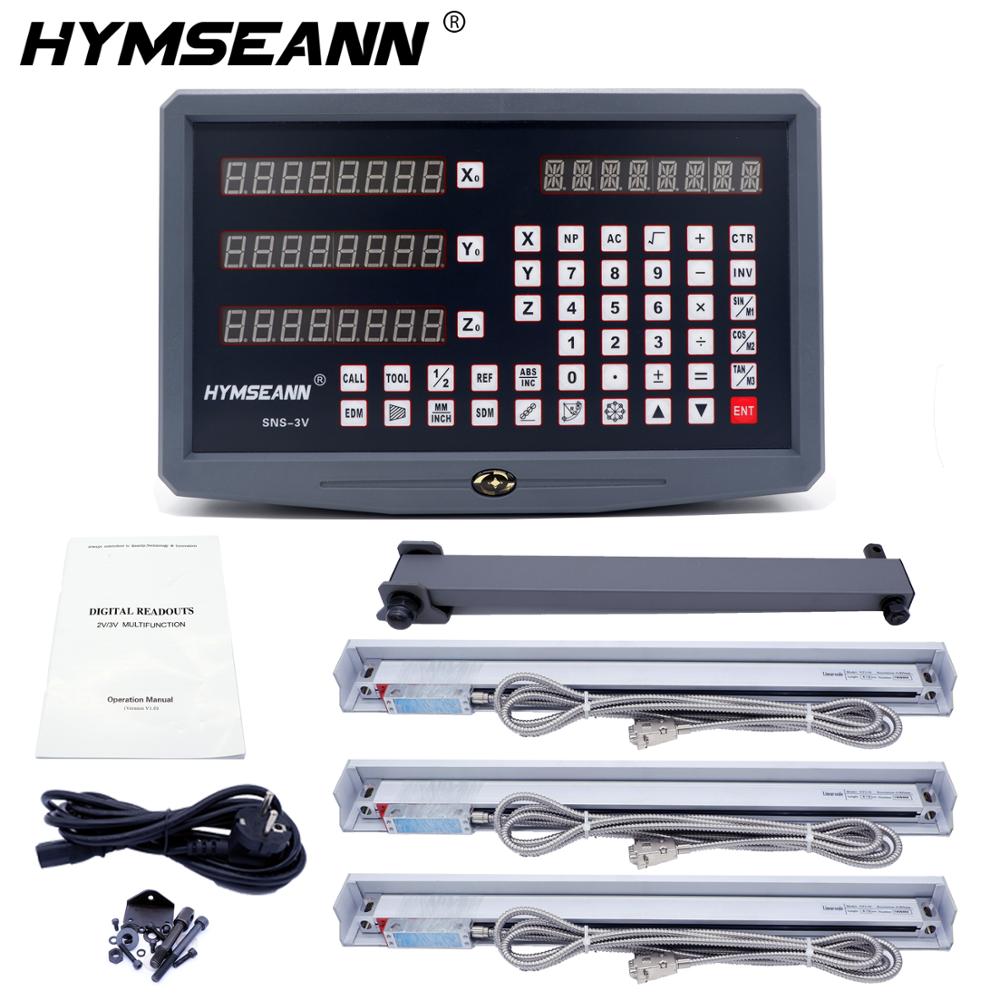

Free shipping complete set milling/ lathe/ drill machine dro digital readout with 3 pcs linear scales



DRO Futures

DRO digital readout parameter

1.Voltage Range: AC 80V~264V/50HZ~60HZ
2.Acceptable Signal: TTL square wave/ EIA-442

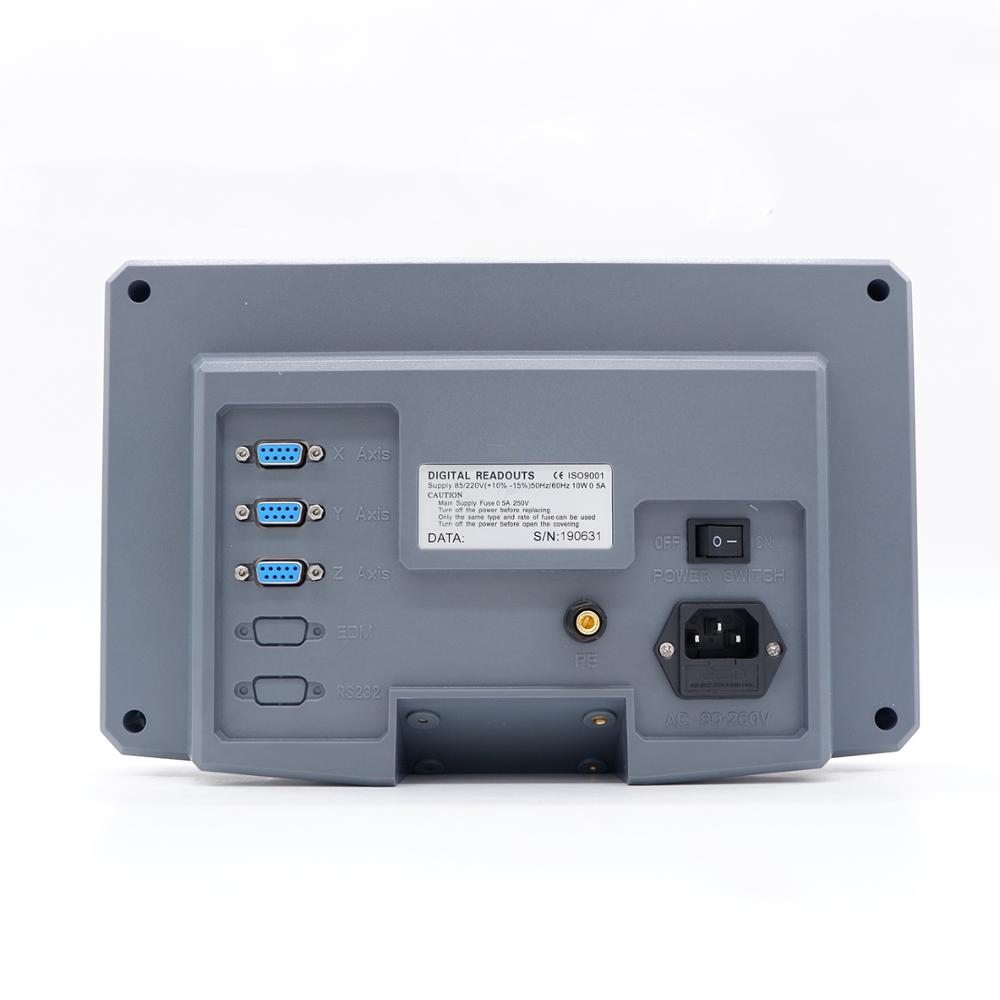

3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um
Advantage
1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
2. The wide voltage AC80-260V can be widely used in all over the world.
3. We offer US, AU, EU, UK different type plug suite for different countries if need.
4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.


Function

1:zero clearing

2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering

20:vibration filtering

21:Radius /Diameter fucntion

22: Lathe function

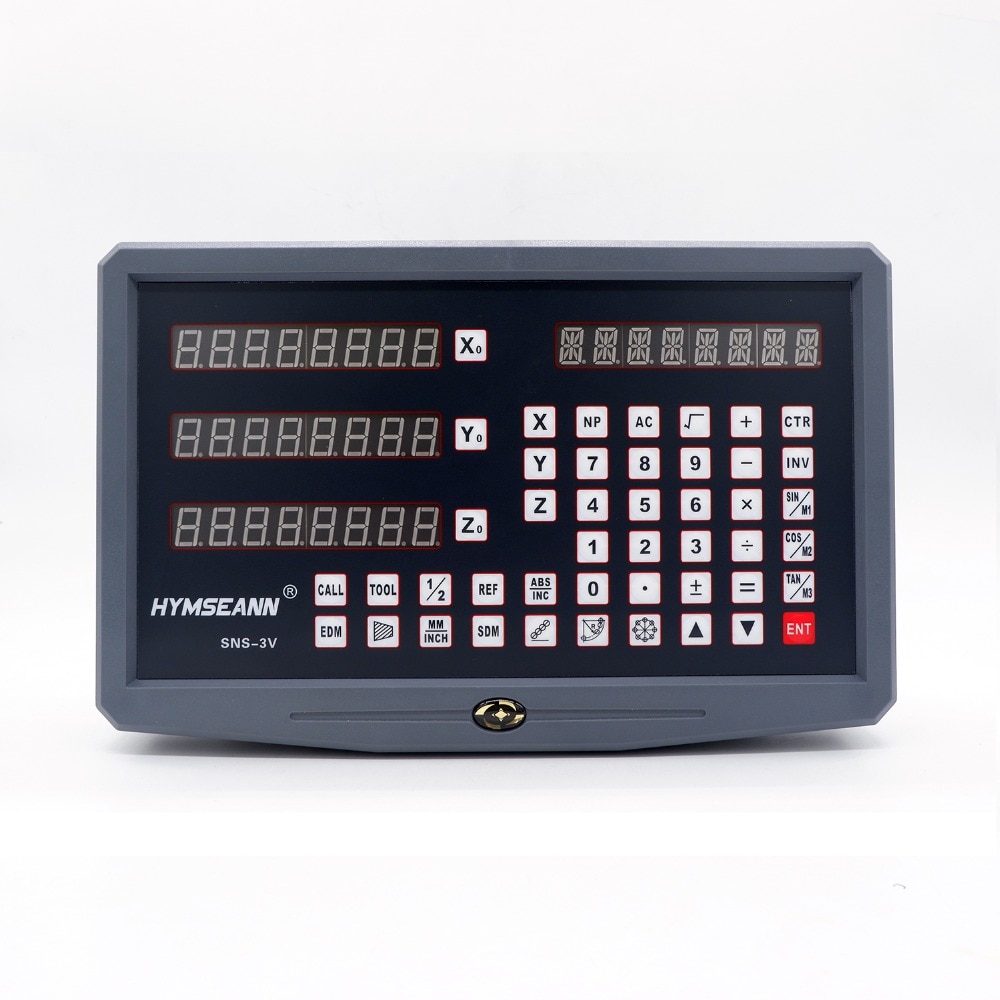

Digital readout DRO

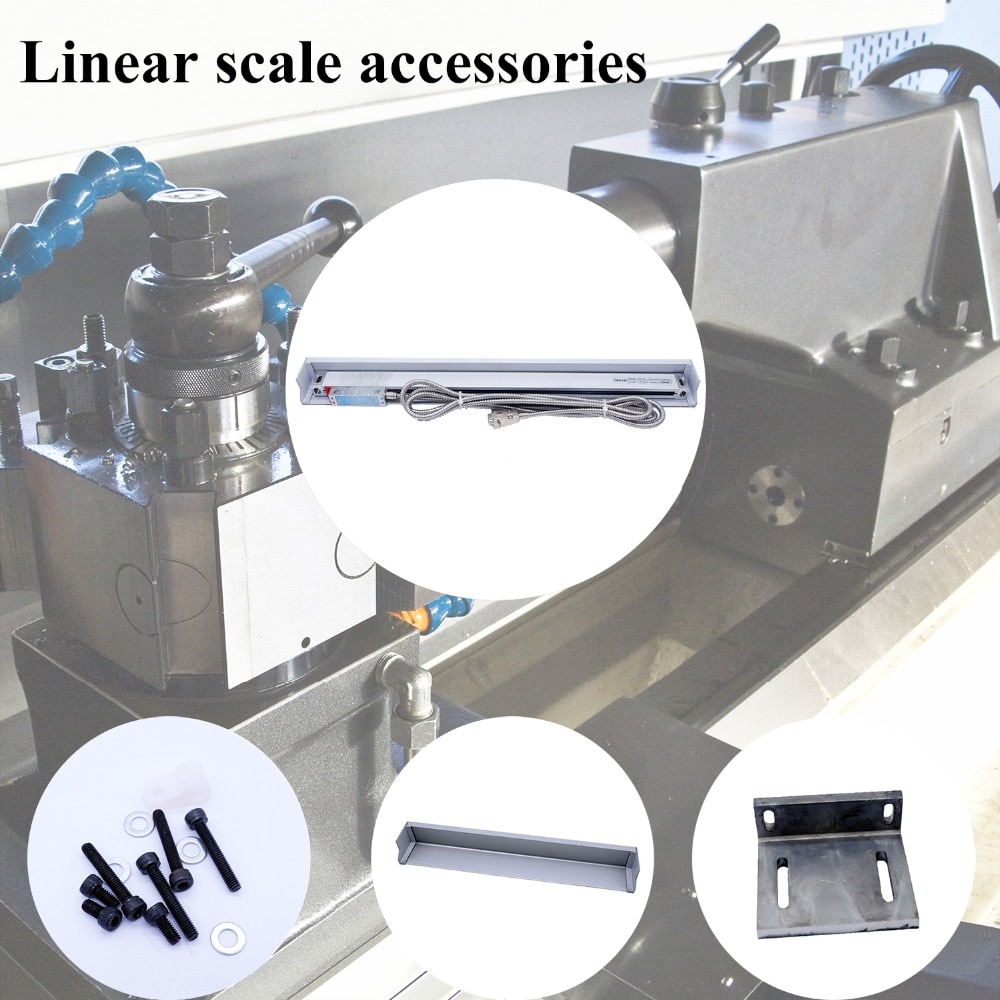

Linear scale Futures

Linear scale parameter
1. Travel (measuring) length: 0-1000mm / 0-40inch

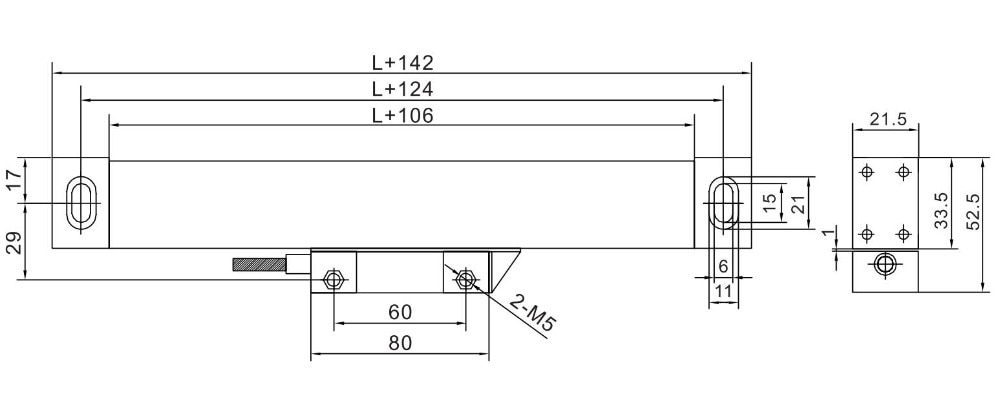

2. Total (overall) length: Travel length + 142mm (0-1142mm)

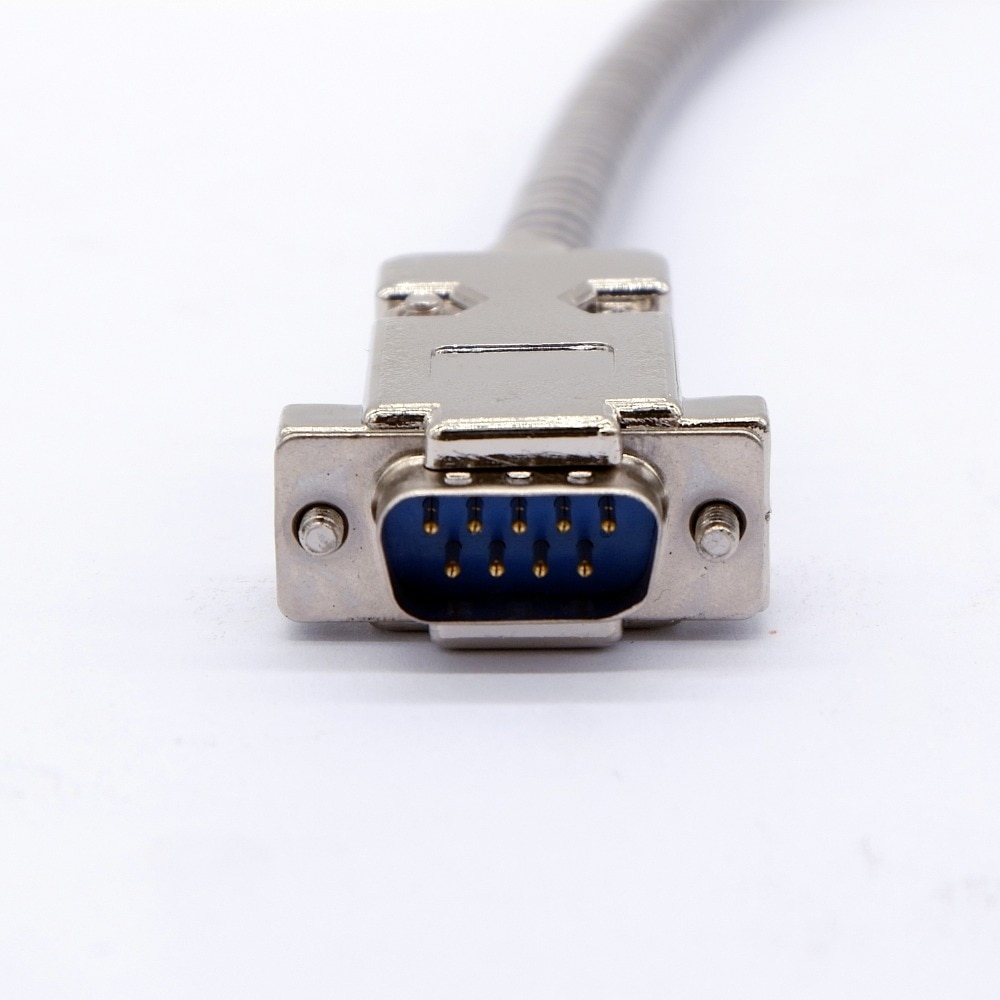

3. Plug: DB9
4. Resolution: 0.005mm / 0.0002“ (0.001mm is option from extra)
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 2.5 or 3 Meter (about 9 feet)
Tips
You may choose any 3 pcs scales measuring length under 1000mm at this price. In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 142mm longer than travel. One inch equuals to 25.4mm.
We supply 1um resolution scale, each 1um scale costs an extra 18 USD.
For the details, please contact the seller. We believe that good communication can ensure a happy and smooth transaction


After you place order, pls leave a massage with the travelling length or total length of X, Y, Z scales that you need, thanks .

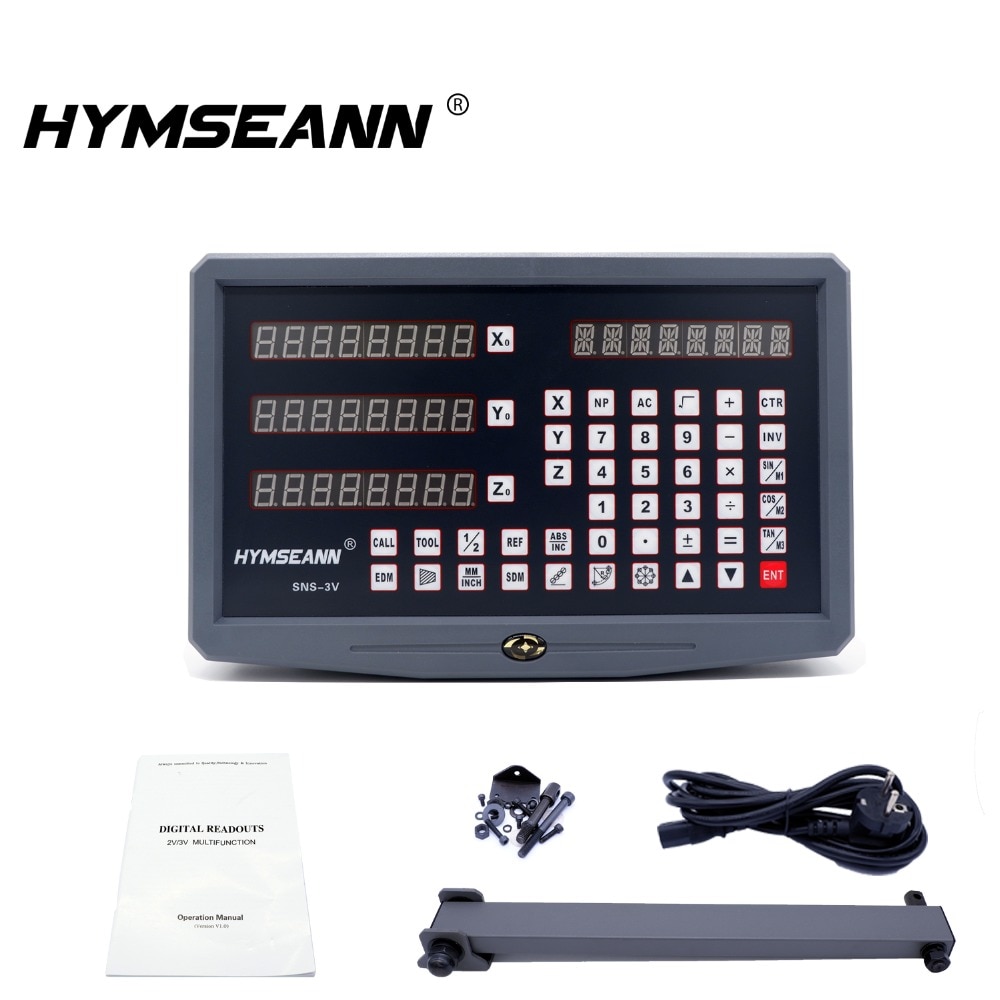

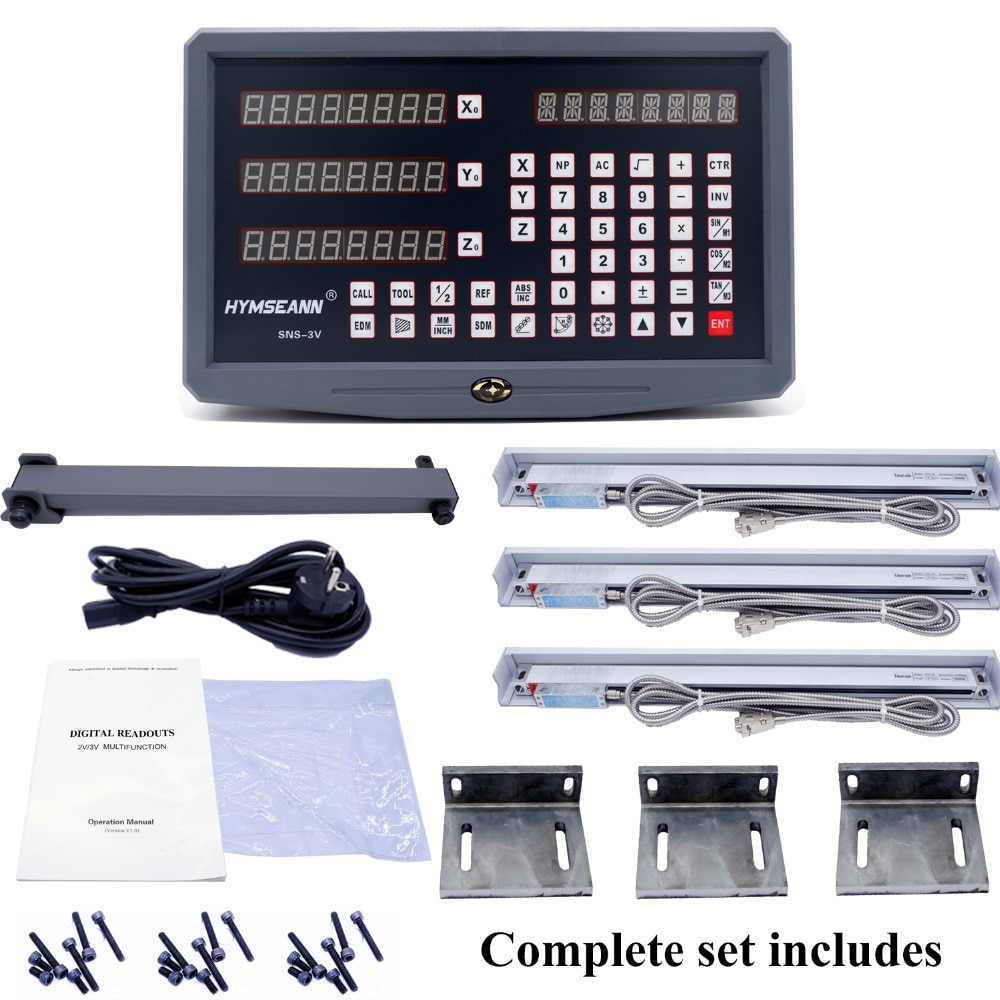

Packages includes





  • Model Number: SNS-3V
  • Brand Name: HYMSEANN
  • Certification: CE
  • Origin: Mainland China
  • is_customized: Yes
  • color: Black, silver
  • Voltage range: AC85V~250V,50HZ~60HZ
  • power consumption: 25VA
  • number of axis: 3 axis
  • net weight: 7-8kg
  • input signal: TTL EIA-422
  • resolution: 0.5u,1u,2u,5u,10u
  • keyboard: pressure sensitive key pad
