New SNS-3V Complete Milling Lathe Machine DRO Digital Readout Kit AC110V/220V Display and 3 Pieces 0-1000mm Linear Scale Encoder

5.0 (13 votes) | 39 orders
Price: US $324.81 - 933.90 / Set
Discount Price:
US $ 243.94 - 623.82 / Set
-25%
Ships From
Color
Quantity

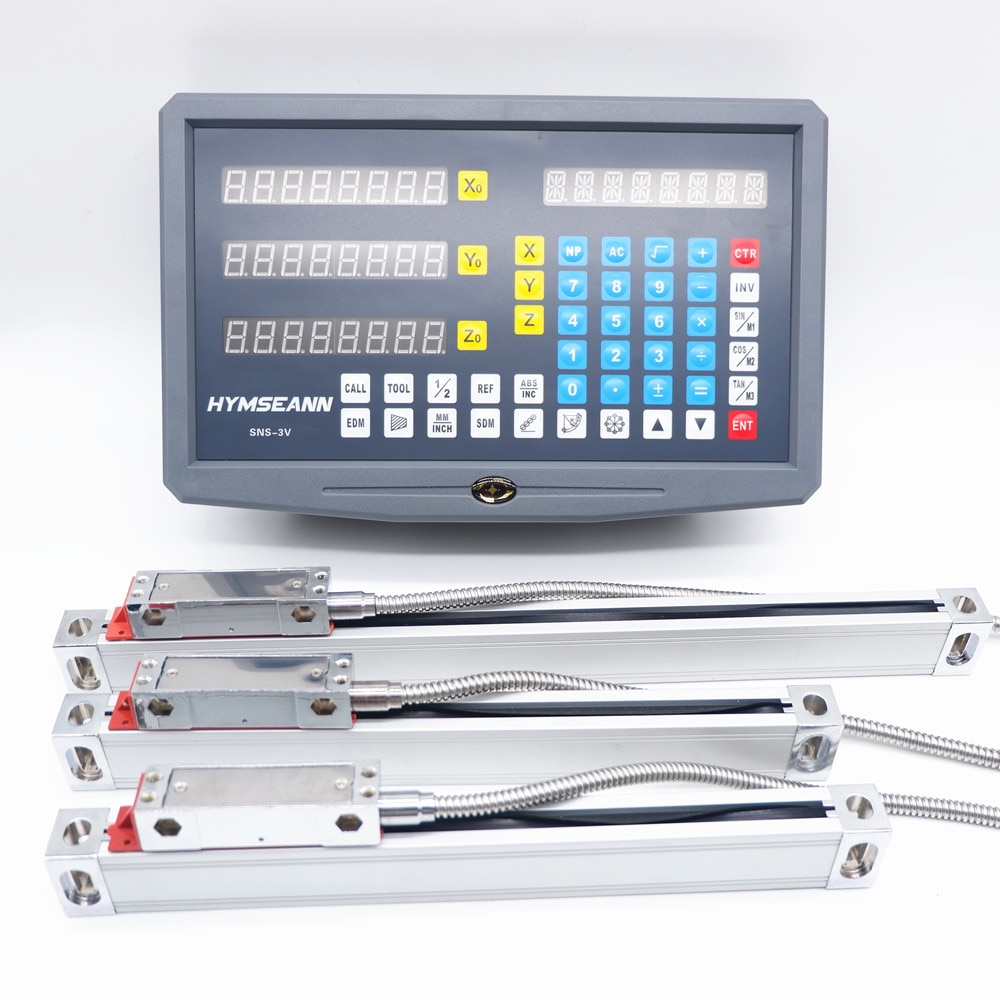

New SNS-3V Complete Milling Lathe Machine DRO Digital Readout Kit AC110V/220V Display and 3 Pieces 0-1000mm Linear Scale Encoder

Package includes:

)  0.005mm complete kit

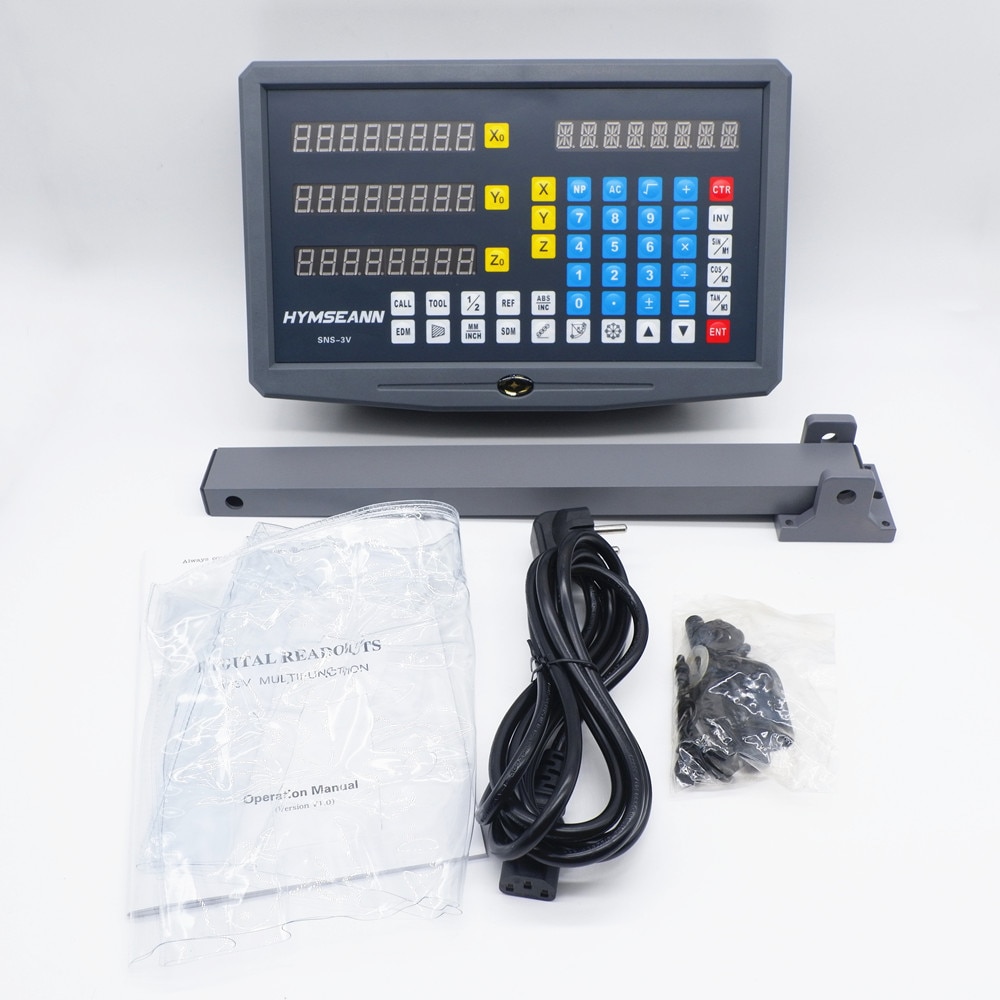

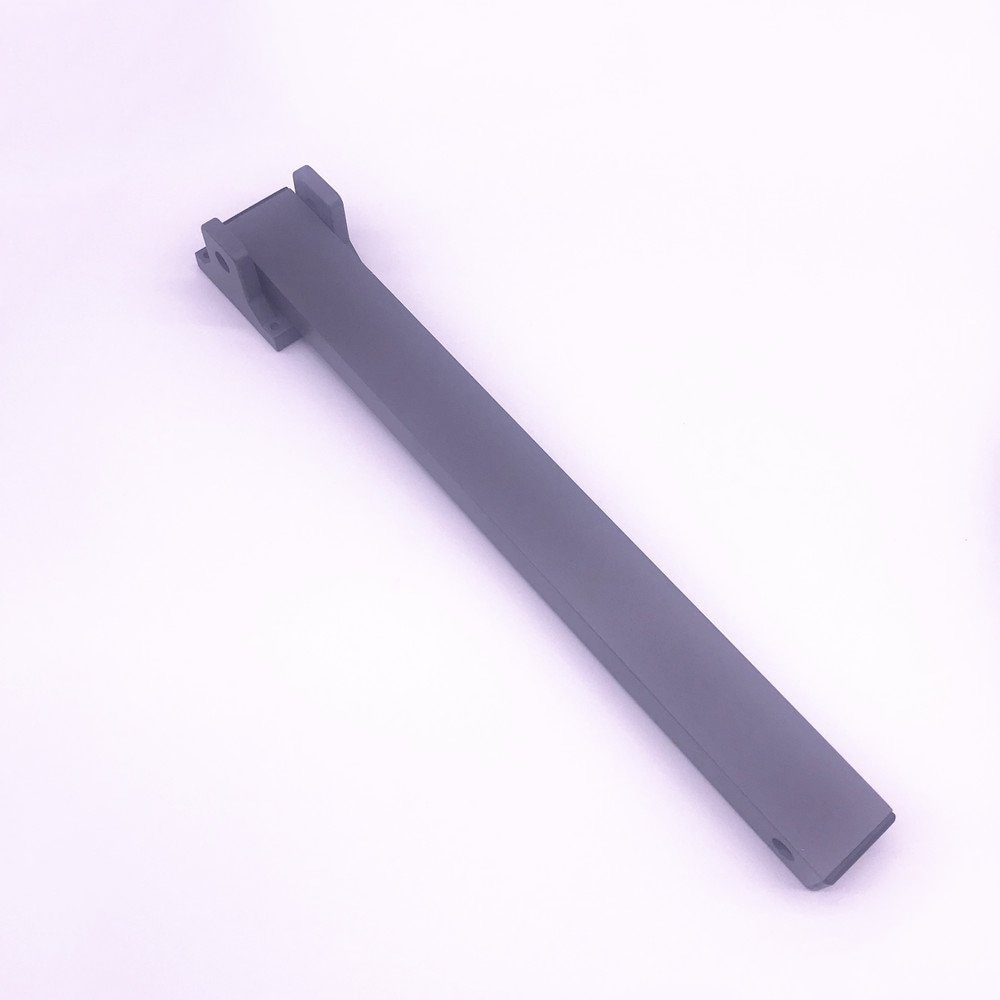

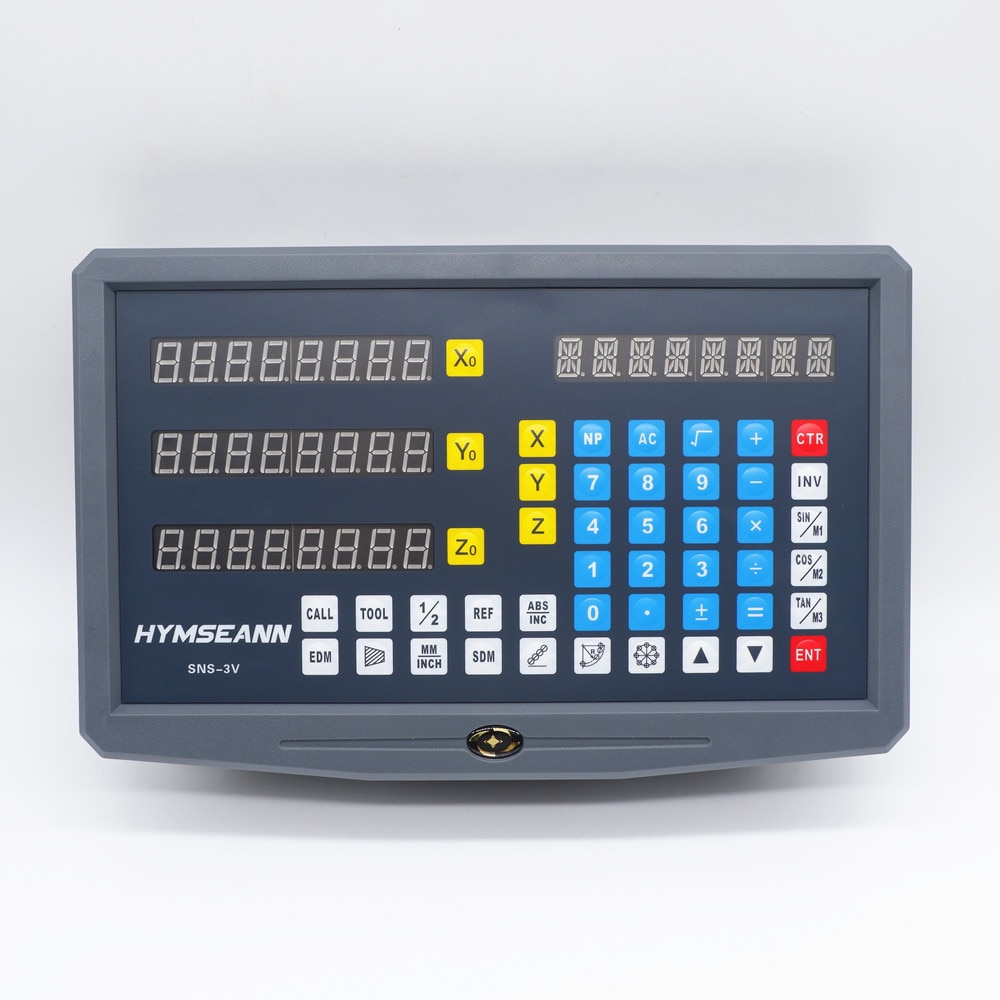

1. 1 piece SNS-3V 3 axis display(with user manual, mounting arm, screw bag)

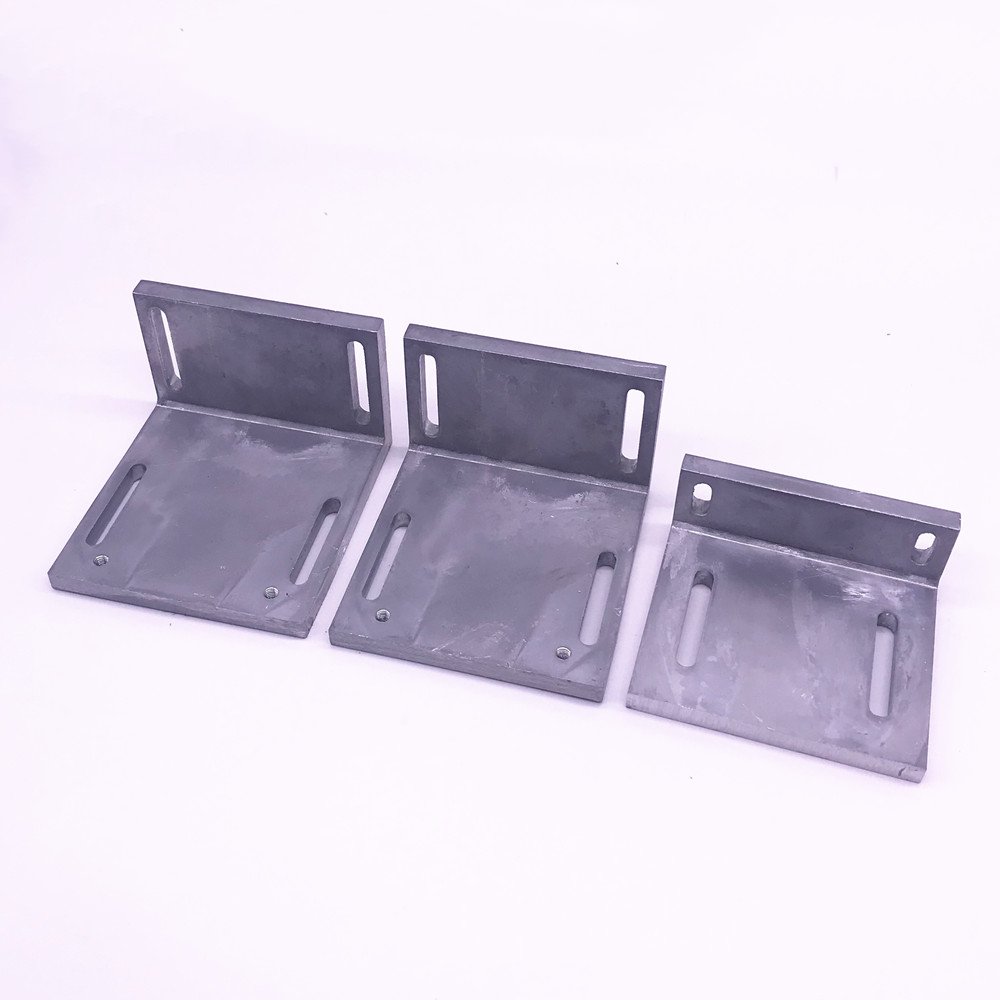

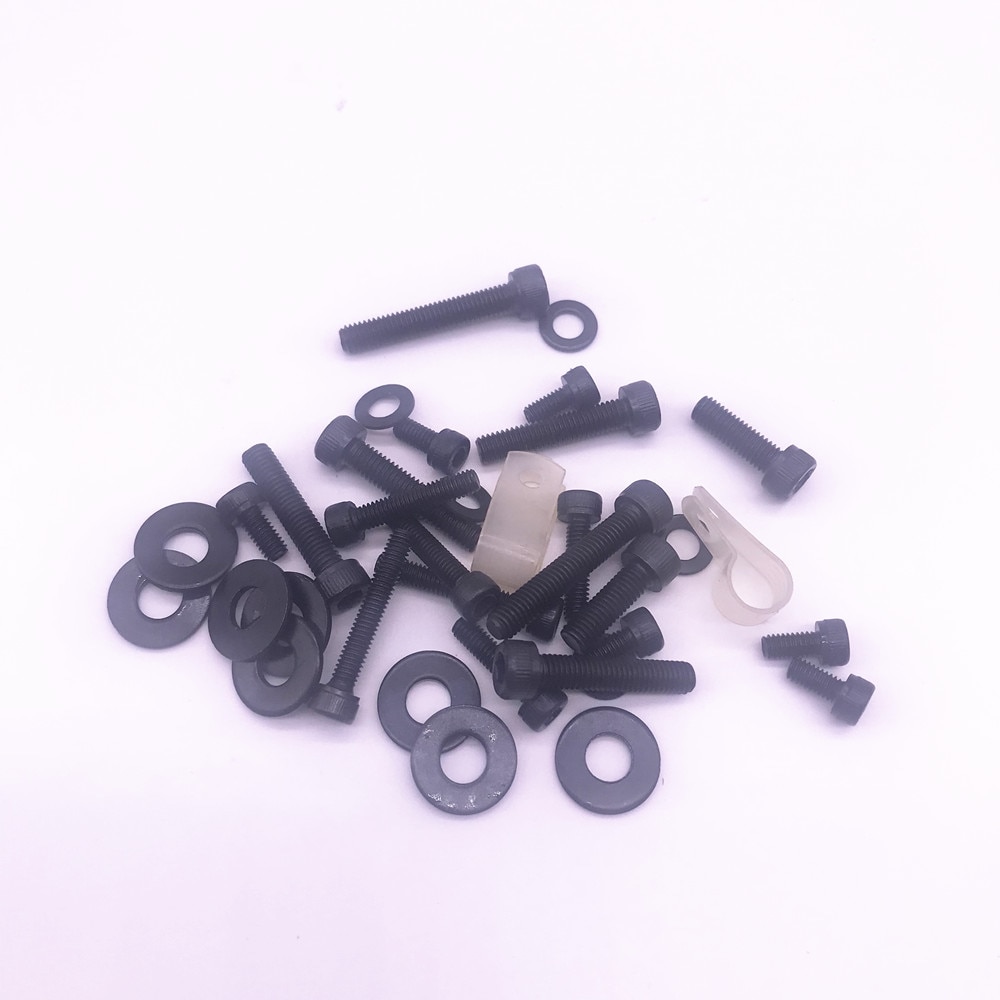

2. 3 pieces 0.005mm linear scales (with covers, mounting bracket, screw bag)


)  0.001mm complete kit

1. 1 piece SNS-3V 3 axis display(with user manual, mounting arm, screw bag)

2. 3 piece 0.001mm linear scales (with covers, mounting bracket, screw bag)


)  SNS-3V display

1. 1 piece SNS-3V 3 axis display(with user manual, mounting arm, screw bag)

Purchase Notes
1. You can choose 3 pieces scale within 0-1000mm travel measuring length with 5um resolution.
2. After ordering please tell us the travel length of scale that you need.
DRO Specification
The digital readout(DRO)in SNS series is a high precision instrument that can be used on lathe,grinding machine,milling machine,boring machine,EDM etc.
Product Features
English language display
Self-motion middle parted function
Metric/imperial conversion function
Absolute/relative counting transformation function
1000 groups of zero memory function
Function calculator operation function
Arc surface processing function
PCD function
Cant processing function
PLD function
Machine tool error compensation function
EDM function(option with extra)
Function
1.zero clearing
2.reset
3.mm/inch mode
4.ABS/INC coordinate conversion
5.200sets sub datum
6.power off Memory;
7.center of 1/2
8.liner error compensation
9.sleepping mode
10.Clear 200 sets Sdm datum;
11.ABS/INC mode
12.calculator
13.drilling of circumference
14.drilling of oblique line
15.machining of inclined plane
16.machining of circular arc
17.lathe function(match)
18.Rectangular lumen gradual processing
19.digital filtering
20.vibration filtering
21.R/D fucntion
22. Y+Z function

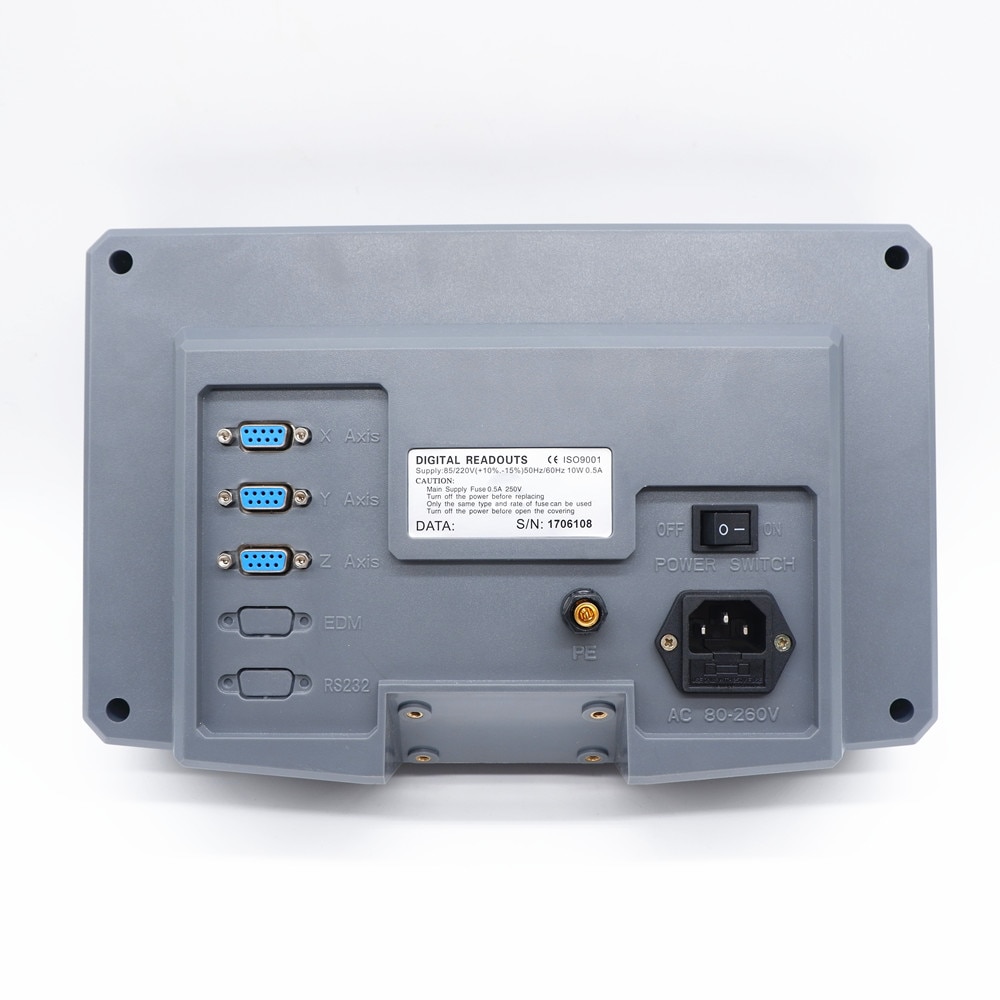

Techincal Parameters
1.Voltage range:AC 85V-250V/50Hz-60hZ
2.Power consumption:25VA
3.Coordinates:1/2/3/4
4.Display:8-bits digits display
5.Input signal: TTL square
6.Input signal frequency: 100KHZ
7.Reading resolution: 10um,5um,2um,1um,0.5um

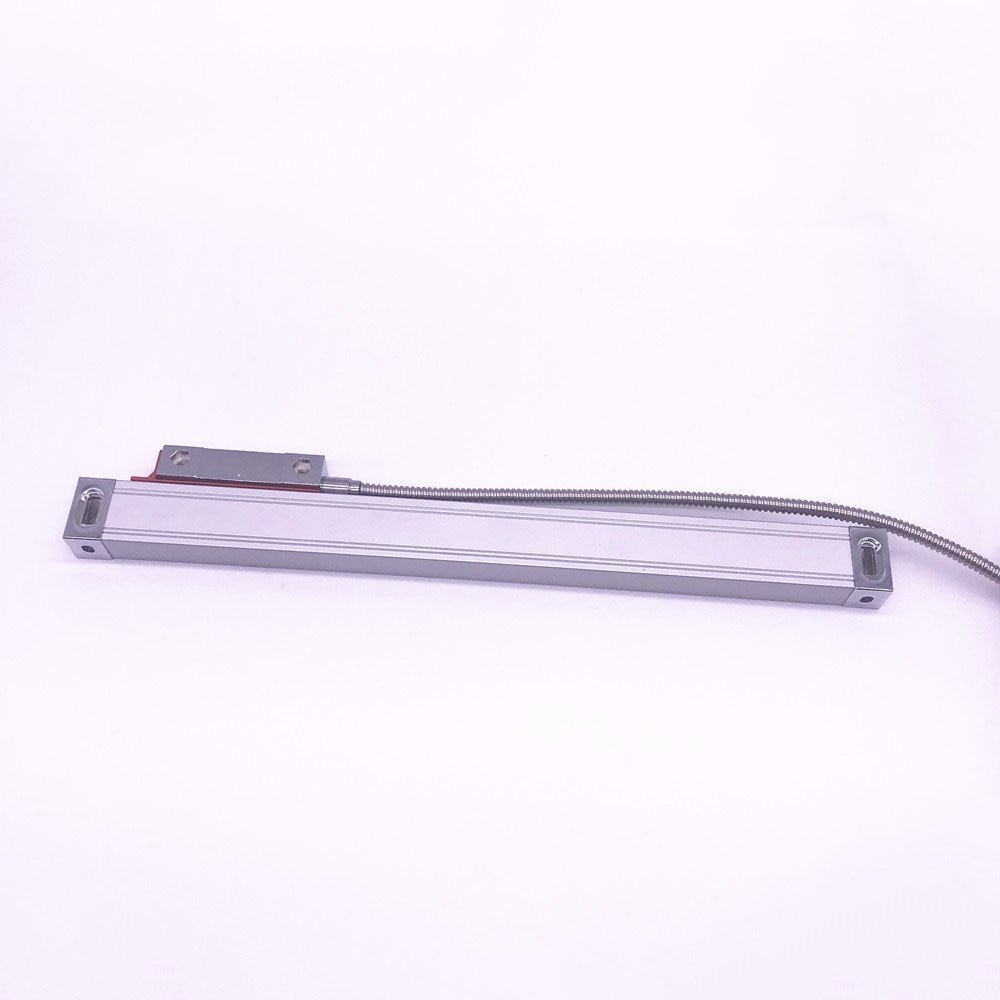

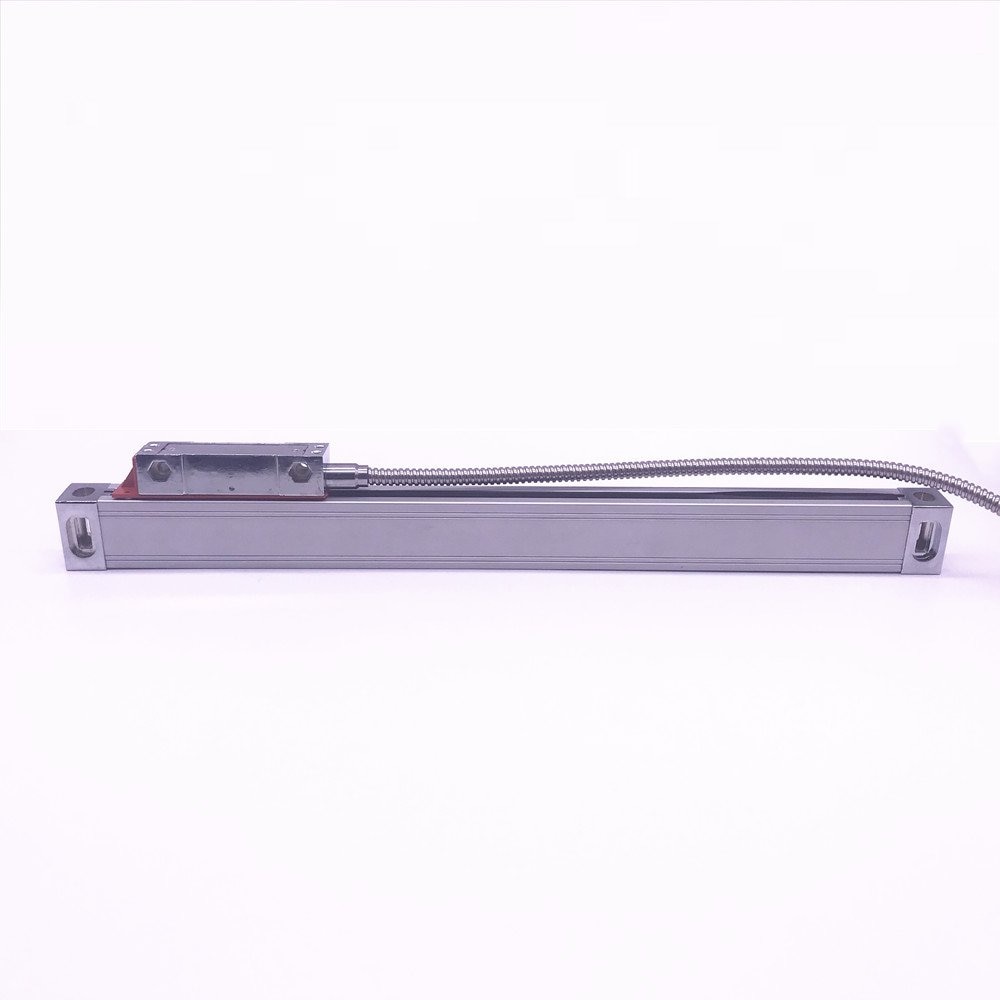

Linear Scale Specification
Parameter
Product name:precision glass grating lenear transducer
Resolution: 0.005mm / 0.001mm
Cross section:21mm*33mm
Output signal:TTL(RS422 option)
Input voltage:DC 5V +/-5%
Available measuring distance:0-1000mm
Overall length: available measuring distance + 142mm
Working speed:60m/min
Working temprature:0-50
Cable length:2.5m-3m(longer option)

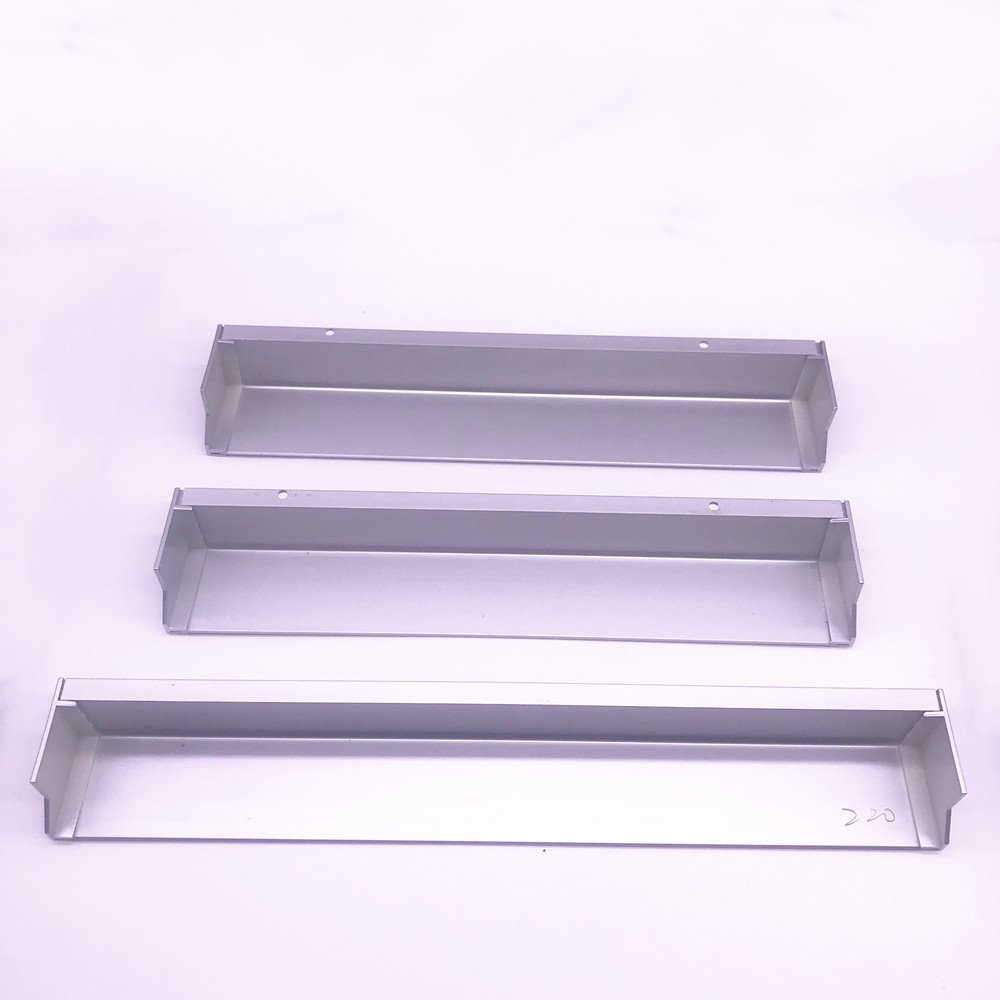

Accessories:aluminum protective cover/L connection board/screws bag
There is slim scale 20mm*28mm option, please contact seller if need or leave a message after placing order.

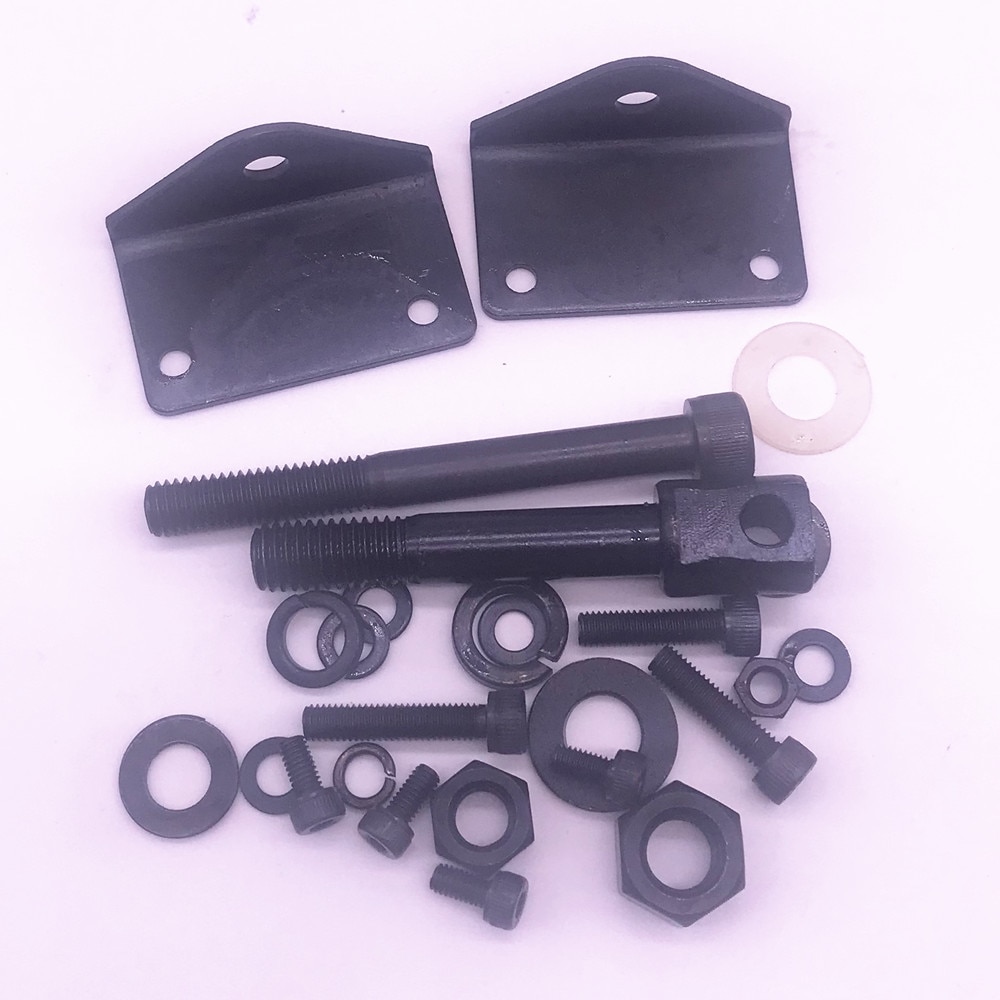

Installation parts

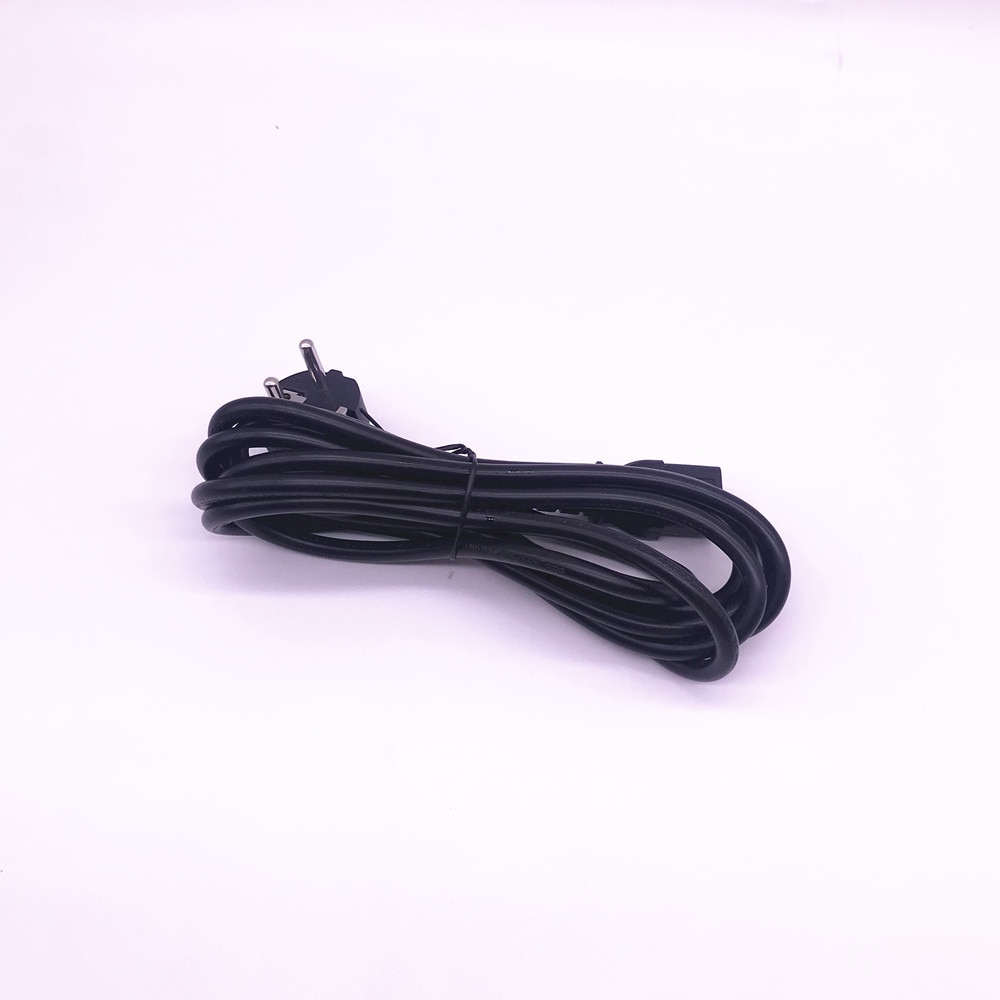

UK, US, EU, AU plugs option
Shipment
When you place an order, plase choose a shipping method and pay for the order including the shipping fee (except free shipping). We will send the items within the delivery time once your payment is completed.
We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We wiil not refund charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

Returns
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are intheir original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.

Warranty
We offer the1-month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

Feedback
Your satisfaction and positive feedback is very important to us. Please leave feedback and 5 stars if you are satisfied wiht our items and services.
If you have any problems with our  items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.




  • Model Number: SNS-3V
  • Brand Name: HYMSEANN
  • Certification: CE
  • Origin: Mainland China
  • Prodcut name: Milling Lathe Machine DRO kit
  • Application: lathe, milling, drill, CNC machine
  • Voltage range: 110V-240V/50-60HZ
  • DRO reading resolution: 0.5um, 1um, 2um, 5um, 10um
  • Scale Resolution: 0.005mm / 0.001mm
  • DRO acceptable input: TTL EIA-422
  • Scale output: DC5V TTL(EIA-422 option)
  • Place of Origin: China
  • Warranty: 1 year
