Waterproof Metal Rfid Access Control Keypad With 1000 Users 125KHz Card Reader Keypad Key Fobs Door Access Control System
5.0 (1 votes) | 20 orders
Price:
US $65.90 - 77.96
/ piece
Discount Price:
US $
62.23 -
73.84
/ piece
-6%
- Color
-
-
Features:
High quality and high security
Metallic case for better protection
Support 1000 standard users
Support entry modes : Password Only / ID Card Only / Password + ID Card
Can add card number and delete card number as your requirement
Classical appearance with useful function
Alarm function
With lock relay output, secure / normal Mode, NO / NC output
Built-in bell button can connect a external bell
Designed for home and office
Built-in proximity card reader (125KHZ ASK modulation)
Built-in keypad for PIN code entry
Sensitively and response quickly
Auxiliary input & auxiliary output
8 Auxiliary Modes including : door ajar, forced door, shunt, door monitor, normal / secure
Internal buzzer
2 status / programming interface LED'S
2 modes of operation : normal mode, secure mode
3 user levers : normal user, secure user, master user
Code search feature that helps make maintaining user codes easier
Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies
Programmable siren time
Programmable lock strike release time
Specifications:
Input Voltage : | DC 12 ~ 18V |
Input Current : | - Standby : 40mA (not including attached devices) |
Frequency : | 125kHz |
Read range : | 65mm |
Modulation : | ASK at 125kHz |
Compatible Cards : | ALL 26-bit EM cards |
Operation Temperature : | 0°C ~ 63°C |
Dimension : | - Approx. 76 (W) x 120 (H) x 27 (D) mm |
Net Weight : | Approx. 450g |
Lock Strike Relay : | 5A |
Auxiliary Relay : | 5A |
LockStrike Control Output : | Collector open output (25mA) |
Auxiliary Control Output : | Collector open output (25mA) |
REX : | N.O., dry contact |
Auxiliary Input (In / Monitor) : | N.C., dry contact in |
Monitor Mode : | N.O., dry contact input mode |
Package Included:

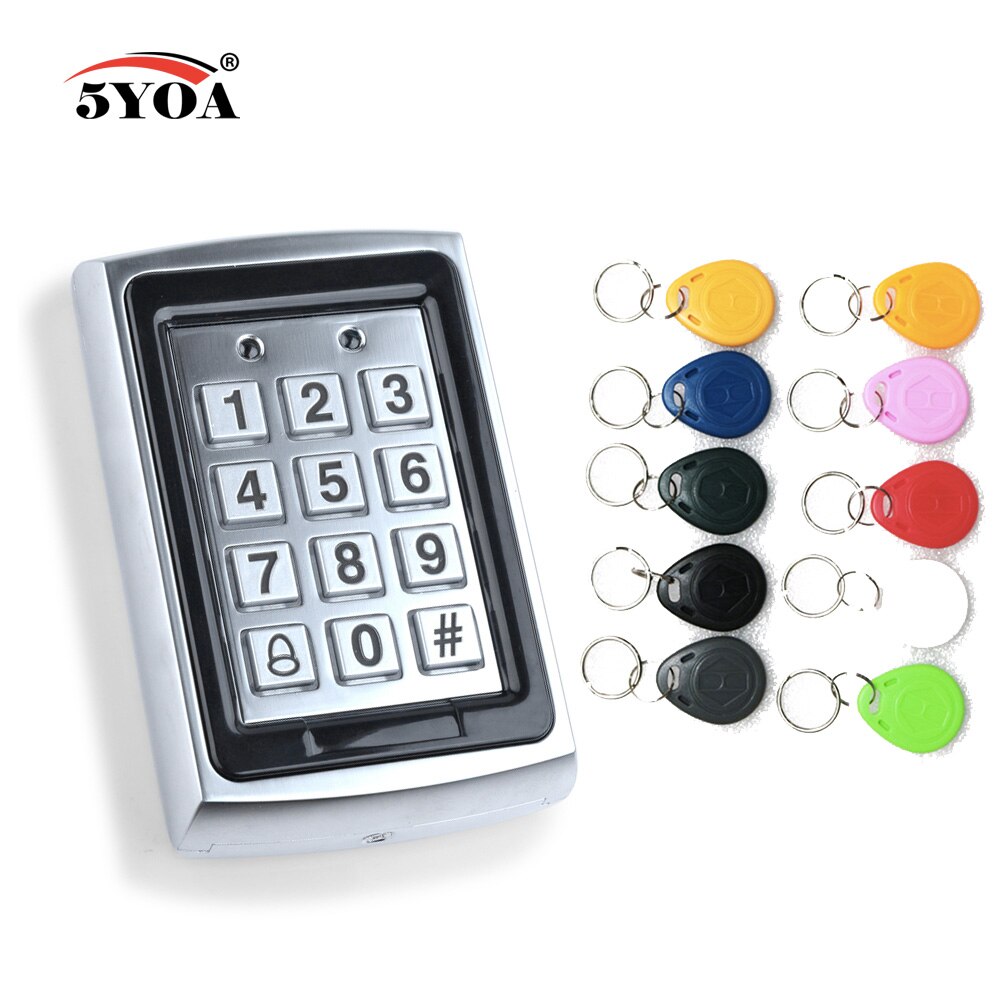

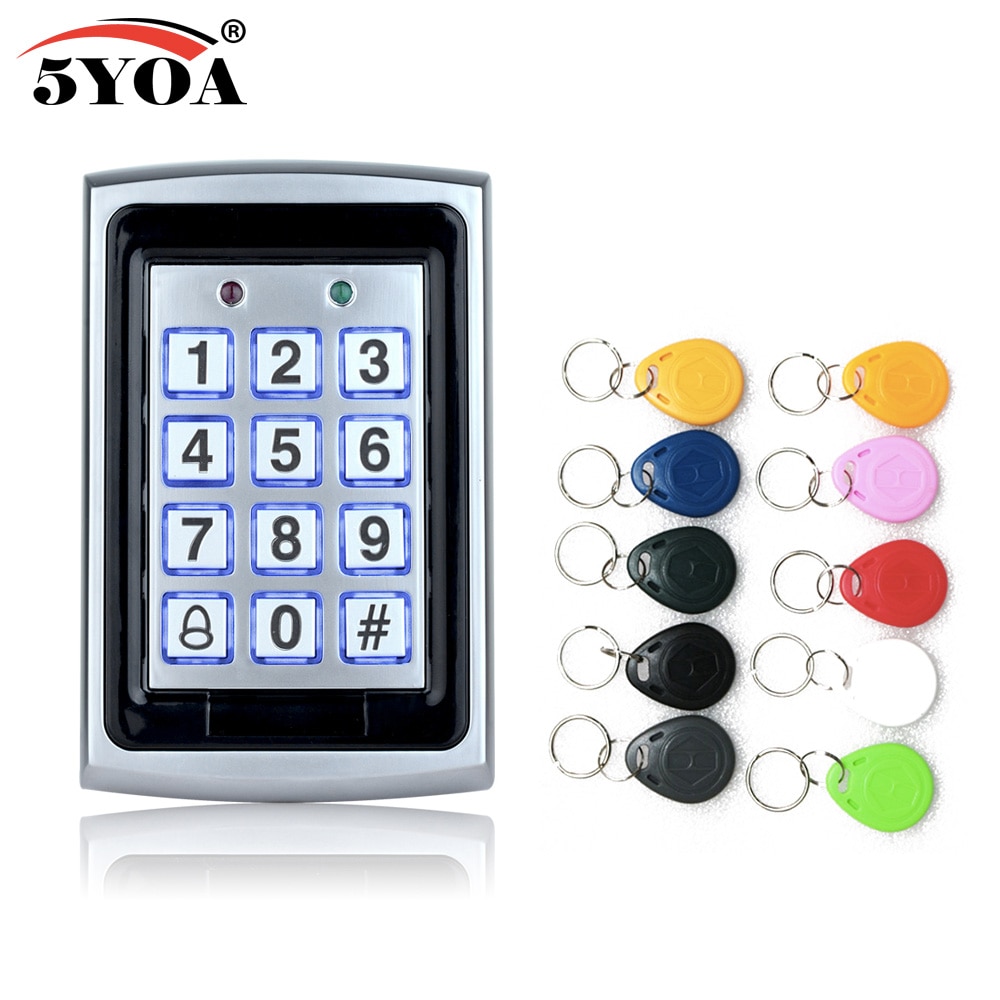

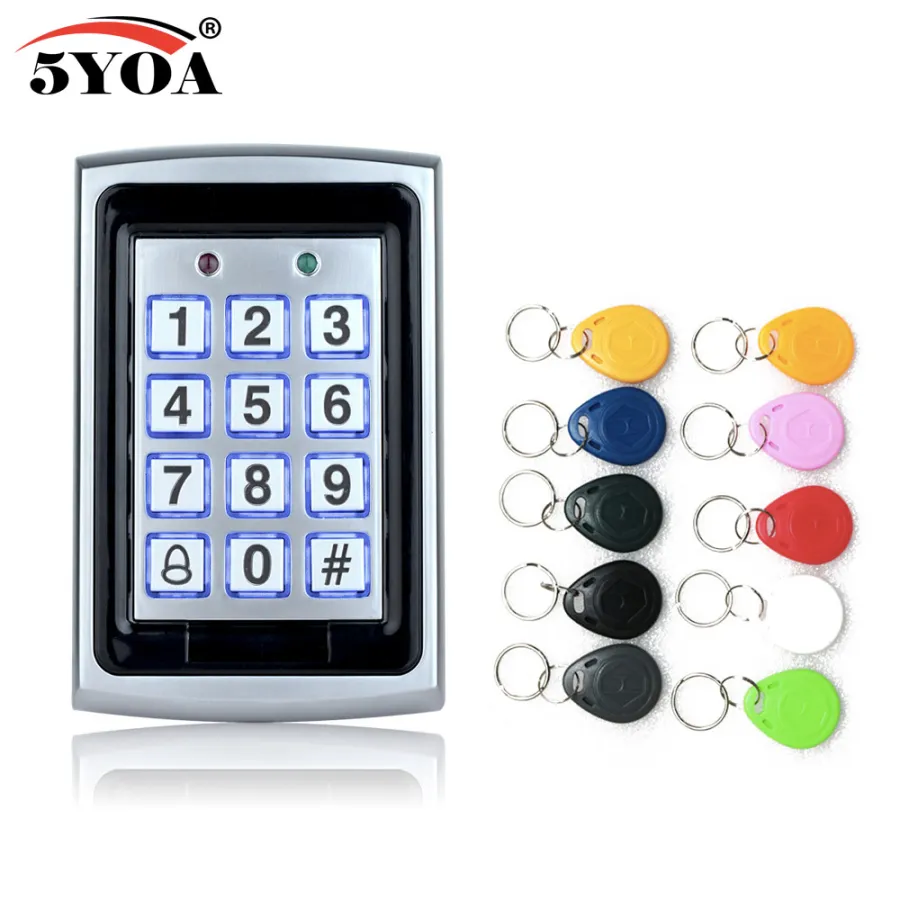

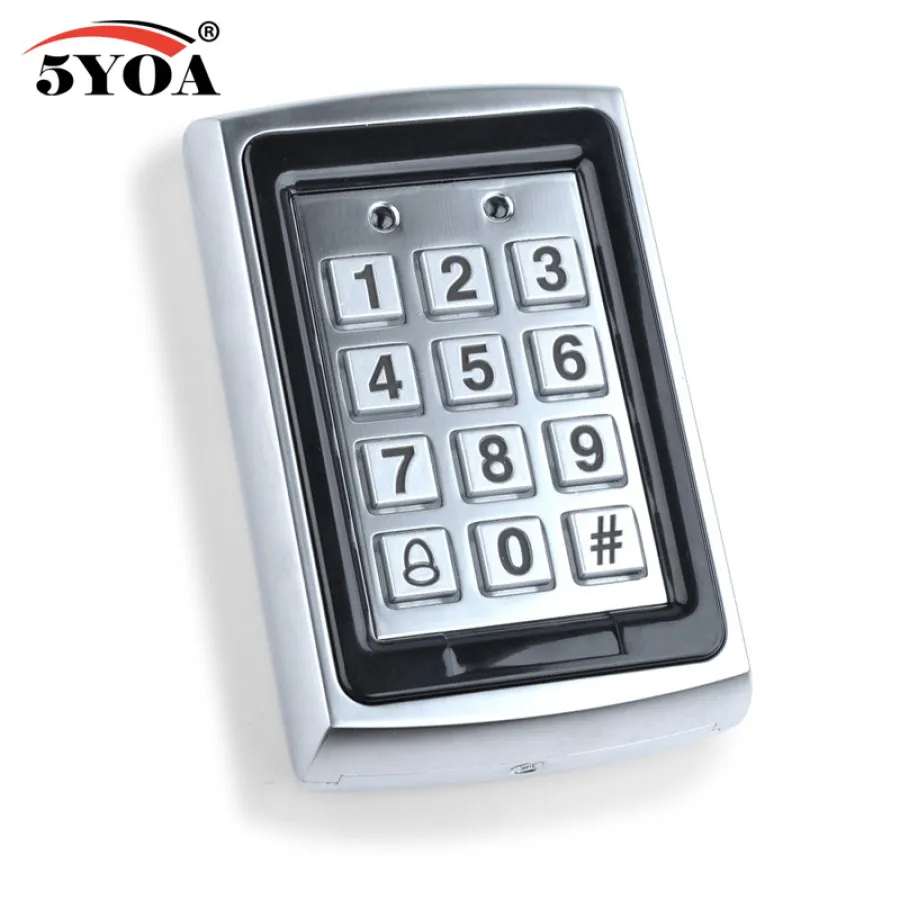

1 x Metal Door Access Control RFID Reader with Keypad
1 x User Manual
Option : 10 x rfid keys (if need customize the color, please leave message to tell us, otherwise, we will send by random)

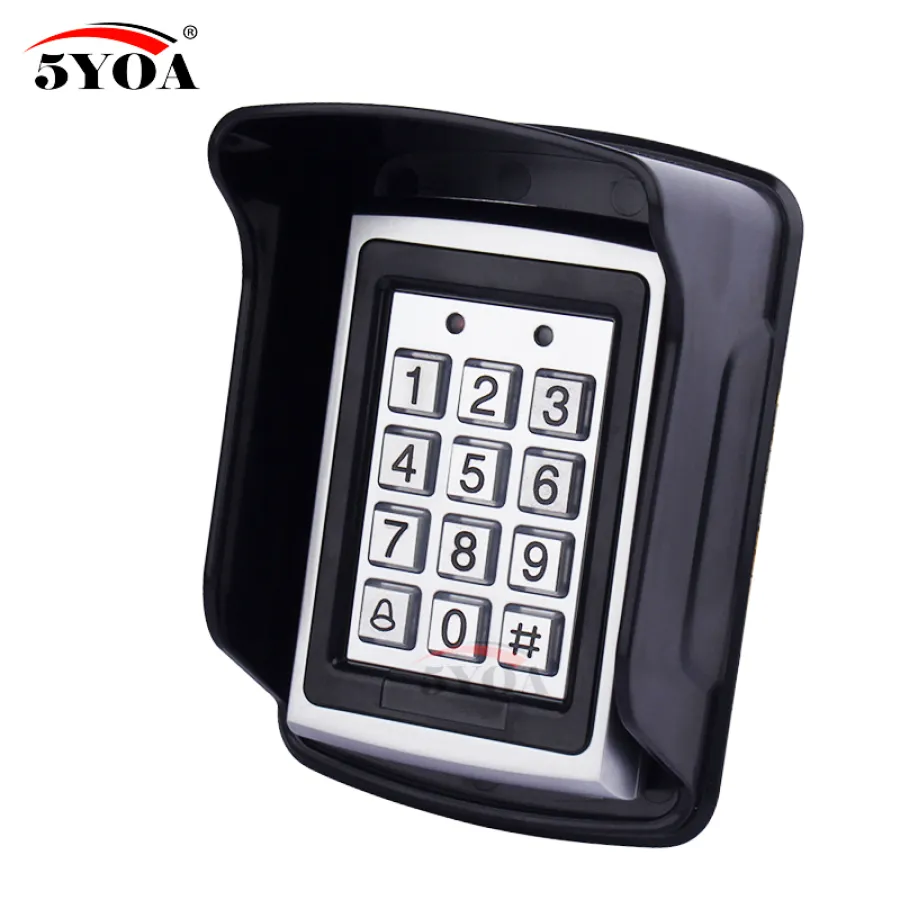

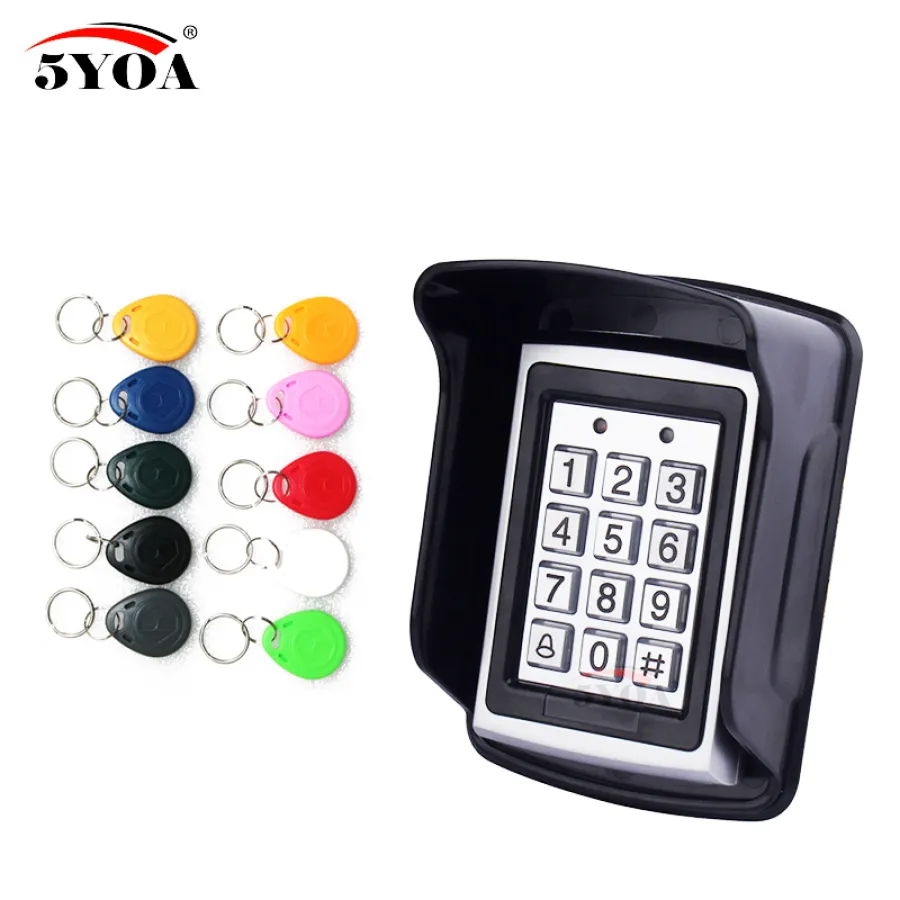

Option : Cover to be more suitable for outside and waterproof
Packaging Details
- Unit Type: piece
- Package Weight: 0.700
- Package Size: 18x6x18
- Brand Name: 5YOA
- Origin: Mainland China
- Model Number: 5YB02-10EM4100TP
- Certification: CE
- Smart home platform: other
- Choice: yes
- semi_Choice: yes
